| Product Type | Inspection camera for Videolnspector base unit |
| Brand | Laserliner |
| Model | InspectorCamera 3DM |
| Camera head diameter | 6 mm |
| Probe protection type | IP68 (1 m for 60 min) |
| Number of LED bulbs | 8 |
| Camera resolution | 1280 x 720 pixels |
| Field of view (FOV) | 78° |
| Depth of field (DOF) | 3 to 8 cm |
| Probe diameter | 6 mm |
| Probe length | 1 m |
| Camera head length | 20 mm |
| Min. bending radius of probe | 150 mm |
| Camera head orientation | Up to 160° via control lever |
| Resistances | Diesel, gasoline, motor oil, AdBlue®, ethanol, salt water (28% salt) |
| Working temperature | 0°C to 45°C |
| Storage temperature | -10°C to 60°C |
| Max. relative humidity | 80% RH (non-condensing) |
| Weight | 135 g |
| Dimensions (L x H x D) | 1050 mm x 42 mm x 42 mm |
| Power supply | Via Videolnspector base unit |
| Care and cleaning | Clean with a slightly damp cloth; avoid cleaning agents, abrasives or solvents |
| Safety | Do not use for medical examinations; avoid contact with chemicals, electrical voltage, hot or moving parts; observe EMC instructions |
| LED risk groups | RG 0 (no risk to eye and skin) |
| Camera unit replacement | Possible by unlocking; be careful not to damage the probe |
| Compliance | EU and UK; recycling according to WEEE directives |
Frequently Asked Questions - InspectorCamera 3DM Laserliner
User questions about InspectorCamera 3DM Laserliner
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Inspection camera in PDF format for free! Find your manual InspectorCamera 3DM - Laserliner and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. InspectorCamera 3DM by Laserliner.
USER MANUAL InspectorCamera 3DM Laserliner
Laserliner
!
https://packd.li/ll/aom/in
Laserliner
!
Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the device.
Intended use
The InspectorCamera 3DM is a camera unit for connection to the base Videolinspector unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.
General safety instructions
- The device must only be used in accordance with its intended purpose and within the scope of the specifications.
- This product and its accessories are not toys. Keep out of reach of children.
- The camera head can heat up considerably during use and lead to damage to sensitive inspection objects.
- The structure of the device must not be modified in any way.
- Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
- The device must no longer be used if one or more of its functions fails, or if the housing or connecting cables are damaged or the battery charge in the base unit is low.
- The camera head is not acid-resistant or fireproof.
- It is absolutely vital to ensure that the InspectorCamera 3DM does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
- To preserve the IP 68 rating, the camera cable may only be immersed up to a distance of 8cm from the housing of the base unit.
- The InspectorCamera 3DM must not be used for medical examinations / examining people.
- Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
- The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.
Safety instructions
Using artificial, optical emission (OStrV)
LED outlet
- When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.
Safety instructions
Dealing with electromagnetic radiation
– The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

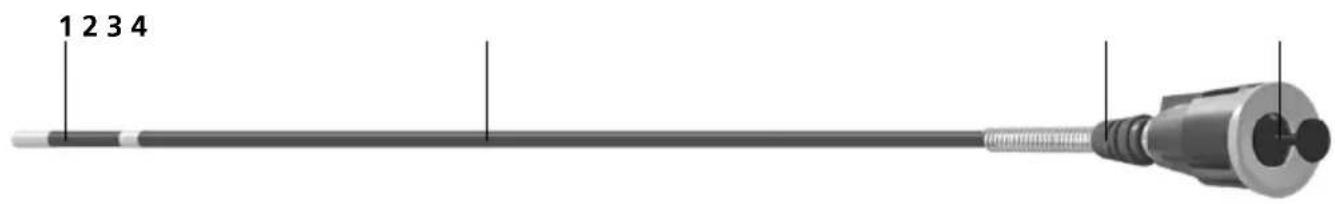

1 Camera head
2 Camera probe
3 Camera unit lock
4 Control lever for moving the camera head

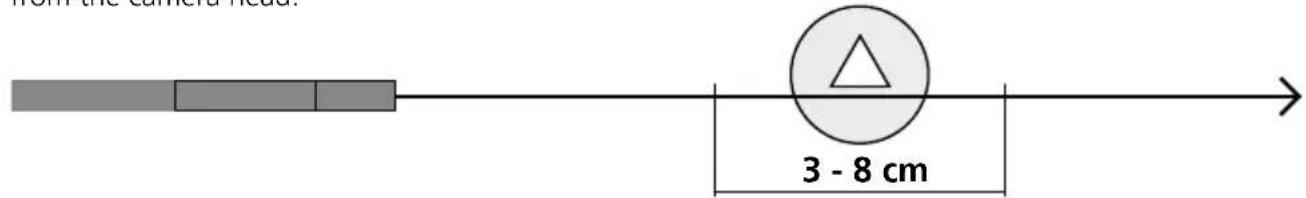

1 Focal depth
The camera on the InspectorCamera 3DM delivers sharp images in a range between 3 and 8 cm from the camera head.

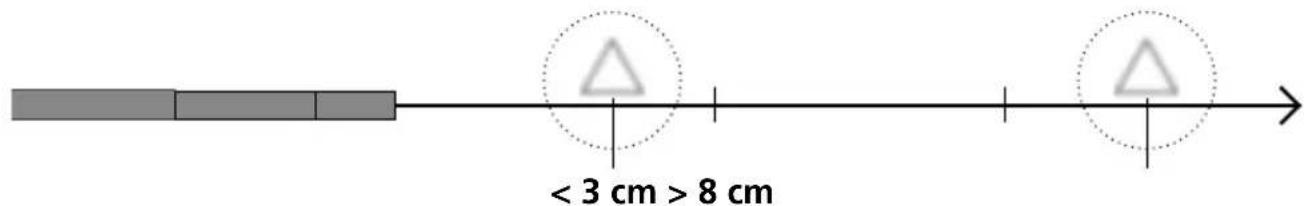

Objects well beyond the focus range may appear blurred.

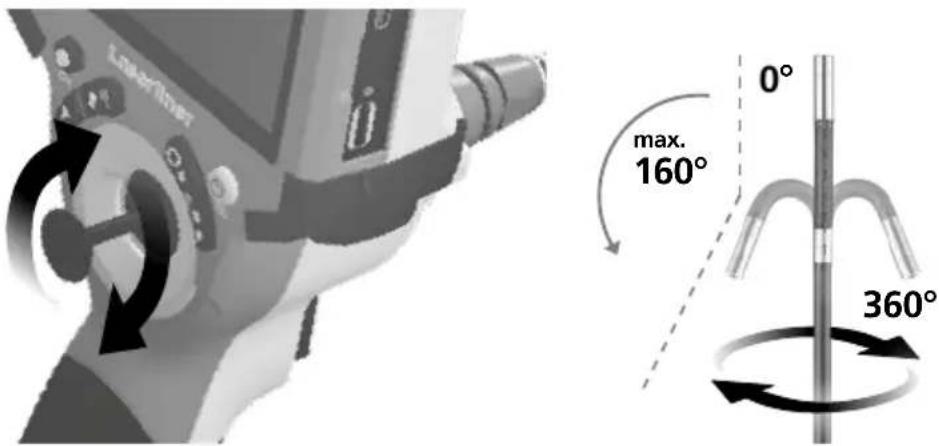

2 Camera head adjustment
The factory setting for the maximum angular position of the 3D camera head is 160^ in new condition, with a tolerance of ±5^ . To achieve this, the camera probe must be totally straight, meaning without any unnecessary curves or bends. The maximum angular position may be reduced by normal mechanical wear over the lifetime of the product.
The movable 3D camera head must not be subjected to heavy mechanical loads when in an angled position. Observe the maximum angular position, minimum bending radius and maximum traction force to prevent damage to the 3D camera head. Do not snatch or push the camera probe with a jerky movement. The camera head must never be moved by hand when in use; always use the control lever instead. When rolled up, the camera probe must not be moved either by hand or by the control lever.
This warranty does not cover damage to the 3D camera head or probe caused by incorrect handling.

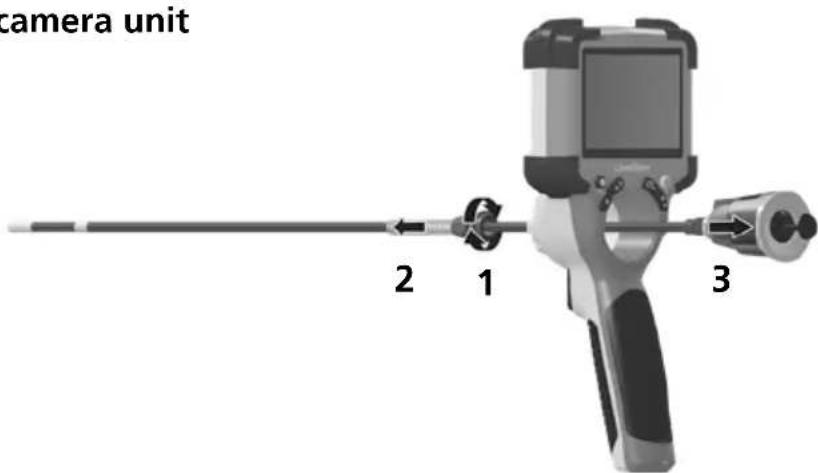

B Replacement of the camera unit
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.
Technical data
Subject to technical alterations. 24W36
| Camera head diameter 6 mm | |
| Camera probe protection class IP 68 (immersion depth 1 m, 60 min.) | |
| Number of LED lights 8 | |
| Camera resolution 1280 x 720 pixel | |
| Field of view (FOV) 78° | |
| Depth of focus (DOF) 3 ... 8 cm | |
| Probe diameter 6 mm | |
| Probe length 1 m | |
| Length camera head 20 mm | |
| Probe min. bending radius 150 mm | |
| Features | Resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol, brine (salt content 28%) |
| Operating conditions | 0°C ... 45°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level |
| Storage conditions -10°C ... 60°C, | max. humidity 80% rH, no condensation |
| Weight 135 g | |
| Dimensions (W x H x D) 1050 mm x 42 mm x 42 mm | |
EU and UK directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU and the UK.
This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Electrical devices and packaging do not belong in household waste. Look for information on local disposal facilities and note the relevant disposal and safety information at the collection points.
