Product type	Indoor motion-sensor lamp with HF sensor
Brand	Steinel
Model	RS D2 S
Dimensions (L × H × D)	300 × 300 × 65.5 mm
Power supply	220–240 V, 50/60 Hz
Power consumption (P_on)	8.80 W
Luminous flux	886 lm
Luminous efficacy	101 lm/W
Color temperature	3000 K (warm white)
Color rendering index (Ra)	82
Average lifespan (L70B50 at 25°C)	> 60,000 h
Detection technology	HF 5.8 GHz, 360° angle (160° aperture)
Range	2.50 m to 8 m (adjustable)
Time delay (light duration)	5 s to 15 min (adjustable)
Trigger threshold (brightness)	2 to 2000 lx (adjustable)
Nightlight function	Yes (10% power, activatable / deactivatable)
Manual override function	Yes (4 h via mains switch)
Protection rating	IP20
Protection class	II
Standby power consumption (PSB)	0.39 W
Operating ambient temperature	-10 °C to +40 °C
Housing material	Plastic
Manufacturer warranty	3 years (excluding wear parts, replacement possible)
Repairability / spare parts	Light source non-replaceable – replace complete luminaire
Care and cleaning	Disconnect power before cleaning. Use a soft, dry cloth. Do not use harsh chemicals.
Safety	Disconnect power before any work. Installation must comply with NF C 15-100 standard.

Frequently Asked Questions - RS D2 S STEINEL

How to adjust the detection range?

Turn the range adjustment knob (g) on the housing. Minimum position = 2.50 m, maximum = 8 m (for mounting at 2.5 m height).

What to do if the lamp does not turn on at all?

Check that the mains switch is ON, the fuse has not blown, and the power cable is not cut. Also check the trigger threshold setting (h) – in full daylight, set it to daytime mode (⚙).

How to adjust the light duration (time delay)?

Use the Time delay knob (f). It allows setting the after-run time from approx. 5 seconds (min. position) to 15 minutes (max. position). Each new movement restarts the timer.

Can I use a dimmer with this lamp?

No, connecting to a dimmer may damage the luminaire. Use only a standard on/off switch.

The lamp turns on without detected movement – why?

This can be due to movement behind a wall or a small nearby object. Ensure the lamp is firmly mounted (no vibrations). Reduce the range if necessary. The HF detector penetrates thin partitions.

How to activate the nightlight function?

Set the Nightlight knob (e) to position 0 (nightlight activated). The lamp then lights at approx. 10% power as long as the trigger threshold is reached. Upon movement, it switches to 100% for the set time.

What is manual override and how to use it?

If the device is connected to a mains switch, you can activate manual override by switching the switch OFF then ON twice quickly (within 0.2 to 1 second). The lamp stays on for 4 hours, then returns to detection mode.

Can I replace the LED if it burns out?

No, the light source is not replaceable. If the LED is defective, the complete luminaire must be replaced.

What is the minimum distance to maintain from a WiFi router?

During installation, keep a distance of at least 3 meters between the luminaire and any WiFi router or access point to avoid interference.

Where can I find the declaration of conformity?

The full text of the EU declaration of conformity is available at: www.steinel.de

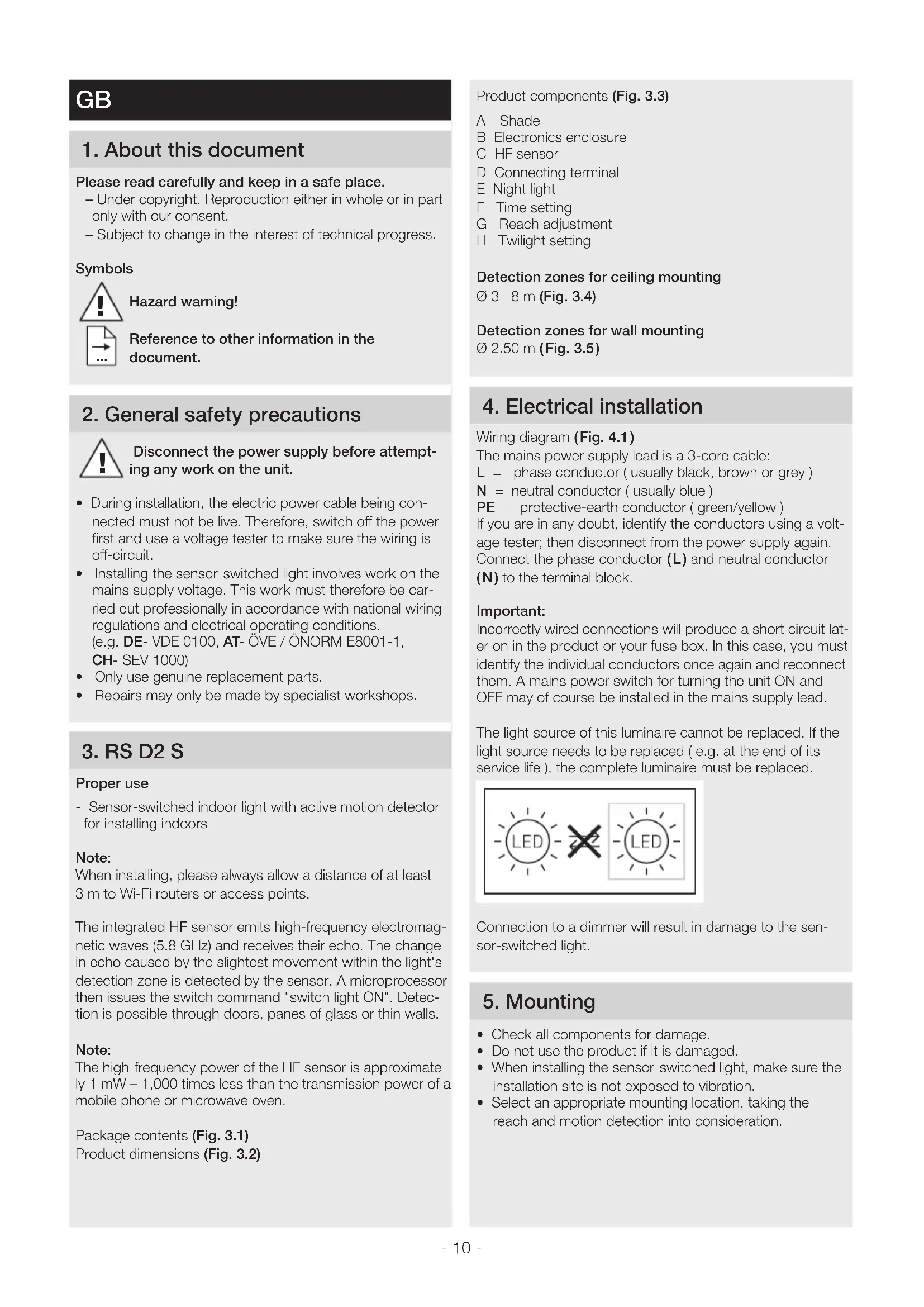

USER MANUAL RS D2 S STEINEL

3D rendering of a metallic square frame with rounded edges and a small logo on the bottom right (no text or symbols on the frame itself)

RS D2 S

GB ..... 10 Follow written instructions!

Simple 3D rectangular frame with rounded corners and a blank center (no text or symbols)

3.2

3.3

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical diagram of a mechanical assembly with a lever mechanism (no text or symbols)

DE

Please read carefully and keep in a safe place.

– Under copyright. Reproduction either in whole or in part only with our consent.
– Subject to change in the interest of technical progress.

Symbols

Hazard warning!

Reference to other information in the document.

2. General safety precautions

Disconnect the power supply before attempting any work on the unit.

• During installation, the electric power cable being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves work on the mains supply voltage. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions.
  (e.g. DE- VDE 0100, AT- ÖVE / ÖNORM E8001-1, CH- SEV 1000)
• Only use genuine replacement parts.
  • Repairs may only be made by specialist workshops.

3. RS D2 S

Proper use

- Sensor-switched indoor light with active motion detector for installing indoors

Note:

When installing, please always allow a distance of at least 3 m to Wi-Fi routers or access points.

The integrated HF sensor emits high-frequency electromagnetic waves (5.8 GHz) and receives their echo. The change in echo caused by the slightest movement within the light's detection zone is detected by the sensor. A microprocessor then issues the switch command "switch light ON". Detection is possible through doors, panes of glass or thin walls.

Note:

The high-frequency power of the HF sensor is approximately 1 mW – 1,000 times less than the transmission power of a mobile phone or microwave oven.

Package contents (Fig. 3.1)

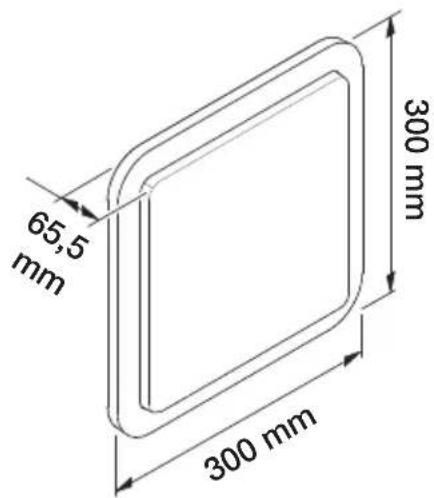

Product dimensions (Fig. 3.2)

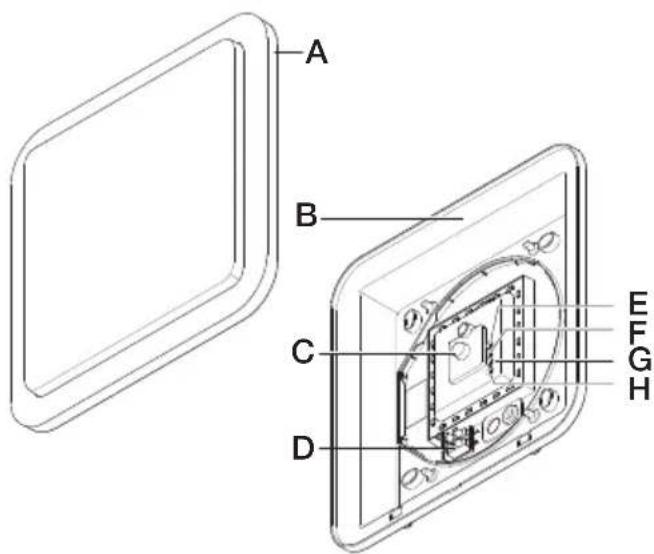

Product components (Fig. 3.3)

A Shade
B Electronics enclosure
C HF sensor
D Connecting terminal
E Night light
F Time setting
G Reach adjustment
H Twilight setting

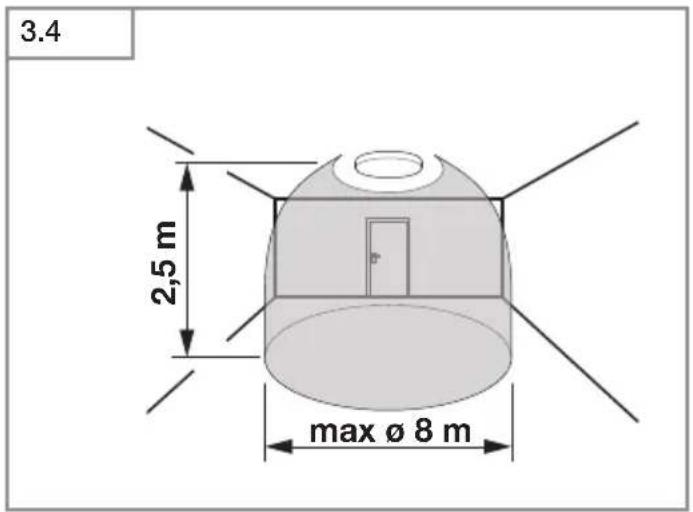

Detection zones for ceiling mounting

∅ 3-8 m (Fig. 3.4)

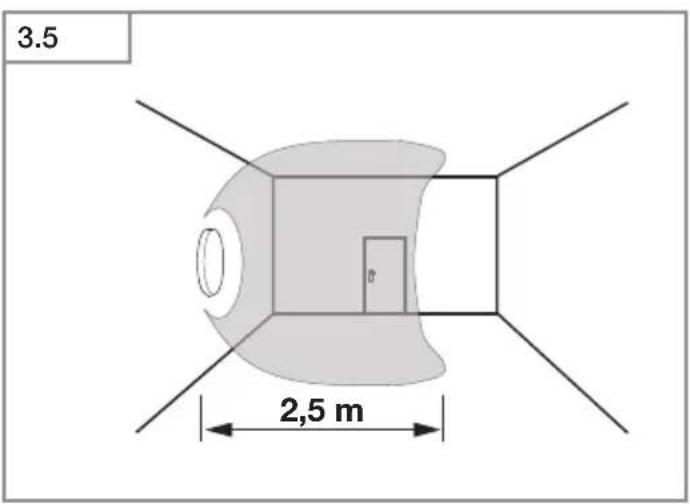

Detection zones for wall mounting

∅ 2.50 m (Fig. 3.5)

4. Electrical installation

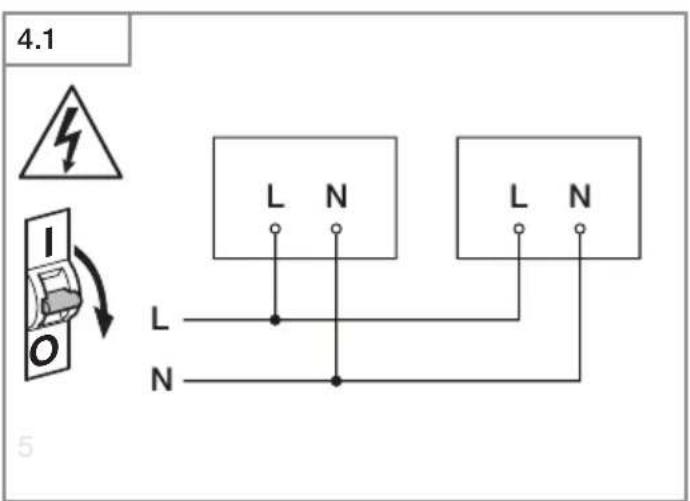

Wiring diagram (Fig. 4.1)

The mains power supply lead is a 3-core cable:

L = phase conductor ( usually black, brown or grey )

N = neutral conductor ( usually blue )

PE = protective-earth conductor (green/yellow)

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again.

Connect the phase conductor (L) and neutral conductor (N) to the terminal block.

Important:

Incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them. A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead.

The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

Connection to a dimmer will result in damage to the sensor-switched light.

5. Mounting

• Check all components for damage.
• Do not use the product if it is damaged.
• When installing the sensor-switched light, make sure the installation site is not exposed to vibration.
• Select an appropriate mounting location, taking the reach and motion detection into consideration.

Mounting procedure

• Switch OFF power supply (Fig. 4.1)

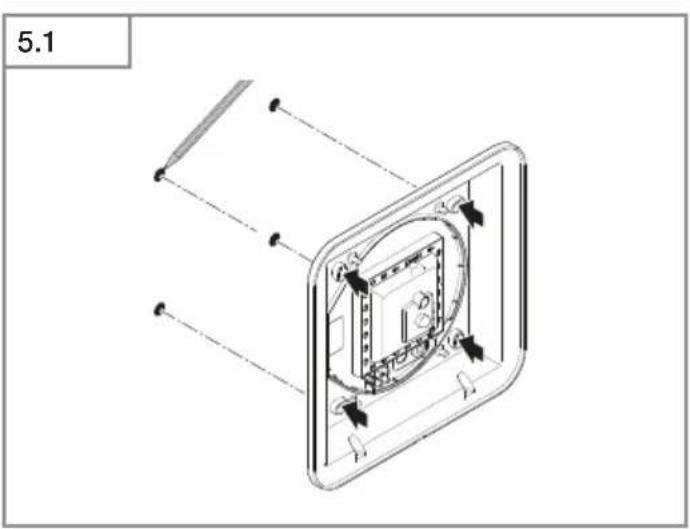

  • Mark drill holes (Fig. 5.1)

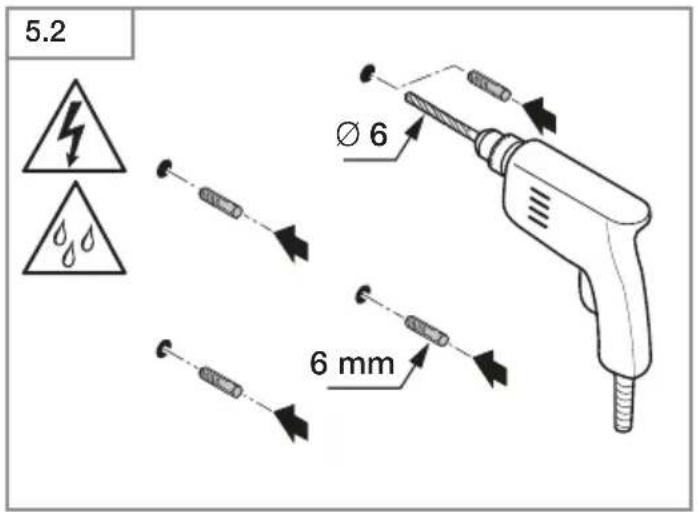

• Drill holes and insert wall plugs (Fig. 5.2)

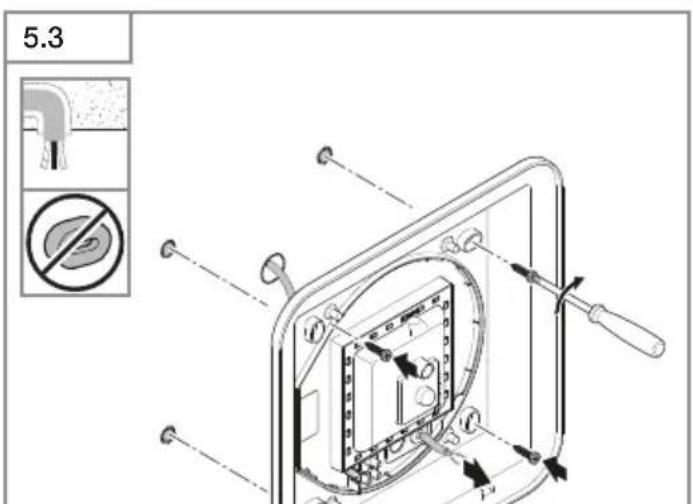

  • Installation with concealed power supply lead (Fig. 5.3)

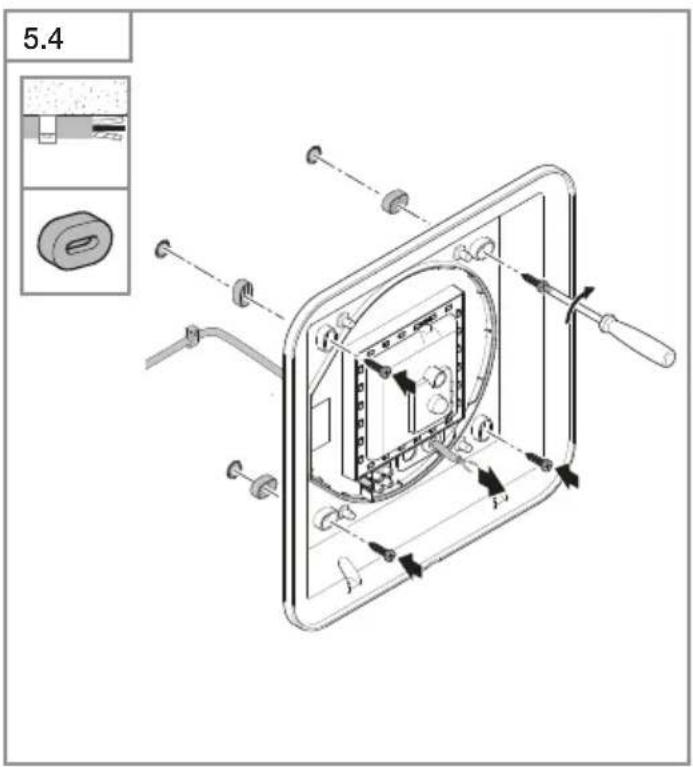

• Installation with surface-mounted power supply lead (Fig. 5.4)

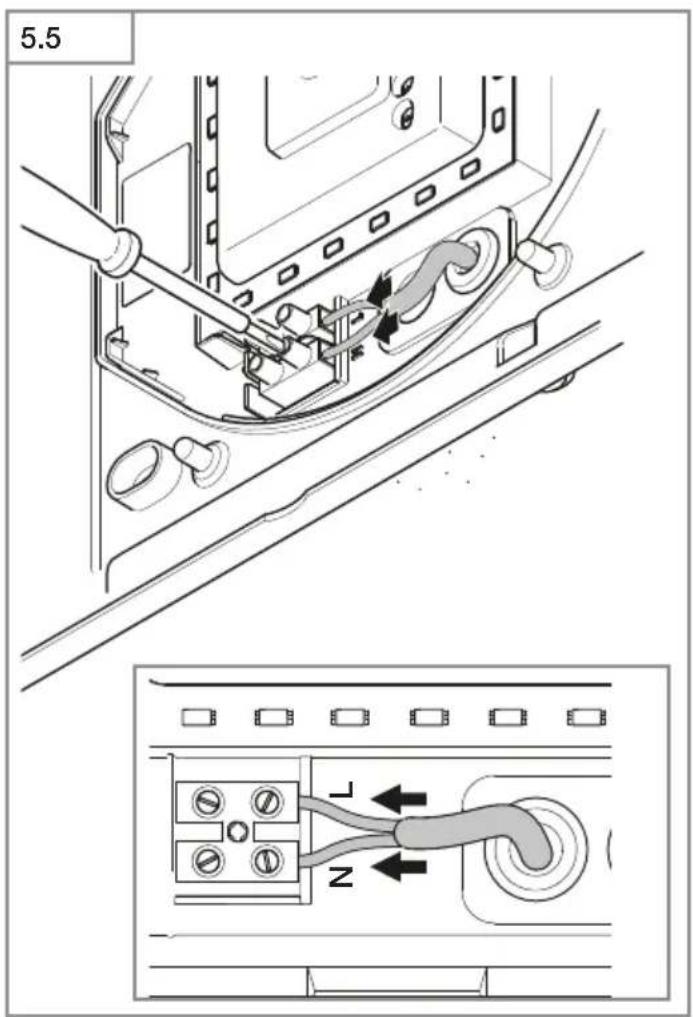

• Connect conductors (Fig. 5.5)

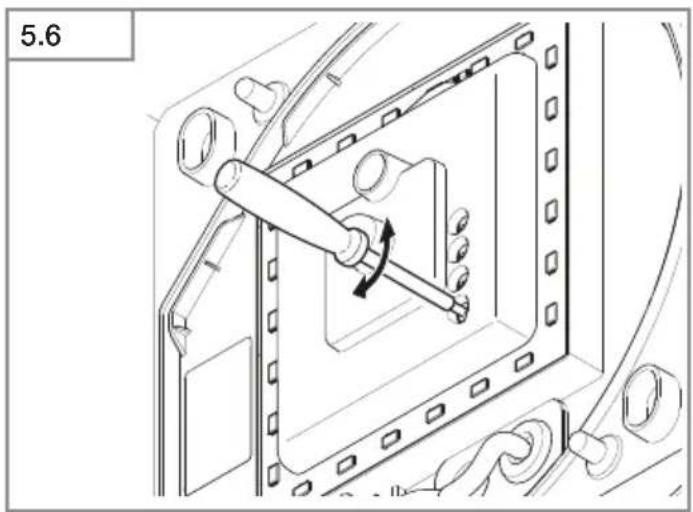

  • Make settings → "6. Functions" (Fig. 5.6)

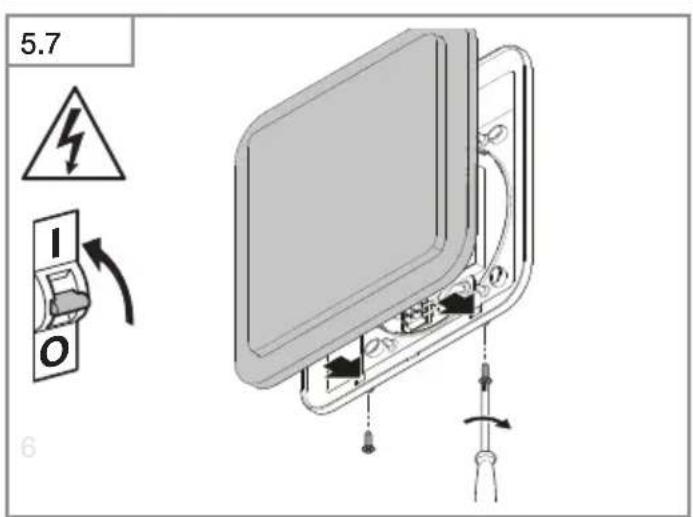

• Fit shade (Fig. 5.7)
• Switch ON power supply (Fig. 5.7)

6. Function

The sensor-switched light can be put into service after mounting the enclosure and connecting to the mains power supply. When putting the light into operation manually at the light switch, the light will switch OFF after 10 seconds for the calibration phase and is then activated for sensor mode. It is not necessary to operate the light switch a second time.

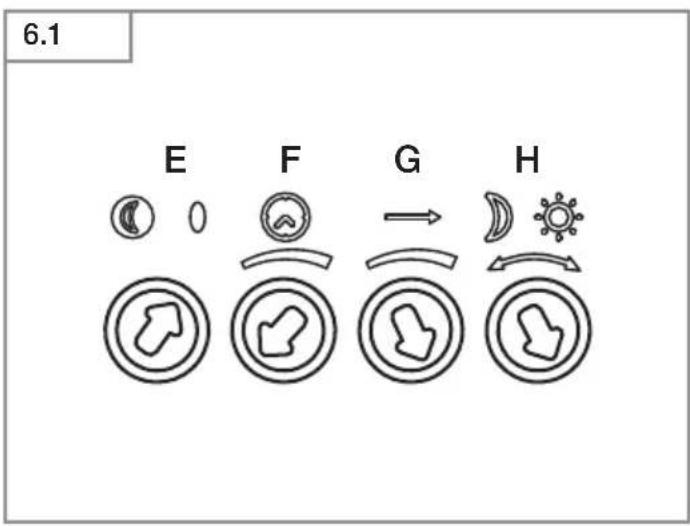

Function - control dials (Fig. 6.1)

Factory settings:

Time setting: 5 seconds

Reach setting: 8 m

Twilight level: 2,000 lux

Basic brightness: 10 %

Time setting (stay-ON time) (Fig. 6.1/F)

The light's ON time can be set to any period from approx. 5 seconds to a maximum of 15 minutes. Any movement detected before this time elapses will restart the timer.

Note:

After the light switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The light will only switch ON in response to movement once this period has elapsed.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Reach setting (sensitivity) (Fig. 6.1/G)

Reach is the term used to describe the diameter of the more or less circular detection zone produced on the floor after mounting the sensor-switched light at a height of 2.50 m.

• Control dial set to maximum = max. reach (8 m)
• Control dial set to minimum = min. reach (2.50 m)

Twilight setting / response threshold (Fig. 6.1/H)

The light's chosen response threshold can be infinitely varied from approximately 2 to 2,000 lux.

• Control dial set to ⚙ = daylight mode (depending on ambient brightness)
• Control dial set to =C twilight mode (approx. 2 lux)

The control dial must be turned to ⚙ when adjusting the detection zone and performing the functional test in daylight.

Night light (Fig. 6.1/E)

The night light provides illumination at approx. 10 % of full light output. The light only switches to maximum output (100 %) in response to movement in the detection zone (see Time setting). The light then switches to the activated night light level.

• Control dial set to = night light activated
• Control dial set to 0 = night light deactivated

Night light is ON when the level of light falls below the brightness threshold. Night light is always ON when daylight mode is activated.

Manual override function

If a mains switch is installed in the mains supply lead, the following functions are available in addition to simply switching light ON and OFF:

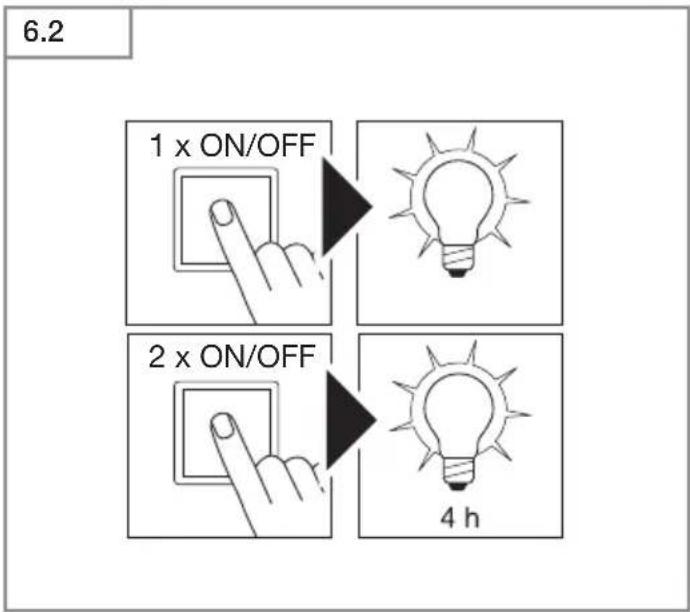

Manual override (Fig. 6.2)

1) Activate manual override:
Switch OFF and ON twice. Light is set to manual override for 4 hours. Then it returns automatically to sensor mode.
2) Deactivate manual override:

Switch OFF and ON once. Light goes out or switches to sensor mode.

Important:

The switch should be actuated in rapid succession (in the 0.2 to 1 second range).

7. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

Important note: the control gear cannot be replaced.

8. Declaration of Conformity

Hereby, STEINEL GmbH declares that the radio equipment type RS D2 S is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

9. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH, Diesel-strasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

– any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear.
– any improper or non-intended use of the product or any failure to observe the operating instructions,
– any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
– supplementary or replacement parts which are not genuine STEINEL parts,
– any maintenance or care of products that is not carried out in accordance with the operating instructions,
– any attachment or installation that is not in accordance with STEINEL's installation instructions,
– any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom.

For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Technical specifications

EN

Dimensions W x H × D 300 × 300 × 65.5 mm

Supply voltage 220–240 V, 50/60 Hz

Power consumption ( P_on ) 8.80 W

Luminous flux 886 lm

Efficiency 101 lm/W

Standby sensor ( P_sb ) 0.39 W

Colour temperature 3,000 K (warm white)

Colour rendering index R a = 82

Average rated life expectancy L70B50 at 25 °C: >60,000 hours

Colour consistency SDCM Starting value: 3

Luminous intensity distribution

Material	plastic
HF technology	5.8 GHz
Angle of coverage	360° with 160° angle of aperture
Time setting	15 s to 15 min
Twilight setting	2–2,000
IP rating	IP 20
Protection class	II
Power consumption	630 mW
Ambient temperature	-10 °C to +40 °C
Transmitter power	approx. 1 mW

11. Troubleshooting

Malfunction Cause Remedy

Sensor-switched light without power	Fuse has tripped, not switched ON, break in wiringShort circuit in mains power supply leadAny mains switch OFF	Activate, change fuse, turn ON mains switch, check wiring with voltage testerCheck connectionsSwitch on mains switch
Sensor-switched light will not switch ON	Incorrect twilight setting selectedMains switch OFFFuse has tripped	ReadjustSwitch ONActivate, change fuse, check connection if necessary
Sensor-switched light will not switch OFF	Continued movement within the detection zone	Check detection zone
Sensor-switched light switches ON without any identifiable movement	Light not mounted for detecting movement reliablyMovement occurred, but not identified by the observer ( movement behind wall, movement of a small object in immediate light vicinity etc.)	Securely mount enclosureCheck detection zone
Sensor-switched light does not switch ON despite movement	Rapid movements are suppressed to minimise malfunctioning or detection zone set too smallIncorrect twilight setting selected	Check detection zoneReadjust
