USER MANUAL RS PRO A10 SC STEINEL

Three identical circular devices with wireless signal waves, no text or symbols present

RS PRO A10 WW/NW SC

RS PRO A20 WW/NW SC

RS PRO A30 WW/NW SC

professional

DE

Inhalt

L N L N N

LED 22 LED

5. Montage

Simple line drawing of a pipette with a circular base and arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or electrical component with internal components and directional arrows, no visible text or symbols.

Two technical diagrams showing a cylindrical object with a cross-sectional view and a magnified inset (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1. About this document 33
2. General safety precautions 33
3. System description 34
4. Electrical connection 40
5. Installation 42
6. Function 50
7. Maintenance and care 53
8. Disposal 54
9. Declaration of Conformity 54
10. Manufacturer's warranty 55
11. Technical specifications 58
12. Troubleshooting 60

1. About this document

—Under copyright. Reproduction either in whole or in part only with our consent.

—Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.
• Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.
  -Work on mains voltage must only be performed by qualified, skilled personnel.
  -National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).
  -Only use genuine replacement parts.
  —The external flexible cable or cord of this luminaire cannot be replaced.

-If the cord is damaged, the light shall be destroyed.

-Supply cord 60227 IEC52; 2x0.75mm2.

3. System description

Proper use - RS PRO A10 / A20 / A30 SC

—Sensor-switched LED light with active motion detector.

-Indoor use only.

RS PRO A10 / A20 / A30 SC operating principle

—The HF/radar motion detector emits high-frequency electromagnetic waves (5.8 GHz) and detects the echo reflected by objects.

—The echo changed by movement of the body is converted electronically and switches the light ON automatically.

—Movement can also be detected through thin walls, doors and panes of glass.

-Even the tiniest of movements can be detected.

- No inadvertent triggering by heat sources or temperature fluctuations.

- The sensor's detection zone can be precisely limited by using the reach setting capability on the web interface and via app.

Note:

The high-frequency output of the HF sensor is approx. 1 mW – that's 1000 times less than the transmission power of a mobile phone or the output of a microwave.

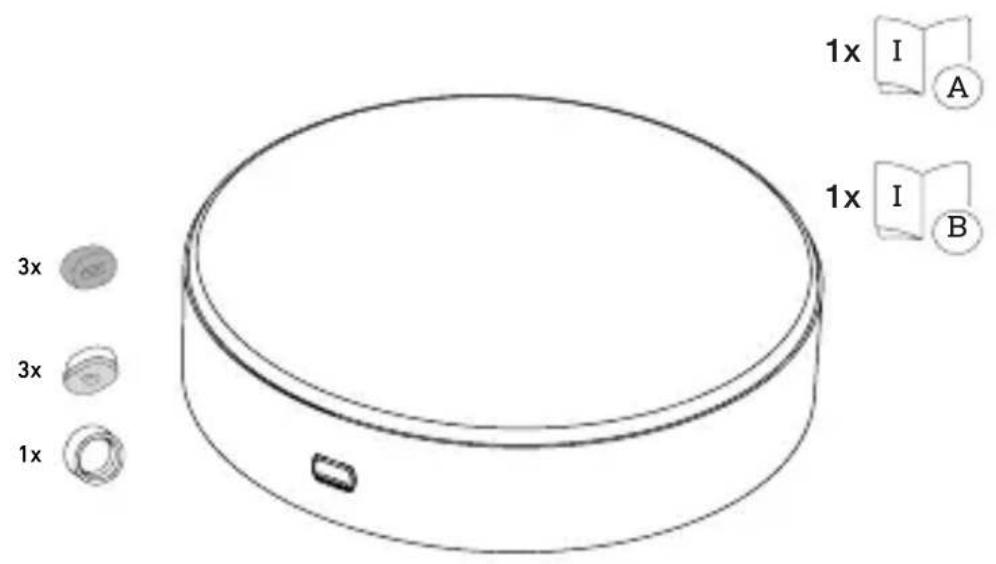

3.1

3x 3x 1x 1x I A 1x I B

-1 LED light
-1 safety data sheet (A)
-1 Quick-start guide (B)
-3 spacers
-3 IP54 sealing plugs
-1 safety bolt cover

4. Electrical connection

GB

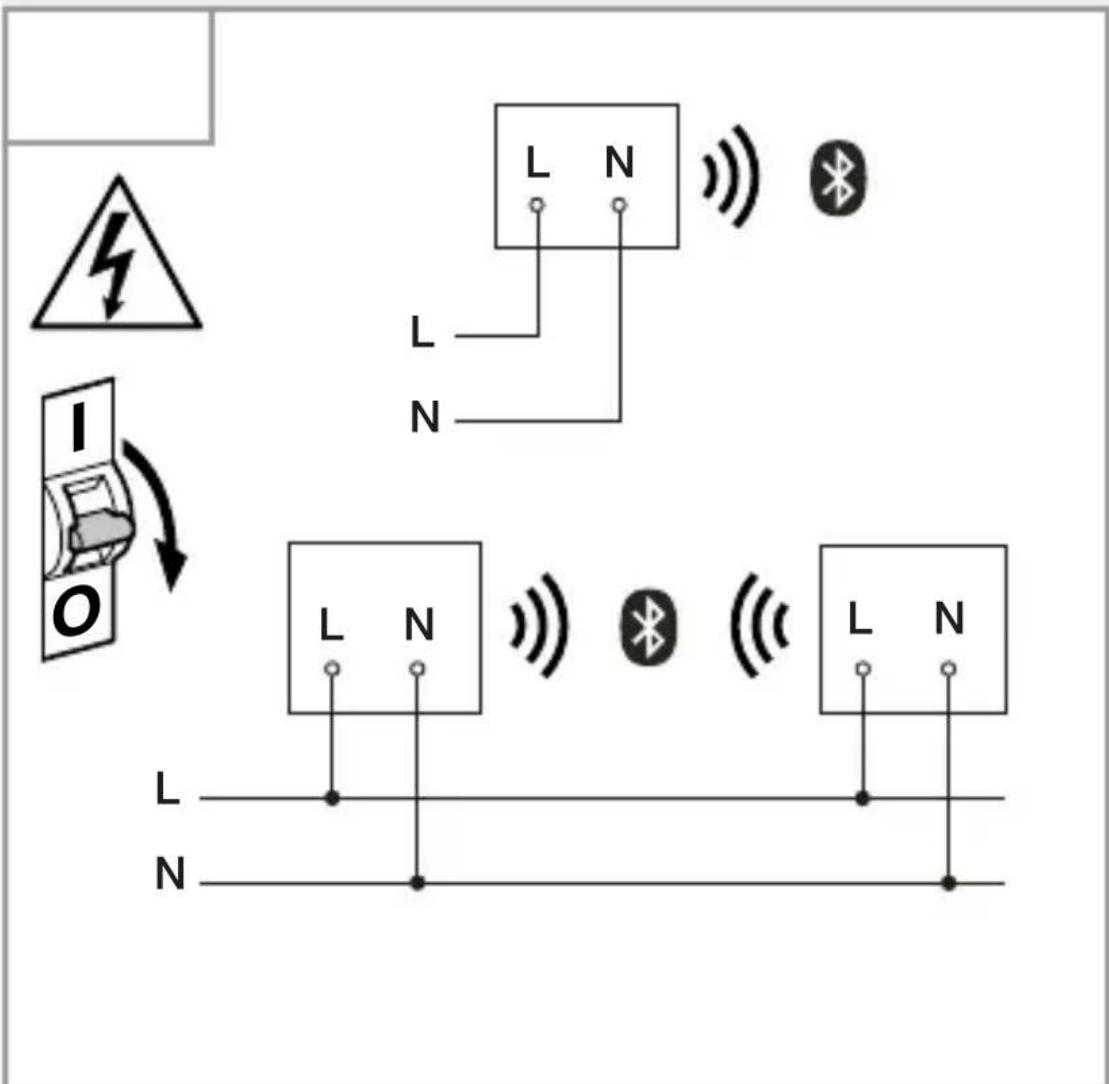

Circuit diagram

Electrical circuit diagram showing fault warning and power conversion with L/N lines and wireless signals

The mains supply lead is a 2-core cable:

L = phase conductor (usually black, brown or grey)

N = neutral conductor (usually blue)

E = extension port for ground wire

The light can also be connected to the power supply downstream of a mains switch if it is ensured that the mains switch is left ON all the time.

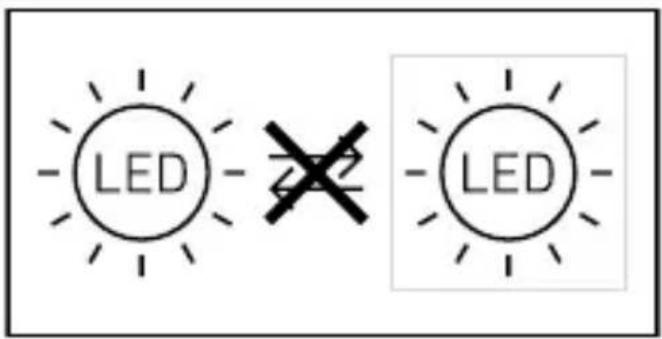

The light source of this light cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete light must be replaced.

LED 22 LED

5. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
  • Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.

-Take reach into consideration.

—Take reach and motion detection into consideration.

-Vibration-free.

-No obstacles in detection zone.

-Not in explosive atmospheres.

-Not on normally flammable surfaces.

-Do not look into the light source from a short distance (< 30 cm).

-Spaced at a distance of at least 50 cm from other LED light.

- Spaced at a distance of at least 50 cm from other LED light.

Reach

GB

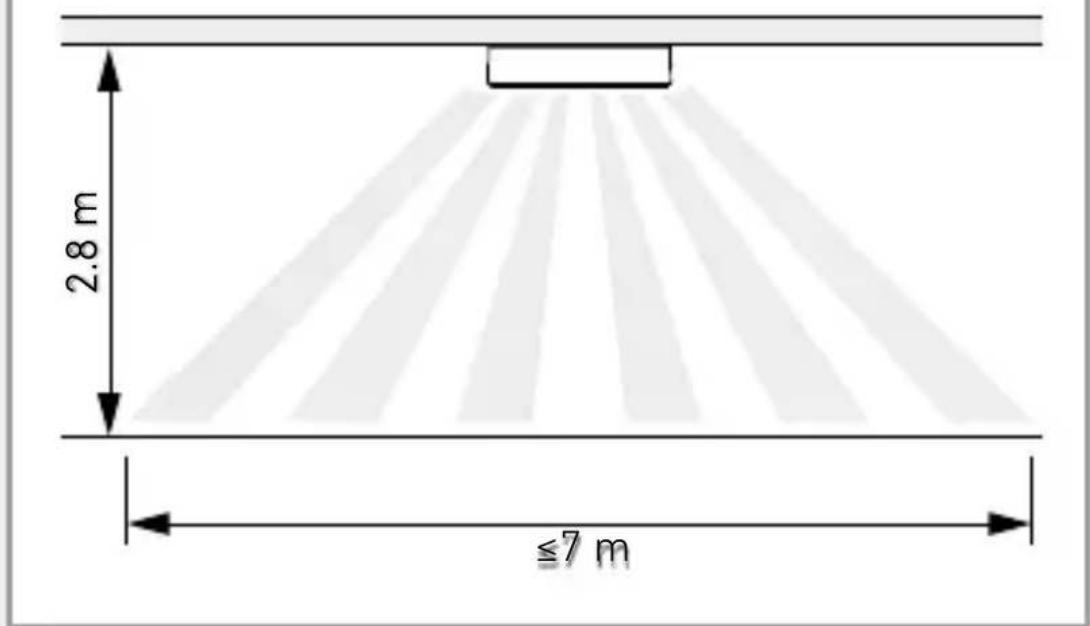

5.1

2.8 m ≤7 m

Detecting motion across the direction in which a person walks

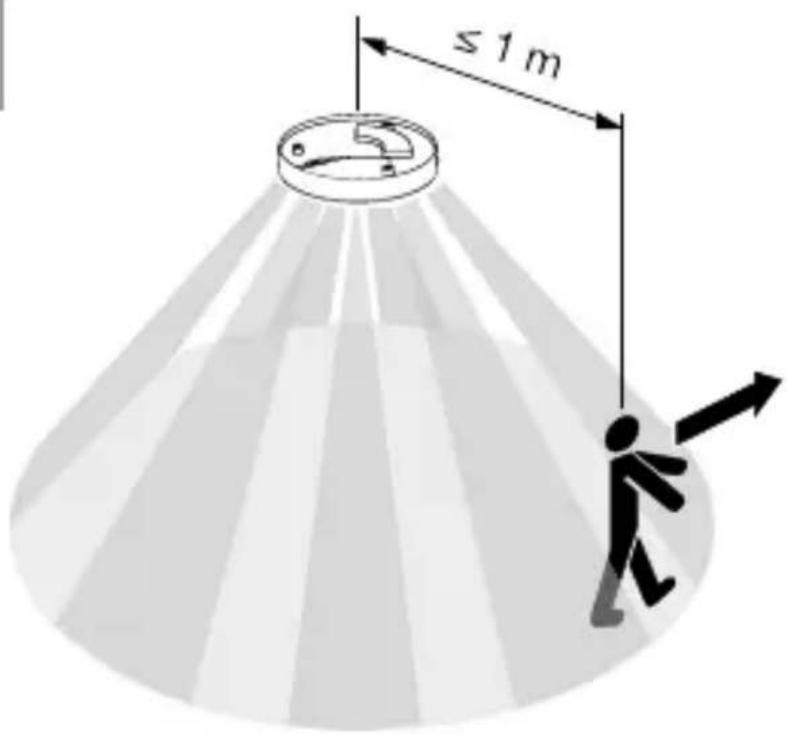

5.2

≤ 1 m

Detecting motion in the direction in which a person walks

GB

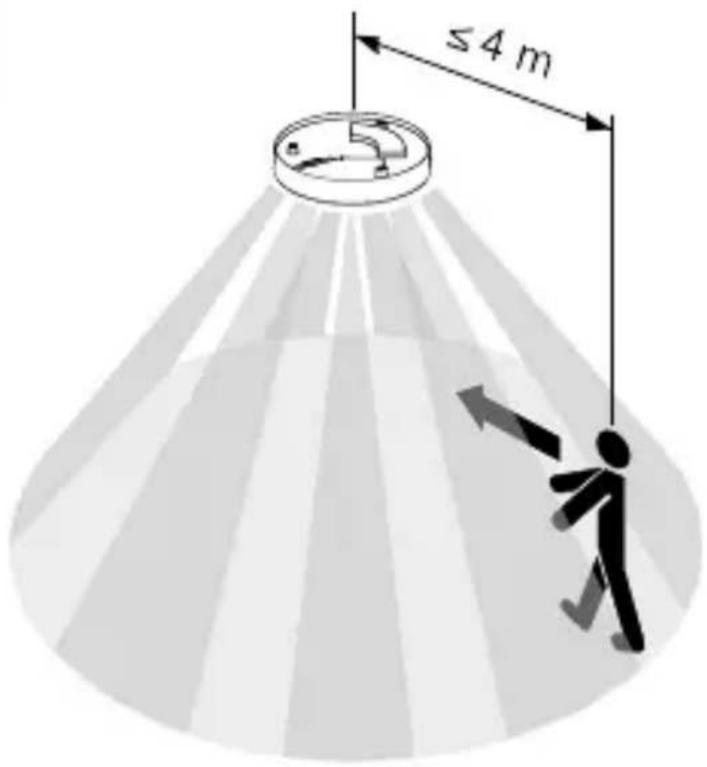

5.3

≤4 m

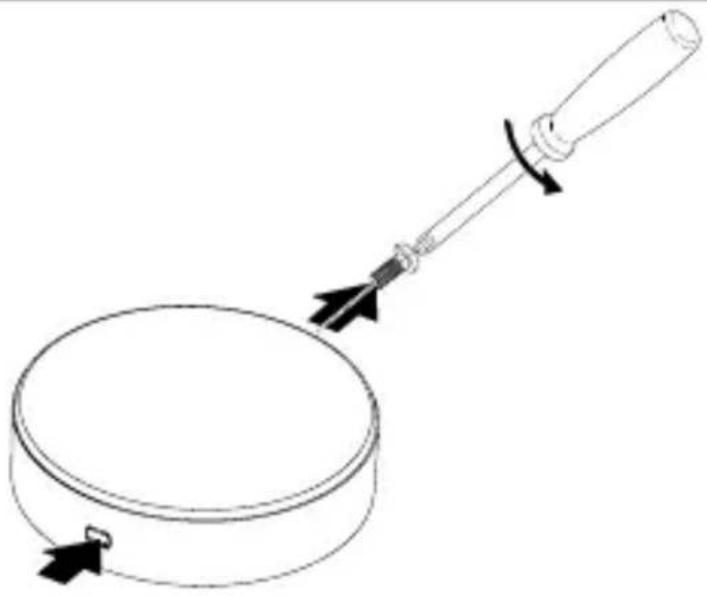

5.4

Simple line drawing of a pipette dispensing liquid into a circular container with arrows indicating flow direction (no text or symbols)

• Check to make sure the power supply is switched OFF.
• Remove cover the safety bolt by the safety bolt cover.
• Unscrew retaining screw. Push the fixing button.

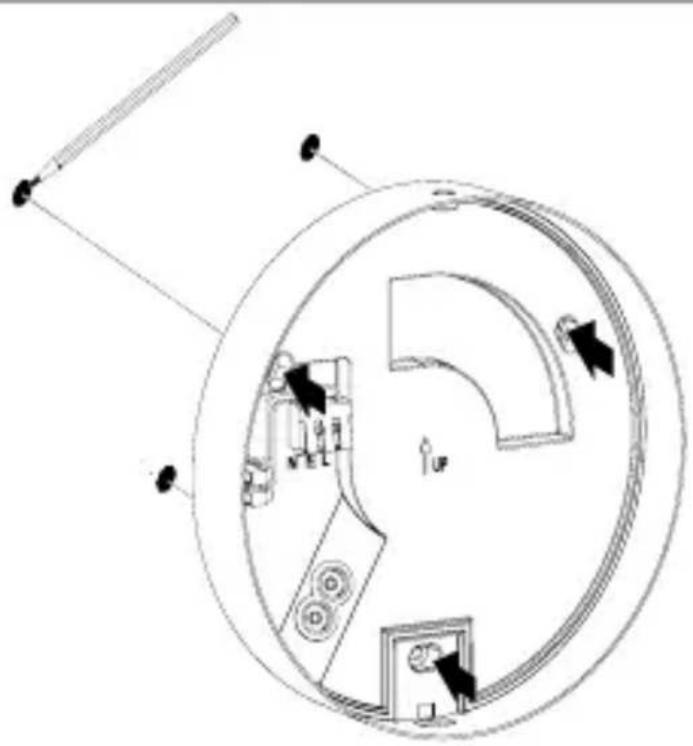

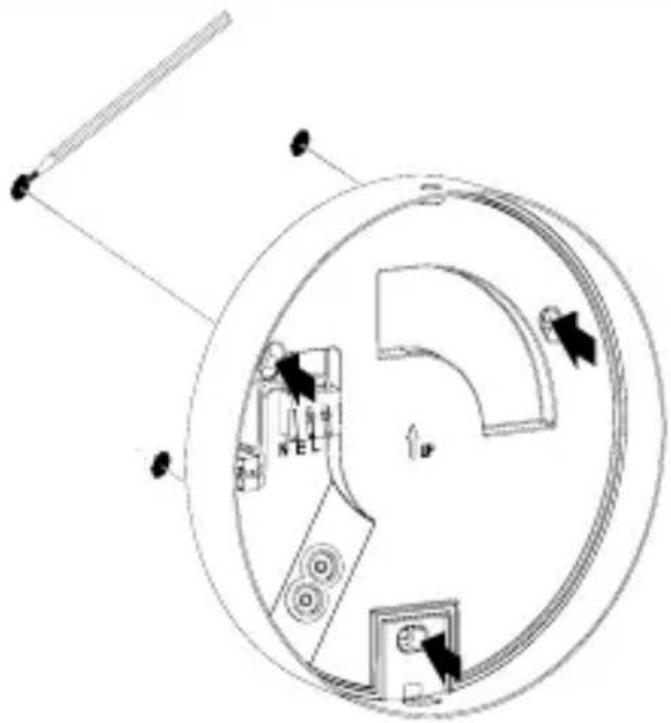

5.5

Technical diagram of a circular mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

- Mark drill holes.

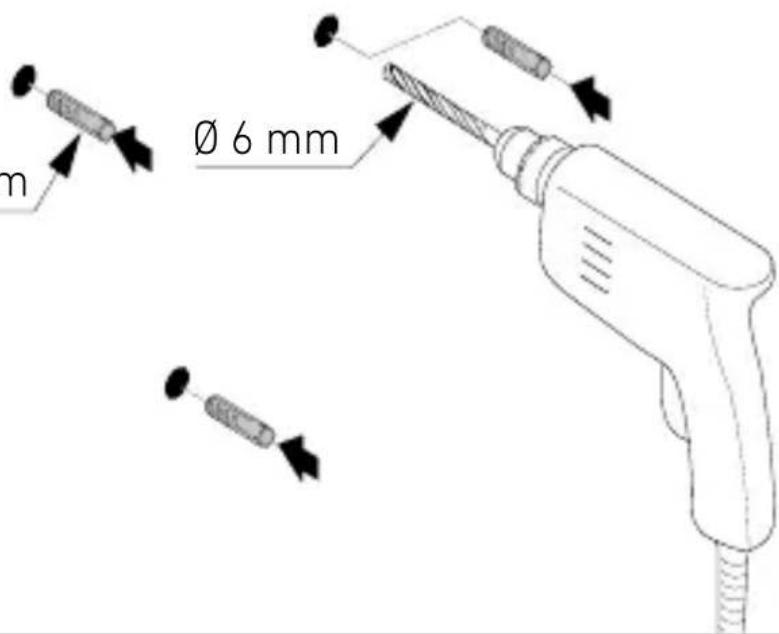

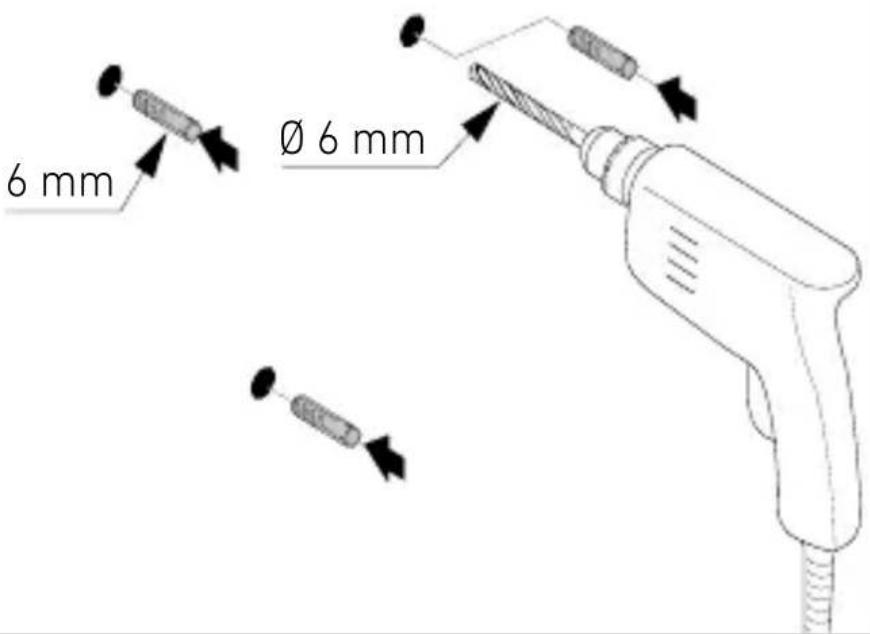

5.6

6 mm Ø 6 mm

GB

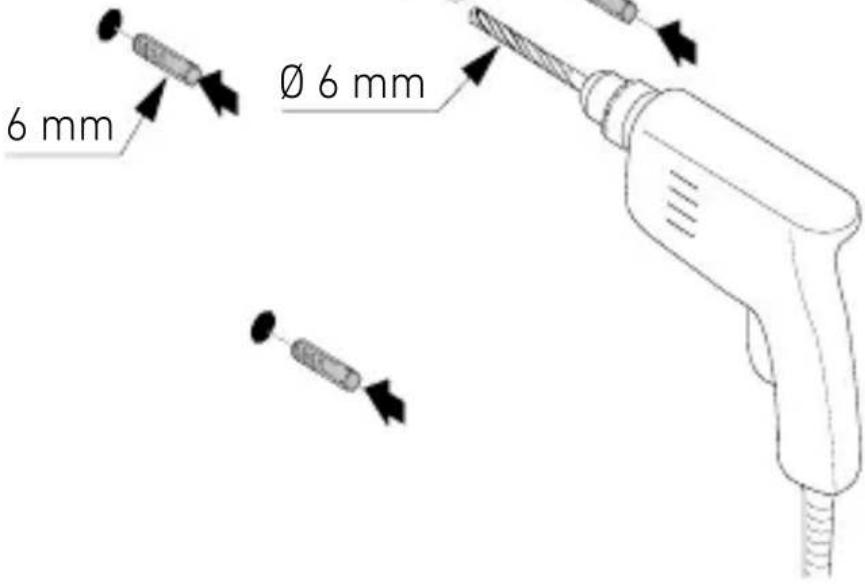

- Drill holes ( 6 mm) and fit wall plugs.

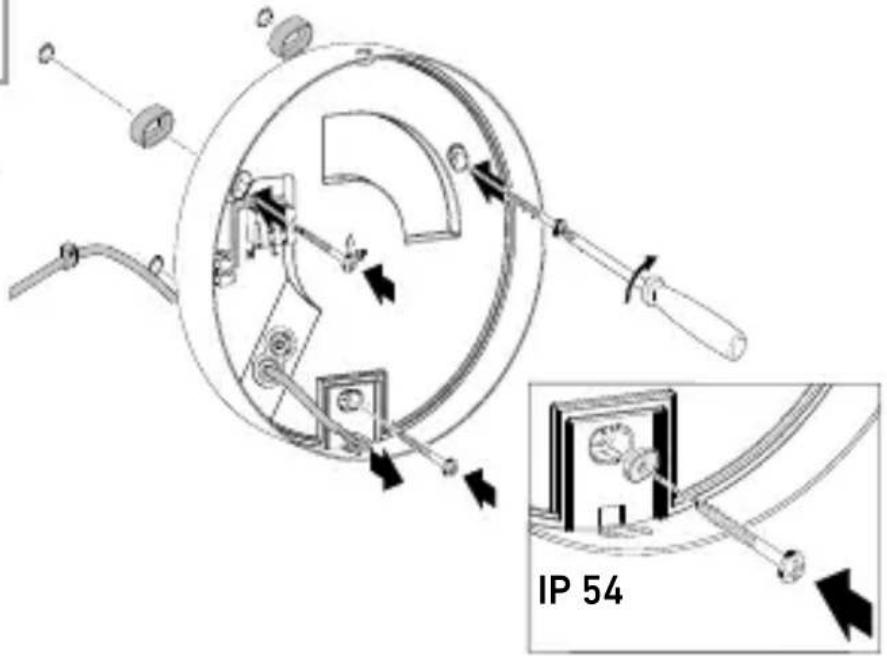

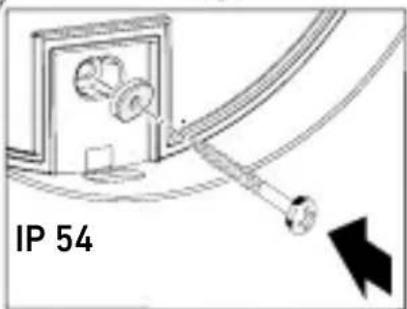

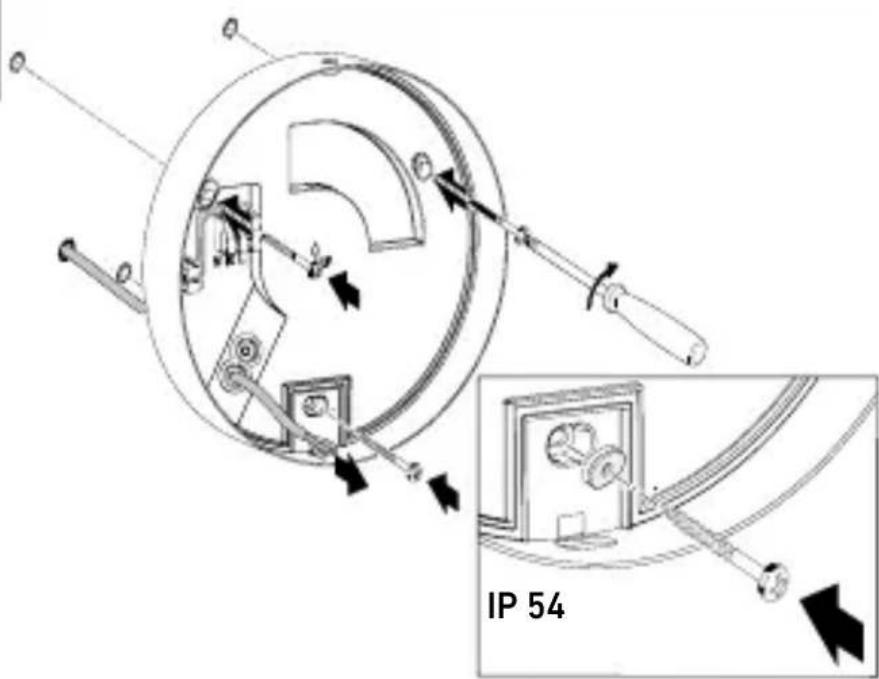

5.7

IP 54

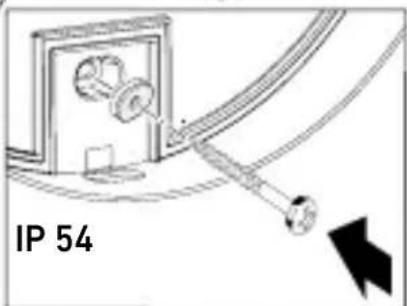

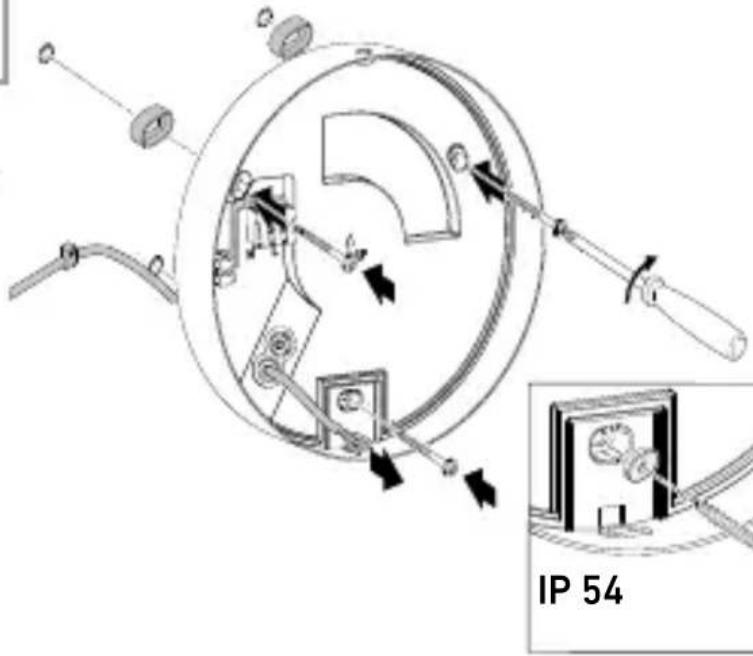

• Screwing on LED light with concealed power supply lead.
• Use the sealing plugs. It is required for IP54 protection.
• Make sure that the connection cable is double isolated and the isolation is not damaged.

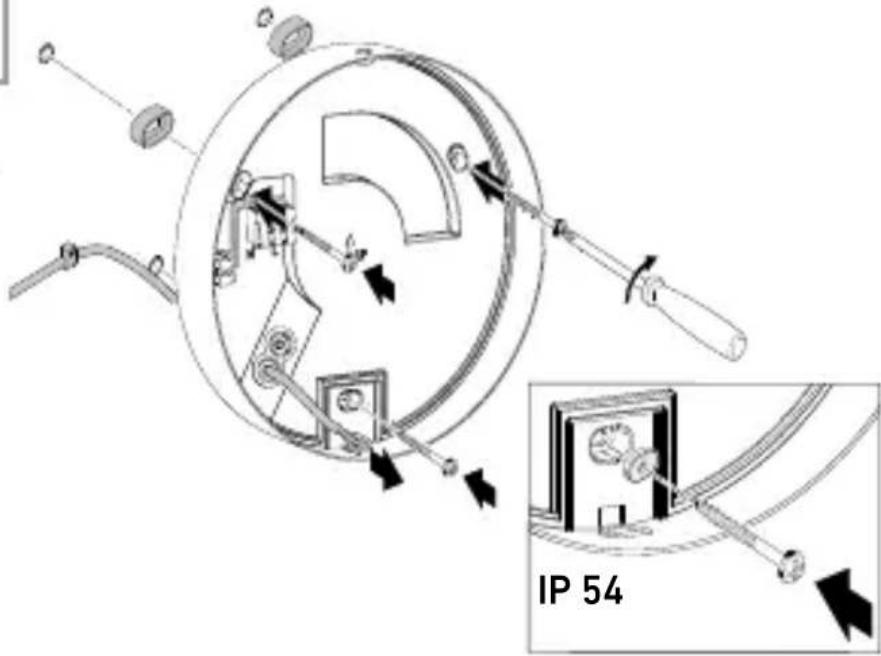

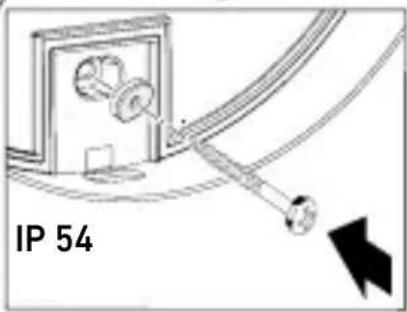

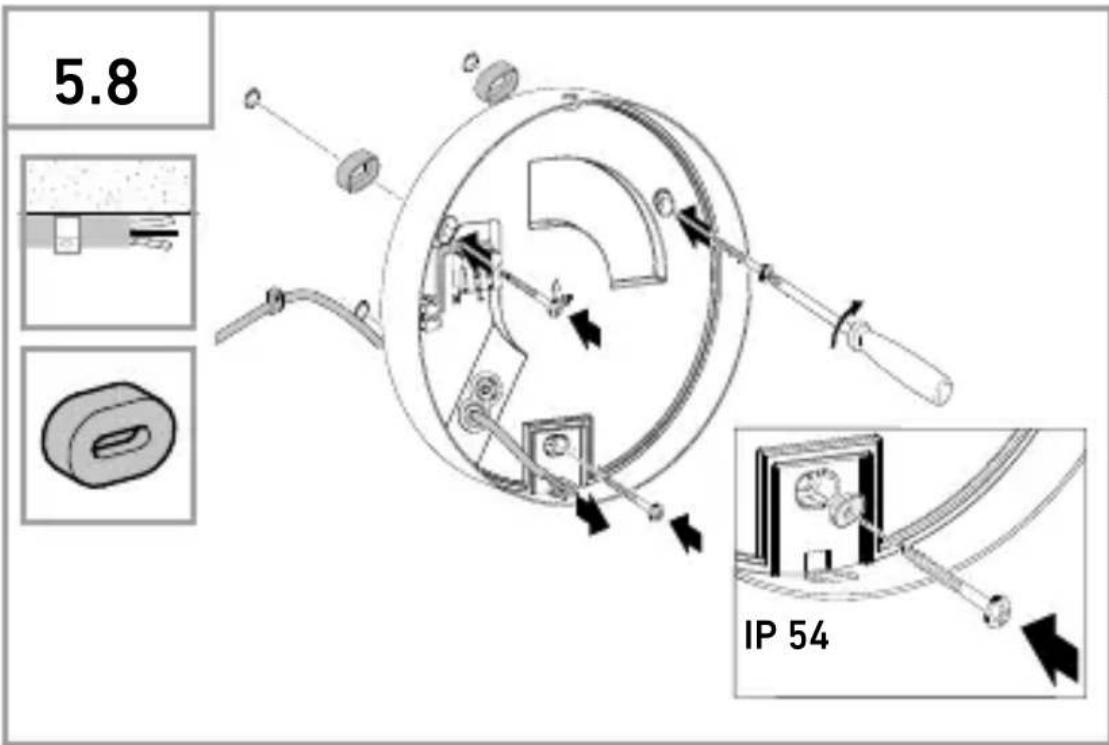

5.8 IP 54

GB

• Screwing on LED light with surface-mounted power supply lead.
• Use the sealing plugs. It is required for IP54 protection.
• Make sure that the connection cable is double isolated and the isolation is not damaged.

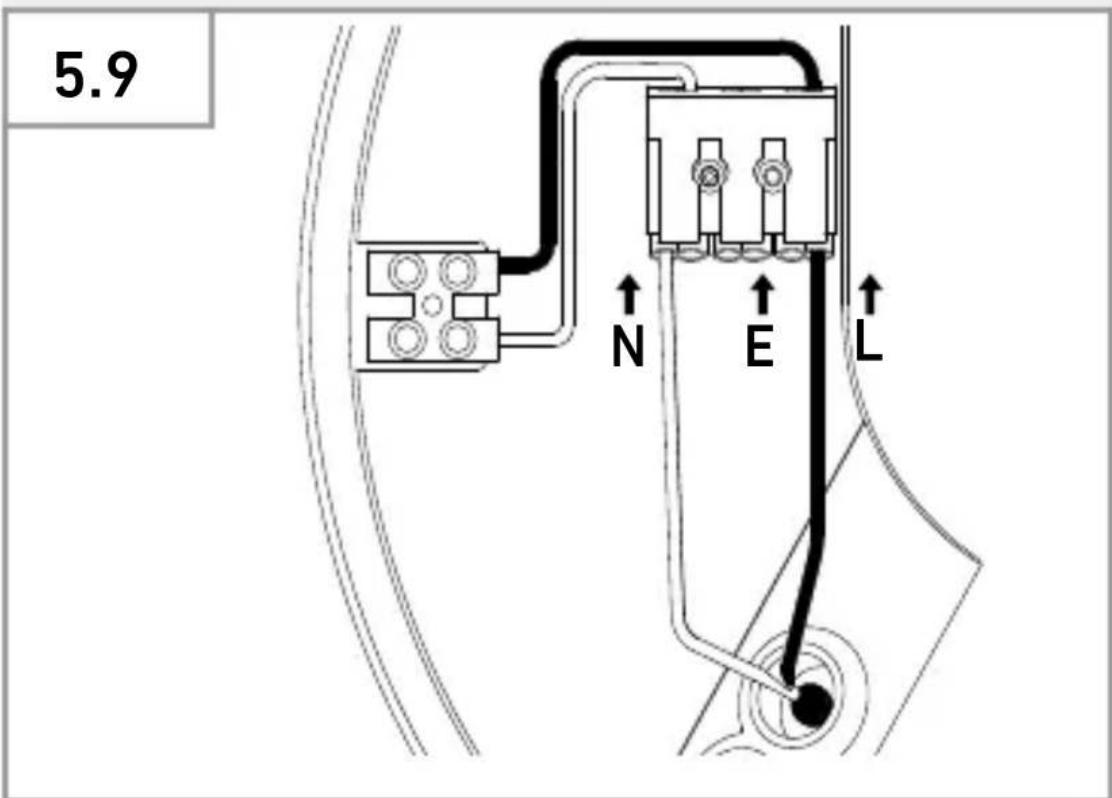

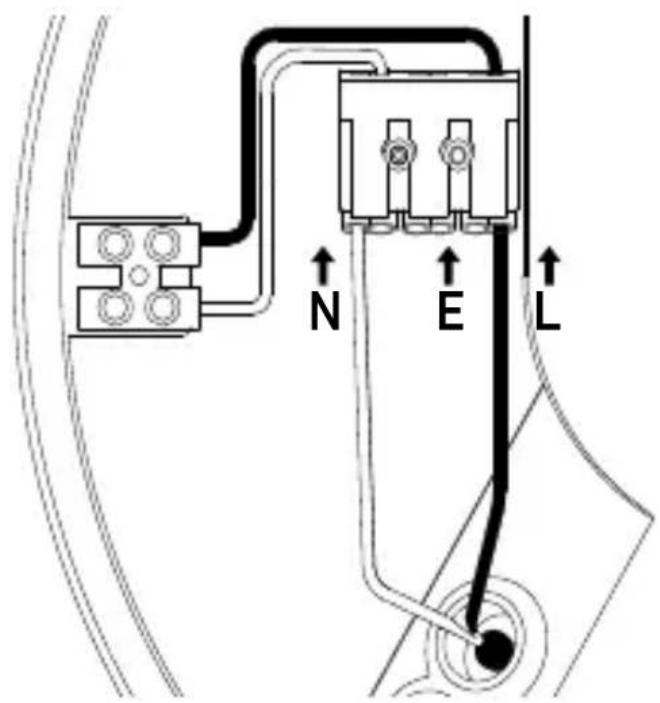

5.9 N E L

- Connect mains power supply lead as shown in the wiring diagram.

→ "4. Electrical connection"

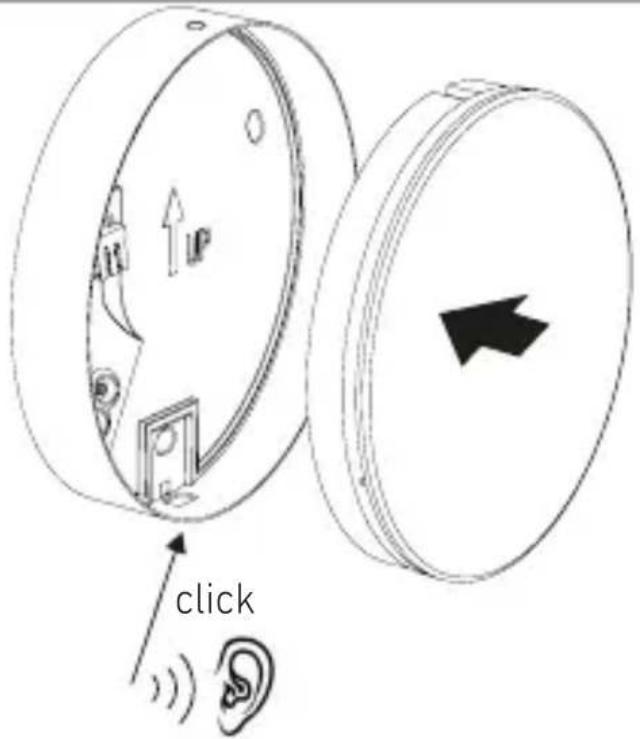

5.10

click

• Mount the light into a chassis.
• Push until you hear a click sound.

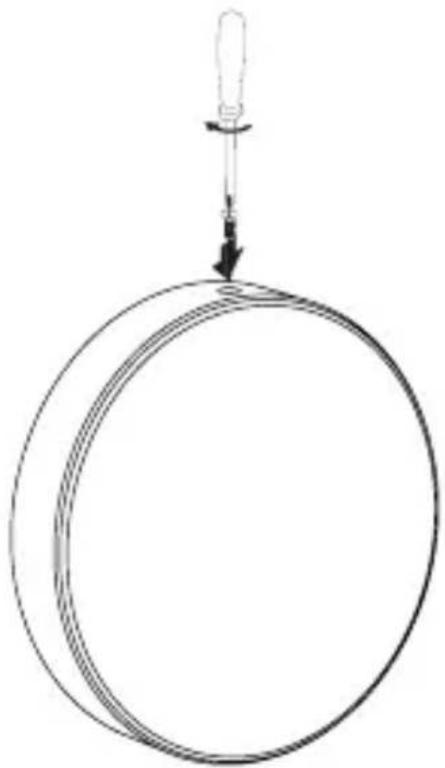

5.11

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

• Tight the safety bolt.
• Cover the safety bolt by the safety bolt cover.

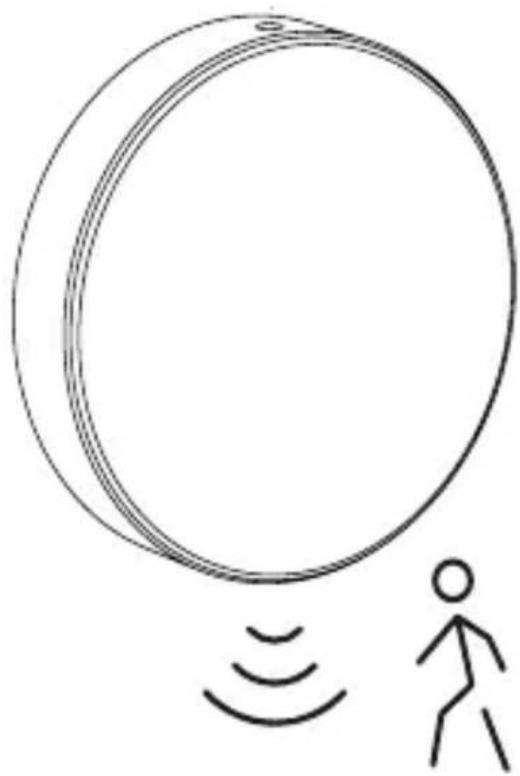

5.12

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

• Switch ON power supply.
• Make settings via app.

→ "6. Function"

6. Function

Functions are set via the Steinel Connect App.

Steinel Connect App

To configure the luminaire via smartphone or tablet, you must download the STEINEL Connect App from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android

QR code image containing encoded data, no visible human-readable text

iOS

QR code image containing encoded data, no visible human-readable text

Functions that can be set via the Steinel Connect App are:

-Time setting
-Reach setting
-Twilight setting
-Basic light level function
- Main light / basic light level adjustable
-Extended reach adjustment
-Group interconnection
—Twilight setting by teach-in

Note:

To rule out malfunctioning, a minimum distance of 3 m must be allowed from the Wi-Fi router and the access points.

Factory settings (state on leaving the factory)

Reach setting: max.

Main light time setting: 10 sec.

Basic light time setting: 1 min.

Twilight level: 2,000 lux

Basic light dimming level: 50 %

Commissioning / power interruption

The settings and current operating status of the LED light are saved automatically in the event of power failure or disconnection from the power supply. Settings are reactivated as soon as the mains power supply is restored.

Reach setting (sensitivity)

Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2,8 m.

-Set to maximum = max. reach (3,5 m)

-Set to minimum = min. reach (1 m)

Time setting

The time (stay-ON time) can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Every movement detected re-activates the light.

Note:

After the unit switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The unit can then switch ON again in response to movement.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Twilight setting

The response threshold (twilight) can be infinitely varied from approx. 2 to 2,000 lux.

= daylight mode (depending on ambient light level)

= night-time operation (approx. 2 lux)

The control dial must be turned to ✿ when adjusting the detection zone and performing the functional test in daylight.

Basic light level

The brightness of the basic light level setting can be varied between 0-100 %. The period for which the basic light level stays ON for can be infinitely varied between 10 minutes and 30 minutes, or set to remain ON all night.

Main light level

The brightness of the main light level setting can be varied between 0-100 %.

Grouping

The unit can be operated as a separate light or several lights can be interconnected in groups via wireless communication. All luminaires belonging to a group operate in line with the group parameters set in the Steinel Connect App. Reach can be set individually for all lights in the lighting group.

Fade time

Fade time can be used to set the rate of dimming on switching the light ON and OFF (1 s - 3 s).

Neighbouring-light function

The neighbouring-light function can be activated and deactivated via the Steinel Connect App. This function assigns the neighbouring groups to the active lighting group. The active group responds to activation signals from the neighbouring group assigned to it and switches to main light or basic light as defined in the settings.

7. Maintenance and care

GB

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

- Only clean tool in a dry state.

Risk of damage to property!

Using the wrong cleaning product can damage the light.

- Clean tool with a moist cloth without detergent.

Important note: the control gear cannot be replaced.

220V LED

8. Disposal

GB

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Declaration of Conformity

STEINEL GmbH hereby declares that the RS PRO A 10 WW/NW SC, RS PRO A 20 WW/NW SC and RS PRO A 30 WW/NW SC radio equipment type conforms to Directive 2014/53 EU. The full wording of the EU Declaration of Conformity is available for downloading from the following internet address: www.steinel.de

10. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany.

All STEINEL products meet the highest quality standards.

For this reason, we, the manufacturer, are pleased to provide you, the customer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall cover all STEINEL Professional products sold and used in Germany.

Our warranty cover for consumers

The provisions below apply to consumers. A consumer is any natural person who, on entering into the purchase transaction, neither acts in exercising their commercial nor their self-employed activity.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

Our warranty cover for entrepreneurs

The provisions below apply to entrepreneurs. Entrepreneur is a natural or legal person or partnership with legal personality who or which, on entering into the purchase transaction, acts in exercising their or its commercial or self-employed activity.

We have the option of providing warranty cover by rectifying deficiencies free of charge, replacing a product free of charge (if applicable, in the form of a successor model of the same or higher quality) or by issuing a credit note. In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

Within the scope of warranty cover, we shall not bear your expenses accruing from subsequent fulfillment nor shall we bear your expenses for removing the defective product and installing a replacement product.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty including special consumer protection provisions and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty.

In addition to this, the warranty shall not cover: any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL Professional product that are attributable to wear caused by use or other natural wear, any improper or non-intended use of the product or any failure to observe the operating instructions, any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory, supplementary or replacement parts which are not genuine STEINEL parts,

any maintenance or care of products that is not carried out in accordance with the operating instructions, any attachment or installation that is not in accordance with STEINEL's installation instructions, any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom.

For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

11. Technical specifications

-Dimensions ( x D):

RS PRO A10 WW/NW SC: ∅193 x 69 mm

RS PRO A20 WW/NW SC: ∅262 x 69 mm

RS PRO A30 WW/NW SC: ∅331 x 69 mm

-Power supply: 220 - 240 V, 50/60 Hz

-Power consumption ( P_on ):

RS PRO'A10 SC WW: 10.7 W / NW: 10.7 W

RS PRO A20 SC WW: 12.4 W / NW: 12.4 W

RS PRO A30 SC WW: 20.7 W / NW: 20.7 W

-Power factor:

RS PRO A10 SC WW: 0.59 / NW: 0.59

RS PRO A20 SC WW: 0.59 / NW: 0.59

RS PRO A30 SC WW: 0.59 / NW: 0.59

-Mains current:

RS PRO A10 SC WW: 80 mA/ NW: 80 mA

RS PRO A20 SC WW: 80 mA/ NW: 80 mA

RS PRO A30 SC WW: 160 mA/ NW: 160 mA

-Standby Network ( P_net )/

-Luminous flux (360°):

RS PRO A10 SC WW: 1,095 lm / NW: 1,172 lm

RS PRO A20 SC WW: 1,427 lm / NW: 1,514 lm

RS PRO A30 SC WW: 2,534 lm / NW: 2,745 lm

-Efficiency:

RS PRO A10 SC WW: 102.3 lm/W / NW: 109.5 lm/W

RS PRO A20 SC WW: 115.1 lm/W / NW: 122.1 lm/W

RSPROA30SCWW:122.4lm/W/NW:132.6lm/W

-Colour temperature:

4,000 K (neutral white = NW)

-Colour rendering index: R

a = 80

-Rated average lifetime:

L70B50 at 25°C: >60,000 hrs.

-Colour consistency SDCM:

Starting value: 6

-Luminous intensity distribution:

-Angle of coverage: 360^

-Transmitter power: approx.1 mW

-Reach: max.0 8 m

-Time setting: 5 s - 60 min

-Twilight setting: 2 - 2,000 lux

-IP rating: IP54

-Protection class: II

-Ambient temperature: -20 to +40 °C

-Bluetooth frequency: 2.4-2.48 GHz

-Bluetooth transmitter power: 5 dBm/3 mW

RS PRO A10 WW/NW SC, RS PRO A20 WW SC, RS PRO A30 WW SC contains a light source of energy efficiency class "D".

RS PRO A20 NW SC and RS PRO A30 NW SC contains a light source of energy efficiency class "C".

12. Troubleshooting

Unit without power.

-Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

-Break in wiring.

- Check wiring with voltage tester.

- Short circuit in mains power supply lead.

-Check connections.

-Any mains switch OFF

- Switch ON mains switch.

Unit does not switch ON.

–Wrong twilight setting selected.

- Reset twilight setting.

-Mains switch OFF.

- Turn on mains switch.

-Fuse not switched ON or faulty.

- Switch ON fuse.

- Change faulty fuse.

-Rapid movements being suppressed to minimise malfunctioning or detection zone too small or incorrectly defined.

- Check and adjust detection zone.

–Light source faulty.

- The light source cannot be changed. Completely replace unit.

Unit does not switch OFF.

-Continued movement within the detection zone.

• Check detection zone.
• If necessary, limit or change detection zone.

Unit switches ON when it should not.

—Recessed light not mounted for detecting movement reliably.

- Securely mount recessed light.

–Movement occurred but not identified by the observer (movement behind wall, small object moving in immediate proximity of lamp etc.).

- Check detection zone.

- If necessary, limit or change detection zone.

FR

Sommaire

L N L N N

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

FR

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-section (no text or symbols)

IP 54

FR

Simple line drawing of a circular object with a hanging pointer and internal lines, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

FR

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

3.000 K (blanc chaud = WW)

4.000 K (blanc neutre = NW)

FR

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Diagram of a circular device with internal components and directional arrows, no visible text or symbols

- Boorgaten aftekenen.

5.6

6 mm Ø 6 mm

NL

- Gaten boren (∅ 6 mm) en pluggen inbrengen.

5.7

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

NL

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

NL

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette with arrows indicating flow direction (no text or symbols)

Diagram of a circular mechanical or architectural component with internal layout and directional arrows, no visible text or symbols.

- Segnare i fori.

IT

5.6

6 mm Ø 6 mm

IT

5.8 IP 54

IT

5.9 N E L

Simple line drawing of a circular object with a dropper attached (no text or symbols)

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

L N L N N

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Diagram of a circular mechanical or electrical component with internal components and directional arrows, no visible text or symbols.

5.8 IP 54

ES

5.9 N E L

Simple line drawing of a circular object with a hanging pointer and internal lines, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

ES

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette with a circular base and arrow indicating direction (no text or symbols)

Diagram of a circular mechanical or architectural component with internal components and directional arrows, no visible text or symbols.

- Marque os furos.

5.6

6 mm

Ø 6 mm m

∅ 6 mm

Two technical diagrams showing a cylindrical object with internal structure and a cross-sectional view (no text or symbols)

IP 54

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

- Markera borrhålen.

5.6

6 mm

Ø 6 mm m

∅ 6 mm

Mechanical assembly diagram showing a circular component with internal components and directional arrows, no visible text or symbols.

IP 54

IP 54

5.8 IP 54

SE

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

L N L N N

-LED -2 -LED

DK

5. Montering

Simple line drawing of a pipette dispensing liquid into a circular container with arrows indicating flow direction (no text or symbols)

Diagram of a circular mechanical or electrical component with internal components and directional arrows, no visible text or symbols.

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

DK

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

L N L N N

Simple line drawing of a pipette with a circular base and arrow indicating direction (no text or symbols)

Technical diagram of a circular device with labeled components and directional arrows indicating motion or assembly.

- Merkitse reiät.

5.6

6 mm

Ø 6 mm m

∅ 6 mm

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

L N L N N

NO

Simple line drawing of a pipette dispensing liquid into a circular container with arrows indicating flow direction (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

- Tegn borehull.

5.6

6 mm

Ø 6 mm m

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

• Skru fast LED-lampen ved utenpåliggende ledningsføring____
• Bruk tetningsplugg. Dette er nødvendig for kapslingsgrad IP54
• Påse at tilkoblingsledningen er dobbeltisolert og at isolasjonen er uskadet.

5.9

N E L

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

• Skru fast sikringsskruen.
• Dekk til sikkerhetsbolten med sikkerhetsbolt-dekselet.

5.12

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

• Slå på strømforsyningen.
  • Foreta innstillinger via app.
  → «6. Funksjon"

6. Funksjon

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Start-Up/strømavbrudd

LED × LED

GR

5. Συναρμολόγηση

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical or electrical component with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a circular component with internal components and directional arrows, no visible text or symbols.

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

5.8 IP 54

5.9 N E L

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette with a circular base and arrow indicating direction (no text or symbols)

Technical diagram of a circular mechanical or electrical component with internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

- Naznačte diery na vrtanie.

SK

5.6

6 mm

Ø 6 mm m

∅ 6 mm

- Vyvrtajte diery (Ø 6 mm) a vložte hmoždinky.

5.7

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and internal lines, no text or symbols present.

• Poistnú skrutku pevne priskrutkujte.
• Zakryte poistnú skrutku krytom poistnej skrutky.

SK

5.12

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

–Svetelný tok (360°):

RS PRO A10 SC WW: 1.095 lm / NW: 1.172 lm

RS PRO A20 SC WW: 1.427 lm / NW: 1.514 lm

RS PRO A30 SC WW: 2.534 lm / NW: 2.745 lm

-Efektívnost:

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette with arrows indicating flow direction (no text or symbols)

Technical diagram of a circular mechanical or electrical component with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a circular component with internal components and directional arrows, no visible text or symbols.

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Diagram of a circular device with internal components and directional arrows, no readable text or symbols present.

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or labels present)

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Funkcije, nastavljive v aplikaciji Steinel Connect:

L N L N N

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Diagram of a circular device with internal components and directional arrows, no readable text or symbols present.

- Označite rupe.

HR

5.6

6 mm Ø 6 mm

- Izbušite rupe (Ø 6 mm) i stavite tiple.

5.7

IP 54

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

• Pritegnite sigurnosni vijak.
  • Stavite kapicu na sigurnosni vijak.

HR

5.12

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

• Uključite strujno napajanje.
• Izvršite podešavanje putem aplikacije.

→ «6. Funkcija"

HR

6. Funkcija

Podešavanje funkcija obavlja se pomoću aplikacije Steinel Connect.

Aplikacija Steinel Connect

Za konfiguraciju svjetiljke morate preuzeti aplikaciju STEI-NEL Connect App s Vašeg AppStorea pomoću pametnog telefona ili tableta. Za to je potreban pametan telefon ili tablet s funkcijom Bluetooth.

Android

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

Funkcije koje se mogu podesiti pomoću aplikacije Steinel Connect su:

-podešavanje vremena
-podešavanje dometa
—podešavanje svjetlosnog praga
-funkcija osnovnog svjetla
-podesiva razina glavnog / osnovnog svjetla
-prošireno podešavanje dometa
-grupno umreženje
-podešavanje svjetlosnog praga pomoću funkcije Teach-In Napomena:

Da bi se isključila mogućnost pogrešnog funkcioniranja, mora se održavati minimalni razmak od 3 m od WLAN usmjerivača i pristupnih točaka.

L N L N N

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Diagram of a circular device interior with internal components and directional arrows, no readable text or symbols present.

Two technical diagrams showing a cylindrical object with a cross-sectional view and a magnified view of its internal structure (no text or symbols)

IP 54

Simple line drawing of a circular object with a pipette attached (no text or symbols)

• Kruvige kinnituskruvid kinni.
- Katke kinnituspolt kinnituspoldi kattega.

EE

5.12

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

3.000 K (soe-valge = WW)

4.000 K (neutraalne valge = NW)

-Värvuse taasesitusindeks: R _a = 80

L N L N N

Tinklo laidą sudaro 2 gysłu kabelis:

Simple line drawing of a pipette with arrows indicating motion, no text or symbols present

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

L N L N N

Simple line drawing of a pipette with arrows indicating motion or force direction (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

LED 230V LED

LV

8. Utilizācija

L N L N N

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large circular object with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

4.1 L N L N L N L N L N L N

电源线由 2 芯电缆组成:

L = 火线（通常为黑色、棕色或灰色）

N = 零线（通常为蓝色）

E = 接地電纜的延長連接

Simple line drawing of a pipette with arrows indicating motion, no text or symbols present

• 检查电源是否已切断。
• 取下止动螺栓盖。
• 松开止动螺栓。按下紧固按钮

5.5

Diagram of a circular device with internal components and directional arrows, no readable text or symbols present.

- 标记钻孔。

5.6

6 mm Ø 6 mm

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging rod and handle, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

L N L N N

LED 22 LED

5. Монтаж

Simple line drawing of a pipette dispensing liquid into a circular container (no text or symbols)

Technical diagram of a circular mechanical component with internal components and directional arrows (no text or labels)

Two technical diagrams showing a cylindrical object with a cross-sectional view and a separate cross-sectional view (no text or symbols)

IP 54

Simple line drawing of a circular object with a hanging pointer and arrow, no text or symbols present.

Simple line drawing of a large sphere with a human figure and signal waves below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OS

QR code image containing encoded data, no visible human-readable text

World map silhouette in grayscale, showing continents and oceans without any text or labels
