AD 3059 - Waffle Maker ADLER - Free user manual and instructions

Brand	Adler
Model	AD 3059
Category	Waffle Maker / Contact Grill
Product Type	2-in-1 Electric Waffle Maker (Contact Grill and Table Grill)
Power Supply Voltage	220-240 V ~50/60 Hz
Temperature Range	60 °C to 230 °C
Timer	1 to 99 minutes, automatic stop with 5 beeps
Cooking Plates	2 removable non-stick plates, dishwasher safe
Display	LED screen with temperature and time
Functions	Grilling on both sides (contact) or one side (table); independent temperature adjustment of upper and lower plates
Height Adjustment	5 positions for the upper housing
Drip Tray	Yes, removable
Housing Material	Heat-resistant plastic
Safety	Automatic timer shut-off; thermostat indicator lights; overheat protection (not specified but implied)
Cleaning	Plates dishwasher safe; housing cleaned with a damp cloth
Storage	Closed and locked with the locking clip

Frequently Asked Questions - AD 3059 ADLER

What to do if smoke comes out during first use?

It's normal: the parts heat up for the first time. Let the grill run for a few minutes to remove the factory smell.

Can I use metal utensils on the plates?

No, use a plastic or wooden spatula to avoid damaging the non-stick coating.

How to clean the cooking plates?

The plates are removable: press the release buttons (8) to remove them, then clean them in the dishwasher or with oven cleaner.

What is the temperature range?

The adjustable temperature ranges from 60 °C to 230 °C.

How to set the timer?

Press the button (9i) to set the cooking time from 1 to 99 minutes. The appliance will stop automatically with 5 beeps.

How to use the grill in table mode (open grill)?

Slide the locking clip (6) to the 180° position to unfold the plates flat, creating a large grilling surface on one side.

What do the LED indicators on the panel mean?

The red indicator shows the plate is heating; the green indicator shows the set temperature is reached and maintained.

Can I immerse the appliance in water for cleaning?

No, never immerse the housing, cord, or plug in water. Clean the housing with a damp cloth.

How to store the appliance?

Close the upper housing and lock it by moving the locking clip (6) to position (6b) for safe storage.

Does the appliance turn off automatically?

Yes, thanks to the adjustable timer. You can also turn it off manually with the ON/OFF button (9a).

USER MANUAL AD 3059 ADLER

ADLER electric grill with black and silver casing, no visible text or symbols on device body

AD 3059

Exterior view of a black and silver electric grill grater with control buttons (no text or symbols visible)

Fig.2

Close-up of a black and silver portable stand with a curved handle, no visible text or symbols.

ENGLISH

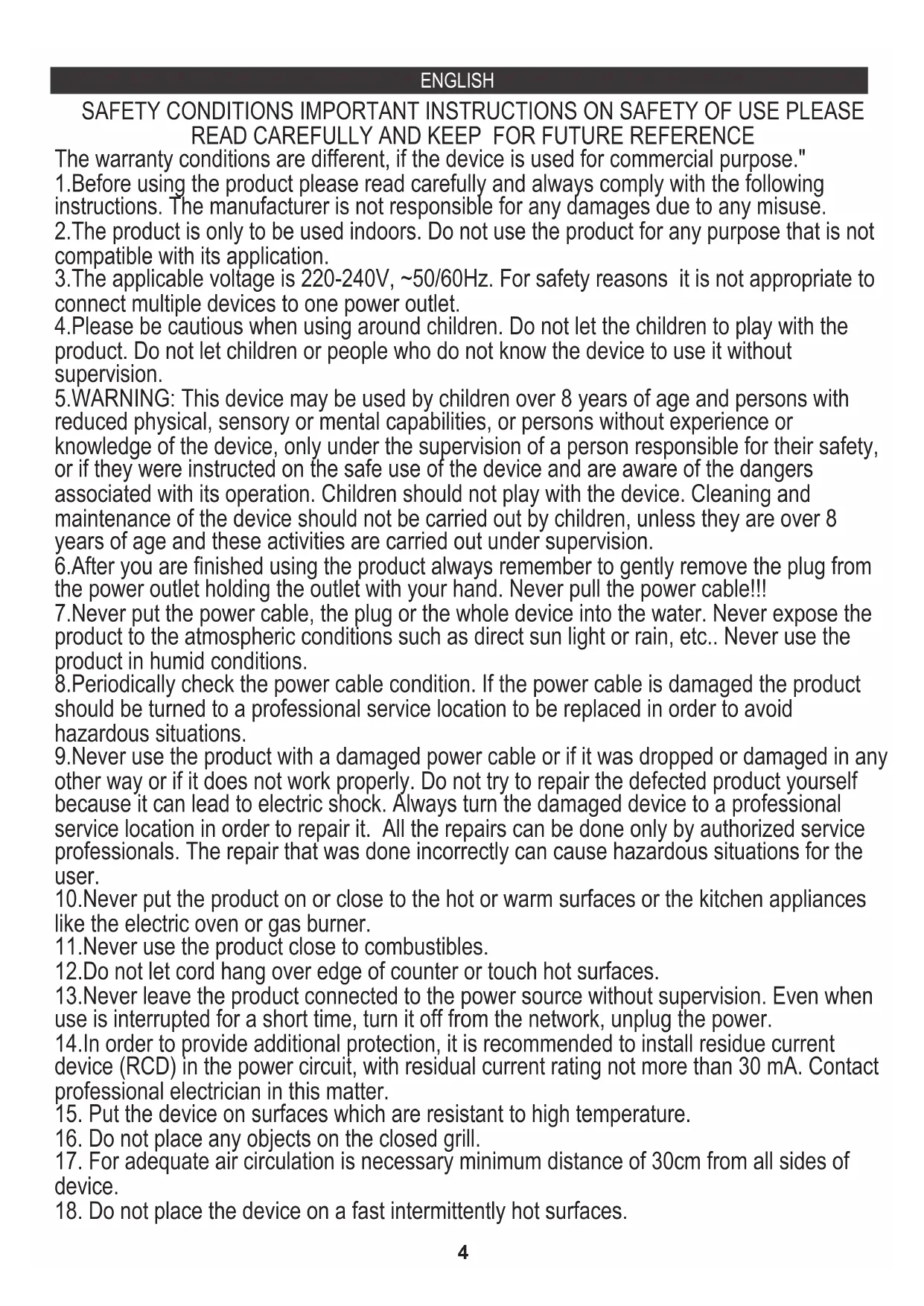

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose."

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The applicable voltage is 220-240V, \~50/60Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

2. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

3. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

4. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

5. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

6. Never use the product close to combustibles.

12.Do not let cord hang over edge of counter or touch hot surfaces.

1. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

2. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

3. Put the device on surfaces which are resistant to high temperature.

4. Do not place any objects on the closed grill.

5. For adequate air circulation is necessary minimum distance of 30cm from all sides of device.

6. Do not place the device on a fast intermittently hot surfaces.

7. Do not place the device on the gas or electric stove, near the wall, as well as in close proximity to heat sources.

8. Do not use this device with charcoal or similar combustible materials.
9. Before cleaning, movement, dismantling, assembling and storing the grill: Turn off the device, disconnect it from the mains and wait until the grill will cool down.

1. Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.
2. Never carry the device when it is turned on or when it is hot.
3. Do not place the device under kitchen shelves, due to the rising heat and

steam.

1. The power cord can not be laid over the device, and should not touch or be near hot surfaces. Do not place the device under an electrical socket.
2. Clean the unit after each use.
3. Do not use the appliance with wet hands.
4. Do not touch the surface of the device with any sharp objects (eg. a knife)
5. Do not cover the heating plate with aluminium foil, etc., as this can cause cummulation of heat and damage the plastic parts and coating.
6. Do not put utensils on the heating plates during use. Grill should be opened with a handle or grip according to the model.
7. Do not use plastic utensils when handling the grill, it can melt.

DEVICE DESCRIPTION: 2-in-1 LED Electric Grill

1. Handle
2. Top housing
   3 Lower housing
3. Foldable front feet
4. Place for a fat tray
5. Lock clip

6a. height adjustment of the top housing: 6 levels

6b. top housing interlock - closure, for storage
6c. grill unfolding function 180°

1. Fat tray
2. Lock button for removable heating plates
3. LED control panel

9a. ON / OFF button with indicator lamp
9b. Knob with a button to regulate the temperature of the lower heating plate
9c. Knob with a button to regulate the temperature of the upper heating plate
9d. Bottom plate temperature display
9e. Top plate temperature display
9f. Top plate thermostat indicator light
9g. Bottom plate thermostat indicator light
9h. Working time display (1 - 99 minutes)
9i. Timer button

Remove the packaging and all stickers and accessories that are outside and inside the device - between the heating plates.

NOTE: When turned on for the first time, the grill may produce a slight amount of smoke, due to the heating of certain parts. It's normal. Suggestion: let the grill run for a few minutes to get rid of the factory smell.

INSTRUCTIONS FOR USE

Contact grill function - grilling food on both sides at once.

1. Make sure both heating plates are clean. If necessary, wipe the grill with a damp cloth.
2. Place the grill on a dry, flat surface and connect to a power source. The power indicator light (9a) will flash and the grill will emit a short sound 'be'.
3. Place the fat tray (7) in the place intended for this (5).
4. Press the (9a) ON / OFF button, and the display will read:

display (9d) "--"

display (9h) "00"

display (9e) "--"

The device will go into standby mode.

1. To start the lower heating plate, press the knob (9b), then set the desired temperature by turning the knob to the right to increase the temperature (max. 230 C°), or to the left to reduce the temperature (min. 60 C°). The display (9d) will show the set temperature. The temperature on the display will flash 5 times and the device will start warming up. The thermostat indicator light for the upper heating plate (9f) will turn red to indicate that the heating plate is heating up, and the green light indicates that the heating plate has reached the set temperature.
   Proceed in the same way using the knob (9c) for the upper heating plate.
2. Wait for about 10 minutes. After this time, the device should reach the required temperature and the thermostat indicator lights (9f) and (9g) will turn green.
3. To set the time after which the device will turn off, set the time by pressing the button (9i). The display (9h) will show the set time, after which the device will turn off with 5 beeps. The device can be turned off beforehand by pressing the (9a) ON / OFF button.
4. Fully open the top housing by grasping the handle (1) and evenly distributing the food on the heating plate.
5. Grasp the top housing handle (1) on the grill and close it.

The device is equipped with a height adjustment of the top housing (6a), which can be set to one of five positions by moving the locking clip (6) (Fig. 2).

1. The grilling time takes from several to several minutes and depends on the type of food used for grilling and the temperature level.
2. During grilling, the indicator lights of the thermostats (9f and 9g) will change from red to green, which means that the thermostats work cyclically, maintaining the right temperature of the heating plates.
3. Open the top housing and remove the food on the grill with a plastic spatula.
   CAUTION: Do not use metal cutlery or sharp kitchen tools as they can damage the heating plates.
4. Before adding the next batch of food to be grilled, close the top housing so that the heating plates reach the set temperature.
5. When finished, disconnect the grill from the power source and allow it to cool.

Table grill function - grilling food on one side.

1. Place the grill on a clean, flat surface.
2. Place the fat trey (7) in the designated place (5).
3. To unfold the grill, slide the lock clamp (6) to position (6c) 180° (Fig. 1)
4. Unfold the top and bottom heating plates to create one large grill surface.
5. Grill the food on one side, then transfer it to the other side.

CLEANING AND MAINTENANCE

1. Before cleaning the grill, make sure it is cool to the touch and unplugged from the power source.
2. Clean the housing with a damp and then dry cloth (or a paper towel).
3. To clean the heating plates, remove them from the housing by pressing the buttons (8).
   Clean the plates with oven cleaner or in the dishwasher.
   After cleaning, wipe the cleaned plates dry and reinstall in the device.
4. Do not immerse in water.
5. Store with the top housing closed and locked by moving the lock clamp (6) to position (6b).

TECHNICAL DATA:

Power source: 220-240V \~ 50 / 60Hz

Nominal power: 2000W

Maximum power: 3000W

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
