AD 3062 - Waffle Maker ADLER - Free user manual and instructions

Product type	Electric waffle maker
Brand	Adler
Model	AD 3062
Power supply	220-240 V ~50/60 Hz
Rated power	1000 W
Maximum power	1400 W
Number of plates	2 (upper and lower)
Plate coating	Non-stick
Indicator lights	Power indicator (red) and thermostat (green)
Handle	Thermally insulated
Closing clip	Yes
Adjustable temperature	No (built-in thermostat)
Overheat protection	Yes (via thermostat)
Maintenance	Clean with a damp cloth and dry
Do not immerse	Yes
Use	Indoor use only
Number of waffles per batch	Variable depending on mold (approximately 2-4)
Recipe included	Yes (for 8 pieces)
Warranty	Manufacturer's warranty (conditions depend on use)
Cable length	Approximately 1 m (estimation)

Frequently Asked Questions - AD 3062 ADLER

How to use the Adler AD 3062 waffle maker for the first time?

Remove the packaging and stickers. Wipe the plates with a damp cloth then dry. Plug in the appliance closed and let it heat for a few minutes without food to eliminate manufacturing odors. Let it cool, clean again, and it is ready to use.

How to clean the waffle maker after use?

Unplug the appliance and wait for it to cool completely. Clean the plates with a damp cloth or paper towel. Never use abrasive sponges or chemical products. For stubborn residue, apply a little cooking oil and gently remove with a wooden spatula.

Why does the indicator light change from red to green?

The red light indicates power on. The green light turns on when the optimal cooking temperature is reached. During cooking, the light may alternate between green and red, which is normal as the thermostat maintains the temperature.

How much batter to pour into the waffle maker?

Pour the batter into the grooves of the lower plate without exceeding the indicated max level. Too much may overflow and cause burns. Gently close the lid without forcing.

Can the waffle maker be used with an external timer?

No, the appliance is not designed to operate with external timers or remote control systems. Use it only with a wall outlet.

Can the waffle maker be immersed in water?

No, never immerse the appliance, cable, or plug in water or any other liquid. Clean only with a damp cloth.

What to do if the waffle maker does not heat up?

Check that the appliance is properly plugged in and the outlet works. If the red light does not come on, the fuse may have blown or the appliance is defective. Contact an authorized professional service. Do not attempt to repair it yourself.

Can metal utensils be used on the plates?

No, use only wooden or plastic utensils (spatula). Metal or sharp objects scratch the non-stick coating and reduce its lifespan.

How to store the waffle maker after cooling?

Wait for the appliance to cool completely, clean it, then store it in a dry place. Avoid placing heavy objects on it. Wind the cable without kinking it.

What waffle batter recipe is recommended for this model?

The manual suggests a recipe for 8 waffles: mix 50 g melted butter, 125 g sugar, 2 eggs, 165 g flour, 65 ml milk, and 10 g vanilla sugar. Pour the smooth batter onto the heated plates.

USER MANUAL AD 3062 ADLER

White and black electronic device with a circular button, no visible text or symbols

AD 3062

(GB) u(BeH)maputel za rad 3

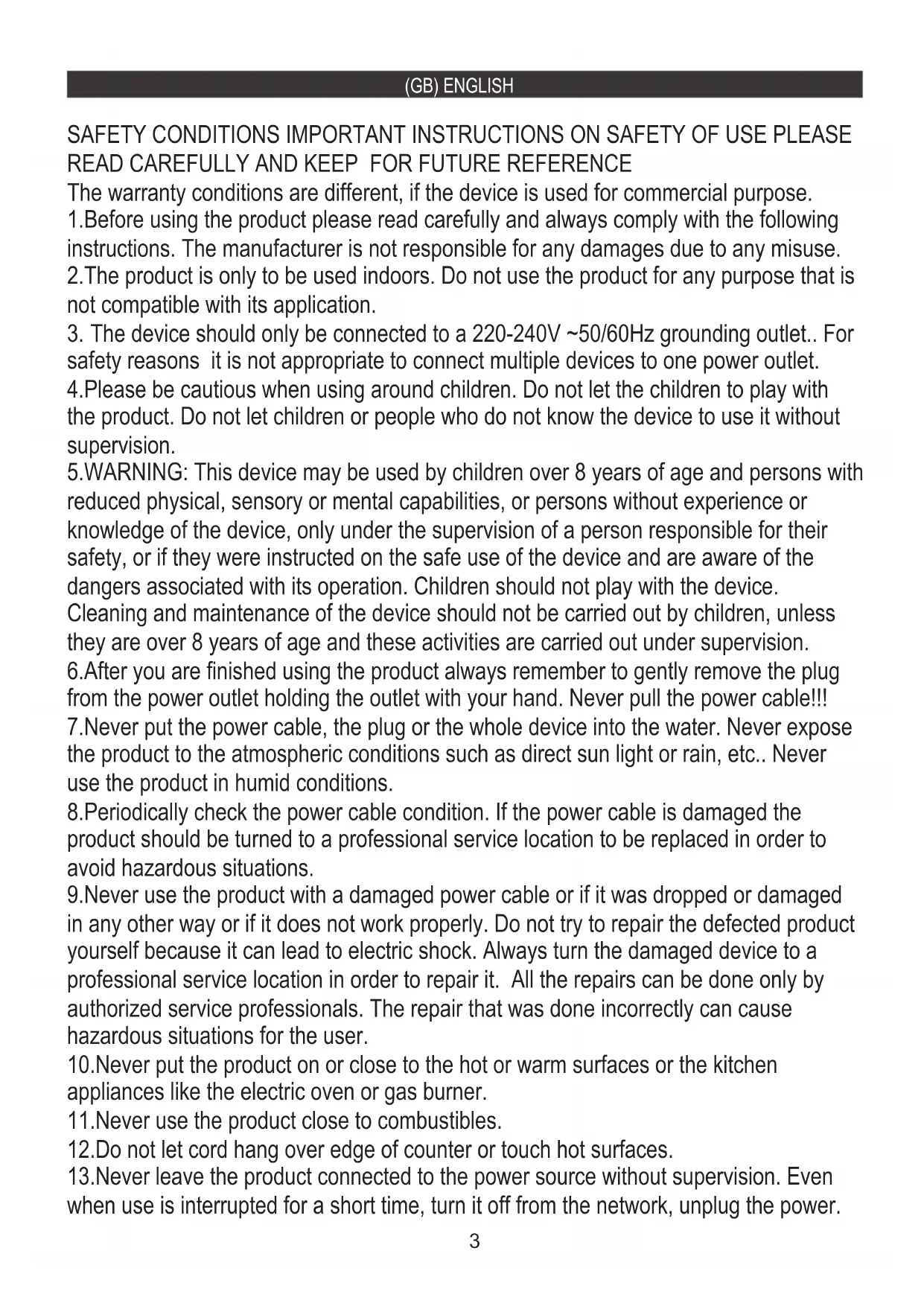

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The device should only be connected to a 220-240V \~50/60Hz grounding outlet.. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

2. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

3. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

4. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

5. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

6. Never use the product close to combustibles.

12.Do not let cord hang over edge of counter or touch hot surfaces.

1. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

2. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

1. Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.

2. Due to the high temperature you should be careful when removing the prepared dishes, removing hot grease or other hot liquids. Be careful, there can be hot steam presence during use of the appliance.

3. This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar.

During or after use, please do not touch the baking tray or the hot area on the shell before the temperature goes down.

1. The device must cool down before you store it.

2. Do not place products made of cardboard, paper, plastic materials or other flammable or meltable objects in the device.

3. The device is not designed to work with external schedulers or separate remote control system.

4. Do not insert food portions that use whole oven volume, as it may cause fire and destruction of the device.

5. The power cord may not be placed above the device and it may not touch or be located near hot surfaces. Do not place the device under a mains socket.

6. Do not move or carry the device during operation. After the operation it can be moved only if it had enough time for cooling down.

7. Open device by holding the handle (5). Before that, release the buckle (3).

8. Before and during use, make sure that the power cord is not stretched over an open flame or other heat source or sharp edges that may damage the insulation of the cable.

9. Before first use, remove all packaging components. Attention! In the case of a casing with metal parts, on these elements a slightly visible protective foil can be stretched, which should also be removed.

10. NEVER cover the device during operation or when it does not cool down completely, remember that the heating elements of the device take time to cool down completely.

11. SAVE CAREFULLY if you use the device on surfaces sensitive to high temperatures. It is recommended then to use insulating washers

12. The device can not be used with external time switches or other separate remote control systems.

DEVICE DESCRIPTION

1. cover

2. power (red) / thermostat (green) indicator light

3. closing clip

4. Heating plates, 4a): upper 4b): lower

5. Handle

BEFORE FIRST USE

1. Remove the packaging and any stickers and accessories that are outside and inside the device - between the heating plates (4a,4b)
2. Wipe the heating plates (4a, 4b) with a damp and then a dry cloth.
3. Close the device and connect it to the power supply - the red power indicator (2) will turn on.
4. Leave the device turned on for a few minutes to get rid of the factory smell. During this time, the device may emit a small amount of smoke. This is normal.
5. Clean the device according to the "Cleaning" section of this manual.

USING THE DEVICE

Prepare the necessary products.

1. Connect the closed device to a grounded power socket - the red power indicator (2) will light up.
2. Wait about 3 minutes for the device to warm up to the correct temperature. Then the indicator light will turn green (2).
3. Fully open the device. Lightly grease the heating plates (4a, 4b) with vegetable oil or other fat, and pour the previously prepared product into the grooves in the lower heating plate (4b) not exceeding the max level (photo 1)
4. Close the device. Lock the locking clip (3) Do not close the lid (1) by force.
5. During the operation of the device, the thermostat indicator light (2 - green) will change color from green to red, which means that the thermostat maintains the right temperature of the heating plates.
6. The processing time of the products is on average from 5 to 15 minutes and depends on the ingredients used and taste preferences.

ATTENTION! Hot steam may escape from under the lid of the appliance when processing food.

1. Fully open the upper cover (1) of the device and remove the finished products using only a wooden or plastic spatula.

ATTENTION! Do not use metal cutlery or sharp kitchen tools as they may damage the special non-stick coating of the heating plates.

1. Before starting the preparation of the next batch of products, close the device to allow the heating plates to heat up to the right temperature.

2. After cooking, remove the plug from the main socket and leave the appliance to cool down.

CLEANING THE DEVICE

1. Before cleaning the device, remove the plug from the main socket and wait for the device to cool down.
2. Clean with a damp and then a dry cloth (or a paper towel).
3. Apply a small amount of cooking oil to the stubborn residues and after a few minutes gently remove them with a wooden spatula.
4. Do not clean the heating plates with sharp, abrasive cloths or sponges, or use cleaning powders, as they may damage the smooth, non-stick coating of the plates.
5. Do not immerse the device in water.

Sample recipe for bowls: 8 pcs.

Ingredients: 50 g of melted butter, 125 g of sugar, 2 eggs, 165 g of cake flour, 65 ml of milk, 10 g of vanilla sugar.

Mix melted butter with vanilla sugar, and add 3 whole eggs. Then pour in the flour, and pour in the milk, stirring all the time until a homogeneous mass is obtained.

TECHNICAL DATA

Supply voltage: 220-240V \~50/60Hz Nominal power: 1000W Maximum power: 1400W

Please transfer cardboard packaging to waste paper. Pour the polyethylene bags (PE) into the plastic container Worn device should be returned to the appropriate point storage because it is dangerous in the device ingredients may pose a threat to the environment. The electrical device should be handed over to limit its reuse and use. If in the device there are batteries you have to take out and give to the point stored separately.
