AD 3038 - Waffle Maker ADLER - Free user manual and instructions

Product type	Electric waffle maker
Brand	Adler
Model	AD 3038
Power supply	230 V ~ 50/60 Hz
Rated power	750 W
Maximum power	1500 W
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.5 kg
Number of waffles per batch	1 waffle (classic size)
Material of plates	Non-stick coating
Functions	Adjustable thermostat, power indicator (red), thermostat indicator (green)
Safety	Locking clip, hot surfaces, do not immerse, short power cord
Maintenance	Clean with a damp cloth after cooling, do not use abrasives
Spare parts / Repairability	Repair by authorized service only, no spare parts provided
Use	Domestic use only
Operating ambient temperature	Normal room temperature
Environmental protection	Do not dispose of with household waste, recycle at collection point

Frequently Asked Questions - AD 3038 ADLER

What to do before first use of the Adler AD 3038 waffle maker?

Remove packaging and stickers. Clean the plates with a damp cloth then dry. Lightly grease the plates with vegetable oil, close the appliance and plug it in for a few minutes to eliminate factory odor. Some light smoke may appear, this is normal.

How to adjust the cooking temperature?

Turn the thermostat knob (5) to select the desired temperature. The green indicator (3) lights up when the temperature is reached. During cooking, the indicator turns on and off to maintain the temperature.

How much batter to pour into the mold?

Pour a small amount of batter into the center of the lower mold. Do not exceed the edges, as the batter spreads when closing. Close and lock the clip (4) to distribute evenly.

How to clean the plates after use?

Unplug the appliance and wait for it to cool completely. Clean with a damp cloth, then wipe with a dry cloth. For stubborn residues, apply a little cooking oil and remove after a few minutes with a wooden spatula. Never use abrasive sponges or powders.

Can I use metal utensils on the plates?

No, only use wooden or plastic spatulas to avoid damaging the non-stick coating. Metal or sharp utensils will scratch the plates.

What to do if smoke is emitted during use?

Some light smoke is normal during first use (factory odor). During use, if smoke is heavy, check that the batter is not overflowing or that the appliance is not overheating. Reduce temperature if necessary.

How long does it take to cook a waffle?

Cooking time varies from 5 to 15 minutes depending on ingredients and your preferences. Monitor browning through the steam released. Open the appliance carefully to check.

Does the appliance turn off automatically?

No, the Adler AD 3038 waffle maker does not have an automatic shut-off. You must unplug it after use. Never leave it plugged in unattended.

Can the appliance be used with an external timer?

No, it is forbidden to use the waffle maker with an external timer or a separate remote control system (according to the manual).

How to store the appliance after use?

Wait for the appliance to cool completely, clean it, then store it in a dry, dust-free place. Do not place the cord over the appliance.

USER MANUAL AD 3038 ADLER

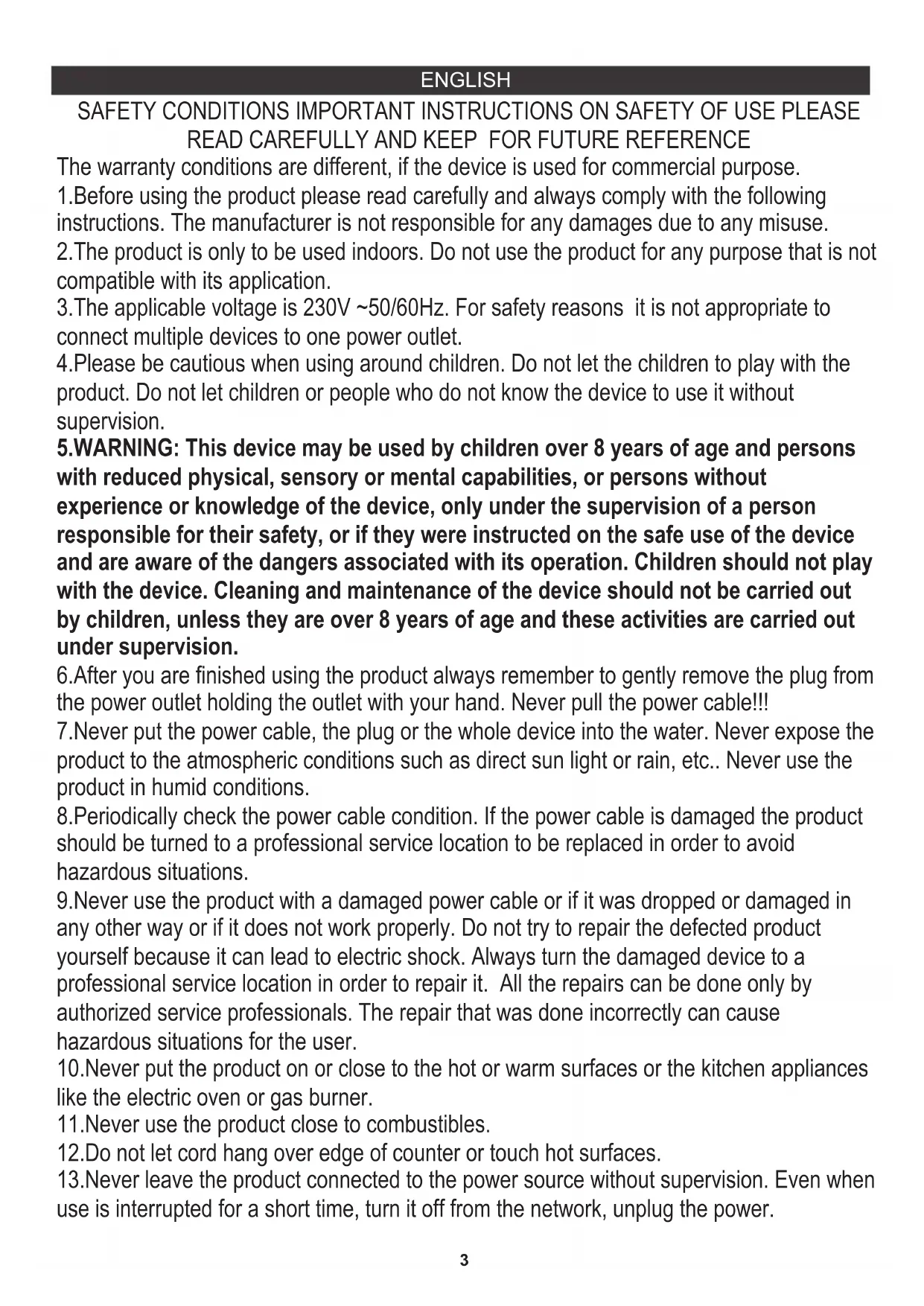

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 230V ~ 50/60Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions. 8.Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
8. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defective product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
9. Never put the product on or close to hot or warm surfaces or kitchen appliances like the electric oven or gas burner. Never use the product close to combustibles.
10. Do not let the cord hang over the edge of a counter or touch hot surfaces.
11. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network and unplug the power.
12. In order to provide additional protection, it is recommended to install a residual current device (RCD) in the power circuit, with a residual current rating not more than 30 mA. Contact a professional electrician in this matter.

1. Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.
2. Due to the high temperature, you should be careful when removing the prepared dishes, removing hot grease or other hot liquids. Be careful, there can be hot steam present during use of the appliance.
3. This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. The equipment shall be touched only at intended handles and gripping surfaces, and use heat protection like gloves or similar. During or after use, please do not touch the baking tray or the hot area on the shell before the temperature goes down.
4. The device must cool down before you store it.
5. Do not place products made of cardboard, paper, plastic materials or other flammable or meltable objects in the device.
6. The device is not designed to work with external schedulers or separate remote control systems.
7. Do not insert food portions that use the whole oven volume, as it may cause fire and destruction of the device.
8. The power cord may not be placed above the device and it may not touch or be located near hot surfaces. Do not place the device under a mains socket.
9. Do not move or carry the device during operation. After the operation, it can be moved only if it has had enough time to cool down.
10. Open the device by holding the handle. Before that, release the buckle (4).
11. Before and during use, make sure that the power cord is not stretched over an open flame or other heat source or sharp edges that may damage the insulation of the cable.
12. Before first use, remove all packaging components. Attention! In the case of a casing with metal parts, on these elements a slightly visible protective foil can be stretched, which should also be removed.
13. NEVER cover the device during operation or when it has not cooled down completely. Remember that the heating elements of the device take time to cool down completely.
14. BE CAREFUL if you use the device on surfaces sensitive to high temperatures. It is recommended then to use insulating washers.
15. The device cannot be used with external time switches or other separate remote control systems.

DESCRIPTION OF DEVICE

1. lid 2. power indicator
2. ready indicator 4. buckle
3. temperature changing knob 6. cone form

BEFORE FIRST USE

1. Remove all cartons and labels from housing and from inside (between hotplates).
2. Wipe hotplates first with a wet and then with a dry damp cloth.
3. Apply a bit of edible oil or other plant fat to the trays, close and plug in. The power indicator lamp will light (2).
4. Keep the appliance running for a few minutes to get rid of manufacturing odor. The device may emit some smoke during this time. That's normal.
5. Clean the unit according to the chapter "Cleaning".

USING THE DEVICE

Prepare the needed products.

1. Connect the closed device to a grounded socket - the power indicator lamp will light up (2).
2. Set the temperature by turning the knob (5). Wait about 10 minutes. After this time, the device should reach the required temperature - the ready indicator lamp will light up (3).
3. Fully open the device. Pour a small amount of dough into the center of the mold, taking care that the dough does not spill outside the hob.
4. Close the device. Snap the buckle (4). This will cause even distribution of dough on the plate. Do not close the lid (1) by force.
5. During operation, the ready indicator lamp (3) will turn on and off, which means that the thermostat maintains the appropriate temperature of the hotplates.
6. Operation time is approximately a few minutes and depends on the type of ingredients used and taste preference.

CAUTION: During operation, hot steam may be emitted from the cover of the device.

1. Fully open the lid (1) and remove the finished products using only a wooden or plastic spatula. Cones should be formed with the help of the form (6) right after taking them out of the device. NOTE: Be careful. Cones are very hot after being taken out of the device. ATTENTION! Do not use metal utensils or sharp kitchen tools because they can damage the special non-stick coating on the heating plates.
2. Before cooking the next batch of products, close the device so that the heating plate gets hot to the proper temperature. The thermostat indicator (3) lighting up indicates readiness for baking.
3. When finished baking, remove the plug from the outlet and allow the unit to cool down.

CLEANING THE DEVICE

1. Unplug the electric plug after use and wait for it to cool down before start cleaning.
2. Wipe baking surfaces first with wet and next with dry damp cloth (you can also use paper towel).
3. Hardest to clean dough rests grease with oil and leave this like that. After few minutes remove this rests with wood paddle gently.
4. Please do not use any metal nor hard abrasive tool to wipe the interior/exterior of the machine body to avoid scraping the surface of the tray.
5. Do not immerse in water.

SELECTED RECIPHE FOR 20 CONES

Ingredients: 125 g butter, 90 g of sugar, 0.5 teaspoons baking powder 3 eggs, 250 g of cake flour, 150 ml of warm water,

1 teaspoon of cinnamon, vanilla sugar

Grind butter with sugar and vanilla sugar and continue mixing add 3 whole eggs. Pour the flour by sifting it, add baking powder, lukewarm water, cinnamon and mix thoroughly with a spoon.

TECHNICAL DATA:

Power supply: 230V 50 / 60Hz

Power nom: 750W

Power max:1500W

To protect your environment: please separate carton boxes and plastic PE bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may effect the environment. Electrical appliance must be returned in order to reduce its reuse and utilization. If the device contains batteries they should be delivered to dedicated points separately.

INSTRUCTIONS FOR USE

1. Remove the appliance and its accessories from the packaging. Check that the contents are complete and undamaged. Keep the packaging for future use.
2. Clean the appliance with a damp cloth and then dry it thoroughly.
3. Remove the packaging from the appliance with a damp cloth and dry it. Then place it on a flat surface (2).
4. Switch the appliance on and let it heat up for a few minutes to eliminate the smell of the workshop. If necessary, the appliance may emit a small amount of smoke. This is normal.
5. Clean the appliance according to the instructions in the "Cleaning" section of this manual.

USER MANUAL

Prepare the required ingredients.

DESCRIPTION OF THE APPLIANCE

RECIPE FOR 20 WAFFLES

Ingredients: 125 g butter, 90 g sugar, 0.5 teaspoon baking powder, 3 eggs, 250 g cake flour, 150 ml warm water, 1 teaspoon cinnamon, vanilla sugar.

TECHNICAL SPECIFICATIONS

Power supply: 230 V ~ 50/60 Hz

Power: 750 W

Maximum power: 1500 W

Please dispose of the cardboard packaging in the paper recycling bin. The plastic bag (PE) should be thrown into the plastic waste container. The device must be handed over to the appropriate collection point, as its electronic components may pose a risk to the environment. The electrical device should be handed over in such a way that its reuse is not hindered. If the device contains batteries, they must be removed and handed over separately to the collection point. Do not throw the device into the household waste container!

SLOVENSKY

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS FOR SAFE USE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Do not touch hot surfaces.

1. Due to high temperatures, it is necessary to be careful when handling prepared food, pouring hot soup or other hot liquids. Be careful, when using the appliance there may be hot steam.
2. The electrical appliance has a heating function. Surfaces that are also marked with the functional symbol may develop high temperatures. The appliance should only be touched by the designated handles and protective surfaces, and use oven mitts, potholders or similar. During or after use, do not touch the appliance for switching off or hot liquids on the housing before the temperature has dropped.
3. Before storing, the appliance must cool down.
4. Do not place the appliance on cardboard, paper, plastic materials or other easily flammable or combustible materials. The appliance is not intended for use with an external timer or a separate remote control system.
5. Do not insert food portions that fill the entire oven cavity, as this may lead to damage and malfunction of the appliance.
6. The appliance must not be placed on the appliance, it must not touch or be near hot surfaces. Do not place the appliance under a power outlet.
7. Do not move or carry the appliance during operation. After operation, it can be moved once it has had enough time to cool down. Open the appliance, holding the handle. Before releasing the lock (4).
8. Before use and during use, make sure that the power cord is not placed on an open flame or other heat source or sharp edges that could damage the cable insulation.
9. Before first use, remove all packaging components. Attention! In case of

With a metal body, on some elements there may be a slightly protruding protective varnish, which should also be removed.

1. Do not cover the appliance during operation or when it has not cooled down completely; remember that the heating elements of the appliance need time to cool down completely.
2. BE CAREFUL if the appliance is used on surfaces sensitive to high temperatures. It is recommended to use insulating washers. The appliance cannot be used with external timers or other separate remote control systems.

DESCRIPTION OF THE APPLIANCE

1. Lid
2. Power indicator
3. Ready indicator 4. Handle
4. Temperature control knob
5. Cone shape

Prepare the necessary products.

1. Plug the appliance into a grounded outlet - the power indicator (2) lights up.
2. Set the temperature by turning the knob (5). Wait about 10 minutes. After this time, the appliance should have reached the required temperature - the ready indicator (3) lights up. 3. Open the appliance completely. Pour a small amount of batter into the center of the mold, making sure that the batter does not spread beyond the plate.
3. Close the appliance. Turn the handle (4). This will ensure even distribution of the batter on the plate. Do not close the lid (1) completely. 5. During operation, the ready indicator (3) turns on and off, which means that the thermostat maintains the appropriate temperature.
4. The cooking time is approximately a few minutes and depends on the ingredients used and your taste preferences.

1 teaspoon cinnamon, vanilla sugar

Maximum power: 1500W

To protect the environment, please separate cardboard packaging, fill the bags and dispose of them in the appropriate waste containers. Used appliances must be delivered to the special collection points for recycling, as they contain components that may harm the environment. Electric appliances must be disposed of separately to prevent their repeated use. If the appliance contains batteries, they must be delivered to separate collection points for batteries and waste.
