USER MANUAL PSW 1820 Battery Kärcher

• 1,5 Maße und Gewichte Länge x Breite x Höhe mm 2920 x 188 x 94 Länge Führungsschiene mm 200 Kettenteilung in 3/8 Gewicht (ohne Akkupack) kg 3,8 Chairman of the Board of ManagementDirector Regulatory Affairs & Certification H. Jenner S. Reiser General notes p. 21
• Safety instructions p. 22
• Intended use p. 30
• Environmental protection p. 30
• Accessories and spare parts p. 31
• Scope of delivery p. 31
• Symbols on the device p. 31
• Protective clothing p. 31
• Description of the device p. 31
• Initial startup p. 32
• Operation p. 32
• Transport p. 32
• Storage p. 33
• Care and service p. 33
• Troubleshooting guide p. 33
• Warranty p. 34
• Technical data p. 34

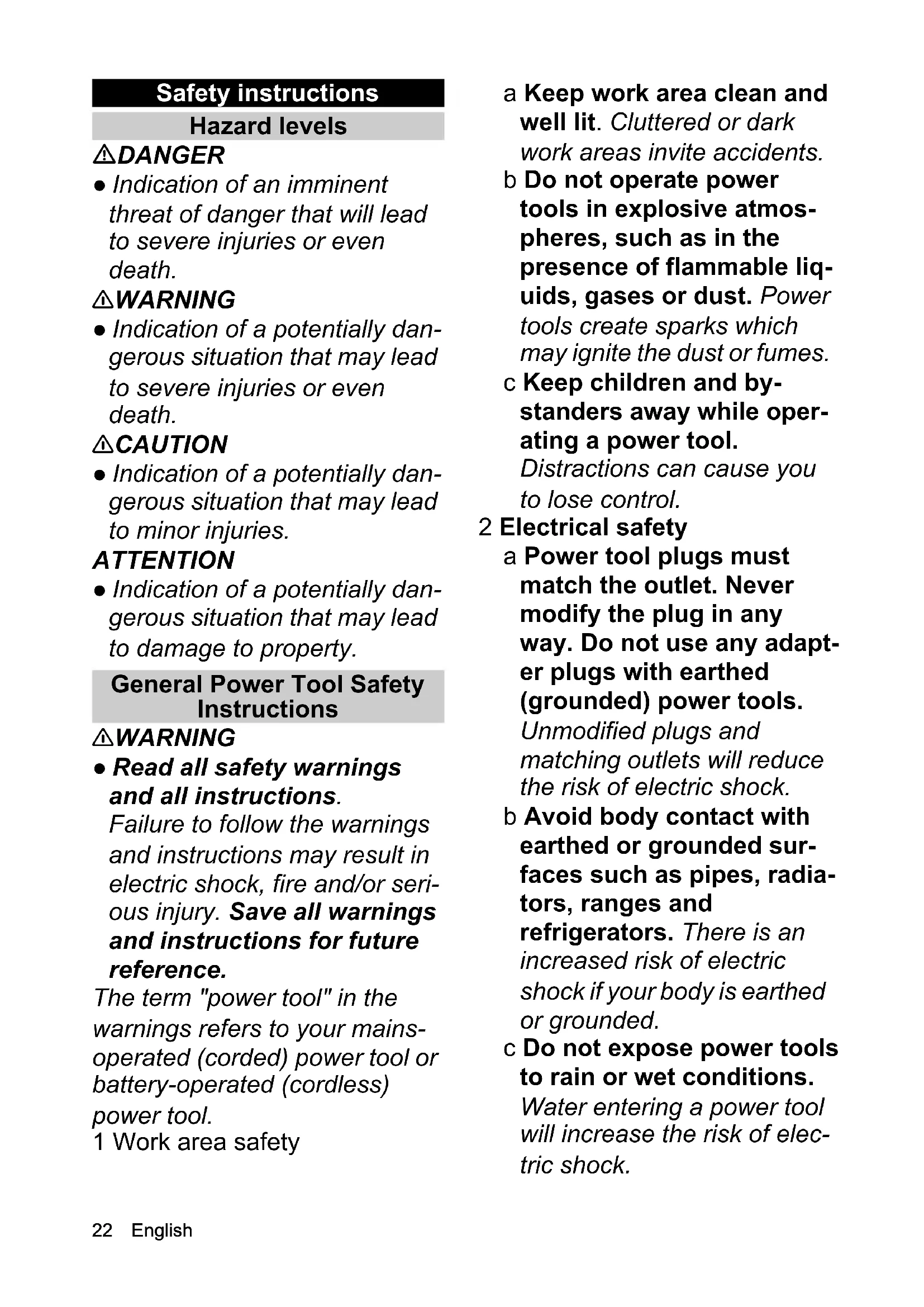

• EU Declaration of Conformity English Safety instructions Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dan- gerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dan- gerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dan- gerous situation that may lead to damage to property. General Power Tool Safety Instructions 몇 WARNING ● Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seri- ous injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area safety a Keep work area clean and well lit. Cluttered or dark work areas invite accidents. b Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liq- uids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and by- standers away while oper- ating a power tool. Distractions can cause you to lose control. 2 Electrical safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapt- er plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b Avoid body contact with earthed or grounded sur- faces such as pipes, radia- tors, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock.English 23 d Do not abuse the cord. Never use the cord for car- rying, pulling or unplug- ging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e When operating a power tool outdoors, use an ex- tension cord suitable for outdoor use. Use of a cord suitable for outdoor use re- duces the risk of electric shock. f If operating a power tool in a damp location is una- voidable, use a residual current device (RCD) pro- tected supply. Use of an RCD reduces the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use com- mon sense when operat- ing a power tool. Do not use a power tool while you are tired or under the influ- ence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in se- rious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropri- ate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off-posi- tion before connecting to power source and/or bat- tery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the pow- er tool may result in personal injury. e Do not overreach. Keep proper footing and bal- ance at all times. This ena- bles better control of the power tool in unexpected sit- uations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust ex-24 English traction and collection fa- cilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related haz- ards. 4 Power tool use and care a Do not force the power tool. Use the correct pow- er tool for your applica- tion. The correct power tool will do the job better and saf- er at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, chang- ing accessories, or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained us- ers. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s op- eration. If damaged, have the power tool repaired before use. Many accidents are caused by poorly main- tained power tools. f Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, acces- sories and tool bits etc. in accordance with these in- structions, taking into ac- count the working conditions and the work to be performed. Use of the power tool for operations dif- ferent from those intended could result in a hazardous situation. 5 Battery tool use and care a Recharge only with the chargers specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b Use power tools only with specifically designated battery packs. Use of anyEnglish 25 other battery packs may cre- ate a risk of injury and fire. c When the battery pack is not in use, keep it away from other metallic ob- jects, like paperclips, coins, keys, nails, screws or other small metallic ob- jects that can make a con- nection from one terminal to another. Shorting the bat- tery terminals together may cause burns or a fire. d Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. 6 Service a Have your power tool ser- viced by a qualified repair person using only identi- cal replacement parts. This will ensure that the safety of the power tool is maintained. Additional General Safety Instructions Note ● Regulations may restrict the use of this device in some regions. Seek advice from your local authorities. DANGER ● Risk of fatal inju- ry from cuts as a result of uncon- trolled device movements. Keep body parts away from moving parts. ● Risk of injury from hurled or falling objects. Never use the device if there are per- sons, in particular children or an- imals, within a radius of 15 m. ● No changes may be made to the device. 몇 WARNING ● Children and persons unfamiliar with these in- structions are not allowed to op- erate the device. The age of the operator may be limited by local restrictions. ● You need an un- obstructed view of the work area in order to be able to recognise any potential dangers. Use the device only under good lighting conditions. ● Before operation, make sure the device, all control elements, and safety devices are working properly. Check for loose locks, make sure all pro- tective covers and handles are properly and securely fastened. Only use the device when it is in a correct condition. ● Replace any worn or damaged parts be- fore operating the device. ● Never use the device if the trigger on the handle does not switch on and off correctly. ● Risk of kickback due to loss of balance. Avoid an abnormal posture, keep a stable, safe footing and maintain your bal- ance. ● Serious injuries due to negligence through familiarity26 English with the device due to frequent use. ● Immediately stop the de- vice and check for damage or identify the cause of the vibra- tion if the device has been dropped, hit or vibrates abnor- mally. Have damage repaired by the authorised Customer Ser- vice or replace the device. 몇 CAUTION ● Wear full eye protection and hearing protec- tion, strong and sturdy gloves and head protection when oper- ating the device. Wear a face mask when the work is dusty. ● Wear long, heavy trousers, sturdy shoes and well-fitting gloves when working with the device. Do not work barefoot. Do not wear any jewellery, san- dals or short trousers. ● Risk of injury when loose fitting clothing, hair or jewellery is caught by moving parts of the device. Keep clothing and jewellery away from moving parts of the device. Tie long hair back. ● Hearing protection can impair your ability to hear warning sounds, so pay attention to haz- ards in your vicinity and in the work area. ● The operation of similar tools in the environment increases the risk of hearing damage and the likelihood of failing to hear potential hazards, e.g. people entering your work area. ● Slippery handles and gripping surfaces prevent safe operation and control of the de- vice in unexpected situations. Keep handles and gripping sur- faces dry, clean, and free from oil and grease. ● Only use ac- cessories and spare parts which are approved by the manufac- turer. Only original accessories and original spare parts ensure that the appliance will run fault- free and safely. Safety precautions for cordless saw 몇 WARNING ● Do not use the device if there is a danger of lightning. ● Ensure that all pro- tective devices and handles are correctly fitted, securely fas- tened and in good condition. ● Ensure a firm footing, a clean workplace and plan a retreat path from falling branches be- fore using the device. ● Beware of exhaust fumes, oil vapour and sawdust. If necessary, wear a mask or breathing apparatus. ● Always hold the branch cutter with both hands. Hold the shaft firmly with one hand. Hold the rear handle firmly with the other hand, operate the power trigger lockout button and the trigger. ● Risk of electric shock if the saw chain comes into contact with hidden power lines. Hold power tools only by the insulated gripping surfaces, as the contact with live cables can make theEnglish 27 metal parts of the device live. ● Risk of injury. Do not make any modifications to the device. Do not use the device to drive at- tachments or devices not rec- ommended by the manufacturer of the device. Kickback may occur when the nose or tip of the guide rail touches an object, or when the wood bends and jams the saw chain in the cut. Tip contact may cause a sudden reverse reac- tion in some cases, kicking the guide rail up and back towards the operator. Jamming of the saw chain in the top of the guide rail may push the rail rapidly back towards the operator. Any of these reactions can lead to a loss of control. 몇 WARNING ● Serious injuries due to loss of control through a kickback. Do not rely solely on the built-in safety devices, but take appropriate measures to work accident-free and injury- free. ● You must wear the carry- ing belt provided when using the device. The carrying belt is fitted with a quick-release buckle. The carrying belt helps you to control the device when it is lowered af- ter cutting and to hold the weight of the device during cutting. ● Serious injuries if the carrying belt cannot be removed quickly enough in an emergency. Famil- iarize yourself with the carrying belt and the quick-release buck- le before using the device. Do not wear clothing over the shoul- der strap or otherwise interfere with access to the quick-release buckle. ● Before switching on the device, make sure that the saw chain does not touch any objects. ● Serious injuries if a wrongly tensioned saw chain jumps out of the guide rail. Check the chain tension before each use. Make sure the chain is oiled, especially for new saw chains. ● Switch the motor off, remove the battery pack and make sure that all moving parts have stopped moving: Before cleaning the device or removing a blockage. When leaving the device unat- tended. Before mounting or removing attachments. Before checking, cleaning or working on the device. ● Risk of injury due to kickback. Measures to prevent a kickback: Make sure your work area is clear of obstacles. Avoid any contact of the guide tip with branches, twigs or oth- er objects while working with the branch cutter. Hold the device with both hands. Position your body and arms so that you can resist kickback forces.28 English Never let go of the branch cut- ter during operation. Avoid unnatural postures. This gives you more control over the branch cutter and prevents unintentional contact with the tip of the bar in unex- pected situations. Only use the replacement bars and chains recommend- ed by the manufacturer. Incor- rect replacement bars and chains may cause chain breakage and/or kickback. Sharpening the saw chain is a challenging task. The manu- facturer recommends replac- ing a worn or dull chain with a new saw chain. ● Risk of injury. Do not use the device on ladders or unstable surfaces. Always stand with both legs on firm ground to keep your balance when cutting. ● Risk of electric shock. Do not work with the device within 10 m of overhead lines. ● Risk of inju- ry if a branch under tension snaps back when cutting. ● Watch for falling branches and branches that spring back after falling to the ground. ● The oper- ator can lose their balance if thin wood gets caught in the saw and flies in the direction of the oper- ator. Be careful when sawing small shrubs and saplings. ● Check the saw teeth if the cut- ting performance diminishes. Keep the cutting tools sharp and clean. Sharp cutting tools are easier to control and do not block so easily. If necessary, re- place the chain and the bar. On- ly use original spare parts from the manufacturer. ● Risk of inju- ry due to a jammed cutting de- vice. If the saw chain or guide rail has become trapped too high to reach it, seek the advice of a professional arborist to safely remove the cutting de- vice. ● Before each use, check that the shaft connection of the rod and the cutting tool are se- curely fastened. ATTENTION ● Only store the device indoors. Additional safety instructions for the battery pack 몇 WARNING ● Danger of injury, fire and product damage due to short-circuit. Corrosive or con- ductive liquids, such as salt wa- ter, certain chemicals, bleach, and products containing bleach can cause a short-circuit. Do not immerse the device, the remov- able battery or the charger in liq- uids. Make sure that no liquids penetrate into the device or the battery pack. Safe transport and storage 몇 WARNING ● Switch the de- vice off, allow it to cool down and remove the battery pack before storage or transportation. ● Cov-English 29 er the cutting tool with the bar scrabbard before storing or transporting the device. 몇 CAUTION ● Risk of injury and damage to the device. Se- cure the device against move- ment or falling down during transport. ATTENTION ● Remove all for- eign bodies from the device be- fore storage or transportation. ● Store the device in a dry, well ventilated location out of the reach of children. Keep the de- vice away from corrosive sub- stances such as garden chemicals. ● Do not store the device outdoors. ● Make sure the chain is lightly oiled when storing the device for more than one month. The manufacturer recommends using a spray for rust protection and oiling. Ask your Customer Service depart- ment to recommend a suitable spray. Safe servicing and care Note ● Service and mainte- nance work may only be per- formed by suitably qualified and specially trained personnel. We recommend sending the product to an authorised service centre for repair. ● You may only per- form the adjustments and re- pairs described in these operating instructions. Contact your authorised Customer Ser- vice department for other re- pairs. 몇 WARNING ● Risk of injury. The saw chain is extremely sharp. Wear suitable protective gloves when performing chain maintenance and when clean- ing, securing or removing the bar scrabbard. ● Follow the in- structions for chain tensioning, chain tension adjustment and chain lubrication. ● Severe inju- ries due to kickback if a dam- aged chain is not replaced or repaired. ● Turn off the motor and remove the battery pack be- fore cleaning or servicing the de- vice. ● Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. ● Risk of injury due to long, uninterrupt- ed use of the device. Take regu- lar breaks while working with the device. 몇 CAUTION ● Only use acces- sories and spare parts and at- tachments that are approved by the manufacturer. Only original spare parts, original accessories and original attachments ensure fault-free and safe operation of the device. ATTENTION ● Clean the prod- uct with a soft, dry cloth each time after use.30 English Residual risks 몇 WARNING ● Certain residual risks remain present, even when the device is operated in the prescribed manner. The following dangers can be present when using the device: Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time. Noise can cause hearing inju- ries. Wear hearing protection and limit the duration of expo- sure. Incision injuries on contact with exposed saw teeth of the saw chain. Incision injuries due to unfore- seen, abrupt movements or kickback of the g bar scrabber. Incision injuries / risk of injec- tion by parts flying away from the saw chain. Injuries caused by hurled ob- jects (wood shavings, splin- ters). Inhalation of dust and parti- cles. Skin contact with the lubricant / oil. Risk reduction 몇 CAUTION ● Using the device for longer pe- riods can cause poor circula- tion in the hands due to vibrations. A general period of use cannot be set, because this depends on several influ- encing factors: Personal tendency to suffer from poor circulation (fre- quently cold fingers, tingling sensation in the fingers) Low ambient temperature. Wear warm gloves to protect your hands. Holding the device too tightly hindering blood circulation. Continuous operation is more harmful than operation inter- rupted by work breaks. You should see a doctor if us- ing the device regularly and for lengthy periods of time, and in the event of repeated occur- rences of symptoms such as tingling in the fingers or cold fingers. Intended use DANGER Improper use Danger of death from incision injuries Only use the device for its proper use. The cordless saw with extension is only intended for private use. The device is intended for outdoor use only. For safety reasons, always hold the device firmly with both hands. The device is intended for pruning and trimming small branches and twigs high on a tree. The user stands securely on the ground. Any other use, e.g. when climbing, for pruning low branches or for cutting material at ground level is pro- hibited. The user shall be liable for hazards arising as a result of improper use. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - canEnglish 31 pose a potential threat to human health and the environ- ment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of togeth- er with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Symbols on the device Protective clothing DANGER Risk of fatal injury from cut injuries. Wear suitable pro- tective clothing when working with the device. Observe the local regulations for accident prevention. Head protection When working with the device, wear a suitable safety helmet that complies with EN 397 and is CE marked. When working with the device, wear hearing protection that complies with EN 352-1 and is CE marked. For protection against flying splinters, wear suitable safety goggles that comply with EN 166 or are CE marked. Or wear a helmet visor that complies with EN 1731 and is CE marked. Protective helmets with hearing protection and a safety visor are available in specialist shops. Protective gloves Wear suitable protective gloves with cut protection equipment that comply with EN 381-7 and are CE marked when working with the device. Safety shoes Wear non-slip safety shoes that meet EN 20345 and are CE marked when working with the device. Description of the device The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging). See graphics page for illustrations Illustration A 1 Chain 2 Guide rail 3 End stop 4 Guide rail pin 5 Bar cover 6 Screw for adjusting the chain tension 7 Chain oil tank cap 8 Upper shaft 9 Twist collar 10 Extension insert 11 Eyelet for carrying belt 12 Lower shaft 13 Handle 14 Battery pack trigger 15 Type plate 16 Trigger 17 Trigger lockout button 18 Carrying belt 19 Allen key for adjusting the chain tension 20 Bar scabbard 21 Chain oil 22 *Battery Pack Battery Power 18V General warning symbol Read the operating instructions and all safety instructions before operating the device for the first time. Wear non-slip, sturdy gloves when work- ing with the device. Wear non-slip safety shoes when work- ing with the device. Always wear suitable eye protection and hearing protection when working with the device. Do not subject the device to rain or moist conditions. Electrical hazard. Keep a minimum dis- tance of 10 m away from overhead lines when working with the device. Danger due to flung objects. Keep spec- tators, especially children and pets, at least 15 m away from the work area. Pull: Quick-release catch Running direction of the chain 10m32 English 23 *Quick Charger Battery Power 18V p. 3422

• optional Rechargeable battery pack The device can be operated with a 18 V Kärcher Bat- tery Power battery pack. Initial startup Installing shaft If required, the device can be extended with the includ- ed extension insert.

1. Connect the lower shaft and the extension insert.

2. Connect the upper shaft and the extension insert.

Inserting the carrying belt The carrying belt helps to lower the device in a con- trolled manner after cutting and to catch the weight of the device during use. Illustration C

1. Hook the carrying belt hooks into the eyelets on the

handle and shaft. Place the carrying belt over one shoulder. Make sure that the carrying belt can be re- leased quickly in the event of danger. Filling the chain oil tank

1. If necessary, clean the area around the filling hole of

2. Remove the chain oil tank cap.

3. Fill the chain oil into the tank. Check the filling level

of the chain oil on the sight glass and make sure that the chain oil tank is filled to the maximum below the filling hole. Illustration E

4. Wipe up any spilled chain oil with a cloth.

5. Close the chain oil tank cap.

Checking the chain tension 몇 CAUTION Sharp chain Incision injuries Wear protective gloves when working on the chain.

2. Carefully pull on the chain.

Illustration G The distance between the guide rail and the chain must be 3-4 mm.

3. If necessary, adjust the chain tension (see Chapter

Adjusting the chain tension). Installing the battery pack

1. Push the battery pack into the mounting in the de-

vice until it audibly latches into place. Illustration H Operation Basic operation

1. Examine the tree and branches for damage such as

rot. In the case of damaged or rotten branches, seek the advice of a professional arborist.

2. Remove the bar scrabber.

3. Hold the device firmly with both hands.

Switch on the device

2. Press the trigger.

The device starts up.

3. Release the trigger.

The device stops. Working techniques When pruning, proceed as follows: Place the bar on the branch to be cut and push the device forward so that the end stop touches the branch. Illustration J The device stabilizes during pruning and the cuts are made cleaner. Where possible, maintain a distance of approx. 15 cm between the tree trunk and the cut. Cut small branches that are thin and light a single cut with the bottom edge of the guide rail. Heavier branches of larger diameter may break or splinter during pruning. Therefore, cut in several steps: a Make a cut in the underside of the branch with the top edge of the guide rail. This cut should be about one third of the branch diameter. Illustration K b Make a cut in the top of the branch. c If another cut is necessary, never continue cutting in an existing cut but rather start a new cut. The following should be noted when pruning: Do not raise the bar higher than 60 ° from the hori- zontal. Do not exert excessive force on the guide rail. Do not stand under the branch being sawn off. Make sure that the falling branch does not endanger the user or spectators nor damage any objects. Maintain a safety distance of at least twice the branch length when pruning. If this is not possible, have the work done by a professional arborist. Removing the battery pack Note During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.

1. Press the battery pack unlocking button to unlock

the battery pack. Illustration L

2. Remove the battery pack from the device.

1. Remove the battery pack from the device (see

Chapter Removing the battery pack).

2. Clean the device (see Chapter Cleaning the de-

vice). Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transporta- tion. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before trans- port. Transport the device only with the blade guard fitted.English 33 Secure the device against slipping and tipping over when transporting in vehicles. Storage Clean the device before storing (see Chapter Cleaning the device). 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery pack from the device before stor- age. Store the device only with the blade guard fitted.

1. Remove the carrying belt.

2. Disassemble the shaft into its individual parts.

3. If the device is to be stored for more than one month,

oil the chain to prevent rust.

4. Store the device in a dry, well ventilated location.

Keep away from corrosive substances such as gar- den chemicals and defrosting salt. Do not store the device outdoors. Care and service 몇 CAUTION Uncontrolled startup Incision injuries Remove the battery from the device before all work on the device. 몇 CAUTION Sharp chain Incision injuries Wear protective gloves when working on the chain. Cleaning the device

1. Remove the battery pack (see Chapter Removing

2. Use a brush to clean the chain of cutting residue and

dirt. Illustration M

3. Clean the housing and handles with a soft, dry cloth.

Maintenance work Before every use The following activities must be carried out before every use: Check the filling level of the chain oil, top up the chain oil if necessary (see Chapter Filling the chain oil tank). Check the chain tension (see Chapter Checking the chain tension). Check the chain for sufficient sharpness, if neces- sary, invert the guide rail or replace the chain (see Chapter Replacing the chain). Check the device for damage. Check all pins, nuts and screws for tightness. Adjusting the chain tension

1. Remove the battery pack (see Chapter Removing

3. Adjust the chain tension with the screw.

4. Check the chain tension.

Illustration G The distance between the guide rail and the chain must be 3 - 4 mm.

1. Remove the battery pack (see Chapter Removing

3. Remove the bar cover and guide rail.

4. Dispose of the old chain professionally.

6. Mount the guide rail. Pay attention to the running di-

rection of the chain. Illustration S

7. Mount the bar cover, loosely fastening the guide rail

8. Adjust the chain tension (see Chapter Adjusting the

chain tension). Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. As the battery pack ages, even if it is looked after, its ca- pacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect. Fault Cause Rectification The device does not start

Battery pack is empty Charge the battery pack. Battery pack is defective. Replace the battery pack. Battery pack is not inserted correctly. Push the battery pack into the mounting until it latches into place. The device stops during operation Chain blocked by clippings. Remove the clippings. The battery has overheated Stop working and allow the battery to cool down to normal battery temperature. Motor has overheated Stop working and allow the motor to cool down.34 English Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data Subject to technical modifications. EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Battery-powered saw with extension Type: 1.444-010.0 Currently applicable EU Directives 2014/30/EU 2006/42/EC (+2009/127/EC) 2011/65/EU Harmonised standards used EN 50581: 2012 EN 55014-1: 2017 EN 55014-2: 2015 EN 60745-1:2009+A11:2010

The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2018/09/01 Device performance data Working voltage of the battery V 18 Idle speed m/s 5,5 Chain oil tank volume ml 50 Cut material diameter (max.) mm 180 Working range (max.) m 3 Determined values in acc. with EN ISO 11680-1 Sound pressure level L
