USER MANUAL GAS 18V10 L Professional BOSCH

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite14). 1 609 92A 98S | (10.01.2024) Bosch Power ToolsEnglish | 15 English Safety information for vacuum cleaners Read all the safety information and instruc- tions. Failure to observe the safety informa- tion and follow instructions may result in elec- tric shock, fire and/or serious injury. Save all warnings and instructions for future reference. u This vacuum cleaner is not inten- ded for use by children or persons with physical, sensory or mental impairments. It should not be used by persons who have insufficient experience and knowledge. Other- wise, there is a risk of operating er- rors and injuries. u Supervise children. This will ensure that children do not play with the va- cuum cleaner. u Comply with all safety provisions for the substances being extracted. u Do not vacuum beech or oak wood dust or asbestos. Only vacuum rock dust in conjunction with dust ex- traction systems, which have been explicitly approved for use withGAS 18V-10 L byBosch. These substances are classified as carcinogenic. WARNING Only use the vacuum cleaner if you have been adequately informed about the use of the equipment, the substances to be va- cuumed and how to dispose of these safely. Thorough in- struction on how to use the equipment prevents accidental misuse and injuries. WARNING The vacuum cleaner is suitable for vacuuming dry substances, and can also be used to vacuum liquids when taking appropri- ate measures. The penetration of liquids increases the risk of an electric shock. u Do not use the vacuum cleaner to vacuum combustible or explosive liquids, such as petrol, oil, alcohol or solvents. Do not vacuum hot, burning or explosive dust. Do not operate the vacuum cleaner in areas sub- ject to explosion hazards. Dust, vapours and liquids can ignite or explode. WARNING If you notice a foam or water leak, switch off the vacuum cleaner im- mediately and empty the container. Otherwise, the va- cuum cleaner can become damaged. u NOTE: The vacuum cleaner must only be stored in- doors. u NOTE: Clean the float regularly and check whether it is damaged. Otherwise, the equipment may not function properly. u Ensure that the workplace is well ventilated.u The vacuum cleaner should be repaired exclusively by a qualified professional using only genuine spare parts. This will ensure that the safety of the vacuum cleaner is maintained. WARNING The dust extractor contains dust particles that pose a risk to health. Emptying and maintenance procedures, including the disposal of dust containers, should only be carried out by professionals. Suitable protective equipment is re- quired. Do not operate the vacuum cleaner unless the complete filter system is correctly inserted. Otherwise, you are putting your health at risk. u Before using the equipment for the first time, check that the vacuum hose is in perfect condition. Leave the vacuum hose fitted to the vacuum cleaner while doing this so that no dust escapes accidentally. Other- wise, you may end up inhaling dust particles. u Do not clean the vacuum cleaner by spraying a jet of water directly at it. Water entering the top of the va- cuum cleaner will increase the risk of electric shock. u Do not open the battery. There is a risk of short-circuit- ing. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u If used incorrectly or if the battery is damaged, flam- mable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accident- ally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause ir- ritation or burns. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u When the battery is not in use, keep it away from pa- per clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire. u Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload. u Only charge the batteries using chargers recommen- ded by the manufacturer. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery. Bosch Power Tools 1 609 92A 98S | (10.01.2024)16 | English Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Do not work with the dust extractor if you are carrying it by the strap. You could get caught in the carrying strap and fall while vacuuming. u Use the carrying strap only in conjunction with the dust extractor. Symbols The following symbols may provide you with important in- formation pertaining to the use of your dust extractor. Please take note of these symbols and their meaning. Correctly in- terpreting the symbols will help you to operate the dust ex- tractor more effectively and safely. Symbols and their meaning WARNING! Read all the safety and gen- eral instructions. Failure to observe the safety and general instructions may res- ult in electric shock, fire and/or serious injury. Dust extractor from dust class L in ac- cordance with IEC/EN 60335-2-69 for the dry extraction of harmful dusts with an exposure limit of >1mg/m³ WARNING! The dust extractor contains dust particles that pose a risk to health. Emptying and maintenance procedures, including the disposal of dust containers, should only be carried out by professionals. Suitable protect- ive equipment is required. Do not oper- ate the dust extractor unless the com- plete filter system is correctly inser- ted. Otherwise, you are putting your health at risk. Product Description and Specifications Please observe the illustrations at the beginning of this oper- ating manual. Intended Use The dust extractor is intended for collecting, vacuuming, conveying and separating non-flammable dry dusts, non- flammable liquids and a water-air mixture. The dust extrac- tion capability of the dust extractor has been tested and cor- responds to dust classL. It is suitable for the increased de- mands in professional use, e.g. in trade, industry and work- shops. Dust extractors from dust classL in accordance with IEC/ EN60335‑2‑69 may only be used to vacuum and extract harmful dust with an exposure limit of >1mg/m³. Only use the dust extractor if you can fully evaluate all func- tions and carry them out without restrictions, or if you have received corresponding instructions. Rotational Airflow The bagless filter system removes the need to use dust bags. Dirt is collected on the inside wall of the container. Product Features The numbering of the product features refers to the repres- entation of the vacuum cleaner on the graphic pages. (1) Container (2) Catch for top part of dust extractor (3) On/off button (4) Battery charge indicator (5) Top part of dust extractor (6) Carrying handle (7) Adapter for vacuum hose/floor nozzle bracket (8) Hose adapter (9) Fastening eyes (10) Adapter for suction tube/crevice nozzle bracket (11) Battery compartment cover release button (12) Battery compartment cover (13) Vacuum hose (14) Dust extraction adapter (15) Curved nozzle (16) Crevice nozzle (17) Floor nozzle (18) Suction tube (19) Battery bay (20) Rechargeable battery

(21) Battery release button

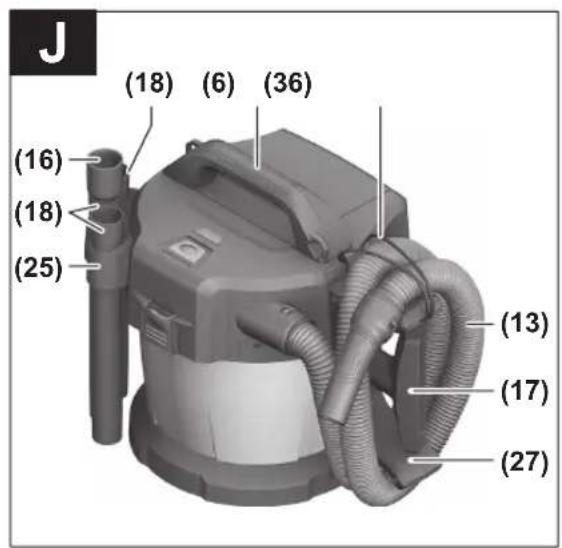

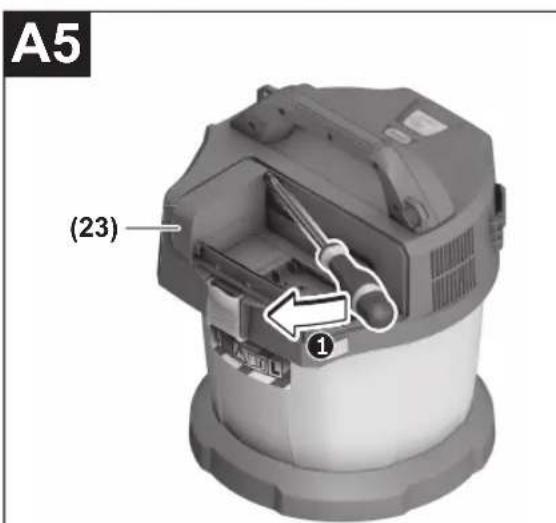

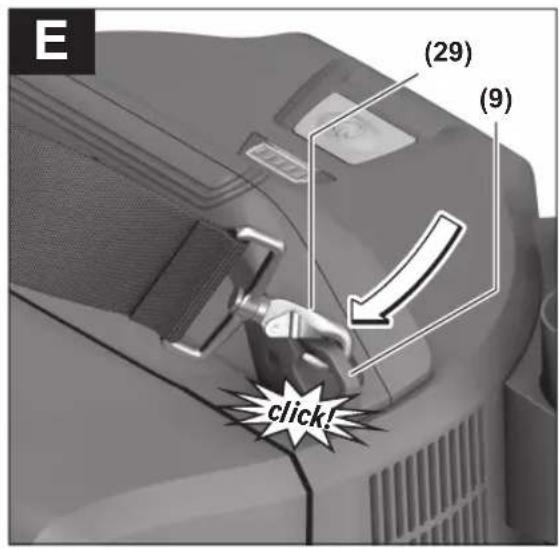

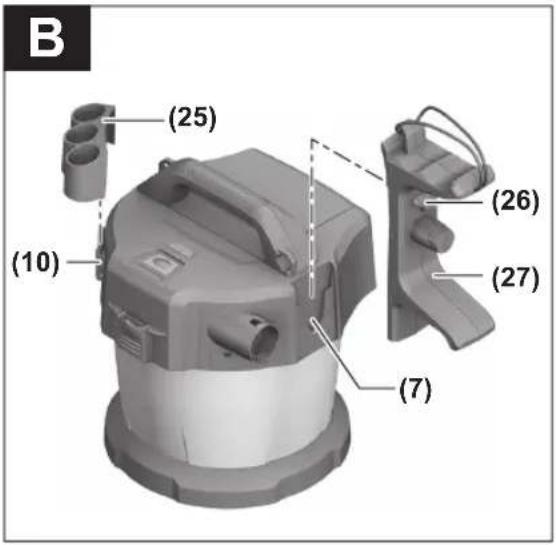

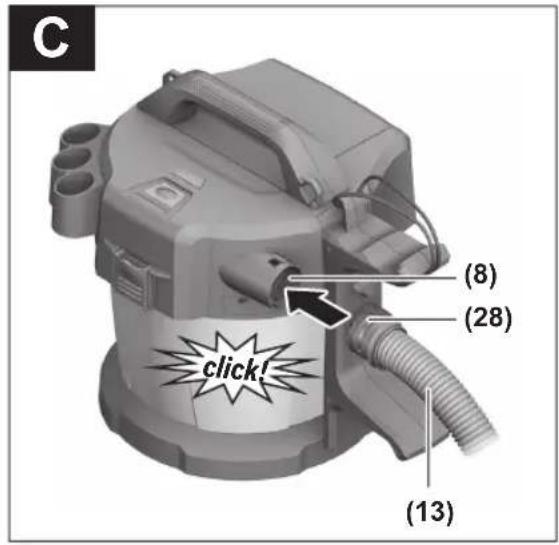

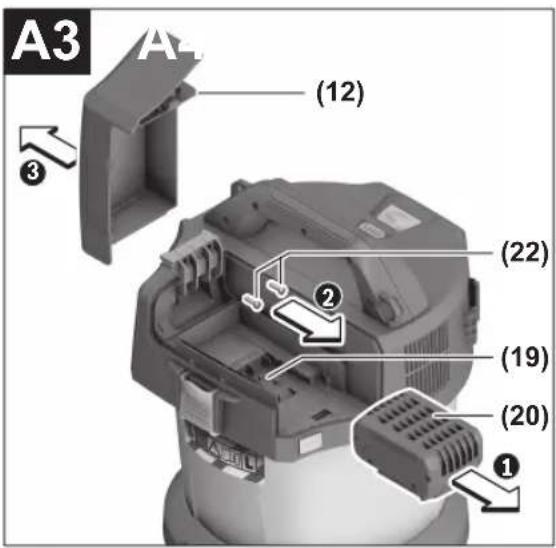

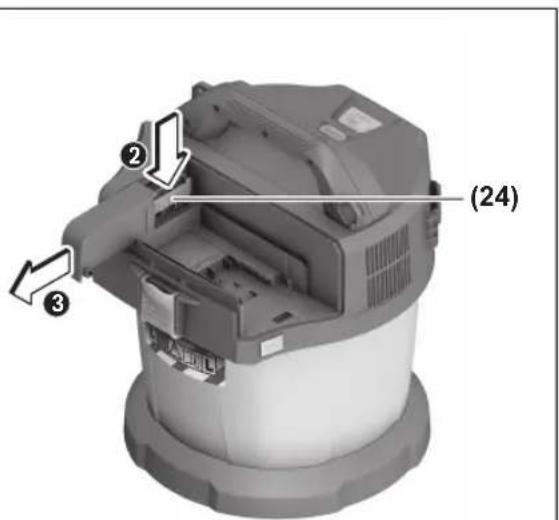

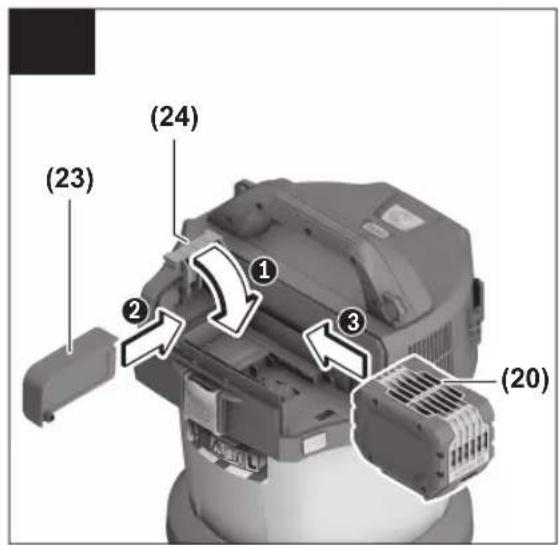

(22) Fastening screws (23) Screen (24) Bracket for battery compartment cover (25) Bracket for suction tube and crevice nozzle (26) Fixing bolt for bracket(27) (27) Bracket for vacuum hose and floor nozzle (28) Snap fastener (29) Carrying strap

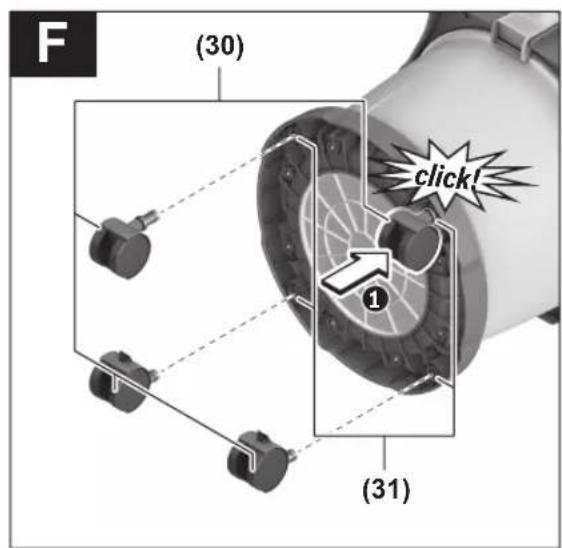

(31) Castor adapter (32) False air intake (33) Filter (34) Float (35) Filter holder (36) Retaining strap of the vacuum hose

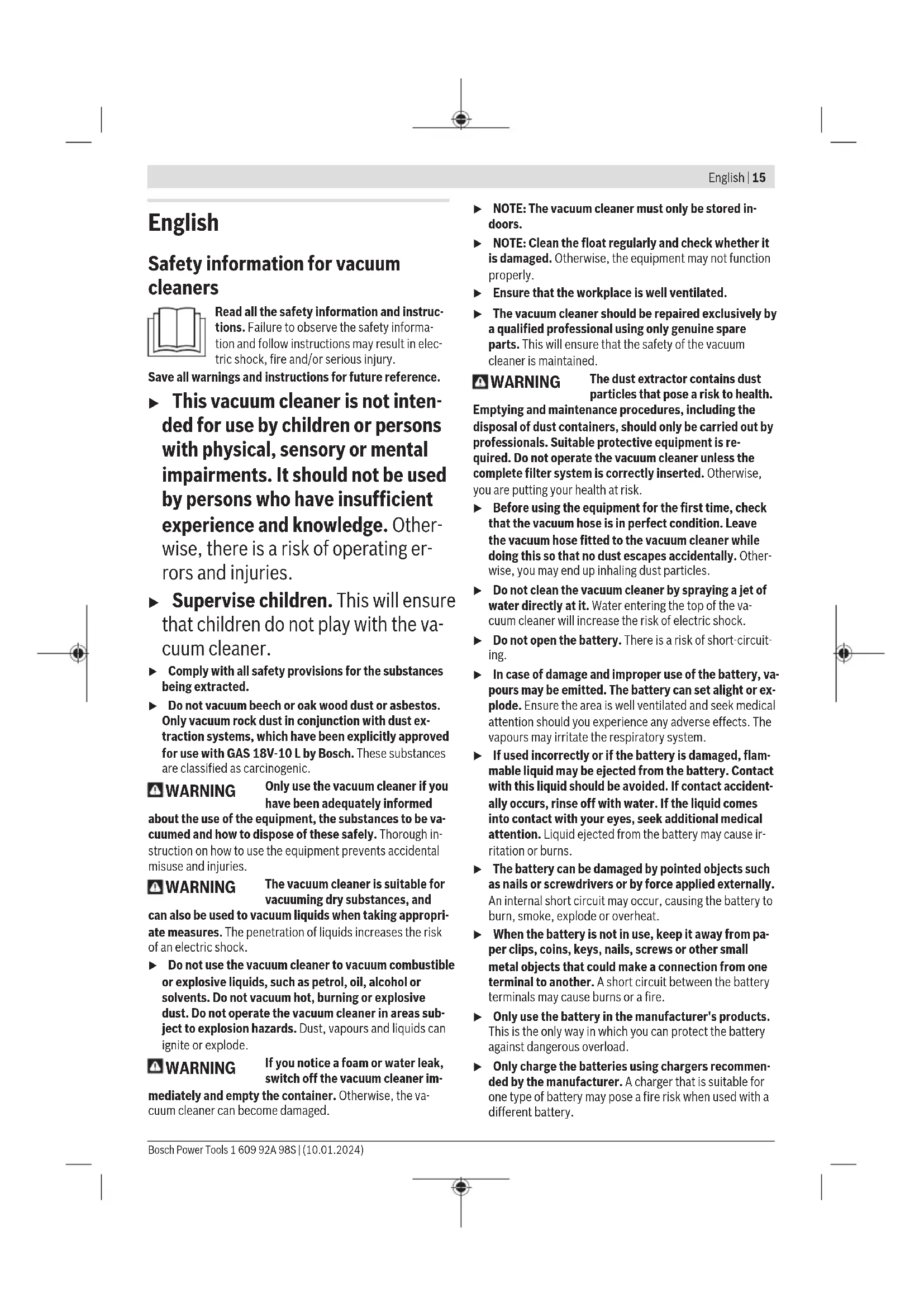

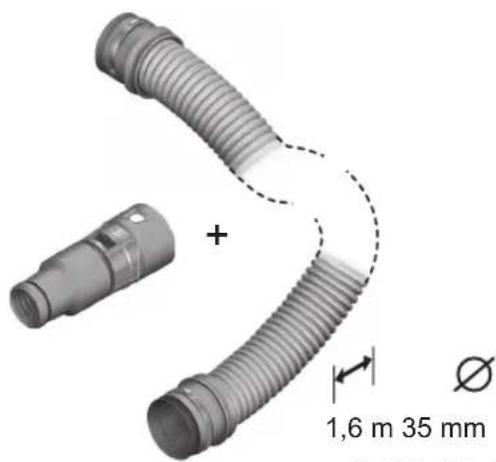

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. 1 609 92A 98S | (10.01.2024) Bosch Power ToolsEnglish | 17 Technical data Cordless wet/dry vacuum cleaner GAS 18V-10 L Article number 3601JC63.. Voltage V 18 Rated power input W 260 Container volume (gross) l 10 Net volume (liquid) l 6 Max. vacuum

Operating time per battery charge min/Ah 4 Dust class L Weight according to EPTA-Pro- cedure01:2014 kg 5,1–6,1

Protection rating IPX4 Recommended ambient tem- perature during charging °C 0…+35 Permitted ambient temperature during operation

and during storage °C –20…+50 Recommended rechargeable batteries GBA18V… ProCORE18V… Recommended chargers GAL 18… GAX 18… GAL 36… A) Measured at 20–25°C with rechargeable batteryGBA18V6.3Ah

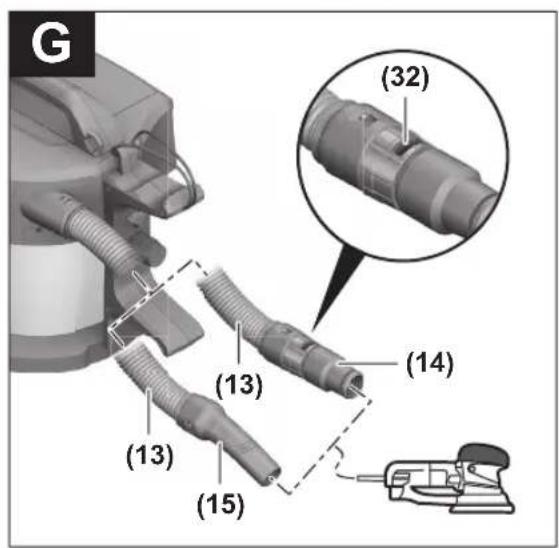

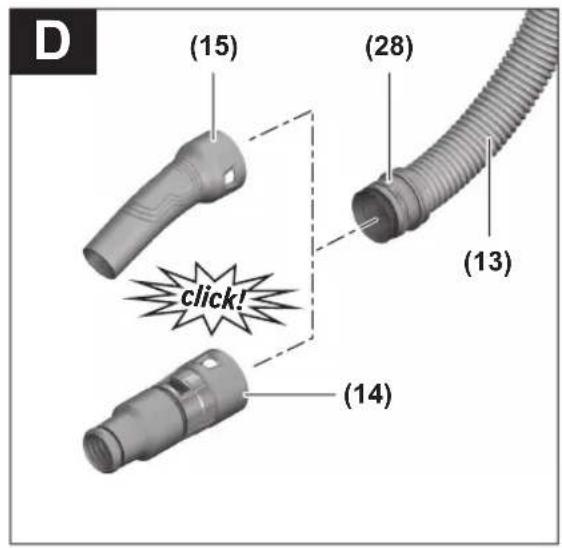

Measured with vacuum hose (13) and curved nozzle (15) C) Depends on battery in use D) Limited performance at temperatures <0°C Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according to EN60335‑2‑69. Typically the A-weighted sound pressure level of the dust ex- tractor is 79dB(A). Uncertainty K=2dB. The noise level when working can exceed the volume stated. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN60335‑2‑69:

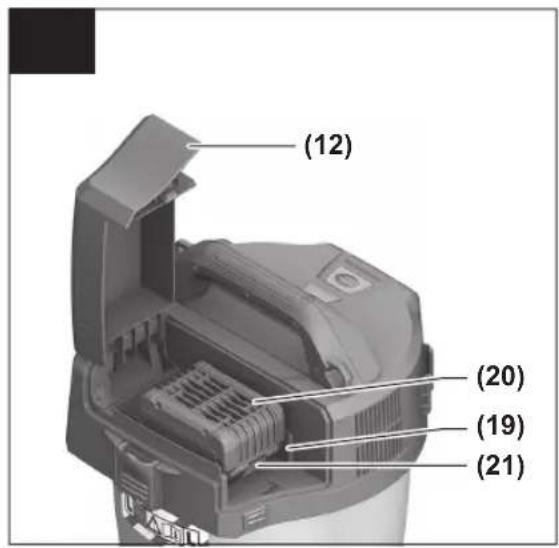

Rechargeable battery Bosch sells some cordless dust extractors without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the dust extractor by looking at the packaging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your dust extractor. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting and Removing the Battery (seefiguresA1−A2) u Do not use force to insert the battery. The battery is de- signed in such a way that it can only be inserted into the product when it is in the right position. u Keep the battery compartment and the battery bay clean and dry at all times to ensure good, safe operation. – Press the release button(11) to open the battery com- partment cover(12). – Slide the battery(20) into the battery bay(19) until it audibly clicks into place. – To remove the battery(20), press the release button(21) on the battery and pull it out of the battery bay(19). – Close the battery compartment cover(12). Changing the Battery Compartment Cover (seefiguresA3−A5) If you wish to use a ProCORE18V 12Ah battery, the battery compartment cover(12) can then no longer be closed. In this case, the battery compartment cover(12) can be re- placed with a screen(23) designed for this purpose. In damp or wet conditions, the dust extractor may only be used with the battery compartment cover closed. Removing the Battery Compartment Cover (seefigureA3) Remove the battery(20) from the battery bay(19). Remove the two fastening screws(22) (ST4×12) with a cross-headed screwdriver PH1 and take off the battery com- partment cover(12). Inserting the Screen (seefigureA4) Press the battery compartment cover bracket(24) down- wards and slide on the screen(23). Removing the Screen (seefigureA5) Apply a slot screwdriver, push the screen(23) a little way to- wards the rear and remove the screen. When doing so, press the battery compartment cover bracket(24) downwards. Bosch Power Tools 1 609 92A 98S | (10.01.2024)18 | English Battery Charge Indicator When the rechargeable battery is inserted, you can see the state of charge of the battery on the battery charge indicator(4) on the dust extractor. When the rechargeable battery is removed, you can see this on the battery itself. Battery Charge Indicator on the Dust Extractor After the dust extractor is switched on, the five green LEDs of the battery charge indicator(4) will light up individually one after another in ascending and descending order. Then the LEDs will indicate the state of charge of the battery(20). Battery Charge Indicator on the Rechargeable Battery If the rechargeable battery is removed from dust extractor, its state of charge may be indicated by the green LEDs of the battery charge indicator on the battery. Press the button for the battery charge indicator or to show the state of charge. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. Note: Not all battery types have a battery charge indicator. Battery model GBA 18V... LEDs Capacity 3× continuous green light 60−100% 2× continuous green light 30−60% 1× continuous green light 5−30% 1× flashing green light 0−5% Battery model ProCORE18V... LEDs Capacity 5× continuous green light 80−100% 4× continuous green light 60−80% 3× continuous green light 40−60% 2× continuous green light 20−40% 1× continuous green light 5−20% 1× flashing green light 0−5% Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Assembly u Remove the battery before cleaning or performing maintenance on the dust extractor, making tool ad- justments, changing accessories or placing the dust extractor in storage. This safety measure prevents the dust extractor from being started accidentally. Fitting the Brackets for Extractor Accessories (seefigureB) – Slide the bracket(25) for the suction tube and crevice nozzle firmly into the adapter(10) provided for it from above until it clicks into place. – Slide the bracket(27) for the vacuum hose and floor nozzle firmly into the adapter(7) provided for it from above and tighten the fixing bolts(26). Fitting the vacuum hose (see figure C) – Insert the vacuum hose (13) into the hose adapter (8) un- til both snap fasteners (28) of the vacuum hose click into place. Note: The friction generated by the dust in the vacuum hose and accessory during extraction causes an electrostatic charge that the user may experience as static discharge (de- pending on environmental factors and their physiological state). Fitting the Vacuuming Accessories The vacuum hose(13) is equipped with a clip system which can be used to connect vacuuming accessories (dust extrac- tion adapter(14), curved nozzle(15)). Fitting the extraction adapter or curved nozzle (seefigureD) Fit the extraction adapter(14) or the curved nozzle(15) to the vacuum hose(13) until the two snap fasteners(28) on the vacuum hose audibly click into place. To remove the adapter, press the snap fasteners(28) in- wards and pull apart the components. Fitting the Nozzles and Tubes – If required, place the suction tubes (18) firmly inside one another and then attach them firmly to the curved nozzle (15). – Attach the floor nozzle (17) or the crevice nozzle (16) firmly to the suction tube (18) or the curved nozzle (15). Attaching the Carrying Strap (Accessory) (seefigureE) u The carrying strap is only intended for carrying and at- taching the dust extractor! Click the snap hooks of the carrying strap(29) into the fastening eyes(9) of the dust extractor. 1 609 92A 98S | (10.01.2024) Bosch Power ToolsEnglish | 19 Fitting the Castors (Accessory) (seefigureF) Insert the 4 fastening pins on the rollers(30) into the roller adapters(31) until they audibly click into place. Other rollers can also be used as per the EN12529 standard (11mm fastening pin diameter). u Check the functionality of the roller brakes before us- ing the dust extractor. Operation u Remove the battery before cleaning or performing maintenance on the dust extractor, making tool ad- justments, changing accessories or placing the dust extractor in storage. This safety measure prevents the dust extractor from being started accidentally. u Ensure that the work area is clean and tidy to minim- ise the risk of tripping. Starting Operation u The dust extractor must not be used without a filter. u Do not use damaged filters (e.g. no cracks, small holes, etc.). Replace any damaged filters immedi- ately. u Before extraction, ensure that the filter unit is se- curely fitted. u Before extraction, ensure that the battery compart- ment cover is securely closed. u Please inform yourself about the applicable regula- tions/laws on how to handle harmful types of dust in your country. u Only vacuum rock dust with the power tool and dust extraction system combination explicitly identified, for which it has been proven that the legal thresholds are not exceeded. You can find this evidence at http://www.bosch-professional.com/dust. The dust extractor must categorically not be used in poten- tially explosive areas. To ensure optimum suction power, you must always fully un- wind the vacuum hose(13) from the vacuum hose bracket(27). Switching On and Off To switch on the dust extractor, briefly press the on/off button(3). To switch off the dust extractor, press the on/off button(3) again. For safety reasons, the dust extractor does not switch on if the on/off button(3) is held down for longer than five seconds. Dry Vacuuming Extracting dust that accumulates from working power tools (seefigureG) u There must be a sufficient air exchange rate in the room when the exhaust air comes back into the room. Be aware of the corresponding national regulations. – Fit the dust extraction adapter(14) or the curved nozzle(15) (see "Fitting the extraction adapter or curved nozzle (seefigureD)", page18). – Insert the extraction adapter(14) or the curved nozzle(15) into the power tool's dust extraction outlet. Only when using the dust extraction adapter(14): Note: When working with power tools that have a low air feed into the vacuum hose (e.g. jigsaws, sanders, etc.), the false air intake(32) of the dust extraction adapter(14) must be opened. This will improve the total output of the dust ex- tractor and the power tool. To do this, turn the ring above the false air intake(32) until the opening is at its maximum size. Wet Vacuuming u Do not use the vacuum cleaner to vacuum combustible or explosive liquids, such as petrol, oil, alcohol or solvents. Do not vacuum hot, burning or explosive dust. Do not operate the vacuum cleaner in areas sub- ject to explosion hazards. Dust, vapours and liquids can ignite or explode. Before wet vacuuming: – Empty the container (1). – Clean the filter(33) and fit it back into the dust ex- tractor(see "Cleaning/replacing filters (see figures I1– I2)", page20). The dust extractor is equipped with a float(34). Extraction is stopped when the maximum filling level is reached. After wet vacuuming, always: – Empty the container (1). – Empty the water from the filter (33). To prevent mould growth after wet vacuuming: – Remove the dust extractor lid (5) and leave it to dry thor- oughly. – Remove the filter (33) and also leave this to dry thor- oughly (see "Cleaning/replacing filters (see figures I1– I2)", page20). Maintenance and Servicing Maintenance and Cleaning u Remove the battery before cleaning or performing maintenance on the dust extractor, making tool ad- justments, changing accessories or placing the dust extractor in storage. This safety measure prevents the dust extractor from being started accidentally. Bosch Power Tools 1 609 92A 98S | (10.01.2024)20 | English u To ensure safe and efficient operation, always keep the dust extractor and the ventilation slots clean. u Wear a dust mask when servicing and cleaning the va- cuum cleaner. For the user to carry out maintenance, the dust extractor needs to be disassembled, cleaned and maintained as far as this is possible without endangering maintenance personnel or other persons. Before disassembly, the dust extractor should be cleaned to prevent any potential hazards. The room/enclosure in which the dust extractor is disassembled should be well ventilated. Wear personal protective equip- ment while carrying out maintenance. After completing maintenance, the maintenance area should be cleaned. An inspection regarding the dust extraction capability must be carried out at least once a year by the manufacturer or someone who has been trained, e.g. to check for filter dam- age, that the dust extractor is tight and that the control unit is functioning correctly. Class L dust extractors which were located in dirty environ- ments should have their exteriors, as well as all their com- ponents, cleaned or treated with sealant. When performing maintenance and repair work, all dirty parts that cannot be cleaned satisfactorily must be disposed of. Such parts must be disposed of in impermeable bags in accordance with the valid provisions for disposing of such waste. – Clean the housing of the dust extractor occasionally with a damp cloth. – Clean dirty charging pins using a dry cloth. Cleaning the container (see figures H1–H2) Clean the container (1) after each use in order to ensure that the dust extractor continues to perform optimally. – Open the catches (2) and remove the dust extractor lid (5). – Shake out the container (1) over a suitable waste bin. – If necessary, clean the container with a damp cloth. Clean the filter if required (see "Cleaning/replacing filters (see figures I1–I2)", page20). – Replace the dust extractor lid (5) and close the catches (2). Cleaning/replacing filters (see figures I1–I2) Suction power is dependent on the condition of the filter. Therefore, the filter should be cleaned regularly. Replace any damaged filters immediately. – Open the catches(2) and remove the dust extractor lid (5). – Turn the filter(33) as far as it will go in the direction of ro- tation and remove it from the filter bracket(35). – If the filter is dry: Tap the filter(33) on the side of a suitable waste bin. When doing so, ensure that you do not damage the flaps on the filter. To achieve maximum suction power, brush down the flaps of the filter using a soft brush.

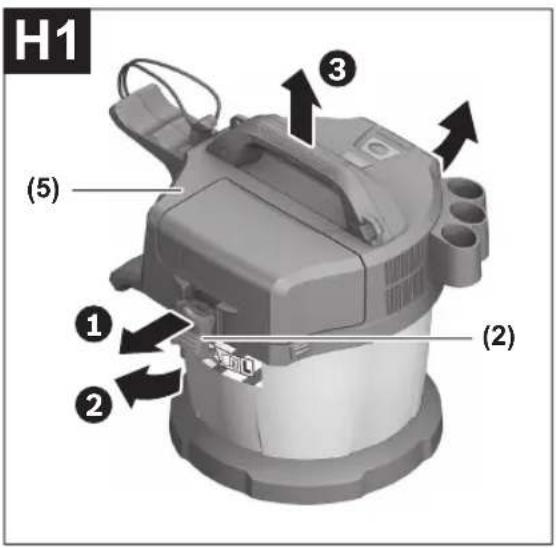

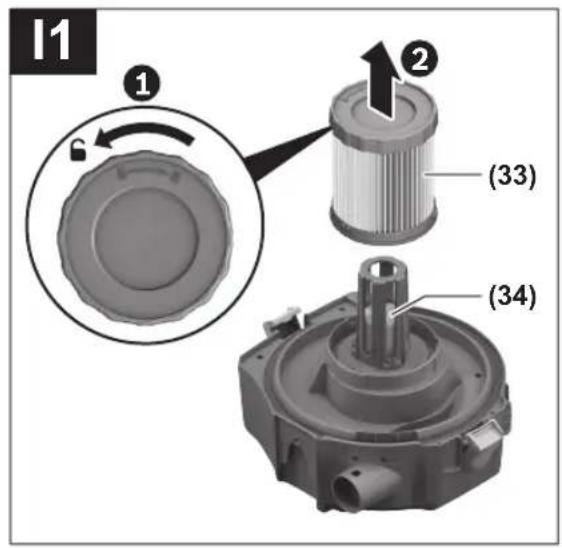

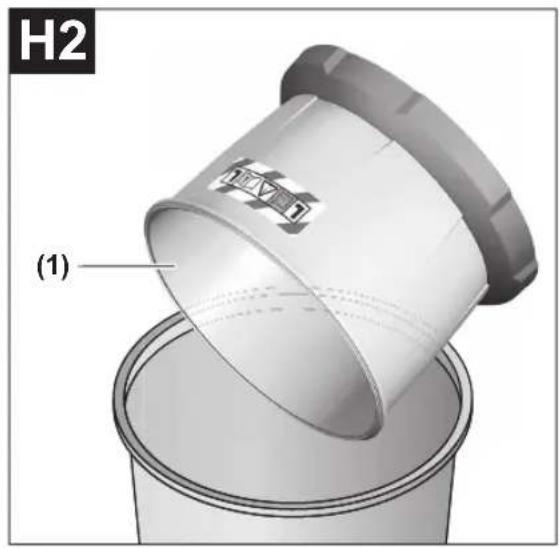

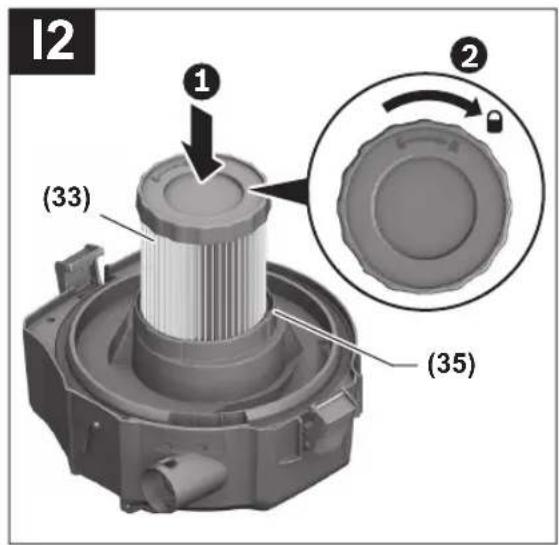

If the filter is wet: Rinse the filter(33) under running water and then leave it to dry thoroughly.

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless wet/dry vacuum cleaner Article number

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 60335-1:2012+A11:2014+A13:2017+ A1:2019+A14:2019+A2:2019+A15:2021 EN 60335-2-69:2012 EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 14/10/2023 Bosch Power Tools 1 609 92A 98S | (10.01.2024)
