USER MANUAL GL 85 STEINEL

1. About this document 44
2. General safety precautions 44
3. System description 45
4. Electrical connection 54
5. Installation 55
6. Function 72
7. Maintenance and care 75
8. Disposal 76
9. Manufacturer's warranty 77
10. Technical specifications 80
11. Troubleshooting 82

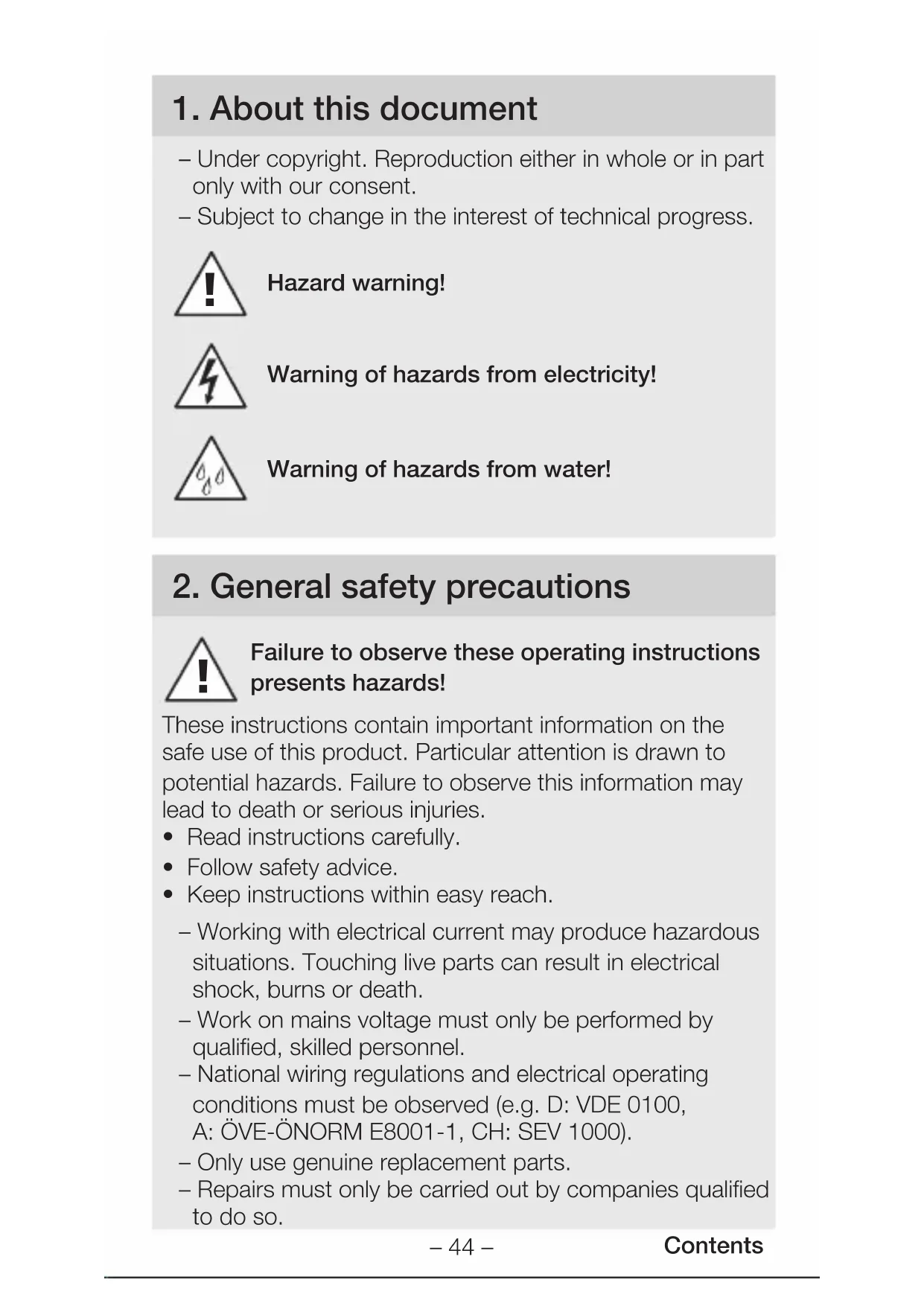

1. About this document

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Warning of hazards from water!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.

• Keep instructions within easy reach.

• Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

• Work on mains voltage must only be performed by qualified, skilled personnel.
• National wiring regulations and electrical operating conditions must be observed (e.g. D: VDE 0100, A: ÖVE-ÖNORM E8001-1, CH: SEV 1000).
• Only use genuine replacement parts.
• Repairs must only be carried out by companies qualified to do so.

3. System description

Proper use

• Sensor-switched light for mounting on indoor and outdoor walls (L 845 SC).
• Light for mounting on indoor and outdoor walls (L 845 C).
• Sensor-switched light for mounting on indoor floors and outdoor ground surfaces (GL 85 SC 600 / 900).
• Light for mounting on indoor floors and outdoor ground surfaces (GL 85 C 600 / 900).

Non-intended use

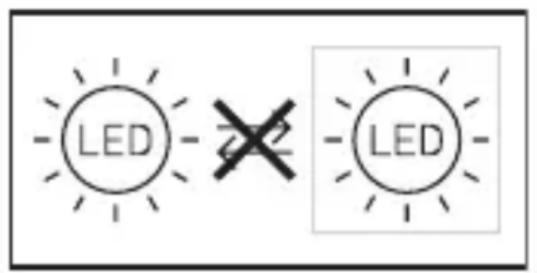

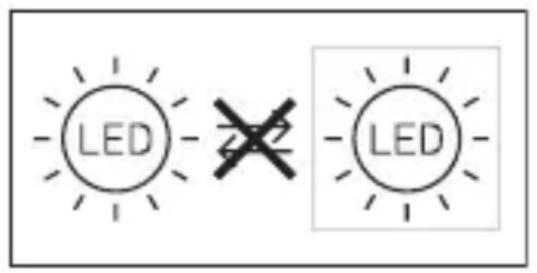

• These products cannot be dimmed.

Not dimmable

Note:

To rule out malfunctioning, a minimum distance of 3m must be allowed from the Wi-Fi router and the access points.

Operating principle (L 845 SC and GL 85 SC 600 / 900)

• The sensor-switched lights (SC) feature an active motion detector.
• The intelligent high-frequency sensor (iHF) emits high-frequency electromagnetic waves (5.8 GHz) and receives their echo. Any movement by persons in the sensor switched light's detection zone is noticed by the sensor as a change in echo. A microprocessor then issues the switch command "switch light ON".
• The most reliable way of detecting motion is to install the unit with the sensor aimed across the direction in which a person would walk.
• Motion detection reach is restricted when the unit is approached head on.
• Detection is possible through doors, panes of glass or thin walls.
• Analysing the signal, the sensor distinguishes between moving persons and moving objects, such as bushes or small animals. This rules out any inadvertent triggering by small animals as well as interference from extreme temperatures.

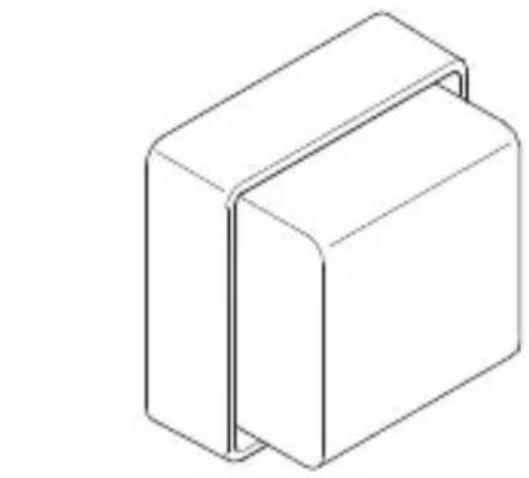

Operating principle (L 845 C und GL 85 C 600 / 900)

The C versions can be interconnected with other sensors via Bluetooth to extend the detection zone. They pass on the detected signals (presence and light level) via Bluetooth. This is controlled in the sensor interconnected with other interface.

3.1

3 × 3 × 3 ×

• 1 (Sensor-switched) light
• 3 wall plugs
• 3 screws
• 3 spacers
• 1 safety data sheet (A)
• 1 Quick start guide (B)

L 845 SC, L 845 C product dimensions

3.2

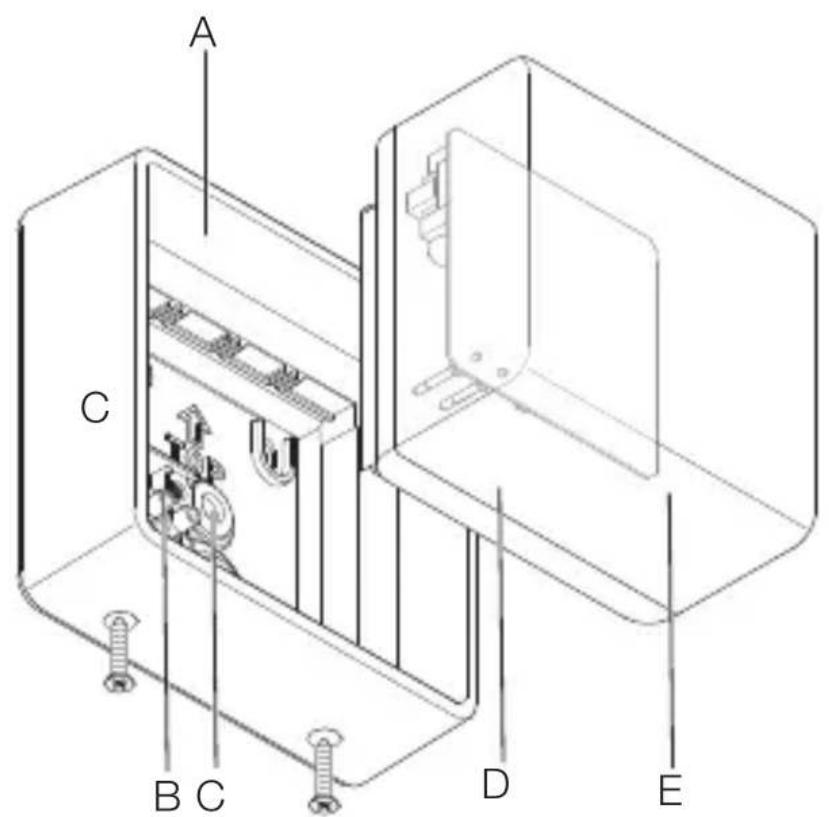

3.3

A Wall mount
B Connecting terminal
C Sealing plug
D Plug connection
E Light cube

Package contents for GL 85 SC, GL 85 C

3.4

• 1 (Sensor-switched) light
  -1retainer
• 1 profile (alternative 437mm or 737mm )
• 1 base plate
• 4 wall plugs
• 4 screws
• 3 connecting screws
• 4 washers
• 4 small screws
• 1 safety data sheet (A)
• 1 Quick start guide (B)

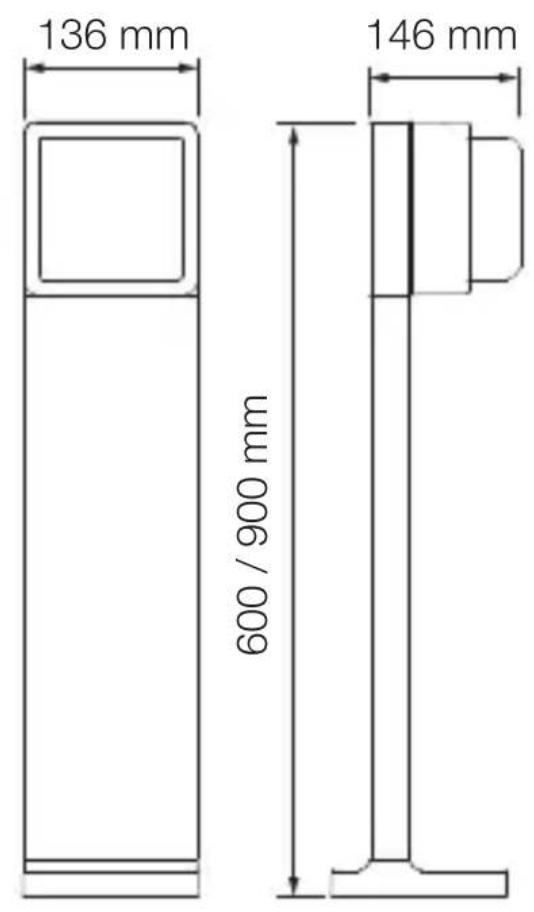

3.5

GL 85 SC, GL 85 C product components

3.6

A Retainer
B Connecting terminal
C Enclosure
D Sealing plug
E Plug connection
F Light cube
G Profile
H Base plate

3.7

4. Electrical connection

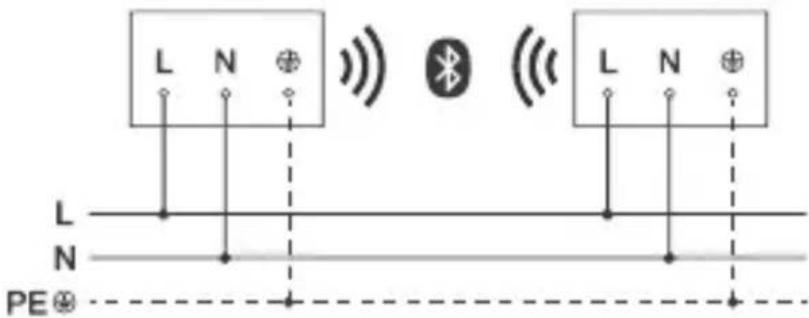

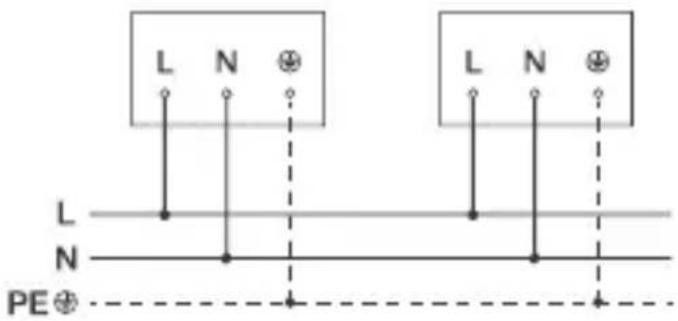

Circuit diagram

4.1

The mains supply lead is a 2 - 3 core cable:

L = phase (usually black, brown or grey)

N = Neutral conductor (usually blue)

PE = protective-earth conductor (green / yellow)

Protective-earth conductor (PE):

• Attach protective-earth conductor to earth terminal.

The floodlight can also be connected to the power supply downstream of a mains switch if it is ensured that the mains switch is left ON all the time.

The light source used in this light cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete light must be replaced.

5. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.

-Take reach into consideration.
- Take reach and motion detection into consideration.
-Vibration-free.
- No obstacles in detection zone.
-Not in explosive atmospheres.
-Not on normally flammable surfaces.
- Do not look into the light source from a short distance (< 30~cm)
- Spaced at a distance of at least 5m from other lights.

5.1

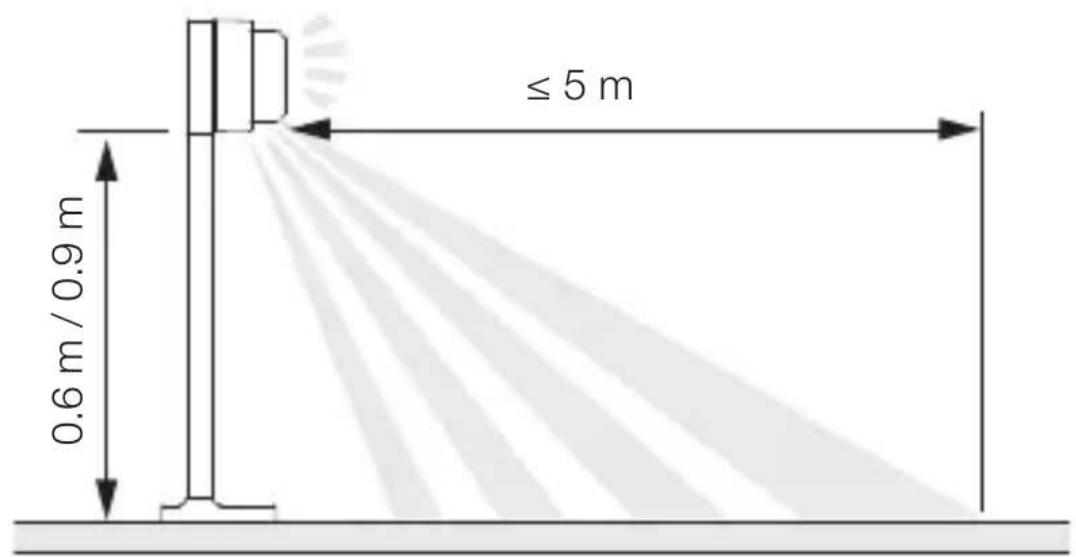

GL 85 SC reach

5.2

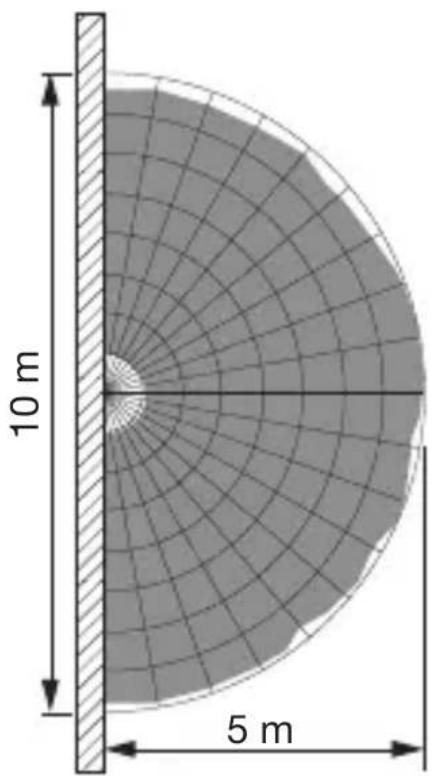

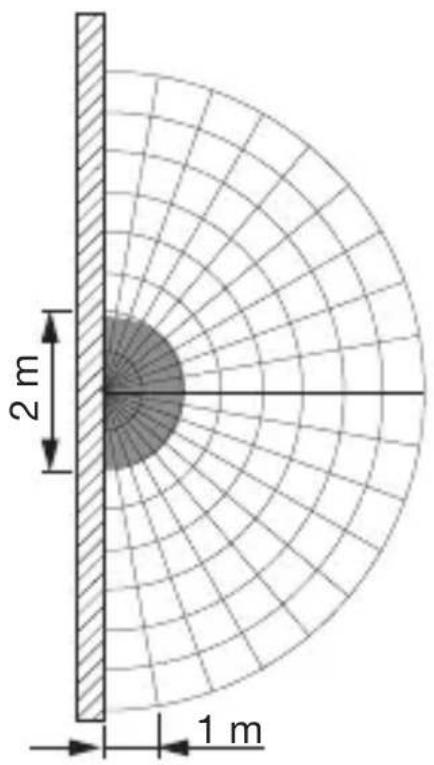

SC motion detection

5.3

5.4

If lights are mounted too close together, switching errors may occur. The high-frequency signals emitted will interfere with each other.

The following measures will help to avoid switching errors of this kind:

• Allow a distance of at least 5m between lights.
• Interconnect lights via the Steinel Connect App and selectively deactivate the sensor in individual lights via the Sensor-Off function (B + C) . As a result of interconnection, movement will also switch lights ON in spite of their sensor being deactivated.

L 845 SC, L 845 C mounting procedure

5.5

• Check to make sure the power supply is switched OFF.
• Undo retaining screws.
• Detach light cube from wall mount.

5.6

GB

• Mark drill holes.

5.7

• Drill holes (Ø 6 mm) and fit wall plugs.

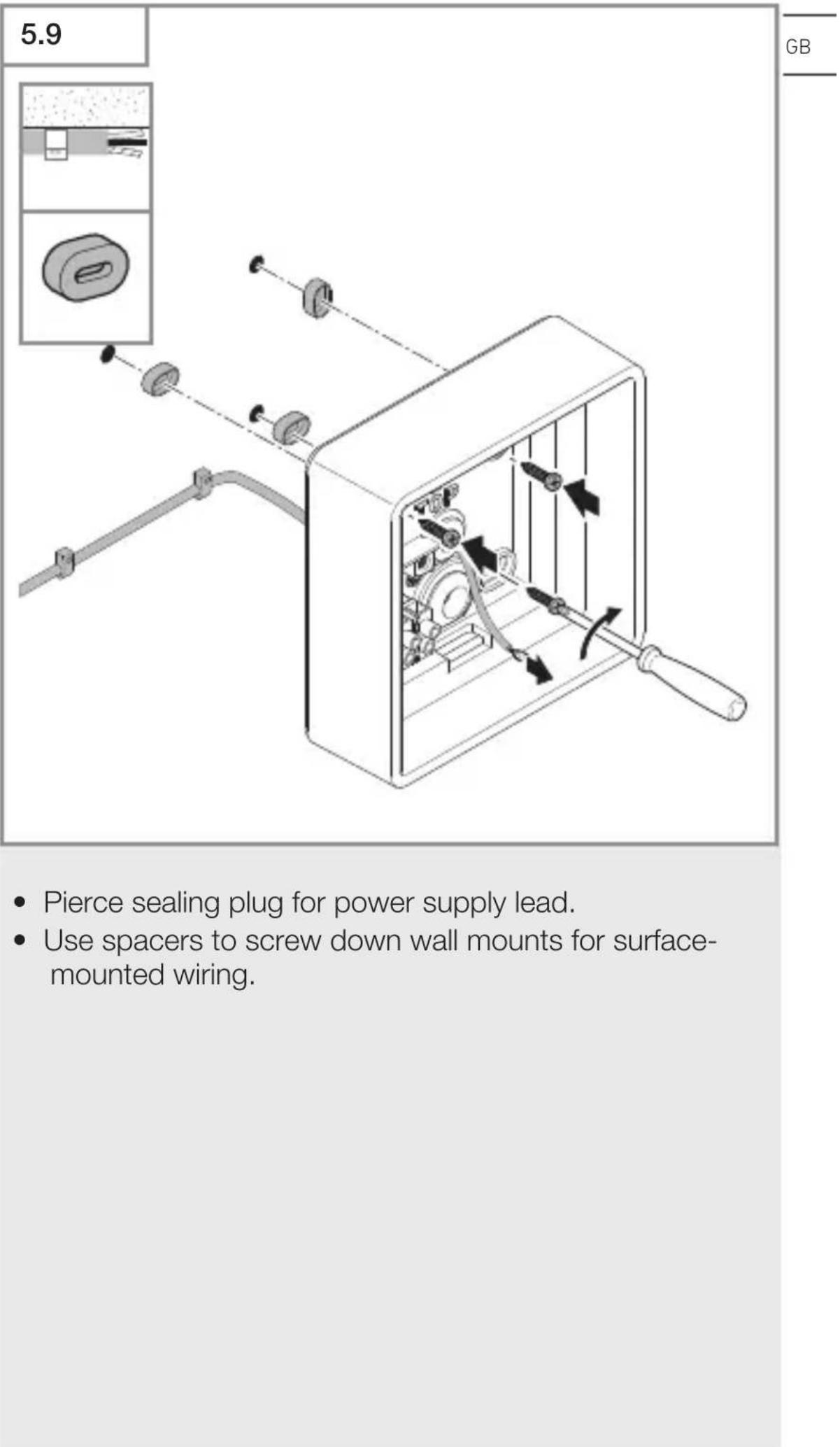

• Pierce sealing plug for power supply lead.
• Firmly screw wall mount into place for concealed power supply lead without spacers.

5.10

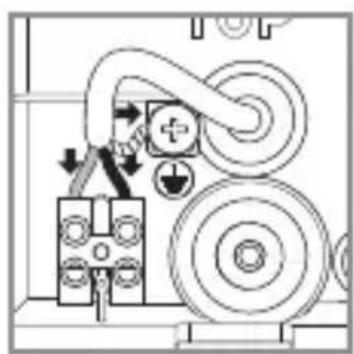

• Connect mains power supply lead as shown in the wiring diagram.

"4. Electrical connection"

5.11

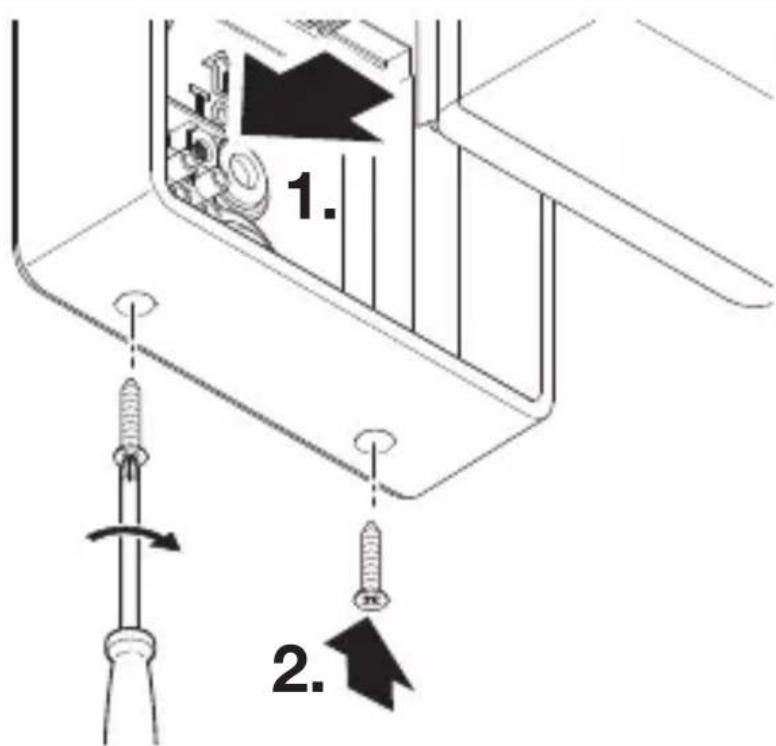

• Fit light cube to wall mount.
• Screw in retaining screws.

• Switch ON power supply.
  Make settings via app (SC only). "6. Function"

GL 85 SC, GL 85 C mounting procedure

5.13

• Check to make sure the power supply is switched OFF.
• Undo retaining screw.
• Detach light cube from enclosure.

5.14

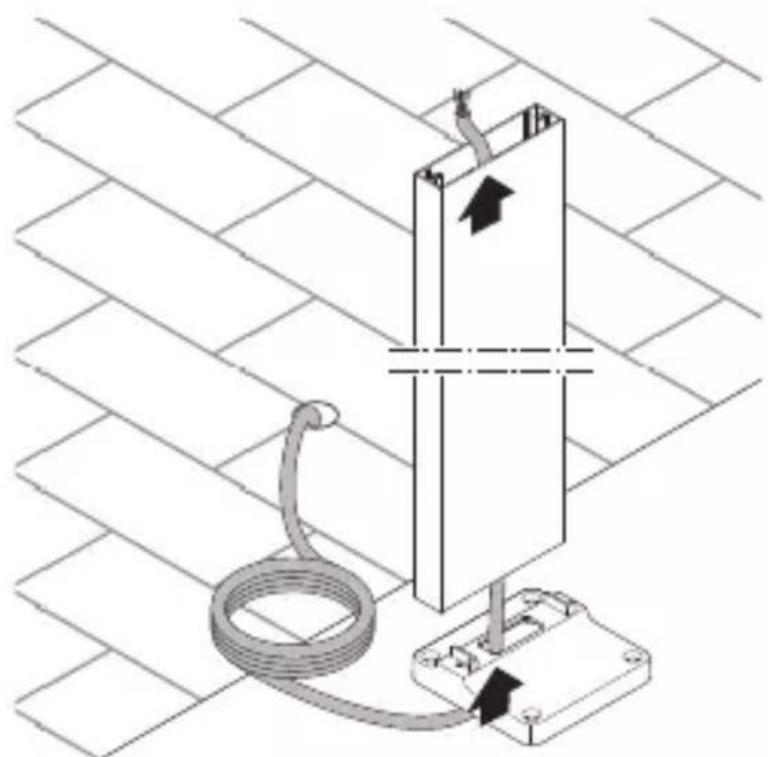

• Pull cable through base plate and profile

GB

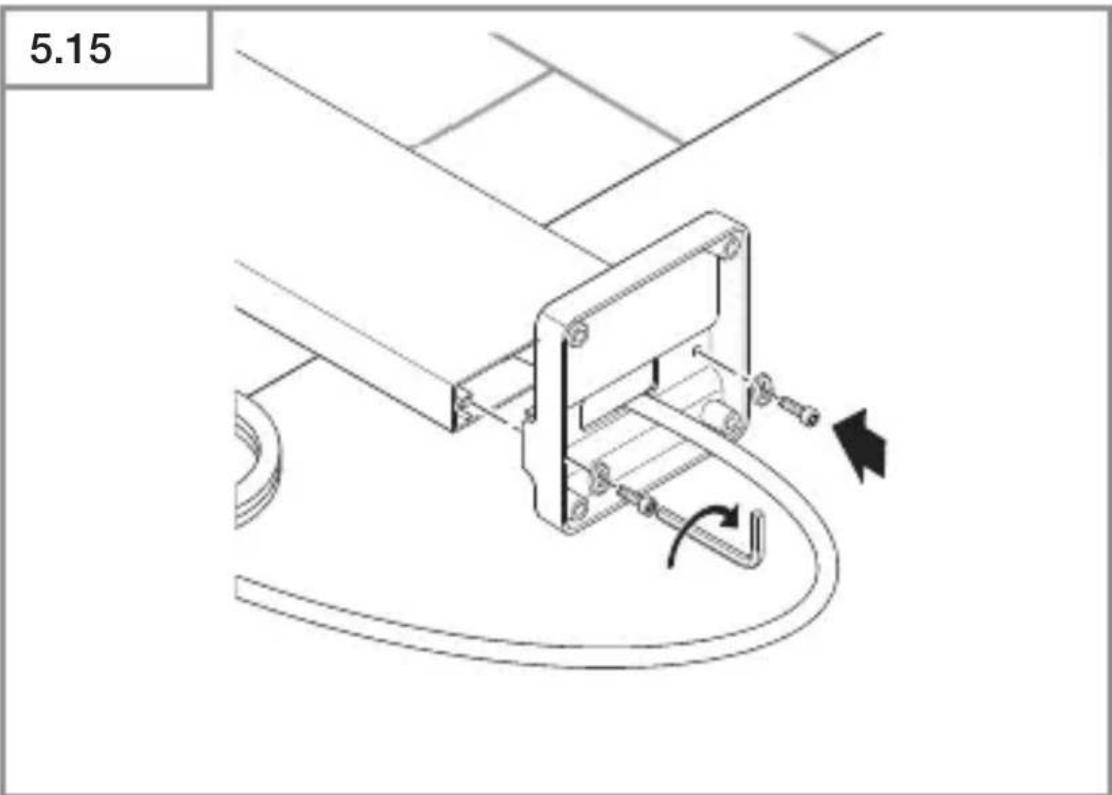

• Screw base plate to profile.

• Mark drill holes.

5.17

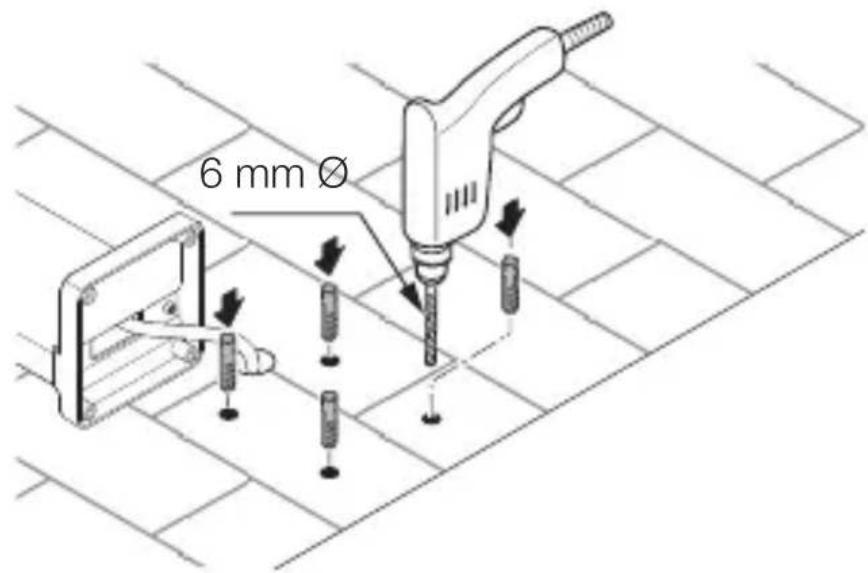

• Drill holes and fit ground plugs.

5.18

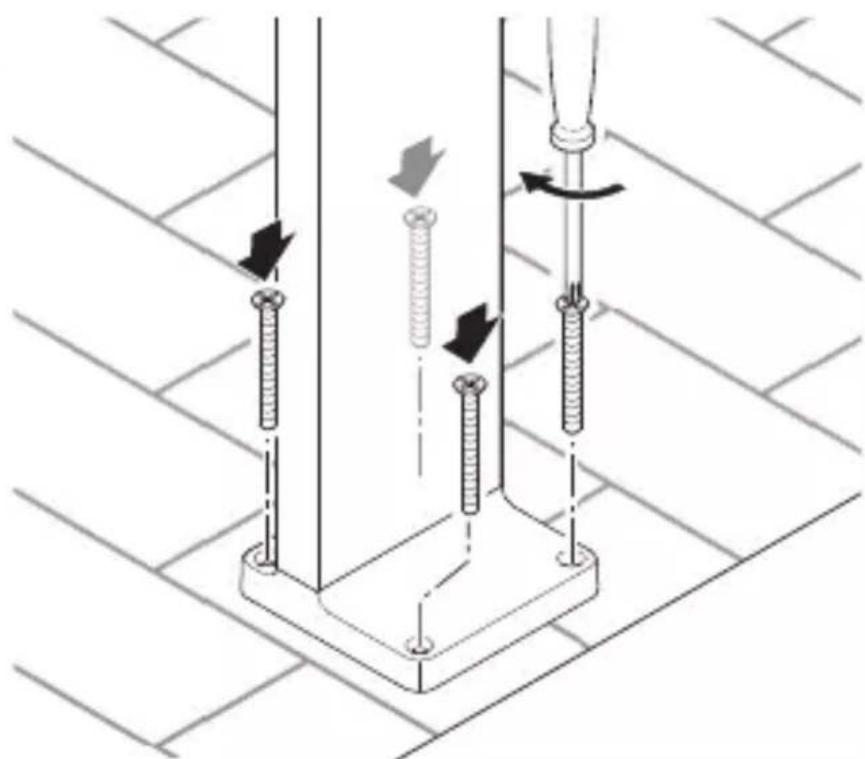

• Screw base plate to floor / ground surface

Note:

To avoid damage from corrosion or oxidation, do not install the product below ground level.

5.19

GB

• Feed cable through light rear retainer.
• Fit rear retainer on upright profile.
• Screw into place using washers.

5.20

• Feed cable through enclosure.
• Screw enclosure to rear retainer.

5.21

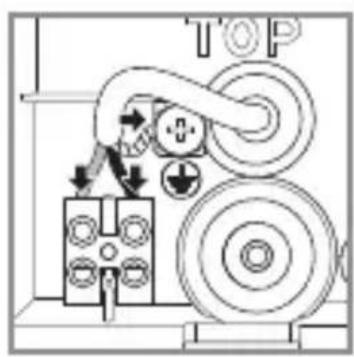

• Connect mains power supply lead as shown in the wiring diagram.

"4. Electrical connection"

5.22

• Fit light cube to enclosure.
• Screw in retaining screws.

• Switch ON power supply.
• Make settings via app (SC only).

"6. Function"

6. Function

The functions can be set for the SC types. C version functions only work in combination with a Bluetooth sensor-switched product.

Functions are set via the Steinel Connect App.

Steinel Connect App

To configure the light via smartphone or tablet, you must download the STEINEL Steinel Connect App from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android iOS

Functions that can be set via Steinel Connect App are:

• Time setting
• Reach adjustment
• Twilight setting
• Basic light level function
• Main light- / basic light level adjustable
• Extended reach adjustment
• Group interconnection
  Twilight setting by teach-in

Factory settings

• Twilight setting: daylight mode 1,000 lux
• Time setting: 2 seconds
• Reach setting: 5 metres

Twilight setting

The response threshold (twilight) can be infinitely varied from approx. 2 - 2,000 lux.

daylight mode (depending on ambient light level)
- = night-time operation (approx. 2 lux)

The control dial must be turned to daylight mode when adjusting the detection zone and performing the functional test in daylight.

Time setting

The stay-ON time can be set to any period from approx.

5 seconds to a maximum of 60 minutes. Every movement detected re-activates the light.

Note: after the LED light switches OFF, it takes approx.

1 second before movement can detected again. The LED light can then switch ON again in response to movement.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Reach setting (sensitivity)

Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground after mounting the SensorLight at a height of 2m .

• Set to maximum = max. reach (5 m)
• Set to minimum = min. reach (1 m)

Basic light level function

Basic light level provides lighting at 10% of light output.

The light only switches to maximum output (100%) in response to movement in the detection zone (see Time setting). The light

then switches to the activated night light level.

Basic light is ON when the level of light falls below the brightness threshold. Basic light is always ON when daylight mode is activated.

0 min = soft light start / no night ON from twilight setting selected

10 min = soft light start + basic light level, 10 minutes
30 min = soft light start + basic light level, 30 minutes

= Soft light start + basic light level all night long

What is soft light start?

The sensor-switched light features a soft light start function. This means that when turned ON, the light is not switched directly to maximum output but constantly builds up brightness to 100% within a short period of time. Brightness is also gradually reduced when the light is switched OFF.

7. Maintenance and care

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

• Only clean tool in a dry state.

Risk of damage to property!

Using the wrong cleaning product can damage the light.

• Clean tool with a moist cloth without detergent.

Important note: the control gear cannot be replaced.

8. Disposal

Electrical and electronic equipment, batteries, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of batteries or electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, batteries and electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Declaration of Conformity

Hereby, STEINEL GmbH declares that the radio equipment type L 845 SC, L 845 C, GL 85 SC 600 / 900, GL 85 C 600 / 900 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

10. Manufacturer's warranty

Manufacturer's warranty of STEINEL GmbH,

Diesel strasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards.

For this reason, we, the manufacturer, are pleased to provide you, the customer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which

are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately

after detection and within the warranty period. The warrant-

ty shall cover all STEINEL Professional products sold and

used in Germany.

Our warranty cover for consumers

The provisions below apply to consumers. A consumer

is any natural person who, on entering into the purchase

transaction, neither acts in exercising their commercial nor

their self-employed activity.

You can opt for warranty cover in the form of repair or

replacement which will be provided free of charge (if

applicable, in the form of a successor model of the same

or higher quality) or in the form of a credit note.

In the case of sensors, floodlights, outdoor and indoor

lights, the warranty period for the STEINEL Professional

product you have purchased is 5 years in each case from

the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks

involved in return shipment.

Our warranty cover for entrepreneurs

The provisions below apply to entrepreneurs. Entrepre

neur is a natural or legal person or partnership with legal

personality who or which, on entering into the purchase

transaction, acts in exercising their or its commercial or

self-employed activity.

We have the option of providing warranty cover by rectifying deficiencies free of charge, replacing a product free of charge (if applicable, in the form of a successor model of the same or higher quality) or by issuing a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

Within the scope of warranty cover, we shall not bear your expenses accruing from subsequent fulfillment nor shall we bear your expenses for removing the defective product and installing a replacement product.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty.

• In addition to this, the warranty shall not cover:
• any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL Professional product that are attributable to wear caused by use or other natural wear,
• any improper or non-intended use of the product or any failure to observe the operating instructions,
• any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
• supplementary or replacement parts which are not genuine STEINEL parts,
• any maintenance or care of products that is not carried out in accordance with the operating instructions,
  – any attachment or installation that is not in accordance

with STEINEL's installation instructions, - any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

11. Technical specifications

• Dimensions (H × W× D): L 845: 134 × 134 × 87 mm
  GL 85 600: 600 × 136 × 146 mm
  GL 85 900: 900 × 136 × 146 mm

• Power supply: 220 - 240 ~V, 50 / 60 ~Hz

• Power consumption (P_on) : 9.00 W
• iHF sensor system power consumption:

L 845 SC: 0.67 W

GL 85 SC: 0.67 W

• Standby (P_net) : 0.45 W
• Light output: L 845 SC: 655 lm

L 845 C: 719 Im

GL 85 SC: 655 Im

• Efficiency:
  -Lamp:
  Colour temperature:
  Colour rendering index:
• Average rated life expectancy:

L70B50 at 25 °C: > 60,000 hours

• Colour consistency SDCM:
• Luminous intensity distribution:

GL 85 C: 719 Im

L 845 SC: 73 Im / W

L 845 C: 80 lm / W

GL 85 SC: 73 Im / W

GL 85 C: 80 Im / W

LED

L 845 SC, GL 85 SC: (5.8 GHz, ≤ 1 mW)

• Detection zone, angle of coverage :

160^

• Detection zone, angle of aperture *:

160^

• Reach*:

1-5m

• Time setting*:

5s-60min

• Twilight setting * : 2 - 2,000 lux
• IP rating: IP 44
• Protection class: /
• Ambient temperature: -20 to +40 °C
• Bluetooth frequency: 2.4 - 2.48 GHz
• Bluetooth transmission power: 5 ~dBm, 3 mW

• Energy efficiency class: this product contains an energy efficiency class "F" light source.

• For C: only in combination with a Bluetooth sensor-switched product.

12. Troubleshooting

Unit without power.

• Fuse not switched ON or faulty.

• Switch ON fuse.

• Change faulty fuse.

• Break in wiring.

• Check wiring with voltage tester.
• Short circuit in mains power supply lead.

• Check connections.

• Any mains switch OFF

• Switch ON mains switch.

Unit does not switch OFF (SC only).

• Wrong twilight setting selected.

• Reset twilight setting.

• Mains switch OFF.

• Turn on mains switch.

• Fuse not switched ON or faulty.

• Switch ON fuse.

• Change faulty fuse.

• Rapid movements being suppressed to minimise malfunctioning, or detection zone too small or incorrectly defined.

• Check and adjust detection zone.

• Light source faulty.
• The light source cannot be changed. Completely replace unit.

Unit does not switch OFF (SC only).

• Continued movement within the detection zone.

• Check detection zone.

• If necessary, limit or change detection zone.

Unit does not switch OFF completely (SC only).

• Basic lighting level selected.
• Set basic light output to "0 min".

Unit switches ON when it should not (SC only).

GB

• Floodlight not mounted for detecting movement reliably.
• Securely mount floodlight.
• Movement occurred but not identified by the observer (movement behind wall, small object moving in immediate proximity of lamp etc.).
• Check detection zone.
• If necessary, limit or change detection zone.

FR

Sommaire

Application Smart Remote

• Dimensions (H × I× P): L 845: 134 × 134 × 87 mm

GL 85 600:600×136×146mm

GL 85 900:900×136×146mm

;Advertencia depeligos!

Tiriet tikai sausu ieric.

Bojājumu risks!

lerici var sabojat, lietojot nepareizus tirisanas lidzeklus.

• Tiriet ierici ar viegli mitru lupatiu bez tirisanas lidzekla.

Svarigi! Bateriju ierice nav nomainama.

8. Utilizăcija

-1 (Cen3opHa) lamna
-1 CToiKa

-1PpOΦnI (aITepeHaTnBa 437 MM nII 737 MM)

-1Подова платka
-4ДIO6eJa
-4 BnHTa
-3 Cbbp3Baun BnHTOBe
-4Ua6n
-4MaJIKNBnHTa
-1Данниза6e3oNaChocT(A)
- 1 Quick-Start-Guide (B)

PazmeprnHa npodukta GL 85 SC,GL 85 C

3.5

L = φa3a (obukHOBeHo YepeH, KaΦyB nIi CNB)

N = Huya (O6nKHOBeHO cINH)

PE 3a3eMaBau npOBoHnK (3eJeH / KbI)

3a3eMaBau npoBODnK (PE):

3a3eMaBaIyT npOBoHnK Da Ce CBbpxKe KbM 3a3eMaBaIaTa KJIema.

YpeIbT cIIO MoKe Ia 6bIe eJIeKTpUYeCKn CBbp3aH CNeI ppeKbCBAu, aKO ce rapaHTnpa, Ye IpeKbCBAuybT

LJIeE BKJIIOUeH NOCTOHHO.

CBeTJIINHHNRT N3TOUHNI KHa Ta3N JaMna e He3aMeHЯeM; aKO CE HANOJN 3aMraHata My (HaNP. CJIeI KpaI Ha JxIBOTa My), ZJIaTa JAMNa TpRA6Ba Da ce 3aMeHIn.

5. MoHTaЖ

Onachoct ot eJeKtpnueckn TOK!

Hactpoika Ha CBetIIOuyBCTBNTeJIHOCTT

OcBeTeHocTtHa 3aJeIcTBaHe (MpaK) MoKe Ja cepeRyInpa 6e3CTeHenHO OT OKoJ0 2-2.000 Lykca.

• =Дневен рекIM (He3aBnCmO OT OCBeteHocTTa)
• = pejkm npn haCTbPbAa TbMHnHa (okono 2 lykca)

Hactpoika Ha 06xBata (UyBCTBNTeJIHOCT)

• NaCTPOIka Ha MaKcIMyM = MaKC. 06XBaT (5 M)
• NaCTPOIKA Ha MInHmym = MInH. O6XBaT (1 M)

Ako nMaTe rapaHcNoHcN cLyuAaI IJI N BbPoc IO BaShnA

Пюдукт, може за на се обаитЕ пО BCЯКО Врeme на нашия сервизЕ Телегон [phone].

TODHNTAPAHU

OTIPOIN3B0DNTEL

11. Texhnueckn daHHN

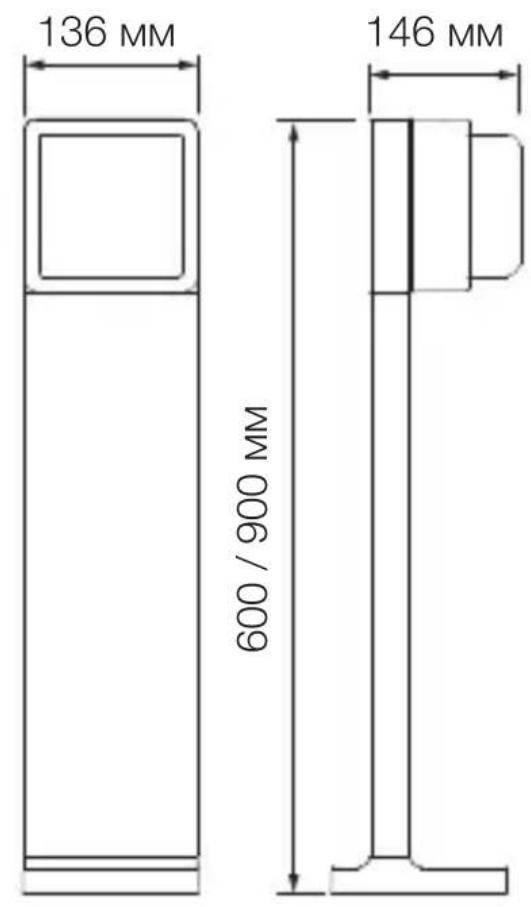

• Pa3mepn (B × Lx D): L 845: 134 × 134 × 87 MM

GL 85 600: 600 × 136 × 146 MM

GL 85 900: 900 × 136 × 146 MM

• HanpexeHne: 220 - 240 V, 50/60 Hz
  -KoHcymnpaHa MoUHocT (P_on) 9,00W

• KoHcymipaHa MoIooCT iHF ceh3Op: L 845 SC: 0,67 W

GL 85 SC: 0,67 W

• Standby (P_ net ): 0,45 ~W

• CBeTJIiHHa MoU: L 845 SC: 655 Im

L 845 C: 719 lm

GL 85 SC: 655 Im

GL 85 C: 719 Im

• EffeKTHBHOCT: L 845 SC: 73 Im / W

L 845 C: 80 lm / W

GL 85 SC: 73 lm / W

GL 85 C: 80 lm / W

LED
- OcbetnteJIen eIemEnT: LED
- Tempepatya ha zBeTa: 3.000 K (ToIIO 6aIIO)
- INДeКС HaцВeTOBOTo OТразЖeHne: R_a = 82
- CpeДна прдьлжителноCT на жИBOT: L70B50 рп 25 °C: > 60.000 у.
- KoHcNCTeHcIy Ha cBeta SDCM: NaHa cToHocT: 3
- Pa3npedeJeHne Ha CBeTInHaTa:

• OCHOBHa CBeTInHa *: Ia (n3Kn, 10 MmH, 30 MmH, zra Hoo, BnHa)

• Cen3OpHa TeXHOJIoTnA: L 845 SC, GL 85 SC: (5,8 GHz, ≤ 1 mW)

-Диаэзн ha 6xbat, bbl Ha OTHTaHe *: 160°
-Диаэзон Ha 06xВaT, bIbI Ha pa3TBOp *: 160°
- 06xBaT*: 1-5 M
- Hac troяka ha BpeMeTo *: 5 c-60 mH
- Hac troяka Ha CBetnoyBCTBNTeHocTTa *:

2-2.000 lykca

• BnД 3aцnta: IP 44
• Klaac Ha 3aunTa:
• Okolna TempepaTypa:
• YecToTa Bluetooth:

/

-Изльчваши мошноct Bluetooth: 5 dBm,3 mW
- Klaç eHeprnHa eΦeKTHBHOCT: To3n npOdyKT npITexKaBa CBETJIHEn I3TOUHNK C KlaC Ha eHeprnHa eΦeKTHBHOCT "F".

YpeIbT He ce n3KJIIOUyBa (cAmO SC).

• Прдьлжавацо движени в обхbaTa.

• 06xbaTbT da ce npOBepn.

• Прн Heo6xOДIMOCT 6xBaTbT Да ce orpaHnU nIIN3MeHn.

YpeIbT He Ce n3KJIIOUBa HaNbJIH0 (cAmO SC).

-Избрано e ochOBHO OCBETЛени.

• OCHOBHOTO OCBETJIeHne da ce noCTaBn Ha "O MInH".

YpeIbT Ce BkJIIOUvBa IpOIN3BOJHO (cAmo SC).

• YpeIbT He e MOHTnpaH cTa6nJIHo.

• YpeIbT Da ce MOHTnpa cTa6nJIHo.

-ДВИЖЕНЕТО e OCTaHaNo cKpITo 3a Ha6JIIOJaTeJЯ (ДВИЖЕНe 3aI CTeHa,ДВИЖЕHne Ha MaJIbK OBeKT B HENOCpeIdCTBeHa 6ЛN3OcTdo JAmNaTaи T.H.).

• Да се повери обхвata.
• Пи Heo6xOДIMOCT 6xbaTbT da ce orpaHnU nIIN3MeHn.

CN

内容

L 845 SC, GL 85 SC: (5.8 GHz, ≤ 1 mW)

-探测区域，探测角度*: 160°

-探测区域，开启角度*: 160°

-作用范围*: 1-5m

-时间设置*: 5秒-60分钟

-亮度设置*: 2-2,000 Lux

• 保护等级： IP44
