USER MANUAL BL 380 E ALPINA

Pedestrian-controlled walk-behind electrically powered lawn mower

WARNING: read thoroughly the instruction booklet before using the machine.

[2] Rated voltage* [3] Max. motor operating speed * [4] Machine weight * [5] Power supply frequency and voltage [6] Cutting width [7] Acoustic pressure level [8] Measurement uncertainty [9] Measured acoustic power level [10] Guaranteed acoustic power level [11] Vibration level [12] Dimensions (length/width/height) [13] Cutting means code [14] Attachments [15] Mulching kit

• Please refer to the data indicated on the machine’s identication label for the exact gure.

[1] LT - TECHNINIAI DUOMENYS

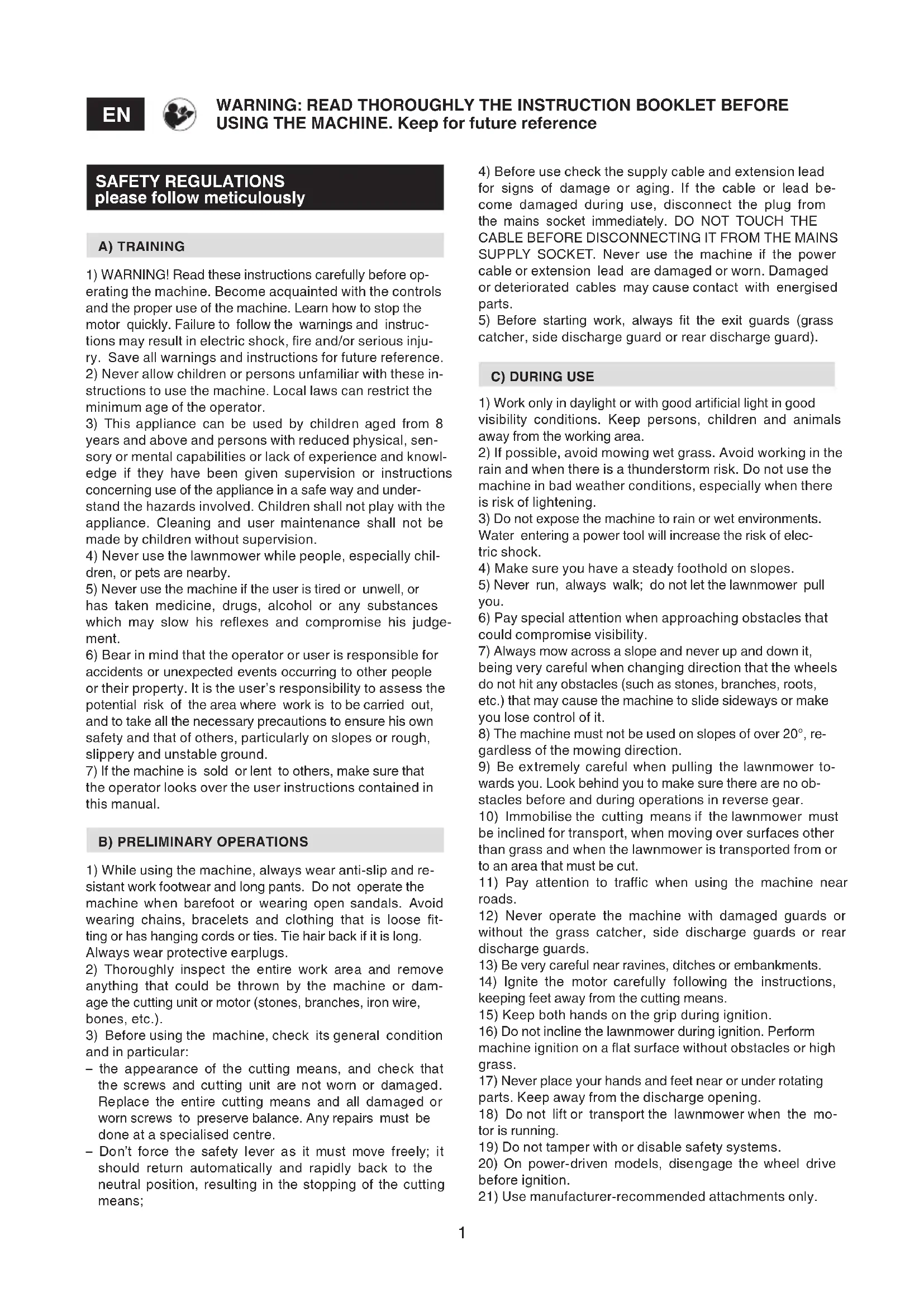

1) WARNING! Read these instructions carefully before op-

erating the machine. Become acquainted with the controls and the proper use of the machine. Learn how to stop the motor quickly. Failure to follow the warnings and instruc- tions may result in electric shock, re and/or serious inju- ry. Save all warnings and instructions for future reference.

2) Never allow children or persons unfamiliar with these in-

structions to use the machine. Local laws can restrict the minimum age of the operator.

3) This appliance can be used by children aged from 8

years and above and persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowl- edge if they have been given supervision or instructions concerning use of the appliance in a safe way and under- stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4) Never use the lawnmower while people, especially chil-

dren, or pets are nearby.

5) Never use the machine if the user is tired or unwell, or

has taken medicine, drugs, alcohol or any substances which may slow his reexes and compromise his judge- ment.

6) Bear in mind that the operator or user is responsible for

accidents or unexpected events occurring to other people or their property. It is the user’s responsibility to assess the potential risk of the area where work is to be carried out, and to take all the necessary precautions to ensure his own safety and that of others, particularly on slopes or rough, slippery and unstable ground.

7) If the machine is sold or lent to others, make sure that

the operator looks over the user instructions contained in this manual.

B) PRELIMINARY OPERATIONS

1) While using the machine, always wear anti-slip and re-

sistant work footwear and long pants. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing chains, bracelets and clothing that is loose t- ting or has hanging cords or ties. Tie hair back if it is long. Always wear protective earplugs.

2) Thoroughly inspect the entire work area and remove

anything that could be thrown by the machine or dam- age the cutting unit or motor (stones, branches, iron wire, bones, etc.).

3) Before using the machine, check its general condition

and in particular: – the appearance of the cutting means, and check that the screws and cutting unit are not worn or damaged. Replace the entire cutting means and all damaged or worn screws to preserve balance. Any repairs must be done at a specialised centre. – Don’t force the safety lever as it must move freely; it should return automatically and rapidly back to the neutral position, resulting in the stopping of the cutting means;

USING THE MACHINE. Keep for future reference

4) Before use check the supply cable and extension lead

for signs of damage or aging. If the cable or lead be- come damaged during use, disconnect the plug from the mains socket immediately. DO NOT TOUCH THE CABLE BEFORE DISCONNECTING IT FROM THE MAINS SUPPLY SOCKET. Never use the machine if the power cable or extension lead are damaged or worn. Damaged or deteriorated cables may cause contact with energised parts.

5) Before starting work, always t the exit guards (grass

1) Work only in daylight or with good articial light in good

visibility conditions. Keep persons, children and animals away from the working area.

2) If possible, avoid mowing wet grass. Avoid working in the

rain and when there is a thunderstorm risk. Do not use the machine in bad weather conditions, especially when there is risk of lightening.

3) Do not expose the machine to rain or wet environments.

Water entering a power tool will increase the risk of elec- tric shock.

4) Make sure you have a steady foothold on slopes.

5) Never run, always walk; do not let the lawnmower pull

6) Pay special attention when approaching obstacles that

could compromise visibility.

7) Always mow across a slope and never up and down it,

being very careful when changing direction that the wheels do not hit any obstacles (such as stones, branches, roots, etc.) that may cause the machine to slide sideways or make you lose control of it.

8) The machine must not be used on slopes of over 20°, re-

gardless of the mowing direction.

9) Be extremely careful when pulling the lawnmower to-

wards you. Look behind you to make sure there are no ob- stacles before and during operations in reverse gear.

10) Immobilise the cutting means if the lawnmower must

be inclined for transport, when moving over surfaces other than grass and when the lawnmower is transported from or to an area that must be cut.

11) Pay attention to trac when using the machine near

12) Never operate the machine with damaged guards or

without the grass catcher, side discharge guards or rear discharge guards.

13) Be very careful near ravines, ditches or embankments.

14) Ignite the motor carefully following the instructions,

keeping feet away from the cutting means.

15) Keep both hands on the grip during ignition.

16) Do not incline the lawnmower during ignition. Perform

machine ignition on a at surface without obstacles or high grass.

17) Never place your hands and feet near or under rotating

parts. Keep away from the discharge opening.

19) Do not tamper with or disable safety systems.

20) On power-driven models, disengage the wheel drive

21) Use manufacturer-recommended attachments only.2

22) Don’t use the machine if the attachments/tools are not

installed in their seats.

23) Disengage the cutting means, switch o the motor and

unplug the power cable (making sure that all moving parts are stationary): – When transporting the machine; – Whenever you leave the lawnmower unattended; – Before clearing blockages or unclogging the discharge chute; – Before checking, cleaning or working on the machine; – After striking a foreign object. Inspect the machine for damage and make repairs before using it again.

24) Disengage the cutting means and switch o the motor:

– Whenever you remove or reattach the grass catcher; – Whenever you remove or reattach the side discharge chute; – Before adjusting the cutting height, if this operation can not be performed from the driving seat.

25) When working, always keep a safe distance from the

rotary cutting means, given by the length of the handle.

26) WARNING – If something breaks or an accident occurs

whilst working, turn o the motor immediately and move the machine away to prevent further damage; if an accident oc- curs with injuries or third parties are injured, carry out the rst aid measures most suitable for the situation immedi- ately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not be seen.

27) WARNING – The noise and vibration levels shown in

these instructions are the maximum levels for use of the machine. The use of an unbalanced cutting means, ex- cessive speed of movement, or lack of maintenance have a signicant inuence on noise emissions and vibrations. Consequently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration. Maintain the machine well, wear ear protection devices, and take breaks while working.

D) MAINTENANCE AND STORAGE

1) WARNING! – Before cleaning or doing maintenance

work, disconnect the machine from the mains and read the relevant instructions. Wear proper clothing and protective gloves whenever your hands are at risk.

2) WARNING! – Never use the machine with worn or dam-

aged parts. Faulty or worn-out parts must always be re- placed and not repaired. Only use original spare parts: the use of non-original and/or incorrectly tted parts will jeop- ardize the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible.

3) Any adjustments or maintenance operations not de-

scribed in this manual must be carried out by your Dealer or a specialized Service Centre with the necessary knowl- edge and equipment to ensure that the work is done cor- rectly maintaining the machine’s original safety level. Any operations performed in unauthorized centres or by un- qualied persons will totally invalidate the Warranty and all obligations and responsibilities of the Manufacturer.

4) After each use, disconnect the machine from the mains

and check for damage.

5) Keep all nuts, bolts and screws tight to be sure the ma-

chine is in safe working condition. Routine maintenance is essential for safety and for maintaining a high perfor- mance level.

6) Check that the cutting means screws are properly tight-

ened on a regular basis.

7) Wear work gloves when handling, disassembling and re-

assembling all cutting means.

8) Keep the cutting means well balanced during sharpen-

ing. All work on the cutting means (disassembly, sharpen- ing, balancing, reassembly and/or replacing) are demand- ing jobs that require special skills as well as special tools. For safety reasons, these jobs are best carried out at a specialised centre.

9) Be careful during adjustment of the machine to prevent

entrapment of the ngers between moving parts of the cut- ting means and xed parts of the machine.

10) Do not touch the cutting means until the machine is dis-

connected from the mains socket and the cutting means is completely stationary. When servicing the cutting means, bear in mind that, even though the power supply is switched o, the cutting means can still move.

11) Check the side discharge guard, the rear discharge

guard and the grass catcher frequently for signs of wear or deterioration. Replace them if they are damaged.

13) Store the machine out of the reach of children!

14) Allow the motor to cool down before storing in any en-

15) To reduce re hazards, keep the lawnmower and, in

particular, the motor free of grass, leaves, or excessive grease. Always empty the grass catcher and do not leave containers full of cut grass inside storage areas.

E) ADDITIONAL WARNINGS

1) Do not use the machine in explosive atmospheres, such

as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

2) Keep the extension lead away from the cutting means.

The cutting means can damage the cable and cause con- tact with energised parts.

3) Never run the lawnmower over the electric cable. While

mowing, always drag the cable behind the lawnmower on the side where the grass has already been cut. Use the cable fastener to prevent the cable from disconnecting ac- cidentally as indicated in this manual. Make sure it is con- nected to the socket without being forced.

4) Power up the machine using a dierential switch (RCD

– Residual Current Device) with a tripping current of max. 30 mA.

5) Machine plugs must always match the relative outlets.

Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodied plugs and matching outlets will reduce risk of electric shock.

6) If the machine’s power cable is damaged, it can only be

replaced with an original spare part by your dealer or an au- thorised service centre.

7) The permanent connection of any electrical equipment

to the mains of a building must be installed by a quali- ed electrician in conformity with the regulations in force. Incorrect wiring can cause serious injury and even death.

8) WARNING: DANGER! Moisture and electricity are not

compatible: Always handle and connect electric cables in dry condi- tions: – never allow electric sockets or cables to come into con- tact with wet areas (puddles or wet grass); – connections between cables and sockets must always be watertight. Only use extension leads with intact, wa- tertight and approved sockets sold on the market.3

9) The quality of the power cables must be no less than

H07RN-F or H07VV-F, with a minimum section of 1.5 mm² and a recommended maximum length of 25 m.

10) Attach the power cable to the cable fastener before ig-

11) Do not use the cable improperly. Never use the cable for

carrying, pulling or unplugging the machine. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.

12) To avoid overheating, do not keep the extension lead

rolled up during use.

13) Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

14) Do not overload the machine. Use a machine that is

suitable for the job. A suitable machine will do the job better and safer at the rate for which it was designed.

F) TRANSPORTATION AND HANDLING

1) Whenever the machine is to be handled, lifted, transport-

ed or tilted you must: – Wear sturdy work gloves; – Grasp the machine at the points that oer a safe grip, taking into account the weight and relative distribution of the same – Use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it must be placed or collected – Make sure that machine movements do not cause dam- age or injuries.

2) During transport, fasten the machine securely with ca-

1) Environmental protection should be a priority of consid-

erable importance when using the machine, for the benet of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surround- ing area.

2) Scrupulously comply with local regulations for the dis-

posal of packaging, deteriorated parts or any elements with a strong environmental impact; this waste must not be disposed of as normal waste, it must be separated and taken to specied waste disposal centres where the mate- rial will be recycled.

3) Scrupulously comply with local regulations for the dis-

posal of waste materials after mowing.

4) At the time of decommissioning, do not pollute the en-

vironment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force.

AND SCOPE OF APPLICATION

This machine is a garden tool and more precisely a pedes- trian-controlled lawnmower. The machine is essentially composed of a motor which drives a cutting means enclosed in a casing, equipped with wheels and a handle. The operator is able to operate the machine and use the main controls, always staying behind the handle at a safe distance from the rotary cutting means. If the operator leaves the machine, the motor and cutting means will stop within a few seconds. Intended use This machine was designed and manufactured for cutting (and collecting) grass in gardens and grassy areas, in ar- eas in proportion to its cutting capacity, done by a pedes- trian operator. The presence of attachments or specic devices can pre- vent cut grass from being collected or produce a mulching eect, depositing cut grass on the ground. User types This machine is intended for use by consumers, i.e. non- professional operators. The machine is intended for “DIY” use only. Improper use Any other usage not in keeping with the above-mentioned ones may be hazardous and harm persons and/or dam- age things. Examples of improper use may include, but are not lim- ited to: – transporting persons, children or animals on the ma- chine; – letting oneself be transported by the machine; – using the machine to tow or push loads; – using the machine for leaf or debris collection; – using the machine to trim hedges, or for cutting vegeta- tion other than grass; – use of the machine by more than one person; – using the rotary cutting means on surfaces other than grass. IDENTIFICATION LABEL

AND MACHINE COMPONENTS

(see figures on page ii)

1. Acoustic power level

2. Conformity marking

3. Year of manufacture

6. Name and address of Manufacturer

8. Motor rated power and maximum operating speed

10. Power supply voltage and frequency

As soon as you have purchased the machine, do not forget4 to write the identication numbers (3 – 4 – 5) in the spaces on the last page of the manual. The example of the Declaration of Conformity is provided on the penultimate page of the owner’s manual. Do not dispose of electrical equipment with house- hold waste material. In observance of European Directive 2012/19/EU on electrical and electronic equipment waste and its implementation, in obser- vance of UK Regulation “The waste electrical and electro- nic equipment regulations 2013 (as amended)” and in ac- cordance with national regulations, electrical equipment that has reached the end of its product life must be collect- ed separately and recycled in an ecologically compatible way. If electrical equipment is disposed of in dumps or in landlls, hazardous substances can leak into the ground- water and contaminate the food chain, damaging your health and well-being. For further information on the dis- posal of this product, contact your dealer or a domestic waste collection service.

DESCRIPTION OF SYMBOLS

ON CONTROLS (where applicable)

20. WARNING – Ignition of the motor simultaneously en-

gages the cutting means.

SAFETY REQUIREMENTS – Your lawnmower should be used with due care and attention. Therefore, gured labels have been placed on various parts of the machine to re- mind you of the main precautions to be taken. Their mean- ing is explained below. You are also asked to carefully read the safety regulations in the specic chapter of this manual. Replace damaged or illegible labels.

42. Risk of thrown objects. Keep all persons away from the

work area whilst mowing.

44. Be careful when using the sharp cutting means: the

cutting means continues to rotate even after the motor has been switched o. Disconnect the plug from the mains before commencing maintenance work or if the power cable is damaged.

45. Warning: keep the power cable away from the cut-

ting means. OPERATING INSTRUCTIONS NOTE – The number which precedes each paragraph links the references in the text to the respective illus- trations (listed on page iii and following pages).

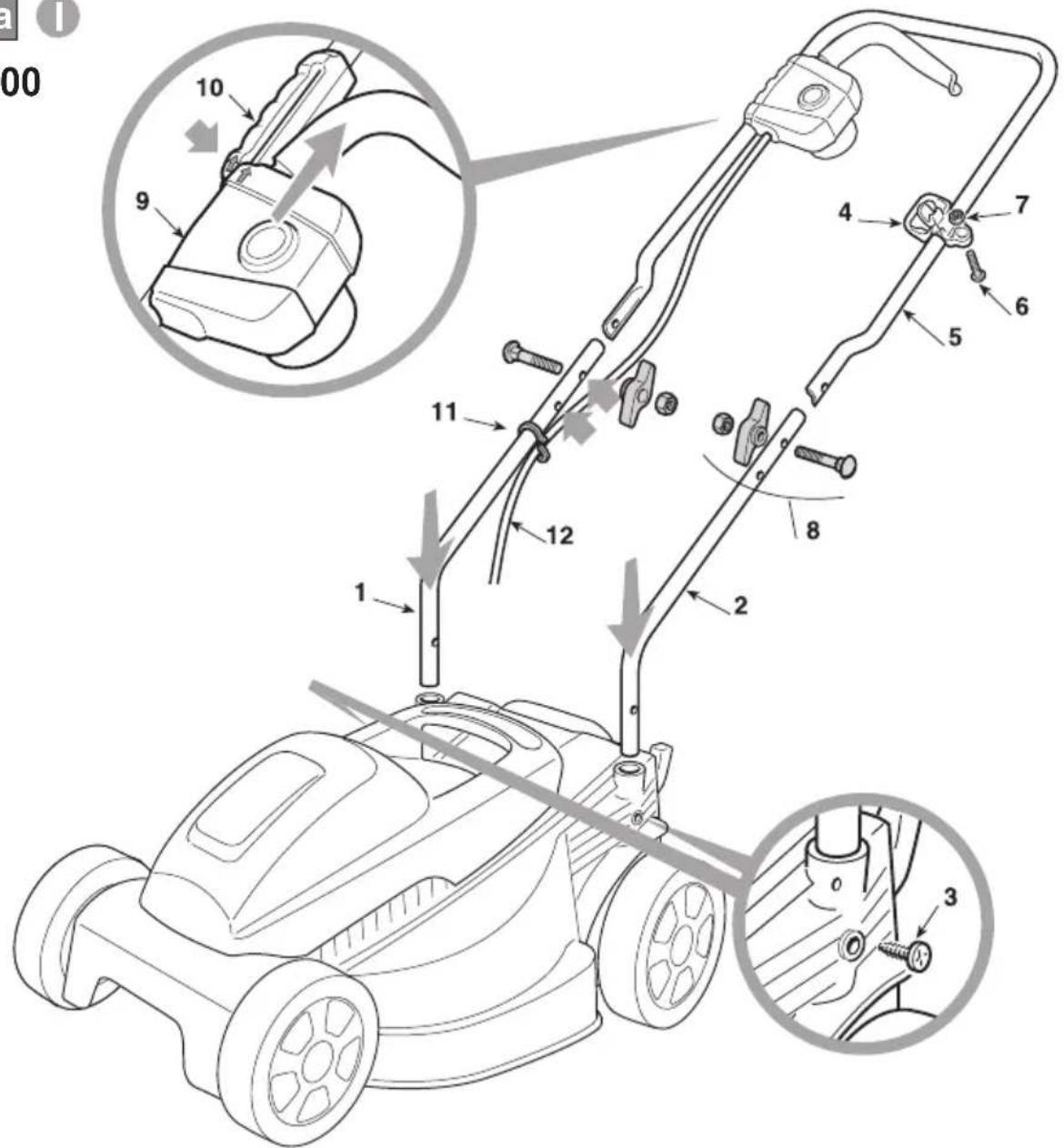

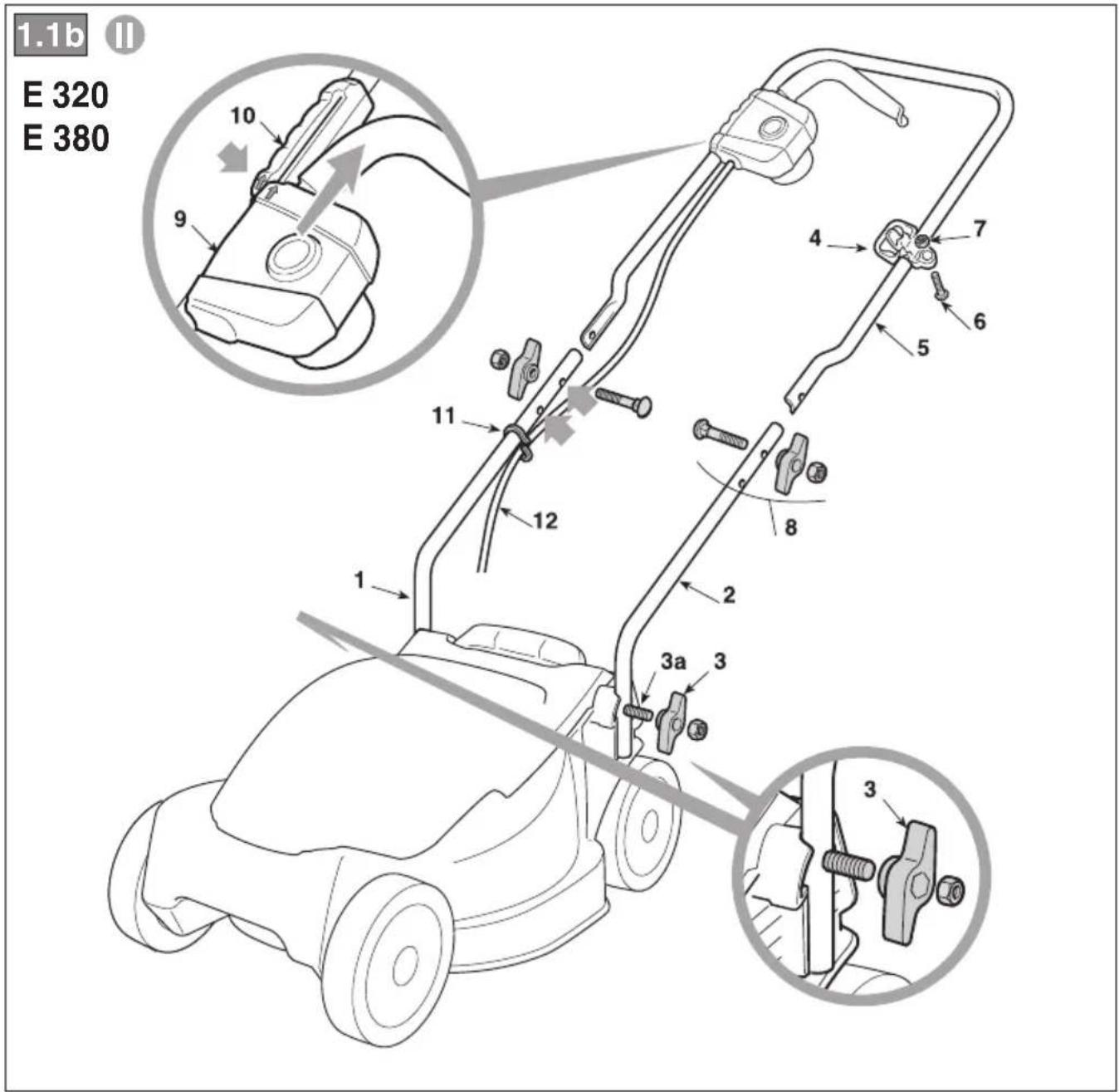

1. COMPLETING ASSEMBLY

NOTE The machine can be supplied with some parts already assembled. WARNING! Unpacking and completing the assem- bly should be done on a flat and stable surface, with enough space for moving the machine and its packag- ing, always making use of suitable equipment. Disposal of the packaging should be done in accord- ance with the local regulations in force. 1.1a Handle assembly (Type“I”) Insert the lower right (1) and left (2) parts of the handle into the respective holes and fasten them in place with the sup- plied screws (3) and the washers (4). Apply the cable fastener (4) to the top of the handle (5) in the indicated position and fasten it with the supplied screw (6) and bolt (7). Fasten the top of the handle (5) to the bottom parts using the knobs (8) and the supplied nuts and bolts as shown, us- ing one of the two holes provided for adjusting the height of the handle to the operator’s stature. Align the slot on the switch (9) to the support guide (10) and push the switch (9) in the direction indicated by the arrows as far as possible, making sure it ts securely. Fit the cable fastener (11) in the indicated position and then attach the cable (12). 1.1b Handle assembly (Type“II”) Assemble the lower right (1) and left (2) parts of the handle to the screws (3a) protruding from the chassis and fasten them with the supplied knobs (3). Apply the cable fastener (4) to the top of the handle (5) in the indicated position and fasten it with the supplied screw (6) and bolt (7). Fasten the top of the handle (5) to the bottom parts using the knobs (8) and the supplied nuts and bolts as shown, us- ing one of the two holes provided for adjusting the height of the handle to the operator’s stature. Align the slot on the switch (9) to the support guide (10) and push the switch (9) in the direction indicated by the arrows as far as possible, making sure it ts securely. Fit the cable fastener (11) in the indicated position and then attach the cable (12).

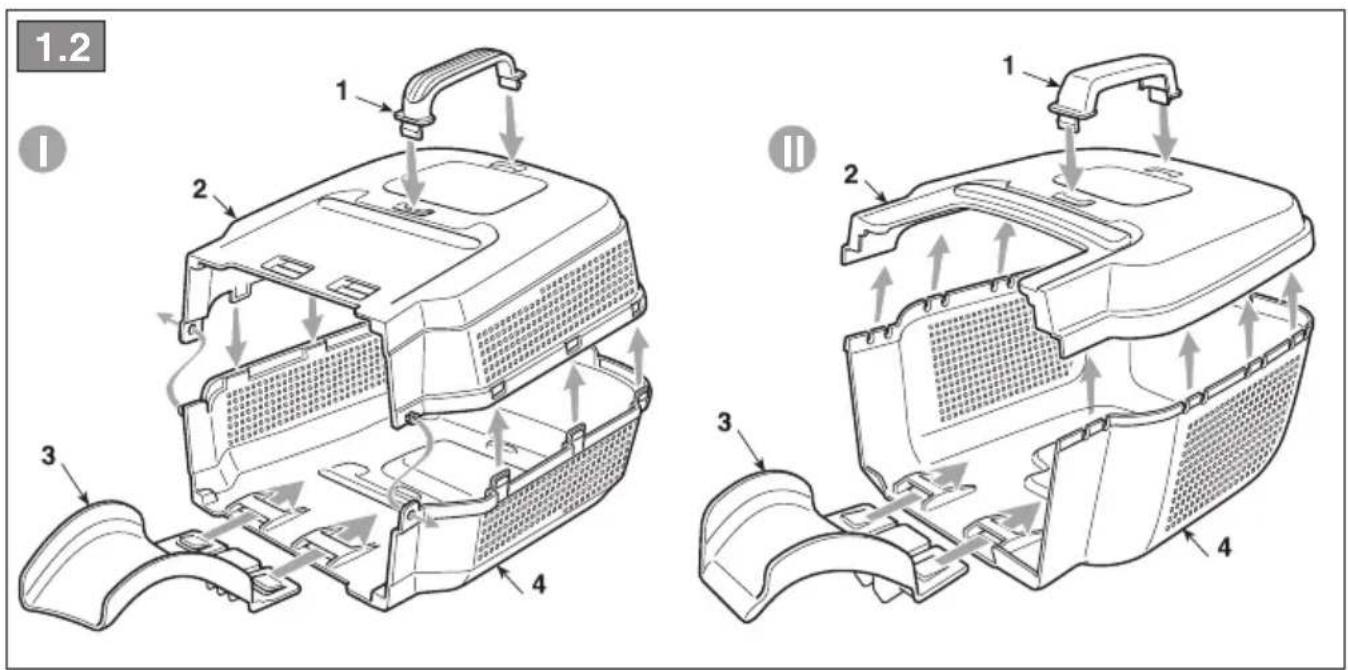

1.2 Assembling the grass catcher

(Type “l” and Type“lI”) Assemble the handle (1) on the top part of the grass catcher (2), snapping it into the appropriate seats. Apply the extension (3) to the bottom part of the grass catcher (4), snapping it into the appropriate seats. Assemble the two parts (2) and (4), making sure you have securely inserted the ttings in their seats until they snap into place.

2. CONTROLS DESCRIPTION

NOTE The meanings of the symbols on controls are explained in the previous pages.

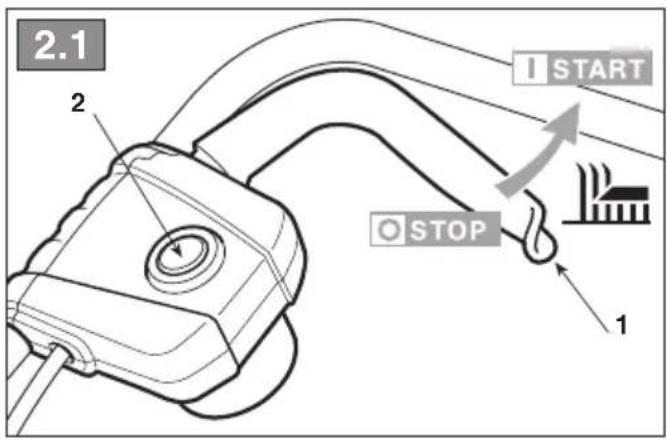

2.1 Dual-action switch

The motor is controlled by a dual-action switch to prevent accidental start-ups. Press the button (2) and pull the lever (1) to ignite the motor. WARNING! Ignition of the motor simultaneously engages the cutting means. The motor stops automatically when the lever (1) is re- leased.

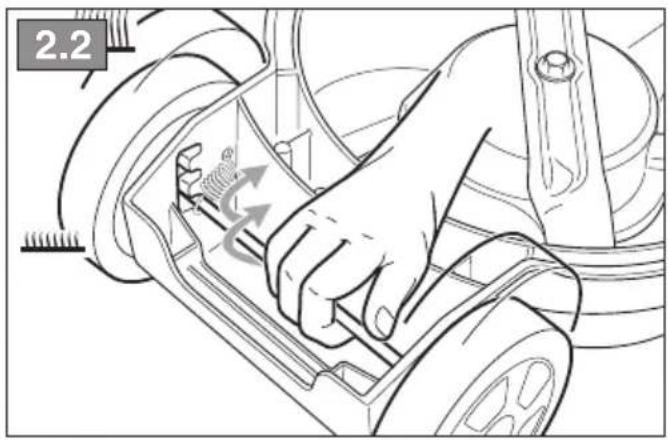

2.2 Cutting height adjustment

To adjust the cutting height, turn the machine over on one side and position the wheel axis in one of the three provid-5 ed slots inside the chassis. The height must be the same for both axes. DO THIS WHEN THE CUTTING MEANS IS STATIONARY.

NOTE This machine can be used to mow lawns in a num- ber of different ways; before starting work, prepare the ma- chine based on how the lawn is to be mowed. DO THIS WHEN THE MOTOR IS SWITCHED OFF.

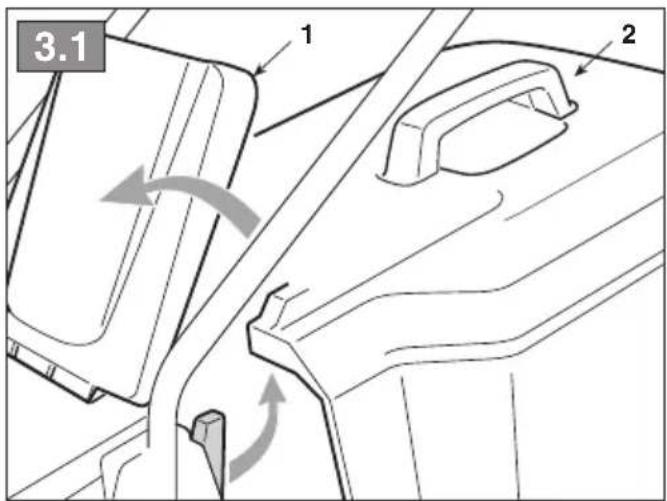

3.1 Preparation for grass cutting

and collection in the grass catcher: Lift the rear discharge guard (1) and fasten the grass catch- er (2) correctly as shown in the illustration.

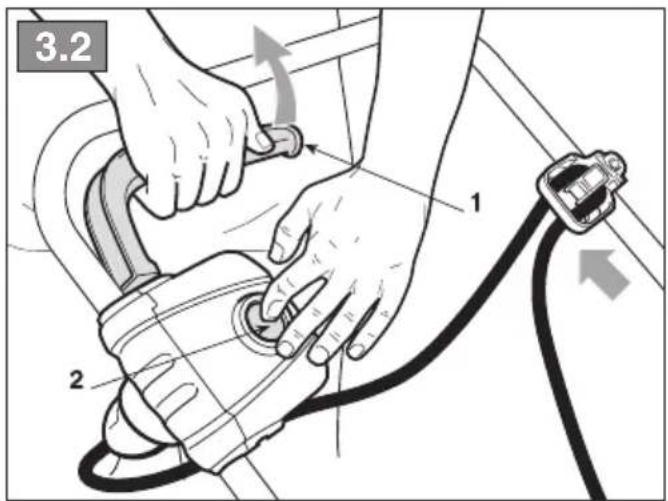

Fasten the extension lead correctly as shown. To ignite the motor, push the safety button (2) and pull the switch lever (1).

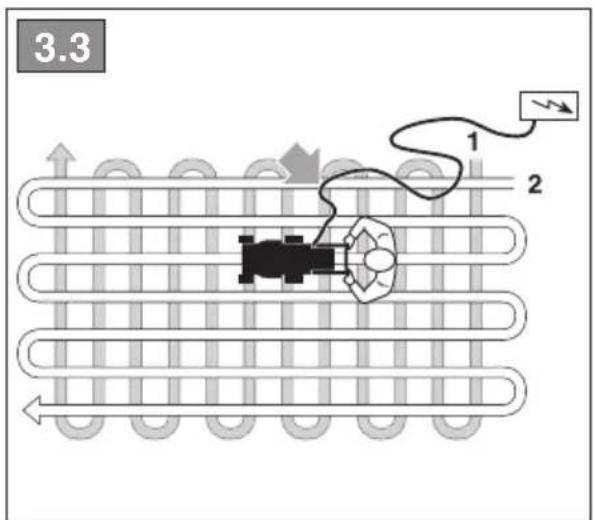

While mowing, make sure the electric cable is always be- hind you and on the side of the lawn that has already been cut. The appearance of the lawn will improve if you alternate cutting in both directions at the same height. When the grass catcher is too full, grass collection is no longer ecient and the sound of the lawnmower changes. To remove and empty the grass catcher, – release the switch lever and wait for the cutting means to stop; – lift the rear discharge guard, grasp the handle and re- move the grass catcher keeping it in an erect position. Lawn care recommendations Each type of grass has dierent characteristics and may thus require dierent ways of caring for the lawn; always read the instructions on seed boxes for mowing height for the growing conditions in the work area. Keep in mind that most grass is made up of a stem and one or more leaves. If leaves are fully cut, the lawn is damaged and growth is more dicult. The following indications generally apply: – cutting too low tears and uproots the grass, giving it a “spotted” appearance; – in the summer, cutting must be higher to prevent the ground from drying; – do not cut wet grass; this could reduce cutting means ef- ciency due to sticky grass and tear the lawn. – for particularly high grass, initially mow at the maximum height allowed by the machine then mow again after two or three days.

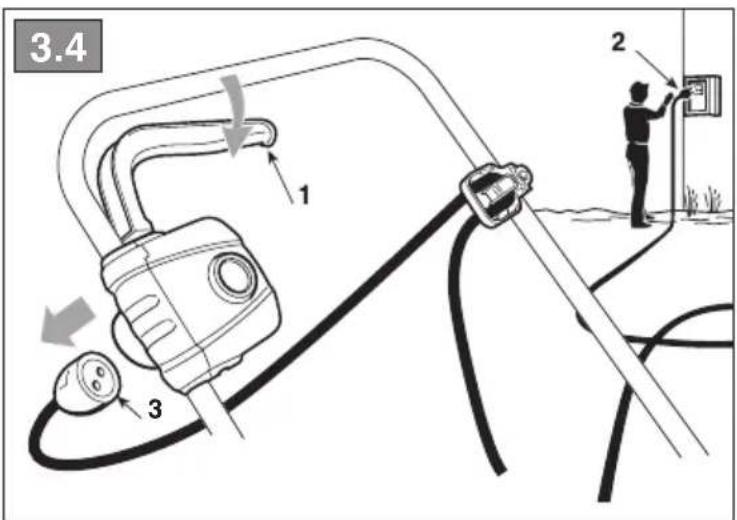

3.4 End of operations

Release the lever (1) when work has been completed. Disconnect the extension lead FIRST from the general mains socket (2) THEN from the side of the lawnmower switch (3). WAIT UNTIL THE CUTTING MEANS STOPS before mak- ing any adjustments to the lawnmower. IMPORTANT If the motor stops while mowing due to over- heating, you must wait about 5 minutes before restarting it.

4. ROUTINE MAINTENANCE

Store the lawnmower in a dry place. IMPORTANT Routine and accurate maintenance is es- sential in maintaining original machine safety and perfor- mance levels. Adjustments or maintenance operations must only be per- formed with the motor switched o and the machine discon- nected from the mains power supply.

1) Wear strong protective gloves before cleaning, main-

taining or adjusting the machine.

2) Accurately wash the machine with water after cutting,

remove grass debris and mud accumulated in the chas- sis to prevent it from drying and causing problems the next time the lawnmower is used.

3) Always make sure the air intakes are free of debris.

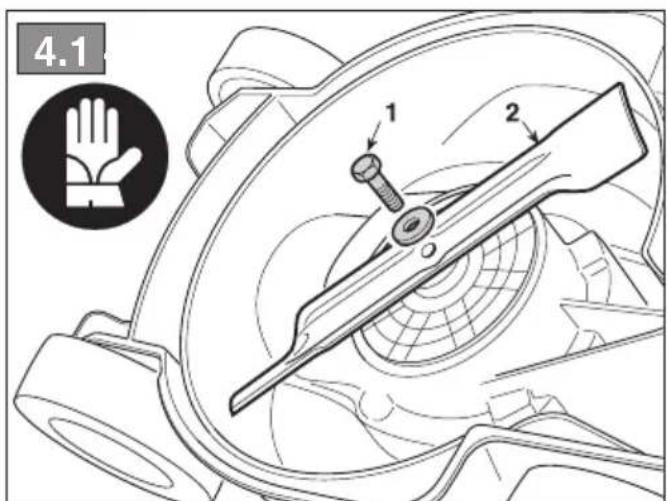

4.1 Cutting means maintenance

It is best if all interventions on the cutting means are done at a specialised Centre that has the most appropriate tools and equipment. Only cutting means bearing the code indicated in table on page ii must be used on this machine. Given product evolution, the above mentioned cutting means may be replaced in time with others having similar interchangeable and operating safety features. Reassemble the cutting means (2) with the code facing the ground, following the steps indicated in the illustration. Tighten the central screw (1) using a torque wrench set to 15 Nm.

4.2 Cleaning the machine

Do not spray water onto the motor and electrical compo- nents and prevent them from getting wet. Do not use aggressive liquids to clean the chassis.

1. The electric lawnmower doesn’t work

The machine has no power supply Check the electrical connection.

2. The electric lawnmower trips the power supply.

The mains socket amperage is insufficient Connect the machine to a mains socket with sufficient amperage Other electrical appliances are being used Do not connect other appliances to the same mains socket at the same time.6 The inside of the chassis is dirty Clean the inside of the chassis to ease the grass discharge towards the grass catcher

4. Mowing is difficult

The cutting means is not in good condition Have the cutting means sharpened or replace it

5. The machine starts to vibrate abnormally

Damaged or loose parts Stop the machine and disconnect the plug from the socket. Inspect for damage Check for and tighten any loose parts Have all checks, repair work and replacements carried out by a specialized Centre only.

6. The motor shuts down whilst working

The thermal protection has tripped due to overheating of the motor. Stop the machine and disconnect the plug from the socket. Always make sure the air intakes are free of debris. For any doubts or problems, please do not hesitate to con- tact your nearest Customer Service Centre or Your Dealer.

3. The cut grass is not collected in the grass catcher

The cutting means has received a knock Have the cutting means sharpened or replace it Check the fins that direct the grass towards the grass catcher1

2.1 Kaheastmeline lüliti

D) VEDLIKEHOLD OG OPPBEVARING

UK DECLARATION OF CONFORMITY (Original Instruction) (Supply of Machinery (Safety) Regulations 2008, S.I. 2008 No. 1597, Annex II, part A)

1. The Company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy

2. Herby declares under its own responsibility that the machine: Pedestrian controlled lawn mower / Grass cutting

3. Conforms to UK Regulations:

• S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008 e) Approved Body: Not Applicable f) Type-examination: Not Applicable

• S.I. 2001/1701 ; S.I. 2001/1701 Schedule 9 - Noise Emission in the Environment by Equipment for use Outdoors Regulations

• S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016

• S.I. 2012/3032 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

4. Reference to Designated Standards:

g) Sound power level, measured: 92 dB(A) h) Sound power level, guaranteed: 93 dB(A)

UK DECLARATION OF CONFORMITY (Original Instruction) (Supply of Machinery (Safety) Regulations 2008, S.I. 2008 No. 1597, Annex II, part A)

1. The Company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy

2. Herby declares under its own responsibility that the machine: Pedestrian controlled lawn mower / Grass cutting

3. Conforms to UK Regulations:

• S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008 e) Approved Body: Not Applicable f) Type-examination: Not Applicable

• S.I. 2001/1701 ; S.I. 2001/1701 Schedule 9 - Noise Emission in the Environment by Equipment for use Outdoors Regulations

• S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016

• S.I. 2012/3032 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

4. Reference to Designated Standards:

g) Sound power level, measured: 91 dB(A) h) Sound power level, guaranteed: 93 dB(A)

UK DECLARATION OF CONFORMITY (Original Instruction) (Supply of Machinery (Safety) Regulations 2008, S.I. 2008 No. 1597, Annex II, part A)

1. The Company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy

2. Herby declares under its own responsibility that the machine: Pedestrian controlled lawn mower / Grass cutting

3. Conforms to UK Regulations:

• S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008 e) Approved Body: Not Applicable f) Type-examination: Not Applicable

• S.I. 2001/1701 ; S.I. 2001/1701 Schedule 9 - Noise Emission in the Environment by Equipment for use Outdoors Regulations

• S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016

• S.I. 2012/3032 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

4. Reference to Designated Standards:

g) Sound power level, measured: 91 dB(A) h) Sound power level, guaranteed: 93 dB(A)

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility that the

machine: Pedestrian controlled lawn mower / Grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: electric

3. Conforms to directive specifications:

e) Certifying body: Not applicable f) EC examination of Type: Not applicable

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

STIGA LTD (UK Importer) Unit 8, Bluewater Estate Plympton, Devon, PL7 4JH, England
