Brand	Alpina
Model	ATR 600 E
Product Type	Electric hand-held lawn trimmer / edge trimmer
Power Supply Voltage	230 V ~
Power Supply Frequency	50 Hz
Motor Power	600 W
Cutting Width	30 cm
No-Load Speed	11,000 min-1
Weight	2.8 kg
Sound Pressure Level (LpA)	79.8 dB(A) (uncertainty 1 dB)
Measured Sound Power Level (LWA)	93.5 dB(A) (uncertainty 0.2 dB)
Guaranteed Sound Power Level	96 dB(A)
Vibration Level (ah)	2.35 m/s2 (uncertainty 1.5 m/s2)

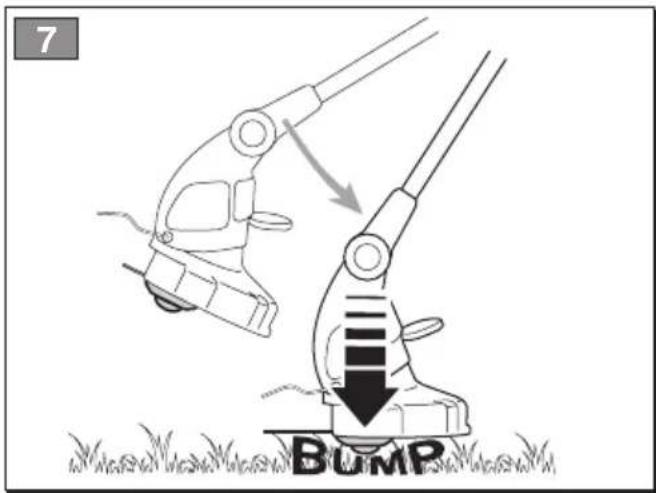

Cutting Line Head	Tap & Go automatic line feed
Cutting Line Type	Nylon line only
Safety Features	Safety button (SGT 600), guard, dual insulation, cable clamp, RCD recommended
Adjustable Features	Adjustable rear handgrip rotation, connection pipe length, power unit angle (3 positions)
Warranty	24 months (12 months for commercial use)
IP Rating	Not specified, but designed for outdoor use with precautions

Frequently Asked Questions - ATR 600 E ALPINA

How do I assemble the Alpina ATR 600 E lawn trimmer?

The assembly involves attaching the guard and front handgrip. For SGT 600 models, the machine comes as one piece. The guard hooks onto the tab and clicks into place. The front handgrip is mounted with a screw and can be rotated to the most comfortable position before tightening. Ensure the machine is unplugged before assembly.

How do I start and stop the motor?

To start, first connect the extension lead to the machine and then plug into the mains. Hold the machine firmly, press the safety button (SGT 600) and then the trigger switch. For SGT 350, just press the trigger. To stop, release the trigger, then unplug the extension lead from the mains before disconnecting from the machine.

What type of cutting line should I use?

Use only nylon lines. Metal lines, plasticised metal lines, or lines not suitable for the head can cause serious injuries. The machine uses a Tap & Go head that releases line when tapped on the ground.

How do I replace the cutting line or coil?

Press the two side buttons on the head, remove the cover, lift out the old coil. Insert a new coil ensuring the two line ends protrude from the head holes. Reposition the spring and remount the cover. Always disconnect the machine from the mains before any maintenance.

Can I use metal blades with the ATR 600 E?

No, the use of metal or rigid blades of any type is prohibited. Only use the supplied nylon line for cutting grass and non-woody vegetation.

What safety precautions should I take while using the trimmer?

Wear protective glasses and hearing protection. Keep bystanders away, especially children. Inspect the work area for objects that could be thrown. Always hold the machine with both hands, keep the cutting device below belt level, and disconnect the mains before any maintenance or if the cord is damaged.

How do I adjust the length and angle of the ATR 600 E?

Loosen the handle on the connection pipe to adjust the length and rotate the rear handgrip up to 180°. Press the pedal on the power unit to align it in one of three positions. Always disconnect from mains before adjustments.

What is the recommended extension cord specification?

Use an extension cord of type H07RN-F or H07VV-F with a minimum cross-section of 1.5 mm² and a maximum length of 30 m. The cord should be suitable for outdoor use. Avoid keeping it rolled up during use to prevent overheating.

How should I store the lawn trimmer?

After use, clean the machine thoroughly to remove grass and debris. Allow the motor to cool. Store in a dry place away from the elements and out of reach of children. Disconnect the mains supply and check for any damage.

What should I do if the machine vibrates abnormally?

Stop the motor immediately and unplug the machine. Inspect for damage or worn parts. If the cause is not obvious, have it inspected at a specialised service centre. Continued use could cause injury.

USER MANUAL ATR 600 E ALPINA

Icon of a person reading a book inside a black circle (no text or symbols)

IT Tagliaerba/tagliabordi elettrico portatile MANUALE DI ISTRUZIONI
ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto.
BG преносими електрически тревен тример/тример УПЪТВАНЕ ЗА УПОТРЕБА
ВНИМАНИЕ: преди да използвате машината прочетете внимателно настоящата книжка.
CS Přenosný elektrický vyžínač/ořezávač okrajů trávníku NÁVOD K POUŽITÍ
UPOZORNĚNÍ: před použitím stroje si pozorně přečtěte tento návod k použití.
DA Bærbar elektrisk græstrimmer/kantklipper BRUGSANVISNING
ADVARSEL: læs instruktionsbogen omhyggeligt igennem, før du tager denne maskine i brug.
DE Handgehaltener elektrischer Rasentrimmer/Rasenkantenschneider GEBRAUCHSANWEISUNG
ACHTUNG: vor Inbetriebnahme des geräts die gebrauchsanleitung aufmerksam lesen.
EL φορητό ηλεκτρικό χλοοκοπτικό / κόφτης άκρων ΟΔΗΓΙΕΣ ΧΡΗΣΠΣ
ΠΡΟΣΟΧΗ: πριν χρησιμοποιησετε το μηχανημα, διαβαστε προσεκτικα το παρον εγχειριδιο.
EN Electrically powered hand-held lawn trimmer / lawn edge trimmer OPERATOR'S MANUAL
WARNING: read thoroughly the instruction booklet before using the machine.
ES Cortacésped/cortabordes con alimentación por batería portátil MANUAL DE INSTRUCCIONES
ATENCIÓN: antes de utilizar la máquina, leer atentamente el presente manual.
ET Kaasaskantav elektriline murulõikur/äärelõikur KASUTUSJUHEND
TÄHELEPANU: enne masina kasutamist lugeda tähelepanelikult antud kasutusjuhendit.
FI Käsin kannateltava sähkökäyttöinen ruohonleikkuri/nurmikon reunojen viimeistelyleikkuri KÄYTTÖOHJEET
VAROITUS: lue käyttöopas huolellisesti ennen koneen käyttöä.
FR Coupe-gazon / coupe-bordures électriques portatifs MANUEL D'UTILISATION
ATTENTION: lire attentivement le manuel avant d'utiliser cette machine.
HR Prijenosni električni šišač trave/šišač travnih rubova PRIRUČNIK ZA UPORABU
POZOR: prije uporabe stroja, pažljivo pročitajte ovaj priručnik.
HU Hordozható elektromos fúnyíró/szegélynyíró HASZNÁLATI UTASÍTÁS
FIGYELEM! a gép használata előtt olvassa el figyelmesen a jelen kézikönyvet.
LT Rankinė elektrinė vejapjovė -trimeris vejos kraštams NAUDOJIMO INSTRUKCIJOS
DĖMESIO: prieš naudojant įrenginį, atidžlai perskaltyti šį naudotojo vadovą.
LV No elektrotikla darbināma rokā turama zālienu plaujmašina / zālienu apmaļu plaujmašina LIETOŠANAS INSTRUKCIJA
UZMANIBU: pirms aparāta lietošanai rūpīgi izlasiet doto instrukciju.
МК Електричен преносен поткаструвач УПАТСТВА ЗА УПОТРЕБА
ВНИМАНИЕ: прочитајте го внимателно ова упатство пред да ја користите машината.
NL Draagbare elektrische grasmaaier/graskantenrijder GEBRUIKERSHANDLEIDING
LET OP: vooraleer de machine te gebruiken, dient men deze handleiding aandachtig te lezen.

Bærbar elektrisk drevet plen- og kanttrimmer INSTRUKSJONSBOK

MANUAL DE INSTRUCTIUNI

ENGLISH - Translation of the original instructions ...... EN

Illustration of a person using a tool to spray or spray with arrows indicating motion (no text or symbols)

Dear Customer,

thank you for choosing one of our products. We hope that you will be completely satisfied with this machine and that it fully meets your expectations. This manual has been compiled in order to provide you with all the information you need to get acquainted with the machine and use it safely and efficiently. Don't forget that it is an integral part of the machine; keep it handy so that it can be consulted when necessary, and pass it on to a further user if you resell or loan the machine.

Your new machine has been designed and manufactured in pursuance with current regulations, and is safe and reliable if used in compliance with the instructions provided in this manual (proper use). Using the machine in any other way, or non-compliance with the safety specifications relative to use, maintenance and repair is considered “improper use” which will invalidate the warranty, relieve the manufacturer from all liabilities, and the user will consequently be liable for all and any damage or injury to himself or others.

For this electric tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties:

The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts and defects caused by the use of not fitting accessories, repair with parts that are no original parts of the manufacturer, use of force, strokes and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void.

All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.

Since we regular improve our products, you may find slight differences between your machine and the descriptions contained in this manual. Modifications can be made to the machine without notice and without the obligation to update the manual, although the essential safety and function characteristics will remain unaltered. In case of any doubts, please contact your dealer. And now enjoy your work!

TABLE OF CONTENTS

1. Identification of the main components 2
2. Symbols 3
3. Safety warnings 4
4. Machine assembly 6
5. Preparing to work 7
6. How to start - Stop the motor 7
7. Using the machine 8
8. Maintenance and storage 10
9. Accessories 10

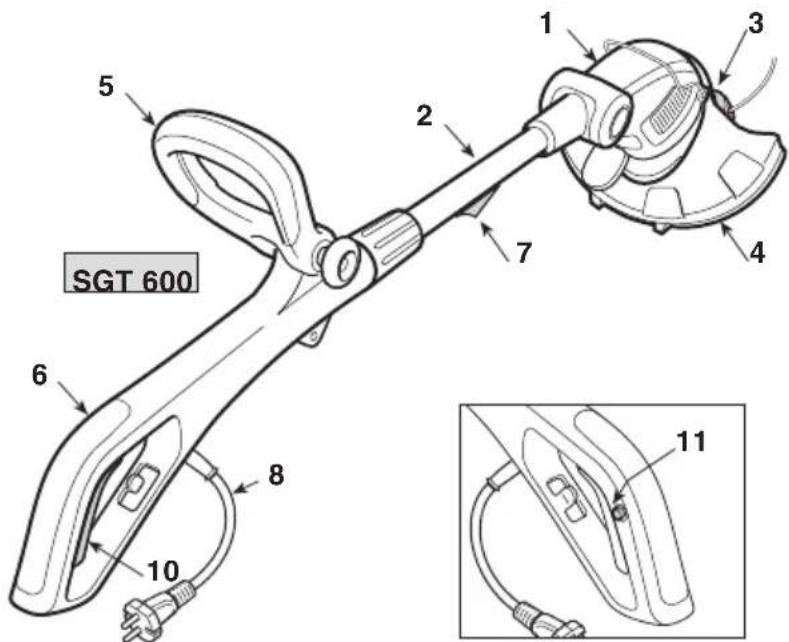

1. IDENTIFICATION OF MAIN COMPONENTS

MAIN COMPONENTS

1. Power unit
2. Connection pipe SGT 600
3. Cutting line head (Cutting device)
4. Cutting device guard
5. Front handgrip

6. Rear handgrip

7. Identification plate

8. Power cable
9. Extension lead (not supplied)

CONTROLS AND FUNCTIONAL PARTS

1. Trigger switch
2. Safety button (SGT 600)

IDENTIFICATION PLATE

11.1) Conformity marking
11.2) Name and address of the manufacturer
11.3) Type of machine
11.4) Serial number
11.5) Year of manufacture
11.6) Power supply frequency and voltage
11.7) Motor power
11.8) Dual insulation
11.9) Article Code
11.11) Acoustic power level

Do not dispose of electric equipment together with household waste material! In observance of European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in accordance with national law, according to UK Regulation "The waste electrical and electronic equipment regulations 2013 (as amended)", electric equipment that have

reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the foodchain, damaging your health and well-being. For further information on the disposal of this product, please contact your dealer or your nearest domestic waste collection service.

Maximum noise and vibration levels [1]		Model
		SGT 350 SGT 600
Sound pressure level	dB(A)	85,2	79,8
- Measurement uncertainty	dB(A)	1	1
Measured acoustic power level	dB(A)	94,2	93,5
- Measurement uncertainty	dB(A)	0,72	0,2
Guaranteed acoustic power level	dB(A)	96 96
Vibration level	m/s^2	3,22	2,35,
- Measurement uncertainty	m/s^2	1,5	1,5

[1]
Notice:
The vibration value indicated was determined with a standardized tool and can be used to make comparisons with other electric equipment as well as temporary estimates of the load through the vibrations.
WARNING!
The vibration value may vary according to the usage of the machine and its fitted equipment, and be higher than the one indicated. Safety measures must be established to protect the user and must be based on the load estimate generated by the vibrations in real usage conditions. In this regard, all the operational cycle phases must be taken into consideration, such as switching off or idle running.

TECHNICAL DATA Model

	SGT 350 SGT 600
Power supply voltage V~230-240 230
Power supply frequency Hz 50 50
Engine Power	W	350	600
Cutting width	cm	25 30
Mass	Kg	1,9	2,8
No-load Speed	min^-1	11.000	11.000

2. SYMBOLS

1) Keep bystanders away.
2) The tool continues to move even after it has been switched off.
3) Warning! Danger. Failure to use this machine correctly can be hazardous for oneself and others.
4) Disconnect the plug from the mains before commencing maintenance work or if the power cord is damaged.
5) Read the instruction manual before using the machine.
6) Do not leave the machine in the rain (or in damp conditions).
7) If you are using the machine every day in normal conditions, you can be exposed to a noise level of 85 dB (A) or higher. Wear safety glasses and hearing protection.
8) Cutting device rotation direction.

3. SAFETY WARNINGS

HOW TO READ THE MANUAL

Certain paragraphs in the manual contain particularly significant information and are marked with various levels of highlighting with the following meaning:

NOTE

or

IMPORTANT

These give details or further information on what has already been said, with the aim of preventing damage to the machine.

WARNING!

on-observance will result in the risk of injury to oneself or others.

DANGER!

h-observance will result in the risk of serious injury or death to oneself or others.

ELECTRIC GRASS TRIMMER SAFETYWARNINGS

WARNING!

e safety rules must be observed during machine use. Before starting the machine, read the instructions regarding personal safety and the safety of unauthorized persons. Keep the instructions in a good state for future use.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool.

1) Only use the machine for the purpose for which it was designed, namely “cutting grass and non-woody vegetation, using a ny lon line (e.g. around the edges of lawns, flo werbeds, walls, fences and small grassy areas to tidy up the cutting done using a mower)”. Any other use, such as using accessories not specified in this manual, may be hazardous and also damage the machine. Examples of improper use may include, but are not limited to:

• use the machine for sweeping;
• trimming hedges or other jobs in which the cutting device is not used on ground level;
• using the machine with the cutting device above the operator's belt level;
• using the machine for cutting non-plant material;
• use of the machine by more than one person.

2) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3) Residual risks: even all the safety rule are

obeyed, there still can be some other risks.

• Danger of injury of the fingers and hands involved into the rotating thread.
• Danger of injury of the feet by affecting the cutting line.
• hrowing of stones and earth. The moreover one obvious residual risks can exist despite all met precautions.

4) Wear protective glasses or goggles.

5) Never allow children or people unfamiliar with the instructions to use the machine.

6) Stop using the machine while people, especially children, or pets are nearby.

7) Only use the machine in daylight or good artificial light.

8) Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.

9) Never operate the machine with damaged guards or without the guards in place.

10) Keep hands or feet away from the cutting means at all times and especially when switching on the motor.

11) Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on.

12) Never fit metal cutting elements.

13) Never user replacement parts or accessories not provided or recommended by the manufacturer.

14) Disconnect the machine from the mains before checking, cleaning or working on the machine and when it is not in used.

15) Always ensure that ventilation openings are kept clear of debris.

16) After use, disconnect the machine from the mains and check for damage.

17) When not in use store the machine out of the reach of children.

18) Mains powered trimmers should only be repaired by an authorised repairer.

ADDITIONAL SAFETY WARNINGS

1) Read the instructions carefully.
2) Be familiar with the controls and proper use of the equipment.
3) Before use check the supply and extension cord for signs of damage or ageing.
4) If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
5) Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.
6) Warning: cutting elements continue to rotate after the motor is switched off.
7) Keep extension cords away from cutting elements.
8) Power the machine using a residual current device (RCD Residual Current Device) with max. 30 mA tripping current.

• How to use the electric grass trimmer

When using the machine, always use caution and take on a firm and well-balanced position.

• Where possible, avoid working on wet, slippery ground or in any case on uneven or steep ground that does not guarantee stability for the operator.
• Never run, but walk carefully paying attention to the lay of the land and any eventual obstacles.
• Assess the potential risks of the ground to be mown and take all necessary precautions to en sure your own safety, especially on slopes or on bumpy, slippery or unstable ground.
• Work along the contour on slopes, never when walking up or down and always keep downhill of the cutter.

Do not use the machine if you are unable to hold it with both hands or keep it steady on your legs while working.

The machine must never be used by more than one person.

Never use the machine if the user is tired or unwell, or has taken medicine, drugs, alcohol or any substances which may slow his reflexes and compromise his judgement.

- Techniques for using the electric grass trimmer

Always observe the safety regulations and use the most suitable cutting techniques (see chapter 7 for in structions and examples).

• Handling the electric grass trimmer safety

Whenever the machine is to be handled or transported you must:

• turn off the motor, wait for the cutting device to stop and unplug the machine from the mains;
• only hold the machine using the handgrips and position the cutting device in the opposite direction to that used during operation.

When using a vehicle to transport the machine, position it so that it can cause no danger to persons and fasten it firmly.

- Recommendations for first-time users

Before tackling a mowing job for the first time it is advisable to gain the necessary familiarity with the machine and the most suitable cutting techniques, finding out how to firmly grip the machine and making the movements required by the job.

GENERAL POWER TOOL SAFETY WARNINGS

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive at-

mospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not use the cord improperly. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Using an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or obstruction of moving parts, breakage of parts and any other condition that may affect the power

tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to become jammed and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, ta king into account the working conditions and the work to be performed. Using the power tool for operations other than those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

4. MACHINE ASSEMBLY

WARNING! Mount the components we ry carefully so as not to impair the safety and efficiency of the machine. If in doubt, contact your dealer.

WARNING! Take sure the machine is not plugged into the mains socket.

WARNING: unpacking and completing the assembly should be done on a flat and stable surface, with enough space for moving the machine and its packaging, always making use of suitable equipment.

Disposal of the packaging should be done in accordance with the local regulations in force.

1. JOINING THE TWO SEPARATE MACHINE SECTIONS (Only for SGT 350) (Fig. 1)

- Align the groove on the front section (1) with the guide on the rear section (2) and press together firmly until it clicks into position.

IMPORTANT Once the two sections have been joined, they can never be separated again.

1. MOUNTING THE FRONT HANDGRIP (Fig. 2)

2. Fit the front handgrip (1) on the support (2) so that the seat (3) of the screw (4) is visible on the left hand side.

3. Insert the screw (4) and start to tighten the handle (5).

4. Before tightening the handle completely (5), align the handgrip (1) in the most comfortable position for the operator.

5. MOUNTING THE GUARD (Fig. 3)

WARNING: The guard must be fitted correctly to respect the safety requirements and the correct position of the line cutting knife.

• Hook the power unit tab (1) onto the guard seat (2).
• Press the guard (2) upwards until you hear a click.

IMPORTANT Once mounted, the guard can never be removed.

5. PREPARING TO WORK

1. CHECKING THE MACHINE

WARNING! Take sure the machine is not plugged into the mains socket.

Before starting work please:

• check that the mains frequency and voltage is the same as the rating data on the "Identification Plate" (see chap. 1 - 7.8).
• check that the trigger switch and the safety button (Only for SGT 600) should move freely without forcing and return automatically and rapidly back to their neutral position;
• (Only for SGT 600) check that the trigger switch must remain locked until the safety button is pressed;
• check that the cooling air vents are not obstructed;
• check that the power cable and extension lead are not damaged;
• check that handgrips and protection devices are clean and dry, correctly mounted and well fastened to the machine;
• check that the cutting devices and guards are not damaged;
• check that the machine is not showing signs of wear or damage due to knocks or other causes, and carry out the necessary repairs.

2.ELECTRICAL CONNECTIONS

DANGER! Electricity and moisture are not compatible.

• Always handle and connect electric cables in dry conditions.
• Keep electric sockets or cables away from wet and damp areas (e.g. puddles or wet ground).

The quality of the extension leads must be no less than H07RN-F or H07VV-F, with a minimum section of 1.5 mm and a recommended maximum length of 30 m.

To avoid overheating, do not keep the extension lead rolled up during use.

DANGER! The permanent connection of any electrical equipment to the mains of a building must be installed by a qualified electrician in conformity with the regulations in force. Incorrect wiring can cause serious injury and even death.

6. HOW TO START - STOP THE MOTOR

STARTING THE MOTOR (Fig. 4)

Before starting the motor:

• Fasten the extension lead (1) to the cable clamp on the rear handgrip.
• FIRST connect the power cable plug (2) to the extension lead (3) and THEN plug the extension lead into the mains socket (4).

To start the motor:

– Hold the machine firmly with both hands.
- SGT 600: Press the safety button and then the switch (6).
SGT 350: Press the switch (6).

NOTE

(Only for SGT 600) When you release the switch, the safety button is also released and the motor stops.

STOPPING THE MOTOR (Fig. 4)

To stop the motor:

• Release the switch (6).
• FIRST unplug the extension lead (3) from the mains socket (4) and THEN disconnect the power cable (2) of the machine from the extension lead (3).

7. USING THE MACHINE

WARNING! for your safety and that of others:

1) Keep in mind that the operator or user is re responsible for accidents or hazards occurring to other people or their property.
2) Always wear suitable clothing when using the machine. Your dealer can provide you with all the information on the most suitable accident-prevention devices to guarantee your safety.
3) Thoroughly inspect the whole work area and remove anything that could be thrown up by the machine or damage the cutting de vice (stones, branches, iron wire, bones, etc.).
4) Use the cable clamp to prevent the extension lead from disconnecting accidentally. Make sure it is connected to the socket without being forced. Ne ver touch a live electric cable if it is poor ly insulated.
5) Be careful of flying debris coming from the cutting device.
6) Stop the motor and unplug the machine from the mains:
- if the machine starts to vibrate abnormally: find the cause of the vibration imme dia tely and have it inspected at a Spe cia li sed Centre;
- whenever you leave the machine unattended.

IMPORTANT

Remember that an electric grass trimmer used incorrectly can be a disturbance to others. To respect people and the environment:

• Avoid using the machine in environments or at times of the day when it may disturb others.
• Scrupulously comply with local regulations and provisions for the disposal of waste materials after cutting.
• To avoid the risk of fire, do not leave the machine with the motor hot on leaves or dry grass.
• Scrupulously comply with local regulations and provisions for the disposal of damaged parts or any elements which have a strong impact on the environment.

WARNING! prolonged exposure to vi-

bra tions can cause injuries and neurovascular disorders (also called “Renaud’s syndrome” or “white hand”), especially to people suffering from circulation disorders. The symptoms can regard the hands, wrists and fingers and are shown through loss of sensitivity, torpor, itching, pain and discolouring of or structural changes to the skin. These effects can be worsened by low ambient temperatures and/or by gripping the handgrips excessively tightly. If the symptoms occur, the length of time the machine is used must be reduced and a doctor consulted.

1. USING THE MACHINE

WARNING!

When working, the machine must always be firmly held in both hands, keeping the cutting group below the line of the belt.

The cutting line head can eliminate tall grass and non-woody vegetation near fences, walls, foundations, pavements, around trees, etc. or to completely clean a particular area of the garden.

WARNING!

The use of metal or rigid blades of any type with this machine is prohibited.

2. ERGONOMIC AND FUNCTIONAL ADJUSTMENTS

(Only for SGT 600) (Fig. 5)

A variety of adjustments can be made to the machine to adapt it to the physique of the operator and the type of work it is required to perform.

WARNING!

All adjustments must ensure that the operator is ALWAYS situated behind the cutting device.

WARNING!

always disconnect the extension lead from the mains before performing any adjustments.

- Aligning the rear handgrip and adjusting the length of the connection pipe

• Loosen the handle (1).
• Pull or push the connection pipe (2) until it reaches the desired length.
• The rear handgrip (3) can be rotated to a maximum of 180^ where necessary.
• Tighten the handle (1) firmly when all adjustments have been completed.

- Aligning the power unit

• Press the pedal (4) and align the power unit (5) with one of the three allowed positions.
• Make sure the power unit is firmly assembled before switching the motor on.
• Rotate the cutting limit indicator (6) towards the front when working near trees, curbs or fences to prevent them coming into contact with the cutting device.

3. WORKING TECHNIQUES

WARNING! Use ONLY nylon lines. The

use of metal lines, plasticised metal lines and/or lines not suitable for the head can cause serious injuries and wounds.

During use it is advisable to stop the motor periodically and remove the weeds wound round the machine, so as to prevent overheating due to the grass caught under the guard.

Remove the caught-up grass with a screwdriver.

WARNING! b not use the machine

for sweeping, tilting the cutting line head. The power of the motor could throw objects and small stones 15 metres or more, causing damage and injuries to people.

• Cutting in motion (Scything) (Fig. 6)

Proceed at a regular pace, with a circular motion similar to a traditional scythe, keeping the cutting device parallel to the ground.

First try cutting at the right height in a small area, so as to then achieve a uniform cutting height keeping the cutting line head at a constant distance from the ground. For heavier cutting it can be useful to tilt the cutting line head by about 30^ .

WARNING! do not work in this way if

there is the possibility of causing objects to be thrown, which could harm people and animals and cause damage.

• Cutting near fences/foundations

Slowly approach the cutting line head to fences, posts, rocks, walls, etc. without hitting them hard.

If the line strikes a solid object it could break or become worn; if it gets tangled in a fence it could break abruptly. In any case, cutting around pavements, foundations, walls, etc. can cause greater wear than normal to the line.

• Cutting round trees

Walk round the tree from left to right, approaching the trunks slowly so as not to strike the tree with the line and keeping the cutting line head tilted forward slightly.

Remember that the nylon line could lop or damage small shrubs and that the impact of the nylon line against the trunk of bushes or trees with soft bark could seriously damage the plant.

- Adjusting line length when working (Fig. 7)

This machine is fitted with a "Tap & Go" head.

To release more line, tap the cutting line head against the ground with the motor running; the line will be released automatically and the knife cuts off the excess length.

If the line is not long enough:

• stop the motor and disconnect the extension lead from the mains:
• press the bottom of the head and tug on the ends of the line, until it reaches the desired length.

If the line has run out, the coil must be replaced.

WARNING!

After working on the cut-

ting-line head, always put the machine in a working position before starting the motor.

4. END OF OPERATIONS

When you have finished your work:

- Switch off the motor as indicated above (Chap. 6).

WARNING! Allow the motor to cool

before storing in any enclosure.

To reduce fire hazards, clean the machine thoroughly to get rid of any remains of grass, leaves or excess grease, never leave containers with the cut debris inside the storage area.

8. MAINTENANCE AND STORAGE

WARNING! for your safety and that of others:

• After each use, disconnect the machine from the mains and check for damage.
• Correct maintenance is essential to maintain the original efficiency and safety of the machine over time.
• Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
• Never use the machine with worn or damaged parts. Damaged parts are to be replaced and never repaired.
• Only use original spare parts. Parts that are not of the same quality can seriously damage the equipment and compromise safety.

WARNING! During maintenance operations unplug the machine from the mains.

1. MOTOR COOLING

To avoid overheating and damage to the motor, always keep the cooling air vents clean and free of sawdust and debris.

2. HEAD COIL REPLACEMENT (Fig. 8)

• Press the two side buttons (1) and remove the cover (2).
  – Lift out the coil (3).
• Reposition the spring (4) and insert the new coil, making sure that the two ends of the line (5) protrude from the holes (6) of the head.
• Remount the cover (2).

3. SHARPENING THE LINE CUTTING KNIFE (Only for SGT 350) (Fig. 9)

• Unscrew the two screws (1) and remove the line cutting knife (2) from the guard (3).
• Fix the line cutting knife in a vice and sharpen it using a flat file, being careful to retain the original cutting angle.
• Refit the knife on the guard.

SGT 600 mod. is provided with a line cutting pin which does not need sharpening.

4.ELECTRIC CABLES

WARNING! Check the condition of the electric cables regularly and replace them if they are worn or their insulation looks damaged.

If the electric cable is damaged, have it replaced with a genuine spare part by a qualified technician.

5. EXTRAORDINARY MAINTENANCE

All maintenance operations not foreseen in this manual must be performed exclusively by your dealer.

All and any operations performed in unauthorised centres or by unqualified persons will totally invalidate the warranty.

6. STORAGE

After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts.

The machine must be stored in a dry place away from the elements and out of the reach of children.

9. ACCESSORIES

The table contains a list of all available accessories, indicating those which may be used on each machine, marked with the symbol “*

WARNING! consideration that the selection, application and usage of the ac ces-sory to be fitted in the variety of possible us-

age are actions made solely by the user, the latter assumes responsibility for damages of any kind due to such actions. When in doubt or if lacking knowledge of the specificity of each accessory, contact your retailer or specialised gardening centre.

Code	Model:	SGT 350	SGT 600
1911-9125-01		*
1911-9126-01			*

UK DECLARATION OF CONFORMITY

(Supply of Machinery (Safety) Regulations 2008, S.I. 2008 No. 1597, Annex II, part A)

1. The company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy
2. Hereby declares under its own responsibility that the machine:

lawn/edge trimmer (grass cutting)

a) Homologation type: SGT 350
c) Serial number: 22I••TRB000001 ÷ 99L••TRB999999
d) Engine: electric

1. Conforms to UK Regulations:

• S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008
• S.I. 2001/1701 - Schedule 9 - Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

e) Notified body: N. 0359 Intertek Testing & Certification LTD

Academy Place, 1-9 Brook Street, Brentwood, Essex, CM14 5NQ

• S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016
• S.I. 2012/3032 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

1. Reference to harmonised standards:

EN 60335-1:2012 + A11:2014 + A13:2017

EN 50636-2-91:2014

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN IEC 63000:2018

g) Measured sound power level: 94 dB(A)

h) Guaranteed sound power level: 96 dB(A)

i) Cutting width: 25 cm

n) Person authorised to compile the technical file: ST. S.p.A.

ST. S.p.A.

Via del Lavoro, 6

31033 Castelfranco Veneto (TV) - Italia

o) Castelfranco Veneto, 01/10/2022 CEO Stiga Group

Sean Robinson

UK Importer:

STIGA LTD

Unit 8, Bluewater Estate Plympton,

Devon, PL7 4JH, England

UK DECLARATION OF CONFORMITY

(Supply of Machinery (Safety) Regulations 2008, S.I. 2008 No. 1597, Annex II, part A)

1. The company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy
2. Hereby declares under its own responsibility that the machine:

lawn/edge trimmer (grass cutting)

a) Homologation type: SGT 600
c) Serial number: 22I••TRB000001 ÷ 99L••TRB999999
d) Engine: electric

1. Conforms to UK Regulations:

• S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008
• S.I. 2001/1701 - Schedule 9 - Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

e) Notified body: N. 0359 Intertek Testing & Certification LTD

Academy Place, 1-9 Brook Street, Brentwood, Essex, CM14 5NQ

• S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016
• S.I. 2012/3032 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

1. Reference to harmonised standards:

EN 60335-1:2012 + A11:2014 + A13:2017

EN 50636-2-91:2014

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN IEC 63000:2018

g) Measured sound power level: 93 dB(A)

h) Guaranteed sound power level: 96 dB(A)

i) Cutting width: 30 cm

n) Person authorised to compile the technical file: ST. S.p.A.

Via del Lavoro, 6

31033 Castelfranco Veneto (TV) - Italia

o) Castelfranco Veneto, 01/10/2022 CEO Stiga Group

Sean Robinson

UK Importer:

STIGA LTD

Unit 8, Bluewater Estate Plympton,

Devon, PL7 4JH, England

FR (Traduction de la notice originale)Déclaration CE de Conformité (Directive Machines 2006/42/CE, Annexe II, partie A)1. La Société2. Déclare sous sa propre responsabilité que la machine : Coupe-herbe / Coupe-bordures - coupe du gazona) Type / Modèle de Basec) Série d) Moteur: électrique3. Est conforme aux prescriptions des directives :e) Organisme de certification4. Renvoi aux Normes harmoniséesg) Niveau de puissance sonore mesuréh) Niveau de puissance sonore garanti i) Puissance nette installéen) Personne habilitée à établir le Dossier Technique :o) Lieu et Date	EN (Translation of the original instruction)EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)1. The Company2. Herby declares under its own responsibility that the machine: lawn/edge trimmer - grass cuttinga) Type / Base Modelc) Serial numberd) Engine: electric3. Conforms to directive specifications:e) Certifying body4. Reference to harmonised Standardsg) Sound power level measuredh) Sound power level guaranteedi) Net power installedn) Person authorised to create the Technical Folder:o) Place and Date	DE (Übersetzung der Originalbetriebsanleitung)EG-Konformitätserklärung (Maschinenrichtlinie 2006/42/EG, Anhang II, Teil A)1. Die Gesellschaft2. Erklärt auf eigene Verantwortung, dass die Maschine:Rasentrimmer/Rasenkantenschneider, rasenschnitta) Typ / Basismodellc) Seriennummerd) Motor: elektrisch3. Den Anforderungen der folgenden Richtlinien entspricht:e) Zertifizierungsstelle4. Bezugnahme auf die harmonisierten Normeng) Gemessener Schallleistungspegelh) Garantierter Schallleistungspegeli) Installierte Nettoleistungn) Zur Verfassung der technischen Unterlagen befragte Person:o) Ort und Datum
NL (Vertaling van de oorspronkelijke gebruiksaanwijzing)EG-verklaring van overeenstemming (Richtlijn Machines 2006/42/CE, Bijlage II, deel A)1. Het bedrijf2. Verklaart onder zijn eigen verantwoordelijkheid dat de machine: Graskantenrijder - Grasmaaiera) Type / Basismodelc) Serienummerd) Motor: elektrisch3. Voldoet aan de specificaties van de richtlijnen:e) Certificatie-instituut4. Verwijzing naar de Geharmoniseerde normeng) Gemeten niveau van geluidsvermogen h) Gegarandeerd niveau van geluidsvermogeni) Netto geïnstalleerd vermogenn) Bevoegd persoon voor het opstellen van het Technisch Dossiero) Plaats en Datum	ES (Traducción del Manual Original)Declaración de Conformidad CE (Directiva Máquinas 2006/42/CE, Anexo II, parte A)1. La Empresa2. Declara bajo su propia responsabilidad que la máquina: Cortacésped/Cortabordes - corte hierbaa) Tipo / Modelo Basec) Matriculad) Motor: eléctrico3. Cumple con las especificaciones de las directivas:e) Ente certificador4. Referencia a las Normas armonizadasg) Nivel de potencia sonora medidoh) Nivel de potencia sonora garantizadoi) Potencia neta instaladan) Persona autorizada a realizar el Manual Técnico:o) Lugar y Fecha	PT (Tradução do manual original)Declaração CE de Conformidade (Diretiva de Máquinas 2006/42/CE, Anexo II, parte A)1. A Empresa2. Declara sob a própria responsabilidade que a máquina: : aparador de relva/cortadora de cantos - corte da relvaa) Tipo / Modelo Basec) Matriculad) Moto: eléctrico3. É conforme às especificações das diretivas:e) Órgão certificador4. Referência às Normas harmonizadasg) Nivel medido de potência sonorah) Nivel garantido de potência sonorai) Potência líquida instaladan) Pessoa autorizada a elaborar o Caderno Técnicoo) Local e Data
EL (Μετάφραση του πρωτοτύπου των οδηγιών χρήσης)ΕΚ-Δήλωση συμμόρφωσης (Οδηγία Μηχανών 2006/42/CE, Παράρτημα II, μέρος A)1. H Εταιρία2. Δηλώνει υπεύθυνα ότι η μηχανή: Χλοοκοπτικό/Κόφτης άκρων - κοπή της χλόηςa) Túπος / Βασικό Μοντέλοc) Αριθμός μητρώουd) Κινητήρας: ηλεκτρικό3. Συμμορφώνεται με τις προδιαγραφές της οδηγίας:e) Οργανισμός πιστοποίησης4. Αναφορά στους Κανονισμούς εναρμόνισηςg) Στάθμη μέτρησης ακουστικής ισχύοςh) Στάθμη εγγυημένης ακουστικής ισχύοςi) Καθαρή εγκαταστημένη ισχύςn) Εξουσιοδοτημένο άτομο για την κατάρτιση του Τεχνικού Φυλλαδίου:o) Tóπος και Χρόνος	TR (Orijinal Talimatların Tercümesi)AT Uygunluk Beyanı (2006/42/CE Makine Direktifi, Ek II, bölüm A)1. Şirket2. Şahsi sorumluluğu altında aşağıdaki makinenin: : beslemeli çim/kenar kesme – çim kesimia) Tip / Standart modelc) Sicil numarasıd) Motor: elektrikli3. Aşağıdaki direktiflerin özelliklerine uygun olduğunu beyan etmektedir:e) Sertifikalandiran kurum4. Harmonize standartlara atıfg) Ölçülen ses güç seviyesih) Garanti edilen ses güç seviyesi i) Kurulu net güçn) Teknik Dosyayı oluşturmaya yetkili kişi:o) Yer ve Tarih	MK (Превод на оригиналните упатства)Декларација за усогласеност со ЕУ (Директива за машини 2006/42/CE, АнексII, дел A)1. Компанијата2. изјавува со целосна лична одговорностдека следната машина: : Тревокосачка со оператор на нозе / косење треваа) Тип / основен моделс) етикетад) мотор: на струја3. Усогласено со спецификациите според директивите:e) тепло за сертификација4. Референци за усогласени нормативиг) Измерено ниво на звучна мо́кностh) Гарантирано ниво на звучна мо́кностi) Нето инсталирана мо́кностn) Лице овластено да го доставува техничкото досиеo) место и датум
NO (Oversettelse av original bruksanvisning)EF- Samsvarserklæring (Maskindirektiv 2006/42/EF, Vedlegg II, del A)1. Firmaet2. Erklærer på eget ansvar at maskinen: trimmer/kantklipper, gressklippinga) Type / Modellc) Serienummerd) Motor: elektrisk3. Oppfyller kravene i direktivene:e) Sertifiseringsorgan4. Henvisning til harmoniserte standarderg) Målt lydeffektnivåh) Garantert lydeffektnivåi) Installert nettoeffektn) Person som har fullmakt til å utferdigeteknisk dokumentasjon:o) Sted og dato	SV (Översättning av bruksanvisning i original)EG-försäkran om överensstämmelse (Maskindirektiv 2006/42//EG, bilaga II, de la)1. Företaget2. Försäkrar på eget ansvar att maskinen: gräsklippare/kantskärare, gräsklippinga) Typ / Basmodellc) Serienummerd) Motor: elektrisk3. Överensstämmer med föreskrifterna i direktivete) Intygsorgan _Anmält organ4. Referens till harmoniserade standarderg) Uppmätt ljudeffektnivåh) Garanterad ljudeffektnivåi) Installerad nettoeffektn) Auktoriserad person för upprättandet av den tekniska dokumentationen:o) Ort och datum	DA (Oversættelse af den originale brugsanvisning)EF-overensstemmelseserklæring (Maskindirektiv 2006/42/EF, bilag II, del A)1. Firmaet2. Erklærer på eget ansvar, at maskinen: graestrimmer/kantklipper, klipning af græseta) Type / Modelc) Serienummerd) Motor: elektrisk3. Er i overensstemmelse med specifikationerne ifølge direktiverne:e) Certificeringsorgan4. Henvisning til harmoniserede standarderg) Målt lydeffektniveauh) Garanteret lydeffektniveaui) Installeret nettoeffektn) Person, der har bemyndigelse til at udarbejde det tekniske dossier:o) Sted og dato
FI (Alkuperäisten ohjeiden käännös)EY-VAATIMUSTENMUKAISUUSVAKUUTUS (Konedirektiivi 2006/42/EY, Liite II, osa A)1. Yritys2. Vakuuttaa omalla vastuullaan, että kone: ruohonleikkuri/reunaleikkuri- ruohonleikkuu a) Tyyppi / Perusmallic) Sarjanumedor) Moottori : sähköinen3. On yhdenmukainen seuraavien direktiivien asettamien vaatimusten kanssa:e) Sertifointiyritys4. Viittaus harmonisoituihin standardeihing) Mitattu äänitehotasoh) Taattu äänitehotasoi) Asennettu nettoteho Ilmastointikone-Niittokone / maan ilmaus/haraus n) Teknisten asiakirjojen laatimiseenvaltuutettu henkilö:o) Paikka ja päivämäärä	CS (Překlad původního návodu k používání)ES – Prohlášení o shodě (Směrnice o Strojních zařízenich 2006/42/ES, Přiloha II, část A)1. Společnost2. Prohlášuje na vlastní odpovědnost, že stroj: vyžinač/ořezávač- sekačka na trávuna trávu a) Typ / Základní modela) Typ / Základní modelc) Výrobní číslod) Motor: elektrický3. Je ve shodě s nařízeními směrnic:e) Certifikační orgán4. Odkazy na Harmonizované normyg) Naměřená úroveň akustického výkonuh) Zaručená úroveň akustického výkonui) Čistý instalovaný výkonn) Osoba autorizovaná pro vytvořeníTechnického spisu:o) Místo a Datum	PL (Tłumaczenie instrukcji oryginalnej)Deklaracja zgodności WE (Dyrektwa maszynowa 2006/42/WE, Załącznik II, część A)1. Spółka2. Oświadcza na własną odpowiedzialność, że maszyna: kosiarka/przycinarka-cięcie trawy a) Typ / Model podstawowyc) Numer seryjnyd) Silnik: elektryczny3. Spelnia podstawowe wymogi następujących Dyrektyw:e) Jednostka certyfikująca4. Odniesienie do Norm zharmonizowanychg) Zmierzony poziom mocy akustycznejh) Gwarantowany poziom mocy akustyczneji) Moc zainstalowana netton) Osoba upoważniona do zredagowania Dokumentacji technicznej:o) Miejscowość i data
HU (Eredeti használati utasítás fordítása)EK-megfelelőségi nyilatkozata (2006/42/EK gépirányelv, ll. melléklet "A" rész)1. Alulírott Vállalat2. Felelősségének teljes tudatában kijelenti, hogy az alábbi gép: fünyíró/szegélynyíró-fünyírása) Tipus / Alaptipusc) Gyártási számd) Motor: elektromos3. Megfelel az alábbi irányelvekelőirásainak:e) Tanúsító szerv4. Hivatkozás a harmonizált szabványokrag) Mért zajteljesítmény szinth) Garantált zajteljesítmény szinti) Nettó beépitett teljesítményn) Műszaki Dosszié szerkesztésérefelhatalmazott személy:o) Helye és ideje	RU (Перевод оригинальных инструкций)Декларация соответствия нормам EC (Директива о машинном оборудовании 2006/42/EC, Приложение II, часть A)1. Предприятие2. Заявляет под собственнуюответственность, что машина: газонокосилка /триммер - стрижка газонаа) Typ / Базовая модельc) Паспортd) Двигатель: электрический3. Соответствует требованиям следующих директив:e) Сертифицирующий орган4. Ссылки на гармонизированные нормыg) Измеренный уровень звуковой мощностиh) Гарантируемый уровень звуковой мощностиi) Чистая установленная мощностьn) Лицо, уполномоченное на подготовку технической документации:o) Место и дата	HR (Prijevod originalnih uputa)EK Izjava o sukladnosti (Direktiva 2006/42/EZ o strojevima, dodatak II, dio A)1. Tvrtka:2. pod vlastitom odgovornošću izjavljuje da je stroj: trave/šišač travnih - košenje travea) Vrsta / Osnovni modelc) Matični brojd) Motor: električni3. sukladan s temeljnim zahtjevima direktiva:e) Certifikacijsko tijelo4. Primijenjene su slijedeće harmonizirane norme:g) Izmjerena razina zvučne snageh) Zajamčena razina zvučne snagei) Neto instalirana snagan) Osoba ovlaštena za pravljenje Tehničke datoteke:o) Mjesto i datum
SL (Prevod izvirnih navodil)ES izjava o skladnosti(Direktiva 2006/42/ES), priloga II, del A)1. Družba2. pod lastno odgovornostjo izjavlja, da je stroj: trat/tratnih robov, košnja travea) Tip / osnovni modelc) Serijska številkad) Motor: električen3. Skladen je z določili direktiv:e) Ustanova, ki izda potrdilo4. Sklicevanje na usklajene predpiseg) Izmerjen nivo zvočne močih) Zagotovljen nivo zvočne moči) Neto instalirana močn) Oseba, pooblaščena za sestavo tehnične knjižice:o) Kraj in datum	BS (Prijevod originalnih uputa)EZ izjava o sukladnosti(Direktiva o mašinama 2006/42/EZ, Prilog II, deo A)1. Firma2. Daje izjavu pod vlastitom odgovornošćuda je mašina: trimer za travu/trimer makaze - Košenje travea) Tip / Osnovni modelc) Serijski brojd) Motor: električno3. sukladna s osnovnim zahtjevimadirektive:e) Certifikaciono tijelo4. Pozivanje na usklađene normeg) Izmjereni nivo zvučne snageh) Garantovani nivo zvučne snagei) Neto instalisana snagan) Osoba ovlaštena za izradu tehničkebrošure:o) Mjesto i datum	SK (Preklad pôvodného návodu na použitie)ES vyhlásenie o zhode(Smernica o Strojných zariadeniach 2006/42/ES, Príloha II, čast' A)1. Spoločnost'2. Vyhlasuje na vlastnú zodpovednosť, že stroj: vyžinač/orezávač okrajov -kosačka natrávua) Typ / Základný modelc) Výrobné číslod) Motor: elektrický3. Je v zhode s nariadeniami smerníc:e) Certifikačný orgán4. Odkaz na Harmonizované normyg) Nameraná úroveň akustického výkonuh) Zaručená úroveň akustického výkonui) Čistý inštalovaný výkonn) Osoba autorizovaná na vytvorenieTechnického spisu:o) Miesto a Dátum
RO (Traducerea manualului fabricantului)CE -Declaratie de Conformitate(Directiva Mašini 2006/42/CE, Anexa II, partea A)1. Societatea2. Declară pe propria răspundere cămașina: maşină de tuns iarba/trimmer - tăiatiarbaa) Tip / Model de bazăc) Număr de serie)d) Motor: electric3. Este în conformitate cu specificațiile directiveior:e) Organism de certificare4. Referință la Standardele armonizateg) Nivel de putere sonoră măsurath) Nivel de putere sonoră garantati) Putere netă instalatăn) Persoană autorizată să întocmeascăDosarul Tehnico) Locul și Data	LT (Originalių instrukciju vertimas)EB atitikties deklaracija(Mašinų direktyva 2006/42/CE, Priedas II, dalis A)1. Bendrovė2. Prisiima atsakomybę, kad įrenginys: krūmapjovė/kraštų krūmapjovė, žolėspjovimasa) Tipas / Bazinis Modelisc) Serijos numerisd) Variklis: elektrinė3. Atitinka direktyvose pateiktasspecifikacijas:e) Sertifikavimo įstaiga4. Nuoroda j suderintas Normasg) Išmatuotas garso galios lygish) Užtikrinamas garso galios lygisi) Instaliuota naudingoji galian) Autorizuotas asmuo sudaryti TechninęDokumentacija:o) Vieta ir Data	LV (Instrukciju tulkojums no originálvalodas)EK atbilstības deklarācija(Direktīva 2006/42/EK par mašinām, pielikums II, daļa A)1. Uzņēmums2. Uzņemoties par to pilnu atbildību, paziņo, ka mašina: trimeris/malu trimeris -zālespļaušanaa) Tips / Bāzes modelisc) Sērijas numursd) Motors: elektriskais3. Atbilst šādu direktīvu prasībām:e) Sertifikācijas iestāde4. Atsauce uz harmonizētiem standartiemg) Izmērītais skaņas intensitātes līmenish) Garantētais skaņas intensitātes līmenisi) Uzstādītā neto jaudan) Pilnvarotais darbinieks, kas sagatavojatehnisko dokumentāciju:o) Vieta un datums
SR (Prevod originalnih uputstval)EC deklaracija o usaglašenosti(Direktiva o mašinama 2006/42/EC, Prilog II, deo A)1. Preduzeće2. Daje izjavu pod vlastitom odgovornošćuda je mašina: trimer za travu/trimer -košenje travea) Tip / Osnovni modelc) Serijski brojd) Motor: električni3. u skladu s osnovnim zahtevima direktiva:e) Sertifikaciono telo4. Pozivanje na usklađene normeg) Izmereni nivo zvučne snageh) Garantovani nivo zvučne snagei) Neto instalisana snagan) Osoba ovlašćena za sastavljanjetehničke brošureo) Mesto i datum	BG (Превод на оригиналните инструкции)EO декларация за съответствие(Директива Машини 2006/42/EO, Priложение II, част A)1. Дружеството2. На собствена отговорност декларира, че машината: тревен тример/тример захранвани - рязане на треваa) Вид / Базисен моделс) Сериен номерd) Мотор: електрически3. E в съответствие със спецификата на директивите:e) Сертифициращ орган4. Базирано на хармонизираните нормig) Ниво на измерена акустична мощностh) Гарантирано ниво на акустична мощностi) Нетна инсталирана мощностn) Лице, упълномощено да съставиТехническата Документация:o) Място и дата	ET (Algupārase kasutusjuhendi tõlge)EÜ vastavusdeklaratsioon(Masinadirektiiv 2006/42/EÜ, Lisa II, osa A)1. Firma2. Kinnitab omal vastutusel, et masin: murulõikur/äärelõikur, murunitijaa) Tüüp / Põhimudelc) Matrikkeld) Mootor: elektriline3. Vastab direktiivide nõuetele:e) Kinnitav asutus4. Viide ühtlustatud standarditeleg) Möõdetud helivõimsuse taseh) Garanteeritud helivõimsuse tasei) Installeeritud netovõimsusn) Tehnilise Lehe autoriseeritud koostaja:o) Koht ja Kuupäev

EN • The content and images in this User Manual were produced expressly for ST. SpA and are protected by copyright – any unauthorised reproduction or modification to the document, either partially or in full, is prohibited.

STIGA LTD (UK Importer)

Unit 8, Bluewater Estate Plympton,

Devon, PL7 4JH, England
