Product Type	Multi-touch monitor with chassis
Brand	3M
Model	C6587PW
Screen Size	65 inches (diagonal)
Touch Technology	Projected capacitive (PCT) multi-touch
Native Resolution	1920 x 1080 (Full HD); supports 3840 x 2160 (4K) at 60 Hz
Weight	64 kg (141.1 lb)
VESA Mounting	400 x 400 mm, M8 x 20 mm screws
Video Connectors	VGA, DVI, HDMI, DisplayPort
Audio Connectors	Audio input (via HDMI/DP), audio output
Built-in Speakers	Yes
Power Supply	Alternating current (AC) with grounding
Operating Temperature	Refer to the datasheet (max. and min. temperature available on 3M website)
Maximum Altitude	2000 meters
Maintenance and Cleaning	Clean with a soft lint-free cloth dampened with a 50/50 solution of isopropyl alcohol and water; turn off the screen before cleaning
Replaceable Filter	Yes, part number 98-1100-0230-4; replace every 6 months or if excessive temperature
Safety	Do not open the device except for the filter; unplug during thunderstorms or if liquid is spilled; use with a grounded outlet
Certifications	FCC Class B, CE, RCM (Australia/New Zealand), ICES Class B (Canada)
Supported Operating Systems	Windows 7 and later (native); Windows XP, Vista, Linux (with 3M MicroTouch software)
Warranty	Indoor professional use only; any unauthorized modification voids the warranty
Support Contact	1-866-407-6666 (option 3); [e-mail]; website: 3m.com/touch
Documentation	User manual available for download at notice-facile.com

Frequently Asked Questions - C6587PW 3M

How to clean the 3M C6587PW touch screen?

Turn off the screen. Use a soft lint-free cloth dampened with a 50/50 solution of isopropyl alcohol and water. Do not spray directly on the screen. Dry with a dry cloth.

What cables are needed to connect the monitor?

Connect a video cable (VGA, DVI, HDMI or DisplayPort) between the monitor and the computer. Connect the USB cable from the touch sensor to a USB port on the computer. Plug the power cable into a grounded outlet.

What is the native resolution of the C6587PW?

The native resolution is 1920 x 1080 (Full HD) at 60 Hz. The C6587PW also supports 4K resolution (3840 x 2160) at 60 Hz.

How to mount the monitor on a VESA bracket?

The monitor is VESA 400 x 400 mm compatible. Use M8 x 20 mm screws. The weight of the monitor (64 kg) requires a suitable bracket.

How to replace the fan filter?

Remove the screws from the filter cover, take out the old filter, replace it with the 3M filter part number 98-1100-0230-4, then put the cover back. It is recommended to do this every 6 months.

What to do if the screen stays black?

Check the power, video cables, and source selection. Make sure the video card is using a supported display mode (see list in manual). If the LED blinks orange, the screen is in standby; touch the screen or move the mouse.

Is the monitor compatible with Windows 10?

Yes, Windows 7 and later (including Windows 10) support multi-touch natively, without additional software.

Do I need to install a specific driver for touch?

On Windows 7 and later, no driver is needed. For Windows XP, Vista, or Linux, install the 3M MicroTouch software (MT7) available on the 3M website.

How to use multitouch functions?

Make sure your application supports multitouch. On modern Windows, simply touch the screen with two or more fingers. For older systems, install the 3M MicroTouch software.

What are the important safety precautions?

Do not open the device (except for the filter). Unplug during a thunderstorm. Use the supplied power cord. Ensure good air circulation (at least 5 cm clearance around).

USER MANUAL C6587PW 3M

3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide

3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....1 3M™ Multi-Touch Projected Capacitive Touch (PCT) Displays C3266PW, C4267PW, C4667PW, C5567PW, C6587PW User Guide....30 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....59 3M™ Multi-Touch Projected Capacitive Touch (PCT) Video Panels C3266PW, C4267PW, C4667PW, C5567PW, C6587PW User Guide....88 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....117 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....146 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....175 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....204 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....233 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....262 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....291 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....320 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....349 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....378 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....407 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....436 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....465 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....494 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....523 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....552 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....581 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....610 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....639 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....668 3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide....697

3M™ Multi-Touch Projected Capacitive Touch (PCT) Chassis C3266PW, C4267PW, C4667PW, C5567PW, C6587PW Display User Guide

Please read, understand and follow all safety information contained in the Quick Start Guide found at www.3M.co.uk/TouchUserGuides prior to the use of this device. Retain the Quick Start Guide for future reference.

Contents

Important Notes......3

Service and Repair Indicators......4

Touch Sensor Care and Cleaning....4

3M Touch Systems Support Services....5

Contact 3M Touch Systems ....5

Chapter 1

Setting Up Your 3M Multi-Touch Chassis Display

System Requirements....6

Unpacking Your Touch Display....6

Connecting the Touch Display....8

Multimedia Features....9

Testing the Multi-Touch Chassis Display 9

VESA Mounting Option....9

Access to the Video Controls ....10

Clearance and Ventilation....10

Video Card Requirements ....10

Using the Standard Controls for the Video Card....10

Supported Video Display Modes and Refresh Rates ....10

Configuring the Display Settings....11

Adjusting the 3M Multi-Touch Chassis Video Display....11

On Screen Display....11

Menu Navigation....12

Image Menu....13

Display Menu....15

Audio Menu....16

System Menu....18

Chapter 2

Enabling Your 3M Multi-Touch Chassis Display

Windows® 7 or Higher....23

All Other Platforms (All OS versions prior to Windows® 7)....23

Multi-Touch Application Support 23

Installing 3M™ MicroTouch™ Software....23

Chapter 3

Troubleshooting & Maintenance

Display Installation Problems ....24

Troubleshooting the Touch Sensor....26

Power Management....26

Chapter 4

Regulatory Information

Regulatory Agency Approvals 27

FCC Warning 28

CE Conformity for Europe....28

Intended Use

The 3M™ Touch Displays are designed for touch input and tested to replace an existing display. These displays are intended for professional installation and use in an indoor, business environment. They are not designed or tested for use in hazardous locations. Use in any other application has not been evaluated by 3M and may lead to an unsafe condition. Not intended for household or personal use.

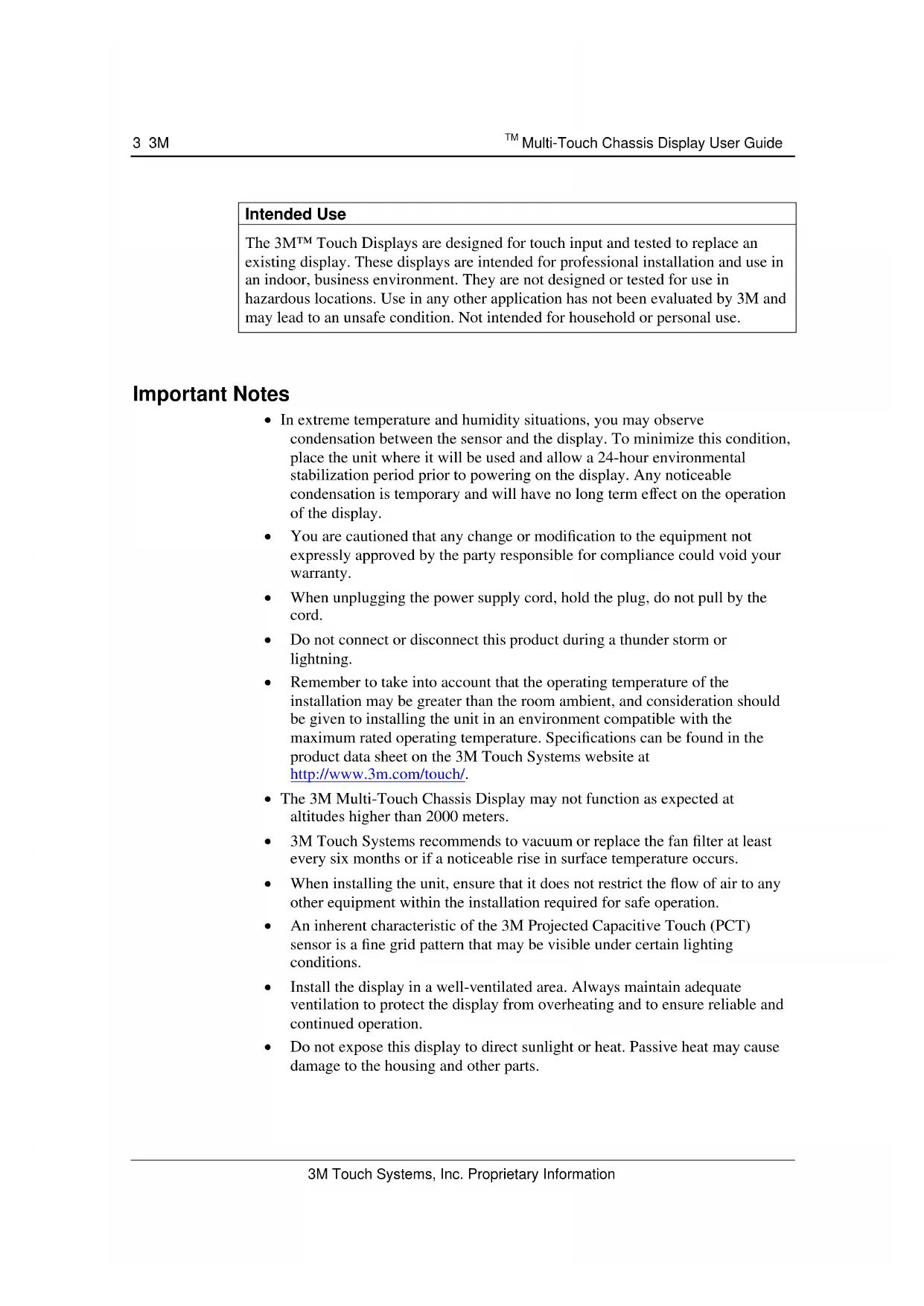

Important Notes

• In extreme temperature and humidity situations, you may observe condensation between the sensor and the display. To minimize this condition, place the unit where it will be used and allow a 24-hour environmental stabilization period prior to powering on the display. Any noticeable condensation is temporary and will have no long term effect on the operation of the display.
• You are cautioned that any change or modification to the equipment not expressly approved by the party responsible for compliance could void your warranty.
• When unplugging the power supply cord, hold the plug, do not pull by the cord.
• Do not connect or disconnect this product during a thunder storm or lightning.
• Remember to take into account that the operating temperature of the installation may be greater than the room ambient, and consideration should be given to installing the unit in an environment compatible with the maximum rated operating temperature. Specifications can be found in the product data sheet on the 3M Touch Systems website at http://www.3m.com/touch/.
• The 3M Multi-Touch Chassis Display may not function as expected at altitudes higher than 2000 meters.
• 3M Touch Systems recommends to vacuum or replace the fan filter at least every six months or if a noticeable rise in surface temperature occurs.
• When installing the unit, ensure that it does not restrict the flow of air to any other equipment within the installation required for safe operation.
• An inherent characteristic of the 3M Projected Capacitive Touch (PCT) sensor is a fine grid pattern that may be visible under certain lighting conditions.
• Install the display in a well-ventilated area. Always maintain adequate ventilation to protect the display from overheating and to ensure reliable and continued operation.
• Do not expose this display to direct sunlight or heat. Passive heat may cause damage to the housing and other parts.

- Do not install this display in areas where extreme vibrations may be generated. For example, nearby manufacturing equipment may produce strong vibrations. The vibrations may cause the display to exhibit picture discoloration or poor video quality.

- The 3M touch controllers mentioned in this document are USB compatible full speed devices.

- 3M does not warrant that we are USB compliant pursuant to USB specifications.

- Cooling fan will cycle based on internal temperature. When the internal temperature grows higher than ambient, the fan will turn on.

• System will shut down when internal temperature reached a critical level.

Service and Repair Indicators

Do not attempt to service this unit yourself with the exception of Filter Replacement. Unplug the display and refer to an authorized service personnel in the event that:

• The product is exposed to liquid.

- The product does not operate properly when the operating instructions are followed.

- The product exhibits a distinct change in performance, indicating a need for service.

- The power cable or plug is damaged or frayed.

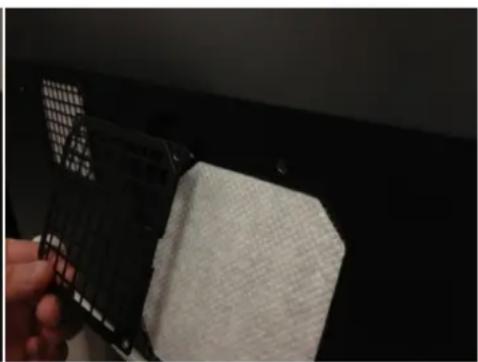

Filter Replacement Procedure

3M Touch Systems recommends to vacuum or replace the fan filter at least every six months or if a noticeable rise in surface temperature occurs.

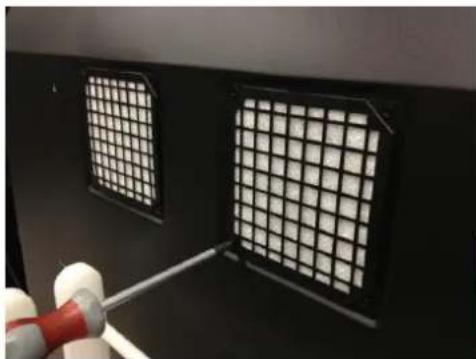

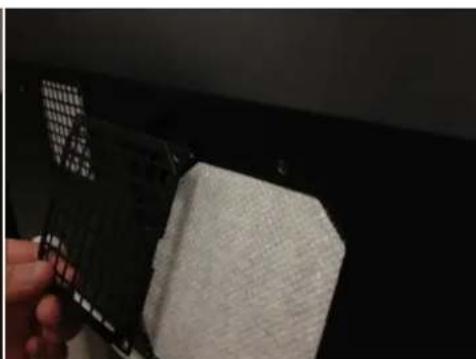

- Remove screws from the filter cover

- Remove filter cover and filter

- Replace filter (Use 3M filter # 98-1100-0230-4)

- Re-install cover

Touch Sensor Care and Cleaning

Periodically clean the glass touch sensor surface. Turn off your display before cleaning.

An isopropyl alcohol and water solution ratio of 50:50 is the best cleaning agent for your touch sensor.

• Apply the cleaner with a soft, lint-free cloth. Avoid using gritty cloths.
• Dampen the cloth and then clean the sensor. Spray the cleaner onto the cloth, not the sensor, so that drips do not seep inside the display or stain the bezel.

3M Touch Systems Support Services

Visit the 3M Touch Systems website at http://www.3m.com/touch/ to download MT 7 software, drivers and obtain technical documentation.

• Hot Line: 978-659-9200 • Fax: [phone] • Toll Free: 1-866-407-6666 (Option 3) - Email: [e-mail]

Contact 3M Touch Systems

Contact information for all offices can be found at: http://www.3m.com/touch/.

Chapter 1

Setting Up Your 3M Multi-Touch Chassis Display

To setup your display you need to complete the following tasks:

• Unpack the components
• Connect the video cable, touch display cables, and power cable. Power on the display and test your setup.
• If your operating system does not support native touch, install 3M MicroTouch™ MT7 Software.

System Requirements

This display requires a personal computer (PC).

• Your PC must have an available USB port or RS-232 serial communication port (C3266PW only). Connect the touch sensor cable to the communications port.
• Your PC must have a video card and video driver already installed for the display.

Note: Before setting up your 3M Multi-Touch Chassis Display, refer to the "Important Safety Information" section at the beginning of this document.

Unpacking Your Touch Display

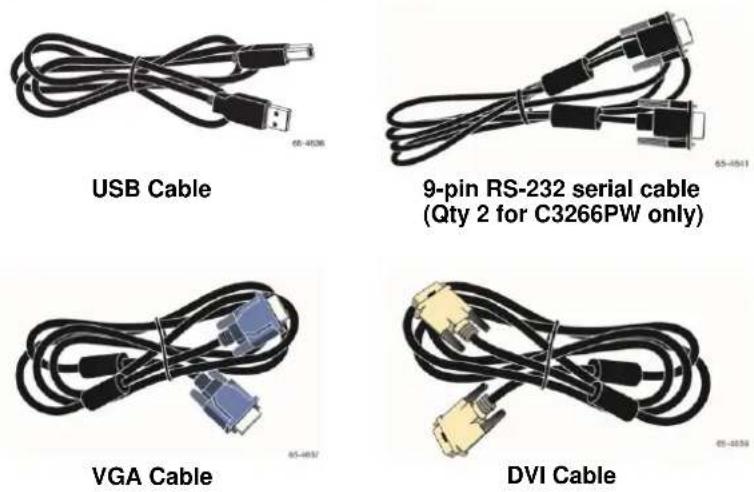

Carefully unpack the carton and inspect the contents. Your 3M Multi-Touch Chassis Display includes the following:

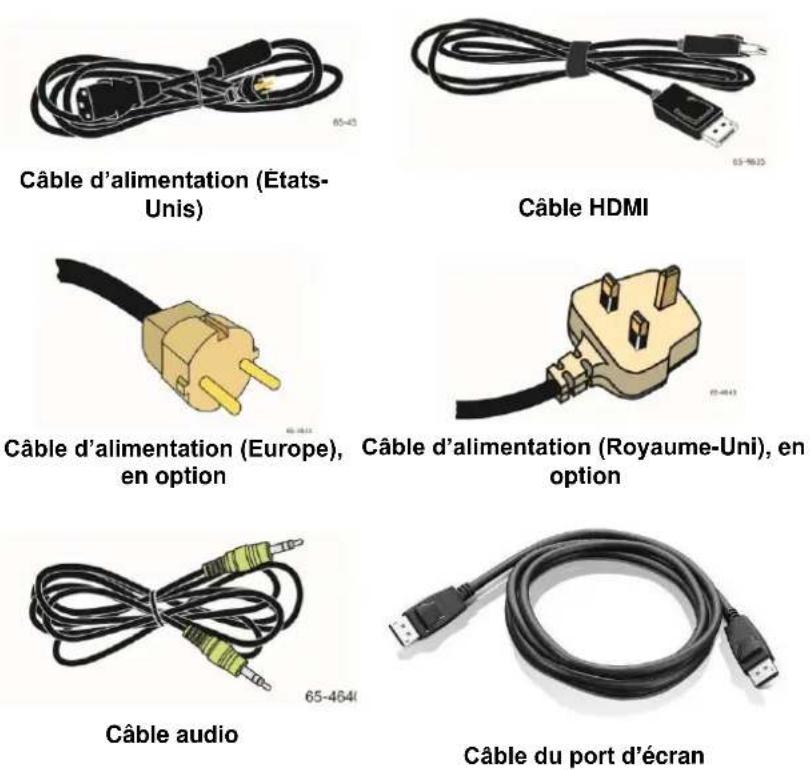

US Power Cable

HDMI Cable

EU power cable (optional)

UK power cable (Optional)

Audio Cable

DisplayPort Cable

Connecting the Touch Display

Note: You are cautioned that any change or modification to the equipment not expressly approved by the party responsible for compliance could void your warranty.

To connect the Multi-Touch Chassis Display:

1. Turn off the computer before connecting or disconnecting the touch display.

3M™ Multi-Touch Displays C4267PW C4667PW C5567PW C6587PW

3M™ Multi-Touch Display C3266PW

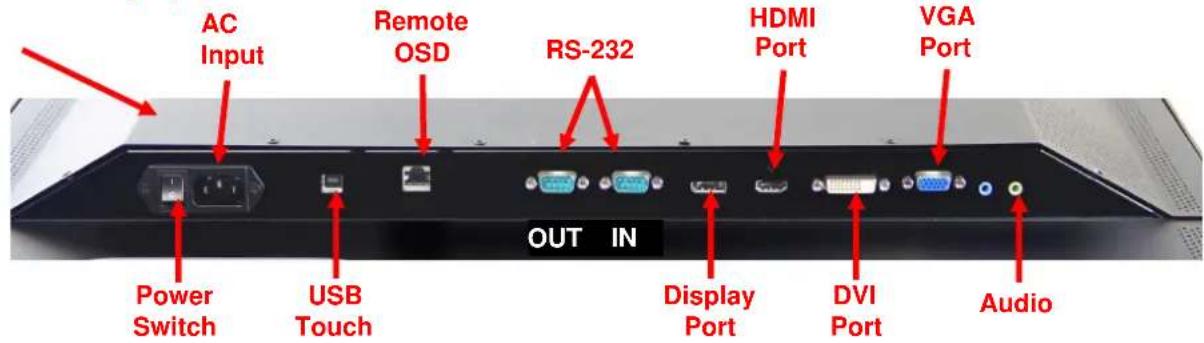

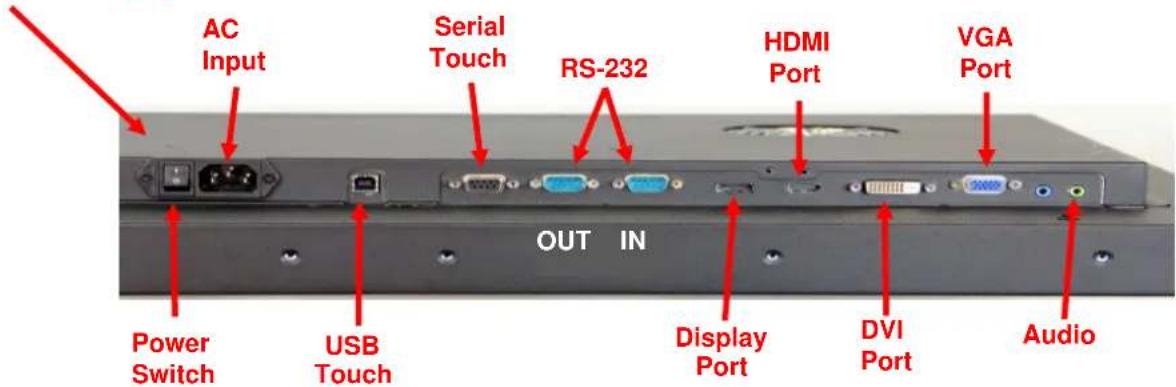

1. Select the appropriate video cable: Display Port, HDMI, DVI, or VGA. Connect one end of the video cable to the video connector on the display. Connect the other end to the video card in your computer.
2. Connect one end of the USB touch sensor cable to the LCD and the other end to an available port on your computer. For the C3266PW display you also have the option to connect the RS-232 Serial communications instead of USB.

Note: Do not connect both USB and Serial cables on the display. Choose one or the other.

1. Connect the power cable to an appropriate grounded power source.

Multimedia Features

The 3M Multi-Touch Chassis Display comes with built-in speakers and audio cables that may be connected to the PC.

Testing the Multi-Touch Chassis Display

Note: The 3M Multi-Touch Chassis Display has a power status light and video controls located on the side of the display.

Make sure all cables are connected properly. Be sure to tighten all cable screws. Turn on the power switch located on the back of the display.

To test the display:

1. Turn on your computer.
2. Make sure the video image is displayed. If not, check the LED to ensure that the display is not in power save mode (amber).
3. Confirm the video image is centered within the viewing area. Use the display controls to adjust, if necessary.

You can adjust the video controls to better suit your personal preference. For additional details, refer to the Adjusting the Video Display later in this chapter.

VESA Mounting Option

3MTM Touch Display Model	VESA mounting dimensions (MM)	Screw size & Max Length (MM)	Weight	Hardware Accessory Kit
C3266PW	200 X 200	M4 X 8	15 kg (33 lbs)	X
C4267PW	400 X 400	M6 X 16	23 kg (50.7 lbs)
C4667PW	400 X 400	M6 X 16	26 kg (57.3 lbs)
C5567PW	400 X 400	M6 X 16	40 kg (88.2 lbs)
C6587PW	400 X 400	M8 X 20	64 kg (141.1 lbs)

Access to the Video Controls

The 3M Multi-Touch Chassis Display has seven buttons located on the side of the display for the on-screen menu and adjusting the video display. Make sure you will be able to access the video controls once the 3M Multi-Touch Chassis Display is installed.

If space is tight and access is important, an on screen display remote control (Part No. 98-1100-0330-2) is an option (C4267PW, C4667PW, C5567PW, C6587PW only).

Clearance and Ventilation

Leave at least two inches of clearance space behind the 3M Multi-Touch Chassis Display for proper ventilation. Units have vent holes at the top and bottom on the back of the chassis -- ensure these holes are not blocked during installation. Always maintain adequate ventilation to protect the display from overheating and to ensure reliable and continued operation.

Note: Be sure to leave at least 2 inches clearance around fan inputs.

Refer to the published specifications for the maximum and minimum operating temperature and humidity conditions. Refer to the product data sheet on the 3M Touch Systems website at http://www.3m.com/touch/.

Video Card Requirements

Confirm your computer has a video card that supports the native video resolution of 1920 x 1080 for the 3M Multi-Touch Chassis Display. Note that the C65 model is 4K and will require a video card capable of driving higher resolutions.

Using the Standard Controls for the Video Card

In addition to the standard controls on the display, each video card has several controls that let you adjust the display settings. The software and driver for each video card are unique. In most cases, you adjust these settings by using a program or utility provided by the manufacturer of the video card.

Supported Video Display Modes and Refresh Rates

Your video card should support one of the display modes specified below. If you select an unsupported mode, the display may stop working or display an unsatisfactory image.

Display Mode	Refresh Rate (Hz)
640 x 480	60
800 x 600	60
1024 x 768	60
1152 x 864	70
1280 x 720	60
1280 x 768	60
1280 x 960	60
1280 x 1024	60
1360 x 768	60
1366 x 768	60
1600 x 1200	60
1680 x 1050	60
1920 x 1080	60
3840 x 2160	60 (C6587PW only)

Configuring the Display Settings

After you connect your 3M Multi-Touch Display and turn on your computer, you may need to configure the display settings. The ideal setting for the 3M Multi-Touch Chassis Display is as follows: (Except for the C65 – See table above for values)

• Display mode (video resolution) 1920 x 1080 - Refresh rate (vertical sync) 60 Hz • Color depth (number of colors) at least 16-bit (high color)

Adjusting the 3M Multi-Touch Chassis Video Display

The controls for adjusting the video display are located on the back of the 3M Multi-Touch Chassis Display. These buttons let you display the on-screen menu to adjust the video image. Before you make any adjustments:

• Adjust the controls in your normal lighting conditions.
• Display a test image or pattern whenever you adjust the video.

On Screen Display

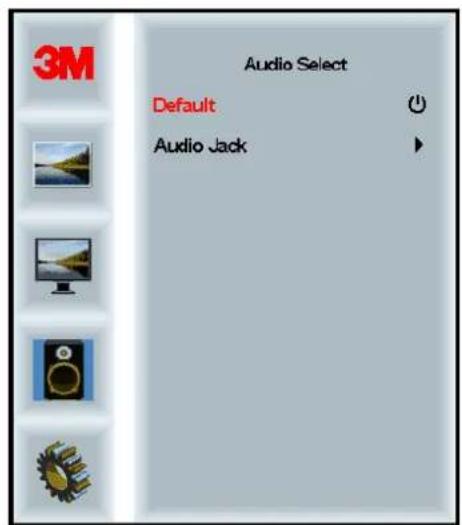

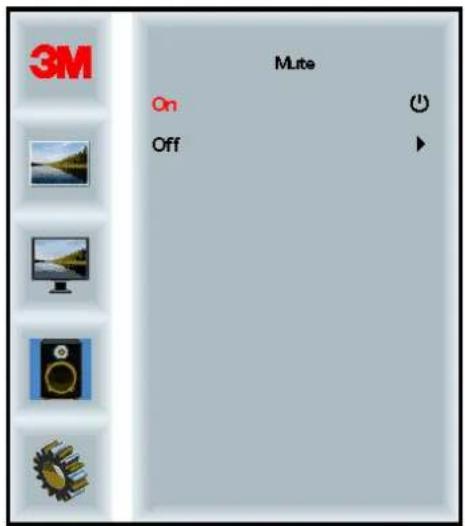

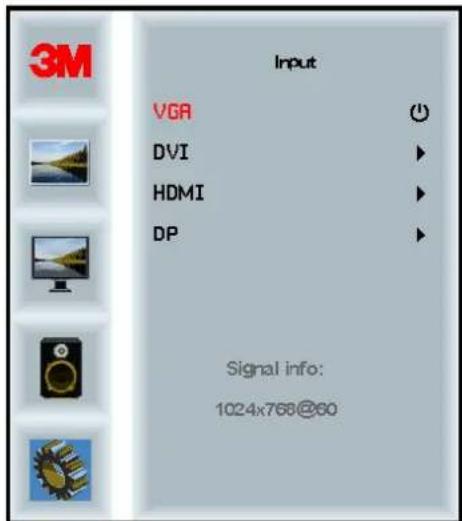

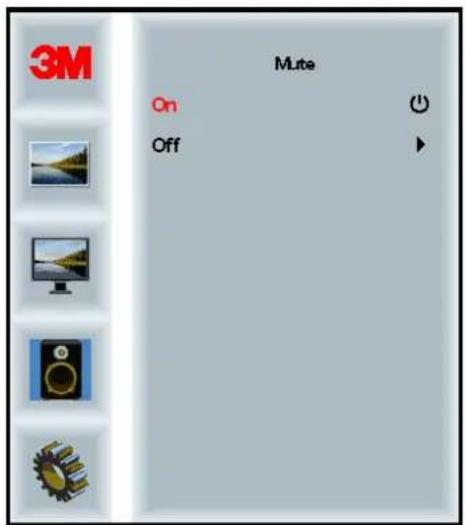

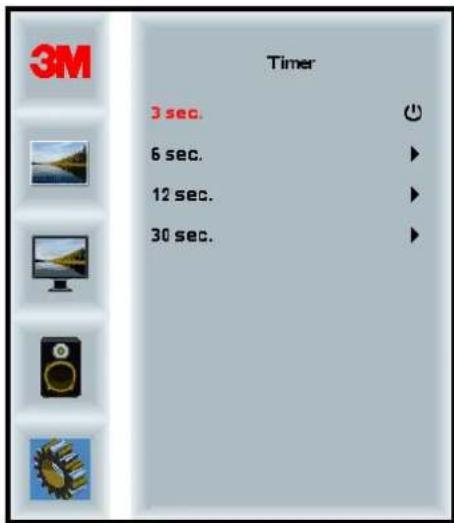

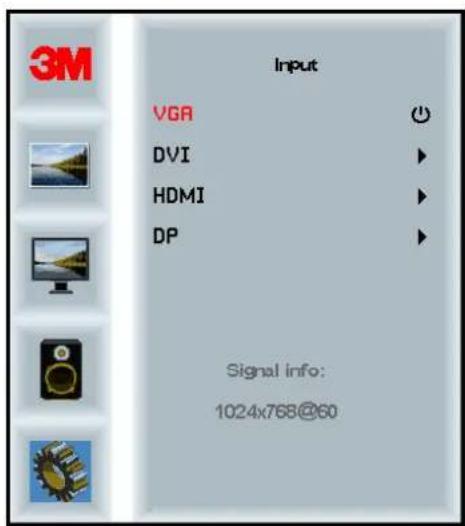

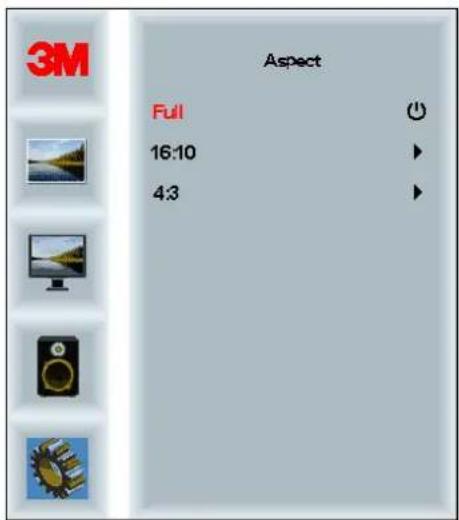

Your 3M Multi-Touch Chassis Display has seven controls for adjusting the video display.

• Power -- Turns the display on and off. - Source -- Selects the applicable input source: VGA, HDMI, Display port, or DVI. Settings are saved automatically. - Up -- Press to move among the menus and from the menu selection to specific choices.

• Down -- Press to move among the menus and from the menu selection to specific choices. • + (plus sign) – Press to increase the volume.
• (minus sign) -- Press to decrease the volume.
• Menu -- Shows or hides the onscreen display menu and acts as the Select key when scrolling through menu options. Refer to Menu Navigation below for additional information.

If you do not press any buttons, the display adjustment program times out (adjustable up to 30 seconds) and hides the menu options. Press the Menu button at any time to display the options again.

Pressing Menu will pull up the On Screen Display (OSD) menus to control the Picture, Color, Display, OSD Settings, and Setup, as shown below.

Menu Navigation

To adjust the On-Screen Display:

1. Select the Menu button to bring up the on-screen display (OSD)
2. Use the Up and Down buttons to scroll through the various Menu choices:
3. Image Menu
4. Display Menu

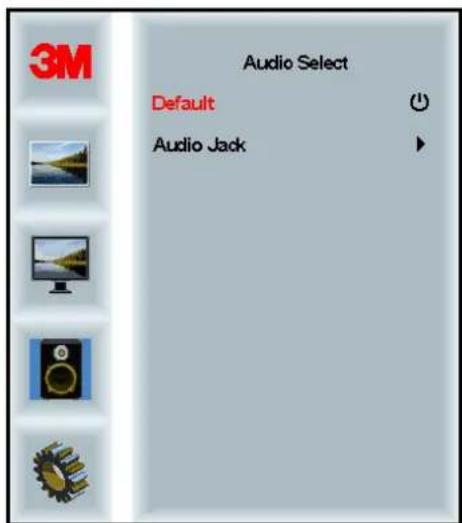

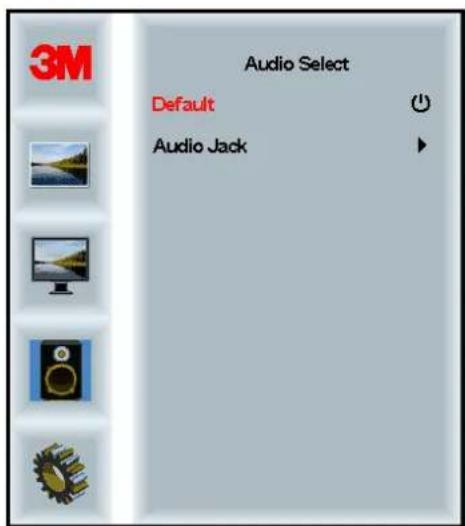

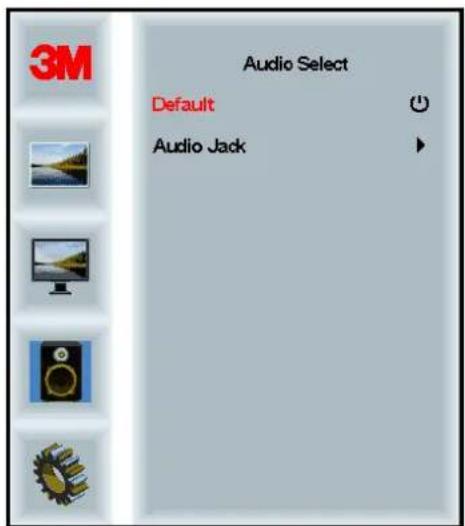

5. Audio Menu

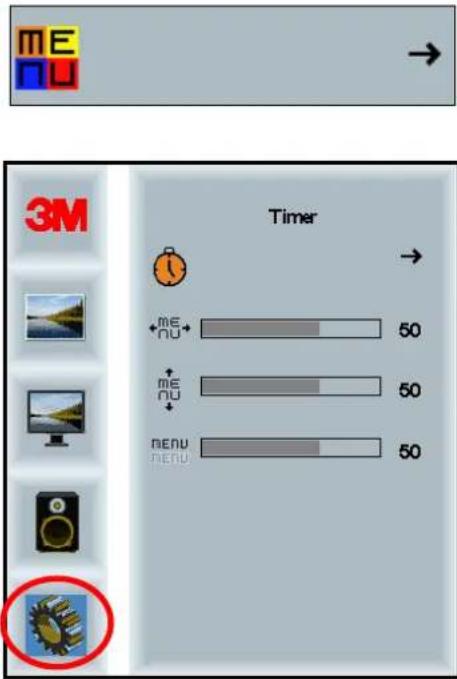

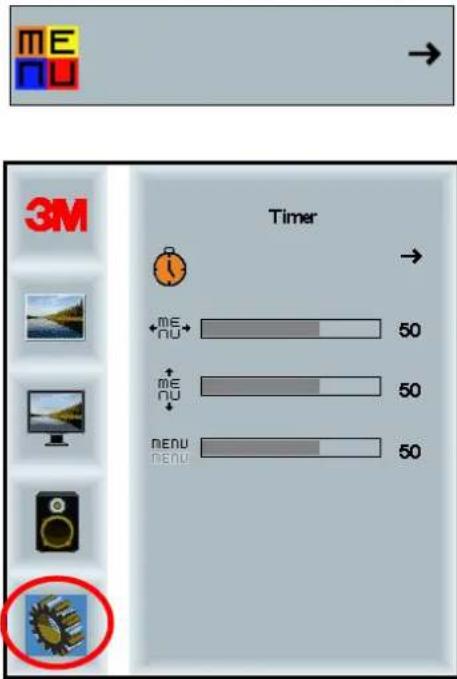

6. Setup Menu
7. Once the Menu you want is highlighted, hit the Menu button again to select that Menu.
8. Use the Up and Down buttons to scroll through the various Menu options. For example, once you have chosen the Picture Menu, use the Up/Down buttons to select either Brightness, Contrast, or Sharpness.
9. Once the option you want is highlighted, hit the Menu button again to select that option.
10. Use the Up and Down buttons to increase or decrease the value of the option.
11. Your selection will be automatically saved.

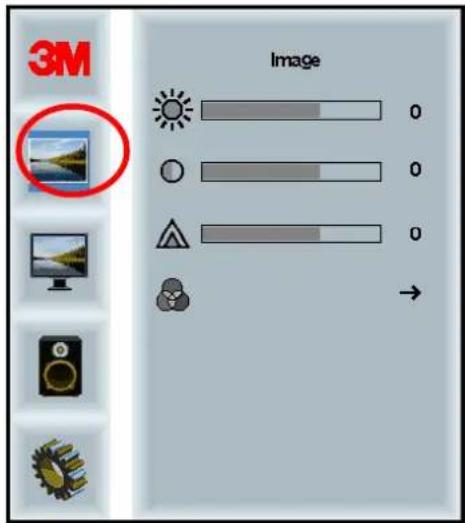

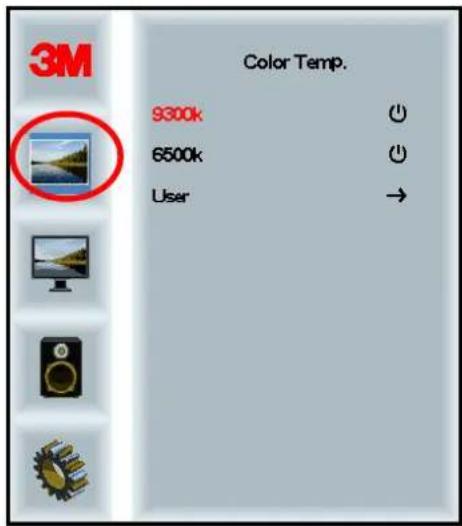

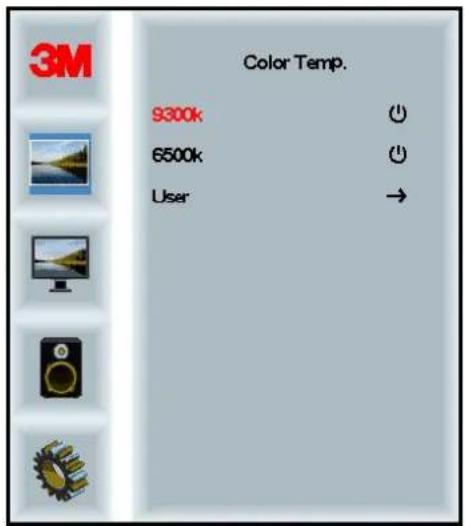

Image Menu

Includes choices for Brightness, Contrast, and Sharpness.

Brightness

Selecting the Brightness option will allow you to adjust the luminescence of the display.

Contrast

Selecting the Contrast option increases or decreases the strength (lightness or dimness) of the image.

Sharpness

Adjusts the video quality to be sharp or blurry (special for text mode).

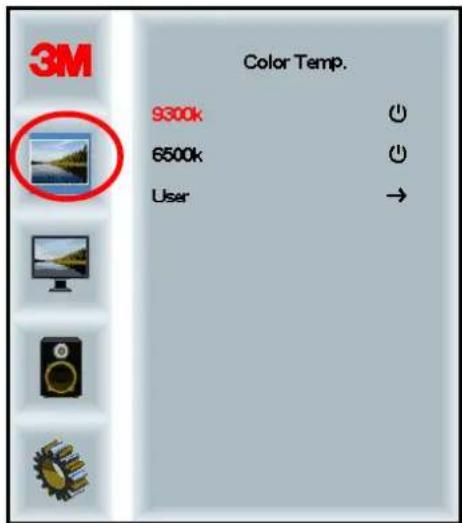

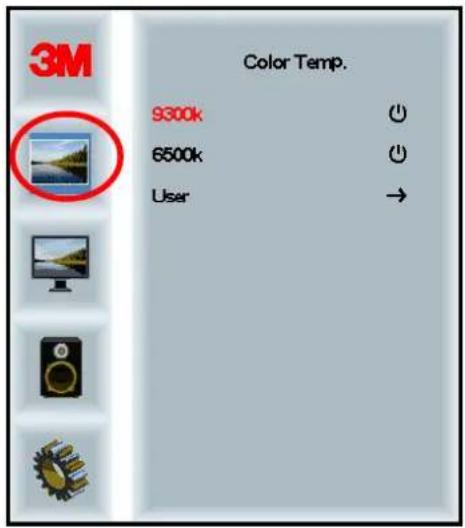

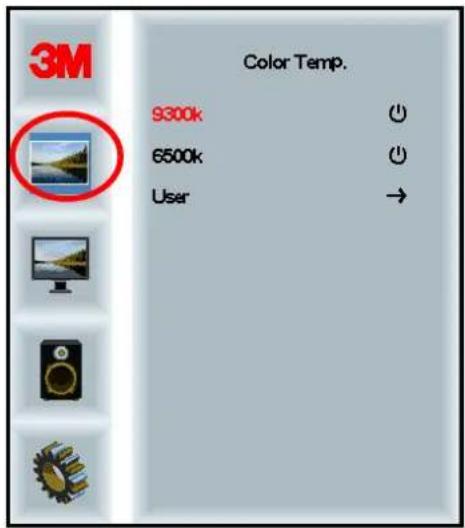

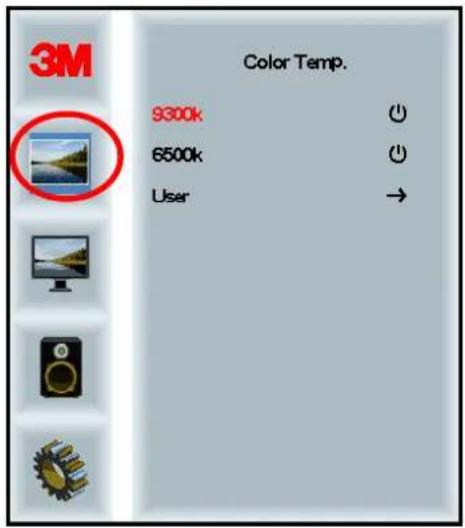

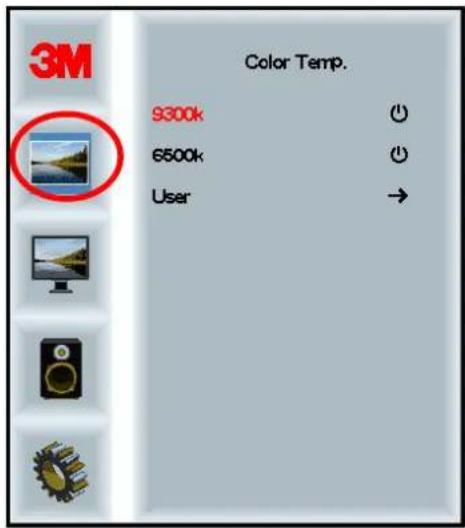

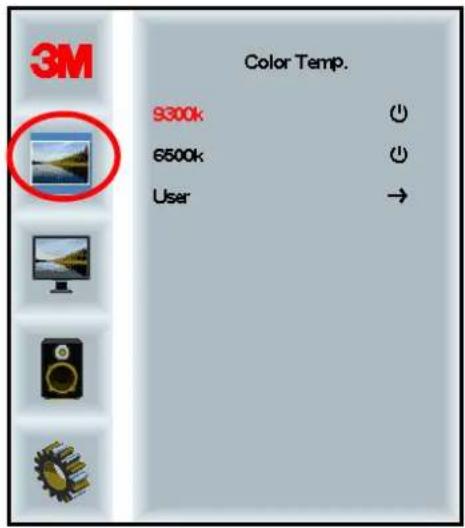

Color Settings

Includes choices for 9300k, 6500k, and User Defined Color.

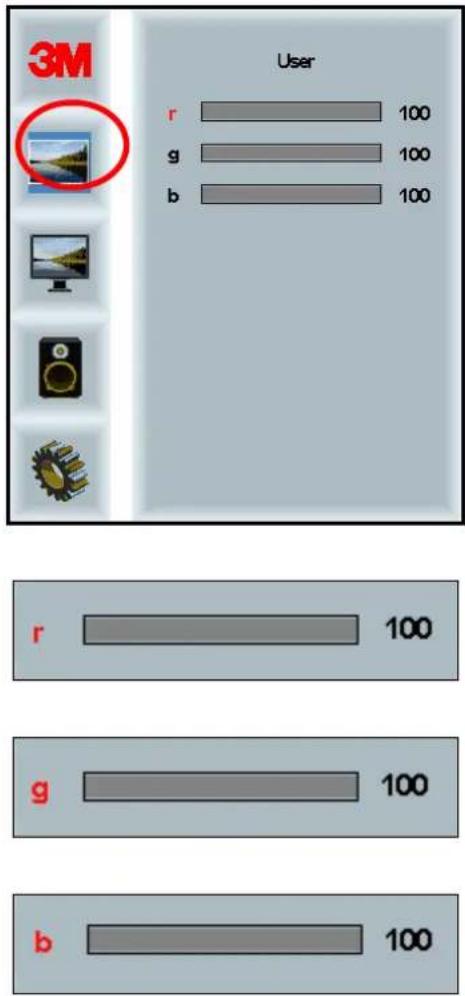

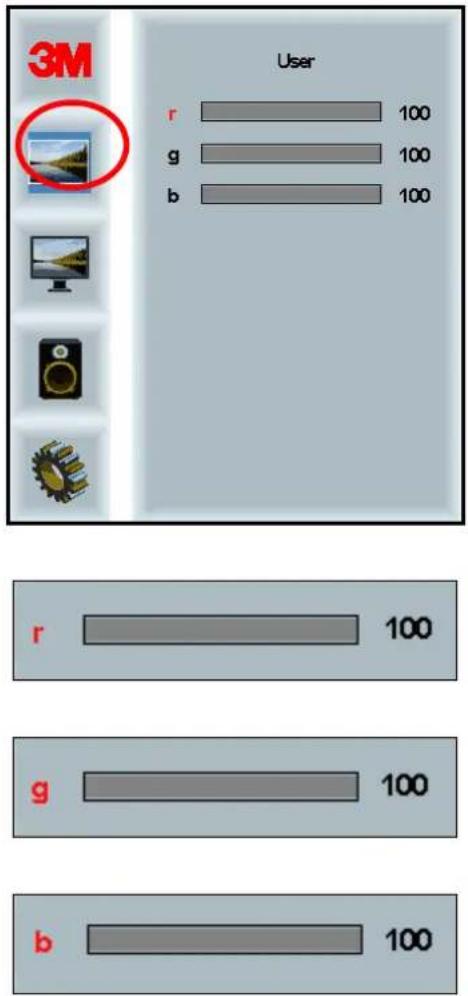

User Defined Settings

Adjust the Red, Green and Blue channels to your preference.

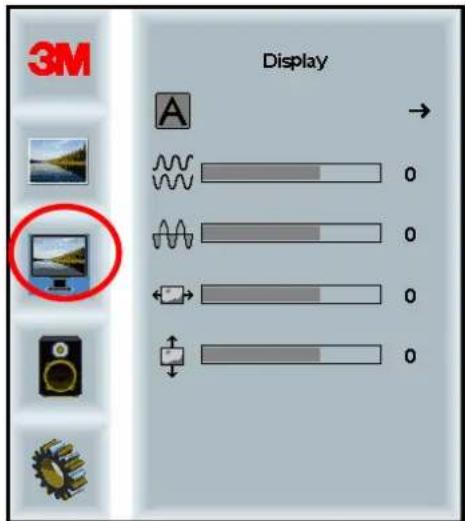

Display Menu

Includes choices for Auto Configure, Horizontal Position, Vertical Position, Clock and Phase.

Auto Configure

Performs automatic configuration of the Clock, Phase, Vertical and Horizontal positions. If you do an Auto Configure, the display will try to find the best setting. If you are not satisfied with the auto adjustment, fine-tune the settings manually as described below.

Phase

Adjust this setting so that either the vertical bars of video noise are replaced by an even amount of noise across the whole screen, or the noise disappears completely.

Clock

If the clock setting is not fine-tuned, you may observe periodic vertical bars of video noise on your image. These bars of noise are usually adjusted out when an Auto Adjust is performed. If the bars of noise are still present, this setting can be adjusted manually.

H Position (Horizontal Position)

Moves image horizontally on screen either left or right.

V Position (Vertical Position)

Moves images vertically on screen either up or down.

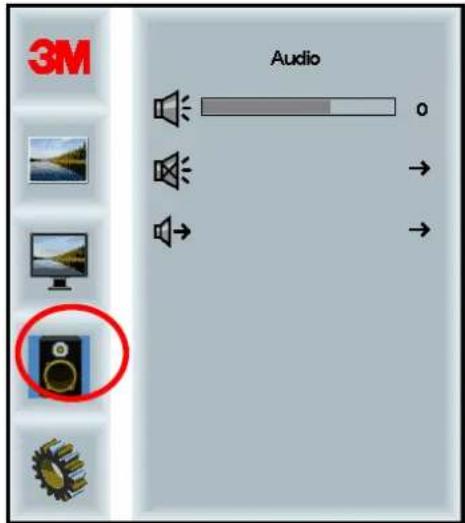

Audio Menu

Volume

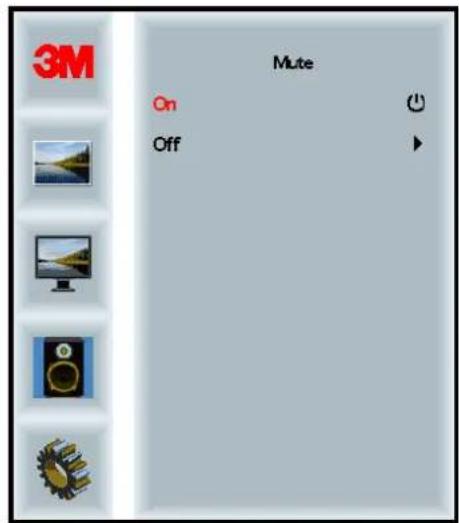

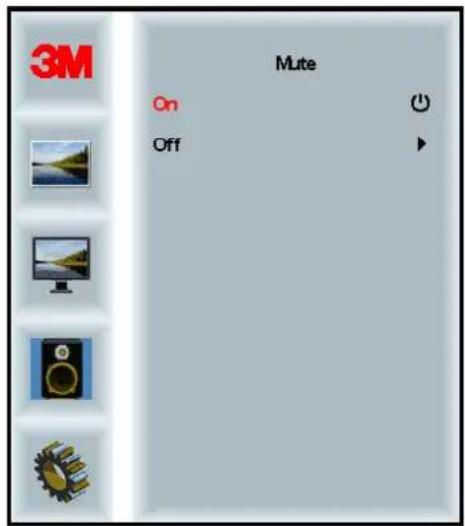

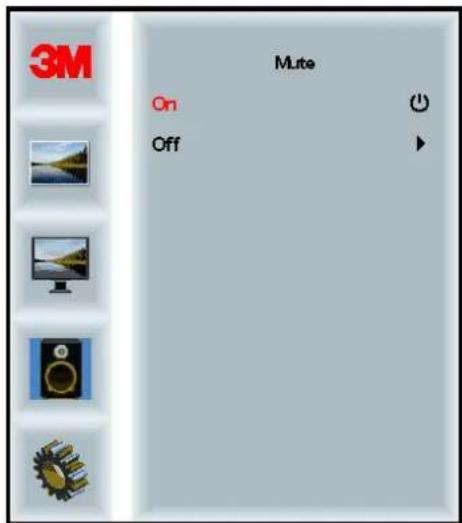

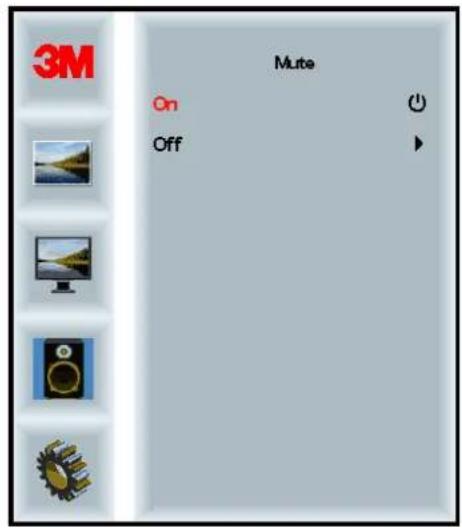

Mute

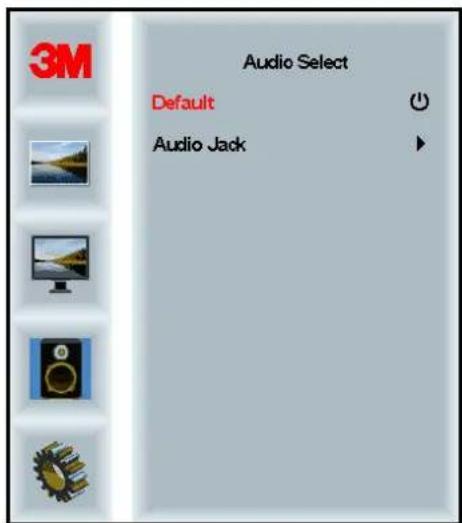

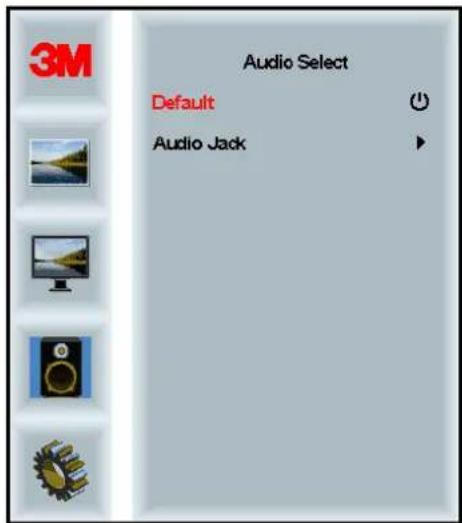

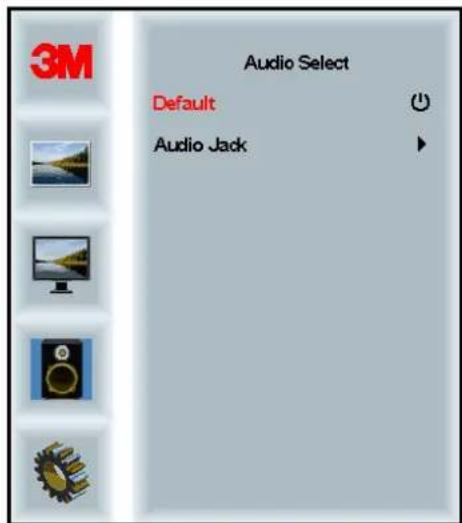

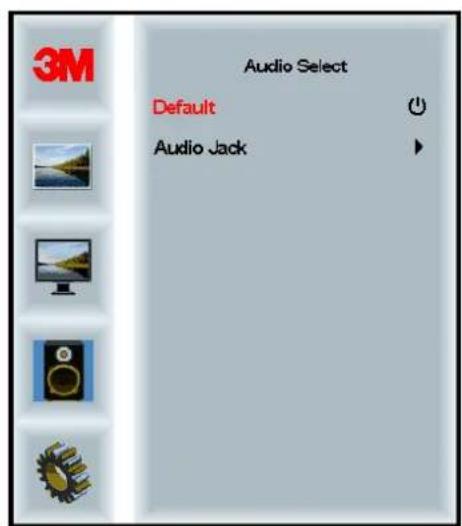

Audio Select

Digital video signal inputs, HDMI and Display Port, provide audio inputs. They will be a priority unless external audio input is selected.

System Menu

Includes choices for Input Source, Menu Settings, Languages, Aspect Ratio, Dynamic Contrast Ratio, Factory Reset, and Monitor ID.

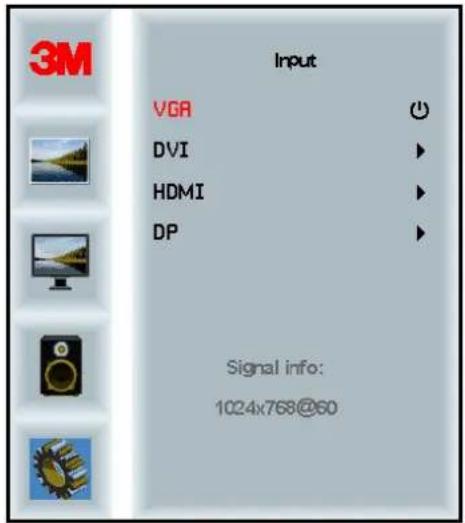

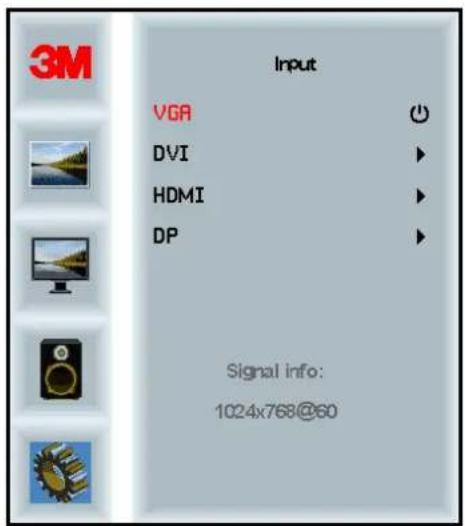

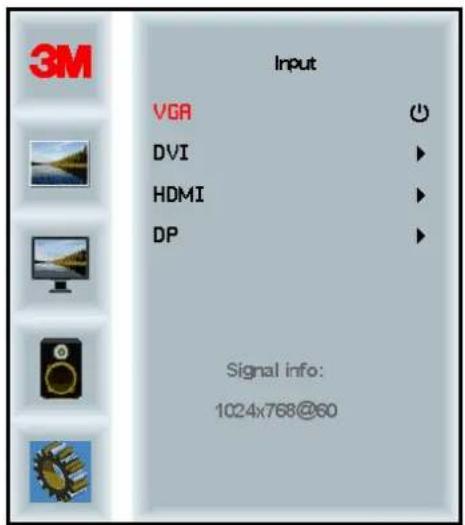

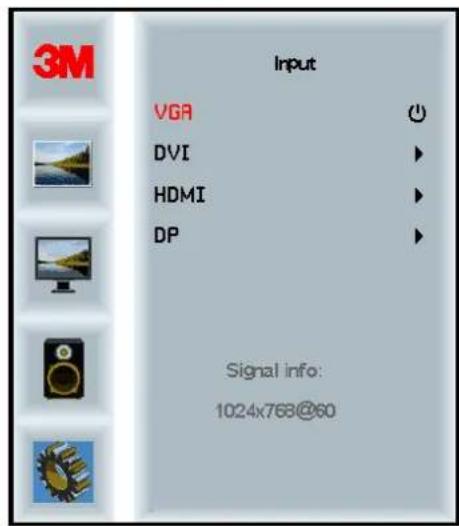

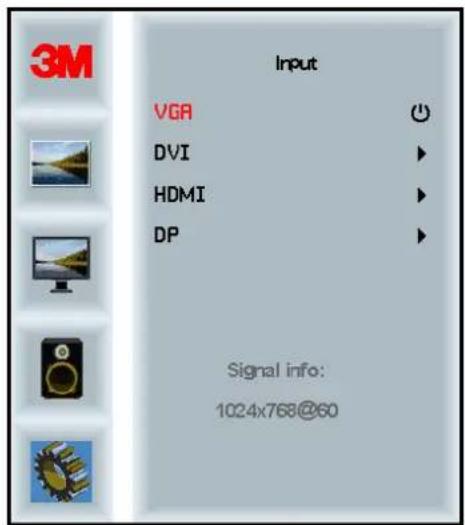

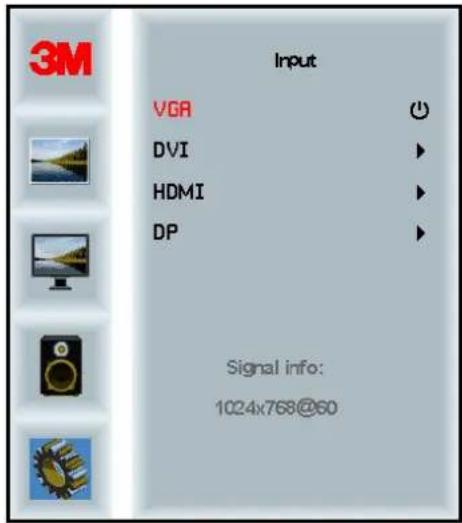

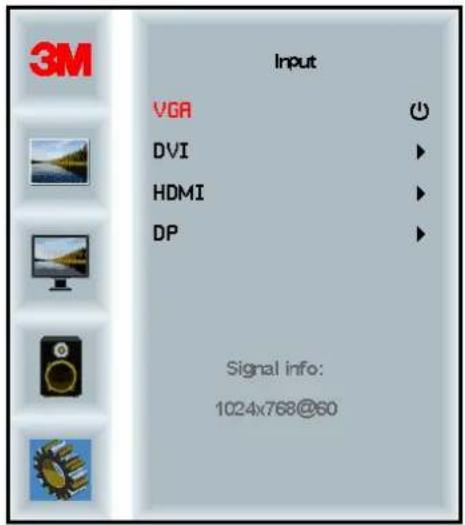

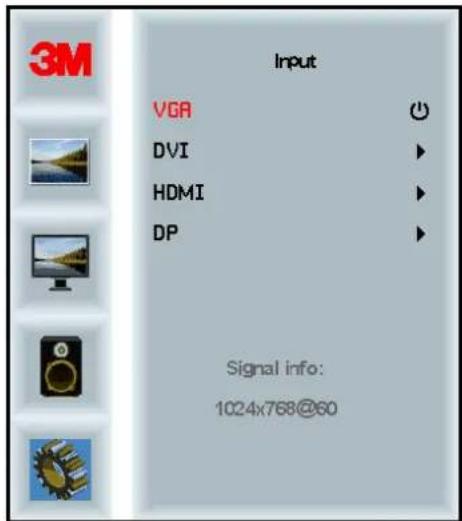

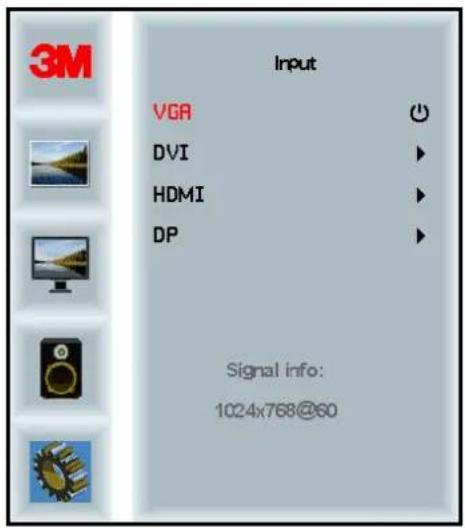

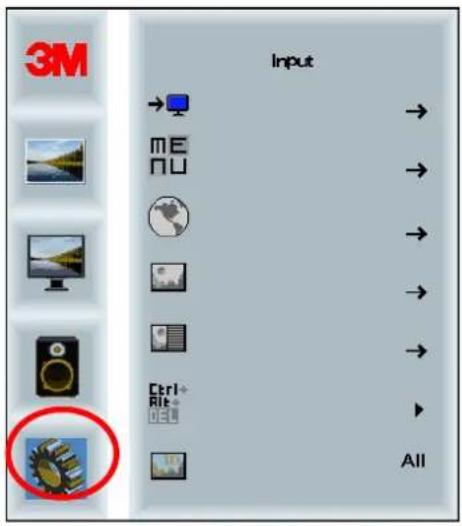

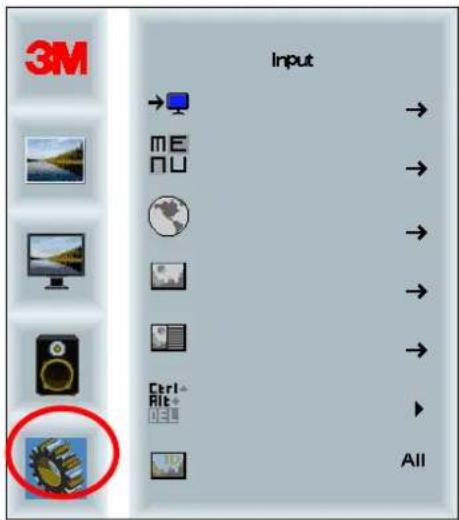

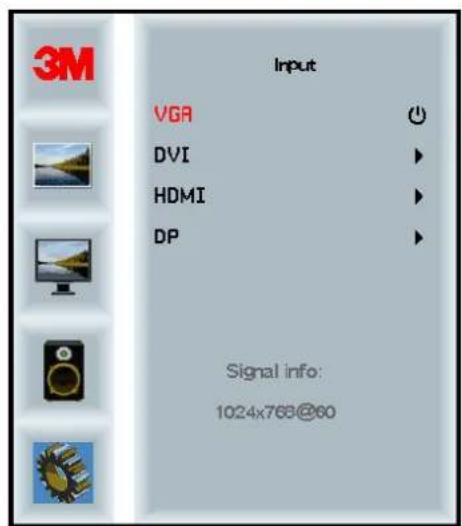

Source

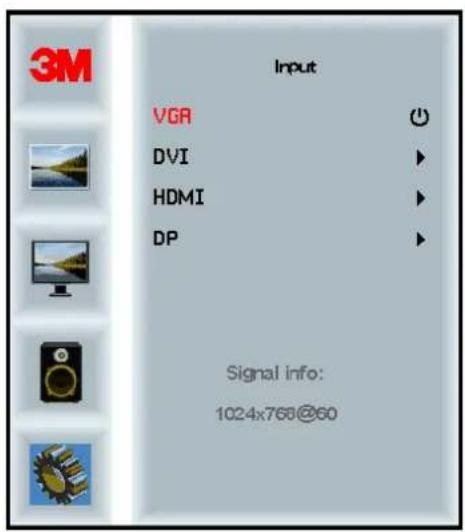

Source sets the input mode for the display either VGA, DVI, HDMI, or DP.

Menu Settings

Screen shots may vary depending on the display model, main content will remain the same.

Includes choices for OSD Timer, OSD Horizontal position, OSD Vertical Position, and OSD Transparency.

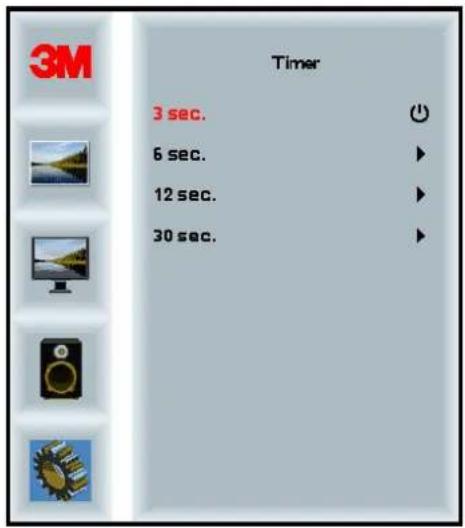

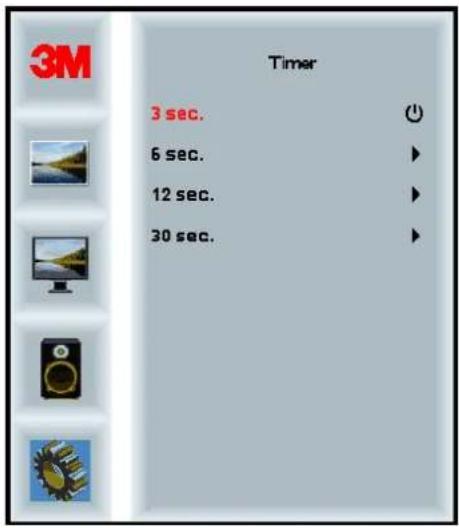

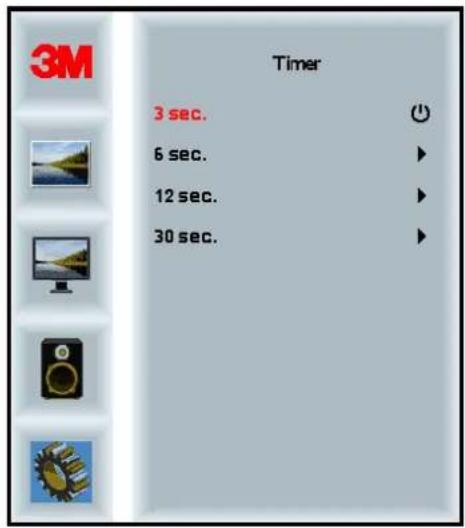

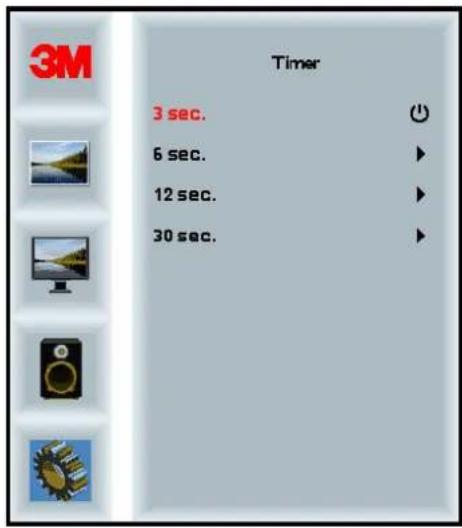

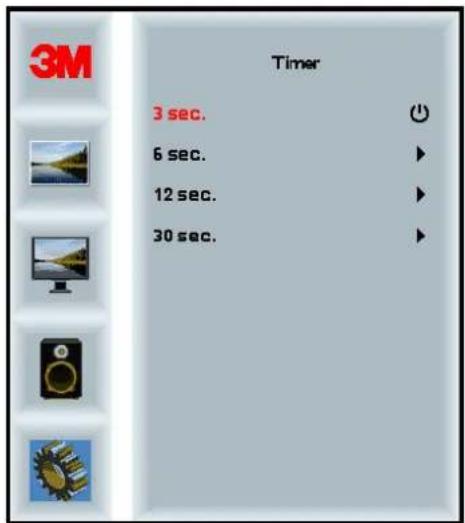

OSD Timer

Adjust how long the menu remains on the screen.

OSD H Position

Adjusts the horizontal placement of the OSD display on your screen.

OSD V Position

Adjusts the vertical placement of the OSD display on your screen.

Transparency

Adjusts the transparency of the OSD screen on your display.

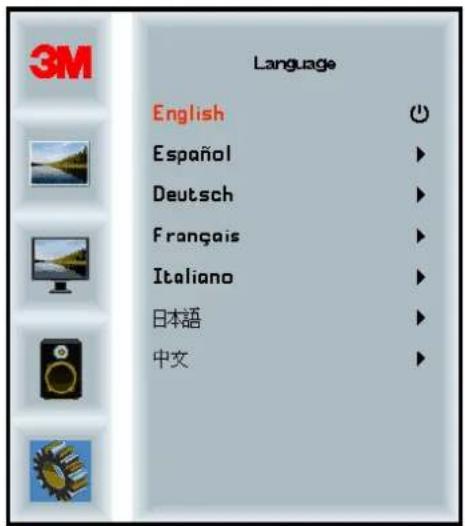

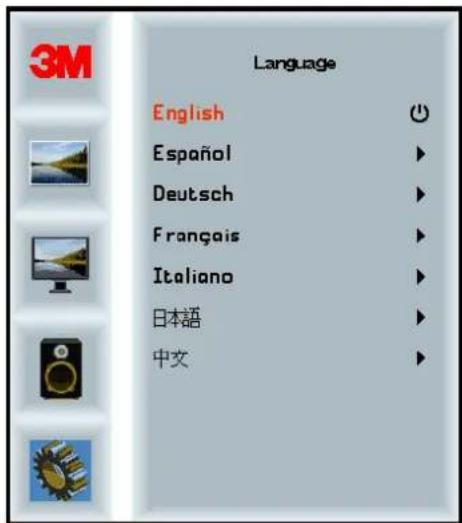

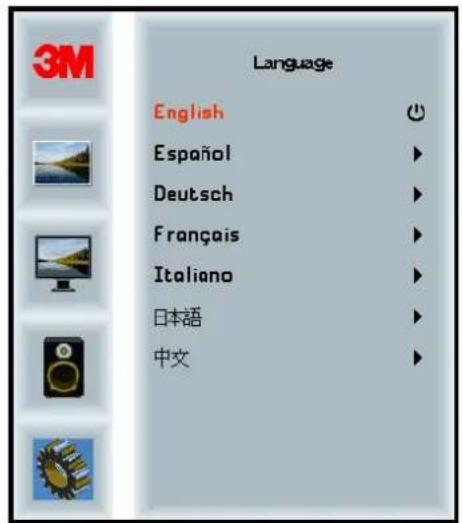

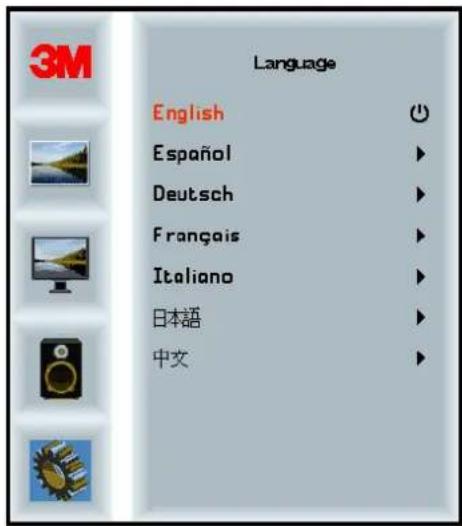

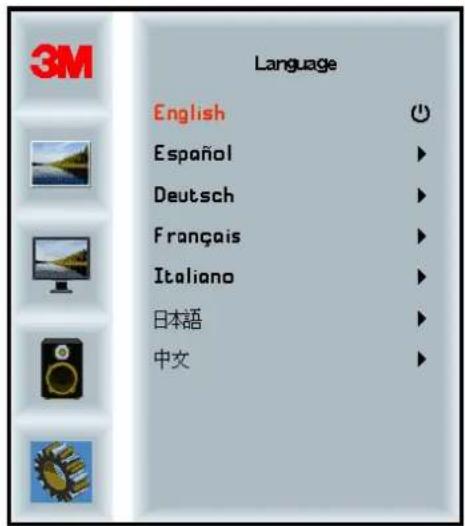

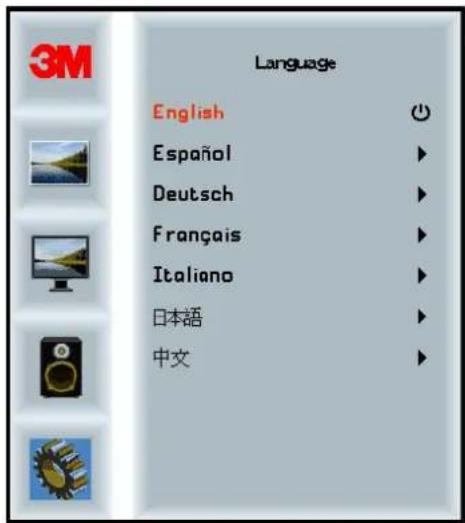

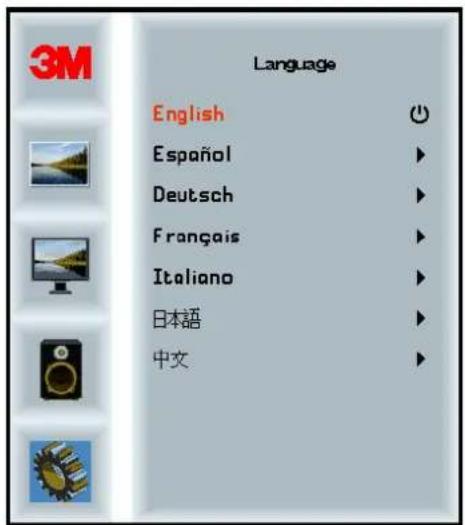

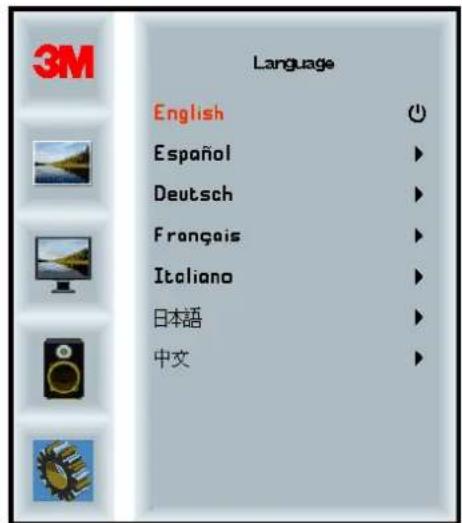

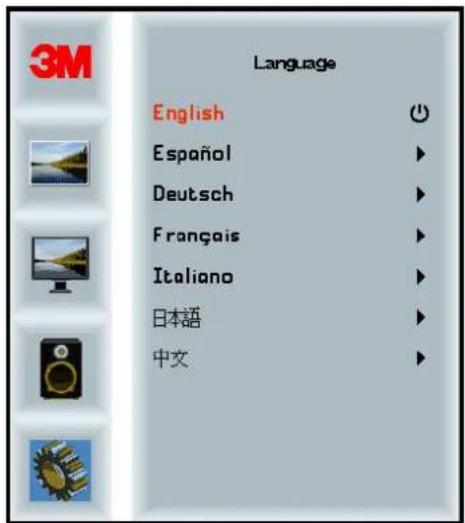

Language

Sets the language for the OSD -- the choices are English, French, German, Italian, Spanish, Japanese and Chinese.

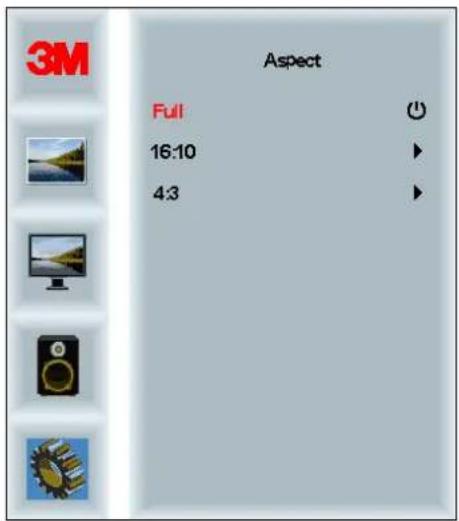

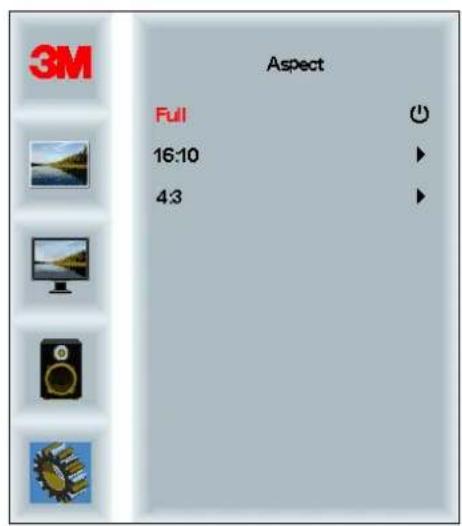

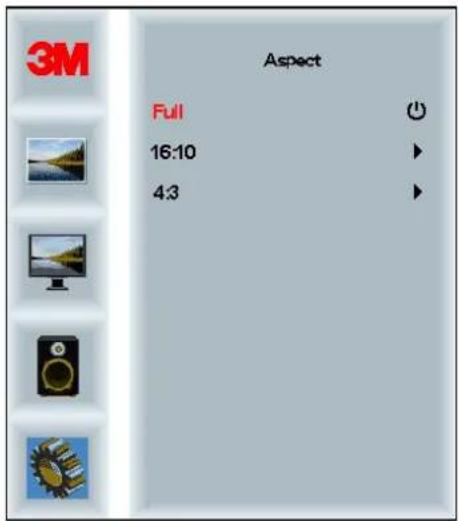

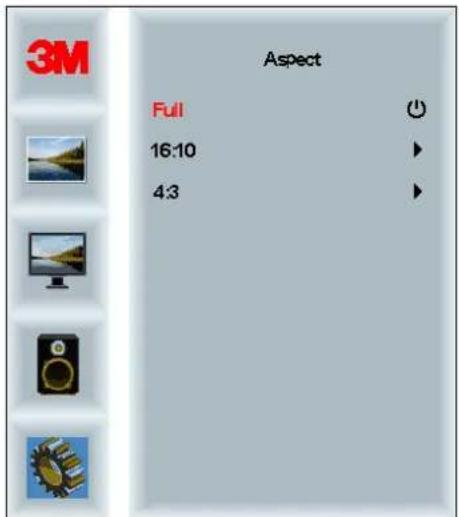

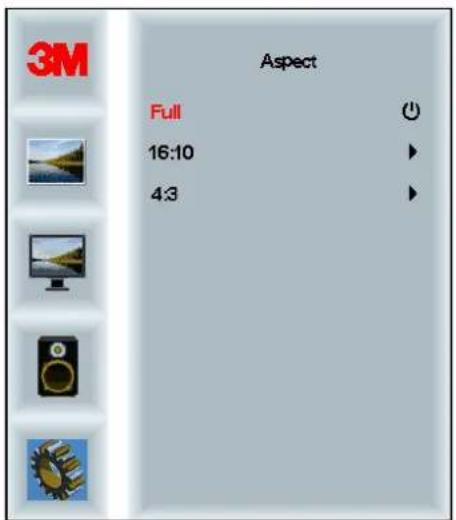

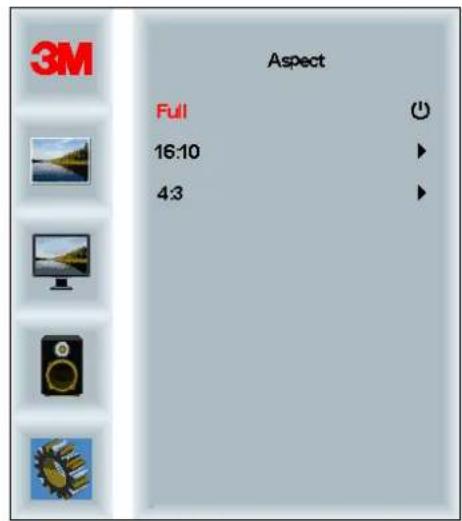

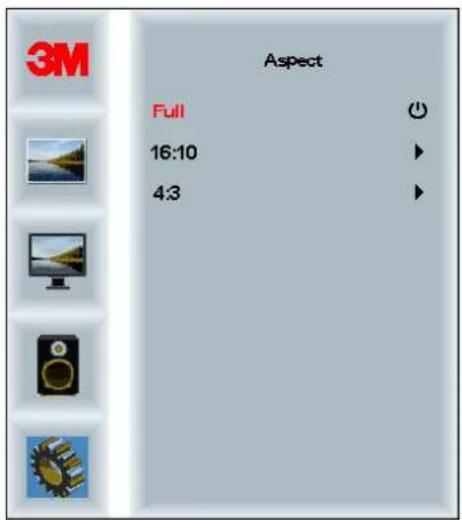

Aspect Ratio

Set the preferred aspect ratio for your display -- either Full, 16:10, or 4:3

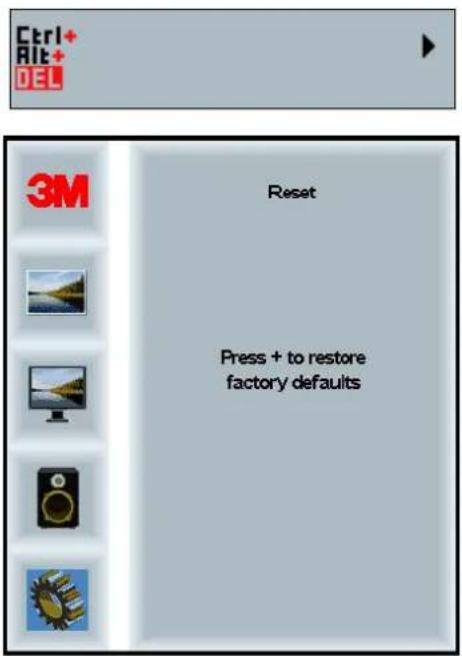

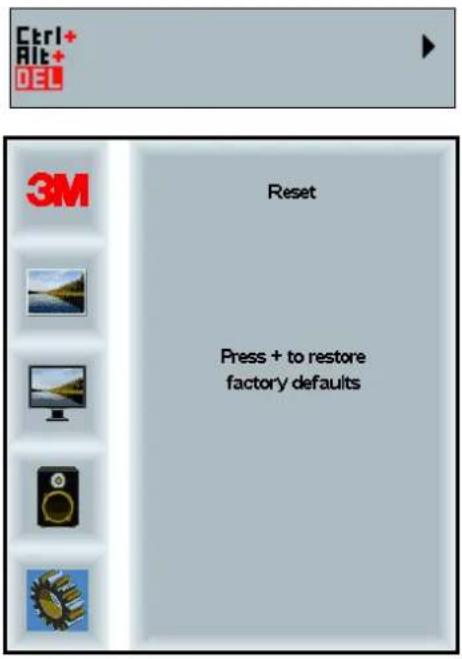

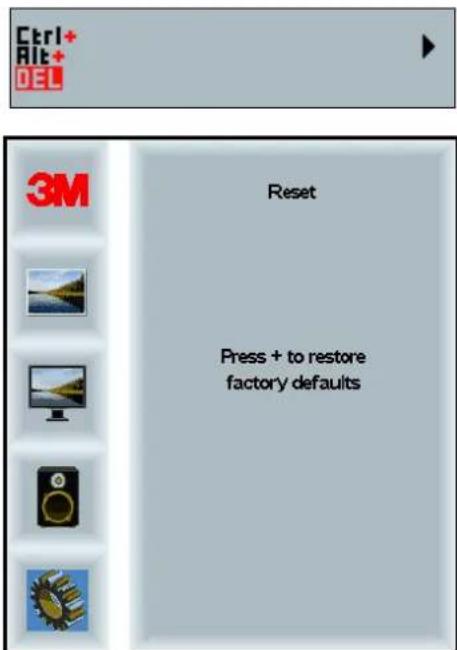

Factory Reset

Resets the control functions back to the original factory preset values.

Chapter 2

Enabling Your 3M Multi-Touch Chassis Display

Windows® 7 or Higher

The 3M Multi-Touch Chassis Display is compatible with Windows® 7 or higher with no additional software. Refer to Microsoft's Windows documentation for additional information.

All Other Platforms (All OS versions prior to Windows® 7)

When using a Windows® 7 serial connection or for Windows® XP, Vista or Linux operating systems (either USB or serial) or an operating system that does not support native touch, 3M provides 3M MicroTouch™ MT 7 Software for multi-touch drivers. For information on writing your own drivers to interface with the 3M Multi-Touch Technology, refer to the PCT Controller Reference Guide.

Multi-Touch Application Support

Remember not all applications are multi-touch ready – Multi-touch behavior is a function of YOUR application. Check with your application vendor to determine if your software has multi-touch capability.

Installing 3M™ MicroTouch™ Software

Remember that Windows® 7 or higher does not require any additional software to enable multi-touch functionality.

However, for Windows® XP, Vista or Linux® operating systems, 3M™ MicroTouch™ Software enables your 3M Multi-Touch Chassis Display to work with your computer. 3M™ MicroTouch™ Software includes a control panel for setting your touch sensor preferences and a diagnostic utility. If you are experiencing problems with the touch sensor, you can use the diagnostic utilities provided to test the system.

For additional information on 3M MicroTouch Software, please refer to the MT7 User's Guide.

Chapter 3

Troubleshooting & Maintenance

If you have a problem setting up or using your display, you may be able to solve it yourself. Before calling 3M Touch Systems, review the suggested actions that are appropriate to the problem(s) you are experiencing with the display. You may also want to consult your video card user's manual for additional troubleshooting advice.

Display Installation Problems

Common Display Installation Issues

Issue	Solution
No image displayed (blank screen)	Is the display receiving power?Check that the display's power cable is connected properly and securely into a grounded electrical outlet.Check that the AC input jack is firmly plugged into the display.Check that the display's power cable is connected properly and securely to an electrical outlet.Try a different power cable.Try a different electrical outlet.
No image displayed (blank screen)	Is the display receiving a valid video signal from the PC?Check that the computer is powered on.Check that the video cable is connected properly and securely to the display and the computer.Check that the LED on the rear of the display is green.Check that no pins are bent in the video cable connector, (both ends).Check that the video card is firmly seated in the card slot in your computer.
	Check that the video input from the video card falls within the refresh rate of the display. Refer to Supported Video Display Modes and Refresh Rates in Chapter 1.Check that your computer is using a supported display mode. Refer to Supported Video Display Modes and Refresh Rates in Chapter 1.
No image displayed (blank screen)	Is the display in Power Management mode?If the LED on the rear of the display is flashing amber, touch the screen, press any key on the keyboard, or move the mouse to restore operation.Verify video source selection is correct (OSD)
No image displayed (blank screen)	Are the brightness and contrast settings too low?Use the display controls to adjust these values.
Abnormal image	Check that the video input from the video card falls within the refresh rate of the display. Refer to Supported Video Display Modes and Refresh Rates in Chapter 1.Check that the video cable is connected properly and securely to the display and the computer.
Colors of image are abnormal	Check that the video cable is connected properly and securely to the display and the computer.Check that no pins are bent in the video cable connector, (both ends).
Disturbances on the screen	The video display adjustments are incorrect. Refer to Chapter 1 for adjusting procedures.

Troubleshooting the Touch Sensor

If you are experiencing problems with the touch sensor, check the following list of common installation errors.

Common Touch Sensor Installation Issues

Common Installation Issues	Possible Solutions
Touch sensor does not respond to touch	·Review the installation procedures. Are all cables connected properly? ·After you installed Touch Software, did you restart your PC to activate the touch sensor driver? ·Remove the touch sensor communications cable and plug it back in. ·Disconnect the power cable and plug it back in.
Touch sensor is not accurate	·Calibrate the touch sensor for the current video resolution and operating system. Refer to Chapter 2 in document 25695 for additional information.
Cursor does not follow finger movement or does not reach the edges of the sensor	·Calibrate the touch sensor for the current video resolution and operating system. Refer to Chapter 2 in document 25695 for additional information.
Cursor is not located directly underneath your finger	·Open the touch sensor control panel and make sure all cursor offsets (vertical, edge/horizontal) are turned off. ·Calibrate the touch sensor for the current video resolution and operating system.

Power Management

The 3M Multi-Touch Chassis Display conforms to the Video Electronics Standards Association (VESA) Display Power Management Signaling (DPMS) standard. To benefit from power management, the display must be used in conjunction with a computer and video card that implements the VESA DPMS standard.

The PC automatically invokes the power management feature if you do not use the touch sensor, mouse, or keyboard for a user-defined period. To restore the video image, simply touch the sensor, press a key, or move the mouse. To set the period of time after which the PC will invoke the power management feature, refer to the user manual that came with your PC. The touch sensor will remain on throughout this sequence.

Chapter 4

Regulatory Information

Regulatory Agency Approvals

Your product complies with the following regulatory standards:

• FCC-B • CE • RCM (Australia/New Zealand) • ICES Class B (Canada)

Your 3M Multi-Touch Chassis Display may comply with additional regulatory standards. Please contact 3M Touch Systems Customer Service or your Field Application Engineer if you have questions pertaining to a certification not listed above.

This equipment has been tested and found to comply within limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Note: You are cautioned that any change or modification to the equipment not expressly approved by the party responsible for compliance could void your warranty.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

This device complies with Part 15 of the FCC rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Warning

To assure continued FCC compliance, the user must use the supplied grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

3M Touch Systems is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment.

CE Conformity for Europe

The device complies with the requirements of the EU RoHS Directive 2011/65/EU, the EMC Directive 2014/30/EU with regard to “Electromagnetic compatibility” and EU Low Voltage Directive 2014/35/EU with regard to "Safety".

The information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of 3M Touch Systems, Inc. 3M may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you license to these patents, trademarks, copyrights, or other intellectual property except as expressly provided in any written license agreement from 3M Touch Systems, Inc.

The information provided in this document is intended as a guide only. For the latest detailed engineering specifications, please contact your 3M Touch Systems, Inc. Application Engineer. 3M Touch Systems, Inc. is committed to continually improving product designs, as a result, product specifications may be subject to change without notification.

Dispose of display and components in accordance with all applicable local and governmental regulations.

"RoHS 2011/65/EU compliant" means that the product or part does not contain any of the substances in excess of the maximum concentration values ("MCVs") in EU RoHS Directive 2011/65/EU, unless the substance is in an application that is exempt under EU RoHS. The MCVs are by weight in homogeneous materials. This information represents 3M's knowledge and belief, which may be based in whole or in part on information provided by third party suppliers to 3M.

NOTICE: Given the variety of factors that can affect the use and performance of a 3M Touch Systems, Inc. Product (the "Product"), including that solid state equipment has operation characteristics different from electromechanical equipment, some of which factors are uniquely within User's knowledge and control, it is essential that User evaluate the 3M Touch Systems, Inc. Product and software to determine whether it is suitable for User's particular purpose and suitable for User's method of application. 3M Touch Systems, Inc. statements, engineering/technical information, and recommendations are provided for User's convenience, but their accuracy or completeness is not warranted. 3M Touch Systems, Inc. products and software are not specifically designed for use in medical devices as defined by United States federal law. 3M Touch Systems, Inc. products and software should not be used in such applications without 3M Touch Systems, Inc. express written consent. User should contact its sales representative if User's opportunity involves a medical device application.

IMPORTANT NOTICE TO PURCHASER: Specifications are subject to change without notice. These 3M Touch Systems, Inc. Products and software are warranted to meet their published specifications from the date of shipment and for the period stated in the specification. 3M Touch Systems, Inc. makes no additional warranties, express or implied, including but not limited to any implied warranties of merchantability or fitness for a particular purpose. User is responsible for determining whether the 3M Touch Systems, Inc. Products and software are fit for User's particular purpose and suitable for its method of production, including intellectual property liability for User's application. If the Product, software or software media is proven not to have met 3M Touch Systems, Inc. warranty, then 3M Touch Systems, Inc. sole obligation and User's and Purchaser's exclusive remedy, will be, at 3M Touch Systems, Inc. option, to repair or replace that Product quantity or software media or to refund its purchase price. 3M Touch Systems, Inc. has no obligation under 3M Touch Systems, Inc. warranty for any Product, software or software media that has been modified or damaged through misuse, accident, neglect, or subsequent manufacturing operations or assemblies by anyone other than 3M Touch Systems, Inc. 3M Touch Systems, Inc. shall not be liable in any action against it in any way related to the Products or software for any loss or damages, whether non-specified direct, indirect, special, incidental or consequential (including downtime, loss of profits or goodwill) regardless of the legal theory asserted.

Copyright © 2016 3M All rights reserved.

Document Title: 3M™ Multi-Touch C3266CW, C4267PW, C4667PW, C5567PW, C6587PW PCT Chassis Display User Guide

Document Number: TSD-47506, Revision E

3M and MicroTouch are trademarks of 3M Company in the United States and/or other countries.

Windows and/or other Microsoft products referenced herein are either registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.

Linux is a registered trademark of Linus Torvalds in the U.S. and/or other countries.

All other trademarks are the property of their respective owners.

USB cable

9-pin RS-232 serial cable (Only for C3266PW - 2 pcs.)

VGA cable

DVI cable

US power cord

HDMI cable

EU power cord (optional)

Audio cable

DisplayPort cable

Brightness

Color settings

Volume

No sound

Source

Menu parameters

Format

Chapter 2

Audio menu (Sound)....74

System menu (System) 76

Chapter 2

Turning on the 3M Multi-Touch display housing

Windows® 7 or later....81

Other platforms (all versions of the operating system older than Windows® 7) ...... 81

Power cable for the USA

HDMI cable

Power cable for the EU (optional)

Power cable for the UK (optional)

Audio cable

DisplayPort cable

Free space and ventilation

Brightness

Color settings

User settings

Adjust the red, green, and blue channels according to your preferences.

Display menu

Includes options for Auto Configuration, Horizontal Position, Vertical Position, Clock, and Phase.

Auto Configuration

Used to automatically configure Clock, Phase, Vertical, and Horizontal Position. If you perform auto configuration, the screen will attempt to find the best setting. If you are not satisfied with the automatic adjustment, manually fine-tune the settings as described below.

Phase

Adjust this setting so that vertical video interference bars are replaced by an equal amount of interference across the entire screen, or so that the interference completely disappears.

Clock

If the clock setting is not precisely adjusted, vertical video interference bars may occasionally appear on the image. These interference bars are usually corrected when Auto Adjustment is performed. If the interference bars are still present, this setting can be adjusted manually.

Audio menu

Volume

Mute

Audio Select

Source

The source sets the input mode for the screen: VGA, DVI, HDMI, or DP.

Menu settings

Screen captures may differ depending on the screen model, but the content will remain the same. It includes options for OSD Timer, OSD Horizontal Position, OSD Vertical Position, and OSD Transparency.

OSD Timer

Adjusts the amount of time the menu remains on the screen.

OSD Horizontal Position

Image Format

Factory Settings

Chapter 2

Turning on the 3M Multi-Touch Display Enclosure

Windows® 7 or later

3M™ MicroTouch™ Software Installation ....110

Chapter 3

Distance and Ventilation

Brightness

Auto Configuration

Volume

Mute

Audio Input Selection

Source

Menu Settings

OSD H Position

Aspect Ratio

Reset

Chapter 2

Multi-Touch program support....139

Installing 3M™ MicroTouch™ software....139

Chapter 3

Power cord for USA

HDMI cable

Audio cable

DisplayPort cable

Brightness

Color settings

Auto configuration

V-position (vertical position)

Volume

Mute

Select audio

Source

Menu settings

OSD-H-position

Aspect ratio

Factory reset

Chapter 2

Multi-Touch program support

USB cable

VGA cable

DVI cable

US power cord

HDMI cable

EU power cord (optional)

UK power cord (optional)

Audio cable

DisplayPort cable

Brightness

Color settings

Volume

Mute

Audio selection

Source

Settings

OSD H-position

Chapter 2

Turning on your 3M Multi-Touch Chassis Display:

Windows® 7 or later

3M™ Multi-Touch Projected Capacitive Touch (PCT)

Chassis models

C3266PW, C4267PW,

C4667PW, C5567PW,

C6587PW

USA power cable

HDMI cable

Audio cable

DisplayPort cable

Brightness

Color settings

Volume

Mute

Audio selection

Source

Menu settings

OSD H-position

Aspect ratio

Chapter 2

USB cable

VGA cable

DVI cable

US power cord

HDMI cable

Audio cable

DisplayPort cable

Brightness

Color settings

Auto adjustment

Audio level

Mute

Audio selection

Source

Menu settings

Aspect ratio

Reset to factory defaults

Chapter 2

Contact 3M Touch Systems 237

Chapter 1

Contact 3M Touch Systems

USB cable

VGA cable

DVI cable

Brightness

Auto adjust

Volume

Mute

Audio select

Source

Position H OSD

Aspect Ratio

Reset

Chapter 2

US power cable

HDMI cable

Audio cable

Brightness

Color settings

Auto Configure

H Position (Horizontal Position)

Volume

Source

OSD H Position

Factory Reset

Chapter 2

HDMI cable

Audio cable

Brightness

Color settings

Volume

Mute

Audio selection

Source

Menu settings

OSD position

Aspect ratio

Chapter 2

Brightness

Color settings

Volume

Mute

Audio selection

Source

Menu settings

Aspect ratio

Chapter 2

HDMI cable

Audio cable

DisplayPort cable

Brightness

Auto configuration

Volume

Audio muted

Audio selection

Source

Menu settings

OSD position

Aspect ratio

Chapter 2

Touch sensor management and cleaning

USB cable

VGA cable

DVI cable

US power cable

HDMI cable

EU power cable (optional)

UK power cable (optional)

Audio cable

DisplayPort cable

Touch Display Connection

Spacing and Ventilation

Brightness

Color Settings

Custom Settings

Auto Configuration

Volume

Mute

Audio Selection

Source

Menu Settings

OSD H Status

Aspect Ratio

Reset to Default

Page 2

Copyright © 2016 3M All rights reserved.

Contact 3M Touch Systems ....411

Chapter 1

Contact 3M Touch Systems

Contact information for all offices is available at: http://www.3m.com/touch/.

Chapter 1

HDMI cable

Audio cable

DisplayPort cable

Brightness

Color settings

Volume

Mute mode

Audio selection

Source

The source sets the display input mode to VGA, DVI, HDMI, or DP.

OSD H Position

Aspect Ratio

Chapter 2

USB cable

VGA cable

DVI cable

HDMI cable

EU power cable (optional)

UK power cable (optional)

Audio cable

DisplayPort cable

Touch screen connection

Brightness

User Defined Settings

Volume

Mute

Audio Select

Source

Menu Settings

OSD H Position

Chapter 2

Activating the 3M Multi-Touch system unit display

Windows® 7 or later

Touch Sensor Cable

USB Cable

VGA Cable

DVI Cable

US Power Cord

HDMI Cable

EU power cable (optional)

UK power cable (optional)

Audio cable

DisplayPort cable

How to connect the Touch Display

Brightness

User Defined Settings

Adjust the Homor, Hodor, and Blu channels according to your preference.

Display Menu

Includes 1- Auto Configure, Horizontal Position, Vertical Position, Clock, and Phase options.

Auto Configure

Volume

Mute

Audio Select

Digital video signal inputs, HDMI and DisplayPort, provide audio inputs. These will take priority unless you select the external audio input.

System Menu

Includes the options Input Source, Menu Settings, Languages, Aspect Ratio, Dynamic Contrast Ratio, Factory Reset, and Monitor ID.

Source

Source configures the input mode for the display to VGA, DVI, HDMI, or DP.

OSD H Position

Aspect Ratio

To configure the preferred aspect ratio for your display -- either Full, 16:10, or 4:3.

Factory Reset

Resets the control functions back to the original factory default values.

Chapter 2

How to Operate Your 3M Multi-Touch Chassis Display

Windows® 7 or Higher

The 3M Multi-Touch Chassis Display is compatible with Windows® 7 or higher without additional software. Refer to Microsoft's Windows documentation for more information.

All Other Platforms (All OS versions prior to Windows® 7)

When using a Windows® 7 serial connection or Windows® XP, Vista, or Linux operating systems (either USB or serial) or an operating system that does not support native touch, 3M provides the 3M MicroTouch™ MT 7 Software for multi-touch drivers. For information on using your own drivers to interface with 3M Multi-Touch Technology, refer to the PCT Controller Reference Guide.

USB cable

VGA cable

DVI cable

HDMI cable

audio cable

DisplayPort cable

Brightness

Color settings

Volume

Mute

Source

Menu settings

Chapter 2

Contact 3M Touch Systems

HDMI cable

Audio cable

DisplayPort cable

Connect the Touch Screen

Brightness

Color Settings

Volume

Mute

Source

Sets the input mode of the screen: VGA, DVI, HDMI, or DP (DisplayPort).

Menu Settings

OSD Horizontal Position

Image Format

Chapter 2

USB cable

VGA cable

DVI cable

HDMI cable

Audio cable

Brightness

Color settings

Volume

Mute

Audio select

Source

Menu settings

OSD H position

Aspect ratio

Chapter 2

USB cable

VGA cable

DVI cable

HDMI cable

Audio cable

Clearances and ventilation

Brightness

Volume

Source

Chapter 2

HDMI cable

DisplayPort cable

Touchscreen connection

Clearance and ventilation

Brightness

Sharpness

Color settings

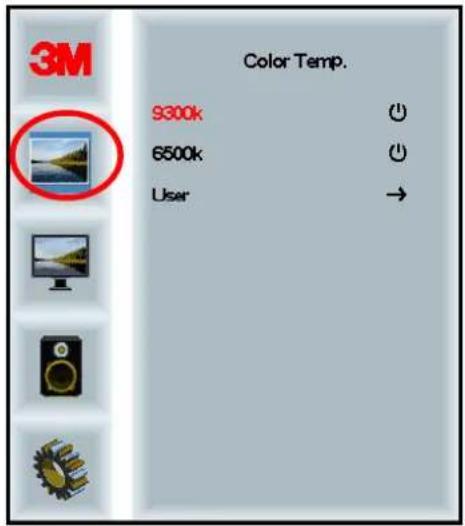

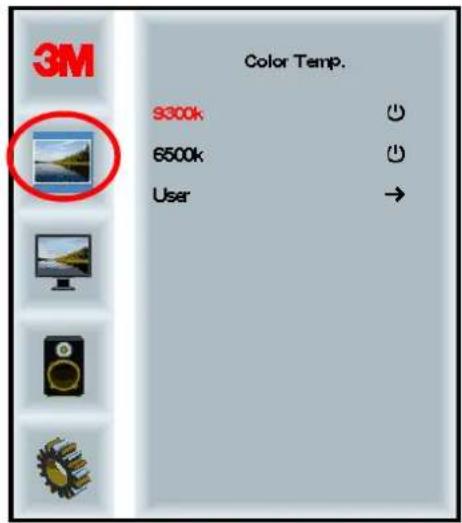

Includes free color temperature 9300K, 6500K and user-defined temperature.

User-defined settings

Volume

Mute

Audio selection

Source

Menu settings

OSD H position

Reset

Resets control functions back to factory values.

Chapter 2

USB cable

RS-232 serial 9-pin cable (only for C3266PW 2 cables)

VGA cable

DVI cable

HDMI cable

audio cable

Brightness

Color settings

Volume

Mute

Audio selection

Source

With the source, we set the input mode on the screen to VGA, DVI, HDMI, or DP.

Menu settings

Horizontal OSD shift

We set the horizontal shift of the on-screen display.

Vertical OSD shift

Aspect ratio

Chapter 2

USB cable

VGA cable

DVI cable

HDMI cable

Audio cable

Brightness

Color settings

Volume

Mute

Audio selection

Source

Menu settings

OSD H position

Aspect ratio

Chapter 2

3M Touch Systems support service....701

Contact 3M Touch Systems ....701

Chapter 1

Configuring your 3M chassis display with multi-touch

System requirements 702

Unpacking your touch display....702

Connecting the touch display 704

Multimedia functions....705

3M Touch Systems support service

USB cable

VGA cable

DVI cable

HDMI cable

EU power cable (optional)

UK power cable (optional)

Audio cable

DisplayPort cable

Connecting the touch display

Brightness

Color settings

Automatic configuration

Volume

Tyst

Välj ljud

Källa

Menyinställningar

OSD H-läge

Proportioner

Kapitel 2

Aktivera din 3M chassidisplay med flertryck

Copyright © 2016 3M All rights reserved.

Document title: 3M™ User Manual for PCT Multi-Touch Chassis Displays C3266CW, C4267PW, C4667PW, C5567PW, C6587PW

Document number: TSD-47506, Revision E
