USER MANUAL BC 4125 II Comfort AL-KO

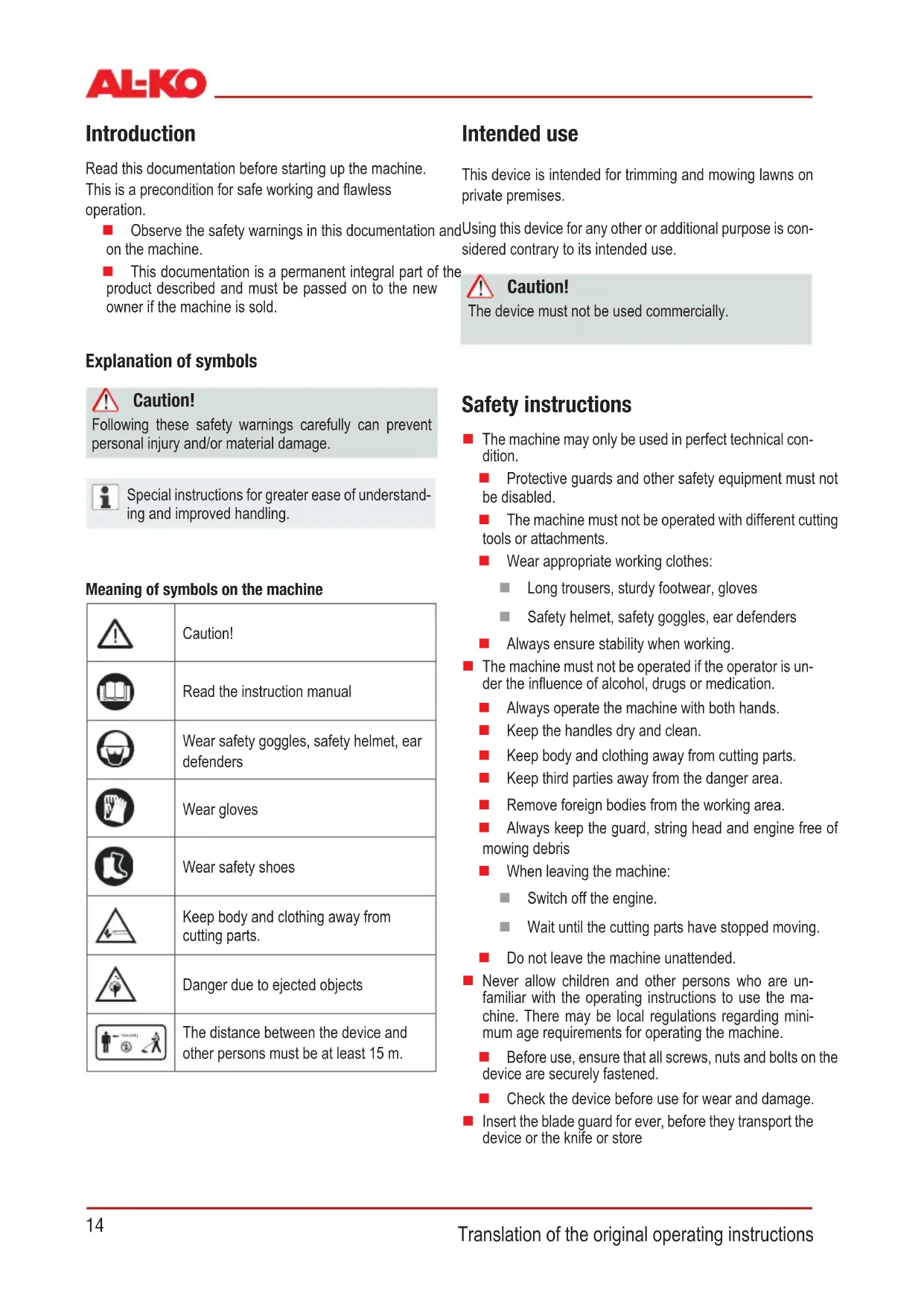

Explanation of symbols
Following these safety warnings carefully can prevent
personal injury and/or material damage.
Special instructions for greater ease of understand-
ing and improved handling.
This device is intended for trimming and mowing lawns on
Using this device for any other or additional purpose is con-
sidered contrary to its intended use.
The device must not be used commercially.
Meaning of symbols on the machine
Read the instruction manual
Wear safety goggles, safety helmet, ear
Keep body and clothing away from
Danger due to ejected objects
The distance between the device and
other persons must be at least 15 m.
Read this documentation before starting up the machine.
Thisisapreconditionforsafeworkingandawless
Observe the safety warnings in this documentation and
This documentation is a permanent integral part of the
product described and must be passed on to the new
owner if the machine is sold.
The machine may only be used in perfect technical con-
Protective guards and other safety equipment must not
The machine must not be operated with different cutting
tools or attachments.
Wear appropriate working clothes:
Long trousers, sturdy footwear, gloves
Safety helmet, safety goggles, ear defenders
Always ensure stability when working.
The machine must not be operated if the operator is un-
dertheinuenceofalcohol,drugsormedication.
Always operate the machine with both hands.
Keep the handles dry and clean.
Keep body and clothing away from cutting parts.
Keep third parties away from the danger area.
Remove foreign bodies from the working area.
Always keep the guard, string head and engine free of
When leaving the machine:
Switch off the engine.
Wait until the cutting parts have stopped moving.
Do not leave the machine unattended.
Never allow children and other persons who are un-
familiar with the operating instructions to use the ma-
chine. There may be local regulations regarding mini-
mum age requirements for operating the machine.
Before use, ensure that all screws, nuts and bolts on the
device are securely fastened.
Check the device before use for wear and damage.
Insert the blade guard for ever, before they transport the
device or the knife or store15
Safety and protective equipment
Safety and protective equipment must not be disabled – Risk of injury!
Protects the operator from ejected objects. The integrated
cutter shortens the cutting string to the permissible length.
In the event of an emergency, swith the ignition switch to
BC 410 II BC 4125 II Motor type Air-cooled 2-stroke engine Air-cooled 2-stroke engine
Cylinder capacity 32.6 cm³ 32.6 cm³
Power: 0.9 kW 0.9 kW Dry weight (EN ISO 11806) 6.7 kg 6.8 kg
Operating weight without petrol 7.5 kg 7.8 kg
Attachment cutting blade --- Art. No. 112405
Duringextendedperiodsofusethevibrationscancausedisordersofthebloodvesselsornervoussystemsofthengers,
hands and wrists. You may experience parts of your body going numb, twinges, pains or changes in the skin. If such
symptoms arise, please consult your doctor!Translation of the original operating instructions
7a/7b Gas lever lock
11 “Choke” – “Run” lever
12 Primer (cold-start diaphragm pump)
The machine must not be operated before assembly
work has been completed.
Mounting the handgrip.
D-grip (BC 410 II) (Fig.3)
1. Place the rubber sleeve (2) over the support bar.
3. Place the rubber sleeve (3) over the shaft.
4. Fasten the lower brace (2) and the center piece (4)
using the four Allen screws (1).
5. Place the grip rod (5) into the grip holder and fasten
with the upper brace (6) and the four Allen screws (7).
Mounting the guard (Fig.5)
1. Place the metal plate (1) under the guard (2).
2. Fasten to the support bar (3) with 4 screws (1).
The cutter integrated into the guard automatically shortens
the cutting string to the optimal length.
Mounting the string head (Fig. 4, 6)
1. Remove the cotter pin (Fig.4-8)andange(Fig.4-5).
2. Insert an Allen key (Fig.6-1) into the hole in the drive
plate (Fig.6-2) and screw the string head onto the
guide pin of the drive shaft.
(Caution: left-hand thread!)
3. Lock the drive plate (Fig.6.2) with the Allen key in or-
der to mount the string head.
Mounting the cutting blade (Fig. 4, 5)
1. Remove the smaller half shield from the guard
2. Remove the cotter pin (Fig.4-8)andange(Fig.4-5).
3. Place the cutting blade on the drive plate in such
a way that the hole in the cutting blade is exactly
aligned with the guide circle of the drive plate.
4. Pushtheange(Fig.4-5) onto the cutting blade so
thattheatsidefacesthecuttingblade.
5. Secure the clamping nut on the guide pin. To do this,
insert the Allen key (Fig.4-3) into the hole provided
and tighten. (Caution: left-hand thread!)
6. Secure the nut with the cotter pin.
Adjusting the shoulder strap
1. Push the shoulder strap over your left shoulder.
2. Hook the locking hooks into the eyelet.
3. Check the length of the shoulder strap by making a
number of swinging movements without switching on
The string head or cutting blade must move parallel
Always use the shoulder strap when working with the
Only hook up the shoulder strap once the engine is
Use only original cutting knives and accessories!
Non-original parts can cause injury or impairment to the
Fuel and consumables
Ensure that no fuel leaks from the engine, tank or fuel
Only mix and store petrol in approved containers.
Do not use any fuel mixture that has been stored for
Only refuel outdoors.
Do not smoke while refuelling.
Do not open the fuel cap while the engine is running
Exchange the tank or fuel cap if damaged.
Alwayskeepthefuelcaprmlyclosed.
Only empty the fuel tank outdoors.
If petrol has spilled out:
Do not start the engine.
Avoid ignition attempts.
Clean the machine.
Allow leftover fuel to evaporate
Preparing a fuel mixture
Only use fuel in a ratio of 25:1.
1. Pour petrol and a branded 2-stroke oil into a suitable
container in accordance with the table.
2. Mix both parts thoroughly.
Table of fuel mixing ratios
Mixing procedure Petrol Mixing
Always carry out a visual inspection before starting up
the machine. The machine must not be used with loose,
damaged or worn cutting parts and/or fastening ele-
Never run the engine indoors.
Before start-up, shorten the cutting string to 13 cm
to avoid overloading the engine.
CHOKE RUN Cold start
Always pull the starter cord straight out.
Do not let it snap back too quickly.
1. Set the ignition switch to the “Start” position (Fig. 7).
2. Lock the gas lever:
Press the “Lock off” switch (2) inwards.
Then simultaneously press the gas lever (3) and
the gas lever lock (4).
Release the “Lock off” switch (2).
The gas lever latches into full throttle.
3. Set the choke (1) to the “CHOKE” position (Fig. 8).
4. Squeeze the fuel pump (2) 10 times.
5. Pull out the starter cord with a quick movement until
Pull the cord briskly with uniform force.
6. Once the engine has started: set the choke to “RUN”.
7. If the engine does not start, repeat steps 1 to 6.
Always operate the trimmer with the guard.
Observe local regulations regarding operating times.
Always observe the operating instructions provided by
the manufacturer of the engine.
Check the cutting parts for damage or cracks before
use, and exchange any damaged or worn parts for orig-
inal spare parts.Translation of the original operating instructions
Instructions for use
Always let the engine run in the upper speed range during
trimming and cutting.
Observe the safety warnings in this documentation and
Wear appropriate working clothes
Always ensure stability when working.
Always operate the machine with both hands.
Keep body and clothing away from cutting parts.
Keep third parties away from the danger area.
Never hold the string head higher than knee level when
the device is in operation.
1. Examine the terrain and determine the desired cut-
2. Guide and hold the string head at the desired height.
3. Swing the device from side to side in a sweeping,
4. Always keep the string head parallel with the ground.
1. Hold the device so that it is tilted forward at a slight
angle and moves just above the ground.
2. Always trim away from your body.
Trimming along fences and foundations
Do not come into contact with solid structures – Danger
1. Set the ignition switch to “Start”.
2. Set the choke to “RUN”.
3. Lock the gas lever as described under “Cold start”.
4. Pull the starter cord a maximum of 6 times – the en-
gine starts. Keep the gas lever pressed down until the
engine runs smoothly.
Engine does not start:
Set the choke to the “RUN” position.
Pull the starter cord 5 times.
If the engine still does not start:
Wait 5 minutes and then try again with the gas
Refer to the “Troubleshooting” chapter.
Switch off the engine.
1. Release the gas lever and let the engine idle.
2. Set the ignition switch to “STOP”.
The engine continues to run after it is switched off –
When mowing on sloping ground, always stand downhill
of the cutting device.
Never work on a slippery hillside or slope.
Neverusethedeviceinthevicinityofhighlyammable
liquidsorgases–Riskofreand/orexplosion!
After contact with a foreign object:
Switch off the engine.
Examine the device for damage.
Persons who are not familiar with the trimmer should
practise handling it with the engine switched off.
Lengthening the cutting string
1. Let the engine run at full throttle and tap the string
The string is lengthened automatically.
The cutter on the guard shortens the string to the
1. Switch off the device.
2. Carefully remove mowing debris with a screwdriver or
Clean the guard regularly to prevent the shaft tube
Maintenance and care
Clean the device after every use with a brush and a dry
cloth. Do not use cleaning agents or water.
1. Remove the star screw, take off the cover and take
Neveroperatethedevicewithoutafuellter.Severeen-
gine damage may result.
1. Completely remove the fuel cap.
2. Empty the remaining fuel into a suitable container.
1. Move the device slowly and with care, ensuring that
the string does not impact with obstacles.
Trimming around tree trunks
1. Guide the device slowly and carefully around tree
trunks, ensuring that the cutting string does not touch
2. Mow from left to right around tree trunks.
3. Cut grass and weeds with the tip of the string and
keep the string head tilted slightly forwards.
Trimming along stone walls, foundations and tree
leads to increased string wear.
1. Tilt the string head to the right at an angle of
2. Move the handgrip to the desired position.
Remove foreign objects from the working area.
Risk of injury / damage to property from ejected foreign
Mowing with the cutting blade
When mowing with the cutting blade, the cutting blade
should be guided in a curving horizontal motion from one
Before using the cutting blade, observe the following ad-
ditional instructions:
Use the shoulder strap.
Checkthatthecuttingbladeiscorrectlytted.
Wear protective clothing and eye protection.
Do not use weed cutter blades for cutting brush-
wood and young trees!
Only use original cutting knives and accessories!
Non-original parts can cause injuries and device mal-
obstacles – Danger of recoil / risk of injury!
Dense vegetation, young trees or brushwood can jam the
cutting blade and stop it turning.
Avoid jamming by noting the direction in which the veg-
etation leans and then cutting from the opposite side.
If the cutting blade becomes entangled during cutting:
Switch off the engine immediately.
Hold up the device so that the cutting blade does
Push the caught material awayTranslation of the original operating instructions
Empty the fuel tank before long periods of storage (over
Only empty the fuel tank outdoors
Allow the engine to cool down before storage
1. Empty the fuel tank.
2. Start the engine and let it idle until it stops.
3. Let the engine cool down.
4. Loosen the spark plug with a spark plug socket.
5. Pour a teaspoon of 2-stroke oil into the combustion
chamber. Pull the starter cord slowly several times to
distribute the oil in the interior of the engine.
6. Insert the spark plug again.
7. Thoroughly clean and service the device.
8. Store the device in a cool dry place.
Do not store fuelled machine in buildings where the
petrolfumesmightcomeintocontactwithnakedames
Keep the area around the engine, exhaust, battery case
and fuel tank clear of grass cuttings, petrol and oil.
Carburettor adjustment
The carburettor is optimally adjusted at the factory.
Spark plug gap = 0.635 mm [0.025"].
1. Tighten the spark plug with a torque of 12-15 Nm.
2. Push the spark plug connector onto the spark plug.
Sharpening the string cutter blade
1. Remove the cutting blade from the guard.
2. Clamp the cutting blade in a vice and sharpen it with
File in one direction only.
Adjusting the Bowden cables
The Bowden cables of your strimmer are factory-adjusted.
Ifthepositionofthe“bikegrip”handleischangedsigni-
cantly, this can cause the Bowden cable to stretch, result-
ing in malfunctioning of the throttle.
If the cutting head does not come to a standstill after the
strimmer has been started and the half throttle lock has
been released, the Bowden cable must be adjusted by
means of the adjusting screw (Fig.10-1).
Correct functioning of the throttle is then assured once
Risk of injury from rotating cutting head!
Only adjust Bowden cables with the engine switched
Only check the function with the strimmer lying down.
1. Remove the spark plug.
2. Quickly pull the starter cord to remove leftover oil from
the combustion chamber.
3. Clean the spark plug and check the spark gap. Re-
4. Prepare the device for operation.
5. Fill the tank with the correct fuel/oil mixture (25:1).
Machines that are no longer
required must not be disposed
of with household waste!
Packaging, machine and accessories are manufac-
tured using recyclable materials and must be disposed
PROBLEM POSSIBLE CAUSE CORRECTION Engine does not start Incorrect starting procedure Observe operating instructions
Engine starts but does not
Wrong lever position on the choke Set the lever to RUN Dirty, incorrectly adjusted or wrong
Clean, adjust or exchange the spark
Fuellterclogged Exchangethelter
Engine starts but does not run
with full performance
Wrong lever position on the choke Set the lever to RUN Airlterclogged Cleanorexchangethelter
Motor runs spasmodically Dirty, incorrectly adjusted or wrong
Clean, adjust or exchange the spark
Excessive smoke Incorrect fuel mixture Use the correct fuel mixture
In the case of faults that are not listed in this table, or faults that you cannot rectify without assistance, please
contact our customer service department.22
Vertaling van de originele gebruikershandleiding
11 Hefboom “Choke“ - “Run”
Access. Lame --- Réf. 112405
CHOKE (CHOKE) RUN (DRIFT)
Stille inn forgasser
CHOKE RUN Soğuk start
Wolfgang Hergeth, Managing Director
EC declaration of conformity EN We hereby declare that this product, in the form in which it is marketed, meets the requirements of the harmonised EU
guidelines,EUsafetystandards,andtheproduct-specicstandards.
89359 KOETZ DEUTSCHLAND Executive Officer
measured / guaranteed
BC 410 II 116 / 119 dB(A)
Conformity evaluation
Wolfgang Hergeth, Managing Director
Warranty EN If any material or manufacturing defects are found during the statutory customer protection period, we will either repair
or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the
legislation in force in the country where the equipment was purchased.
Our warranty is valid only if:
The equipment has been used properly
The operating instructions have been followed
Genuine replacement parts have been used
The warranty is no longer valid if:
The equipment has been tampered with
Technicalmodicationshavebeenmade
The trimmer was not used for its intended purpose
(for example, used for commercial or communal ap-
The following are not covered by warranty:
Paint damage due to normal wear
Wearpartsidentiedbyaborder xxx xxx (x) on the spare parts list
Combustion motors – these are covered by a separate warranty from the manufacturer concerned
To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest autho-
rised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
2000/14/EG Anexa V Named service
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
Wolfgang Hergeth, Managing Director
