Product type	Professional mixer for construction materials
Brand	Bosch
Model	GRW 18-2 E Professional
Rated power input	1600 W
Power output	1170 W
No-load speed (1st gear)	0 – 450 rpm
No-load speed (2nd gear)	0 – 1050 rpm
Rated torque (1st gear)	45 Nm
Rated torque (2nd gear)	19 Nm
Maximum mixing paddle diameter	180 mm
Tool holder	M14 (external thread)
Weight according to EPTA-Procedure 01:2014	7.2 kg
Protection class	II (double insulation)
Sound pressure level	91 dB(A)
Sound power level	102 dB(A)
Vibration (ah)	3.5 m/s² (uncertainty K = 1.5 m/s²)
Power supply	230 V ~, 50/60 Hz
Main functions	2 mechanical speeds, electronic speed control, lock-on button
Maintenance and cleaning	Clean ventilation slots, disconnect plug before any maintenance
Safety	Double insulation, circuit breaker, switch lock
Spare parts and repairability	Bosch after-sales service, spare parts available at www.bosch-pt.com
General information	Intended use: mixing of mortars, plasters, adhesives, solvent-free paints

Frequently Asked Questions - GRW 18-2 E Professional BOSCH

What materials can be mixed with the Bosch GRW 18-2 E Professional?

This tool is designed for mixing powder construction materials such as mortars, plasters, adhesives, solvent-free paints and varnishes, and similar materials. It is not suitable for mixing food.

How to change the speed on the GRW 18-2 E?

The speed selector (1) allows you to choose between two ranges: Speed I (low, up to 450 rpm) for mixing paddles up to 180 mm, and Speed II (high, up to 1050 rpm) for mixing paddles up to 140 mm. Operate the selector only when the tool is at a standstill.

How to adjust the speed continuously?

The speed varies continuously depending on the pressure applied to the On/Off switch (3). Light pressure gives a low speed; stronger pressure increases the speed.

What type of mixing paddle to use for low-viscosity products?

For low-viscosity products (acrylic paints, varnishes, adhesives), use a mixing paddle with left-hand spiral. This mixes from top to bottom and reduces splashing.

What type of mixing paddle to use for high-viscosity products?

For high-viscosity products (plasters, concrete, mortars), use a mixing paddle with right-hand spiral. This mixes from bottom to top and provides a homogenous mixture.

How to clean the mixer after use?

Clean the mixer after each use. Disconnect the tool from the plug before any cleaning. Use a damp cloth or brush, without aggressive products.

What are the essential safety precautions?

Wear personal protective equipment (goggles, gloves, mask). Keep the cable out of the work area. Never put your hand in the container during mixing. Ensure the container is stable.

How to mount the mixing paddle on the tool?

Screw the mixing paddle (5) onto the drive shaft (4) using an open-end wrench to lock the shaft (GRW 18-2 E: 24 mm wrench) and another to tighten the paddle (22 or 24 mm). Removal is done in reverse order.

What is the power input and output of the GRW 18-2 E?

The rated power input is 1600 W and the power output is 1170 W. These values are valid for a nominal voltage of 230 V.

Where to find spare parts and after-sales service?

You can order spare parts on the website www.bosch-pt.com or via the Bosch after-sales service. In France, contact the Bosch Power Tools Customer Service at 09 70 82 12 26 or by email at [e-mail].

USER MANUAL GRW 18-2 E Professional BOSCH

3D rendering of two identical mechanical components with coiled pipes and housing (no text or symbols visible)

www.bosch-pt.com/serviceaddresses

Entsorgung

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust or fumes.

▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving

10 | English

parts. Loose clothes, jewellery or long hair can be caught in moving parts.

▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Mixer safety instructions

▶ Hold the tool with both hands at the intended handles. Loss of control can cause personal injury.

▶ Ensure sufficient ventilation when mixing flammable materials to avoid a hazardous atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces.
▶ Do not mix food. Power tools and their accessories are not designed for processing food.
▶ Keep the cord away from the working area. The cord may be entangled by the mixer basket.
▶ Ensure that the mixing container is placed in a firm and secure position. A container that is not properly secured may move unexpectedly.
▶ Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can cause damage and lead to electric shock.
▶ Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful.
If the power tool falls into the material to be mixed, unplug the tool immediately and have the power tool checked by a qualified repair person. Reaching into the bucket with the tool still plugged in can lead to electric shock.
▶ Do not reach into the mixing container with your hands or insert any other objects into it while mixing. Contact with the mixer basket may lead to serious personal injury.
▶ Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled manner.
▶ Do not use on explosive materials (e.g highly flammable solvents). Power tools produce sparks which can ignite fumes.
▶ Follow the instructions and warnings in the safety data sheets (SDS) of the mixing material. The mixing material may be harmful.
▶ Do not use the power tool when it is connected to a stand. Bench-mounted operation of the power tool is not permitted.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is suitable for stirring construction materials in powder form, such as mortar, plaster, adhesives and paints and varnishes which do not contain solvents, as well as similar substances.

Product features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Gear selector switch (GRW 18-2 E)
(2) Lock-off function for on/off switch
(3) On/off switch
(4) Drive spindle
(5) Stirrer paddle ^a)
(6) Handle (insulated gripping surface)
a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Stirring mechanism GRW 12 E GRW 18-2 E
Article number		3 601 AA7 0..	3 601 AA8 0..
Rated power input W 1200 1600
Power output W 780 1170
Mechanical gear selection - ●
No-load speed
- 1st gear min	-1	0-1000	0-450
- 2nd gear min	-1	-0-1050
Rated speed
- 1st gear min	-1	0-620	0-250
- 2nd gear min	-1	-0-580
Rated torque
- 1st gear Nm 12 45
- 2nd gear	Nm	-19
Tool holder		M14	M14
Maximum stirrer paddle diameter	mm 140 180
Weight according to EPTA-Procedure 01:2014	kg	5.3	7,2
Protection class		☐/II	☐/II

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/vibration information

		GRW 12 E GRW 18-2 E
Noise emission values determined according to EN 62841-2-10.
Typically, the A-weighted noise level of the power tool is
Sound pressure level	dB(A)	91	91
Sound power level	dB(A)	102	102
Uncertainty K	dB	3	3
Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 62841-2-10:
a_h	m/s2	3.0	3.5
K	m/s2	1.5	1.5

12 | English

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.

Assembly

▶ Pull the plug out of the socket before carrying out any work on the power tool.

Changing the Tool

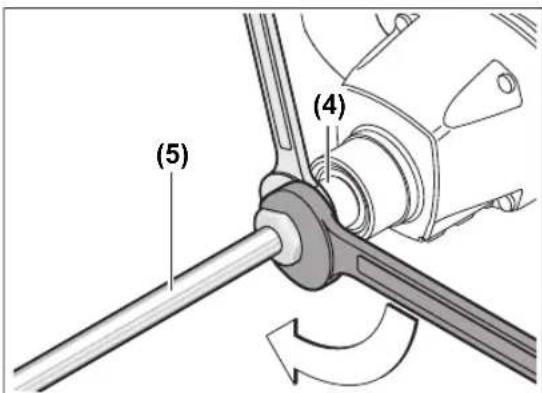

Stirrer paddle with M14 male thread

Screw the stirrer paddle (5) into the drive spindle (4). To do this, hold the drive spindle (4) using an open-ended spanner (GRW12 E: Width across flats 22 mm, GRW18-2 E: Width across flats 24 mm) and use a second open-ended spanner (width across flats 22 mm or 24 mm) to tighten the stirrer paddle (5).

The stirrer paddle is disassembled in reverse order.

Operation

Starting Operation

▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230 V can also be operated with 220 V.

Dusts, e. g. mineral dusts, can be harmful to health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Materials containing asbestos may only be machined by specialists.

- Provide good ventilation at the workplace.

- It is advisable to wear a P2 filter class breathing mask.

The regulations on the material being machined that apply in the country of use must be observed.

Mechanical gear selection (GRW 18-2 E)

▶ Operate the gear selector switch only when the power tool is not in use.

Press in the gear selector switch (1) and slide it until it locks. You can preselect two speed ranges with the gear selector switch (1).

First gear:

Low speed range; when working with stirrer paddles with diameters up to 180 mm.

Second gear:

High speed range; when working with stirrer paddles with diameters up to 140 mm.

If the gear selector switch (1) cannot be slid all the way when the power tool is not in use, turn the drive spindle slightly with the stirrer paddle.

Switching on/off

To start the power tool, first press the lock-off button (2), then press the on/off switch (3) and keep it pressed.

Note: For safety reasons, the on/off switch (3) cannot be locked; it must remain pressed during the entire operation. To switch off the power tool, release the on/off switch (3).

Adjusting the Speed

You can adjust the speed of the power tool when it is on by pressing in the on/off switch (3) to varying extents.

Slight pressure on the on/off switch (3) results in a low rotational speed. Increased pressure on the switch causes an increase in speed.

Work instructions for stirring

▶ Do not use the power tool when it is connected to a stand. Bench-mounted operation of the power tool is not permitted.
- Avoid splashing the material. Otherwise you could slip and lose control of the power tool.
- Avoid continuously operating the power tool at reduced speed. Otherwise the motor of the power tool could overheat.

Selection of the stirrer paddle is dependent on the material that is to be stirred.

For materials with low viscosity, e.g. emulsion paint, varnishes, adhesive, grouting compound or cement slurry, use a stirrer paddle with a left-hand spiral. The material is moved from the top downwards in a stirrer paddle with a left-hand spiral. The stirrer paddle is pushed upwards. Materials with low viscosity are mixed in a way which minimises splattering. For materials with high viscosity, e.g. ready-mixed plaster, concrete, cement, screed, filler or epoxy resin, use a stirrer paddle with right-hand spiral. The material is moved from the bottom upwards in a stirrer paddle with a right-hand spiral. The stirrer paddle works its way into the mixture. Materials with high viscosity are mixed thoroughly.

Move the power tool up and down when working. Clean the stirrer paddle after use.

▶ Store the power tool in a safe place. Ensure that it cannot fall over. The power tool may become damaged if this happens.

Maintenance and Service

Maintenance and Cleaning

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113), power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Eliminação

www.bosch-pt.com/serviceaddresses

Smaltimento

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

www.bosch-pt.com/serviceaddresses

Deponering

www.bosch-pt.com/serviceaddresses

Απόσυρση

www.bosch-pt.com/serviceaddresses

Tasfiye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

www.bosch-pt.com/serviceaddresses

Likvidácia

www.bosch-pt.com/serviceaddresses

Eltávolítás

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Утилізація

www.bosch-pt.com/serviceaddresses

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminare

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

www.bosch-pt.com/serviceaddresses

Отстранување

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

www.bosch-pt.com/serviceaddresses

Odlaganje

Električno orodje, pribor in embalažo je treba dostaviti v okolju prijazno ponovno predelavo.

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Šalinimas

Robert Bosch Morocco SARL

1. شارع الملازم محمد م representatives

20300 alدار البيضاء

www.bosch-pt.com/serviceaddresses

Pure mechanical diagram of a vertical rod with coiled tubing, no text or symbols present

M 14, ∅ 120 mm 2 607 990 016 M 14, ∅ 140 mm 3 609 201 038 M 14, ∅ 160 mm 2 607 990 017 M 14, ∅ 140 mm (INOX) 2 607 990 023

Pure mechanical diagram showing a spiral component with no text or symbols

M 14, ∅ 120 mm 2 607 990 014

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Rührwerk	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Stirring mechanism	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Agitateur	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Mezcladora	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Misturador	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Miscelatore	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Mengmachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Røremaskine	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Maskinomrörare	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Røreverk	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Sekoituskone	Tuotenumero
el	Δήλωση πιστότητας EE		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:*
	Αναδευτήρας	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Mikser	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Mieszalnik	Numer katalogowy
cs	EU prohlásení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařizení aje vsouladu snásledujícími normami:Technické podklady u:*
	Míchadlo	Objednací číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcími normami:Technické podklady má spoločnosť:*
	Miešač	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Keverő berendezés	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Миксер	Товарный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Мішалка	Товарний номер
kk	EO сәйкестік мағлумдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалар мен жарлықтардың тиісті қағилаларына сәйкестігін және төмендегі нормаларға сай екенін білдіреміз.Техникалық құжаттар:*
	Араластыратын құрылғы	Өнім нөмірі
ro	Declaratie de conformitate UE		Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Agitator	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти otговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Бъркачка	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:*
	Мешалка	Број на дел/артик
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Mešalica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:*
	Mešalnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Miješalica	Kataloški br.

CE
III

et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumendid saadaval: *
	Segisti	Tootenumber
lv	Deklaräcija par atbilstibu ES standartiem		Mës ar pilnu atbildibu paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rikojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Maisītāja mehānisms	Izstrādājuma numurs
lt	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomusžemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Maišytuvas	Gaminio numeris
	GRW 12 E	3 601 AA7 0..	2006/42/EC	EN 62841-1:2015
	GRW 18-2 E	3 601 AA8 0..	2014/30/EU	EN 62841-2-10:2017
			2011/65/EU	EN 55014-1:2017+A11:2020
				EN 55014-2:2015
				EN IEC 61000-3-2:2019
				EN 61000-3-3:2013+A1:2019
				EN IEC 63000:2018
			BOSCH	* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Henk BeckerChairman of Executive Management	Helmut HeinzelmannHead of Product Certification
			Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 16.07.2020

IV

CE

Declaration of Conformity

Stirring mechanism Article number

GRW 12 E 3 601 AA7 060

3601AA7070

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN 62841-1:2015

EN 62841-2-10:2017

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN IEC 63000:2018

BOSCH

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road,

Uxbridge UB9 5HJ, United Kingdom

Vonjy Rajakoba

Managing Director - Bosch UK

Martin Sibley

Head of Sales Operations and Aftersales

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 03/06/2021
