MFQ3555 - Food processor BOSCH - Free user manual and instructions

Product type	Food processor
Brand	Bosch
Model	MFQ3555
Dimensions (L x W x H)	30 x 25 x 35 cm
Weight	5 kg
Power supply	220-240 V, 50/60 Hz
Power	800 W
Bowl capacity	3.5 liters
Main functions	Kneading, mixing, beating, whisking, chopping
Bowl material	Stainless steel
Included accessories	Dough hook, whisk, beater
Number of speeds	7 + pulse function
Safety	Anti-start system if bowl not locked
Cleaning	Bowl and accessories dishwasher safe
Repairability	Spare parts available
Warranty	2 years

Frequently Asked Questions - MFQ3555 BOSCH

How to use the Bosch MFQ3555 food processor to knead bread dough?

Place the dough hook in the bowl, add the ingredients, then select speed 2 for 5 minutes. Do not exceed speed 3 to avoid overloading the motor.

Can I put the stainless steel bowl in the dishwasher?

Yes, the bowl and accessories (except the motor unit) are dishwasher safe. Place them in the top basket to avoid deformation.

What to do if the food processor does not start?

Check that the bowl is properly locked in place. If the problem persists, press the reset button located under the appliance.

The whisk does not turn correctly, what should I check?

Make sure the whisk is fully inserted until it stops. If necessary, grease the shaft with food-grade oil to improve rotation.

What is the maximum flour capacity for kneading?

Do not exceed 500 g of flour for optimal kneading. Beyond that, you risk overloading the motor and damaging the appliance.

Can I use the food processor without the lid?

No, the lid is mandatory to prevent splashes. Additionally, the safety device prevents starting without the lid.

How to clean the motor unit?

Never immerse the motor unit in water. Wipe it with a damp cloth and dry it immediately. Ventilation slots must remain dry.

What accessories are compatible with the MFQ3555?

The model uses specific Bosch accessories from the MFQ series. Check compatibility on the Bosch website before purchasing a third-party accessory.

What is the pulse function used for?

The pulse function delivers bursts of maximum power to quickly chop hard foods like nuts or chocolate. Press and hold the button in short bursts.

Where to find spare parts for the MFQ3555?

Go to the official Bosch website or an authorized dealer. Use the part reference indicated in the manual to order.

USER MANUAL MFQ3555 BOSCH

- 1 Päckchen Backpulver

- 60 ml Milch

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is intended for domestic use only.

Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use.

The appliance is suitable for stirring, beating and mixing soft food-stuffs and liquids, and for kneading soft dough. When used with the high-speed hand blender, the appliance is suitable for cutting or mixing food. The appliance should not be used for processing other substances or objects.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Risk of electric shock and fire!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. Do not place the appliance on or near hot surfaces, e.g. hobs.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. The power cord must not come into contact with hot parts or be pulled across sharp edges. Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands. Do not immerse the appliance in liquid above the joint between the high-speed hand blender and base unit.

After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

Never connect the appliance to timer switches or remote-controllable sockets. If the power is interrupted, the appliance remains switched on and restarts when the power is restored. Switch off the appliance immediately. Never leave the appliance unattended while it is switched on! Never leave the appliance switched on for longer than is necessary to process the ingredients. Immediately after using the appliance, wait for it to stop. Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Do not operate the appliance at idle speed. Keep hands clear of rotating parts. Never grip the blade in the blender foot. Never clean blades with bare hands. Use a brush. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools. Use the appliance only with genuine parts and accessories. Only insert tools of the same type (e.g. 2x kneading hooks) in pairs. Never simultaneously use tools and an accessory inserted in the rear aperture.

Risk of scalding!

Take care when processing hot food. Hot food may splash during processing.

⚠️ Important!

Before using the high-speed hand blender in a cooking pot, take the pot off the hotplate. The blender jug is not suitable for use in the microwave.

It is essential to clean the appliance as described after each use or after it has not been used for an extended period. "After using the appliance/cleaning" see page 12

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Content

Intended use....9
Safety instructions....9
Overview.... 11
Operation....11
After using the appliance/cleaning......12
Troubleshooting....12
Recipes....13
Disposal....14
Guarantee....14

Overview

Please fold out the illustrated pages.

→ Fig. A

Base unit

1 Ejector button

For removing the tools

2 5-level switch + instantaneous switching

For switching the appliance on and off and adjusting the operating speed.

0/off = switched off

1 = lowest speed

5 = highest speed

M = instantaneous switching

(highest speed), press left and hold down

3 Power cord

4 Rear aperture with lock

For inserting accessories, e.g.the high-speed hand blender

5 Release buttons

For removing accessories from the rear aperture. Press both buttons simultaneously.

6 Apertures for inserting the tools

Tools

7 Stirring whisks

8 Kneading hooks

For some models:

9 High-speed hand blender

10 Blender jug

11 Universal cutter

(separate instruction manual)

If the universal cutter or high-speed hand blender is not included in the product package, these can be ordered from customer service.

Operation

Base unit with tools

An especially good result is achieved if the tools are used for the following applications.

Stirring whisks for:

Sauces, egg whites, mashed potatoes, crème fraîche, mayonnaise, cream and light dough, e.g. cake mixture.

Stirring whisks are not suitable for processing heavy dough.

Kneading hooks for:

Stiff mixtures such as short pastry, yeast dough and potato dough as well as for mixing heavy mincemeat dough, pasta or bread dough.

The maximum processing quantity is 500 g of flour and ingredients.

Important note: When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1-5 will not function. Open and close the lock on the rear aperture only when the switch is in position 0/off.

⚠️ Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot. Never clean blades with bare hands. Use a brush. Never grip the rotating tools. Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

■ Before using the appliance for the first time, clean the base unit and tools.

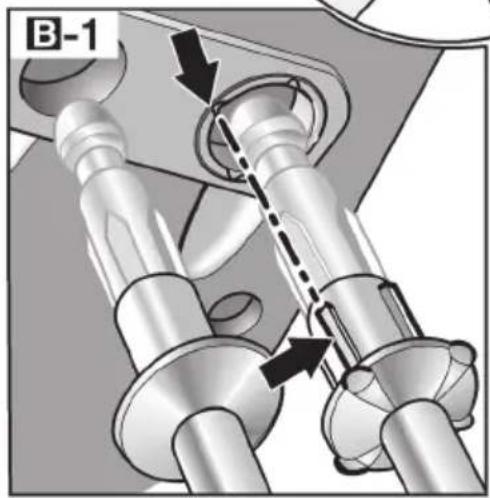

→ Fig. B

■ Completely unwind the power cord.
■ Place the required tool on the base unit and depress until it locks into position.

Note the shape of the plastic parts on the tools to prevent mixing them up (see Fig. B-1)!

■ Plug into the mains.
■ Place the food in a suitable receptacle.

en After using the appliance/cleaning

■ Insert tools into the receptacle and switch on the appliance at the required level.

Level 1, 2:

For working in and mixing in.

Level 3, 4, 5:

For kneading and beating.

■ After working, set the switch to 0/off and release and remove the tools with the ejector button.

Caution:

The ejector button cannot be actuated unless the switch is in the 0/off position.

Note: Always switch off the base unit before taking it out of the blended food.

High-speed hand blender (depending on the model)

For blending mayonnaise, sauces, soups, mixed drinks, baby food and for crushing ice and cutting cooked fruit and vegetables.

Important note: When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1-5 will not function. Open and close the lock on the rear aperture only when the switch is in position 0/off.

→ Fig. ©

■ Push up the lock on the rear aperture until it locks into position.
■ Insert the high-speed hand blender and lock into position.
■ Put the food in the blender jug.
■ Move the switch to the left to instantaneous switching and hold in place.
■ After working, remove the high-speed hand blender by simultaneously pressing both release buttons.
■ Close the lock on the rear aperture.

Note: To prevent the food from splashing, first immerse the high-speed hand blender into the food, then switch on the appliance.

After using the appliance/cleaning

Important note: The appliance is maintenance-free. Thorough cleaning protects the appliance from damage and keeps it functional.

Caution!

Never immerse the base unit in water and do not clean in the dishwasher. Do not steam-clean the appliance!

■ Pull out the mains plug.
■ Wipe the base unit with a damp cloth and then wipe dry.
■ Clean the tools and high-speed hand blender in the dishwasher or with a brush under running water.

Note: when processing food such as red cabbage, the plastic parts may become discoloured, however this can be removed with a few drops of cooking oil.

The power cord can be wound up to facilitate storage of the appliance (see Fig. D).

Troubleshooting

Fault:

Switch cannot be moved to Levels 1 to 5.

Remedy:

When the rear aperture is open, the selector switch will not function between Levels 1 and 5. The lock must be completely closed.

Recipes

Whipped cream

- 100-500 g whipped cream

■ Cream with the stirring whisk for 12 to 5 minutes at Level 5, depending on the quantity and properties of the cream.

Egg whites

- 1-5 egg whites

■ Using the stirring whisks, beat the egg whites for 2 to 5 minutes at Level 5.

Sponge mixture

Basic recipe

- 2 eggs

- 2-3 tbsp hot water

- 100 g sugar

- 1 sachet vanilla sugar

- 70 g flour

- 70 g cornflour

– Baking powder if required

■ Beat the ingredients (except flour and cornflour) with the stirring whisk for approx. 3-4 minutes at Level 5 until frothy.

■ Switch appliance to Level 1, mix sifted flour and cornflour by the spoonful within approx. 12 to 1 minute.

Maximum quantity: 2x basic recipe

Cake mixture

Basic recipe

- 2 eggs

- 125 g sugar

- 1 pinch of salt

- 1 sachet of vanilla sugar or peel from 12 lemon

- 125 g butter or margarine (room temperature)

- 250 g flour

- 1 sachet of baking powder

- 60 ml milk

■ Mix all ingredients with the stirring whisk for approx. 12 minute at Level 1, and then for approx. 3-4 minutes at Level 5.

Maximum quantity: 2x basic recipe

Shortcrust pastry

Basic recipe

- 125 g butter (room temperature)

- 100-125 g sugar

-1 egg

- 1 pinch of salt

– A little lemon peel or vanilla sugar

-250g flour

– Baking powder if required

■ Mix all ingredients with the kneading hook for approx. 12 minute at Level 1, then for approx. 3-4 minutes at Level 5.

Maximum quantity: 2x basic recipe

Base for fruit flan

Basic recipe

-2 eggs

- 125 g sugar

- 125 g ground hazelnuts

- 50 g breadcrumbs

■ Beat eggs and sugar for 3-4 minutes at Level 5 until frothy.

■ Switch appliance to Level 1, add hazelnuts and breadcrumbs and process for 12 minute with the stirring whisk.

Maximum quantity: 2x basic recipe

Plaited loaf

Basic recipe

-250g flour

- 1 sachet dried yeast

- 110 ml warm milk

- 1 egg

- 1 pinch of salt

- 40 g sugar

- 30 g melted, cooled fat

– Peel of half a lemon, grated

■ Mix all ingredients with the kneading hook for approx. 12 minute at Level 1, then for approx. 3-4 minutes at Level 5.

Maximum quantity: 2x basic recipe

Pizza dough

Basic recipe

• 250 g flour
• 1 sachet dried yeast
• 1 tsp sugar
• 1 pinch of salt
• 3 tbsp oil
• 125 ml warm water

■ Mix all ingredients with the kneading hook for approx. 12 minute at Level 1, then for approx. 3-4 minutes at Level 5.

Maximum quantity: 2x basic recipe

Bread dough

Basic recipe

• 500 g flour
• 14 g sugar
• 14 g margarine
  -7 g salt
• 1 sachet dried yeast
• 250 ml water
  ■ Mix all ingredients with the kneading hook for approx. 12 minute at Level 1, then for approx. 3-4 minutes at Level 5.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrica and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
