Product Type	Food Processor
Brand	Bosch
Model	MCMV504ACN
Dimensions (H x W x D)	Approx. 16 x 10 x 10 inches
Weight	Approx. 8.8 lbs (4 kg)
Power Supply	120 V, 60 Hz, 600 W
Bowl Capacity	Approx. 3.5 liters (3.7 quarts)
Main Functions	Chopping, slicing, shredding, mixing, kneading, blending
Number of Speeds	Variable speed control with pulse function
Accessories Included	Stainless steel chopping blade, slicing disc, shredding disc, kneading hook, emulsifying disc
Material	High-quality plastic housing, stainless steel blades, BPA-free plastic bowl
Safety Features	Safety lock lid, non-slip feet, overload protection
Cleaning	Dishwasher-safe parts (bowl, lid, accessories), wipe motor unit with damp cloth
Maintenance	Regularly check blade sharpness, replace worn parts
Spare Parts Availability	Available via Bosch service centers or online retailers
Reparability	Modular design; many parts replaceable by user or technician
Energy Consumption	Approx. 0.6 kWh per use
Noise Level	Approx. 75 dB (typical)
Warranty	1 year limited warranty
Certifications	ETL, CE, RoHS compliant

Frequently Asked Questions - MCMV504ACN BOSCH

How do I assemble the food processor?

First, place the bowl on the motor unit and lock it by turning clockwise. Then, insert the desired accessory onto the drive shaft, add ingredients, and secure the lid. Finally, plug in and select speed.

What is the maximum capacity for kneading dough?

The maximum dough capacity is about 1.5 kg of flour. Overloading may strain the motor.

Can I blend hot liquids?

No, do not blend hot liquids above 140°F (60°C) to avoid pressure buildup and risk of burns. Let liquids cool first.

How do I clean the food processor?

Detach all removable parts. Wash bowl, lid, and accessories in warm soapy water or dishwasher (top rack). Wipe motor unit with a damp cloth. Never immerse motor unit in water.

What do I do if the machine stops during operation?

It may have overheated or overloaded. Unplug and let it cool for 30 minutes. Reduce load before restarting. If problem persists, contact Bosch support.

Can I use the food processor as a blender?

Yes, with the emulsifying disc or chopping blade, you can blend liquids, but it's not ideal for very thin liquids. For smoothies, use the chopping blade.

Are the accessories interchangeable with other Bosch models?

Some accessories may be compatible with other Bosch food processors of the same series, but always check the manual for compatibility.

How do I sharpen the blades?

Blades are designed to stay sharp for long term. Do not attempt to sharpen them yourself. Replace with genuine Bosch blades if they become dull.

What is the warranty period?

Bosch offers a 1-year limited warranty for manufacturing defects. Register your product online for warranty details.

Where can I find the user manual?

The manual is available for free download at notice-facile.com in PDF format. You can also request a translated version via email.

USER MANUAL MCMV504ACN BOSCH

Colorful salad with lettuce, carrot, and cucumber on a wooden table, with a glass of oil in the background (no text or symbols visible)

BOSCH kitchen blender with clear glass and black casing (no visible text or symbols)

Bowl of tomato sauce with visible vegetable pieces, placed on a wooden table with green beans nearby (no text or symbols)

食物料理机

MCMV..CN

MultiTalent 3

BOSCH

zh 使用说明书

en Instruction manual

Illustration of an open book with a curved arrow indicating rotation (no text or symbols)

安全须知

[e-mail]

公司网站：

www.bosch-home.cn

技术数据：

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is intended for domestic use only.

Use the appliance for processing normal quantities of food for domestic use; see “Recipes / Ingredients / Processing” section.

This appliance is suitable for mixing, kneading, beating, cutting and shredding food. Other applications are possible if the accessories approved by the manufacturer are used. It must not be used for processing other objects or substances.

Use the appliance with original accessories only.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions. Only use the appliance indoors at room temperature and up to 2000 m above sea level.

General safety instructions

Risk of electric shock

Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance shall not be performed by children. The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Do not leave the running appliance unattended. Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock

If the pwower is interrupted, the appliance remains switched on and restarts when the power is restored.

Never immerse the base unit in liquids or hold under running water and do not clean in the dishwasher. Do not use a steam cleaner.

Before eliminating a fault, pull out the mains plug.

Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients.

After switching off, the drive continues running for a short time.

Change tools only when the drive is at a standstill.

Risk of injury from sharp blades/rotating drive!

Never reach into the attached blender jug!

Do not remove/attach the blender jug until the drive has stopped. Do not remove/attach the universal cutter jug until the drive has stopped.

Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush.

Do not grip the sharp blades or edges of the cutting discs. Grip the discs by the plastic part in the centre only!

Do not place fingers in the feed tube. Only use the pusher when adding more ingredients. Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,4 litres of hot or frothing liquid.

Risk of injury!

Never assemble accessories on the base unit.

Important!

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. → "Cleaning and servicing" see page 17

Explanation of the symbols on the appliance or accessory

	Caution! Rotating tools.Do not place fingers in the feed tube.		Blade insert with blender/cutting blade
	Lock blade insert in the blender or universal cutter jug.		Blade insert with grinding blade
	Remove blade insert from the blender or universal cutter jug.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Country of origin:

Slovenia

Exclusive distributor:

BSH Home Appliances (China) Co., Ltd. 20/F, 21/F, CN International Mansion, 129 Zhongshan Road, Nanjing, Jiangsu Province, PRC.

Applicable standards:

GB 4706.1-2005

Safety of Household and Similar Electrical Appliances Part 1: General Requirements GB 4706.30-2008

Safety of Household and Similar Electrical Appliances – Particular Requirements for Kitchen Machines

Careline:

4008855888

Service E-mail:

[e-mail]

Company website:

www.bosch-home.cn

Technical specifications:

Electrical connection (voltage – frequency)	220-240 V~50/60 Hz
Power rating 800 W
Dimensions (H x W x D)	375 x 220 x 260 mm

Contents

For your safety 11

Overview 14

Operation 14

Cleaning and servicing....17

Troubleshooting 18

Storage....18

Disposal.... 18

Guarantee 18

Recipes / Ingredients / Processing ..... 19

Overview

The instructions describe different features of the appliance. Figure Ⅱ shows an overview of the model.

Please fold out the illustrated pages.

Fig. A

Base unit

1 Rotary switch

0 = Stop

脉冲 = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–2, Operating speed:

1 = low speed - slow,

2 = high speed - fast.

2 Drive

3 Cord store

4 Bowl

5 Tool holder

6 Tools\*

a Universal blade with blade guard

b Kneading hook

c Beating disc

7 Cutting discs\*

a Slicing reversible disc – thick/thin

b Shredding reversible disc – coarse/fine

c Reversible slicing/shredding disc

8 Lid

a Filler opening

b Pusher

Accessories\*

9 Blade insert with blender/cutting blade and seal

10 Blade insert with grinding blade and seal

11 Universal cutter jug

12 Blender jug

13 Lid for blender

a Filler opening

b Funnel-shaped stopper

* for some models

With the universal cutter use the appliance at full power (according to the recipe). You can find the recipe on the illustrated pages

(Fig. F).

If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 12005833).

Operation

Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

Preparation

■ Place the base unit on a smooth, clean surface.

■ Pull cable out of the base unit to the required length.

Important information

- Use only the rotary switch to switch the appliance on or off.

- Never switch the appliance off by rotating the bowl, the blender or a tool.

- Do not switch the appliance on unless tools or accessories have been completely attached.

Bowl with accessories/tools

⚠️ Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients. After switching off, the drive continues running for a short time. Change tools only when the drive is at a standstill.

Warning!

When working with the bowl, the appliance cannot be switched on until the bowl has been attached and the lid has been attached and screwed on tight.

Universal blade

for cutting, mincing, mixing.

⚠️ Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Grip the universal blade by the edge of the plastic handle only.

Kneading hook

for kneading dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips).

Beating disc

for cream, egg white and mayonnaise.

Fig. B

■ Attach the bowl (arrow on bowl on dot on the appliance) and rotate as far as possible in a clockwise direction.
■ Insert tool holder into the bowl.
■ Insert universal blade, whisking disc or kneading hook into the tool holder and release.

Note position of the tools when inserting them! Press tools all the way down.

Warning!

Do not add ingredients until the tools have been inserted.

■ Add ingredients.
■ Attach lid with pusher (match arrow on lid on dot on bowl) and rotate in a clockwise direction. Lid lug must be located fully in the slot in the bowl handle.
■ Insert the mains plug.
■ Set the rotary switch to the desired setting.
■ To add more ingredients, set the rotary switch to 0.
■ Remove the pusher and add ingredients through the feed tube. Pusher can be used as a measuring cup.

Cutting discs

⚠️ Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs. Take hold of discs by the plastic part in the centre only! Do not place fingers in the feed tube. Only use the pusher when adding more ingredients.

Slicing reversible disc – thick/thin

for slicing fruit and vegetables.

Process at setting 1.

Identification on the reversible slicing disc: "grob" for the thick cutting side, "fein" for the thin cutting side

Warning!

The reversible slicing disc is not suitable for slicing hard cheese, bread, rolls or chocolate. Slice boiled, waxy potatoes only when they are cold.

Shredding reversible disc – coarse/fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan).

Process at setting 1.

Designation on the reversible shredding disc: "2" for the coarse shredding side "4" for the fine shredding side

Warning!

The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 2.

Reversible slicing/shredding disc

for slicing and shredding fruit, vegetables and cheese.

Process at setting 2.

Note: Do not process any hard foods using the slicing/grating reversible disc as this may blunt the blade. Use the slicing reversible disc (thick/thin) for this purpose.

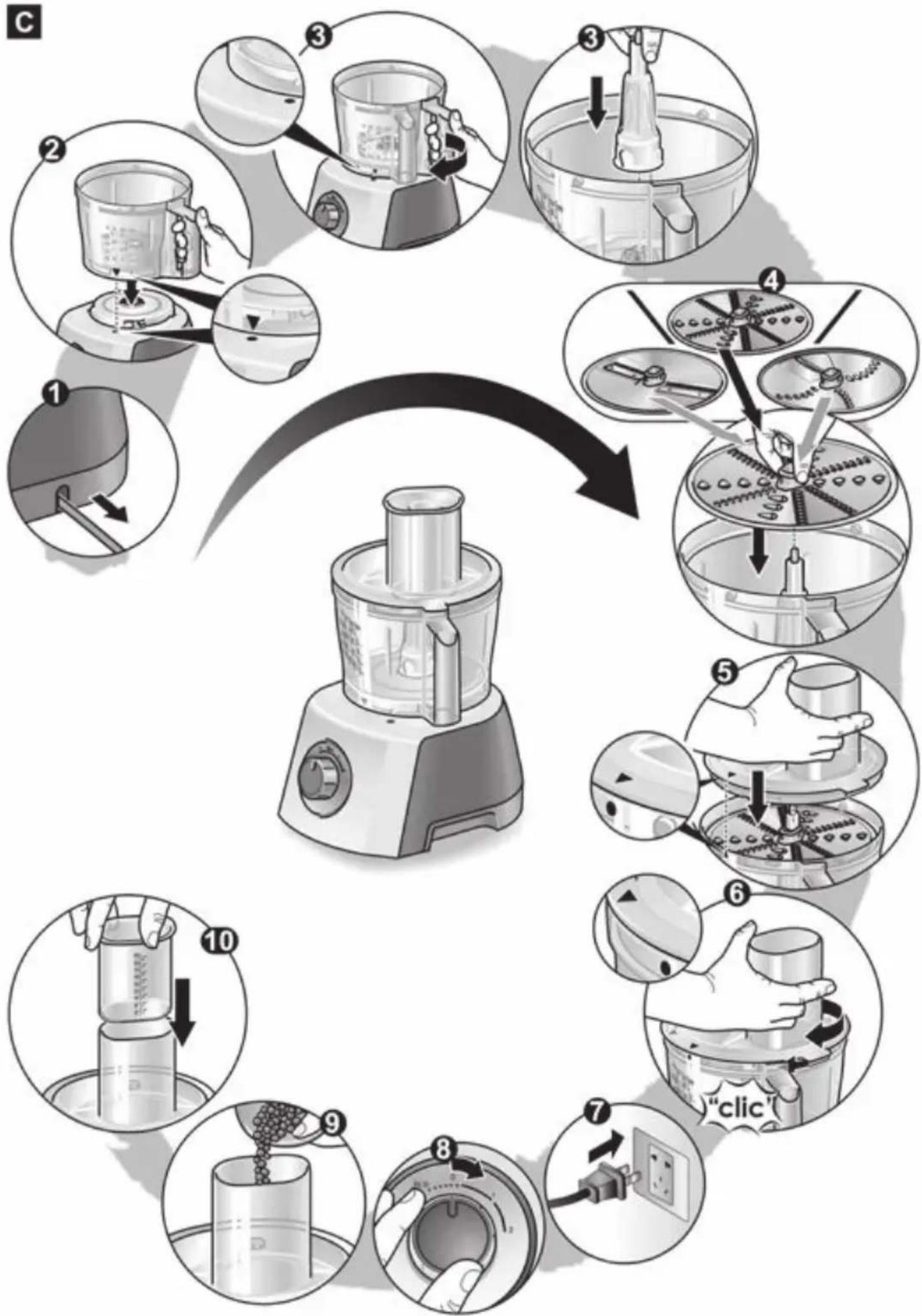

Fig. ©

■ Attach the bowl (arrow on bowl on dot on the appliance) and rotate as far as possible in a clockwise direction.
■ Insert tool holder into the bowl.

Depending on the required use:

■ Place cutting disc on tool holder. Turn required slicing/shredding side face up. Place disc on the disc holder so that the drivers on the tool holder grip the opening in the discs.

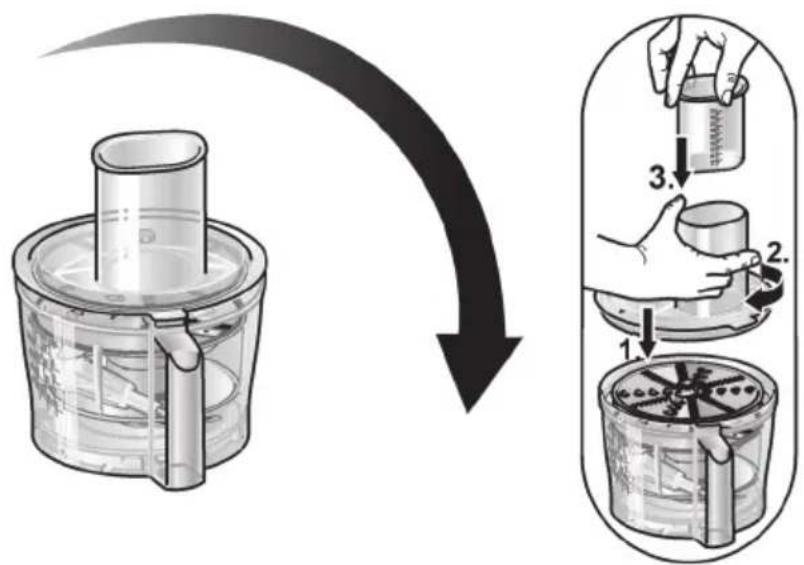

■ Attach lid with pusher (match arrow on lid to dot on bowl) and rotate in a clock-wise direction. Lid lug must be located fully in the slot in the bowl handle.
■ Insert the mains plug.
■ Set the rotary switch to the desired setting.
■ Fill with contents which are to be sliced or shredded.
■ When adding contents which are to be sliced or shredded, apply only light pressure to the pusher. Remove the pusher and add ingredients through the feed tube.

Warning!

Empty the bowl before it becomes so full that the cutting or grating contents reach the carrier disc.

After using the appliance

■ Set the rotary switch to 0.

■ Remove mains plug.
■ Rotate the lid in an anti-clockwise direction and remove.

■ Remove tool:

Take tool holder together with universal blade, whisking disc or kneading hook out of the bowl. Remove the tools from the tool holder.

■ Take out the cutting discs by the plastic stud in the centre. Take tool holder out of the bowl.

■ Rotate bowl anti-clockwise and remove.

- Clean all parts, see “Cleaning and servicing”.

Blender

Blade insert with blender/cutting blade for mixing liquid or semi-solid food, for cutting/chopping raw fruit and vegetables, for puréeing food.

⚠️ Risk of injury from sharp blades / rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill. Do not touch blades of the blade insert with bare hands. Clean them with a brush.

⚠️ Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,4 litres of hot or frothing liquid.

Warning!

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty.

Fig. D

■ Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

■ Insert blade insert with blender/cutting blade ⏻ into the blender jug and lock anti-clockwise (☐).
■ Turn blender jug over (blade insert face down).

■ Attach the blender jug (match arrow on the jug to the dot on the appliance) and rotate as far as possible in a clockwise direction.
■ Add ingredients.

Maximum capacity, liquid = 1.0 litres (frothing or hot liquids max. 0.4 litres).

Optimal processing capacity – solids = 80 g.

■ Attach lid and press firmly. Hold lid while working.

■ Insert the mains plug.

■ Set the rotary switch to the desired setting.

■ To add more ingredients, set the rotary switch to 0.

■ Remove the lid and add ingredients

or

■ remove the funnel and gradually add solid ingredients through the refill opening or

■ pour liquid ingredients through the funnel.

After using the appliance

■ Set the rotary switch to 0.

■ Remove mains plug.
■ Rotate the blender in an anti-clockwise direction and remove.
■ Remove lid.

■ Loosen blade insert clockwise (☐) and remove from the blender jug.

■ Clean all parts, see “Cleaning and servicing”.

Universal cutter

Use (depending on model):

- With the blade insert with blender/cutting blade 🍴️ for cutting and chopping meat, hard cheese, onions, herbs, garlic, fruit, vegetables.

- With the blade insert with grinding blade ① for grinding and cutting fairly small quantities of spices (e.g. pepper, cumin, juniper, cinnamon, dried anise, saffron), grain (e.g. wheat, millet, linseeds), coffee and sugar.

⚠️ Risk of injury from sharp blades / rotating drive!

Do not remove/attach the universal cutter until the drive has stopped.

Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Fig. F shows guide values for the maximum quantities and processing times when working with the universal cutter.

Fig. E

■ Put down universal cutter jug with the opening face up.
■ Add food, which is to be cut, in the jug. Note MAX mark on the jug!
■ Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

■ Insert blade insert (☐/☐) into the universal cutter jug and lock anti-clockwise (☐).

■ Turn universal cutter over (blade insert face down).
■ Attach the universal cutter (arrow on jug on dot on the appliance) and rotate all the way clockwise.
■ Insert the mains plug.
■ Set the rotary switch to the desired setting.

Note: The longer the appliance remains switched on, the finer the ingredients are cut. Recommendations on using the accessories can be found in the section “Recipes/Ingredients/Processing”.

After using the appliance

■ Set the rotary switch to 0.
■ Remove mains plug.
■ Rotate universal cutter anti-clockwise and remove.
■ Turn universal cutter over (blade insert face up).
■ Loosen blade insert clockwise (☐) and remove from the universal cutter jug.
■ Empty jug.
■ Clean all parts, see “Cleaning and servicing”.

Cleaning and servicing

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional. An overview of cleaning the individual parts can be found in Fig. C.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents.

Note: If processing e.g. carrots and red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Cleaning the base unit

■ Remove mains plug.
■ Wipe the base unit with a damp cloth. If required, use a little detergent.
■ Then dry the base unit.

Cleaning the bowl and accessories

⚠️ Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush. Do not grip the sharp blades or edges of the cutting discs. Take hold of discs by the plastic part in the centre only!

All parts are dishwasher-proof. Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender / universal cutter

⚠️ Risk of injury from sharp blades!

Do not touch blades of the blade insert with bare hands. Clean them with a brush.

The blender jug (without blade insert), lid and funnel are dishwasher-proof.

Do not clean the blade insert in the dishwasher, but under running water (do not soak in water). Remove seal for cleaning.

Troubleshooting

Risk of injury!

Before rectifying a fault, pull out the mains plug.

Fault:

Appliance does not start or appliance switches off during operation.

Possible cause:

Bowl or lid or the accessory has not been attached correctly or has become detached.

Remedial action:

■ Set the rotary switch to 0.

■ Correctly attach bowl/lid or accessory and screw on all the way.
■ Switch the appliance on again.

Important information

If the fault cannot be eliminated, please contact customer service (see customer service addresses at the end of this booklet).

Storage

Fig. H

The tools can be stored in the bowl to save space.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposals facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Recipes / Ingredients / Processing

Tool Speed Time Recipes / Ingredients / Processing
	low approx.1-2 min	Yeast dough– Max. 500 g flour– 25 g yeast or 1 packet of dried yeast– 220 ml milk (room temperature)– 1 egg– 1 pinch of salt– 80 g sugar– 60 g butter– Graded rind of half a lemon■ Add all ingredients (except the milk) to the bowl.■ Set rotary switch to a low speed for 10 seconds.■ Add milk and stir at low speed for about 112 minutes.Ingredients should be at the same temperature. When the dough has a smooth appearance, place in a warm location.
	脉冲	Onions, garlic– from 1 onion, quartered, up to 300 g– from 1 clove of garlic up to 300 g■ Process the onion/garlic until it has been chopped to the required size.
	high Hard cheese (e.g. parmesan)– 10 g to 200 g■ Cut the cheese into cubes.■ Process until it has been chopped to the required size.
	high Chocolate– 50 g to 200 g■ Cut or break the chocolate into pieces.■ Process until it has been chopped to the required size.
	high Parsley– 10 g to 50 g■ Process the parsley until it has been chopped to the required size.
	high Meat, liver (for mince, steak tartare, etc.)– 50 g to 500 g■ Remove bones, gristle and sinews. Dice the meat.Making sausage meat, stuffing and pâté:■ Put meat (beef, pork, veal, poultry, or even fish, etc.) together with other ingredients and spices into the bowl and mix into a dough.
	high approx.1.5 min– 2 min	Strawberry sorbet– 250 g frozen strawberries– 100 g icing sugar– 180 ml cream■ Put all ingredients in the bowl. Switch on immediately, otherwise the mixture will go lumpy. Mix until a creamy sorbet forms.
	low Beaten egg white- 2 to 6 egg whites■ Beat at a low speed.
	high Whipped cream- 200 g to 400 g■ Whisk at high speed.
	low/high	Mayonnaise- 1 egg- 1 tsp. mustard- 150-200 ml oil- 1 tbs. lemon juice or vinegar- 1 pinch of salt- 1 pinch of sugarIngredients should be at the same temperature.■ Mix all ingredients (except oil) for several seconds at setting 1.■ Switch appliance to setting 2, slowly pour oil through the feed tube and mix until the mixture emulsifies.Eat the mayonnaise immediately, do not store.
	high/脉冲	Nuts, almonds- 50 g to 200 g■ Remove shells completely, otherwise the blender blade will be blunted.■ Process to the required size.
	high/脉冲	Puréeing fruit or vegetables- Apple sauce, spinach, carrot and tomato purée; raw or cooked■ Put ingredients and spices into the blender and purée.
	high Chocolate-milk- 80 g–100 g cooled chocolate- approx. 400 ml hot milk■ Chop up the chocolate in the blender, add the hot milk and mix briefly.
	脉冲	Honey and hazel nut spread- 15 g hazelnuts- 110 g blossom honey (room temperature)■ Put the nuts in the universal cutter jug and cut with the blender/cutting blade for 20 seconds on setting 脉冲.■ Remove the universal cutter jug, turn it over and take out the blade insert.■ Add the honey. Close the universal cutter jug again with the blade and put on the base unit.■ Wait until all the honey has run down over the blade. Then mix everything for 5 seconds on setting 脉冲.
	Fig. F shows guide values for the maximum quantities and processing times when working with the universal cutter jug and the blade inserts.

DE Deutschland, Germany

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

תָאַעְרִי

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg.

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

*Mo-Sa: 8.00am to 8.00pm

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon;

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30am to 4.00pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

E

F

Diagram showing a plastic component with three small accessories and a plus sign, no text or symbols present.

Close-up of hands holding a circular dial with numbered segments and an arrow indicating rotation (no text or symbols)

x

60 g

40–60 s

2

x

50 g

(5-10)x脉冲

x

100 g

40–60 s

2

x

50 g

40–60 s

2

MCMV500MCN
MCMV504ACN
MCMV500MCN	✓ ✓	✓ ✓
MCMV504ACN	✓ ✓	✓ ✓
