USER MANUAL HUB 62-35 MIELE

3D rendering of a rectangular tray with a label 'Miolo' on the front face (no other text or symbols)

Illustration of a rectangular tray with a mesh pattern and the word 'Macle' on the lid (no other text or symbols)

de-DE 4
en-AU, NZ 8
nl-BE 12
fr-BE 16
bg-BG 20
de-CH 24
fr-CH 28
it-CH 32
zh-CN 36
cs-CZ 40
da-DK 44
et-EE 48
es-ES 52
fi-FI 56
fr-FR 60
en-GB 64
el-GR 68
zh-HK 72
hr-HR 76
hu-HU 80
it-IT 84
ja-JP 88
ko-KR 92

It-LT 96

Iv-LV 100

nl-NL 104

no-NO 108

pl-PL 112

pt-PT 116

ro-RO 120

sr-RS 124

ru-RU 128

sv-SE 132

sl-SI 136

sk-SK 140

tr-TR 144

uk-UA 148

ar-SA 152

Gourmet-Bräter

Illustration of a dome-shaped food cover with a lid (no text or symbols)

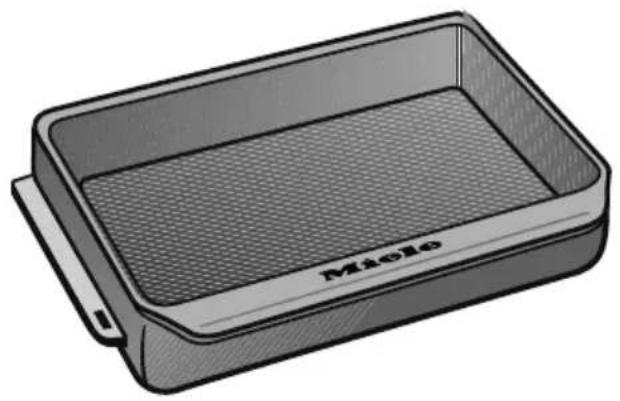

The Miele Gourmet oven dish (oven dish for short) is available in different sizes.

HUB 61/62 -35 -22
Capacity approx.	8 l	approx. 5 l
Width * 38 cm 38 cm
Depth * 35 cm 22 cm
Height * 8 cm 8 cm

* Internal dimensions, rounded down

The oven dish can be used in the oven, speed oven and on solid and ceramic glass cooktops.

The HUB 62-xx oven dishes are also suitable for use on induction cooktops.

The oven dish can be used for bakes, casseroles, gratins, pasta dishes and soups as well as for roasts, roulades or poultry.

Do not use the dish for baking cakes or bread.

The oven dish has a non-stick coating, so food can be removed easily after cooking and does not usually stick.

Use

Oven

The oven dish, unlike other roasting dishes, can be placed in the oven directly on the runners.

There is a safety notch at the back of the side supports to prevent the oven dish slipping off the runners in the oven when you only wish to pull it part of the way out of the oven.

Place the oven dish in the oven with the Miele logo visible.

Speed oven

⚠️ The Gourmet oven dish is not microwave safe.

The metal reflects the microwaves and this could lead to the creation of sparks.

Do not use the Gourmet oven dish with Microwave Solo or with Microwave combination programmes.

It can be used in a speed oven on all functions that do not use microwave power. Place it in the oven on the rack on shelf level 1.

Solid / Ceramic cooktops

Because the dish is heavy, small particles of soiling between the base of the oven dish and the ceramic glass could cause scratches to the surface of the cooktop and to the underside of the dish.

This could result in damage to the surface of the cooktop and also to the base of the oven dish.

When using the oven dish on a ceramic glass surface, place it down on the zone carefully. Do not push it backwards and forwards over the glass.

The Gourmet oven dish can be used on solid or ceramic glass cooktops and, depending on model, also on an induction cooktop.

If you are not sure whether your oven dish is suitable for use on an induction cooktop, you can test it using a magnet. Induction-compatible oven dishes are magnetic.

It is ideally suited for use on the extended zone of a cooktop. If your cooktop does not have an extended cooking zone, the oven dish should be used on the largest circular zone or over two small round zones situated one behind the other.

Not suitable for gas cooktops

⚠️ The Gourmet oven dish is larger than the permitted base size for pans over gas.

The base of the dish would force the gas flames outwards causing damage to worktops and surrounding furniture and fittings, with the risk of setting them alight.

The temperature within the gas flames is also too high for the Gourmet oven dish and could damage the non-stick coating.

Do not use the oven dish on a gas cooktop.

Tips for use

⚠️ Fire hazard! Oils and fats can ignite if allowed to overheat.

Never leave the Gourmet oven dish unattended when cooking with oil or fats.

Never attempt to put out oil or fat fires with water. Switch the appliance off.

Extinguish the flames carefully with a lid or fire blanket.

Non-stick coating

Because food does not stick to the non-stick coating, only very little fat or oil suitable for frying is necessary when cooking with this dish. This has the added advantage of keeping down the calorie count.

Use a low to medium heat for cooking.

Before searing or frying food on the cooktop, pre-heat the Gourmet oven dish on a high setting with nothing in it for a maximum of 1 - 2 minutes.

Remember to turn the heat down once the food is seared and continue cooking on a lower setting.

To prevent damage to the non-stick coating:

• Do not overheat the Gourmet oven dish.
  Turn the temperature down in good time.
• Do not use metal or sharp utensils in it.
  Only use plastic or wooden utensils.

- Do not leave food in the Gourmet oven dish to marinate for long periods of time.

Hot sauces or dishes with a high acidic content could adversely affect the non-stick coating if left in the oven dish for a long period of time. Such dishes, however, can be cooked in the oven dish without any problems.

Shelf level

For some appliances the shelf level numbering is visible when the oven door is open. Otherwise count the shelf levels from the bottom upwards. Shelf level 1 is the lowest level.

The Gourmet oven dish should normally be used on shelf level 1.

For browning food and for grilling, the shelf level 3 should be used.

Do not brown food for longer than 10 minutes on this shelf level when using Full Grill 📋 or Economy Grill 🏠.

In a speed oven the Gourmet oven dish should be placed on the lowest shelf level on the rack.

If the Gourmet oven dish does not fit in the shelf runners of your appliance, it should be placed on the rack.

Using your own recipes

Quantities

Based on recipes for four:

- For the larger oven dish, multiply the quantities by four.

- For the smaller oven dish, multiply the quantities by three.

Duration

Due to the larger quantities, the cooking duration is generally 20–40 minutes longer than stated in recipes.

Temperature

If your recipe does not specify a temperature:

• With Fan Plus ☐ select a temperature between 160–180 °C.
• With Conventional Heat ☐ select a temperature between 180–210 °C.

Cleaning and care

To prevent damage to the non-stick coating, never use abrasive or aggressive cleaning agents such as grill/oven sprays, stain or rust removers, scouring agents, abrasive sponges or sharp utensils.

Clean the Gourmet oven dish with a solution of washing-up liquid and hot water using a soft brush or a soft sponge.

Before using for the first time

Clean the Gourmet oven dish with a solution of washing-up liquid and hot water using a soft brush or a soft sponge.

After using

Most residues can be removed with a solution of washing-up liquid and hot water and a soft brush.

Soak for a while to remove more stubborn stains.

The Gourmet oven dish may be cleaned in the dishwasher. In certain circumstances, marks may appear on the surface of the dish. They are harmless, and will not affect its use.

Accessories

Stainless steel HBD lids for the Gourmet oven dishes are available from Miele as optional extras.

When ordering a lid, please specify the oven dish with which it is to be used:

HBD 60-35 for HUB 6x-35*:

HBD 60-22 for HUB 6x-22:

Illustration of a dome-shaped food cover with a lid (no text or symbols)

* Oven dish cannot be used in conjunction with its lid in ovens with three shelf levels because the total height of these two items exceeds the height of the cavity.

Tips for use

⚠️ The lids are heat resistant and can be used on the cooktop and in the oven.

Please be aware that lids and handles will get hot when used in the oven.

Please use oven gloves to avoid burning yourself.

The following dishes need to be covered during cooking:

- Casserole

- Soup

- Stew

Do not use the lid with Microwave Solo or with Microwave combination programmes, or with cooking functions using the grill.

Cleaning and care

Lids should be cleaned using a solution of washing-up liquid and warm water and a soft cloth.

They can also be washed in the dishwasher.

Gourmet-pan

Illustration of a covered dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a covered food dish with a lid (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a covered dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a covered dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

The Miele Gourmet oven dish (oven dish) is available in different sizes.

HUB 61/62 -35 -22
Capacity approx.	8 l	approx. 5 l
Width* 38 cm 38 cm
Depth* 35 cm 22 cm
Height* 8 cm 8 cm

* Internal dimensions, rounded down

The oven dish can be used in the oven, microwave combination oven and on solid and ceramic glass hobs.

The HUB 62-xx oven dishes are also suitable for use on induction hobs.

The oven dish can be used for bakes, casseroles, gratins, pasta dishes and soups as well as for roasts, roulades or poultry.

Do not use the dish for baking cakes or bread.

The oven dish has a non-stick coating, so food can be removed easily after cooking and does not usually stick.

Use

Oven

The oven dish, unlike other roasting dishes, can be placed in the oven directly on the runners.

There is a safety notch at the back of the side supports to prevent the oven dish slipping off the runners in the oven when you only wish to pull it part of the way out of the oven.

Place the oven dish in the oven with the Miele logo visible.

Microwave combination oven

The oven dish is not microwave

The metal reflects microwaves and this could cause sparking.

Do not use the oven dish with Microwave solo or with Microwave combination programmes.

It can be used in a Microwave combination oven on all functions that do not use microwave power. Place it in the oven on the rack on shelf level 1.

Solid / Ceramic hobs

Because the oven dish is heavy, small particles of soiling between the base of the oven dish and the ceramic glass could cause scratches.

This could result in damage to the surface of the hob and also to the base of the oven dish.

When using the oven dish on a ceramic glass surface place it down on the zone carefully. Do not push it backwards and forwards over the glass.

The oven dish can be used on solid or ceramic glass hobs and depending on model, also on an induction hob.

If you are not sure whether your oven dish is suitable for use on an induction hob, you can test it using a magnet. Induction-compatible oven dishes are magnetic.

It is ideally suited for use on the extended zone of a hob. If your hob does not have an extended cooking zone, the oven dish should be used on the largest circular zone or over two small round zones situated one behind the other.

Not suitable for gas hobs

⚠️ The oven dish is larger than the permitted base size for pans over gas.

The base of the dish would force the gas flames outwards causing damage to worktops and surrounding furniture and fittings, with the risk of setting them alight. The temperature within the gas flames is also too high for the oven dish and could damage the non-stick coating.

Do not use the oven dish on a gas hob.

Tips

⚠️ Fire risk. Oils and fats can ignite if allowed to overheat.

Never leave the oven dish unattended when cooking with oil or fats.

Never attempt to put out oil or fat fires with water. Switch the appliance off.

Extinguish the flames carefully with a lid or fire blanket.

Non-stick coating

Because food does not stick to the non-stick coating, only a very little fat or oil suitable for frying is necessary. This has the added advantage of keeping down the calorie count.

Use a low to medium heat for cooking.

Before searing or frying food on the hob pre-heat the Gourmet oven dish on a high setting with nothing in it for a maximum of 1 – 2 minutes.

Turn the heat down once the food is seared and continue cooking on a lower setting.

To prevent damage to the non-stick coating:

• Do not overheat the oven dish. Turn the temperature down in good time.
• Do not use metal or sharp utensils in it. Only use plastic or wooden utensils.
• Do not marinate food in the oven dish. The acidic content in sauces and marinades could adversely affect the non-stick coating. These foods can however be cooked in the oven dish.

Shelf level

With some ovens the shelf level numbering is visible when the door is open. Otherwise count the shelf levels from the bottom upwards. Shelf level 1 is the lowest level.

The oven dish should generally be used on shelf level 1

For browning food and for grilling, the 3rd shelf level should be used.

Do not brown food for longer than

10 minutes on this shelf level when using Full grill 📋 or Economy grill 🏠.

In a microwave combination oven it should be placed on the lowest shelf level on the rack.

If the oven dish does not fit on the shelf runners in your appliance it should be placed on the rack.

Using your own recipes

Quantities

Based on recipes for four:

• For the larger oven dish multiply the quantities by four.
• For the smaller oven dish multiply the quantities by three.

Duration

Cooking duration is generally 20-40 minutes longer.

Temperature

If your recipe does not specify a temperature:

• With Fan plus ⚙ select a temperature between 160 – 180 °C.
• With Conventional heat ☐ select a temperature between 180 – 210 °C.

Cleaning and care

To prevent damage to the non-stick coating never use abrasive or aggressive cleaning agents such as grill/oven sprays, stain or rust removers, scouring agents, abrasive sponges or sharp utensils.

Clean the oven dish with a solution of washing-up liquid and hot water using a soft brush or a soft sponge.

Before using for the first time

Clean the oven dish with a solution of washing-up liquid and hot water using a soft brush or a soft sponge.

After use

Most residues can be removed with a solution of washing-up liquid and hot water and a soft brush.

Soak for a while to remove more stubborn residues.

The oven dish can be cleaned in the dishwasher. In certain circumstances, marks may appear on the surface of the dish. They are harmless, and will not affect its use.

Accessories

Stainless steel HBD lids for the Gourmet oven dishes are available from Miele as optional extras.

When ordering a lid, please specify the oven dish it is to be used with:

HBD 60-35 for HUB 6x-35*:

HBD 60-22 for HUB 6x-22:

Illustration of a dome-shaped food item with a lid (no text or symbols)

* Oven dish HBD 60-35 cannot be used in conjunction with its lid in ovens with three shelf levels because the total height of these two items exceeds the height of the cavity.

Tips

⚠️ The lid is heat resistant and can be used on the hob and in the oven.

Please be aware that the lid and handle will get hot.

Please use oven gloves to avoid burning yourself.

The following dishes need to be covered during cooking:

- Casseroles

- Soups

- Stews

Do not use the lid with Microwave solo or with Microwave combination programmes, or with cooking functions using the grill.

Cleaning and care

The lid should be cleaned using a solution of washing-up liquid and hot water and a soft cloth.

It can also be cleaned in the dishwasher.

Γάστρες Gourmet

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a covered food dish with a lid and handle (no text or symbols)

Illustration of a covered dish with a lid and handle (no text or symbols)

* U prostorima za pripremu jela s 3 razine pekač se ne može umetati zajedno s poklopcem jer premašuje ukupnu raspoloživu visinu prostora za pripremu jela.

Napomene za uporabu

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a dome-shaped cover or lid with a small top (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a covered food dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a covered food dish with a lid and handle (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a covered dish with a lid and a small top (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

* U rerne sa 3 nivoa pekač ne može da se stavi zajedno sa poklopcem, jer ukupna visina prelazi raspoloživu visinu rerne.

Saveti za upotrebu

Illustration of a covered food dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food cover with a lid (no text or symbols)

Illustration of a covered dish with a lid and top (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a dome-shaped food item with a lid (no text or symbols)

Illustration of a covered dish with a lid and top (no text or symbols)

Illustration of a covered dish or cover with a lid and top (no text or symbols)
