USER MANUAL ISU-WOOL-7A MSW

Diagram of a vertical mechanical structure with a lever and curved arrows indicating motion, labeled with number 1 (no text or symbols on the diagram itself)

Diagram of a ladder mechanism with numbered components and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a vertical frame with a curved arrow indicating motion, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with rotational arrows and a numbered label (2), no readable text or symbols present.

Technical diagram showing five labeled mechanical or structural components with rotational arrows indicating motion or movement.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name Mineral Wool Cutting Machine
Model	MSW-ISU-WOOL-7A
Weight [kg] 11.2

Description

This product is designed for cutting insulation materials such as wood fibre, rock wool, and foam polyurethane boards. Built with a lightweight aluminium frame, it can be used with a reciprocating saw or hand saw for precise cutting of these materials.

The user is liable for any damage resulting from unintended use of the device.

Operation

This machine should only be operated by trained personnel who are knowledgeable about its use. It is advised to wear proper protective gear, including closed work clothing, respirators, safety goggles, and protective gloves.

1. Operation steps

Diagram of a vertical mechanical structure with a ladder and lever mechanism, showing rotational motion arrows (no text or symbols)

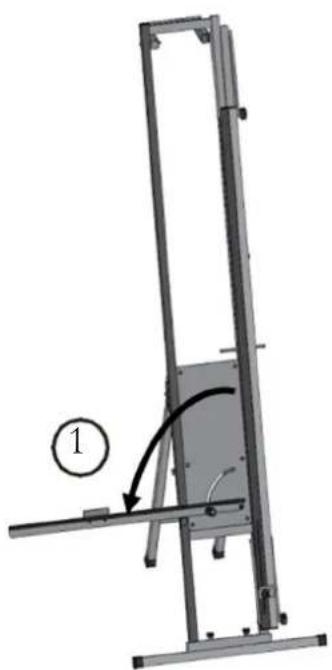

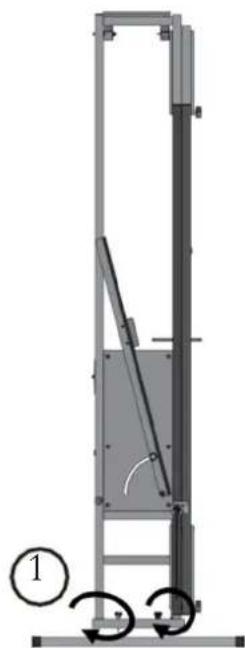

1) Take the machine out of the carton and install the front cross stand.

Technical diagram of a ladder assembly with numbered components and directional arrows indicating motion or movement.

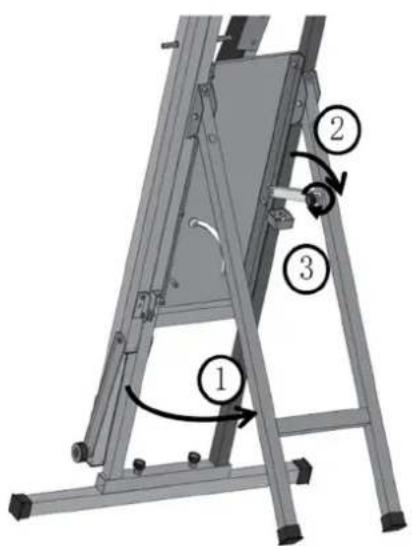

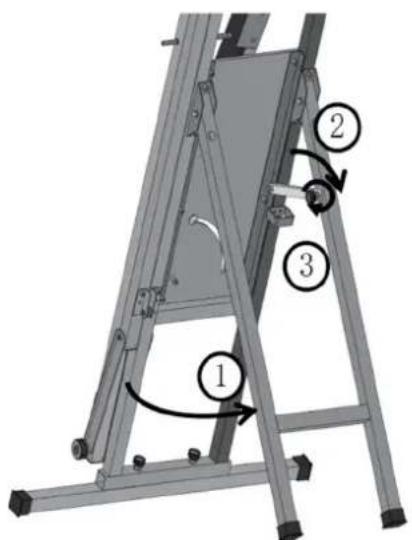

2) Loosen the Velcro, unfold the back stand. Then hang the hook, tighten the screws.

Mechanical assembly diagram showing a vertical frame with a curved arrow indicating motion, no text or symbols present

Mechanical diagram of a vertical ladder with rotational arrows indicating motion (no text or symbols)

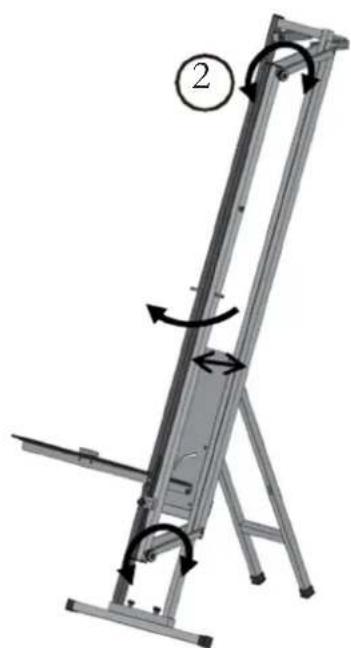

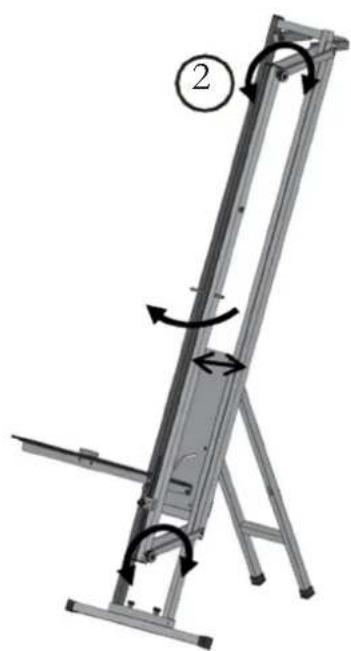

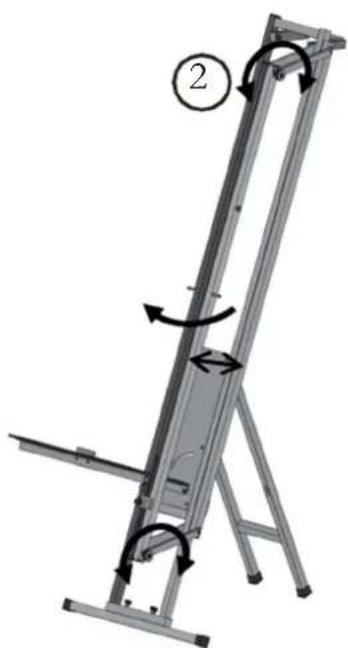

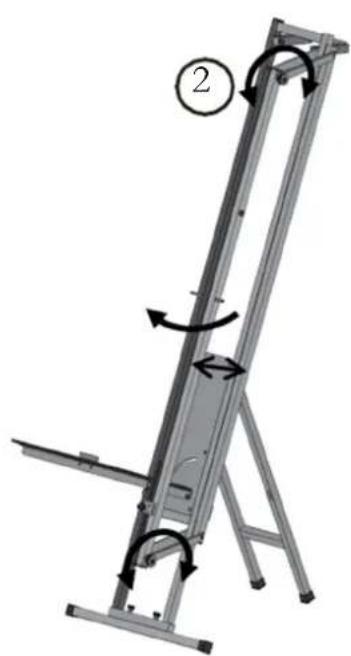

3) Unfold the left ruler and secure the press plate by tightening the upper and lower screws, adjusting them based on the material's thickness. Ensure the gap between the press plate and the board is slightly larger than the thickness of the material.

Technical diagram showing five labeled mechanical or structural components with rotational arrows indicating motion or movement.

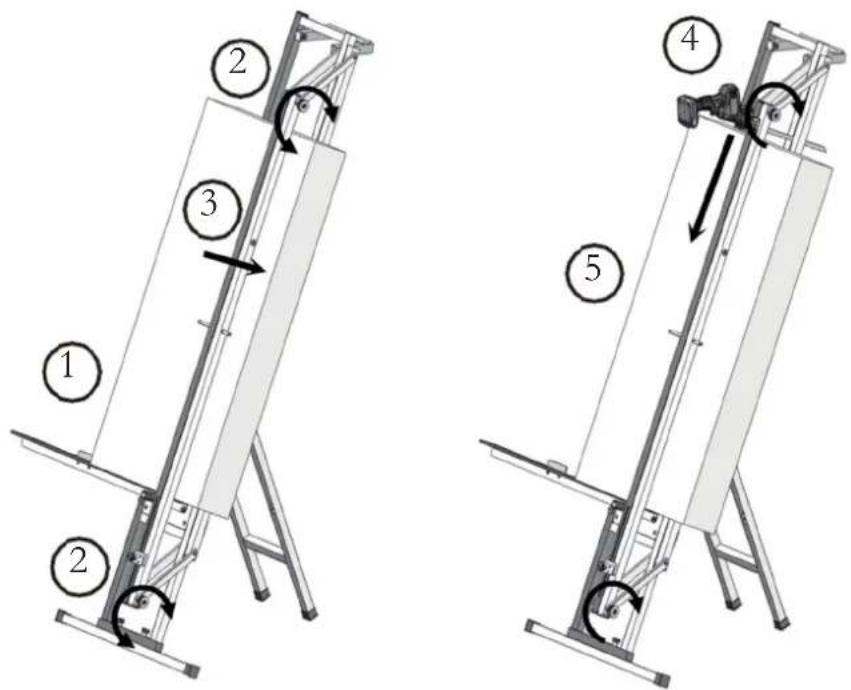

4) Place the material in position, then loosen the upper and lower screws of the press plate, allowing it to compress the material. Once the material is secured, tighten the screws again. Then to cut the material with a hand saw.

Technical diagram showing mechanical assembly steps with labeled components A and numbered callout 1

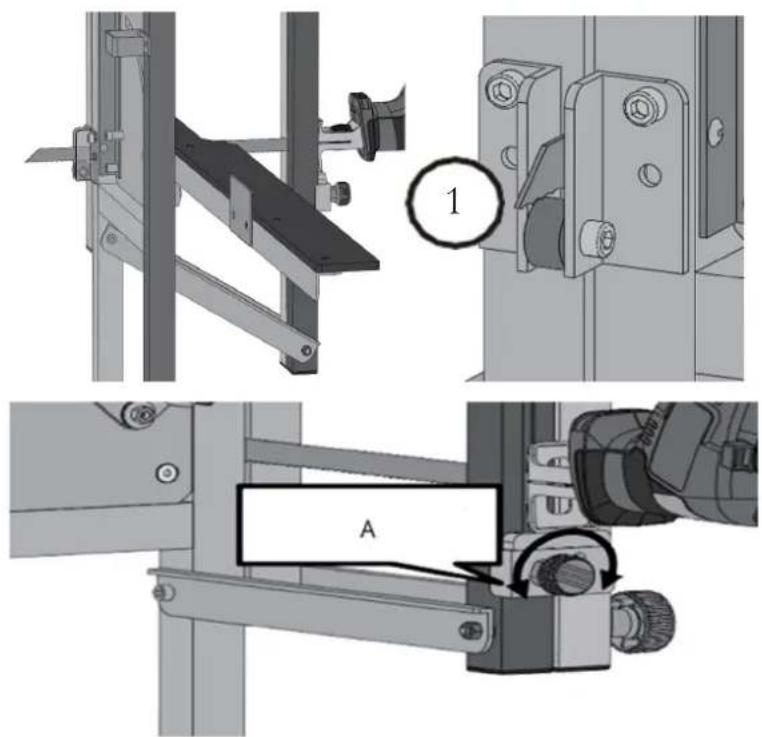

A- Limit block
5) When using the electric saw, adjust the position of the limit block before cutting to ensure that the blade is positioned higher than the plastic roller. This prevents the blade from touching the plastic roller when cutting through the material.

Technical diagram of a mechanical lifting device with numbered components and directional arrow indicating motion

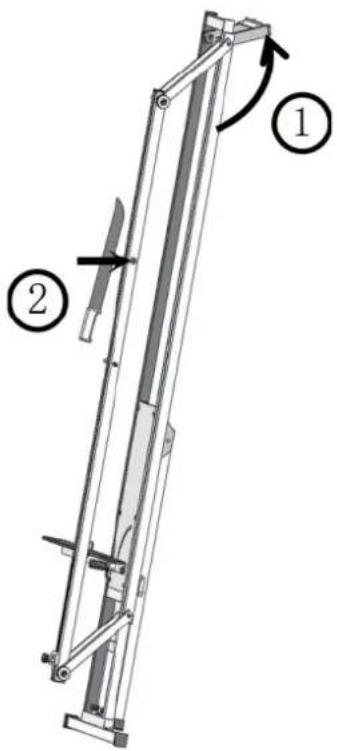

6) When operating the device against a wall, unfold the two square tubes and position them at an angle to secure the device. Once stable, proceed with the cutting. The mineral wool knife can be held in place on the press plate using the built-in magnet.

1. Shapes to be cut

Rectangle
Ladder-shaped Triangle

Cleaning and maintenance

Before each use, inspect all nuts and bolts, tightening them as needed. Additionally, check the sharpness of the blade or saw, as dull tools can lead to injury. If the sharpness is uncertain, replace the blade or saw.

Clean the tool with a dry medium and avoid using any solvents.

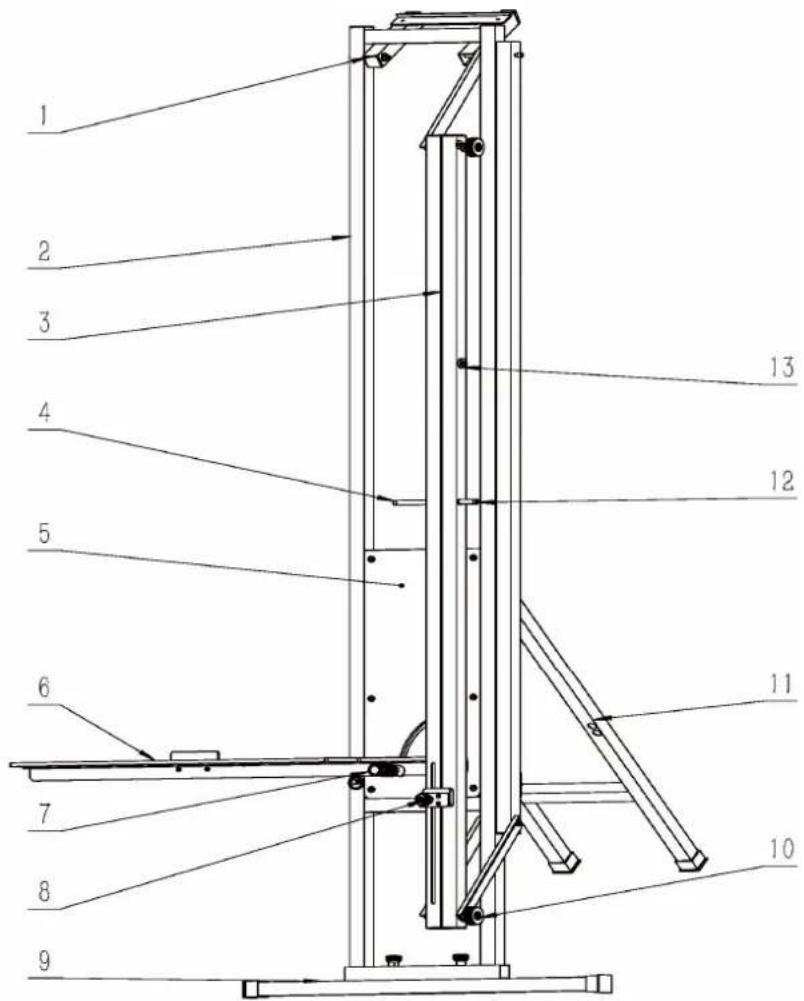

Parts diagram

1 2 3 4 5 6 7 8 9 10 11 12 13

Part number Description
1	Wall-mounted	support bracket
2	Support
3 Downward compression rod
4 Left downward compression rod handle
5	Panel	assembly handle
6	Ruler
7	Ribbed
8 Reciprocating saw limitation component
9	Front	support nut
10	Adjustable
11 Back brace rod
12 Right downward compression rod handle
13 Knife rack magnet
