USER MANUAL C&A HP C100 MSW

PbKOBOCTBO3A YIOTPEBA

O△HΓIΕΣ XPHΞHΣ

UPUTEZAUPORABU

NAUDOJIMO INSTRUKCIJA

MANUAL DE UTILIZARE

NAVODILA ZA UPORABO

CAP PRESS MACHINE

DE	Produktname	Mützenprése
EN	Product name	Cap Press Machine
PL	Nazwa produktu	Prasa Termotransferowa do czapek z daszkiem
CZ	Název výrobku	Lis na Čepice
FR	Nom du produit	Presse à casquettes
IT	Nome del prodotto	Macchina per pressare cappelli
ES	Nombre del producto	Máquina de prensado de gorras
HU	Termék neve	Sapkanyomó gép
DA	Produktnavn	Kasketprése
FI	Tuotteen nimi	Lippispuristin
NL	Productnaam	Pettenpersmachine
NO	Produktnavn	Caps presse
SE	Produktnamn	Mösspressmaskin
PT	Nome do produits	Máquina de prensar bonés
SK	Názov produktu	Lis na Čiapky
BG	Иme на пroduzione	Maшина за пrecobане нашаник
EL	Övoça προίντος	Мени вплесанц калétλών
HR	Naziv proizvoda	Stroj za prešanje kapa
LT	Produkto pavadinimas	Kepuriç presavimo mašina
RO	Numele produsului	Maşinia de presat sepci
SL	Ime izdelka	Stroj za stiskanje kape
DE Modell | EN Product model | PL Model Produktu | CZ Model vyrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produits | SK Model | BG(Model na пrodukt | EL Movétéλο προίντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka	10062697
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Producent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Пroduzione | EL Kατακειαστής | HR Proizvodač | LT Gamintojas | RO Produçător | SL Proizvajalec
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produentens adresse | SE Tillverkarends adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адrecа на пroduzione | EL: Διεύθυνηκατακειαστή | HR Adresa proizvodača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca	ul. Nowy Kisielin - Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Cap Press Machine
Model	MSW-C&A HP C100
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	360
Protection rating IP	21
Dimensions [Width x Depth x Height; mm]	230 x 460 x 620
Weight [kg]	11.33
Screen	LCD
Max. Temperature [°C]	250

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The

technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.
(general warning sign)

Wear protective gloves.

ATTENTION! Electric shock warning!

ATTENTION! Hand crush hazard!

Do not touch!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

Electrical equipment:

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the:

Cap Press Machine

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) The device produces dust and debris during operation. It is important to protect bystanders from their harmful effects.
h) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.

k) Keep the device away from children and animals.
If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/ or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) Use personal protective equipment as required for working with the device, specified in section 1 "Legend". The use of correct and approved personal protective equipment reduces the risk of injury.
f) Use protective clothing and equipment. Wear safety glasses or a face shield if necessary. Wear a dust mask. Non-slip safety boots, helmets, gloves, dust collection systems and hearing protection should also be used if necessary.
g) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
h) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
i) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts
j) If suction is to be connected to the device, check all connections and make sure they are tight. Using a deducting system may reduce the risks associated with dust.
k) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.

I) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.3. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Before each cleaning, regulation, accessory change, or if the device is not in use, turn the engine off and completely cool the device.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
j) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
k) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
I) Do not leave this appliance unattended while it is in use.
m) Clean the device regularly to prevent stubborn grime from accumulating.
n) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

p) Keep the device away from sources of fire and heat.
q) Do not touch the moving cutting elements. Danger of cutting or amputating fingers/limbs.
There is a risk of kickback when cutting. Be careful, do not use excessive force, wear protective clothing. Make sure bystanders are at a safe distance
s) Secure the logs with the clamping tool. Do not hold the logs with your hand.
t) Keep saw blades sharp and clean. Properly maintained band saw blades are less likely to bind and are easier to control.
u) Coiled blades can spring back with great force and in any direction. Always deal with coiled blades, including those packaged in boxes, with the utmost care
v) To avoid injury or even death, make sure that there are no metal objects (e.g. nails) in the logs being cut.
w) Add oil till the full marking before start using the device. If the oil level is low, engine will not start or it might shut down.
x) Oil leaking from the machine should be reported to the appropriate services or comply with legal requirements applicable in the area of use.
y) Danger! Danger to health and the risk of explosion of the internal combustion engine
z) Poisonous carbon monoxide is present in the engine exhaust. Remaining in a carbon monoxide environment may lead to losing consciousness or even death. Do not run the engine in a closed space.
aa) Petrol is flammable and explosive. Before refuelling the engine should be turned off and cooled down
bb) Warning! Risk of engine damage due to wrong fuel.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed to apply graphics, designs and lettering to baseball caps using thermal transfer technology. It enables precise and permanent transfer of prints to various materials.

The user is liable for any damage resulting from unintended use of the device.

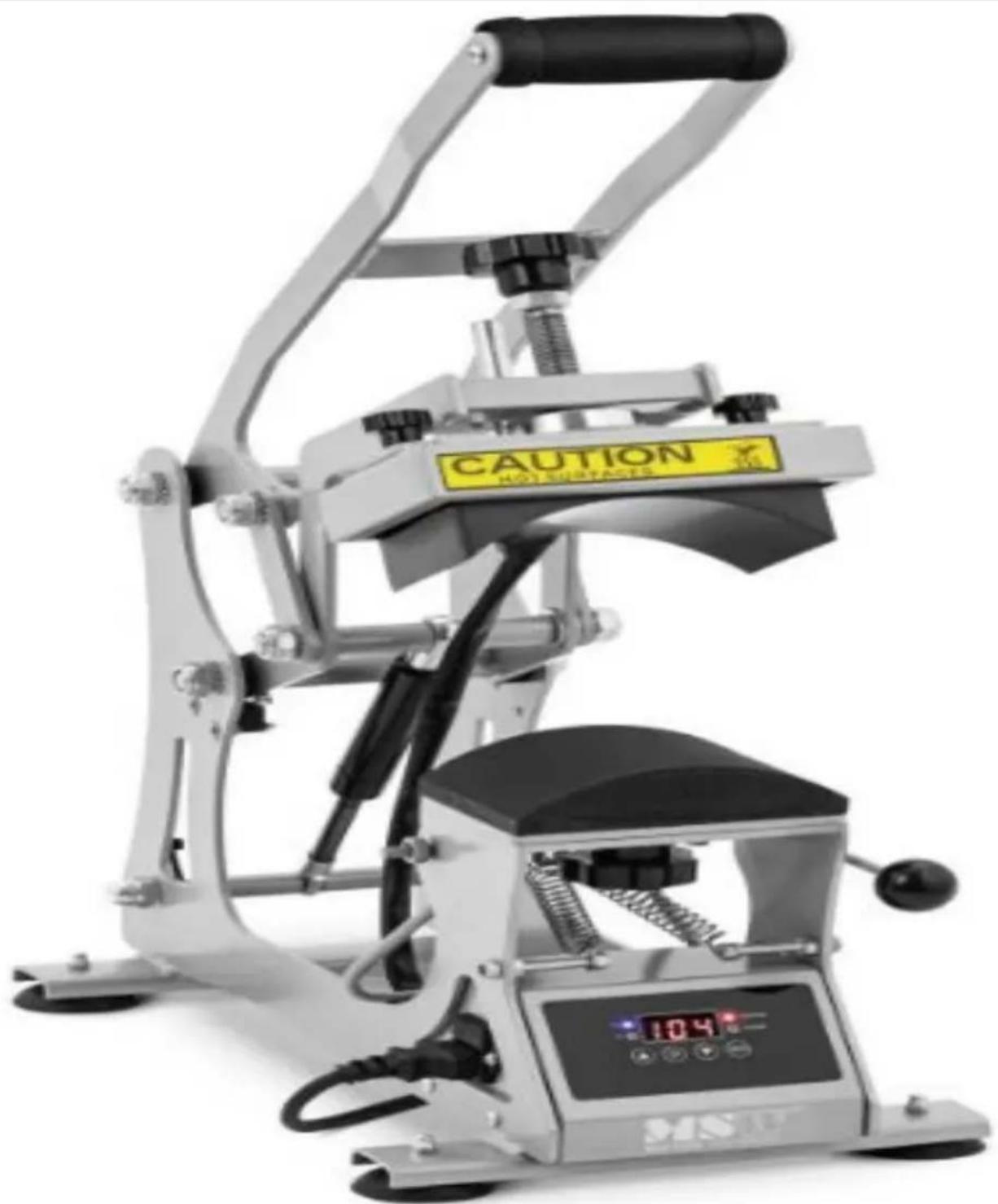

3.1. Device description

Power switch

Power plug

Hat Heat press

Pressure knob

Tension spring

Controller

3.2. Preparing for use APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used. There should be at least 10~cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

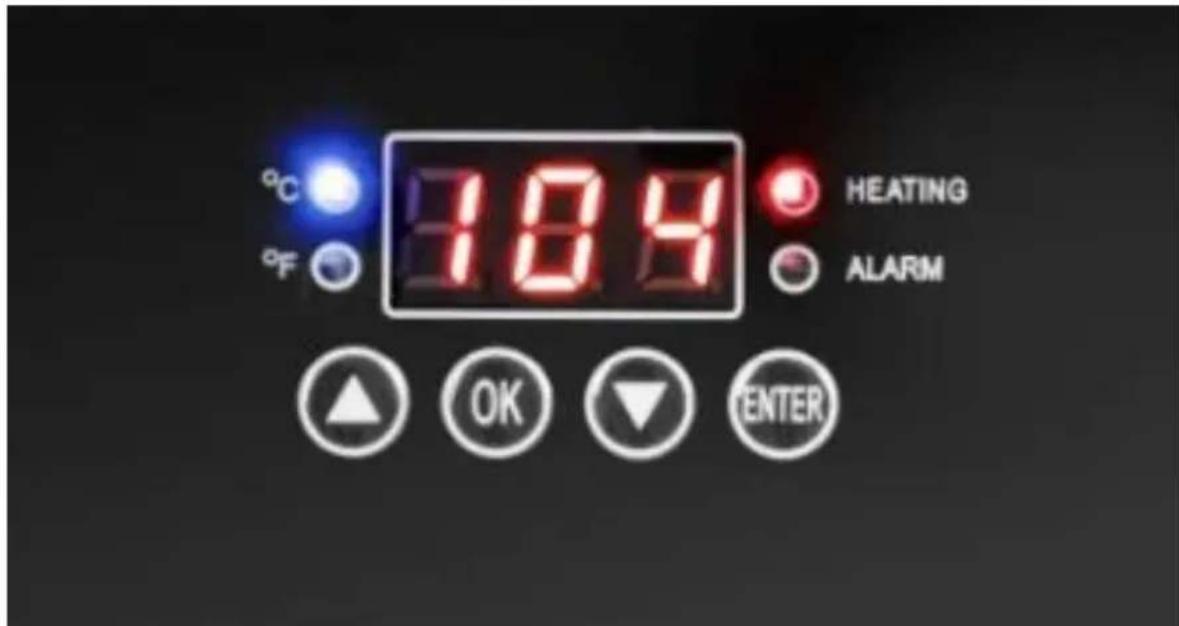

3.3. Device use

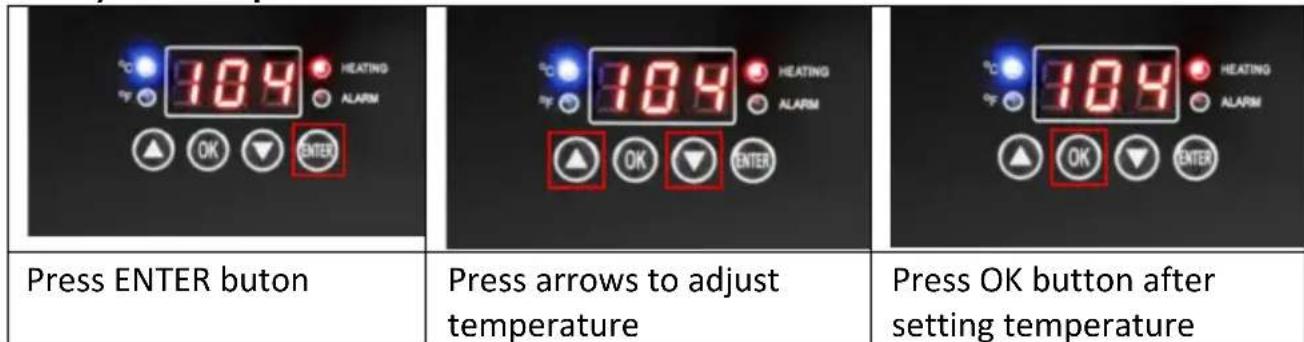

a) Set Temperature

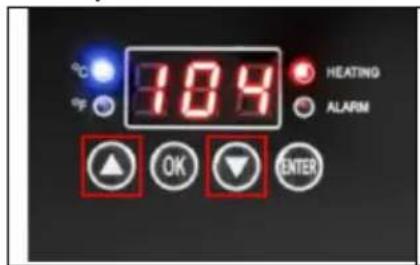

b) Set Time

Press arrows to adjust time

Press OK button after time setting

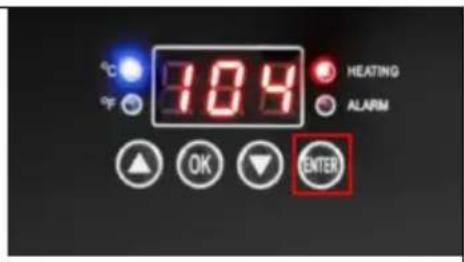

Confirm settings by pressing ENTER

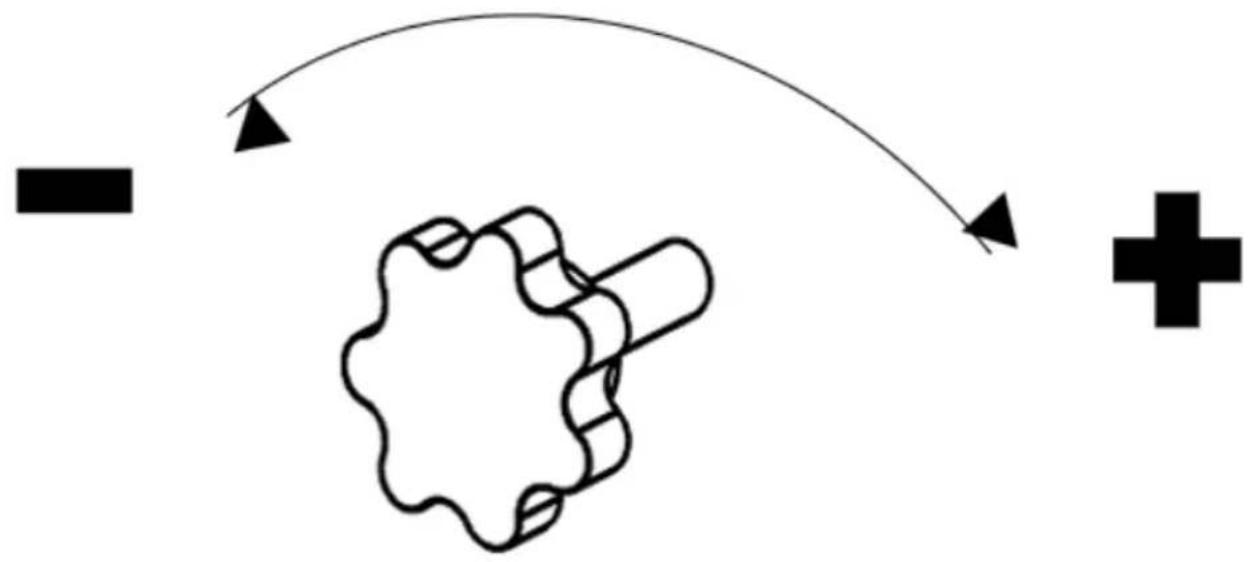

Pressure Adjustment

a) Place the material on the working surface and adjust the pressure knob accordingly.
b) Turning clockwise increases the pressure.
c) Turning counterclockwise decreases the pressure.

Pressure Adjustment

Operational time and temperature will vary for different materials, for best results, read the following table and refer to it.

Material Time Temperature
Cap/Hat	30s	180°C -190°C

Printable Area: 8*14cm

Suitable For: Most various kinds of caps

Note: The parameters above are for reference only, please test to find the best parameters for your own items

Note: For your first operation, it is recommended that you adjust the temperature and time before putting the materials. Due to the unfamiliar operation and the

Operation

1. Place the material on the work surface and adjust the pressure knob to obtain the correct pressure required.
2. Connect the power plug and turn on the power switch.
3. Set the required time and temperature.
4. The temperature of the heating plate will start to rise, when it reaches the handle, temperature you set, put the material on the worktable, and press down the machine will automatically time.
5. When you set the time, the buzzer will sound, turn on the handle buzzer to stop the sound and take out the material.
6. Please turn off the machine and disconnect the power when not in use.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft cloth for cleaning.
k) Use a soft, damp cloth for cleaning.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

TROUBLESHOOTING

Problem	Possible cause	Solution
Fails to count down and the temperature heated up as normal	The pressure is not suitable.	Re-adjust the pressure knob, and press the handle until hearing a " click" and displaying the " Time Counting" icon.
Fails to heat up or does not heat up to the temperature displayed.	Heating device problem or relay damage.	1. Check heating attachment connections. 2. Replace the heating element.
Lack of color, faded image.	Because of the insufficient temperature and/or press time.	Adjust the temperature or increase the heating time. Make sure the design is firmly secured flush against the materials.
Darkened, deep color, blurred image	The temperature was too hot or pressed for a long time.	Set a lower temperature or time. Try more to get the suitable temperature and time for your materials.
Temperature control meter does not control the temperature, the temperature keeps rising.	Relay damage	Replace the relay

APPARATETS PLACERING

OBS! Varm overflate, fare for forbrenning!

For the disposal of the device please consider and act according to the national and local rules and regulations.
