USER MANUAL EDGE AUTOMATIC MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	High-speed automatic edge banding machine
Model	MSW-EDGE AUTOMATIC
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	4000
Dimensions [width x depth x height; mm]	2120 x 900 x 1130
Weight [kg]	120

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(generall warning sign)

Wear a dust mask (respiratory tract protection).

Use guard.

ATTENTION! Electric shock warning!

ATTENTION! Rotating parts, entanglement hazard!

WARNING! Toxic substances, danger of poisoning!

ATTENTION! Hand crush hazard!

Emergency stop!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: High-speed automatic edge banding machine

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids. h) Do not use in very humid environments or in the direct vicinity of water tanks.
i) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) Use the device in a well-ventilated space.
h) The device produces dust and debris during operation. It is important to protect bystanders from their harmful effects.
i) Use the "EMERGENCY STOP" if there is a risk of injury or death, accident or damage.
j) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
k) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
I) Keep packaging elements and small assembly parts in a place not available to children.
m) Keep the device away from children and animals.
n) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) Use personal protective equipment as required for working with the device, specified in section 1 "Legend". The use of correct and approved personal protective equipment reduces the risk of injury.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
g) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
h) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
i) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
j) If suction is to be connected to the device, check all connections and make sure they are tight. Using a deducting system may reduce the risks associated with dust.

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may

impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

f) Keep the device out of the reach of children.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
j) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
k) Do not move, adjust or rotate the device in the course of work.
I) Do not leave this appliance unattended while it is in use.
m) Clean the device regularly to prevent stubborn grime from accumulating.
n) Do not work on two workpieces at the same time.
o) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
p) Keep the device away from sources of fire and heat.
q} Do not cover the ventilation openings!
r) NOTE: During operation, some elements of the device become very hot - scalding hazard!
s) Use protective glasses. When working in a dusty environment, additionally wear a dust mask.
t) Keep handles dry, clean and free of oil or grease.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

Edge banding machine is designed to glue furniture edges with veneer, PVC or ABS materials.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

1. Emergency stop switch: Emergency stop machine button.
2. Power switch: Main power switch.
3. Edge banding motor switch: Control the edge banding motor start and stop.
4. Trimming switch: Control trimming motor start and stop.
5. Thermostat Temperature control adjustment.
6. Speed control knob: Adjust the speed of the edge banding.
7. Foot control switch: For curved (profiled sheet) edge banding conveyor strips.
8. Sliding rail: Auxiliary large sheet support.
9. Trimming adjustment knob: Used to adjust the trim height.
10. Feed tray: Edge banding tray.

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used. There should be at least 10cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

When the power is switched on, the thermostat automatically heats up in a self-controlled programme. Do not place the appliance in damp areas. Ensure adequate lighting during operation.

Do not allow children near the veneer machine.

Do not wear a scarf, loose cuff, exposed necklace or any loose clothing or bracelets - these can be pulled into the machine.

Make sure the switch is in the "Stop-OFF" position before turning on the power.

Be careful! The melter can reach a high temperature of 200 degrees. Do not touch the heating area around the melting pot.

When using the melting pot, it is recommended to hold the machine with both hands.

Before starting work, ensure that the wire length is sufficient and does not interfere with the work.

Do not touch flammable or explosive materials.

Avoid rooms with high humidity and it is prohibited to use the device outdoors.

Harmful gases may be produced during use, use the device in a well-ventilated room or with an activated carbon mask.

Switch off the heating switch and the power switch when finished working.

Clean the unit of any excess hot melt adhesive at any time.

Try to set the glue application rate as low as possible, resulting in a good veneer finish.

The machine should be kept clean.

Wood and materials should be stored at room temperature.

When the moisture content of the workpiece is too high, the quality of the adhesion will be affected.

When edgebanding, ensure adequate pressure on the workpiece, insufficient pressure will affect the quality of the edgebanding.

Ensure that the workpiece - the formatting piece has the edge cleaned of dust after machining.

Hot melt adhesive should be stored in a cool and dry place.

When hot melt glue is cold, do not open the crucible lid or glue adjustment knob to avoid damaging the machine.

Before edge banding, ensure that the hot melt glue in the crucible is already melted as standard.

The diameter of the inner curve must not be less than 40mm

It is recommended to use a low-temperature hot-melt adhesive of 120 - 180^ (the maximum temperature must not exceed 200^ ).

Preparation and commissioning

Switch the unit on to a suitable power source, turn on the power switch, the switch indicator will light up and the temperature control gauge will be displayed and the temperature will rise after the self-test.

Adjust the heating temperature in the temperature control chart (the temperature depends on the melting point of the hot melt adhesive, and the unit uses a medium-low temperature hot melt adhesive of 120-180

^ C) . When the heating reaches the set temperature, the motor switch light will illuminate and press the motor switch to start it. It is recommended to preheat the machine for 10 minutes before sealing the end before starting the motor to allow the hot melt glue to melt completely.

Insert the air line and adjust the air pressure to 0.4-0.6 MPa (the machine was adjusted before leaving the factory).

The machine does not have an edge-forming cutter.

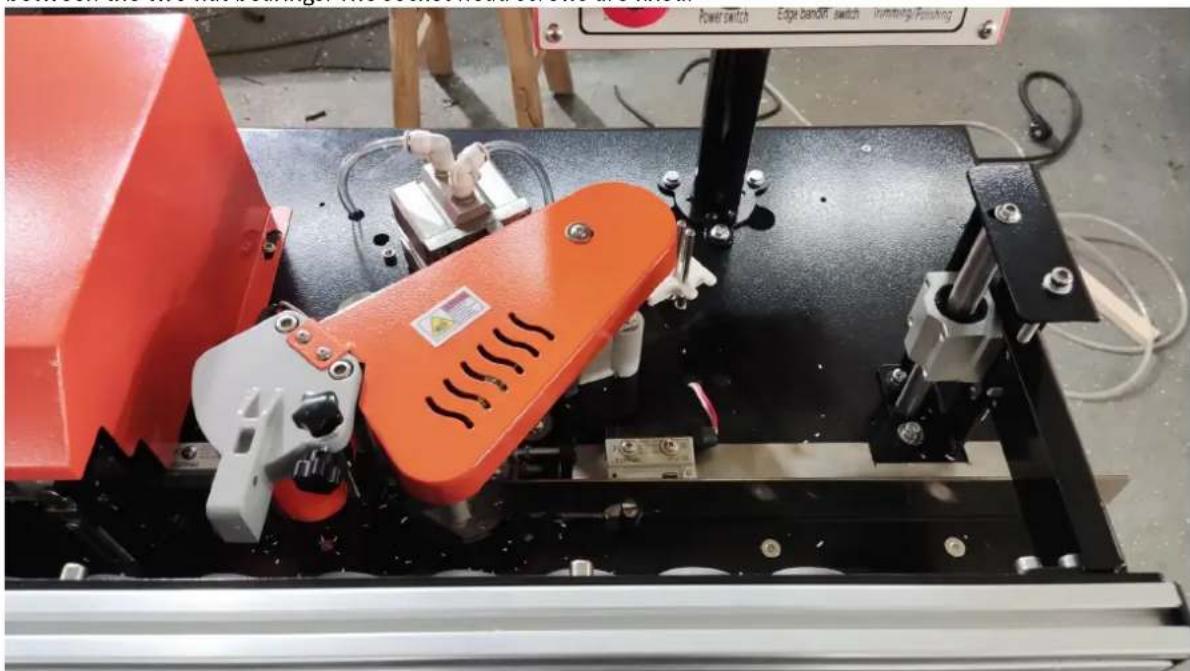

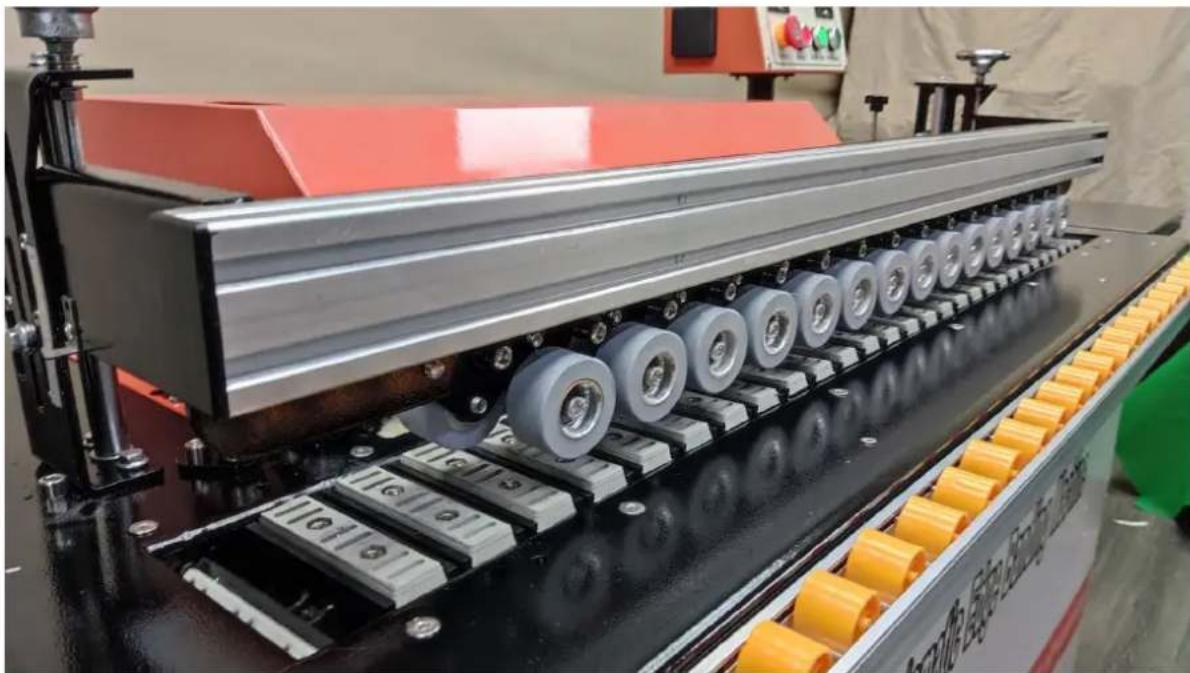

Install the feeder tray, remove the feeder tray screw, install the bracket in reverse, remove the large hexagon socket screw above the bracket and remove the flat bearing, then place it on the feeder tray between the two flat bearings. The socket head screws are fixed.

A. Adjustment of trimming and cutting edges

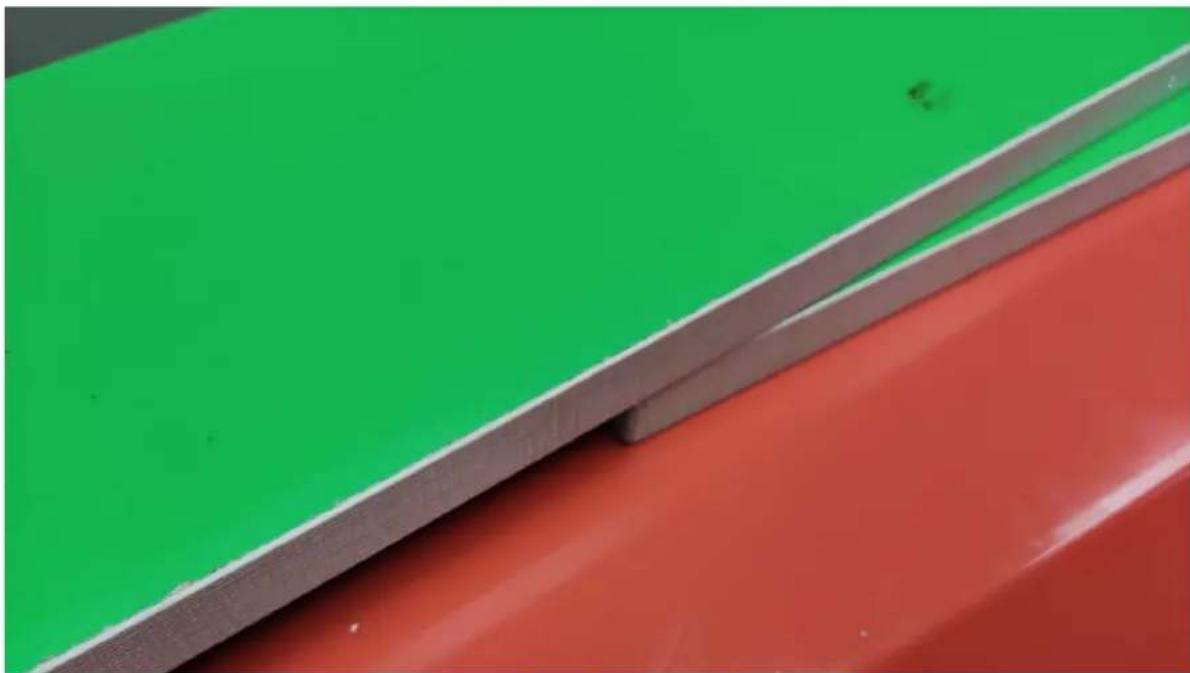

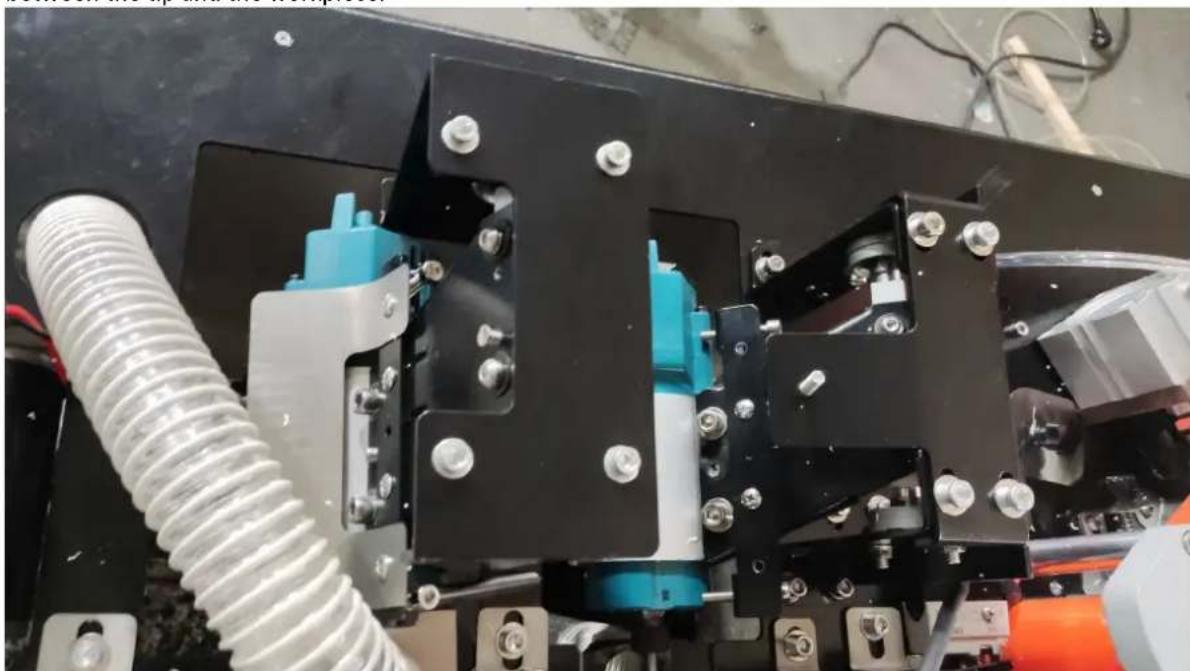

1. Place the workpiece under the trimming tip, adjust the knob above the trimmer and adjust the distance between the tip and the workpiece.

B. Edge banding and trimming operation

1. When the motor switch light is on, press the switch to start the motor and press the trimming motor switch.
2. The edge tape is inserted into the tool holder and into the transmission pulley.

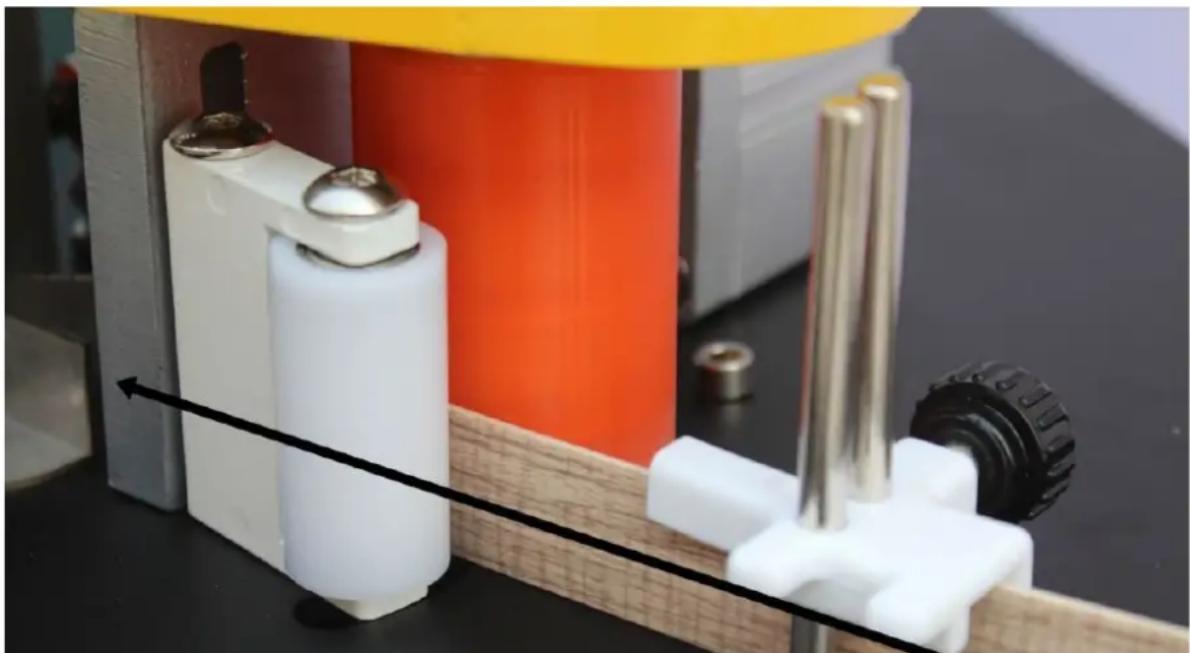

The edge band needs to be placed between the feed pulleys and inserted into the knife guide groove.

C. The workpiece is placed on the front baffle and pressed against the baffle switch. At this point, the tool holder opens the press wheel and presses the edge belt to feed the rubber. When the edge tape reaches the motor wheel through the rubberizing roller, the workpiece is pressed down. Some lateral force and pressure must be maintained on the edge tape so that the sealed workpiece is pressed against the trimming switch and the workpiece is trimmed by the cutting head at a uniform speed.

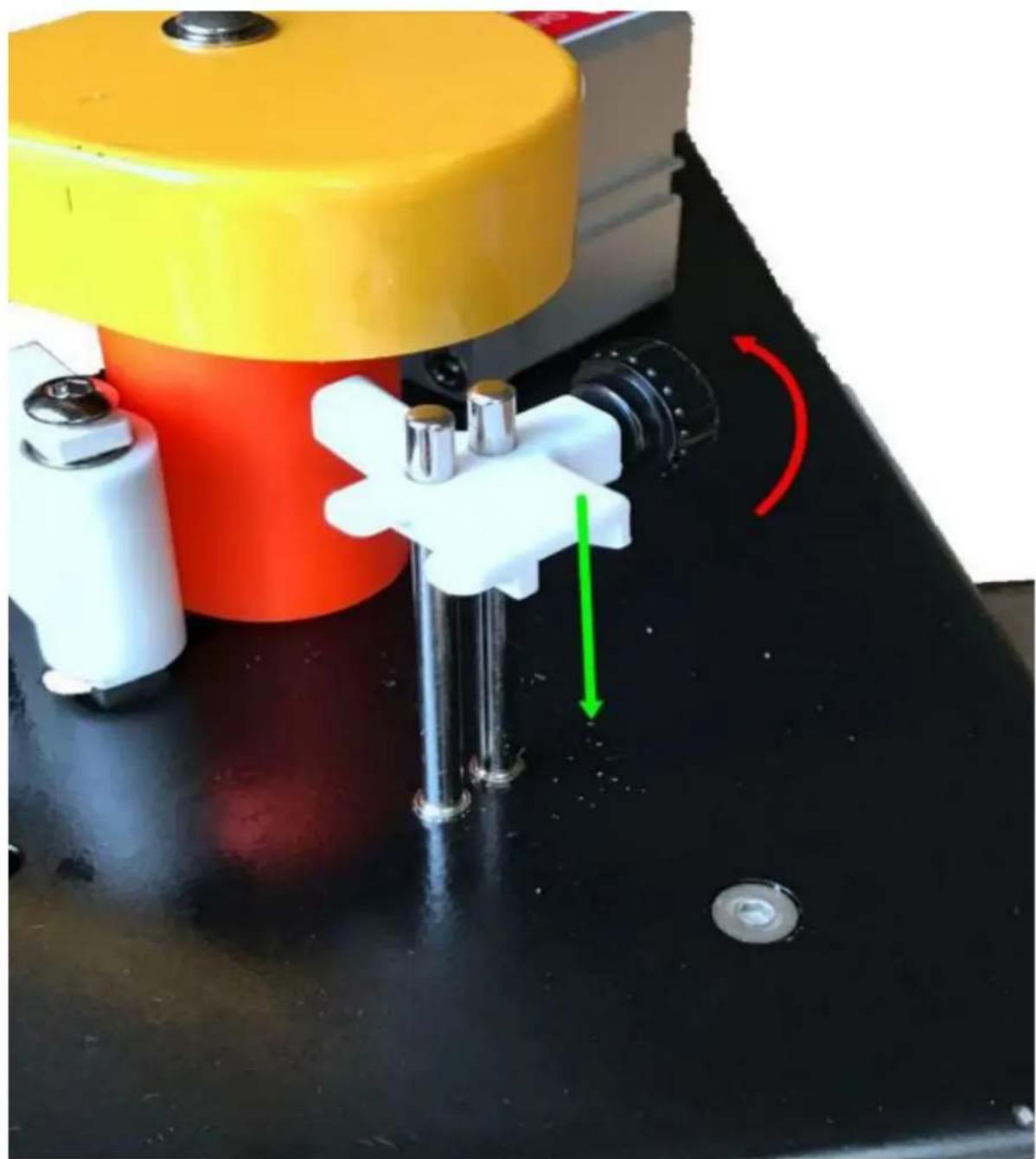

1. Adjust the height of the edging strip

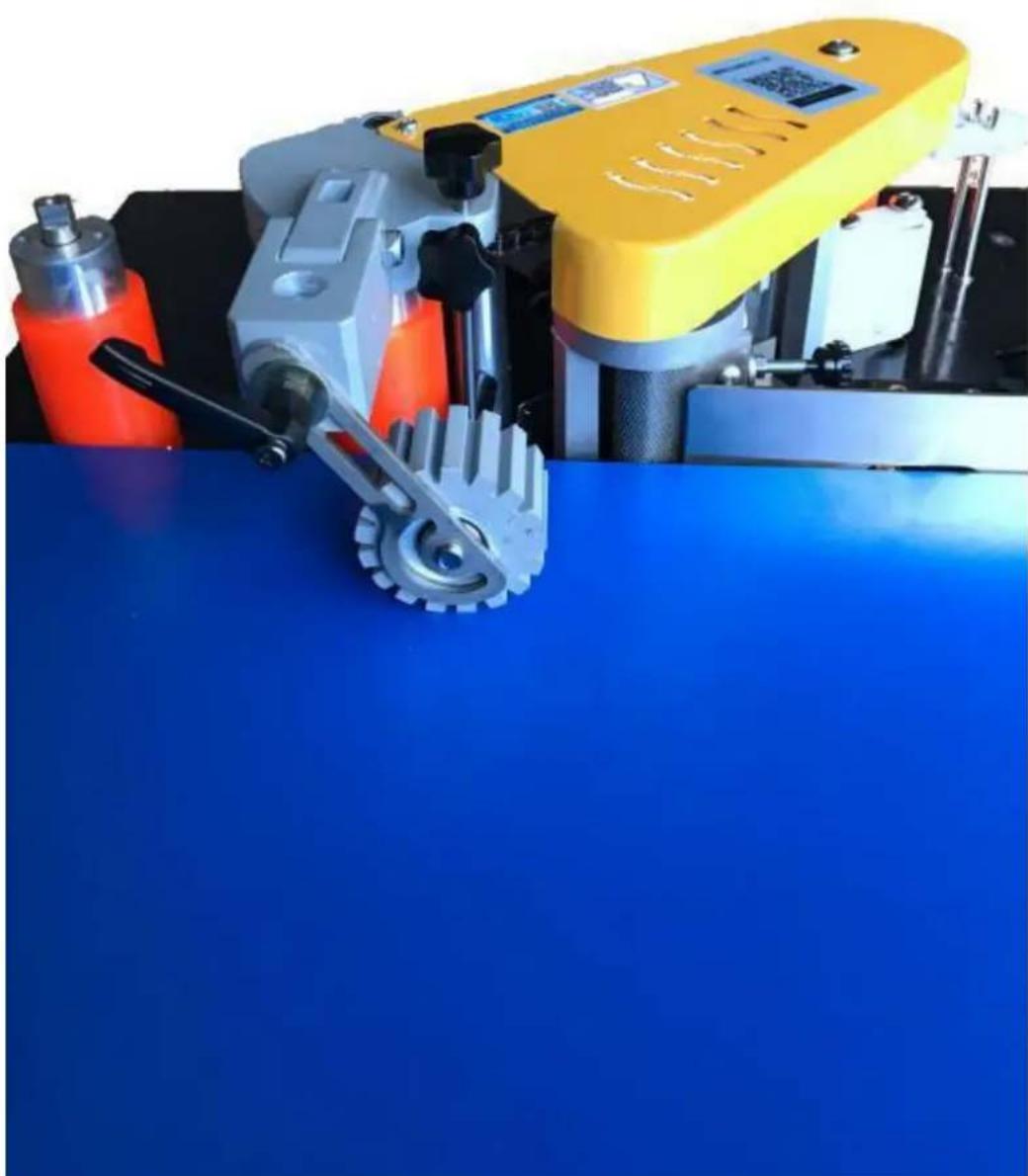

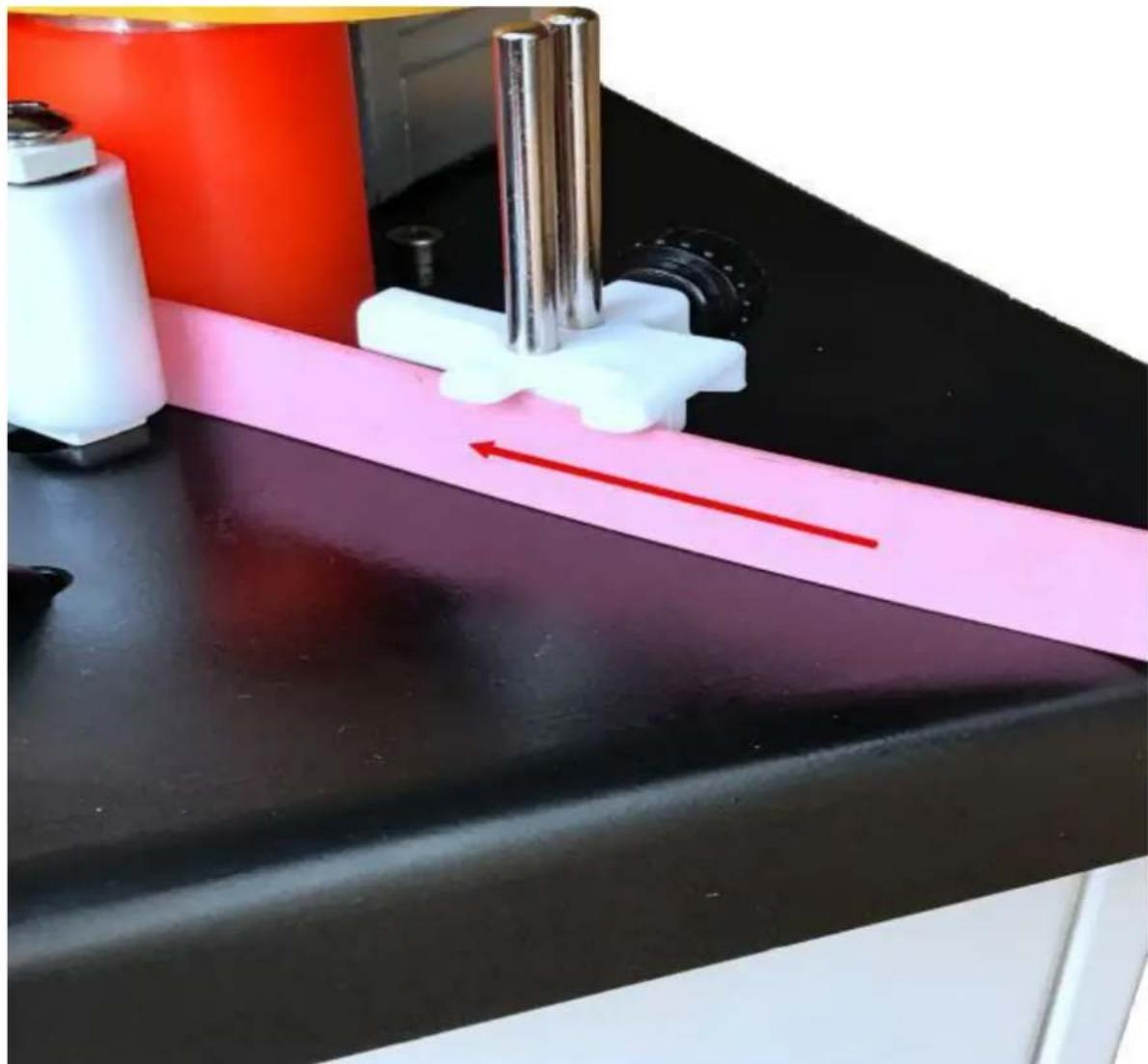

Loosen the knob of the front stop (Figure 1).

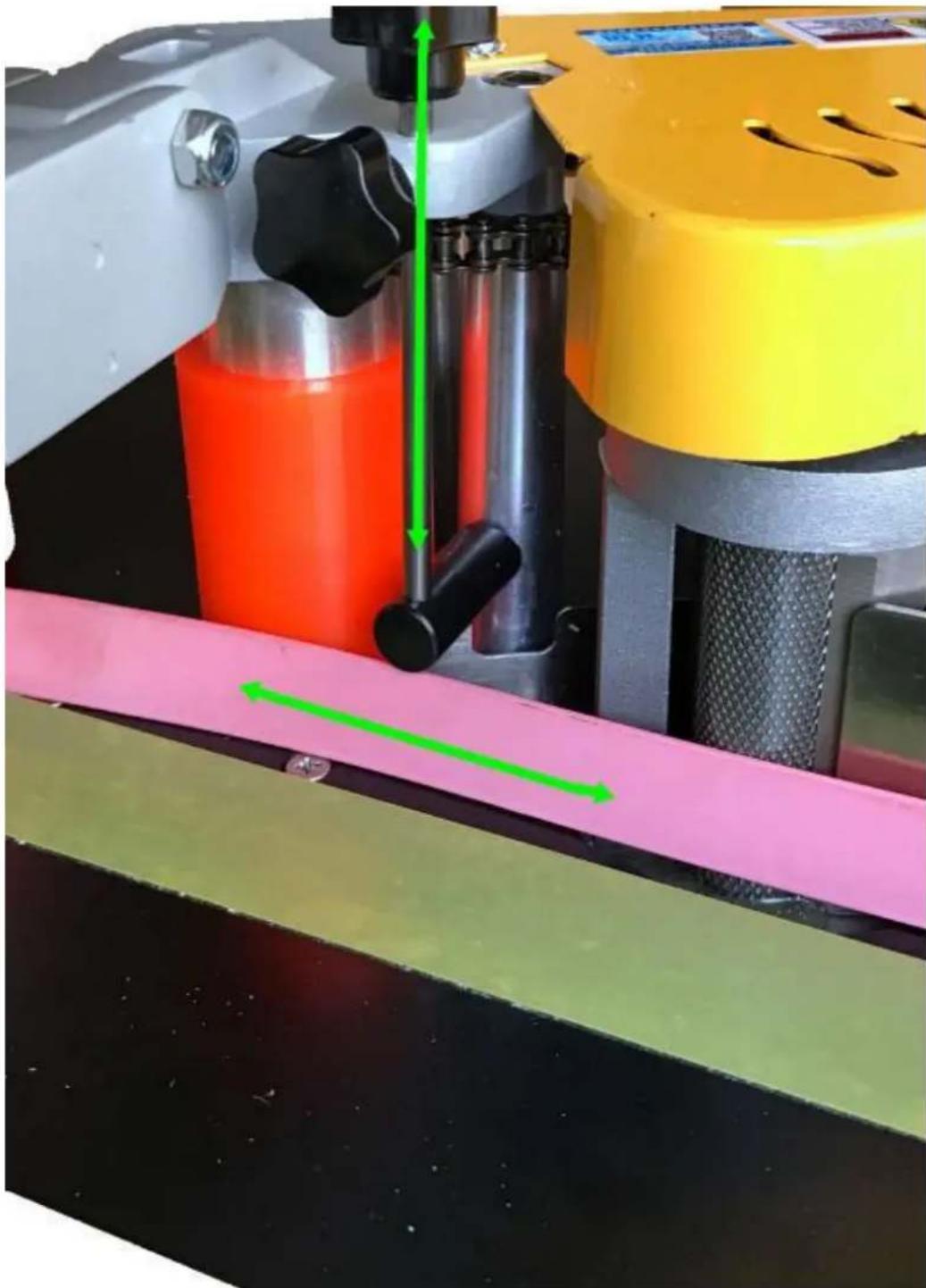

Place the edge strip in the measuring wing of the height stop, press the lower stop against the side strip and lock the knob (Figure 2, Figure 3).

Referring to the height of the workpiece, place the workpiece under the clamping wheel and press the clamping wheel and the workpiece against the surface of the machine motherboard, leaving sufficient clearance and locking the adjustable handle. While adjusting, loosen the adjustable chuck (Figure 4). Lock the chuck when the adjustment is complete.

Figure 1

Figure 2

Figure 3

Figure 4

3 Adjust the glue quantity

When the temperature of the edge banding machine reaches operating temperature, cut a side strip (approximately 20cm / 8 ) for testing, adjust the glue quantity knob to the correct amount and allow the melted glue to apply evenly to the edge strip.

Please note that once the hot melt glue has cooled, the adjustment knob cannot be turned as some parts are blocked.

Adjusting the thickness of the edge strip: When the side strip is too thin or too soft, adjust the thickness knob and the fixing screw so that the edge seal fits smoothly.

Operation.

When the edge strip is attached to the workpiece, apply moderate pressure to increase the sticking effect. Make sure there is no residue in the edge sealer machine, open the start switch of the edge sealer machine. When the temperature of the hot melt glue in the hot melt glue tank reaches the set temperature, the indicator light (1) of the motor switch button lights up, you can press (1) The switch allows you to speed up the melting cycle. Depending on the different hot melt adhesives, wait for the viscose to melt completely. Place the processing board flat on the panel, the edge of the wooden board is close to the pitch switch on the stopper and the processing board is close to the rubber-covered shaft, about 5cm from the starting point of the rubber-covered shaft, and the pitch switch is pressed with the edge of the sheet and the edge banding machine is pressed. The sealing strip is driven to the shaft by cylinder pressure to the feed pulley. As the edge belt reaches the drive wheel through the rubber-coated shaft, the workpiece is moderately pressed and pressed against the drive wheel for sealing.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
- Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
