SPECIAL SAFETY WARNING

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CORDLESS COOLER AND WARMER STORAGE SAFETY WARNINGS

1. This appliance uses flammable refrigerant. Follow these handling instructions when handling the appliance.
   If repairs are needed, request the repairs from a HiKOKI Authorized Service Center.
   When disposing of the appliance, follow your region's regulations for disposal of flammable refrigerant.
2. The interior of this appliance contains flammable insulation blowing gas.
   When disposing of the appliance, follow your region's regulations for disposal of flammable insulation blowing gas.
3. Use power tools only with specifically designated battery. Use of any other battery may create a risk of injury and fire.
4. Use with a power source conforming to the displayed rating. Use household alternating current, a 12 V / 24 V direct-current in-car power source, or an engine-powered generator with an inverter.
   Do not use with other kinds of direct-current power sources, engine-powered generators without inverters, step-up transformers, or other transformers.
   There is a risk of the appliance becoming abnormally hot and starting a fire.

5. Do not touch the power plug (cigarette lighter connection plug) with wet hands.
   Doing so may result in electric shock.

6. Do not use or store the appliance in wet or damp places or in the rain. Doing so may result in electric shock, fire or explosion.

7. Do not operate appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Doing so may result in electric shock, fire or explosion.

8. Do not immerse or splash the appliance with water. Doing so may result in short circuit or electric shock.

9. Do not use the AC adapter and DC cord when outdoors or for camping. Doing so may result in smoke emission or ignition

10. In the event of any of the following, switch off the power of the appliance and remove the battery. Also, disconnect the power plug (cigarette lighter connection plug) from the socket (cigarette lighter outlet).

○ When the appliance is not in use or the appliance is to be adjusted or inspected.

○ Other situations that could be dangerous or may cause unexpected accidents.

1. Only use specified accessories and attachments. Using accessories and attachments other than those specified in the instruction manual or in HiKOKI catalogs may result in accidents or injuries and must be avoided at all costs.

2. Remove any dust accumulated on the blades of the power plug (cigarette lighter connection plug) and the surface from which the blades extend. Failure to do so may result in smoke emission or ignition.

3. When using the appliance with a car power source, set the appliance securely in the luggage space or at the foot of the rear seat where it will not be suddenly jogged out of position. Also, do not place the appliance in an unstable position on the car seat. Sudden braking may cause the appliance to slide or fall if it is placed on a seat.

4. Do not place the appliance or battery at the foot of the driver's seat. Also, do not place the DC cord of the car power source anywhere in the vicinity of the shift lever, brakes or other control pedals. An unexpected accident may occur should the cord become entangled.

5. Do not operate the appliance or the battery while driving the car. Doing so could cause an unexpected accident.

6. Use the provided AC adapter and DC cord for car power source. Use of a cord other than the one provided could result in abnormal heat which could cause smoke emission or ignition.

7. Do not charge the battery on top of a blanket-like seat cover, floor mat or other similar protective material. Doing so may result in fire.

8. Remain near the car when using a car power source. Failure to do so can result in an unexpected accident.

9. Do not store combustible items such as gasoline or thinner. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Doing so may result in fire or explosion.

10. Do not store medical supplies or scientific samples. Doing so could cause an unexpected accident.

11. Do not store dry ice.

The sublimation of Dry Ice to Carbon Dioxide gas will cause any airtight container to expand or possibly explode. Also, any abrupt temperature change may result in damage.

1. Do not place any container with liquid or other unstable objects on top of the appliance. An unstable object may fall and cause injury. Also, any liquid spillage may damage the insulation of electrical components which can cause a short circuit fire.

2. Do not use the included AC adapter or car power source DC cord with anything other than this appliance. Doing so may cause smoke emission or ignition.

3. When positioning the appliance, ensure the AC adapter cord and DC cord are not trapped or damaged.

4. Do not place pins, wires and other metal or foreign objects in the intake or exhaust ports or other gaps. Doing so may result in accident or damage.

5. Do not use the appliance if there are any abnormalities during operation such as foul smell, overheating or smoke emission. Immediately discontinue use and contact the store where you purchased this appliance.

6. Do not use the appliance for any purpose other than that for which it was designed.

7. Don't abuse cord. Never carry appliance by cord or yank it to disconnect from receptacle (cigarette lighter outlet). Keep cord from heat, oil and sharp edges. Be careful where you store or use the cord and avoid stepping on or hooking the cord to where any unnecessary pressure may be applied to cause damage. Doing so could result in shock or short circuit which may cause fire.

8. Pay close attention to maintaining the appliance.

○ Regularly check the power cords and ask your dealer for repairs in the event of it being damaged.

○ If using an extension cord, check it regularly and replace it in the event of it being damaged.

○ Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect operation.

○ Do not use the appliance if the switch does not turn it on and off. Any appliance that cannot be controlled with the switch is dangerous and must be repaired.

1. The appliance repairs to be performed only by experts.

○ The appliance conforms to all relevant safety regulations and must not be modified.

○ All repairs must be requested to HiKOKI authorized service centers. Attempting to carry out repairs without the correct skills may result in accidents or injuries.

1. Do not sit or stand on the appliance. Doing so may lead to accidents or malfunction.

2. Do not block the intake or exhaust ports (vents). Doing so may result in damage.

3. Do not lay the appliance down or use it upside down. Doing so may cause the contents to flow out.

4. Keep the appliance away from high temperatures and do not place near a stove or other heating equipment. Doing so could deform the appliance or cause an accident.

5. Set the appliance in a well-ventilated location. When using near a wall, make sure there is over 10 cm of space between the appliance and the wall's surface.

○ Do not set the appliance inside other pieces of furniture or in a case.

○ Make sure that the appliance is set where the air is flowing.

1. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

2. Do not leave the appliance out with the cover open. Doing so could adversely affect performance.

3. Do not store food and drink products for a prolonged period of time after they have been opened. Doing so may result in change or degradation of food quality.

4. Do not store food materials directly in the appliance. The appliance is not antibacterial treated so the food materials should be wrapped or placed in a polyethylene bag.

5. Do not place ice or water directly into the appliance. Doing so may result in damage.

6. Do not freeze items that break easily such as glass bottles.

7. When storing PET bottles for thermal insulation, use heat resistant bottles. Some PET bottles have low heat resistance and are prone to deformation and damage.

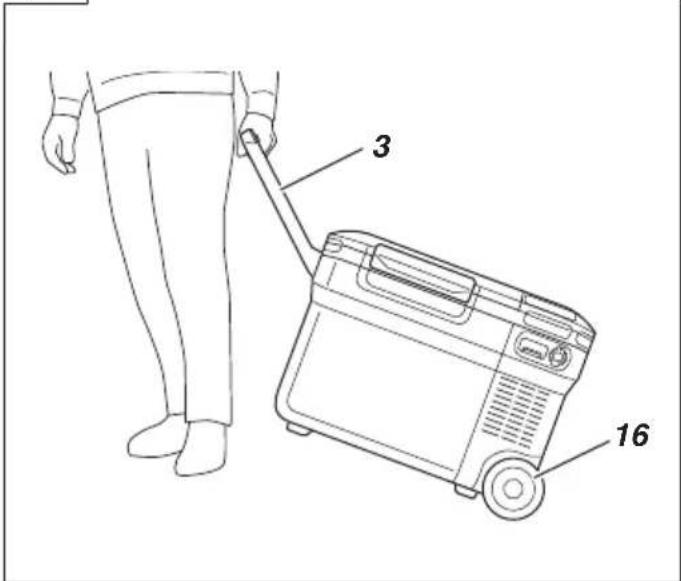

8. Do not drag across the floor with any part other than the casters touching the floor surface. Doing so could cause damage to the appliance or to the floor's surface.

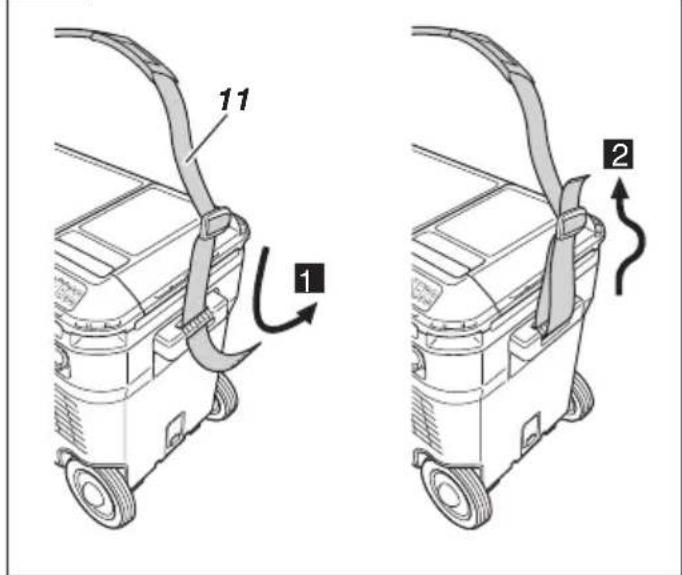

9. Before using the appliance, make sure that the shoulder belt and handle will not detach or cause any problems.

10. Do not carry the appliance with the cover open.

11. When the cover is closed on the appliance, make sure to use the latch to secure the cover.

12. Be careful not to catch your fingers when opening or closing the cover.

13. Do not carry the appliance by the cover.

14. When carrying the appliance, make sure the cover is secured with the latch.

15. Do not inflict any strong impact to the cover when it is open.

16. Do not spray the appliance with insecticide, fragrance or deodorizer.

17. Do not immerse in water or seawater and do not directly spray with water at high pressures.

18. Do not leave unattended with moisture in the appliance.

Leaving it unattended in this manner can result in mold growth. Wipe away any remaining moisture and make sure the appliance is dry.

1. Pulling the appliance on poor pavement surfaces or when it is full can result in accidents such as falling.

2. Do not fully wash the appliance. Water could leak through gaps and soak the insulation, resulting in mold growth.

3. Do not wash the appliance with polishing powder, a scrubbing brush, boiling water, thinner, benzine or other organic solvents.

4. Avoid strong impacts and vibrations when transporting the appliance. Failure to do so may result in damage.

5. When not in use, make sure that the jack cover, the rubber cover and the battery cover remain closed. Failure to do so may result in damage.

6. When using outdoors, make sure that the jack cover, the rubber cover, and the battery cover remain closed. If exposed to water, there is a risk of short circuit.

English

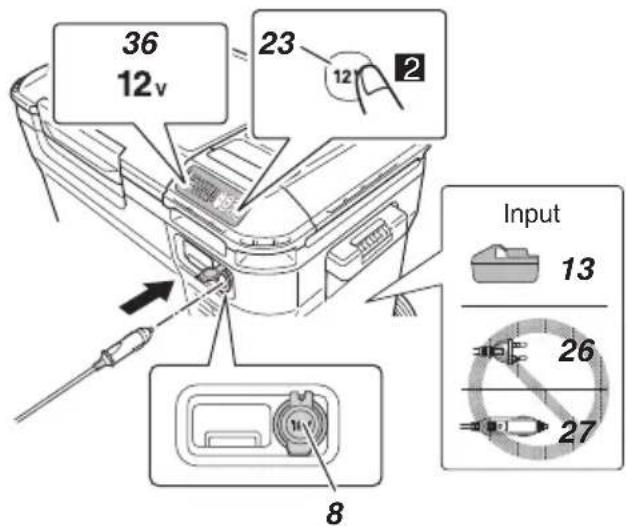

1. When using the DC 12 V car power source, always disconnect the connection plug before switching off the engine.

The power of certain vehicles do not cut off when the engine is switched off. Leaving the connection plug connected could result in overcharging the battery.

1. Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

2. When not using the appliance, tightly close the rubber cover of the connector. If dust, etc. gets inside, it may cause smoke or fire.

3. Do not use the DC 12 V power source as a cigarette lighter.

4. Do not use mechanical devices or other means to accelerate the defrosting process.

5. Do not use electrical appliances inside the food storage compartments of the appliance.

6. Always charge the battery at a temperature of 0^ C– 40^ C. A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C. The most suitable temperature for charging is that of 20^ C– 25^ C.

7. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

8. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

9. Never disassemble the rechargeable battery and charger.

10. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

11. Do not dispose of the battery in fire. If the battery is burnt, it may explode.

12. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

13. Do not insert objects into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or a damaged charger.

14. Make sure that the battery is installed firmly. If it is at all loose it could come off and cause an accident.

15. Do not use the appliance if the tool or the battery terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

16. Keep the tool's terminals (battery mount) free of swarf and dust.

- Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

○ During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

1. It is optimal for items that are frequently taken out of the compartment to be stored in the clear tray. This can shorten the time that the lid is open and prevent the compartment's internal temperature from rising.

2. Keep the inside of the compartment clean when putting foods and drinks inside. Failure to do so creates a risk of food poisoning.

3. Adjust the compartment's internal temperature to suit the types of items contained.

Examples:

– Warm drinks: 60°C

– Cold drinks: 20°C to 5°C

- Chilled foods: 10^ to 0^

- Ice cream: -18°C

1. Do not put too many foods and drinks inside the compartment. Doing so lowers the cooling capability and may result in spoilage or deterioration of the foods.

2. This refrigerating appliance is not intended to be used as a built-in appliance.

3. This refrigerating appliance is not suitable for freezing foods.

4. For refrigerating appliances with climate class:

- Extended temperate: "This refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ "

- Temperate: "This refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ "

- Subtropical: "This refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ "

1. Use the included AC adapter or in-car cord with this appliance. Do not use a different company's adapter or power source.

2. This appliance's input voltage is compliant with SELV (Safety Extra Low Voltage).

3. This appliance is appropriate for use while camping when it is powered by the battery only.

4. This appliance is intended to be used in households and similar applications such as:

- Offices

- Indoors at work sites

1. Parts for repairs can be supplied until 5 years after the year in which manufacturing ended.

2. This manual can also be downloaded from the following: https://www.hikoki-powertools.com/manual_view_export/

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such a case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

2. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.

○ During work make sure that swarf and dust do not fall on the battery.

○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

○ Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
2. Do not use an apparently damaged or deformed battery.
3. Do not use the battery for a purpose other than those specified.
4. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
5. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
6. Keep away from fire immediately when leakage or foul odor are detected.
7. Do not use in a location where strong static electricity generates.
8. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
9. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.
10. Do not give a strong shock to the display panel or break it. It may lead to a trouble.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fire. When storing the lithium ion battery, obey surely the rules of following contents.

○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case.
To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen.

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

○ Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
☐ For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Power Output

2 to 3 digit number

Diagram of a rectangular device with a central screen and side connectors, no text or symbols present.

USB DEVICE CONNECTION PRECAUTIONS (UC18YSL3)

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

WARNING

• Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.
• When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

• There may be an occasional pause during USB recharging.
  When a USB device is not being charged, remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.
  ○ It may not be possible to charge some USB devices, depending on the type of device.

NAMES OF PARTS

The numbers in the list below correspond to Fig. 1–Fig. 20.

1	Lid
2	Latch
3	Handle
4	Drain hole
5	Rubber cover
6	USB-C port
7	USB-A port
8	DC 12 V output socket

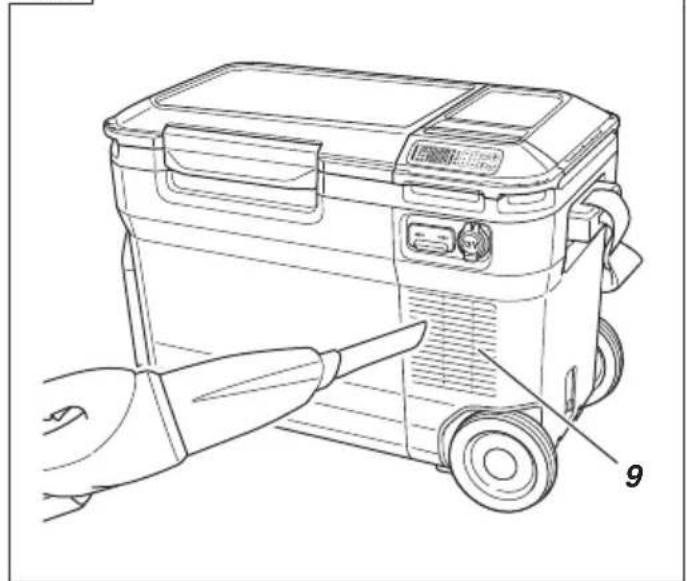

9	Air intake
10	Name plate
11	Shoulder belt
12	Battery cover
13	Battery (sold separately)
14	Jack cover

English

15	Power jack
16	Casters
17	Partition
18	Clear tray
19	LED light
20	Switch panel
21	Mode button
22	Power button
23	12 V power switch
24	USB power switch
25	Temperature control button
26	AC adapter
27	DC cord
28	Latch
29	Charge indicator lamp
30	Remaining battery indicator lamp (on main body)
31	Cooling/warming lamps
32	Celsius/Fahrenheit display
33	Tempeature display
34	Error lamp
35	Power supplied lamp
36	12 V power lamp
37	USB power lamp
38	Remaining battery indicator switch
39	Remaining battery indicator lamp
40	Display panel

SYMBOLS

WARNING

The following show symbols used for the machine.

Be sure that you understand their meaning before use.

	UL18DBA:Cordless Cooler and Warmer Storage
	To reduce the risk of injury, user must read instruction manual.

	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
	Caution: risk of fire.
	Direct current
V	Rated voltage
	Switching ON
	Switching OFF
	Disconnect the battery
	Displaying the battery status
	Lit up when using a household power source or an in-car power sourceBlinks if the Power Supplied Automatic Restoration Function is ON at the same time
	The cooling/warming lamps light up based on the temperature outside of the appliance.
	USB power lampLights up during output
	Lights up if an abnormality occursIf the lamp does not turn off even after removing the power source being used, waiting for a while, and then turning the power ON again, the appliance is malfunctioning.
	Pressing and holding the mode button changes between displaying Fahrenheit (°F) and Celsius (°C).
	Direction to insert the partition on the top when partitioning the compartment
	Direction to insert the partition on the bottom when partitioning the compartment
	Press and hold
	Prohibited action
	Warning

Main body of the Cooler and Warmer Storage

When outputting	When charging	Remaining charge
		Fully charged
		75% or more
		50%-75%
		25%-50%
		Less than 25%
		0%

Battery

	Lights;The battery remaining power is over 75%.
	Lights;The battery remaining power is 50%-75%.
	Lights;The battery remaining power is 25%-50%.
	Lights;The battery remaining power is less than 25%.
	Blinks;The battery remaining power is nearly empty.Recharge the battery soonest possible.
	Blinks;Output suspended due to high temperature.Remove the battery from the tool and allow it to fully cool down.
	Blinks;Output suspended due to failure or malfunction.The problem may be the battery so please contact your dealer.

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed on page 236.

Standard accessories are subject to change without notice.

APPLICATIONS

○ Warming and cooling of foods and drinking water, etc.
○ Charging lithium ion batteries
○ Charging USB devices
○ Providing a power source to devices that use DC 12 V

SPECIFICATIONS

1. Cordless Cooler and Warmer Storage

Model UL18DBA
Power supply	Battery	Slide battery: DC 18 V, Multi volt battery
	AC adapter Household power supply
	DC cord	DC 12 V / 24 V (In vehicle power supply)
Capacity		25 L (without partitions) / Left: 8 L, Right: 15 L (when using partitions)
Cooling System		Compressor / refrigerant gas (R1234yf) compression system
Heating system Wire heater system
Temperature settings		-18°C or -15–60°C at 5°C intervals (When in 2 Zones Mode, max. set temperature difference: 60°C)
Number of batteries that can be installed		2
Type of battery Li-ion
Charging voltage 18 V
Types of rechargeable batteries		HiKOKI slide battery BSL18 series, MV series
Charging time, approx. (At 20°C)*1(For one battery)		BSL36B18: approx. 3 hr 40 min
USB output		USB-A: 5 V / 2.4 A, USB-C: 5 V / 3 A, 9 V / 2.2 A
12 V output*2		12 V / 10 A
Weight 15.8 kg (without battery)

*1 Varies depending on the type of battery, the charging conditions, and the usage environment.

When using together with cooling/warming or USB output, the charging time may become longer.

*2 12 V output is output from the battery only.

○ Continuous operation time from one charge After the inside of the compartment becomes the set temperature, the length of time that the temperature can be maintained with two batteries is shown. As the operation time varies depending on the items contained, the usage environment, the condition of the battery, etc., consider it only as an estimate.

	Batteries BSL36B18
1 Zone Mode -18°C	×2 420 min
1 Zone Mode 5°C	×2 1110 min

English

2 Zones Mode-18°C/5°C	× 2 480 min
1 Zone Mode60°C	× 2 420 min
2 Zones Mode0°C/60°C	× 2 420 min

WARNING

Do not charge anything other than genuine HiKOKI batteries. Do not use other compatible batteries or non-rechargeable batteries.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

1. Battery (sold separately)

Model Voltage Battery capacity
BSL36B18 36 /	18 V *1	4.0 / 8.0 Ah *1

*1 The tool itself will automatically switch over.

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red. (See Table 1)

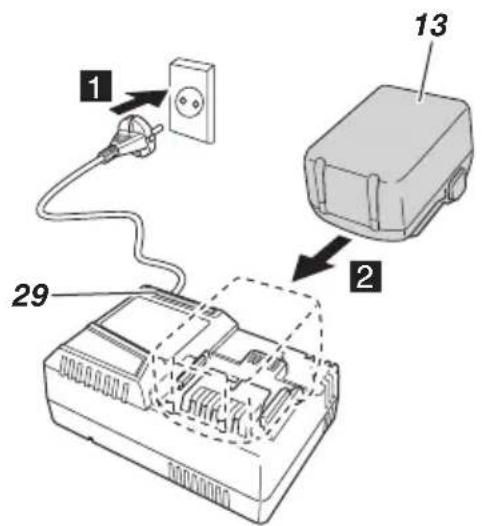

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 3 (on page 231).

3. Charging

When inserting a battery in the charger, charging will commence and the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 1)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

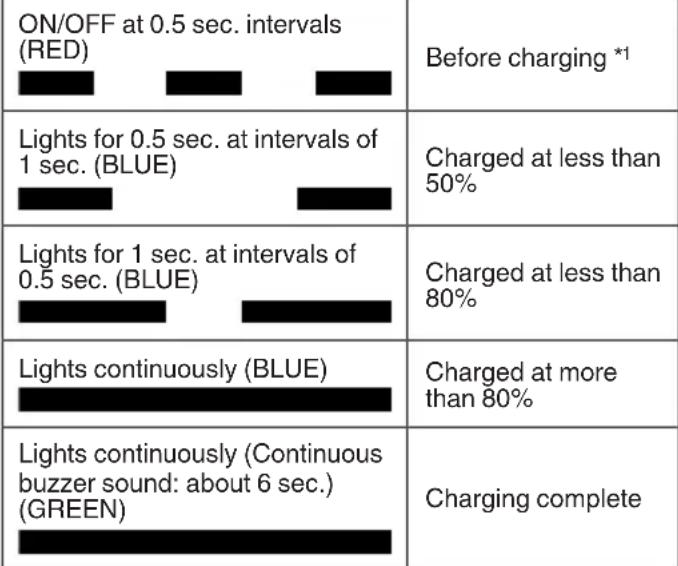

Table 1: Indications of the charge indicator lamp

ON/OFF at 0.3 sec. intervals (RED)	Overheat standby *2
ON/OFF at 0.1 sec. intervals (Intermittent buzzer sound: about 2 sec.) (PURPLE)	Charging impossible *3

NOTE

*1 If the red lamp continues to blink even after the charger has been attached, check to confirm that the battery has been fully inserted.

*2 Battery overheated. Unable to charge. Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.

\*3 Malfunction in the battery or the charger

- Fully insert the battery.

- Check to confirm that no foreign matter is stuck to the battery mount or terminals. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 5 minutes rest until the next charging.

(2) Regarding the temperatures and charging time of the battery (See Table 2)

Table 2

Model UC18YSL3
Type of battery Li-ion
Charging voltage 14.4–18 V
Temperatures at which the battery can be recharged		0°C–50°C
Charging time for battery capacity, approx. (At 20°C)	1.5 Ah 15	min
	2.0 Ah 20	min
	2.5 Ah 25	min
	3.0 Ah	20 min(BSL1430C, BSL1830C: 30 min)
	4.0 Ah	26 min(BSL1840M: 40 min)
	5.0 Ah 32	min
	6.0 Ah 38	min
Charging time for multi volt battery capacity, approx. (At 20°C)	1.5 Ah(× 2 unit)	20 min
	2.5 Ah(× 2 unit)	32 min
	4.0 Ah(× 2 unit)	52 min
Number of battery cells 4–10
Charging voltage for USB 5 V
Charging current for USB 2 A
Weight 0.6 kg

NOTE

○ The recharging time may vary according to the ambient temperature and power source voltage.

○ If charging takes a long time

- Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors).

- Do not block the air vent. Otherwise the interior will overheat, reducing the charger's performance.

- If the cooling fan is not operating, contact a HiKOKI Authorized Service Center for repairs.

4. Disconnect the charger's power cord from the receptacle.

5. Hold the charger firmly and pull out the battery.

NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

MOUNTING AND OPERATION

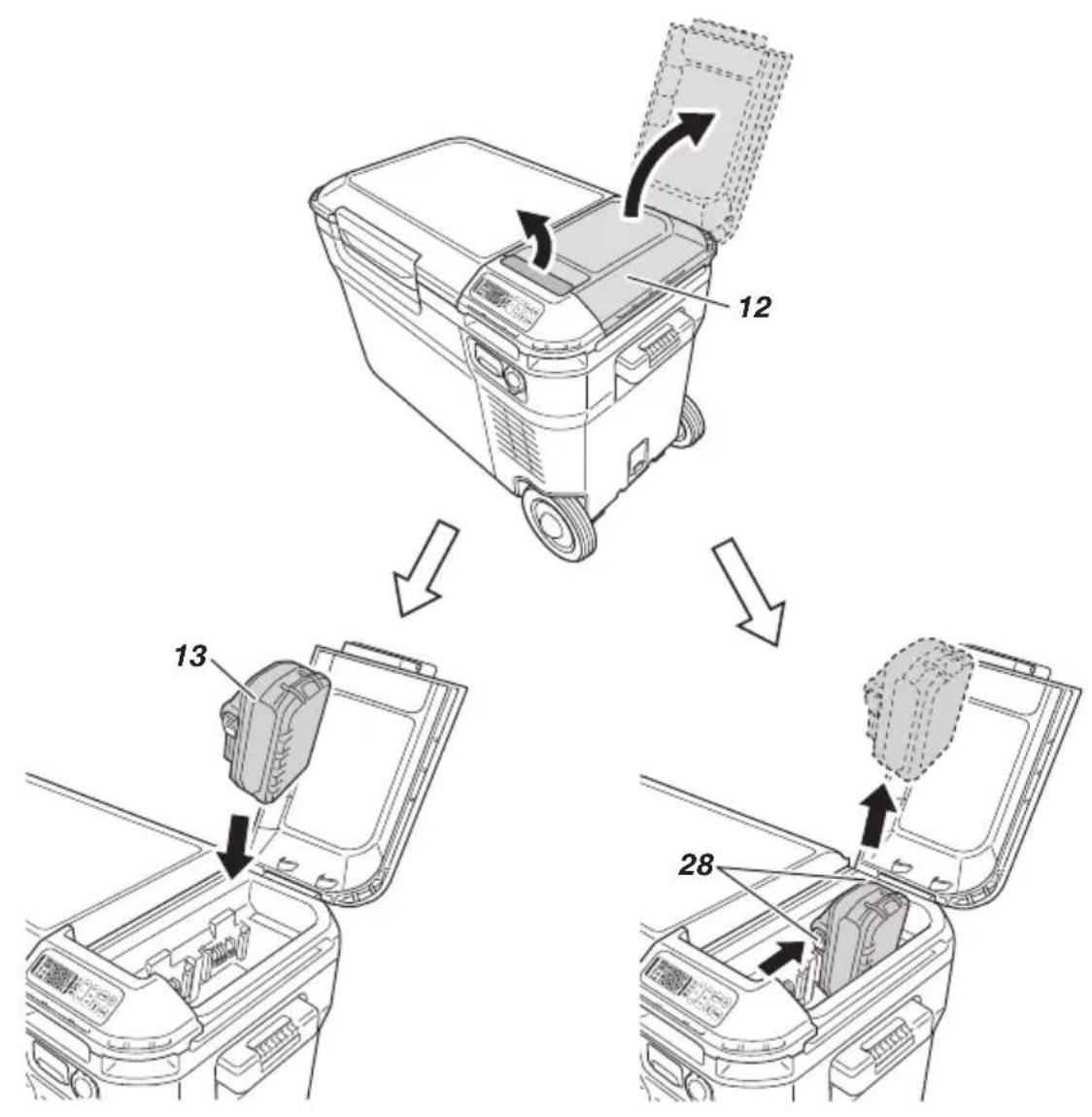

Action Figure Page

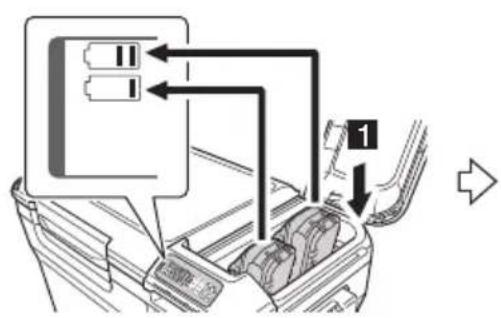

Removing and inserting the battery 2 231
Charging 3 231

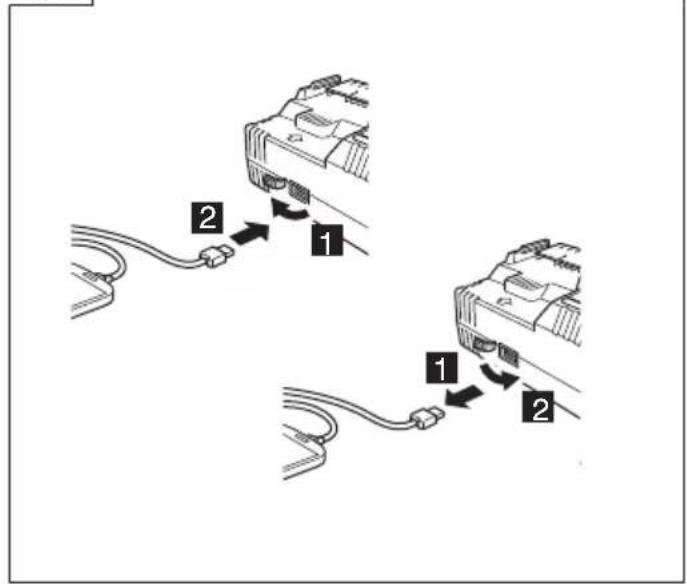

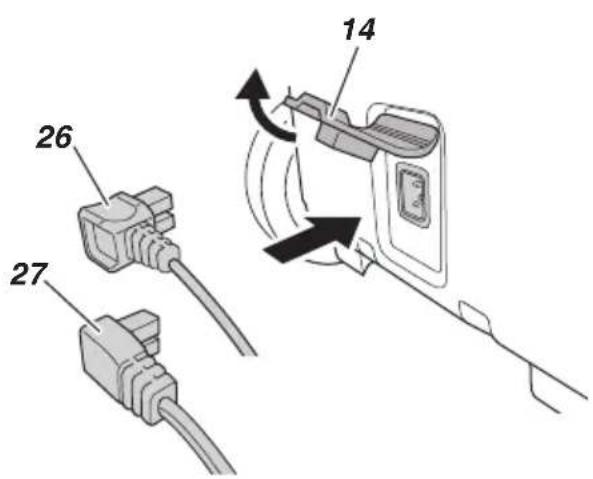

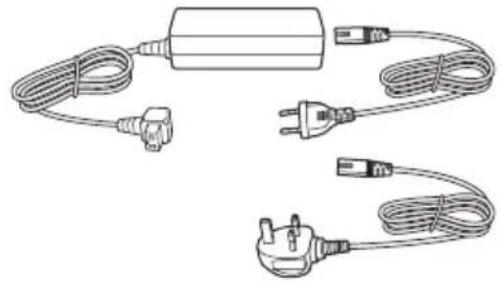

AC adaptor / DC cord installation*1	4 231

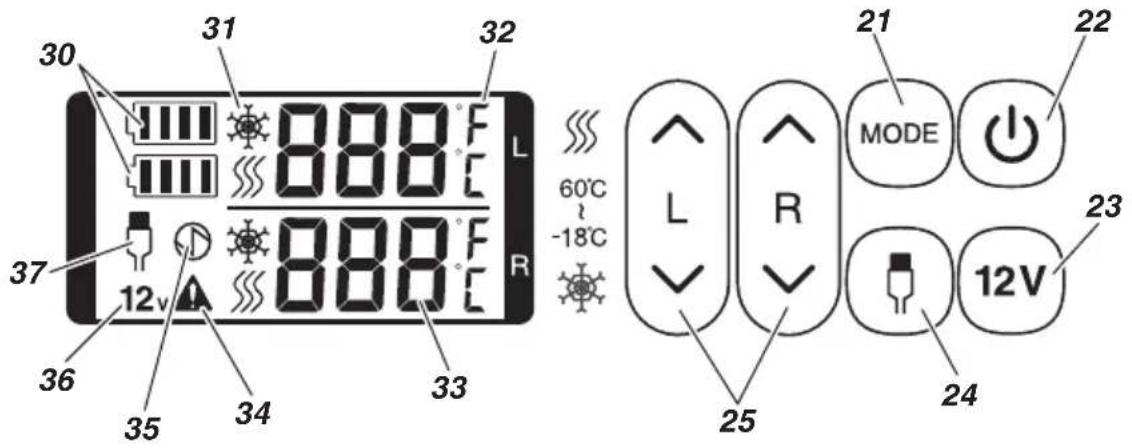

About the switch panel 5 232
Turn the power ON*2	6 232
Select the partitioning mode*3	7 232
Setting the temperature*4	8 233
How to use partitions*5	9 233
Charging the battery on the cooler and warmer storage*6	10 233
Charging a USB device on the cooler and warmer storage*7	11 234

Action Figure Page
Using as a DC 12 V power source*8	12 234
How to attach the shoulder belt 13 234

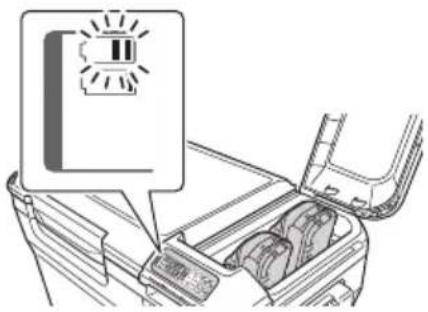

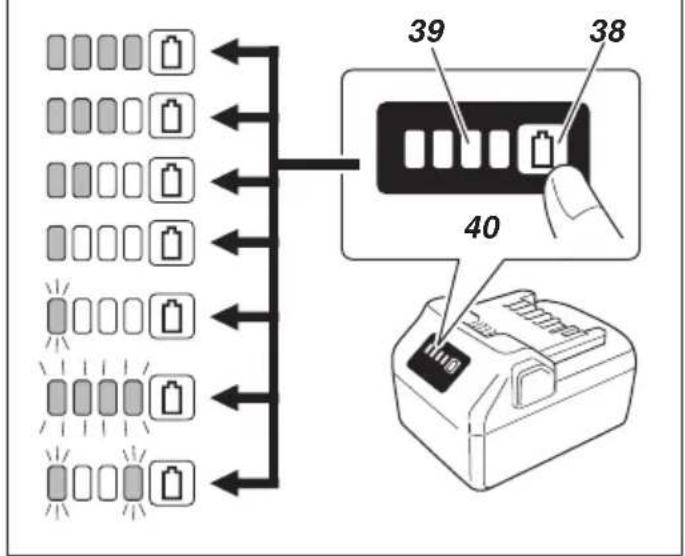

Remaining battery indicator (on battery)	15 235

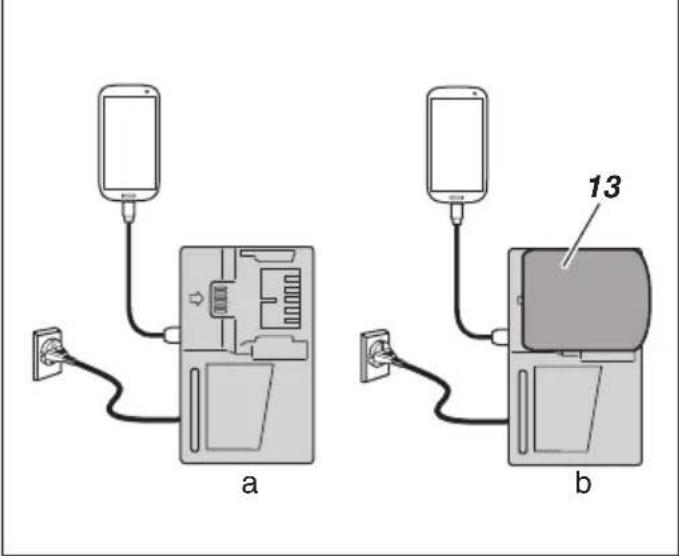

Charging a USB device from a electrical outlet	16-a 235
Charging a USB device and battery from a electrical outlet	16-b 235
How to recharge USB device 17 235
Selecting accessories — 237

*1 Use AC adapter / DC cord

NOTE

When used together with the batteries, the AC adapter or the DC code is the main power source and no battery power is consumed.

○ Make sure that the connection plug is inserted all the way. If incorrectly inserted, the appliance could overheat and result in damage.

○ When using a car as power source, connect while the engine is running. It can cause the battery to die.

When a car equipped with an auto start-stop function has its engine stopped, the voltage of the car's battery decreases, so the warming/cooling function of the appliance may stop. It is recommended to use the appliance with the car's auto start-stop function turned OFF.

○ When the power plug is plugged into an outlet when a battery is installed, the battery will charge whether the power switch is ON or OFF.

Power Supplied Automatic Restoration Function When this function is turned ON, if the power supply that is providing power is shut off, even if the battery isn't installed, when power is supplied again, the power of the cooler and warmer storage is automatically restored to the ON state.

- Press and hold the power switch for 3 seconds or longer.

- The power supplied lamp lights up, and then changes to blinking.

HINT

Even when using with an in-car power source, it is recommended to attach the battery.

While the engine is turned off, the power source switches to the appliance's battery and it continues cooling/warming.

When the engine is started again, the power source switches to the car's battery, and the appliance's battery starts charging at the same time.

If the Power Supplied Automatic Restoration Function is ON, when the engine restarts, the cooling/warming function automatically resumes at the same time for convenience.

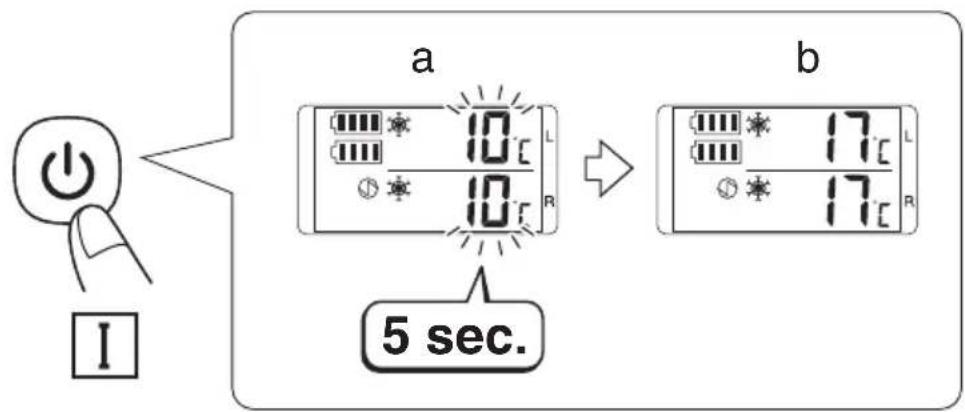

*2 Turn the power ON

The temperature that was set the previous time is displayed for about 5 seconds, then the display changes to the temperature inside the compartment, and operation starts.

NOTE

Do not press the power switch repeatedly. Doing so may cause a malfunction.

After configuring settings, wait about 5 minutes before pressing it again.

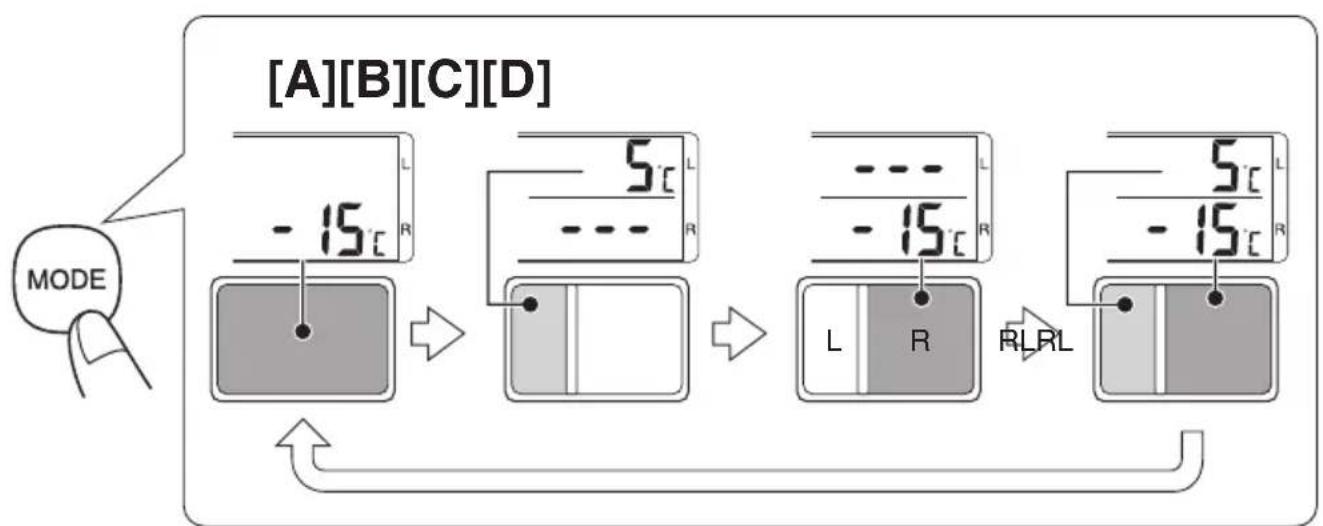

*3 Select the partitioning mode

A: 1 Zone Mode

B: Left Zone Mode

C: Right Zone Mode

D: 2 Zones Mode

English

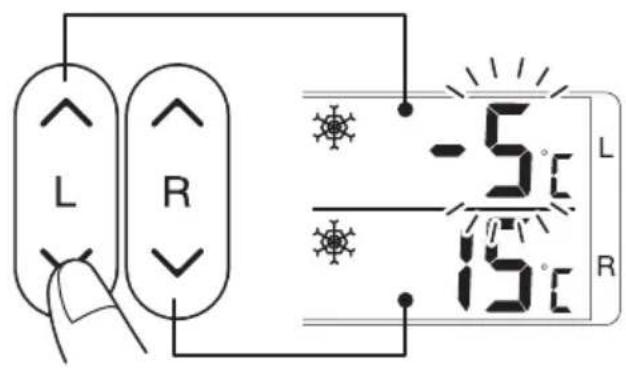

*4 Set the temperature

The temperature can be set to -18^ or -15-60^ in 5^ intervals. While the display is blinking, change the setting to the desired temperature. After 5 seconds, the display changes to show the current temperature inside the compartment, and operation starts.

NOTE

When in 2 Zones Mode, a temperature difference of more than 60^ C cannot be set.

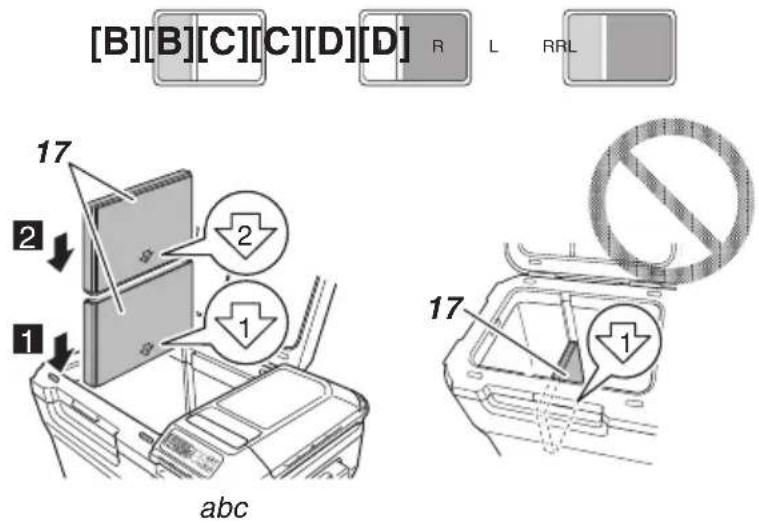

*5 How to use partitions

NOTE

When in modes other than 1 Zone Mode, insert the 2 partitions. (Fig. 9-a) With only 1 partition inserted, the temperature adjustment function doesn't work properly. (Fig. 9-b)

○ When in 1 Zone Mode, Partition 📋 can be inserted to be used as a divider. (Fig. 9-c)

*6 Charge the battery on the cooler and warmer storage. The battery can be charged even during cooling/warming.

NOTE

When charging while operating at the same time, if the power plug is unplugged, charging is stopped, and the appliance switches to cooling/warming operation with the battery as the power source. To stop operation, remove the battery or turn OFF the power switch.

*7 Charge a USB device with the cooler and warmer storage

When charging a USB device, refer to "USB DEVICE CONNECTION PRECAUTIONS". (page 5)

NOTE

- When not charging a USB device, turn OFF the USB power switch, and disconnect the USB device from the charger. Failure to do so may cause malfunction of the USB device or shortening of the battery's life (reducing the number of times it can be charged).

○ Depending on the type of USB device, it may not be possible to charge.

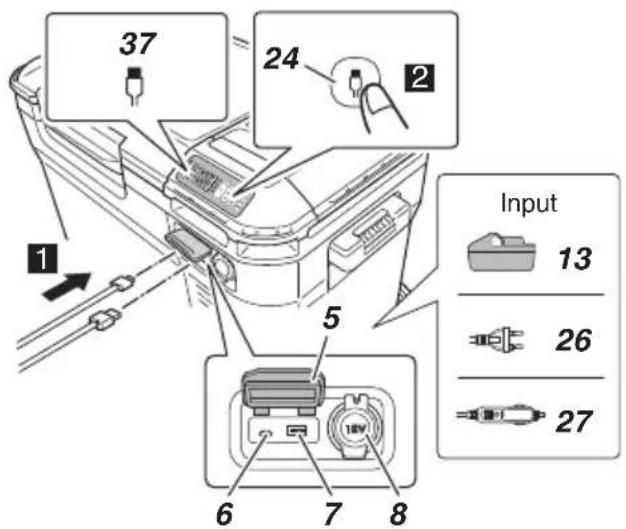

○ When the battery is being used while the cooling/warming function is not being used, to prevent the USB power from being accidentally left on, it automatically turns OFF after 12 hours.

*8 Use as a DC 12 V power source

NOTE

○ Output current is a maximum of 10 A. (Maximum output is 120 W.) If the current exceeds this, the fuse and other electronic parts inside the connection adapter may fail.

To prevent the DC 12 V power source from being accidentally left on, it automatically turns off after 12 hours of not being used.

When you are not using the DC 12 V power supply, turn OFF the 12 V power supply switch and disconnect any device connected to it.

ABOUT THE PROTECTION FUNCTION

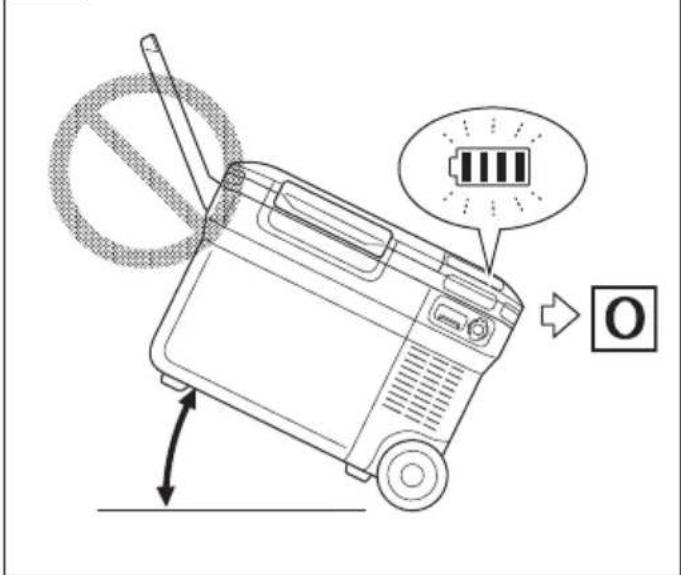

During operation, if the appliance is tilted forward, backward, left, or right at a 30^ angle or more for about 10 seconds, or at a 70^ angle or more for about 1 second, operation is automatically stopped. If operation is stopped by this function, place the appliance on a level surface.

(Fig. 14) Operation will resume automatically after about 1 minute.

Additionally, if a problem with the battery occurs, the remaining battery indicator lamp blinks as shown in Table 3 below. If that occurs, turn OFF the power, and remove the cause before starting operation.

Table 3

	Status and cause
On 1 second/ Off0.5 second	High-temperature standbyCannot charge because the temperature of the battery is high (Charging will start automatically if the temperature lowers)
On 0.2 second/ Off0.2 second	Cannot chargeThere is foreign matter in the connector of the charger or battery

High-temperature standby

MAINTENANCE AND INSPECTION

WARNING

When the appliance will not be used for a long time, or when performing maintenance or storing it, turn OFF the power switch, and remove the AC adapter, DC cord for in-car use, and battery from the main body.

1. Cleaning on the outside

When the appliance is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

NOTE

Do not fully wash the appliance.

2. About the drain (Fig. 18)

When water has accumulated inside the compartment, remove the cap of the drain hole and pour out the water. Additionally, after use, allow the appliance to dry in the shade before storing it.

3. Cleaning the air intake (Fig. 19)

Periodically inspect the air intake and clean it with a vacuum cleaner, etc.

NOTE

If dust collects, the cooling/warming effects will be reduced.

4. Inspection of the AC adapter and DC cord for car use

Inspect to ensure there are no problems such as cord breakage or damage.

If there is a problem, consult with the dealer from which you purchased it.

5. Inspection of terminals (appliance and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

6. About transporting the appliance (Fig. 20)

When transporting the appliance, be careful not to scrape its bottom on the floor or allow it to tip over.

NOTE

Inspect the casters to ensure there is no garbage stuck in them, and that they are not damaged.

7. Storage

Store the appliance and battery in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Storing lithium-ion batteries.

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Simple line drawing of a rectangular electronic device with a central screen and side connectors (no text or symbols)

Illustration of a rectangular electronic device with a central screen and side connectors (no text or symbols)

Italiano

PRECAUZIONI PER IL COLLEGAMENTO DEL DISPOSITIVO USB (UC18YSL3)

VEILIGHEIDSWAARSCHUWINGEN VOOR ACCU KOELBOX MET VERWARMFUNCTIE

Simple line drawing of a rectangular device with a central screen and side connectors (no text or symbols)

PRECAUÇÕES DE CONEXÃO DO DISPOSITIVO USB (UC18YSL3)

D: Modus for 2 soner

*4 Still inn temperatur

VEDLIKEHOLD OG INSPEKSJON

ADVARSEL

Simple line drawing of a rectangular device with a central screen and side connectors (no text or symbols)

ELŐVIGYÁZATOSSÁG USB-ESZKÖZ CSATLAKOZTATÁSAKOR (UC18YSL3)

Model Voltaj		Batarya kapasitesi
BSL36B18 36 /	18 V *1	4,0 / 8,0 Ah *1

Model Tensiune			Capacitateacumulator
BSL36B18 36 /	18 V *	1	4,0 / 8,0 Ah *1

Simple line drawing of a rectangular device with a central screen and side connectors (no text or symbols)

MERE PREDOSTROŽNOSTI USB UREĐAJA (UC18YSL3)

Kada se neočekivani problem pojavi, podaci na USB uređaju koji je povezan sa ovim proizvodom mogu da se oštete ili izgube. Uvek se postarajte da sačuvate bilo koje podatke koje USB uređaj sadrži pre nego što počnete da ga koristite sa ovim proizvodom.

Molimo vas da budete svesni da naša kompanija ne prihvata nikakvu odgovornost za bilo koje sačuvane podatke na USB uređaju koji je oštećen ili izgubljen, niti za bilo kakvo oštećenje koje može da se pojavi sa povezanim uređajem.

UPOZORENJE

Diagram of a rectangular device with a central screen and side connectors (no text or symbols)

MJERE PREDOSTROŽNOSTI SPAJANJA USB UREĐAJA (UC18YSL3)

Exploded view diagram of a portable electronic device with numbered parts and control panel labels

2

Diagram illustrating the step-by-step installation of a mechanical device into a multi-camera container, labeled with parts 12, 13, and 28.

3

Diagram showing electrical connection to a device with labeled parts 1, 2, and 13, including a plug and wiring.

4

26 27 14

5

30 31 32 888°C L 60°C -18°C 37 36 35 34 888°C R 33 21 22 L R MODE 12V 23 24 25

6

I a 10℃ 10℃ R 5 sec. b 17℃ L 17℃ R

7

8

L R -5°C 15°C L R

[A]

9

[B][B][C][C][D][D] R L RRL 17 2 1 abc 17

[A][A]

Line drawing of a container with three bottles, no text or symbols present

17 1

10

Diagram showing connector connections in a device interface with labeled parts and directional arrow

2

Diagram of a car interior showing a highlighted component and its internal structure (no text or symbols)

11

37 24 2 1 5 Input 13 26 27 6 7 8

12

36 12v 23 12 2 Input 13 26 27 8

13

11 1 2

14

Diagram showing a device with a battery icon and a circular component, labeled with an 'O' button.

15

39 38 40

16

a b 13

17

Diagram showing two connected USB cable connectors with labeled connection points 1 and 2

18

Diagram of a medical device with labeled parts and an inset showing a hand holding a device with a curved arrow indicating rotation.

19

Line drawing of a portable electronic device with a handle and wheels, no text or symbols present

20

3 16

	UL18DBA
	(NN)
	1
	1
	1
	1
	1

Line drawing of three types of electrical connectors with coiled wires (no text or symbols)

377813

Line drawing of a cable and plug device (no text or symbols)

377815

Simple line drawing of a curved, segmented object resembling a device or tool (no text or symbols)

377814

Two identical rectangular binders shown side by side, no text or symbols visible

377814

Line drawing of a rectangular container with two side handles (no text or symbols)

380638

Line drawing of a battery pack with a digital display (no text or symbols)

BSL36..18..

Line drawing of a battery pack with display and control panel (no text or symbols)

BSL18..

Line drawing of a mechanical or electronic component with no visible text or symbols

UC18YSL3 (14,4 V–18 V)

329897

Line drawing of a quill pen in an inkwell (no text or symbols)

English		Dansk		Română
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse)		CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicați štampila cu numele și adresa distribuitorului)
Deutsch		Norsk		Slovenščina
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjøpsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse)		GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo vitisnite žig z imenom in naslovom prodajalca)
Français		Suomi		Slovenčina
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopăivămâäră4 Asiakkaan nimi ja osoite5 Myyjăn nimi ja osoite(Leimaa myyjăn nimi ja osoite)		ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákazníka5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu)
Italiano		Ελληνικά		Български
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ПІЗТОПОІНТИКО ЕГГУНЄНЕ1 Ap. Movtėlou2 Aŭξων Ap.3 Нμερομηνία αγοράς4 ́Оvoμα και διεύθυνση πελάτη5 ́Оvoμα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)		ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дильра)
Nederlands		Polski		Srpski
GARANTIEBEWIJS1 Modelnummer2 Seriennummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handolaar)		GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży)		GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca)
Español		Magyar		Hrvatski
CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distribuidor(Se ruega poner el sello del distribuidor con su nombre y dirección)		GARANCIA BIZONYLAT1 Tipusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét)		JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca)
Português		Čeština
CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)		ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razítko se jménem a adresou prodejce)
Svenska		Türkçe
GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stämpla försäljarens namn och adress)		GARANTI SERTÍFİKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adı ve Adresi5 Bayi Adı ve Adresi(Lütfen bayi adını ve adresini kaşe olarak basın)

HiKOKI

1
2
3
4
5

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

25 Majestic Road, Southampton, SO16 OYT,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.no

Hikoki Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.se

Hikoki Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.dk

Hikoki Power Tools Finland Oy

Tupalankatu 9, 15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.fi

Hikoki Power Tools Hungary Kft.

Hikoki Power Tools Romania S.R.L.

Ring Road, No. 66, Mustang Traco Warehouses,

Warehouse No.1, Pantelimon City, 077145, Ilfov County, Romania

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Two icons: a rectangular block and a circular trash bin with an 'Recycle' symbol (no text or numbers present)
