USER MANUAL HP2300S SCHEPPACH

Line drawing of a lawn mower with adjustable arm and wheels (no text or symbols)

https://www.scheppach.com/sde/service scheppach

Made in P.R.C.

DE	RüttelplatteOriginalbetriebsanleitung	7
GB	Plate compactorTranslation of original instruction manual	28
FR	Plaque vibranteTraduction des instructions d'origine	45
IT	Piastra vibranteLa traduzione dal manuale di istruzioni originale	64
NL	TrilplaatVertaling van de originele gebruikshandleiding	82
ES	Placa vibratoriaTraducción del manual de instrucciones original	100
PT	Placa vibranteTradução do manual de operação original	119
CZ	Vibrační deskaPřeklad originálního návodu k obsluze	138
SK	Vibračná doskaPreklad originálneho návodu na obsluhu	155
HU	RázólapEredeti használati utasítás fordítása	173
PL	Płyta wstrząsarkiTłumaczenie oryginalnej instrukcji obsługi	191
HR	Vibracijska pločaPrijevod originalnog priručnika za uporabu	209
SI	Vibracijska ploščaPrevod originalnih navodil za uporabo	226

EE	RaputusplaatOriginaalkäitusjuhendi tõlge	243
LT	Vibracinė plokšteOriginalios naudojimo instrukcijos vertimas	260
LV	VibroplātneOriginalās lietošanas instrukcijas tulkojums	277
SE	VibrationsplattaÖversättning av original-bruksanvisning	295
FI	TärytyslevyKäännös alkuperäisestä käyttöohjeesta	312
DK	VibrationspladeOversættelse fra den oprindelige betjeningsvejledning	329
NO	VibrasjonsplateOversettelse av den originale brukerveiledningen	346
BG	Трамбовка тип вибрационна плочаПревод на оригиналното ръководство заексплоатация	363
GR	Доуңтікні плáқаМетафраση тоу трштотúппо тων οδηγιών χρήσης	383
RO	Placă vibratoareTraducere din manualul de exploatare original	403
RS	Vibraciona pločaPrevod originalnog uputstva za upotrebu	422
TR	Sarsma plakasıOrijinal kullanım talimatı çevirisi	439

1

1 2 3 4 5 6 16 15 14 13 12 11 7 8 9 10

2

23 22 21 20 17 18 19

3 1

4 2 2a 1 1a

5 17 12a 12

6 21 20 21a

7 19b 19 19a

8 19e 19e 19d 19d 19c 19c

9 19e 19e

10 16 15 START 8

11 23

12 18 18

13 14

14 5 5a 15

15 15a

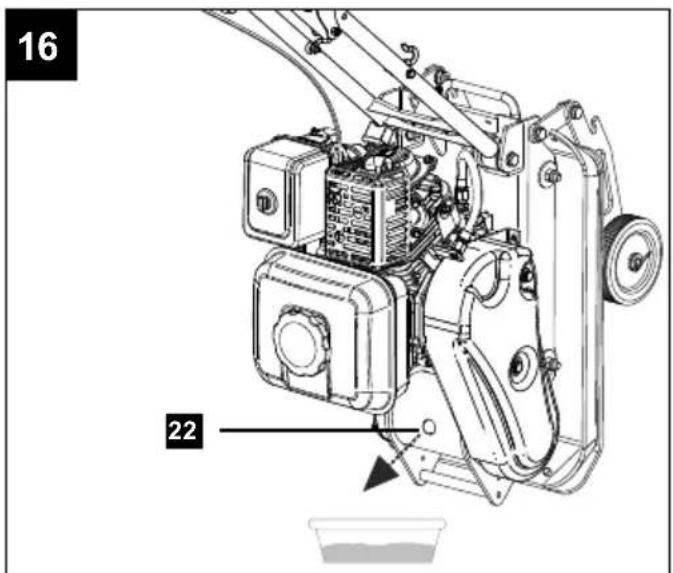

16 22

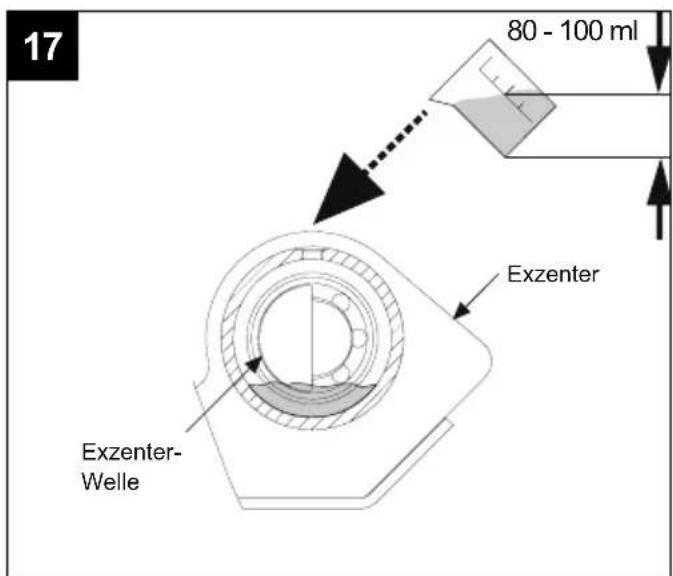

17 80 - 100 ml Exzenter Exzenter- Welle

18 4a 4 4b 4c

19 24

Technical line drawing of a mechanical assembly with labeled parts (20 and 12), no readable text or symbols beyond labels

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Table of contents: Page:

1. Explanation of the symbols on the product 29
2. Introduction....31
3. Product description (Fig. 1) 31
4. Scope of delivery 31
5. Proper use 32
6. General safety instructions.... 32
7. Technical data....35
8. Unpacking....35
9. Layout 36
10. Before commissioning 36
11. Start-up 37

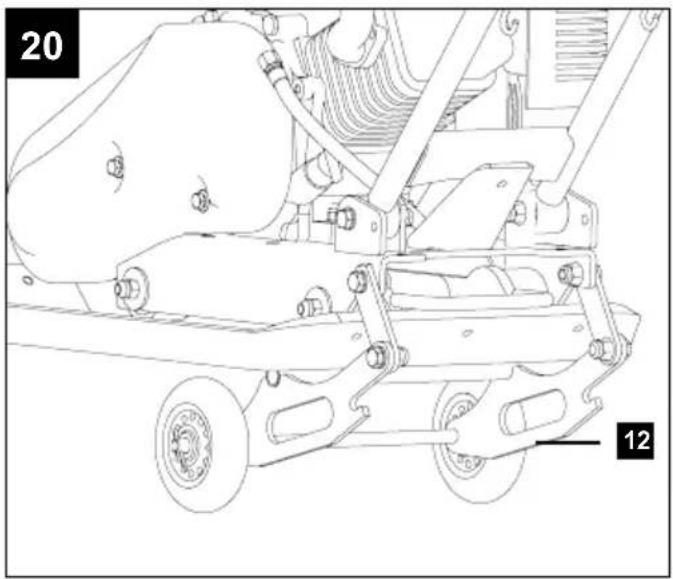

12. Transport (Fig. 20)....39
13. Cleaning and maintenance.... 39
14. Storage 42
15. Repair & ordering spare parts 43
16. Disposal and recycling....43
17. Troubleshooting 44
18. Declaration of conformity 457

1. Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Wear hearing protection!
	Wear safety goggles!
	Use work gloves.
	Use safety shoes.
	Removing or modifying protective or safety equipment is prohibited.
	Do not touch rotating parts. Getting caught in the spinning belt will cause a hand injury. Always put on the belt guard.
	Naked flames or smoking near the device is strictly prohibited!
	Hot surface! Touching can cause burns. Only carry out servicing, maintenance and cleaning work when the engine has cooled down.
	Keep third parties away from the work area.
	Poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms.
	Important: Always switch off the engine before refuelling. Do not refill during operation.
	Before carrying out any cleaning or maintenance work, switch off the engine and remove the spark plug connector from the spark plug.
	Guaranteed sound power level of the device
	- Choke closed- Open fuel valve
	Speed lever
	Checking the oil level
	We have marked points in these operating instructions that impact your safety with this symbol.
	Already filled with oil! Do not top up. Oil level not visible.
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

2. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

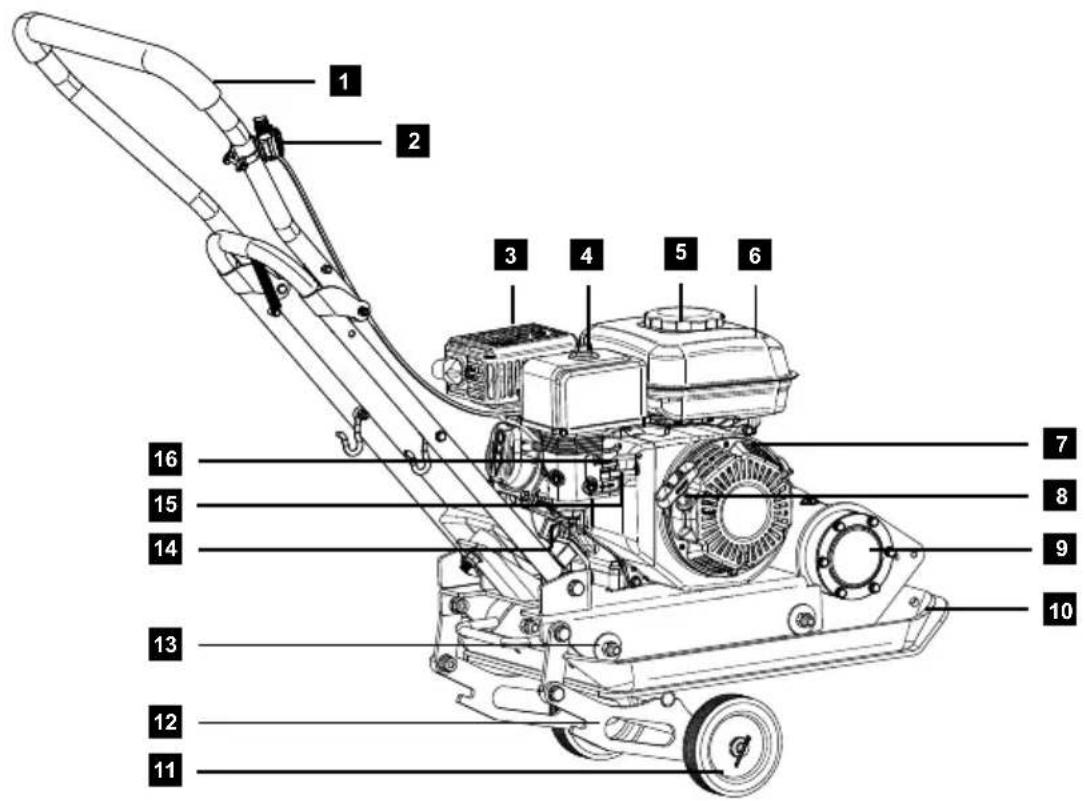

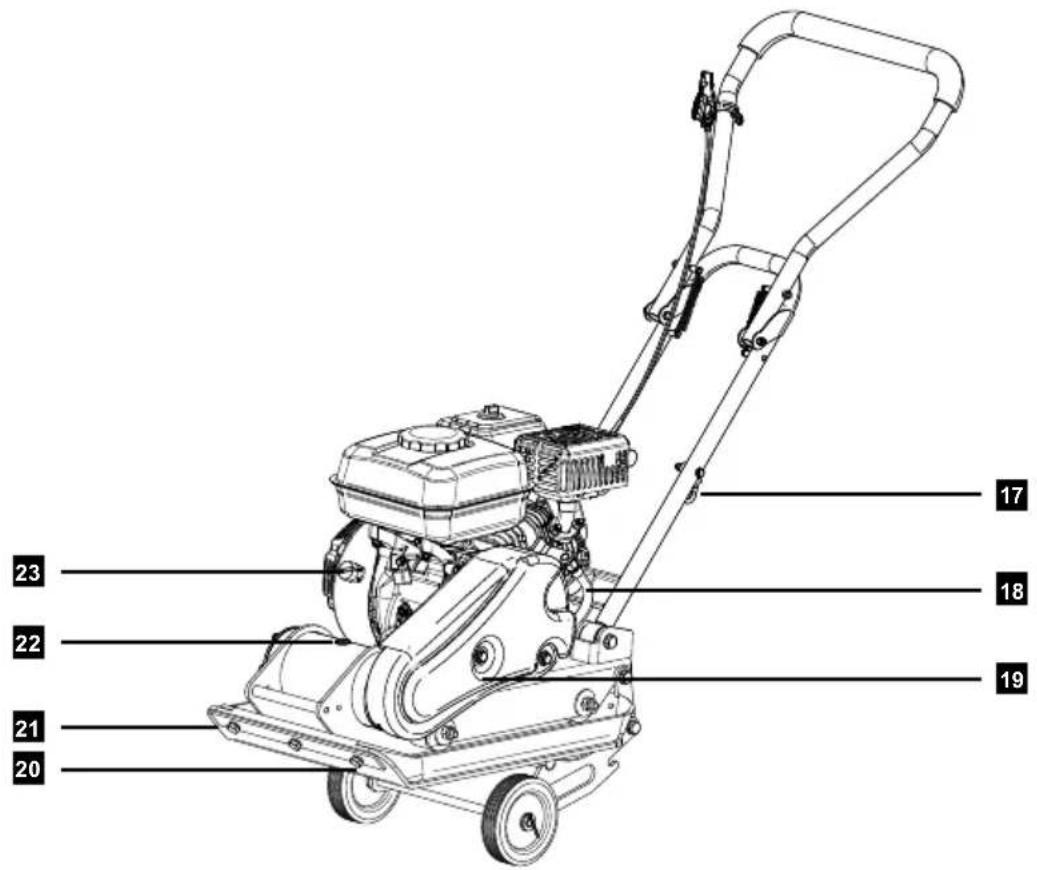

3. Product description (Fig. 1-20)

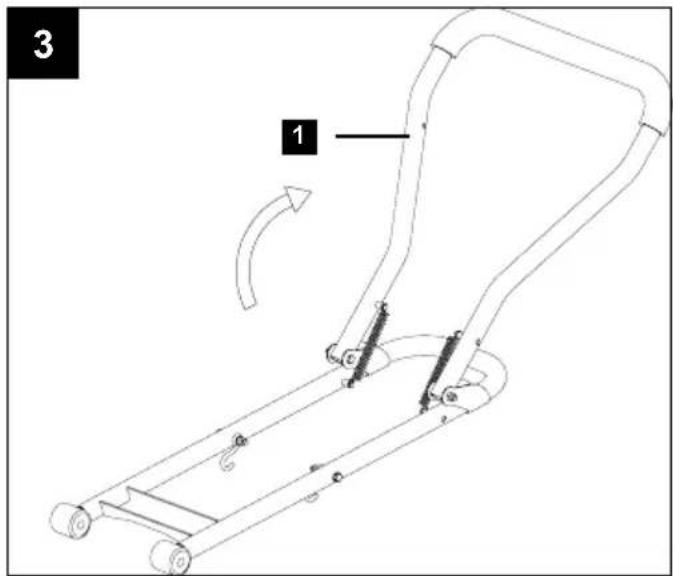

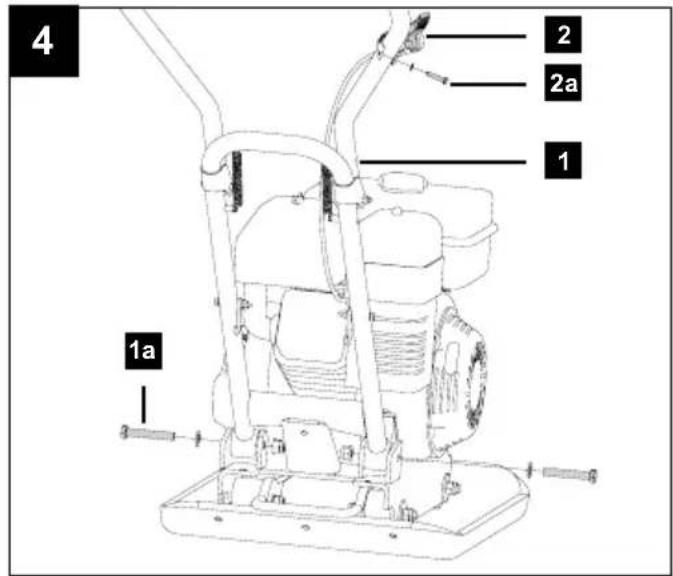

1. Foldable guide bar with handle
   1a. Guide bar screw
2. Throttle
   2a. Throttle screw
3. Exhaust pipe

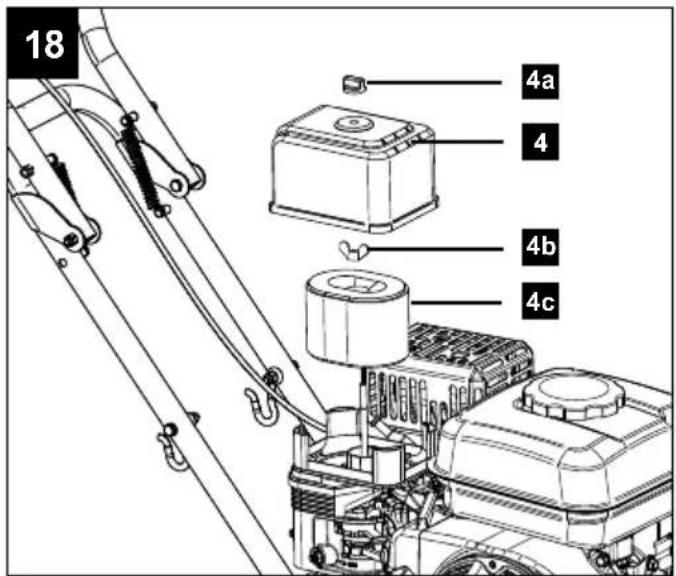

4. Air filter cover
   4a. Wing nut

4b. Wing nut (inner)
4c. Air filter insert

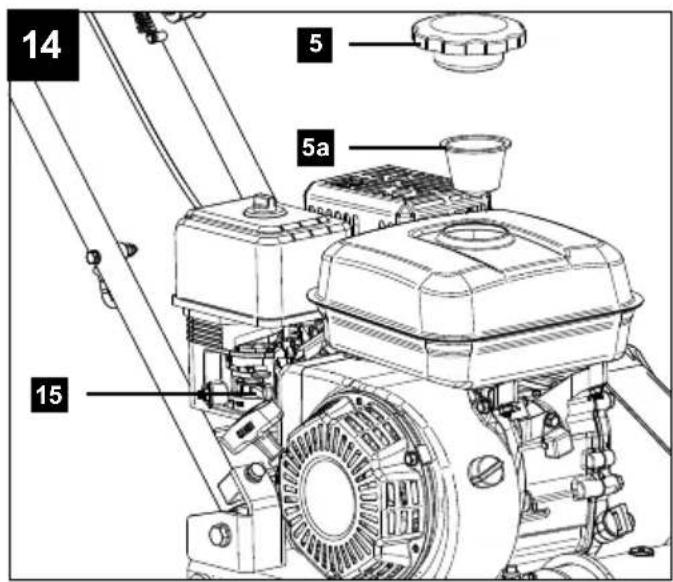

5. Petrol tank cap
5a. Fuel filter insert
6. Fuel tank
7. Motor
8. Starter cable
9. Eccentric vibration unit
10. Base plate
11. Transport wheels
12. Chassis

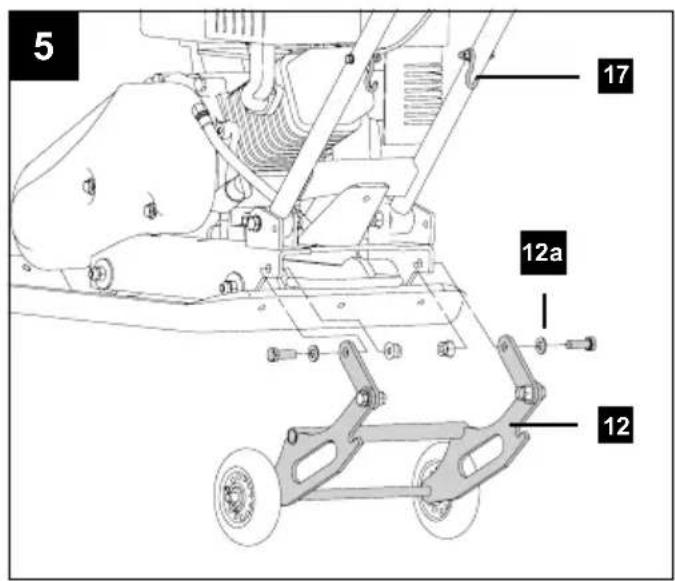

12a. Transport frame screws
13. Base plate screws

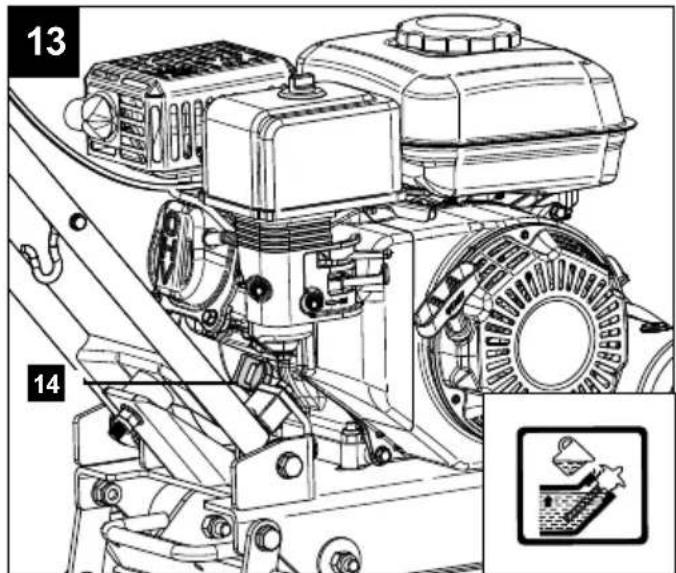

14. Oil dipstick for engine oil

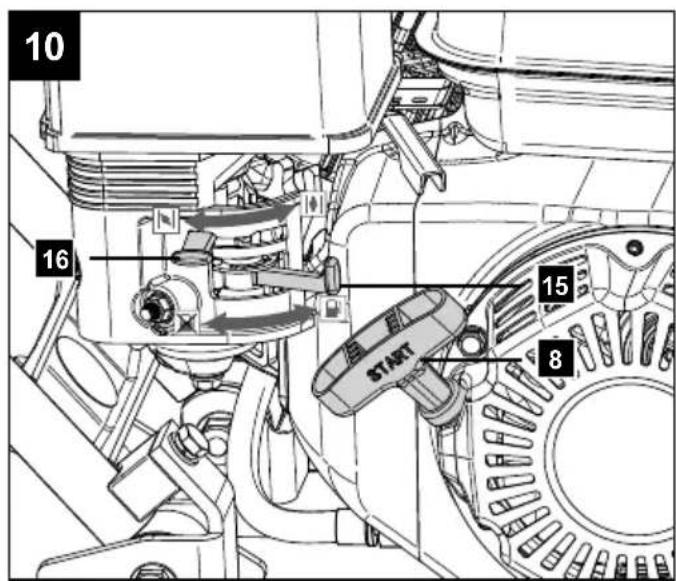

15. Fuel valve

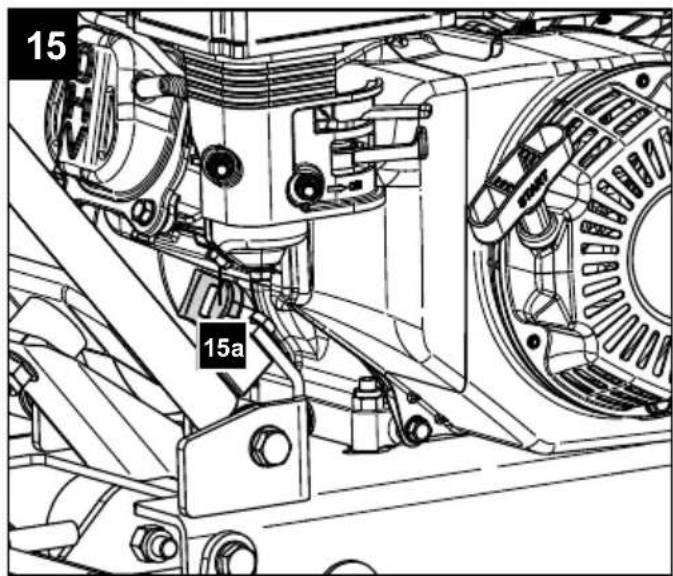

15a. Carburettor screw
16. Choke lever
17. Bracket for transport frame

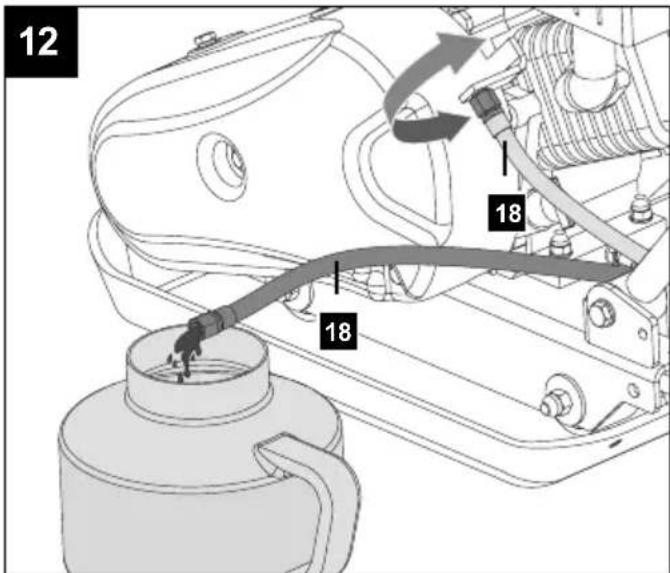

18. Flex hose

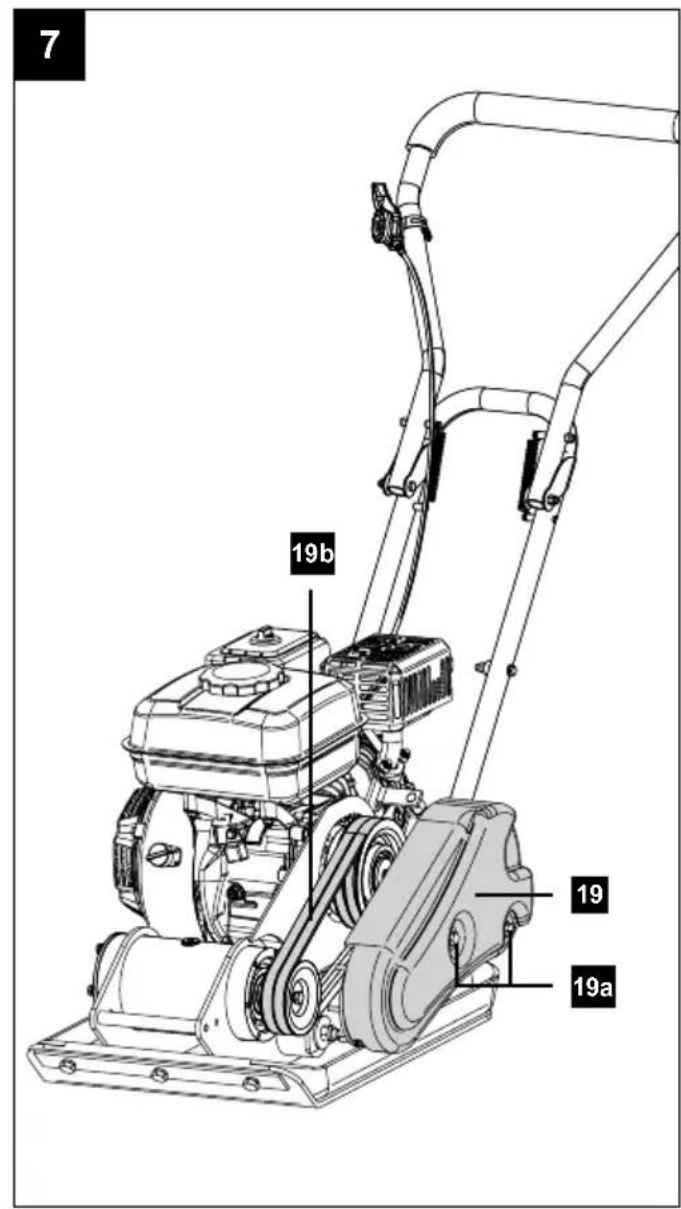

19. Belt cover
19a. Belt cover screws
19b. V-belt

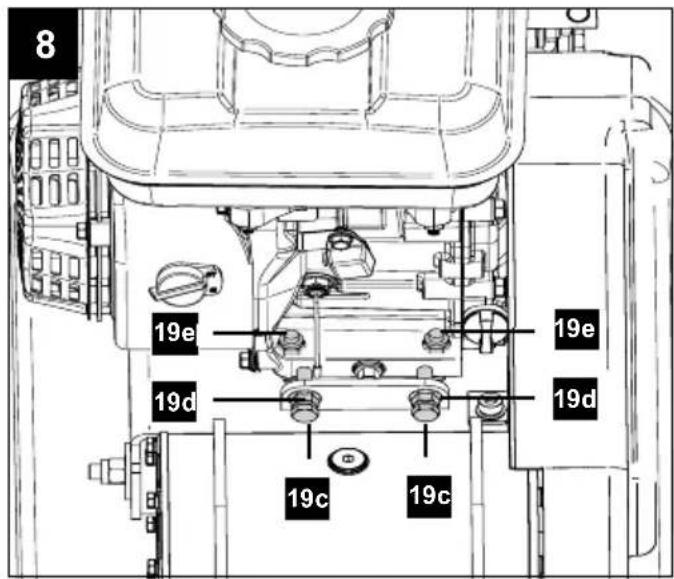

19c. Set screws
19d. Lock nuts

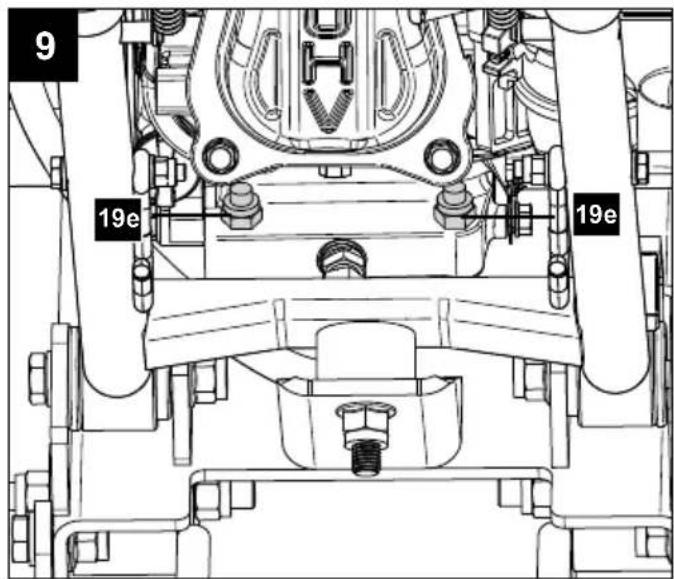

19e. Engine mounting screws

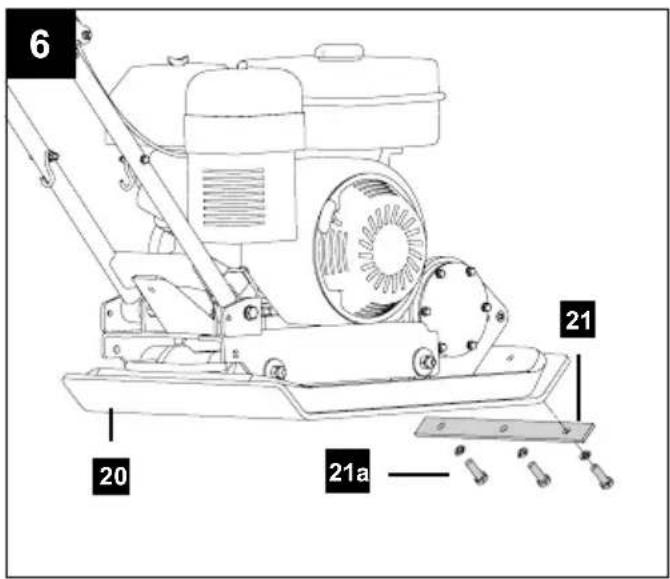

20. Rubber pad
21. Fastening strip
21a. Fastening strip screws

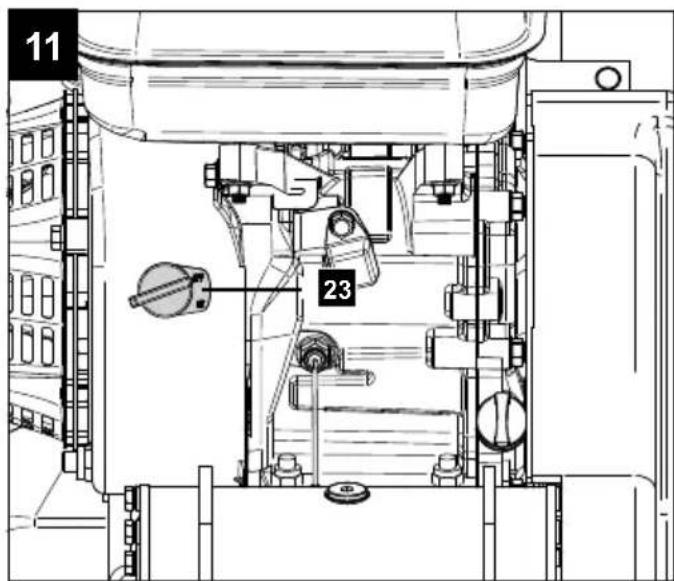

23. On/off switch

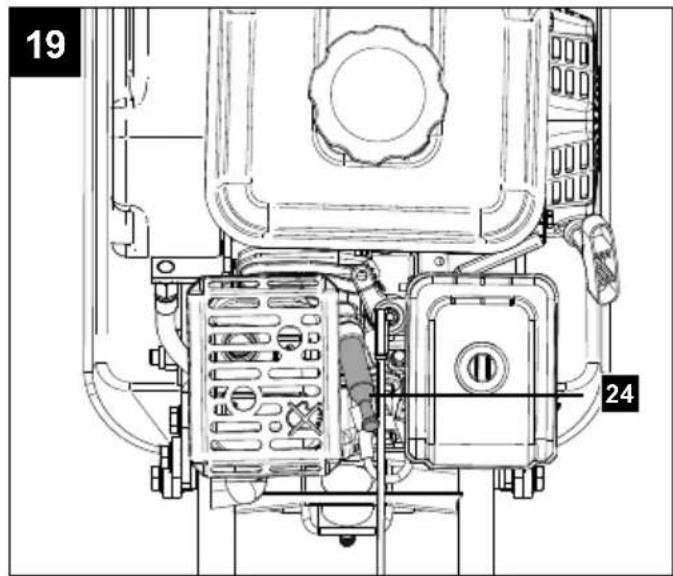

24. Spark plug

1. Oil drain screw for eccentric vibration unit oil

4. Scope of delivery

Item	Quantity	Designation
	1x	Plate compactor with engine
1	1x	Handle
12	1x	Chassis
20/21	1x	Rubber pad with fastening bar
	1x	Spark plug wrench
	1x	Enclosed accessories bag
	1x	Operating manual

5. Proper use

The plate compactor transfers forces to loose soil or other materials. It can be used for general road works, landscaping and building construction. The plate vibrator increases the load-bearing capacity, reduces water permeability, prevents soil settling, reduces swelling or contraction of the soil. It is particularly suitable for compacting interlocking pavers and trenches, as well as for landscaping and conservation work.

Attention!

The plate compactor is not designed for use on adherent substrates such as clay or hard surfaces such as concrete.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed. The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer. The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

6. General safety instructions

• Familiarise yourself with your machine.
- Read the operating manual carefully and make sure you understand its contents, as well as all labels attached to the machine.
- Familiarise yourself with the area of application, as well as limitations of the machine, and particular sources of danger.
• Make sure that you know all the controls and their function exactly.
• Make sure you know how to stop the machine and quickly disable the controls.
- Do not attempt to use the machine without knowing the exact method of operation and the maintenance requirements of the engine and how to avoid accidents resulting in personal injury and/or property damage.
- Keep other people, particularly children, away from your work area.

Working range

- Never start or operate the machine in an enclosed area. The exhaust gases are dangerous because they contain the odourless and deadly gas carbon monoxide. Operate the machine only in a well-ventilated outdoor area.

- Never operate the machine without good visibility or lighting conditions.

Personal safety

- Do not use the machine if you have taken drugs, alcohol or medication that affects your ability to operate the machine correctly.

- Wear suitable clothing. Wear long trousers, boots and gloves.

- Do not wear loose clothing, shorts or jewellery of any kind. Tie back long hair so that it is at shoulder height at most. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery or long hair may become caught in the moving parts. Check your machine before starting.

- Leave protective screens in place and in working order.

• Make sure that all nuts, bolts, etc. are securely tightened.

- Never use the machine if it is in need of repair or in poor mechanical condition. Replace damaged, missing or defective parts before use.

- Check the machine for fuel leaks.

- Keep it in good functional order. Do not use the machine if the engine cannot be switched on and off at the corresponding switch.

- A petrol-driven machine that cannot be controlled via the engine switch is dangerous and must be replaced.

- Before starting the machine, get into the habit of checking that screwdrivers and spanners are away from the area around the machine. A screwdriver or spanner that is still in a rotating device part may result in personal injury.

- Be attentive, watch your actions and use common sense when working with the machine. Do not overextend yourself.

- Do not operate the machine barefoot or with sandals or similar light footwear. Wear safety shoes that protect your feet and improve your grip on slippery surfaces.

- Ensure safe footing and balance at all times. This will allow you to better control the machine in unexpected situations.

- Prevent unintentional start-up. Make sure that the engine switch is switched off before transporting the machine or carrying out maintenance work on the machine. Transport or maintenance work on the machine can lead to accidents if the switch is on.

Safe handling of petrol

- Petrol is very flammable and its gases can explode if they ignite.

• Take safety measures when handling petrol to reduce the risk of serious injury.

- Use a suitable petrol can when filling or draining the tank.

- Carry out this work in clean, well-ventilated outdoor areas.

- Do not smoke. Do not allow sparks, naked flames or other sources of fire to get near when filling up with petrol or working with the machine.

- Never fill the tank indoors. Keep earthed, electrically conductive objects, such as tools, away from exposed electrical parts and wires to avoid sparking or arcing. This could ignite petrol gases.

• Always switch off the engine and let it cool down before refilling the fuel tank. Never remove the fuel filler cap or fill fuel into the tank while the engine is running or while the engine is hot.

- Do not use the machine if you know there is a leak in the fuel system. Slowly loosen the fuel filler cap to release any pressure in the tank. Never overfill the tank (petrol should never be above the marked maximum fill level). Close the fuel tank securely again with the fuel filler cap and wipe up any spilled petrol.

- Do not use the machine if the fuel filler cap is not screwed tightly shut. Avoid ignition sources near spilled petrol. If petrol has been spilled, do not attempt to start the machine. Move the machine away from the area of the spillage and prevent the formation of ignition sources until the petrol gases have dissipated.

- Store fuel only in containers specially manufactured for this purpose.

- Store petrol in a cool, well-ventilated area away from sparks and naked flames or other sources of ignition. Never store petrol or the machine with a filled tank in a building where petrol gases could reach sparks, naked flames or other ignition sources such as water heaters, ovens, clothes dryers or similar.

- Allow the engine to cool before storing the machine in an enclosed area.

Use and care of the machine

- Never pick up or carry the machine while the engine is running.

- Do not handle the machine violently.

- Use the right machine for your area of application. The right machine will do the job it was designed for better and more safely.

- Do not change the speed governor setting of the engine or over-rev it. The speed control system controls the maximum speed of the engine with maximum safety.

- Do not run the engine at high speeds when not compacting.

- Do not hold your hands or feet near rotating parts.

- Avoid contact with hot petrol, oil, exhaust gases and hot surfaces. Do not touch the engine or exhaust silencer. These parts become particularly hot during use. They are still hot a short time after the machine is switched off.

- Allow the engine to cool down before carrying out maintenance or adjustment work.

- If the machine starts to make unusual noises or vibrations, switch the engine off immediately, disconnect the spark plug cable and determine the cause. Unusual noises or vibrations are usually a safety sign of faults.

- Only use assembly and accessory parts approved by the manufacturer. Failure to do so may result in injury.

- Service the machine. Check for misalignment or jamming of moving parts, damaged parts and other conditions that could impair function of the machine. Have the machine repaired before any further use if you find any damage. Many accidents are the result of poorly maintained equipment.

- Keep the engine and silencer free of grass, leaves, excess grease or soot encrustation to reduce the risk of fire.

- Never pour or splash water or any other liquid onto the machine.

- Keep the handles dry, clean and free of small parts.

- Clean the machine after every use.

- Follow the applicable waste disposal guidelines for petrol, oil etc. to protect the environment.

- Keep the switched-off machine out of the reach of children and do not allow persons who are not familiar with the machine or these instructions to use the machine. The machine is dangerous in the hands of untrained operators.

Service

- Before cleaning, repairing, inspecting or adjusting, switch off the engine and ensure that all moving parts have come to a standstill.

- Always ensure that the engine switch is in the "OFF" position. Disconnect the spark plug cable and keep it away from the spark plug to prevent accidental start-up.

- Have your machine serviced by qualified personnel. Only use original spare parts. This ensures that the machine remains safe.

Additional safety instructions

- Keep hands, fingers and feet away from the base plate in order to avoid injuries.

- Hold the handle of the plate vibrator firmly with both hands. If both hands hold the handle and your feet are away from the compacting plate, your hands, fingers and feet cannot be injured by the compacting plate.

• Always stay behind the machine when using it; never walk or stand in front of the machine when the engine is running.

- Never place tools or other objects under the plate vibrator. If the machine hits a foreign object, stop the engine, disconnect the spark plug and check the machine for damage; repair the damage before restarting and using the machine.

- Do not overload the machine by compacting too deep or too fast.

- Do not use the machine at high speeds on hard or slippery surfaces.

- Be especially careful when using the machine to work on or cross gravel beds, gravel paths or gravel roadways.

- Watch out for hidden dangers and traffic. Do not carry people.

- Never leave the workplace and never leave the plate vibrator unattended when the engine is running.

• Always stop the machine when work is interrupted or when relocating from one place to another.

- Stay away from trench edges and avoid actions that may cause the plate vibrator to tip over. Walk up slopes carefully backwards in a direct line, to avoid tipping the plate vibrator over onto the operator.

• Always place the device on a firm and level surface and switch the machine off.

- Limit working hours with the machine and take regular breaks to reduce vibration stress and let your hands rest. Reduce the speed and force with which you perform repetitive movements.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating instructions as a whole are observed.
• Avoid accidental start-ups of the machine.
• Use the tools that are recommended in this operating manual. This is how to ensure that your machine provides optimum performance.

• Keep your hands away from the working area when the machine is in operation.

• Technical data

	HP1900S/HP1100S	HP2300S/HP1300AS
Engine / drive	1-cylinder,4-stroke forunleaded petrol	1-cylinder,4-stroke forunleadedpetrol
Displacement 196 cm3 196 cm3
Engine output 4.1 kW 4.1 kW
Fuel content 3.6 l 3.6 l
Engine oilcapacity max.	0.6 l 0.6 l
Eccentricvibration unit oilcapacity	0.08 l	0.08 l
Plate size (L x W)	ca. 530 x 370mm	ca. 540 x 420mm
Centrifugal force	11000 N	13000 N
Feed	25 m/min	15 m/min
Vibration fre-quency	5500 vpm	5500 vpm
Compactiondepth	25 cm	30 cm
Max. permissibleinclination for theengine	20° 20°
CO2 emissions	925.8 g/kWh	925.8 g/kWh
Weight	approx. 57 kg	ca. 83 kg

Subject to technical changes!

Noise and vibration

The noise levels have been determined in accordance with EN ISO 3744. Total vibration emission values (vector sum of three directions) determined per EN 500-1.

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Noise data:

Sound pressure level L_pA	84.2 dB
Uncertainty K_pA	2.34 dB
Sound power level L_WA	106 dB
Uncertainty K_WA	2.34 dB

Vibration parameters:

Vibration a_h	10.8 m/s2
Uncertainty K 1.5 m/s2

The specified sound levels have been measured in accordance with a standardised test procedure and can be used to compare different tools with one another.

In addition, these values are suitable for estimating the stresses for the user resulting from the noise in advance.

Warning! Depending on how you use the tool, the actual values may differ from the those given. Implement measures to protect against noise nuisance.

In doing so, take into account the complete working process, including the times when the tool is working without load or switched off.

Suitable measures include regular maintenance and care of the tool and the insertion tools, regular breaks as well as proper planning of the working process.

8. Unpacking

- Open the packaging and carefully remove the product.

- Remove the packaging material, as well as the packaging and transport safety devices (if present).

- Check whether the scope of delivery is complete.

- Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

- If possible, keep the packaging until the expiry of the warranty period.

- Familiarise yourself with the product by means of the operating manual before using for the first time.

- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

- When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Layout

You will need the following to assemble the plate compactor:

• Open-ended spanner SW16 (not included in the scope of delivery)
• Slotted screwdriver (not included in the scope of delivery)
  • Enclosed accessories bag

9.1 Fitting the handle (Fig. 3 + 4)

1. Unfold the guide bar with handle (1).
2. Slide the guide bar with handle (1) between the fixing lugs and secure it with 2 hexagonal bolts M10 x 70 (1a), 2 10 mm washers and 2 stop nuts.
3. Attach the throttle (2) to the upper handle (1) with a slotted screw M5 x 25 (2a) and a washer. You can tension the cable using the Bowden cable screw on the throttle (2).

9.2 Fitting the transport frame (Fig. 5)

1. Secure the pre-assembled transport frame (12) to the mounting lugs with 2 M10 x 30 hexagonal bolts, 2 10 mm washers and 2 stop nuts (12a). Tighten all the screws hand-tight.

2. Now fold up the complete transport frame (12) in working position and attach it to the transport frame hooks (17).

Attention: Always fold up and hook in the transport frame (12) before compacting! Make sure that the joint of the transport frame is free to move so that it can be folded up.

9.3 Fitting the rubber pad (Fig. 6)

When using the plate vibrator on paving stones, fit the rubber pad (20) to prevent chipping and scratching of the stone surface.

Attention! Use the rubber pad only for bedding in concrete blocks, concrete slabs and similar.

Remove the rubber pad when compacting gravel, grit and the like.

1. To mount the rubber pad (20), place the machine with the vibratory plate on the rubber pad. Align the rubber pad so that the holes match the screw points on the device.

2. Fasten the rubber pad (20) with the fastening strip (21) on the front side with 3 hexagonal bolts M10 x 20 mm each and 3 A10 mm spring washers (21a).

3. Tighten all the screws well.

10. Before commissioning

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

⚠ WARNING!

Health hazard!

Inhalation of petrol/lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe petrol/lubricating oil vapours and exhaust gases.
• Operate the product outdoors only.

NOTE!

Product damage

Using the product without or with too little engine and gearbox oil can result in engine damage.

- Fill with petrol and oil before commissioning. The product is supplied without engine and gearbox oil.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
• Collect drained oil in a suitable container.
  Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
• Dispose of oil as per local regulations.

NOTE!

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

- Put unused fuel in an airtight vessel and store it in a dark, cool room.

Check before operation

• Check all sides of the engine for oil or fuel leaks.

• Check the engine oil level.

• Check the fuel level – the tank should be at least half-full.

• Check the condition of the air filter.
• Check the condition of the fuel lines.
• Look for signs of damage.
• Check that all protective covers are in place and all screws, nuts and bolts are tightened.

10.1 Filling up with engine oil (Fig. 13)

Attention!

The plate compactor is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use multigrade oil (SAE 10W-30 or 10W-40 (depending on the operating temperature)) for this.

Check the oil level regularly before commissioning. An oil level that is too low can damage the engine.

1. Place the plate compactor on a level, even surface.
2. Unscrew the oil dipstick (14).
3. Fill the tank with engine oil using a funnel (not included in scope of delivery). Note the max. filling capacity of 600 ml. Carefully fill the oil up to the lower edge of the filling port.
4. Wipe the oil dipstick (14) with a clean, lint-free cloth.
5. Re-insert the oil dipstick (14) and check the oil level without screwing the dipstick tight again.
6. The oil level must be within the middle mark on the oil dipstick.
7. If the oil level is too low, add the recommended amount of oil (max. 600 ml).
8. Then screw the oil dipstick (14) in again.

10.2 Filling up with petrol (fig. 15)

Attention!

The plate compactor is delivered without petrol. It is therefore essential to fill with petrol before commissioning. Use Super E5 / E10 petrol for this.

1. Clean the area surrounding the filling area. Impurities in the tank lead to operational faults.
2. Carefully open the tank cover (5) so that any possible overpressure can be relieved.
3. Fill the tank with petrol (Super E5 / E10) using a funnel (not included in scope of delivery). Note the max. filling capacity of 3.6 litres. Carefully fill the petrol up to the lower edge of the filling nozzle.
4. Close the tank cover (5) again. Ensure that the fuel cap is tightly sealed.

5. Clean the fuel cap and the surroundings.

6. Check the tank and fuel lines for leaks.

7. Move at least three meters away from the refueling area before starting the engine.

- Do not use petrol that has already been used or that is contaminated. Do not allow dirt or water to enter the fuel tank.

11. Start-up

11.1 Starting the engine (Fig. 10 + 11)

ON/OFF switch (23)

The ON/OFF switch (23) activates and deactivates the ignition system. The ON/OFF switch (23) must be in the ON position for the engine to run.

The engine stops when the ON/OFF switch (23) is moved to the OFF position.

Throttle (2)

The throttle (2) controls the speed of the machine. If the lever is moved in the directions shown, the engine runs faster or slower.

Fast / working position = Slow / Idle =

Choke lever (16) (Fig. 10)

• Warm engine / choke open: • Cold engine / choke closed:

Note: The closed position of the choke lever enriches the fuel mixture for starting a cold engine.

The open position provides the correct fuel mixture for normal operation after starting and for restarting a warm engine.

Fuel valve (15) (Fig. 10)

1. Check the engine oil and petrol levels. See section 10.1.

2. Always fold up the transport frame (12) before compacting and attach it to the transport frame hooks (17)! Make sure that the joint of the transport frame is free to move so that it can be folded up.

3. Set the choke lever (16) to closed (open when the engine is warm). Note: As soon as the choke lever (16) is opened, the plate vibrator starts to vibrate at half throttle.

4. Open the fuel valve (15).
5. Set the throttle (2) to "half throttle" (= middle position between "fast" and "slow").
6. Set the ON/ON switch (23) to OFF.
7. Pull strongly on the starter rope (8) and let it wind back in slowly.
8. Once the engine is running, slowly close the choke lever (16). And thus put it in the operating position.
9. Set the throttle (2) to the working position.
10. Plate vibrator starts to work.

11.2 Operation

When using the machine, use the guide bar with handle (1) to steer it.

Run the engine at full throttle, using the throttle (2). In doing so, the plate moves forward by itself at normal speed. When working on inclines, push the plate vibrator forward slightly.

When working on sloping surfaces, reduce the speed by holding the plate vibrator back.

ATTENTION!

Do not use the plate compactor on concrete or extremely hard, dry, compacted surfaces. The plate vibrator then tends to jump and does not vibrate. This can damage both the plate vibrator and the engine.

The number of repetitions necessary for a desired compaction result depends on the type and moisture of the substrate. Maximum compaction has been reached when you notice a very strong recoil.

A certain amount of moisture in the ground is necessary. However, excessive moisture can cause small parts to stick together and prevent good compaction. Let the ground dry a little if it is extremely wet.

A very dry floor raises a lot of dust when working with the plate vibrator. Adding moisture can improve compaction and reduce air filter maintenance.

Compaction with rubber pad

When using the plate vibrator on paving stones, fit the rubber pad (20) to prevent chipping and abrasion of the stone surface (see 9.3).

You can prevent damage to slabs and natural stones when vibrating by fitting a rubber pad under the plate vibrator. Remove the rubber pad when compacting loose, granular soils and for blacktop repair work.

When bedding in with the black rubber pad, discolouration of the material surface may occur.

Compaction without rubber pad

If the plate vibrator is operated without a rubber pad, screw the screws (21a) into the fastening strip (21) and the base plate (20) to prevent damage to the holes.

Notes when compacting

The following notes must be followed when ground is compacted on slopes (mounds, embankments):

• Approach inclines only from the very bottom (an incline that can be easily overcome upwards can also be compacted downwards without risk).
• The operator must never stand facing the downward direction.
• ATTENTION! A maximum incline of 20^ shall not be exceeded. If this increase is exceeded, the engine lubrication system may fail (spray lubrication and therefore failure of important engine components).

11.3 Stopping the engine

Emergency stop

To stop the engine in an emergency situation, move the engine switch (23) to the OFF position.

Switching off under normal conditions:

1. Return the throttle (2) to the idle position to stop the plate compactor from moving.
2. Let the engine cool down for a minute or two before stopping it.
3. Move the ON/OFF switch (23) to the "OFF" position.

ATTENTION!

Do not move the choke lever (16) to the "closed" position to stop the engine. This can lead to a misfire or engine damage.

11.4 Idle speed

Reducing the engine speed when idling extends the engine's operating time, saves petrol and reduces the noise level of the plate vibrator.

1. Move the throttle (2) to the "idle", position to reduce the load on the engine when not compacting.

12. Transport (Fig. 20)

⚠ WARNING!

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

• After loading, switch off the engine and, after the engine has cooled down, remove the spark plug connector from the spark plug.
• The product can cause severe crushing injuries due to its own weight.

Allow the engine to cool down before transporting or loading to avoid burns and to prevent fire hazards.

△ The machine can fall and cause damage or injury if it is not lifted properly.

When transporting over longer distances, drain the fuel tank completely.

Secure the machine on the transport vehicle against rolling, slipping or tipping over and also lash down the plate vibrator.

The transport frame facilitates handling. To do this, pull the transport frame out of the hooks (17).

Push the guide bar forward with both hands. This raises the machine slightly.

Now fold the transport frame under the plate vibrator. Proceed in reverse order when setting the machine down.

ATTENTION! Only use the transport frame on a level and solid surface and for short distances.

13. Cleaning and maintenance

⚠ WARNING!

Danger of injury and burning!

The product can start unexpectedly and cause injuries. In addition, temperatures of 80^ C and more can be reached.

• Switch off the motor before carrying out any cleaning or maintenance work.
• Allow the motor to cool down.
• Remove the spark plug cable from the spark plug.

⚠ WARNING!

Health hazard!

Inhaling petrol/lubricant vapours may lead to severe health damage, loss of consciousness and, in extreme cases, to death.

• Do not inhale petrol/lubricant vapours.
• Operate the product outdoors only.

NOTE!

Risk of damage!

Water entering the housing can cause engine damages. In addition, the jet of a high-pressure cleaner can damage parts of the product.

- Clean the product with a cloth, hand brush, etc.

- Do not immerse the product in water or other liquids and do not spray it with a high-pressure cleaner.

Maintenance plan
	after 10 operating hours	after 25 operating hours	Every 50 operating hours	Every 100 operating hours	Every 300 operating hours
Air filter Clean Clean	Clean Clean Replace
Spark plug Check C	lean Clean Clean Replace
V-belt			Check	Replace
Exciter oil					Replace
Engine oil level	Check	Replace		Replace

13.1 Cleaning work:

⚠ WARNING!

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

- Switch off the engine before carrying out any cleaning or maintenance work and after the engine has cooled down, disconnect the spark plug connector from the spark plug.

Maintaining your plate compactor ensures a long service life for the machine and its components.

• Check the general condition of the plate vibrator and check for loose screws, misalignment and jamming of moving parts, broken or worn parts and other issues that could impair function of the machine.
• Use a high quality light machine oil to lubricate the moving parts.
• Clean the underside of the plate vibrator as soon as particles of compacted soil get stuck. The machine will not work well if the underside is not smooth and clean.
• Re-attach the spark plug cable after cleaning and maintenance work.

13.2 Checking and replacing the V-belts

Remove the belt cover (19) to gain access to the V-belt (19b). Never use the plate vibrator without the belt cover (19). If the belt cover (19) is not in place, it is possible that your hand will be caught between the V-belt and the clutch, causing you serious injury.

13.2.1 Tensioning the V-belts (Fig. 7, 8, 9)

The V-belt (19b) must be in good condition to ensure optimum power transmission from the engine to the eccentric shaft. Check the condition of the V-belts (19b).

1. Switch the engine off and let it cool down.
2. Remove the belt cover (19) to gain access to the V-belt (19b). To do this, loosen the 2 screws on the belt cover (19a) with an open-ended 13 mm spanner.
3. Now check the belt tension (thumb pressure). If the V-belt (19b) gives more than 10-15 mm (thumb pressure), you must retighten it.

4. To do this, slightly loosen the four engine mounting screws (19e) on the engine and push the engine forward towards the housing of the eccentric vibration unit (9).

5. Now loosen the two counternuts (19d).

6. Tighten the V-belt (19b) using the two belt tensioning screws (19c) if the V-belt (19b) gives more than 10-15 mm (thumb pressure). To do this, turn the belt tensioning screws (19c) clockwise. Make sure that the engine/pulley remains at a right angle.

7. After tensioning, retighten the four engine mounting screws (19e) and the counternuts (19d).

8. Replace the belt cover (19) and tighten the 2 screws on the belt cover (19a) with an open-ended 13 mm spanner.

13.2.2 Replacing the V-belts (Fig. 7, 8, 9)

If the V-belt (19b) is torn, worn out or smooth, it must be replaced.

1. Switch the engine off and let it cool down.

2. Remove the belt cover (19) to gain access to the V-belt (19b). To do this, loosen the 2 screws on the belt cover (19a) with an open-ended 13 mm spanner.

3. Then slightly loosen the four engine mounting screws (19e) on the engine.

4. To release the pre-tension of the belt, loosen the counternuts (19d) and turn the two belt tensioning screws (19c) anti-clockwise.

5. Push the engine towards the housing of the eccentric vibration unit (9).

6. Pull the worn V-belts (19b) off the pulleys and pull two new V-belts into place correctly.

7. Tighten the V-belt (19b) using the two belt tensioning screws (19c) if the V-belt (19b) gives more than 10-15 mm (thumb pressure). To do this, turn the belt tensioning screws (19c) clockwise. Make sure that the engine/pulley remains at a right angle.

8. After tensioning, retighten the four engine mounting screws (19e) and the counternuts (19d).

9. Replace the belt cover (19) and tighten the 2 screws on the belt cover (19a) with an open-ended 13 mm spanner.

ATTENTION!

When you remove or attach the V-belt (19b), make sure that your fingers do not get caught between the belt and the pulley.

NOTE!

Product damage

Using the product without or with too little engine and gearbox oil can result in engine damage.

- Fill with petrol and oil before commissioning. The product is supplied without engine and gearbox oil.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

- Fill/empty oil only on level, paved surfaces.

- Use a filling nozzle or funnel.

- Collect drained oil in a suitable container.

- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.

- Dispose of oil as per local regulations.

13.3 Changing the engine oil (Fig. 12, 13)

After 25 working hours, the 1st oil change must be carried out. Thereafter, after 100 operating hours.

Recommended engine oil SAE 10W-30 or 10W-40 (depending on the operating temperature).

To drain the engine oil, please proceed as follows:

1. Remove the flexible hose (18) with an open-ended 17 mm spanner (not included in the scope of delivery) and drain the engine oil into a suitable tray. Make sure that the sealing ring installed in the flexible hose (18) does not get lost.
2. When the engine oil is completely drained, secure the flexible hose (18) to the device again.
3. Unscrew the engine oil dipstick (14). Fill the oil using a funnel (not included in scope of delivery).
4. Check the oil level with the engine oil dipstick (14). Re-insert the oil dipstick (14) and check the oil level without screwing the dipstick tight again.
5. Screw the engine oil dipstick (14) in again.
6. Pull the starter cable (8) 5x slowly to distribute the oil (without ignition).

13.4 Drain petrol with a petrol extraction pump (Fig. 14, 15)

The petrol must be drained in the event of storage over a longer period of time or if the oil in the eccentric vibration unit is being replaced.

1. Close the fuel valve (15).

2. Hold a collection bucket under the hose of the petrol extraction pump (not included in the scope of delivery).

3. Unscrew and remove the fuel filler cap (5).

4. Remove the fuel filter insert (5a).

5. Push the hose of the petrol extraction pump into the fuel tank and drain the petrol completely using the petrol extraction pump.

6. Reinsert the fuel filter insert (5a).

7. Retighten the fuel filler cap (5).

8. To ensure that no petrol remains in the carburettor, the remaining petrol must be drained out of the carburettor. To do this, place a suitable container (not included in the scope of delivery) under the carburettor and open the carburettor screw (15a).

13.5 Changing the oil in the eccentric vibration unit (Fig. 16, 17)

Due to the weight, we advise you to carry out this work with two people! We recommend changing the eccentric vibration unit's oil after 300 operating hours.

Change the eccentric vibration unit's oil only when the eccentric vibration unit has cooled down.

Recommended low-viscosity gear oil SAE 10W-40.

1. Drain the petrol as described in 13.4.

2. Drain the engine oil as described in 13.3.

3. Remove the oil drain screw (22) at the top of the eccentric vibration unit housing and tilt the plate vibrator forward.
4. Allow the oil to drain into a tray.
5. Return the plate vibrator to its original position.
6. Fill the eccentric vibration unit housing (9) with low-viscosity gear oil (10W40) using a funnel (not included in the scope of delivery). Note the max. filling capacity of 80-100 ml.
7. Screw the oil drain screw (22) back in.

ATTENTION!

Do not overfill the tank! Too much oil in the eccentric vibration unit can reduce performance and overheat the eccentric vibration unit.

Eccentric vibration unit

An eccentric weight on the eccentric shaft inside the eccentric vibration unit housing is driven, at high speeds, by a clutch and belt drive system.

These high rotational speeds of the shaft cause the rapid up and down movements of the machine as well as the forward movement.

13.6 Maintenance of the air filter (Fig. 18)

⚠️ DANGER!

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Clean the air filter only by knocking it out.
• Never clean the air filter with petrol or flammable solvents.

NOTE!

Risk of damage!

Operating the engine without the filter element in place can cause engine damage.

- Never run the engine without the air filter element in place.

A fouled air filter insert (4c) diminishes the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter should be checked every 50 operating hours and cleaned as required.

1. Unscrew the wing nut (4a) and remove the air filter cover (4).

2. Check the air filter cover (4) for holes or cracks. Replace any damaged insert.

3. Unscrew the inner wing nut (4b) and remove the filter insert (4c).

4. Wipe off dirt on the inside of the filter housing with a clean moist cloth. Make sure that no direct enters the opening. Set the air filter cover (4) on the filter housing for the duration of the filter cleaning process.
5. Remove the filter insert (4c). Check it for damage and replace it if necessary.
6. Knock the filter insert (4c) against a hard surface to remove the dirt. Never try to brush the dirt out as this will press it into the fibres.
7. If necessary, clean the filter insert (4c) additionally in warm water and mild soap solution. Rinse it thoroughly with clean water and let it dry well.
8. Replace the clean filter insert (4c) and tighten the inner wing nut (4b).
9. Put on the air filter cover (4) and secure it with the wing nut (4a).

⚠️ ATTENTION: Never run the engine without an air filter insert (4c) or with a damaged air filter insert (4c). This would allow dirt to enter the engine, which would damage the engine. The manufacturer warranty is then invalidated.

13.7 Cleaning/replacing the spark plug (Fig. 19)

⚠️ ATTENTION: Only replace the spark plug when the engine is cold!

Check the spark plug for dirt for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Thereafter, replace the spark plug every 50 operating hours if necessary.

1. Disconnect the spark plug cable and remove any dirt in the spark plug area.
2. Unscrew the spark plug (24) with the supplied spark plug wrench.
3. Check the insulation. Replace the spark plug if it is damaged, e.g. cracked or fragmented.
4. Clean the spark plug electrodes with a wire brush.
5. Check the electrode gap and adjust it using a feeler gauge. To make sure that the engine remains efficient, the spark plug must have the right electrode gap (0.7-0.8 mm).
6. Screw the spark plug (24) back in by hand and tighten it about 1/4 turn with the spark plug wrench supplied.
7. Fit the spark plug cable onto the spark plug (24).

ATTENTION!

A loose spark plug can overheat and cause damage to the engine. Tightening the spark plug too much can damage the thread in the cylinder head.

14. Storage

⚠️ DANGER!

Risk of fire and explosion!

Storing the product near potential sources of ignition can result in a fire or an explosion. This can lead to severe burns or death.

- Eliminate possible sources of ignition, such as furnaces, hot water boilers with gas, gas dryers, etc.

NOTE!

Risk of damage!

If the product is not stored properly, the engine can be damaged.

- Store the product protected against dirt, dust and moisture.

14.1 Storage during extended breaks in operation:

If the plate vibrator will not be used for a period of more than 30 days, follow the steps below to prepare it for storage.

1. Empty the fuel tank completely (see section 13.4). Stored petrol containing ethanol or MTBE becomes stale within 30 days. Stale petrol has a high rubber content and can thus clog the carburettor and restrict the petrol supply.
2. Drain the engine oil from the engine while it is still warm. Top up with new oil. (See section 13.3.)
3. Use clean cloths to clean the plate vibrator.

Do not use aggressive or oil-based cleaning agents when cleaning the plastic parts. Chemicals can damage plastics.

1. Store the plate compactor in an upright position in a clean, dry building with good ventilation.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Store the device in its original packaging.

Cover the device to protect it from dust or moisture.

Store the operating instructions with the device.

15. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts. Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

Important note in the case of repairs:

For return delivery of the product for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

15.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Rubber pad - Article no.: 3904601413

Petrol extraction pump - Article no.: .....7907600001

15.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, oil, belt, rubber pad, air filter

* may not be included in the scope of delivery!

16. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the device, the fuel tank and the motor oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

17. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Motor does not start	Spark plug cable not connected	Connect the spark plug cable securely to the spark plug.
	No petrol or stale petrol Fill with clean	new petrol.
	Throttle not in correct start position	Set the throttle to the Start position.
	Blocked fuel line Clean the fuel lines.
	Oiled spark plug	Clean the spark plug, set the gap or replace.
	Not enough oil	Check the engine oil level and top it up if necessary.
	Overfilling the engine Wait a few minutes before re-starting.
Motor runs erratically	Spark plug cable loose	Connect the spark plug cable and secure it.
	Device runs in CHOKE position Set the choke lever to the OFF position.
	Blocked fuel line or stale petrol Clean the fuel lines. Fill the tank with clean, new petrol.
	Water or contamination in the fuel system	Drain the petrol from the tank. Top up with new petrol.
	Contaminated air filter	Clean or replace the air filter.
Motor overheating	Contaminated air filter Clean the air filter.
	Restricted airflow Clean the engine of the plate vibrator.
Engine does not stop when throttle is in stop position or engine speed does not increase properly when throttle is moved.	Deposits in throttle connections. Remove dirt and debris.
	Pull cord damaged Contact specialist dealer.
The plate compactor is difficult to control during operation (machine bounces or moves forward abruptly).	Engine speed too high on hard ground.	Set a lower speed with the throttle.
	Shock absorber too loose or damaged	Contact specialist dealer.
No compacting function or the plate compactor does not reach the maximum speed	Damage on eccentric vibration unit or the plate vibrator	Contact specialist dealer.
	Drive belt too loose and slipping	Adjust or replace the drive belt.
Oil loss from engine or eccentric vibration unit	Worn seals	Contact specialist dealer.
	Leaks on housing

Table des matières: Page:

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

9.3 Rubbermat monteren (afb. 6)

Traag / stationair =

Chokehendel (16) (afb. 10)

• Warme motor / choke open:

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

želimo vam mnogo zadovoljstva i uspjeha pri radu s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
• Nepridržavanje priručnika za uporabu
  • popravaka koje obave drugi, neovlašteni stručnjaci
  • montaže i zamjene neoriginalnih rezervnih dijelova
• nenamjenske uporabe
• kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

9.3 Kummimati monteerimine (joon. 6)

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

EU Declaration of Conformity

Standard references:

EN 500-4:2011; EN 500-1:2006/A1:2009; EN ISO 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN 500-4:2011; EN 500-1:2006/A1:2009; EN ISO 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

i.V. Andres Pecher Signature/Andreas Pecher/Head of Project Management

First CE: 2021

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN 500-4:2011; EN 500-1:2006/A1:2009; EN ISO 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την Οδηγία ΕΕ και τα πρότυπα για το προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на ЕС и норми за артикул	TR	Burada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

Article name: PLATE COMPACTOR - HP1900S, HP1100S HP2300S, HP1300S

Ürün Tanım: SARSMA PLAKASI - HP1900S, HP1100S HP2300S, HP1300S

Art.-Nr. / Art. no. / Ürün numarası.: 5904617903, 59046179969, 5904604903, 5804604984, 5904604943, 5904604966, 3904602903

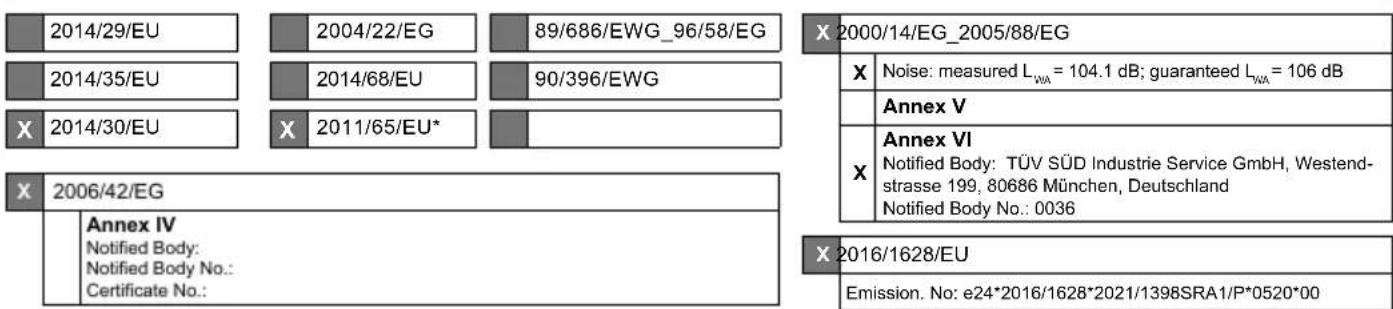

2014/29/EU 2004/22/EG 89/686/EWG_96/58/EG 2014/35/EU 2014/68/EU 90/396/EWG 2014/30/EU X 2011/65/EU* X 2000/14/EG_2005/88/EG X Noise: measured LWA = 104.1 dB; guaranteed LWA = 106 dB Annex V Annex VI X Notified Body: TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Deutschland Notified Body No.: 0036 X 2006/42/EG Annex IV Notified Body: Notified Body No.: Certificate No.: X 2016/1628/EU Emission. No: e24*2016/1628*2021/1398SRA1/P*0520*00

Standard references:

EN 500-4:2011; EN 500-1:2006/A1:2009; EN ISO 14982:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Niko Vraschek

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
