Soldier-L - Docking station HAMA - Free user manual and instructions

Product type	Mobile Bluetooth speaker
Brand	Hama
Model	Soldier-L
Dimensions	210 x 80 x 60 mm
Weight	625 g
Bluetooth technology	Bluetooth v5.0
Supported Bluetooth profiles	A2DP V1.2, AVRCP V1.0, HFP V1.6
Bluetooth range	< 10 m
Max music power	20 W (2 x 10 W)
Frequency response	80 Hz – 16 kHz
Impedance	4 Ω
Distortion (THD)	≤ 4 %
Battery type	Lithium-Ion, 7.4 V, 3900 mAh (28.86 Wh), typ. 4000 mAh (29.6 Wh)
Charging time	~ 5 h
Operating time (via Bluetooth)	~ 16 h (depending on volume and audio content)
Charging voltage (input)	max. 5 V ⎓ 1.7 A
USB output (charging other devices)	max. 5 V ⎓ 1 A
Connectors	USB type-A (output), Micro USB (charging)
Waterproof rating	IPX7 (waterproof up to 1 m depth)
Main functions	Play/pause, volume control, track skip, hands-free kit, Multi-Connect (up to multiple speakers)
Package contents	Speaker, micro USB charging cable, instruction manual
Maintenance and cleaning	Clean only with a slightly damp lint-free cloth, avoid harsh detergents
Important safety instructions	Do not expose to heat, do not open, do not throw into fire, keep out of reach of children, respect power limits

Frequently Asked Questions - Soldier-L HAMA

How to turn on the speaker?

Press and hold the function key ▶ (4) for about 2 seconds. A beep sounds and the Bluetooth status LED starts flashing.

How to charge the battery?

Open the micro USB port cover, connect the provided micro USB cable to a suitable USB charger (5 V, 1.7 A max). The charging status LED blinks blue during charging and stays on when the battery is full. Full charging time is about 5 hours.

How to connect the speaker via Bluetooth for the first time?

Make sure Bluetooth is enabled on your device. Turn on the speaker, then in your device's Bluetooth settings, search for 'Hama Soldier-L' and select it. If a password is required, enter '0000'.

Why doesn't my speaker connect automatically?

Make sure the speaker and your device are within 10 meters of each other without obstacles. Ensure Bluetooth is enabled on your device and 'Hama Soldier-L' is in the list of connected devices. If necessary, repeat the initial pairing procedure.

How to use the hands-free function?

During an incoming call, press the ▶ key (4) once to answer. To reject a call, press and hold the ▶ key for 2 seconds. To hang up, press the ▶ key once during the call.

How to connect multiple speakers with Multi-Connect?

Turn on the first speaker (it will become the 'master'). To add a 'slave' speaker, turn it on and press the Ⓠ (1) key once on that speaker. A beep confirms the connection. The slave's Multi-Connect LED stays lit orange.

Can I charge my smartphone with the speaker?

Yes, connect your device's USB cable to the USB type-A port on the speaker. Press the ▶ (4) key once to start charging. The maximum output current is 1 A.

What to do if the speaker does not turn on?

Check that the battery is charged. Connect the charging cable and wait a few minutes. If the speaker still does not respond, try pressing the Reset button (8) with a pointed object.

Is the speaker waterproof?

Yes, it is IPX7 certified: it can be submerged up to 1 meter deep for 30 minutes. Make sure all ports (micro USB, USB-A) are properly closed before any contact with water.

What to do in case of sound problems or distortion?

Check that the volume on the speaker and your source device is not at maximum. Make sure the distance between the two devices is less than 10 meters. Avoid obstacles. If the problem persists, reset the speaker with the Reset button (8).

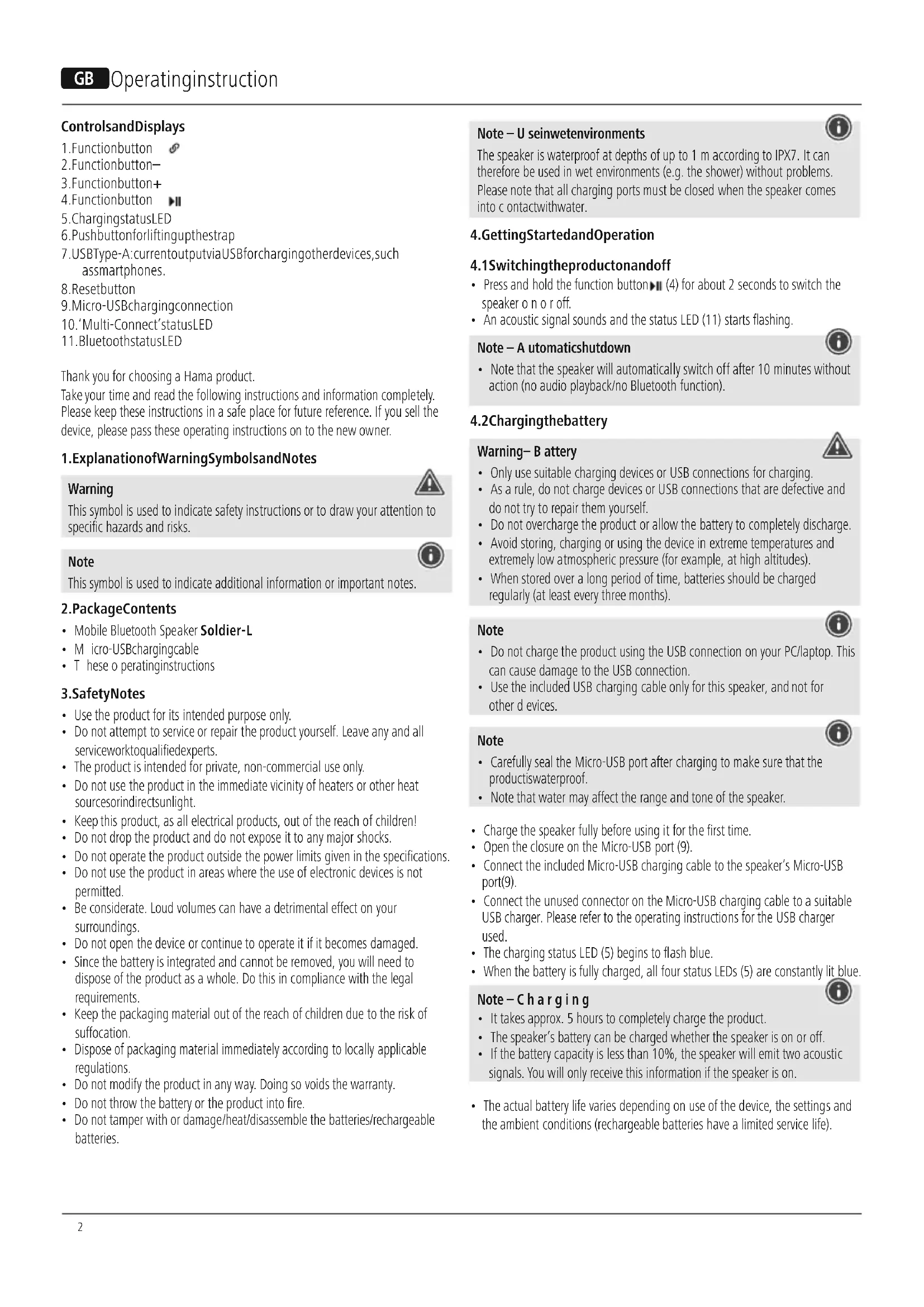

USER MANUAL Soldier-L HAMA

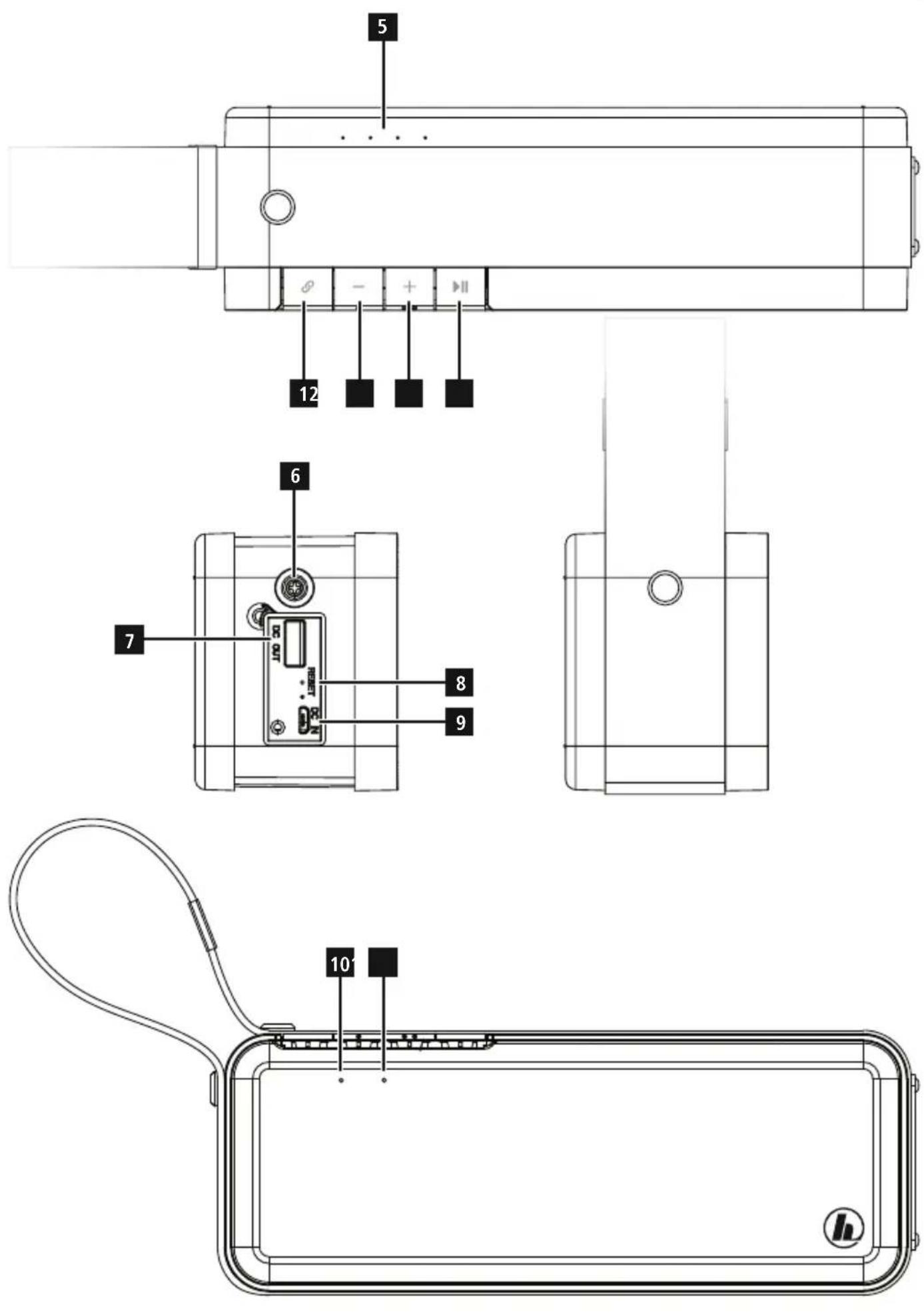

Technical line drawing of a rectangular electronic device with a curved cable extending from its side (no text or symbols)

ControlsandDisplays

1. Functionbutton
   2.Functionbutton-
   3.Functionbutton+
   4.Functionbutton
2. ChargingstatusLED
   6.Pushbuttonforliftingupthestrap
3. USBType-A: currentoutputviaUSBforchargingotherdevices, such assmartphones.
4. Resetbutton
5. Micro-USBchargingconnection
6. 'Multi-Connect'statusLED
7. BluetoothstatusLED

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

1. ExplanationofWarningSymbolsandNotes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2.PackageContents

• Mobile Bluetooth Speaker Soldier-L
- M micro-USBchargingcable
• These operating instructions

3. SafetyNotes

• Use the product for its intended purpose only.
- Do not attempt to service or repair the product yourself. Leave any and all serviceworktoqualifiedexperts.
• The product is intended for private, non-commercial use only.
- Do not use the product in the immediate vicinity of heaters or other heat sourcesorindirectsunlight.
- Keep this product, as all electrical products, out of the reach of children!
- Do not drop the product and do not expose it to any major shocks.
- Do not operate the product outside the power limits given in the specifications.
- Do not use the product in areas where the use of electronic devices is not permitted.
- Be considerate. Loud volumes can have a detrimental effect on your surroundings.
- Do not open the device or continue to operate it if it becomes damaged.
- Since the battery is integrated and cannot be removed, you will need to dispose of the product as a whole. Do this in compliance with the legal requirements.
- Keep the packaging material out of the reach of children due to the risk of suffocation.
- Dispose of packaging material immediately according to locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty.
- Do not throw the battery or the product into fire.
- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.

The speaker is waterproof at depths of up to 1 m according to IPX7. It can therefore be used in wet environments (e.g. the shower) without problems. Please note that all charging ports must be closed when the speaker comes into contact with water.

4. Getting Started and Operation

4.1 Switching the product on and off

• Press and hold the function button▶(4) for about 2 seconds to switch the speaker o n o r off.
• An acoustic signal sounds and the status LED (11) starts flashing.

Note - A utomaticshutdown

- Note that the speaker will automatically switch off after 10 minutes without action (no audio playback/no Bluetooth function).

4.2 Chargingthebattery

Warning-B artery

• Only use suitable charging devices or USB connections for charging.
• As a rule, do not charge devices or USB connections that are defective and do not try to repair them yourself.
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging or using the device in extreme temperatures and extremely low atmospheric pressure (for example, at high altitudes).
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

Note

• Do not charge the product using the USB connection on your PC/laptop. This can cause damage to the USB connection.
• Use the included USB charging cable only for this speaker, and not for other devices.

Note

• Carefully seal the Micro-USB port after charging to make sure that the productiswaterproof.
  • Note that water may affect the range and tone of the speaker.

• Charge the speaker fully before using it for the first time.

• Open the closure on the Micro-USB port (9).
• Connect the included Micro-USB charging cable to the speaker's Micro-USB port(9).
• Connect the unused connector on the Micro-USB charging cable to a suitable USB charger. Please refer to the operating instructions for the USB charger used.
  • The charging status LED (5) begins to flash blue.
• When the battery is fully charged, all four status LEDs (5) are constantly lit blue.

Note-Charging

• It takes approx. 5 hours to completely charge the product.
• The speaker's battery can be charged whether the speaker is on or off.
• If the battery capacity is less than 10%, the speaker will emit two acoustic signals. You will only receive this information if the speaker is on.

- The actual battery life varies depending on use of the device, the settings and the ambient conditions (rechargeable batteries have a limited service life).

4.3 Bluetooth pairing

Note

• Check whether your mobile device (MP3 player, mobile phone, etc.) is Bluetoothcapable.
• Note that the maximum range for Bluetooth is 10 metres without obstacles suchaswalls,people,etc.
• Make sure that you Bluetooth capable terminal device is on and Bluetooth is activated.

• Make sure that the speaker is located within the Bluetooth rangeofmax. 10metres.

• S witchonthespeakersasdescribedin andoff. 4.1 Switching the product on

• The status LED (11) begins to flash. The speaker searches for a connection.
• Open the Bluetooth settings on your terminal device and wait until Hama Soldier-L appears in the list of Bluetooth devices found.
• Select Hama Soldier-L and wait until the speaker is listed as connected in the Bluetooth settings on your terminal device. An acoustic signal confirms that connection w assuccessful.
  • The Bluetooth status LED (11) lights up and remains lit.

Note – Bluetoothpassword

• Some terminal devices require a password in order to connect to another Bluetooth device.
• If your terminal device requests a password for connection to the speaker, enter0000.

4.4 AutomaticBluetoothconnection(aftersuccessfulpairing)

• Make sure that your Bluetooth capable terminal device is on and Bluetooth isactivated.
• Make sure that the speaker is located within the Bluetooth range of max. 10 metres.
• S witchonthe s peakersasdescribedin 4.1 Switching the product on andoff.
  • After successful connection, the status LED (11) will light up in blue. An acoustic signal confirms that connection was successful.

Note - Connection impaired

• After the speaker and terminal device have been paired, a connection is established automatically. If the Bluetooth connection is not established automatically, check the following:
• Check the Bluetooth settings of your terminal device to see whether Hama Soldier-L is connected. If not, repeat the steps listed under Bluetooth pairing.
• Check whether your terminal device and the speaker are less than 10 metres apart. If not, move them closer together.
• Check whether obstacles are impairing the range. If so, move the devices closer together.

4.5 Audioplayback ( viaBluetooth)

Start and control audio playback on the connected terminal device accordingly. Alternatively, audio playback can also be controlled on the speaker (if the connected devices support this function).

• P ressthe▶(4) function button to start or pause audio playback.
• Briefly press the + (3) function button, to increase the volume.
• Briefly press the - (2) function button, to reduce the volume.
• Hold down the + (3) function button, to skip to the next track.
• Hold down the – (2) function button, to go back to the previous track.

4.6Hands-freefunction

You can use the speaker as a hands-free set for your mobile phone. For this function, the mobile phone must be connected to the speaker via Bluetooth.

• Press the function button▶(4) once to answer an incoming call.
• Press and hold the function button ▶ (4) again to continue the call.
• During a call, press the function button▶(4) once to end the call.

Note - Call quality

- To increase the call quality, make sure that you are near the speaker with yourmobilephoneduring t hecall.

5.ConnectionofmultiplespeakersviaMulti-Connect

• You can connect any number of speakers of the Soldier series ('S' or 'L') to one another via Bluetooth.
  • One speaker should be switched on. To connect this speaker to another speaker, proceed as follows:

Note

The speaker switched on first is the 'master' in the group. All other speakers you add are referred to as 'slaves'.

• Switch on the speaker that you want to add (see 4.1Switchingon/off).
• Press the function button (1) for this slave. A signal tone should sound. A connection to the master is being set up.
• If the connection was successful, the Multi-Connect status LED (10) of the slave is constantly litorange.
  • The Bluetooth status LED (11) of the master is constantly lit blue.
• To remove a slave from the group, briefly press the function button (1) for thisslave.
• If you simultaneously press the - (2) and + (3) function buttons for a slave, this slave becomes the master in the group.

6. Charging terminal devices via USB Type-A connection

Warning – Connecting terminal devices

• Before connecting a terminal device, check whether the power output of the Hama Soldier-L can supply sufficient power for the device.
• Ensure that the total power consumption of all connected terminal devices does not exceed 1000mA.
• Please refer to the instructions in the operating manual of your terminal device.
• It is essential that you observe these specifications and the safety instructions regarding the power supply of your devices.

Warning

• Never connect the charging cable of the power pack to both the input and the output of the power pack at the same time. This could damage the battery.
• Do not connect any terminal devices while the power pack is charging. This could damage the power pack and the connected devices.

- Connect the USB cable of the terminal device you wish to charge (mobile phone, smartphone, etc.) to the USB Type-A charging socket (7) of the Hama Soldier-L.

• To start charging, press the function button▶(4).

- End the charging process by disconnecting the USB cable of your terminal device from the Hama Soldier-L.

7. Care and Maintenance

- Only clean this product with a slightly damp, lint-free cloth and do not use aggressive c leaningagents.

8.WarrantyDisclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

9. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline:[phone](German/English)

Further support information can be found here:

www.hama.com

10.TechnicalData

MobileBluetoothSpeakerSoldier-L
BluetoothTechnologyBluetoothv5.0
Supported profiles	A2DP V1.2, AVRCP V1.0, HFP V1.6
Frequency80Hz- 1 6 kHz
Range< 10 m
Max.musicoutput20W ( 2x10W)
Chargingvoltage	IN:max.5V == 1.7 AOUT: max.5V1-A
SoundSystemStereo
Impedanc4Ω
Distortion(THD)≤4%
Size210x 8 0 x 60mm
Weight	625g
Connections	USBA,Micro U S B
Battery
Type	Lithium-Ion,7.4V, 3900mAh/28.86WhTyp.4000mAh/29.6Wh
Chargingtime	~ 5 h
Playback	ViaBluetooth:~ 1 6 h(dependingonvolumeandaudio content)

11. Declaration of Conformity

CE Hereby, Hama GmbH & Co KG declares that the radio equipmenttype[00173188]isincompliancewithDirective 2014/53/EU. The full text of the EU declaration of conformity is availableatthefollowinginternetaddress:

www.hama.com->00173188->Downloads.

Frequencyband(s)	2402MHz~ 2 480MHz
Maximum radio-frequency power transmitted	8.37 dBm

4.5 Lectureaudio(viaBluetooth)

10.LEDdistato"Multi-Connect"

11.LEDdistatoBluetooth

1. Statuslysdiod "Multi-Connect"

2. StatuslysdiodBluetooth

Hotline:[phone](ty/eng)

Duhittarmersupport-informationhär:

www.hama.com

10.Tekniskadata

Bluetooth Sstereohögtalare Soldier-L
BluetoothteknologiBluetoothv5.0
ProfilersomstödsA2DPV1.2,AVRCPV1.0,HFPV1.6
Frekvens80Hz- 1 6 kHz
Räckvidd< 1 0 m
Max.upspelningseffekt20W ( 2x10W)
Laddspänning	IN:max.5V = 1.7 AOUT: max.5V= 1 A
LjudsystemStereo
Impedans4Ω
DistorsionTHD≤4%
Mått210x 8 0 x 60mm
Vikt625g
Anslutningar	USBA,Micro U S B
Uppladdningsbartbatteri
Typ	Lithium-Ion,7.4V, 3900mAh/28.86WhTyp.4000mAh/29.6Wh
Laddningstid	~ 5 h
Driftstid	ViaBluetooth:~ 1 6 h(beroendepåvolymochljudinnehåll)

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hama GmbH & Co KG is under license. Other trademarks and trade names are those of their respective owners.

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
