RangeXtender RX - Measuring equipment Laserliner - Free user manual and instructions

Product type	Laser receiver for laser lines with RX-READY technology
Available models	RangeXtender RX 30, RX 51, RX 52
Dimensions (W x H x D)	RX 30: 60 x 110 x 26 mm; RX 51: 52 x 150 x 27 mm; RX 52: 52 x 164 x 27 mm
Weight (battery included)	RX 30: 0.13 kg; RX 51 / RX 52: 0.2 kg
Power supply	1 x 9 V battery
Laser reception range	RX 30: max. 30 m; RX 51 / RX 52: max. 50 m
Minimum distance from laser device	Approx. 3 m
Operating temperature	0°C to +50°C
Storage temperature	0°C to +70°C
Audible signal	Fast beeps (low), continuous tone (center), slow beeps (high)
LED indicators	Center LED for reference measurement; Sensitivity LED (green/red); Tolerance range LED (off/red)
Adjustable sensitivity	Yes: near (green, max. 15 m) or far (red, max. 50 m)
Switchable tolerance range	Precision or hand-held (RX 30 / RX 52)
Universal mounting	For mounting on rod or surveyor's stake
Magnetized top surface	RX 52 only
Bubble level	RX 52 only
Compatibility	Line lasers with RX-READY technology
Part numbers	RX 30: 033.25A; RX 51: 033.20-1; RX 52: 033.20-2
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid moisture and solvents.
Safety	Complies with EU standards. Do not look directly into the laser beam. Dispose of according to WEEE directive.
Country of manufacture	Germany (Laserliner brand)

Frequently Asked Questions - RangeXtender RX Laserliner

What type of battery should I use for the RangeXtender RX?

Use a standard 9 V battery (type 6LR61). Insert it into the compartment with correct polarity.

What is the maximum range of the receiver?

For the RX 30, the maximum range is 30 meters. For the RX 51 and RX 52, it reaches 50 meters under optimal conditions.

How do I activate the receiver mode on the laser?

On the RX-READY compatible line laser, use the dedicated button to activate manual receiver mode. The lines become darker as they emit high-frequency pulses.

What do the different beeps mean?

Fast beeps indicate that the laser is at the bottom of the reception zone, a continuous tone (steady sound) signals that you are at the center (reference measurement), and slow beeps indicate that the laser is at the top.

Can I use the receiver with a laser from another brand?

Only line lasers equipped with RX-READY technology are compatible. Check that your laser has this function.

How do I adjust the sensitivity of the receiver?

On the RX 30 / RX 52, use the H button to switch between near zone (green, max. 15 m) and far zone (red, max. 50 m). On the RX 51, sensitivity is adjusted with the I button. The corresponding LED indicates the active setting.

What should I do if the receiver does not detect the laser?

Check that the laser is in receiver mode, that the receiver's battery is charged, and that you are within the distance range (min. 3 m). Avoid reflective surfaces that may distort detection.

Can I use the receiver outdoors?

Yes, but the range may be reduced in direct sunlight. Use far mode and hand-held range if necessary. The operating temperature is 0°C to +50°C.

How do I attach the receiver to a rod?

Use the universal mounting bracket provided. It allows mounting on a flexi rod (ref. 080.50) or any other compatible stake.

What is the difference between the RX 30, RX 51 and RX 52 models?

The RX 30 has a range of 30 m and a single front reception field. The RX 51 and RX 52 have a range of 50 m and multiple reception fields (front, side, rear). The RX 52 additionally has a magnetized surface and a bubble level.

USER MANUAL RangeXtender RX Laserliner

Close-up of a white appliance control panel with buttons and indicator lights (no readable text or symbols)

Front view of a medical device with control panel and buttons (no visible text or symbols)

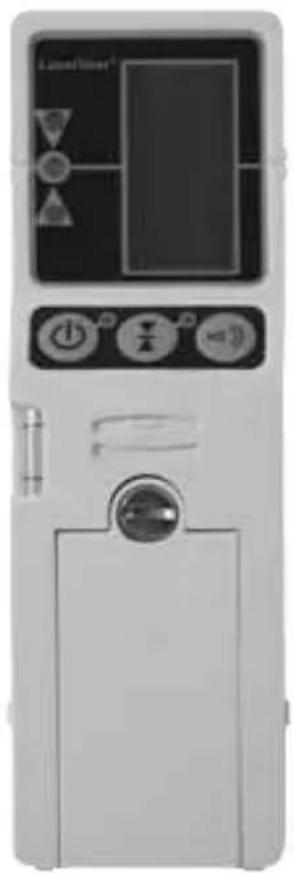

RangeXtender RX 30 / RX 51 / RX 52

RangeXtender RX 51

L Kopfmagnet

M Libelle

Interior view of a device casing with internal components and mounting holes (no visible text or symbols)

Diagram of an electrical enclosure with labeled terminals and internal components (no readable text or symbols)

Diagram of a device interior showing internal components with polarity indicators (no text or symbols)

Medical device with measurement scale and control panel (no visible text or symbols)

Laser receiver for all line lasers with RX-READY technology.

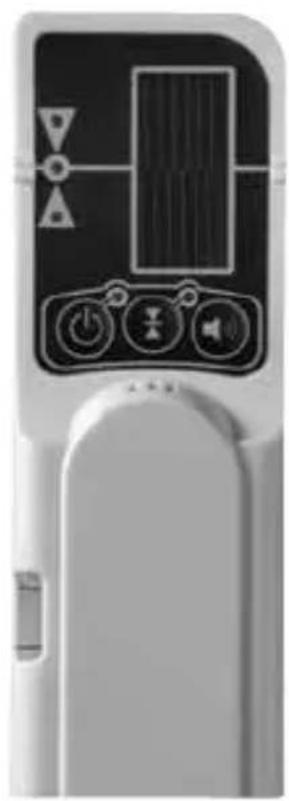

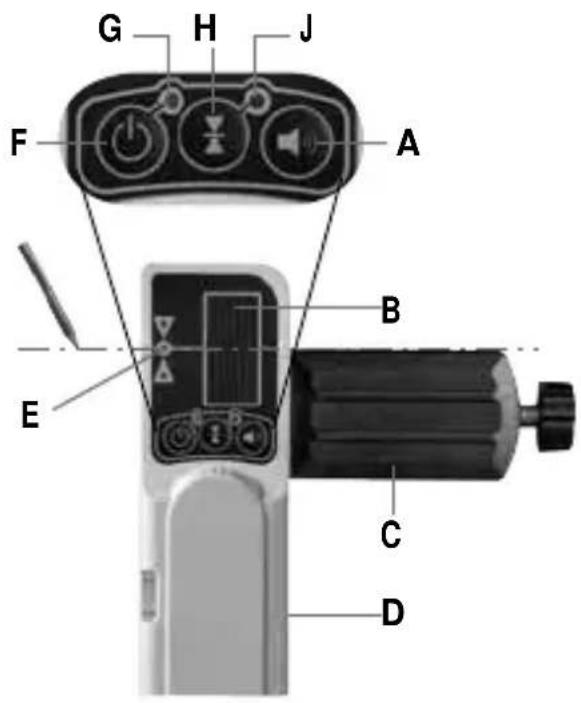

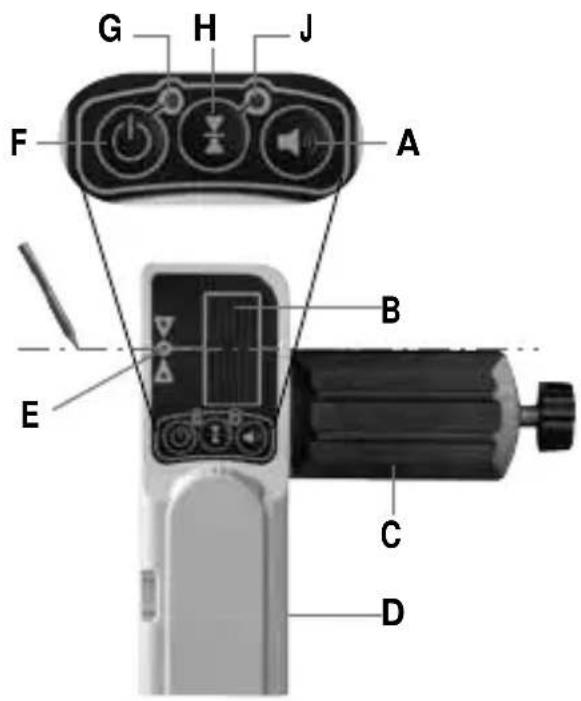

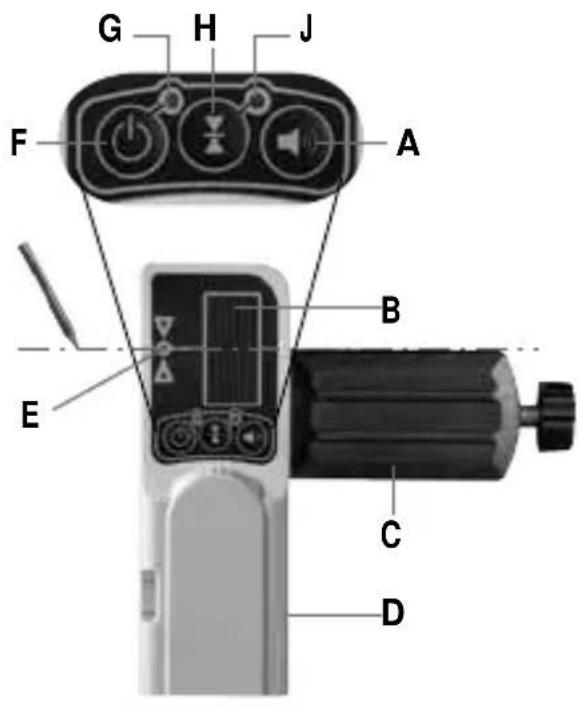

RangeXtender RX 30

A Sound ON / OFF

B Receiver field for laser beam

C Universal mount

D Battery compartment

E LED's for laserindication (RX 30: front / RX 51 / 52: front, side, backside)

F ON / OFF switch

G LED status indicator

H Switch sensitivity short range / long range

I Switch tolerance range precision range / free-hand range

J LED sensitivity: green = close range up to max. 15 m / red = long range up to max. 50 m

K LED tolerance range: switched off, precision range / red, free-hand range

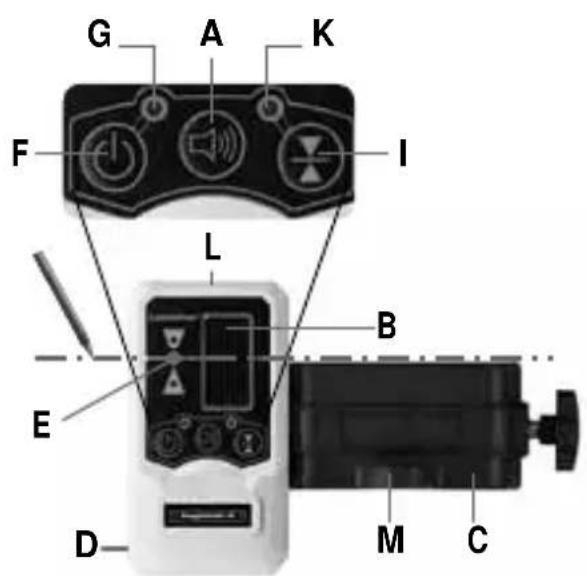

RangeXtender RX 52

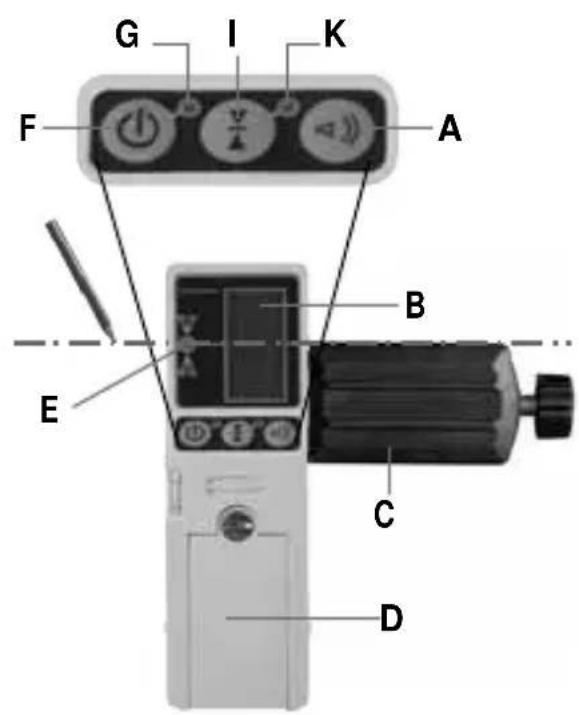

RangeXtender RX 51

L Head magnet

M Vial

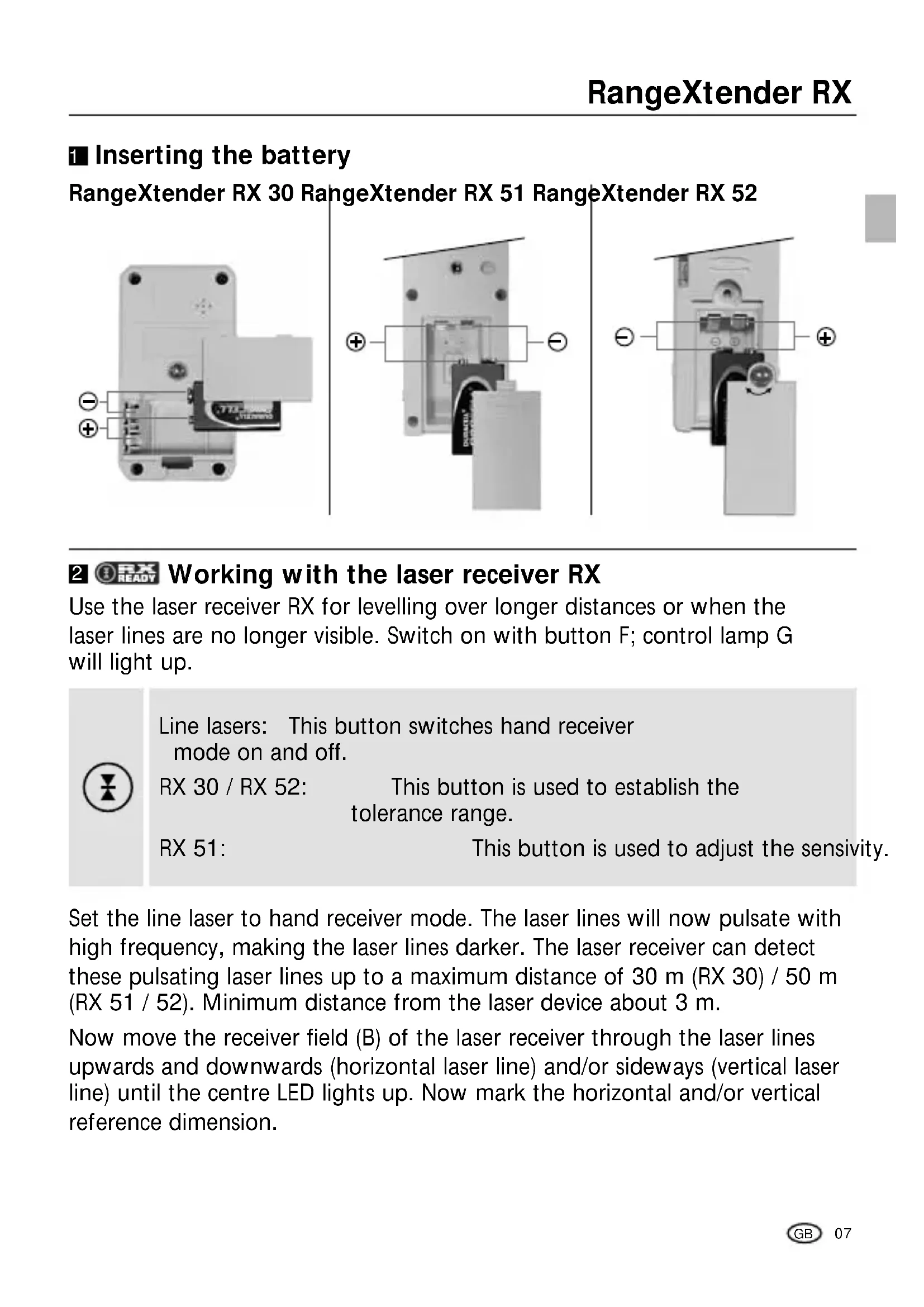

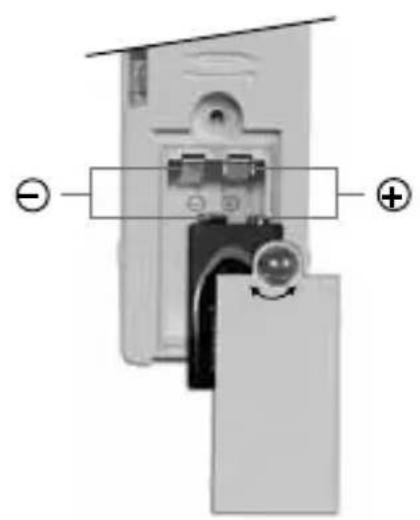

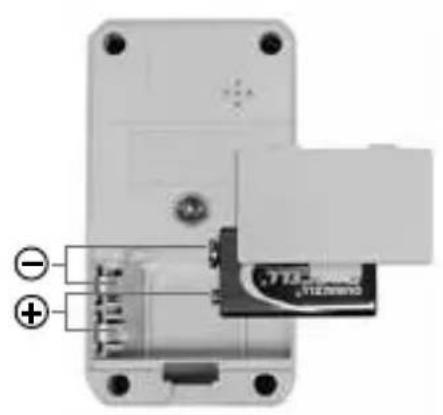

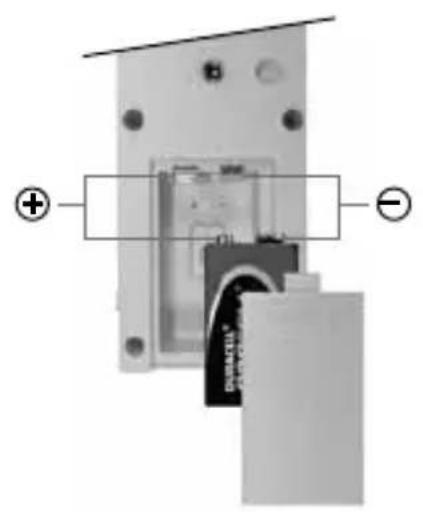

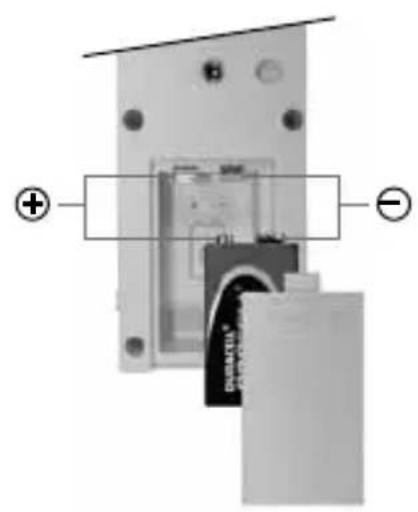

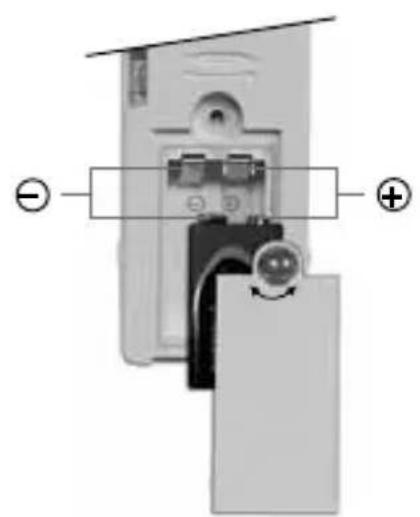

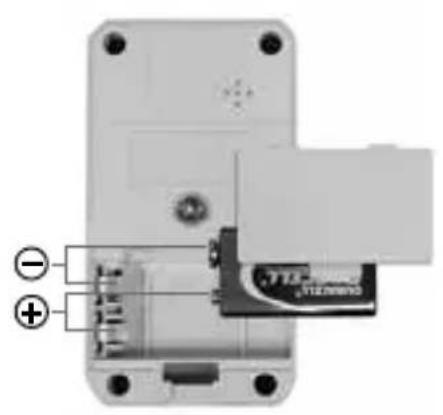

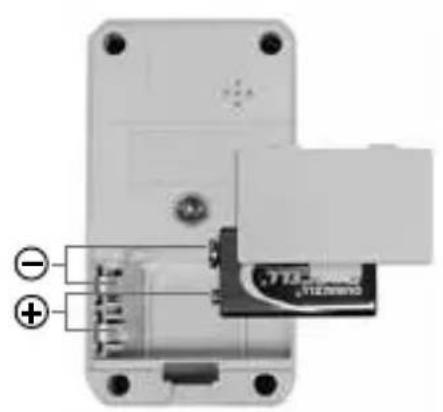

1 Inserting the battery

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

2 RX READY Working with the laser receiver RX

Use the laser receiver RX for levelling over longer distances or when the laser lines are no longer visible. Switch on with button F; control lamp G will light up.

Line lasers: This button switches hand receiver mode on and off.

RX 30 / RX 52: This button is used to establish the tolerance range.

RX 51: This button is used to adjust the sensitivity.

Set the line laser to hand receiver mode. The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines up to a maximum distance of 30 m (RX 30) / 50 m (RX 51 / 52). Minimum distance from the laser device about 3 m.

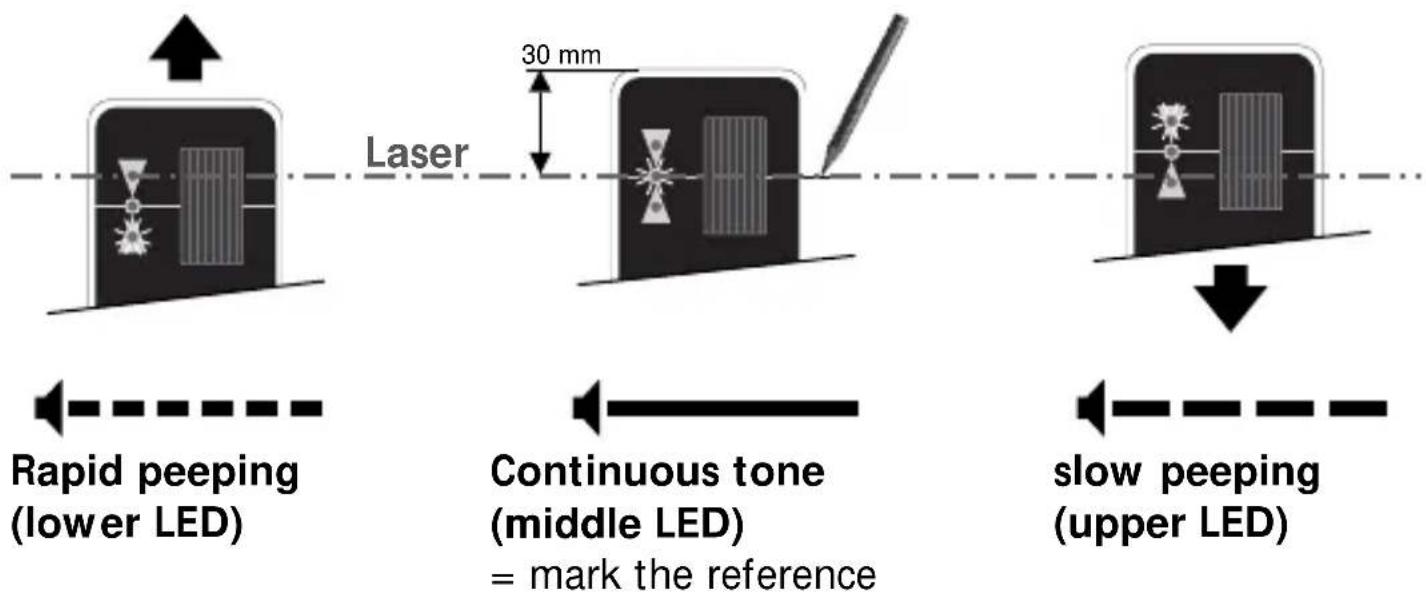

Now move the receiver field (B) of the laser receiver through the laser lines upwards and downwards (horizontal laser line) and/or sideways (vertical laser line) until the centre LED lights up. Now mark the horizontal and/or vertical reference dimension.

Minimum distance from the laser device about 3 m. Pay attention that the laser lines are not reflected by reflective surfaces. Such reflections can lead to false indications.

RangeXtender RX 30 / 52

RangeXtender RX 51

The light intensity of the laser lines is greatest at the centre and diminishes toward the ends. This can reduce the maximum reception range of the laser receiver.

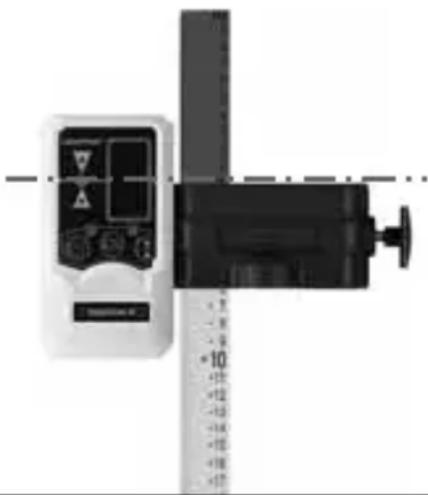

Used with levelling staff

The laser receiver RX can be fitted on measuring staffs with the universal mount. The Flexi measuring staff (Art. No. 080.50) is always recommended when measuring from floor heights. It also allows you to determine heights directly without any need for calculation.

Medical device with measurement scale and control panel (no visible text or symbols)

Technical data
Laser reception range	RX 30: max. 30 mRX 51 / 52: max. 50 m
Power supply 1 x 9V battery
Weight (incl. battery)	RX 30: 0,13 kgRX 51 / 52: 0,2 kg
Operating temperature 0°C ... + 50°C
Storage temperature 0°C ... + 70°C
Dimensions (W x H x D)	RX 30: 60 x 110 x 26 mmRX 51: 52 x 150 x 27 mmRX 52: 52 x 164 x 27 mm
Order number	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Subject to technical alterations 11 / 2010

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

www.laserliner.com/info

RangeXtender RX 30 / RX 51 / RX 52

A Geluidssignaal AAN / UIT

RangeXtender RX 51

L Kopmagneet

M Libel

Interior view of a device casing with internal components and mounting holes (no visible text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

Medical device with digital display and pressure gauge, no visible text or symbols

A Kontakt til akkustisk signal

RangeXtender RX 51

L Magneter på top

M Libelle

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of a device interior showing a battery pack and electrical connections (no text or symbols)

Medical device with measurement scale and control panel (no visible text or symbols)

Tekniske data
Laserrækkevidde	RX 30: max. 30 mRX 51 / 52: max. 50 m
Strømforsyning 1 x 9V batteri
Vægt (inkl. batterier)	RX 30: 0,13 kgRX 51 / 52: 0,2 kg
Arbejdstemperatur 0°C ... + 50°C
Opbevaringstemperatur 0°C ... + 70°C
Mål (b x h x l)	RX 30: 60 x 110 x 26 mmRX 51: 52 x 150 x 27 mmRX 52: 52 x 164 x 27 mm
Best.nr.	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Forbehold for tekniske ændringer 11 / 2010

RangeXtender RX 51

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of an electronic device showing a battery pack and two labeled terminals (no text or symbols present)

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

A Sonido CON / DES

F Interruptor ON/OFF

RangeXtender RX 51

L Imán frontal

M Nivel de burbuja

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of an electronic device showing a battery pack and internal components with polarity indicators (no text or symbols)

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

RangeXtender RX 51

L Magnete in testa

M Livella

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical outlet with labeled terminals and polarity indicators (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

RangeXtender RX 51

Medical device with measurement scale and control panel (no visible text or symbols)

RangeXtender RX 51

L Päässä magneetti

M Libelli

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

RangeXtender RX 51

L íman de topo

M Nível de bolha

Inserir a pilha

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of a device interior showing a battery box with polarity indicators (no text or symbols present)

2 RX READY Trabalhar com o receptor laser RX

Medical device with measurement scale and control panel (no visible text or symbols)

A Ljudsignal PÅ/AV

B Lasermottagningsfält

C Universalhållare

D Batterihållare

RangeXtender RX 51

L Huvudmagnet

M Libell

Interior view of a device casing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical switch or motor assembly with labeled terminals (no text or symbols present)

Medical device with digital display and vertical scale ruler, no visible text or symbols

A Lydsignal PÅ/AV

B Lasermottaksfelt

C Universal brakett

D Batterirom

RangeXtender RX 51

L Hodemagnet

M Libelle

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of an electronic device showing internal components with polarity indicators (no text or symbols)

Diagram of a device interior showing a battery pack and electrical outlet with polarity indicators (no text or symbols)

2 RX READY Arbeider med lasermottaker RX

Medical device with measurement scale and control panel (no visible text or symbols)

Tekniske data
Lasermottaksområde	RX 30: max. 30 mRX 51 / 52: max. 50 m
Strømforsyning 1 x 9V batteri
Vekt (inkl. batteri)	RX 30: 0,13 kgRX 51 / 52: 0,2 kg
Arbeidstemperatur 0°C ... + 50°C
Lagertemperatur 0°C ... + 70°C
Mål (B x H x D)	RX 30: 60 x 110 x 26 mmRX 51: 52 x 150 x 27 mmRX 52: 52 x 164 x 27 mm
Artikkelnummer	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Det tas forbehold om tekniske endringer 11 / 2010

RangeXtender RX 51

L Mignatız başlık

M Su terazisi

1 Pilin takılması

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of a device interior showing internal components with polarity indicators (no text or symbols)

Medical device with digital display and vertical scale, no visible text or symbols

RangeXtender RX 51

L Встроенный магнит

М Уровень

1 Установка батареи

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a remote control box with labeled ports (no readable text or symbols)

Diagram of an electronic device showing internal components with polarity indicators (no text or symbols)

Diagram of a device interior showing internal components with polarity indicators (no text or symbols)

Medical device with measurement scale showing 10 units (no visible text or symbols)

RangeXtender RX 51

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

RangeXtender RX 51

L Magnet hlavy

M Libela

Vložení baterií

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a remote control module with labeled ports (no readable text or symbols)

Diagram of an electronic device showing internal components with polarity indicators (no text or symbols)

Diagram of a device interior showing internal components with polarity indicators (no text or symbols)

Medical device with measurement scale and control panel (no visible text or symbols)

A Helisignaal SISSE / VÄLJA

RangeXtender RX 51

L Peamagnet

M Libell

1 Patareide sisestamine

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical switch or motor with labeled terminals (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

Tehnilised andmed
Laseri vastuvõtuvahemik	RX 30: max. 30 mRX 51 / 52: max. 50 m
Toitepinge 1 x 9V patarei
Kaal (koos patareiga)	RX 30: 0,13 kgRX 51 / 52: 0,2 kg
Töötamistemperatuur 0°C ... + 50°C
Hoidmistemperatuur 0°C ... + 70°C
Mõõtmed (L x K x S)	RX 30: 60 x 110 x 26 mmRX 51: 52 x 150 x 27 mmRX 52: 52 x 164 x 27 mm
Tootenumber	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Jätame endale õiguse tehnilisteks muudatusteks	11 / 2010

RangeXtender RX 51

L Galvas magnēts

M Līmeņrādis

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of a device internal structure with labeled terminals (no text or symbols present)

Medical device with pressure gauge and control panel (no visible text or symbols)

A Garso signalas IJUNGTAS / IŠJUNGTAS

B Lazerio prièmimo laukas

C Universalus tvirtinimo elementas

D Bateriju détuvé

RangeXtender RX 51

L Galvutès magnetas

M Gulsčiukas

1 Bateriju idėjimas

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Interior view of a device casing with internal components and mounting holes (no visible text or symbols)

Diagram of an electronic device showing a battery pack and two polarity indicators (positive and negative) with no readable text or symbols.

Diagram of an electrical outlet with labeled terminals and connection points (no text or symbols present)

2 RX READY Darbas su lazerio imtuvu RX

Medical device with measurement scale and control panel (no visible text or symbols)

Techniniai duomenys
Lazerio prièmimo zona	RX 30: max. 30 mRX 51 / 52: max. 50 m
Elektros maitinimas 1 x 9 V baterija
Masè (kartu su baterija)	RX 30: 0,13 kgRX 51 / 52: 0,2 kg
Darbinè temperatūra	0°C ... + 50°C
Sandėliavimo temperatūra	0°C ... + 70°C
Matmenys (P x A x G)	RX 30: 60 x 110 x 26 mmRX 51: 52 x 150 x 27 mmRX 52: 52 x 164 x 27 mm
Gaminio numeris	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Pasiliekame teisę daryti techninius pakeitimus	11 / 2010

A Semnal acustic PORNIRE/OPRIRE

RangeXtender RX 51

L Magnet cap

M Nivela

1 Introducerea bateriilor

RangeXtender RX 30 RangeXtender RX 51 RangeXtender RX 52

Diagram of an electronic device showing internal components with polarity indicators (no text or symbols)

Diagram of an electrical switch or relay device with labeled terminals (no text or symbols present)

Medical device with digital display and vertical scale, no visible text or symbols

RangeXtender RX 51

L Магнитна глава

М Нивелир

Interior view of a remote control box with labeled ports (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of a device internal structure with labeled terminals (no text or symbols present)

Medical device with measurement scale and control panel (no visible text or symbols)

Технически характеристики
Диапазон на приемане на лазера	RX 30: макс. 30 мRX 51 / 52: макс. 50 м
Електрозахранване 1 x 9V батерия
Тегло (вкл. батерия)	RX 30: 0,13 кгRX 51 / 52: 0,2 кг
Работна температура 0°C ... + 50°C
Температура на съхранение 0°C ... + 70°C
Размери (Ш x В x Д)	RX 30: 60 x 110 x 26 ммRX 51: 52 x 150 x 27 ммRX 52: 52 x 164 x 27 мм
Артикулен номер	RX 30: 033.25ARX 51: 033.20-1RX 52: 033.20-2
Запазва се правото за технически изменения 11	/ 2010

RangeXtender RX 51

L Μαγνήτης κεφαλής

Μ Αεροστάθμη

Interior view of a device housing with labeled components (no readable text or symbols)

Diagram of a battery pack assembly with positive and negative terminals, no text or symbols present

Diagram of an electrical box with labeled terminals (⊖ and ⊕) and internal components, no readable text or symbols beyond basic labels.

Medical device with measurement scale and control panel (no visible text or symbols)

Exterior view of a construction site with concrete pillars and a worker in the background (no signage or text visible)

SERVICE

Umarex GmbH & Co KG

- Laserliner -
