Product Type	Electric Vacuum/Blower
Brand	Flymo
Model	Power Vac 3000
Power Supply	Mains 230 V / 50 Hz
Power Consumption	3000 W
Max Suction Flow	170 l/s
Max Blowing Speed	310 km/h
Shredding Ratio	16:1
Collection Bag Capacity	45 L
Weight	4.8 kg
Sound Pressure Level (LpA)	87.4 dB(A) (uncertainty 3 dB)
Sound Power Level (LWA)	100 dB(A) measured / 101 dB(A) guaranteed
Hand/Arm Vibration	3.25 m/s² (uncertainty 1.5 m/s²)
Max Extension Cord Length	40 m with section 1.00 mm²
Required Safety Device	Residual Current Device (RCD) ≤ 30 mA
Manufacturer's Warranty	2 years

Frequently Asked Questions - Power Vac 3000 FLYMO

How to start the Power Vac 3000?

To start, plug the appliance into a 230 V socket, then set the start switch to ON. Make sure all tubes are correctly assembled, because a safety switch prevents starting if they are not in place.

How to use the appliance in blower mode?

To blow, attach the blower tube to the air outlet. Direct the airflow downwards or sideways to gather debris. Keep a safe distance from solid objects and delicate plants to avoid projections or damage.

How to use the appliance in vacuum mode?

To vacuum, attach the suction tube and the collection bag. Slowly move the appliance back and forth over dry debris (leaves, grass). Keep the tube about 2.5 cm from the ground for best results. Avoid forcing the appliance into a pile of debris.

What to do if the appliance does not start?

First check that all tubes (blower, elbow, suction) are correctly assembled and locked. Make sure the collection bag is not full and that the extension cord is plugged in. If the problem persists, contact an authorized dealer.

How to clean the Power Vac 3000?

Unplug the appliance and wait for the turbine to stop completely. Remove the tubes and bag. Clean the air flow slots and the air inlet/outlet area with a soft brush. Never use water or a high-pressure jet. The bag can be turned inside out and washed with water.

What extension cord to use with the Power Vac 3000?

Use an outdoor extension cord with a minimum cross-section of 1.00 mm² and a maximum length of 40 meters. The extension cord must be inserted into the cable lock to avoid accidental disconnection.

How to attach the blower tube?

Align the grooves of the blower tube with those of the air outlet, then push it in until it clicks into place. To remove, press the release button and pull. A safety switch prevents starting if the tube is not properly mounted.

How to attach the collection bag?

If the blower tube is attached, remove it. Align the grooves of the elbow tube with the air outlet, fit it until it clicks, then clip the bag into the two loops on the suction tube. To remove, press the tube locking latch and pull.

What to do in case of appliance blockage?

Stop the appliance immediately and unplug it. Wait for the turbine to come to a complete stop. Remove the suction tubes and carefully reach in the suction opening to remove debris. Wear gardening gloves.

Where to find spare parts for the Power Vac 3000?

Use only genuine FLYMO parts. Contact an authorized dealer or Husqvarna UK Ltd. after-sales service. The blower and suction tubes are wear parts not covered by the warranty.

USER MANUAL Power Vac 3000 FLYMO

Line drawing of a hairless spray gun with handle and lever mechanism (no text or symbols)

Power Vac 3000 Art. 9676581-xx

Remark: "xx" stands for customer and country variants.

The basic product number is before the hyphen.

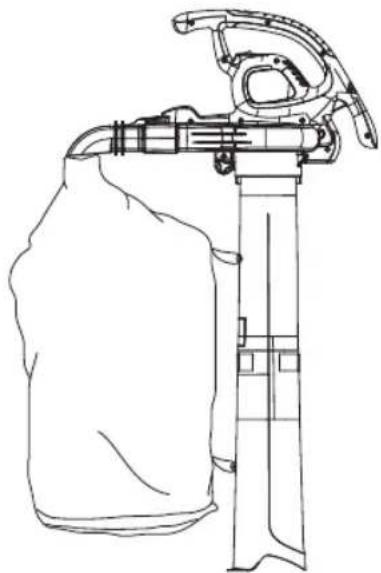

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

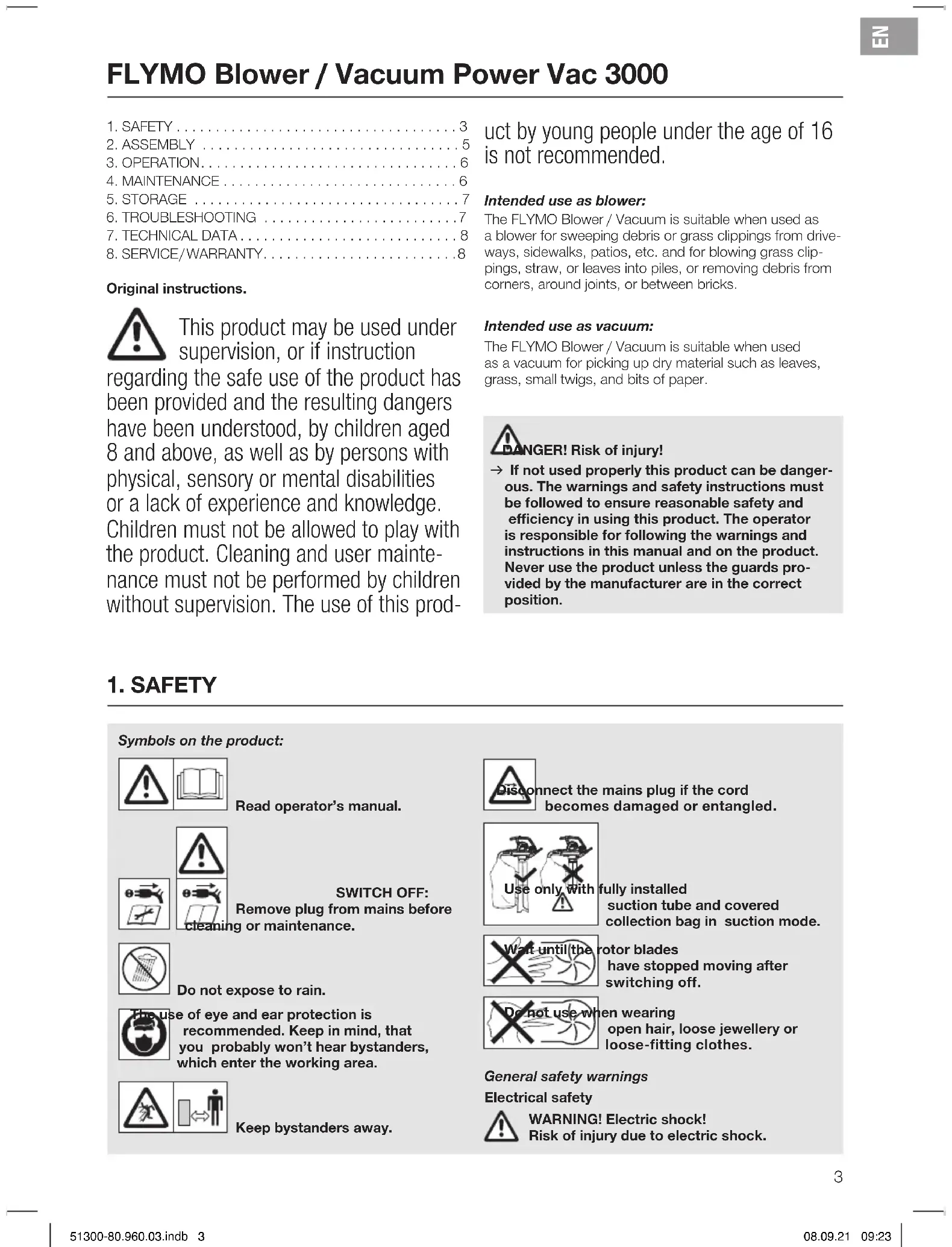

EN Operator's manual

Electric Blower/Vacuum

Original instructions.

This product may be used under supervision, or if instruction regarding the safe use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance must not be performed by children without supervision. The use of this product by young people under the age of 16 is not recommended.

Intended use as blower:

The FLYMO Blower / Vacuum is suitable when used as a blower for sweeping debris or grass clippings from driveways, sidewalks, patios, etc. and for blowing grass clippings, straw, or leaves into piles, or removing debris from corners, around joints, or between bricks.

Intended use as vacuum:

The FLYMO Blower / Vacuum is suitable when used as a vacuum for picking up dry material such as leaves, grass, small twigs, and bits of paper.

NGER! Risk of injury!

→ If not used properly this product can be dangerous. The warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for following the warnings and instructions in this manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.

1. SAFETY

Symbols on the product:

Read operator's manual.

SWITCH OFF: Remove plug from mains before g or maintenance.

Do not expose to rain.

use of eye and ear protection is recommended. Keep in mind, that you probably won't hear bystanders, which enter the working area.

Keep bystanders away.

connect the mains plug if the cord becomes damaged or entangled.

fully installed suction tube and covered collection bag in suction mode.

rotor blades have stopped moving after switching off.

en wearing open hair, loose jewellery or loose-fitting clothes.

General safety warnings

Electrical safety

WARNING! Electric shock! Risk of injury due to electric shock.

→ The product must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

Cables:

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Extension cables are available from your local approved service centre. Only use extension cables specifically designed for outdoor use.

Use only 1.00 mm ^2 size cable up to 40 metres length maximum.

Minimum rating: 1.00 mm² size cable.

1 General

This annex presents safe operating practices for handheld mains-operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers.

These practices are not all inclusive. The substance of these requirements should be provided with each machine as appropriate and tailored to the specific type of machine. It should also include information concerning noise and vibration levels and any necessary warnings, together with the following:

IMPORTANT!

READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE.

2 Safe operating practices for hand-held mains-operated electrical garden vacuums, and garden blower / vacuums with or without shredding means and garden blowers.

2.1 Training

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
c) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2.2 Preparation

a) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
b) While operating the machine always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
c) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.
d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
f) Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace

worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

g) Before use, check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn.
h) Never operate the machine while people, especially children, or pets are nearby.

2.3 Operation

a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
g) If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine:

• inspect for damage;
• replace or repair any damaged parts;
• check for and tighten any loose parts.

h) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.

i) If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris.
j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place.
k) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
I) Do not transport this machine while the power source is running.
m) Stop the machine, and remove plug from the socket. Make sure that all moving parts have come to a complete stop

– whenever you leave the machine,
– before clearing blockages or unclogging chute,
– before checking, cleaning or working on the machine.

n) Do not tilt the machine while the power source is running.

2.4 Maintenance and storage

a) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
b) Store the machine in a dry place out of the reach of children.
c) Always allow the machine to cool before storing.
d) When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be moved.
e) Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories.
f) Never attempt to override the interlocked feature of the guard.

2.5 Additional safety instructions for units with bagging attachments

Switch-off the machine before attaching or removing the bag.

2.6 Recommendation

The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA.

Additional safety warnings

Danger! Small parts could be swallowed during assembly and there is a risk of suffocation from the polybag. Keep infants away during assembly.

Warning! This product produces an electro magnetical field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manu facturer before operating this product.

2. ASSEMBLY

WARNING! Risk of physical injury! Cut injury when the impeller turns or the product starts accidentally.

→ Wait for the impeller to stop, disconnect the product from the mains and use gloves before you do assembly.

To assemble for blower use:

To fit the blower tube [Fig. A1]:

NOTE: A safety switch will prevent the product from starting if the blower tube ① is not installed correctly.

1. If the collection bag is assembled, remove the collection bag.
2. Align the grooves on the blower tube① with the grooves on the blower outlet②.
3. Push the blower tube ① onto the blower outlet ② until it snaps into place. The blower tube is secured to the blower outlet with the tube release button ③.

To remove the blower tube①, push the tube release button③ and pull out the blower tube① at the same time.

To fit the intake cover [Fig. A2]:

NOTE: A safety switch will prevent the product from starting if the intake cover ④ is not latched closed.

1. If the vacuum tube is assembled, remove the vacuum tube.
2. Put the intake cover④ on the lower opening of the garden blower and turn the intake cover④ clockwise up to the stop (bayonet fastening).
3. Tighten the fastening screw⑤.
   To remove the intake cover④, loosen the fastening screw⑤, turn the intake cover ④ anti-clockwise and remove it.

To assemble for vacuum use:

To fit the vacuum tube [Fig. A3 / A4]:

WARNING! Do not use the vacuum ⑥ unless the lower tube ⑥ is fitted to the upper tube ⑥a.

1. If the intake cover is assembled, remove the intake cover.
2. Align the seams of the lower tube ^6b and upper tube ^6a .
3. Push the tubes ^6a / ^6b together until they are fully engaged.

NOTE: A safety switch will prevent the product from starting if the vacuum tube⑥ is not installed correctly.

1. Put the vacuum tube⑥ on the lower opening of the garden vacuum and turn the vacuum tube⑥ clockwise up to the stop (bayonet fastening).
2. Tighten the fastening screw⑤.

To remove the vacuum tube⑥, loosen the fastening screw ⑤, turn the vacuum tube ⑥ anti-clockwise and remove it.

To attach the collection bag [ Fig. A5 ]:

NOTE: A safety switch will prevent the product from starting if the elbow tube⑦ is not installed correctly.

1. If the blower tube is assembled, remove the blower tube.
2. Align the grooves on the elbow tube⑦ with the grooves on the blower outlet②.
3. Push the elbow tube⑦ onto the blower outlet② until it snaps into place.
   The collection bag is secured to the blower outlet with the tube release button Ⓗ.
4. Clip the collection bag⑨ into both loops ⑩ on the vacuumtube ⑥.

To remove the collection bag ⑨, push the tube release button ⑧ and pull out the elbow tube ⑦ at the same time.

To attach the shoulder strap [Fig. A6]:

For extra support when you use the product as a vacuum, a shoulder strap is included with your product. Attach the strap to the product before operation.

→ Snap the hook onto the retainer⑪.

3. OPERATION

WARNING! Risk of physical injury! Injury when the impeller turns or the product starts accidentally.

→ Wait for the impeller to stop, disconnect the product from the mains and use gloves before you connect or transport the product.

To connect the product [Fig. 01]:

ER! Risk of electric shock! void damage to the mains cable ⑫ it must be inserted into the cable lock ⑬.

→ Before you operate the product insert the mains cable ⑫ into the cable lock ⑬.

1. Loop the mains cable ⑫, insert the loop into the cable lock ⑬ and pull tight.
2. Connect the mains cable ⑫ into a 230 V mains socket.

To start the product [Fig. 01]:

To start:

→ Push the start switch ⑭ to the ON-position.

To stop:

→ Push the start switch ⑭ to the OFF-position.

Work positions:

Blow mode [ Fig. O2 ]:

Use your product as a blower for sweeping debris or grass clippings from driveways, sidewalks, patios, etc. Also, for

blowing grass clippings, straw, or leaves into piles, or removing debris from corners, around joints, or between bricks.

Direct air flow by directing the blower tube down or to one side.

Always work away from solid objects such as walks, large stones, vehicles, and fences.

Clean corners by starting in corners and moving outward. This will help prevent an accumulation of debris which could fly into your face. Be careful when working near plants. The force of the air could damage tender plants.

Vacuum mode [Fig. 03]:

Use your product as a vacuum to pick up dry material such as leaves, grass, small twigs, and bits of paper.

For best results during vacuum use, operate your unit at high speed.

Move slowly back and forth over the material as you vacuum. Avoid forcing the unit into a pile of debris as this can clog the unit.

Keep the vacuum tube about an inch above the ground for best results.

WARNING: If the product becomes clogged, stop the unit and unplug the extension cord. Wait until the impeller has completely stopped turning, then remove the vacuum tubes. Carefully reach into the vacuum opening and clear out the clogged debris.

This will reduce possible personal injury from the impeller.

4. MAINTENANCE

ING! Risk of physical injury! Injury when the impeller turns or the product starts accidentally.

→ Wait for the impeller to stop, disconnect the product from the mains and use gloves before you do maintenance.

To clean the product [Fig. M1 / M2]:

ER! Electric shock! of injury and risk of damage to the product.

→ Do not clean the product with water or with a water jet (in particular high-pressure water jet). The airflow slots must always be clean.

1. Remove the tubes and the collection bag.
2. Clean the airflow slots ⑯ and the air intake / outtake area ⑰ with a soft brush (do not use a screwdriver). Remove all debris from the impeller.
3. Clean the blower head with a damp cloth.
4. Clean the tubes. Remove all debris from the tubes.
5. Turn the collection bag inside out and clean it with water.

5. STORAGE

To put into storage:

The product must be stored away from children.

1. Disconnect the mains cable.
2. Clean the product.
3. Stow the product in a dry area where it has protection from frost (Do not stow a dirty collection bag).

Disposal:

(in accordance with RL2012/19/EC/S.I. 2013 No. 3113)

The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations.

IMPORTANT!

→ Dispose of the product through or via your municipal recycling collection centre.

6. TROUBLESHOOTING

NING! Risk of physical injury! injury when the impeller turns or the product starts accidentally.

→ Wait for the impeller to stop, disconnect the product from the mains and use gloves before you do troubleshooting.

Problem Possible Causes Remedy

Product does not start Blower tube, elbow tube or vacuum tube is not assembled correctly.	→ Assemble the tubes correctly (see 2. ASSEMBLY).
Collection bag is full.	→ Empty the collection bag.
Extension cable is disconnected.	→ Connect the extension cable.
Mechanical failure.	→ Contact your authorized service dealer.
Product vibrates abnormally Debris in air intake area.	→ Clean the product. Remove any debris.
Mechanical failure.	→ Contact your authorized service dealer.

For any other malfunctions please contact the Husqvarna UK Ltd. Customer Service. Repairs must only be done by Husqvarna UK Ltd. service departments or specialist dealers approved by FLYMO.

1. TECHNICAL DATA

Electric Blower/Vacuum Unit Value		(Power Vac 3000)
Motor power consumption W 3000
Mains voltage V 230
Mains frequency Hz 50
Max. vacuum flow	l/s	170
Mulch ratio		16:1
Max. blow speed	km/h	310
Capacity of collection bag	l	45
Weight	kg	4.8
Sound pressure level L_pA^1) Uncertainty k_pA	dB(A)	87.43.0
Sound power level L_WA^2) : measured / guaranteed Uncertainty k_WA	dB(A)	100 / 1011.0
Hand/arm vibration a_vhw^1) Uncertainty k_a	m/s ^2	3.251.5

Measuring process complying with: ^1) EN 50636-2-100 ^2) RL 2000/14/EC / S.I. 2001 No.1701

8. SERVICE/WARRANTY

Service:

Please contact the address on the back page.

Warranty statement:

In the event of a warranty claim, no charge is levied to you for the services provided.

Husqvarna UK Ltd. grants a warranty for all original FLYMO new products for two years from the date of original purchase from the retailer, provided that the devices have been for private use only. This manufacturer's warranty does not apply to products acquired second hand. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults. This warranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

• The product has been used for its intended purpose as per the recommendations in the operating instructions.
• Neither the purchaser nor a third party has attempted to open or repair the product.
• Only original FLYMO replacement parts and wear parts have been used for operation.

- Presentation of the receipt.

Normal wear and tear of parts and components (such as blades, blade fixing parts, turbines, light bulbs, V-belts / toothed belts, impellers, air filters, spark plugs), visual changes, wear parts and consumables are excluded from the warranty.

This manufacturer's warranty is limited to replacement and repair of products in accordance with the abovementioned conditions. The manufacturer's warranty does not constitute an entitlement to lodge other claims against us as a manufacturer, such as for damages. This manufacturer's warranty does not, of course, affect statutory and contractual warranty claims against the dealer / retailer.

The manufacturer's warranty is governed by the law of the Federal Republic of Germany.

In case of a warranty claim, please return the faulty product, together with a copy of the receipt and a description of the fault, with postage paid to the service address.

Consumables:

The blower tube and the vacuum tubes are consumables and are not included in the guarantee.

FLYMO Gartensauger / -Bläser Power Vac 3000

DE

(conform RL2012/19/EU / S.I. 2013 No. 3113)

(iht. Dir. 2012/19/EU / S.I. 2013 No. 3113)

Måleproces i overensstemmelse med: 1) EN 50636-2-100 2) RL 2000/14/EC / S.I. 2001 No.1701

8. SERVICE/GARANTI

Service:

(podle RL2012/19/EU / S.I. 2013 No. 3113)

(conform directivei 2012/19/UE/S.I. 2013 No. 3113)

EN UKCA Declaration of Conformity (only for UK)The manufacturer: Husqvarna AB SE 561 82 Huskvarna, Sweden hereby certifies, when leaving our factory, the unit(s) indicated below is / are in accordance with the UK Regulations, designated standards of safety and product specific designated standards. This certificate becomes void if the units are modified without our approval.
Description of the product:	Blower PowerVac 3000
Product type:	PV3000
Article number:	9676581-xx
UK regulations:	S.I. 2008/1597S.I. 2012/3032S.I. 2016/1091S.I. 2001/1701
Designated Standards:	EN ISO 12100EN 60335-1EN 50636-2-100
Authorised Representative:	Husqvarna UK Limited
Deposited Documentation:	Preston Road,Aycliffe,County DurhamUKDL5 6UP
Noise level: measured / guaranteed	100 dB(A) / 101 dB(A)
Conformity Assessment according to:	According to S.I. 2001/1701 Art. 11 Schedule 8
Aycliffe, 17.08.2021Authorised Representative:	John ThompsonDirector

(C1428ARP) Buenos Aires

Phone: [phone]

[e-mail]

Armenia

Garden Land Ltd.

61 Tigran Mets

0005 Yerevan

Australia

Husqvarna Australia Pty. Ltd.

Locked Bag 5

Central Coast BC

NSW 2252

Phone: (+ 61) (0) 2 4352 7400

customer.service@

husqvarna.com.au

Brampton, Ontario L6T 4X3

Phone: [phone]

[e-mail]

Chile

Maquinarias Agroforestales

Ltda. (Maga Ltda.)

Santiago, Chile

Avda. Chesterton

# 8355 comuna Las Condes

Phone: [phone]

[e-mail]

Zipcode: 7560330

China

Husqvarma (China) Machinery

Manufacturing Co., Ltd.

No. 1355, Jia Xin Rd.

Ma Lu Zhen, Jia Ding Dist.,

Shanghai

201801

Phone: [phone]

Domestic Sales

www.gardena.com.cn

Colombia

Husqvarna Colombia S.A.

Calle 18 No. 68 D-31, zona

Industrial de Montevideo

Bogotá, Cundinamarca

Tel. [phone] ext. 105

[e-mail]

Costa Rica

Compania Exim

Euroiberoamericana S.A

Importer to Great Britain

Husqvarna UK Ltd

Preston Road

Aycliffe Industrial Park

Newton Aycliffe

County Durham

DL5 6UP

Phone:[phone]

customer.services@

husqvarna.co.uk

Greece

Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ

Λεωφ. Αθηνών 92

Αθήνα

T.K.104 42

Ελλάδα

Tηλ. ([phone]

[e-mail]

Hungary

Aycliffe Industrial Park

Newton Aycliffe

County Durham

DL5 6UP

[e-mail]

Italy

Husqvarna Italia S.p.A.

Via Santa Vecchla 1

23868 VALMADRERA (LC)

Phone: [phone]

[e-mail]

Japan

KAKUICHI Co. Ltd.

Sumitomo Realty &

Development Kojimachi

BLDG., 8F

5 -1 Nibanncyo

Chiyoda-ku

Tokyo 102-0084

Phone: [phone]

[e-mail]

Kazakhstan

LAMED Ltd.

155/1, Tazhibayevoi Str.

050060 Almaty

IP Schmidt

Abayavenue 3B

110 005 Kostanay

Korea

Kyung Jin Trading CO.,LTD.

107-4, SunDuk Bld.,

YangJae-dong,

Seocho-gu,

Seoul, (zipcode: 137-891)

Phone: (+82) (0)2 574-6300

Kyrgyzstan

Alye Maki

av. Moladaya Guardir J 3

720014

Bishkek

Latvia

Husqvarna Latvija SIA

Gardena Division

Ulbrokas 19A

LV-1021 Rīga

[e-mail]

Lithuan

UAB Husqvarna Lietuva

Gardena Division

Ateities pl. 77C

LT-52104 Kaunas

[e-mail]

Luxembourg

Magasins Jules Neuberg

Zapopan, Jalisco, Mexico

Phone: [phone]

Husqvarna New Zealand Ltd.

PO Box 76-437

Manukau City 2241

Phone: (+64) (0) 9 9202410

[e-mail]

Norway

Husqvarna Norge AS

Gardena Division

Trøskenveien 36

1708 Sarpsborg

Tel: [phone]

www.gardena.no
