RollPilot S6 - Measuring equipment Laserliner - Free user manual and instructions

Product type	Mechanical wheel distance meter
Brand	Laserliner
Model	RollPilot S6
Accuracy	± 0.1%
Measuring range	0 - 9,999.9 m
Wheel circumference	500 mm
Wheel radius	79.5 mm
Units	Meters (m)
Dimensions (folded)	190 x 430 x 145 mm
Dimensions (unfolded)	245 x 1040 x 100 mm
Weight	1050 g (without accessories)
Power supply	None (mechanical)
Material	Plastic and metal
Handle	Non-slip
Reset	By button or lever
Mobile pointer	To indicate start and end positions
Transport	Foldable with included carrying case
Usage	Straight or curved lines
Maintenance	Clean with a damp cloth, avoid solvents
Calibration	Recommended once a year
Standards	EU compliant (CE)
Safety	Do not use as a toy, protect from shocks and moisture

Frequently Asked Questions - RollPilot S6 Laserliner

How to reset the counter to zero?

Press the delete button (6) or operate the stop lever (7) to reset the mechanical counter to zero.

How to measure a distance between two walls?

Place the rear of the wheel against the first wall, roll to the second wall, then read the measured distance and add the wheel diameter (159 mm) to get the exact distance.

What is the accuracy of the device?

The RollPilot S6 offers an accuracy of ± 0.1% for measurements up to 9,999.9 m.

How to maintain the RollPilot S6?

Clean all components with a slightly damp cloth. Do not use cleaning agents, scouring products, or solvents. Store the device in a dry and clean place.

How to calibrate the device?

It is recommended to calibrate the instrument once a year. Contact your distributor or the UMAREX-LASERLINER after-sales service for calibration.

Can I measure curves with this device?

Yes, the mechanical wheel distance meter is designed for use on straight or curved lines. Make sure the wheel follows the path without slipping.

How to fold the device for transport?

Operate the stop lever (3) to fold the guide rod. The device folds and fits easily into the provided carrying case.

What to do if the wheel slips during measurement?

Ensure the surface is clean and the wheel grips well. Avoid overly smooth surfaces. Keep the guide rod at a constant angle, preferably vertical, to ensure accuracy.

Where to find the warranty?

The warranty information can be found in the booklet 'Additional and warranty notes' provided with the device, or on the website http://laserliner.com/info?an=AEU.

What are the dimensions of the folded device?

The folded device measures 190 mm in width, 430 mm in height, and 145 mm in depth.

USER MANUAL RollPilot S6 Laserliner

Exterior view of a modern seer mobility device with black and silver body (no text or symbols visible)

0 m ..... 9.999,9 m

Laserliner

02

06

10

14

18

22

26

30

34

38

42

46

50

54

58

62

66

70

74

78

Laserliner

Close-up of a car wheel rim with a black clip and numbered label '8' (no text or symbols on the wheel itself)

Close-up of a laser ear adapter with a digital display showing 'Laserliner' and an arrow pointing to it (no readable text beyond label)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of two hands gripping a white object, labeled with arrows 1 and 2 indicating motion or movement (no text or symbols on the objects themselves)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

The mechanical distance measuring wheel is designed for use on straight lines and curves. The mechanical measuring wheel delivers accurate measured values when measuring distances of up to 9.999,9 m. The moving pointer shows the exact start and end positions. The folding design and transport case make the measuring wheel easy to carry.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• Take care not to pinch your fingers when folding the device into transport position.
  – Avoid moisture and sand, clean thoroughly after use.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Calibration

The measuring device must be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend carrying out calibration once a year. Contact your distributor or the UMAREX-LASERLINER service department.

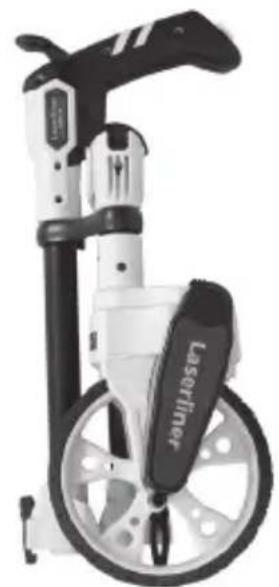

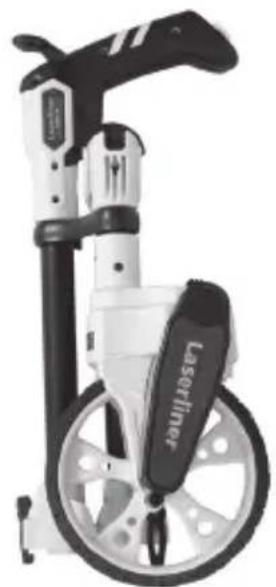

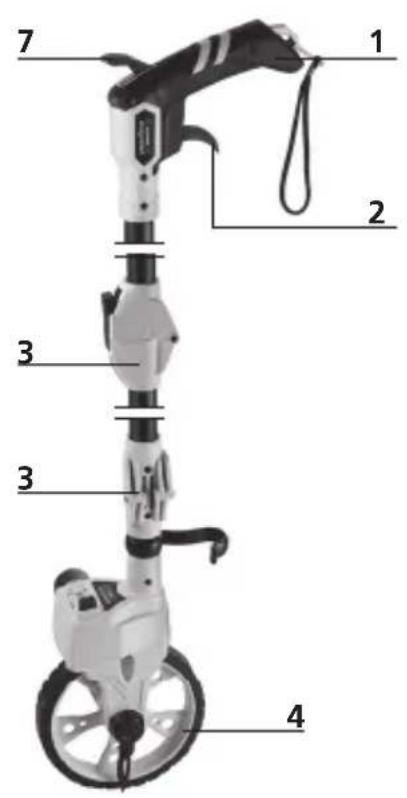

RollPilot S6

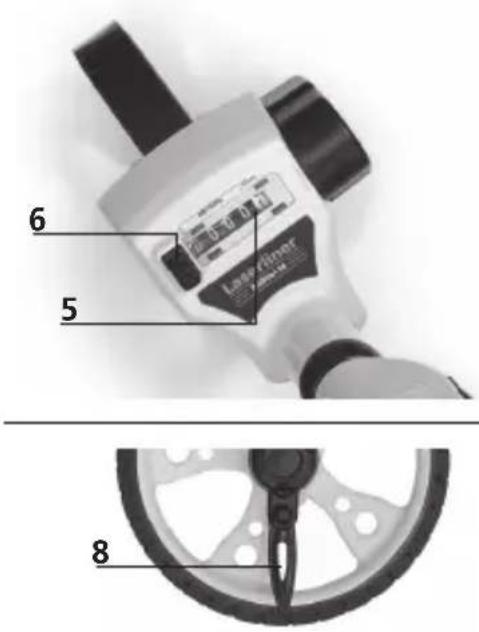

1 Non-slip handle
2 Lock measuring wheel
3 Locking lever

4 Measuring wheel with 0,5 m circumference
5 Mechanical counter
6 Delete measured value
7 Delete measured value
8 Moving pointer for start and end position

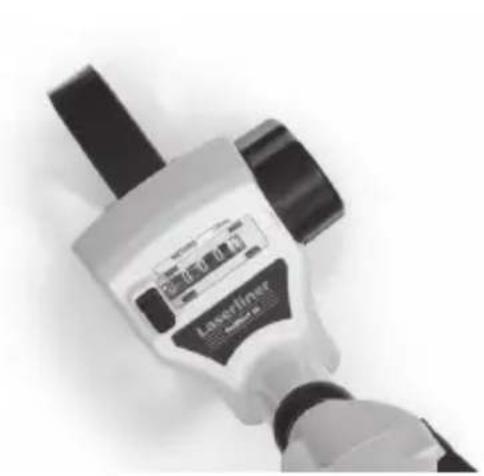

1 Delete measured value

The mechanical counter is set to zero by pressing button 6 or lever 7.

Close-up of a Laserliner electric plug with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

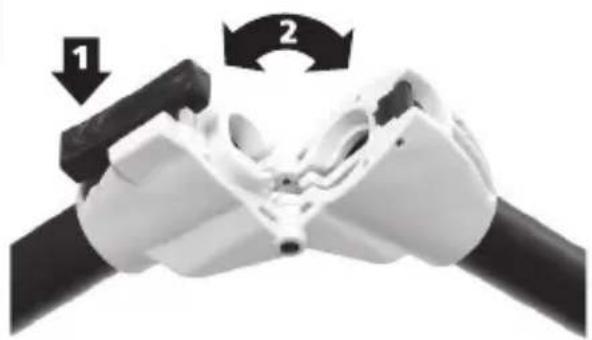

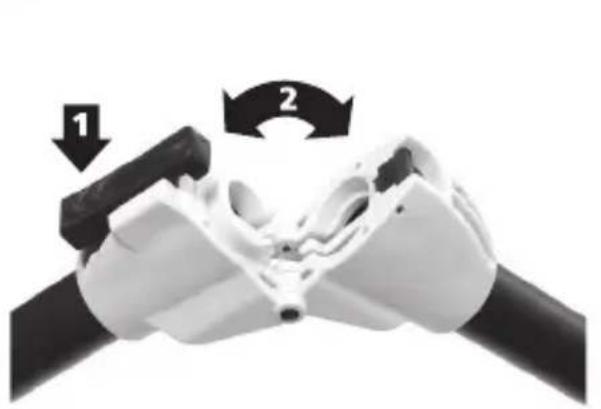

2 Fold for carrying

Close-up of two hands gripping a white object with a black arrow indicating direction (no text or symbols)

Exterior view of a white and silver self-balancing scooter with a black strap (no visible text or symbols)

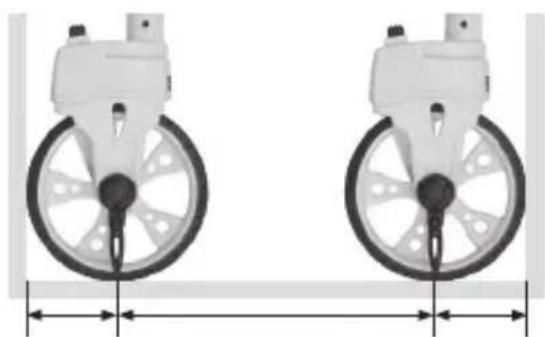

3 To measure from wall to wall

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the other wall.
3. Read off the measured value and add the diameter of the wheel.

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +RMMeasurement

To achieve accurate measurement results, the guide bar must be held at the same angle during the entire measurement. A vertical position is recommended.

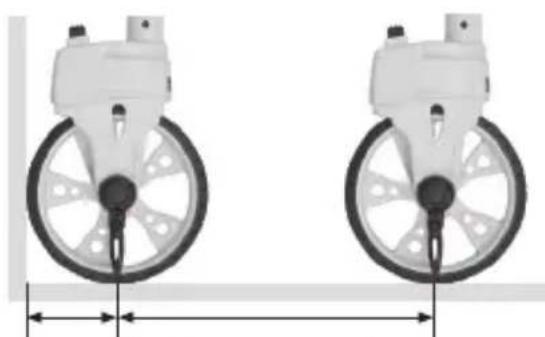

4 To measure from wall to spot

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the marked spot.
3. Read off the measured value and add the radius of the wheel.

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

+R Measurement

08

EN

RollPilot S6

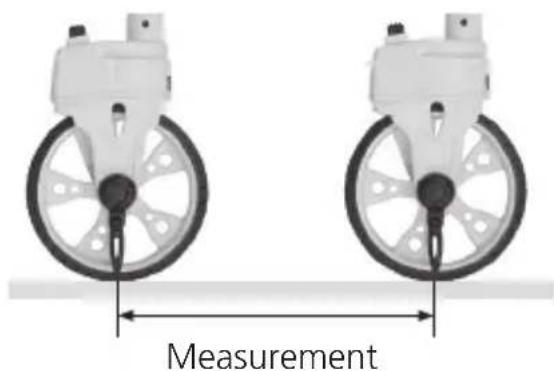

5 To measure from spot to spot

1. Position the pointer (8) on the first marked spot.
2. Move the measuring wheel straight to the other marked spot.
3. Read off measured value.

Technical data Subject to technical alterations. 20W13

Accuracy ± 0.1%
Range	0 – 9,999.9 m
Measuring wheel radius 79,5 mm
Circumference of measuring wheel 500 mm
Units	m
Dimensions (W x H x D)	190 x 430 x 145 mm (folded) /245 x 1040 x 100 mm
Weight	1050 g (without accessories)

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

Further safety and supplementary notices at: http://laserliner.com/info?an=AEU

Laserliner

Close-up of a Laserliner electric shaver device with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of two hands gripping a white object, labeled with arrows 1 and 2 indicating movement or transformation (no text or symbols on the objects themselves)

Exterior view of a white and black bicycle with a 'Lasztiner' strap (no additional text or symbols visible)

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +RMleetwaarde

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Meetwaarde

12

NL

RollPilot S6

Close-up of a bicycle wheel rim with a black plastic clip and numbered label '8' (no text or symbols on the wheel itself)

Close-up of a Laserliner electric plug with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a hand gripping a white object with two directional arrows labeled 1 and 2 indicating movement (no text or symbols on the object itself)

Exterior view of a white and black robotic device with a visible 'Laserlink' label (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• +R R Måleværdi

Two identical white bicycle wheels with black levers, shown side by side with dimension lines (no text or symbols)

+R Måleværdi

RollPilot S6

Close-up of a Laserliner electric plug with black and white casing (no visible text or symbols)

Close-up of a black and white bicycle lever handle with a downward arrow indicator (no text or symbols)

Laserliner

Close-up of two hands gripping a white object, labeled with arrows 1 and 2 indicating motion or movement (no text or symbols on the objects themselves)

Exterior view of a white and silver self-balancing scooter with a black strap (no visible text or symbols)

3 Mesure mur à mur

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

• +Raleur mesurée

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

+R Valeur mesurée

RollPilot S6

Close-up of a laboratory instrument with a labeled laser timer (no visible text or symbols on the device body)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with parts 1 and 2 (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +RValor medido

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Valor medido

24

ES

RollPilot S6

Close-up of a car wheel rim with a black clip and numbered label '8' (no text or symbols on the wheel itself)

Close-up of a laser ear adapter with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• +Rare di misura

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Valore di misura

28

RollPilot S6

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

Valore di misura

Close-up of a bicycle wheel rim with a black plastic clip and numbered label (8) on the wheel (no text or symbols on the wheel itself)

Close-up of a handheld electronic device labeled 'Laser/Inner' with no visible text or symbols on its body.

Close-up of a black and white bicycle lever handle with a downward arrow indicator (no text or symbols on the lever itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with parts 1 and 2 (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• +Martość pomiaru

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+RWartość pomiaru

32

RollPilot S6

Two identical white bicycle wheels with black suspension heads, shown side by side with a horizontal dimension line (no text or symbols)

Wartość pomiaru

Close-up of a Laserliner electric plug with black and white casing (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols visible)

Laserliner

Close-up of a hand gripping a white object with two directional arrows labeled 1 and 2 indicating movement (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +R Mittaustulos

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Mittaustulos

RollPilot S6

Two views of a Laserfiner device: one showing its internal structure with a black handle, the other showing its external blade assembly (no text or symbols visible)

Laserliner

2 Dobrar para o transporte

Close-up of a robotic hand gripping a white object, labeled with parts 1 and 2 (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +RValor medido

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Valor medido

40

PT

RollPilot S6

Close-up of a car wheel rim with a black clip and numbered label '8' (no text or symbols on the wheel itself)

Close-up of a Laserliner brand electrical plug with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of two hands gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the objects themselves)

Exterior view of a white and black bicycle with a gray wheel and black strap (no visible text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• +R RMätvärde

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

+R Mätvärde

44

SV

RollPilot S6

Close-up of a laser tube with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

2 Slå sammen for transport

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• +R RMåleverdi

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Måleverdi

48

NO

RollPilot S6

Close-up of a Laserliner brush tool with black and white casing (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

• +RÖRçüm değeri

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Ölçüm değeri

52

TR

RollPilot S6

Close-up of a mechanical power plug with a labeled brand (no visible text or symbols beyond branding)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line labeled 'L4' (no text or symbols on the wheels themselves)

Измеренное значение

Close-up of a bicycle wheel rim with a black handle and circular hub, labeled with number 8 (no text or symbols on the wheel itself)

Close-up of a laser ear adapter with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with parts 1 and 2 (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

Виміряне значення

Close-up of a Laserliner brush tip with black and white casing (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols visible)

63

Laserliner

Close-up of a hand gripping a white object with two directional arrows labeled 1 and 2 indicating movement (no text or symbols on the object itself)

Exterior view of a white and silver self-balancing scooter with a black strap (no visible text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

• Zrěná hodnota

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

+R Změřená hodnota

64

CS

RollPilot S6

Close-up of a car wheel rim with a black plastic clip and numbered label '8' (no text or symbols on the wheel itself)

Close-up of a Laserliner brand electrical plug with black and white casing (no visible text or symbols)

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

2 Kokkuklappimine transportimiseks

Close-up of two hands gripping a piece of dough, labeled with arrows 1 and 2 indicating process steps (no text or symbols on the objects themselves)

Exterior view of a white and silver robotic device with a black strap labeled 'Lasfitter' (no additional text or symbols visible)

3 Möötmine seinast seinani

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

• +RMõõteväärtus

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Möõteväärtus

RollPilot S6

Close-up of a laser ear adapter with black and white casing (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols visible)

RO

71

Laserliner

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black robotic leotard with visible branding (no text or symbols on the device itself)

3 Măsurarea de la perete la perete

Two identical white bicycle wheels with black suspension feet, shown side by side with dimension lines (no text or symbols)

+MalBare măsurată

Two identical white bicycle wheels with black suspension feet, shown side by side with a dimension line (no text or symbols)

+R Valoare măsurată

72

RO

RollPilot S6

5 Măsurarea de la un punct la un alt punct

Two identical white bicycle wheels with black suspension heads, shown side by side with a horizontal dimension line (no text or symbols)

Valoare măsurată

Close-up of a Laserliner brush head with black and white casing (no visible text or symbols)

Close-up of a black and white handheld device with a downward arrow indicator (no text or symbols visible)

BG

75

Laserliner

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

Измерена стойност

Close-up of a bicycle wheel rim with a black handle and circular hub, labeled with number 8 (no text or symbols on the wheel itself)

Close-up of a mechanical device with black and white components, no visible text or symbols

Close-up of a black and white electric shaver with a downward arrow indicator (no text or symbols on the device itself)

Laserliner

Close-up of a robotic hand gripping a white object, labeled with arrows 1 and 2 indicating motion (no text or symbols on the object itself)

Exterior view of a white and black bicycle with a visible 'Lasenifer' label on its side (no other text or symbols)

Two identical white bicycle wheels with black suspension feet, shown side by side with a horizontal dimension line (no text or symbols)

Τιμή μέτρησης

Architectural sketch of a traditional Japanese-style building interior with a central water feature and mechanical equipment (no text or symbols)

SERVICE

Umarex GmbH & Co. KG

- Laserliner -
