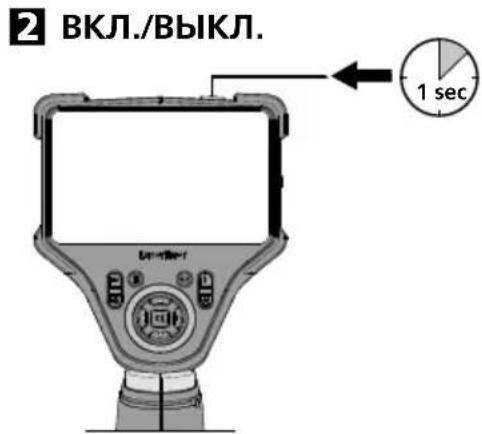

Product type	Professional inspection video camera
Brand	Laserliner
Model	VideoFlex HD Duo
Screen	5-inch TFT color
Screen resolution	1280 x 720 pixels
Image/video resolution	1280 x 720 pixels
Image/video format	JPEG, MPEG-4
Memory	Micro SD card up to 32 GB
Protection type	IP54
Connections	USB Type-C
Menu languages	DE, EN, ES, FR, IT, JA, NL, PT
Main functions	Photo, video, digital zoom 1-2x, image rotation 180°, reflection, LED lighting, gallery, webcam
Power supply	9V DC / 2A power adapter or 7.4V / 2.6Ah Li-ion battery pack (19.24Wh)
Battery life	Approximately 5 hours
Charging time	Approximately 3 hours
Operating conditions	0°C to 50°C, max. humidity 80% RH, max. altitude 2000 m
Storage conditions	-10°C to 70°C, max. humidity 80% RH
Dimensions (L x H x D)	310 mm x 210 mm x 140 mm (mount included)
Weight (with battery)	956 g
Maintenance and cleaning	Clean with a slightly damp cloth, without solvents. Remove the battery for prolonged storage.
Safety	Do not expose to moisture, do not use near dangerous voltages, comply with EMC instructions.
Spare parts and repairability	Battery replaceable via distributor or UMAREX-LASERLINER service. No modification of the instrument.
General information	Compliant with EU and UK directives. Mandatory recycling (WEEE, batteries).

Frequently Asked Questions - VideoFlex HD Duo Laserliner

How to turn the VideoFlex HD Duo on and off?

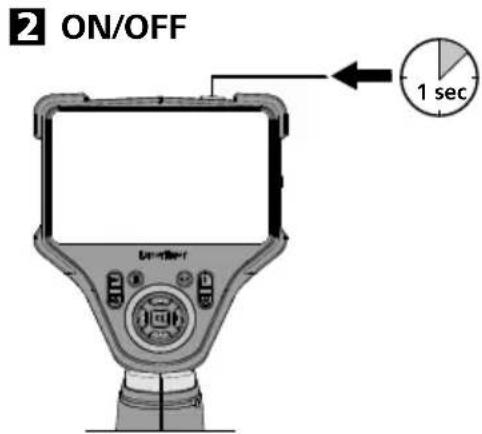

Use the ON/OFF button (reference 2) on the device. A long press turns the device on or off.

What type of memory card to use?

The device accepts micro SD cards up to 32 GB. Insert the card into the designated slot (reference 6) after opening the rubber cover. No recording is possible without a card.

How to take a photo or video?

In recording mode, press the trigger button (reference h) to take a photo or start a video recording. Another press stops the video. Use the i button to switch between photo and video.

How to adjust the LED lighting?

Use the g (+/-) buttons to increase or decrease the intensity of the LED lighting built into the camera head.

Can the device be used as a webcam?

Yes, connect the device to a computer via the USB-C port. The device then works as a webcam. Refer to the manual for configuration details.

How to transfer files to a computer?

You can remove the micro SD card and use a card reader, or connect the device directly via USB-C. The device appears as a removable disk.

What to do if the screen does not turn on?

Check that the battery is charged. Plug in the 9V charger and wait for the LED to turn green. If the problem persists, contact customer service.

How to clean the device?

Use a slightly damp cloth to clean the components. Do not use solvents or abrasive products. Do not immerse the screen in water.

What is the battery life?

The Li-ion battery provides approximately 5 hours of continuous use. Full charging time is approximately 3 hours.

Is the device waterproof?

The base unit (screen) is not waterproof. The camera head and cable are IP54 protected (splash and dust resistant). Do not immerse the screen in water.

USER MANUAL VideoFlex HD Duo Laserliner

https://packd.li/ll/ajz/in

！

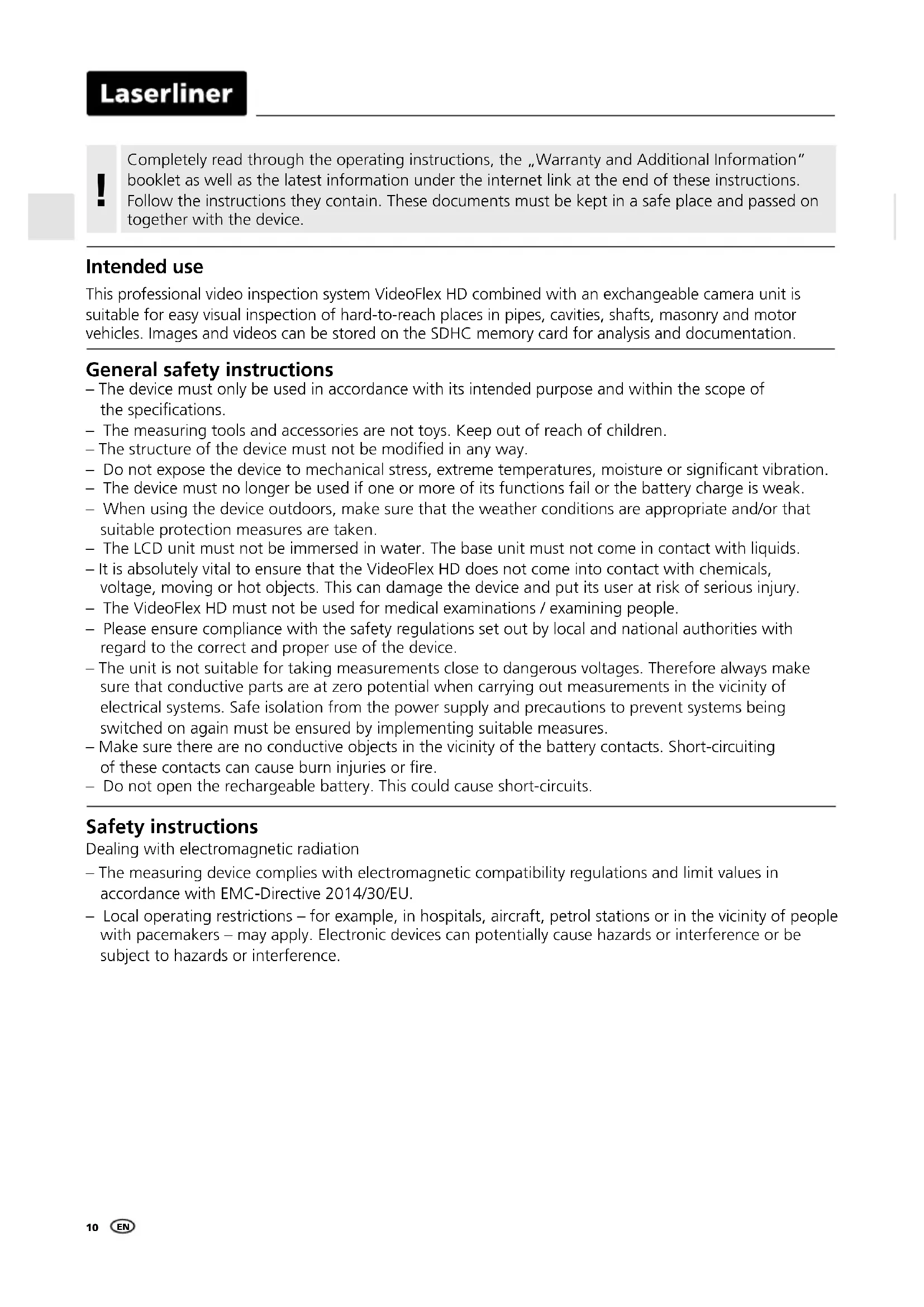

Completely read through the operating instructions, the „Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. These documents must be kept in a safe place and passed on together with the device.

Intended use

This professional video inspection system VideoFlex HD combined with an exchangeable camera unit is suitable for easy visual inspection of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. Images and videos can be stored on the SDHC memory card for analysis and documentation.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• The LCD unit must not be immersed in water. The base unit must not come in contact with liquids.
• It is absolutely vital to ensure that the VideoFlex HD does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The VideoFlex HD must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.
• Make sure there are no conductive objects in the vicinity of the battery contacts. Short-circuiting of these contacts can cause burn injuries or fire.
• Do not open the rechargeable battery. This could cause short-circuits.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

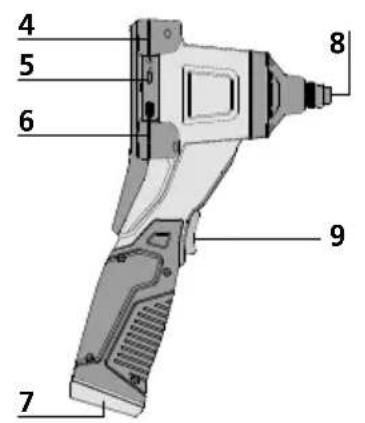

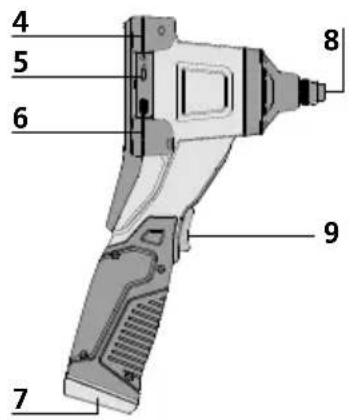

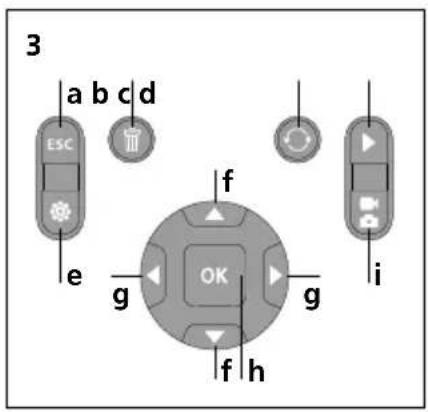

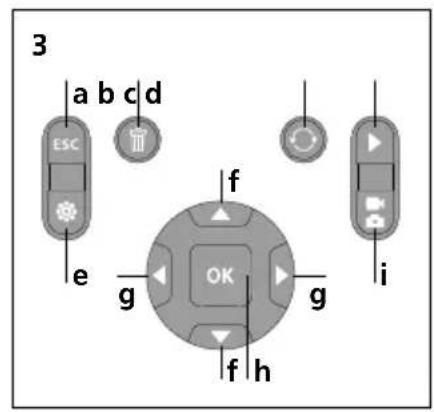

1 LCD

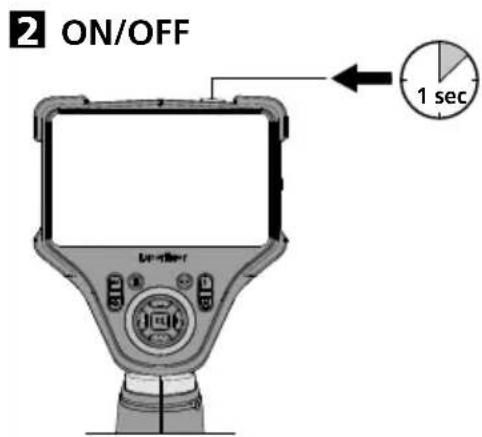

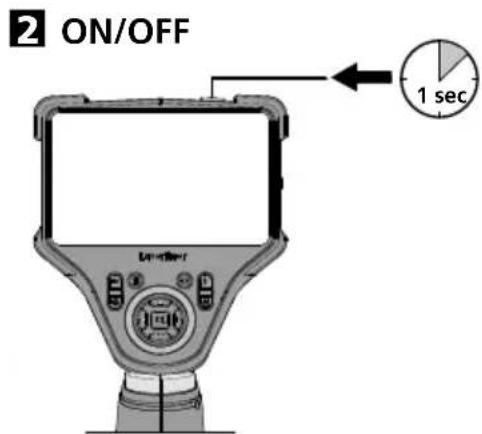

2 ON/OFF
3 Hot keys
4 Charging port
5 Type C USB interface
6 Micro SD card slot
7 Battery compartment
8 Camera unit connection
9 Front button

a Cancel
b Delete recording
Rotation 180^ / Mirroring
d Media gallery
e Settings mode
f Zoom ^+ /
LED lighting + / -

h Trigger / Record / Confirm
i Image/video selection

First use

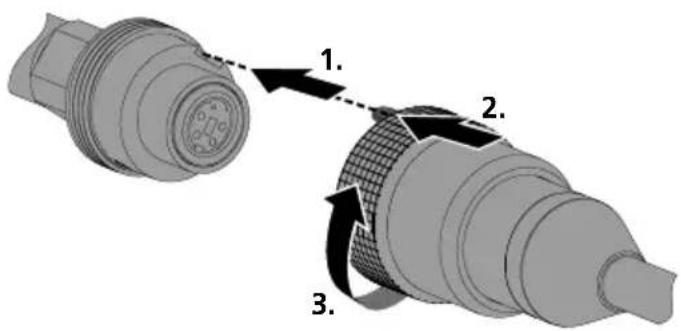

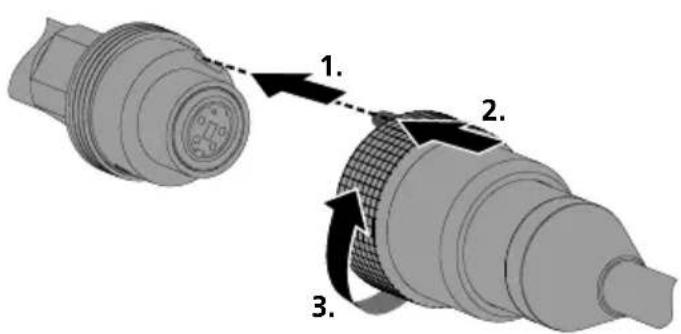

1 Connection for flex cable

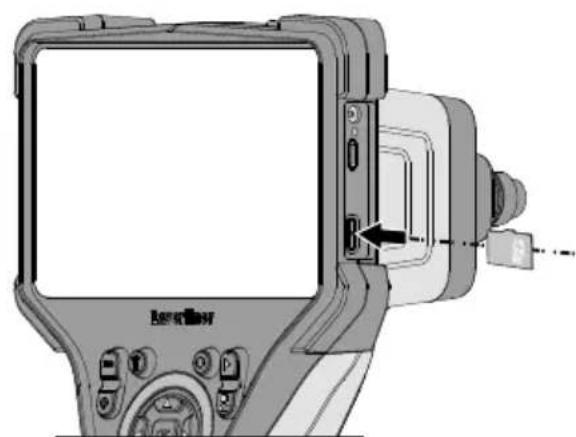

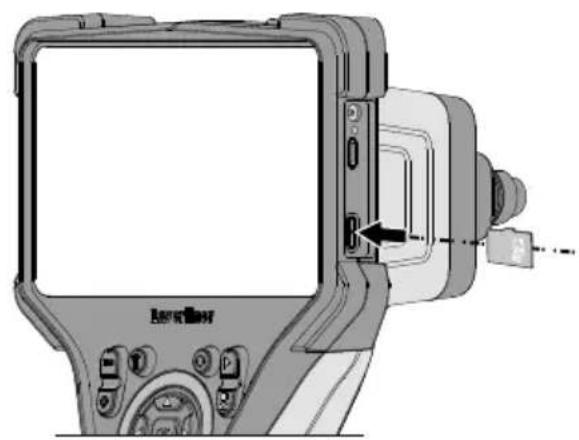

3 Inserting micro-SD card

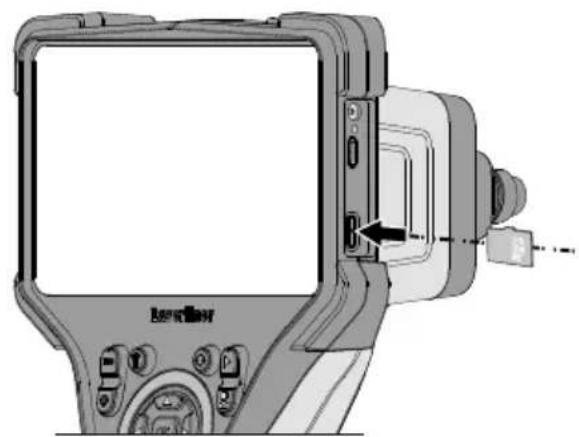

To insert a micro-SD card, first open the rubber cover and then insert the memory card as illustrated. You cannot record anything without a storage medium.

The device must be switched off before removing the micro-SD.

4 Using the power supply / lithium-ion rechargeable battery

• The rechargeable battery can be charged using the 9V power supply provided or externally using the battery's integral USB-C socket and a standard USB-C power supply.

• Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock.

• Charge the device's battery completely prior to use.

• Connect the power pack/charger to the mains power supply and the socket in the battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty.

• The LED lights up red while the device is charging.

The LED changes to green when charging is complete.

• The LED lights up red while the rechargeable battery is charging.

The LED turns off when charging is complete.

The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER service department.

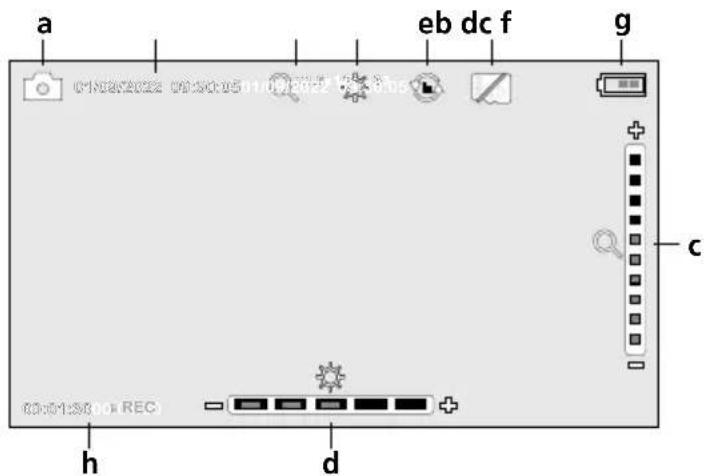

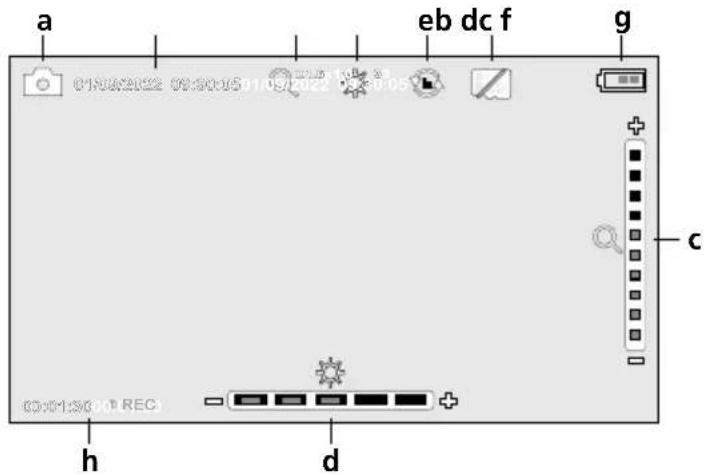

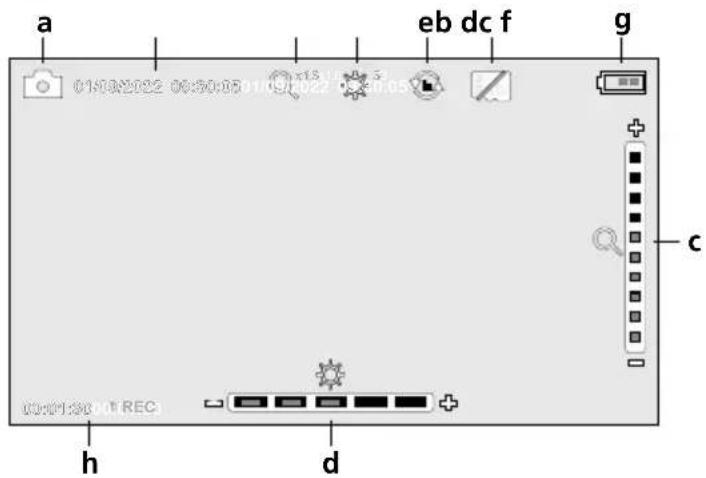

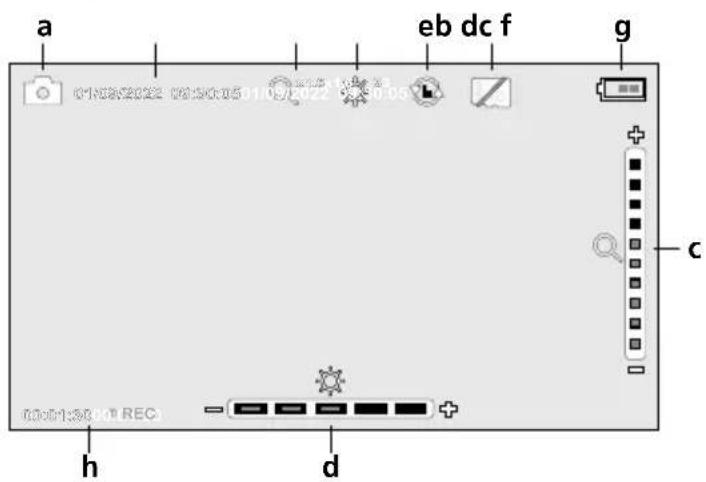

5.0 Record mode

a Image / video recording
b Current date / time
c Zoom
LED lighting
e Rotation 180^ / mirroring
f Insert SD card
g Battery status
h REC: Recording

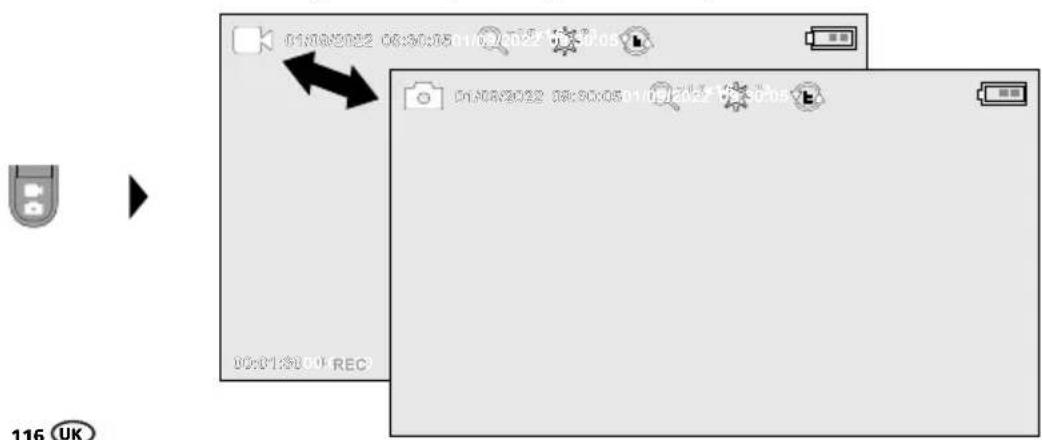

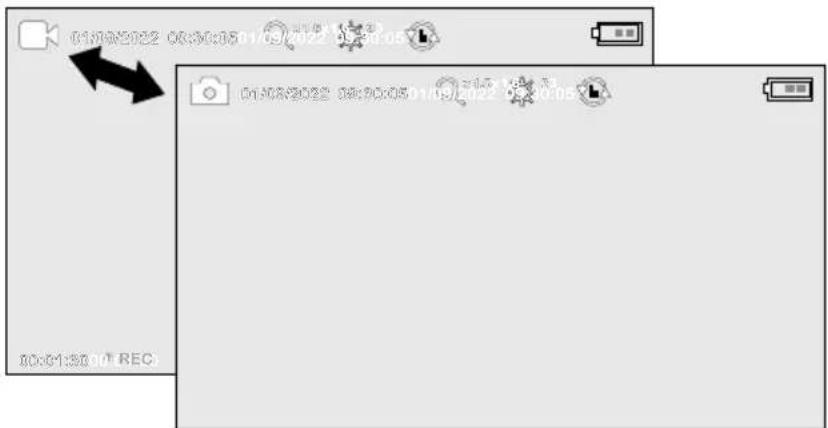

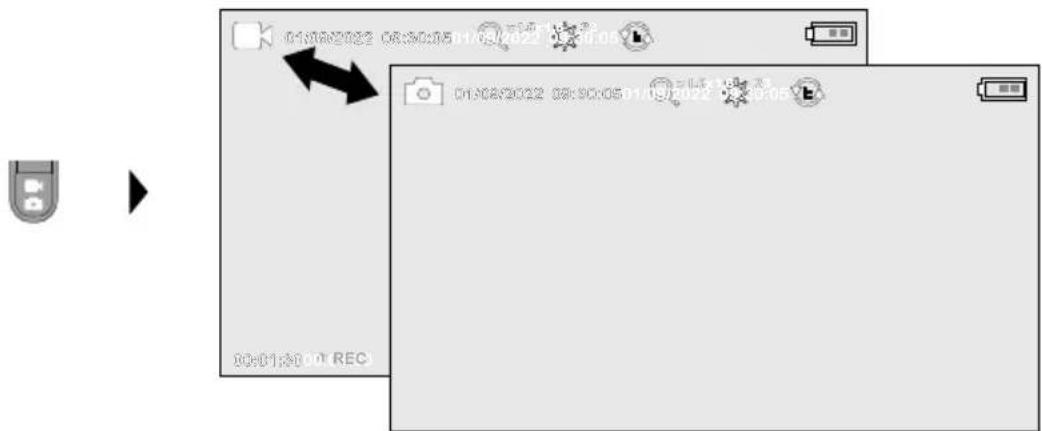

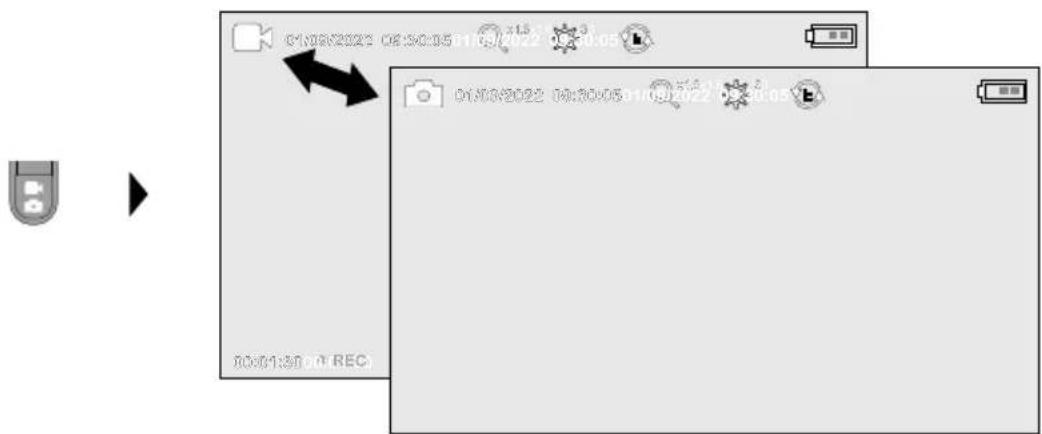

5.1 Record mode: Image / video selection

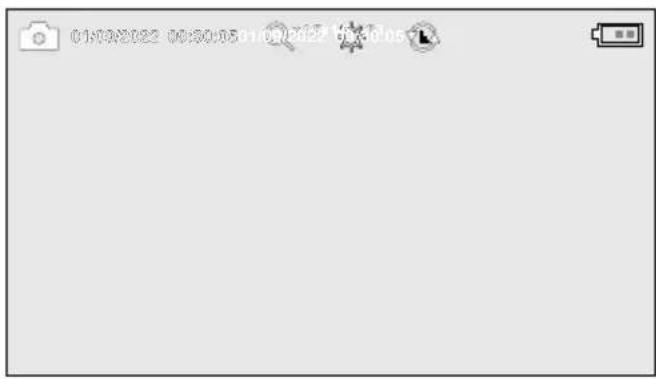

5.2 Record mode: Image / video recording

Line up the camera head on the flex cable and move it to the required position. If lighting conditions are poor, switch on the LED lighting. Zoom in on distant or small objects. The manual image rotation function enables the image to be rotated by 180^ on the monitor. Briefly press the OK button to take a still image or make a video recording and save it to the SD card. Press the button again to stop recording.

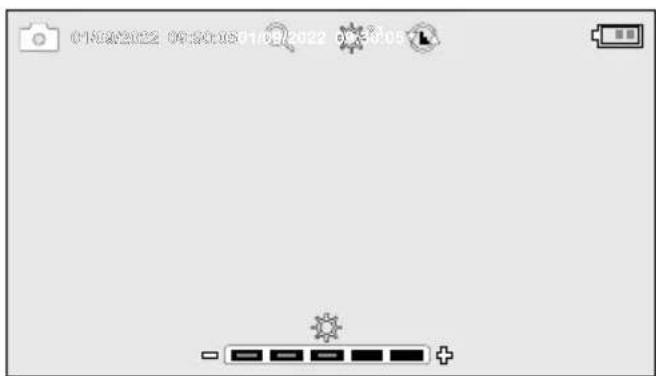

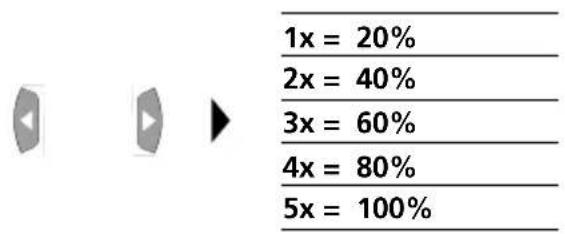

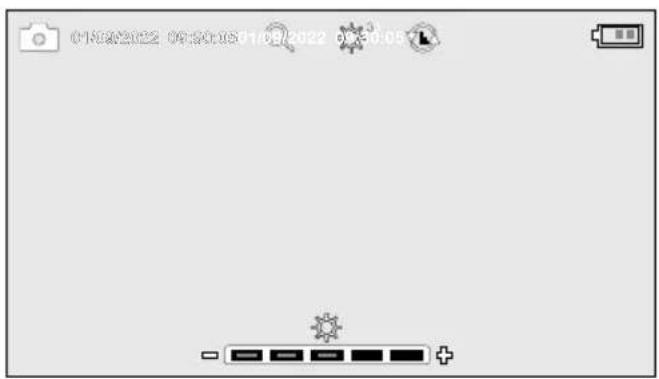

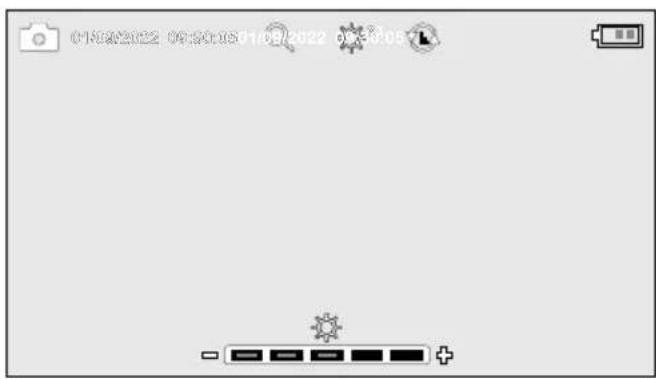

5.3 Record mode: LED lighting

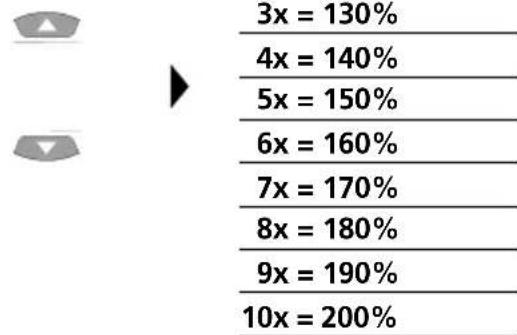

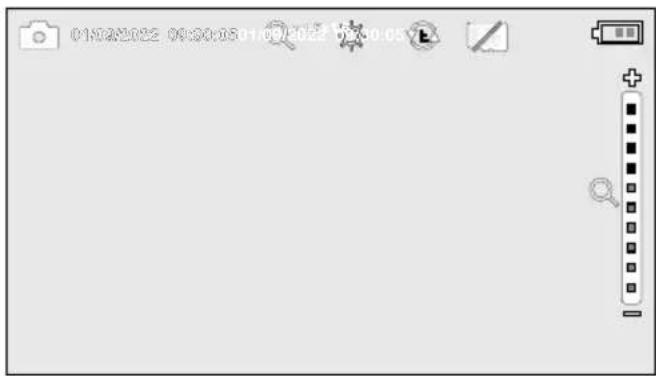

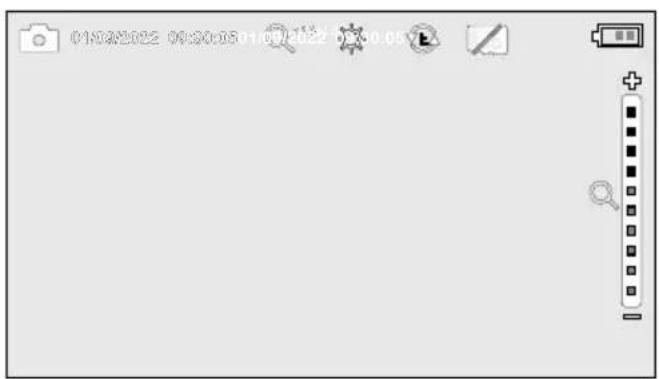

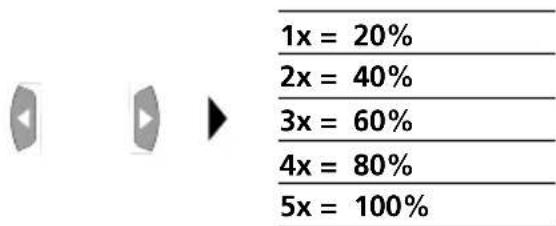

5.4 Record mode: Zoom

1x = 110%

2x = 120%

3x = 130%

4x = 140%

5x = 150%

6x = 160%

7x = 170%

8x = 180%

9x = 190%

10x = 200%

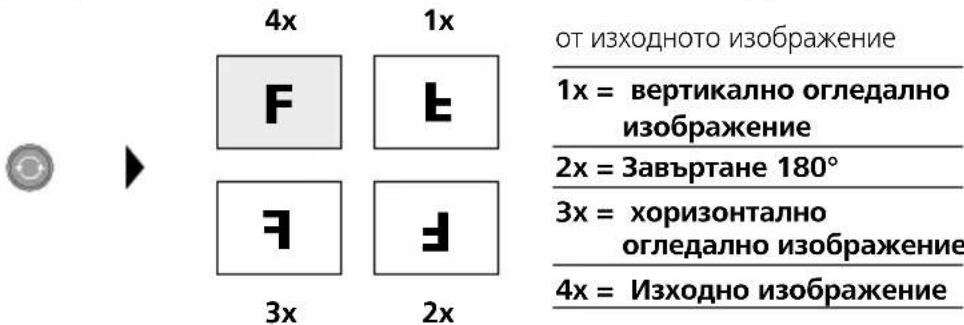

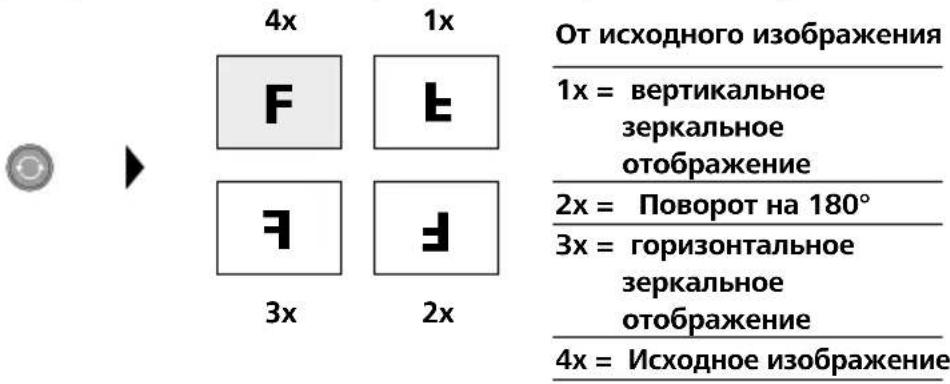

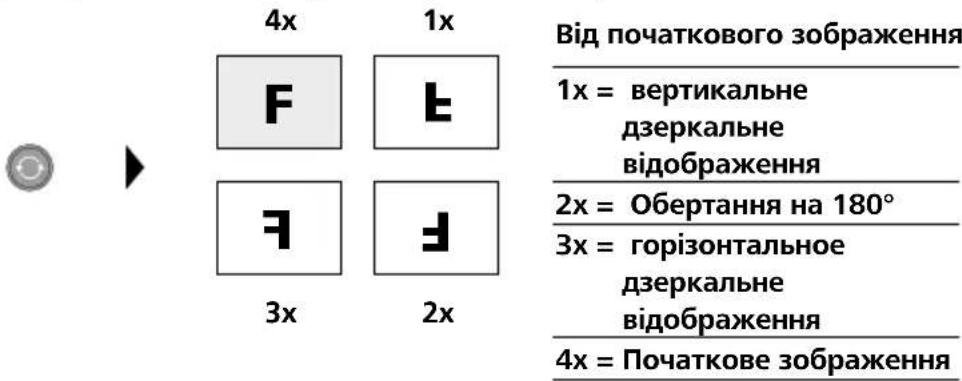

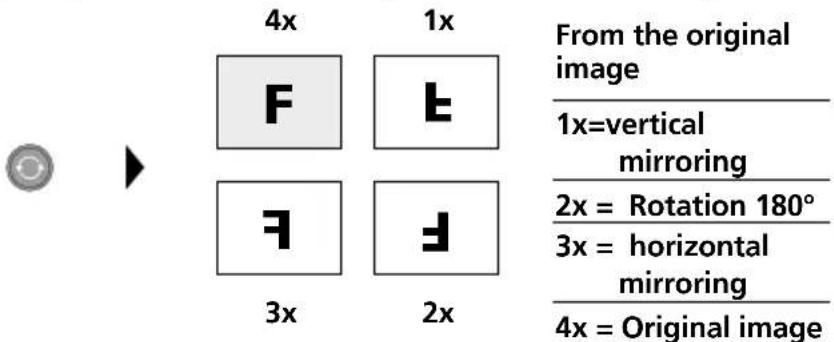

5.5 Record mode: Image rotation / Mirroring

Laserliner

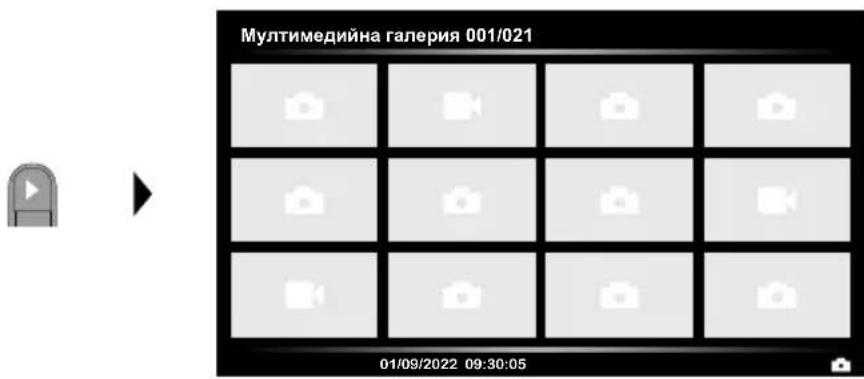

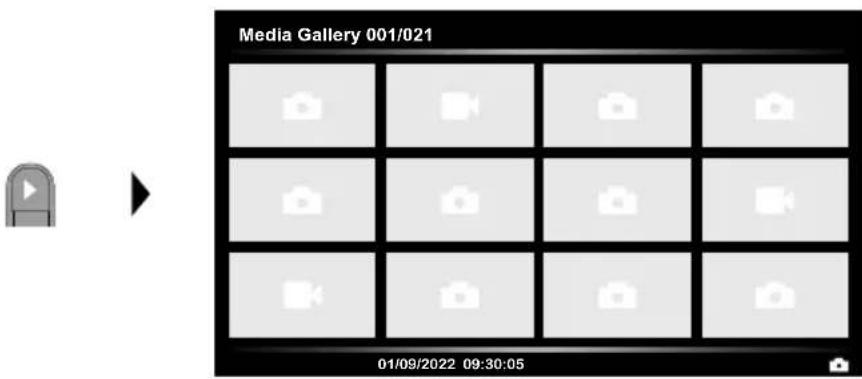

6.0Playback mode:Playback image/video recordings

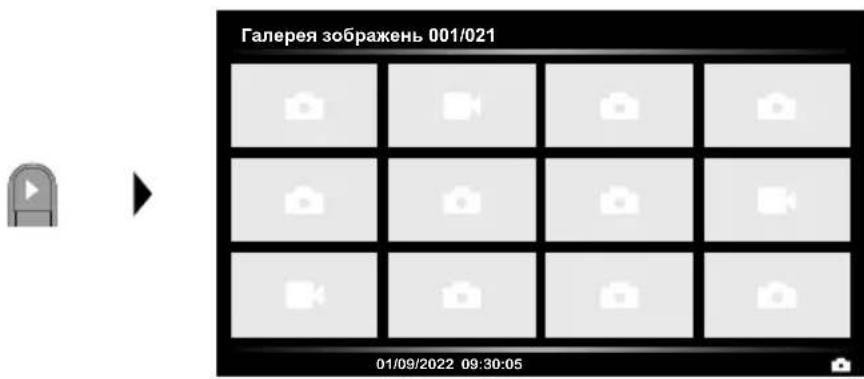

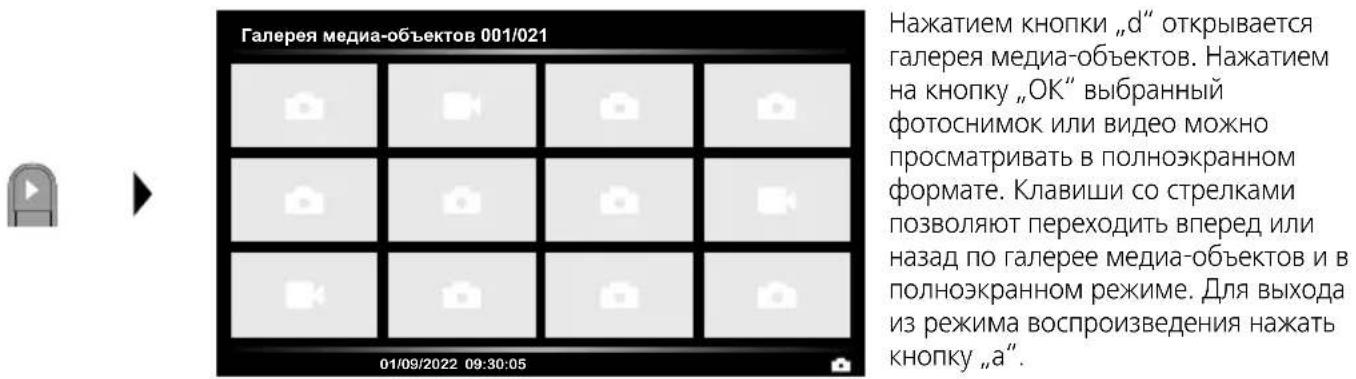

Press the "d" button to call up the media gallery. Confirm with OK to show the selected image or video in full screen mode. Use the arrow keys to navigate in the media gallery and full screen mode. Press the "a" button to exit playback mode.

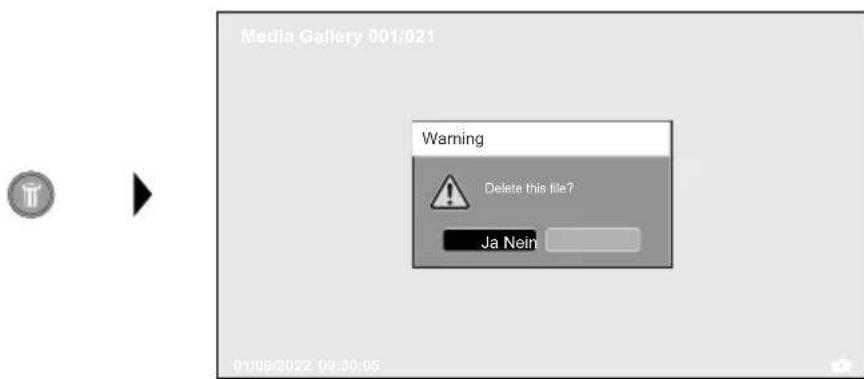

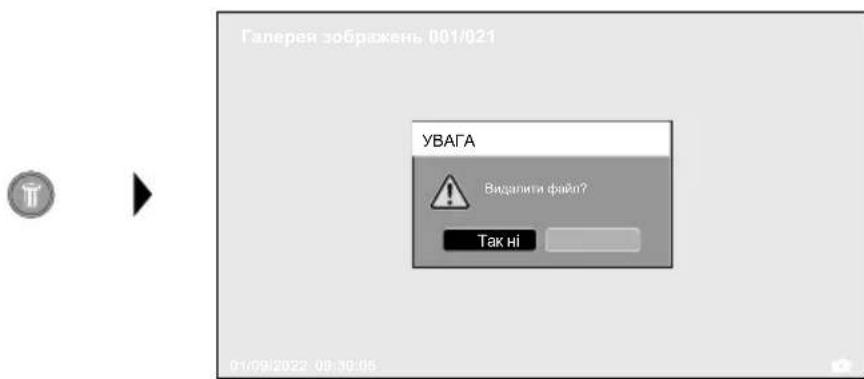

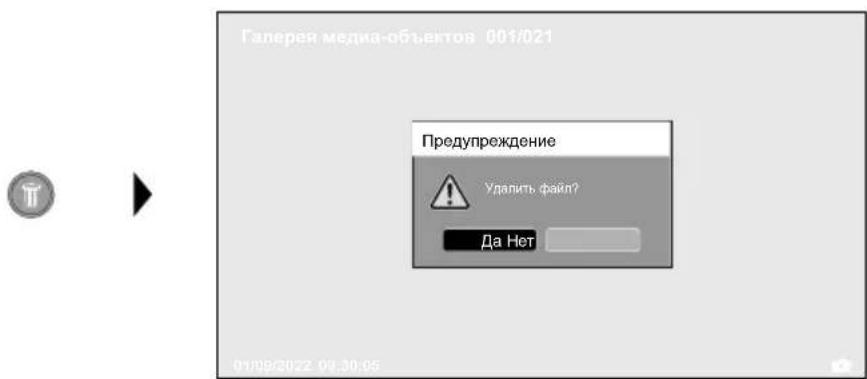

6.1Playback mode:Delete recording

Images can be deleted from the image itself and in the gallery. Deleting cannot be undone. All files and folders can be deleted by reformating the data medium. Refer to "7.4 System settings".

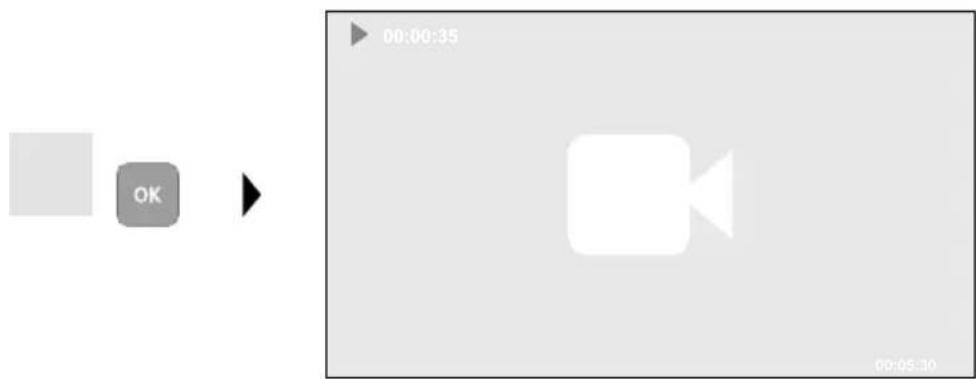

6.2Playback mode:Playback

Press the "ESC" button to stop playback.

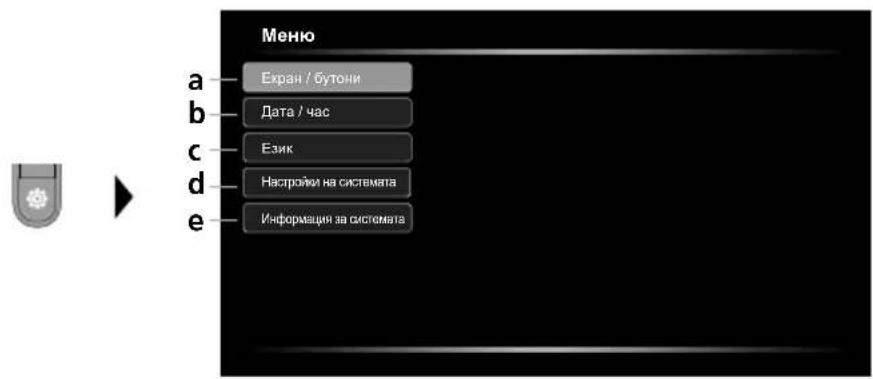

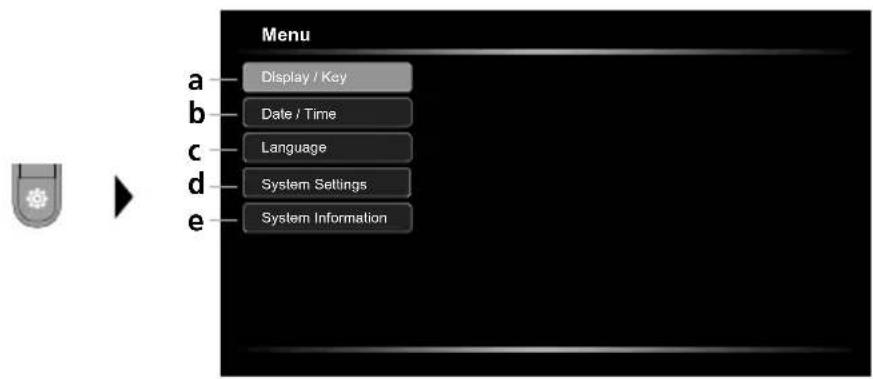

7.0 Settings mode

a Adjust screen brightness / configure front button
b Set date/time
c Select language (EN, DE, JP, FR, IT, PT, ES, NL)
d System settings
e Firmware/hardware version

! To return to recording mode, press the ESC button several times.

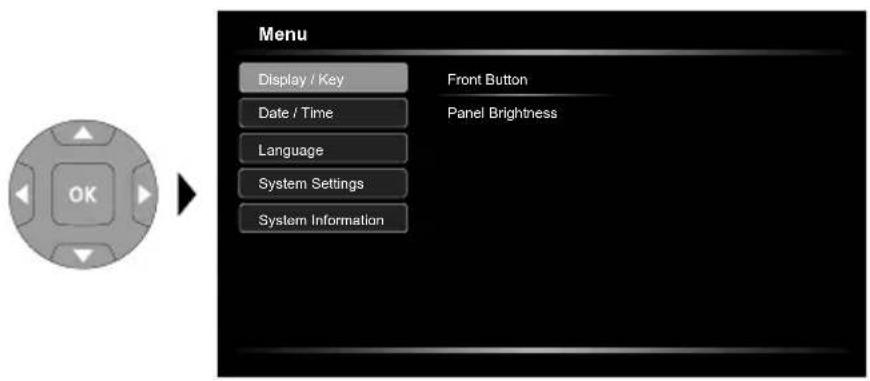

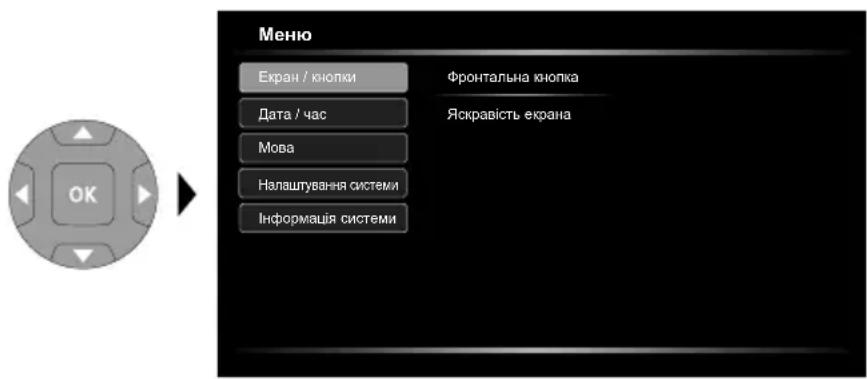

7.1 Settings mode: Display / Key

The following functions can be selected for the front button: Photo / video, image rotation, lighting and zoom. Default is photo / video There are three settings for the screen brightness.

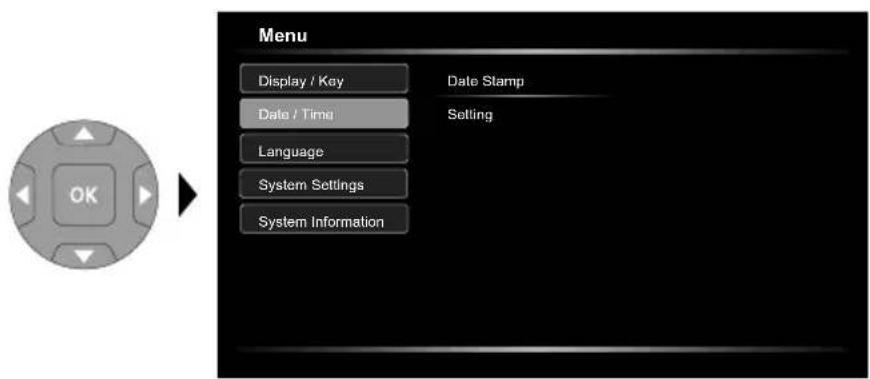

7.2 Settings mode: Set date/time

Select from here whether to include date/time information in the photo. The time and date can be adjusted using the arrow buttons.

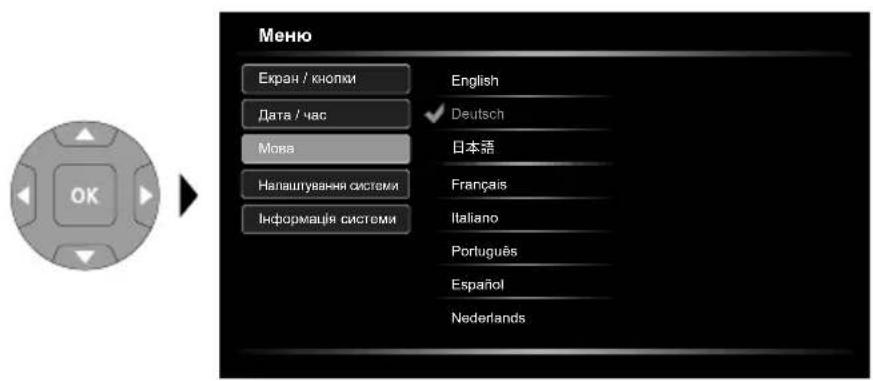

7.3 Settings mode: Select language (EN, DE, JP, FR, IT, PT, ES, NL)

The preferred language can be set in this menu.

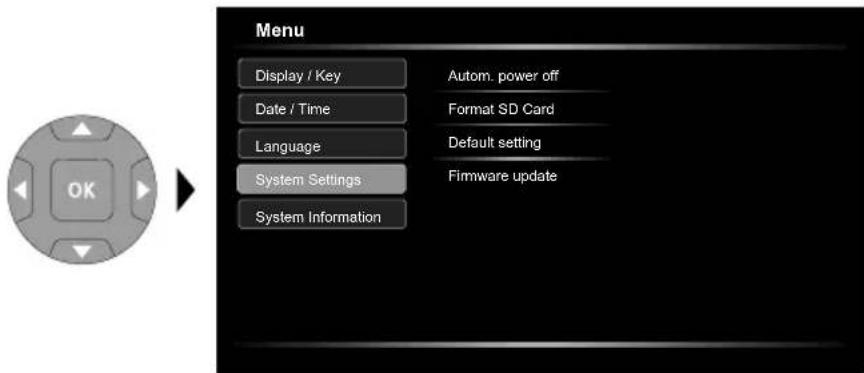

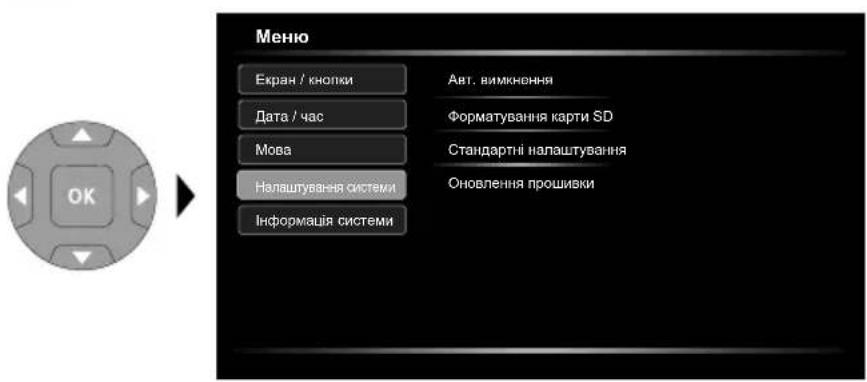

7.4 Settings mode: System Settings

All data on the SD card will be deleted. This procedure cannot be undone. There is no further prompt to confirm deletion.

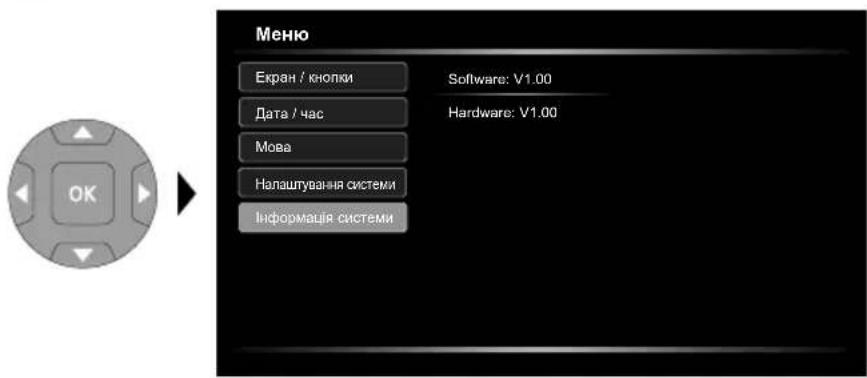

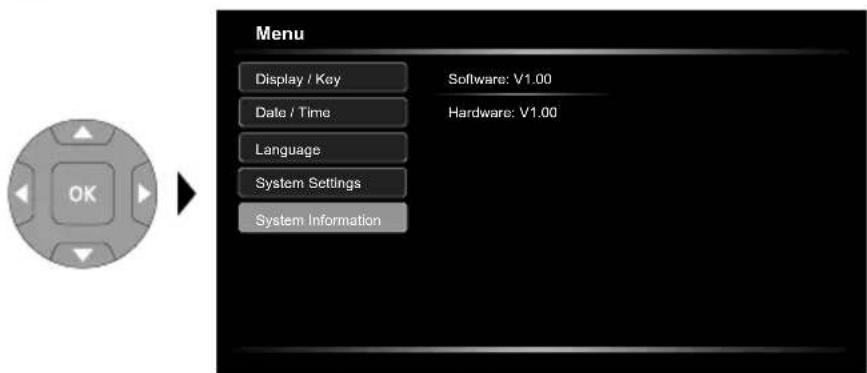

7.5 Settings mode: System Information

This menu provides information on the product.

USB data transfer

Data saved on the SD card can be transferred to PC either with a suitable card reader or directly via the USB port. Please refer to the manual supplied with your card reader for information about connecting your card adapter or card reader to a PC.

Webcam function

The camera can be used as a webcam with a computer via the USB-C interface.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data Technical revisions reserved. 24W36
Screen type 5" Colour TFT
Display resolution 1280 x 720 pixels
Image/Video resolution 1280 x 720 pixels
Image/Video format JPEG, MPEG-4
Memory Micro-SD memory card up to 32 GB
Protection class IP 54
Connections USB type C
Menu language DE, EN, ES, FR, IT, JA, NL, PT
Functions	Automatic shut off, 180° image rotation, Image mirroring, Image recording, Digital zoom 1-2x, Real-time clock, USB Mass Storage, Video recording
Mains operation yes
Power supply	Li-ion battery pack 3.7V / 2.6Ah / 19,24Wh Power adapter 9V/DC / 2A
Operating time approx. 5 hours
Charging time approx. 3 hours
Operating conditions	-10°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions -10°C ... 70°C, max. humidity 80% rH, no condensation
Dimensions (W x H x D)	310 x 210 x 140 mm (incl. holder)
Weight	956 g (incl. battery pack)

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials.

Further safety and supplementary notices at:

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

Laserliner

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

Laserliner

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

Laserliner

！

https://packd.li/ll/ajz/in

！

https://packd.li/ll/ajz/in

Laserliner

！

https://packd.li/ll/ajz/in
