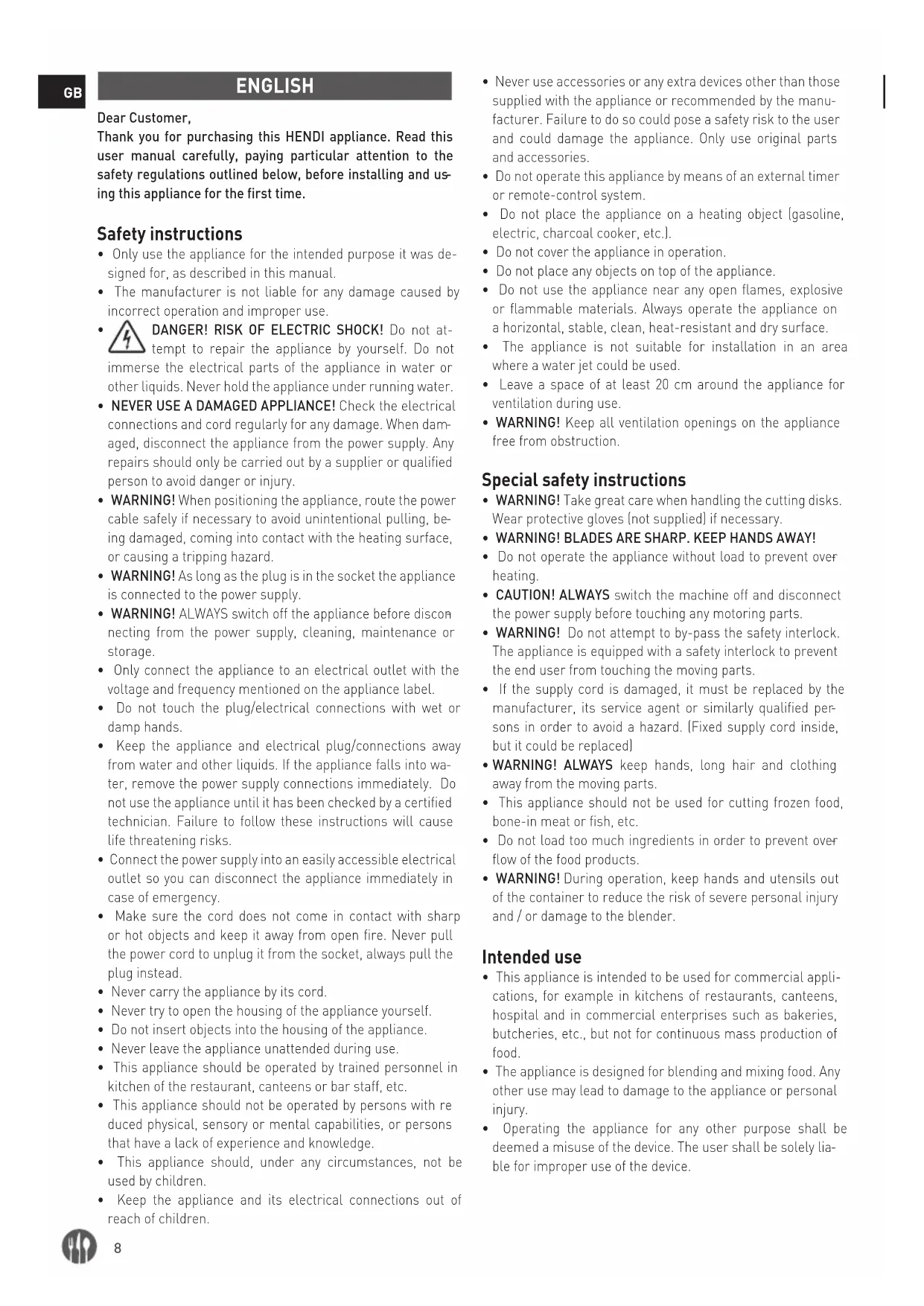

ENGLISH Dear Customer, Thank you for purchasing this HENDI appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and us

ing this appliance for the first time. Safety instructions

• Only use the appliance for the intended purpose it was de- signed for, as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

DANGER! RISK OF ELECTRIC SHOCK! Do not at- tempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

• NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When dam

aged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.

• WARNING! When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, be

ing damaged, coming into contact with the heating surface, or causing a tripping hazard.

• WARNING! As long as the plug is in the socket the appliance is connected to the power supply.

• WARNING! ALWAYS switch off the appliance before discon

necting from the power supply, cleaning, maintenance or storage.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Do not touch the plug/electrical connections with wet or damp hands.

• Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into wa

ter, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Never carry the appliance by its cord.

• Never try to open the housing of the appliance yourself.

• Do not insert objects into the housing of the appliance.

• Never leave the appliance unattended during use.

• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

• This appliance should not be operated by persons with re

duced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its electrical connections out of reach of children.

• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manu

facturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• Do not operate this appliance by means of an external timer or remote-control system.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).

• Do not cover the appliance in operation.

• Do not place any objects on top of the appliance.

• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.

• The appliance is not suitable for installation in an area where a water jet could be used.

• Leave a space of at least 20 cm around the appliance for ventilation during use.

• WARNING! Keep all ventilation openings on the appliance free from obstruction. Special safety instructions

• WARNING! Take great care when handling the cutting disks. Wear protective gloves (not supplied) if necessary.

• WARNING! BLADES ARE SHARP. KEEP HANDS AWAY!

• Do not operate the appliance without load to prevent over

• CAUTION! ALWAYS switch the machine off and disconnect the power supply before touching any motoring parts.

• WARNING! Do not attempt to by-pass the safety interlock. The appliance is equipped with a safety interlock to prevent the end user from touching the moving parts.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per

sons in order to avoid a hazard. (Fixed supply cord inside, but it could be replaced)

• WARNING! ALWAYS keep hands, long hair and clothing away from the moving parts.

• This appliance should not be used for cutting frozen food, bone-in meat or fish, etc.

• Do not load too much ingredients in order to prevent over

flow of the food products.

• WARNING! During operation, keep hands and utensils out of the container to reduce the risk of severe personal injury and / or damage to the blender. Intended use

• This appliance is intended to be used for commercial appli- cations, for example in kitchens of restaurants, canteens, hospital and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

• The appliance is designed for blending and mixing food. Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely lia

Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connec

tions must be properly installed and grounded. Main parts of the product (Fig.1 on page 3)

1. Power switch (0 / I)

2. Speed dial (clockwise, Low to Hight)

10. Protective cover

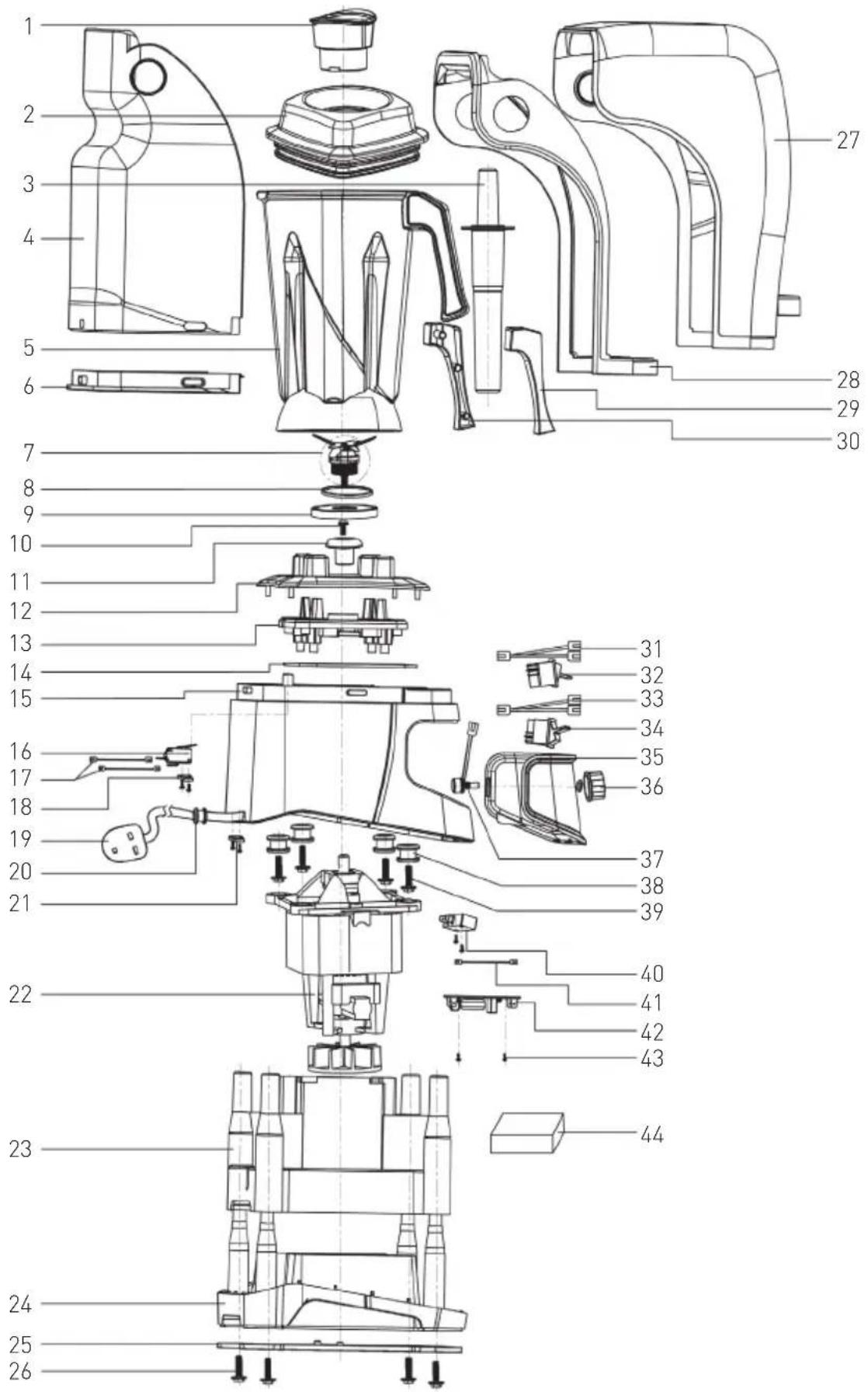

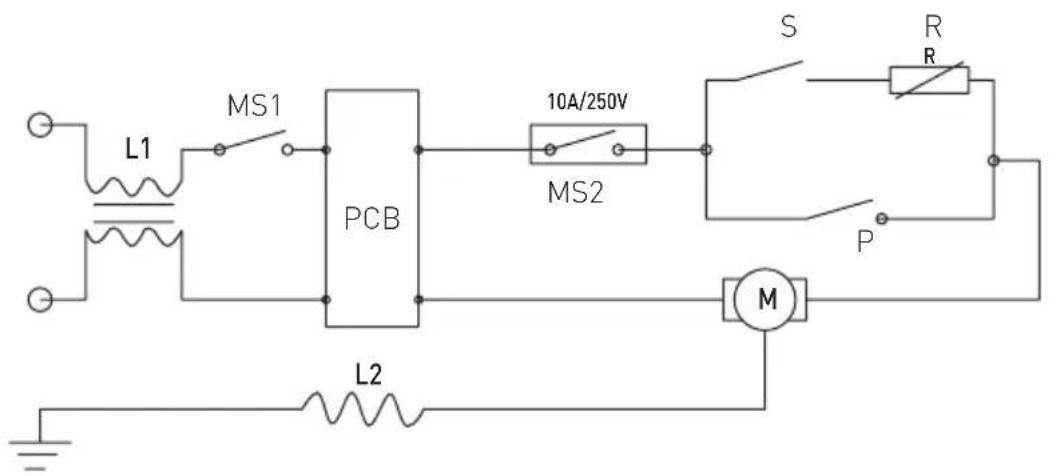

Remark: The content of this manual applies for all listed items unless specified otherwise. The appearance may vary from the shown illustrations. Circuit diagram (Fig.2 on page 3) L1 & L2: Magnetic ring MS1: Micro switch MS2: Magnetic safety micro switch PCB: Main PCB S: Power switch R: Variable resistor P: Pulse button M: Motor Exploded diagram with part list (Fig.3 on page 4) Part no. Part name Quantity 1 Cap cover 1 2 Jug lid 1 3 Stamper (not supplied) 1 4 Protective cover (rear) 1 5 Jug set 1 6 Protective cover rubber sealing (rear) 1 7 Blade assembly 1 8 Seal ring of the blade assembly 1 9 Large seal ring 1 10 Mounting screw 1 11 Clutch 1 12 Jug holder 1 13 Jug holder support 1 14 Rubber seal cover 1 15 Motor outer housing 1 16 Safety micro switch assembly 1 17 Internal wire terminal for safety micro switch

18 Mounting screws for the micro switch 2 19 Power plug 1 20 Power cord 1 21 Power cord clamp 1 22 Motor assembly 1 23 Cap cover 1 24 Jug lid 1 25 Stamper (not supplied) 1 26 Protective cover (rear) 1 27 Jug set 1 28 Protective cover rubber sealing (rear) 1 29 Blade assembly 1 30 Seal ring of the blade assembly 1 31 Large seal ring 1 32 Mounting screw 1 33 Clutch 1 34 Jug holder 1 35 Jug holder support 1 36 Rubber seal cover 1 37 Motor outer housing 1 38 Safety micro switch assembly 1 39 Internal wire terminal for safety micro switch

40 Mounting screws for the micro switch 2 41 Power plug 1 42 Power cord 1 43 Power cord clamp 1 44 Motor assembly 1 Preparation before use

• Remove all protective packaging and wrapping.

• Check that the device is in good condition and with all acces

sories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.

• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).

• Make sure the appliance is completely dry.

• Place the appliance on a horizontal, stable and heat resist

ant surface that is safe against water splashes.

• Keep the packaging if you intend to store your appliance in the future.

• Keep the user manual for future reference.10

NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appli

ance is well ventilated. Installation

• Read this manual thoroughly and carefully before installa- tion and operation.

• Ensure the machine is placed in a dry area and that the surface has sufficient strength to support the appliance. Also ensure that there are no obstructions nearby during operation of the appliance.

• Ensure that the electrical power supply corresponds with the rating label on the machine. CAUTION! Never bypass any safety micro switch. Operating instructions Note: For safety reason, the appliance can only start to oper- ate with the jug set (6) installed properly on the motor unit (5) and when the protective cover (10) is closed properly.

• Check if the power switch (1) is at the “0” position and turn the speed dial (2) to “Low” position.

• Unplug the machine and open the protective cover (10), take out the jug set (7) from the motor unit (5).

• Pour all the ingredients into the jug (7) and close the lid (8) and place the cover cap (9) correctly in place.

• Place the whole jug set (7) onto the motor unit (5) & close the protective cover (10).

• Connect the power plug to a suitable electrical power supply socket.

• Switch ON the machine by pressing the power switch (1) to “I” position & select a suitable speed by turning the speed dial (2). Speed dial (2) setting Description Low speed For mixing liquids High speed For mixing liquids and solid ingredients Pulse function (0 / II) For ice crushing or short, power impulse movements. Note: Use the pulse func

tion for 1 ~ 2 seconds each time. Repeated about several times if necessary. After use, always turn the power switch (1) to “0” position and disconnect the plug from the electrical socket. Remarks:

1. For the best results when blending solid foodstuffs, only

add small portions in succession, not all ingredients at the same time.

2. Always start with lower speed. If necessary, then switch to

the higher speed or to the “Pulse” function, so as not to jam the blade assembly (6).

3. Do not use this machine to blend hard foodstuff, such as

5. Liquids to be blend should be at or below room temper

ature. If you are going to blend warm liquids, ensure that the jug lid (8) is correctly in place and use low speed for processing. Risk of burns and be careful.

6. Avoid long period of operation due to the loud noise that

may hurt the hearing. Special safety features IMPORTANT: This machine has a specially designed safety feature: Protective cover (10). The machine can only operate when the protective cover (10) is closed and the jug (7) is installed properly on the motor unit (5). Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the power supply and cool down before storage, cleaning & maintenance.

• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.

• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.

• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned proper

ly, it will reduce its lifespan and may result in a dangerous condition during use.

• DANGER OF INJURY! Care should be taken when handling the sharp cutting blades during cleaning. Cleaning Cleaning of the jar

• Pour lukewarm water and a mild non foaming detergent into the jar.

• Place the lid onto the jar.

• Place the jar on to the motor unit.

• Switch the motor unit on at full speed for 10-20 seconds.

• Rinse the jar thoroughly with clean water.

• In case of residue stuck to the knife carefully clean with a small knife or tweezers. Never clean the knife with your bare hands.

• Dry the in- and outside of the jar.

• After cleaning disinfect the jar. Use the instructions of the disinfectant manufacturer.

• Store the jar upside down.

• The underside of the jar may never come into contact with any fluid!

• WARNING: Never disassemble parts of the jar and cutting unit.

• WARNING: Never clean any parts of the appliance in the dishwasher.

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.

• For reasons of hygiene, the appliance should be cleaned before and after use.

• Avoid water contacting the electrical components.

• Never immerse the appliance in water or other liquids.

• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for clean

ing. Do not use petrol or solvents!

• No parts are dishwasher safe.11

• Check the operation of the appliance regularly to prevent serious accidents.

• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.

• All maintenance, installation and repair work must be car

ried out by specialised and authorised technicians, or rec- ommended by the manufacturer. Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.

• Store the appliance in a cool, clean and dry place.

• Never place heavy objects on the appliance as this could damage it.

• Do not move the appliance while it is under operation. Dis

connect the appliance from power supply when moving and hold it at the bottom. Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Problems Possible cause Possible solution Machine does not start running Protective cov

er (10) is not in properly closed position. Check to make sure the protec

tive cover (10) is closed properly. Jug (7) is not placed properly. Check to make sure the jug set (7) properly. Power switch (1) is not pressed Press the power switch (1) Machine stops during operation Built-in overload

ing safety acti- vated. - Switch OFF the machine by pressing the switch (1) to “0” position and unplug the ma

chine. - Leaving the ma

chine for cooling down for about 30 minutes and then start again. Warranty Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be re

paired by free repair or replacement provided the appliance has been used and maintained in accordance with the instruc

tions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt). In line with our policy of continuous product development we reserve the right to change the product, packaging and docu

mentation specifications without notice. Discarding & Environment When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibil

ity to dispose to your waste equipment by hand- ing it over to a designated collection point. Fail- ure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col

lection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection com
