Thank you for purchasing this HENDI appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety instructions

• Only use the appliance for the intended purpose it was designed for, as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• DANGER! RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

- NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When damaged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.

- WARNING! When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, being damaged, coming into contact with the heating surface, or causing a tripping hazard.

- WARNING! As long as the plug is in the socket the appliance is connected to the power supply.

- WARNING! ALWAYS switch off the appliance before disconnecting from the power supply, cleaning, maintenance or storage.

- Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

- Do not touch the plug/electrical connections with wet or damp hands.

- Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into water, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

- Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.

- Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

- Never carry the appliance by its cord.

- Never try to open the housing of the appliance yourself.

- Do not insert objects into the housing of the appliance.

- Never leave the appliance unattended during use.

- This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.

- This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

- This appliance should, under any circumstances, not be used by children.

- Keep the appliance and its electrical connections out of reach of children.

• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
• Do not operate this appliance by means of an external timer or remote-control system.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).
• Do not cover the appliance in operation.
• Do not place any objects on top of the appliance.
• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.
• The appliance is not suitable for installation in an area where a water jet could be used.
• Leave a space of at least 20 cm around the appliance for ventilation during use.
• WARNING! Keep all ventilation openings on the appliance free from obstruction.

Special safety instructions

• This appliance is not intended for household use.
- WARNING! Take great care when handling the cutting disks. Wear protective gloves (not supplied) if necessary.
- WARNING! BLADES ARE SHARP. KEEP HANDS AWAY!

- DANGER OF INJURY! Care should be taken when handling the sharp cutting blades during cleaning.

- Do not operate the appliance without load to prevent over heating.

- CAUTION! ALWAYS switch the machine off and disconnect the power supply before touching any motoring parts.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is classified as protection class II.

- WARNING! ALWAYS keep hands, long hair and clothing away from the moving parts.

- This appliance should not be used for cutting frozen food, bone-in meat or fish, etc.

- NOT SUITABLE FOR CONTINUOUS USE! Do not continuously operate the appliance to avoid overheating the motor. The continuous operation time should not exceed over 3 minutes. Operate the appliance again, after it has been cooled.

- WARNING! During operation, keep hands and utensils out of the container to reduce the risk of severe personal injury and / or damage to the blender.

- Do not immerse the shaft into the water or liquid less than 5 cm.

- Do not use the machine without the appropriate container.

Intended use

• This appliance is intended to be used for commercial applications, for example in kitchens of restaurants, canteens, hospital and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.
• This appliance is intended only for pureeing, emulsifying and mixing hot and cold food commercially. It allows for preparation of soups, puree, creams, marzipan mass, cheese creams, etc. directly in the pot. Any other use may lead to

damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Main parts of the product

(Fig.1 on page 3)

1. Safety button
2. Variable speed knob
3. ON/OFF button
4. Locking button
5. Plastic housing
6. Blendershaft

Remark: The content of this manual applies for all listed items unless specified otherwise. The appearance may vary from the shown illustrations.

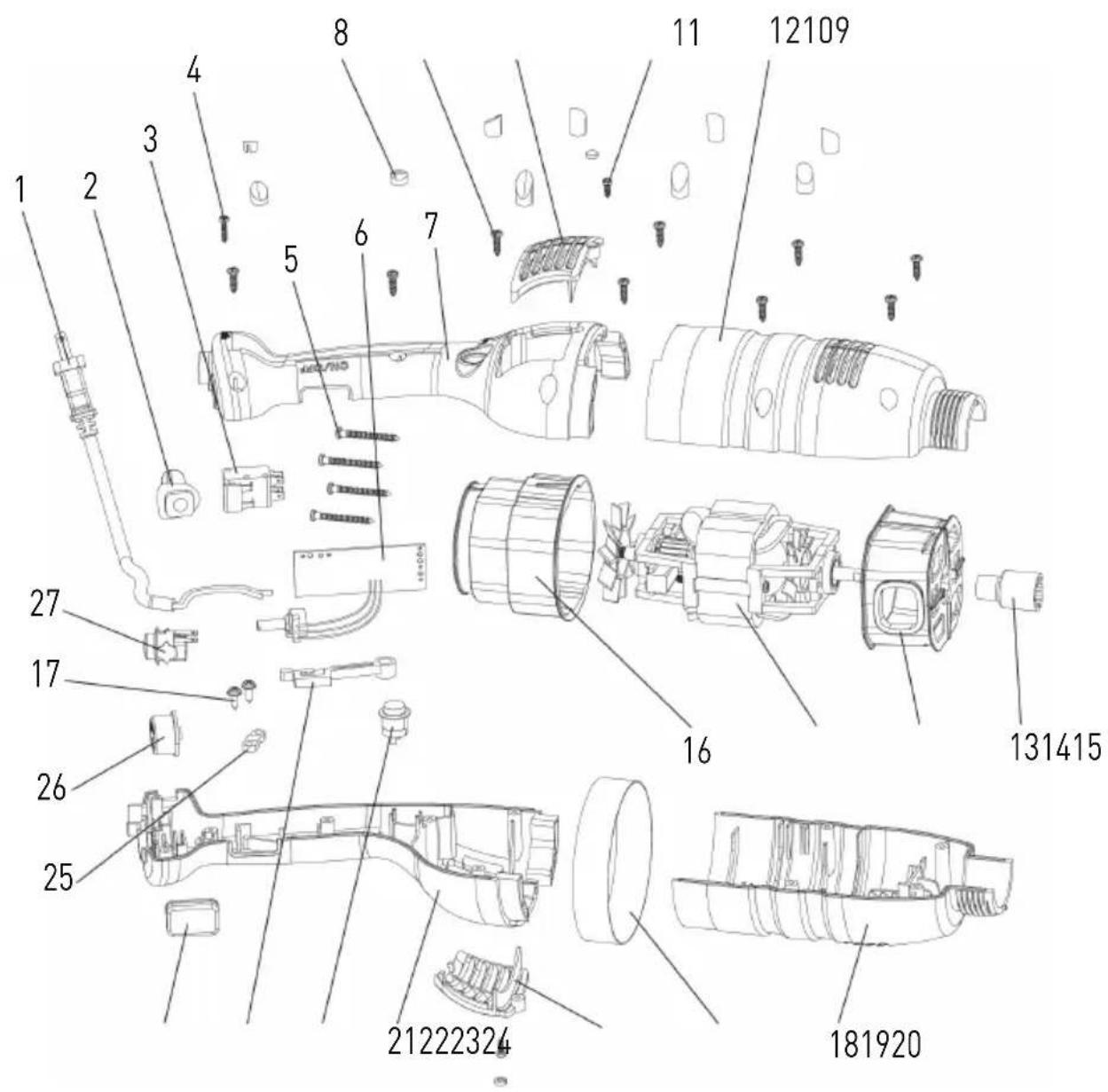

Exploded diagram with part list

221327, 221334, 221341, 221198

(Fig.2 on page 4)

Part no.	Part name Quantity
1 Power cord 1
2 Cable tie 1
3 Switch 1
4 Pressing board screw 1
5 Pressing board screw 4
6	PCB control panel	1
7	Housing 1	1
8	Screw plunger	1
9 Pressing board screw 9
10	Air outlet cover	1
11	Pressing board screw 2
12 Housing 2	1
13	Spline sleeve	1
14	Bottom motor cover	1
15	Motor	1
16	Upper motor cover	1
17	Pressing board screw 2
18 Housing 3	1
19	Ring	1
20	Air outlet cover	1
21 Housing 4	1
22	Locking button	1
23	Switch osculant staff	1
24	Switch sheath	1
25	Pressing board	1
26	Speed control key 1

27

Safety button

1

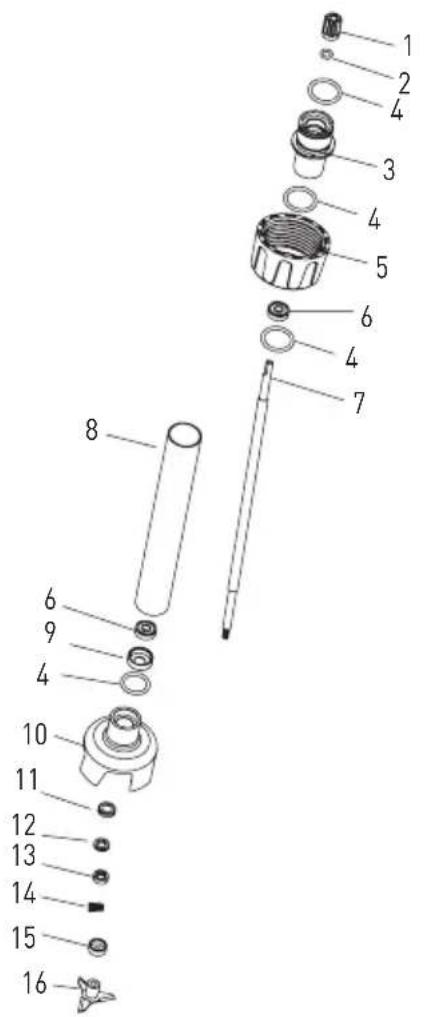

Blender shafts 221327, 221334, 221341, 221198

(Fig.3 on page 5)

Part no.	Part name Quantity
1	Spline sleeve	1
2	Spline sleeve seal ring	1
3	Connect sleeve	1
4	Connect sleeve seal ring	3
5	Fastening sleeve	1
6	608 bearing	2
7	Output axis (Different length depend on different model)	1
8	304 S/S tube (Different length depend on different model)	1
9	Bearing sleeve	1
10	Knife protector	1
11	Ceramic ring sleeve	1
12	Ceramic ring	1
13	Graphite ring	1
14	Graphite ring spring	1
15	Convex ring	1
16	Blade	1

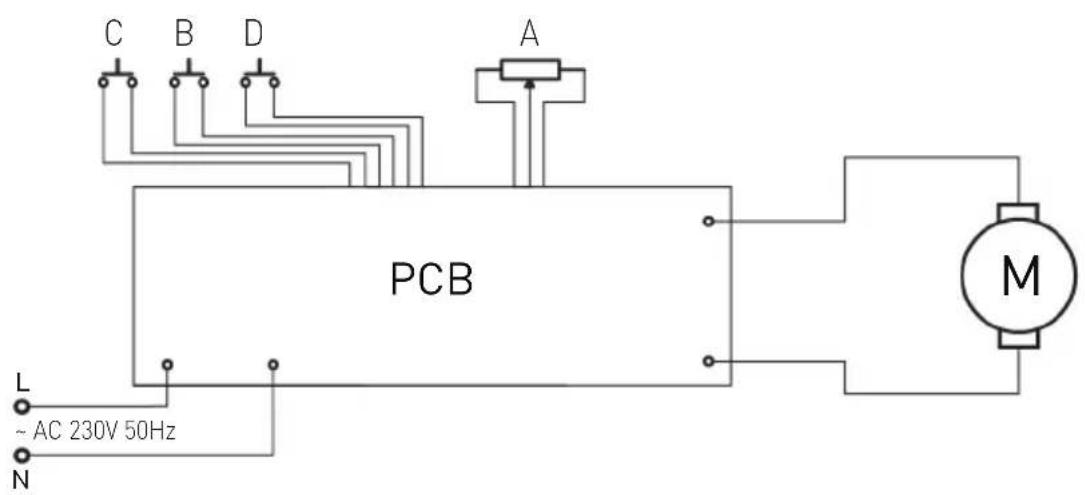

Circuit diagram

221327, 221334, 221341, 221198

(Fig.4 on page 5)

A. Variable resistor
B. Start
C. Safety button
D. Lock

Preparation before use

• Remove all protective packaging and wrapping.
• Check that the device is in good condition and with all accessories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.
• Clean the accessories and the appliance before use (See ==> Cleaning & Maintenance).
  • Make sure the appliance is completely dry.
• Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes.
• Keep the packaging if you intend to store your appliance in the future.
• Keep the user manual for future reference.

NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

Operating instructions

Operating the appliance

1. Ensure that the appliance is disconnected from the power supply before assembly.
2. Connect the blending shaft to the main unit.
3. Check that the ON/OFF button is in the released (flat) position.
4. Connect the appliance to the power supply.
5. Then, press the ON/OFF button. The appliance will turn on.

BE CAREFUL!

1. To turn off the appliance, release the ON/OFF button.

CAUTION: Before connecting the appliance to the power supply, check that the power supply voltage corresponds with the power supply details shown on the rating label.

REMARK: There is no lock function for continuous operation.

Starting and stopping the appliance

1. Ensure that the appliance is disconnected from the power supply before assembled.
2. Connect the blending shaft to the main unit.
3. Check that the ON/OFF button is in the released (flat) position.
4. Connect the appliance to the power supply.
5. Press and hold the Safety button first.
6. Then, press the ON/OFF button at the same time. The appliance will start up. BE CAREFUL!
7. Release the Safety button, the appliance will keep operating.
8. To stop the appliance, release the ON/OFF button.

Continuous operating the appliance

Follow steps 1 to 7 above, then:

• With the ON/OFF button in "pressed" position, press Locking button once.
• Release the ON/OFF button and the appliance will keep operating in a continuous mode.
• To turn off the appliance, press and release the ON/OFF button.

Variable speed operation

Follow steps 1 to 7 above, then:

- Change the speed of the motor by turning the variable speed button towards the maximum or minimum as required. It is advisable to start the device at a low speed when using the whisk. With the self-regulating speed system, the selected speed will remain constant even if the consistency of your mixture changes.

REMARK:

Blender function: For better control, we recommend you hold the bender by the handle and the bottom of the motor unit. Furthermore, we recommend you tilt the bender slightly to prevent the bell from touching the bottom of the container. Always make sure that the bell is sufficiently immersed to avoid splashing and that the air vents of the motor unit do not come into contact with any liquid. For optimum efficiency, two-thirds of the blending arm should be immersed in the mixture being prepared.

Assembling / Disassembly of the attachments

The assembly / disassembly operations of the appliance are performed with the appliance stopped and disconnected from the power supply.

Assembly

1. Align and insert the coupling of the blending shaft or the whisk in the clutch of the main unit. Make sure the narrower part of the appliance coupling fits the concave side of the blender shaft or whisk arm coupling.
2. Screw the nut up to fasten it firmly to the main unit.

Follow the above steps in the reverse order to disassembly the accessories.

Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the power supply and cool down before storage, cleaning & maintenance.
• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.
• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.
• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned properly, it will reduce its lifespan and may result in a dangerous condition during use.

Cleaning

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.
• For reasons of hygiene, the appliance should be cleaned before and after use.
• Avoid water contacting the electrical components.
• Never immerse the appliance in water or other liquids.
• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for cleaning. Do not use petrol or solvents!
• No parts are dishwasher safe.

Maintenance

• Check the operation of the appliance regularly to prevent serious accidents.
• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.
• All maintenance, installation and repair work must be carried out by specialised and authorised technicians, or recommended by the manufacturer.

Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.
• Store the appliance in a cool, clean and dry place.
• Never place heavy objects on the appliance as this could damage it.
• Do not move the appliance while it is under operation. Dis connect the appliance from power supply when moving and hold it at the bottom.

Troubleshooting

In case of a power cut or if the device has been un-plugged, release the ON/OFF button, check the power supply and restart the device.

If the device is switched off due to overheating, re-lease the ON/OFF button, and unplug the de-vice, wait a few minutes for the motor to cool down and the thermal safety mechanism to be reset, and then restart the device.

If the cause of the problem cannot be determined: release the ON/OFF button, unplug the device, check below:

1. the plug
2. that the blades are free to rotate in the bell,
3. that state of the power cord,
4. the drive shaft is free to rotate. To this end, remove the bell and test the rotation of the end of the drive shaft manually.
   If a malfunction occurs which is listed in this operation manual, consult your retailer or return the device to the after-sales service.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
