USER MANUAL 224052 Hendi

Five red and silver electric drill pens arranged diagonally (no text or symbols visible)

EN: You should read this user manual carefully before using the appliance.

READ MANUAL

EN: Keep these instructions with the appliance.

Simple icon of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

EN: For indoor use only.

FOOD CONTACT

Prohibition sign depicting a trash bin crossed out by diagonal lines, indicating no waste or discharge.

RoHS

CONTENTS

1. CONTENT ORGANIZATION AND CONSULTATION MODALITY .... 4
2. GENERAL INFORMATION AND CHARACTERISTICS...... 5
3. SAFETY INSTRUCTIONS .... 10
4. PUT ON SERVICE AND USE 11
5. MAINTENANCE, BREAKS RESEARCH AND CLEANING.... 15
6. SELLING....17
7. MANUFACTURING MATERIALS 18

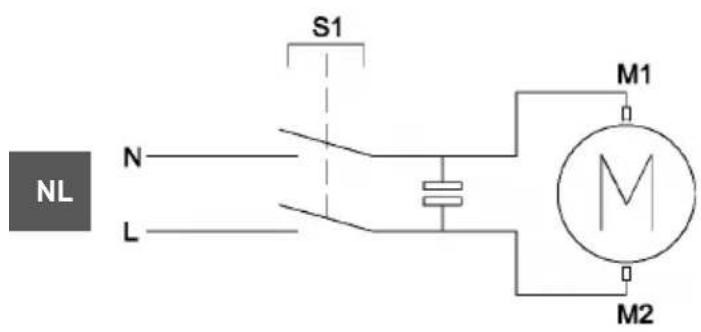

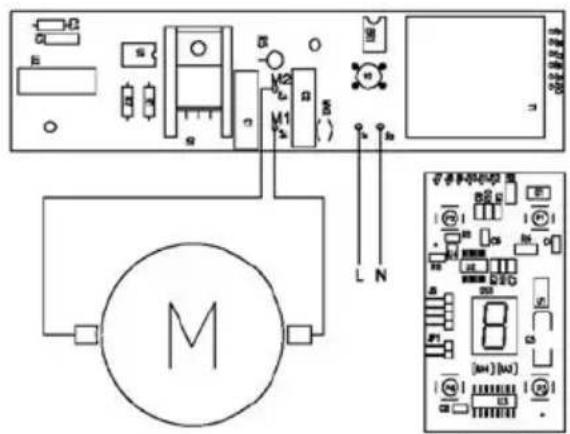

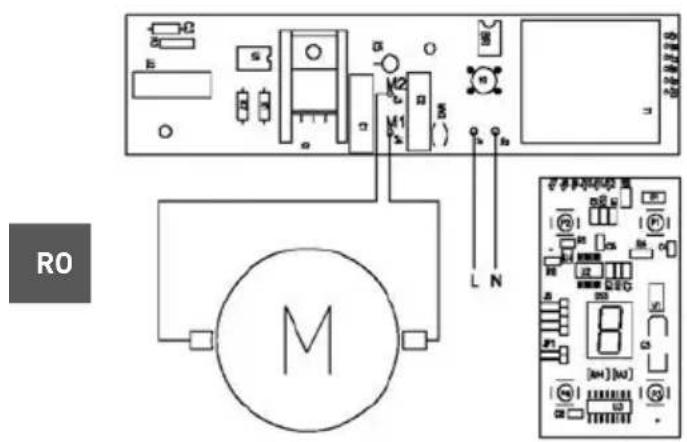

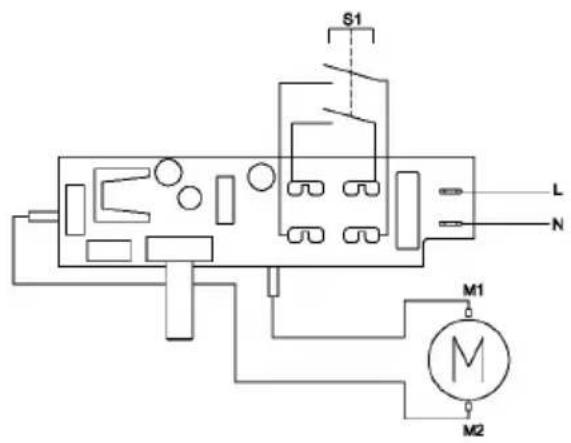

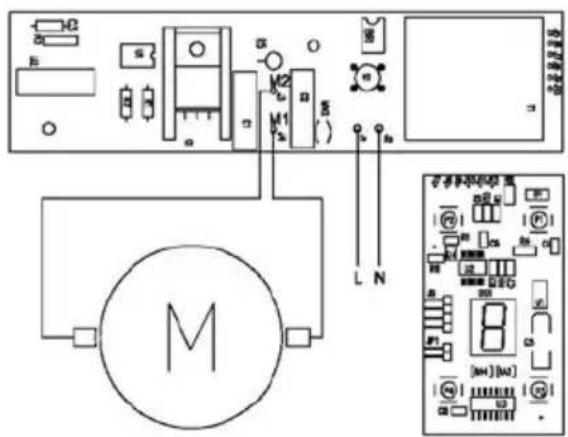

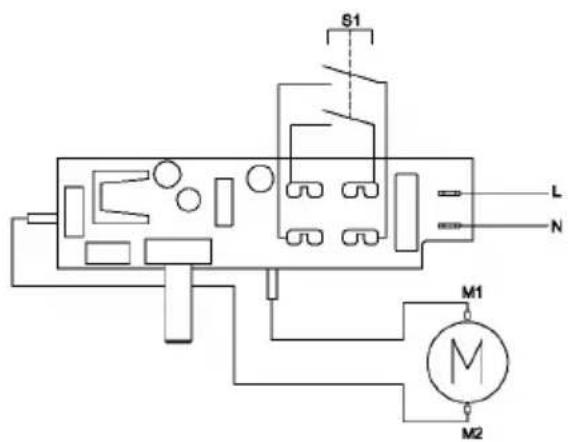

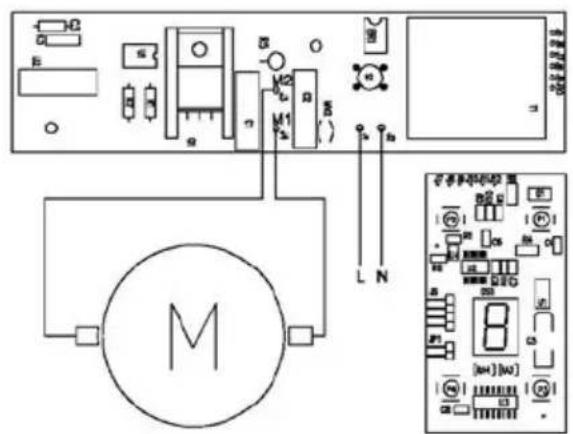

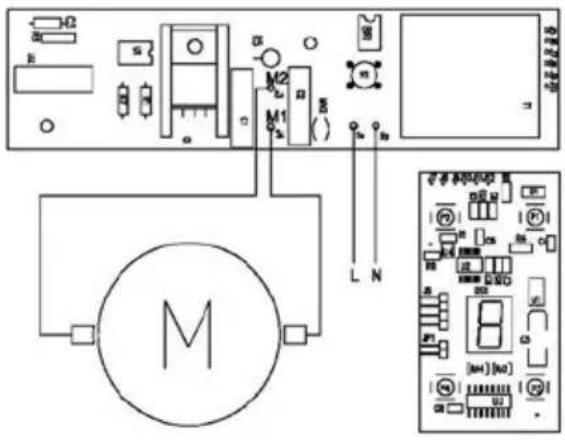

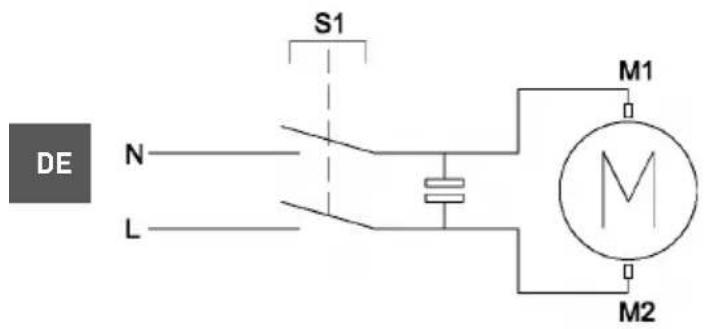

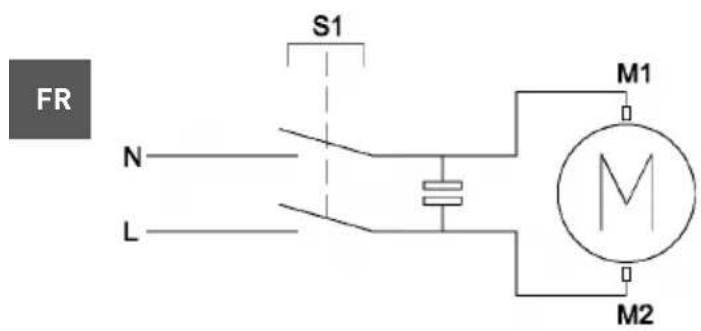

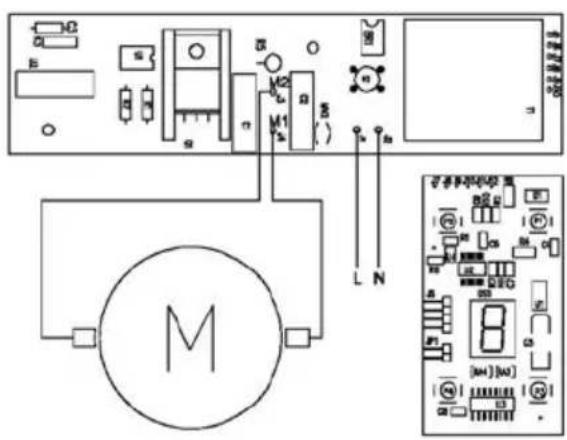

8. ELECTRICAL DIAGRAM 18

Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety regulations

• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

1. CONTENT ORGANIZATION AND CONSULTATION MODALITY

MANUAL PURPOSE MANUAL IMPORTANCE

The present instruction manual for the use is to be considered as integral part of the machine:

• Must be kept for all the machine life.
• Must be coupled with the machine in case of its ceasing.

- Besides to show all useful notices for the operators, contains (collected in specific chapters) the electric diagrams that will be used for the possible maintenance interventions and reparation.

SCOPE / MANUAL PURPOSE

The instructions manual for the use has the purpose to furnish to the commitment all necessary information so that, except of an adequate supplied machine use, is able to manage the same in the more autonomous way and possibly safe.

Besides the present manual has been written with the purpose to supply indications and warnings to know the supplied machine, to understand its principles and functioning limits. For possible doubts you can call the Authorized Assistance Center.

RECEIVERS

The present instruction manual for the use, delivered in number of 1 copy together with the machine, is supplied as integral part of the machine, is turned both to the operators both to the skilled technicians qualified to the installation, use and maintenance.

The prevention and protection service responsible

of the commitment and the additional employers, to whom is assigned the machine, must take vision of the present instructions manual for the use, with the aim to adopt all technical and organizational measures.

RESPONSIBILITY

• If the present manual endures damages or is lost, it is possible to request a copy to the Authorized Assistance Center.
• The present manual reflects the technical state during the machine manufacturing; the manufacturer reserves the right to update the production and of consequence other manual issues, without the obligation to update productions or previous

manuals, if not in particular cases regarding the health and the people safety.

• Pay particularly attention to the residual risks content present on the machine and the prescriptions to which the operators must keep.
• The manufacturer is the responsible for the machine in its original configuration.
• The manufacturer isn't the responsible for dam-

ages caused from the improper use or not correct of the machine and documentation or for damages caused from the imperative standards violation, negligence, lack of experience, imprudence and the not respect of regulation standards on behalf of the employer, of the operator or the maintenance man and for every possible damage, caused from an irrational, improper and/or wrong use.

• The manufacturer isn't the responsible for the consequences caused from the not original spare parts use or of equal characteristics.
• The manufacturer is the responsible only for the information showed in the manual original version in Italian language.
• The non-fulfillment prescriptions contained in

this manual will cause the guarantee immediate decay.

• The factory responsible, that supervision to the working activities, in the field of the foreseen respective attributions and competence, must:
• Carry out the foreseen safety measures;
• Make informed the operators about the specific risks whom are exposed and bring to their knowledge the prevention essential standards;
• Prepare and require that the single operators observe the safety standards and use the protection means put at their disposal;
• Get down to work more operators, contemporary, on this product.

SIMBOLOGY MEANING

Here follow it is clearly specified the symbols and definitions meaning, which will be used in the present document.

DANGER

It shows the danger presence for who works on the machine and for who is in the vicinity, so the indicated activity must be performed in accordance with the actual accident prevention standards and with the indications showed in the present manual.

PRECAUTION

It shows a warning on useful information and/or further recommendations and/or shrewdness about the actual operation.

ATTENTION

It shows an operation to perform with attention to avoid damage to the machine.

2. GENERAL INFORMATION AND CHARACTERISTICS USE DESTINATION AND MANUFACTURE PARTS

The mixer here follow called "machine", is a portable machine designed to beat, whisk, mince, crumble, emulsify, reduce in mash, etc, to use in the collective and institutional restoration.

With the machine in function of the tool that is used, it is possible to prepare directly in pot thick vegetable and pasta soups, soups, mashed potatoes, creams, batters, mayonnaise, almonds pulp, cheese creams and what other like that.

The machine is constituted from an electric motor inserted in a unique fusion of plastic material (base machine body), in which the motor shaft is connected to the work tool: electric mixer or whisk.

The tool is connected and blocked to the machine body or with a screwed nut, or through a fast unhook junction.

The feed product is charged manually in the container and successively, with the use of both the

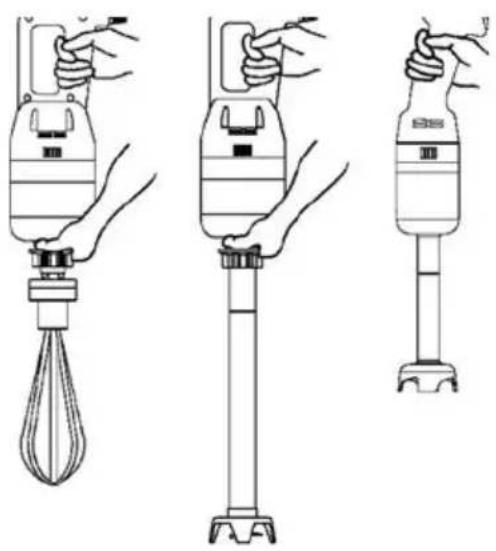

hands and grasping the machine in the foreseen areas (see figure pag. 14), the same is:

• Placed with the tool inside the container or the pot;
• Screwed, and used up to the end of the feed product working;
• Switched off and placed on an adequate support bench.

On the basis of the operative modalities, and to the used tool, the machine can:

The feed product unload, when the working cycle is finished, happens in manual way after having extracted the machine from the container.

All materials on direct contact with the food product are in accordance with the actual hygienic standards for food.

In accordance with the functioning requirements and production, the machine can be constituted with different optional parts.

• Work while is relied on the bottom of the container (with the mixer tools), not exceeding however the immersion nick,
• Work maintaining it hung, with the use of both the hands (with the whisk tool),
• Work placed on a special support that can be adapted to the pot. The support works as the operator substitute for operations that request long times or for feed treatments that can present burns risks (vapor or spatters).

The machine is supplied with the identification plate on which the following data are showed:

HENDITools for Chefsul. Firmowa 1260-023 Gądki, Poland
	Mikser/Blender		Nr 0000000
	Mod. 224328-HENDI 250
	1N PE AC 230V 50Hz			kg 1,5
	A 1,2	kA 1	kW 0,25	2015

TECHNICAL AND MANUFACTURING DATA

Code	224328 224373		224335 224380		224359 224052
		282298		224397
				282311
Motor power (W)/Voltage (V)	250/230	250/230	300/230	400/230	400/230	500/230
Maximum speed (revolutions/min)	15000	15000	13000	15000	15000	15000
Variable speed (revolutions/min) only VV models	-	2500 - 15000	2000 - 9000	2000 - 9000	2000 - 9000	2000 - 9000
Sizes A (mm)	∅75	∅75	∅100	∅100	∅100	∅100
Sizes B (mm)	285	285	350	350	350	350
Sizes C (mm)	250 + 20	250 + 20	300 + 40	400 + 40	500 + 40	500 + 40
Sizes D (mm)	∅75	∅75	∅85	∅85	∅85	∅85
Sizes E (mm)	520	520	650	750	850	850
Sizes F (mm)	-	-	330*	330	330*	330*
Sizes G (mm)	-	-	120*	120	120*	120*
Machine body mass (kg)	1,0	1,0	1,8	2,1	2,1	2,4

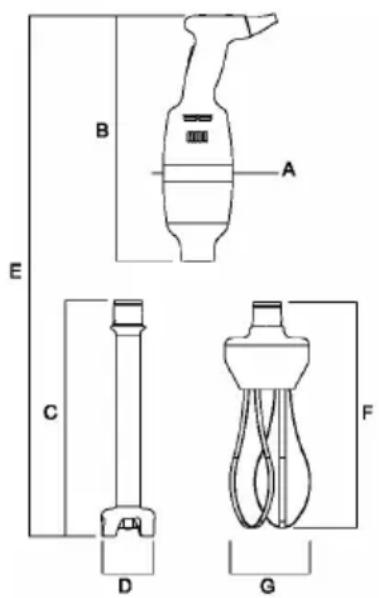

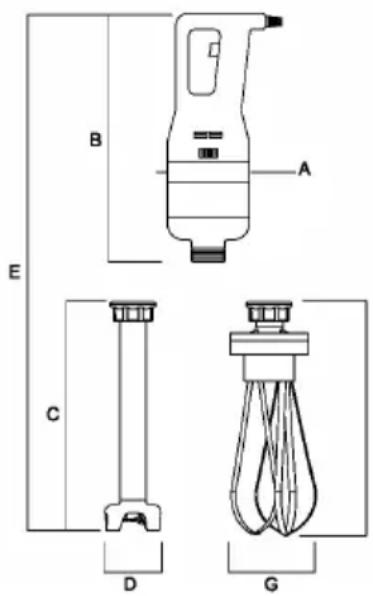

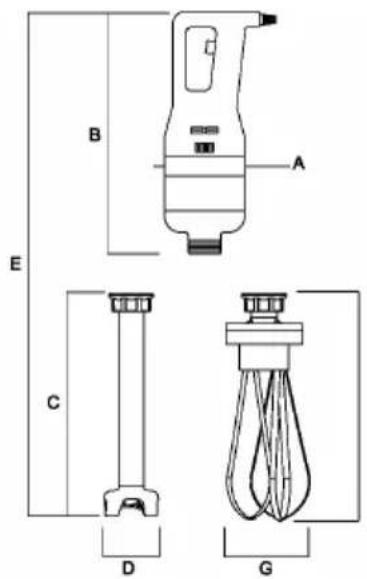

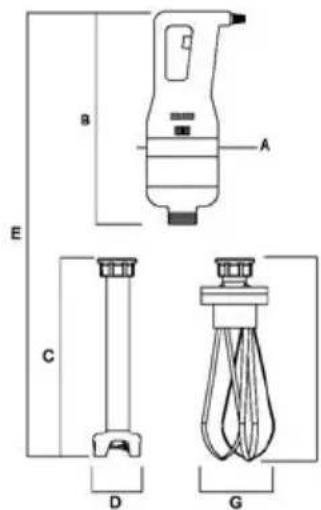

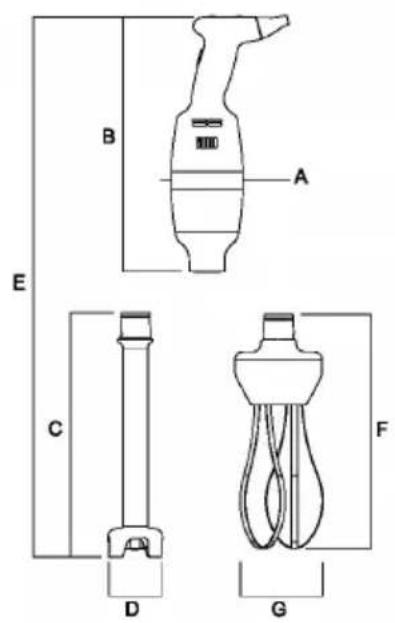

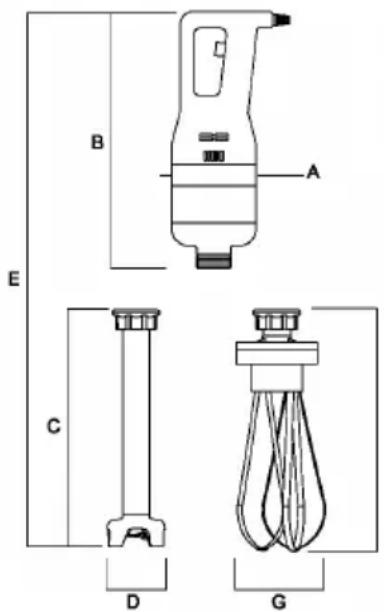

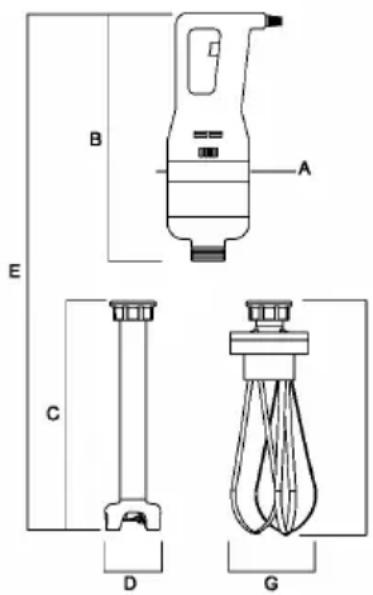

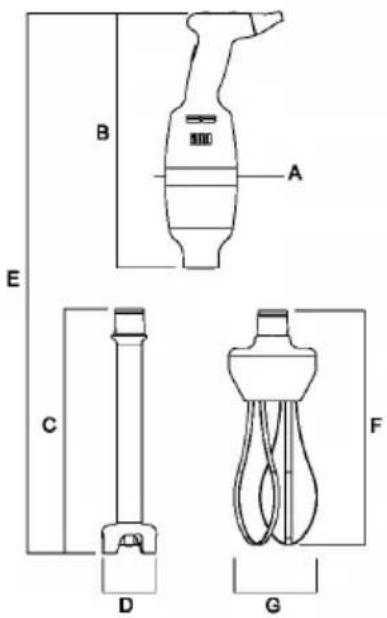

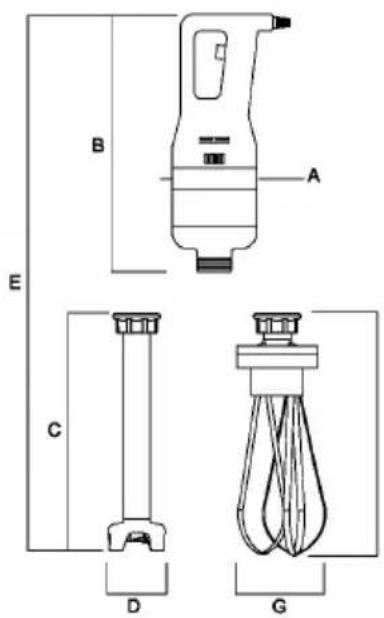

B A E C D G F

B A E C D G

Continue acoustic power level considered equal to considered A	Minor of 70 dBA
Current nature - frequency	Cfr. Machine plate
Full charge current Cfr. Machine plate
Use nominal voltage Cfr. Machine plate
Auxiliary circuits voltage Cfr. Machine plate
Protection system Double insulation
Protection degree IP X3
Max environment air temperature +40°C
Requested minimum illumination 500 lux
Product directive conformance 2006/42/CE, 2006/95/CE and successive modifications and integration, Reg. 1935/2004

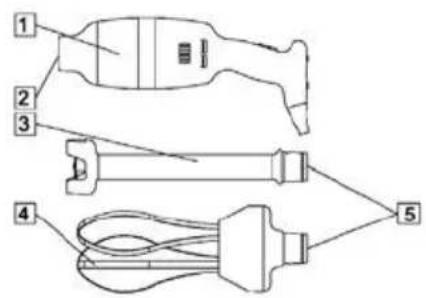

GROUP HENDI 224328

1. Machine body
2. Joint for tools
3. Mixer tool
4. Starting button
5. Tool blocking nut
6. Speed variator

1 2 3 4 5

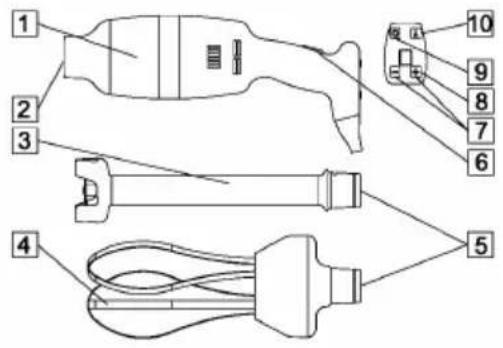

HENDI 224373, 282298, 224380, 224397, 282311, 224359, 224052

1. Machine body
2. Joint for tools
3. Mixer tool
4. Whisk tool
5. Tool blocking fast clutch
6. Starting button
7. Speed change controls
8. Starting safety button
9. Continuative use button
10. Mixer switch / whisk

1 2 3 4 5 6 7 8 9 10

NORMAL USE, IMPROPER USE, NOT CORRECT USE OR FORBIDDEN

The machine described in the present instructions manual for the use is foreseen to be driven from an only operator skilled and prepared on residual risks, but with the competence, in safety matter, of maintenance employees.

The operator should have at least the minimum age foreseen from the social laws about the work and having had the necessary technical training at least from a more expert operator that had him preliminarily trained for the correct use of the machine.

In its NORMAL USE, and reasonably foreseeable, the machine can be used only to beat, whisk, mince, crumble, emulsify, reduce in mash, directly in pot or an adequate container to use in the collective and institutional restoration.

According to the tool type, it is possible to prepare directly in pot thick vegetable and pasta soups,

The machine must not be used IN IMPROPER WAY; in particular:

• It must not be used for domestic uses,
• It must not functioned with parameters different from those showed in the technical characteristics table,
• For every use of the machine with modalities different from those showed in the present manual, the manufacturer declines every responsibility,

soups, mashed potatoes, creams, batters, mayonnaise, almonds pulp, cheese creams and what other like that.

The machine must be taken, supported and handled, placing the hands in the prescribed zone (see figure pag. 14).

• The user is responsible of the damages resulting from the lacked exercise conditions observance in
• accordance with the agreed technical specifications and order confirmation,
• The tools must not be functioned on vacuum;
• Not tamper or damage intentionally nor remove or hide the labels.

The machine must not be used IN NOT CORRECT WAY or FORBIDDEN so some damages or injuries could be caused for the operator; in particular:

• It is forbidden to draw the electric feeding cable or the machine to disconnect the feeding plug,
• It is forbidden to put weights on the machine or on the electric feeding cable,
• It is forbidden to put the electric feeding cable on sharp parts or with burn danger,
• It is forbidden the machine use with the damaged and not integer electric feeding cable or with the control devices;
• It is forbidden to leave the machine off with the electric feeding cable connected with the feeding plug,
• It is forbidden to insert any type of object inside the motor ventilation cap;
• It is forbidden to put the machine above different objects from the working ground used in the food field of height included between 900 – 1100mm from the trampling level,
• It is forbidden the use of inflammable substances, corrosive or harmful for the cleaning or products excessively alkalines as the caustic soda or ammonia.
• It is forbidden to plunge the machine in water or in other liquids;
• It is forbidden the not authorized personnel use and with clothes different from that showed for the use,
• It is forbidden the use of the whisk tool in the machines with fixed speed,
• It is forbidden to introduce in the pot with the machine inserted and in function, products or objects having characteristics different from those showed in the normal use, such as for ex-

ample bones, frozen meat, not food products, or other objects as scarves, etc...,

• It is forbidden to take, support and handle the machine, placing the hands in different zones from those showed in the normal use and however maintain in function the machine with an only hand,
• It is forbidden to push or lets push from others the feed products or the ingredients towards the bottom of the pot with the inserted machine and in function, and in general introduce the hands or any other body part, in the pot during the machine functioning,
• It is forbidden to introduce the machine in the pot, more than the immersion nick and however over the tool blocking nut.
• It is forbidden to remove the machine from the pot, before that the tool is completely stopped and however before 10 sec from the machine stop control,
• It is forbidden to work on the tools block systems before the tool complete stop, and however before 10 sec from the machine stop control and connected to the electric feeding,
• It is forbidden the partial removal of the protections and of the danger signals.
• It is forbidden the functioning without that all the precautions about the residual risks elimination have been adopted on behalf of the user,
• It is forbidden to smoke or use free flame devices and manipulate incandescent materials, unless some suitable safety measures aren't adopted,
• It is forbidden to activate or set the control and blockage devices as knobs or similar both during the machine functioning both if you aren't authorized.

The user is however responsible of the damages resulting from the lacked observance of the specified normal use conditions. For possible doubts you can enquire at the Authorized Assistance Center.

3. SAFETY INSTRUCTIONS

INTRODUCTION

The lacked standards and safety procedures applications can be danger and damage sources.

The machine means bound in the use for the respect, on behalf of the final user, of:

- All rules, of insertion in the environment and of people behavior, fixed from the laws and/or appli-

Except where differently specified, the personnel which performs the installation interventions, connection, maintenance, reassembly, and reuse, damages or breakdowns, demolition and disman-

cable standards; with particular reference to the fixed plant upstream of the supplied machine and for its connection / functioning;

- All further instructions and use warnings making part of the technical / graphic documentation annexed to the same machine.

tling must be a skilled personnel qualified in safety matter and educated on the residual risks, with the competencies, in safety matter, of the maintenance employees.

ENVIRONMENTS, WORKING AND PASSING PLACES

The work environment must answer to the directive 89/654/CEE requirements. In the working area foreign object must not be present. The employer, in the directive 89/391/CEE respect, concerning the

measures realization turned to promote the safety and workers health improvement during the work, must provide to eliminate or reduce the showed residual risks as foreseen in the present manual.

WARNINGS ON THE RESIDUAL RISKS RESIDUAL RISK DUE TO THE FIXED PROTECTIONS REMOVAL, INTERVENTIONS ON BROKEN/WORN PARTS

For any occasion the operator must not try to open or remove a fixed protection or tamper a safety device.

In the phase of equipment, maintenance, tools change and cleaning, and during all further manual operations that happens introducing the hands or other body parts in the machine dangerous areas,

Besides in the cleaning phase or unblock of the inserted pieces in the blades that happens also introducing the hands near the cutting tools, a residual risk remains due above all to a cut with tools sharpened parts.

a residual risk remains due above all to:

• Knocks with machine manufacturing parts,
• Grazing and/or abrasion with machine rough parts,
• Sharp pain with the sharpened parts,
• Cut with tools sharpened parts.

Besides, the operator and the maintenance man must be skilled for the intervention connected to the manual operations with open protections, must be trained on the joined consequent risks and must be authorized from a responsible person and must use

adequate individual protection devices, five fingers anti cutting gloves. All interventions on the discs

must happen keeping them with the blades towards the bottom side.

4. PUT ON SERVICE AND USE

The machine management is allowed only to the authorized personnel and opportunely educated and endowed of a sufficient technical experience.

Before to switch on the machine perform the following operations:

The not authorized use of commercial parts and accessories making part of the protections and safety devices can cause some malfunctions and

- Read with attention the technical documentation, - Know what protections and emergency devices are available on the machine, their location and functioning.

the ranger situation beginning for the operators.

The operator must besides have received an adequate training.

ASSEMBLY / DISASSEMBLY

The assembly / disassembly operations of every device of the machine are performed with the machine stop and with the plug disconnected from the socket, or with the sectioning device in OFF.

TOOLS ASSEMBLY

HENDI 224328

Align and insert the coupling (5) of the mixer (3) in the clutch (2) of the machine body (1)

Screw the mixer (3) up to fasten it firmly to the machine body (1)

TOOLS ASSEMBLY

HENDI 224373, 282298, 224335, 224380, 224397, 282311, 224359, 224052

Align and insert the tools coupling (5) in the quick clutch (2) of the motor body (1)

Turn the tools (3-4) up to fasten them firmly to the machine body (1)

The disassembly activities perform following in a backwards way the assembly phases previously described.

The machine assembly goes on in different phases (for example it is showed the machine with base body).

1 2 3 4 5

1 2 3 4 5

It is forbidden the use of the whisk tool in the fixed speed machines (VF)

It is forbidden the whisk tool use in the machines with variable speed (VV) with the max speed function 1

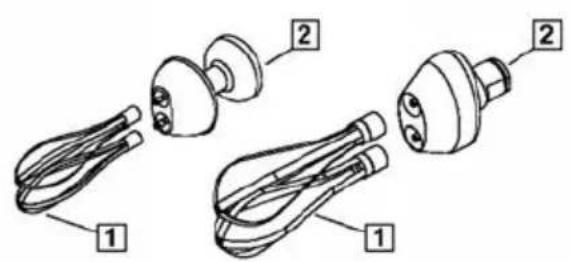

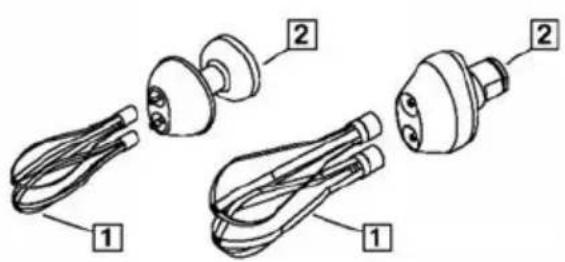

WHISKS ASSEMBLY/DISASSEMBLY

Technical diagram showing exploded view of cable components with numbered labels

For the disassembly pull the whisks (1) as soon as they don't part from a reducer group (2).

To assemble them insert the whisks basis (1) in the reducer group pivot (2) and push thoroughly.

FUNCTIONING DESCRIPTION

The control devices are designed and manufactured so as much sure and reliable and resistant to the service normal stresses, to the foreseeable strains

and to the external agents. Besides they are clearly visible, locatable and marked from a suitable marking. Here follow the main control devices are showed:

TYPE/COLOR REFERENCE/DESCRIPTION

Button / black	“ ⊕ ” / Button for the machine starting control with maintained action
Key / black	“ [ ] ” / Max speed switching button only for blender tool (only models HENDI: 224335, 224359, 224380)
Key / black	“ [+] / Key for speed increase / safety key for starting (only models HENDI: 224335, 224359, 224380)
Key / black	“ [− ] ” / Key for speed reduction (only models HENDI: 224335, 224359, 224380)
Key / black	“ [○ ] ” / Key for the machine starting safety (only models HENDI: 224335, 224359, 224380)
Display / red Speed visualization: from 1 to 9 / maximum speed visualization(only models HENDI: 224335, 224359, 224380)

STARTING

The machine starting with impulse is possible only with a voluntary action on the control device foreseen for this aim:

Model HENDI: 224328: "only use with maintained action

Models HENDI: 224335, 224359, 224380: " ", . Only use with continued action.

STOP

For the stop control push the button

FUNCTIONING SAFETY

If the machine is under stress, or is submitted to too long functioning times or submitted at overloaded, the same stops immediately for the thermal protection

functioning. In this case wait that it is completely cooled before proceeding to the starting function.

VOLTAGE LACKING

In case of electric feeding breaking or if the machine is disconnected from the electric net, this last one will be able to be restarted only following the start-

ing function, after the electric feeding back or the reconnection to the electric net.

CONTROLS AND VERIFICATIONS BEFORE STARTING

VERIFICATION / CONTROL MODALITIES AND CHECKS

Check that:There aren’t inside the pot extraneous objects	Sight control of the indicated parts, to check of objects or extraneous bodies lacking as for example different tools, clothes, etc ... and that there isn’t however the food product
Check the cleaning:Of the machine external sidesof the tool along its surfaceof the tool external sides	All indicated parts surfaces, before the machine use must be checked visually to verify their cleaning. In case of molds presence or other type of dirtiness, provide with the cleaning procedure in accordance with the chapter 5 indications.
Check the integrity:of the fixed protectionsof the machine body	All fixed protections, etc.. must perform the function for which have been foreseen. Indicated parts sight check to verify their integrity in their surface external part. The parts must be however changed at the first erosion signals or breaking (cfr. Authorized Assistance Center).
Check the functionality:of the control system parts / control about the safety;of the control devices.	All devices must perform the function for which have been foreseen. Control directly the devices so that these ones determine the waiting function.The actuators and all parts must be however changed to the first erosion signals or breaking (cfr. Authorized Assistance Center).
Check the absence:of strange noises after the starting	During the functionality checking of the control devices, if there are strange noises, due for example to a seizing or mechanical breaks, stop immediately the machine and activate the maintenance service.

For any intervention type or for the parts change that are damaged, activate the maintenance service. The possible change must happen with manu-

facturer original products or at least of quality, safety and equivalent characteristics. For analysis contact the Authorized Assistance Center.

PUT IN FUNCTION

Three line drawings of a hand using different types of electric drill heads (no text or symbols present)

EN

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

The machine operator can put in function the machine following in order the under reported indications:

• Positive controls result for the preparation preliminary operations,
  • Positive controls result for the electric feeding,
• Plug connection in opportune current socket,
• Positive controls result for the assembly,
• Positive controls result / checks before the starting,
• Positive controls result finalized to check the respect of all safety conditions,

- Introduce manually the feed product inside the pot,

- With the use of both the hands take the machine in the foreseen zones:

- Place it with the tool inside the pot,

- Start, maintain and handle it up to the end of the feed product work,

• When the food product has reached the desired solidity, stop the machine and placed on a support adequate bench.
• Discharge manually the pot feed product, taking it with both the hands and pouring out the feed product where necessary.

It is forbidden to introduce the machine in the pot, more than the immersion nick and however over the tool blocking nut.

It is recommended to make not work the machine on vacuum.

We recommend to control periodically the tire gasket integrity placed under the blade (see drawing) and change it if it is damaged or worn.

The gasket integrity prevents the working product seepage inside the tool avoiding damages to the mixer.

SWITCHING OFF

In succession, the switching off must follow what here under indicated:

• Before the switching off wait the working conclusion, or wait that the feed product has reached the desired solidity,
• Stop the machine releasing the foreseen control

devices,

• Place the machine on a support adequate bench
• Disconnect the plug from the machine from the feeding socket,
  • Perform the cleaning interventions.

5. MAINTENANCE, BREAKS RESEARCH AND CLEANING MAINTENANCE PRESCRIPTIONS

INSULATION FROM THE EXTERNAL FEEDING SOURCES

Before to perform any operation of maintenance, cleaning and parts change, the external feeding sources must be sectioned and insulated.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Position on "zero" the protection device placed upstream of the electric equipment feeding line.

Technical line drawing of a handheld device with two separate views (top and side), no text or symbols present.

Disconnect the general sectioning device and provide to protect the plug with proper systems.

BREAKS OR DAMAGES RESEARCH AND MOVING ELEMENTS UNBLOCKING

Here follow are indicate the interventions for the breaks or damages research and moving elements unblocking which can be performed from maintenance men.

TYPE POTENTIAL/S CAUSE/S MODALITY AND COMPARISON

Net voltage lacking	General Blackout Contact the electric energy distributor
	Fuses or magneto thermals intervention place upstream of the machine feeding line	After having eliminated the causes that have determined the protection device intervention, restore it. In case of problem persistency contact an electrician technician.
Functioning intervention	Protection device intervention inside the machine	Contact an electrician technician: after having eliminated the causes that have determined the protection device intervention, restore it.
	Cause/s not identifiable Contact directly the Authorized Assistance Center
The machine doesn't function: the blades don't rotate or don't perform correctly the cutting	Feeding voltage lacking Check and restore the electric energy
	Sectioning devices set on “OFF” Connect the plug on the feeding socket
	Lacked running button functioning	Check the button efficiency and eventually contact directly the Authorized Assistance Center
	Thermal intervention due to the overheating	Wait the complete cooling before to machine restarting
	Visualization on the display of the letter “E”	Speed reader damaged, contact directly the Authorized Assistance Center

For the intervention of extraordinary maintenance, consequent to breaks or revisions or mechanical and electric damages, it is necessary an intervention request directly to the Authorized Assistance Center.

The instructions about the extraordinary maintenance don't appear in the present instruction manual for the use and so must be explicitly requested to the manufacturer.

CLEANING

It is forbidden to clean by hand the organs and the elements in motion.

All cleaning interventions must be started only and exclusively, after having unloaded the machine with the food product in working and having insulated from the electric feeding source and from external energy.

The machine, the electric equipment and the machine board components must not be ever washed utilizing water, and not in any kind of jets form and quantity; so, without “bucket” nor “rubber” nor “towel”.

Don't put ever directly the machine in the sink or under the tap.

The machine hygiene level classification and the associated equipment, for the foreseen use, are 2 (two): machine that, after a hygiene risk evaluation,

is in conformance with applicable international standards requirements, but requests a programmed disassembly for the cleaning.

EN

FREQUENCY PERSONNEL MODALITY

At the end of every shift work and however before the daily use	Operator All the surface and the machine parts destined to come in contact with the food product or with the food zones (tools external and internal surface) and the jets zones (tool superior surface connected with the machine and machine external surface), must be cleaned and disinfected with the under reported modalities. For the grinding group disassembly activities see the previous descriptions.• Scrape the surfaces from the possible food product residuals (for example with plastic scrapers);• Clean all the food zone surfaces and jets zone with a morbid dampened clothes (not draining) with detergent diluted in hot water (also common soap for dishes is good).Don’t soak them. With a towel clean inside the grinding mouth. Use specific products for steel, which must be liquids (not in cream or pastries however abrasive) and above all must not contain chlorine. Against the fat substances the denatured alcohol.• Rinse with cleaned hot water and successively dry all food zone surfaces and jets zone with soft clothes that don’t lose coats.• The mixer tool, being in stainless steel, cannot be washed in dish-washer, much less the plastic parts.• The reassembly must happen only following working requirements, leave the pieces wrapped up in soft dry clothes that don’t lose coats.PERIODS OF LONG INACTIVITYDuring the machine long inactivity periods provide to pass vigorously on all steel surfaces (especially if stainless) a clothes soaked of Vaseline oil so that to spread a protective veil.
	THINGS NOT TO DO BEFORE OR DURING THE CLEANING:Enter towards the moving elements without to be previously checked of their stop;Enter towards the moving elements without have stopped it in safety stop (blockage in zero position of the electric feeding sectioning devices)
	PRODUCTS NOT TO USE:Compressed air with jets towards the zones with flour warehouses and in general towards the machine;Vapor equipment;Detergent that contains CHLORO (also if diluted) or its compounds as: the bleach, the muriatic acid, products to clear the drain, products for the marble cleaning, in general decalcifying, etc ... can attack the steel composition, staining and oxidizing it unavoidable.The only above described products fumes can oxidize and in any case corrode the steel;Steel wool, brushes or abrasive discs produced with other metals or alloys (ex. Common steel, aluminum, brass, etc...) or tools that have previously cleaned other metals or alloys, that except to scratch the surface.Detergents in abrasive dust;Fuel, solvents or inflammable and/or corrosive fluids;Substances used to clean the silver.

EN

6. SELLING

Actuation of the directives 2002/95/CE, 2002/96/CE and 2003/108/CE, about the dangerous substances use reduction in the electric and electronic equipment, as well as the refuse selling.

The barred garbage symbol included on the machine shows the needs that the machinery at the end of its useful life is sold in appropriate centers.

The present machine rubbish collection at the end of its life is organized and managed from the producer. The user that will be able to get rid of the present machine will have so to contact the producer and follow the new adopted system to allow the equipment rubbish collection reached at the life end.

The adequate rubbish collection for the equipment successive starting dismissed to the recycling, to the treatment and to the environmentally compatible selling contributes to prevent possible negative effects on the environment and on the health and favors the reuse and/or material recycling of the equipment.

In the machine dangerous substances are not present.

The product unauthorized selling on behalf of the holder behaves the administrative sanctions application foreseen from the actual standard.

7. Manufacturing materials

In accordance with the functioning and production requirements, the machine can be constituted with different typology of manufacturing materials.

GROUP	MATERIALS TYPOLOGYStainless Steel AISI 304 Plastic for food
Machine body •
Mixer cutting tool •
Mixer tool bin •
Mixer tool pipe •
Reducer case for whisk tool •
Whisk tool •

8. Electrical diagram

Code: 224328

Code: 224373, 282298

S1 N L M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components including motor, relays, and indicator lights

EN

INHALTSVERZEICHNIS

Code: 224328, 224373, 282298
Code: 224380, 224397, 282311, 224359, 224052

B A E C D G F

B A E C D G

Technical diagram of a handheld device with numbered parts for identification

ZWECKMÄßIGER GEBRAUCH, MISSBRAUCH, FALSCHER ODER VERBOTENER GEBRAUCH

Diagram of a hairdryer with labeled parts including blade, handle, and cord

Diagram showing exploded view of cable connectors with labeled parts 1 and 2

Three line drawings of a manual electric brush tool with a whisk, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

AUSSCHALTEN

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

Code: 224373, 282298

S1 DE N L M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components and motor symbol, including connections to a motor and a digital display.

NL

INHOUDSOPGAVE

1. INHOUD EN GEBRUIK VAN DE HANDLEIDING 42
2. ALGEMENE INFORMATIE EN EIGENSCHAPPEN 44
3. VEILIGHEIDSINSTRUCTIES....48
4. INGEBRUIKSNAME EN GEBRUIK.... 49
5. ONDERHOUD, CONTROLE OP DEFECTEN EN REINIGING.... 54
6. VERWIJDERING 57
7. PRODUCTIEMATERIALEN 58
8. ELEKTRISCH SCHEMA....58

Geachte klant,

Code: 224328, 224373, 282298

B A E C D G F

Code: 224380, 224397, 282311, 224359, 224052

A B E C D G

Technical diagram of a handheld tool with numbered parts for identification

NORMAAL GEBRUIK, VERKEERD GEBRUIK, ONJUIST GEBRUIK OF VERBODEN GEBRUIK

Diagram of a hairdryer with labeled parts including blade, handle, and cord

MONTEREN/DEMONTEREN GARDES

Diagram showing exploded view of cable components with numbered labels

Three line drawings of a hand using different types of electric drill heads (no text or symbols present)

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

UITSCHAKELEN

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

erkend service center.

Code: 224373, 282298

NL N L S1 M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components and a motor symbol, including connections and wiring details.

NL

SPIS TREŚCI

1. STRUKTURA INSTRUKCJI PRZEZNACZENIE INSTRUKCJI 62
2. OGÓLNE INFORMACJE I OPIS PRZEZNACZENIE, CZĘŚCI ...... 64
3. WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 68
4. URUCHOMIENIE I OBSŁUGA....69
5. KONSERWACJA, ROZWIĄZYWANIE PROBLEMÓW I CZYSZCZENIE ..... 73
6. SPRZEDAŻ 76
7. MATERIAŁY, Z KTÓRYCH WYKONANO URZĄDZENIE ..... 77
8. SCHEMAT ELEKTRYCZNY 78

B A E C D G F

Kod: 224380, 224397, 282311, 224359, 224052

B A E C D G

Technical diagram of a hairpin with numbered parts for identification

NORMALNE UŻYWANIE, NIEPRAWIDŁOWE LUB NIEDOZWOLONE UŻYWANIE

PL

Diagram of a hairdryer with labeled parts including blade, handle, and cord

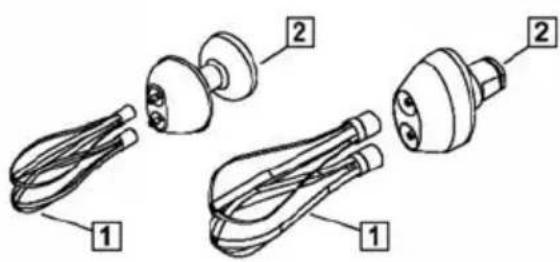

MONTAŻ/DEMONTAŻ UBIJACZKI

Diagram of cable assembly with labeled parts, showing two types of connectors and a central connector.

Three line drawings of a hand using different types of electric drill heads (no text or symbols present)

PL

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with two separate views (top and side), no text or symbols present.

KONSERWACJA NADZWYCZAJNA

S1 N L M1 M M2

S1 L N M1 M M2

Kod: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components and motor symbol, including connections to a motor and a 7-segment display.

INDEX

1. ORGANISATION DU CONTENU ET MODALITES DE CONSULTATION .... 80
2. INFORMATIONS GENERALES ET CARACTERISTIQUES...... 82
3. INSTRUCTIONS POUR LA SECURITE 86
4. MISE EN ROUTE ET EMPLOI 87
5. ENTRETIEN, RECHERCHE PANNES ET NETTOYAGE 92
6. EVACUATION 95
7. MATERIAUX DE CONSTRUCTION....96
8. SCHÉMA ÉLECTRIQUE 96

Cher client,

BUT DU MANUEL IMPORTANCE DU MANUEL

BUT / FINALITES DU MANUEL

Code: 224328, 224373, 282298

B A E C D G F

Code: 224380, 224397, 282311, 224359, 224052

A B C D E G

Technical diagram of a hairpin with numbered parts for identification

EMPLOI NORMAL, EMPLOI IMPROPRE, EMPLOI NON CORRECT OU INTERDIT

Diagram of a hairpin with labeled parts including blade, handle, and cord

ASSEMBLAGE / DES ASSEMBLAGE DES FOUETS

Technical diagram showing exploded view of cable components with numbered labels

Three line drawings of a manual power tool with a whisk, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

COUPURE

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular knob and two separate views (no text or symbols)

Code: 224373, 282298

FR N L S1 M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components and motor symbol, including connections to a motor and a 8-pin display.

FR

INDICE

1. ORGANIZZAZIONE DEL CONTENUTO E MODALITÀ DI CONSULTAZIONE ..100
2. INFORMAZIONI GENERALI E CARATTERISTICHE....102
3. ISTRUZIONI PER LA SICUREZZA....106
4. MESSA IN SERVIZIO ED USO 108
5. MANUTENZIONE, RICERCA GUASTI E PULIZIA....112
6. SMALTIMENTO....115
7. MATERIALI DI COSTRUZIONE....116
8. SCHEMA ELETTRICO....116

Code: 224328, 224373, 282298
Code: 224380, 224397, 282311, 224359, 224052

B A E C D G F

A B E C D G

Technical diagram of a handheld device with numbered parts for identification

USO NORMALE, USO IMPROPRIO, USO NON CORRETTO O VIETATO

Technical diagram of a hairpin with numbered parts for identification

Diagram showing exploded view of cable connectors with labeled parts 1 and 2

Three line drawings of a hand using different types of spray machines, including a whisk, a brush, and a stand (no text or symbols present)

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

SPEGNIMENTO

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

Code: 224373, 282298

S1 N L M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components including motor, switches, and power connections

CUPRINS

1. ORGANIZAREA CUPRINSULUI ŞI MODUL DE CONSULTARE ..... 120
2. INFORMATII ŞI CARACTERISTICI GENERALE 122
3. INSTRUCTIUNI DE SIGURANTĂ 126
4. PUNEREA ÎN FUNCTIUNE ȘI UTILIZAREA.... 127
5. MENTENANTĂ, CERCETAREA DEFECTIUNILOR ȘI CURĂȚAREA.....132
6. VÂNZAREA 135
7. MATERIALELE DE FABRICARE 135
8. SCHEMA ELECTRICĂ....136

Stimate client,

SCOPUL MANUALULUI IMPORTANTA MANUALULUI

Code: 224328, 224373, 282298
Code: 224380, 224397, 282311, 224359, 224052

B A E C D G F

A B E C D G

Technical diagram of a handheld device with numbered parts and labeled connectors

UTILIZARE NORMALĂ, UTILIZARE NEADECVATĂ, UTILIZARE INCORECTĂ SAU INTERZISĂ

Diagram of cable assembly with labeled parts, showing two main components and their exploded views.

Three line drawings of a manual electric power tool with a whisk, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

DECONECTARE

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

Code: 224373, 282298

S1 N L M1 M M2

S1 L N M1 M M2

Code: 224380, 224397, 282311, 224359, 224052

R0 M L N

RO

RO

ОГЛАВЛЕНИЕ

A B C D E F G

A B E C D G

Technical diagram of a handheld device with numbered parts for identification

Technical diagram of a hairpin with numbered parts for identification

Diagram showing exploded view of cable connectors with labeled parts 1 and 2

Three line drawings of a hand operating different types of industrial tools, including a brush and a stand (no text or symbols present)

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

ВЫКЛЮЧЕНИЕ

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

S1 N L M1 M M2

S1 L N M1 M M2

код: 224380, 224397, 282311, 224359, 224052

Electrical circuit diagram with labeled components and motor indicator M, including connections to a motor and a digital display.

RU

RU

OBSAH

1. OBSAH ORGANIZACE A KONZULTACE 160
2. OBECNÉ INFORMACE A POPIS ÚČEL, ČÁSTI.... 161
3. BEZPEČNOSTNÍ POKYNY 165
4. UVEDENÍ DO PROVOZU A POUŽÍVÁNÍ 166
5. ÚDRŽBA, ZJIŠTĚNÍ ZÁVAD A ČIŠTĚNÍ 171
6. PRODEJ....173
7. VÝROBNÍ MATERIÁLY 174
8. ELEKTRICKÉ SCHÉMA 174

B A E C D G F

Kód: 224380, 224397, 282311, 224359, 224052

B A E C D G

Continue acoustic power level considered equal to considered A	Minor of 70 dBA
Current nature - frequency	Cfr. Machine plate
Full charge current Cfr. Machine plate
Use nominal voltage Cfr. Machine plate
Auxiliary circuits voltage Cfr. Machine plate
Protection system Double insulation
Protection degree IP X3
Max environment air temperature +40°C
Requested minimum illumination 500 lux
Product directive conformance 2006/42/CE, 2006/95/CE and successive modifications and integration, Reg. 1935/2004

GROUP HENDI 224328

Technical diagram of a handheld device with numbered parts for identification

BĚŽNÉ POUŽITÍ, NESPRÁVNÉ POUŽITÍ, NESPRÁVNÉ POUŽITÍ NEBO ZAKÁZANÉ POUŽITÍ.

Diagram of a hairpin with labeled parts including handle, grip, and cord

MONTÁŽ/DEMONTÁŽ ŠLEHAČŮ

Technical diagram showing exploded view of cable and plug components with numbered labels

POPIS FUNGOVÁNÍ

Three line drawings of a hand using different types of electric drill heads (no text or symbols present)

CZ

Technical line drawing of a mechanical component with a downward arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a handheld device with a circular button and two separate views (no text or symbols)

Electrical circuit diagram with labeled components and a motor symbol, including connections to a motor panel and a digital display.

Hendi B.V.

Innovatielaan 6

6745 XW De Klomp, The Netherlands

Tel: [phone]

Email: [e-mail]

Hendi Polska Sp. z o.o.

ul. Firmowa 12

62-023 Robakowo, Poland

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• IT: Con riserva di modifiche, errori di stampa e composizione.
• RO: Rezervate modificările, tipărirea și erorile de tipărire.
• RU: Мы оставляем за собой право вносить изменения, ошибки печати и набора.
• CZ: Změny, chyby tisku a sazby vyhrazeny.
