USER MANUAL Easy Pressing GV5226 TEFAL

EN * depending on model

FR* selon modele

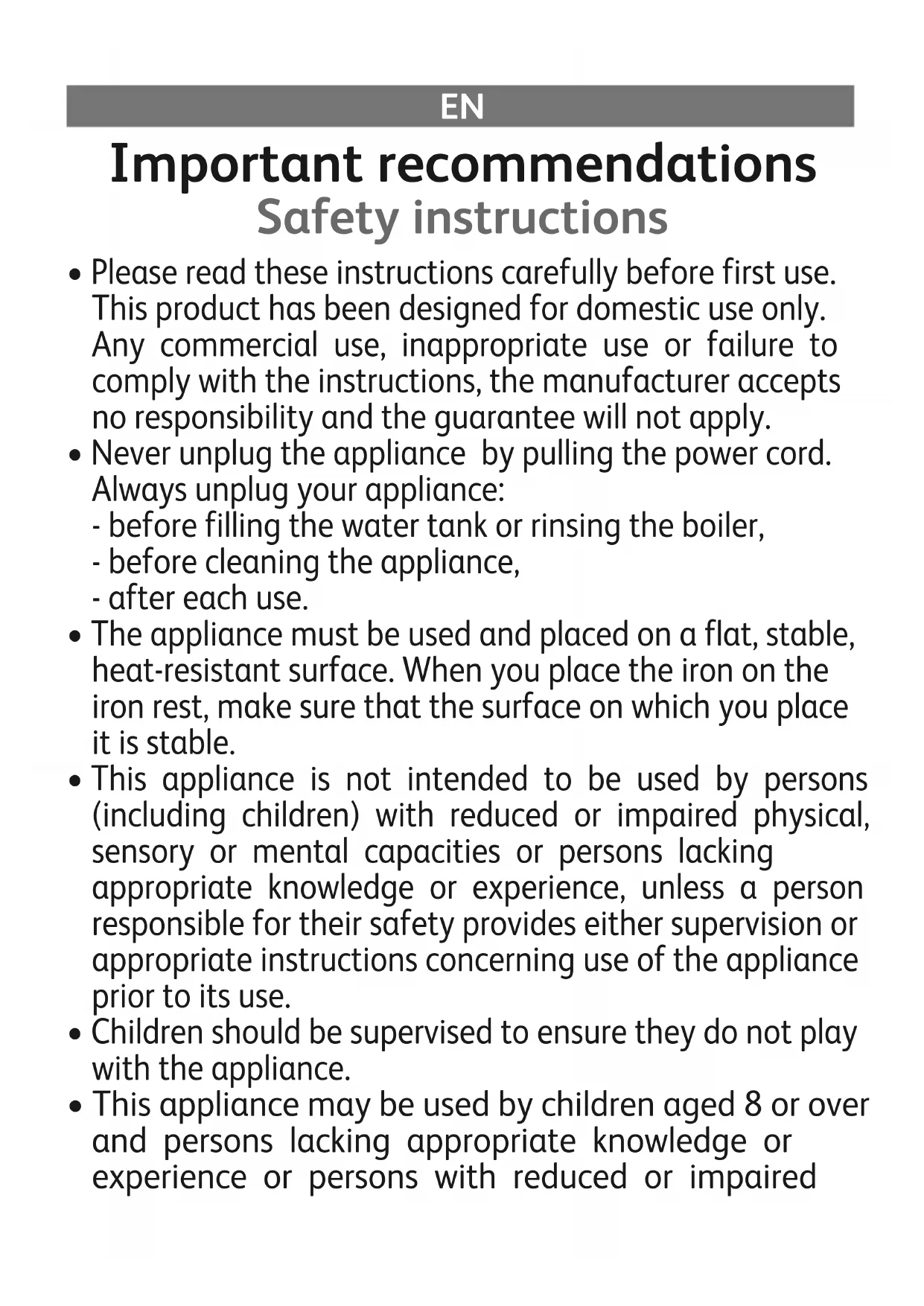

Important recommendations

Safety instructions

• Please read these instructions carefully before first use. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Never unplug the appliance by pulling the power cord. Always unplug your appliance:

• before filling the water tank or rinsing the boiler,

• before cleaning the appliance,

• after each use.

• The appliance must be used and placed on a flat, stable, heat-resistant surface. When you place the iron on the iron rest, make sure that the surface on which you place it is stable.

• This appliance is not intended to be used by persons (including children) with reduced or impaired physical, sensory or mental capacities or persons lacking appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of the appliance prior to its use.
• Children should be supervised to ensure they do not play with the appliance.
• This appliance may be used by children aged 8 or over and persons lacking appropriate knowledge or experience or persons with reduced or impaired

physical, sensory or mental capacities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children must not be allowed to play with the appliance. Cleaning and maintenance must not be carried out by children unless they are aged 8 or over and are supervised. Keep the appliance and power cord out of the reach of children under 8 years of age.

• The surfaces which are marked with this sign and the soleplate are very hot during the use of the appliances. Don't touch these surfaces before the iron is cooled down.

• Never leave the appliance unattended :

• when it is connected to the mains,
• until it has cooled down (around 1 hour).
• Before rinsing the boiler/rinsing the anti-scale valve (depending on the model), wait until the appliance is completely cold and has been unplugged for at least 2 hours before unscrewing the boiler rinse cap/ the scale collector cover.
• Warning: if the boiler cap or the boiler rinse cap (depending on the model), is dropped or severely knocked, have it replaced by an Approved Service Centre, as it may be damaged.
• When rinsing the boiler, never fill it directly from the tap.
• The boiler cap mus not be opened during use.
• The appliance must not be used if it has been dropped, if it has any visible damage, if it leaks, or if it functions abnormally in any way. Do not attempt to dismantle

your appliance: have it examined at a Tefal Approved Service Centre to avoid any danger.

• Check the electrical power and steam cords for signs of wear or damage prior to use. If the electrical power cord or the steam cord is damaged, it must be replaced by Tefal Approved Service Centre to avoid any danger.

• Accessories, consumables and end user replaceable parts must be only purchased from Tefal or an Approved Service Centre.

• For your safety, this appliance conforms to all applicable regulations (Low Voltage Directive, Electromagnetic Compatibility, Environment, etc).

• Your steam generator iron is an electrical appliance: it must be used under normal conditions of use. It is designed for domestic use only.

• It is equipped with 2 safety systems:

• a pressure release valve designed to avoid excessive pressure. In the event of malfunction, the valve releases excess steam.

• a thermal fuse to avoid overheating.

• Always plug your steam generator iron:

• into a mains circuit with voltage between 220V and 240V (Alternating current only),
• a socket outlet with ab earth connection.

Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee.

If you are using a mains extension lead, ensure that it is correctly rated (16A) with an earth connection, and is fully extended.

• Completely unwind the power cord before plugging into an earthed socket outlet.
• The sole plate of your iron and the iron rest on the base unit can reach extremely high temperatures, and can cause burns: do not touch them. Never touch the electrical power cords with the sole plate of the iron.
• Always use a vented/mesh ironing board and be careful of hot steam when roning close to the edges of the board.
• Your appliance emits steam, which can cause burns. Always handle the iron with care, especially when ironing vertically. Never direct the steam towards people or animals.
• Never immerse your steam generator iron in water or any other liquid. Never place it under a running tap.

PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Recommendations important

TENTO NÁVOD K POUŽITÍ SI PROSÍM USCHOVEJTE

DÔLEŽITÉ ODPORUČANIA

BezpečnostnéPokyny

BceIa oTKJouaTe BaU yTIOr OT cETn:

-Прек鉴定наполны pe3epByap ВODОилсполackиВаы naporehepaTop,

1. Steam control dial
2. Temperature setting mark
3. Iron temperature adjustment button
4. Thermostat light
5. Iron rest
6. Boiler (inside the base-unit)
7. Lock system (according to model)

8. Power and steam cord storage compartment

9. Steam cord

10. Power cord
11. Boiler cap
12. Illuminated on/off switch
13. Steam ready indicator light (according to model)
14. Steam flow adjustment dial (according to model)
15. ECO Zone (according to model)

Locking system for retaining the iron on the base Lock system (depending on model)

• Your steam station is equipped with a retaining hoop which locks the iron on its base for easier transport and storage:
• Locking - fig.1

-Unlocking -fig.2

• To carry your steam station by the iron handle:
• Place the iron on the iron rest of the steam station and raise the retaining hoop over the iron until it locks into place (audible click) - fig.1.
• Grasp the handle of the iron to carry your steam station - fig.3.

Preparation

What water to use?

- Tap water:

Your appliance has been designed to function using untreated tap water. If your water is very hard, we recommend you use a mix of 50% untreated tap water and 50% distilled water available in most shops.

- Types of water not to use:

Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. These types of water should not be used in your TEFAL iron. Also only use distilled water as advised above.

Always remember:

Never use rainwater or water containing additives (like starch, fragrance or water from domestic appliances). Such additives can affect the steam properties and at high temperature, form deposits in the steam station chamber which are likely to stain your washing.

Filling the boiler

• Place your steam station on a flat, stable, heat-resistant surface.
• Check that your appliance is unplugged and cold.
• Unscrew the boiler cap.
• Using a water jug, fill with maximum 1 litre of water. Fill the boiler, taking care that the water does not spill over fig.4. If this occurs, remove the excess water.
• Replace the boiler cap, screwing on firmly, but not over tight.

Using your steam station

• Completely unwind the power cord and the steam cord from its storage space.
• Tilt the locking ring of the iron forwards to release the safety catch.
• Plug in your steam station to an earthed socket.
• Press the on/off luminous switch. It comes on and the boiler heats up.
• After approximately 8 minutes or when the steam ready indicator light comes on (according to model), the steam is ready - fig.5.
• During ironing the iron's thermostat light and the steam indicator (according to model) will go on and off according to the temperature control.

The first time the appliance is used, there may be some fumes and smell but this is not harmful. They will not affect use and will disappear rapidly.

• When starting, and regularly while it is being used, your steam generator's electric pump injects water into the boiler. It makes a noise but this is quite normal. You may also hear a clicking noise which is the steam valve opening. Again this is normal.

Use

Steam ironing

• Set the iron temperature adjustment dial and the steam flow adjustment dial (according to model) to the type of fabric to be ironed (see table below).
• The thermostat light comes on. Important: whenever you start using your iron and whenever you reduce the temperature during use, the iron is ready for use when its indicator light goes out and when the green light located on the control panel comes on and remains on. During use, when you increase the temperature of the iron, you can start ironing immediately, but make sure you only increase your steam flow once the iron's light has gone out.
• To obtain steam, press on the steam control button on the iron handle - fig.6.

The steam station and the iron are ready to iron when the steam ready indicator light (according to model) is lit and the iron thermostat dial light has gone out.

TYPE OF FABRICS	SETTING TEMPERATURE CONTROL	SETTING STEAM OUTPUTCONTROL DIAL
Silk, Synthetics (polyester, acetate, acrylic, polyamide)	●	●
Silk, Wool	●●	●●
Linen, cotton	●●●	●●

Mixed fibre fabrics : set the ironing temperature to the setting for the most delicate fabric. Woollen garments : press repeatedly on the steam control button - fig.6 to obtain short bursts of steam, without placing the iron on the garment itself. This will avoid making the fabric shiny.

• The steam will stop when you release the button.
• Start with the fabrics to be ironed at a low temperature and finish with those which need higher temperatures (●● or Max).
• To prime the steam circuit, either before using the iron for the first time, or if you have not used the steam function for a few minutes, press the steam control button - fig.6. several times in a row, holding the iron away from your clothes. This will enable any cold water to be removed from the steam circuit.
• For delicate fabrics, press the steam control button (on the handle of the iron) intermittently to avoid possible water droplets appearing with the steam.
• If you are using starch, it should be sprayed onto the reverse side of the fabric to be ironed.
• If you put your thermostat in the "min" position, the iron does not become hot.

ECO MODE (depending on model):

Your steam station iron has an ECO mode function which uses less power whilst still guaranteeing a sufficient steam flow for you to iron your garments properly. In order to use this function, once the thermostat of your iron has been correctly set (see table above), position the steam flow setting on the ECO segment - fig.12. The ECO mode can be used on all types of fabrics, however, for very thick or very creased fabrics, we recommend that you use the maximum steam flow for best results.

Dry ironing

• Do not press on the steam control button - fig.6.

Vertical steam ironing

• Set the iron temperature dial and the steam flow adjustment dial (according to model) to the max. position.

• Hang the garment on a coat hanger and hold the fabric slightly to avoid burning the fabric. taut with one hand. As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a coat hanger.

• Press repeatedly on the steam control button - fig.6.(on the iron handle) moving the iron from top to bottom - fig.7.

Filling the boiler during use

Never unscrew the boiler cap while it's still steaming.

• VERY IMPORTANT : Before opening your boiler, ensure that there is no more steam left inside by pressing the steam control button - fig.6 located on the handle of the iron and keep it pressed down until there is no more steam.

• Stop the steam station by pressing the on/off switch and disconnecting the plug.

• Slowly unscrew the boiler cap.
• Using a water jug, fill with maximum 1 litre of water.
• Fill the boiler fig.4, taking care that the water does not spill over. If this occurs, remove the excess water.
• Replace the boiler cap, screwing on tightly, reconnect your steam station to the mains, and switch it on.
• Wait until the boiler heats up. After approximately 8 minutes or when the steam ready indicator light comes on (according to model), the steam is ready.

Storing the steam station

• Warning: do not touch the soleplate while still hot.
• Fold the carrying arm down onto the iron until it clicks into position, ensuring that your iron is safely locked onto its housing (depending on model).
• Store the electrical cord in its storage place - fig.8.
• Storing the steam cord - fig.9.
• Leave the iron (and the iron rest) to cool down for 1 hour before storing it away.

Maintenance and cleaning

Before cleaning, ensure that your steam station is unplugged and that the soleplate and the iron rest have cooled down.

Do not use detergent or descending products for cleaning the soleplate or the base unit.

Never hold the iron or the base unit under the tap.

Cleaning the soleplate

• Regularly clean the soleplate with a non-metallic sponge.

Cleaning the unit

• Clean the plastic parts of the appliance occasionally with a soft dampened cloth.

Rinsing the boiler (once a month)

• Be careful: To extend the life of your boiler and to avoid the building up of scale it is essential that you rinse out the boiler at least after every 10 uses (approximately once a month).
• Check that the steam station is cold and unplugged for more than 2 hours.
• Using a jug, fill the boiler 3/4 full with untreated tap water- fig.10
• Shake the base unit for a few moments and then empty it completely over your sink - fig.11.
• To obtain the best results, we advise you to repeat this operation.

If your water is hard, increase the frequency. In particular, do not use descaling agents for rinsing out the boiler, as they could damage it.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a civic waste disposal centre.

A problem with your steam station?

PROBLEMS CAUSES	SOLUTIONS
The steam station does not come on and the thermostat light is not illuminated.	The appliance is not switched on. Check that your appliance is correctly plugged in and press the illuminated on/off switch.
Water runs out of the holes in the soleplate.	Water has condensed in the pipes because you are using steam for the first time or you have not used it for some time.	Press on the steam control button away from your ironing board until the iron produces steam.
	The soleplate is not hot enough.	Wait for the thermostat light to go out before activating the steam button.
Water streaks appear on the linen.	Your ironing board is saturated with water because it is not suitable for use with a steam station.	Check that your ironing board is suitable.
White streaks come through the holes in the soleplate.	Your boiler has a build-up of scale because it has not been rinsed out regularly.	Rinse out the boiler.
Brown streaks come through the holes in the soleplate and stain the linen.	You are using chemical descaling agents or additives in the water for ironing.	Never add this type of product in the boiler (see § "for what water may be used"). Contact an Approved Service Centre.
The soleplate is dirty or brown and may stain the linen.	You are ironing at too high a temperature.	See our recommendations regarding temperature control setting.
	Your linen is not rinsed sufficiently or you have ironed a new garment before washing it.	Ensure linen is rinsed thoroughly to remove any soap deposits or chemicals on new garments which may be sucked up by the iron.
	You are using starch.	Always spray starch on the reverse side of the fabric to be ironed.
There is no steam or there is little steam.	The boiler is empty.	Fill the boiler.
	The soleplate temperature is set to the maximum.	The steam station is working but steam is very hot and dry As a consequence, it is less visible.
Steam escapes from the rinse plug.	The rinse plug has not been tightened correctly.	Tighten the rinse plug correctly.
	The rinse plug seal is damaged.	Contact an Approved Service Centre to order a new rinse plug seal.
	The steam station is faulty.	Stop using the steam station and contact an Approved Service Centre.
Steam or water escapes under the appliance.	The steam station is faulty. Stop using the steam station and contact an Approved Service Centre.

If you have any problems or queries please call our Customer Relations team first for expert help and advice:
0845 602 1454 - UK / [phone] - Ireland
or consult our website - www.tefal.co.uk
