USER MANUAL RF62 DOMETIC

REFRIGERATION RF© 2024 Dometic Group. The visual appearance of the contents of this manual is pro- tected by copyright and design law. The underlying technical design and the prod- ucts contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.EN RF60, RF62

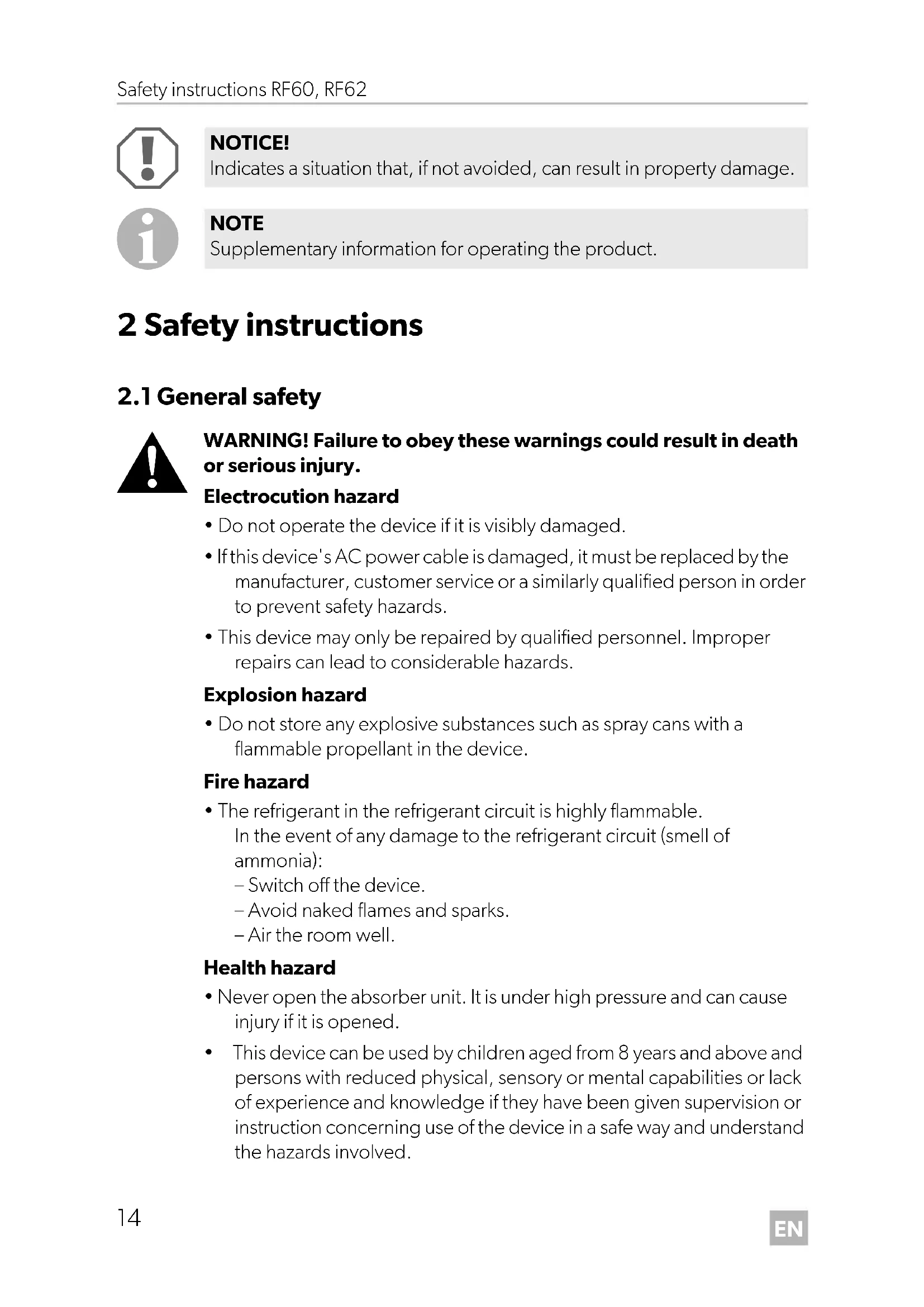

WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.EN Safety instructions RF60, RF62

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Do not operate the device if it is visibly damaged.

• If this device's AC power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Explosion hazard

• Do not store any explosive substances such as spray cans with a flammable propellant in the device. Fire hazard

• The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit (smell of ammonia): – Switch off the device. – Avoid naked flames and sparks. – Air the room well. Health hazard

• Never open the absorber unit. It is under high pressure and can cause injury if it is opened.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product.EN RF60, RF62 Safety instructions

• Children shall not play with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload devices. Risk of child entrapment

• Make sure that the shelves are mounted and secured so that children cannot lock themselves in the device.

• Before disposing of your old refrigerator: – Dismantle the drawers. – Leave the shelves in the refrigerator so that children cannot climb inside.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of injury

• Do not put your fingers into the hinge.

• Do not lean on the open device door.

NOTICE! Failure to obey these instructions may result in damage to the device.

• The lamp can only be replaced by the manufacturer, service agent or similarly qualified person to avoid hazard.

• Do not use a high-pressure cleaner near the ventilation grill when cleaning the vehicle.

• Attach the winter covers of the ventilation grille (accessories) when the vehicle is cleaned from the outside or not used for a prolonged period of time.

• The device is not suitable for transporting caustic materials or materials containing solvents.

• The insulation of the device contains flammable cyclopentane and requires special disposal procedures. Deliver the device at the end of its life-cycle to an appropriate recycling center.

• Keep the condensation opening clean at all times.

• Never immerse the device in water.

• Protect the device and cables against heat and moisture.

• The device shall not to be exposed to rain.EN Safety instructions RF60, RF62

2.2 Placing and connecting the device safely

WARNING! Failure to obey these warnings could result in death or serious injury. Fire hazard

• Ensure that the device circuit is not damaged during transportation.

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.

NOTICE! Failure to obey these instructions may result in damage to the device. Risk of overheating

• Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• To enable the refrigerant to circulate properly, the device may not tilted by more than 3°. Use a spirit level to make sure the device is level.

• Only hold the device at the body of the device during transport. Never hold the device at the absorber unit, the cooling fins, the gas pipes, the door or the control panel.

• Do not place the device near naked flames or other heat sources (heat- ers, direct sunlight, gas ovens etc.).

• Only use the AC connection cable supplied to connect the device to the AC mains.

• Ask your vehicle manufacturer if the battery management of your vehicle shuts down the devices to protect the battery.

• Put the device door and the ice compartment door into the winter position if you are not going to use the device for a longer period of time. This prevents mold from forming.EN RF60, RF62 Safety instructions

2.3 Operating the device safely

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Before starting the device, ensure that the power supply line and the plug are dry.

• Disconnect the device from the power supply – before each cleaning and maintenance – after every use Health hazard

• Please check if the cooling capacity of the device is suitable for storing the food you wish to cool.

• Only use the device where there is good ventilation.

• Only operate the device from a single energy source.

• Food may only be stored in its original packaging or in suitable containers.

• Opening the device for long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food.

• If the device is exposed to a room temperature of below +10 °C for an extended period of time, an uniform temperature cannot be guaran- teed in the ice compartment. This can lead to an increase of the ice compartment temperature and the goods stored in it may defrost.

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the door open to prevent mold developing within the device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of injury

• Close and lock the device door before beginning a journey.EN Safety instructions RF60, RF62

• The cooling aggregate at the back of the device becomes very hot during operation. Protect yourself from coming into contact with hot parts when removing ventilation grills.

NOTICE! Failure to obey these instructions may result in damage to the device.

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

• Only connect the device as follows: – DC outlet: Only use cables with an appropriate cross section. – AC outlet: Only use the AC cable supplied

• Never pull the plug out of the socket by the cable.

• If the device is connected to a DC outlet: Only select DC operation (battery mode) if you are using a battery monitor or if the alternator in your vehicle provides sufficient voltage.

• If the device is connected to a DC outlet: Disconnect the device or switch it off when you turn off the engine. Otherwise you may dis- charge the battery.

• Ensure that the ventilation openings are not covered.

• Do not use electrical devices inside the device unless they are recommended by the manufacturer for the purpose.

• Do not fill the inner container with ice or fluids.

• Only store heavy objects such as bottles or cans in the device door, in the vegetable compartment or on the bottom shelf.

2.4 Operating with gas safely

WARNING! Failure to obey these warnings could result in death or serious injury. Explosion hazard

• Only operate the device at the pressure shown on the type plate. Only use pressure regulators with a fixed setting which comply with the national regulations. Use a pressure regulator with a fixed setting in accordance with DIN EN 16129. Risk of asphyxiation

• Operating the device with gas in an unventilated area will reduce the amount of oxygen in this area.EN RF60, RF62 Scope of delivery

• Do not operate the device with gas in unventilated areas such as enclosed premises, tents, motor vehicles, motor homes, caravans, ships, yachts, boots and truck cabs.

• Do not operate the device in rooms with a volume of less than 40 m

• Never place the device near flammable materials (paper, dry leaves, textiles).

• Keep flammable objects away from the burner.

• Never store liquid gas cylinders in unventilated areas or below ground level (funnel shaped holes in the ground).

• Keep liquid gas cylinders away from direct sunlight. The temperature may not exceed 50 °C.

• Never use a naked flame to check the device for leaks.

• If you smell gas: – Close the gas supply cock and the valve on the cylinder. – Do not press an electric switch. – Put out any naked flames. – Have the gas system checked by a specialist.

• Do not let the device operate unattended when in gas mode.

NOTICE! Failure to obey these instructions may result in damage to the device.

• Only use propane or butane gas (not natural gas). 3Scope of delivery 4 Intended use The mobile refrigeration appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Clients in hotels, motels and other residential type environments Quantity Description1 Absorber device1 AC connection cableEN Intended use RF60, RF62

• Bed and breakfast type environments

• Catering and similar non-retail applications The device is suitable for:

• Cooling, quick-freezing and storing food

• Operation with DC power, AC power or gas The device is not suitable for:

• Using as a built-in appliance

• Using in high-rise buildings, rooms below ground level, bathrooms and bed- rooms

• Using in rooms with a volume of less than 40 m

, e.g. room size of 4 x 4 m with a room height of 2.50 m

• Using in not well-ventilated areas Well-ventilated rooms are rooms with more than one air change per hour with windows and doors that are not joint-tight. The rooms must have at least one window that can be opened or a door that leads directly outside

• Storing caustic substances or substances that contain solvents This product is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the device. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the product result- ing from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts pro- vided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications.EN RF60, RF62 Technical description

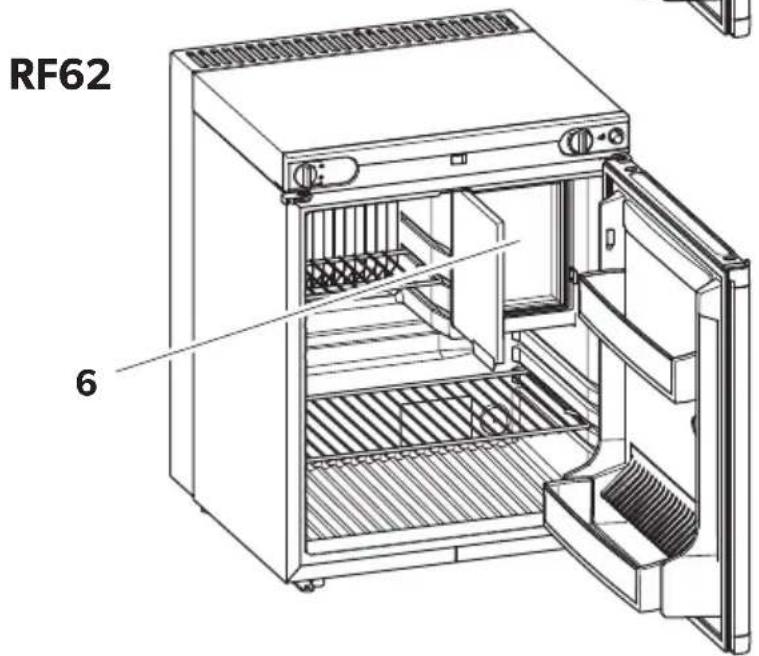

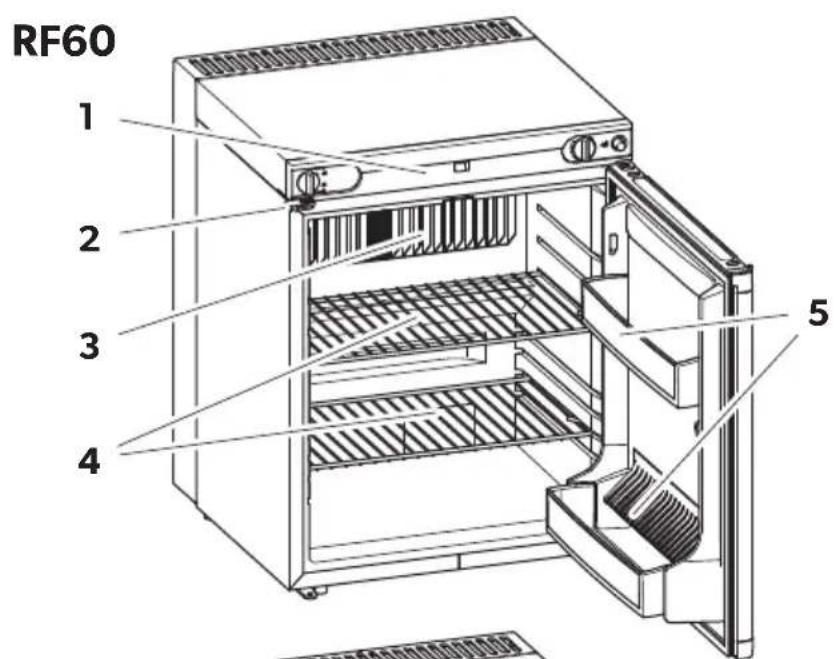

5 Technical description The device is a refrigerator with absorption cooling. Ammonia is used as the refriger- ant. All materials used are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free.

Energy selector switch 6 Placing and connecting the device

6.1 Instructions for placing the device

Observe the following when placing the device:

• Maintain at least 10 mm clearance to the walls.

• Keep the ventilation openings clear of all obstructions to ensure a good ventilation. ➤ Place the device on a level surface. Use a water level to check this.

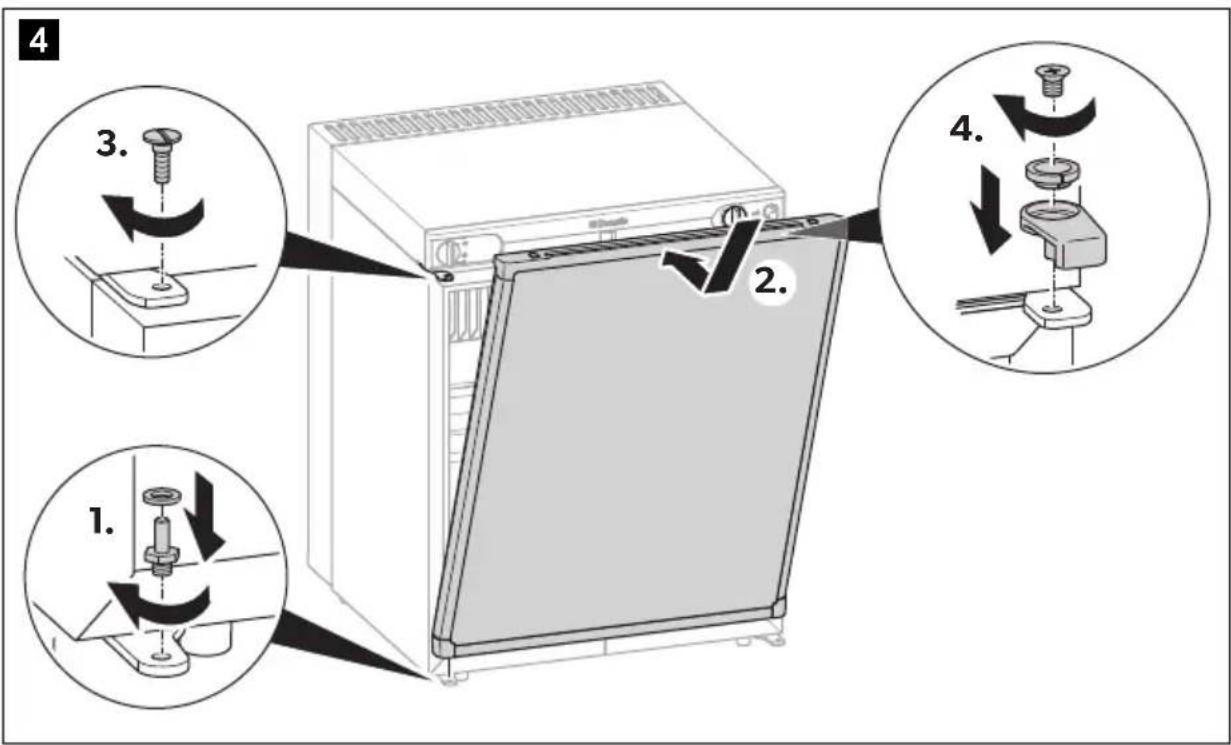

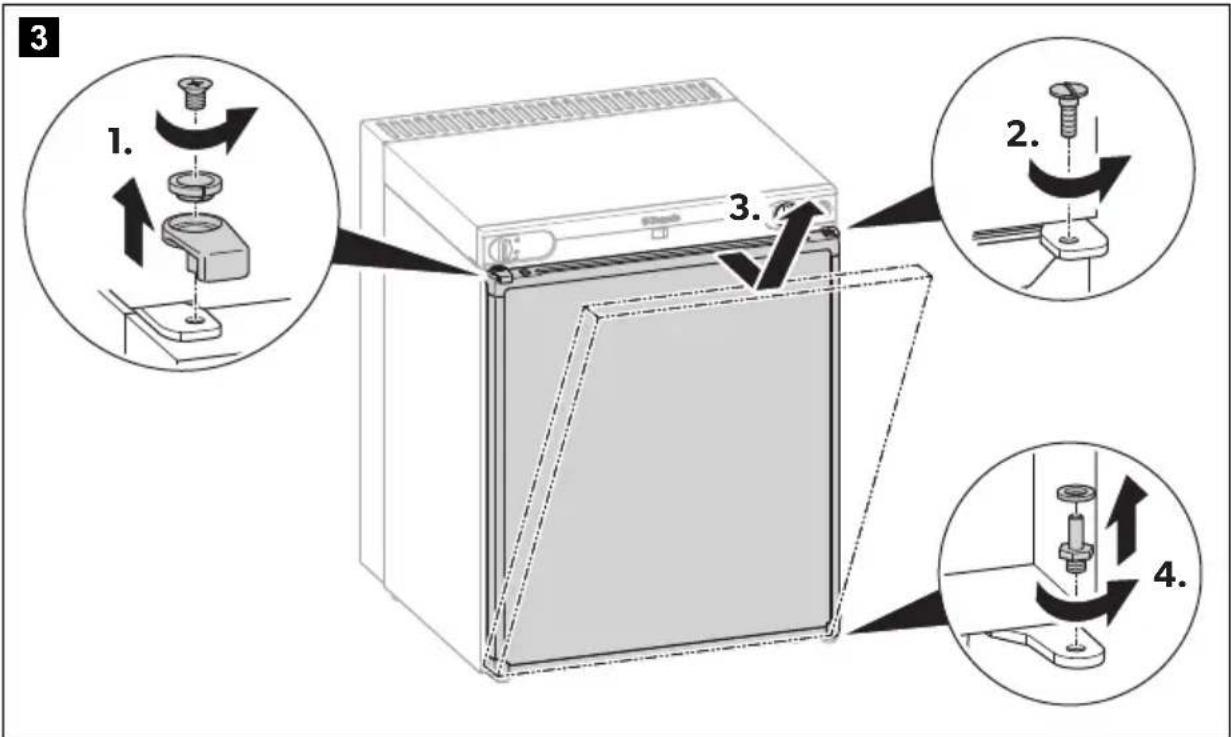

You can change the hinge of the door, so that it opens to the left rather than the right. ➤ Proceed as shown to change the door hinge (fig. 3, page 4 to fig. 4, page 4).

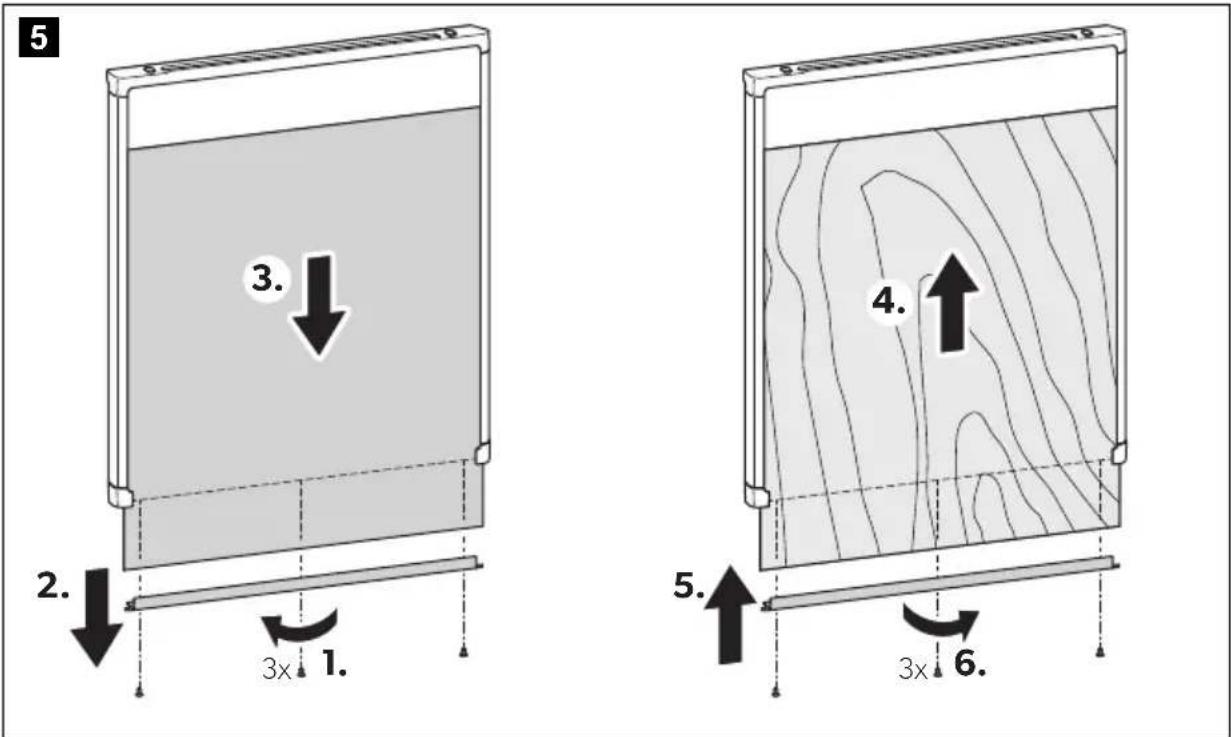

Off AC operationDC operationGas operation WARNING! Electrocution hazard Before performing any work on the device, unplug the power plug. WARNING! Electrocution hazard Before performing any work on the device, unplug the power plug.EN RF60, RF62 Placing and connecting the device

6.4 Connecting to an AC supply

1. Check that the voltage specification on the type plate is the same as that of the

2. Plug the AC connection cable into the AC mains.

6.5 Connecting to a DC supply

1. Check that the voltage specification on the type plate is the same as the battery

2. Determine the required cross section of the cable in relation to the cable length

according to the following table:

3. Connect the wires to a terminal block that is connected to the battery via a 15 A

4. Install an isolating switch between both poles.

The minimum isolating distance between the two poles is 3 mm. NOTICE! Damage hazard

• Make sure the polarity is correct when connecting to a terminal.

• To avoid voltage drops and loss of performance, keep the cable as short as possible and avoid joins. For this reason avoid additional switches, plugs or multi-way adapters.

• Disconnect the device and other electric loads from the battery before connecting the battery to a quick charging device. Over- voltage can damage the electronics of the device.

• Fit a fuse of at least 15 A to the positive connection.

• If you connect the device to the vehicle power, remember that you may have to turn on the ignition to supply it with power. Cable length Cable cross section

Placing and connecting the device RF60, RF62

6.6 Connecting the device to a gas cylinder

1. Check that pressure specification on the type plate is the same as the pressure

information on the pressure regulator on the propane or butane gas cylinder.

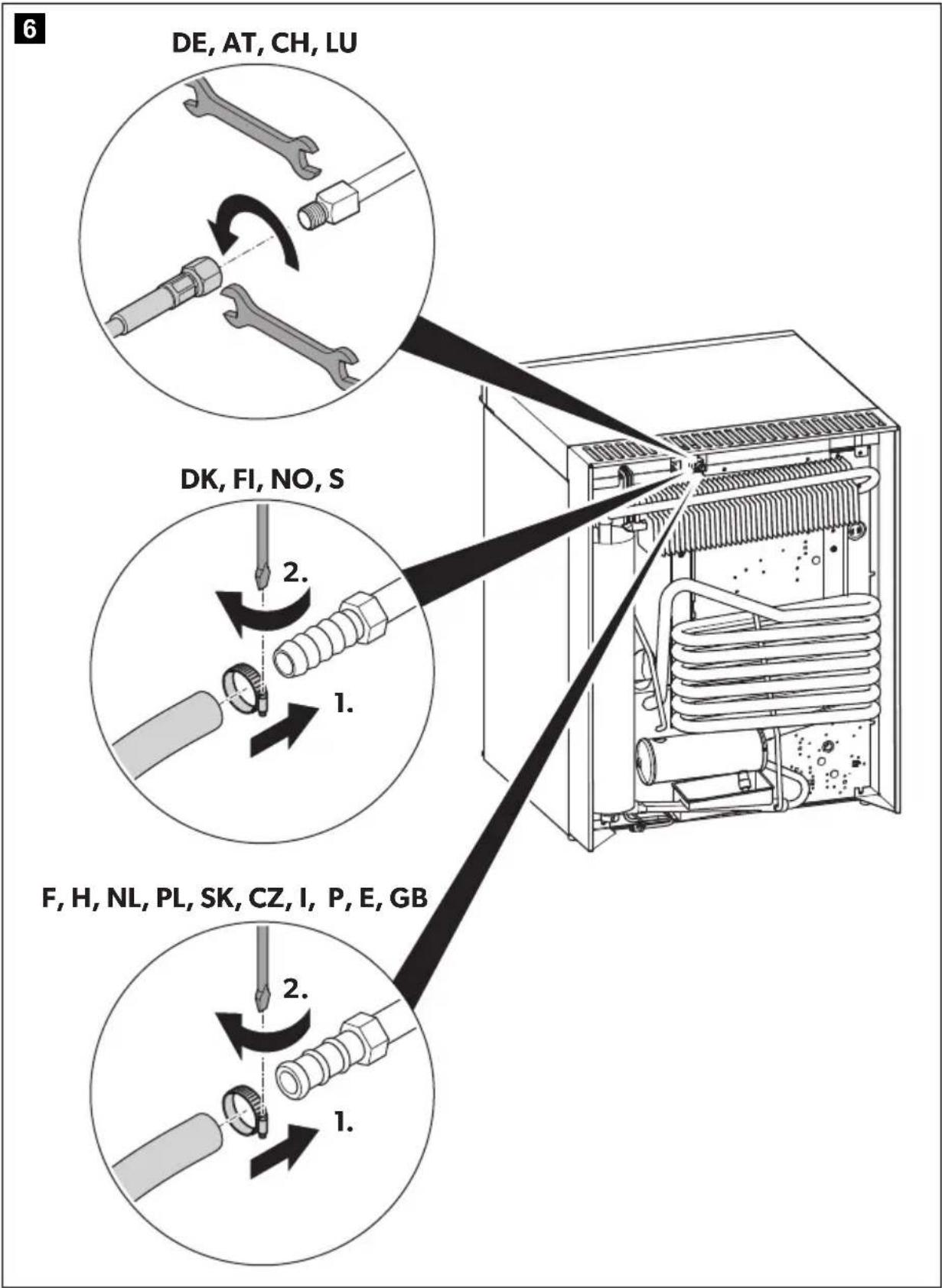

2. Connect the device to the gas hose as shown (fig. 6, page 6).

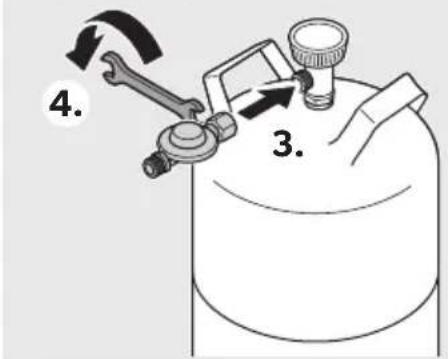

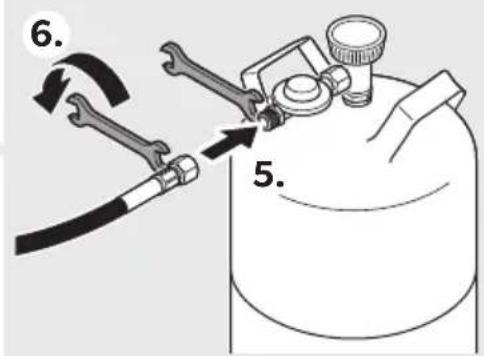

3. Connect the gas hose to the gas cylinder as shown (fig. 7, page 7).

After connecting the device to the gas supply

1. Check the gas pipe for leakage at all the connection points (all threaded connec-

tions, hose connections with clamps, connection to the gas cylinder) using a foaming agent, e.g. soap.

2. Perform a visual inspection of the hose (for cracks, weathering, damage).

WARNING! This device may only be connected to the gas supply by a specialist in accordance with the applicable regulations and standards. NOTICE! Damage hazard

• Only use cylinders of propane or butane gas (not natural gas or city gas) with an approved pressure reduction valve and suitable head.

• Observe the pressures which are permitted in your country. Use an approved pressure regulator with a fixed setting: – The following applies for Europe: DIN EN 16129.

• The device may only be operated with hose lines in a perfect technical condition. Replace any porous or damaged hose lines. NOTE If the gas flame extinguishes the ignition control shuts off the gas supply.EN RF60, RF62 Operation

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the refrigerator as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well.

• Adjust the temperature to the quantity and type of the foodstuff.

• Store the different foodstuff types as shown in the figures.

• Foodstuff can easily absorb or release odor or taste. Always store foodstuff cov- ered or in closed containers/bottles.

• Only open the refrigerator as often and for as long as necessary.

• Allow warm food to cool down first before placing it in the device to keep cool.

• Defrost your refrigerator as soon as a layer of ice forms.

• Avoid unnecessarily low temperature settings.

• For optimal energy consumption, position the shelves and drawers according to their position on delivery.

• On a regularly basis, make sure the door seal still fits properly.

• Clean dust and dirt from the condenser at regular intervals. NOTICE! Damage hazard

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers. NOTE

• Before using the device for the first time, clean it inside and out with a damp cloth for hygienic reasons (see chapter “Cleaning and main- tenance” on page 29).

• The cooling performance can be affected by: – the ambient temperature – the amount of food to be conserved – how often the lid is opened.

• A few water drops may form inside the device if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the device falls. The device is not defective. Wipe it out with a dry cloth if necessary.EN Operation RF60, RF62

7.2 Using the device in DC mode

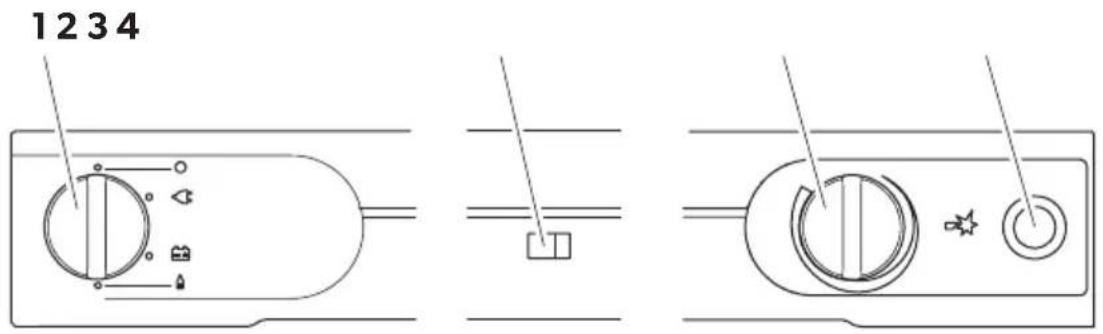

Turning on the device (fig. 2, page 3) ➤ Turn the energy selector switch (1) to the position. ✔ The device starts cooling the interior. Turning off the device ➤ Turn the energy selector switch (1) to the position. ✔ The device is switched off.

7.3 Using the device in AC mode

Turning on the device (fig. 2, page 3)

1. Turn the energy selector switch (1) to the position.

2. Turn the thermostat (3) to the MAX position.

✔ The device starts cooling the interior. It takes about 1 h until the interior becomes noticeable cool. After approx. 5 h you can set the thermostat to a lower temperature. ➤ To increase the cooling level, turn the thermostat (3) clockwise. ➤ To decrease the cooling level, turn the thermostat (3) anticlockwise. Turning off the device (fig. 2, page 3)

1. Turn the energy selector switch (1) to the position.

2. Turn the thermostat (3) to the position.

✔ The device is switched off. NOTE

• When the device is connected to the DC power socket the cooling level cannot be adjusted.

• Cool the device for about 24 hours before starting your journey using gas or electricity from the mains. This way your device will attain the required cooling level faster when you reach your destination.EN RF60, RF62 Operation

7.4 Using the device in gas mode

Turning on the device (fig. 2, page 3)

1. Turn the energy selector switch (1) to the position.

2. Open the gas supply at the gas cylinder.

3. Turn the thermostat (3) to the MAX position.

4. Press down the thermostat (3) and keep it pressed.

5. After 10 s press the ignition button (4) several times, until the flame is lit.

6. For devices with electronic ignition the ignition button (4) has to be kept down

for some seconds. Due to air in the pipes, this may take more than 10 s when the device was out of operation for a longer time or when the gas cylinder was replaced.

7. After ignition keep the thermostat (3) pressed for another 30 s.

8. Release the thermostat (3).

✔ The flame can be controlled by the flame indicator (2). ✔ The device starts cooling the interior. It takes about 1 h until the interior becomes noticeable cool. After approx. 5 h you can set the thermostat to a lower temperature.

➤ To increase the cooling level, turn the thermostat (3) clockwise. ➤ To decrease the cooling level, turn the thermostat (3) anticlockwise. Turning off the device

1. Close the gas supply at the gas cylinder.

2. Turn the thermostat (3) to the position.

7.5 Positioning the shelves

➤ Proceed as shown to position the shelves (fig. 8, page 8). NOTE If the flame does not light up, repeat the ignition procedure after 1 min.EN Operation RF60, RF62

➤ Proceed as shown to unlock the door (fig. 9, page 8). ➤ Proceed as shown to lock the door for transport (fig. 0, page 9).

7.7 Defrosting the device

1. Disconnect the voltage and gas supply.

2. Empty the device.

3. Put a cloth in the compartment to absorb any excess water.

4. Leave the door open.

5. Wipe the compartment dry with a cloth.

7.8 Switching off and storing the device

If you intend to not use the device for a longer period, proceed as follows:

1. Disconnect the voltage and gas supply.

2. Clean the device (see chapter “Cleaning and maintenance” on page 29).

3. Set the door lock in the ventilation position (fig. a, page 9) to prevent odors

from forming. NOTICE! Damage hazard

• Never use mechanical tools to remove ice or to loosen objects stuck to the device.

• Never use heated devices or heaters to speed up the defrosting pro- cess. NOTE Over time, frost builds up on the cooling fins inside the device. If this layer of frost is about 5 mm thick, you should defrost the device.EN RF60, RF62 Cleaning and maintenance

8 Cleaning and maintenance

➤ Clean the device regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the device dry with a cloth after cleaning. ➤ Check the condensate drain regularly. Clean the condensate drain when necessary. If it is blocked, the condensate collects on the bottom of the device. Changing the gas filter ➤ Proceed as shown to change the gas filter (fig. b, page 10). Replacing the ignition battery ➤ Proceed as shown to replace the ignition battery (fig. c, page 11). WARNING! Electrocution hazard/Fire hazard

• Always disconnect the device from the mains before you clean and service it.

• Repair work and maintenance work on the cooling aggregate may only be carried out by an authorized repair center. NOTICE! Damage hazard Never use sharp cleaning agents or hard or pointed tools to remove ice or to loosen objects which have frozen in place.EN Cleaning and maintenance RF60, RF62

8.1 Cleaning the gas burner system

➤ Proceed as shown to clean the burner (fig. d, page 11). WARNING!

• Allow the burner to cool down before cleaning it.

• Do not modify the gas equipment. NOTE

• Dirt in the gas burner is indicated by poor ignition or deflagrations.

• The manufacturer recommends cleaning the burner after the device has not been used for an extended period, and at least once a year.

• When using LPG the cleaning interval is reduced to half yearly or quarterly, depending on the level of dirt.EN RF60, RF62 Troubleshooting

9 Troubleshooting Problem Possible cause Suggested remedy The device does not work. The device has not been set up properly. ➤ Check if the device is horizontal. ➤ Check if the ventilation of the device is sufficient. The refrigerant circuit is defective. ➤ This can only be repaired by an authorized repair center. In DC mode: The device is not working (plug is inserted). No voltage is flowing from the DC power socket in your vehicle. ➤ The ignition must be switched on in most vehicles to supply current to the DC power socket. The vehicle fuse has blown. ➤ Replace the vehicle fuse in the DC socket (usually 15 A) (Please refer to the operating manual of your vehicle). In AC mode: The device is not work- ing (plug is inserted). No voltage present in the AC socket. ➤ Try using another plug socket. In gas mode: The device is not working (to device is connected to the gas). The device is not properly connected to the gas. ➤ Check if the gas supply is in full working order. ➤ Check if the valve on the gas bottle is open. ➤ Check if there is still gas in the bot- tle. ➤ Check if several energy sources are connected at the same time. ➤ Hold down the temperature con- troller longer to ignite the flame. The device does not start up after a long period of inactivity. – ➤ Disconnect the device from the power supply ➤ Turn it upside down and wait for 5min. ➤ Turn the device the right way up again and switch it on again.EN Warranty RF60, RF62

10 Warranty The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault Note that self-repair or non-professional repair can have safety consequences and might void the warranty. 11 Disposal

Recycling packaging material Recycling products with non-replaceable batteries, rechargeable batter- ies, or light sources WARNING! Risk of child entrapment Dismantle all device doors for the disposal of the old device and leave the shelves in the device to prevent accidental enclosure and suffocation of children. ➤ Place the packaging material in the appropriate recycling waste bins wher- ever possible. ➤ If the product contains any non-replaceable batteries, rechargeable batter- ies, or light sources, you don't have to remove them before disposal. ➤ If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the appli-cable disposal regulations.➤ The product can be disposed free of charge.EN RF60, RF62 Technical data

7.5 Posicionar as prateleiras

• bed and breakfast-accommodaties

• Bed-and-breakfast-pensioner
