USER MANUAL LiberoBuds HAMA

1. Explanation of warning symbols and notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specichazards and risks Note This symbol is used to indicate additional information or important notes

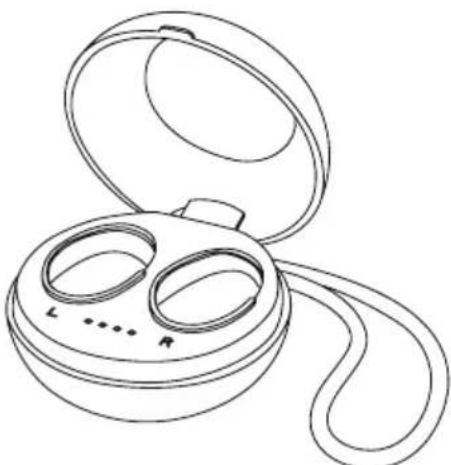

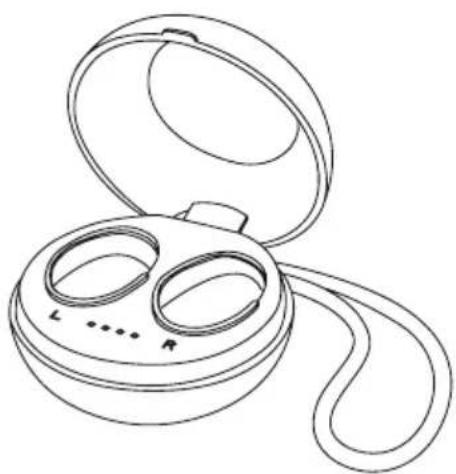

earphones 1xcharging box 1xUSB charging cable 1xcarrying loop 3pairs of ear pads in various sizes (S/M/L) 1xquick guide 1xwarning and safety instructions

• The product is intended for private, non- commercial use only

• Use the product only for the intended purpose

• Children should be supervised to ensurethat they do not play with the product

• Donot use the product in areas in which electronic products arenot permitted

• Do not attempt to service or repair the product yourself Leave any and all service work to qualied experts

• Do not open the device or continue to operate it if it becomes damaged

• Do not drop the product and do not expose it to any major shocks

• Dispose of packaging material immediately in accordance with the locally applicable regulations

• Donot modify the product in any way Doing so voids the warranty

• Protect the product from dirt, moistureand overheating and use it in dry environments only

• Donot use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight

• Only use the article under moderate climatic conditions

• Aswith all electrical products, this device should be kept out of the reach of children

• Donot operate the product outside the power limits specied in the technical data

• Donot use the product in adamp environment and avoid splashing water

• While driving acar or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the tracsituation and your surroundings

• The battery is permanently installed and cannot be removed; dispose of the product as awhole in accordance with the statutory regulations

• Do not incinerate the battery or the product

• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries

• Do not use the product during the charging process! Warning –rechargeable battery

• Only use suitable charging devices or USB connections to charge the product

• Do not use defective chargers or USB ports and do not attempt to repair them

• Do not overcharge the product or allow the battery to completely discharge

• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes)

• Charge regularly (at least quarterly) during periods of prolonged storage Warning -magnets

• This product generates magnetic elds Persons with acardiac pacemaker should consult adoctor beforeusing this product, as the pacemaker's proper function could be affected

• Do not storebank or similar cards with magnetic strips near the charging box or earphones The data on the cards could be damaged or completely deleted Warning -high volume

• High sound pressure!

• Thereisarisk of hearing damage

• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods

• Always keep the volume at asensible level Loud volumes, even over short periods, can cause hearing loss

• Using this product limits your perception of ambient noise Youshould therefore not drive or operate machinery while using them3

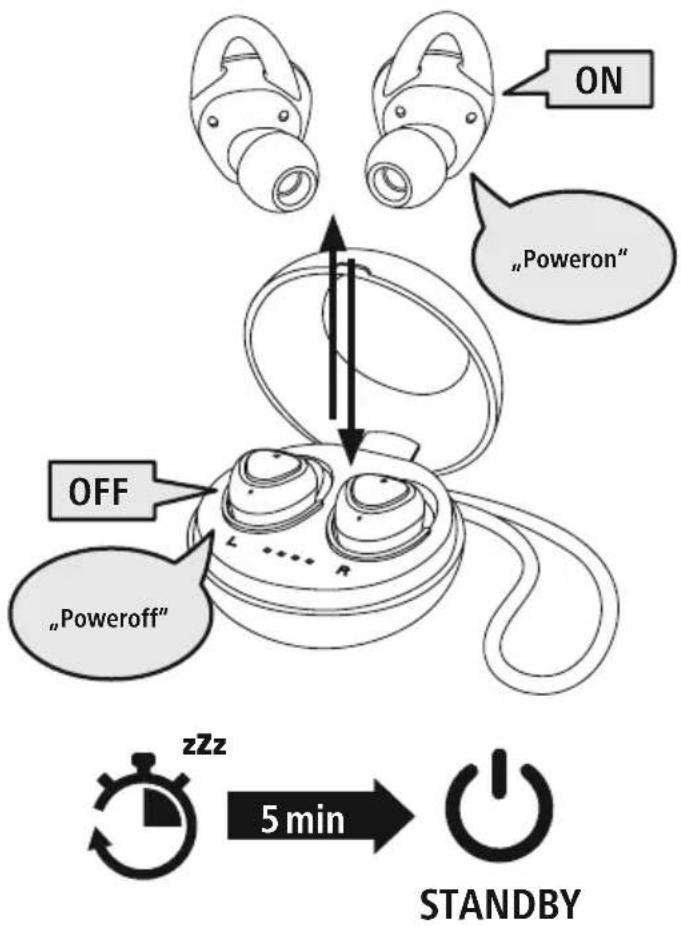

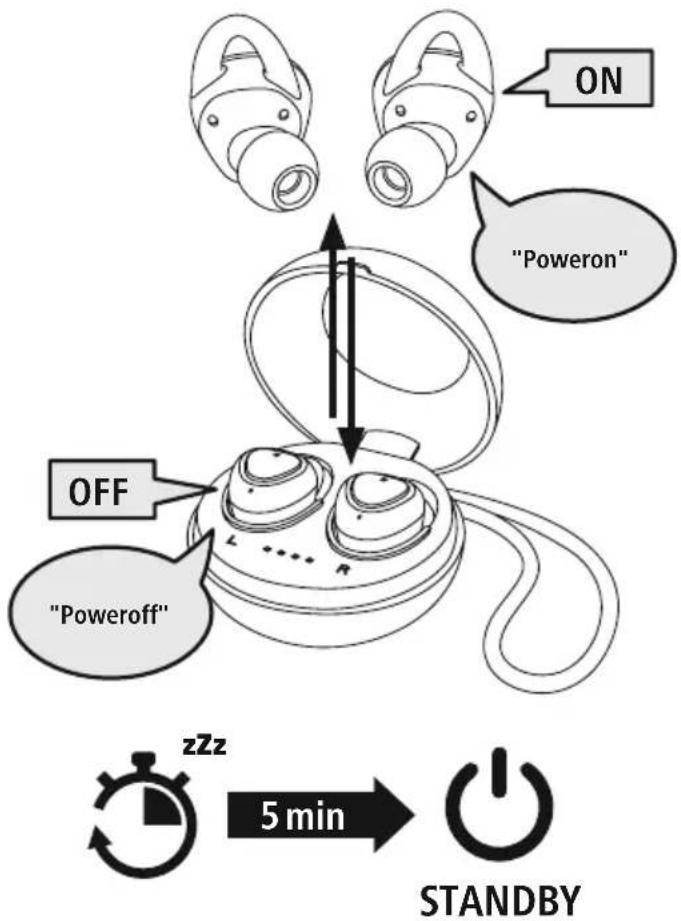

4. Switching on/offRemove the two headphones simultaneously from the charging box Both earphones switch

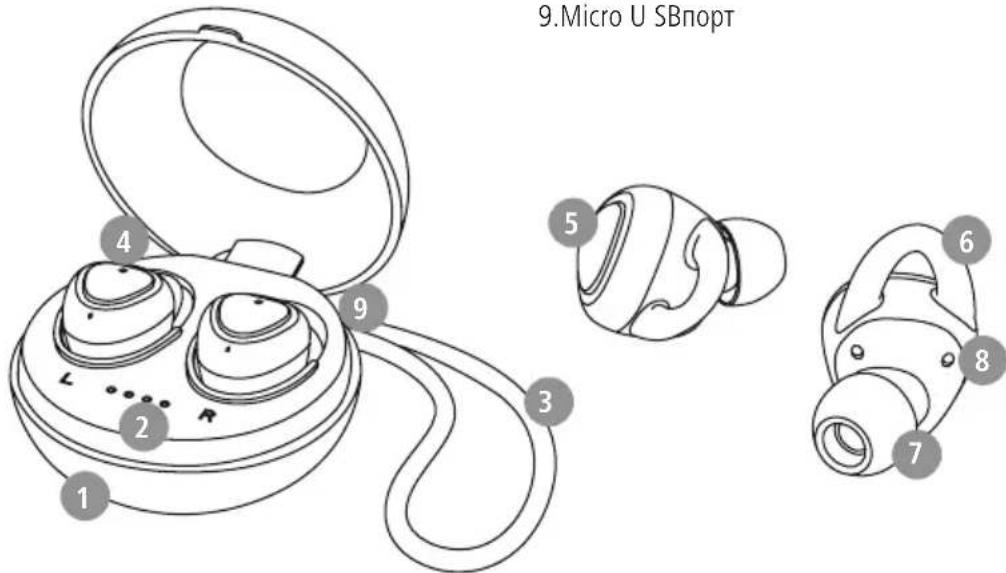

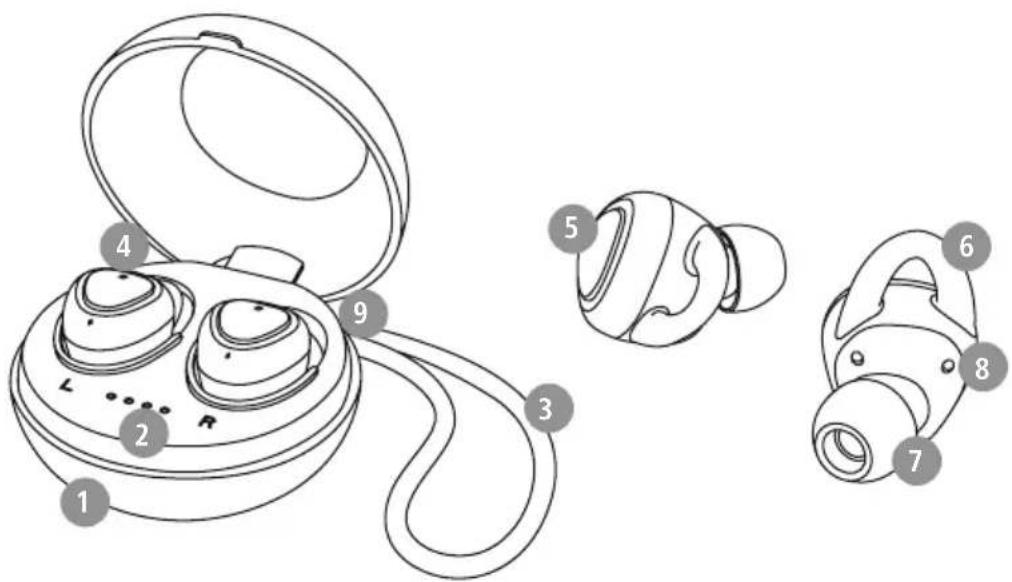

on automatically and start the pairing process The announcement "Power on" is heard Alternative:Press the MFB button (5) on the left and rightearphones for approx 2-3 seconds until you hear theannouncement "Power on" To switch them off,simply place the earphones back in charging box Ensurethat the earphones areinserted into the correct sides, using the L/R markings as aguide Alternative:With the earphones switched on, hold the MFB button (5) on the left or right earphone down for approx 5seconds until you hear asignal tone The status LED (4) brieylights up redand the announcement "Power off" is heardNote –Automatic switch-off of the earphones The earphones areequipped with an automatic switch-off mechanism If thereisnoconnection to your device within 5minutes, they switch off automatically

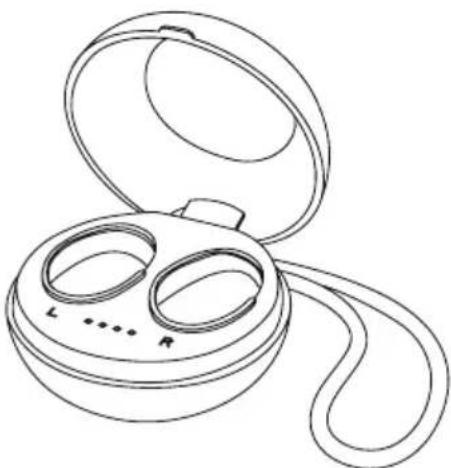

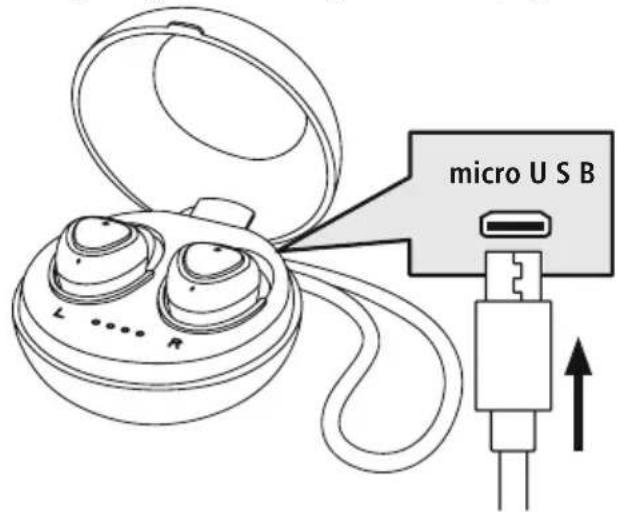

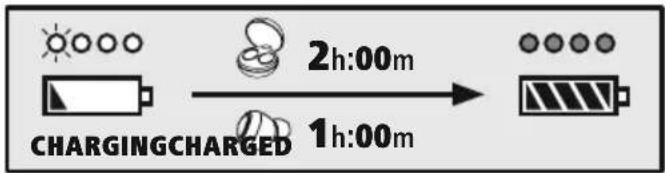

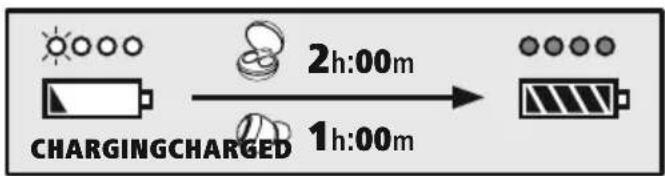

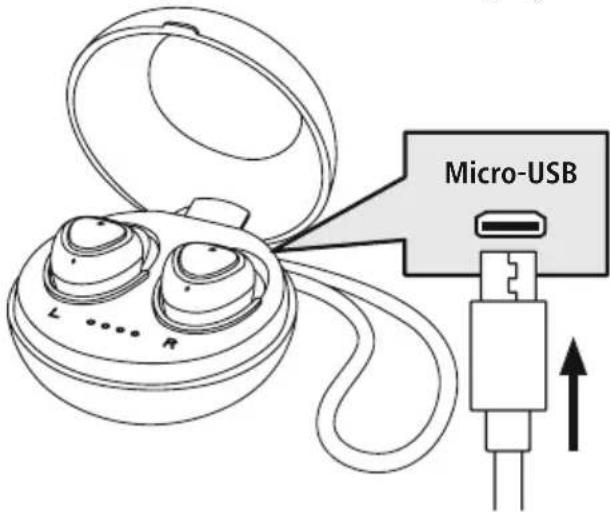

Fully charge the earphones and the charging box once beforeusing them for the rst time Insert the earphones and connect the charging boxPlace the earphones in the chargingbox Ensurethat the earphones areinserted into the correct sides, using theL/R markings as aguideConnect the USB charging cableincluded to the charging socket (9) onthe charging boxConnect the free plug on the micro-USB charging cable to asuitableUSB charger To do this, consult theoperating instructions for the USBcharger you areusingCharging procedure for the charging box and earphones The status LED of the charging box (2) ashes blue After the charging box is fully charged, the 4 LEDs on the charging box light up blue The status LEDs on the earphones (4) light up solid redduring the charging process After the earphones arefully charged, the status LEDs go out It can take up to 1hour (earphones) or up to 2hours (charging box) until the batteries arefully chargedBattery capacityCharging box 100% –75% 75% –50% 50% –25% 25% –0% Earphones When the battery is low (<25%), the announcement "Battery low" is heard The actual battery life will vary depending on how you use the device, the settings and the ambient temperatures (rechargeable batteries have alimited life) Note If you have not used the device for afew months, it can take up to 15 -30minutes until the status LED (2/4) lights up redduring the charging process

• Make surethat your Bluetooth

-capable device is switched on and that Bluetooth

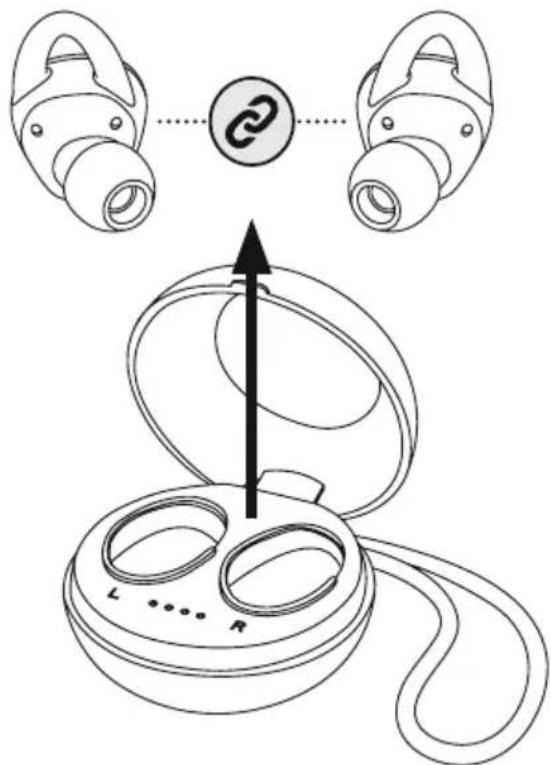

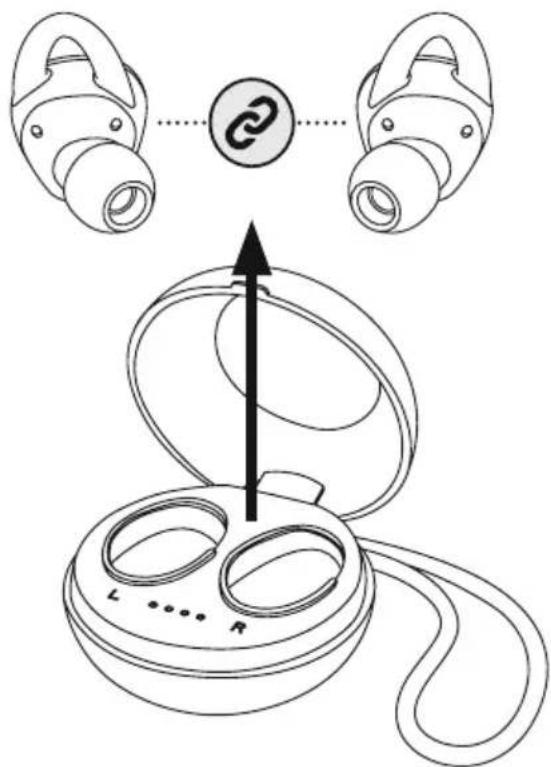

• Formoreinformation, please refer to the operating instructions of your device The earphones and the device should not be morethan 1metreapart The shorter the distance, the better Ensurethat the earphones areswitched on Check the status of the status LED (4) and the announcements If the status LED (4) is flashing alternately and the announcement is: the earphones aresearching for aBluetooth

connection If the status LEDs (4) are flashing slowly and the announcement is: the earphones arealready paired with aBluetooth

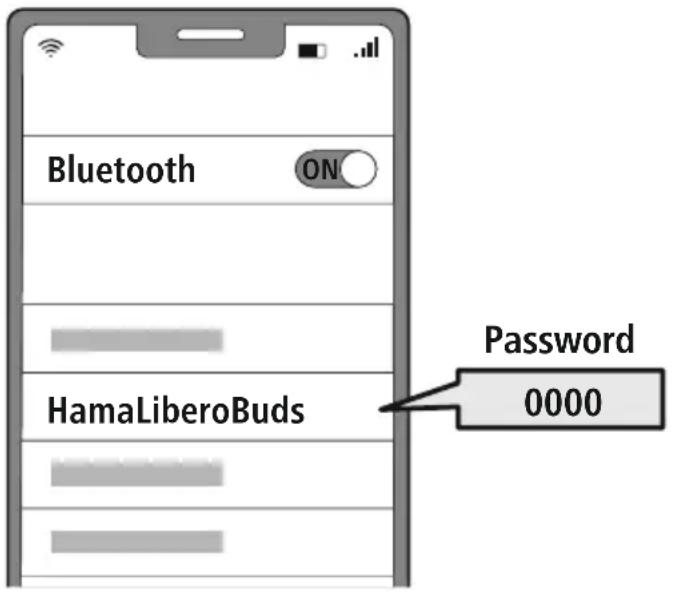

red+blue "Pairing" blue "Your headset is connected"6 Search using your device for the earphones (only required on the first connection) Open the Bluetooth

settings on your device and wait until the list of found Bluetooth

devices shows Hama LiberoBuds The announcement "Pairing" is heard Select Hama LiberoBuds and wait until the earphones areshown as connected in your device's Bluetooth

settings The announcement "Your headset is connected" is heard Note -Bluetooth

password Some devices requireapasswordinorder to connect to another Bluetooth

• If your device requests apasswordtoconnect to the headphones, enter 0000

• Please be awarethat your terminal device must support some functions if they aretobeused

• Formoreinformation, please refer to the operating instructions of your device

7.1 Voice assistant function

Tapthe MFB button (5) on the left or right earphoneonce to initiate communication with Siri or the Google Assistant As soon as you hear asignal tone, your voice assistant is ready to assist youNote -Siri Siri is only available on suitable devices running iOS 5(iPhone 4s or later) or higher Note -Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >15GBoffreememory and aminimum screen resolution of 720P

• The Google Assistant App must be available on your device and be set as the default voice assistant

7.2 Hands-free function

It is possible to use the earphones like ahands-free facility for your device Make acall Dial the number directly via your device to make acall Accept acall Brieytap the MFB button (5) on the left or right earphone to accept an incoming callReject acallTo reject an incoming call, tap and hold the MFBbutton (5) on the left or right earphone for around 2 seconds Youwillhear abrief signal sound End acallDuring the call, press and hold the MFB button (5)on the left or right earphone for around 2seconds toend the callLast number redialTapthe MFB button (5) on the left or right earphone three times to call the number of the last call Youwill hear abrief signal sound

Start playback on your device.Play /PauseTapthe MFB button (5) on the right earphone onceto start or stop audio playbackNext trackTapthe MFB button (5) on the right earphone twiceto skip to the next trackPrevious trackTapthe MFB button (5) on the left earphone twice toskip to the previous track

The volume is controlled by the voice assistant function (71) Alternatively,you can also control the volume via your device

transmissions 2402 –2480 MHz Range <10m Rechargeable battery Battery type 37VLi polymer Min. capacity Earphones /charging box 38mAh /380mAh Charging box current consumption max 5V 350mA Earphones charging time ~1h Charging box charging time ~2h Standby * 200d Music playing * ~45–5h (12 –14h) Call time * ~45–5h (12 –14h) Weight of earphones approx 5g per earphone Weight of charging box incl. earphones approx 50g *Once fully charged10

9. Care and Maintenance

Only clean this product with aslightly damp, lint-free cloth and do not use aggressive cleaning agents

10. Warranty Disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failuretoobserve the operating instructions and/or safety notes

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product Hotline: +49 9091 502-0 (German/English) Further support information can be found here: wwwhamacom

12. Recycling information

Note on environmental protection: After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies: electrical and electronic devices as well as batteries must not be disposed of with household waste Consumers areobliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service lives Detailed information on this topic is dened in the national laws of the respective country This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations By recycling, reusing the materials or other forms of utilising old devices/ batteries, you aremaking an important contribution to protecting our environment

13. Declaration of Conformity
