Spirit Athletics 00184113 - Bluetooth Headset HAMA - Free user manual and instructions

Product type	Bluetooth headset (True Wireless earbuds)
Model	Spirit Athletics 00184113
Brand	Hama
Bluetooth technology	Bluetooth® v5.0
Supported Bluetooth profiles	A2DP V1.3, AVRCP 1.6, HFP V1.7, SPP V1.2
Bluetooth frequency	2 402 - 2 480 MHz
Bluetooth range	< 10 m
Maximum transmission power	2.5 mW (E.I.R.P.)
Battery type	Lithium polymer 3.7 V
Earbuds battery capacity	55 mAh
Charging case battery capacity	575 mAh
Charging time for earbuds	~ 2 hours
Charging time for case	~ 2.5 hours
Music playback time (earbuds)	~ 7 hours
Music playback time (with case)	~ 35 hours
Talk time (earbuds)	~ 5 hours
Standby time	~ 60 hours
Weight of one earbud	Approx. 9 g
Weight of case with earbuds	Approx. 117 g
Charging connector	USB-C
Pairing code	0000
Compatible voice assistant	Siri, Google Assistant
Care and cleaning	Slightly damp lint-free cloth, no harsh detergent
Safety instructions	Avoid excessive volume, do not use while driving, keep out of reach of children
Auto-off	After 3 minutes without connection

Frequently Asked Questions - Spirit Athletics 00184113 HAMA

How to turn the earbuds on and off?

The earbuds turn on automatically when removed from the charging case. To turn them off, simply place them back in the case, respecting the L/R markings.

How to pair the earbuds with my phone?

Make sure the earbuds are on (flashing blue/red LED). Open your phone's Bluetooth settings, select 'Hama Spirit Athletics' from the list. If a code is required, enter 0000.

How to charge the earbuds and case?

Place the earbuds in the case (respect L/R). Connect the supplied USB-C cable to the case and a USB charger. The case LED flashes white while charging and turns off when full. The earbuds LEDs are solid blue during charging.

What is the battery life of the earbuds?

The earbuds offer up to 7 hours of music playback or 5 hours of talk time. The charging case provides a total battery life of about 35 hours.

How to answer or reject a call?

Press once on the touch sensor (left or right) to answer. Press three times to reject a call. To end a call, press twice.

How to control music playback?

Press once on the touch sensor for play/pause. Press three times on the right earbud for next track, three times on the left for previous track.

How to adjust the volume?

Volume is adjusted via the voice assistant (Siri or Google Assistant) by pressing twice on the touch sensor, or directly from your connected device.

How to use the voice assistant?

Press twice on the touch sensor of the left or right earbud to activate Siri or Google Assistant (depending on your device). Make sure the assistant is set up.

What to do if the earbuds don't connect?

Check that the earbuds are on and within 1 meter of your device. If the problem persists, place the earbuds in the case, close it, wait a few seconds, then try again. You can also forget the device in Bluetooth settings and re-pair.

How to clean the earbuds?

Use a soft, lint-free cloth slightly dampened. Avoid any harsh detergent. Do not immerse the earbuds in water.

USER MANUAL Spirit Athletics 00184113 HAMA

Abstract line drawing of a stylized helmet or helmet with layered design (no text or symbols)

Simple line drawing of an open padlock (no text or symbols)

Line drawing of an open and closed medical device casing with internal components (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

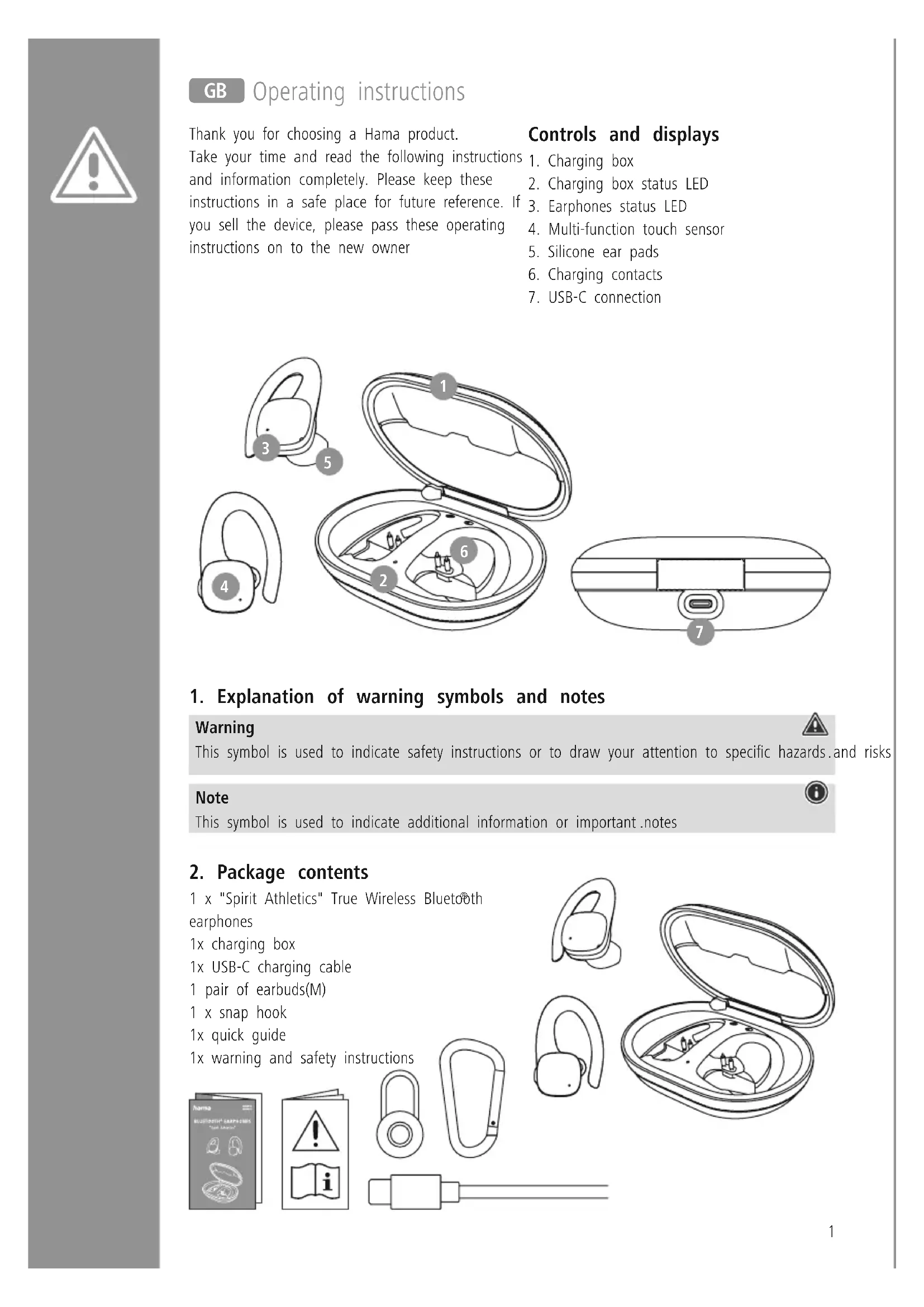

GB Operating instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner

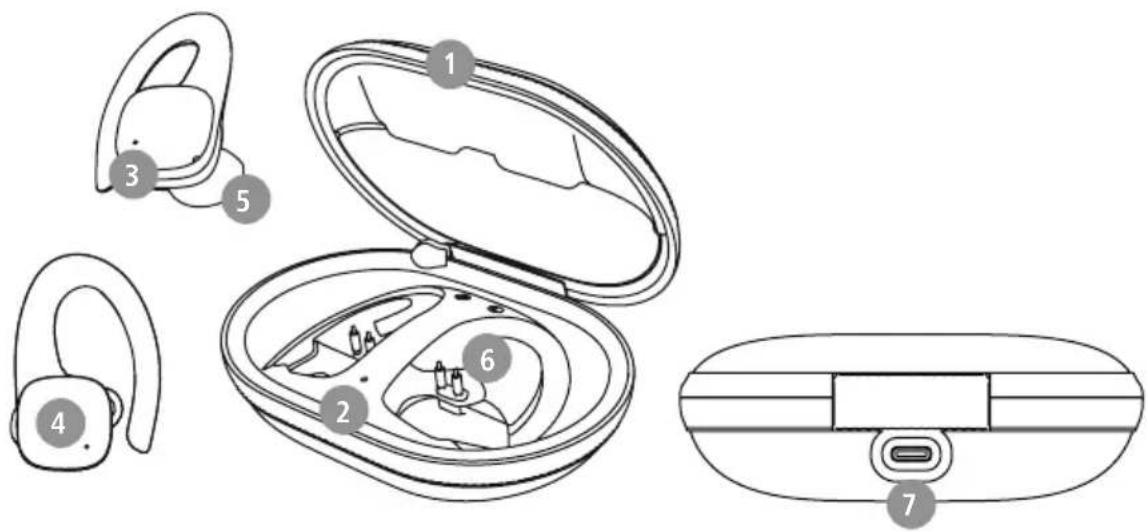

Controls and displays

1. Charging box
2. Charging box status LED
3. Earphones status LED
4. Multi-function touch sensor
5. Silicone ear pads
6. Charging contacts
7. USB-C connection

Diagram of wireless earbuds with numbered labels indicating component layout

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards.and risks

Note

This symbol is used to indicate additional information or important notes

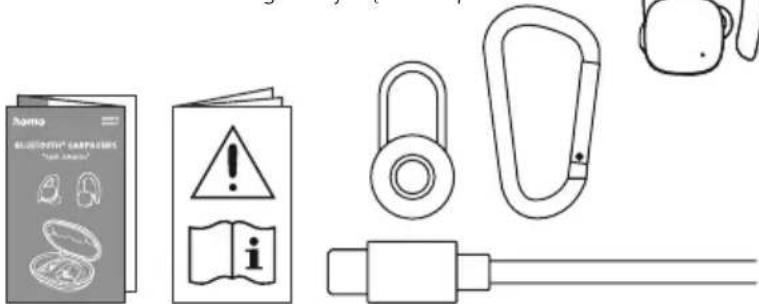

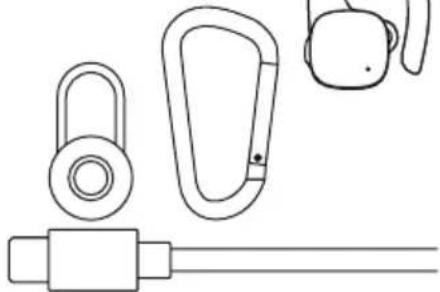

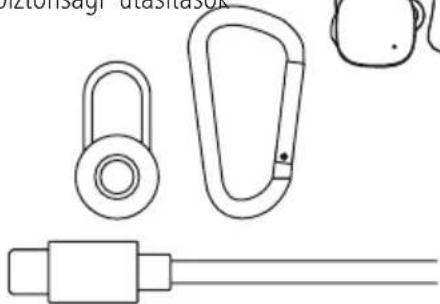

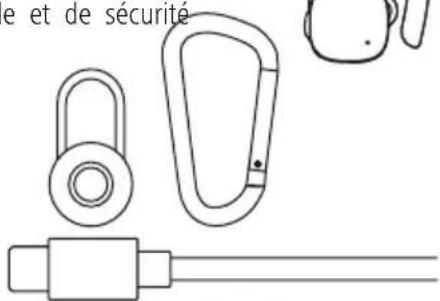

2. Package contents

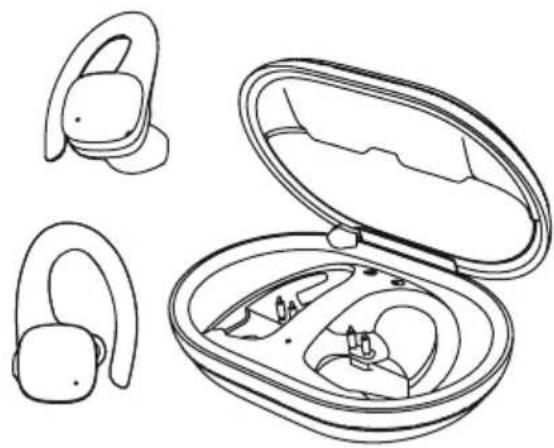

1 x "Spirit Athletics" True Wireless Bluetooth earphones

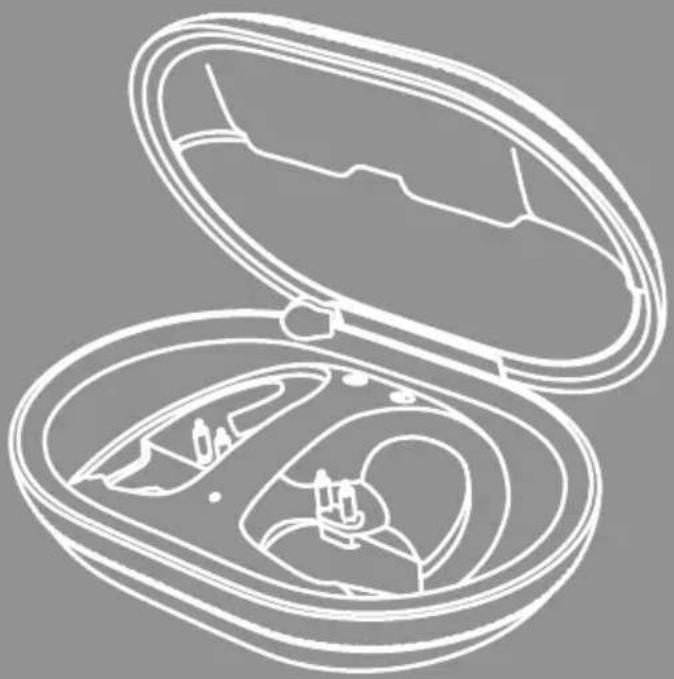

1x charging box
1x USB-C charging cable
1 pair of earbuds(M)
1 x snap hook
1x quick guide
1x warning and safety instructions

Two simple line drawings of a U-shaped object with a circular hole on the left and a curved handle-like shape on the right (no text or symbols)

Line drawings of wireless earbuds and charging case (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only
• Use the product only for the intended purpose.
  • Children should be supervised to ensure that they do not play with the product
• Do not use the product in areas in which electronic products are not permitted
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts
• Do not open the device or continue to operate it, it becomes damaged
• Do not bend or crush the cable.
• Do not drop the product and do not expose it to any major shocks
• Dispose of packaging material immediately in accordance with the locally applicable regulations
• Do not modify the product in any way. Doing so voids the warranty
• Protect the product from dirt, moisture and overheating and use it in dry environments only
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight
• Only use the article under moderate climatic conditions.
• As with all electrical products, this device should be kept out of the reach of children
• Do not operate the product outside the power limits given in the specifications
• Do not use the product in a damp environment and avoid splashing water
• While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.
• The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations
• Do not incinerate the battery or the product.
• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
• Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB ports to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high if altitudes).
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

Warning - magnets

• This product generates magnetic fields. Individuals with cardiac pacemakers should consult a doctor before using this product as it may affect the pacemaker's proper function
• Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
- To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
• Always keep the volume at a reasonable level. Loud volumes can damage hearing — even over short periods.
• Using this product limits your perception of
ambient noise You should therefore not operate vehicles or machines while using them.

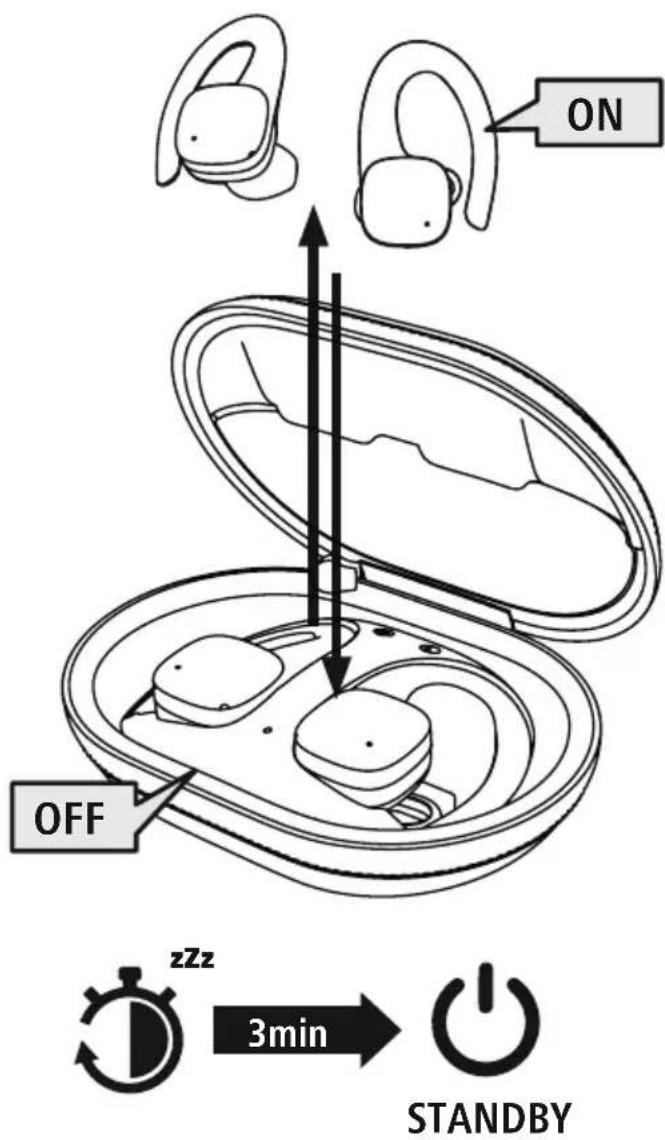

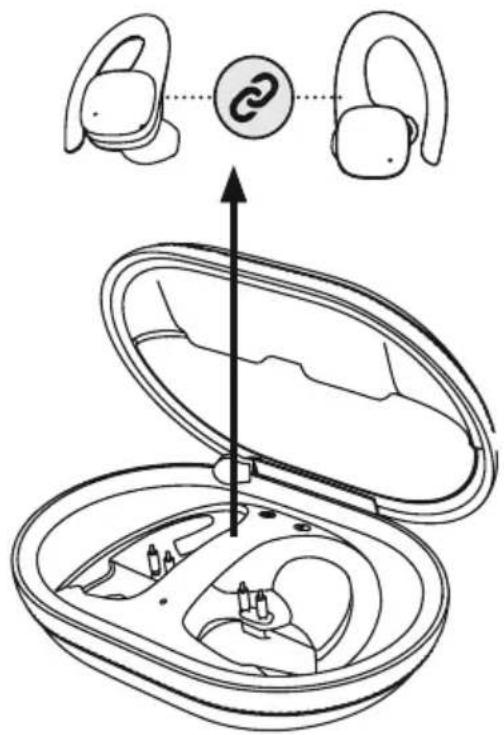

4. Switching on/off

Remove the two earphones simultaneously from the charging box. Both earphones switch on automatically and start the pairing process.

To switch them off, simply place the earphones back in charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

ON OFF zzz 3min STANDBY

Note - Automatic product switch-off

The product is equipped with an automatic switch-off mechanism, there is no connection to your device within 3 minutes, it switches itself off automatically.

5. Charging

Fully charge the earphones and the charging box once before using them for the first time

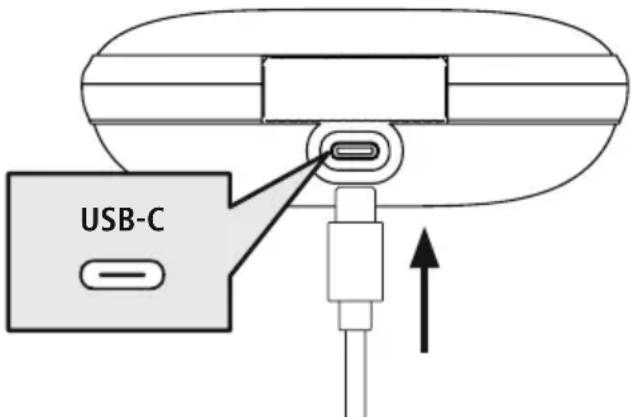

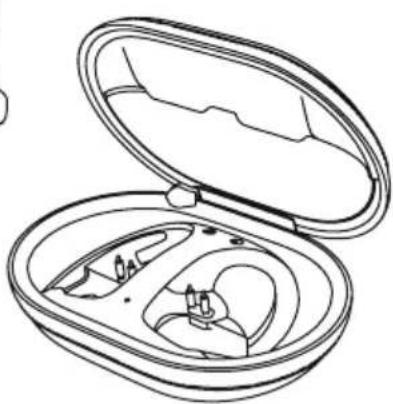

1 Insert the earphones, close the charging box and connect it

Place the earphones in the charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide. Then close the charging box.

Connect the USB-C charging cable included to the charging socket (7) on the charging box.

Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

USB-C

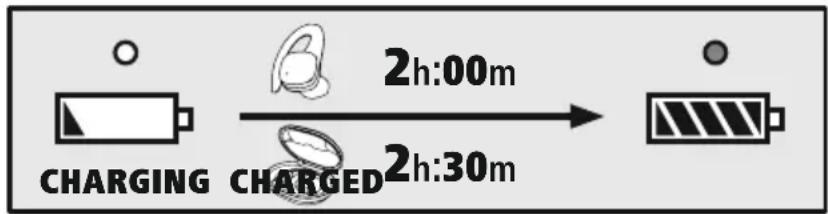

2 Charging procedure for the charging box and earphones

The status LED on the charging box (2) lights up white during the charging process. Once the charging box is fully charged, the LED on the charging box goes out.

The status LEDs on the earphones (3) light up solid blue during the charging process. Once the earphones are fully charged, the status LEDs go out.

It can take up to 2 hours (earphones) or up to 2.5 hours (charging box) until the batteries are fully charged.

CHARGING CHARGED 2h:00m 2h:30m

3 Battery capacity

Charging box

When battery levels are low (<5%), the status LED (2) on the charging box flashes white

Earphones

When battery levels are low (<20%), you will hear "Battery Low" every 5 minutes and the status LED on the earphones (3) will flash red every 5 seconds.

The actual battery life will vary depending on how you use the device, the settings and the ambient temperatures (rechargeable batteries have a limited life).

Note

If you have not used the product for a few months, it can take up to 15 - 30 minutes until the status LED (2) lights up red during the charging process.

6. Bluetooth® pairing

Note - pairing

• Ensure that the Bluetooth-enabled device is switched on and that the Bluetooth function is activated.
• Please refer to the operating instructions of your device for more information.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Ensure that the earphones are switched on.

Diagram illustrating wireless earbuds with labeled components and a directional arrow indicating movement or orientation.

1 Check the status of the status LED (3) and the announcements

blue/red "Pairing"

If the status LEDs (3) on the earphones flash alternately: the earphones are searching for a Bluetooth connection.

off "Connected"

If the status LEDs (3) are flashing and then go out: the earphones are already paired with a Bluetooth device.

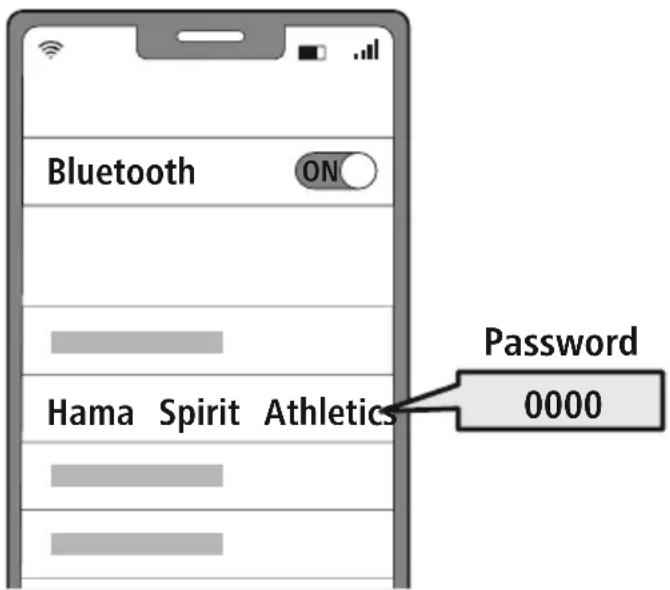

2 Search using your device for the earphones (only required on the first connection)

Open the Bluetooth® settings on your device and wait until the list

of found Bluetooth® devices shows Hama Spirit Athletic The announcement "Pairing" is heard.

Select Hama Spirit Athletics and wait until the earphones are shown as connected in your device's Bluetooth® settings. The announcement "Connected" is heard.

Bluetooth ON Password 0000 Hama Spirit Athletics

Note - Bluetooth@password

Some devices require a password in order to connect to another Bluet device.

- If your device requests a password to connect to the earphones, enter 0000.

7. Control elements

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• Please refer to the operating instructions of your device for more information.

7.1 Voice assistant function

Siri/Google

Tap the multi-function touch sensor (4) on the left or right earphone twice to initiate communication with your Siri or Google Assistant

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

- The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.

- The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Tap the multi-function touch sensor (4) on the left or right earphone once to accept an incoming call. You will hear a brief signal tone.

3 Reject a call

To reject an incoming call, tap the multi-function touch sensor (4) on the left or right earphone three times.

4 End a call

During the call, tap the multi-function touch sensor (4) on the left or right earphone to end the cadu will hear a brief signal tone.

5 Last number redial

You can redial the last number you called via the voice assistant function (7.1).

7.3 Audio playback

1 Start playback on your device.
2 Play / Pause

3 Next track

4 Previous track

L 3x

Tap the multi-function touch sensor (4) on the left or right earphone once to start or stop audio playback.

Tap the multi-function touch sensor (4) on the right earphone three times to skip to the next track.

R

Tap the multi-function touch sensor (4) on the left earphone three times to skip to the previous track.

7.4 Volume control

The volume is controlled by the voice assistant function (7.1). Alternatively, you can also control the volume via your device.

1. Technical data

Bluetooth® earphones
Bluetooth technology	Bluetooth® v5.0
Supported profile A2DPV1.3, AVRCP 1.6, HFP V1.7, SPP V1.2
Frequency for Bluetooth Transfers	2402 – 2480MHz
Reach < 10 m
Battery
Battery type 3	.7V Li polymer
Min. capacity Earphones / charging box	55mAh / 575mAh
Current consumption max. 5V	--- 520 mA
Earphones charging time ~ 2 h
Charging box charging time	~ 2.5 h
Standby * ~ 60 h
Music time (charging box) *	~ 7 h (35h)
Talk time (charging box)* ~ 5 h (25 h)
Weight of earphones approx.	9 g per earphone
Weight of charging tray incl. earphones	approx. 117 g

* Once fully charged

9. Care and maintenance

Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: wwwama.com

12. Declaration of conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184113, 00184115] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

https://uk.hama.com 00184113, 00184115 Downloads

Frequency band(s) 2402 - 2480MHz

Maximum radio-frequency power transmitted 2.5 mW E.I.R.P.

Diagram of wireless earbuds with numbered labels indicating component layout

Line drawings of wireless earbuds and charging case (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

3 Akkukapazität

Ladebox

Diagram illustrating wireless ear device components with labeled parts and directional arrow indicating assembly or connection.

blue/red "Pairing"

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing exploded view of wireless earbuds with numbered labels indicating component layout

Line drawings of wireless earbuds and charging case (no text or symbols)

e et de securite

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a central connection point, showing open and closed states.

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Remarque – Mot de passe Bluetooth®

Remarque - Assistant Google

Diagram showing a telephone handset with an icon representing 1x speed, next to a stylized kettlebell.

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of wireless earbuds and charging case (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless ear device components with labeled parts and directional arrow indicating assembly or connection.

azul/rojo "Pairing"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a phone with an upward arrow and a hand icon labeled '1x', alongside a circular icon with a thumbs-up.

Diagram showing directional icons including left-pointing arrow, stylized ear, and hand gesture with '3x' label

Diagram showing exploded view of wireless earbuds with numbered labels indicating component layout

Line drawing of an open medical device with internal components (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

3 Accucapaciteit

Oplaadbox

Diagram illustrating wireless earbuds with labeled components and a vertical arrow indicating direction or relationship.

blue/red "Pairing"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of wireless earbuds and charging case (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating the internal structure of an earless ear with labeled components and a directional arrow indicating movement or orientation.

blue/red "Pairing"

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Nota - password Bluetooth®

Diagram showing a telephone handset icon with an 1x multiplier between the next hand and the last bell icon, indicating speedup or conversion.

Diagram showing audio playback icons and a directional arrow labeled '3x' with a hand gesture icon

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of an earbuds and earchairs in open and closed views (no text or symbols)

Homo BLUZOTIV® CARPASIS "High Safety" i

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless ear device components with labeled parts and directional arrow indicating assembly or connection.

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing exploded view of wireless earbuds with numbered labels indicating component layout

Line drawing of an open wireless earbuds with two earless ear cutouts (no text or symbols)

Line drawings of various climbing and bracket components (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

3 Akkukapacitás

Töltódoboz

Diagram illustrating wireless earbuds with labeled components and a central connection point, showing open and closed states.

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a telephone handset icon, hand gesture, and speech bubble with '1x' label, likely representing speed or communication.

Releavede - 2.5m 3x R

Diagram of wireless earbuds with numbered labels indicating component layout

Line drawings of wireless earbuds and charging case (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a central connection point, showing open and closed states.

Bluetooth ON Hama Spirit Athletics Password 0000

Indicatie – Parola Bluetooth®

Diagram of wireless earbuds with numbered labels indicating component layout

Pure technical line drawings of mechanical components without any text or symbols

Line drawings of wireless earbuds and charging case (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a central connection point, showing open and closed views of the device.

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a telephone handset icon with an 1x multiplier sign, next to a stylized kettlebell icon.

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of wireless earbuds and charging case (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

3 Kapacita batérie

Nabíjací box

Ak je úroveň nabitia batérie nízka (<5 %), stavová LED (2) nabíjacieho boxu bliká. nabielo

Slúchadlá do uší

Diagram illustrating wireless earbuds with labeled components and a directional arrow indicating movement or orientation.

blue/red "Pairing"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a telephone handset icon with an 1x multiplier between the second and third hand, followed by a stylized kettlebell icon.

Diagram showing a call with a telephone icon, a hand pointing to a 1x multiplier sign, and a megaphone icon.

Diagram showing left-pointing arrow, lock icon, and 3x speed indicator with hand gesture

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of an earbuds and earchairs with open case (no text or symbols)

ON OFF zzz 3min STANDBY

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless ear device components with labeled parts and directional arrow indicating assembly or connection.

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing audio playback icons and a 3x multiplier label with hand gesture

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawings of wireless earbuds and charging case (no text or symbols)

Line drawings of mechanical components including a U-shaped bracket, a separate loop switch, and a rectangular rod (no text or symbols)

3. Säkerhetsinformation

CHARGING CHARGED 2h:00m 2h:30m

3 Batterikapacitet

Laddningsbox

Diagram illustrating the internal structure of an earless ear with labeled components and a directional arrow indicating movement or orientation.

Bluetooth ON Password 0000 Hama Spirit Athletics

Information – Bluetoothlösenord

Diagram showing directional icons including left-pointing arrow, lock, and 3x speed limit symbol with hand gesture

Line drawings of wireless earbuds and charging case (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a vertical arrow indicating direction or relationship.

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a telephone icon with an arrow labeled '1x' pointing to a stylized heart-shaped object.

Simple graphic with a call icon, hand gesture labeled '1x', and speech bubble icon

Diagram of wireless earbuds with numbered labels indicating component layout

Line drawings of mechanical components including a U-shaped hook, a separate loop switch, and a rectangular bracket (no text or symbols)

Line drawing of an open closed medical device with internal components (no text or symbols)

3. Указания за безопасност

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a directional arrow indicating movement or orientation.

blue/red "Pairing"

off Connected

Bluetooth ON Hama Spirit Athletics Password 0000

Указание – Bluetooth парола

Diagram showing a telephone icon, hand gesture, and speech bubble with '1x' label, likely representing speed or communication.

Diagram showing a call with a telephone icon, a hand pointing to '1x', and a stylized megaphone icon.

Diagram of wireless earbuds with numbered labels indicating different components and parts.

Line drawing of an open closed medical device with internal components (no text or symbols)

Line drawing of a mechanical device with three components: a lock, a lollipop, and a handle (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating wireless earbuds with labeled components and a vertical arrow indicating direction or relationship.

OFF "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram of wireless earbuds with numbered labels indicating component layout

Line drawings of wireless earbuds and charging case (no text or symbols)

Line drawings of mechanical components including a lock, U-shaped bracket, and rod (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

Diagram illustrating the working principle of an earless ear with labeled components and a directional arrow indicating movement.

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Diagram showing a telephone handset icon, hand gesture, and double-headed arrow labeled '1x' next to a stylized heart-shaped graphic.

Diagram showing a call with a telephone icon, a hand pointing to '1x', and a stylized megaphone icon.

Diagram of wireless earbuds with numbered labels indicating component layout

Line drawings of wireless earbuds and charging case (no text or symbols)

CHARGING CHARGED 2h:00m 2h:30m

3 Akun kapasiteetti

Latauskotelo

Diagram illustrating the working principle of an earless ear with labeled components and a directional arrow indicating movement.

blue/red "Pairing"

off "Connected"

Bluetooth ON Password 0000 Hama Spirit Athletics

Huomautus Bluetooth®-salasanasta

Diagram showing a telephone icon with an up arrow and a hand pointing to a 1x multiplier next to a stylized heart-shaped icon.

Diagram showing a call with a downward arrow, a hand pointing to the number 1x, and a stylized heart-shaped icon.
