Product type	Bluetooth True Wireless Headset
Brand	Hama
Model	Passion Chop 00184090
Wireless technology	Bluetooth v5.0
Supported Bluetooth profiles	A2DP 1.3, AVRCP 1.6, HFP 1.7, SPP 1.2
Bluetooth frequency	2,402 - 2,480 MHz
Bluetooth range	Less than 10 m
Maximum transmission power	2.5 mW (E.I.R.P.)
Power supply	Lithium-polymer battery 3.7 V (earphones 43 mAh, case 290 mAh); charging via USB-C or QI induction
Charging time of earphones	~ 2.5 h
Charging time of case	~ 5 h
Battery life in listening (earphones only)	~ 4 h
Battery life with charging case	~ 8 h (estimated)
Weight per earphone	Approximately 4 g
Weight of charging case with earphones	Approximately 41 g
Dimensions of wireless charger	92 x 72 x 9 mm
Main functions	Multifunction touch control, voice assistant (Siri/Google), hands-free kit, play/pause, track change, volume control via smartphone
Maintenance and cleaning	Clean with a soft, slightly damp cloth, without harsh detergent
Safety instructions	Do not expose to moisture, do not open, avoid shocks, moderate volume to protect hearing, keep out of reach of children, do not use while driving
Package contents	1 pair of earphones, 1 charging case, 1 wireless charger, 1 USB-C cable, 3 pairs of ear tips (S/M/L), instruction manuals

Frequently Asked Questions - Passion Chop 00184090 HAMA

How to turn the earphones on or off?

To turn on, remove the earphones from the case or press the touch sensor for 2-3 seconds until you hear Power on. To turn off, place them back in the case or press the touch sensor for 5 seconds until Power off. The earphones turn off automatically after 5 minutes without connection.

How to pair the earphones with a smartphone?

Make sure your smartphone's Bluetooth is enabled. Remove the earphones from the case: they enter pairing mode (flashing LED). Search for Hama Passion Chop in Bluetooth settings and select it. If a password is requested, enter 0000. The announcement 'Connected' confirms the connection.

How to answer or end a call?

To answer, press the touch sensor once. To end a call, press twice quickly. To reject a call, hold the touch sensor for 1-2 seconds.

How to skip to the next or previous track?

Hold the touch sensor on the right earphone for 1-2 seconds for the next track. For the previous track, hold the touch sensor on the left earphone for 1-2 seconds.

How to use the voice assistant?

Press the touch sensor on the left or right earphone twice quickly to activate Siri (iOS) or Google Assistant (Android 5.0+). Then speak your command.

How to charge the charging case?

You can charge the case via the USB-C port (cable included) or by induction by placing it in the center of the included wireless charger. The case LED turns off when charging is complete (approx. 5 h).

How long does the earphone battery last?

The earphones provide about 4 hours of continuous listening or talk time. With the charging case, the total battery life reaches about 8 hours. The charging time is about 2.5 h for the earphones.

What to do if one earphone stops working?

Check that the earphones are charged and properly inserted in the case. Try to reset them by placing them back in the case and then removing them again. If the problem persists, contact Hama customer service.

Can I use a single earphone?

Yes, the earphones can be used individually. Remove a single earphone from the case: it will connect automatically. To switch to stereo mode, remove both.

How to clean the earphones and case?

Use a soft, slightly damp cloth (without harsh detergent) to clean the earphones and case. Avoid moisture in the charging ports. Never immerse the devices.

USER MANUAL Passion Chop 00184090 HAMA

Line drawing of an open wireless earbuds case with two cups, no text or symbols present

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

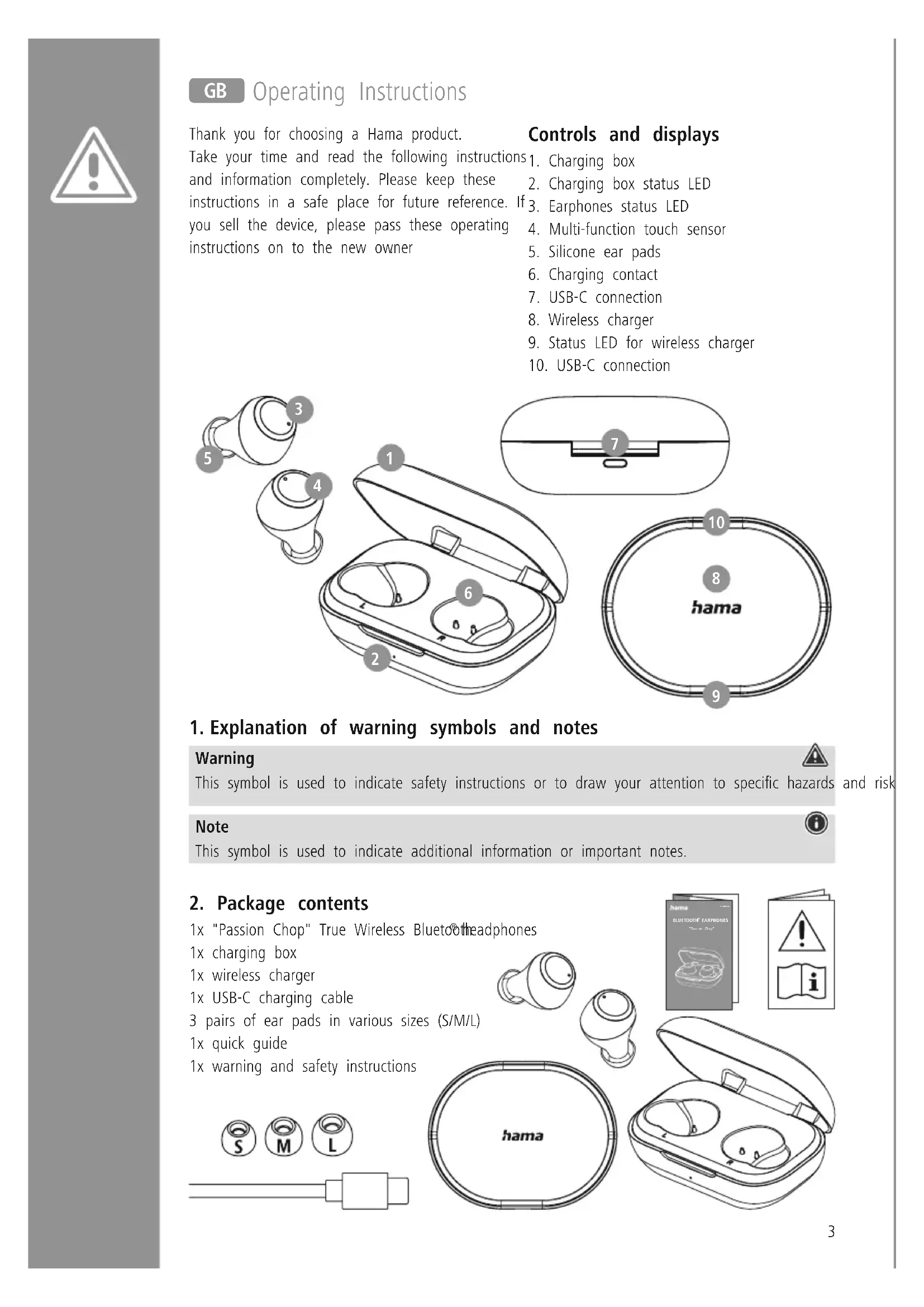

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner

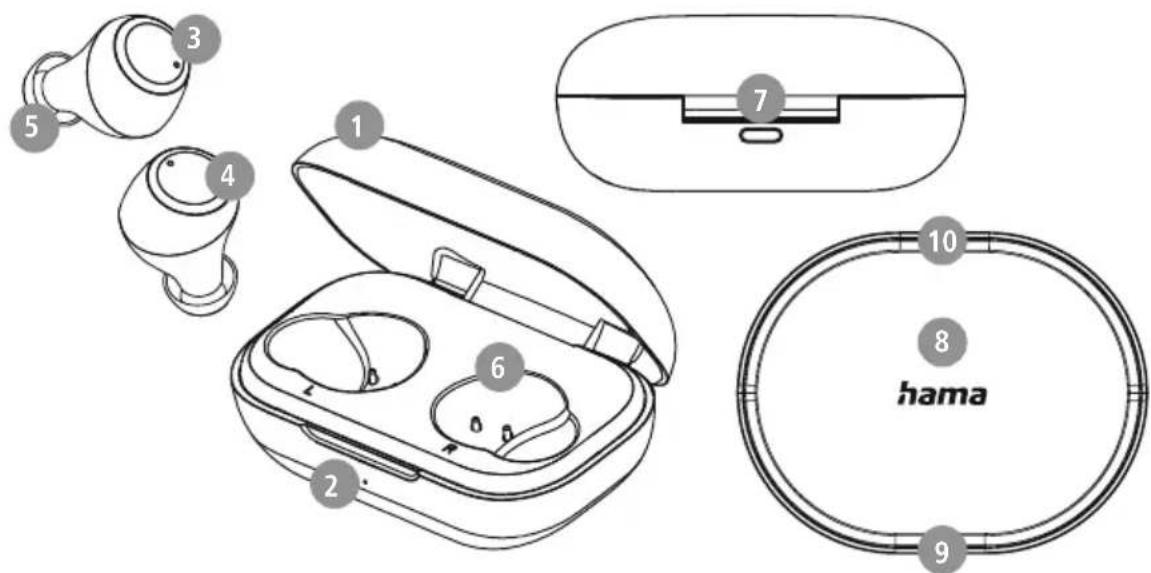

Controls and displays

1. Charging box
2. Charging box status LED
3. Earphones status LED
4. Multi-function touch sensor
5. Silicone ear pads
6. Charging contact
7. USB-C connection
8. Wireless charger
9. Status LED for wireless charger
10. USB-C connection

1 2 3 4 5 6 7 8 hama 9 10

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risk

Note

This symbol is used to indicate additional information or important notes.

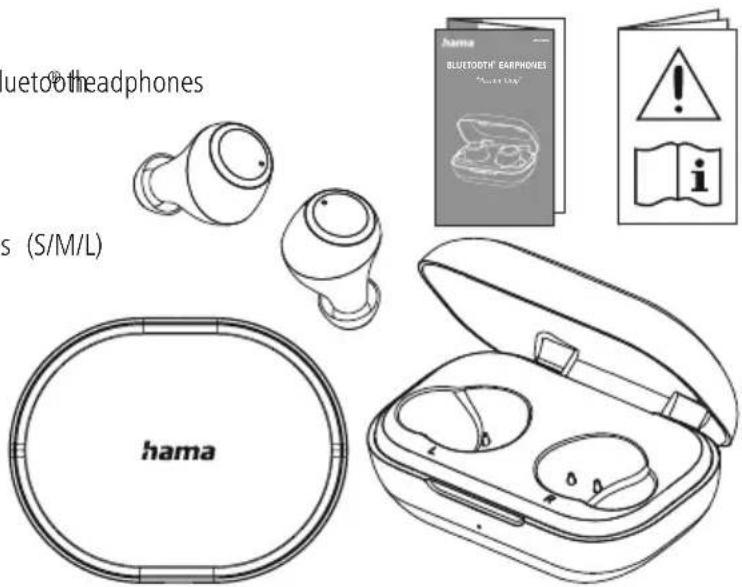

2. Package contents

1x "Passion Chop" True Wireless Bluetooth headphones
1x charging box
1x wireless charger
1x USB-C charging cable
3 pairs of ear pads in various sizes (S/M/L)
1x quick guide
1x warning and safety instructions

luetoo® the headphones s (S/M/L) hama hama BLUTTOOTH' EARTHPOKES "Smart Low" ! i

3. Safety instructions

• The product is intended for private, non-commercial use only.
• Use the product only for the intended purpose.
• Children should be supervised to ensure that they do not play with the product.
• Do not use the product in areas in which electronic products are not permitted
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
• Do not open the device or continue to operate if it becomes damaged.
• Do not bend or crush the cable.
• Do not drop the product and do not expose it any major shocks.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the product in any way. Doing voids the warranty.
• Protect the product from dirt, moisture and overheating and use it in dry environments only.
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.
• Only use the article under moderate climatic conditions.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not operate the product outside the power limits given in the specifications
• Do not use the product in a damp environment and avoid splashing water

• While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings

• The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations

• Do not incinerate the battery or the product.
• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.
• Do not use the product during the charging process!
  t• Ensure that the product is not covered up by textiles, metal or other objects in order to avoid damage caused by overheating.
• it This product is not intended for use by persons, including children, with limited physical, sensory or mental abilities or lacking in experience or knowledge, unless they are supervised by a person responsible for their safety or have been instructed on how to use the product
• Pull directly on the plug when disconnecting the cable, never on the cable itself
  So Do not place any liquid-filled vessels such as flower vases on or in the immediate vicinity of the product. The vessel may topple over and the liquid can then impair the electrical safety.

tyWarning - charging pad

• Ensure that there are no metal parts on the headphones. Metal heats up significantly in the field of an induction charger and can damage your headphones and/or the charger
• Ensure that the headphones are not covered by textiles, metal or other objects in order to avoid damage caused by overheating

Warning - optimal charging

This product is compatible with inductive charging technology For the best charging results, we recommend using the enclosed wireless qi-compatible charger

Warning - rechargeable battery

• Only use suitable charging devices or USB ports to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods
- Always keep the volume at a reasonable level. Loud volumes can damage hearing – even over short periods
• Using this product limits your perception of
ambient noise. You should theref not operate vehicles or machines while using them

Warning - magnets

• This product generates magnetic fields. Individuals with cardiac pacemakers should consult a doctor before using this product as it may affect the pacemaker's proper function.
• Keep bank cards or similar cards with magnetic strips away from the product. The data on the cards could be damaged or completely deleted

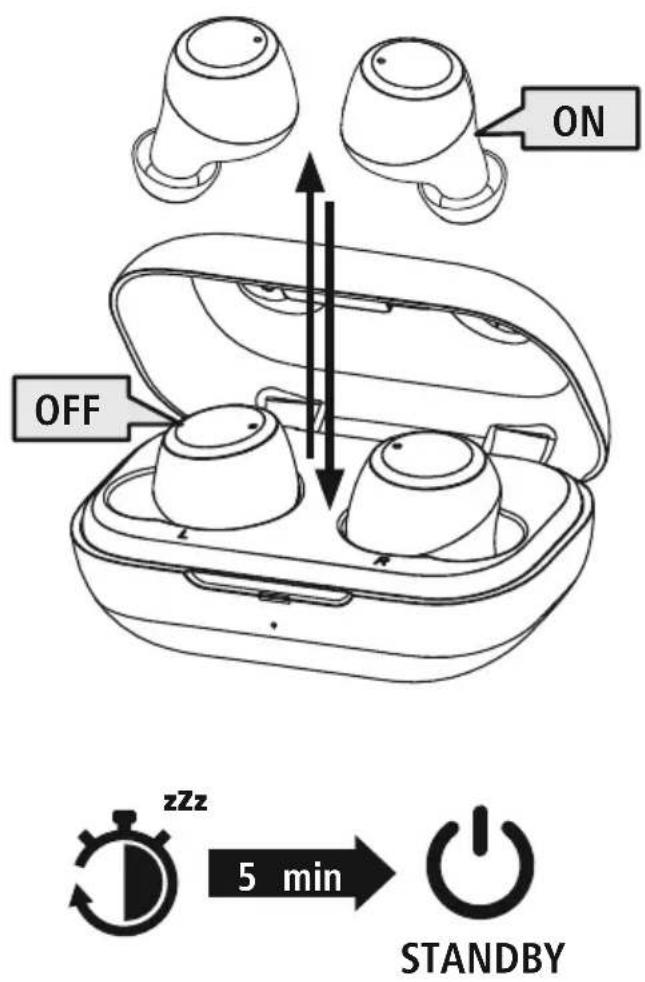

4. Switching on/off

Remove the two earphones simultaneously from the charging box. Both earphones switch on automatically and start the pairing process. The announcement "Power on" is heard.

Alternative:

Press the multi-function touch sensor (4) on the left and right earphones for around 2-3 seconds until you hear "Power on".

To switch them off, simply place the earphones back in charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide

Alternative:

With the earphones switched on, hold the multi-function touch sensor (4) on the left or right earphone down for approx. 5 seconds until you hear "Power off"

ON OFF zzz 5 min STANDBY

Note - Automatic switch-off of the earphones

The earphones are equipped with an automatic switch-off mechanism. If there is no connection to your device within 5 minutes, they switch off automatically.

5. Charging

Fully charge the earphones and the charging box once before using them for the. first time

Placing the earphones in the box

Place the earphones in the charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

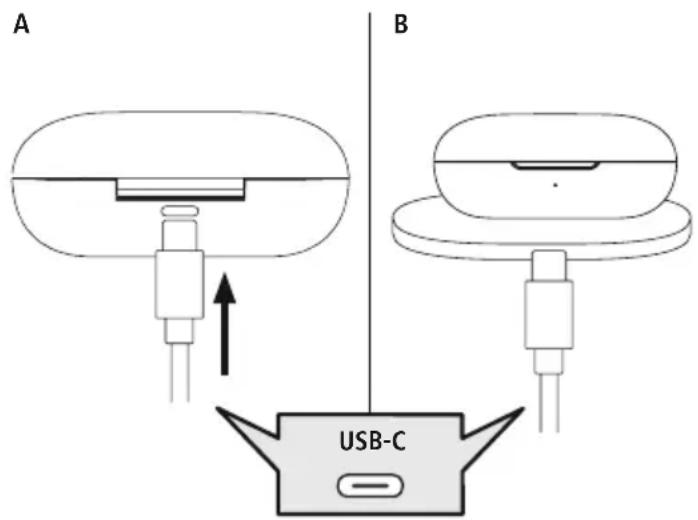

A: Charging via USB-C port (7)

Connect the USB charging cable included to the charging socket (7) on the charging box.

Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

B: Inductive charging

The charging box can be charged wirelessly to do this, place the charging box in the middle of the enclosed wireless charger (8). Then connect the enclosed USB charging cable to the charging socket (10) on the enclosed wireless charger. Connect the free plug on the USB-C charging cable to a suitable USB chargerTo do this, consult the operating instructions for the USB charger you are using.

A B USB-C

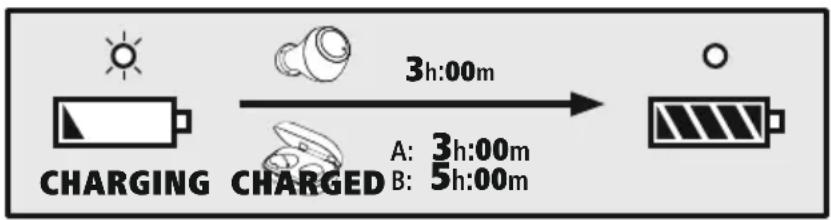

2 Charging procedure for the charging box and earphones

The status LED on the charging box (2) lights up solid red during the charging process. The charging box is fully charged, the charging box LED (2) goes out

The status LEDs on the earphones (3) light up solid red during the charging process. Once the earphones are fully charged, the status LEDs go out (3)

It can take up to 3 hours (earphones) or up to 5 hours (charging box) until the batteries are fully charged.

CHARGING CHARGED 3h:00m A: 3h:00m B: 5h:00m

Inductive charging process

The charging process begins as soon as an effective induction field has been established status LED (9) lights up solid blue

If no induction connection can be established, change the position the charging box if necessary. The charging process ends automatically once the charging box's battery is fully charged. The status LED (9) goes out

3 Battery capacity

Charging box

When battery levels are low (< 10%), the status LED (2) flashes red.

Earphone

When battery levels are low (< 10%), the status LED (3) flashes red and you hear "Battery Low". The actual battery life varies depending on the use of the device, the settings and the environmental temperatures (batteries have a limited service life).

Note

If you have not used the device for a few months, it can take up to 15 - 30 minutes until the status LED (2/3) lights up red during the charging process

6. Bluetooth® pairing

Note - pairing

• Ensure that the Bluetooth-enabled device is switched on and that the Bluetooth function is activated.
• Please refer to the operating instructions of your device for more information.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Ensure that the earphones are switched on.

Diagram illustrating wireless earbuds with a central earband connected to two devices, showing internal components and signal flow.

1 Check the status of the status LED (3)

If the status LED (3) of an earphone is flashing alternately and the announcement is:

the earphones are searching for a Bluetooth connection.

If the status LEDs (3) are flashing and the announcement is:

the earphones are already paired with a Bluetooth device.

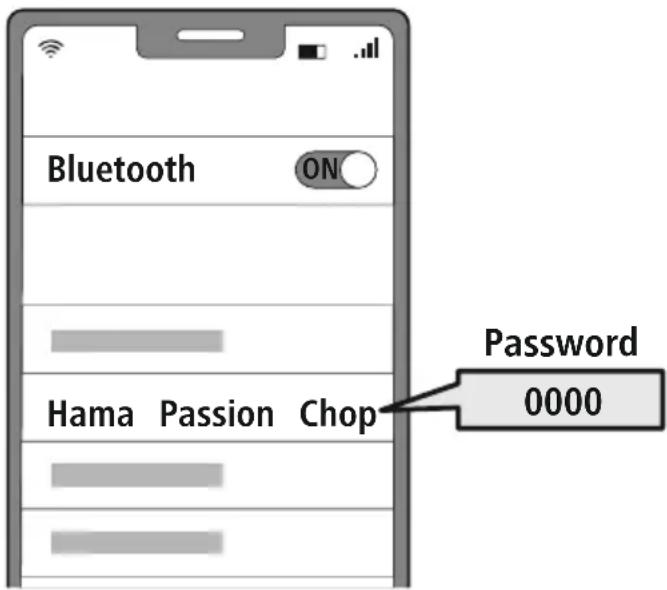

2 Search using your device for the earphones (only required on the first connection)

Open the Bluetooth® settings on your device and wait until the list of

found Bluetooth® devices shows Hama Passion Chop The announcement "Pairing" is heard.

Select Hama Passion Chop and wait until the earphones are shown

in your device's Bluetoothsettings. The announcement "Connected" is heard.

Bluetooth ON Password 0000 Hama Passion Chop

Note - Bluetoothpassword

Some devices require a password in order to connect to another Bluecode.

- If your device requests a password to connect to the earphones, enter 0000.

3 Disconnecting the Bluetooth connection

Disconnect the earphones via your device's Bluetooth settings. The announcement

"Disconnected" is heard.

7. Control elements

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• Please refer to the operating instructions of your device for more information.

7.1 Voice assistant function

Siri/Google

Tap the multi-function touch sensor (4) on the left or right earphone twice to initiate communication with your Siri or Google Assistant

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

- The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.

- The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Tap the multi-function touch sensor (4) on the left or right earphone once to accept an incoming call.

3 Reject a call

To reject an incoming call, tap and hold the multi-function touch sensor (4) on the left or right earphone for around 1-2 seconds you will hear a brief signal tone.

4 End a call

During the call, tap the multi-function touch sensor (4) on the left or right earphone to end the Ycall will hear a brief signal tone.

5 Last number redial

You can redial the last number you called via the voice assistant function (7

7.3 Audio playback

1 Start playback on your device.

2 Play / Pause

1x

Tap the multi-function touch sensor (4) on the left or right earphone once to start or stop audio playback.

3 Next track

1-2s

Tap and hold the multi-function touch sensor (4) on the right earphone for around 1-2 seconds to skip to the next track

4 Previous track

Diagram showing a left-pointing arrow, a stylized bell icon with 'L', and a directional arrow labeled '1-2s' with a clock icon.

Tap and hold the multi-function touch sensor (4) on the left earphone for around 2 seconds to skip to the previous track.

7.4 Volume control

The volume is controlled by the voice assistant function (7.1).

Alternatively, you can also control the volume via your smartphone.

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth® v5.0
Supported profile A2DP 1.3 /	AVRCP 1.6 / HFP 1.7 / SPP 1.2
Frequency for Bluetooth Transfers	2402 - 2480MHz
Range < 10 m
Battery
Battery type 3	.7V Li polymer
Min. capacity Earphones / charging box	43mAh / 290mAh
Charging box current consumption	max. 5V = 175 mA
Earphones charging time ~ 2 .5 h
Charging box charging time ~ 5 h
Standby * ~ 150 h
Music playing * ~ 4	h (8 h)
Call time * ~ 4 h (8h)
Weight of earphones approx	. 4 g per earphone
Weight of charging box incl. earphones	approx. 41 g
Wireless charger
Input	5V = 2.0A9V = 2.0A
Output (under optimised conditions)	5W / 7.5W / 10W max.
Dimensions	92 x 72 x 9 mm
Weight 40g

* Once fully charged

9. Care and maintenance

Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improve installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.com

12. Declaration of conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184090] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

https://uk.hama.com → 00184090 Downloads

Frequency band(s) 2402 - 2480MHz

Maximum radio-frequency power transmitted 2.5 mW E.I.R.P.

ON OFF zzz 5min STANDBY

5. Laden

CHARGING CHARGED 3h:00m A: 3h:00m B: 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views with labeled buttons L and R.

ON OFF zzz 5min STANDBY
        D["A: 3h:00m"]
        E["B: 5h:00m"]
    end

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views.

Remarque - Assistant Google

Diagram showing a telephone icon with an arrow labeled '1x' pointing to a stylized megaphone graphic.

Diagram showing a left-pointing arrow with a play symbol and a right-pointing arrow with time and duration labels.

Line drawing of an open electronic device case with two circular compartments (no text or symbols)

ON OFF zzz 5min STANDBY

CARGANDO 3h:00m A: 3h:00m B: 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views with labeled buttons L and R.

Line drawing of an open electronic device with two circular earbuds (no text or symbols)

ON OFF zzz 5min STANDBY

CHARGING CHARGED 3h:00m A: 3h:00m B: 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views with labeled buttons L and R.

1 Controleer de status van de status-led (3)

"Pairing" is te horen.

"Disconnected" is te horen.

7. Bedieningselementen

Aanwijzing

Line drawing of an open electronic device case with two circular earbuds (no text or symbols)

ON OFF zzz 5min STANDBY

5. Carica

CHARGING CHARGED 3h:00m A: 3h:00m B: 5h:00m

Diagram showing wireless earbuds with connected devices and a central connection icon, illustrating wireless device connections.

Icon set showing a phone with an up arrow and a globe icon labeled '1x', alongside a stylized telephone graphic.

Diagram showing a left-pointing arrow, a stylized megaphone with 'L' and directional arrow, and a time-lapse icon labeled '1-2s'.

ŁADOWANIE NAŁADOWANE A: 3h:00m 3h:00m 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views with labeled buttons L and R.

ON OFF zzz 5min STANDBY

Diagram illustrating wireless earbuds with connected devices and a central connection point, showing front and back views with labeled buttons L and R.

1x căști True Wireless Bluetooth®Passion Chop"

Line drawing of an open electronic device case with two circular earbuds (no text or symbols)

SE ÎNCARCĂ ÎNCĂRCAT 3h:00m A: 3h:00m 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection point, showing front and back views with labeled buttons L and R.

https://ro.hama.com → 00184090 → Descărcări

Banda (benzile) de frecvente 2402 - 2480 MHz

Line drawing of an open electronic device case with two circular compartments (no text or symbols)

PROBÍHÁ NABÍJENÍ BATERIE 3h:00m A: 3h:00m B: 5:00mA

Indukční nabíjení

Diagram illustrating wireless earbuds with connected devices and a central link symbol, showing front and back views.

Line drawing of an open electronic device case with two circular earbuds (no text or symbols)

ON OFF zzz 5min STANDBY

NABÍJA SA NABITÉ 3h:00m A: 3h:00m B: 5h:00m

Diagram illustrating wireless earbuds with connected devices and a central connection point, showing front and back views.

Diagram showing a left-pointing arrow, a stylized device icon with 'L', and a time indicator '1-2s' with a clock symbol.

Line drawing of an open electronic device with two circular earbuds (no text or symbols)

CHARGING CHARGED 3h:00m A: 3h:00m B: 5h:00m

Processo de carregamento indutivo

Diagram illustrating wireless earbuds with connected devices and a central connection icon, showing front and back views.

1 Verifique o estado do LED de estado (3)

Diagram showing a left-pointing arrow, a stylized megaphone with 'L' and directional arrow, and a time-lapse icon labeled '1-2s'.

Line drawing of an open electronic device case with two circular earbuds (no text or symbols)

3. Säkerhetsinformation

LADDNING LADDAD 3h:00m A: 3h:00m B: 5h:00m

Diagram illustrating wireless earbuds with labeled components and connection point, showing front and back views of a device.

Diagram showing a left-pointing arrow, a stylized device icon with 'L', and a time-lapse-style clock with '1-2s' label.

Diagram illustrating wireless earbuds with a central connection icon and an upward arrow, showing device placement.

Icon set showing a phone with an up arrow and a hand pointing to a 1x multiplier next to a megaphone.

Diagram showing directional control icons including left-pointing arrow, lock symbol, and 1-2c clock with time icon

Line drawing of an open electronic device case with two circular compartments (no text or symbols)

3. Указания за безопасност

3h:00m A: 3h:00m B: 5h:00m CHARGING CHARGED

Diagram illustrating wireless earbuds with labeled components and connection point, showing front and back views of the device.

1 Проверете статуса на светодиода за статус (3)

Icon set showing a phone with an up arrow and a hand pointing to a 1x sign, next to a megaphone illustration.

Diagram showing a left-pointing arrow, a stylized device icon with 'L', and a time indicator '1-2s' with a clock symbol.

Line drawing of an open electronic device with two circular earbuds (no text or symbols)

Diagram illustrating wireless earbuds with a central connection and upward arrow, showing device placement and signal flow.

Icon set showing a phone with an up arrow and a hand pointing to a 1x sign, next to a stylized megaphone.

1x True Wireless Bluetoothkulaklik "Passion Chop"

1x şarj kutusu

Line drawing of an open electronic device with two circular earbuds (no text or symbols)

Diagram illustrating wireless earbuds with a central earband connection and an open case showing two earbuds labeled L and R.

Icon set showing a phone with an up arrow and a hand pointing to a 1x multiplier next to a megaphone.

← L 1-2sn

leet "Passion Chop" (S/M/L) hama hama BLUTTOOTH EARTHOMES "Smart Low" ! i

3h:00m A: 3h:00m B: 5h:00m CHARGING CHARGED

Induktiivilataus

Diagram illustrating wireless earbuds with a central connection and upward arrow, showing device placement and mode labeling.

1 Tarkista tila-LEDin (3) tila.
