USER MANUAL ZRUN060LSS0 LG

OWNER'S, INSTALLATION AND SERVICE MANUAL (FOR R32)

AIR CONDITIONER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

R32 Refrigerant

TABLE OF CONTENTS

This manual may contain images or content that may be different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE 3

Notes for Flammable Refrigerant 3

WARNING INSTRUCTIONS 3

Instructions for Common Product. 3

Instructions for Duct Product. 3

Instructions for Multi V Product. 3

Instructions for Hydrokit Product 4

CAUTION INSTRUCTIONS 4

Instructions for Common Product. 4

Instructions for Duct Product. 4

Instructions for Multi V Product. 4

Safety Instructions for the Service 5

CHARGING REFRIGERANT

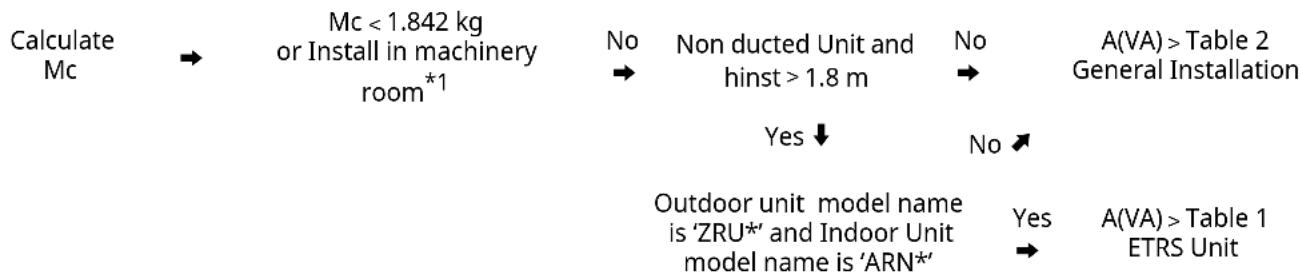

Minimum Floor Area 9

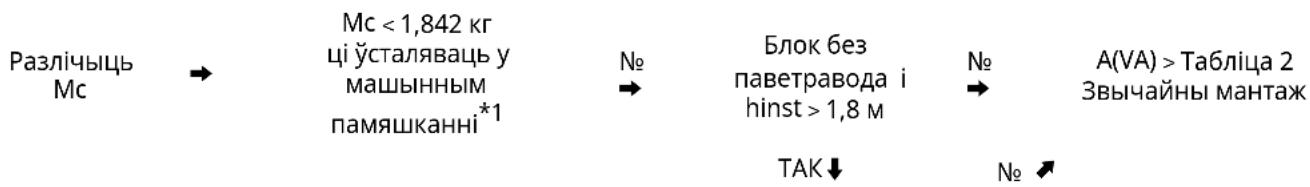

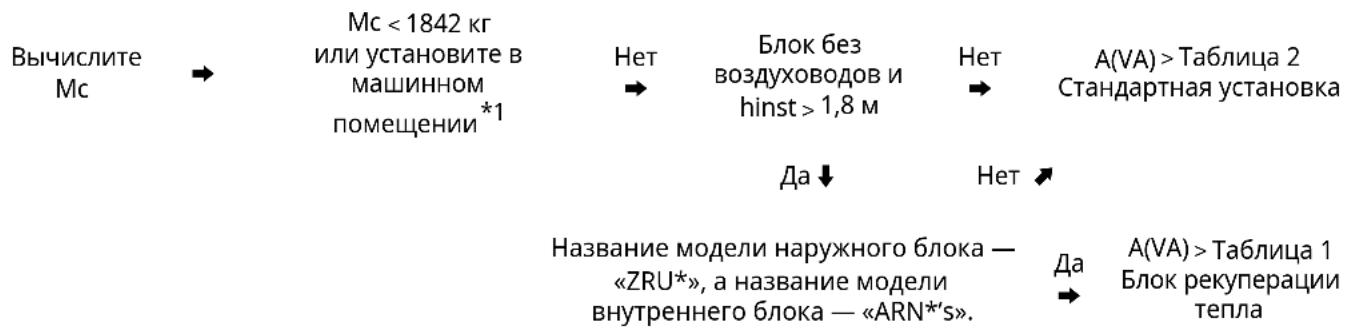

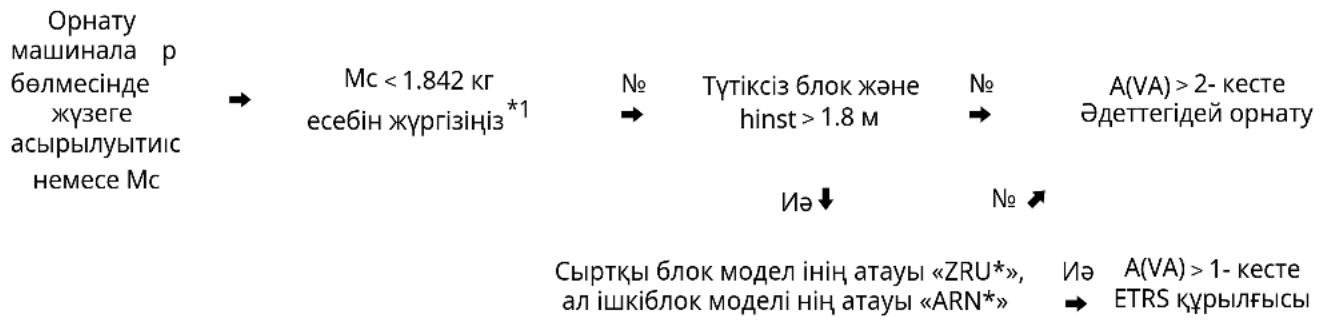

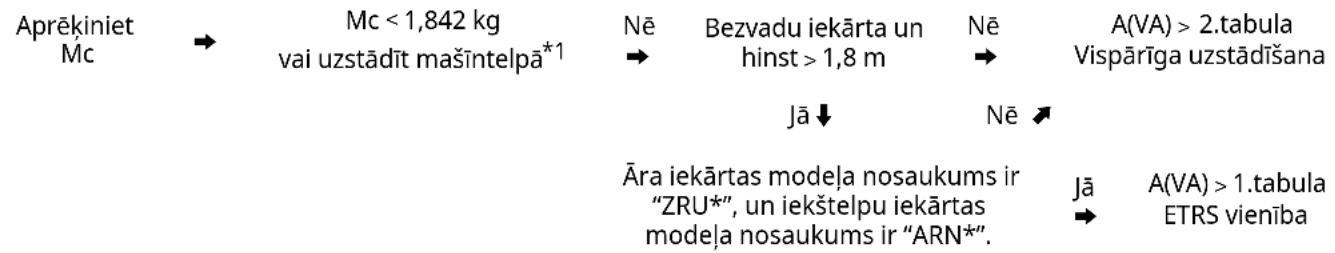

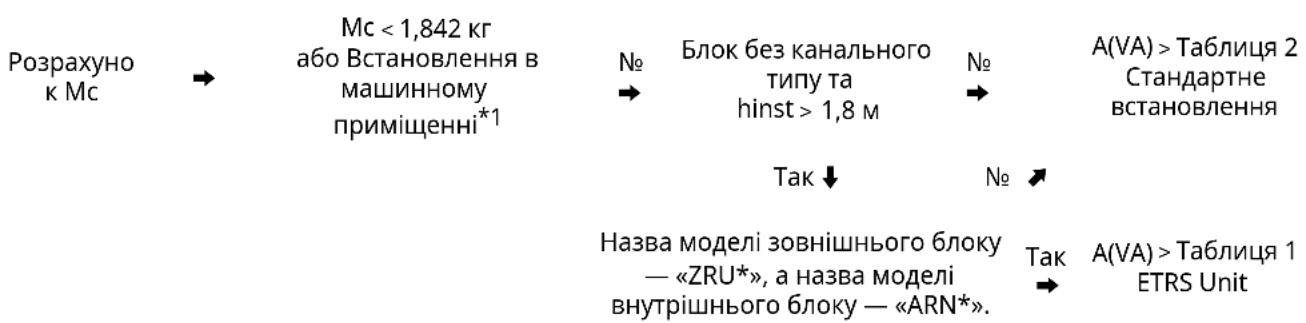

FlowChart. 9

How to Calculate the Maximum Amount of Refrigera nt. 10

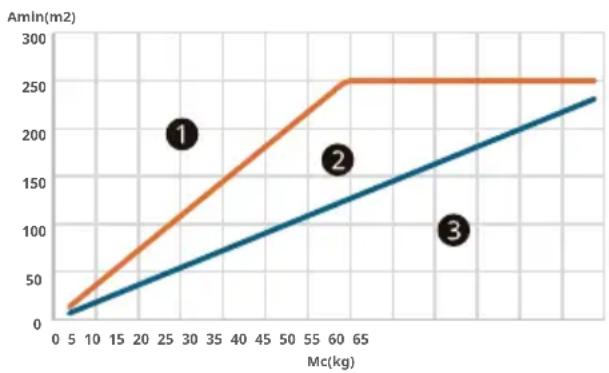

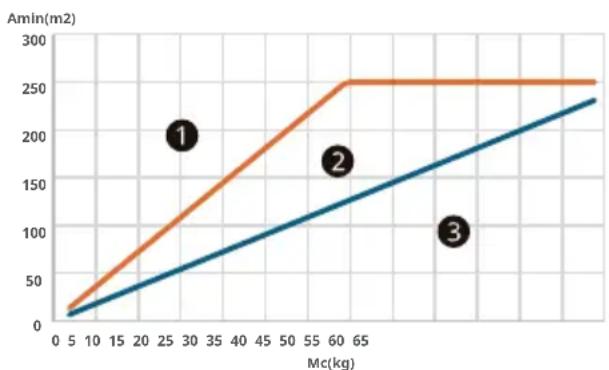

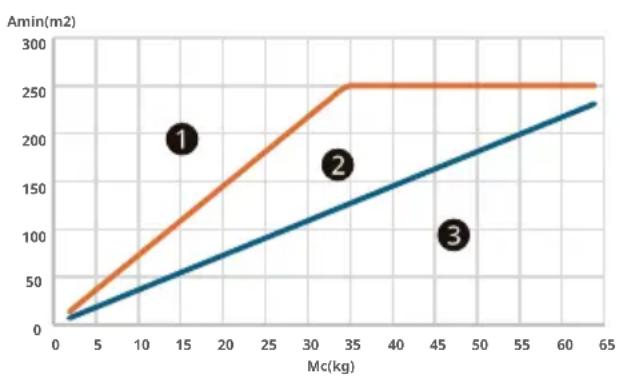

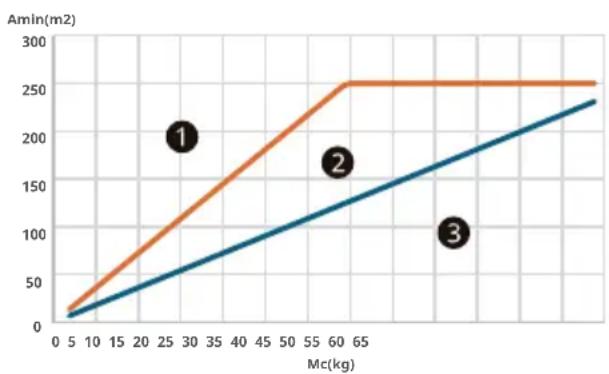

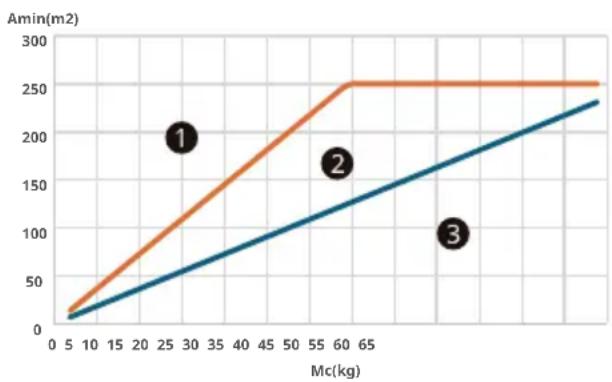

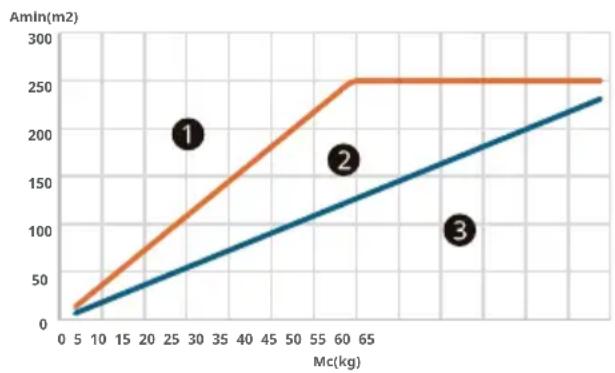

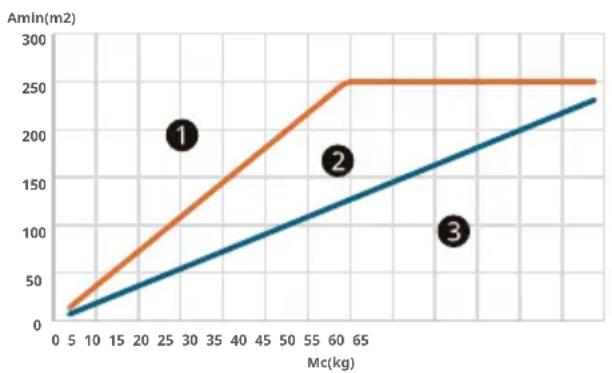

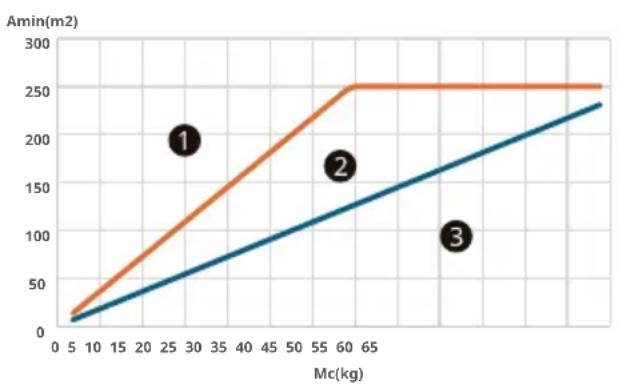

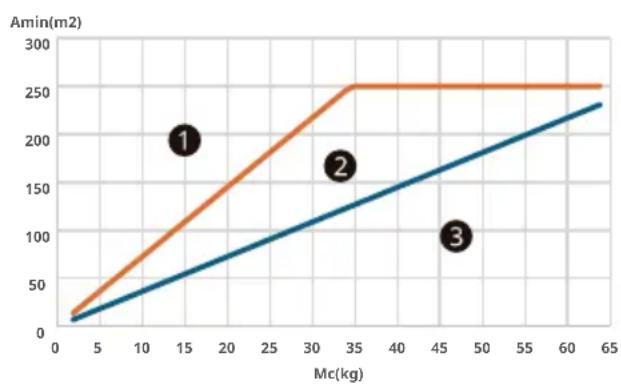

ETRS Unit. 10

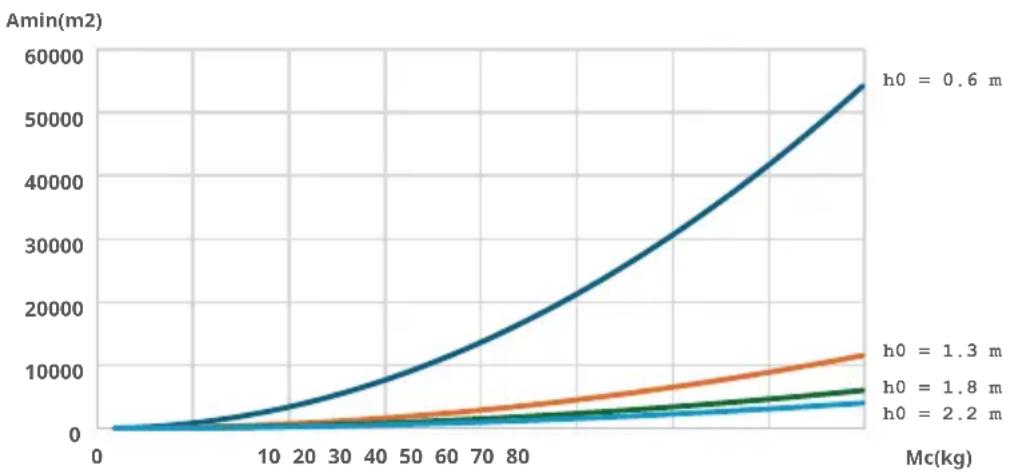

Generatstallation 11

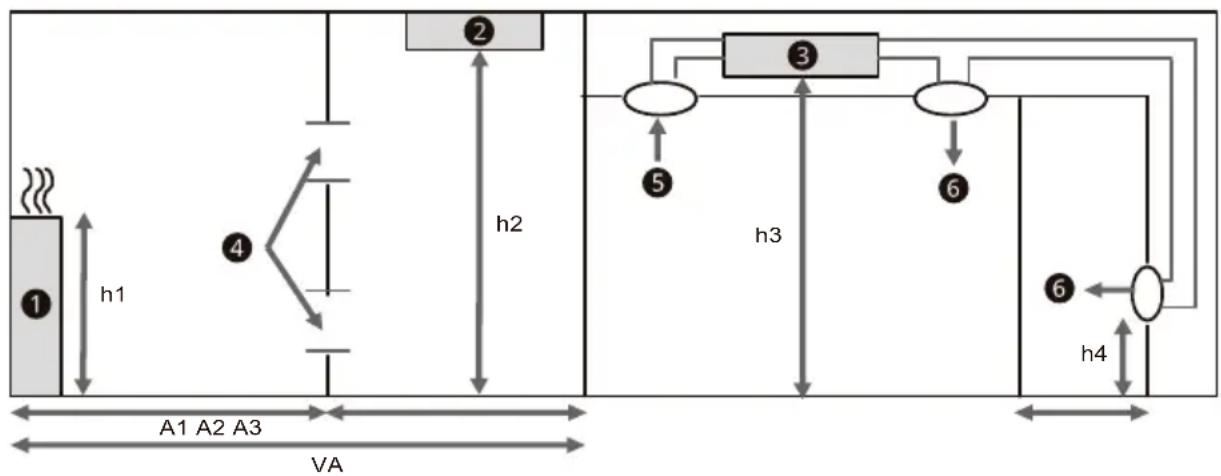

Natural Ventilation Condition 11

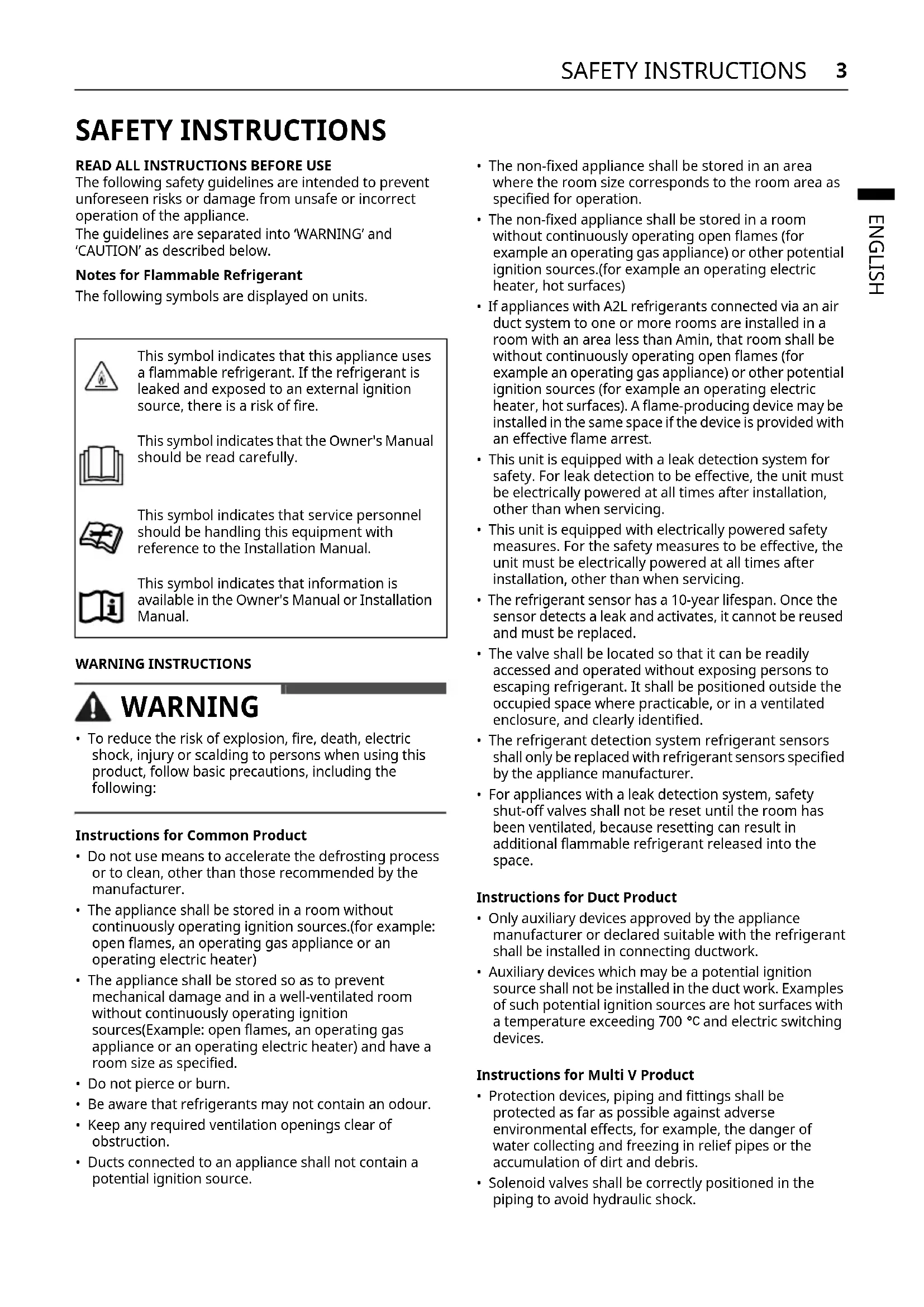

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

Notes for Flammable Refrigerant

The following symbols are displayed on units.

This symbol indicates that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

This symbol indicates that the Owner's Manual should be read carefully.

This symbol indicates that service personnel should be handling this equipment with reference to the Installation Manual.

This symbol indicates that information is available in the Owner's Manual or Installation Manual.

WARNING INSTRUCTIONS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Instructions for Common Product

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources.(for example: open flames, an operating gas appliance or an operating electric heater)
• The appliance shall be stored so as to prevent mechanical damage and in a well-ventilated room without continuously operating ignition sources (Example: open flames, an operating gas appliance or an operating electric heater) and have a room size as specified.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Keep any required ventilation openings clear of obstruction.

• Ducts connected to an appliance shall not contain a potential ignition source.

• The non-fixed appliance shall be stored in an area where the room size corresponds to the room area as specified for operation.

• The non-fixed appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) or other potential ignition sources.(for example an operating electric heater, hot surfaces)
• If appliances with A2L refrigerants connected via an air duct system to one or more rooms are installed in a room with an area less than Amin, that room shall be without continuously operating open flames (for example an operating gas appliance) or other potential ignition sources (for example an operating electric heater, hot surfaces). A flame-producing device may be installed in the same space if the device is provided with an effective flame arrest.
• This unit is equipped with a leak detection system for safety. For leak detection to be effective, the unit must be electrically powered at all times after installation, other than when servicing.
• This unit is equipped with electrically powered safety measures. For the safety measures to be effective, the unit must be electrically powered at all times after installation, other than when servicing.
• The refrigerant sensor has a 10-year lifespan. Once the sensor detects a leak and activates, it cannot be reused and must be replaced.
• The valve shall be located so that it can be readily accessed and operated without exposing persons to escaping refrigerant. It shall be positioned outside the occupied space where practicable, or in a ventilated enclosure, and clearly identified.
• The refrigerant detection system refrigerant sensors shall only be replaced with refrigerant sensors specified by the appliance manufacturer.
• For appliances with a leak detection system, safety shut-off valves shall not be reset until the room has been ventilated, because resetting can result in additional flammable refrigerant released into the space.

Instructions for Duct Product

• Only auxiliary devices approved by the appliance manufacturer or declared suitable with the refrigerant shall be installed in connecting ductwork.
• Auxiliary devices which may be a potential ignition source shall not be installed in the duct work. Examples of such potential ignition sources are hot surfaces with a temperature exceeding 700^ and electric switching devices.

Instructions for Multi V Product

• Protection devices, piping and fittings shall be protected as far as possible against adverse environmental effects, for example, the danger of water collecting and freezing in relief pipes or the accumulation of dirt and debris.

• Solenoid valves shall be correctly positioned in the piping to avoid hydraulic shock.

• Solenoid valves shall not block in liquid refrigerant unless adequate relief is provided to the refrigerant system low pressure side.

• Field-made refrigerant joints indoors shall be tightness tested. The test method shall have a sensitivity of 5 grams per year of refrigerant or better under a pressure of at least 0.25 times the maximum allowable pressure. No leak shall be detected.

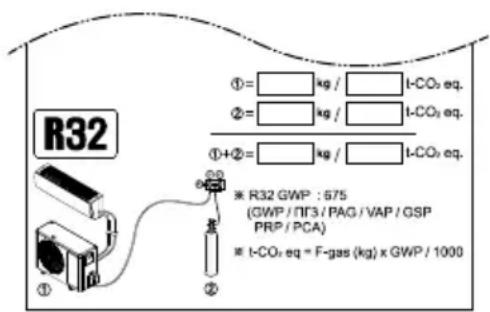

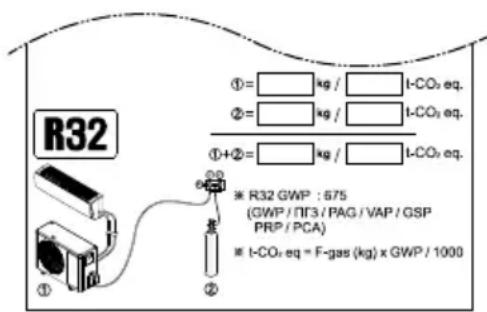

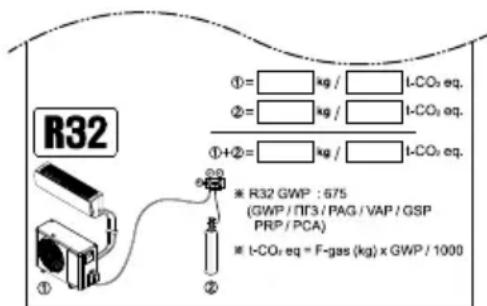

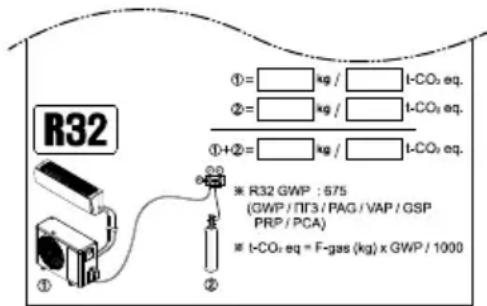

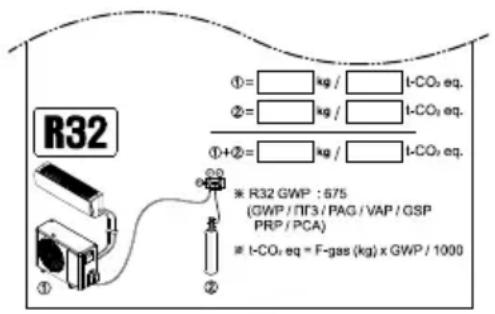

• After you check the below label attached on the outdoor unit, write down the amount of refrigerant on it.

Instructions for Hydrokit Product

• Protection devices, piping and fittings shall be protected as far as possible against adverse environmental effects, for.
• The air extraction opening from the room shall be located equal or below the refrigerant release point.
• For floor mounted units, the refrigerant release point shall be as low as practicable.
• The air extraction openings shall be located in a sufficient distance from the air intake openings to prevent re-circulation to the space.

CAUTION INSTRUCTIONS

CAUTION

• To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Instructions for Common Product

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
  Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• The installation of pipe-work shall be kept to a minimum.

• Pipe-work shall be protected from physical damage.

• Compliance with national gas regulations shall be observed.

• Mechanical connections (mechanical connectors or flared joints) shall be accessible for maintenance purposes.
  Servicing shall be performed only as recommended by the manufacturer.
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• The manufacturer should specify other potential continuously operating sources known to cause ignition of the refrigerant used.
• A brazed, welded, or mechanical connection shall be made before opening the valves to permit refrigerant to flow between the refrigerating system parts.
• When mechanical connectors are reused indoors, sealing parts shall be renewed.
• When flared joints are reused indoors, the flare part shall be re-fabricated.
• Refrigerant tubing shall be protected or enclosed to avoid damage.
• Flexible refrigerant connectors (such as connecting lines between the indoor and outdoor unit) that may be displaced during normal operations shall be protected against mechanical damage.
  Periodic(more than once/year) cleaning of the dust or salt particles stuck on the heat exchanger by using water.
• Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in accordance with local and national standards.

Instructions for Duct Product

• Connected via an air duct system to one or more rooms, the supply and return air shall be directly ducted to the space.
• Open areas such as false ceilings shall not be used as a return air duct.

Instructions for Multi V Product

• Equipment piping in the occupied space shall be installed in such a way to protect against accidental damage in operation and service.
• Precautions shall be taken to avoid excessive vibration or pulsation to refrigerating piping.
• Provision shall be made for expansion and contraction of long runs of piping.
• Piping in refrigerating systems shall be so designed and installed to minimize the likelihood hydraulic shock damaging the system.
• Steel pipes and components shall be protected against corrosion with a rustproof coating before applying any insulation.
• Flexible pipe elements shall be protected against mechanical damage, excessive stress by torsion, or other forces. They should be checked for mechanical damage annually.
• The indoor equipment and pipes shall be securely mounted and guarded such that accidental rupture of equipment cannot occur from such events as moving furniture or reconstruction activities.

Safety Instructions for the Service

Checks to the Area

• Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

Work Procedure

• Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

General Work Area

• All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.

Checking for Presence of Refrigerant

• The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres.
• Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

Presence of Fire Extinguisher

• If any hot work is to be conducted on the refrigerating equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

No Ignition Sources

• No person carrying out work in relation to a refrigerating system which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
• All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

Ventilated Area

• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

Checks to the Refrigerating Equipment

• Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed.

• If in doubt consult the manufacturer's technical department for assistance.

• The following checks shall be applied to installations using flammable refrigerants:

• The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed.

• The ventilation machinery and outlets are operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant.
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected.
• Refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Checks to Electrical Devices

• Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures.
• If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.
• If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.
• This shall be reported to the owner of the equipment so all parties are advised.

• Initial safety checks shall include:

• Capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.

• No live electrical components and wiring are exposed while charging, recovering or purging the system.
• Continuity of earth bonding.

Repairs to Sealed Components

• During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc.
• If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
• Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.
• This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

• Ensure that apparatus is mounted securely.

• Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing the ingress of flammable atmospheres.

• Replacement parts shall be in accordance with the manufacturer's specifications.

Repair to Intrinsically Safe Components

• Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
• Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
• The test apparatus shall be at the correct rating.
• Replace components only with parts specified by the manufacturer.
• Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

NOTE

• The use of silicon sealant can inhibit the effectiveness of some types of leak detection equipment.
• Intrinsically safe components do not have to be isolated prior to working on them.

Cabling

• Cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects.
• The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

Detection of Flammable Refrigerants

• Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
• A halide torch (or any other detector using a naked flame) shall not be used.
• The following leak detection methods are deemed acceptable for all refrigerant systems.

Electronic leak detectors may be used to detect refrigerant leaks but, in the case of flammable refrigerants, the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
- Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
- Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25% maximum) is confirmed.
- Leak detection fluids are also suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

NOTE

Examples of leak detection fluids are

• Bubble method

• Fluorescent method agents

• If a leak is suspected, all naked flames shall be removed/extinguished.

• If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall be according to removal and evacuation procedure.

Removal and Evacuation

• When breaking into the refrigerant circuit to make repairs - or for any other purpose - conventional procedures shall be used. However, for flammable refrigerants it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• Remove refrigerant;

• Purge the circuit with inert gas (optional for A2L);
  Evacuate (optional for A2L);
• Purge with inert gas (optional for A2L);

• Open the circuit by cutting or brazing.

• The refrigerant charge shall be recovered into the correct recovery cylinders.

• For appliances containing flammable refrigerants other than A2L refrigerants, the system shall be purged with oxygen-free nitrogen to render the appliance safe for flammable refrigerants.
• This process may need to be repeated several times.
• Compressed air or oxygen shall not be used for purging refrigerant systems.
• For appliances containing flammable refrigerants, other than A2L refrigerants, refrigerants purging shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
• This process shall be repeated until no refrigerant is within the system.
• When the final oxygen-free nitrogen charge is used, the system shall be vented down to atmospheric pressure to enable work to take place.
• This operation is absolutely vital if brazing operations on the pipe-work are to take place.
• Ensure that the outlet for the vacuum pump is not close to any potential ignition sources and that ventilation is available.

Charging Procedures

• In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to

minimise the amount of refrigerant contained in them.

• Cylinders shall be kept in an appropriate position according to the instruction.
• Ensure that the refrigerating system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).

• Extreme care shall be taken not to overfill the refrigerating system.

• Prior to recharging the system, it shall be pressure tested with the appropriate purging gas.

• The system shall be leak-tested on completion of charging but prior to commissioning.
• A follow up leak test shall be carried out prior to leaving the site.

Recovery

• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.
• Ensure that the correct number of cylinders for holding the total system charge are available.
• All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
• Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
• In addition, a set of calibrated weighing scales shall be available and in good working order.
• Hoses shall be complete with leak-free disconnect couplings and in good condition.
• Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged.
• Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
• The evacuation process shall be carried out prior to returning the compressor to the suppliers.
• Only electric heating to the compressor body shall be employed to accelerate this process.
• When oil is drained from a system, it shall be carried out safely.

Labelling

• Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant.
• The label shall be dated and signed.
• Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

Decommissioning

• Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail.
• It is recommended good practice that all refrigerants are recovered safely.
• Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant.
• It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders.

• All personal protective equipment is available and being used correctly.

• The recovery process is supervised at all times by a competent person.
• Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that the cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with instructions.
h) Do not overfill cylinders. (No more than 80% volume liquid charge)
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigerating system unless it has been cleaned and checked.

Qualification of Workers

The manual shall contain specific information about the required qualification of the working personnel for maintenance, service and repair operations. Every working procedure that affects safety means shall only be carried out by competent persons.

Examples for such working procedures are:

• Breaking into the refrigerating circuit.
• Opening of sealed components.

• Opening of ventilated enclosures.

• For installations with field applied mechanical joints which are exposed in the occupied space, the instructions shall state that a sensor shall be located.

• Remote located within 2m horizontal distance in line of sight of the unit and on a wall within the room in which the unit is installed; and

• 100mm above the floor where h0 is not more than 300mm from the floor; or

• 300 mm above the floor where h0 is greater than 300 mm from the floor.

CHARGING REFRIGERANT

Minimum Floor Area

All indoor units should be installed satisfying A or VA is larger than Amin

Flow Chart

*1 (ISO 5149-3:2014, Clause 5)

Mc: Total amount of refrigerant in the system(kg)
A : Floor Area (Room are where indoor unit is installed or smallest room area connected via duct system)
- VA : Ventilated Floor Area (Sum of room area connected by natural ventilation)
- Amin: Minimum Floor Area (Find in table 1 or 2)
- ETRS Unit: Enhanced Tightness Refrigerating Systems.
- hinst : Installation height. Height.
h0 : Release height. Reference height or height of the lowest opening of the duct connection to each conditioned space

Indoor Unit 1: hinst=0, h0=h1, A=A1, VA=A1+A2 (if natural ventilation condition is satisfied)
Indoor Unit 2 : hinst=h2, h0=h2,A=A2, VA=A1+A2 (if natural ventilation condition is satisfied)
3 Indoimit3:hinst=h3,h0=h4,A=A3
Natural Ventilation Opening
Return Opening
Supply Opening

How to Calculate the Maximum Amount of Refrigerant

When installing the appliance, the amount of additional refrigerant charged must be considered the pipe diameter, length and the amount of refrigerant that can be charged in indoor unit.

Amount of additional refrigerant (kg)

= Total Pipe Length (m): 22.20 mm × 0.313 kg/m (R32)
+ Total Pipe Length (m): 0.19.05 mm X 0.235 kg/m (R32)
+ Total Pipe Length (m): 0.158 mm × 0.153 kg/m (R32)
+ Total Pipe Length (m): 0.12.70 mm X 0.103 kg/m (R32)
+ Total Pipe Length (m): 0.952 mm X 0.053 kg/m (R32)
+ Total Pipe Length (m): 0.635 mm X 0.019 kg/m (R32)
+ Numberof installed HR Unit(2, 3, 4port) X 0.45 kg (R32)
+ Number of installed HR Unit(6, 8port) X 0.9 kg (R32)
+ Amount of Additional Refrigerant for Indoor Unit*1

*1 Please eefo the paper sheet named as Additional Refrigerant table of IDU. It is provided in the outdoor unit.

ETRS Unit

To install indoonit, some safety measures may be needed de pend on area or vent ilated floor area (when natural ven tilation used). Maximum charge of the system is 15.964 kg x num of indoor units in the system, not exceed 63.856 kg. Safety measures are LG alarm kit(PLDCAA0S), LG Shut off valve(PRHPZ0*0), and naural ventilation. For more detail for LG accessories(alarm kit, shut off vale), see accessories manual.

Graph and table is based on room height 1.8m. If it is higher(max 2.2m), smaller minimum floor area can be applied.

Minimum Floor Area of Lowest Underground Floor

No safety measure is needed
Two safety measures
3Cannot be installed

Minimum Floor Area of Other Floors

No safety device is needed
One safety measures
3Two safety measures

General Installation

To install indoor unit, some safety device may be needed depend on area or ventilated floor area (when natural ventilation used). is larger than 15.964kg, natural ventilation must be installed.

Graph and table is based on minimum installation height of indoor units. If it is higher, larger minimum floor area can be applied. h0 is differed by model type.

Ceiling Suspended, Wall Mounted : 2.2
Cassette, Floor Standing(PT,PF): 1.8
- Hydrokit(Wall Mounted): 1.3
Hydrokit(Floor Standing), Floor Standing(Others): 0.6
- Duct : Height of lowest opening of the duct connection to each conditioned space

Natural Ventilation Condition

If natural ventilation is installed satisfying conditions below, "A" can be replaced with "VA". For ETRS Unit, if it is used as a safety measure, "A" cannot be replaced with "VA".

• For the Lower Opening:

• It is not an opening to the outside

• The opening cannot be closed
• The opening must be ≥ Anvmin
• The area of any openings above 300 mm from the floor does not count when determining Anymin
• At least 50% of Anvmin is less than 200~mm above the floor
• The bottom of the lower opening is ≤ 100mm from the floor

• The height of the opening is ≥ 20mm

• For the upper opening:

• It is not an opening to the outside

• The opening cannot be closed
• The opening must be ≥ 50% of Anvmin
• The bottom of the upper opening must be ≥ 1500mm above the floor
• The height of the opening is ≥ 20mm

1

Room 1

2

Room 2

3

Not Count

Minimum opening area (Anv)

$$ A n v _ {\min } = \frac {m _ {c} - m _ {\max }}{L F L \times 1 0 4} \times \sqrt {\frac {A}{g \times m _ {\max}} \frac {M}{M - 2 9}} $$

g Is the gravity acceleration of 9,81~m / s^2

29 Is the average molar mass of air in kg/kmol.

Anv Is the minimum opening for natural ventilation in ^2

For ETRS unit, Anv_ = 0.013 m^2

mc Is the actual refrigerant charge of refrigerant in the system in kg;

m_ Is the allowable maximum refrigerant charge in the system in kg, Calculated according to Equation belowor 15.964 kg.

$$ m _ {\max } = 2. 5 \times (\mathrm {L F L}) ^ {(5 / 4)} \times \mathrm {h} _ {0} \times (\mathrm {A}) ^ {(1 / 2)} $$

Not to exceed below

$$ m _ {\max } = 0. 7 5 \times \mathrm {L F L} \times \mathrm {h} _ {0} \times \mathrm {A} $$

LFL Is the lower flammability lim it in kg / m^3

A Is the room area in ^2

M Is the molar mass of the refrigerant in kg/kmol;

MANUALE D'USO, INSTALLAZIONE E ASSISTENZA (PER R32)

CLIMATIZZATORE

A E I'area ambiente in ^2

INSTRUCTIONS D'ATTENTION

ATTENTION

O8nyiec yia to Koivo npoiov 4
O8nyiεc yia to Poiov aywyou. 5
O8nyiec yia to npotov Multi V 5
O8nyiec aospaalac yia to Epic 5

IIAHPQsH YyKTIKOY

ElaioTo eMaosv daeou 9

△laypauma poç 9
TpOnc unooyIsigmaou tnc meyloantnc noootntac uukkou. 10
Mováδα ETRS 10
Evikn Eykaataaon 11
Zuvθηκη φισικού αερισμου.

OΔHΓΕΣ ΑΣΦΑΛΕΙΑΣ

AIABAste OAE TIE OADHIEI PIN TH XPHSEH

Oi npakatw 08nyiec aopaaeiac npoopiocovta yia va anotpanoov anpobaentoi kivduvoi n ano m aopaa n lavthetaaevn leitoupyia tou npoiovtoc.

Ol oSyic xwpizovtai oE 'NPOEIODOIHsKat 'NPOeOXH' onwC npIpypAeTal npakatw.

Odyieyla to KoloVpoiov

Mynxnpaonoleite meaa yia tnv enitaxuvan tnc siaakaiac anoysn nyia tov kaapmo nepav autov nou ouviotovtal ano tov kataakeuaotn.
H ouakeun 0a npenla v a anothekeuetae 0xwpo xwpic nyeec avapalenc 0e ouvexn leitoupyia (yia napadeiyama: aoivxtc 0poyec, ouakeun ykaou o e leitoupyia n 0ektpko 0epmuavtiko 0wma 0e leitoupyia).
H ouakeun npentie va anothekeuetai etoi wote va aonoeuyovtal oynaxvkec balec, e ka aepizoevo xwpo xwpi c nyeac avaplexnc oe ouexn leitoupyia (yia napadelyma: aovxtc gloyec, ouakeun ykaioue aeletoupyia n nektpiko thepavtikoc owa ae leitoupyia) kai o wporc th pentei va npoi tic npokaoipoevec anaatnoic oov apopa to meythetaoc.
Mnu tnu tpunate n tnu kaite.
AaBete unoyn ot ta yuktka mopei va elva doogaa.

• Latnpite tuxov anatouuva avoiyuata aepioouxwic eunosia.
  Olaayyoi nou eival ouvdsdmevoIemuoakevn 8ev npenla vaneiplexouuvnyecntaovncavaep
  H ouakeun nou ival opeewevn o taepn thon npenla aantoNkEETa eXwpo yeyeouc avioxou me to eBaoov tou xwpou nou exi kaopoietiyia tn aeitoupyia.
  H anoanwuevn ouakeun tha npenel va antoonkeuetal oe xwpo xwpic yuvcg ofoeyc ole uvexn aeitoupyia (yia npapaseiyua, ouakeun aepiou ole aeitoupyia) n aalec piavec nyeac avapaeEnc (yla npapaseiyma, nektpko themuvtnpa ole aeitoupyia, epeec eniupavce).
  Av ouakeuec me yuktka A2L, ovdeltaevc meow auotnmuoc aepaywyw me ia n ne ploooatepe c aiouoe, elva tonoetnvec oe aiouoa me ubaov μkpoTepo ano Amin, otnv aiouoa th npetel va mnu unapxouv yuvc φloyec oe vexn λeitoupyia (yia npadelyma oukeun ykaou o aeitoupyia) n aee πhavc piye c avapalenc (yia npaddeiyna nektpiok θepaavko ωma oe leitoupyia, epec etnpaveiec). Zoukeun nou napayei pfoyec mnopei va eykataotaotei otov ido xwpo av diathetai anoteleogumatikn φloyonayisa.
  Autn n ova 2a elv a Eonuovn n ouotna avixveoong sia aopaa. ia va aeitoupye anoteeouatka, n ova ana penei va tpoosotetata e nekpioo diapkwc metayekataoan, ktoc an to slapkeia tou epic.
  Autn n movaEAiv aEonlaOeVn eNktpika tpoosotouvevaetpa aopaaleiac. ta va aeitoupyei anoteaouatik, n movda npenei va tropoosotietai eNektpioo diapkwc meta tnv eykataotaen, ktoc ano tn diapkeia tou oepic.
  O aoθntpac ψuktuó μeou éxéi δiapkeia zwnc 10 etwv. MoIc o aoθntpac avxveuεi slappoH kal evpyonounθei, dev μnpoei va επavaxpnoiμoTounθei kal πpéelva vαtukataotaθei.
  HbaIbIa npenla va tonoTei tai etai wote va eivat Eukola npooaoun kalva unopeiva aeitoupyei xwpic va ektiEvta atoa o de iappon yuktokuo u. Penei, onou eival epikto, va tonoTei tai kctoc tou Xwpu nou kataaamavetau ano atouma n meoa aepizoevo nepilma kalva ppeiaqn onmuovn.
  Olaonptpc tou ouotmuac avixveuong yuktuou meou npenla va atkaiaotavtal movo aolntnpes yuktuou meou nou kathetaovtal ano tov kataokueaotn tnc oukeunc.
  Tua ouakeuec, e ouotna avixveuongdappaohc, oI Baalbisdciaokntncev npentla enavapuOizovta EWCOTOU aepioteo xwoc, nEIEsN nEvapuOmuon mOpelvaipokaolei tny aneAeUepwon ennlov EukkTOU yuktou moea otovxpo.

Odyiec yia to npoiov aywyou

Moyo Bonntkecuokuec yekepievec ano tokataokeuaotn tnc ouokeunc n e 5nawevn kataaonlota yto uuktko moe npentla va eykaotavtal aaywoucovvdo
Bonntukcoukeue,cnou mopelva anotetaov nynn evexoevnc avapaeic, 6ev npenla ykaiotavta

a aywyv. Napa8eiymata nnyw v6exoEvnc avapaeNc elal o 0epeC eiuapeic uE 0eepokpia nou unepbaivei touc 700^ kai nEktpka kukawata.

Odyic yia to npoiov Multi V

Zoukeuec npoostaoiac, oWAnVwoeic kal ouvdeaol npenla npooataeovtal otov meyato duvatob aOmu ano avtioec neipbaalovtikec ouvHenKec, onwc, yia napadelyma, tov kivduvo ouooapeuongc vepou kal oxnatou payou oe wlnvec ektovwonc, n ano tn ouoawpeuon okovnc kal okouniudwv.
O1 oWAnVoeIeIc BαλβiδεC θa πρεπιν a toTOnθετούντaσωτα στη σλλνwɔn yla va anoΦeuxθouv kpaδaσμoi.
O1 oWAnvoEIsEc βaβIsEc δev εμntoDiouv to uypo
ψuktko, EKToc ev nanopexetai kataaanηk EKToVwOn
σtnv πεupá xaunλnC πieonc tou ouotnmuato
ψuktkoU.
Oi eowtepkoi apoio uuktikou, tou kataokeuaovtaeitontou, npenei va exyovtat yia tn oteyavotnta touc. H meoosdcokmuic 0a npenei va exei eualotheia 5 ypaumapiwv uuktikou etnaioc n kalutepa uno tiean toulaixotov 0,25 opec tn myiot enitpeinopevn tien. Dv npenei va evtonicietai slappon.
Apoou eayeTe Tn npakatw etiketa Tou eival npoaptnev onTv EwtepiK nuVad, onmuWote tn npootnta tou yuktuoku eoou ae autv.

Osyiey yia to npoiy Hydrokit

Sigmaeuec npoostiaic, oWnVwoeic kal uVseogol npenla npootateuovtal otov meyato duvatob aOa o avtioec nepiBaalovtukc ouvhenkcs.
To avolya eaywync aepa ano tnv aiouoa npenei va elva tonoetnuevo oto idio enine so n katw ano to oneio aneauhepwoquktikou.
Tia enlaesicovadec, to onmuio aneueuepwongc uuktuou npenei va bioketai ooo to duvatov nio xaunla.
Ta avoiypata Eaywync aepa npentv atonotouvtau 0kavn anootaan ao ta avoiypata elaywync aepa, wote va anopuyetal n enavakukloopopa oovxwpo.

OΔHΓIΕΣ ME THN ENΔΕΙΗ «ΠΟΣΟΧ»

PPOsOXH

Tia va o kivduvoC npokAonC uKpotpauaatouo, duolteuoyiac n 3aBnc n Uliknc znuiac kat a thxpontou pioovtoc, npenla va

tnpouvtal Baoukec npoqulaeic, otic onoiec nepiauβavovtal oEhnic:

Osnyeic yia to KoIvo npoiov

KaTe aToo nou oumuetexI otic epyaiec n otic eTneBaoeIc oe eva Kukawua yuktokuo meoo th npentu va siaotei eykupo niotoonntko ano dianotueevn apxnaoloyonctou kaldou, no onoia bbetawvei tnv Ikavotnta tou va xepizetai yuktuka eo aaaaleia, ouqwva me avaywipoeve c npodaypapec aioyonnc tou kaldou.
Ol ENIIOKEUEc 0a npEnI va npaymuatoNolouvtai OuMPwva ME TIC OoTaoEIC tou kataOeuaotn tou EoiAIOU. H ouvtnponn kal n ENIOKeun Tou aaltei tvbONtla kal dAoukavou npooWNIKOU 0a npTeu va npaymuatoNolietal unToTv ENIβeyn Tou atouou Tou eival EIsiKO tN xPOnn EUKAEKTWV UUKTKWv meowv.
H ekataoataon oWnVwV tha npeel va neplopiZeta 0to eaxoto.
O1 oWAnvwoeic npenei va npootateuovtal ano quaikec zneiec.
- Pπeπεινα τηρείαι η συμμόρφωση με τούς εθυκούς κανονισμούς αερίου.
Oui nxaivke ouvdeoeic (nxaikoi ouvdeooi n EKxIawevec evwoeic) npenei va elal pooaoue yia okoouc ouvtnpnonc.
To oepic npenla vnpayatonoiteal movo kat tov tpo nou ouviotatal ano tvov kataokuaotn.
H oukeun 0a npenl va anotheuetae tetoov tponto wote va anopeuyeta otolaaNTNE uXavikn
O kataaekuaotc 0 npenla va kaopizl aAec nthetave c nye c ouvexouc aeitoupyiacnou eiva ywoto otipokalov avapaeon tou uuktikoumuou nou xpnaonoiitai.
Ipei va yivei xaakokolnnev, oukoanmev n uXavikn ouvdeon npiv ano to avolya twvbaalibw, wote va eitpanei npon yuktuKou avaesa ota eapntmuata tou ouotmuatoc yfnc.
Eav enavaxpoioiOnoov uXavkooi ovSoooiTepiKo xwpo, ta eapntmuata oeyavoinonc npenla vavikataotaOuv.
Eav enavaxnpnouponoovkxEiawuec evwoeic oEowtepko xwpo, to tunmu kxEiawonc npenla va avakataokeuotei.
H oawhwn yuktuok npenei va npoostateuotai na evai klaiotou tuou, npoc anopuyn znmuac.
Oeukantol ouvdsoul uuktikou (onwc ta kawdla ouvdsoc metaTu cogwtepknc kalntc gwtepknc movadac) nou mtopei vaetakivnouv kat aTn diapkeia tnc kavoviknc aeitoupyiac npentie va npoatauovta ano evexoyvn xavikn znla.
Kaθapiετε ανα τακταδιαστηματα (πάνω πατο μία φρό tov xρόνο) ta ρόρια σκόνης ἀλατος που εχούν κολλησει στον ευλλάκτη θερμότητας μένερό.
H anouuapmoaoynon tnc ouokcnc, kaowc kal o xieipouoc tou yuktikou laidou kal twv teakwv Eapntmuatov npentla viyovtal oumuwva e ta touka kal evhika npotuna.

Osyieyta to npoiov aywyou

Odyiec yia to npoiov Multi V

O1 owynwoeic Eonlauoou otov kateiunmuevo xwp npenla va eiva ykateotnvec etoi wote va npootateuov ano tuaia qhopa kat a nleitoupyia kal to epbic.
Oa npéπe va laαβávovtal npoqulaεic yta va anopéúyovtal oikpáiec dovnoeiç n paλuike taavtwaeis tns owλnvwns ψünc.
Pepelva unapxel npoBaeyn yla daotoan kal ouatoan eyaawv daspouw oawnuoeWv.
Oi oWAnVwOeIc Ota ouoTnmuata uEnc 0a npene Iva Eiva tai oxEdeltaiaouvec kal ykateotnuevoc, wote va EaiaotoioIoov tv Ntavotnta dNmuopyiac KpaadaoMwivou Ta pokaaleoouv bAaBn oTo ouotma.
Olaubdivol oawlvc kal ta Eaaptmuata npenl va npoatauovtal ano slaepwn me avtlokwpiakn entipwn npiv anto tnv evapayon onolaoosntne movonc.
Ta eukamta otoxieia twv owanywoeewv thpenei va npoatauovtal ano mnxavikn Oepa, unepboakn katanovnon ano kaumn n aalec duvapeic. Ppei va eEyxovtal ia mnxavikn Oepa etnoiwc.
O eonliooic owtepikou xpwou kai oI oWAnVwoeic npenla va tonoetouvtal otaepa kai va npootateuovtai, etoi wote va mnu mtopei va npokuue tuxaia pfn ano oumbavta onwc n metakivnon ennawv no 5paotnplontnc avakataokuenc.

OsnyieacaaeiaytaoEepic

EAEyXol oTov Xwpo

Pniv ano tnv evapEn epyaowv oountmaTou nepiexouv eupkta uuktka, ivai avaykaia n 8levepyela eelyxwv aqpaaleiac yla va diaopawotie n 8lambdaotoiOnTou kivduov avapEnc. Tia 10keuec oTo ouotma uuktkoU, npentvi atnpovTuO lakoue c npuulaeic npiv ano tnV ekTeAon 3pyaoiw vto ouotma.

AiaSkaia epyaioac

OlepyaioeEkeTaeovtaoTnlaioeEeyxoevnc 8iaikacic, npokelévouva Eaxtonoleital o KivduvoocnapcEupkrtwv aepiw n atmu kata tnv Ektelan twv epyaoow.

Xwoc yevlkwv epyaowv

To npoownko ouvtnpnong kal kae aaloo npooonk oou epya zetai otnv neploxn evnuepovetal oxetik a t n quon twv ekteaouevw epyaowv. Anopeuyovtal ol epyaiec oe neploipouevouc wpuoc.

EeYxoc yia napoucia uuktkoou

Oxpooc 5eayctai me kataaIao EonlIo aivxveuongc yuktuokou npiv ano kal kata tn slapkeia twv epyaowv, wote va dlaopalotei ot texvikoc

yvwpiéi tny unapn suvntikwC eUφλeKtWv atuoσφaipwv.

Bepaowte oI eonlouoc avixveuoc diappovv nou xpnojonoileta evai kataoanloc yia xpono uEupkwc steayavoc neyyevoc aqpaahc.

Napouia npooBcrtipa

EnayyElambda npoovta epyaOeuvv

To exyelpidio o8nyuw 0a npetel va neplexel ouyekpiuec nnpoopiec oxetika ta anatoueva npooovta tou npoownikou nou epayacetal otn ouvtnpon, to oepic kal tic enlokeuoc. Kahe epyaia nou entpeacel ta meoa aopaaleiac 0a npetel va ekteleita uvo an aposio npoowntko.

WAARSCHUWINGSINSTRUCTIES 3

WAARSCHUWINGSINSTRUCTIES

WAARSCHUWING

Przyklady takich procedur roboczych to:

Agent frigorific R32

3APEXDAHE CXIAIDINJEH AVEHT

MnHmHa noOba nlou 9

Dnarpama Ha notoka 9

Kak ce onpeJeMaKcImaHTo KOJIuYeCTBO XlaIIneH aReHT 10

ETRS moyn 10

06u mohtax 11

CbctoHnHe Ha eCTeTBeHa BeHTnlaucn 11

3a HamaJBaHe Ha pNcKa OT B3pNB, NOKap, CMBPT, TOKOB yIap, HapaHbAHe IIN I3rApHe Ha IINuCa Ipi IN3IOJ3BaHe Ha IPOdYKTA CnA3BaIte OCHOBHTe IpeDnA3Hm MepKn, BKJIOnHTeJIHO CNeDHOTO:

Hnctpykun 3a o6u npoayKT

He np6raTe KbM MeToDi 3a yckopBaHe Ha npoeca No pa3mpa3raBaHeTo Nn 3a NOuNCtBaHe, OcBeH aKO He ca npenOpbUaHn OT pOn3BOdnteJIa.
- UpeBbT Tp86Ba Da ce cbxpaHra B NomeeHne 6e3 He npEkehchato pa6oTeu N3TOUHNu Ha 3aNaIbAHe (Ha npimep: OTkpNT PnAmbK, pa6oTeu ra3OB ypeD nnn pa6oTeu eNEKtpueeckn HarpeBaTeI)
- UpeBbT Tp86Ba Da Ce CbXpaHbTaKa, Ye Da Ce -пpeIOTbPaTЯr MexaHnUH NOBpeIi, И В Do6pe -пpoBeTpIbO NOMEseHne 6e3 HEnpeKbChATo - pa6OteuN I3ToHnUHa 3aNaJIbAHe (HaNPIMep: OTkpIIT PAmbK, pa6Oteu, Ra30B ypeIиIIN pa6Oteu - eNeKtpUeCKN HaPeBaTeJ), KaTO pa3MepbT Ha - NOMeSeHneTo Tp86Ba Da e CbO6pa3eH c NocOueHInTe - napaMeTpI.
He npo6nBaIte n He n3rapaIte.
- IMaaiTe npedBnD, Ye XnaIINHInTe aReHTn MoKe Da He. H3JIbUbaT Mnpu3Ma.

• Pa3eTe BCnUkN BeHTnlaIauHOHH N OTBOp n CBo6OdH N O T 3aNyuBaHe IJI nppePueBaHe.
  Cbbp3aHnTe KbM ypeDa Bb3dYxOBoN He Tp8Ba Da CbDpbXkAT N3TOUHNu Ha nOTeHuaJHo 3anaJBaHe.
• He3aKpeHnHT ypeI Tpr6Ba Da ce cbxpaHra Ba HmCTo, KbTeTo pa3MePbT Ha NOMEuEHNrO OTROBapHa IIOUHT Ha NOMEuEHNrO, KaKTo e NOCOueHo 3a pa6oTaT.
  He3akpenenHnyt ypeD da ce cbxpaHraBa B nomeueHne 6e3 HnpeKbchato pa6oTeu oTkPNT nlaMbK (Ha npimep pa6oTeu raoB ype) nn dpyrn noTeHuaHn u3ToCHuHa Ha 3anaLbaHe.(Ha npimep pa6oTeu eJeKtpueckn HarpeBaTeI, ropeu n NobbpXHOCTn)
  Ako ypeDn C xlaaunHn aReHTn A2L, Cbbp3aHn Ype3 cnCTema OT Bb3dYXOBODn C eEDHO nIIN NOBueye NOMEuHn, Ca MOHTnpaHn B CTaR C nIOuN O-MaJIkAOT Amin, Ta3n CTaR Tp8Ba Da 6bJe 6e3 HeNPeKbCHaTO pa6oTeU OTKpNT PnAmbK (HaPmep pa6oTeU r3oB ypeJ) nIIN DpyrN NoTEHuaHn U3TOHnU Ha 3anaIbaHe (HaPmep pa6oTeU eNEKtpueckn HArpeBaTeI, ropeu NIOBbPxHOCTn). UcTpoiCTBO, reHepnpaIo PnAmbk, MoKe da 6bJe MOHTnpaHo B cblto npocTpaHCTBO, aKO To e Cha6deHo c eEeKTHBHO CNIPAhe Ha PnAmbKa.
  TJIOTO e 06OpUyBaHO CbC CnCTeMa 3a OTKpNBaHe Ha TeOBe 3a 6e3oNaChoc. 3a Da 6bDe OTKpNBaHeTo Ha TeOBe eΦeKTnBHO, TJIOTO Tp8Ba Da 6bDe 3axpaHbAo C eJeKtpnueCTBO Ipe3 UJIoTO BpeMe CneMoHTaxa, OCBEN IO BpeMe HA cepBn3HO 06CnyXbaHe.
  TAnTo e 6OpUyBaHo c eIeKtpnueckn npEJa3Hn MepKn. 3a da 6bDaT MepKnte 3a 6e3OnacHoc TfeKTuBn, TAnOTo Tp86Ba Da 6bDe 3axpaHaHo C eIeKtpnueCTBO npe3 ZraIoTO BpeMe CneM OHTaXa, OCBeH NO BpeMe Ha cepBn3HO 06CnykBaHe.
• Cēh3opbT 3a xλaɪnileH areHT nMa 10-rotuIeH JxNBOT. Cne KaTo ceH3opbT oTKpIe TeU n Ce aKTbIbpa, Toŋ He Mòxe Da 6bJe n3ΠoJ3BaH nOBtOPh O Tpr6Ba Da 6bJe cMeHeH.
  KlaanbT Tp6Ba Da 6bDe pa3noJoxeH taKa, ye da e nechooocTbIeH n Da ce n3nol3Ba, 6e3 Da ce n3naIarT XopaHa n3TnuaXlaIaIIeH aReHT. ToI Tp6Ba Da 6bDe pa3noJoxeH n3BbH o6ntaBaHOT npoctpaHCTBO, KOrato e Bb3MOxHO, IIN BB BeHTnIIPAHO NOMeueHne IЯCHO o6O3HaueH.
• CēH3OpIte 3a xlaIaIIneH areHT Ha cncTeMaTa 3a OTKpNBaHe Ha xlaIaIIeH aReHT TprA6Ba Da ce NoIMeHrT cAmO cbC ceH3OpN 3a XlaIaIIeH aReHT, NocOueHrO T pOnIbOdInTeJHa ypeJa.
  3a ypeNi CbC CnCTeMa 3a OTKpNBaHe Ha TeOBe, npedna3Hnte CnnpaTeHN KlaPAnH He Tpr6Ba Da ce Hynipat, DOKaTO NOMEseHneTo He 6bDe npoBeTppeHo, TbKATO HyInpaHETo MOKe Da DOBeDe Do OTdJIaHe Ha DonbHnTeHNO KOINueCTBO 3aapanm XlaDInJeH aReHT B npoCTpaHCTBOTO.

Hnctpykun 3a npoayt c Tpb6n

B Cbbp3Baata Tp6bo npoBoHa cncTeMa da ce MOHTnpaT caMo cnoMaratEnH yctpoiCTBa, OdopeHn OT npou3BOuTeJI Ha ypeJa nn o6aBeHn 3a IOxOJauC XlaJNJHna aReHT.

CnomaTaeHIn ycToPiCTBa, KOITo MoKeJa 6bDaT noTeHuaJIeH n3ToUHKn Ha 3aNaIbAHe, He TpR6Ba Da ce MOHTnpaT B Tpb6OpBoOda. IprMepn 3a TaKbIa NoTeHuaJIH n3ToUHnHa 3aNaIbAHe ca ropeu NOBbpxHOCTn C TeMnepaTypa HAd 700^ n eJekTpueckn IpeBKLIOUBAun ycToPiCTBa.

Hnctpykun 3a npodykT Tnn Multi V

3aHTHnTe yCTpoNCTBa, Tpb6oNpOBOJnTe n ΦHTNHrTe Tpr6Ba Da 6bDaT 3aUHTeHN, OOKoKOTe e Bb3MOxHo, CpeuY He6laornpnTHn Bb3deNCTBnHa oKoJHaTa Cpea, HAnpUmep OnaCHOCT OT cb6napHe Ha BOda N 3aMpb3BaHe B npEJa3HnTe Tpb6u NnHaTpyNBaHe Ha 3aMbpcBaHnI HaCNoRBAHn.
E JeKtpOMarHHTHe KlaaHaN Tp6Ba Da 6bDaT npaBnHO No3uOnHnpaHN B Tp6oNpOBOda, 3a Da ce n36eHne XndpaBnueH yap.
E JeKtpomarHHTHe KlaNaHn Da He 6JIOKnpaTeuHnaXlaIIneH aReHT,OCBeH aKO He e OcnrypeHoNoXoJaIoo OCBO6OxJaBaHa He cTpaHaTa C HnCKOHaJIraHe Ha OxJaNTeJHaTa cnCTema.
- I3 rpaedeHte Ha macto XnaIINHn CbeDInHeHnHa 3akpnto Tpr6Ba Da 6bDaT TeCTBaHn 3a xepMeTuHoc. MeToBt 3a n3nITBaHe Tpr6Ba Da nMa cyBCTBnTeHOCt OT 5 rpaMa Ha roDnHa XnaIINeH aReHT nnNo-dO6pa npn HaNraHe Hn-MaIKo 0,25 nTn MaKcMaIIHO dOnyCTmOto HaNraHe. He Tpr6Ba da ce OTKpNBa TeU.
CneI KaTo npOBePte eTKeTa no-dOly, npKpeEn KbM BbHsHOTo TJILO, 3aIIuTe KOINueCTBOTO XlaIIneH aReHT Bbpxy Hero.

Hnctpykun 3a npodykta Hydrokit

3aunTHnTe yctpoiCTBa, Tpb6oNpOBOuNTe IN ΦHTNHrTe Da 6bDaT 3aUHTEH, DOKOLKOTO e Bb3MOXHO, CpeuY He6laorponpTHi Bb3DeIcTBnHa OKJHaTa Cpea.
OT BOpBT3a N3BnUaHe Ha Bb3dyx OT NOMeHneHneTo da 6bDe pa3noJoxKeH Ha HNBOTo IIN IOd TOyKaTa Ha n3nyckaHe Ha XJaUNHe aReHT.
3aMOHT npaHnTe Ha nOda ypeiN TOyKaTa Ha OCBO6OXdAbaHe Ha XlaDInHnA areHT Tpr6Ba da 6bJe Bb3MOXHO HAI-HnCKa.
OTBOpnte 3a n3cMyKBaHe Ha Bb3dyx Tpr6Ba da 6bdaT pa3noLoXKeHN Ha DocTaTbUHO pa3CToHne OT OTBopnte 3a BCMyKBaHe Ha Bb3dyx, 3a da ce npedeOTbpaTN peuPKylaucn B npoctpaHCTBOTO.

HCHTPYKUIN 3A BHUMAHNE

BHUMAHNE

3a HamaIbAhe Ha pNcKa OT JeKn HapaHbHaHna Ha Xopa, Hen3npaBHOCT NIN NOBpeHa NaPOyKTa NIN CO6CTBeHOCTT Ta Pn IN3NOJ3BaHe Ha npOyKTa CnA3BaIte OCHOBHTe PpeDnA3HN MepKN, BKJIIOUHTeJIHO CNeIHOTo:

Hnctpykun 3a 06u npoayKT

yNtHeHnTa, HnPaBnHO MoHTnpaHe Ha yNtHeHnHa

• YBepTeCe, Ye yCtpoiCTBOTo e MOHTnpaHO nO 6e3OpacEHnH.
  YBepTeCe,ue ynIbTHHeHraTaNynyIbTHHTeHNHe MaTePnAIn He ca ce pa3rpaAnIn Do CTeneH da He CnyKaT NOBeue 3a npDoTbPaTaBaHe Ha HABIN3aHeTo Ha 3aNaIMn aTMocΦepN.
• Pe3epBHNTe YacTN Tp86Ba Da ca B CbOTBeTcTBne Cbc CneuΦNkaUNTe Ha npOn3BOdnteJ.

Pemont Ha Nckpo6e30anChi KOMnoHeHTN

He npinaraTe HnKaBn NocToHHN INyKTHBn INn KaNaUInBn TOBapn KbM Bepurata, 6e3 da Cte cnpyHn, ye ToBa Hma Da IpeBuShn DOnyCTUMOTO HanpeXeHne n Tok, pa3peWeHn 3a n3NoJ3BaHOTO o6OpyDbaHe.
Ickpo6e30anachte KOMnOHeHTn ca eDnHCTBeHnTe TnIOBe, Bbpxy KOITo MOKe Da ce pa6OTn, DOKaTO ca nOd HAnpExeHne B PnCbCTBnETo Ha 3aNaIma aTMocepa.
AnapaTb3a n3nITBaHe Tp86Ba da 6bde c npabnHaTa KaTeropn.
CmeHnTe KOMnoHeHTnte cAmO CuaCTN, NocOueHN OTO pOn3BoDnteJIa.
Дугч actmoKe da IOBeaTdo 3anaBaHe Ha XlaIJIeH aReHT B aTMocepepaTa OT Teu.

3A6EJIEXKA

• N3noJ3BaHeTo Ha cnJIKOHOB yIbTHInTe MoKe da nonpeuHa eKETnBHOCTTa Ha HAKO BNIOBe 60pyDaHe 3a OTKpNBaHe Ha TeOBe.
  He e Heo6xOIMO nckpo6e3onacnHte KOMIOHEHTn da 6bdaT n30JIpaHn npde n pa60Ta no T8X.

Oka6eYBaHe

• Oka6eJaBaHeTo Da He e NoIIOxKeHO Ha n3HocBaHe, Kopo3n, IpeKOpemepHo HaNraHe, Bn6paun, oCTpn p60Be nn npyTu He6laTn Bb3deNCTBnHa OKoJHaTa Cpea.
• PpOBepKaTa CbIoo TaKa Tpr6Ba Da B3eMe PpeBnID eΦeKITte OT CTapeEHe NIN HeNpeKbChaTn BV6paCmN OT N3ToHnCi KaTO KOMPecOpu INI BeHTnlaTopn.

OTkpnbAhe Ha 3anaIIMM XlaIINH areHTN

• PnHnKaBn 06cToTaeTbA He Tp6Ba Da ce H3NoJ3BaT NToEHnAHN H3ToUHnHa 3aNaJBaHe npN TbpcHe nn OTKpuBaHe Ha TeOBe Ha XlaDIneH aReHT.
  He Tp6Ba Da ce n3No13Ba XaIoreHHa rOpEka (nIn Dpyr DeTeKTop, n3No13BaU OTKpNT PAmbK).
• OnncanHe No-dony MeToIa 3a OTKpNBaHe Ha TeOBe ce CHTaT 3a npneMnBn 3a BCnKx XlaDnHn CNCTeMn.
• EneKToHHn DeTeKTopn 3a TeOBe MoKe Da ce H3NoI3BaT 3a OTkpNBaHe Ha TeOBe Ha XlaIInJeH aReHT, HO B Clyuayn Ha 3aNaJIIMN XlaIINHn aReHTN, YyBCTBnTEJIHOCTTa MoKe Da He e aAeKBaTHa NIn Da Ce HyXdAe OT NOBtOPHo KaIIb6pnpaHe.

(O6OpyDbaHeTo 3a OTKpNBaHe Tpr6Ba da ce KaIIN6pnpa B 3OHa 6e3 XlaDNHe areHT.)

• YBepe Te ce, Ye DeTeKTopbT He e nOTeHznaJeH N3TOUHN Ka Ha 3aNaJIBaHe I e NOJxOJaI 3a N3POJ3BaHn XlaDInJe HareHT.
• O6 opydBaHeTo 3a OTKpmbaHe Ha TeOBe Tpr6Ba Da 6bJe HAcTpoeHo Ha npoEHT OT LFL Ha xlaDnHnAreHT n Tpr6Ba Da 6bJe KaIINbPnpaHO cnpamo N3NoJ3BaHHxlaDnJIeH areHT n NOxOJaUInT npoEHT raz (MaKcIMM ym 25 %) ce NTbBypkDaBA.
• Te унocтпе 3a OTKPNBaHe Ha TeчОBE cbpo ca ПОДхODЯи 3a ИЗПОЛЗВаHe C NOBEчЕТо XlaДИЛН aReHTN, HO Tpr6Ba Дa ce ИЗБЯгВа ИЗПОЛЗВaHeto ПОчИСТВaUПnpeРаТ, CBДьржАУxлор, ТБИ КaTO XлорьТ мож分解pearUpa C XlaДИЛНИаAreHT N Дa Kopo3ирma MeDнITE TрьбИ.

3A6EJIEXKKA

-ПримeperиЗа TeчhoeТз OTKрпBaHe Ha TeObe ca:

-MeToD C Mexypeta;
- BeueCTBa 3a φIyopecIeHTeMeToI.

• Ako nMa cBmHeHne 3a TeU, BCnUKN OTKpNTn PnlaMbucn Tpr6Ba da 6bDaT NotyUeHN/3araceHn.
• Ak o ce OKPne n3TuHa He Ha XlaIJIeH aReHT, KOeTo N3NCKBa 3aIIOBArHe, cIeIyT XlaIJIeH aReHT TpRbBa Da 6bDe Bb3CTaHOBeH OT CnCTeMaTa IIN N3OJIpaH (Upe3 CnIPAteHN BeHTIn) B uAcT OT CnCTeMaTa, OTeAJeHuA OTeu. OtCTpaHraHoTo Ha XlaIINH aReHT TpRbBa Da ce I3BbPwN B CbOTBeTCTBVe C npoCeDypaTa 3a OTCTpaHraBaHe N BaKyyMnpaHe.

PpemaxBaHe n eBaKyau

Korato ce Bnna 3a BBB BepnraTa Ha XnaIINH na reHT 3a n3BbPwBaHe Ha peMOHT - IIN 3a Dpyra ue - Tpr6Ba da ce n3noJ3BaT KOHBENOHaJIH npOeDpyn. BbnpeKn TOBa 3a 3anaJIIMn XnaIINH na reHTn e BaXHO da ce cneDbA Hai-Do6paTa npakTKa, TbN KaTO 3anaIIMocCTTa e cbO6paxKeHne. Tpr6Ba Da ca cna3Ba CneJaHaTa npoUeDpya:

-OTCTpaH eTe xHaDInHnAreHT;
- npody xaIte Bepurata c nHepten ra3 (He3aIbJxKITeHNO 3a A2L);
- npoucnte（He3aIbJxKuTeHo 3a A2L);
- npody xaIte c nHeptEn ra3 (He3aIbJIxKITeJIHO 3a A2L);
- OT BOpete BepuraTa Upe3 p3aHe Nn 3aNoBaHe.

3a pekdaHeTo c xlaIuIeH areHT Tp8Ba da 6bDe Bb3TaHOBeHo B npaBnHInTe 6ytuIKN 3a Bb3CTaHOBBaHe.
3a ypeDN, cBDbpKaUH 3aapanuMxnaDnHn areHTN, pa3nunHn ot xnaDnHnHTe areHTN A2L, cnCTemata Tpy6Ba da 6bde npOdyXaHa c 6e3KnClopOJeH a3oT, 3a da ce HappaBn ypeDbT 6e3OnaceH 3a 3aapanuMxnaDnHn areHTN.
- Moxe Da ce Hanox To3n Ipocec Da ce NOBTOpHRAKOIO TbTN.
Ja He ce n3noJ3BaT CbCTeH Bb3dyx nn KncIoPoJ 3a npOyXbaHe Ha oxlaIuTeHNHTe CnCTeMn.

3a ype n, cIbIbpKxauu 3anaIIMn XlaIINH aReHTn, pa3nnuHn OT XlaIINHInTe areHTn A2L, npOdyXbaHeTo Ha XlaIINH aReHTn Tpr6Ba Da ce noCTurhe Upe3 ppeKbcBaHe Ha BaKyMa B CnCTeMaTa C 6e3KnCLOpoDe h a3OT n IpoDbIkaBaHe Ha NJIHeHo Do DOCTURA He Ha pa6OTHO HAnraHe, CLEd TOBa N3nyckaHe B atmocepaTa Hn HAcpa N3dbPnBaHe Do BaKyym.
To3n npoce c Tp86Ba Da ce noBtapra,doKaTO B cnCTeMaTa He ocTaHe XlaDInJeH aReHT.
Kor aTO ce n3nOJI3Ba OKOHaTeIHOTo 3apeXdaHe Ha 6e3KnCIOpeH a3OT, cnCTeMaTa Tp8Ba Da 6bDe o6e3Bb3dUweHa Do aTMocΦepHO HAnraHe, 3a da MoKe Da ce n3BbPpUn pa6ota.
Taz n onepaun e a6coHToHO Kn3HeHOBaXHa, aKO Tp86Ba Da ce n3BbPWBaT onepaun No 3aNoBaHe Ha Tpb6nte.
- YB epeTe ce, Ye I3XoDbT Ha BaKyymHaTa NOMna He e 6IIN3O Do KaKBInTo N da e NOTeHnAaHn N3TOuHNi Ha 3aNaJIbAHe n Ye IMa HAnuHa BeHTnlaCJy.

He Heo6xOdmo npedna3Ho yctpoiCTBO
2EHa MpaKa 3a 6e3oNaCHOCT
3DBeMepkn3a6e3oNaChocT

064MOHTaX

3a da ce MOHTnpa BVtpeuHO TAno, MoKe Da ca Heo6xOdMn NpeJna3Hn yCTpoiCTBa B 3aBucmocT OT 30HaTa nnBeHTnnpaHaTa PIOUc Ha IOna (KORAto Ce n3noJ3Ba eCTeBeHa BeHTnlaqna). Ako Mc e Na15,964 kg, Tp86Ba da ceMOHTnpa eCTeCTBeHa BeHTnlaqna.

IpaKata n Ta6nUcaTc a 6a3npaHn Ha MNHMalHaTa BnCOuHa Ha MOHTaX Ha BbTpEHNTe TeJa. Ako Tne NO-BncoKa, MoKe Da ce npINOxN IO-TOJMa MNHMaHa NIOU Ha NIDA.

h0 ce pa3nUaBA B 3aBNCIMOCT OT TnHa Ha MoJeJa.

TabaHeH,CTeHeH MoTaxK:2,2
KaceTbueH, nooB (PT,PF): 1,8
XndpokntCTeHemMOhtak):1,3
XuDpOKnT (nooB), nooB (pyu): 0,6
- KaHaJI: BnCOU nHa Ha Na Hau-NHcKna OTBOp Ha Bp3KaTa Ha KaHaJa C BCaKO KJIIMaTn3npaHO IpocTpaHCTBO

CbctoHne Ha eCTeTBeHa BeHTnlaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI

Ako e MOHTnupaHa ecTeCTBeHa BeHTnlaun, OTROBapua Ha ycNoBna Ta no-dOly, "A" MoKe da ce 3a meHn c ,VA". 3a ETRS MdyI, aKO CE n3no3Ba KaTo MApka 3a 6e3oNaCHoCT, "A" He MoKe da ce 3aMeHn c ,VA".

3a donHnO TbOp:

ToBaHe oTBoP HaBbH
- OToBOpT He MoXe Da ce 3aTBOpN
- OTBOPbT Tp86Ba da 6bDe ≥ Anvmin
- Плоцта на BCичкп OTворинад 300 mm ot пода He ce 6pon npn onpeянe Ha Anvmin
- Ha-MAKko 50% oT Anvmin Ba no -MaKko oT 200 mm NaD noDa
-ДоннataЧТ HaДоннЯ OTbOp eHa ≤100 mm ot noDa
- BncounHaTa Ha oTbopa e≥20 mm

3a rophnno OTBOP

BEZBEDNOSNA UPUTSTVA

PROCTAJTE CELO UPUTSTVO PRE UPOTREBE. 3

Napomene za zapaljivo rashladno sredstvo. 3

UPOZORENJE 3

Uputstva za proizvod Common. 3
Uputstva za proizvod Duct. 3
Uputstva za proizvod Multi V. 3
Uputstva za Hydrokit 4

OPREZ. 4

Uputstva za proizvod Common. 4
Uputstva za proizvod Duct. 4
Uputstva za proizvod Multi V. 4
Uputstva za bezbednost za servis. 5

PUNJENJE RASHLADNOG SREDSTVA

Minimalna povrsina 9

Dijagram toka. 9
Kako izračunati maksimalnu količinu rashladnog sredstva 10
ETRS jedinica. 10
Opsta ugradnja. 11
YcnoB npnpoDHe BENTnlaucije. 11

BEZBEDNOSNA UPUTSTVA

PROCTAJTE CELO UPUTSTVO PRE UPOTREBE

INSTRUCTIONSBOK, INSTALLATIONS- OCH SERVICEHANDBOK (FÖR R32)

LUFTKON-DITIONERARE

Allman installation 10

Naturlig ventilation 1

SÄKERHETSANVISNINGAR

LAS ALLA ANVISNINGAR FORE ANVANDNING

Achar Urlair Iosta don Urlar is Isle Faoi Thalamh Ach

Ní gá aon bheart sábháilteachta
Dhá bheart sábháilteachta
3Ni féidir é a shuiteail

ar Urlair Iosta do Urlair Eile

SIGURNOSNE INFORMACije

PRIJE UPOTREBE PROČITAJE SVA UPUTSTVA 3

Napomene za zapaljivo rashladno sredstvo. 3

UPUTSTVO UPOZORENJA 3

Uputstva za uobičajeni proizvod 3
Uputstvo za proizvod s kanalima 3
Uputstvo za proizvod Multi V. 3
Uputstvo za proizvod Hydrokit. 4

UPUTSTVA OPREZA 4

SIGURNOSNE INFORMACije

PRIJE UPOTREBE PROCTAJTE SVA UPUTSTVA

Uldise toote juhised 3

Torustikuga toote juhised. 3

Multi V toote juhised. 3

Hydrokit toote juhised. 4

ETTEVAATUSE JUHISED 4

Uldise toote juhised 4

Torustikuga toote juhised. 4

Multi V toote juhised. 4

Uldise toote juhised

Multi V toote juhised

Hydrokit toote juhised

Uldise toote juhised

Multi V toote juhised

Minimala grids platiba 8

Plusmas diagramma. 8

Ka prekinat maksimalo aukstumagenta daudzumu 8

ETRS vieniba 9

Minimala grids platiba

Visas iekstelpu iekartas jauzstada, ieverojot, lai A vai VA butu lielaks par Amin

Plusmas diagramma

*1 (ISO 5149-3:2014, 5. punkts)

IPEEd BnKOpNCTAHHm IPOuHTaTE BCI IHCTPyKUII. 3

Ppimitkn 0do 3aMnctoro xolodareHTy 3

IHCTPYKII KATEROPII «OBEPEXHO» 3

IInctpykciI IraarHoro npOdyKty 3

IInctpykuii InnoBITPOBOIDIB. 3

IInctpykuii Inra Bnpo6y Multi V. 4

IInctpykuii InBvpo6yHydrokit. 4

IHCTPYKUII KATEROPII «YBAGA» 4

IInctpykciI dIa3aralbHoro npodkyTy. 4

IInctpykciI Ira NobitpoBoid. 4

IInctpykuii Inra Bnpo6y Multi V. 5

IInctpykuii 3 texhikn 6e3nekn niD yac o6cnyroByBaHHra.5

3APABJIENHЯ XOJIOOATEHTY

Mihimalha ploza npmiueHHra 9

BIOK-cxema 9

Ko6uHcInTu MaKcMmaIbHy KJIbKicTb XoIoOaReHTy 10

ETRS Unit 10

CtahapThe BcTaHOBHeHH 11

Ctah npnpodHOI BeHTnlauii 11

3ANOBIXHI 3AXOДN

NEPEBVKOPUCTAHHAMIPOHTAHTEBCIHCTPYKUII

Habehehi HxKpepeMeHaaJI 36e3neKn po3po6JeHi
Ira 3aNo6iraHHn Hepepe6aueHm pn3NKam a6o
NOkOKeHHyHaCNIoK Heo6epExHOu
He npabInbHO BnKOpNCtAHN npncTPOIO.
Li Bka3iBkn po3dineHo Ha KaTERopii i3 3arONoBkAm
<0EPEXHO> Ta «YBAGA», k onncaHo HxKye.

PnIMITKUoDo 3aMnCToro XoIooareHTy

HabeHeHi HIXyce CmB0n3o6paKeHo Ha 6Iokax.

LcH CmB0n 03Haaye, y npnaadi BkOpncTOByETbCz 3aMmCTn XoIooaReHT. RaIO xOLOoareHT BuTeue i Ha HbOro BpInHe 3OBHIe DxepeJIo 3aImaHH, icHy e pN3NK noKexi.

LcH CmBbBkA3ye, 10 cIi peTeBHo npOHTaTn Noc6HKn 3 ekCnnyatauii.

LcH CnMBOJ O3Haue, 10 cepBicHn nepcoHaJI NOBHeH IpaUOBaTn 3 o6JaHaHHaM, 3BepTaIOuNCb Do Noci6HnKa 3 MOHTaKy.

Lcien CmB0J O3Haaye, 10i nHOpMaJia JocTynHa y Noc6Hnky 3 ekCnIyatauai a6o Noc6Hnky 3 MoTaxy.

IHCTPYKUII KATEIPOII «OBEPEXKHO»

PONEPEKHEH

• 3Hn3HTn p3Nk Bn6yxy, noKexi, cMepti, ypaXeHH eJekTpnuHm CTPyMOM, TpaBMyBaHHa6o onIKiB NiI qac BnKOpNCtAHHr CuBOrO BuPo6y, DoTpumYTeCb OCHOBHX 3aNo6ixHx 3axoDIB, 3OKpeMa HabeDeHnx HNXue:

Ihctpykuii 3aaraHoro npoaykty

He BnKOpncToByTe iHsi 3ac06n IJ npNcKopeHH po3MOpoxyBaHH a6o IJI qHueHH, OKpIM peKOMeHDoBaHHBnpo6HnKOM.
- Ppnilad NOBHeH 36epiratncB nprmiueHHi 6e3 noctiHo aKTHBnHex JKepeJ 3aMaHHa (HaPnKJaD: BiDKpnte noJyM'， npauoouny raObni npilad a60 npauoouy eJeKTpoHaarpiba)
- Ppnilad NOBHeH 36epirataTcra TAKUM YINHom, 0o6 yHNKHyTN MEXaHicHnx N0wKOdXeHb, y Do6pe BeHTnIbOBAHOMy npIMiueHHi 6e3 NoCTiHO aKTNBHX dKepe3aImaHHa (HaNPKJaD: BiDKPnteNoLym'paTOUChn ra3OBn npJAd a6o npaTOUChn eJeKTPoHaRpiBa) Ta 3 po3Mipom npIMiueHHa, 3a3HaueHm y cneuNphiui.
He npokoiHTe i He cnaioTe.

• Nam'Ятуг Te, lo xoloaReHTN MoKyTb He MaTn 3apaxy.
  Docyn Do Bcx Heo6xHnX BeHTnlauiHnX OTBopiMa 6yTu BiIbHM Bi npeWKoJ.
• NobitponpoBODi, NiDKJIIOUeHI Do npnAHy, He NOBUNHi MicTITN nOteHciHOro DxKepeJa 3aMHaHH.
  He3akpinnen npnlaed Heo6xidno 36epiraTn B Micu, nloaa koro BIDNOBidae nlooi npmimiueHHn, Bu3naeHni dne EKcnnyataaii.
  HepyxomHe 3akpiIeHn npuaclnd36epiratn B npimiuHhi 6ez noCTiHNO diuOro BiDKpntoro nolym' (HaapanKla, npaioUoOro ra3OBOro npua) a6o IHnx NoteHuiHx DkepeN 3aMaHHa (HaapanKla, npaioUoOro eNeKTpoHarpa, rapaNX nobepxoHb)
  JaKuo npuIaDi 3XoIooaReHTaMn A2L, NiKlHoueHi uepe3 CnCTeMy NOBITPOBOID IO ODHORO a60 KINbKOx npIMiueHb, BCTAHOBNIHOJBcR B npIMiueHHI NIOUeMeHIO 3a Amin, y cBOMy npIMiueHHI He NobHNO 6ytN noCTiHNO DIOUORO BiDKPNTORO NOUM' (HaNPKlaD, npaIOUOro ra3OBoro npuIaNy) a60 iHUNx nOTeHciHnx DxpeR 3aImaHnR (HaNPKlaD, npaIOUOro eJeKTPoHarpIbAua, rapYnx NOBepxOHb). Y cBOMy npIMiueHHI MoKe 6ytN BCTAHOBLeHHI npNCtpi, 1O CTBOPIOE NOUM'RAKIO BIn 3a6e3neueHn eEeKTNBHM BOrHeracHKOM.
  LcE 6LOK OCSaUeHn CNTeMOB BnBLeHHBnTOKIB 3a6e3neueHH 6e3NeKn. LIO6 BnBLeHHBnTOKIB 6ylo eΦeKTbHmM, 6LOK NOBHeH MaTIN KINBLeHH NoCTiHo NiCIA BCTaHOBHeHH, 3a BnHTKom 06cIyroByBaHH.
  LcE 6nOK ocaueHn eektpoxNBleHm3ac06amn 6e3neKn. 1o6 zu 3aco6n 6e3neKn 6yIn n ekeTNBHMn, 6nok noBHeH nocTiHo nepe6yBaTuPi eektpoxKbIeHHaM NiCJI BCTaHOBLeHHa, 3a BNHTKOM yacy o6cnyTOByBaHHa.
• DaTnK XoJIOaoreHt Mae Ctpok Cnyx6n 10 pokib. Iicra TOrO RaD aTnK BnRbIe BntiK i AKTNByEhC, BiH He NiIgIrae NOBTOpHOMy BnKOpNCtaHHIO INOBHeH 6ytu3amihenn.
  Klaanah Ma6 6ytn po3TaObaHn TaK, 0o6 Do Hboro 6yb 3pyuHn doCTyn i 0o6 NOro MoXHa 6yNo ekCnIyaTyBaTn 6e3 pn3Nky dny IIOdei Chepe3 BNTIK XoJIoDoareHTy. Bin NobHHen 6ytn BCTaHOBLeHn No3a Mekamn 3aImaHoro IpocTopy, kUO ce MOxJIbNO, a60 y BeHTINbOBAHOMy Koxyci, Ta UITKOfIOKaOBHn.
  -Датуки XOлоdoareHTy BСИТеМI ВИЯВЛЕнHЯ BИТOKу XOло doareHTу NOВИНHi 3aMiHIOBaTиСЯТiЛьКи HaTi,ЦОВkaЗaHI ВИрбИКOM пИlaу.
  ДлгпладиВсnteMoTO BnBHeHн BAToKу, BiDciHi KlaanH6e3neKn He nobHHi CkndaTncbdo MOMeHTy BeHTnlaJI npMiuIeHHN, OCKINbKN CkNDaHHM MoKe npN3BecTN Do DoDAtKOBOBnDu 3aIMnCTORO XOLODOareHTy npocTip.

Ihctpykuii Iy noBtpoBoiB

• Y cnoIyuHnX NOBITPOBOdax CnI D BCTaHOBNIbOBAIT NIIuWe dOnomixHi npicTpoi, CXBaJIeHI BInpo6HnKOM npuJaDy a6o Bu3HaHi npuaTaHmN IJRA BnKOpNCtAHHr 3 XoIoDoareHTOM.

• Donomixkhi npncptoi, rki Moxytb 6ytu noteHcuiHm dxkepeIOM 3aImaHHn, He NOBHH BCTaHOBbOBaTcN y nobITponpOBOdax. PnKladaMn TaKnx noteHcuiHnx dxkepeI 3aImaHH e rapyhi NobepxHi 3 TempepaTpoIO noHaD 700 c Ta eKeTpnuH KOMytauiH npncptoi.

Ihctpykuii dna Bnpo6y Multi V

3axnchi npictpoi, trpy6oPBOOn Ta 0iTnHr n CII MaKcMaJIbHO 3axNCTuB iD HecnpnTlNBux BnIIBi HaBKOINHbO rpeoBnUa, HanpNKlaD, BiD He6e3neKn ckyPehnTa 3aMep3aHHB OOn y BuynyckHNx Tpy6ax a6o ckynpeHH 6pydTu cmITT.
- EneKtpomarHITNI KlaNaHn Tpe6a npabNbHo po3TaUyBaTu y Tpy6OpOBoDi, Uo6 yHnKHyTn rIpaBnHOrO yApy.
EneKtpomarHITi KlaanAHn He NobHHI 6IOkyBaTncB pIKOMy XoJIOaoreHTi, JaKUHa CTOpOHi HN3bKOTo TnCKy CnCTeMn XoJIOaoreHTy He 6yJe 3a6e3neueHe DOCTaTHCKnDaHH.
Bnpo6JIeHi B noJIbOBrx yMOBaX 3'EdHaHHx xIoIOaReHTy B npMlIeHHi Tpe6a nepeBipeHi Ha repMeTnUHnicTB. MeToD BnIpO6yBaHb NOBHeH MaTu cyTInBic7 5 rpaMIB xIoIOaReHTy Ha pik a6o Kpaue npN TnCKy, lo MmIMyB O,25 paN nepeBnUye MaKcMaJIbHO DoNyCTmMn TnCK. KoDHNx BnTOkIB He nobuHHo 6ytN.
- Picnnepebipkn eTnkeTkn, npnKpInneHoI do 30BnHbOro 6NoKy, 3aNnWiTb BkazHy Ha Hn KjBkictb XoJIoDoareHTy.

Ihctpykuii dna Bnpo6y Hydrokit

3axnchi npictpoi, Tpy6oPBOO Ta iINHm MaOTb 6ytu MaKcMaJIbHO 3axuueHi BiD HecpnpaTlNBORO BnNBy HaBKOUNHbOrO cepeOBu.
OTBipIy BuaJeHHNIOBITP3 npMiuEHHNOBHHe po3aOByBaTnca Ha pIBHi a6o HxKYe ToKn BxOdy XoIoDoareHTy.
ДябLOKIB，卍BOCTAHOBIOIOTbCHa NiIIO3I，TOUKa BnXOy XoIooaReHTy Ma6 6yTNЯKOMORA HIXQIO.
OTBOPN DnBvBeHn NOBITPcIiPo3TaWOByBaTu Ha DocTaTHi BiCTaHI BiD OTBopIB Ira 3a6Opy nobITp, 0o6 3ano6irtn peuPKyIau II nobITpr B npMiuEHHI.

IHCTPYKLI KATEGPII «YBAGA»

YBAGA

• Ⅲo6 3Hn3ntn pu3nk He3Nauchnx TpaBM, HecnpaBHOcti a60 nouKOJxehn Bnpo6y uM MaHa, doTpmyTecb

OCHOBHnX 3aIIO6IXHHX 3axoIDIB,3OKpeMa HaBeDeHHNX HIXKYe:

Ihctpykuii 3aeraHoro npoaykty

• 6ydb-kooc6n, 30 3aMaTbCp6oToHO Ha KOHTpyi xoloOaReHTy a60 BtpyuAcTbCBAHbOro, Ma6 6ytN diIcne CbiOuTBO BiD akpeDuTOBaHOI B rany3i OuiHOBaJIbHOYcTaHOBn, AKe NiITBepdKye KOMTeHTHicTB ciEi oco6n Ira 6e3neuHOi po6OTn 3 XoloOaReHTamn BiINOBiHO Do HOpM OUIHOBaHHa, Bu3HaHNx y raany3i.
  06cnyrobyBaHHMaBnKOHyBaTnc TaTbKn 3rIdHO 3 peKomeHdauciamn Bnpo6hka o6naHaHHa. Texhiue H obcnyrobyBaHH Ta pemOH, Iy knx Notpi6Ha dOnomora IHwO rKaJIiΦiKOBaHOro nepcoHany, MaBnKOHyBaTnc TaTbKn NiHarJlOM Oco6N, KOMTeHTHOI y BnKOpNCtAHHi 3aIMnCTNX xoloDoareHTIB.
  CniD 3BecTn Do MiHIMMy MOHTaK Tpy6oNpOBoYd.
  Tpy6oPobiD noBHeH 6yTu 3axuEHH BID oI3nUHNx noXkoJKeHb.
  CiiDtoTpyMaTncaepKaBnHx Hopm CTOCOBHO ra3oBOrO 6naHaHHa.
  MexaHHi 3'EnHaHHa (MexaHHi 3'EnHyBaui a60 pO3BaIbCuBoaHi 3'EnHaHHa) NOBHHi 6yTuN H I TExHiHoro 06CnyroByBaHHa.
  Texo6cIyroBvBaHHr Tpe6a BnKoHyBaTu Inuhe 3riHNO 3 pekOMeHdaUiaMn Bpu6Hnka o6naHaHH.
• Ppnilad Heo6xidno 36epiratn TaK, 0o6 3an06irtmexaHiHIM NOWKoJKeHHM.
  Bnpo6HnK NOBHeH Bka3aTu iHsI NoTeHcui Hi NoCTiHo npauoUoyi DkepeLa, kI MOxTyb BNKnKaTu 3aMaHHXOJIOdoareHTy, 0u BnKOpNCTOByeTBCr.
• PanaHi, 3BapeHi a6o MexaHuiHi 3'eHaHHcIiD po6HTn nepei BiKpUbaHHm KlaanahiB, uO6 3a6e3neHTn NOTIM NOTIK XoIoDoaReHTy MIX qactuHaMn OxoIoDkyBaJIbHOI CnCTemN.
  KMO MexaHHi 3'EDHyBaHi BUNOPNCOTBOHTbCnOBTOPO H npMIMIeHHi, CIId 3amHHTn DeTani yuJIbHeHHr.
  JaKUo po3BaIbIbOBoHi 3'EDHaHHe NOBTOPOBIOKOpNCTOByIObCB I pIMiueHHi,po3BaIbIbOBAHy DeTaJIb CIId BnroTOBUTn 3aHOBO.
  Tpy6oPobiD xoloaareHT cyid 3axnctntn a60 3akpntn, 06 yHnKHytn noKoKeHH.
  Hnyuki3'eHaHHXoIooareHTy (HaPnKla3'eHaHH MIX BHyTpIiHIM Ta 3OBHiUHM 6ILOkOM), kI MOKyTb 3MICITNCBpOoBx 3BuayuHOi pO6OTn, cIiD 3axuataN BiMexaHiHOrO NowKOJKeHH.
• PerioDnUHNo (kiIbka pa3iB Ha pik) BnuIaJrTe nIa6o
• qacToUKN coJI, IIO 3acTpIIN B TeNlOo6MiHHNKy,
• BOIOHO.
• DemoHTax npucTpoO, 6p06ka Macna xoloOareHTy i DeTaeJe npucTpoIO NobHHI BUKOHyBaTnCBAIDNOBIDHO Do MicueBnx I HaioHaJIbHnx CTaHdaptIB.

Ihctpykuii Iy noBtpoBoiB

• PnpiKluHcHHepe3 CnCTeMy NOBtpoBoID Do oHoro a6o KInbKOx npMiuEh, npNIIuBHe Ta 3BOpOTHe NOBITpRA NOBHHI NODaBaTnC4 6e3nocepEnbO do npMiuEHH.

BikpnTi dianHKN, Taikn iibici CTeI, He Tpe6a BnKOpNCTOByBaTN k nobITpOBoD Ira 3BopoTHoro nobITpr.

Ihctpykuii DnBnpo6y Multi V

Tpy6oIpoBOJn 06laHaHHB 3aMaHINx npMlueHHx Tpe6a BCTaHOBIOBaTN TaKIMu YNHOM, 06 3axNCHTNix BiD BNpaKOBNX NOWKoJKeHb NiD qac ekCnlyaTaUcII Ta 06cNlyROByBaHH.
Tp e6a Bxntn 3anopixkHnx 3axoib, u06 yHnKHyTu HAdmipHo'i Bi6paui a6o npIbcaui oxoJoxyBaIbHoro Tpy6onpoBody.
Tp e6a nepe6aHTn MoXJIbOcTi NOIOBKeHn Ta ykopoehn DOBrnx dIraHOK Tpy6oPBOyD.
Tp y6o npoBoDN B xOLOdNbHnx CnCTeMax cnId npoeKTyBaTN Ta BCTaHOBNIHOBAtu TaKIM uHOM, 0o6 3BeTn Do MIniMMy MoXJIbICTb NOWKOJKeHHr cnCTeMn rIpaBliuHm yapom.
CTanebi Tpy6 n Ta KOMnoHeHTn CnI3axNCTNTu BiK Kopo3ii 3a DOnOMoTO aHTNKOp03iHORO NOKpTTTnepeHaHeceHHM 6yDb-koI i3OJIaII.
- Hnyki e Iementn Tpy6 MaHb 6yt3axueneHi BiMexaHUnx N0UKOJKeHb,HaMipHOi HanpyrNCKpyuBaHHm YI INHX CNL. IX CII DIOpiHOnpepeBipTn Ha HAIBHcTB MexaHUnx N0UKOJKeHb.
BHytpi 6n6nHaHnTa Tpy6n C1iHaHIO 3akpiNTTu o6rpoaHTu Takm YNHOM, Uo6 yHEMOXJIbNTu BnJaKOBn po3pNB O6laHaHHB HacIIOk TaKnx Noi, Ra nepemieHH Me6nIB a60 peMOHTi p6OTn.

Ihctpykci 3Texhikn 6e3neKn iud qac o6cnyrobybaHHa

Ipebeipkn npmimiueHHa

• Npeed noatakom po6it i3 cnCTeMaMn, 0oMiCTaTb Ierko3aMncti xOIOdoareHTn, Heo6XiHO npOBectn nepeBipkn 6e3neKn, 0o6 3BeCTn Do MiHIMy pN3NK 3aMHaHH. IJRA BUKOHAAHRe peMOHTy XOIOuNbHoI CnCTeMn Heo6xIDHO DToPmYBaTnc TaKnx 3axOIB 6e3neKn nepeed noatakom po6it.

Popraok po6oTu

Po6oTa NOBnHHa BVKOHyBaTnCra BiIIOBiIHO Do KOHTpOJIbOBAHOI npOueDpyu, 0o6 3BeCTn Do MIHIMMy pN3NK npCvTyHocTi IerKo3aMnCTOro r3y a6o napn NiJ qac BVKOHaHHa po6OTn.

3araalbHa po6oHa 30Ha

Becb 06cIyroBvOuHn nepcoHaJ Ta iHsi oO6n, kI npaIIOHT nbN3y, NOBHHI 6yt NpOIHCTpyKTOBaHi npo xapaKTeB BnKOHyBaHx po6iT. C1d yHnKaTu po6Ot n y 3akptnx npmiiueHHx.

Ipebipka HareBHOcti XoJdoareHTy

Ioiuacpo60nHeo6xHNo npebipntu 3OHy 3a DOnomoroHO BiNObIHOro DeTeKTopa XoJDoareHTy, 06TexHiUHHo faxiBe3HaB npo NoteHuiHo 3aMncti atmocepn.
-пе pekoHaTeca,оо o6laHdHaHnЯДЯ ВЯВJIeHnRA BnTOkIB nIXoOuNTb ДЯ BnKOpuCTaHHЯ 3 JERKOaMnCTUMN XOLOoAoreHTaMn,To6To He yTBOPHe icKOp,HaIexHnM uHHom rePMeTu3OBaHo a6o icKpo6e3neuHo.

HaBhIcTb BorHerachnka

JaKuo Ha XoJIoDnIbHOMy 06laJHaHHi a6o 6yJb-aknx NOB'3aHnx 3 Hm YacTHnHX NOBnHI npOBoHTncr BORHeBi p6oTu, Nopyu Ma€ 6ytu BiIDNoBIdHe O6laJHaHHN Dn I NoKexoraciHn. BInr 30HN 3aPnBaKN IOBnHeH 6ytu NopoUkOBn a6o CO2 BorHeracnK.

Biccythictb dxepeel 3aMannH

XoHa oO6a,ЯKa BnKOhYe po6OTn 3 XoIoAnIbHnMn cnCTeMaMn，UO nepe6aayotb BiKpnTTa Tpy6OpBoOiB，He NOBnHHa BnKOpNCtOByBaTn dKepeLa 3aMnHra TaKIM uHOM，Uo6Ze MOrNo npN3BeCTn Do pN3NKy 3aMnHra a60 Bn6yxy.
- Yci Mo JxNBI DxepeNa 3aMHaHNe, BKJIouHNo 3 KypiHnM CnIapeT, CIId TpIMaTN Ha DCtTaHi BiDCTaHI BiD MicuB BCTaHOBLeHHr, peMOHTy, DEMoHTaKy Ta yTuNlI3aUi, NiD qac kNx MoKe BiD6yTncs BnKnD XOLOoAReHTy B HABKOINuHn IpocTip. Npeep Noayatkom po6it Heo6XiJHo ORJyHuTn 30Hy HABKOJIO O6JaADHaHHn, 0o6 NepekoHaTncs y BiDcyTHocTi 3aMmCTnx MaTepiAIB a6o DxepeN 3aMHaHHn. NOBHNi 6yTu pO3MiueHi 3HaKn «He NaIInTu».

BeHTnIbOBaHe npMmUeHHA

• Пара поронкнннь в систу му abo BUNKOHnM 6ydb-якnx BorHeNe6e3neuHx po6it nepekoHaTecra, lo npimiueHHa E BiDkpNTm dIЯDocTyny nobITpr a60 zu BOHO DoCTaTHbO BeHTNIOEtbcr. CtyniHb BeHTnlaqii NobuHEn 36epiraTcra npotarom nepioy, KOJI NBUKOHyOTbcra Taki po6otn. BeHTnlaqia NOBnHa 6e3neuHo pO3ciOBaTu 6yd-akn BInyuZeHn XoIoDoareHt i Kpaue BINBOdUTn Ioro Ha3OBHi B atMocephpy.

IpebeBipKxOJIoDnIbHOro 6BaHaHHa

• Y pa3i 3amHn eIeKtpnHnxKOMnHOHeHTb, BOH MaOTb BiINOBiDaTn npn3HaueHHo Ta TexHiyHM XapaKtepncTKaM. 3aBXd n C1i DOpTNMyBaTncb IHCTpyKciN 3TexHiHOrO o6ClyrOByBaHHra TpeMOHTy, HadaHnx Bpuo6HnKOM.
• Y pa3i cymHIBIB 3BepHiTbcra NO DOIOMOry Do TEXHIuHOro BiDJIy Bnpo6Hnka.
• UctaHOBKn, IIO BnKOpNCToBHyOt bIeRko3aMmCTi XoIoDoareHTn, NOBHHI npoxoDHTu Taki nepeBipKn:

-ФаКТИЧНЗAPЯДхOLOdoareHTY BiIDNOBiJae pO3MIPy npIMiUeHHr,уяKOMy BCTaHOBIeHo DeTaJI, RKiMiCTaTB XOLoDoareHT.
B eHTnlauiHe 6bIaHaHH Ta BnpyckHi OTBOpN IpaIIOuTb HaJIeXHIM YINHom, a nepeWkoJn BiDcyTHi.
-ЯкшоВИКОРИСТОВЕТСАннрями OXOLODKByBaIbHnKOHTyp,BTOPINHHN KOHTyp cIДпевipNTuHa npEdmETnpncyTHOCTIXOLOdoareHTy.
Ma pkyBaHHHa 06laHaHHi Mae 3aIIuTaTnC BnIMmI uHTa6eBHM. HeuTa6eBHe MapKyBaHH Ta 3HaKn CIId OHOBNTN.
- O xOLOdKyBaJIbHa Tpy6a a60 KOMnOHeHTN 3MOHTOBaHI y NOLOXeHHI, De BnINB Ha HnX 6yDb- RkNX peOvBNH, 3dATHNX BnKlNkATn KOpO3IO KOMnOHeHTIB, UO MCTaTb XoJIoDoareHT, E MaIOIMOBiPHM, AIKUo TiIbKN KOMnOHeHTN He BVROTOBNeHi 3I CTiKnX Do KOpO3II MaTepiAIB a60 MaOTb BiIDNoBIDHn 3axNCt BiD KOpO3II.

Ipebeipka eJektpnHnx npncTpoB

PemOHt i TexHicHe 06cIyroBvBaHHe IeKtpuHnX KOMNoHEHTiB NOBHHi MiCTiTn NoaTkoBi nepeBipKn 6e3neKn Ta npOceDpyn OrlAу KOMNoHEHTiB.
KuO iChyE HecnpaBHicTb, kA MoKe NoCTaBnTu Ni3 3arpo3y 6e3neKy, To Do IaHzOra He MOxHa NiikNIOUATn eNeKTPOXNBHeHHr D0TN, DOKN BOHa He 6yde yCyHeHa 3aDOBIIbHM UINOM.
KU O HecnpaBHicTb HEmoxJINBO yCyHyTu HeaHOr, aHeo6XiHo npOoBxuTu po6Ot, cIiD npnHrTu aDeKBaTHe TImuacObe piueHH.
Ipo ue Heo6xIDHO NOBIOMNTBnacHnKa 06laHaHHa, Uo6 yci cTOpOH 6yIn NoIHΦopMoBaHi.
- PnoaTkOBI ne pebipKn 6e3neKn NOBUNHHi MICTNTN HAcTynHe:

• Ko HndeHcTaOpn po3pIaJKeHi: Ye Ma€ 6yTn 3po6JeHo y 6e3neuHn cnoci6, uO6 yHnKHyTu MoKJIuBOcTi icKpiHHra.
  -Пдчасярджанн, BiHOBHeHHa6o npOdyBaHHcNCTeMn JODHI eNEKtpuHi KOMNoHEHTNa npOboDka NiI HanpyroHO He NobHHI OOrJTAICr.
  -Be 3nepepbHicTb 3a3eMJIeHHJ.

PemOHr repMeTHnHnx KOMNoHeHTiB

Iiud pemOnTy repMeTuHnx KOMNoHeTib yci eJeKtpuHi dxpepa JxNBHeHHn NOBHHi 6ytn BiKlnHoueHi BID npaOIOUHOo 06naDHaHHn Do 3HHTT repMeTuHnx KpuWok Toio.
- Y pa3 i kpaHbOi Heo6xIDnOcTi 3a6e3neUyBaTNeEkeTpOIOCTauaHHaOBaHHaNHaHHaIac 06cIyroBOvBaHHa, y HaibIbI KpntuHHi TouCi MaE 6ytN BCTaHOBHeHa NocTIiHO DiOuA FOpmTaYeWkyKaUd IJI NapepeJXeHHn pno noteHcuiHo He6e3neHy CNTyaQIO.
Oco6 JInBy yBary cnid npndinTu HAcTyHOMy 3 MeToHO rapaHTyBaTn, 0o npn po60Ti 3 eNeKtpuHmKOMNoHeHTaMn Kopnyc He 6yde 3MiHeHn TaKIMU NHOM, 0o ce BnInHe Ha pIBeHb 3axNCTy.
CIOI BIDN OcTbCS NOKoJKeHn Ka6eJIb,HaMipHa KIBKICTB 3'EDHaHb, KIeMn, IIO He BiINoBIaHOBt BIXiHi CneuΦikaJI, NOWKOJKeHHyUJIbHeH, HePpaBnIbHe BCTaHOBNeHH CaIbHNkIB ToIo.
- Пе pekoHaTecra, lo npictriH naiHo 3akpInJIeHn.
- Ipe pekoHaTecb, 00 yuizlbHeHHa6o yuzlbHOBaJIbHi MaTepiAIn He 3pyHyBaIncs HAcTIbKn, 00 BxE He BnKOHyOTb fYHKciIO 3ano6irAHN npOHKnHeHHO roPiooi atmocphi.
3a nachi actn H MaToB BiDIOBaTn CneuNfikaqim BInpo6Hnka.

PemOHr icKp06e3neuHX KOMnOHeHTiB

He 3acTocOByIte do IaHIOra 6yIb-ki nocTiHi iHykTNBHI a6o EMHCi HabaHTaxeHH, He nepeKoHaBUnCb, 0u CE He nepeBUNITb DOynCTUMy HanpyrTa cTpyM, D03BOJeHi dJa O6laadHaHH, Uo BnKOpNCTOByETBCr.
Ic KpO6e3neuHi KOMNoHEHTn - ue EINHI TUNN, 3AKMIMoXHa npaUOBaTn nID HappyroB B npuCytHOctiJeRko3aMnCToi aTMocepu.
Bn npo6yBaIbHe o6laHaHHNoBHNO MaI npaBnIbHi HOMHaIbHi 3HaueHH.

3aM iHOnTe KOMnOHeHTN IInIe DeTaJIaMn, BkazHMn Bnpo6HnKoM.
- Iи DiTeani MoKyTb npn3BecTu Do cnaIaxy XoIoDoareHTy B aTMocΦepi Yepe3 BntIK.

ПРИMITKA

BukopncTaHHcunikoHOBOrTepeMeTuKaMOKe 3Hn3HTne eKtNBHicTbJeKnx TnIiB O6naHaHHaBnBnBHeHH BnTOkIB.
Ickpo6e3neuHi KOMnoHeHTn He cIiD i3oJIbAtn nepeD po60ToH 3 HmN.

Ka6eni

Ha Ka6eJIb He NOBHHI BnNtBuTn HAcTyHl YHHNKu: 3HOUyBaHHJ, KOpO3i, HaMipHn Tnck, Bi6paiz, roctpi kpa i a6 6yD-b-akn iHsHn HecnpraTlnBn BnINB HabKoJIuSHhBoTo cepedOBuJa.
- Ipepe Bipka TAKOX NOBUNHa BpaxOByBaTu BNJIINB CTapIHnA 60 NoCTiHoiBi6pauiB iD TaKx DKepeI, KOMnPecOpu a6o BeHTnIaTOpu.

BnBHeHHaIerKo3aMnCTnxXoJIoOareHTiB

3aXoDHnX 06CTaBnH He BnKOpNCtOByBaTn NOTeHciHi DxKepeLa 3aMHaHH dIra NIOUky a6o BnAIBeHHB BnTOkIB XOJIOdoAreHTy.
ΓaIoIHy lammy (a6o 6ydb-akn iHwn deTeKtop i3 BVKOPnCTaHHm BiDkPnTO rnoLym) 3a6OponeHo BVKOPnCTOByBaTu.
HactynHMeToDNBnBHeHHBNTOKiBBaXaHTbCnPnHrTHmN DnBcIX XoOAnlbHnx CnCTem.

• Mo XHa BnKOpNCOTByBaTn eJekTpOHHi deTeKTopu BnTOkIB dIa BnBLeHHBnTOkIB xOIOaReHTy, aIe Ia3aMnCTnx xOIOaReHTiB yUTnBiCtB MoKe 6yTu HeoCTaTHbOo a60 MoKe 3HaIo6nTCr nepeKaJI6pyBaHH. (O6laHaHHN dIra BnBLeHHBnTOkIB cIi KAI6pyBaTn B 30HI 6e3 xOIOaReHTy.)
• Pte pekoHaTecra, 10 DeTeKTop He E nOteHcHnM DkepeIOM 3aMaHHr iPiIXoDntb dIy XoIooareHTy.
  -06I aHaHHaIy BnBHeHH BnTOKiB NotpiHo HanaTuBaTu Ha npoceH LFL (HxHbOi Meki 3aMHaH) Ia BYKOpncTOByBaHOrO XoIoOaReHTy, a BiNIOBiHy yactky ra3y (25% MaKcImMym) NiTBePdTu.
• Pi DnHn DnBnBHeHHa Teu TaKoN npndaTHi dna BnKOpNCtHaHH 3 6iNbIcITo xOJIoAoareHTiB, aJe BnKOpNCtHaHH MmHnx 3ac06iB, Ioo MiCTaTB XloP, CnID yHnKaTu, OckIbKn XLoP MoKe BCTyNTu B peakciio 3 xOJIoAoareHTom Ta cnpunHntu Kopo3IO Tpy6opBoody.

ПРИMITKA

• Ppuklaqi piHn Dn BnBneHHn BnTOKiB:

-MeToa6yIb6aJ0K
AreHTn fnyopecIeHTHOrO MeToDy

• RaKIO NiO3pIOeTe HABHicTb Teci, CIIyHyTu/ 3aracITN BCE BiIDKPITE NOyM'

• YKUO BnRABHe BOITIK XoIooaReHTy, DJIYCyHHeHH YKOrO NoTpi6He NaHHy, YBeCb XoIooaReHT MaE 6yTu BNlyueHm i3 CnCTeMn a60 I3OJbOBaHn (3a DonomoroTO BIDcuiHnx KlaanaiH) y uactNI Hi CnCTeMn, BiDalaHIn BiD Micra BnToKy. BnDaJIeHHXoIooaReHTy MaE 3dIiCHIOBATncsB iDIOBIAHO Do npOceDpyN BnDAJIeHH Ta eBAkyauii.

BudaeHH Ta BBeH

• Y pa3i BiKpTTKa KOHTpy XoJIoDoareHTy DЯ peMOHTy
• 3 6yDb-RAKO IO IHUO IO MeTOO CnID DoTPMByBaTNCb
• 3BNUaHnX NPOeDyp. NPOTe DЯ 3aIMNCTNX
• XoJIODoareHTIB BaxJIINBO DoTPMByBaTNCb HaIKpaIooI
• NpAKTnKuYepe3 PN3NK 3aIMMaHH. Heo6XiHo
• DoTPMByBaTNCb HAcTyNHO IPOeDypn:

-Bud aIitb xonoloaarent;
- PpOdy ITe KOHTyp IHePTHM Ra3OM (Heo6OB'ra3KOB0A2L);
-Buny cTtB (Heo6OB'3KOBO A2L);
-ПpoуИTe iHepTHm rA3OM (Heo6OB'ЯЗКОВ OДЯ A2L);
- P 03iMKHiTb IaHcIur IJnxOM BiDcKaHHa6o NaHHa

3a npablenxoloaoareh cnid noBepTaTu y BiNobiDiHi 6aIOnH.
Длгпрнlaади，иоMiCTЯьлergko3aMncti xoIdoareHTN，BIDMIHHI BiXoIIOaReHTIB A2L, cnCTemy cIi npOdyTN 6e3KncHEbIM a3OTOM，I06 3po6ntn npUnaD 6e3neuHm dIy 3aMnCTnx xoIdoareHTiB.
LeynpocemOKe3HaOnoNTncnIOBtOpTuKilbKa pa3iB.
-Дяпр OуВаHHЯ сnteM XOJOdoareHt He MoXHa BnKOpNCTOByBaTn CTnCHe NOBITpr a60 KNCeHb.
- Y np nlaqax, 10 MoicTb IerKo3aMnCti XOJIOaReHTN, BiDmiHHi BiD xOJIOaReHTiB A2L, npOdyBaHHn CnI D BnKOHyBaTI NJIAXOM NOpUWeHHBAkyMy BcnCTeMI 3a DoNOMOrO6e3KnCHeBO r aOTy i NoJaIbWoTo 3aNoBHeHHr DO Tnx nip, POKn He 6yde DocrHyto po6oOro TnCKy. Notim ra3 BNpyckaTeBcB aTMocΦepy, a TnCK cKnDaEeTbcra Do BkyMy.
- Lé ni pôuec cniД NOBTOPBOBaTn DoTn, DOKN B CnCTeMi He 3aJIINWITbcra XoIOnOaReHTy.
Pi Daac ocTaHHbOro 3aNpaBHeHHra6e3KncHeBnMa30TOM CnCTEmy CnI BeHTNUOBaTu Do DCsRHeHHaTMocOepHoro TnCKy, Uo6 MoXHa 6yNo BUNKOHyBaTupo6oTy.
Lepa 60nHHeo6xHa, KaO dani Tpe6a BnKoHaTu naHHr Tpy6oNpOBoDIB.
- Pte pekoHaTecra, 0o BuynckHn OTBip BakyMHoro Hacoca He 3haxOuNTbcra nopra i3 6ydb-RAKIMN NOTeHcuiHmN DKepeIamn 3aImaHHr i 10e BEHTnlaIaI.

PpoeUpn 3anpaBleHHa

Ha doaTOK Do 3BnuaHnX npoceDpy 3anpaBneHHa C1i DToTPmMyBaTnCn HaCTynHx BnMOr.

• Ipeke KOHaITeCra, 3o 3a6pydHeHH p3Hnx XOIOoAreHTiB He BiD6yBaETbcra npn BIKOpNCtAHHi 3anpaBHoro 06naHaHH. JlnaHr Ta liHii NOBHHI 6ytu KOPOTKmM, 1o6 3BeCTn Do MiHIMMy KINbKiCTb XOIOoAreHTy B HIX.

• BaHOnn noBHHI 3HaXoDnTnC8 y HaJeXHOMy nOLOXeHHI BiNobiIDHO do IHCTpyKciI.
  -пет peд заширавлеснхолоогеHTOMпереконитес,ю систema oxolodжehнязамлес.
  -ПоЗнayTe cnsTeMy nICIЯВepseHЯ 3aNpaBHeHЯ (якso ue ue He 3po6NeHo).

• BydTe HaI 3BnuaHNo o6peXHMn, 0o6 He nepenOBHTN CNTeMy OxJIoDxKeHH.

• IpepeДЗлравкоюсистемСлдпеpeВipTNI BIDNOBIDHIMnpOdyBHMra3OMПI TUNCKOM.
  Cnctemy cnid nepebipuTu Ha BiCyTHICTb BtOKiB no 3aBepuHHIO 3aIpaBLeHHra, aIe nepeD BBeJeHHm B EKcnnyataciio.

• Hact yynhe Bnnpo6yBaHHHa BnTOKn CniD BnKoHaTN nepeTdM, kN pOKnHyTu 06'ekt.

BIDHOJIeHnA

• PnBnBuDaneHHi XoJIoDoareHTy 3 CnCTeMn DnA o6CnyroByBaHHa 6o BnuBeJeHHa 3 EKcnNyataupeKOMeHdyEc86e3neHNO BuJaNTu Bci XoJIOdoareHTn.
• Pnpek aUyBaHHi xOIoDoareHTy B 6aIoHn nepekoHaTecra, IIO BIKOpNCTOByOTbcra IINIe BiNObiHi 6aIoHn dIra 3bupaHHxOIoDoareHTy.
• Ipepe KOHaTeCay y DoCTaTHi KJIbKoCTi 6aIoHIB dIy 36epirAHn BcBOrO xOIOdoAreHTy cnCTeMn.
  Bci 6aIoh n, IIO BnKOpncTObYIObC, np3NaueHi IJBAIDHOJIeHOrO XoIooaReHTy iMaOTb MapkyBaHHra IJZboro XoIooaReHTy (To6TO cneuaJIbHi 6aIoHN IJBAIDHOJIeHHxOIOaReHTy).
  BaHn MaTb 6yTu yKoMJIeKToBaHi 3aIO6IXHMn KlaHaMaTa CnpaBHmN BiDciuHMn KlaHaHamn. IopoxHi 6aHOnI Dn BIDHOBHeHHr NOBuHHi 6yTu ebakyOBaHi Ta, 3a MoKJInBOcTi, OxIoJxKeHi nepei NoaTKOM BiHOBJIeHHra.
• O6JI aHaHnHЯДЯ BiHOBHeHHa€ 6yTu BHaJIeXHOMy pOboOomy cTahi3 Ha6Opom iHCTpyKuI, uO CTocYHObCBaO6JaHaHHa, JaKe 3HaXoDITbcra NiD pykoH, I NOBnHHO 6yTu nPnDaTHm dIЯ BiHOBHeHHaIeKo3aMnCTnx XoJIoDoareHTiB.
  Kpi M TORO, Maé 6ytu B HaraBHOCTi Ta B HalaexHOMy po6oohmy cTaHi KOMnIeKT KaIIbpoBaHnx Bar.

• IJn aHnIOBHHI 6yTN B KOMNJIeKTI 3 repMeTuHIMMyTAMNIB HaneXHOMY CTAHI.
  Ipepe D BnKOpNCTaHHMaunHn IraB iDHOBeHHN nepekoHaTecra, 0o BOHa B HaleXHomy TexHiuHOMy cTaH, npoiUna Heo6XiHne 06cnyroByaHHa, a Bci Nob'3aHI eNeKtpnHi KOMnoHeHTn repMeTu3ObaHi, 0o6 3aNo6iRTn 3aMmAHm y pa3i BuToKy xoIoDoareHTy. Y pa3i cyMHIBIB 3BepHiTbcrdo Bnpo6Hnka.
  BID HOJIeHn XOIOaoreHT cnI NOBepHyTN nOCTaaybHNky y npabINbHomy 6aHOi dnyyTuJI3aCi 3i cKlaDaHHm BiIOBIDHOI HaKlaADHOI Ha nepeauy BiXoIB.
  He 3miuyIe xoIooaReHTn y BiIDHOBbAIBHx ycTaHOBkax, oO6JIbOy 6aJIOhax. JaKIo NOtpi6Ho BUNyUHTN KOMPecOpn a6o KOMPecOpHi MaCTnla, NepekoHaITecra, 0o BOHI 6yIn eBAkyuOBaHi do npinHrTHOro pIBH, 0o6 3aMmCTn XoIooaReHT He 3aJIINUBcB MaCTnJI.

• Ppoec BaKyMyBaHHcIiBnKoHyBaTNdo NOBepHeHHKOMnPecopa NocTaaybHnKaM.
  Длгпнскореньяцboro пpoecу сдВИКОристовыВаТи eLEKТруний оБirpiВ КорпсуКOMпесopa.
  3n IB OJINBn i3 cnCTemn Tpe6a BUKOHyBaTu y 6e3neuHn cnoci6.

MapkyBaHHa

• 06laHaHHNoBHHoMaTnMapKyBaHH,Ke Bka3ye Ha Te,io Noro 6yNo BnBeDeHo 3 ekcnnyatauTa 3 Hboro 6yNo BndaJeHO xOJNOaReHT.
• ETN KEKMaE 6yTN DaTObaHa Ta NiDnncaHa.
• Пе pekoHaTecra, lo Ha o6laJaHaHHi e ETnkeTKn i3 3a3HaueHHm, llo BOHO MICTuTb XoNoOaReHT, kKIn JeRKO 3aMmaTeBcra.

BvBeHn3eknnyataii

• Pered BUKOHaHHaM Uci npoceDpyu BaXJIbBO, Uo6 TexHik NOBHCIO O3HaHOMUBc 3 06JaHaHHaM Ta BCima NOro DeTaJIaMn.
• Pe KOMeHdyEBycBnKOpncTObyBaTu npoUepyn dny 6e3neuHoro BnuJaIeHHa BCix XoIooaoreHTiB.
• PpepeBnuKoHaHHmpo60Tu Heo6XiHOB3rTu npo6y OINBnTaXoIooaReHTy Ha BnIaOk, JaIoo 6yDe notpi6Hn aHaJIi3 nepeD NOBtOpHm BVKOpNCtaHHM BiHOBHeHO XoIooaReHTy.
  BaxJInBo, 6 eKtpoeHepria 6yna DocTynHa nepei noaTkoM BvBeHeHH3 ekCnlyaTauii.

a) O3HaNoMTec3 3 o6IaHaHHaM Ta NOro pO6ToIO.
b) I3oiHouTe cncTeMy eIeKtpnHNo.
c) PpeTm, Ra p03noaTn npoceDpy, nepekoHaTeCra, 10:

• 3a Heo6xidHocTi e MexaHlue BaHTaxKHOpo3BaHTaKyBaIbHe 06laHaHHn Iy po6Otn 36aNoHaMxOJdoareHTy.
  Bci 3acobn iHdbiDyalbHoro 3axncty E HaraBHocTi Ta npaBnBHO BkOpncTOBytbcra.
• Ipoce BiH OBJIeHHI NOCTIHO KOHTpOIOEbC KOMTeHTHOIO OcO6IO.
  -06JaHaHHaBnBaIHOBHeHHTa 6aNoHn BiNObiHaOTb UHHm CTaHapTaM.
  d) 3πητe xολοθoαrēnt i3 cιντεμη, ἀκιο Κε Μόχλινθο.
  e) JaKo BaKyMyBaHHa HeMOxKnBe, 3po6iTb KoIeKTop, 106 xOJIOaReHT MoXHa 6yIo BnDaJIHTu 3 pi3Hnx qactH CNCTemN.
  f) NpekoHaTecra, 6o 6aIoh po3aObaHn Ha Tepe3ax nepeD NOaTKOM BiHOBJeHHra.
  g)3aNyctiTb BiIDHOBJIHOBaJIbHy MaUHHy Ta diIte BiIDNOBIIdHO do IHCTpyKciI.
  h) He nepeNoBHiOte 6aIohn. (He 6iIbSe 80% o6cary 3anpaBKn piDInHOIO)
  i) He nepeBnUyIe MaKcMmaJIbHn po6OuN TnCK 6aNoHa, HabITb TmUHaCoBO.
  j)KoIb6aIohn npabInbHo 3aIOBHeH, a npOce 3aBepWeHH, nepeKoHaTecra, 0c 6aIoHn Ta 06laHaHH WbNkO npu6paHi 3 MaJaHUnKa, a Bci 3aipHi KlaHn Ha o6laHaHH 3akpnti.
  k) BiDnOBLeHn XOIOoAReHT He MoXHa 3aIpaBJIaTn B iINu XOIOJNbHy CnCTEmy, JKUo BOHa He OUnIeHa Ta He nepeBipeHa.

KbaliΦikaia po6iTHNKIB

Noc6HnK NOBHeH MicHTn KOHKpeTHy iHΦOpMaIIO npo Heo6xIDHy KBaIIΦiKaIIO nepcoHaNy dIy BNUKoHaHHaTexHOrO 06cnyROByBaHHa, cepBichoro 06cnyROByBaHHa Ta peMOHTnx po6it. Byb-aki II, I0 BnIBaHObTa Ha 3ac06n 6e3neKn, NOBHHI BNUKoHYBaTNCa IINue KOMTeHTHMn Oc06amn.

Pniklaani TaKnx po6oynx npoeDyp:

BtpyauHHBXoIouNbHn KoHTyp.
Bi dkpuTTra repMeTuHx KOMNoHeHTiB.
- Bi dkpnTBAHTnIbObaHx KopnyciB.
-Дя MOHTaKy 3 MexaHcHmN 3'eHaHHaMn, lo 3aCTOCOBYIOTBcB NOIbOBuX yMOBaX, kAi 3HaXoJaTbcB 3aMaHOMy npIMiueHHI, B IHCTpyKciJx NOBInHO 6TyN 3a3HaueHo, lo Tpe6a BUKOpNCTOByBaTu daTnK.
- AnciHNo - Ha BiDcTaHi He 6IbWe 2 M no Tropn3oHTaI, B Mekax npraMoI BuNIMocTi 6LOKy Ta H CTiHi B npmiiueHHI, B JAKOMy BCTaHOBHeH N 6Jok; i

100 MM haπiπloroHO, de hO He 6iNbwe 300 MM BiπiDnor; a6o
- 300 mm haq niqioro, de h0 6iNbwe 300 MM Biq niqorn.

3APABJIENHЯ XOJODOAHTY

MiHimalbHa nloua npMmuieHHa

Yci BHytpiH6Iokn nobHH6ytbTaHOBneHi 3a yMOB, 0A a6o VA 6jIbwe hIX Amin

Bnok-cxema

*1 (ISO 5149-3:2014, nyHKT 5)

• Mc = 3araIbKnbKiCTbXoIoOaReHTy BcnCTeMi (kr)
  A:PiOaPiIOrn (PiOa npMIIeHn, De BCTAHOBHeHn BHyTpiHni 6IOK, a6oPiOa HaimMeHoro npMIIeHn, 3'EDHaHO rpe3 cncTeMy KaHaJIb)
  VA:BentnIbObaHaPiOuaPiIOn(cymaPioupiMiuSeHb,3'edHaHx npnpoHOBeHTnlaueIO)
  ·Amin：Miaibha nloa niIIOrg (3Haaiy Ta6nui 1 a6o2)
  ETRS Unit:CnCTeMn oxoIooJKeHHa 3 niDbuIeHIO repMeTuHicTHIO.
• hinst: Bucota BCTaHOBJIeHHra. Bucota.
  h0:BucobBilbHeHHa. Po3paxyHKoBa BnCota a6o BnCota HaHnxQHO OTBopy 3'EdHaHHaHaJIIB 3 KOxHMM KOHNIOHOBAHIM IpocToPOM

BHyTpiHni 6Iok 1 : hinst=0, h0=h1, A=A1, VA=A1+A2 (Якwo BnkoHaHO yMoBy npnpoJHOi BeHTnlaJIi)
BHyTpHni 6nok 2:hinst=h2,h0=h2,A=A2,VA=A1+A2(kaio BnKoHaHO yMOBy npnpoAdHOi BeHTnlaqii)
BHyTpimiHnH 3:hinst=h3,h0=h4,A=A3
OTBip npnpoHoi BeHTnlaJIi
OTBip nobepHeHH
OTbip noaui

Ko6uHcInTuMaKcImMaIbHy KJIbKicTb XoJIoOaReHTy

B pa3i MoHTaKy npUnaIy KJIbKicTb DoaTkoBOrO 3anpaBHeHoro XoIoOaReHry MaE BpaxoByBaTu IiaMeTp Tpy6n, DOBXnHy Ta KJIbKicTb XoIoOaReHry, Aky MOxHa 3anpaBnTu bHyTpIuHiN 6NoK.

KilbkiCTb DoaTkoBO xoIooareHTy (Kr)

=3aRaIbHa DoBxHnTa py6o npOBoyu (M): 22,20 MM × 0,313 Kr/M (R32)
+3araIbHa IOBxHnHa Tpy6OpOBOy (M): 019,05 MM × 0,235 Kr/M (R32)
+3araIbHa IOBxHnHa Tpy6OpOBOy (M): 0 15,88 MM × 0,153 Kr/M (R32)
+3araIbHa IOBxHnHa Tpy6OppoBoy (M): 0 12,70 MM × 0,103 Kr/M (R32)
+3araIbHa IOBxHnHa Tpy6oNpoBoy (M): 9,52 MM × 0,053 Kr/M (R32)
+3araIbHa IOBxHnA Tpy6OppoBoy (M): 0,6,35 MM × 0,019 Kr/M (R32)
+KilbKicTb BCtAHOBHeHx HR 6loKIB (2,3,4 npTn) × 0.45 kr (R32)
+KilbkicTb BCTaHOBHeHx HR 6Iokib (6,8 npTIB) × 0,9kr (R32)
+KinbkiCTbdoataKOBoro xoIooareHTy dny BHytpiHboro 6noky*1

*1 Byb nacka, 3BepHtbcrdo apkyu3 Ha3BOTo Ta6nuc DaDTKOBOxOIOaReHTy DnBHyTpIHbOro 6Ioka. BnHaAeTbcr y nanepoBOMy BuIgIpa30m i3 3OBHIHIM 6JOKOM.

ETRSUnit

ДяВCTaHOBNeHЯ BHyTpIshHbOro 6LOKy MoKyTb 3HaO6nTnCЯ DeaKi 3axoJN 6e3neKn 3aJeXHo BiД nlooi a60 BeHTNbObaHOI nLooi niDIOr (PpN BHKOpncTaHHi npnpoHoi BeHTnlaqii).MakcmaJIbHni 3apRd CnCTeMn CTAHOBNTb 15,964 Kr x KJIbKicTB BHyTpIshIX 6LokiY cnsTeMi, aIe He 6IbWe 63,856 Kr. 3axoJN 6e3neKn BKIIOHaOTb KOMnIeKT cnHaI3aui LG (PLDCAAOS), BiDiChNkIaNaH LG (PRHPZ0*O) Ta npnpoHy BeHTnlaqio. JIra DetalbHOI iHOpMaui Odo akceCyapIB LG (KOMnKeT cnHaI3aui, BiDiChN klanAH), INB. IHCTpyKciIO 3 akceCyapIB.

Ipaik i Ta6nua 3acHOaHi Ha Bucoti npMiuueHHra 1,8 M. KaIO BOHa Bnua (MaKcMym 2,2 M), MoXHa 3actocyBaTH MeHsu MinImalbHy nlou ny ndlnon.

MihimalbHa nloua nijnOrn haHnKyoro nid3emHoro nobepxy

3axoDi 6e3neKn He nOtpi6Hi
2Два зхови 6e3пеки
He niJyrae BCTaHOBneHHIO

MihimalbHa nlooa niIOnn iHux nobepxib

1PncTpi 6e3neKn He noTpi6eH
Odun3axid6e3neKn
3ДBa 3axoAn 6e3neKn

CTaHdAPTHE BcTaHOBJIeHHA

IyBCTaHOBHeHH BHTPIHbOro 6Loky MoKytb 3HaOobTuCRAeKi npicTpo6e3neKn 3aIexHo BiI nlooi a6o BeHTnIbOBAHOI NIOUi NiIOnr (pnp BNkOpncTaHHI npipOHOI BeHTnlaqii). JaKIo Mc nepeBnue 15,964 kr, Heo6xIDHO BCTaHOBtN pnpOHy BEHTnlaqio.

Ipaik i Ta6nuc3aCHObAHi Ha MiHimaBHi BcTaHOBHeHH BHTpiHix 6IOKIB. KaO Bcota 6Ibua, MoKe 3actocobyBatnc 6IbHa MiHimaBHa nloa niDnOrn.

h0 BiDpi3HЯETbC 3aIeXHo BiTtNy MoJeni.

-Пдвichadocteni,HaCtiHHa:2,2
Kacetn,PiIIOB n(PT,PF):1.8
- Γιροκίτ (Hαςτήν ἡμη) : 1,3
- Tɪdɒpɑkɪt (Tɪdʒ orɒbʌn), Tɪdʒərɒbʌn (Iɪhʌi): 0.6
KaHaIbHn: Bncota HauHHxOro OTBpy 3'εdHaHn KaHaJIb 3 KOxHm KoHdIciOHOBaHm npocToPOM

CTaH npnpoHOI BeHTnlaqii

JaKIO BCTaHOBHeHa npnpOHa BeHTnJIaZI, IIO BiIDNoBIaE HaBeJeHm HIXue yMOBaM, "A" MoKe 6yTu 3aMIHeHo Ha "VA". DIA ETRS Unit, RaKIO BOHa BnKOpNCToByeTbCRA K3axiD 6e3neKn, "A" He MoKe 6yTu 3aMIHeHo Ha "VA".

ДлгнхнбогоOTbOpy:

LHe BuxiHa3OBHi
- OTBipHe MoKe 6yTu 3aKpntn
- OTBip MaE 6yTN ≥ Anvmin
-Плоца 6удь-якиx OTворіви如期 300 MM BiД NiДлоги He ВраховуETься рпи ВиЗнанeHHi Anvmin
- PpHaiMHi50Anvmin 3haoDntbCra Ha BnCoti MeHwe 200 MM NaP iBHe mIiIorH
- HxKhi KpaHnKhBoro OTbOpy Mae 6ytHa Bucoti ≤100 MM BiD niDorH
Bucotatbopy ≥20 MM

ДяВерхньоTOВОРY:

• Lé He BuxiHa3OBHi
  OTBip He Moxe 6yTu 3aKpntu
• OTBipMaE 6yTu ≥slant 50% BiAnvmin
  HnKHi KpaBepXhboro OTbOpMa6ytNa Bncot: 1500 MM Ha ndiIoroHO
• Bucota OTbopy ≥20 MM

1 PnmuieHHa 1
2ПуMuIeHn82
HeBpaxOByeTbcra

MimaimaHa nloua oTbopy (Anv)

$$ A n v _ {\min } = \frac {m _ {c} - m _ {\max }}{L F L \times 1 0 4} \times \sqrt {\frac {A}{g \times m _ {\max}} \frac {M}{M - 2 9}} $$

g - npncko peHHB iIbHoro naHHra 9,81 M/c²

29 -epdHMAJpHaMacaIOBITpy,Kr/KMOJIb.

Anv MIHimalbHn OTBIP IJI npnpoHOI BEHTNIAI, M².

ДяблOKуETRS,Anvmin=0.013m²

mc -aKTHUHa 3anpaBka XoJIoDoareHTy B CnCTeM i, Kr;

mmax 1e donyctnmu MaKcMaJIbHn 3apJx oJIoOaReHTy B CnCTemiy Kr Po3paxoBaHO 3a fOpMyloHnxue a6o 15,964 kr.

$$ m _ {\max } = 2. 5 \times (\mathrm {L F L}) ^ {(5 / 4)} \times \mathrm {h} _ {0} \times (\mathrm {A}) ^ {(1 / 2)} $$

He nepeBnIyBaTn 3HaueHnHnXu

$$ m _ {\max } = 0. 7 5 \times \mathrm {L F L} \times \mathrm {h} _ {0} \times \mathrm {A} $$

LFL-HH XHЯMeKa3aMnCTOCTi，Kr/M³;

A- nloa npmiue Hnra, M2

M-MO JIpaHa Maca XoJIoDoaReHTy, Kr/KMOJIb;

PУКОВОДСТВО ПОЛьЗOBATEЯ, ПО YUCTAHOBKE И OБСЛУЖИBAHIО (Д分裂 R32)

KOHДИЦИОHEP

IepaTbIM,ЯK KapbICTaUca npbladai,yBaXJIiBa npaHTaIuce r3Ty iHCTpyKcIbIO KapbICTaJIbHiKa i 3axaBaIuce reHa Bbladak Hea6xOdnacci.

PYCCKN

XlaandaReHrR32

TEXHnKA 6E30PACHOCTN

IPEEd 3KcIIyATAUeH UCTPOHCTBA O3HAKOMbTECb CO BCEMN HCHTPYKUIAMNI 3

PpimueaHnOTHOCHTeBHO BocPnAmEHaUoIeOcXlaAareHTa. 3

INHCTPYKUN «OCTOPOXHO» 3

O6uine nHctpyKuIN no u3deJInIO. 3

INHcTpyKcnn K yCToPoiCTBy C BO3aXoBOoDOM 4

Hnctpykun K yctpoiCBy Multi V. 4

IHCtpyKuN K yCtpoiCTBy Hydrokit. 4

INHCTPYKUNBHNMAHNE> 4

O6uine HnCtpyKuIN No n3deJIIO. 4

INCTpykun K yctpoiCTBy C BO3dyxOBOOM 5

Hnctpykun K yctpoiCBy Multi V. 5

IpaBnlaTexHnK6e3oNaChocTn npn o6cnyXnBaHn.. 5

3APABKA XIAAAGHTOM

MnHmAlbHa nloaDb nola. 10

CTpykTypna cxema 10

KaK paccuTb MaKcImaJIbHbI o6bEm XlaJaReHTa. 11

Блok pekypepaци Teпla 11

CtahapTha yTaHOBka 12

CocToHHe eCTeCTBeHHoB BeHTnlaucn

TEXHnKA B3OAnACHOCTN

NEPED3KCNJLYATAUENYUCTPOICTBA O3HAKOMbTECb CO BCEMN INHCTPYKUNM

CneIyUoIe peKomeHdaun no TexHnke 6e3OanChocTN npu3BaHbI ppeoTbpaTuTb HepeBnDeHHbIe pNCKn U yUep6, Bbl3BaHHbIe He6e3OanCHoN IIn6o HeBepHOJ EKcPnyatauNe N3dEJIa.

PekomeHdaun DeTcna DaBe KaTeOpn: OCTOPOXHO n BHUMAHNE (cm. Hxke).

PpimechnOTHOCHTeIbHO BocnnaMeHIOUeROXlaDareHTa

Yka3aHHbIe HNKe cIMBOJI OTo6paKaIoTcHa 6JIOkax.

3TOT CnMBOJ yKa3bIBaE, YTO B DaHHOM
yCTpOoiCTBe NcNoJIb3YeTcR
BocPnJaMeHryoUncrXlaDareHT. B clyuae
yTeuKN XlaDareHTa N Bo3DeIcTBnB BHeWHeRo
NCTouHnKa BOCPnJaMeHnra CyUecTByeT
OnaCHOCTb BO3rOpAHn.

3TOT CnMBOJ yka3bIbaET, UTO CNEyET BHIMaTeJIbHO IpoUHTaTb pyKOBoDCTBO NOJIb3OBATeJI.

3TOT CMBON yKa3bIBaeT, yTO
06CnyxNBAHOUm nepcoHAn DOJKeH
06paAaTBcra cO6OpyDoBAAHnEM B
COOTBeCTBm C pyKOBOdCTBOM NO yCTAHOBKe.

3TOT CnMBOJ yKa3bIbAeT Ha HAnuHnΦopMaUIN B pyKOBoCTBe NOJIb3ObaTeJI nnpyKOBoCTBe No yCTaHOBKe.

HCTPYKUN «OCTOPOXHO»

OCTOPOXHO!

-Дяснжehи риcka B3pbIbA, noxapa, cMeptN, nopaXeHЯ эл ektpnueckm TOKOM, TpaBM ININ OXOROB npu nCNoJIb3OBAHNn DaHHoro n3dennr co6JIHOaTe ochOBHbie Mepbl ppeoocTopoxHoCTn, BKJIIOUaY cJeDyUOUIne:

06uine nHctpyKznn no u3deIIO

He nCnoIb3yIte cpeIcTBA Iy yckopeHn npOceCa pa3MOpO3Kn IIN OuInCTKN, He peKOMeHDoBaHHbIe IN3rTOBtTeJIem.
- UcpoIcTBO DOJXHO HaxOuNTbC B NOMeUeHn, rDe Het NoCToRHHo DeIcTByIOUxN XCTOUYHKOB BocnIaMeHeHn (HaIpUmEp, OTKpbIToro PnaMeHn, pa6oTaIoUero ra3oBOrO npnbopa nn pa6oTaIoUeO 3JIekTpOHaRpeBaTeI)
- UcTpoIcTBO DoJIJxHO xpaHHTbC TaKIM o6pa3OM, uTo6bl npeoTbPaTbMexaHnueckne NOBpeXdEHN, B XopoUo npoBeTpBaemOM NOMEuEHN 6e3 NOCToHHo pa60TaIOUxNtOCHNKOB BOCIIaMeHeHN (HaNPmEp, OTKpbItoro INaMeHN, pa60TaIoero ra3OBOro np6Opa Hn pa60TaIOUero 3JeKtpoHarpeBaTeNA), pnp 3TOM pa3Mepbl NOMEuEHN

ДОЛЖнbl COOTBETCTBOBaTb yCTaHOBJIeHHbIM Tpe6OBAHnM.

He npokalbBaIte n He noJxraTe.
- POMHHTe, yTo y xJaDaReHTOB MoKeT OTCyTCTBOBaTb 3aNaX.
He 3aropaxnBaIte o6ra3aTeIbHbIe BeHTnlaOHHbIe OTBepCTnI.
Bo3dyxOBOdbI,poKJIIOueHHbIE KycTPOiCTBy,He J0JXHbI COepeXaTb NToEHcuaNbHO NCToCHNka BOCnJaMeHeHn.
He3aKpeHnEHHoe yCTpoiCtBO DOJXHO xpaHHTbcB NOMEuEHN, pa3Mep KOTopoRO COOTBeTCTByeT yka3aHHo ILOUaDN NOMEuEHN Dn EKCnPyatauN.
HeKcpoBaHoe yctpoCtBOdoJXho XpaHntbcnB NOMeueHm63noCToHHo pa60taUeeroOTkpbIToro orHnaPmep,pa60taUeero ra3OBoro np6opa) nnDpynIX nOteHuaJIbHbIX nCTOuHnKOB BocnIaMeHeHnra (HaPmep,pa60taUeero 3JeKtpoHarpeBaTeJr,ropaNX nobepxHocTei)
- Ппесупесьдени: ecn yctpoиCTBa c xlaadaREHTaMn A2L, nodkIIOUeHHbIe uepe3 cnCTeMy BO3dYXOBOD K OJHOMy nII HeCKOJIbKIM NOMEseHnA M, yCTaHaBnBAIoTcB NOMEseHnC nIOUaIbIo MeHee Amin, 3TO NOMEseHne DOJIxHO 6bITb 6e3 NOCTOARHNO pa6OtaUoIero OTkpyItoro ORHn (HaNPImep, pa6OtaUoIero rAOBOrO np6Opa) nII dpyrNx NOTEHuaJIbHbIX NCTOCHNKOB BOCIIaMeHnR (HaNPImep, pa6OtaUoIero 3JIeKtpoHarpeBaTeN, ropuNX IOBExHocTe). B 3tOM NOMEseHnMoKet 6bITb yCTaHOBLeHo yCTpoiCTBO, pa6OtaUoIee C IcNoJIb3OBAHNm PIAmeHn, ecn OHO OChAuSeH OΦΦeKTHBbIM PIAmeRacNTeIeM.
3To yctpoiCTBO OcHauSeHo CnCTeMoN 0bHApYKeHHa Yteek dIy oecneueHHa 6e3oNaChocTN. Iy 3OfkeKTHBHO pa60tbi CnCTeMHbIO bHApYKeHHa Yteek yctpoiCTBO DOJXHO 6bITb NcTOAHHO NODKlnOHeHO K 3JIeKTPoPiHTaHHo NocLe yCTaHOBKN, 3a NCKlHOeHHem BpeMeHH npOBedeHHaTexHueckoro 06ClyKNBaHHa.
3To yCtpoiCTBO OcHaueHo 3JeKTpnuyeckn ynpabIeMbIM cpeCTBamN 6eOanacHocT. IJnx 3ΦΦeKTNBHO pa60TbI yCtpoiCTBO DOnXHO 6blb NocTOHHIO NOkJIuOHeHO K 3JeKTpponTaHnIO NocLe yCTaHOBKn, 3a NCKJIuOHeHem BpeMeHn PpOBedeHn TExHuecko O6cLyXnBaHn.
Cpok cnky6bl daTnka xlaaareHtacocTaBnaret 10 let. Pocne toro kak daTnK o6hApyNt yTeky n cpa6Otae, OH He noJleXnT NOBTOPHOMY nCNoIb3OBAHIO n DOJKeH 6bl 3ameHeH.
KlaanahdoJxehpacnojaraTbcaTaKIMo6pa3OM, 4To6blKHemy6blO6ecneueHnerkNIOCTyn I BO3MOXHOCTb ynpabJIeHn863 pncKaIpyJeOT BO3DeIcTBnB BIXOJaIero XnaIaReHTa. OHdoJxeh HaxoINbCRBHe 30HbI npe6bIBAHnIIOde, eCIn 3TO BO3MOxHO, I160BBeHTUNIpyEmOM Kopnyce, N6blTb qETko 6o3HaueH.
-Датуки xладагента сисмbl 0баружени yteчekdoJXHbI 3aMeHЯТьСА TOLьКО Ha Дaтунки, уkaЗаHHыпponиВODNTeLEM yctpoiCTBa.
IyctpoiCTB CcCTeMoN 6bHApxKeHn yTeueK 3aOpHbIe KlaNaHbI He doJXHbI 6bITb Nepe3aNyUeHbI Do Tex nop, noka nomeueHne He 6ydt npoBeTpepHo,

NocKoJbKy nepe3aynck MoKeT npNBecTn K ДоПОЛНТeьHOMy BbIbPocy BOCnIaMeHЯHIOJIeOcR XlaJaIaReHTa B IpocTppaHCTBO.

HCTpyKcnn K yctpoNCTBy C BO3dyXOBODom

B coeHNHTbHbIX BO3dYXOBoDax DOJXHbI 6bITb yCTaHOBHeHbTOLbKO BCnOMOraTeHBHbI epu6Opbl, oO6peHHbI pOn3BOUHTeMe yCtpoiCTBa nIN npn3HaHHbI npnroHbIMn IJI NcNoJIb3OBAHnA C XlaJaTaREHTOM.
-Донон'teьиьie yctpoiCTBa, KOTOpbIe MOryt 6bItb NoteHuaNbHbIMN NCTOuHNKaMn BocPnaMeHeHnra, He DoJxHbI yCTaHaBnBaTbC8 B CnCTeMe BO3dYxOBoDOb. Ппмеры TaKnx NoteHuaNbHbIX NCTOuHNKOB BOCPnaMeHnra - ropayne NOBepxHOCTn C TempepaTyPoI Bblwe 700°C n 3NeKTpueckne KOMMyTaUNoHHbIe yctpoiCTBa.

Hnctpykun KyctpoictBy Multi V

3aunTHbIyycTpoBcTa,tp6oPBObI npMaTypa 0JXHbI 6bITb MaKcMmaJIbHO 3aUuEHebl OT He6laOIpnTbIX BO3dJeCTBn OKpyKaHOe Cpebl, HApnpMeOpOT ONaCHOCTN CKONJIeHn N 3aMep3AHn BObIB B BbIyCKHbIX Tpy6ax nn CKONJIeHn rpr3n Mycopa.
3JNeKTPomarHHTbIe KJIanaHbI DOLXHbI 6bITb npaBnIbHO paCnoIooKeHbI B Tpy6oNpOBoDe, UTo6bI n36ExKaT rNDpaBnIueckOrO ydapa.
3NeKtpomHHTbI KJIaNaHbI He DoJXHbI 6IOKINPOBaTb XnDkN XlaDaReHT npu OTCyTCTBn HnEkaUero c6pOca DaBHeHn Ha CTopoHe Hn3KOro daBHeHn CnCTeMbI XnaDaReHTa.
- UctaHOBHeHHbE B NOMeUeHn CoeHHeHn dIy XlaDaTeHTa DoJIKhbI 6bITb IpOBepHeHa repMeTNUHocTB. MeToD NcblTaHn DOJIkeH nMeTb CyBCTBnTEJbHoCTb Ha yTeuKy 5 rpaMMOB XlaDaTeHTa B ToD NII N BblIe npN DaBHeHN, KaK MInHMym, B 0,25 pa3a PpeBbIshaUoIeM MaKcUmAbHo DoIpyCTmOe daBHeHne, YTeueK 6bITb He DoJIxHo.
Iocne npOBepKn cIeDyHouSei HaKJIeKNi Ha HApYxHOM 6JIOKe 3aIIuNTe yKa3aHHoe Ha Hei KOnueCTBO XJaAareHTa.

Hnctpykun K yctpoNCTby Hydrokit

Heo6xoJMo 06ecneuTb MaKcImaIbHyO 3aUHTy yctpoiCTB, Tpy6oPpOBoOB uΦHTnHROB OT HeraTnBHorO BO3dEiCTBnA OKpyKaIOSe Cpebl.
BbInyckHoe OTBepCTne IJRA Bo3Dyxa B NOMeUeHNI OJXHO 6bITb paCNOIOKeHO Ha ypoBHe ToCKN BbInycka XJaadaReHTa Nn HNXe.

ДяблOKOB,yctaHaBnBaembIX Ha noIy,TOUka Bblnycka XlaJaTeHTa DoJXHa HaxOINTbcra KaK MoXHO HIXKe.
BbIyckHbIe OTBepCTnIa Bo3Dyxa DOnJXHbI paCNoIaratbCra Ha DoCTaTOUHOM paccTOrHmOT BO3Dyxo3a6OpHNKOB, YTO6bI ppeoTbpaTtB peuPKyIauNIO B03Dyxa B NOMEueHne.

NHCTPYKUNBHHMAHNE

BHUMAHVE!

-ДяСнЖЕHЯ рUCKa He3HaUHTeJIbHbIX TpaBM, HeNCnPaBHOCTe IINI NOBpeKJDeHЯ N3dEJIa IINI NMyUcETBa npN UcNoJIb3OBAHIn DaHHOrO N3dEJIra CO6JIIOJaTc OCHOBHbIe MEPbI ppeoctOpoxHocTn, BKJIIOuA r CLEdyUOUIne:

06nne nHcTpkykun no n3delenio

JIIO6OJ ueLOBek, KOtOpbI 3aHnMaetcra 3aMeHOH INI peMOHTOM KOHTypa XlaDaTeHTA, DOJIKeH NMeTb DeiCTByUoUsn CepTuΦNkAT OAKPeDITOBaHHOro B OTPacIn OprHa, IPOBOJaUeRO OeHky, KOTOpbI NOdTBePxxJaet erO KOMNeTeHTHOCTb B 6e3OnaCHOM 6paueHN C XlaDaTeHtAmu B COOTBeTCTBUN C npIN3HaHHoB OTPacIn CneuΦNkauneu OeHKn.
06cnyxnbHne doJXHO npOn3BOIDtbcra TObko B COOTBeTCTBnC peKOMeHaUaUM npOn3BOIDtEJIy o6OpydoBaHna. TexHueckoe obcnyxnbHne n peMOHT, Tpe6yUuIne NOMOUs dpyrTO KBAIIINpUPOBaHHoro NEpCOHaJa, DOJXHbI BbIOJIHrTBcRA NOHa6JIHODeHHeM LIua, KOMTeHTHO R IcNOJIb3OBaHn INERKOBCNJaMeHryUHXcR XlaDaREHTOB.
BpeMMAontaKa Tpy6oIpoBOda DOJXHO 6bITb CBeDeHO K MUNHMMy.
Tpy6o npoBOaI DoJXHbI 6bITb 3aUuJeHbI OTO n3nuecknx NOBpejdeHn.
Co6HdaiTe HaunohBbHbIe HopMbI yCTaHOBKn ra3oBOrO o6OpydoBaHn.
MexaHueckne coeINHeHnA (MexaHueckne pa3bEmBn nn paCTpy6HbIe coeINHeHnA)doJXhbl 6bITb DOCTyHbI dIraTexHnueckoro 06ClyxNBAHnA.
06cnyxnbHne doJXHO npoBOHTbc TToIbKO B COOTBeTCTBn C peKOMeHaunrMn npou3BOIDTeJIa.
- Pnp6opdoJxpaHHTbcraTak,HTo6bImexaHnueckne noBpeKdEHHa 6bln NCKHoueHbI.
- PpOu3BOUInTeIb DOJKeH yKa3aTb DpyrHeiCTByIOUne IcTOUHNKn IOTeHUNaJIbHOI ONaCHOCTN, KOToPbIe,KaK N3BeCTHO,BbI3bIBaHT BOCnJaMeHHeNcNoJIb3yEmoTO XJa daReHTa.
- Pered OTKpbITnem KlaanaHOB IЯ 3aynycka UnpkyIaXlaIaIeHTa MeJxIy YacTMy CnCTeMbI OxJaXKeHNe Heo6xoIIMo CoeINHITb YacTn Tpy 6OpnoBoDa NaJIbHbIM, CBapOuHbIM IJI MExaHnueCKMcNoco6om.
- Pn NOBTOHOM NcNoJIb3OBAHm MExaHnueckNX coeHNHTeJeB N OMeUeHn yNIOTHNTeJIbHbIe YacTIN DOJXHbI 6bITb 06HOBJIeHbl.
- PpN NOBTOPHOM NcNoB3OBaHN pa3BaJIbCObaHHbIX coeINHeHn BHyTpN NOMeUeHn Heo6xOdmo 06pa6oTaTB BCE KOHcBi CoeINHeHn 3aHOBO.

Bo n36exaHne noBpeKdHn Tpy6oPBOxXlaDarEHTa D0JKeH 6bTb 3aunuueH nn 3akpbT.
I6Kne coeHHeHn Tpy6OpOBoa XlaDaTeHTa (Ha npimep, coeHHntbHbIe IINHM MeXdBy BHyTpEHNM HApyXhBIM 6loKaM), KOtOpbIe MOrYT CMeuatbcra BO BpeMaHbHO pa6Otbl, DOJXHbI 6bItb 3aunueHbI OT MexaHnuecknx NobpeKdEHN.
- PepnoDnueckn (He peke oDHoro pa3a B roD) CMBiBaIte BOdo NbInb N COlb, CKONIBWinecra Ha TeNIOO6MeHHnke.
- Pn DEmoHTaxe yCtpoiCTBa yTuNl3aqIy XlaIaReHTa N dpynx DeTaeJe IOnJHa BbINOJIHrTbcR B COOTBeTCTBn C peNoHaJIbHbIMN IIn HaCuIOHaJIbHbIMN cTaHdapTaMn.

HCTpyKcnn K yctpoNCTBy C BO3dyXOBoDM

Ecln yctpoiCTBO NOdkHoueHO uepe3 cncTeMy BO3dyXOBODK OJHOMy NIN HeCKOJIbKIMN OmeuHnA, NOaHa N BO3BpaT BO3dyxJa DOnJXhBi NOCTynTab HeNoCpeDCTBeHHo B NOMEuHne.
- OTKpbItbIyUacTKn, TaKne KaN NOBBeChbIe NOTOLKN, He DOJXHbI NCNoJIb3OBAtBcR B KaYeCTBe BO3DyXBODa dJa BO3BpaTHOrO peuNpKynnpUoEro BO3dyxa.

Hnctpykun K yctpoictBy Multi V

Tpy6opobOboIobopyoBaHnB3aHnMaembIX nOMEeHNx DoJXhbl 6bITb yCTaHOBeHbTaKIM o6pa3OM, yTO6bl 3aUHTntb nx OT cnyuHaHbIX nobpeXdHn npn EKnlyataunn O6cnyXnBaHn.
ДолжнblбытbpnHЯтblМерblnpedocTopoxHoctn,уTO6bln36exaTbчpe3MepHoB Bu6paun nnnylbcaun Tpy60npoBoDa xlaadaReHa.
ДолжныбытпpeусмOTpeнь BO3MOxHOCTN paCUnpeHnI n CxATnI dINHHbIX yUactKOB Tpy60npoBoDa.
Tpy6o npOBObI B XOLOINbHbIX CnCTeMax DoJXHbI 6bITb CnpoeKtnpObaHbI N yCTaHOBLeHbI TaKIM 06pa3OM, YTO6bl CBecTI K MHNmMy BeporTHocTb NOBpeXDeHn CnCTeMbI rNdpabNNueckmYdapom.
CTaIbHbIe Tpy6bI IN KOMnHOHeTbI DOJXHbI 6bITb 3aUuIeHbI OT Koppo3Nc NOMOuBIO aHTIKoppo3NoHHoro NOKpbItna NepeD HaHeceHneM KaKoi-Ⅱn6o IV30JIuN.
I6Kne Tpy6HbIe coeINHeHnI DOJXHbI 6bITb 3aUuIeHbI OT MExaHNuecknx NOBpeKdEHN, Upe3MepHoro HAprrKeHnI CKpyuBaHNem IIN dpYrNX cII. Ix CNeDuET ExeroDHO npOBepaTb Ha HAnuHne MexaHNuecknx NOBpeKdEHN.
BHyTpehHHe o6OpyDoBaHne n Tpy6bl DoJXHb 6blb HaJeKHO 3aKepeNHeH bI OrpaxDeHb TaKIM 6pa3OM, UTo6bl NCKIIOHTb BO3MOXHOCTb CnyaHoro pa3pblBa o6OpyDoBaHn B peYbTaTe TaKIN Co6blTn, KaK nepemeueHne Me6eN nn pemOHThbIe pa60tbl.

IpaBnla TexHnKn 6e3oNaChocTn npn o6cnyKuBaHn

IpoBepKn nomeuEHHa

• PpeqHaayanom pa60t C cnCTeMaMn, coepkaunm BocnnaMeHryoosxlaaReHT, Heo6xoJmo npOBectn npOBepky 6e3oNaChOcT nIy MInHMn3aunp ncka BocnnaMeHeHry. Ipn peMOte XoJOnBHOI CNCTeMbI Heo6XoDmO co6bDaTb CneMyuune MepbI npedocTopoxhocTdo Haaya BblnoJIHeHry pa60t.

Pa6ooua npoueypa

Pa60tblcneDyeT BbInOpHnA Tb corlaacHo KOHTpOJIpyeMoN IpoUeDype B ceJax MNHMm3aCINn PnCKa IIpcuCyTCTBnI RopUcero Ra3a NII Napa BO BpeMn BbInOpHeHn pa6oT.

06ua pa6oay 30Ha

Becb 6cbnykBaHou n nepcoHaI n pyrncotpydHnKn B pa6oey 30He dOnKhbl npOHTn HnCTpykTax no cyuectBy npOIN3BODnMbIX pa6OT. Heo6xoDIMO n36eRaTb pa60T B orpaHnueHHom npoctpaHCTBe.

BckpbITne KopnycoB BeHTnIaIIOHHO CnCTeMbI.

ДяустаHOBOK C BbIHOCbIM MExaHnueCKIMN COeINHeHnMn, npIMeHReMbIM N NOJIeBbIX YCNOBnX, B INHCTpyKcInx DoJxHo 6bITb yKa3aHo paCNoIoxKeHne DaTUnKa.

YdaJIeHNO,Ha paCCToHn He 6OJee 2 M B Tropn30HTaJIbHOI NIOCKoCTn B npeJeJax npraMoB BVdIMOCtN OT 6Loka HcCTHe B NOMEUeHn, B KOTopom yCTaHOBJIeH 6Lok; n

100 MM haIypoBHeM IOna, rKe hO He 6oJee 300 MM OT IOna; IJIH
- 300 MM NaД ypoBHeM nOla, rIe h0 6oJIbIe 300 MM OT nOla.

3APABKA XIAAAGHTOM

MHHMaJIbHa nIooaJa b noJa

Bce BHytpenHne 6loKn doJXhbl 6bItb yctaHOBeHb TaKIM o6pa3OM, UTo6bl A nn V A 6bln 60JIbe, yem Amin

CtpyKtpHa cxema

*1 (ISO 5149-3:2014, Pa3dεn 5)

• Mc = 06üee koJInueCTBO xJaIaReHTa B cIcTeMe (Kr)
  A:PiOaIb IoIa (PiOaIb IomEeHn, rJe yctaHOBHe BHyTpeHHn 6IOK, nIIPiOaIb HAnMeHbWe KOMHaTbI, coeINHeHHo CnCTeMOI BO3DyXOBOD)
  VA: PpOBeTpnaemaa nloaadn ola (Cymma nloaade nomeeHni, coedHeHHbIX eCTeBHNO BENTINLAUne)
  Amin:MunHmAbHaanpoaJaBnona(CM.BTa6Jnue1nn2)
  ETRS Unit:CnCTema oxJaXeHnC noBbIeHHoR repMeTuHocTbO.
• hinst: MoHTaXHaB BbICota. BbICota.
  h0:BbICota Bb6poca.3TaIOnHHaBbICota nnBbICota camoro Hn3KOrO OTBepCTna CoeHHeHn BO3dyxOBOOB cKaXdbIM KOHNIOHpyEmbIM npocTpaHCTBOM

BnytpenHn6loK1:hinst=0,h0=h1,A=A1,VA=A1+A2 (ecnBbIIOJIHeHbI yCIOBna ecTeCTBeHHoB BeHTnlaun)
BHyTpEnHn 6Iok 2:hinst=h2,h0=h2,A=A2,VA=A1+A2 (ecn BblnoJHeHb ycNoBna ecTeCTBeHHoB BeHTnlaCn)
BHyTpEHHn6Iok3:hinst=h3,h0=h4,A=A3
EcteTBeHHa BeHTnlaCn
B03BpaTHbI B03dYx
⑥ NoidaTb nHTaHne

Kak paccunTaB MaKcImaJIbHbI O6bEm XJaIaIareHTa

Pn yctaHOBe yCTpoiCtBa KOnuYeCTBO DOnoHHTeBHO XJaDaReHTo DOnJHo paCCHTbIbAteBc C yyeTOM dNaMeTp a NdInHbI Tpy6bl, a TaKke KOnuYeCTBa XJaDaReHTo, KOtOpoe MoXHo 3aRpy3NtB BO BHyTpeHHN 6LoK.

KoIuYeCTBO OIOJHITeHbHO XlaaReHTa (Kr)

= 06山 aJdINHa Tpy6bI (M): 22,20 MM × 0,313 Kr/M (R32)
+O6uənHaTpy6bM:M019,05MM×0,235Kr/M(R32)
+O6uəy dInHa Tpy6bI (M): 0 15,88 MM × 0,153 Kr/M (R32)
+O6uəyIINHa Tpy6bI (M):012,70MM×0,103Kr/M (R32)
+O6uənHa Tpy6bI (M): 9,52 MM × 0,053 Kr/M (R32)
+O6uəyIINHa Tpy6bI (M): 6,35 MM × 0,019 Kr/M (R32)
+KolnueCTBo yctaHOBJIeHHbIX 6JIOKOB HR (2,3,4 npota) × 0.45 kr (R32)
+KolnueCTBO yCTaHOBJIeHHbIX 6JIOKOB HR (6,8nopTOB) × 0,9K (R32)
+KolnueCTBO doonHntelbHoro xnaaareHTa dny BHyTpeHero 6loka*1

^*1 CM. TexHnueckn IInCTOK NOd HaBaHneM «Дононтьнэя Ta6Iuca xlaJaTeHt a BHyTpehHero 6NoKa». ON nocTabJIeTcR c HapyKbIM 6NoKOM.

Blok pekyepaun Tennla

IyctahOBKnBHyTpeHrero 6loKa Moryt notpe6oBaTc HekOTopbIe Mepbl 6e3OanocCTN B 3aBNCIMOCn OT nlouaIIN npOBETpnaemooaaIIOI (npn IcnoIb3OBAHN eCTeCTBeHHoB BeHTnlaIeu).MakCmAlhA 3aPabKa cntEmbcocTabIeT 15,964 Kr × KoiueCTBO BHyTpeHHIX 6loKOB BCCTeMe, Ho He 6oJee 63,856 Kr. MepamN 6e3OanacHOaIauTc KOMJIeKT CnHaIIaIaUN LG (PLDCAA0S), 3aOpHbIKnlaNaH LG (PRHPZ0*O) n eCTeCTBeHHaR BEHTnlaIauN. IyI pOnyuHneBoe PoDPo6Ho NfOpMaun O aKceccyapax LG (KoMeKT CnHaIIaIauN, 3aOpHbIKnlaNaH) CM. pykoBOdCTBTO akceccyapam .
IpaFm Ta6nIca OCHOBaHb Ha Bicote NomeuHn 1,8 M. EcnN Bbicota 6oJIbwe (MaKc.2,2 M), MoXHO INcNoJIb3OBA Tb MeHbUyo MNHMalNBHyTO PLOUadBo Iona.

MnHmMaJIbHaN pIoUaIb NOna cAmO rHxKHeRo NoD3eMHOrO 3TaXa

1MepbI 6e3oNaChocTn He Tpe6yHOTc
2DBeMepbl6eONaCHOCTN
3YcTaHOBka HeBO3MOXHa

MnHMaJIbHa nIIOuAaNb IOna dIpynx 3TaXeJ

UcTpoIcTBo 6e3oNaChOCTn He Tpe6yeTeTc
Onda Mepa 6e3oNaChOCTN
3DBeMepbl6e3OpaHocHTN

CTaHdapTHa ycTaHoBka

IyctaHOBKn BHyTpeHHero 6Ioka MoKeT NoTpse6oBaTbCra yCTpoiCTBO 6e3OanHocTN B 3aBnCMOCn OT pIoUaN nn npOBetpNaEMO nlouaDN NOla (Pn uCNoJIb3OBAHNN eCTeCTBeHHoB BeHTnlauN). EcIn 3HaueHne Mc npebblaaet 15,964 Kr, Heo6xOdmo yCTaHOBtB eCTeCTBeHHyIO BeHTnlauNIO.

IpaΦNK Ta6nla OCHOBaHbHa MNHmAlbHO MOHTaXHO BbICote BHyTpeHHx 6NoKOB. EcIN BBicota 6oJIbSe, MoKET npImeHrTbc8 6oJIbWaa MNHmAlbHra NLOuaAdb Nola.

h0 otInuyeaTcB 3aBncmOCTn OT Tnna MoJeN.

• Повданов К потолку, Настен布局 мотатх : 2.2
  KacceThbIe, HanoJIbHoro Tuna (PT, PF): 1.8
  「TnDpOMoDyIb（NaCTeHnHO Tnna）：1.3
• TnDpOMoDyIb (HanoIbHorO TnIa), HanoIbHorO TnIa (dpyrue): 0.6
  KaHaJIbHbIe: BbICota camoro HxKHeo OTBepCTnA CoeINHeHna BO3dXOBoOB C KaJdbIM KOHNIOHpyEmbIM npocTpaHCTBOM

CocToHHe cTeCTBeHHoB BeHTnlau

Ecn yctahOBHeHa ecTeCTBeHHa BeHTnlaZna, yOBoIeTBOpraHua npNBedeHHbIM Hxke ycNoBnM, "A" MoKeT 6bITb 3ameHo Ha "VA".ДЯ yCtpoiCTBa ETRS, eCIn OHO INcnoJIb3yeTcKa Kc Mepa 6e3oNaCHOCTN, "A" He MoKeT 6bITb 3ameHeHo Ha "VA".

-ДянжимоТВерстЯ：

• ΘTo He OTBepCTne HapKy
• 3anpeuaeTcra3akpbIBaTbOTBepCTne
• OTBepCTne doJxHo 6bItb ≥ Anvmin
  -ПлоцадьОТВерстнНХODЯЦИССВБИЕ 300 MM OT ПОЛа, He yuHTbIiBaetc npn onpeDeJIeHIN Anvmin
• MInHmym 50% Anvmin dOJIxHo pacIOnlaTbCHa BbICoTe MeHee 200 MM OT IOna
• HxHn KpaHxHHeO OTBepcTNOJKeH HxOaNTbcra Ha BbICote ≤100 MM OT NoA
• BbICota OTBepCTNOCCTaBIAET ≥20 MM

-ДяВерхHEROOTBepctnA:

• 3To He OTBepCTne Hapyxjy
• 3anpeuaeTcra3akpbBaTbOTBepCTne
• OTBepCTne DoJnxHo 6bItb ≥ 50% Anvmin
• HxHnKpaBepxHrOOTBepCTnJaJKeHaxOHTbcraHa BbICoTe≥1500 MM OT Nona
• BbICota OTBepCTnA coCTaBnAeT ≥ 20 MM

1 TomeueHne 1
2 TomeueHne 2
He yuHTbBAeTc

MnHmMaJIbHaN pIooaAdb OTBepCTnA (Anv)

$$ A n v _ {\min } = \frac {m _ {c} - m _ {\max }}{L F L \times 1 0 4} \times \sqrt {\frac {A}{g \times m _ {\max}} \frac {M}{M - 2 9}} $$

g 06o3Haayet yckopeHne cboodHoro naeHHra, paBHOe 9,81 M/c2;

29 06o3HaayaeepHIO MOJAPHyO Maccy Bo3dyxa BKr/KMOJIb.

Anv 06o3HaayeT IIOuAaIMHmMaJIbHOrO OTBepCTnIeCTeBHeHHO BeHTINLAuN B M2.

ДяблOKAETRS,Anv,m0.013m

mc 06o3Haayet aKTNueckoe KOINueCTBO XlaaareHTa B CnCTMe B Kr;

m max 06o3HaayamaKcMaJIbHO dOnyCTMoe KOJIueCTBO XJaIaIeHTa B CnCTeMe B Kr BbIuNCJIaERcNo ypaBHeHIO HIXe IIN5,964 Kr.

$$ m _ {\max } = 2. 5 \times (\text {L F L}) ^ {(5 / 4)} \times h _ {0} \times (\mathrm {A}) ^ {(1 / 2)} $$

He doJXHo npebblwatab yka3aHHbIe HnKe 3HaueHn

$$ m _ {\max } = 0. 7 5 \times \mathrm {L F L} \times \mathrm {h} _ {0} \times \mathrm {A} $$

XaJIbI eHIMre apHaIFaH HycKaaynap 3

Aya etki3riike apHaIFaH HycKaynap 3

Multi V eHimiHe apHaIFaH HycKaaynap 4

Hydrokit eHimine apHaIFaH HycKaaynap 4

CAKTbIK,LIAPAJIAPbl BOIbIHWA HYCKAYJAP 4

XaJIbI eHIMre apHaIFaH HycKaaynap 4

Aya etkizriike apHaIFaH HycKaynap 4

Multi V eHimiHe apHaIFaH HycKaaynap 4

KbI3MeT KepceTyre apHaIFaH Kayinci3iK HycKaynapbl. 5

CybIK AReHTTI TOJtBiPY

MHHMaJIbI eH aydaHbI 9

KypbIbIMdbIK dHaarpamMa 9

Cybik areHTiH MaKcImMaIdbI MAnsepiH ecenTey xoJIb 10

ETRS Kypblfbcbl 10

_d etteri dei opnaty 11

Ta6nFn XeJDeTy XaFdaIbI 11

KAYINCI3IHK H¥CKAYAPbl

NAJDAJIAH6AC B¥PbIH BAPJIbIK H¥CKAYIAPdbl OKbln IblFbIHbl3

Kayinci3ik HcyckaynapbE HiMRe Kayin Tydbipa OTbipBn, naJaIaHaHy KHe Dpybc NaIdaHaH6ay caIapBHaH 6oJaNtBnKayiTep MeH 3aKbIMApDbIH aIbIH anyFa apHaIFaH.

Hcyaynap TMeHne cunnattanfahdai «A5AHNAHbI3» XaHe «ECKEPTy» 6oIbn 6eIneDi.

XaHfbIcYbIK aREHTke KaTbICTbe eCKePtnenep

BnokTapdaKeleci6enrinepeKepceTinreH.

ByI6enri KpybIFbda JxahFbIW cybIK areHT 6ap eKeHH 6iDipei. CybIK aEHT aKca XaHe cbiptkbl TyTaHy Ke3iH IN acepiHE yWbipaca, ePT WbIFy kayni 6ap.

Byn 6enri naDanaHybI HyckaynbIFbIH MyKnT OKbIN WbIFy KepektiriH 6inipei.

By6enri Kbl3MeT KepCetTeIH aamdapdbIH OCbXa6blkTbOpHaTy HcKayIbIbHa XyriHe OTbipbn XeHdeiy KaKeT EkeHH KepCteDi.

ByI 6eIri aknapaTTbIH naIdaIaNHyuBb IyckayIbIFbIHda HeMece opHaTy IyckayIbIFbIHda KOnKeTIMdi eKeHiKopCeTei.

ECKEPTY H¥CKAYIAPBi

AБАЛAHы3

KypbIfblHbI naHaHaHaHaKe3eJxapblny,epT,EnIM, TOKcoFy,3aKbIMday HeMece aAdMaDbI Kyuipy KayinIH aIdbH any ysiH MbHaIapDbI KocA Herizri Kayinci3dk WapalapbH KOJaHaBbHb3:

XaJIbI eHIMre apHaIFaH HycKaynap

• ΘHdipywI ycbIHFaHHaH 6acKa My3dbI epity HemeCe Ta3anay npoecin Te3eTeTih KypaIapDbI naIdaIaNHyf a 60MaIdbI.
  KypbIfbl TypaKtbl Kymblc icTeiTiH TyTaHy Ke3depi JOK, 6eJMeDe caKaTanybl Tnic (MbicAbl: aUbIK KaLbIH, Kymblc icTeN TypFaH rA3 KypblfBlcbl HeMece Kymblc icTeN TypFaH 3JIeKTp KbI3DbipFbIw)
  KypbIFbHbMexAHKaJIbIK3aKbIMdaHydbIH aIbIH aIaTbHdai eTIN XaHe y3diKc3 Kymbc icTeiTH TyTaHy Ke3epi KOK (MbICaJIb: aUbIK XaJIbIH, Kymbc icTeN TyPfAH ra3 KypbIFbCbl HeMece XyMbIC icTeN TyPfAH 3neKTp XblITkbIb) KaKcbKeJeTeiTeIH 6eImede caKtay KaKet XaHe 6eIme MeJLWepi KepcetinreH TaIanTapFa cai 6onybl Kepek.
• Tecyre Hemece ePteyre 6oJMaIdbI.
  CybkareHTTepnic WbIFapbybIMyMKiH eKeHdiirH ecTeH WbIFapMaHbl3.
  TniciKeJdTeCaHbInaynapbIHAn 6eTen TypaTBIN KeeprinepeJI anBn TaTaHbI3.

KypbIfBIfaKaJFaHFaH TYIKTepe bIKTImaJI TyTaHy Ke3i 6oJMaBayKepeK.
BekitIImereH KpybIfBiHbIXyMbIC ywiH 6epiIreH 6eIme aydaHbHa caiKec KeletIH KeIemDi eri aMakTa caKtay KepeK.
- BekiTImereH KypblfBhlb XaHbIn TyPfaH aUbIK XaJIbH (MbICbl, XyMbIC icTeN TyPfaH Ra3 Kypblfbcbl) HeMece 6acka bKtImaI TTyAHy Ke3depi (MbICbl, XyMbIC icTeN TyPfaH 3JeKtp KbI3dbipfbll, BICTblk 6etTep) KO, 6eImede caKTay kepeK
A2L cybik aHTepi 6ap Kypblfblnap 6ip Hemece 6iphewe 6eMere aya eTKI3y Knyneci apKblbl Kocblbln, Amin-HeN Kiwi 6eMere opHaTbIFaH XaFdaJa, 6yI 6eMaDe TypaKbl XyMbIC icTeiTih aUbIK XaBnH (MbICaBl, XyMbIC icTeN TypFaH r3 Kypblfblcbl) Hemece 6acka bKTImaI TtAHy Ke3depi (MbICaBl, XyMbIC icTeN TypFaH 3JeKtp XbIbIKbIbI, BICTbIK, 6eTep) 60Imaybl Tnic. Erep XaBnIH IbIFapaTBH Kypblfbl TImDi XaBnIH ceHdipriWneH Xa6DbIKtaIFaH 6oJca, dAn oCb I6eMaDe opHaTbIByMymKiH.
Byn 6Iok Kayinci3ik yuih afbn KeTydi aHbIKtay Kyueimeh Xa6dbkTaTaNHaH. Afbn KeTydi aHbIKtay TImDi 6Olybi yuiH, opHaTBinFaHHaH KeiH KypbInFbl YHemi 3neKtp KyaTbIme KaMTaMaCb13 etiLiyeKepek, KbIMET KepcTeY Xa4dAnapbH KocNaFaHda.
- Byn 6Iok 3JIeKTpMeH KyaTTaHbIpblNaTbH Kayinci3dk - WapalapbImeH Ka6DbIKTaIIFaH. Kayinci3dk - WapalapbIHbH TImDi JxMbIC icTeyi YSiH, - OPhaTbINFaHHaH KeiH KpybIJFbI YHeMI 3JIeKTp - KyaTbIMeH KaMTaMaCbI3 etInyi KepeK, KbI3MeT KepCety - XaFdaNapbIH KocnaFaHda.
CybkareHT ceHcOpbIbIH Kbi3MeT ety Mep3iMi 10 kbl. CeHCOP aBfPi KeTydi aHbIKtan, icKe KocblFaHHaKeiH, OHbl KaTaNaiDalaHyfa 6oImaJbI XaHe aybICTbIpblIybl Kepek.
Kanaan aamdapdbih cybik areHTtih bHybHa YbipamaybH KaTAmacbi eTeiHdeen etin OHa KJ Xetimdi XaHe 6ackapyfa bHfainbXepde opHaIacbyi Kepek. OImyMkiHdiirHwe TypfbH aMaKaTaH TbIC XepDe Hemece XeIeTIeTIn Kopanta opHaIacByi Tnic XaHe aiKbIH 6enrileHyi KaXeT.
Cyblk areHTti aHbIKay KnyecIHderi cyblk areHT ceHCopJIapbIH TeK KpyIbIbI eHdipyuIci 6eIriIereh ceHCopJIapMeH FaHa aybICTbipyFa 6oJIaBl.
Afbin KeTydi aHbIKayKyuNeci 6ap Kypblfbnap ywiH, kayinc3dk 6ekitkiu klanahdap 6Ime XeIeTImMeHHwe KaTa icke Kocblmaybi Kepek, ce6e6i 6yI KeHicTikke KocbIMwa TyTaHfbiCybIK areHTtih 6JIHyIHe Akenyi MymKiH.

Aya eTKi3riKe apHaJFaH HycKaynap

KocbIaNbIH aya eTKi3riuTepDe TEK KypblfbeHdipyuici MaKyIaFaH HeMece cybIK areHTneH KyMbIC icTeyre XapaMdbI den MAnimdeJreH KocaNkbl Kypblfbnap opHaTbIybi KepeK.
OTK3riW KymbcbHda bIKTmam TyTaHy Ke3i 6Onybl MyMKIH KocaIKbl KypblfnapblOpHaTyFa 60MaJdbl. MyHdaan bIKTmam TyTaHy Ke3depine 700 ^ C rpaDyctah acaTbH bICTbIK,6eTTep MeH 3JIeKtp Kockbl W Kypblfnapbl KaTaBl.

Multi V eHimiHe apHaJIFaH Hycckaynap

KopfaHbIC KypblfBilapbl, Ky6bpIap MeH qntnHrTepePwafH opTaHbIH Kolaancb3 acepIepiHe, MbicabI, peJIbeTik Ky6bpIapda cydbIH XnHaNy XaHe KaTbINKaLy KayPiHeH HeMece Kip MeH KOKBCTapDbIH XnHaNyBHaH MymKiHirHwe KopFaYbI KepeK.
InpaBnKaBik COKBbIHb6OJbIpMaYiH 3eKtpomarHHTIK KlaNaHdap K6bipnapFa Dypbc opHaTbIybl Kepek.
CybIK aReHT KJyNecHIn TH TEmeK bICMbI KaFbIHJa
KeTKiIKTI 6OcAty KaMTaMaCbI 3 etINMece,
3NeKTpOMarHnTTIK KlaNaHdap cyBik CybIK aReHTTe
6iTeiIN KaMaybi Kepek.
Bemedeir cybik areHTIH KocbilaTbIH keipHde XacanFaH repMeTKaIbIbI TeKcepinyi Kepek. CbHaK aiciHde pykaTeiReH eHxofapblkbicbIMHaH KeMiHDe 0,25 cee xofapblkbicm Ke3IHKeJbHa 5 rpaMM HeMece oan Hxofapbl cybkareHT ceImtaJIbIbIb6Olybl Kepek.EwKaHaan afbIn KeTy aHbIKTaImaybl KepeK.
CbIPTkbl6IOKkaXaIcblpblFaH TeMeHderi 6enriHi TeKcepreHHHeN KeiH, OHdaftbCybIK aReHT MeJUwepiH Xa3bln aIbIHbI3.

Hydrokit eHimiHe apHaIFaH HycKaynap

KopfaHbIC KpyblfBilapbl, Ky6bpnap MeH cHTnHrTepei KopwaFah opTaHbIH KOJaNcbI3 acepIepiHeh MymKiHdiHwe Kopfay Kepek.
- 5aH aya bHaFapatbH caHbIay cybIK areHTi 6ocaty HkTeciHe TeH HeMece OaH TeMeH opHaIacByi KepeK.
EeHde opHaTbIaTbIH 6nokTap ywiH cybiK areHTTIH 6ocaty HkyTeci MymkiHirihwe TeMeH 6oJyKepeK.
Aya IbIfapy caHbIaynapbi iWki ayaHbIH KaI Ta aHaNbIH 6oNdbIpMay yWsiH aya KipeTih caHbIaynapdaH XeTKiIKTi KaUbIKTBkTA opHaIacByI KepeK.

CAKTbIK WAPAJAPBI BOHbIHJAHYCKAYJAP

ECKEPTY

• ΘHIMDi naiDanaHaF Ke3e daAMdapFa KeIeTIH KayinTi a3aHTy, ΘHIMHiN DypbIC XyMbIC icTeMeyIH 6oJbIpMay yuHKeNeci HcyKaynapMeH 6ipre Heri3ri HcyKaynapDbI opbHdaHbI3:

Kannbi eHimre apHaIFaH HycKaynap

Cyblk areHTi36erimeH Kymbic iTeuTH HeMece apalacatbH Ke3 KeIReH aadMbHIn Hndyctpna

aKpeiTTTeIReH 6aFaiay opraHbI 6epreH, cybIK areHTTepdi HNyCTpnaDaFbI 6eIrii 6aFaiay TexHnKaIbIK CnNaTTaMaIapbHa cAkec Kayinc3 Tpyde NaJaHa aNtBHiTypaBla fBIMdaFbI yaKbTTa XapaMdbI cepTnOHKaTbI 6oIybi KepeK.
KbIMET Kepcety KymblctapbH Xa6dbk EHNipywici YcbIHFaH aicneH faHa Kypri3y Kepe. Backa 6iIKt iMaHaHHbIH, 6aFaIaybIH TaIan eTeTih TexHnKaIbIK KbIMET Kepcety MeH XeHDey apKeTei KaHfBII W cybIK areHTTepdi naIdaIahy 6oibIHwa 6iIKti aamHBH KaIaFALaybIMeOpbIHdanybI KaKeT.
TytikTepeKeniciH opHaTy MInHmAnDbI TaanTapFa caiOpbIHdAlybi KaKeT.
Kv6bpnap KocbIbIMbl Φn3nKaJIbIK 3aKbIMHaH KOpFaJybl Tnic.
- Ra3Fa KaTbICTbl MemNeKeTTik HopMaJapDbI opbIHdaybIHbI3 KaXeT.
MexaHnKaIbIK KocblbIMdap (MexaHnKaIbIK KOckblTAP HeMece KOHyCTbl KocblbIMdap) TexHnKaIbIK KbI3MeT KepeCy ywiH KonjKeTImdi 60nybl Tnic.
KbImET KepceTydi TeK eHdipywi ycbIHFaHaJaN xoJMeH opbIHday KaKeT.
KypbIbHbI MexaHnKaIbIK 3aKbIM KeJIMeTih aicneH caKTay KaXeT.
- ΘHdipyi niadanaaHbIHaF cybIK areHTTI H TyTaHybIH TyDbpaTbHbI 6eRrini 6acka bIKtMaJ TypaKtBj Kymbic icTeiTH Ke3epDi Kcpctyi Kepek.
CybkareHTTin caKbIHdAty xyueciHderi 6oikTepre aFybHa MymkiHdk 6epy yuH 6aKnbltn XancbipbIaNtBn, dAnHekepeHetH HeMece MexaHknakbIK KocblIMdap KnaHdapDbI aWnai Ty pbIn Xacanybi Tnic.
MexaHnKaIbIKXaIFaFbIUtap cbIpTTa KaTaNaiDanaHaBIFaH XaFdaNda,TbIFbI3daybIi6eIikTepeJxHaHApTy KaKet.
- Epheyi KeH KocblbImap iWte naIaHaBlnFaH KaFdaIJa,epHeyi KeH 6eNlKi KaNTaHaH XacayKaXeT.
3aKbIMdaIybiHa Jxon 6epMey ywiH cybIK areHT TyTiri KOpfaybl Hemece KanTaMaFa opanybl Tnic.
KaIbITbI XMyBic 6apbcihHa Ko3FaIybl MyMKiH niiir cybIK aReHT KaIaNFaFbIHTapBH (MbICaJIb, iWki XaHe CbIPTkbl Kypblfbl apacblHaftbl KaIaNFaFbIw JeJIinepdi) MexaHNKaIbIK 3aKbIMdapdaH Kopfay KepeK.
XbIy aImaCTbIPfBIITapda XHaHafH WaH Hemece Ty3 6eIWeKTePiC cyDbIH KEmerImeH Mep3IMi Typde (XbIbHa 6ip peTHe HxN) Ta3anay KaKeT.
KypbIfbldeMOHTaXbl, XnaJaReH MaBbIH Tery XaHe coHfbI 6eJIweKTepei any JepriIKTI XaHe YTTbIK CTaHdapTTapFa caikec opbHdaNyblTnic.

Aya əTKi3riKe apHaJFaH HycKaynap

Bip Hemece 6ipHeWe 6eMere aya apHacbl kyyneci apKbIbI KocBnFaH KaFdaJa, KeTki3y KHe Kepi aya TKeJe KeHicTikke Ki6epinei.
- Acnabl Te6eIep cnaKtbl aUbIK aMakTap kepi aya etkiri piTeHne naDanaHbIMaybKepeK.

Multi V eHimiHe apHaJFaH HycKaynap

Xa6bIKbIaIbn XaTkaH KeHicIKteri Ky6bpnap naIdaIaNHy XaHe Kbl3MeT KepeTy Ke3iHde Ke3DeNcOK 3aKbIMDaHydAh KopFaIaNbIHaOpHaTbIaNbl.

Cybk areHT Ky6bipnapbHa WAmadaH Tbic dipin Hemece Tep6eicti 6oNdbipMay ywiH caKtbik, WapanapbIH KOJdaHy Kepek.
￥3bH K6bIpnapdbKeHeuTy XaHe KbickapTyDbI KaMTaMaCb3 eTyKaXeT.
CybkareHTKynelepiHderiKy6bIpnap rndpaBnkaIbIK COKKbIHbIH KyyneHi 3aKbIMday bIKTmAmNbIFbIH a3aNTy ywiH Xo6aHaHyblXHeOpHaTbInyblKepek.
- 50anat Kyybipnap MeH KypamDac 6eikTep Ke3 KeIreH OKwaylaydbI KOJaHaP aIbIHda KoppOzraFa KapcbI Xa6bHMeH KoppOzraDaH KopfanybI KepeK.
Ky6bipdbH INKeMdi 3aKbIMdaHydaH, 6paany apKbIbI bIaMaDaH TbIC KepHeyeH Hemece 6aca KyuTepDeH KopFaIybi KepeK. XbIc aBbH Onapa MexaHKnabIK 3aKbIMdaHy 6apXoFBbH TeKcepy KepeK.
Iwki Ka6bIKTap MeH Ky6bIpap Xnha3dbIH Ko3Faynbl HeMece KaTaNpacTbipy KymbICTapbl CnKrbl OKFaJapdaH Ka6bIKTBIH Ke3deEcoK Kapblnybl 60ImaTbIHdAeITIN ceHIMDi TypDe opHaTbIybl XaHe KopFaynblKepeK.

KbImET KepcTyre apHaIFaH Kayinci3ik HycKayIapbl

AIMaKaTaFbI TeKcepicTep

XaHfbIcYbIKareHTTepiKaMTNTbIH KyneJepMeHHyMbICTb6actamac 6ypbIH, TyTaHy KayniH a3aInTy yuH Kayinc3ikTI TeKcepy KaKeT. CaKbIHdAty Kyneci HxHDey Ke3IHde KyneMeHHyMbIC XacaMaC 6ypbH KeNeci caKtbIK, WapalapbIH cKaTay KaKeT.

Kymbc npoceypacbi

XyMbICTbOpbHdayKe3iHdeKaHfBtIra3dbH Hemece 6yDbH 60ny KayniH a3aunTy yuH XyMbIC 6aKbIHaHaTbIH npoEdupaFa cainKec Kypri3inyi Kepek.

XaJIbI XyMbIC aMfB1

BapnbKbI3MeT KepcTeYwI nepcoHaHa fXaHe OcbI Xepde XyMbIC icTeiH XyMbICuBnApFa opbHdaNaTbH XyMbICTapdbH cnaTaBt TypaBb HcyKay bepinyi Tnic. Xa6bIK KeHicikTe XyMbIC icTeyEn aynak 6OnyKepek.

Cyblk, areHTriH, 6ap-koFBbiH TeKcepy

MaMaH bIKTmamJxHaHbIaTMocepa TypaJIbI xa6apdap 60nybl yIiH aIMaK xMybIC aIbIHda XaHe KMybIC Ke3IHDe Tnicti cybIK areHT deTeKTOpbImeH TeKcepinyKepeK.
- NaɪdəlaHaHbɪnTaBH aFbɪn KeTуdi aHbɪkTaɪbɪn Xa6dɪkTbɪh XaHfɒiW cybɪk aReHTTePmɛh 6ipre naɪdaɪaHyfa Xapamɒbl eKeHHe Kε3 XeTki3iH3, rFHN YʌKbɪN WbɪFapMaɪɒbl, TɪciTl Typde TbɪFbɪ3daɪFaH Hemece YʌKbɪN Kayinci3.

Opt cHidipriuTih, 6ap ekeHHe Ke3 XeTKi3y

Erep caKbIHdAty Xa6dbfBiHa Hemece OHbIMeH 6aIahBcTbI 6JIWeKTepe bICtbIK KyIe XyMbIC Kypri3y KaKeT 60nc, KOI aCTbIHda Tnicti ept CehdiPriW Kypblfbl 6Olybl KepeK. 3apraTay aMaFbIH HaKaBH Xepde KypFaK YHTaKTbI Hemece CO2 ept cHdipriu 6Olybl KaKeT.

Tytahy Ke3epiH, 60nMaybi

KypambHa TaTaHfblcBikareHT6apKe3 KeIreH Ky6bip KymbcbiHaWdbKaMTnTBiCaIKbHaTay

Kyuecihe KaTbICtBj KymbiCTapBbOpbHdaTbH eW6ip aamepT HeMece Xapblbc KayniH TydbpaTbHdai Ke3 KeIReH TsyAHy Ke3depH naindaHaBaybKepek.
CybikareHTTIaHanaFataTapanyi MyMKIH 60NaTbIH opHaTy,KeHDey,anyXaHe XoHO Ke3InDe 6apblk bIKTMam TYTaHy Ke3depi,coBbIH iWiHde TeMeki Weery, Kymbc OPbHaHa XeTKIiKTi KaWbIKTBtKaOpHaJAcByi KepeK. XMybICbIb6actamac 6ypbH, XaHy Hemece TyTaHy Kayni XoK eKeHiHe K3 XeTKI3y YwIH Xa6DbIKbIH aHAnacBH TeKcepY Kepek. «TeMeki Weeryre 60MaNdbI» DereH 6enIIep KoBbIybi KepeK.

XeIeIeTIn aMak

Xyire kipy Hemece Ke3 KeIReH bICTbIK KymbICTbI opbIHday aAnbIHda aMakTbIH, aUbIK eKeHiHe Hemece OHbIH KeTKiIKTI Type JeKeIeTIeTIHHe Ke3 KeTeK3IH3. Kymbc Kypri3iIN KaTkAH Ke3eHNe KeIeTeTy dApexekci caKaTanybi Kepek.KeIeTeY Ke3 KeIreH cybIK areHTTI Kayinc3 Type TaPaTBIn, OHbl aTMocfepaFa WbIFapbyI KepeK.

CaNKbIHNaTy Ka6dbIFbH TeKcepy

3NeKtpnik KypamdaactapdbaybICtbipfAH Ke3de Onap MaKaTka XaHe Dpybc TexHNkaIbIK CnnaTTaMaIapFa cainkec Kenyi kepek. HdipywH IN TexHNkaIbIK KbI3MeT KepceTy XeHiHderi YcbIHbICTapbl apdaibIM opbHdaIybe Kepek.
KymaHaHcHbI3,KeMeKanyuWHiEHHdipyWiHiTexHnKaJIbIKeJIIMHe xa6apNaCbHbI3.
XaHfbIcYbIK aReHTepi naJaHaTaBH KOHdbIpfbIapFa KeNeci TeKcepyeep KOnDaHbIybi KepeK:

Cybik areHTTih ic kzy3iHderi KeIemci cybik areHTTI KaMTnTBiH 6eKeTep opHaTbInaTBiH 6eImeHi ayDaHbHa caikec Kenyi Tnic.
XeIeTeKlI KpybIJIbIJaP MeH WbIFc apHaIap Dypbc XyMbIC icTeN, 6iTeImereH 6onybl Tnic.
Tikeen emec cyblkbiw areht ti36eri naIanaHbIaTBiH 60Jca, KocbIMwa ti36eTe cyblK areHTtIH 6ap-koFBiH TeKcepyiH3 KaXeT.
Xa6bikTaftb6enrinep aHbIK KepiHyj XaHe Okblnyk KaKeT. KepiH6eTIH 6enrinep MeH TaH6anapDbI Ty3ety KepeK.
CybkareHT Ky6bipbI HeMece Kypamdactap Koppo3nraFa Te3dImi MaTePnaIadpdaH KaCaIFaH HeMece TbIM KaTbI TotbYdaH Tnicti Typde KopfAflaH 6oImaca, cybkareHTTI KaMTNTbIH KypamdaCTapDbI TOTTaHdbpyi MyMKiH 3aTTapDbIH ecepimTmeNtIH opbHfa OpaHTy KaKet 6oJaB.

3NeKtp KypblfblapbH TeKcepy

3JNeKTp KypamdaTapbIH KeHDey KeHe TexHnKaIbIK Kbl3MeT KOpceTy Kayinci3diKtiH 6acTaNkBi TeKcepYpePiH XaHE KypamdaTapdbI TeKcepPy npOeDpyapabIH KaMTybI KepeK.
Kayinci3ikKe HkycaH KeTtipyi MymkiH aKaynbK 60la, OJ KaHaFaTTaHapJIbIK Typde XoNbIMaBbIHua,Ti36ekKe 3NeKtp KyaTbIH Kocyfa 6OImaIbI.
AkyIbIKtB Ipeey KIO MymKIN 60Imai, 6ipak KMyMbICTbIXaIFactbIpy KaKeT 6oJca,Tnicti yaKbitwa WeWiIMdi KOJaHy Kepek.
- ByI typalbI 6apIbIK, tapan xa6apdap 6onybl ywiH xa6dbIK, neciHe xa6apnay kaxeT.

• Bactanikbl KayincizTekcepynepi MbHaIapDbI KaMTybl Kepek:

KoHdeHcaTopnap 3apAdbI TaycbINdbI: 6yI yWKBiH WbIFy MymKiHirIn 6OJIbIPmay YwIH Kayinc3 Tpye opbHdanybi Kepek.
XyneH3apqTay,KaIbHaKeItipy Hemece Ta3aIay KeiHde eW6ip 3eKTp KypamdaCTapbl MeH 3eKTp cbIMdapbl bIKnFa YbIpamaiDbl.
-KepeMeH6aIHaNbICTbpyDbIHy3iKci3diiri.

TbIfb3daJFaH KypamdacTapdbI KeHney

TbIfb3daFaH KypamDaCTapDbI XeHcy Ke3iHde, TbIFb3daFbIi KaKnaKTapDbI XaHe T.6. aImac 6ypbIH, XMyBIC icTeN TypFaH Xa6dbIKTaH 6aplbik 3neKtp Ke3iH axbipaty KaXeT.
KbImetKepeTy KeiHJe Ka6dbIKTbI 3neKtpMeH Ka6dbIKTay aca KaKeT 6oJFaH KaFdaNda, MaHbI3DbI HYKTeDe bIKTmAl Kayinti KaFdaNTypaNbI eCKepTy YUHH aFBIn KeTyDi aHBkTaunTBIH Ka6dbIKTbIH TypaKTbIXMbIC icTeuTH HbicaHbI 6eJIreHyre Tnic.
3NeKtpIik KypamdaTapMeH XyMbIC icTeY Ke3iHDe KopnyctbIH KOpFaHbIC DeHReiHe acep eTeTiHde 03repTilmeyiH KaMTaMaCbI3 ety yuHKeJecire epeKwE Ha3ap aydapy KepeK.
- Byfah Ka6eBbDepiH 3aKbIMdAHybl, KocblbIMapDbH, WAmadaH TbIC caHbI, 6aTaNkbl CnnaTTamalapFa cNKeC KeMeiTH KIeMMaIap, TbIFbl3daFbIITapdbH 3aKbIMdaNybl, TBIFbl3daFbIITapDbH Dypbc OPhaTbIMaybl XHe T.6. Kipei.
- AnnapataTbIH Kayinci3 opHaTbIIFAhBiHa Ke3 JeKti3Ht3.
TbIfb3daFbIITapDbIH HeMeCe TbIfb3daFbIIMaTePnAnapDbIH XaHbIiATMocΦepaHbIH eHyiHeKoI 6epMeiTihDen XaFaDnAeKeHiNE K03 KeTki3iH3.
Kocankb6eIeKTepeHdpywiH TeHNkaJIbICnataTamaIapbHa caikec 60nyi kepek.

Iwki Kayinci KypamdaTapdbxKeHdey

PnndanahbilaTbIH k6dbIK yiwH pyKcAT etireh KepHey MeH TOKTaH acnaTbIHbHa Ke3 XeTKi36ecTeH Ti36ekke TypaKtBI INHykTNBTI HeMece CbiBIMDbIbIK KyKTeMeJepiH KOJaHaF aGmMaIbl.
- YIHKbIHFa Te3IMDi KypamdaCTap -XaHfblw atmocepa opTacblHaKepey aCtblHa XyMbIC icTeye 6oNaTbH XaNFB13 Typnep.
CbHaK annapaTbI dypbic peuTNHrKe ne 60nyI kepeK.
Kypamdaactapdbitek eHdipywI KepceTKeH 6eIWeKTePmeH aybICTbIbI3.
BaKa 6eIWeKTe aFbIn KeTy acePiH aTMocΦepaDaFbI cybIK aReHTTIN TcTaHybHa aKeNyi MymKiH.

ECKEPTNE

CunIKoHbI TbIfb3daFbIUtbI naaDanaHy aftbn KeTydi aHbIKTaTbIH Ke6ip Xa6dbIK TypnepiH TImdInirH TeMeHDeTyi MYMKIH.
￥KbHfTe3imIkypaMaactapdbolnapMeHxmbic Kacamac6ypbIHOKwaynydbIHKaKeTiXOK.

Ka6eIbdep

Ka6eIbIepTo3yFa,Koppo3nraFa,waMaadH TBICKbIcblIMFa,dipinre,ETkipXneKeTepRe Hemece 6acaDaKOpwafHaH opTaFaXaFbIMcbI3acepIepre YbIpaMaNdbI.
TeKcepy coHbImeH KaTap KOMnPecccopnap HeMece XeIeTkiTep CnAaKTbI Ke3dpeDeH TybIHaaTbIH eckipy HeMece TpyaKTbI Dipin AcepiH eckepyi KepeK.

XaHfbiW cybIK areHTTepdi aHbIKtay

CyblkareHTTin aFaTBH XepJIepiH i3dey Hemece aHbIKtay yuH eW6ip kafdaa bIKTMaI OTaIy Ke3epiH naJdanaHyfa 6oMaJdbI.
- FaonDi TeKTOpDbI (Hemece aWbIK, KaIbIHDbI naJaAnaHaTbIH 6aCKa Da TeKTOpnapDbI) naJaAnaHyFa 6oMaJDbI.
Abyin KeTydi aHbIKaydbIH Keleci aDicTepi 6apbIK cyblk areHT Kyeinepi ywiH KOaIbI 60bn caHaJaBl.

3neKtpoHdbiK afbin KeTydi aHbIKTaftbIiTap cybik areHTTIH aYbIH aHbIKTay ywiH naJaIaNbIybl MyMkiH, 6ipak TytaHfbiW cybik areHTTep XaFdaNbIHDa oIapDbIH cezIMTaIaNbIFbl XeTKilKiC3 6Olybl HeMece KaTaNkIN6pNeuyi KaKeT eTy i MyMKiH. (AHbIKTAY KypaIaNapBih CybIK aREHT KO, aIMaKTapda KAN6pNeye 6OlaDbI.)
TeKTopbIH bIKTMaI TyTaHy K03i eMec eKeHiHe XaHE KOJaHbJIaTbIH cybIK aReHTke caiKec KeletiHHe K03 XeTKi3iH3.
Afbin KeTydi aHbIKtaaTbIH Xa6dbIK cybIK areHTTH LFL naBb3bHa opHaTbIybi Kepek XaHe KOJaHaBbIaNbIH cybkareHTke caNkec KaINbPneHyi Tnic, api Tnicti ra3 naBb3bl (eh K66i 25%) pactaNybl KaKeT.
CoHdaN-ak cybIK areHTTepdIH Ke6iHne afaTbIH Xepnepdi aHbIKtay cynbIKtbIKTapbIH naaDanaHa anacbi3, 6ipak KypamblHa xIop 6oNaTbIH KyfbIW Kypanadpbl naDanaHyFa 6oMaNbbl, ce6e6i xIop cyIK areHTnep peakuHa Tycin, MbIC TYtIKTepeiTOTTaHdbipyMymkIH.

ECKEPTNE

• Afbin KeTydi aHbIKTaTbIH CyNbIKTBkTapFaMbIcaIap

• Kenipik ādici

• ΦlyopeceHTti āic areHTpei

• AfbINKaTkaHb6aNkca, aWbIKKaIbIHapDbIH 6apNbIFbIH cHdipy KaKeT.
  Erep cybik areHTTin afbin keTy i anbiktanbln, dHekepey KaKet 60lanca, 6apblk cybkareHT KyneH ToBikTaI WbIFapblnyi HeMece (6ekitki KlaHaDap apkblbl) aFbIn KeTy HkyTecine HAnbc Kyne 6bnirHde OkwaynaHybI Tnic. CybIK areHTti WbIFapy apHaBl WbIFapy XaHe 3BaKaYaunlay npoecdypacbHa caikec Kypri3inyi KaKet.

UbifapyKHe3BaKayaunay

XeHDey XMybICTapbIH Kypr3y yuH Hemece Ke3 KeIReH 6acka MaKcatta cybIK areHT Ti36erH 6y3FaH Ke3de, AedeTteri npOeDpyapal KOnDaHbIybl KepeK. AnaJa KaHfblw cybIK areHTTep yuH eH XkaCbl Taxipn6eHi caKaTay MaHbI3bl, ce6eBi XaHfblWbIK ecKepiJei. Keleci npOeDypa caKaTanybl KepeK:

Cybik areHTTI wBIFapy;

T136ekTi uHepTti ra36eH Ta3anay (A2L yuH KocbIMwa);
- 3BaKayaaznay(A2L ywiH KocbImsa);
- INheptTirra36eH Ta3aJay (A2L ywiH KocbIMwa);
- Kecy Hemece daHekepney apKbIbI Ti36ekTi aWbIHbI3.

ToTbipbIFaH cybIK areHT Tnicti KaIbHa KeTtipy cnHdpneipHe KaTa KeTtipiny Kepek.
KypambHdaA2L cybk areHTTepiHeh 6acka KaHfbIu cybk areHTTepi 6ap KypblfBnnap ywiH KypblfBnbl KaHfbIu cybk areHTTepre Kayinci3 ety MaKaTaBHda Knyehi OTTerici3 a3OTneH Ta3apTy KepeK.
By npoecti 6ipHewe pet KaItanay KaKeT 6onyb MyMKiH.
CybIK areHT kyeinepiH ta3aIay yIiH cbIFblFaH aya Hemece OTteri naJaIaNbImaybi KepeK.
KypambHaA2L cybI,areHTTepiHe6aCaKa KaHfblCybIKareHTTepi6ap Kpyblfblnap ywiH cybIKareHTTepdiTa3anay Kyneeri BaKyymbl OTterici3 a0T KemerimHeXOHO XaHE XyMbIC KbICbIMbIH XeTEKHeTToTbipyDbIXaN factbipy,coaH KeiH aTMocphiFa LbIFapy XaHeCOhblnda KbICbIMbl BaKyymFa DeiH ToMeHDeTy apKblblxyeae acbipblnybKepek.
Bny npoecc kyyne de cybIK areHT KaImaibHwa KaTalaHybI KepeK.
CoHfblOTterici3a3OT3apAblnaiDanaHbIHaHKe3De, XyMbICTbOpBihayMymkiHdiirKaMTamacbi3eTyYwIH XyNeHi aTMocepaJIbIKbICbIMFa Tycipy Kepek.
- ByononepaunKa6bipnapdaHekepey onepaunnapbyuwiH eTe KaKeT.
Bakyym copa6bHbH uHbHbcI bIKTmAl T TaHy K03epiHe aJIbIc eKeHiHe XaHe XeIeTeY MymKiH eKeHIe K03 XeTKi3Ii3.

ToTbIpy npoueypaIapbl

KadimrToTbtpy npoceDypaIapbHa KocbIMsa Keleci TaanTap caKaTalybKepek.

ToTbipyKa6dbfbH naJaIaHy Ke3iHne 6acka cybk, areHTTepdiH apanacnaiTbHbH TKcepiH3. IwHderi cybk, aReHTiHiK KeIeMI MNHMamldbl 60nybl ywiH 7Jahriinep Hemece JeJIInep MymkHirHwe Kbicka 60nybl KaXeT.
LnnnHnppepi Hcyckaynapfa caikec Tnici Kynde yctay Kepek.
- XyneHi cybIK areHTpe TOnTbIpy aAnDbIHda cybIK areHT xMyeciHj Kepre TynbIKtaIHaHbHa Ke3 XkTeKl3iH3.
ToTbIpy aKaTaIFaH Ke3De, KyyHeHi 6eRrIneH3 (aJI 6oImaca).
CyblareHTKyIeCihWamadaH TbcTOnTbIpyFa 60ImaMnbl.

KyuHei KaTaNToNbIpy aAnbIHda, ObHbKbCbIMbTHnictTa3aNaayra3bIHbHKemerimehcbHaananyKaXeT.
ToTbpy aKaTaHaHH KeiH, 6ipaK icKe KocydbIH aIbIHda KyyHe aFaTbIH XepnepdiH XOKTbIFbIH Tekcepy KaXeT.
XyMbIC opHbHaHaK KeTne TpybIn, aFaTbIH XepJepDi TaBb6ip pet TeKcepi anbHb3.

KannbHaKeTipy

XyueHcybikareHTTIuBifapfahKe3e,TexHnKaIbIK Kbi3MeT KepceTy ywiH 6oJcbH, KOJaHbIcTaH WbIFapy

yuih 6oJcbH, 6apbIK cybIK aReHTTI kayinc3 aIbn WbIFapydu KaMTaMaCb3 etYe KeHeC 6epinei.

CybIK areHTTI uINHdPnpre aay Ke3iHde cybIK areHTTI KaNbHa KeNTipy ywiH TeK Tnicti uINHdPnpE KOJaHbIHaHbHaKe3 JeTKi3iH3.
XyueHJxalnbl3apAdbIHycTanTypyuWih HUNHdppeHHKaKeTTi caHbI6ap eKeHHe Ke3 XeTKi3iH3.
- NaɪdənaHbɪnTaɪh 6apMbɪk ÜnlɪnHdρIep KaɪnbɪHa KeɪtɪpɪrRe h CyBɪk areHTke apHaɪFaH KəHe coɪ cyBɪk areHTke 6eɪrɪneHreH (aFHN, cyBɪk aReHTTi KaɪnbɪHa Keɪtɪpyre apHaɪFaH apHaɪbɪ ÜnlɪnHdρIep).
LINHnpep KbcibMdb6ocatyKlanahbImeHNHe TnictiewipyKlanahdapbmeHaKaycb3 Kynde Xa6dbkTaNbyIKepeK.BocKaNbHaKeNTipy LInHdplep KaNbHa KeNTipy 6actFaHfa DeinH 3BaKayaunlaHaDbI XHe MymKiHirHwe CaKbHdaTbNaDbI.
KaJIbHaKeIITipyReapHaFaHka6dbIKXapaMdbkyIe 60nybl,ka6dbikKaKaTbICTbKoJa4apHyckaynapfa caike60nyblXaHeTe3TyTaHaTbIHcybkareHTTepdi KaJIbHaKeIITipyReXapaMdbI60nyblTnic.
CoHbImeH KaTap, KaIIN6pJIeHReH Tapa3blap XnHaBf KoJXeTI Mdi XHe XaKcbi KymbIC KyIHde 6OlybKepeK.
- IJhaHrInep repMeTnKaIbIK, aXbIpaTkblM MyfTaIapMeH Xa6DbIbKtanybl XaHe XaKcbI XaFdaNda 6OlybI Kepek.
KaJIbHaKeIpyaannapaTbH naJaIaNH6ac 6ypbH, OHbIH KymBIC KyiHIN KaHaFaTTaHApMbIK eKeHlHe, OFaH Tnicti Typde KbI3MeT KepCetIInReHlHe XaHc cybIK areHTTH WbIFybl KaFdaNbIHDa TyTaHyDbI GoJbIpMay yuHbIK 6apMbIK 6aIIaNbICTbI 3JeKTP KypamdaCTapDbH TbIFbI3dAIfaHbHaK93 KeTeKl3H3. KymAHH3 6oJca, EHdipywire KyrHInH3.
KaJIbHa KeItipinReH cybIK aReHT KaIbIKTapdbI TaBImaJday XeHIhDiI Tnicti HcKayIbIKTbI KocA 6pe OtbpIn, Tnicti KaIIbHa KeTIpy UINHdpHde cybIK areHT KeTkiyucicHe KaITapblNybl Tnic.
CybkareHTepiKaJIbHaKeJItipyKypblfblapbHda, acipece 6aJIIOHdapda apalaTbIPMaHbI3.Erep KOMPpeccopnap Hemece KOMPpeccoplbk MaJnap aIbHybTInc 6oJa, MaJNaFbUWBtIH iWInHe XaHFBbI CybkareHTTIHKaIMaMThBbHbHa Ke3 JeTKi3y yuH OlanDbI KOJaNbIbeHreReJeinH 3BaKyuaqnaay KaXeT.
3BaKayaun npoeci KomnpcecOpdbj XeTki3ywiinepre KaTapap aIbHda Jxpririinyi Kepek.
By npoecti keeIeIeTy yuH KOMnpcecop KopnycbIH TEK 3neKTPMeH KbI3DbIpy KepeK.
XyueH MaIbI aFbI3FaH Ke3De, OHbI Kayinci3 opbIHday KepeK.

Benriney

Xa6dbik naiandaahydaH wblfapblbIn, cybkareHTTeH ToBkTai 6ocatblnFaHbTypalb6elrineHyiKepeK.
- Benrire Kyhi XaHe KOnbl KoBlnaDbl.
Xa6bikTa XaHbIc cybIK areHT 6ap ekeHiK KpcTeiHXancbipMaIap 6ap ekeHIe Ke3 KeTkiH3.

NaiJaHaHydaH WbIfapy

By npoueDpyaHbOpBHaMaC 6ypbIH, MaMaH Xa6dbIKneH XaHe OHbIH 6aplbK, 6eJIWeKTepeMeH ToIbIK TaHbIC 6onybl Tnic.

• Bapnbik cybik areHTti Kayinci3 KaJIbHa KeTIpy ywiH KaKcbI Taxipn6e ycblHaJdaBl.

TancbipMaHbOpbIHdMaC6ypbH,KaJIbHa KeTIpiIReH cyBk,areHTTI KaITa naJaIaNap aIbIHda TaJdayKaKet 6oJFaH XaFdaNdaMaM MeH cyBk, areHTTih yIrciH anyKepeK.

TancbIpMaHbI 6aCtMaC 6ypbIH 3neKtp KyaTbIHbIH 60nybl MaHb3dbl.

a)Xa6bIbIKneH XaHe OhblH, XyMbICbIMeH TaHbCy.
3)Жишилійктрмен okшaynyay.
6) PpoeDpyaHbI opbIHdAmac 6ypbIH MbHaJapDbI TeKcepHi3:

KaKet 6oJCa, cybIaREHT cUINHnppeiH eHcyuH MExaHKnabIK eHey Ka6dbIfb KoJIkeTImdi.
- BapnbK XeKe KopFaHbIC KypaIapbl6ap XaHe dypbIc naIdaIaNbIyda.
KaIbHaKeIpy npoueci 6apblk yaKbTTa K3bipeTTyNFaHbH 6akblnaybHda 6oanaBbl.
KaJIbHaKeItipyXa6DbIbMeHcIIINHdpIepi Tnicti CTaHapTtapFa caikec KeIeJI.

B) MyMKiH 6oJca, cybIK aReHT KjYneCiH copbln aJIbIbI3.
r) Bakyym xacay MymkiH 6oJMaCA, KyeHeH apTypi 6eNikTepeiHeh cybIK aReHTTI aIbIN TaCTaNtBHaN KOJIneKTop XacaHbI3.
f) KaJIbIHa KeIITipyDi 6aCTaMaC 6ypbIH 6aJIIOHHbIH Tapa3bIda TypFaHbHa Ke3 XeTki3iH3.
Д) KaIIbHa KeItipy annapaTbH icKe KocbIn, HcckaynapFa cNKeC naJaIaNbHbHb3.
e) LInnHnpEpiwaMaDaH TbIC ToTbIpMaHbI3.
(CyibIKtbKneHToTbIpyKeIeMi 80%-daHaacnaiDbI)
e) LInHpH MaKcMaIbI XyMbIC KbICbIMbIH yaKbITwa 6oNca da acbpMaHbI3.
K) LInHHAppe Dpybc TOnTbipblin, npoecc aKaTaIHaH Ke3Je, LInHHAppe MeH Xa6DbIKTbIH KymBIC OPhbHaH Te3 aJIbHbIN TaCtAlFaHbHa XaHe Ka6DbIKTaFb6apbIK Okwaylay KnaHaDapbIHbH Ka6bIHaHaHKe3 KeTki3iH3.
3) KaɪnbiHa KeɪtɪpiɪrReH cybɪk areHTɪ TaɪapTbɪnbɪn, TekcepɪrReHre DeɪH 6aCKa caɪKbɪHdʌTy KʌyɪneH eToɪtbiPyfa 6ɔməmʌbl.

Xymbicbinaapdbin,6iikTiniri

HcyayIbIKTaTexHnKaIbIK, Kbi3MeT KepcTeY, Kbi3Met KepcTeY XaHE XeHDey OpeaunApbl YwH XyMbIC icTeiIN NepcoHaIbIH KaKeTTi GiiKTIirr TypaII HaKTbl Aknapa KaMTbIybl Kepek. Kayinci3diKke acep etetih Ke3 KeJIReH XyMbIC IpOueDypalapBIn TEK Ky3bIpETTI TylFaIap FaHaOpbIHdAybl Tnic.

MHydaim KymbIC npOeDypaIapbIHbIH MbicanIapbl:

Cyblk areHT t36eriH awy.
TbIfbI3daFah Kypamdaac 6eikTepeiawy.
XeIeTeIeTIH KopnycTapbl aUy.
KeHicikTe KOJaHaBbIaTbIH Me xaHnKaJIbIK KocblbcIcTapbI 6ap KoHdbIpfbInap ywiH Hcyckaynapda DaTuHKTIH opHaIacByi Kepek ekeHi KepceTinyi KepeK.
- 5nOKtbiH Kepy aMafbiHda JHe 6IOK opHaTbIiFaH 6eMederi Ka6bpFada KeJeHeHiHe 2 M KaUbIKTBiKTa opHaIacKaH KaUbIKTaH 6ackapy nyIbTi; JHe

• eDeHHHeH 100 MM Xofapbl, MyHa hO 6niktiri eDeHHHeH 300 MM acnaIbI; HeMece
• eDeHHHeH 300 MM XOFapbl, MyHda hO 6nIKTiri eDeHHHeH 300 MM-DeH acaBl.

Cyblk AReHTTI TOITbIPY

MHHMaJIdbIeJeH aydaHbI

Bapbik iwiK6IokTap Amin-HeH yKeH HeMece TeH A He VA mHaepiH KaHaFaTTaHbipaTbIHdai eTIN opHaTbIybi KepeK KypblbIMdk DnarpamMa

*1 (ISO 5149-3:2014, 5-6элим)

Mc=Kyneeri cybik areHTTIH kajnlb mJlwepi (Kr)
A:EeH aydaHbI (IiKki 6Iok opHaTbINFaH 6JImeHi, aydaHbI HeMece apHa apKblbIKocblFaH eHI KiiIi 6eJIme aydaHbI)
VA:Kendetinietin eed aydaHBi (TaBnFNKeJTeTy apkblb KocblfAH 6eImenepeH xannb aydaHBI)
Amin:MunHmAnIbIeJeH aydaHbI (1 Hemece 2-KeTeJeH Ta6bIb3)
ETRS6Iorbl:XakcapTbIfaH repMeTuKaJIbToHa3bity Kynelepi.
- hinst: Ophaty 6nikTiri. Bniktik.
h0：山bIfapy6niri.AHbIKtamalbIK 6nIKTik Hemece apHa KaIFaHfAH ap KOHdUIOHepHeHKeHicTikTiH eH TeMeHri caHbIaybIHbH 6nIKTiri

Iwki 6nok 1 : hinst=0, h0=h1, A=A1, VA=A1+A2 (erep Ta6nFnxKeJeTeTy wapTbI opbHdaIca)
Iiuki 6Iok 2 : hinst=h2, h0=h2, A=A2, VA=A1+A2 (erep Ta6nF nKeJneTe Tu apTbI opbHdaIca)
3 Iushi 6nok 3 : hinst=h3, h0=h4, A=A3
Ta6nFnxKeIeTeY caHbIaybl
5 Kepiaya caHbIaybl
6 XeTki3y aya caHbIaybl

Cybk areHTTih MaKcImaIdbi MmIeepin ecenTey Koibl

KpybIbHbOpHaTkaH Ke3de KocBIMa TOnTbIpbIaNbIH cybIK aReHTTIH MeJIwepi Ky6bIPdbIH dNaMeTpHe, y3bIHdbIFbHa XaHe iWiKi 6IoKKa caIbIHybl MyMKH cybIK aReHTTIH MeJIwepi He caikec KeIy KepeK.

KocbIMwa cybik aReHT MeIWepi (Kr)

=KaJIbI Ky6blp Y3blHdblFbl (M): 22,20 MM X 0.313 Kr/M (R32)
+KaJIbI Ky6bIp y3bIHdbIfbI (M): 0 19.05 MM X 0.235 Kr/M (R32)
+KaJIbI Ky6bIp y3bIHdbfbl (M): 0 15.88 MM X 0.153 Kr/M (R32)
+KaJIbI Ky6bIp Y3bIHbIFbI (M): 0 12.70 MM X 0.103 Kr/M (R32)
+KaJIbI Ky6bIp Y3bIHdbIFbI (M): 9.52 MM X 0.053 Kr/M (R32)
+KaJIbI Ky6bIp y3bIHdbfbl(M): 0.6.35 MM X 0.019 kr/M (R32)
+OpHaTbIIFAHHR6nOrbIHbIHcaHBi(2,3,4nopT)X0.45Kr(R32)
+OpHaTbInFaH HR 6IorbIHbIH caHbI (6,8 npT) X 0.9 kr (R32)
+Iwki 6nokka apHaHaFaH KocbIMwa cybIK areHT MneIwepi*1

*1 CbipTKbI 6nokTbIH iWHeH «IDU KocbIMwa cybk areHTep KecTeci> den aTaNaTbIH KaFa3 npaFbIH KapaHbI3.

ETRS Kypblfbcbl

Iwki 6IokTbOpHaTy yuHKe aMaKaTpda Hemece KeJedTeiTeIH eEh ayDaHaBHa 6aHaNbCTbTa6nFNeJdTe TaNdaHaBbDaaJa) Ke6bp Kayinc3dk Wapanapb KaKet 60nyb MyMKIn. XyHeHH MaKcMaIb3aprMmIepi -Xyneaderi iWki 6IokTbHaHa K6eBtinreH 15.964 Kr, 6ipak 63.856 Kr-Haacnaybl Kepek. Kayinc3dk WaapanapbHa LG Da6bHaBf (PLDCAAO), LG 6ekiTkiu KlanaHb (PRHPZ0*0) XaHe Ta6nFNeJedTe JxataDb. LG KepeK-JapaKaTapbl (da6mHaBf, 6ekiTkiu KlanaH) TypaBToLbIK aKnapaTTb KepeK-JapaKaTap HyckaylbIbHaH KapaHb3.

IpaHKeTe 60me 6nikTiri 1.8M Heri3iHe XacanFaH.Erep on 6nik 6oJca (MaKcImyM 2,2 M),KiU ipeK MNHMaJIbI eDeH aydaHbIH KOndHaYfA 6OlaDbI.

Xep actbHdaFbl eH,ToMeHri Ka6aTTbIH, MNHMaJIdbI eDeH aydaHbl

Kayinci3ik shapanaapbkaKeTe meec
Eki Kayinici3ik shapacbl
OpHaTyFa 60MaJDbI

BaKa Ka6aTTapDbIH, MmHMaIdbI eDeH aydaHbI

Kayinci3ik KypblfbcI KaKeTe mec
6ip kayinci3dk shapacbl
3Eki kayinci3dk wapacbl

ДeTTerIeN opHaTy

Iwki 6noktbOpHaTy yuH Kei6ip Kayinc3ik KypbIbIbIaPbI KaKeT 6onybl MymKIn, 6yI aMakka HeMece XeJTeiTeIH eEH aydaHbHa (Ta6nFn XeJIeTeY naJaIaNbIHa H XaFdaJa) 6aINaHbICTbI. Erep Mc mHi 15.964 Kr-HaH YIKeH 6oJCa, Ta6nFn XeJIeTeOpHaTbIbYb Tnic.

IpaΦNK neh kece iIki 6IokTapdbH eH TeMeHri opHaTy 6nIKTiriHe HerizdReH. Erep on 6nIK 6oJca, yIkeHipeK MInHMaJIbI eEah aydaHbI KOJaHaBbIybl MyMKIH.

h0 yIri TpyiHe KapaI e3repeDi.

T6ere iinHeiH, Ka6bipfafa opHaTbIaTbH: 2.2
Kaccetalb, eHeRe opHaTbIaTbH (PT, PF): 1.8
- TnDpOKNT (ka6bipfafa opHaTbIaTbIH): 1.3
- TnDpOKIT (eDEHRe opHaTbIaTbIh), 6acKa eDeHdk yIriep: 0.6
- ApHaIbI: ∃p KOHdUHOpHeJIeHTiKHe KeHcTikke apHa XaIFaHFaH eH TeMeHri caHbIaNayDbH 6NkTiri

Ta6nfn XeIeTeY XaFdaNbi

ErepemeneriupTapFa cainke Ta6nFN JeNdeTy opHaTbIJa, "A" MHi VA"MaHimea ImaCTbIpybI MyMkiH.ETRS 6lorbl ywiH, erep on Kayinc3ik Wapacbi peIHDe KOndaHbIJa, "A" MaHIn "VA" MaHimea ImaCTbIPyfa 6OImaIbI.

• TEm eHri caHbIay yUliH:

• ByI caHbIay cbIPTKa 1bIfTaIH KOJ eMeC

• CaHbIaydbI xa6yfa 60ImaIdbI
• CaHbIay ≥ Anvm 6onybl Tnic
• Anvmin MāHīH aHbɪKṭay KeɪHne eEHHeH 300 MM Kofapbɪ Ke3 KeɪrRe h cAhblaynapdɪh aydaHbɪ ecenTeŋMeɪnDi
• Anvmin MāHiHīN KēmiHnde 50%-bI eDeHHeH 200 MM TeMeH
  TemeHri cahblaydbih ty6i eehHeHs100 MM
• CaHbIaaydbH 6nIKTiri ≥20 MM

KofapfbcahbnayyuiH:

• ByI caHbIay cbIpyKa WbIFaTbIH KOJ eMec
• CaHbIaaydbI xa6yFa 60ImaiDbI
• CaHbIay ≥ Anvmin MaHiH 50%-bl 6onybl Tnic
• Xofapfb caHbIaaydbIH Ty6i eEHHeH ≥ 1 500 MM Xofapbl opHaIacByI KepeK
• CaHbIaaydbH 6nIKtiri ≥20 MM

1-6eIme
2-6eIme
3 CaHaImaIbI

MHHMaJbI caHbnay aMaFbl (Anv)

$$ A n v _ {\min } = \frac {m _ {c} - m _ {\max }}{L F L \times 1 0 4} \times \sqrt {\frac {A}{g \times m _ {\max}} \frac {M}{M - 2 9}} $$

9 -aybipblkkyuhiHydeyi 9,81 M/c2;

29 -Kr/KMOJIb WAMCbIHdAfbI ayaHbIH opTaWMA MOnJIpIK Mac CaCbI.

Anv -M² WAmacbIHdAfb Ta6HfN XeJIDeTy YIiH MHNMaJbI caHbIay;

mc -KyHeCybIKareHTTI KI WAmacbIHda HaKtToTbIpy;

ETRS KpybIfbcIyuiH,Anvmin=0.013m²

mmax Kynece cybik areHTI Kr WAmcbIHda MaKcMmaJIbToTbIpY,

TemeHderi foopMyla 6oBbIHha Hemece 15.964 Kr mHi 6oBbIHsa ecenTeJIeI.

$$ m _ {\max } = 2. 5 \times (\mathrm {L F L}) ^ {(5 / 4)} \times \mathrm {h} _ {0} \times (\mathrm {A}) ^ {(1 / 2)} $$

KeTipinreHweKTeHacnaybTnic

$$ m _ {\max } = 0. 7 5 \times \mathrm {L F L} \times h _ {0} \times A $$

LFL -Kr/M³ WAmacbIHdaFbITemEHr TyTaHfbIbIK Weri;

A -M²IaMaHbHaFb6eJMeaydaHbI;

M -Kr/KMOJIb WJaMaCbIHdaFbl Cyblk aReHTTIH MoJIpaJIbK MaCCaCbI;

EGASINING, O'RNATISH VA XIZMAT KO'RSATISH QO'LLANMASI (R32 UCHUN)

KONDITSIONERI

ISHLATISHDAN AVVAL BARCHA YO'RIQLARNI O'QIB CHIQING .........3

Yonuvchan sovutish vositasi uchun eslatmalar 3

OGOHLANTIRUVCHI KO'RSATMALAR 3

ISHLATISHDAN AVVAL BARCHA YO'RIQLARNI O'QIB CHIQING

IInctpykuii IJIa acHOyHaRa Bbipa6y. 3

IInctpykuBII IJI naBeTpbaOdaY. 3

IInctpykuii Ira Bbipa6y Multi V 4

IInctpykuBII Ira ripamodyla 4

IHCTPyKcblI KAT3rOpblI «ACIpOxHA» 4

IInctpyKcbi IJIa acHOyHaRa Bbipa6y. 4

IInctpykuBII IJI naBeTpbaOdaY. 5

IInctpyku bI dIa BbIpa6y Multi V 5

IInctpykuu na T3xHic6aCneKi npbl a6cnyroyBaHHi.5

3APAYKA XOJADAENTAM

Minimalbna arylnha nlouca 9

Cxema T'xHaJIarIyHara npaucSy. 9

Mihimabha aryibha nlouca

UcEyHHTpaHbI 6Ioki naBHHbI yCTaIeYBaUca npbl yMOBe, ITO A a6o VA 6oJIbIbIa 3a Amin

Cxema T3XHaIarHnra npaucy

Ha3Ba MaI I BOHkaBara 6NoKa - «ZRU*», a Ha3Ba MaI I I HyTpHaHa 6NoKa - «ARN*».
TAK A(VA) > Ta6niua 1
BloK ETRS

*1 (ISO 5149-3:2014, nyHKT 5)

• Mc = aγυλνηα Κολβκαςύν χολαδαγεθήτύ γιςτεme (κι)
  A:Плошч naIorri (Плошч naMЯшkaHnry, yakim yctaJIyBaHbI yHyTpahbI 6LOK, a6o haMeHua nlouHa naMЯшkaHnry, naKJIouHaHa rpa3 cICTMy naBETpaBOdaY)
  VA:BentbIyBaHaa nlouHa naIori(Cyma nlouaynamxKaHHy,naKlOuaHbIX HaTypa/bHaBentbIyCByi)
  Amin: MinimaibHa aynbHa nlou Cha (Tn. y Ta6ni21 a6o 2)
  BLOK ETRS:CicTAmbI xaana3iNbHika 3 naDbblHaHaerepMeTBuHacu.
  hinst: BbIbH MaTaxy. BblbHr.
  h0: BbIbHbIKy. P3epeHTHaB bIbHn a6o BbIbHn HIXHn aTynHbI naKIOHn NaBeTpBOy da KOKHa KaHdbIbHabHaan pactopbl

1 yHyTpaHbI 6IIOK 1: hinst=0, h0=h1, A=A1, VA=A1+A2 (kani BbIKOBaIOzua yMOBbl HaTypaJIbHaBn BeHTbJIraIi)
2 UHyTuPaHbI 6JIOK 2: hinst=h2, h0=h2, A=A2, VA=A1+A2 (kani BbIKoHbAIOuca yMOBbl HaTpaJIbHaeHTbIaIcBi)
3 YHytpaHbI 6Jok 3:hinst=h3,h0=h4,A=A3
AaTyniHa nla HaTypaIbHaB BeHTbIyIcII
AaTyIHa BApTaHHa
6 AdtyniHa naaaybl

Ja pa3niuibMaKcimaihHyIO konbKaucxOJaareHTy

PbIycTaHoUycbI npbl6opa Hea6xoHa y3raHHiCb KOJIbKacUb XoJaAareHTy, kI 3anpaJYnEua DaTkoBa, 3 bIMeTpam Tpy6ki, re daJyKbIHenn I KOJIbKacuO xoJaAareHTy, kI MoXHa 3anpaBtBa YHyTpaHbI 6Nk.

Kolbkaucb daaTkoBaRa xolaaraHTy (Kr)

= A rynbHna dayKbHn Tpy6anpaBoa(M): 22,20 MM x 0,313 Kr/M (R32)
+ArylbHna dayXbHr Tpy6a npaBoDa (M): 0 19,05 MM × 0,235 Kr/M (R32)
+ArynbHaraaykbiHrtpy6anpaOda(M):015,88MMx0,153kr/M(R32)
+ArynbHna DaaykbiHr Tpy6anpaBoa(M): 0 12,70 MM × 0,103 Kr/M (R32)
+ArynbHaj daJyXbHr Tpy6anpaBoa (M): 9,52 MM × 0,053 Kr/M (R32)
+ArybHaayxbln Tpy6anpaBoa (M): 6,35 MM × 0,019 Kr/M (R32)
+KolbkaCb yctaIyBaHbIX HR 6nokay (2,3,4 npOpTb) × 0.45 kr (R32)
+KolbkaCb yctaIbAbaHx HR 6loKaY (6,8 npTaY) × 0,9 Kr (R32)
+Kolbkaucb daataKOBara xolaareHny dny HnytpaHara 6noka*1

*1 3BЯрниесяда apkyша з Ha3BaJ «Ta6JIiça ДадаTKOBara xOlaDAreHTy Дя УнтpaHara 6LoKa».Ен падастayneHbI Y BOHKaBBIM 6NoKy.

БлokETRS

Ka6 yctalrauby hnytpahtb6nok, moryc cnaTp6iua nHybIe Mepbl 6cnkey3anexhacu aI nnowbI a60 BeHTbIraHahnnlndior (kani BbIkapbictoybaeua HatypaHNaB eHTbIraB).MakimabHbI 3apad ciTAmblcknaae 15,964 x kolbkacub yhytpaHbIX 6nokay cictme, ane he 6oIb73a 63,856 kr. Mepbl 6cnkei YKlnouaohy CcannekT cirHaniaui LG (PLDCAA0S), zanopnb Klanah LG (PRHPZ0*0) i HATypaHbHyO BeHTbIauHIO. Ipa63napmaui b6 akcsyapax LG (kamnpkT cirHaniaui, zanopnb KlananH) rI. kipayHIzTa na akcsyaupax. Tpaiki Ta5niqa zachabaHbHa BblshHi narnsKaHH 1,8 M. Kani Iha BblsHaa (MaKci Mym 2,2 M), MoXHa YXbU MeHsuHmabHyo nlouhy nadnor i.

Mihimalbna arylbna nlouca na Hixhara na3emHara naBepxa

1Mepbl6aCneki He natapa6youca
2ДЗВe Мерьбяпекi
3Hemarhybima yctaIyBauc

Mihimalbna arylbna nloua iHusbix naBepxay

1Ipbila6cneKeHnata6yeuca
2AHa Mepa 6cneki
3D3BEmepb6acneki

3BbUaHbMaHTax

Ka6 yctaBaCb yHytpaHb 6Iok, MoXa cNaTp36iua n3yHna npblada 6cneki y 3aJeKHaCci aI plouHa 6o BeHTbIbHaHa nIIOUb i naDnori (kai BBkapbcToYbaeua HaTypaHbHa BHTbIbHa). Kani Mc nepaBbIhae 15,964 Kr, HAtypaHbHa BeTbIbCuBa I NaBiHb 6biUc yCTaHaBaHa.

Ipaik i Ta6nla 3acHabHbHa Ha MinimalbHaB BblbHi YcTaHOyKi YHyTpaHbIX 6IOka. Kani rHa 6Olbwa, MoKa npmbna 60bwa MImalbHa nlouha.

h0 aDpo3HbAeua y 3aIexKHaCci aTbiny MaJJI.

• CToJIeBbI naDbEcHbI, HAcIeHHbI: 2,2
  KaceTbI, nAIOraBbI TbIn (PT, PF): 1,8
  IipakiT (HacceHHb):1,3
  IidpaikIT (NaInorabbl), naINorabbl TBIN (IHsb)0,6
• NaBeTpBaOd: BbIbHЯIxHЯ aDtyIiHbI naKJIIOU3HnHa naBeTpBaOdy Da KoxHa KaHdbIcBHaBaHaHa npacTOpbl

CTaHHaTpaBbHaBentbIaIybl

Kani HaTpyaBHa BEnbIyraIy cTaIyBaHa i aINaBraIe npBBe3eHbIM HIX3I yMoBaM, "A" MoKa 6bIc 3aMeHeHa Ha "VA". IIn 6loka ETRS, Kani eH BBiKapbcIcToyBaEuca y Raacci MepbI 6rcneKi, "A" He MoKa 6bIc 3aMeHeHb Ha "VA".

29 A3HaayepaHIO MaIpyMoCy naBeTp a Kr/KMOJIb.

Anv A3HaayiHimaihBbI namep aTyIiHbI Ira HaTpaIbHa BcHTbJIaCbI yM².

ДяблOKAETRS,Anvmin=0.013m²

mc A3HaayaekaKbIHyb a6'Em 3anpaKy xoJaareHTy y cicMy k;

m max a3HaayanyuahbHb MaKcimalhHb a6'em 3a npaykXoJaareHTy y cicTMy k, Pa3iYBaeeOHa 3 npBEd3eHbIM Hixn poHaHHem ab0 cknae 15,964 kr.

$$ m _ {\max } = 2. 5 \times (\mathrm {L F L}) ^ {(5 / 4)} \times \mathrm {h} _ {0} \times (\mathrm {A}) ^ {(1 / 2)} $$

He naBihHa nepaBbIaucb HacTynHbI 3HaayHHI

$$ m _ {\max } = 0. 7 5 \times \mathrm {L F L} \times h _ {0} \times A $$

LFL A3Haayae HIXHIO MxKy rapyacci k/M;

A A3Naaye nlouy naMkaHnry M²;

M A3Haue MaIpaHyIO Macy XoJaDaReHTy Kr/KMOJIb;

APPENDIX ^1)

Table 1 : ETRS Unit 2)

Mc(kg)	Amin(m2)
	Lowest Underground Floor3)		Other Floors4)
	Number of Safety Device5)		Number of Safety Device5)
	2	1 or 0	2	1	0
1.843	6.68	13.35	No Limit6)	6.68	13.35
2	7.24	14.48		7.24	14.48
3	10.86	21.72		10.86	21.72
4	14.48	28.96		14.48	28.96
5	18.10	36.20		18.10	36.20
6	21.72	43.44		21.72	43.44
7	25.34	50.67		25.34	50.67
8	28.96	57.91		28.96	57.91
9	32.58	65.15		32.58	65.15
10	36.20	72.39		36.20	72.39
11	39.82	79.63		39.82	79.63
12	43.44	86.87		43.44	86.87
13	47.06	94.11		47.06	94.11
14	50.67	101.34		50.67	101.34
15	54.29	108.58		54.29	108.58
16	57.91	115.82		57.91	115.82
17	61.53	123.06		61.53	123.06
18	65.15	130.30		65.15	130.30
19	68.77	137.54		68.77	137.54
20	72.39	144.78		72.39	144.78
21	76.01	152.01		76.01	152.01
22	79.63	159.25		79.63	159.25
23	83.25	166.49		83.25	166.49
24	86.87	173.73		86.87	173.73
25	90.49	180.97		90.49	180.97
26	94.11	188.21		94.11	188.21
27	97.72	195.44		97.72	195.44
28	101.34	202.68		101.34	202.68
29	104.96	209.92		104.96	209.92
30	108.58	217.16		108.58	217.16
31	112.20	224.40		112.20	224.40
32	115.82	231.64		115.82	231.64

Mc(kg)	Amin(m2)
	Lowest Underground Floor3)		Other Floors4)
	Number of Safety Device5)		Number of Safety Device5)
	2	1 or 0	2	1	0
33	119.44	238.88	No Limit6)	119.44	238.88
34	123.06	246.11		123.06	246.11
35	126.68	250.00		126.68	250.00
36	130.30	250.00		130.30	250.00
37	133.92	250.00		133.92	250.00
38	137.54	250.00		137.54	250.00
39	141.16	250.00		141.16	250.00
40	144.78	250.00		144.78	250.00
41	148.39	250.00		148.39	250.00
42	152.01	250.00		152.01	250.00
43	155.63	250.00		155.63	250.00
44	159.25	250.00		159.25	250.00
45	162.87	250.00		162.87	250.00
46	166.49	250.00		166.49	250.00
47	170.11	250.00		170.11	250.00
48	173.73	250.00		173.73	250.00
49	177.35	250.00		177.35	250.00
50	180.97	250.00		180.97	250.00
51	184.59	250.00		184.59	250.00
52	188.21	250.00		188.21	250.00
53	191.83	250.00		191.83	250.00
54	195.44	250.00		195.44	250.00
55	199.06	250.00		199.06	250.00
56	202.68	250.00		202.68	250.00
57	206.30	250.00		206.30	250.00
58	209.92	250.00		209.92	250.00
59	213.54	250.00		213.54	250.00
60	217.16	250.00		217.16	250.00
61	220.78	250.00		220.78	250.00
62	224.40	250.00		224.40	250.00
63	228.02	250.00		228.02	250.00
63.856	231.12	250.00		231.12	250.00

Table 2 : General Installation7)

	Amin(m2)
Mc (kg) h0 (m)	0.6	0.8	1	1.2	1.3	1.4	1.6	1.8	2	2.2
1.843	28.91	16.27	10.41	7.23	6.16	5.72	5.01	4.45	4.01	3.64
2	34.05	19.15	12.26	8.52	7.26	6.26	5.43	4.83	4.35	3.95
4	136.18	76.60	49.03	34.05	29.01	25.02	19.15	15.14	12.26	10.13
6	306.39	172.35	110.31	76.60	65.27	56.28	43.09	34.05	27.58	22.79
8	544.70	306.39	196.09	136.18	116.03	100.05	76.60	60.53	49.03	40.52
10	851.09	478.74	306.39	212.78	181.30	156.33	119.69	94.57	76.60	63.31
12	1225.56	689.38	441.21	306.39	261.07	225.11	172.35	136.18	110.31	91.16
14	1668.13	938.32	600.53	417.04	355.34	306.39	234.58	185.35	150.14	124.08
15.964	2168.98	1220.05	780.84	542.25	462.04	398.39	305.02	241.00	195.21	161.33
16	2178.78	1225.56	784.36	544.70	464.12	400.19	306.39	242.09	196.09	162.06
18	2757.51	1551.10	992.71	689.38	587.40	506.49	387.78	306.39	248.18	205.11
20	3404.33	1914.94	1225.56	851.09	725.19	625.29	478.74	378.26	306.39	253.22
22	4119.24	2317.08	1482.93	1029.81	877.48	756.60	579.27	457.70	370.74	306.39
24	4902.24	2757.51	1764.81	1225.56	1044.27	900.42	689.38	544.70	441.21	364.63
26	5753.32	3236.25	2071.20	1438.33	1225.56	1056.74	809.07	639.26	517.80	427.94
28	6672.49	3753.28	2402.10	1668.13	1421.36	1225.56	938.32	741.39	600.53	496.31
30	7659.75	4308.61	2757.51	1914.94	1631.67	1406.90	1077.16	851.09	689.38	569.74
32	8715.09	4902.24	3137.43	2178.78	1856.47	1600.73	1225.56	968.35	784.36	648.23
34	9838.52	5534.17	3541.87	2459.63	2095.78	1807.08	1383.55	1093.17	885.47	731.80
36	11030.03	6204.39	3970.81	2757.51	2349.60	2025.93	1551.10	1225.56	992.71	820.42
38	12289.63	6912.92	4424.27	3072.41	2617.91	2257.28	1728.23	1365.52	1106.07	914.11
40	13617.32	7659.75	4902.24	3404.33	2900.74	2501.14	1914.94	1513.04	1225.56	1012.86
42	15013.10	8444.87	5404.72	3753.28	3198.06	2757.51	2111.22	1668.13	1351.18	1116.68
44	16476.96	9268.29	5931.71	4119.24	3509.89	3026.38	2317.08	1830.78	1482.93	1225.56
46	18008.91	10130.01	6483.21	4502.23	3836.22	3307.76	2532.51	2000.99	1620.81	1339.51
48	19608.94	11030.03	7059.22	4902.24	4177.06	3601.65	2757.51	2178.78	1764.81	1458.52
50	21277.06	11968.35	7659.75	5319.27	4532.40	3908.04	2992.09	2364.12	1914.94	1582.60
52	23013.27	12944.97	8284.78	5753.32	4902.24	4226.93	3236.25	2557.03	2071.20	1711.74
54	24817.56	13959.88	8934.33	6204.39	5286.59	4558.33	3489.97	2757.51	2233.59	1845.94
56	26689.94	15013.10	9608.38	6672.49	5685.44	4902.24	3753.28	2965.55	2402.10	1985.21
58	28630.41	16104.61	10306.95	7157.61	6098.79	5258.65	4026.16	3181.16	2576.74	2129.54
60	30638.97	17234.42	11030.03	7659.75	6526.65	5627.57	4308.61	3404.33	2757.51	2278.94
62	32715.61	18402.53	11777.62	8178.91	6969.01	6008.99	4600.64	3635.07	2944.41	2433.40
64	34860.33	19608.94	12549.72	8715.09	7425.87	6402.92	4902.24	3873.37	3137.43	2592.92
66	37073.15	20853.65	13346.34	9268.29	7897.24	6809.36	5213.42	4119.24	3336.59	2757.51
68	39354.05	22136.65	14167.46	9838.52	8383.11	7228.30	5534.17	4372.68	3541.87	2927.17
70	41703.04	23457.96	15013.10	10425.76	8883.49	7659.75	5864.49	4633.68	3753.28	3101.88
72	44120.11	24817.56	15883.24	11030.03	9398.37	8103.70	6204.39	4902.24	3970.81	3281.67
74	46605.27	26215.47	16777.90	11651.32	9927.75	8560.16	6553.87	5178.37	4194.48	3466.51
76	49158.52	27651.67	17697.07	12289.63	10471.64	9029.12	6912.92	5462.06	4424.27	3656.42
78	51779.85	29126.17	18640.75	12944.97	11030.03	9510.59	7281.55	5753.32	4660.19	3851.40
79.82	54224.43	30501.25	19520.80	13556.11	11550.77	9959.59	7625.32	6024.94	4880.20	4033.23

1) APPENDIX / APPENDICE / APÉNDICE / ANNEXE / ANHANG / ΠAPAPTHMA / PRÍLOHA / BIJLAGE / ZAŁACZNIK / Anexă / ANEXO / MELLEKLET / ΠΡΙΝΟχΕΝΗΕ / DODATAK / DODATAK / BILAGA / VEDLEGG / BILAG / ANNEX / PRÍLOHA / PRILOGA / AGUISÍN / SHTOJCÉ / Dodatak / LISA / PIELIKUMS / PRIEDAS / APPENDICI / Доваток
2) Table 1: ETRS Unit / Tabella 1: Unità ETRS / Tabla 1: unidad ETRS / Tableau 1: unité ETRS / Tabelle 1: ETRS-Einheit / Πíνακας 1: Mováδα ETRS / Tabulka 1: Jednotka ETRS / Tabel 1: ETRS unit / Tabelle 1: Jednostka ETRS / Tabelul 1: Unitate ETRS / Tabela 1: Unidade ETRS / 1. tablázat: ETRS-egység / Ta6línaça 1: ETRS TGALO / Tabela 1: JDKINICA ETRS / Tablica 1: ETRS JDKINICA / Tabell 1: ETRS-enhet / Tabell 1: ETRS-enhet / Tabel 1: ETRS-enhed / Taula 1: (Unitat ETRS) / Tabulka 1: Jednotka ETRS / Tabela 1: Enota ETRS / Tábla 1: Aonad ETRS / Tabela 1: Njësia ETRS / Tabelu 1 / Tabel 1: ETRS-seade / 1. tabula: ETRS vieniba / 1 lentele: ETRS jrenginys / Tabella 1: Unità tal-ETRS / Ta6línza 1: Blok ETRS
3) Lowest Underground Floor / Piano interrato più basso / Planta subterranea más baja / Étage souterrain le plus bas / Tiefstes Untergeschoss / Yánóyélo / Nejnižsí podzemni podlaží / Laagste ondergrondse verdieping / Najnizska kondygnacja pod ziemia / Cel mai jos etaj subteran / Piso Subterraneo mais Baixo / Legalsó fold alatti szint / Най-nиськ подемен ectax / Najnizi podezmni sprat / Najnizi podzemni kat / Lögsta underjordiska väning / Nederste / Nederste unterjordiske etage / Planta subterrània més baixa / Najnizsie podzemné poschodie / Najnizje kletno nadstropje /Urlár Faoi Thalamh is Isle / Kati me i ulét néntokésor / Najniza podzemna etaža / Madalaim maa-alune korrus / Zemākais pazemes stavs / Žemiausias požeminis aukstas / L-ktar Sular Baxx Taht I-Art / Hauhnekuni πidzemnii nobepx
4) Other Floors / Altri piani / Otras plantas / Autres etages / Sonstige Etagen / Aλλοι ὅροφοι / Jine podlaží / Overige verdiepingen / Inne kondygnacje / Alte etaje / Outros Pisos / Egyéb szintek / ἀργιν εταχι / Ostali spratovi / Ostali katovi / Övriga väningar / Andre etasjer / Andre etager / Altres nivells / Ostatné poschodia / Druga nadstropja / Urlair Eile / Kate te tjera / Ostali spratovi / Muud korrused / Citi stāvi/ Kiti aukstai / Sulari Ohra / Θιπι πόθερχι
5) Number of Safety Device /Numero di dispositivi di sicurezza /Numero de dispositivo de seguridad / Nombre de dispositifs de secretie / Anzahl der Sicherheitsvorrichtungen / Aplo 8iataeawv a04aiaac / Pocet bezpecnostnich zaizeni / Aantal veiligheidsvoorzieningen / Liczba zabezpieczen / Numarul de dispositive de comanda /Numero de dispositivo de seguranca / Biztonsagi berendezesek szama / BpO npedna3n yctpoicTbA / Broj bezbednosnog ureada / Broj sigurnosnih ureada / Antal sakerhetsenheter / kjelleretasje / Antal sikkerhedsanordninger /Numero del dispositiu de seguretat / Pocet bezpecnostnych zariadeni / Stevilo varnostnih naprav / Uimhir an Ghlér Shabhailteachta / Numri i pajisjeve te sigurise / Broj sigurnosnih ureada / Ohutusseadmete arv / Drošibas ieriču skaits / Apsaugos jrenginiu skeicius / Ghadd ta' Apparati tas-Sigurtà / Kilbkictb 3ano6ixnx npinctroiB
6) No Limit / Senza limiti / Sin limite / Aucune limite / Keine Begrenzung / Xwpiç opio / Bez omezeni / Geen limiet / Bez limitu / Fară limită / Sem Limite / Korlatozás nélkül / be3 orpañuènne / Bez ogranićenja / Bez ogranićenja / Ingen gräns / Antall sikkerhetsinnretninger / Ingen begraënsninger / Sense limit / Bez obmedzenia / Brez omejitve / Gan Teorainn / Pa kufi / Bez ogranićenja / Piiranguteta / Bez ierobežojumiem / Nera apribojimo / Bla Limitu / be3 06mexeNb
7) Table 2: General Installation / Tabella 2: Installazione generale / Tabla 2: instalacion general / Tableau 2: installation generale / Tabelle 2: Normale Installation / Nivaqac 2: Evnck ykataoan / Tabulka 2: Obecná instalace / Tabel 2: Algemene installment / Tabela 2: Instalacja ogolna / Tabelul 2: Instalare generala / Tabela 2: Instalacao Geral / 2. tablazat: Altalanos telepités / Ta6nca 2: o6m moTax / Tabela 2: Opsta ugradnja / Tablica 2: Opca instalacija / Tabell 2: Allman installation / Tabell 2: Generell installationsj / Tabel 2: Generel installation / Taula 2: Instal-laciogeneral / Tabulka 2: Vseobecná instalacia / Tabela 2: Splo'sna namestitev / Tabla 2: Suiteail Ginearalta / Tabela 2: Instalimi i pergjithshem / Tabelu 2 / Tabel 2: üldine paigaldus / 2. tabula: Visparrga uzstadiisana / 2 lentele: bendroji jrange / Tabella 2: Installazzjoni Generali / Ta6nca 2: CtanhapThe BCTAHOBENH

1) APPENDIX / ПИЛОЖЕНИ / Косьимша / Ilova / Дадатук.
2) Table 1: ETRS Unit / Ta6niца 1: 6лok ETRS / 1-кесе: ETRS 6логы / 1-jadval: ETRS bloki / Ta6ица 1: Блok ETRS
3) Lowest Underground Floor / Camoe HnXHee noD3emHoe nOmeueHne / EHTomeHri kepaTbI Ka6aTbI / Eng past yer osti poli / HixHi naD3emHbl naBepx
4) Other Floors /Дугпе пошени /Басka ka6aTTap / Boshqa pollar / Ишья naBepxi
5) Number of Safety Device / KolnuectBo 3aunTHbIX yctpoiCTB / Kayinci3dk KypblfblapblHcHbI / Xavfsizlik qurilmalarisi / Kolbkacub axoynbIX npblad
6) No Limit / He orpaHnueHo / IeKteycI3 / Limit yo'q / 5e3 a6mexaBaHHay
7) Table 2: General Installation / Ta6niua 2: ctaHapTHaYcTaHOBka / 2-KeCTe: ΘeTTerIeIopHaTy / 2-jadval: umumiy o'rnatish / Ta6niua 2: ArylbHaYcTaHOyKa
