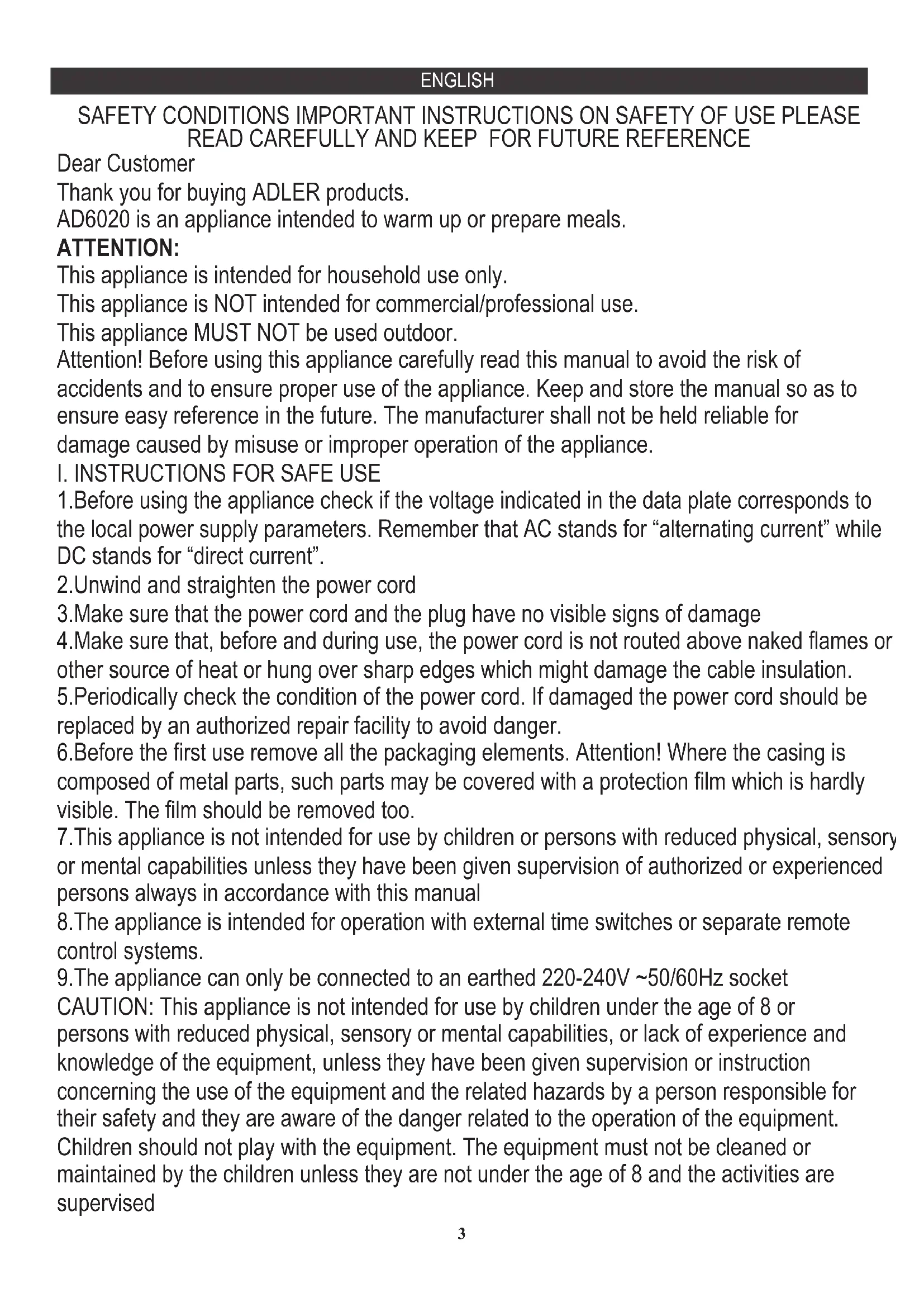

3CSAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Dear Customer Thank you for buying ADLER products. AD6020 is an appliance intended to warm up or prepare meals. 4.Make sure that, before and during use, the power cord is not routed above naked flames or other source of heat or hung over sharp edges which might damage the cable insulation. CAUTION: This appliance is not intended for use by children under the age of 8 or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge of the equipment, unless they have been given supervision or instruction concerning the use of the equipment and the related hazards by a person responsible for their safety and they are aware of the danger related to the operation of the equipment. Children should not play with the equipment. The equipment must not be cleaned or maintained by the children unless they are not under the age of 8 and the activities are supervised Attention! Before using this appliance carefully read this manual to avoid the risk of accidents and to ensure proper use of the appliance. Keep and store the manual so as to ensure easy reference in the future. The manufacturer shall not be held reliable for damage caused by misuse or improper operation of the appliance. 5.Periodically check the condition of the power cord. If damaged the power cord should be replaced by an authorized repair facility to avoid danger. This appliance MUST NOT be used outdoor. 7.This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities unless they have been given supervision of authorized or experienced persons always in accordance with this manual 6.Before the first use remove all the packaging elements. Attention! Where the casing is composed of metal parts, such parts may be covered with a protection film which is hardly visible. The film should be removed too. This appliance is NOT intended for commercial/professional use. 9.The appliance can only be connected to an earthed 220-240V ~50/60Hz socket This appliance is intended for household use only. 1.Before using the appliance check if the voltage indicated in the data plate corresponds to the local power supply parameters. Remember that AC stands for “alternating current” while DC stands for “direct current”. ATTENTION: 8.The appliance is intended for operation with external time switches or separate remote control systems.

I. INSTRUCTIONS FOR SAFE USE

2.Unwind and straighten the power cord 3.Make sure that the power cord and the plug have no visible signs of damage ENGLISH

3. When the appliance is not in use it should always be unplugged from the power 15.

socket. 16.Do not remove the power plug from the socket by pulling the cord – grip the plug instead. 21.Remember that it takes time for the heating elements to cool down completely 18.Remember that some parts of the appliance and the housing may become hot during operation. Therefore, pay special attention and do not touch them to avoid burns. 19.Always operate the appliance on a dry and stable surface 10.Do not leave the appliance unattended when in use. 12.Power cord must not hang over a table top or touch hot surfaces. 14.Do not expose the appliance to weather conditions (rain, sunlight etc.) or use it in elevated humidity conditions (bathrooms, damp holiday cottages) 13.Do not immerse the appliance or the power cord in water or any other liquid. 17.The manufacturer shall not be held liable for damage resulting from improper use of the appliance. 20.NEVER cover the appliance when in use or until it has cooled down. 22.The appliance is a 1st class fire protection device and, therefore, it must be connected to a power socket with an earthing prong. 23.Provide sufficient space around and above the appliance when in use. During the operation the appliance must not come in contact with any inflammable objects such as decorations, paper towels, curtains, clothes etc. 11.Do not use the appliance near inflammable materials. 24.TAKE CARE when using the appliance on surface sensitive to high temperature. In such a case use insulating pads. To enhance your safety it is recommended that the wiring system be equipped with an automatic residual current device with the tripping current of 30 mA. 5.Do not use accessories which are not recommended by the manufacturer as they may be dangerous to the use or pose the risk of damage to the appliance itself. 4.Do not use the electric cooker as a space heater or to warm inflammable, explosive, noxious, volatile materials or liquids. 6.Never move the appliance by pulling the power cord. Make sure that the power cord is not obstructed in any manner. Do not wrap the power cord around the appliance or kink it. 7.Never move the cooker when boiling water or with a hot cookware on it.

II DETAILED SAFETY CONDITIONS

1.Use this appliance indoor only. 2.Do not use aggressive detergents e.g. cleaning emulsions, cream cleaners, cleaning pastes etc. as they may remove the graphic symbols such as designations, warning signs etc. 3.Do not put empty containers or dishes on the appliance. 25.Do not use this appliance with external time switches or any other remote control systems. 43.Do not use extension cords or other electrical sockets which do not meet the standards in force or electrical regulations 5.If the appliance or parts such as electrical contacts, plug or power cord have got wet dry the appliance and its components before used. 10.Place the cooker at least 30 cm away from the wall, furniture, other equipment, containers. Make sure that sheer curtains, curtains, clothes or other inflammable materials cannot come closer than 30 cm away from the cooker as this may cause fire. 7.When you sus pect that the appliance has been damaged NEVER try to repair it on yourself. 8Do not wash the appliance under running water or so that water could penetrate it. 9.Do not place the appliance so that the heating plate could contact other appliances (e.g. mixers). Do not put the cooker below the power socket .15.The appliance should be stored together with the power cord out of the reach of children under 8 years of age. 8.Make sure the appliance has cooled down before storing it. 2.Do not operate the appliance after it has been dropped or shows clear signs of malfunctioning. 4.Any repairs, disassembly or replacement of any parts should always be carried out by professional service facility. 6.Never operate the appliance with wet hands. 14.Children of the age 3 to 8 may turn the appliance on or off only when the appliance is in its normal operating position and they are supervised or have received instructions about safe use and understood the related hazards. Children of the age 3 to 8 must not connect, operate, clean or maintain the appliance 1.Never use the appliance if damaged or malfunctioning. 13.Temperature of accessible surfaces of the appliance can be high when in operation. Do not touch the hot surfaces of the appliance.

III. WARNINGS / DETAILED SAFETY CONDITIONS

12.Do not touch the housing or the heating plates of the cooker when in use. During the operation use the knobs only. After turning the cooker off wait until it has cooled down. 11.Never place containers made of PVC, paper, cardboard etc. on the heating plate.

12. During operation, door glass becomes extremely hot. It must not be heavily hit,

or pour cold water because of the risk of its crack.

11. Do not touch the hot surfaces of the oven (door, top or bottom wall and side

walls). Use protective gloves to remove or touch any hot parts.

10. Do not use the oven with the door open. Do not cover the machine during operation,

9. The oven should be put on a flat, temperature resistant surface away from flammable

materials (curtains, drapes, wallpaper, etc.). In order to ensure proper air circulation there should be at least 30 cm of free space on each side of the unit and at least 30 cm above the oven. Do not cover the ventilation holes of the oven, as this may cause overheating

13. The power cord can be installed over an oven, and should not touch or be near hot

56. The control light (C1) (C2) indicates when the hot plates are operating.

USING THE HOT PLATES

3. Set the hot plates selection knob (3), depending on the desired usage:

C1. Indicator lamp (small hot plate) C2. Indicator lamp (big hot plate)

4. Set the timer (4) to the desired cooking time. The bell will ring when the cooking time is completed.

5. To deactivate the appliance, turn the timer knob (3) to “OFF.”

- Make sure the oven is placed on high-temperature resistant base A. Big Hot plate B. Small hot plate

2. Place a flat-bottom container on the hot plate (A)or (B). It is recommended to use containers with the surface area equal to or greater than the surface area of the hot plate in order to avoid energy loss. Place only the container that has a clean and dry bottom on the clean and dry hot plate. - Make sure the oven is dry – left hot plate (3a) – right hot plate (3b) – both hot plates (3c)

7. When you finished using the appliance, always set the hot plates selection knob (3) to the OFF position

1. Plug the cord into the power source.

1. Set temperature adjustment knob (1) to the desired value.

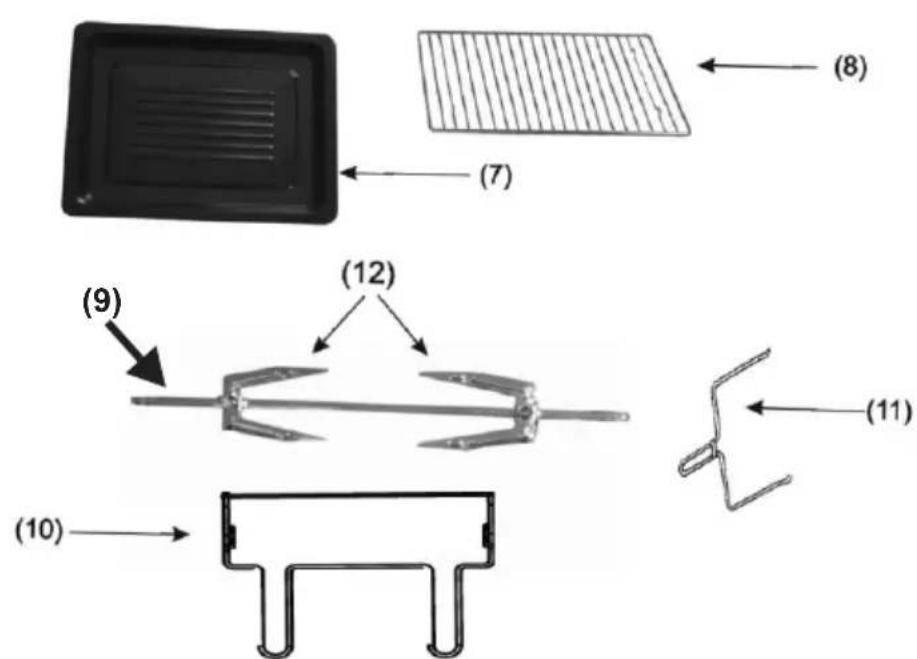

9. Rotary spit axis 10. Tray removal handle

- Make sure there Is enough ventilation space around oven (minimum 30 cm on each side and 30 cm above the oven)

21. Do not wash metal parts in the dishwasher, as the corrosive detergents used in these

devices cause darkening of the above parts. It is recommended to wash them by hand, using traditional dishwashing liquids.

16. Do not place any cardboard, paper, plastics and other flammable or easily melt objects

15. Oversized food must not be inserted, as this may cause fire and damage the appliance.

17. Do not store any other accessories in the appliance.

18. After cooking and before cleaning the machine, unplug the power cord from the outlet

and leave to cool. Wait a long period of time because the heated oven cools very slowly.

22. To avoid overheating of the oven the crumb tray or any other part of the oven should

not be cover with a metal foil. surfaces. Do not place the oven under the electrical outlet.

19. Clean the device after each use.

20. Do not use corrosive detergents such as emulsions, creams, pastes, etc. to clean the

casing. They can wipe off the graphic signs on the surface such as scales, marks, warning signs etc.

23. Do not use metal scouring pads to clean. Broken metal pieces may come into contact

with electrical parts, creating a risk of electric shock.

14. Due to the high temperature keep special carefulness when removing tray or grate (or

other accessories approved for use in ovens) with baked dishes. Please be careful, when removing the tray or hot oil or other hot liquids. Use dedicated accessories offered with the oven or heat-resistant oven gloves. DESCRIPTION:

5. Indicator lamp 6. Handle for opening glass door

63. Put in second pair of jaws, and stick them from other side, "closing" the product on the spit axis.

5. In order to switch the device off before the time has run out, rotate heating mode selection knob (2) knob to "OFF"(2f).

6. Always unplug the power cable from the power outlet after use.

4. Set timer (4) to required baking time. A bell is rung upon reaching required baking time.

1. Put one pair of jaws on the axis sharp side, then slide onto the axis.

2. Set the heating mode selection knob (2) in position:

- Upper + fan (2b) - Both upper and lower, rotary spit and fan (2e) + (2a) (2c) + (2d) - Both upper and lower fan - Both upper and lower - upper rotary spit 2. Impale such prepared spit (9) into the center part of the product to be baked, stick the spit jaws (12) in the product. Capacity: 36 L

1. Before cleaning of the oven switch it off and leave to cool.

7. Turn the oven on using theating mode selection knob (2e), the lamp (5) will illuminate. Set the desired baking time.(4)

7. Do not use sharp metal tools to clean the residues of baked products.

5. Clean the tray and grill in water with washing-up liquid. Wipe dry using cloth.

6. Clean the glass door with moist cloth or sponge soaked with water and washing-up liquid. Then wipe dry.

4. Check that the fixed product is located centrally along spit axis.

2. Place grill (8) in the oven, place products to be grilled on the grill or dish with food, and close the oven door.

6. Set temperature adjustment knob (1) to the desired value (for example 200°C)

7. Wait a moment, and remove grill with baked products carefully using special heat-resistant gloves.

4. Clean the casing with moist cloth, and then wipe dry.

4. Set temperature adjustment knob (1)

CLEANING AND MAINTENANCE

3. Set the heating mode selection knob (2b)

8. After the baking time runs out, switch the oven off by rotating the heating mode selection knob (2) to "OFF"(2f). Always unplug the power cable from the power outlet after use. 9. Before removing product baked on spit, wait a moment to allow the device to cool. Then grab the spit axis using spit removal handle (11). First raise left side, and slide to the left, so that right axle end leaves the drive coupling. Then, carefully remove baked meal from the oven. GRILLING/BAKING

2. Disconnect the device from power source by removing power plug from the power socket.

3. Do not immerse the oven in water.

6. After the baking, switch the oven off by rotating theating mode selection knob (2) to "OFF"(2f), and remove the power plug from the power socket. Power supply: 220-240V ~50/60Hz Timer: 60 min. Total: Nominal Power 3200W Power Nominal: Oven: 1500W, Hot Plate: 1000W+700W

5. Set the desired baking time with the knob (4).
