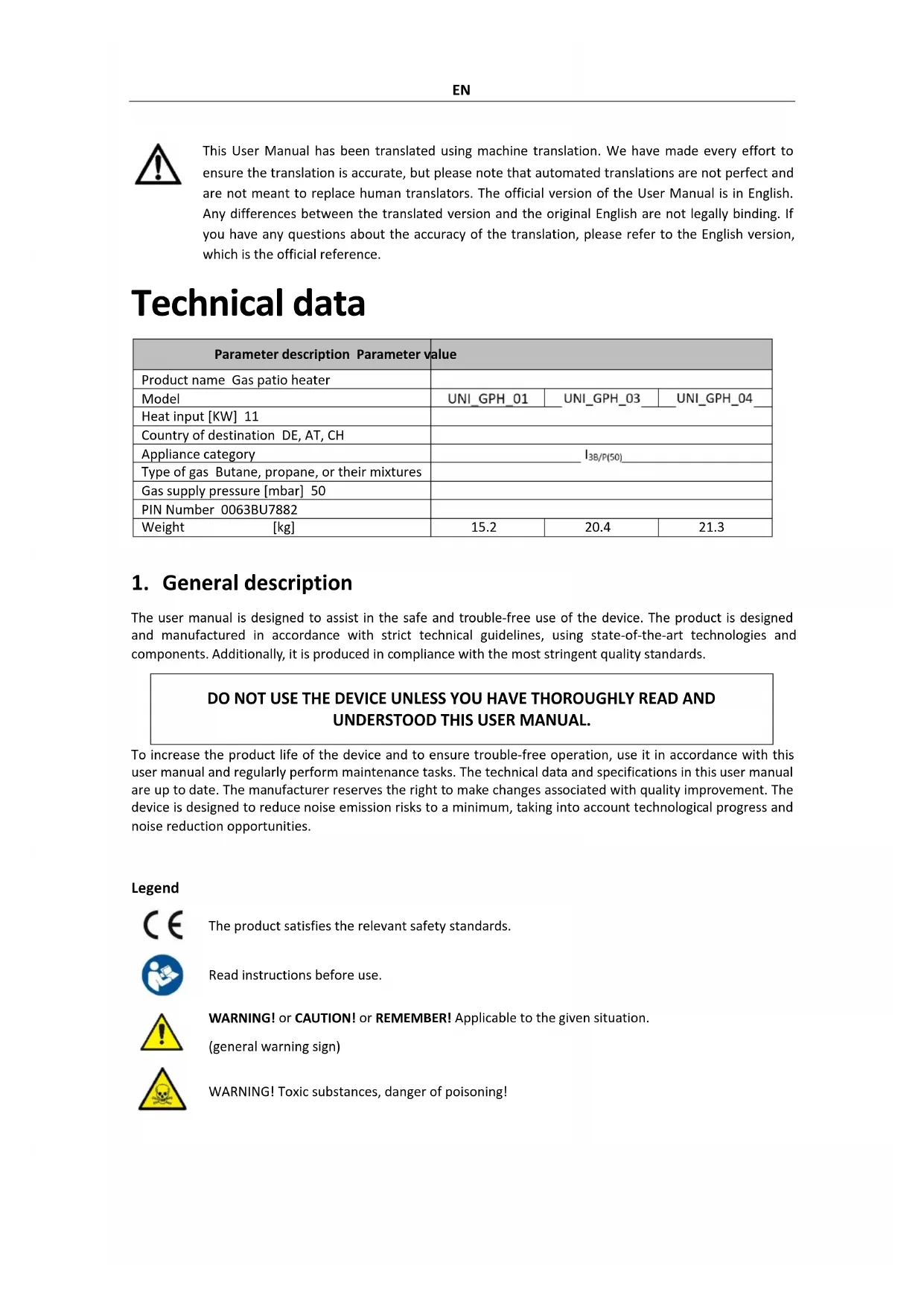

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards. DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL. To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities. Legend The product satisfies the relevant safety standards. Read instructions before use. WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign) WARNING! Toxic substances, danger of poisoning!EN Do not touch! ATTENTION! Hot surface, risk of burns! PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death. The terms "device" or "product" are used in the warnings and instructions to refer to: Gas patio heater 2.1. Safety in the workplace a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device. b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes. c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay. d) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer’s service centre. e) Only the manufacturer’s service centre may make repairs to the product. Do not attempt to make repairs yourself! f) Use the device in a well-ventilated space. g) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced. h) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

i) Keep packaging elements and small assembly parts in a place not available to children.

j) Keep the device away from children and animals. k) If this device is used together with another equipment, the remaining instructions for use shall also be followed. Remember! Keep children and other bystanders safe while operating the device.EN 2.2. Personal safety a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device. b) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety. c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries. d) The device is not a toy. Children must be supervised to ensure that they do not play with the device. e) Do not put your hands or other items inside the device while it is in use! 2.3. Safe device use a) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired. b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation. c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users. d) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use. e) Keep the device out of the reach of children. f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use. g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws. h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

i) Do not move, adjust or rotate the device in the course of work.

j) Do not leave this appliance unattended while it is in use. k) Clean the device regularly to prevent stubborn grime from accumulating. l) Before each use ensure the nozzle is correctly installed in the device and that the hose is correctly attached and undamaged. m) Do not exceed the recommended supply pressure as this may damage the device. n) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person. o) It is forbidden to interfere with the structure of the device to change its parameters or construction. p) Keep the device away from sources of fire and heat.EN q) Do not exceed the maximum permissible operating pressure! r) Do not cover the ventilation openings! s) NOTE: During operation, some elements of the device become very hot – scalding hazard! t) The maximum permissible pressure of the gas supply to the appliance must not be exceeded! Use only a gas supply with a pressure regulator and suitable nozzles.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

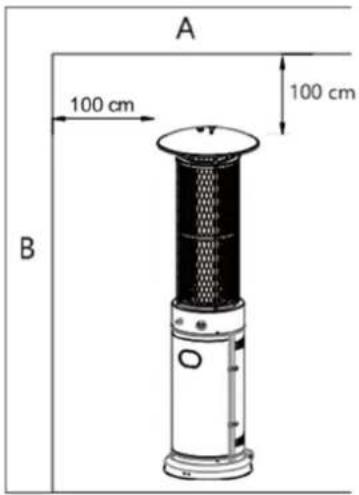

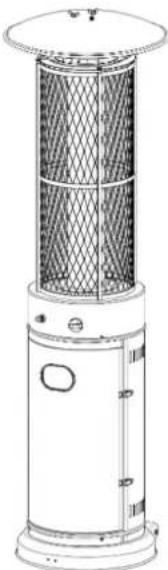

The product is designed for professional use in large outdoor spaces, providing effective heating during cold weather. It ensures a comfortable environment for guests in areas such as restaurant terraces or market stalls. The product can be moved to the desired location using its built-in rollers, making it a practical solution for maintaining warmth in outdoor settings. The user is liable for any damage resulting from unintended use of the device. 3.1. Preparing for use APPLIANCE LOCATIONEN A- Ceiling B- Wall a) The product is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided. b) Always maintain proper clearance of non-protected combustible materials. i.e. top 100 cm and sides 100 cm minimum. c) The product must be placed on level firm ground. d) Never operate the product in explosive environments, such as areas where gasoline or other flammable liquids or vapours are stored. e) To protect the product from strong winds, securely anchor the base to the ground using screws. GAS REQUIREMENTS a) Use only propane, butane, or a mixture of these gases. b) The pressure regulator and hose assembly used must comply with local standard regulations. c) Installation must adhere to local codes, or in the absence of such codes, follow standards for the storage and handling of liquefied petroleum gases. d) A tank that is dented, rusted, or damaged may pose a hazard and should be inspected by your tank supplier. Never use a tank with a damaged valve connection. e) The tank must be positioned to allow vapour withdrawal from the operating cylinder. f) Never connect an unregulated tank to the heater. LEAKAGE TEST Gas connections on the heater are tested for leaks at the factory before shipment. However, a full gas tightness check must be conducted at the installation site due to potential mishandling during shipment or exposure to excessive pressure. a) Prepare a soap solution by mixing equal parts of liquid detergent and water. Apply the solution using a spray bottle, brush, or rag. If there is a gas leak, soap bubbles will form at the connection points.EN b) Perform the leak test using a full gas cylinder. c) Ensure the safety control valve is set to the OFF position. d) Turn the gas supply ON. e) In case of a leak, turn off the gas supply immediately. Tighten the leaking fittings, turn the gas supply on, and recheck for leaks. f) Never conduct a leak test while smoking. Disassemble the device and all its components and clean them before the first use. 3.2. Assembly TOOLS NEEDED a) Medium-blade Phillips screwdriver b) Spray bottle of soap solution for leak testing

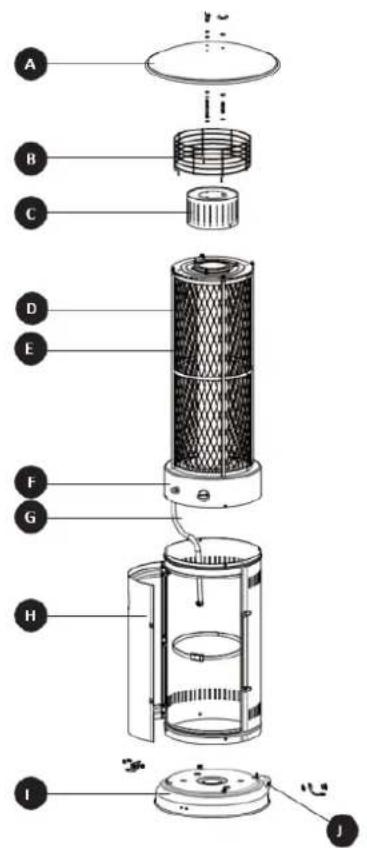

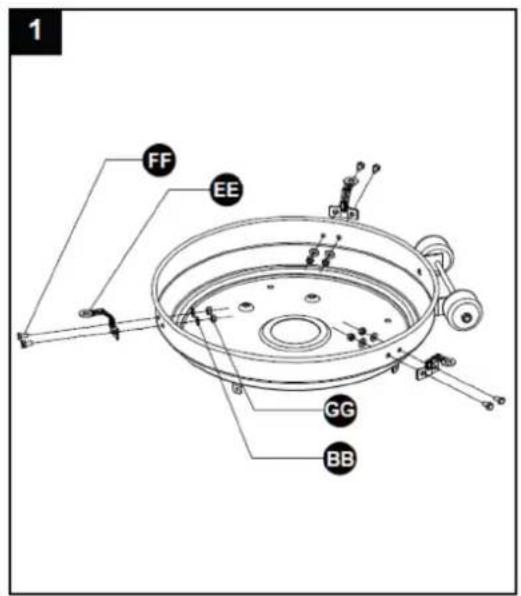

1. To protect the product from strong winds, securely anchor the base to the ground using screws. Flip

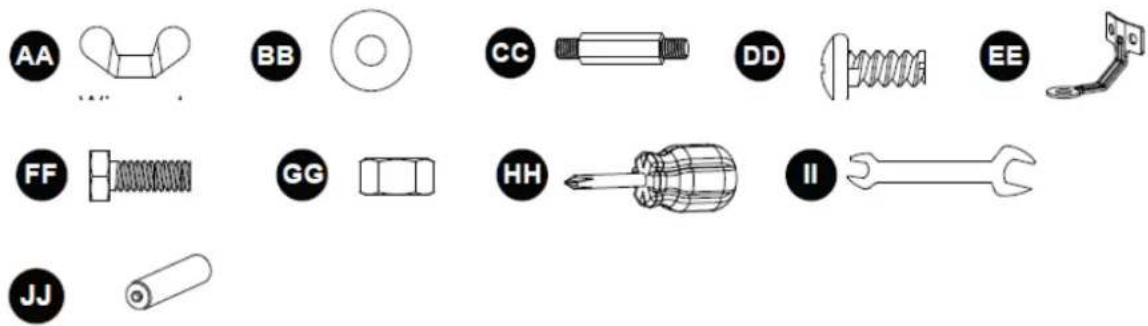

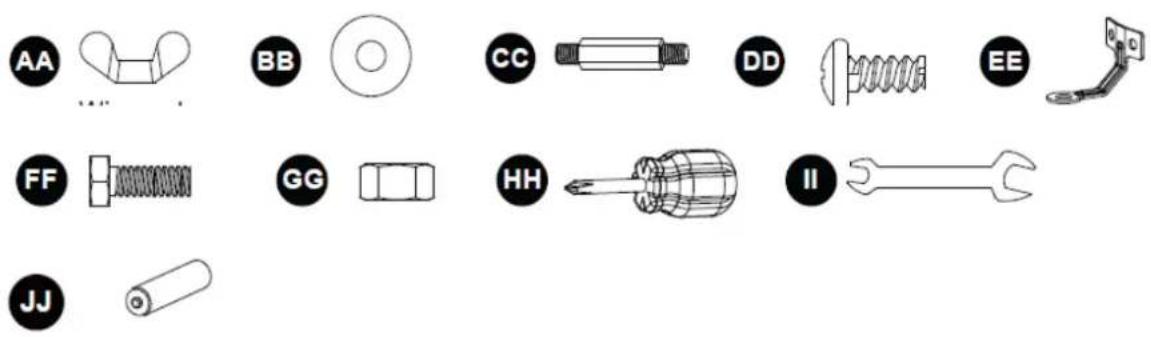

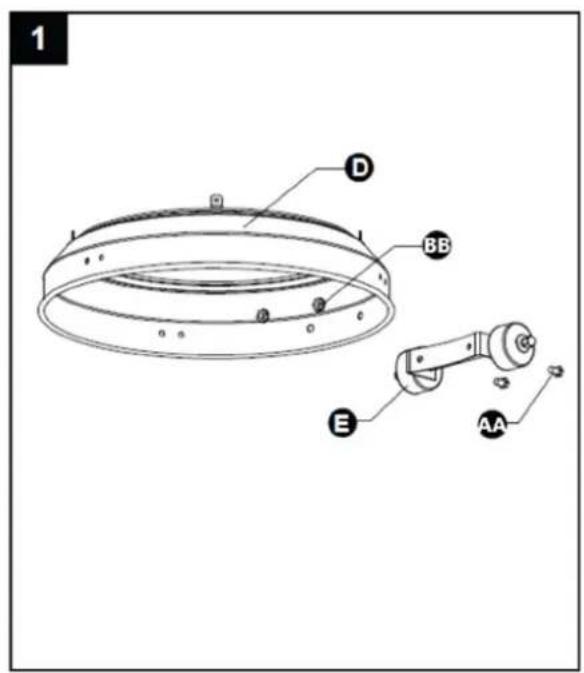

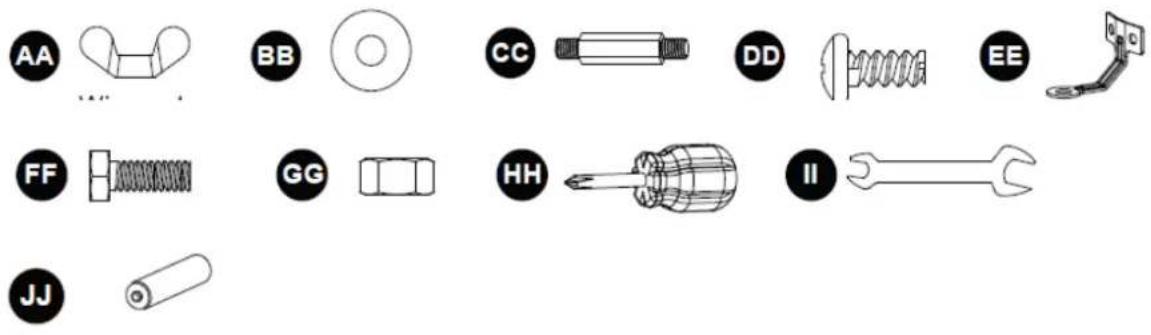

the base over and attach the ground anchor to the base using the M6 * 10 bolt and the washer Φ6 as shown in the diagram. Secure the ground anchor with the nut M6. Repeat the process for the remaining two ground anchors, then return the base to its upright position. Hardware Used Washer Φ6*6 Ground Fixer*3 Bolt M6 * 10*6EN

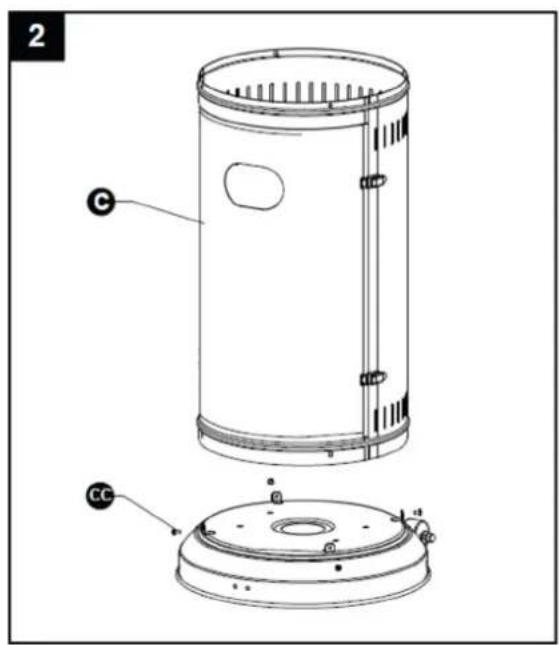

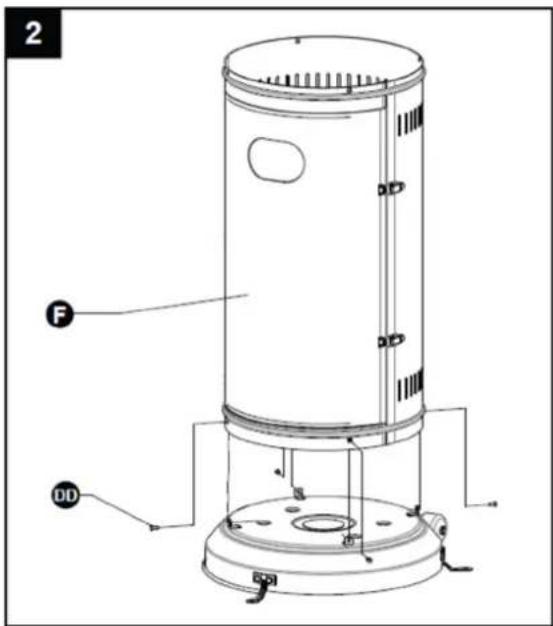

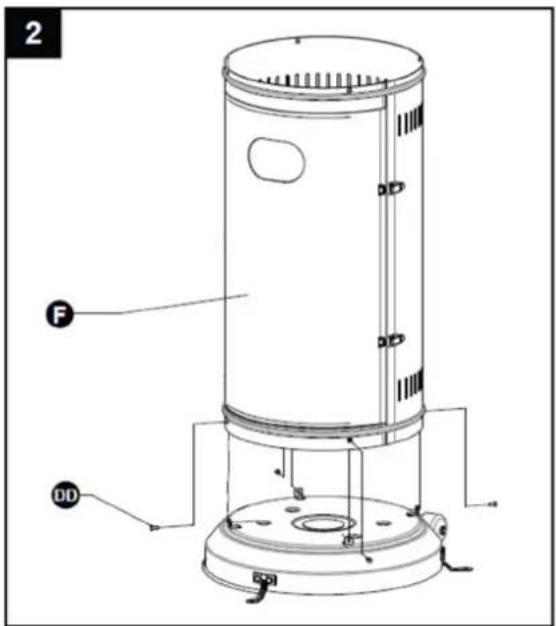

2. Assemble the cylinder housing.

Secure the cylinder housing to the base using 4pcs screw M5 * 10. Hardware Used

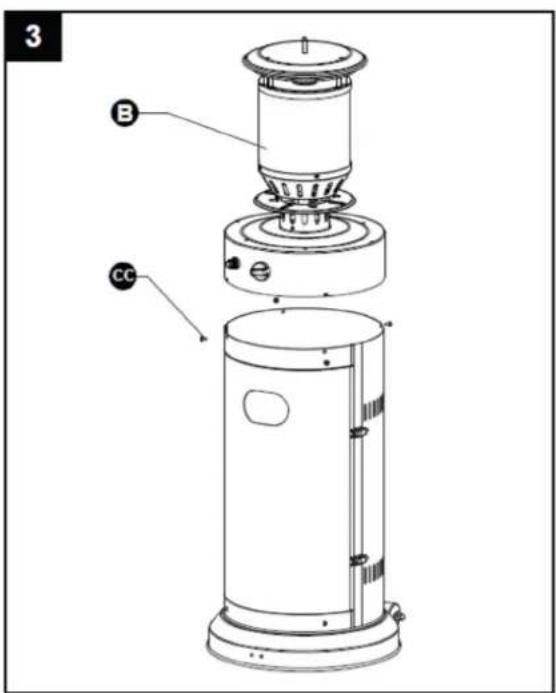

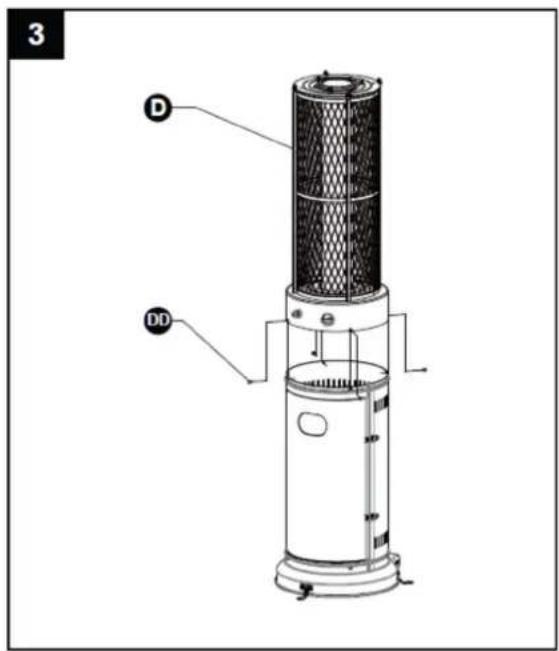

3. Assemble the heating body.

Secure the heating body to the cylinder housing using 4pcs screw M5 * 10. Hardware Used

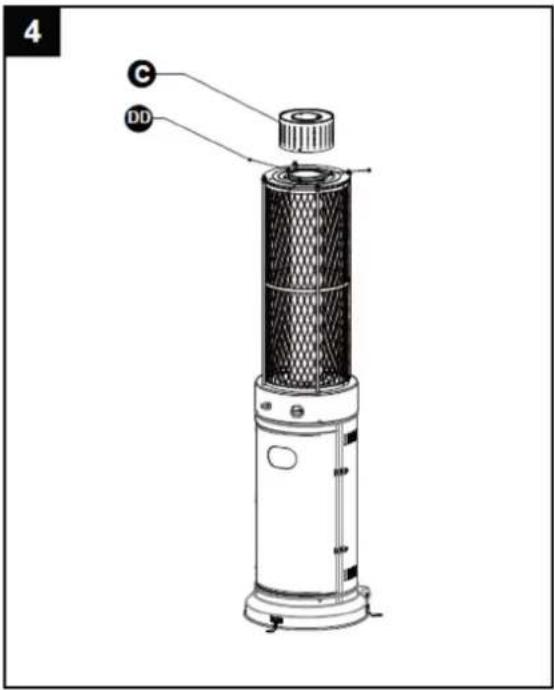

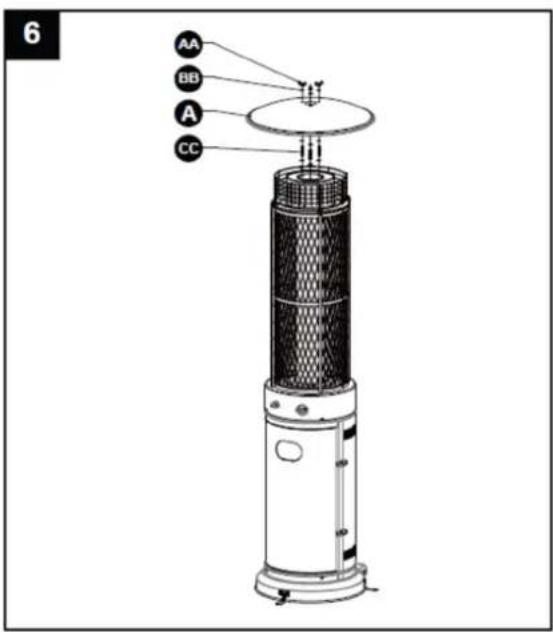

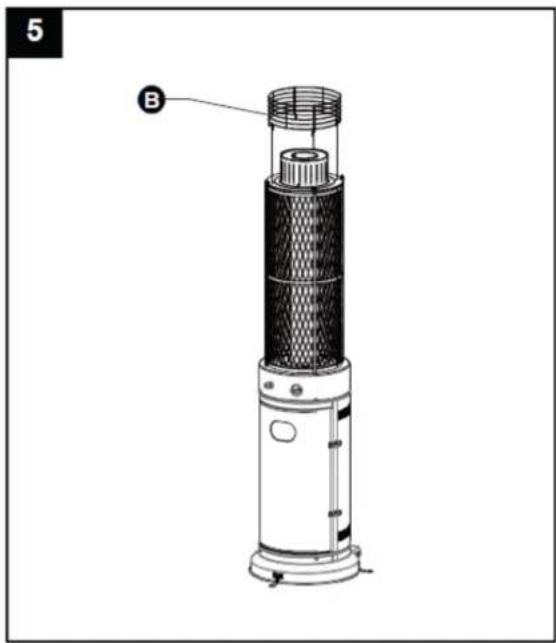

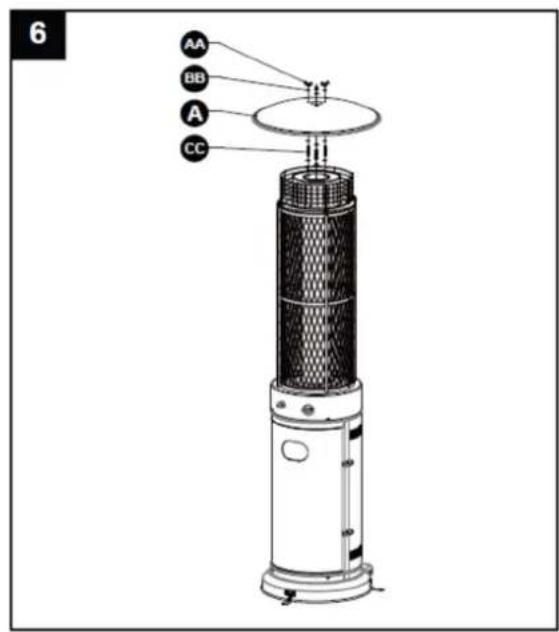

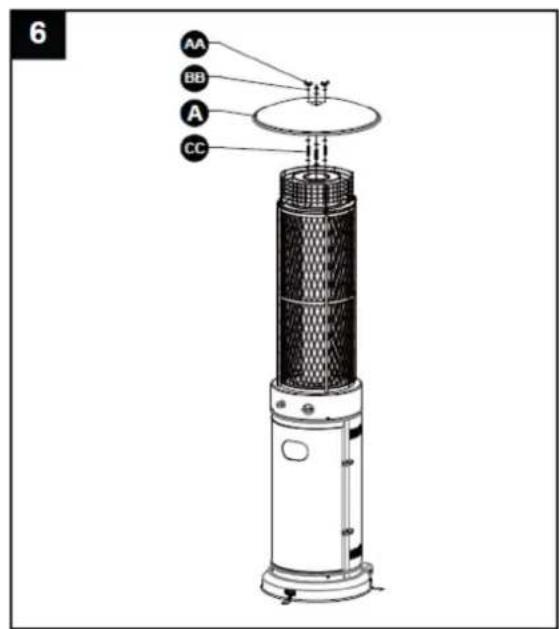

5. Assemble the upper protective mesh to the heating body directly.

CAUTION! Do not hang clothing or any other flammable materials from the product or place it on/near the product. HOT! DO NOT TOUCH!

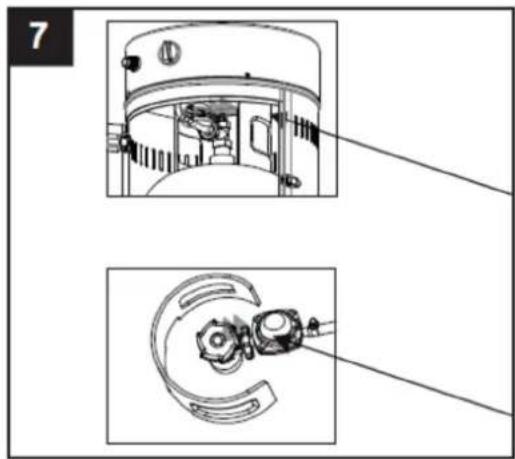

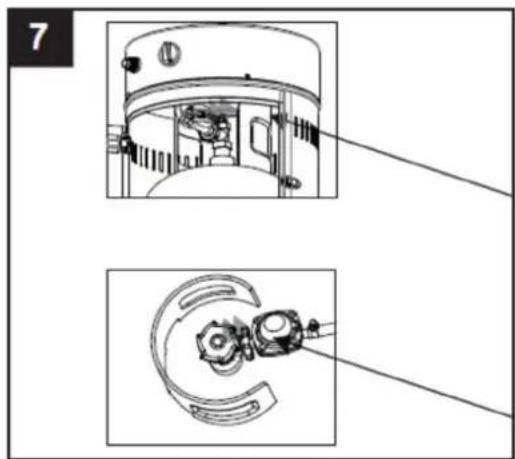

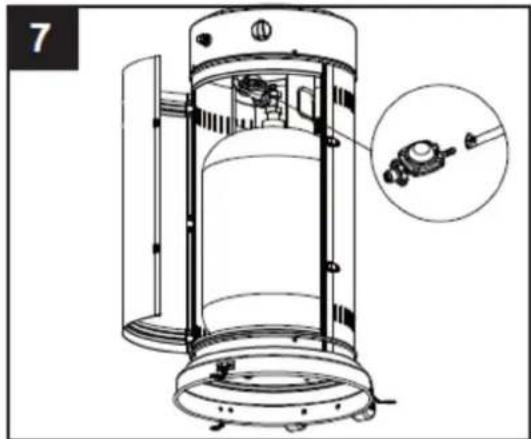

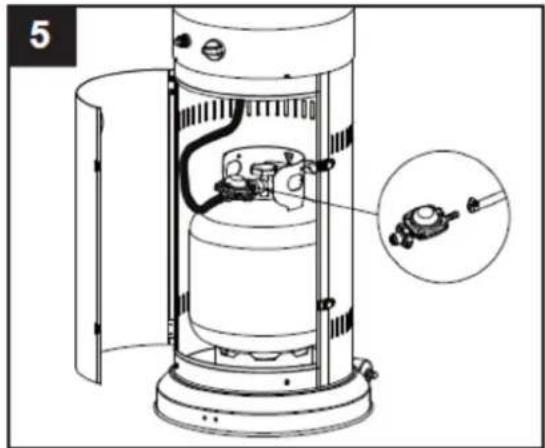

7. Connect the gas hose and regulator after that connect the regulator to the gas cylinder.

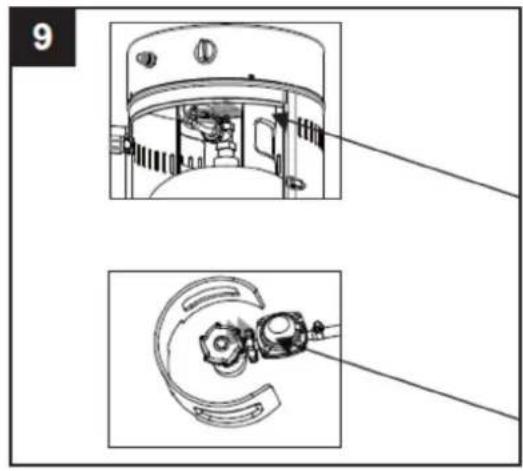

WARNING! Ensure the hose does not contact any high-temperature surfaces, as this could cause it to melt and leak, potentially leading to a fire. Once the cylinder is positioned inside the heater, securely fasten it with a strap or block belt. Wing nut*3 Washer Φ6*9 Stud*3EN

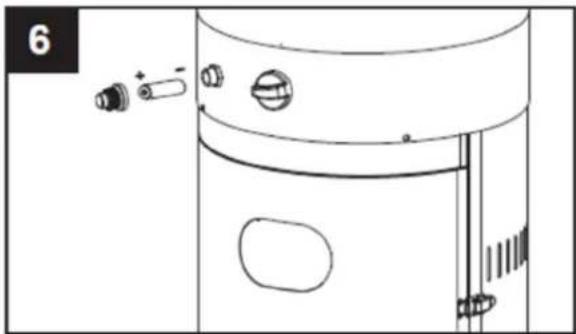

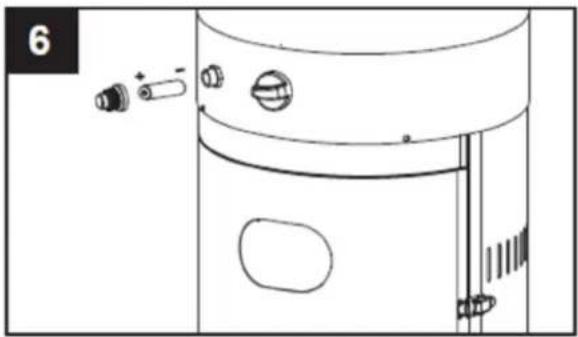

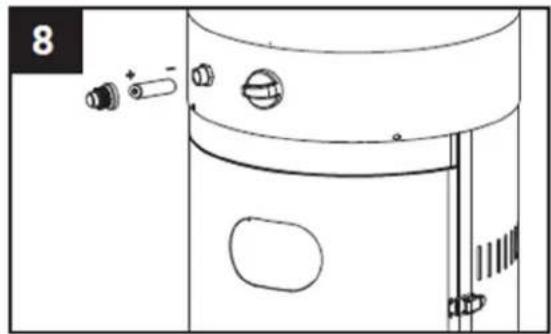

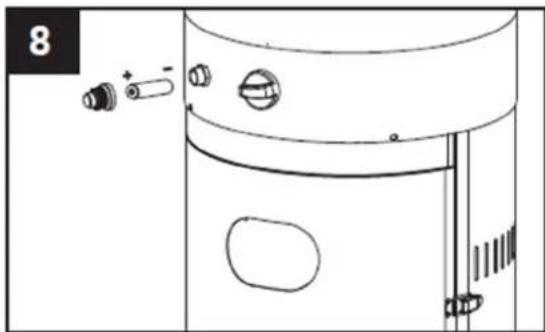

8. Unscrew the switch button, load a small battery, and tighten the switch button.

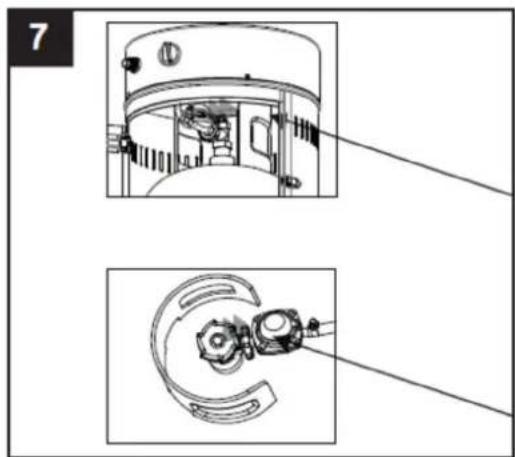

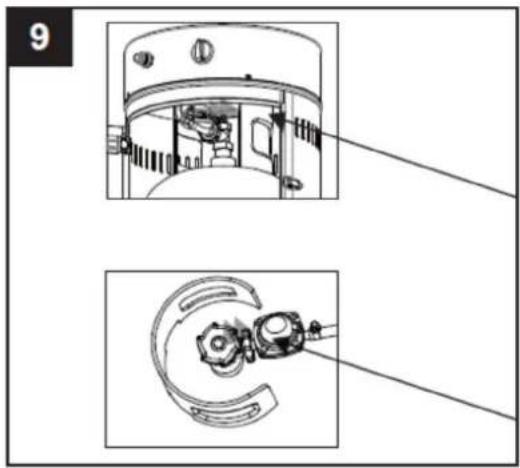

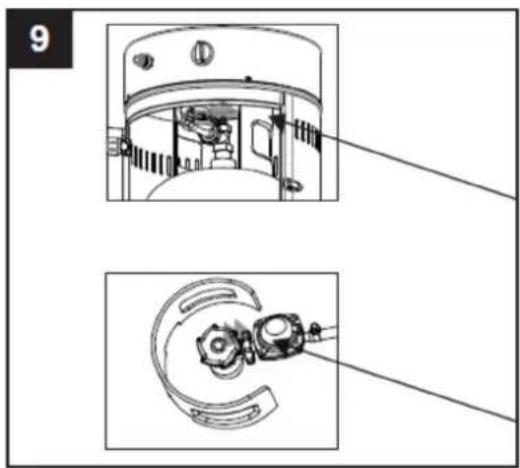

This procedure must be completed before the initial use, annually, and any time gas components are replaced or serviced. Do not smoke during this test and remove all ignition sources. Refer to the below diagram for areas to inspect. Turn all burner controls to the off position and open the gas supply valve. Apply a solution of equal parts liquid soap and water to all joints and connections, including the regulator, hose, manifolds, and valves. If bubbles appear, it indicates a gas leak. Tighten any loose joints or replace faulty parts. Have the product inspected by a certified gas installer. If the leak persists, immediately turn off the gas supply, disconnect it, and have the product inspected by a certified gas installer or dealer. Do not operate the product until the leak is fully resolved. WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced. Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death. AAA Battery (1.5 V) *1EN Hose / Regulator connection Regulator / Cylinder connection

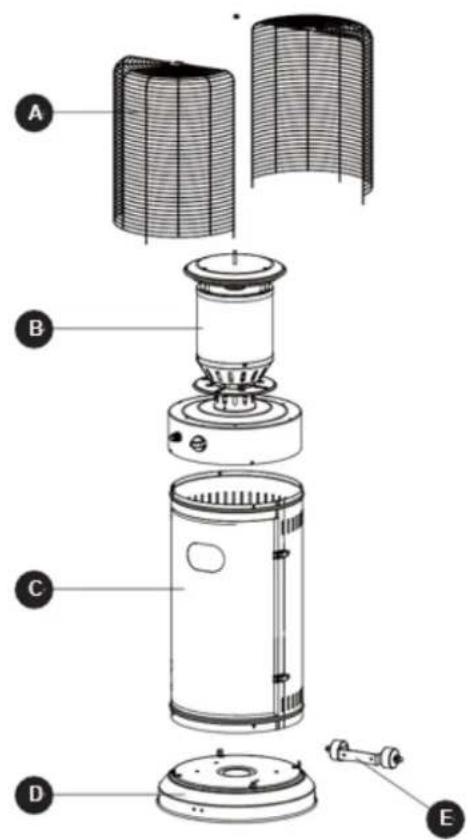

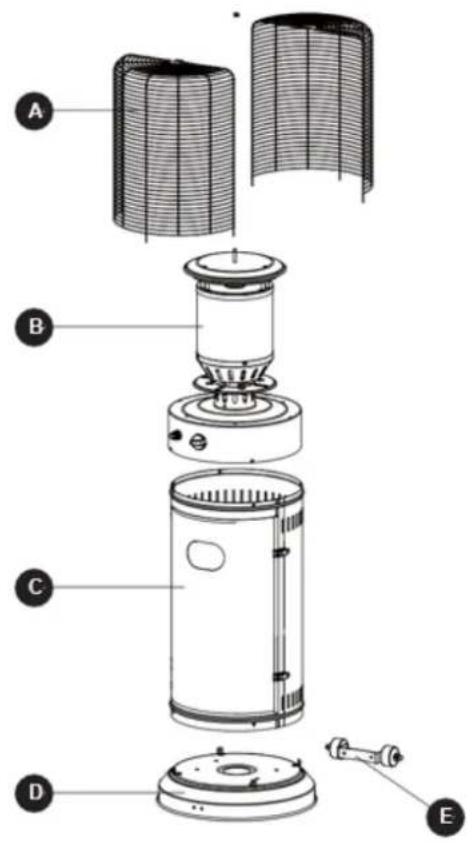

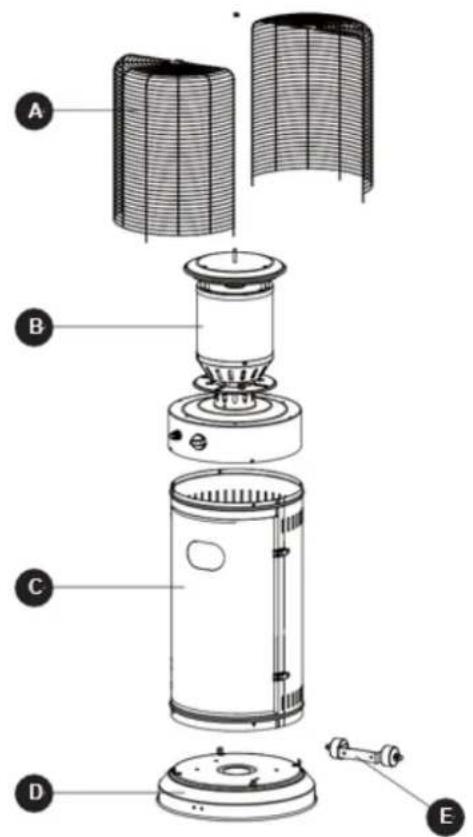

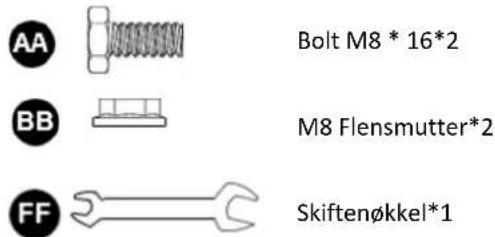

1. Use 2pcs Bolt M8 * 16 and M8 Flange nuts to connect the bracket with the wheel to the base.

2. Use 4pcs screw M5 * 8 to join the cylinder housing base and stand.

3. Use 4pcs screw M5 * 8 to join the burner head and cylinder housing body.

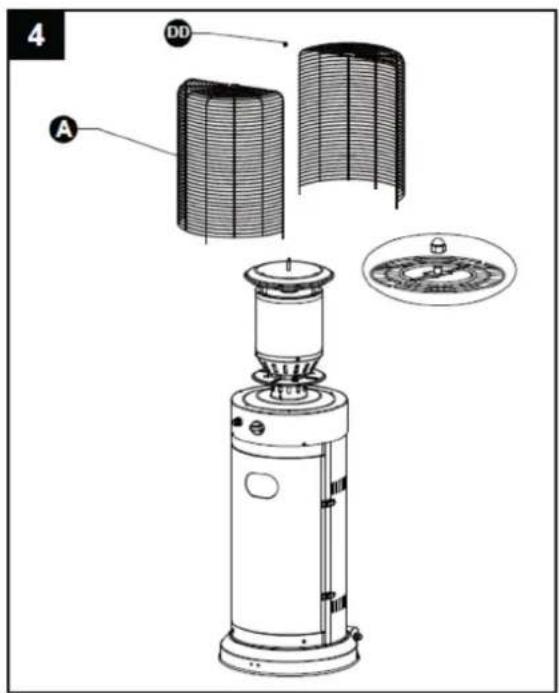

4. Use the M6 Dome nut to connect the two half safety guards to the burner head.

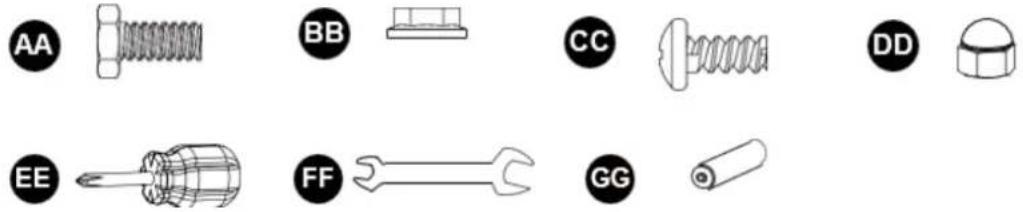

Screw M5 * 8*4 Philips screwdriver*1EN CAUTION! Do not hang clothing or any other flammable materials from the product or place it on/near the product. HOT! DO NOT TOUCH! Hardware Used

5. Propane only proper hose connection.

WARNING! Ensure the hose does not contact any high-temperature surfaces, as this could cause it to melt and leak, potentially leading to a fire. Once the cylinder is positioned inside the heater, securely fasten it with a strap or block belt. The heater must be fixed on a stable and strong table with a minimum height of 40cm from the floor level. M6 Dome nut*1EN

6. Unscrew the switch button, load a small battery, and tighten the switch button.

This procedure must be completed before the initial use, annually, and any time gas components are replaced or serviced. Do not smoke during this test and remove all ignition sources. Refer to the below diagram for areas to inspect. Turn all burner controls to the off position and open the gas supply valve. Apply a solution of equal parts liquid soap and water to all joints and connections, including the regulator, hose, manifolds, and valves. If bubbles appear, it indicates a gas leak. Tighten any loose joints or replace faulty parts. Have the product inspected by a certified gas installer. If the leak persists, immediately turn off the gas supply, disconnect it, and have the product inspected by a certified gas installer or dealer. Do not operate the product until the leak is fully resolved. WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced. AAA Battery (1.5 V) *1EN Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death. Hose / Regulator connection Regulator / Cylinder connection

a) Turn on the valve on the gas supply cylinder completely. b) Press and turn the variable control knob to the PILOT position (counterclockwise 90°). c) Press down the variable control knob and hold for 60 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame lights. Release the variable control knob after the pilot flame lights. NOTICE! If a new tank has just been connected, please allow at least one minute for the air in the gas pipeline to purge out through the pilot hole.EN When lighting the pilot flame make sure that the variable control knob is continuously pressed down while pressing the igniter button. Variable control knob can be released after the pilot flame lights. If the pilot flame does not light or it goes out, repeat step c) mentioned above. d) After the pilot flame lights, turn the variable control knob to the maximum position and leave it there for 5 minutes or more before turning the knob to desired temperature position. WARNING! Check and ensure that no broken on the glass is found before operation.

TURN OFF THE PRODUCT

a) Turn the variable control knob to the PILOT position. b) Press and turn the variable control knob to the OFF position. A- Igniter B- PILOT: Variable control knob C- OFF: The heater stop work D- HIGH: Maximum temperature position E- LOW: Minimum temperature position c) Turn off the valve on the gas supply cylinder completely. 3.4. Storage a) Always close the gas cylinder valve after use or if there is any disturbance. b) Remove the pressure regulator and hose after shutting off the gas supply. c) Inspect the gas valve for tightness and check for any signs of damage. If damage is suspected, have the valve replaced by your gas supplier. d) Never store liquid gas cylinders in underground areas or locations without proper ventilation. 3.5. Cleaning and maintenance a) Clean powder-coated surfaces using a soft, damp cloth. Avoid using combustible or corrosive cleaners on the product.EN b) Regularly remove debris from the burner to ensure it remains clean and safe for operation. c) When the product is not in use, cover the burner unit with an optional protective cover for added protection. SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES 1.5V AAA batteries are installed in the devices. Remove used batteries from the device using the same procedure by which you installed them. Recycle batteries with the appropriate organization or company.
