UNI_EH_01 - Heating Uniprodo - Free user manual and instructions

Product type	Infrared patio heater
Brand	Uniprodo
Model	UNI_EH_01
Rated voltage	230 V / 50 Hz
Rated power	1500 W
Dimensions (L × W × H)	430 × 430 × 280 mm
Weight	2.55 kg
Protection rating	IP44
Chain length	57 cm
Minimum distance side wall	50 cm
Minimum distance ceiling	50 cm
Minimum installation height	180 cm
Number of heat settings	2 (low and high)
Mounting type	Ceiling suspension
Recommended use	Outdoor (patio) under cover
Maintenance	Clean with a damp cloth; do not use solvents
Storage	In a cool, dry place, preferably in original packaging
Safety	Do not cover, do not use near flammable materials, do not use in a bathroom
Spare parts	Halogen tube replaceable by a professional
Languages of the manual	FR, BG, CS, DA, DE, EL, EN, ES, FI, HU, IT, LT, NL, NO, PL, PT, RO, SK, SL, SV

Frequently Asked Questions - UNI_EH_01 Uniprodo

How to install the UNI_EH_01 patio heater?

Attach the provided hook to a solid ceiling hook that can support 3 to 4 times the weight of the device. Hang the chain on the desired ring to adjust the height, ensuring the bottom of the heater is more than 1.8 m from the floor. Then plug into a grounded 230 V outlet.

What safety distances should be observed?

Maintain a distance of at least 50 cm from side walls and ceiling. The minimum installation height is 180 cm from the floor. Keep all flammable materials (furniture, curtains, etc.) at least 3 feet (about 91 cm) away from the front of the heater.

How to clean the device?

Always unplug the device before cleaning. Use a damp cloth to wipe the exterior. Never use corrosive cleaners, solvents, or excessive water. Do not immerse the device in water.

What to do if the heater does not work?

First check that the cord is properly plugged in and that the power supply is active (main fuse). Make sure the switch is in the heating position (pull the cord). If the problem persists, contact a professional.

Can I use an extension cord?

It is best to avoid extension cords. If necessary, use an extension cord of at least 13 AWG (American wire gauge) to prevent overheating and fire hazards.

Can I use this device indoors?

This heater is designed for outdoor (patio) use or in large, well-ventilated indoor spaces. It is not intended for bathrooms, laundry rooms, or damp areas. Ensure to follow safety distances.

How to replace the halogen tube?

Replacement of the halogen tube must be carried out by a qualified electrician or an authorized service center. Any internal repair is prohibited for the user for safety reasons.

Is the device water resistant?

Yes, the IP44 protection rating protects it against water splashes from all directions. It can therefore be used outdoors under cover, but must not be exposed to powerful water jets or immersed.

Can I leave the heater unattended?

It is not recommended to leave the device running unattended, especially in the presence of children or persons with reduced abilities. Turn it off and unplug it when leaving the room.

What heat settings are available?

The device has two settings: low and high. Pull the switch cord once for maximum power (1500 W); pull again to turn off. The low setting is not detailed in the manual.

USER MANUAL UNI_EH_01 Uniprodo

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Infrared patio heater
Model	UNI_EH_01
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	1500
Chain length [cm]	57
Protection rating IP	IP44
Dimensions [Width x Depth x Height; mm]	430 x 430 x 280
Weight [kg]	2.55

Important instructions

When using this electric unit, follow basic safety precautions to reduce the risk of fire, electric shock, and injury, including the following:

1. Read all instructions before using this unit.
2. Caution: Risk of electric shock. Do not open or attempt to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, do not touch hot surfaces with bare skin. If provided, use handles when moving the heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains, at least 3 feet away from the front of the heater. Ensure these materials are also kept away from the sides, top, and rear of the heater. Do not place towels or other objects on the heater.
5. Use extreme caution when operating the heater near children, disabled persons, or if it is left operating unattended.
6. Do not operate the heater with a damaged cord or if the heater malfunctions, has been dropped, or is damaged in any way. Return the heater to an authorized service facility for examination, electrical or mechanical adjustments, or repairs.
7. This heater is not intended for use in bathrooms, laundry areas, or other similar indoor locations. Never place the heater where it can fall into a bathtub or water container. To avoid electrical hazards, do not immerse the heater in water or other liquids.
8. Do not touch the control panel or plug with wet hands.
9. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas to avoid tripping hazards.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust openings. This could result in electric shock, fire, or damage to the heater.
11. To prevent fire, do not block air intakes or exhaust openings. Do not use the heater on soft surfaces, such as a bed, where openings may become blocked.
12. The heater contains hot and arcing or sparking parts inside. Do not use the heater in areas where gasoline, paint, or other flammable liquids are used or stored. Keep the unit away from heated surfaces and open flames.
13. Avoid using an extension cord as it may overheat and increase the risk of fire. If an extension cord is necessary, it must be rated for at least 13 AWG.
14. To prevent fire or shock, plug the unit directly into a 230V AC electrical outlet.
15. To disconnect the heater, turn the controls to the Off position, then remove the plug from the outlet. Pull the plug, not the cord, to disconnect.

16. Always unplug the unit when moving, cleaning, or when it is not in use.

17. Use the unit only for household purposes as described in this manual. Using attachments or accessories not recommended by the manufacturer may result in fire, electric shock, or injury.

18. Always place the unit on a dry, level surface. Use on ceiling only if designed for ceiling use.
19. Warning: To reduce the risk of fire or electric shock, do not use this unit with a solid-state speed control device.
20. Do not attempt to repair or adjust any electrical or mechanical functions of the unit. Doing so may void your warranty. Qualified personnel should perform all repairs and servicing.
21. Connect the heater only to properly grounded outlets.
22. This appliance is not intended for use by individuals (including children) with reduced physical, sensory, or mental capabilities unless supervised by someone responsible for their safety.
23. Children should be supervised to ensure they do not play with the appliance.
24. The marketing labels regarding heater covering should remain visible after installation.
25. The heater must not be located in front of a socket outlet.
26. Save these instructions.

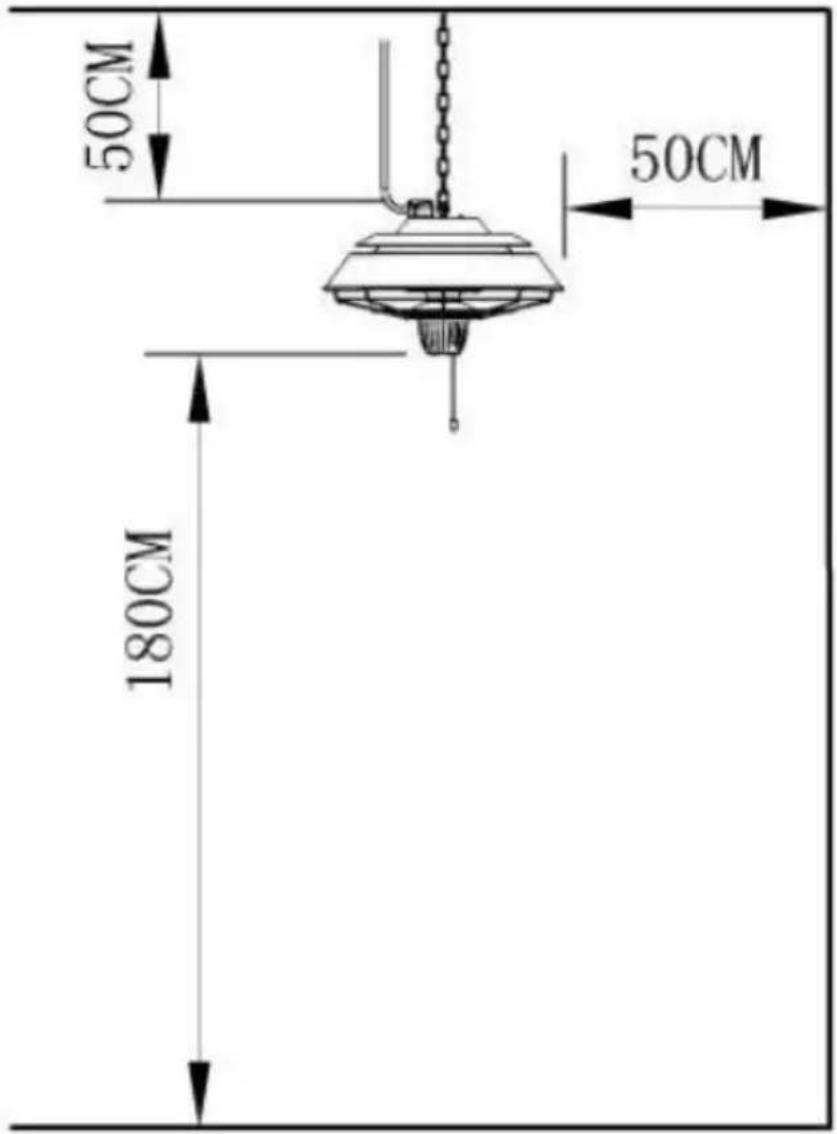

Minimum Required Distances:

• 50 cm from the side wall
• 50 cm from the ceiling
  • Installation height above 180 cm

Operating instructions

A. Place the heater on a firm, level ceiling surface.
B. Ensure the ceiling hook supporting the patio heater can bear a weight 3 to 4 times that of the patio heater.
C. Attach Hook A to the ceiling hook and clip it to any ring on the chain to adjust the height of the patio heater from the floor.
D. The distance between the bottom of the patio heater and the floor must be more than 1.8 meters.
E. Plug the patio heater into a grounded 230V, 50Hz power outlet.

F. Only operate the heater when it is in an upright position. The electric patio heater is equipped with two heat settings: low and high.

• To operate the heater at 1500W power, pull the switch cord once. When pulled, the heating element will glow and radiate heat.
  • To turn off the heater, pull the switch cord again.

Care and maintenance

• When disconnected from the electrical supply, clean the outside of the patio heater with a damp cloth. Do not use corrosive or solvent cleaners, and do not immerse the unit in water.
• Any maintenance or repairs, including halogen tube replacement, must be performed by a qualified electrician or at a recommended service center.

Storage

If the heater will not be used for an extended period, store it in a cool, dry location when not in use. To prevent dust and dirt buildup, use the original packaging to repack the unit.

Troubleshooting

If the heater does not operate, please check the following before seeking repair or service:

• Ensure that the power cord is plugged into an electrical outlet. If it is not, plug it in.
• Check that electricity is being supplied to the main fuse.
• Make sure the power switches are turned on. If they are not, select a heat setting.

For the disposal of the device please consider and act according to the national and local rules and regulations.
