USER MANUAL AquaMax Eco Classic 12000C OASE

Operating instructions

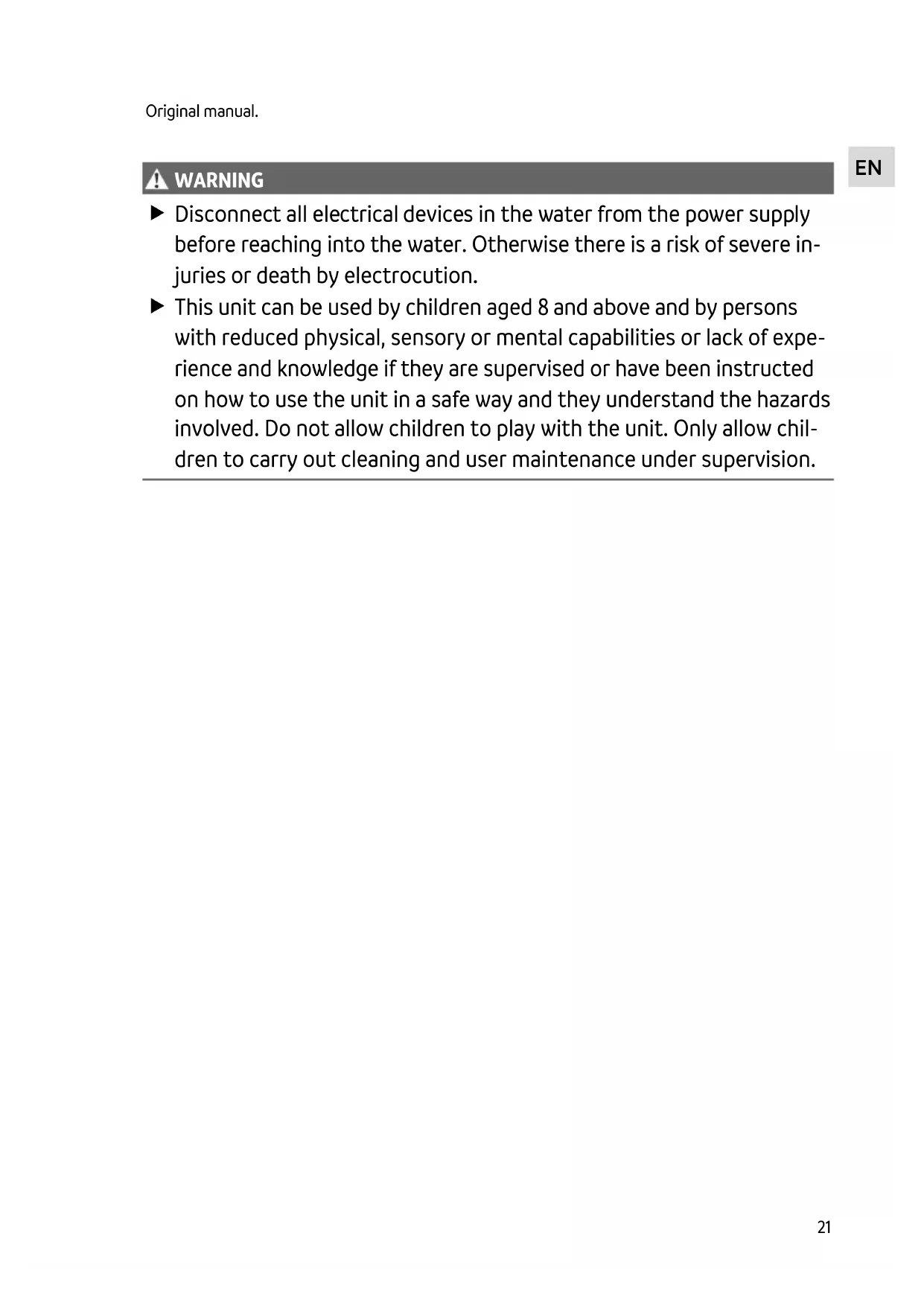

WARNING WARNING Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe in- juries or death by electrocution. This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow chil- dren to carry out cleaning and user maintenance under supervision.22 Safety information Electrical connection

• Special regulations apply for electrical installation in outdoor spaces. Only a qualified electri- cian may perform the electrical installation. – The qualified electrician has the necessary professional training, knowledge and experience to perform electrical installation in outdoor spaces. The electrician can detect potential dangers and knows how to adhere to regional and national standards, regulations and direc- tives. – For your own safety, please consult a qualified electrician.

• Only connect the unit if the electrical data of the unit and the power supply match.

• Only plug the unit into a correctly installed outlet.

• The device is to be supplied through a residual current device (RCD) having a rated residual op- erating current not exceeding 30 mA.

• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).

• Protect open plugs and sockets from moisture. Safe operation

• Do not use the unit, if electrical lines or the housing are damaged.

• Dispose of the unit if its power connection cable is damaged. The power connection cable can- not be replaced.

• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance of at least 0.2 m between the implant and the magnet.

• Do not carry or pull the unit by its power cable.

• Route lines in such a way that they are protected from damage and do not present a tripping hazard.

• Never carry out technical changes to the unit.

• Only carry out work on the unit that is described in this manual.

• Only use original spare parts and accessories.

• Should problems occur, please contact the authorised customer service or OASE. Intended use Only use the product described in this manual as follows:

• For pumping normal pond water for filter systems, waterfall systems and water course sys- tems.

• While adhering to the technical specifications. (→ Technical data)

• Adherence to the permissible water quality. (→ Permissible water quality)EN

The following restrictions apply to the unit:

• Do not use in swimming ponds.

• Never use the unit with fluids other than water.

• Never run the unit without water.

• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

• Do not connect to the domestic water supply.

• Do not use for commercial or industrial purposes.

• According to EMC (Electromagnetic Compatibility), this is a class A unit. The unit may cause malfunctions in living environments. It is the user's responsibility to take suitable counter- measures. Product Description Overview

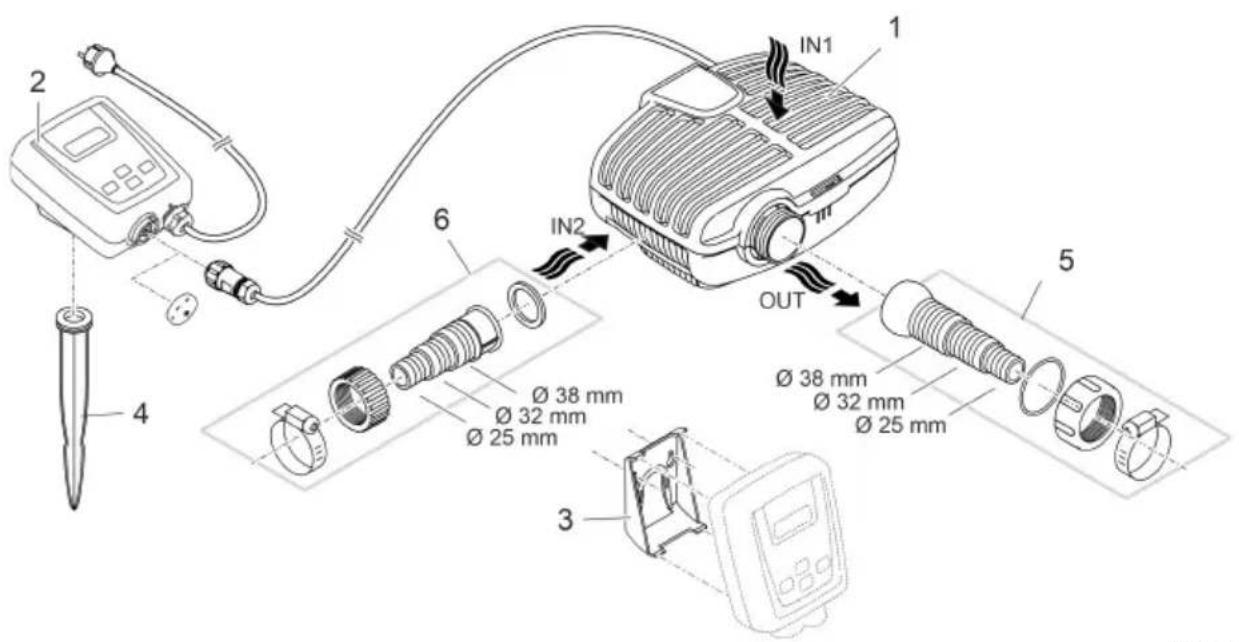

Controller for regulating the speed of the filter pump

Control via the OASE App "Easy Switch"

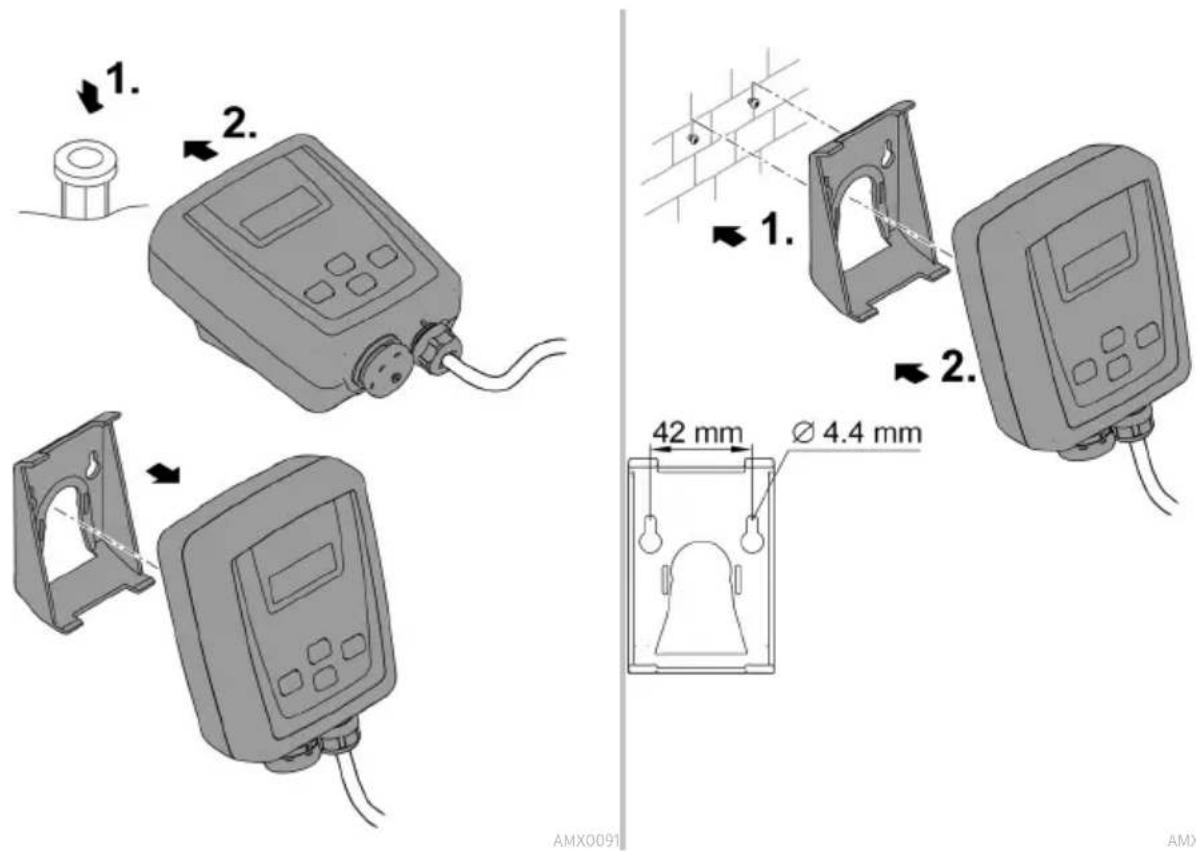

Retaining frame for mounting controller to the wall

Ground stake for mounting controller at ground level

Stepped hose adapter with ball joint, seal, coupling nut and hose clip

Stepped hose adapter with coupling nut and hose clip24 Symbols on the unit

Dust tight. Watertight to a depth of 4 m.

Dust protected. Protected against water splashed from all directions.

Possible danger for persons with pacemakers.

Protect from direct sunlight.

Do not dispose of with household waste.

Read the instructions for use.

• Variant (a): Submerged pump installation – The pump is positioned in the pond or basin. – Water flow via the filter cage.

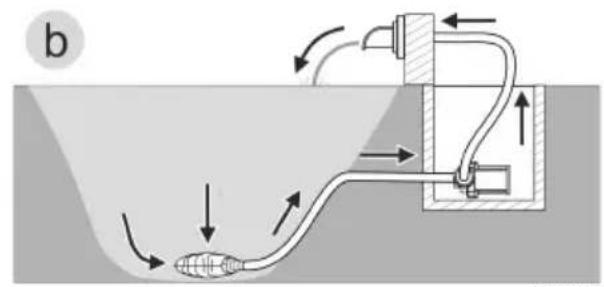

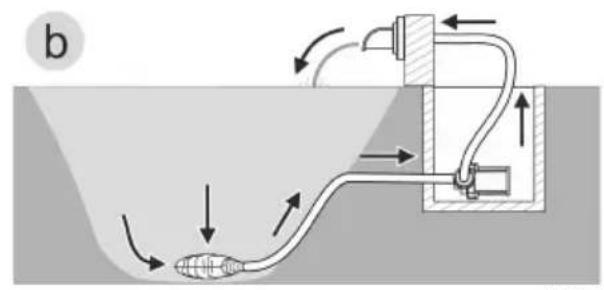

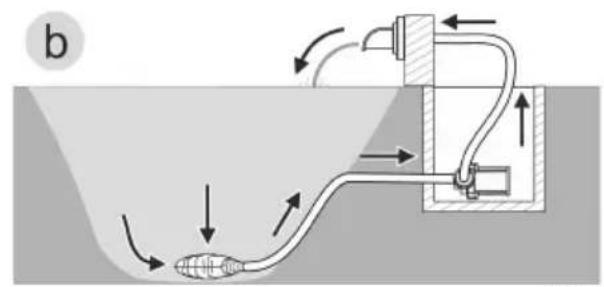

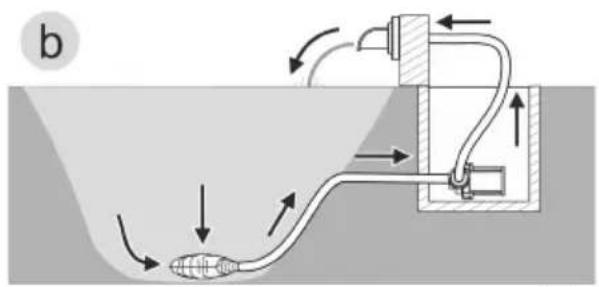

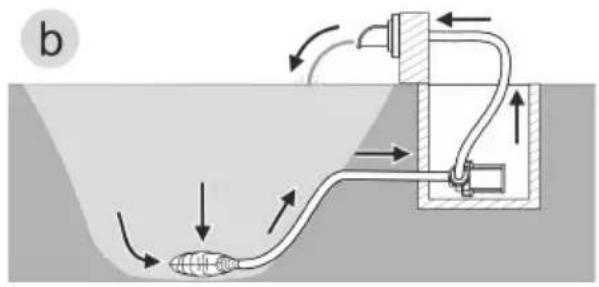

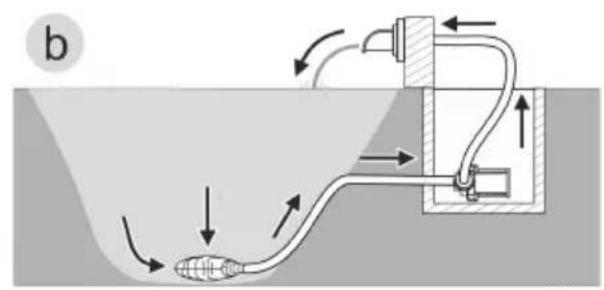

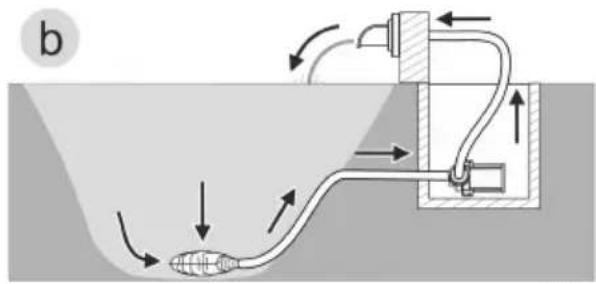

• Variant (b): Dry pump installation – The pump is installed without the filter cage outside of the pond or basin but lower than the water level. – Water flow via a satellite filter or skimmer.EN

Installation and connection The pump can be installed submerged (in water) or dry (outside the water).

WARNING Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical components will electrify the water with dangerous electrical voltage. Never operate the unit in a swimming pond. CAUTION Rotating components in the intake and pressure socket area. Risk of injury when reaching into the sockets. In particular, observe the following: A unit that has stopped due to overload can start up unex- pectedly! Do not reach into the opening of the intake socket or pressure socket while the power plug is plugged in. If the sockets are freely accessible during operation, e.g. if no hoses are connected, use a hand guard to secure the sockets. The hand guard is available as an accessory. Avoid exposing any unit components to direct sunlight for extended periods of time, as this can lead to damage. If necessary, use a protective cover.26 Submerged installation of the pump Connecting

Do not plug the power plug into the socket yet! Installation

• Place the pump horizontally on a stable surface.

• Ensure secure and stable positioning of the pump.

• For muddy or soiled water, we recommend installing the pump or intake-side components (skimmer, satellite filter, base outlet, etc.) above ground level. This decreases intake of parti- cles and increases the service life of the impeller unit.

• Only operate the pump when it is covered in at least 10 cm of water. Otherwise it may draw in air.

The pull rope allows you to simply pull the pump from the water. − Fasten the pull rope on the bottom filter casing through the round openings and make a knot.EN

Install the unit at a dry place Dry installation requires the pump to be installed without a filter housing. Conversion

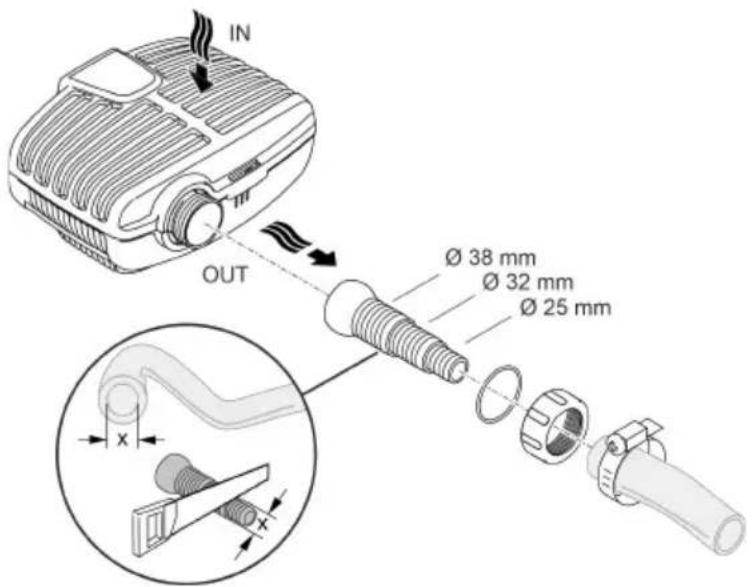

• Hoses or pipes can be connected to the inlet (IN) and outlet (OUT). – Connections for hoses are part of the scope of delivery. Instructions for their installation can be found below. – An adapter for pipes with DN75/DN110 is available as an accessory (article number 35578).

• Ensure that the intake-side hose (IN) does not have a smaller diameter than the pressure-side hose (OUT).

• The larger the hose diameter, the smaller the friction losses in the lines and the better the flow rate.

• The hose diameter must not be limited unnecessarily by a hose sleeve. Shorten the hose sleeve based on the hose diameter, if necessary.

Do not plug the power plug into the socket yet!28 Installation

• Place the pump horizontally on a stable surface.

• Ensure secure and stable positioning of the pump.

• Do not expose the pump to direct sunlight.

• Ensure that the installation site is sufficiently ventilated to prevent overheating of the pump. Permissible ambient temperatures (→ Technical data)

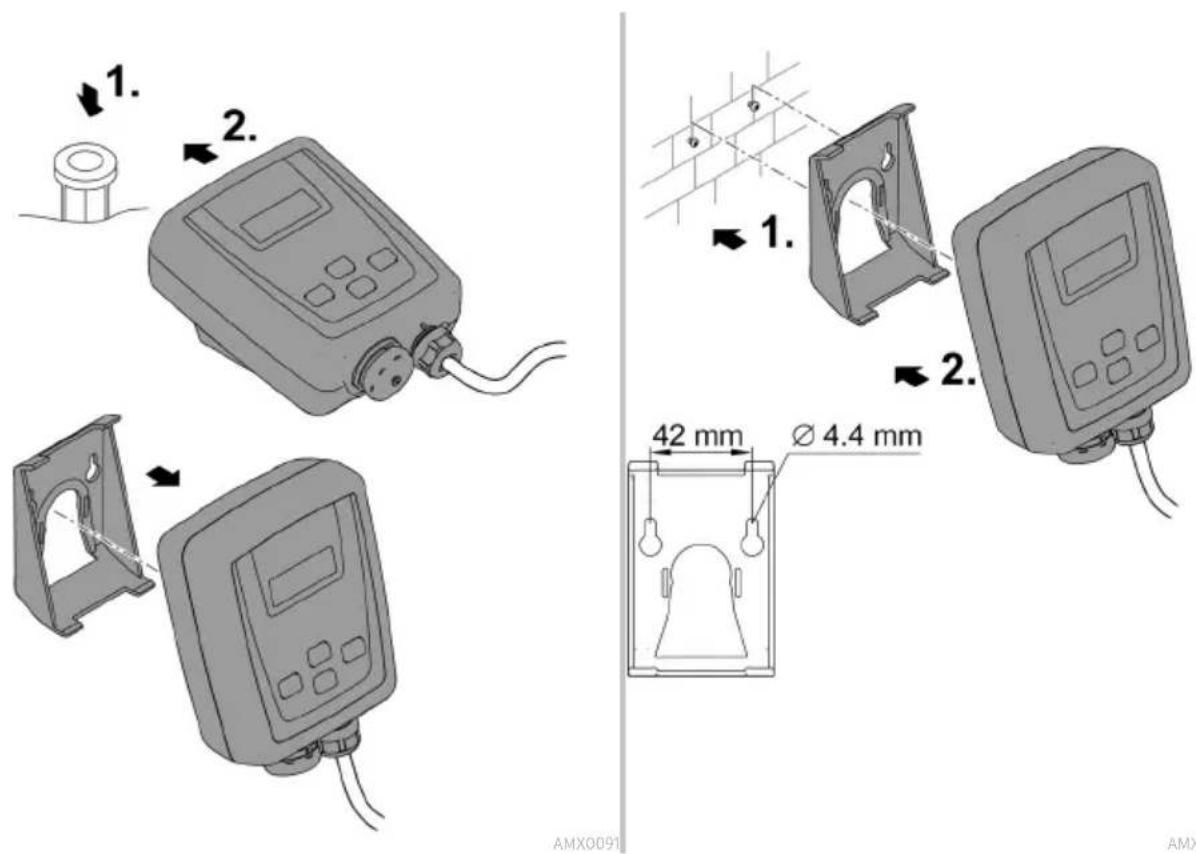

Connecting the controller

AMX0091 AMX009230 Commissioning/start-up NOTE The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical compo- nents. Do not connect the unit to a dimmable power supply. NOTE Never allow the pump to run dry. Otherwise the pump may be destroyed. Only operate the pump when it is submerged or flooded.

Switching ON/OFF Switching on The pump must be connected to the controller before the controller is switched on.

• First connect the controller to the mains supply, then switch on the pump at the controller. Switching off

• Switch the pump off at the controller. – Disconnect the controller from the mains before performing any work on the unit. Environmental Function Control (EFC) When started up and then every 20 ... 40 minutes the pump automatically performs a pre-pro- grammed self-test (Environmental Function Control (EFC)). The pump detects if it is running dry / clogged or submerged. The pump shuts down automatically after 60 to 120 seconds if it runs dry/is blocked. In the event of a malfunction, disconnect the power supply and “flood the pump” or remove the obstacle. Afterwards, the unit can be restarted.EN

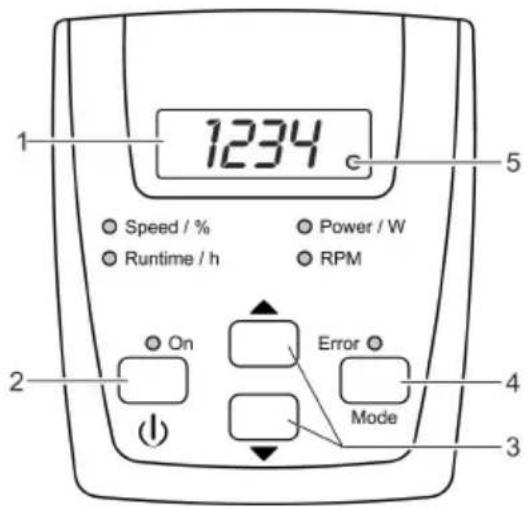

Operation Controller overview

For switching the pump on or off

For increasing or decreasing rotation speed/power out- put

• For selecting the next mode

• For switching the wireless connection on/off

LED wireless connection

The LED lights up when the wireless connection is switched on.

The LED blinks when connected to the OASE App. Speed / %

The respective LED lights up for the mode that is se- lected.

• The current mode appears in the display.

The LED lights up when the pump is switched on.

The LED lights up when an error occurs.

The error code appears in the display.32 Operating functions Switching the pump on/off Proceed as follows Information

Press the button briefly to turn the pump on or off.

When the pump is switched off, the display shows "OFF".

Increasing or decreasing rotation speed Proceed as follows Information

Press the desired button several times or push continually in order to change the rotation speed in per- cent.

Adjustment is only possible in "Speed / %" or "Power / W” modes.

The adjusted value is immediately adopted.

After 15 s without operation the controller automati- cally switches to "Power / W"mode.

Displaying current status values Proceed as follows Information

Press the button briefly to select the next mode.

Displays the total operating hours of the pump

Displays up to 9999 operating hours: 0 to 9999 − Displayed increments: 1 hour

Displays from 10000 to 99900 operating hours: 100H to 999H − Displayed increments: 100 hours − Example: 022H = 22 × 100 = 2200 operating hours

Displays the current power consumption of the pump in watts − Tolerance: ±5 % of the max. power consumption. (→ Technical data)

Displays the current speed of the pump in revolu- tions per minute

Displays the current speed in percentage − Display range: 1 to 100

After 15 s without operation the controller automati- cally switches to "Power / W"mode.EN

Switching the wireless connection on/off Proceed as follows Information

Press and hold the button for longer than 10

If boF appears in the display, the wireless connec- tion is switched off.

If bon appears in the display, the wireless connec- tion is switched on. − The LED in the display lights up when the wire- less connection is switched on. − The LED in the display blinks when connected to the OASE App. − (→ Controller overview)

When the unit is delivered, the wireless connec- tion is switched on.

After 15 s without operation the controller automati- cally switches to "Power / W"mode.

Connecting the controller to the smart phone/tablet The maximum distance for interference-free communication between the controller and smartphone/tablet depends on the transmission power of the smartphone/tablet. Brick walls, walls made of reinforced concrete, large metal objects or bushes and trees can dampen radio waves and decrease the distance. Proceed as follows Information

Download and install the OASE App "Easy Switch" to the smartphone/tablet. The OASE App is available on iOS (App Store) and An- droid (Play Store).

If you have not already done so, switch on the wireless connection at the controller.

Switching the wireless connection on/off)

Start the App "Easy Switch" . After a brief search, a list of available products will appear.

Select your pump from the list.

An authentication code will be displayed on the con- troller for two minutes.

Enter the authentication code in the smartphone/tablet.

Upon successful connection, the display will change to the operating instruction page for the pump.

Now, the pump can be controlled via the smartphone/tablet.

The LED in the controller display blinks. (→ Controller overview)34 Maintenance and cleaning CAUTION Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit and automatically reactivate it. Disconnect the power plug before carrying out any work on the unit. NOTE Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment. If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt with the aid of the recommended cleaning agents. Dismantling the unit

• Pull the power plug and remove all connections.

• Dismantle the unit as shown in the figure.

• Reassemble the unit in reverse order.

• During assembly check that – the pump is fastened in the holder. – the power cable is guided out through the groove on the housing and is not significantly kinked or pinched. Cleaning the device Clean the unit as required but at least twiceper year. − When cleaning the pump, pay particular attention to the impeller unit and the pump housing.

• Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent.

• After cleaning, thoroughly rinse all parts in clean water.EN

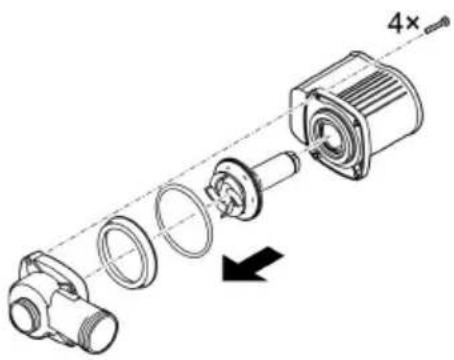

Replacing the impeller unit NOTE The impeller unit contains strong magnets that attract magnetic particles (e.g. iron filings). Any remaining particles can cause irreparable damage to the impeller unit and motor block. Carefully remove any adhering particles from the impeller unit prior to installation.

• Dismantle the motor block as shown in the figure.

• Use a brush under clear water to clean the components.

• Check all components for damage. Replace damaged or worn components.

• Reassemble the motor block in reverse order.

Storage/winter protection Shut down the unit at water temperatures below +4 °C or at the latest when freezing tempera- tures are expected.

• Thoroughly clean the unit.

• Check the unit for damage and replace damaged components.

• Store the pump immersed in water or filled with water in an environment protected against freezing. Do not immerse the power plug in water!36 Malfunction remedy Troubleshooting overview Malfunction Cause Remedy Pump does not start No mains voltage

• Check supply lines. Faulty connection between pump and controller Check connection, and if needed reconnect Pump not switched on Switch the pump on at the control- ler Pump does not transport fluid

Filter housing clogged Clean strainer casings Excessively soiled water Clean the pump. The pump auto- matically switches on again once the motor has cooled down. Pump is set too low

Increase the rotation speed of the pump at the controller

The impeller unit is blocked

Disconnect the power supply and remove obstacle. Then switch the pump on again.

Insufficient delivered quantity

Filter housing clogged

Clean strainer casings

Excessive loss in the supply lines

Select larger hose diameter

Adjust stepped hose adapter to hose diameter

Reduce hose length to minimum necessary

Avoid unnecessary connection elements Pump is set too low

Increase the rotation speed of the pump at the controller

Pump switches off after operating briefly

Excessively soiled water

Clean the pump. The pump auto- matically switches on again once the motor has cooled down. The impeller unit is blocked

Disconnect the power supply and remove obstacle. Then switch the pump on again.

Flood the pump. Fully submerge the pump for operation in the pond.EN

Error messages The error message automatically disappears after the error has been corrected. Error message

No pump connected or connection to pump is faulty

Check that cable is connected correctly to pump

Connect the pump to the controller Er2 Communication er ror between controller and pump

Check that cable is connected correctly to pump.

• Connect the pump to the controller Er3 Excess temperature

Check that impeller unit moves freely − If the impeller unit is sluggish, the pump is requiring too much power

• The ambient temperature is too high Er4 Overcurrent Check that impeller unit moves freely

If the impeller unit is sluggish, the pump is requiring too much power Er5 Pump blocked

Check pump and remove obstacle

Er6 Pump has run dry

Submerge pump in water

For dry installation ensure adequate water supply Er7

Connect the pump to the correct mains voltage

The unit is not suitable for use with the existing mains voltage range Er8

Keep extension cable to the pump as short as possible. − The voltage to the pump is too low due to the voltage drop in long ca- bles.

Use extension cable to the pump with greater conductor cross-section − The voltage to the pump is too low due to the voltage drop in cables with too small of a conductor cross-sec- tion.38 Technical data Description AquaMax Eco Classic 9000°C 12000°C 18000°C Connection voltage V AC 220 … 240 220 … 240 220 … 240 Mains frequency

50/60 50/60 50/60 Power consumption

25/32/38 25/32/38 25/32/38 Max. pump capacity l/h

m 2 2 2 Length of mains cable to pump m 10 10 10 Dimensions

Fresh water, pond water pH value

Overall dry residue mg/l <50 Temperature

• Impeller unit Disposal NOTE Do not dispose of this unit with household waste. Dispose of the unit by using the return system provided for this purpose. Should you have questions, please contact your local disposal company. They will give you in- formation on how to correctly dispose of the unit. Render the unit unusable by cutting the cables.40 Traduction de la notice d'emploi d'origine.
