USER MANUAL ProMax MudDrain 30000 OASE

Operating instructions

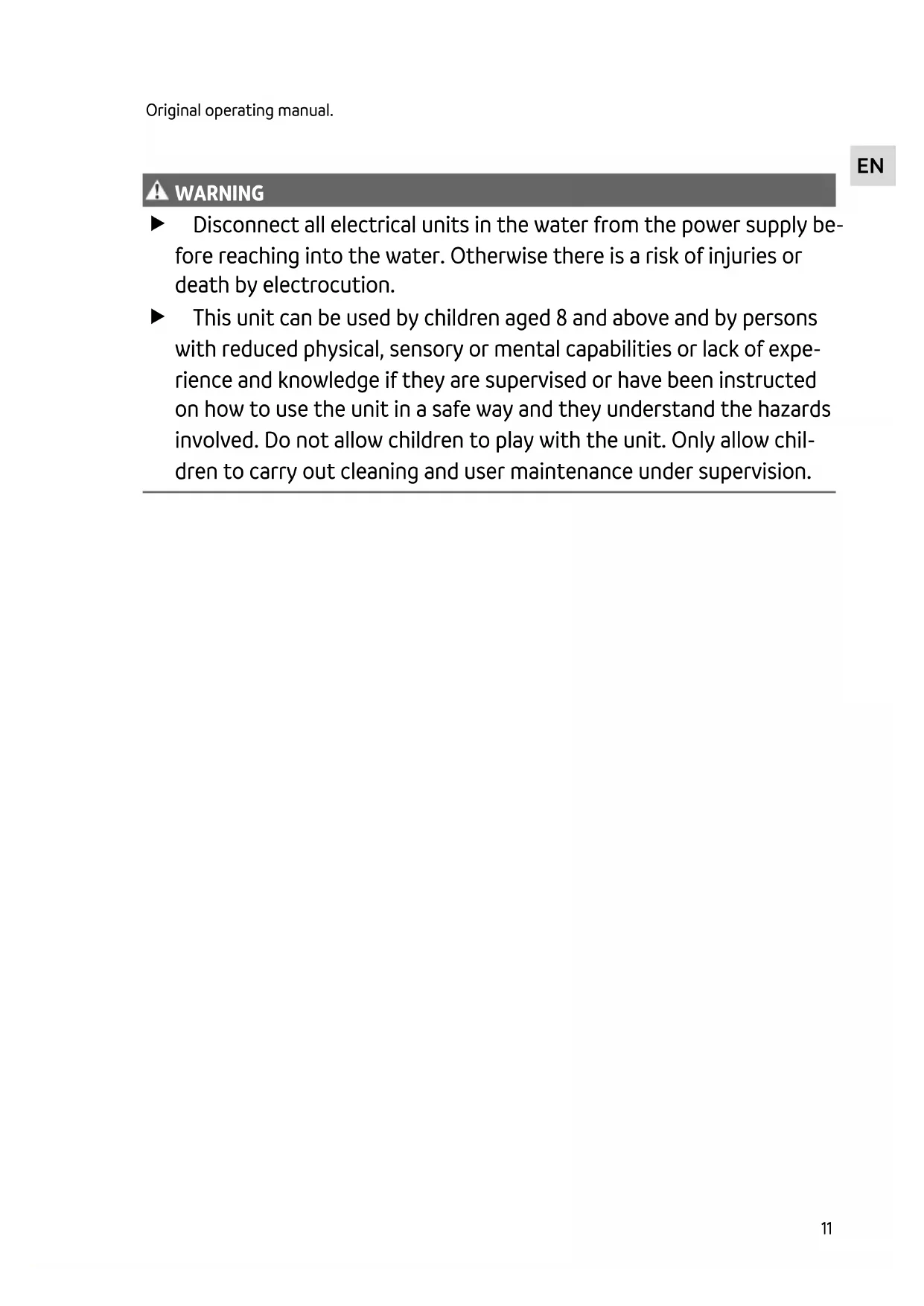

Original operating manual.

WARNING WARNING Disconnect all electrical units in the water from the power supply be- fore reaching into the water. Otherwise there is a risk of injuries or death by electrocution. This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow chil- dren to carry out cleaning and user maintenance under supervision.12 Safety information Electrical connection Only connect the unit if the electrical data of the unit and the power supply match. Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device. Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof). Protect open plugs and sockets from moisture. Safe operation Operate the unit only when there are no people in the water. Do not use the unit, if electrical lines or the housing are damaged. If a power connection cable is damaged, have it replaced immediately by OASE, an authorized customer service or a qualified electrician to prevent electric shock. Do not carry or pull the unit by its power cable. Route lines so that they are protected from damage and nobody can trip over them. Never make technical modifications to the unit. Only carry out work on the unit that is described in this manual. Only use original spare parts and accessories. Should problems occur, please contact the authorized customer service or OASE. Intended use Only use the product described in this manual as follows: For pumping clear water or rain water. For pumping chlorinated water. For pumping dirty water containing particles max. 40 mm in size. For irrigating and watering. For transferring water from and draining basins or ponds/pools. For pumping the water out of rain barrels or cisterns. In compliance with the technical specifications. (→ Technical data) The following restrictions apply to the unit: Not suitable for salt water. Not suitable for drinking water. Do not use for long-term operation (e.g. continuous recirculation of water in a pond). Do not use for industrial purposes. Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances. Do not connect to the drinking water supply.EN

Product description Overview POX0014 1 Handle 2 Stepped hose adapter 3 Reducing coupling, G1½ to G1¼ 4 Connection, pressure side G2 5 Pump base 6 Float switch 7 Power connection cable 8 Fastening cable, 10 m The unit contains cast iron which is subject to a natural corrosion process. This does not impair the function of the unit. Symbols on the unit The unit is dust-proof and water-tight down to 7 m. Never dispose of the unit with normal household waste. Read the operating instructions.14 Installation and connection Connecting the pressure hose An optimum flow rate is achieved with a 50 mm hose diameter. How to proceed:

1. Adapt the stepped hose adapter to the hose diameter.

2. Screw the stepped hose adapter onto the connection on the pressure side.

3. Connect the pressure hose to the stepped hose adapter.

– Secure the pressure hose with a hose clip. POX0016EN

Automatic mode When the water level rises, it lifts the float switch until the switch-on point is reached and the pump switches on. When the water level drops, the float switch lowers until the switch-off point is reached and the pump switches off. How to proceed: Push the float switch cable into the cable clip. – The shorter the cable between the float switch and the cable clip, the lower the switch-on point and the higher the switch-off point. To ensure faultless function, ensure that the length of cable between the float switch and the cable clip is at least 100 mm long. The minimum residual water height is only reached in manual mode. POX0015 Manual mode The pump remains permanently switched on if the float switch is positioned vertically (cable hanging down). NOTE The pump can run dry in manual mode. Running the pump dry increases wear. Switch off the pump when the minimum water level is reached.16 Installing the pump Install the pump in a vertical and stable position in the water. If it needs to be lowered into a shaft, fasten a rope to the handle. Do not carry it by the power connection cable. Install the pump so that it does not take in dirt particles with a size >40 mm, which would block the intake. Install the pump in a raised position if necessary. Ensure that the float switch can always move freely. POX0018EN

Operation WARNING Serious injury or death from electric shock is possible. Only operate the pump if no persons are in the water. Disconnect all electrical devices in the water from the power supply before reaching into the water. NOTE The pump is not suitable for long-term operation. Long-term operation will reduce the pump service life accordingly. Switching on the unit Insert the power plug into the outlet. – The pump is ready for operation. – The pump will start up as soon as the water level reaches the activation height. Switching off the unit Disconnect the power plug. – When the pump is switched off, residual water in the hose may flow back and out of the pump intake. Rinse the pump with clear water after use. Maintenance and cleaning NOTE Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment. Clean the unit with clean water and a soft brush or sponge wherever possible. Remove stub- born dirt with the aid of the recommended cleaning agents. Clean the unit as required, but at least twice a year. Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent. After cleaning, thoroughly rinse all parts in clean water.18 Storage/overwintering The unit is not frost-proof and has to be removed and put into storage if freezing temperatures are expected. How to correctly store the unit: Thoroughly clean the unit and replace damaged components. Store the unit in a dry and frost-free place. Protect open plug connections from moisture and dirt. Empty hoses and connections as much as possible Troubleshooting Malfunction Possible cause Remedy The pump does not start The power supply is interrupted Plug in the power plug Check the fuse of the power outlet The pump switches off after a short running period The overload protection has switched the pump off due to overheating Clean the intake opening and the pressure hose Allow the pump to cool down. The overload protection is auto- matically reset after cooling down The pump is running but is not de- livering, or the delivered quantity is insufficient The pressure hose is blocked

Route the pressure hose with- out kinks Check the outlet and clean if necessary The intake opening is clogged

Clean the intake opening The pressure hose contains air Bleed the pressure hose If applicable: The non-return valve is incorrectly fitted in the pressure hose or clogged Fit the non-return valve cor- rectly Clean the non-return valve The impeller unit is faulty or worn Contact OASE. The impeller unit may only be replaced by the OASE service.EN

Technical data ProMax MudDrain 25000 30000 Rated voltage V AC 230 230 Rated frequency Hz 50 50 Rated power W 1200 1500 Protection type IP68 IP68 Connection, pressure side G 2 2 Minimum switch-on height / maximum switch-off height mm 550 300 Maximum switch-on height / minimum switch-off height mm 750 180 Flow rate maximum l/h 25000 30000 Head height maximum m 10 12 Immersion depth maximum m 7 7 Particle size maximum mm 40 40 Power connection cable Length m 10 10 Dimensions Length mm 178 178 Width mm 246 246 Height mm 453 453 Weight kg 13.60 14.10 Wear parts The following components are wear parts and may only be replaced by the OASE service. Impeller unit Disposal NOTE Do not dispose of this unit with domestic waste. Dispose of the unit by using the return system provided for this purpose. Should you have questions, please contact your local disposal company. They will give you in- structions on how to dispose of your unit properly. Disable the unit by cutting off the cables.20 Traduction de la notice d'emploi d'origine.
