USER MANUAL GD80BL GREENWORKS

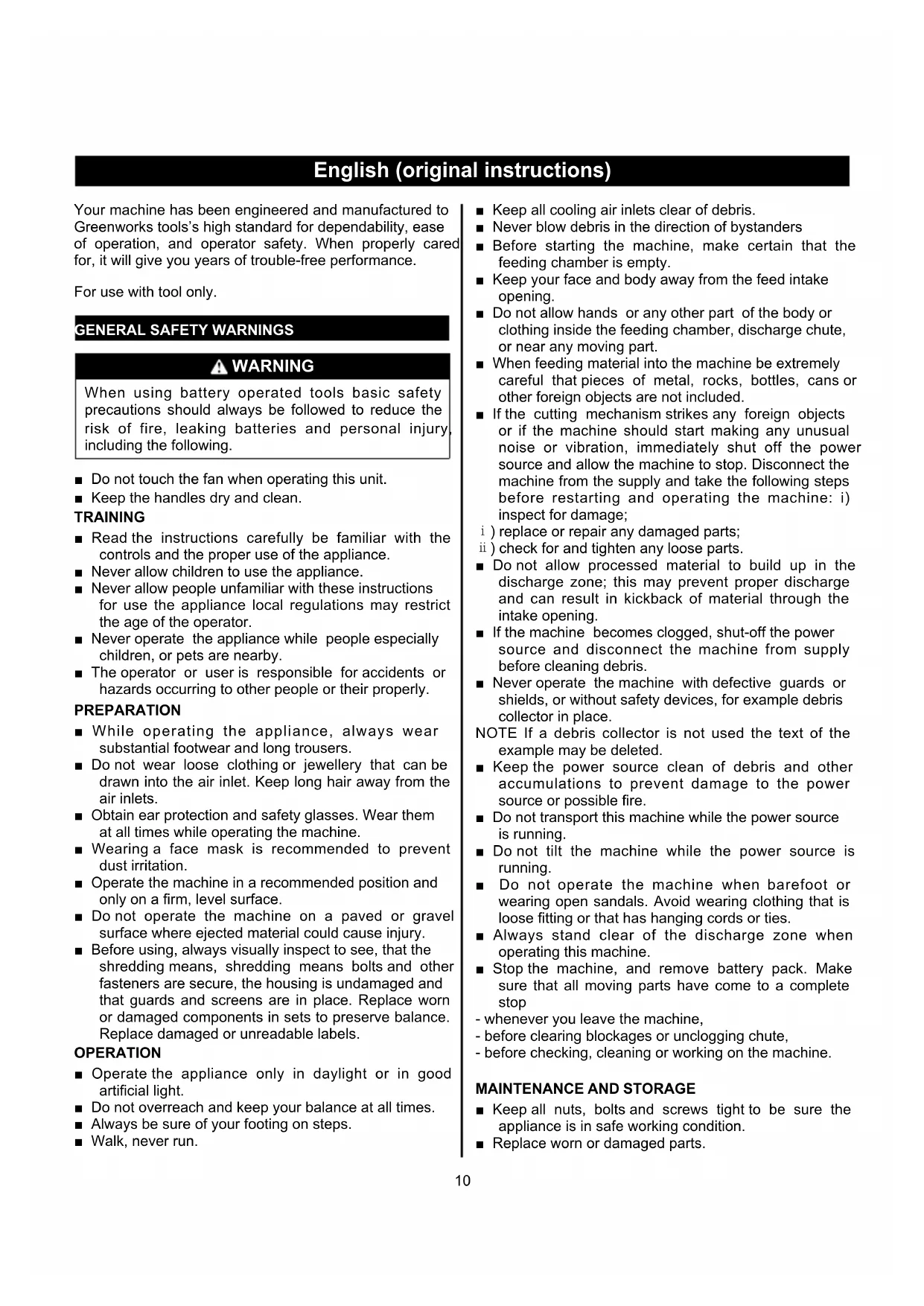

English (original instructions) ■ Keep all cooling air inlets clear of debris. ■ Never blow debris in the direction of bystanders ■ Before starting the machine, make certain that the feeding chamber is empty. ■ Keep your face and body away from the feed intake opening. ■ Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. ■ When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included. ■ If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine: i) inspect for damage; ⅰ) replace or repair any damaged parts; ⅱ) check for and tighten any loose parts. ■ Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening. ■ If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris. ■ Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place. NOTE If a debris collector is not used the text of the example may be deleted. ■ Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire. ■ Do not transport this machine while the power source is running. ■ Do not tilt the machine while the power source is running. ■ Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. ■ Always stand clear of the discharge zone when operating this machine. ■ Stop the machine, and remove battery pack. Make sure that all moving parts have come to a complete stop - whenever you leave the machine, - before clearing blockages or unclogging chute, - before checking, cleaning or working on the machine.

MAINTENANCE AND STORAGE

■ Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. ■ Replace worn or damaged parts. Your machine has been engineered and manufactured to Greenworks tools’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of trouble-free performance. For use with tool only. GENERAl SAFETY WARNINGS WARNING When using battery operated tools basic safety precautions should always be followed to reduce the risk of fire, leaking batteries and personal injury, including the following. ■ Do not touch the fan when operating this unit. ■ Keep the handles dry and clean. TRAINING ■ Read the instructions carefully be familiar with the controls and the proper use of the appliance. ■ Never allow children to use the appliance. ■ Never allow people unfamiliar with these instructions for use the appliance local regulations may restrict the age of the operator. ■ Never operate the appliance while people especially children, or pets are nearby. ■ The operator or user is responsible for accidents or hazards occurring to other people or their properly. PREPARATION ■ While operating the appliance, always wear substantial footwear and long trousers. ■ Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. ■ Obtain ear protection and safety glasses. Wear them at all times while operating the machine. ■ Wearing a face mask is recommended to prevent dust irritation. ■ Operate the machine in a recommended position and only on a firm, level surface. ■ Do not operate the machine on a paved or gravel surface where ejected material could cause injury. ■ Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels. OPERATION ■ Operate the appliance only in daylight or in good artificial light. ■ Do not overreach and keep your balance at all times. ■ Always be sure of your footing on steps. ■ Walk, never run.11 English (original instructions) ■ Use only genuine replacement parts and accessories. ■ Store the appliance only in a dry place. ■ When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean. ■ Always allow the machine to cool before storing. ■ When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be moved. ■ Never attempt to override the interlocked feature of the guard. WARNING Use only the manufacturer’s replacement parts. Failure to do so may cause poor performance, possible injury and may void your warranty. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. WORk AREA SAFETY ■ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ■ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ElECTRICAl SAFETY ■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. PERSONAl SAFETY ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. POWER TOOl USE AND CARE ■ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ■ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ■ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. BATTERY TOOl USE AND CARE ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can12 English (original instructions) make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. ■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. SERVICE ■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAVE THESE INSTRUCTIONS. REFER TO THEM

FREQUENTLY AND USE THEM TO INSTRUCT OTHERS WHO MAY USE THIS UNIT. IF YOU LOAN SOMEONE THIS UNIT, LOAN THEM THESE INSTRUCTIONS ALSO. Some of the following symbols may be used on this tool. Please study them and understand their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

Safety Alert Precautions that involve your safety. Read The Operator’s Manual Read the operation manual and follow all warnings and safety instructions. Eyes and ears protection Wear eye protection and ear protection. Ricochet alert Thrown objects can ricochet and result in personal injury or property damage. Wear protective clothing and boots. Keep bystanders away Keep all bystanders, especially children and pets, at least 15m from the operating area. Do not touch the fan. Do not touch the fan when operating this unit. Wet conditions alert Do not expose to rain or damp conditions. Long Hair Failure to keep long hair away from the air inlet could result in personal injury. Loose Clothing Failure to keep loose clothing from being drawn into air intake could result in personal injury. Impeller Blades Rotating impeller blades can cause severe injury. The following signal words and meanings are intended to explain the levels of risk associated with this product.

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage. SYMBOLS Class II Construction Double-insulated construction13 English (original instructions) SPECIFICATIONS Product Specifications Type 2400407 Motor 80 Volt DC Air Velocity 200 km/h (Max) Weight (Battery Pack not included) 2.7kg Battery Pack 2914907 / 2914607/2914507 Charger 2914707 Sound pressure level

1. Battery Release Button

ASSEMBLY UNPACKING ■ Carefully remove the product and any accessories from the box. ■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. ■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. ■ If any parts are damaged or missing, please call your Greenworks Tools service centre for assistance. WARNING Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. ASSEMBLING THE BLOWER TUBE See Figure 2. WARNING To prevent accidental starting that could cause serious personal injury, always remove the batterypack from the tool when assembling parts. ■ Align either of the grooves in the tube with the tabs on the blower housing. Push the tube onto the blower housing until the tab engages the grooves (Fig. 2). ■ Turn the tube in the direction of the arrow until both of the tabs slide into the lock positions (Fig. 3). For complete charging instructions, refer to the Operator’s Manuals for your battery pack and charger models. NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the variable speed trigger when carrying or transporting the tool. TO INSTALL/REMOVE BATTERY PACK See Figure 4. TO INSTALL ■ Align the ribs of the battery pack with the mounting slots in the blower’s battery port. ■ Insert the battery into the battery opening until the battery release button locks into place. CAUTION When placing battery pack in the blower, be sure the raised ribs on the battery pack align with the grooves in the top of the blower. Make sure the battery is fully seated, and it latches into place properly. Improper installation of the battery pack can cause damage to internal components.

TO REMOVE BATTERY PACK

■ Press the battery release button on the blower. This will cause the battery to slightly protrude out of the tool. ■ Grasp the blower firmly and pull the battery out of the handle. WARNING Always take care of your feet, children, or pets around you when pressing the battery release button. Serious injury could result if the battery pack falls. NEVER remove the battery pack when in a high location. (See Figure 1)14 English (original instructions) STARTING/STOPPING THE BlOWER See Figure 5.

1. Press the On/Off (

) Switch and you will hear two audible beeps signaling the blower is active.

2. Squeeze the trigger to start the blower.Release the

trigger to stop. ADJUSTING THE AIR VElOCITY See Figure 6.

1. Ensure that blower is on. The LED above the On/Off

Button will illuminate.

2. Press the Speed Selection Button(

) to increase the air velocity to the desired setting.

IMPORTANT: THE CURRENT SPEED SETTING WILL

REMAIN EVEN IF THE UNIT IS TURNED OFF. HOlDING THE BlOWER Before operating the unit, stand in the operating position. Check for the following: ■ Operator is wearing proper clothing, such as boots, safety glasses or goggles, ear/hearing protection, gloves, long pants and a long sleeve shirt. WARNING To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations. WARNING To prevent serious personal injury or damage to the unit, make sure the blower tube is in place before operating the unit. ■ Assure the unit is not directed at anybody or any loose debris before starting the unit. ■ Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure. ■ Keep a firm grip on both the front and rear handle or grips. ■ To reduce the risk of hearing loss associated with sound level(s), hearing protection is required. ■ Operate power equipment only at reasonable hours not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday. ■ To reduce noise levels, limit the number of pieces of equipment used at any one time. ■ To reduce noise levels, operate power blowers at the lowest possible speed to do the job. ■ Use rakes and brooms to loosen debris before blowing. ■ In dusty conditions, slightly dampen surfaces. ■ Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens. AIR VENTS Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling. WARNING To avoid serious personal injury, do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air vents. To make sure long hair does not get drawn into the air vents, tie back long hair. OPERATING AS A BlOWER Hold the blower firmly. Sweep from side to side with the nozzle several inches above the ground or floor. Slowly advance the unit, keeping the accumulated pile of debris in front of you. Most dry blowing operations are better suited to low speeds, rather than high. High speed blowing is a better way to move heavier items like large debris or gravel. ClEANING Remove the battery pack. ■ Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water. ■ Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage, and may cause a shock hazard.15 English (original instructions) MAINTENANCE BlADES WARNING When servicing use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING Do not at any time let brake fluids, gasoline, petroleum based products, penetrating oils, etc. come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic. WARNING Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. STORING THE BlOWER Clean the blower thoroughly before storing. Store the blower in a dry, well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. ■ Store and charge your batteries in a cool area. Temperatures above or below normal room temperature will shorten battery pack life. ■ Once the light on the charger turns solid green, remove the battery from the charger and disconnect the charger from the outlet. ■ Do not store the battery pack on the tool. ■ Never store batteries in a discharged condition. Wait for battery pack to cool and fully charge immediately. ■ All batteries gradually lose their charge. The higher the temperature, the quicker they lose their charge. If you store your unit for long periods of time without using it, recharge the batteries every month or two. This practice will prolong battery pack life. DISPOSAl Waste electrical products should not be disposed of together with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.16 English (original instructions) TROUBlESHOOTING PROBlEM POSSIBlE CAUSE SOlUTION Motor fails to start when switch trigger is depressed.

1. Battery is not secure.

1. Ensure that the battery is fully secured in the blower. Refer

to Installing the Battery section in this manual.

2. Battery is not charged.

2. Charge the battery pack according to the instructions

included with your model. Unit will not start.

1. Defective power switch.

1. Have the power switch replaced by an authorized service

center. The unit will start, but air will not ow through the tube.

1. Blocked tube. 2. Clear the blockage.17

AKTUELL HASTIGHETSINNSTILLING VIL BEHOLDES

TUOTTEEN TEKNISET TIEDOT

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers. This warranty is non-transferable. LIMITATIONS This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.

2. Routine tune up or adjustment.

3. Damage caused by improper handling/abuse/misuse or neglect.

4. Overheating due to lack of maintenance.

5. Damage due to fittings/fasteners becoming loose/detached through lack

6. Damage caused by cleaning with water.

7. Machines serviced or repaired by non-authorised Greenworks Tools

9. Damage caused by improper use of the machine.

10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by

the warranty, including but not limited to: ● Batteries ● Electric cables ● Blade and blade assemblies ● Belts ● Filters ● Chucks and tool holders

12. Certain products may contain components such as engines,

transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer’s warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer’s warranty period.

13. Second hand goods are not covered under this warranty policy.

14. The fitting of spares, replacements or extra components which are not

supplied or approved by Greenworks Tools Europe GmbH. Warranty To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced. If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair. This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu. ENLa política de garantía de Greenworks Tools para máquinas de bricolage

EC DECLARATION OF CONFORMITY

Name: Changzhou Globe Co., Ltd. Address: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China Name and address of the person authorised to compile the technical file: Name: Dennis Jacobson (Director of Outdoor Power Equipment) Address: Herewith we declare that the product Category ............................................................................................ CORDLESS BLOWER Model .........................................................................................................................2400407 Serial number ...................................................................................See product rating label Year of Construction ......................................................................... See product rating label ■ is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC) ■ is in conformity with the provisions of the following other EC-Directives 2014/30/EU (EMC-Directive), and 2000/14/EC (Noise Directive) incl. modifications (2005/88/EC) And furthermore, we declare that ■ the following (parts/clauses of) European harmonised standards have been used EN 60335-1, EN 50636-2-100; EN 62233，EN ISO 3744; EN 55014-1; EN 55014-2 Measured sound power level L
