Product type	Cordless electric scarifier
Brand	Greenworks
Model	G40DT35
Battery voltage	40 V
Working width	36 cm (14")
Working depth	1 cm (3/8")
Engine speed	3600 rpm
Sound pressure level	76,1 dB(A) (k=3,0 dB(A))
Measured sound power level	92,6 dB(A)
Guaranteed sound power level	93 dB(A)
Vibrations (right handle)	4,293 m/s² (uncertainty 1,5 m/s²)
Vibrations (left handle)	3,121 m/s² (uncertainty 1,5 m/s²)
Weight (without battery)	0,2 kg
Wheel size	17,8 cm (7")
Battery type	Lithium-ion 40 V (models 29717/29727)
Charger	Model 2910907
Handlebar type	Folding handlebar with upper and lower handle
Starting system	Safety lock button + switch lever
Motor	Electric motor
Warranty	2 years (domestic use)

Frequently Asked Questions - G40DT35 GREENWORKS

How to start the G40DT35 scarifier?

To start, insert the battery and the battery key, then press the safety lock button while pressing the switch lever towards the handlebar.

What to do if the motor does not start?

Check that the battery is correctly inserted and charged. If the problem persists, recharge the battery according to the instructions. Consult the troubleshooting guide in the manual.

How to change the scarifying tines?

Turn off the tool, remove the battery and wait for complete stop. Turn the device over, remove the screws from the tine holder, then remove the pin with a screwdriver. Replace worn tines and reassemble by tightening the screws with washers.

What type of battery to use?

Use a Greenworks 40 V battery from models 29717 or 29727. The compatible charger is model 2910907.

How to clean the scarifier after use?

Turn off the tool, remove the battery. Clean the underside with a clean cloth. Never use water or solvents. Remove plant debris by hand or with a soft brush.

What is the maximum working depth?

The working depth is adjustable up to 1 cm (3/8 inch). Adjust according to lawn condition and soil type.

Is the collection bag included?

Yes, a collection basket (grass catcher) is supplied. To install, lift the rear flap and hang the basket on the cover rods.

What to do in case of abnormal noise?

Immediately stop the tool and remove the battery. Check for foreign objects blocking the cylinder. Clean and inspect before reuse. If the noise persists, contact an authorized repair center.

Does the warranty cover the tines?

No, the tines are considered consumables and are not covered by the 2-year warranty. Check the detailed conditions in the manual.

Can the scarifier be used on wet grass?

It is not recommended to scarify wet grass as this can damage the lawn and clog the tool. Preferably use on dry soil.

USER MANUAL G40DT35 GREENWORKS

English (Original instructions)

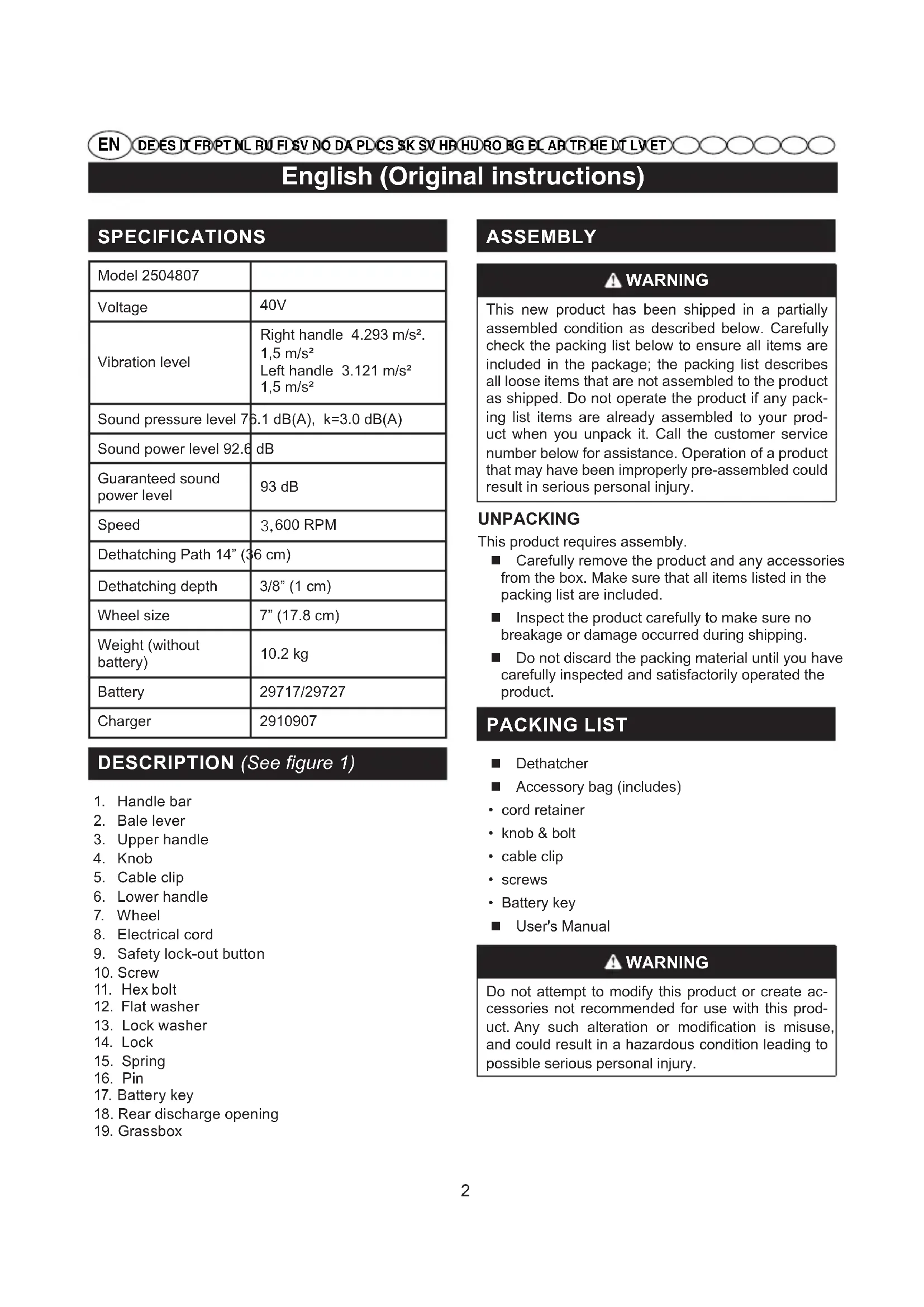

SPECIFICATIONS

Model 2504807
Voltage	40V
Vibration level	Right handle 4.293 m/s2. 1,5 m/s2 Left handle 3.121 m/s2 1,5 m/s2
Sound pressure level 7	6.1 dB(A), k=3.0 dB(A)
Sound power level 92.6	dB
Guaranteed sound power level	93 dB
Speed	3,600 RPM
Dethatching Path 14" (36 cm)
Dethatching depth	3/8" (1 cm)
Wheel size	7" (17.8 cm)
Weight (without battery)	10.2 kg
Battery	29717/29727
Charger	2910907

DESCRIPTION (See figure 1)

1. Handle bar
2. Bale lever
3. Upper handle
4. Knob
5. Cable clip
6. Lower handle
   7.Wheel
7. Electrical cord
8. Safety lock-out button
9. Screw
10. Hex bolt
11. Flat washer
12. Lock washer
13. Lock
14. Spring
15. Pin
16. Battery key
17. Rear discharge opening
18. Grassbox

ASSEMBLY

WARNING

This new product has been shipped in a partially assembled condition as described below. Carefully check the packing list below to ensure all items are included in the package; the packing list describes all loose items that are not assembled to the product as shipped. Do not operate the product if any packing list items are already assembled to your product when you unpack it. Call the customer service number below for assistance. Operation of a product that may have been improperly pre-assembled could result in serious personal injury.

UNPACKING

This product requires assembly.

Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.

PACKING LIST

Dethatcher
Accessory bag (includes)

• cord retainer
• knob & bolt
• cable clip
• screws
  Battery key
  User's Manual

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse, and could result in a hazardous condition leading to possible serious personal injury.

English (Original instructions)

WARNING

Stop the machine, and remove battery pack. Make sure that all moving parts have come to a complete stop. Failure to comply could result in accidental starting and possible serious personal injury.

WARNING

If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury.

INSTALLING THE LOWER HANDLE(See figure 2)

Insert the lower handle (6) into the housing hole.

Using the supplied screws (10), fasten the lower handle to the housing using a star-head screwdriver (not supplied).

INSTALLING THE UPPER HANDLE(See figure 2)

Position the upper handle so the holes line up with the lower handle holes.

Insert the supplied hex bolt (11) through the hole from the outside of the handlebar.

Thread the knob (4) onto the hex bolt (11) to tighten securely into place.

INSTALLING THE GRASSBOX (See figure 3)

Lift the rear discharge door.
- Lift the grassbox by its handle and place under the rear door, so that the hooks on the grassbox frame are seated into the slots in the handle bracket.
- Release the rear door. When installed correctly, the hooks on the grassbox will rest securely in the slots on the handle brackets.

OPERATION

WARNING

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING

Always wear eye protection. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., Come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an Authorized service center.

BATTERY REMOVAL (See figure 4)

Release the bale lever to stop the product.
- Open the battery door to access the battery compartment.
Remove the battery key.
Press in and hold the battery release button with firm grip.
Remove battery pack from the product.

BATTERY INSTALLATION(See figure 4)

Lift and hold up the battery door.
Align the battery with the dethatcher's battery port.
Make sure the battery release button snaps in place and that battery is fully seated and secure in the dethatcher before beginning operation.
Insert the battery key.
If the machine is not going to be used immediately, do not insert the battery key.
Close the door.

STARTING THE DETHATCHER

Press and hold the safety lock-out button. This makes the bale switch operational.
Press the bale switch against to the handlebar to operate.

STOPPING THE DETHATCHER

Release the bale.

MAINTENANCE

The dethatcher cylinder can cause injuries! Prior to making adjustments, unplug unit and wait until the dethatcher cylinder has stopped. Wear heavy-duty work gloves when making adjustments. If the dethatcher cylinder is not yet worn but individual springs have broken, these must be replaced. Only identical replacement springs may be used.

English (Original instructions)

WARNING

Before inspecting, cleaning, or servicing the machine, turn the it off and remove the battery pack and wait until the dethatcher cylinder has stopped. Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

Wear adequate clothing, gloves and goggles before carrying out any maintenance.

REPLACING THE TINES (See figure 5)

WARNING

In order to avoid serious personal injury, turn the it off and remove the battery pack before performing any maintenance.

Use only the manufacturer's original replacement parts.

• Stop the machine, and remove battery pack. Allow sufficient time for moving parts to totally stop.
  Turn the dethatcher over.
  Remove the two star-shaped screws (11), the flat washer (13) and the lock washer (14) which secure the tire casing. Remove the two nuts on the opposite side with a star-head screwdriver.
  Press the lock (15) on the edge of the shaft with a slotted screwdriver to separate the tine casing from the shaft.
  Replace the worn or broken tines with new ones.
  Fasten the tine casing back together using the flat washer and the lock washer in their original order.

WARNING

All the screws to mount the halves of the tine holder must have flat washer (13) and lock washer (14) on their threads to prevent screws from loosening during usage.

REPLACING THE TINES(See figure 6)

Remove the tine cartridge as demonstrated on figure 6.
- Secure tine cartridge on a workbench.
Push out the pin using a screwdriver (Not Supplied). This may require the use of a rubber mallet if more strength is required.
Remove and discard the worn/broken tines.

• Replace the tine into position and slide the pin back into place pressing the pin against a solid surface to pressure it back into place.

DANGER! THE DETHATCHER CYLINDER CAN CAUSE INJURIES.

Prior to maintenance, turn the it off and remove the battery pack and wait until the dethatcher cylinder has stopped. Wear heavy-duty gloves for performing maintenance. The lawn dethatcher should be cleaned after each use.

WARNING

WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS. USE OF ANY OTHER PARTS MAY CREATE A HAZARD OR CAUSE PRODUCT DAMAGE.

WARNING

TO AVOID SERIOUS PERSONAL INJURY, WEAR GOGGLES OR SAFETY GLASSES AT ALL TIMES WHEN OPERATING THIS UNIT. WEAR A FACE MASK OR DUST MASK IN DUSTY LOCATIONS.

WARNING

BEFORE INSPECTING, CLEANING, OR SERVICING THE MACHINE, DISCONNECT THE PLUG FROM POWER SOURCE AND WAIT FOR ALL MOVING PARTS TO STOP. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to removedirt, dust, oil, grease, etc.

WARNING

DO NOT AT ANY TIME LET BRAKE FLUIDS, GASOLINE, PETROLEUM-BASED PRODUCTS, PEN-ETRATING OILS, ETC., COME IN CONTACT WITH PLASTIC PARTS. CHEMICALS CAN DAMAGE, WEAKEN, OR DESTROY PLASTIC WHICH MAY RESULT IN SERIOUS PERSONAL INJURY. ONLY THE PARTS SHOWN ON THE PARTS LIST ARE INTENDED TO BE REPAIRED OR REPLACED BY THE CUSTOMER. ALL OTHER PARTS SHOULD BE REPLACED AT ANAAUTHORIZED SERVICE CENTER.

English (Original instructions)

RISK OF INJURY AND PHYSICAL DAMAGE!

Do not clean the lawn dethatcher under running water (particularly under high pressure).

Do not use hard or pointed objects for cleaning the lawn dethatcher.

To save space, the lawn dethatcher can be folded up for storage by releasing the knobs.

Take care, during this process, that the power cable does not become trapped. Store the lawn dethatcher in a dry, closed space which children cannot access.

Turn the it off and remove the battery pack and wait until the dethatcher cylinder has stopped.
Always clean the bottom of the dethatcher after each use and before storage.
Carefully inspect all tines and cartridges for damage and replace when required.

This device must not be disposed of with normal household waste. It must be disposed of in accordance with local regulations.

DANGER!

The dethatcher cylinder can cause injuries.

English (Original instructions)

TROUBLESHOOTING
PROBLEM POSSIBLE	CAUSE SOLUTION
Abnormal noise.	Foreign objects on the dethatcher cylinder are hitting the dethatcher.	Switch off the dethatcher, wait until the cylinder has stopped rotating.
Clattering in the unit. Whistling sound.	Foreign objects blocking the dethatching cylinder.	Remove foreign objects.
		Check the dethatcher immediately.
Whistling sound. Belt slipping.	Contact an authorized service centre.
Motor will not s tart. Battery	is not secure. Ensure that the battery is fully secured in the machine. Refer to Installing the Battery section in this manual.
	Battery is not charged. Charge the battery pack according to the instructions included with your model.
The dethatcher is hard to push.	Blocked by foreign objects.	Switch off the motor, wait until the dethatcher has stopped rotating. Remove the foreign objects. After approximately one minute, switch on the dethatcher.
	The grass is too tall. Mow the lawn before dethatching.
Dethatching results are not satisfactory.	Spring tire wear.	Adjust the dethatcher cylinder.
	Belt faulty.	Contact an authorized service centre.
	Lawn has grown too tall.	Mow the lawn before using the dethatcher.
