Product type	Cutting attachment for cordless screwdriver
Brand	Bosch
Model	Ixo 1600A001YF (Cutter cutting attachment)
Intended use	Cutting of soft and flexible materials (carpet, PVC, cardboard, leather, fabrics) up to 6 mm thickness
Weight	0.15 kg (according to EPTA-Procedure 01:2014)
Compatibility	Bosch IXO cordless screwdrivers (3 603 J81 0.., 3 603 J59 3.., 3 603 JA8 0..)
Power supply	Via the cordless screwdriver (no separate power supply)
Blade materials	Hardened steel (inferred)
Number of attachment positions	8 different positions
Included items	Cutting attachment, guide shoe, protective cover, blade, fixing screw, unlocking ring
Main functions	Linear cutting of soft materials, guidance with shoe, protection by cover
Maintenance and cleaning	Remove the attachment before cleaning, clean the cover with a brush, sharp blade - beware of injury
Safety	Set the direction of rotation selector to the middle position before assembly/disassembly; do not use on asbestos; beware of live cables; do not put hands in front of the blade
Spare parts and repairability	Replacement blade available; Bosch after-sales service; order online at www.bosch-pt.fr
General information	Warranty and CE conformity according to directive 2006/42/EC; technical file at Robert Bosch Power Tools GmbH

Frequently Asked Questions - Ixo 1600A001YF BOSCH

What type of materials can be cut with the Ixo 1600A001YF cutting attachment?

The attachment is designed for soft and flexible materials up to 6 mm thick: carpet, PVC, cardboard, leather, fabrics, etc.

With which Bosch screwdriver models is the attachment compatible?

It is compatible with Bosch IXO cordless screwdrivers with reference numbers 3 603 J81 0.., 3 603 J59 3.. and 3 603 JA8 0..

How to mount the cutting attachment on the screwdriver?

First remove the rubber cover of the screwdriver forward, then place the attachment on the screwdriver until it clicks audibly. It can be fixed in 8 different positions.

How to change the cutting blade?

Make sure the attachment is mounted on the screwdriver. Set the direction of rotation selector to the middle position. Loosen the blade fixing screw, lift the blade and remove it downwards. Mount the new blade with the sharp edge facing outwards and tighten the screw.

What safety instructions must be followed?

Before any maintenance, set the direction of rotation selector to the middle position. Do not cut materials containing asbestos. Beware of live electrical cables. Never put your hands in front of the blade. Always use the protective cover.

How to clean the cutting attachment?

Remove the attachment from the screwdriver before cleaning to avoid accidental starting. Clean the protective cover with a brush. Beware of sharp edges of the blade.

Where can I buy replacement blades?

Replacement blades are available on the website www.bosch-pt.fr or from Bosch after-sales service (accessory reference 1 600 A00 1YN).

Is the attachment suitable for children?

It is not intended for use by children under 8 years without supervision. Persons with reduced physical capabilities or lack of experience must be supervised.

What is the maximum cutting thickness?

The maximum thickness of materials to cut is 6 mm.

How to correctly use the attachment for optimal cutting?

Use the guide shoe parallel to the cutting line. Do not force too much, especially on thin materials like fabrics. Stretch the material and cut slowly. Keep the blade clean.

USER MANUAL Ixo 1600A001YF BOSCH

ORI BUCH-2057-004.hook Page | Wednesday, February 24, 2016 8:50 AM

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 1NB (2015.02) I/194 EURO

1 609 92A 1NB

Cutter

BOSCH

on original institutions for values originals

II. Science of English as Manual criminal

at Manual original

50 British Columbia Regional

no of girls, girls in school.

el Pocetone caleuusans

tr Original kjetme to imah

at Algeprone kasebisiye

Instrukcias originalada

It Original instruction

ar المنحيل: الأصلية

تحل Roman

OBJ_BUCH-2057-004.book Page 2 Wednesday, February 24, 2016 8:51 A

2

OBJ_BUCH-2057-004.book Page 3 Wednesday, February 24, 2016 8:51

|3

Slovensky.... Strana 103

OBJ_BUCH-2057-004.book Page 5 Wednesday, February 24, 2016 8:51

|5

Bosch Power Tools 1 609 92A 1NB | (24.2.16)

OBJ_BUCH-2057-004.book Page 6 Wednesday, February 24, 2016 8:51 A

6

1 609 92A 1NB | (24.2.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 7 Wednesday, February 24, 2016 8:51

17

Bosch Power Tools 1 609 92A 1NB | (24.2.16)

OBJ_BUCH-2057-004.book Page 8 Wednesday, February 24, 2016 8:51 A

8

1 609 92A 1NB | (24.2.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 9 Wednesday, March 2, 2016 3:35 PM

Deutsch|9

Deutsch

Sicherheitshinweise

OBJ_BUCH-2057-004.book Page 10 Wednesday, March 2, 2016 3:35 PM

10 | Deutsch

OBJ_BUCH-2057-004.book Page 11 Wednesday, March 2, 2016 3:35 PM

Deutsch | 11

Executive Vice President Head of Product Certification

Engineering PT/ETM9

jaw Sea i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

OBJ_BUCH-2057-004.book Page 12 Wednesday, March 2, 2016 3:35 PM

12 | Deutsch

OBJ_BUCH-2057-004.book Page 13 Wednesday, March 2, 2016 3:35 PM

Deutsch | 13

OBJ_BUCH-2057-004.book Page 14 Wednesday, March 2, 2016 3:35 PM

14 | Deutsch

Wartung und Service

OBJ_BUCH-2057-004.book Page 15 Wednesday, March 2, 2016 3:35 PM

Deutsch | 15

Deutschland

Robert Bosch Power Tools GmbH

OBJ_BUCH-2057-004.book Page 16 Wednesday, March 2, 2016 3:35 PM

16 | English

English

Safety Notes

General Safety Rules

Read all precautions and instructions enclosed with the cutting adapter and the power tool you are using. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all safety warnings and all instructions for future reference.

Safety Warnings for Screwdrivers with Cutting Adapter

Before any work on the screwdriver with cutting adapter (e.g. maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the middle position. There is danger of injury when unintentionally actuating the On/Off switch.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
The blade guard belonging to the cutting adapter must not be defective. The blade guard is intended to protect the user against accidental contact with the blade.
▶ Do not work materials containing asbestos. Asbestos is considered carcinogenic.
▶ Pay attention to live cables when cutting. There is a risk of electric shock.
▶ While cutting, never guide your hand in front of the blade. Danger of injury.
▶ Prevent unintentional switching on. Carrying power tools with your finger on the On/Off switch can lead to accidents.
▶ Supervise children. This will ensure that children do not play with the cutting adapter or with the screwdriver with mounted cutting adapter.

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 17 Wednesday, March 2, 2016 3:35 PM

English | 17

This screwdriver with cutting adapter is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge.

This screwdriver with cutting adapter can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the screwdriver with cutting adapter and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.

Product Description and Specifications

Intended Use

In conjunction with the IXO cordless screwdriver, the cutting adapter is intended for cutting flexible, soft materials up to a thickness of 6 mm, such as carpet, PVC, cardboard, types of leather, fabrics and similar materials. The cutting adapter is only intended for private household use and must be used only in conjunction with the following power tools:

- Bosch IXO (3 603 J81 0.., 3 603 J59 3.., 3 603 JA8 0..)

Product Features

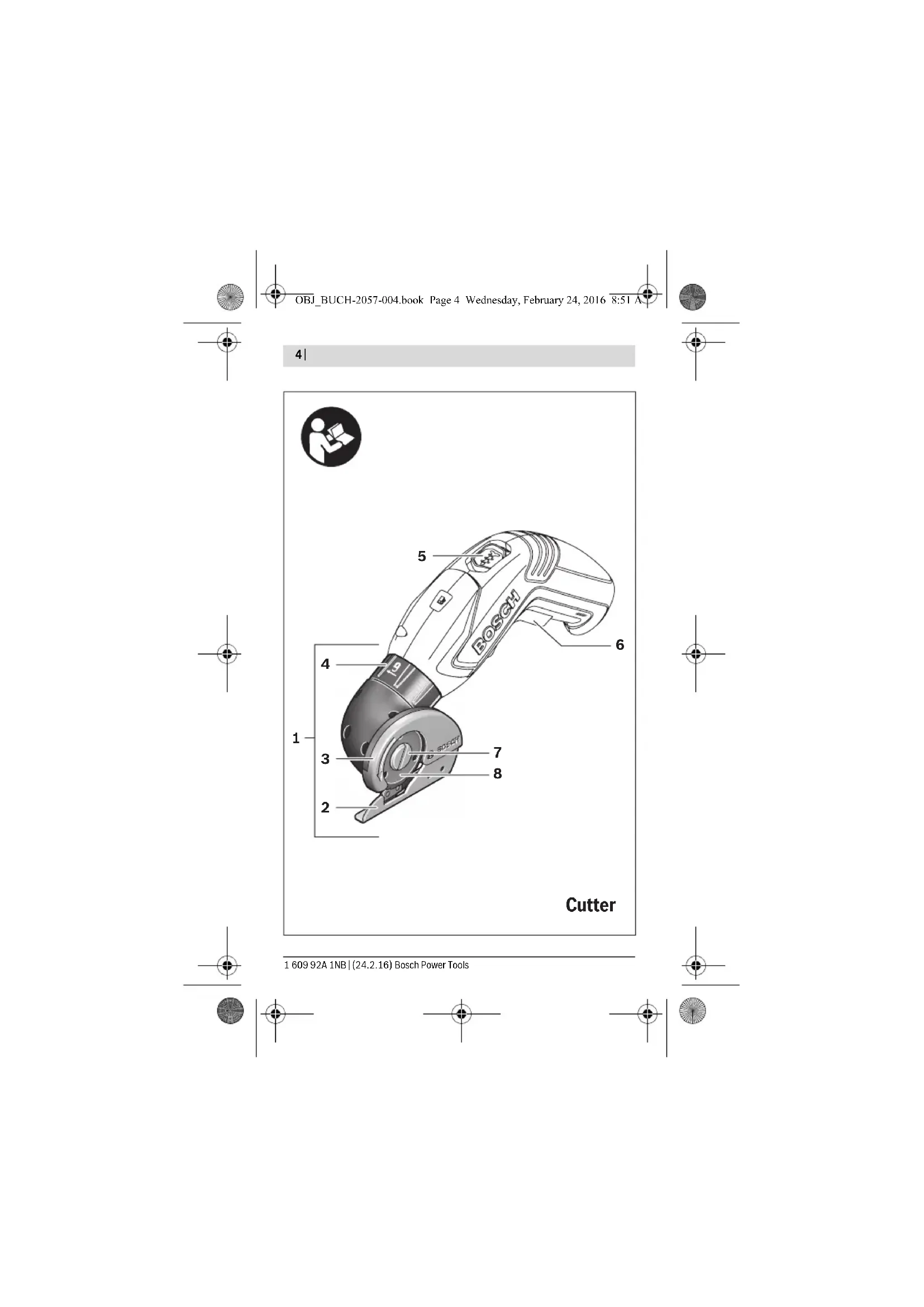

The numbering of the product features refers to the illustrations on the graphics pages.

1 Cutting adapter

2 Guide edge

3 Blade guard

4 Release ring

5 Rotational direction switch

6 On/Off switch

7 Blade screw

8 Blade

9 Rubber cap

Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 18 Wednesday, March 2, 2016 3:35 PM

18 | English

Technical Data

Cutting adapter Cutter

Article number	1 600 A00 1YN
Weight according to EPTA-Procedure 01:2014 kg 0.15

Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" complies with all applicable provisions of the directive 2006/42/EC including its amendments.

Technical file (2006/42/EC) at: Robert Bosch Power Tools GmbH, PT/ETM9, 70538 Stuttgart, GERMANY

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Assembly

Before any work on the screwdriver with cutting adapter (e.g. maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the middle position. There is danger of injury when unintentionally actuating the On/Off switch.

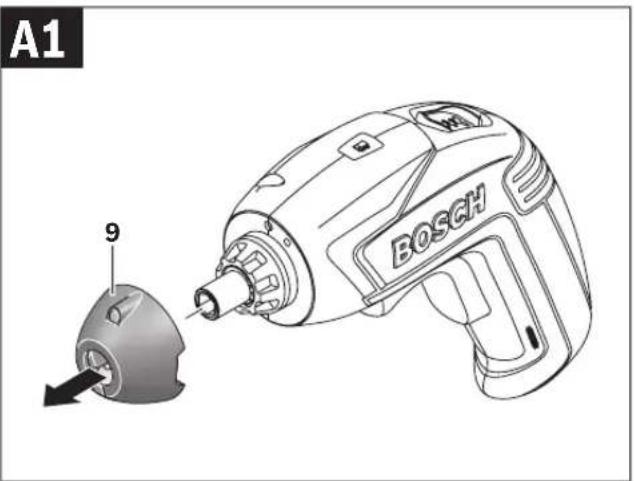

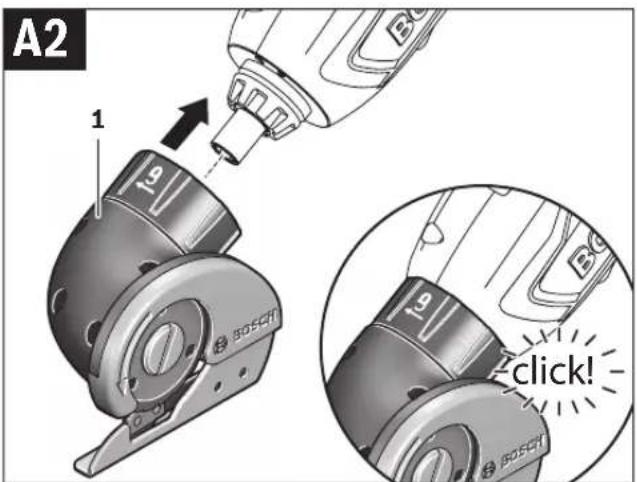

Attaching the Cutting Adapter (see figures A1 - A2)

• You have to pull the rubber cap 9 of the screwdriver off toward the front before mounting the cutting adapter 1.
• Then attach the cutting adapter to the screwdriver. The cutting adapter must audibly engage.

Note: You can attach the cutting adapter in 8 different positions. This enables you to achieve the optimum work position, e.g. for cutting a floor covering along a wall.

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 19 Wednesday, March 2, 2016 3:35 PM

English | 19

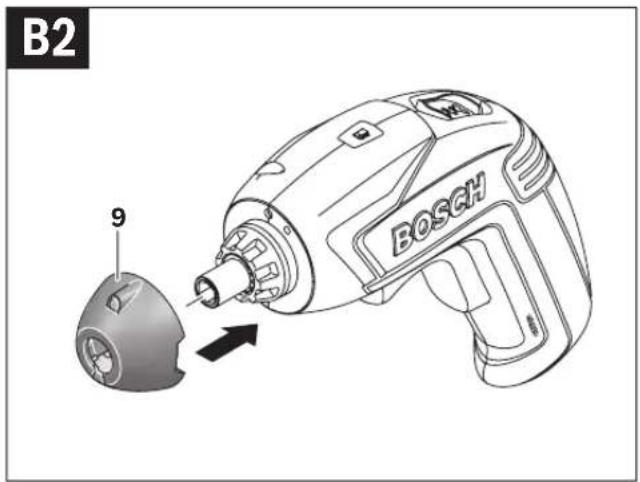

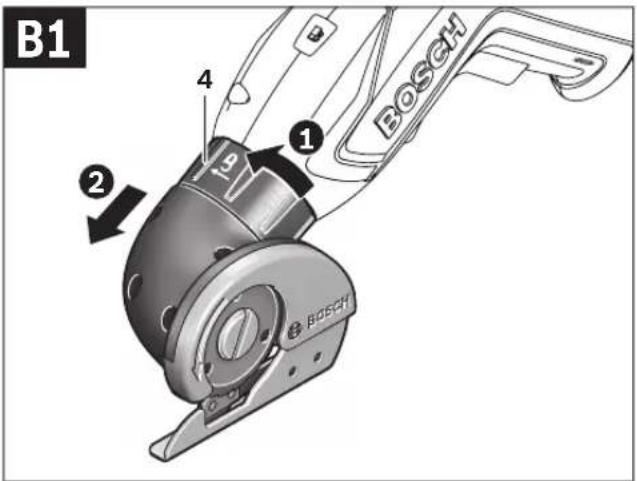

Dismounting (see figures B1-B2)

• Turn the release ring 4 in rotation direction ① and pull the cutting adapter off toward the front (②).
• Afterwards, mount the rubber cap 9 onto the screwdriver again.

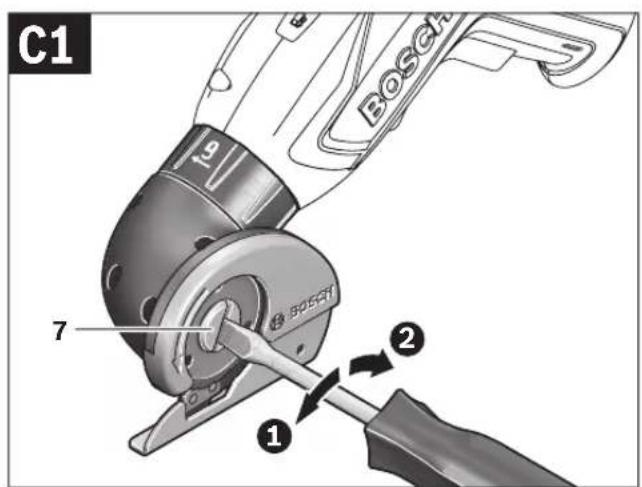

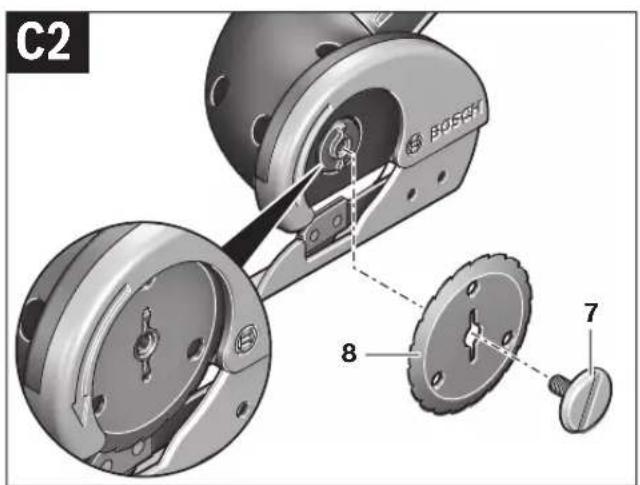

Changing the Blade (see figures C1-C2)

Note: Replace the blade only when the cutting adapter is mounted on the screwdriver. This ensures that the tool spindle is locked and the blade screw can be loosened.

• Set the rotational direction switch 5 to the middle position.
• Unscrew the blade screw 7 in rotation direction ①.
• Lightly lift the blade 8 and pull it down and out.
• Attach the new blade onto the tool holder ensuring that the ground edge of the blade faces you. Pay attention that the blade engages onto the tool holder.
• Retighten the blade screw 7 in rotation direction ②.

Operation

Starting Operation

To save energy, only switch the power tool on when using it.

Reversing the rotational direction

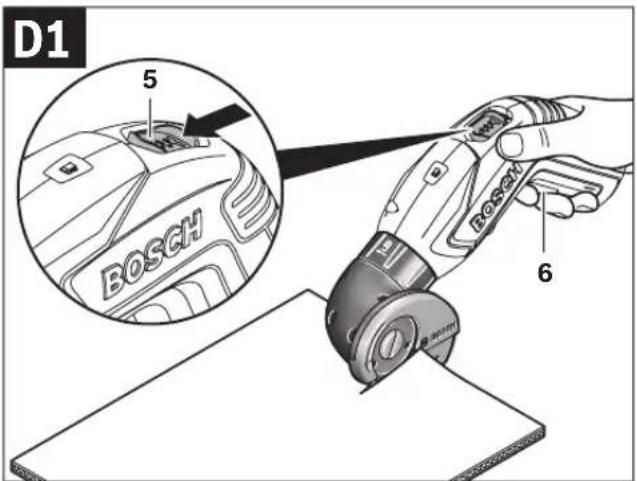

IXO (3 603 JA8 0..) (see figure D1)

- To set right rotation on the screwdriver, slide the rotational direction switch 5 all the way forward.

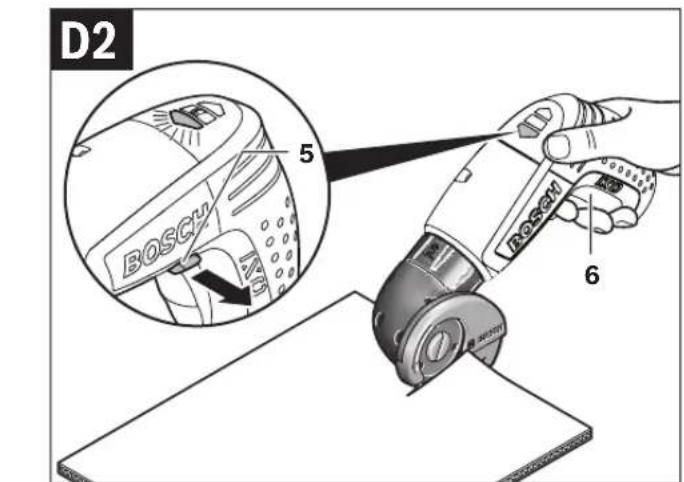

IXO (3 603 J81 0., 3 603 J59 3.) (see figure D2)

- To set right rotation on the screwdriver, press the rotational direction switch all the way in from the right.

Switching On and Off

• To start the cutting adapter, press the On/Off switch 6 of the screw-driver and keep it pressed.
• To switch off the cutting adapter, let go of the On/Off switch 6 of the screwdriver.

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 20 Wednesday, March 2, 2016 3:35 PM

20 | English

Working Advice

▶ Do not strain the machine so heavily that it comes to a standstill.

The cutting performance of the machine depends on the materials to be cut and on the charging condition of the battery.

Depending on the charge condition of the battery, excessive feed considerably reduces the performance capability.

Always keep the blade free and clean of material remainders.

The guide edge 2 may not become wedged during cutting and must be aligned parallel to the cutting surface.

Improper use of the blade will cause it to become blunt.

Thin materials, such as fabrics, can be pulled into the machine during cutting and become wedged. Therefore, do not apply too much pressure with such materials in order to achieve good cutting results. During cutting, apply sufficient tension while holding fabrics and cut slowly.

Optimum cutting results are best determined through practical testing.

Maintenance and Service

Maintenance and Cleaning

▶ Keep the cutting adapter clean to ensure good, safe operation.

▶ Remove the cutting adapter from the screwdriver to clean it. There is danger of injury when unintentionally actuating the On/Off switch.

▶ Be careful when cleaning the blade and counterblade. The blades have sharp edges which you can injure yourself on.

While cutting, material residue can accumulate under the blade guard.

- Clean the blade guard 3 regularly with a brush.

After-sales Service and Application Service

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the cutting adapter.

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 21 Wednesday, March 2, 2016 3:35 PM

English | 21

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collec-

tion of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 22 Wednesday, March 2, 2016 3:35 PM

22 | English

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

The cutting adapter, accessories and packaging should be sorted for environmentally friendly recycling.

Subject to change without notice.

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 23 Wednesday, March 2, 2016 3:35 PM

Français | 23

Français

OBJ_BUCH-2057-004.book Page 24 Wednesday, March 2, 2016 3:35 PM

24 | Français

OBJ_BUCH-2057-004.book Page 25 Wednesday, March 2, 2016 3:35 PM

Français | 25

Executive Vice President Head of Product Certification

Engineering PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

OBJ_BUCH-2057-004.book Page 26 Wednesday, March 2, 2016 3:35 PM

26 | Français

OBJ_BUCH-2057-004.book Page 27 Wednesday, March 2, 2016 3:35 PM

Français | 27

OBJ_BUCH-2057-004.book Page 28 Wednesday, March 2, 2016 3:35 PM

28 | Français

OBJ_BUCH-2057-004.book Page 29 Wednesday, March 2, 2016 3:35 PM

Français | 29

Robert Bosch (France) S.A.S.

OBJ_BUCH-2057-004.book Page 30 Wednesday, March 2, 2016 3:35 PM

30 | Español

Español

OBJ_BUCH-2057-004.book Page 31 Wednesday, March 2, 2016 3:35 PM

Español | 31

OBJ_BUCH-2057-004.book Page 32 Wednesday, March 2, 2016 3:35 PM

32 | Español

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaje

OBJ_BUCH-2057-004.book Page 33 Wednesday, March 2, 2016 3:35 PM

Español | 33

OBJ_BUCH-2057-004.book Page 34 Wednesday, March 2, 2016 3:35 PM

34 | Español

OBJ_BUCH-2057-004.book Page 35 Wednesday, March 2, 2016 3:35 PM

Español | 35

OBJ_BUCH-2057-004.book Page 36 Wednesday, March 2, 2016 3:35 PM

36 | Español

Venezuela

Robert Bosch S.A.

Final Calle Vargas. Edf. Centro Berimer P.B.

Boleita Norte

Caracas 107

Tel.: [phone]

México

Robert Bosch S. de R.L. de C.V.

Calle Robert Bosch No. 405 C.P. 50071

OBJ_BUCH-2057-004.book Page 37 Wednesday, March 2, 2016 3:35 PM

Português | 37

Português

OBJ_BUCH-2057-004.book Page 38 Wednesday, March 2, 2016 3:35 PM

38 | Português

OBJ_BUCH-2057-004.book Page 39 Wednesday, March 2, 2016 3:35 PM

Português | 39

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 40 Wednesday, March 2, 2016 3:35 PM

40 | Português

Montagem

OBJ_BUCH-2057-004.book Page 41 Wednesday, March 2, 2016 3:35 PM

Português | 41

Funcionamento

OBJ_BUCH-2057-004.book Page 42 Wednesday, March 2, 2016 3:35 PM

42 | Português

OBJ_BUCH-2057-004.book Page 43 Wednesday, March 2, 2016 3:35 PM

Italiano | 43

Brasil

Robert Bosch Ltda.

Caixa postal 1195

13065-900 Campinas

Tel.: [phone]

OBJ_BUCH-2057-004.book Page 44 Wednesday, March 2, 2016 3:35 PM

44 | Italiano

OBJ_DOKU-38108-004.fm Page 45 Wednesday, March 2, 2016 5:10 PM

Italiano | 45

Componenti illustrati

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_DOKU-38108-004.fm Page 46 Wednesday, March 2, 2016 5:10 PM

46 | Italiano

Montaggio

OBJ_BUCH-2057-004.book Page 47 Wednesday, March 2, 2016 3:35 PM

Italiano | 47

Uso

Messa in funzione

OBJ_BUCH-2057-004.book Page 48 Wednesday, March 2, 2016 3:35 PM

48 | Italiano

OBJ_BUCH-2057-004.book Page 49 Wednesday, March 2, 2016 3:35 PM

Nederlands | 49

Svizzera

OBJ_BUCH-2057-004.book Page 50 Wednesday, March 2, 2016 3:35 PM

50 | Nederlands

OBJ_BUCH-2057-004.book Page 51 Wednesday, March 2, 2016 3:35 PM

Nederlands | 51

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

jaw Sea i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 52 Wednesday, March 2, 2016 3:35 PM

52 | Nederlands

Montage

OBJ_BUCH-2057-004.book Page 53 Wednesday, March 2, 2016 3:35 PM

Nederlands | 53

Gebruik

Ingebruikneming

OBJ_BUCH-2057-004.book Page 54 Wednesday, March 2, 2016 3:35 PM

54 | Nederlands

OBJ_BUCH-2057-004.book Page 55 Wednesday, March 2, 2016 3:35 PM

Dansk|55

Dansk

OBJ_BUCH-2057-004.book Page 56 Wednesday, March 2, 2016 3:35 PM

56 | Dansk

OBJ_BUCH-2057-004.book Page 57 Wednesday, March 2, 2016 3:35 PM

Dansk | 57

Tekniske data

Skæreforsats Cutter

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montering

OBJ_BUCH-2057-004.book Page 58 Wednesday, March 2, 2016 3:35 PM

58 | Dansk

Demontering (se Fig. B1-B2)

OBJ_BUCH-2057-004.book Page 59 Wednesday, March 2, 2016 3:35 PM

Dansk|59

Arbejdsvejledning

OBJ_BUCH-2057-004.book Page 60 Wednesday, March 2, 2016 3:35 PM

60 | Svenska

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

OBJ_BUCH-2057-004.book Page 61 Wednesday, March 2, 2016 3:35 PM

Svenska|61

OBJ_BUCH-2057-004.book Page 62 Wednesday, March 2, 2016 3:35 PM

62 | Svenska

Illustrerade komponenter

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w-

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 63 Wednesday, March 2, 2016 3:35 PM

Svenska|63

Montage

OBJ_BUCH-2057-004.book Page 64 Wednesday, March 2, 2016 3:35 PM

64 | Svenska

Drift

Driftstart

OBJ_BUCH-2057-004.book Page 65 Wednesday, March 2, 2016 3:35 PM

Svenska|65

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

OBJ_BUCH-2057-004.book Page 66 Wednesday, March 2, 2016 3:35 PM

66 | Norsk

Norsk

OBJ_BUCH-2057-004.book Page 67 Wednesday, March 2, 2016 3:35 PM

Norsk|67

OBJ_BUCH-2057-004.book Page 68 Wednesday, March 2, 2016 3:35 PM

68 | Norsk

Tekniske data

Skjæreforsats Cutter
Produktnummer	1 600 A00 1YN
Vekt tilsvarende EPTA-Procedure 01:2014	kg 0,15

Samsvarserklæring

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montering

OBJ_BUCH-2057-004.book Page 69 Wednesday, March 2, 2016 3:35 PM

Norsk|69

Demontering (se bildene B1–B2)

OBJ_BUCH-2057-004.book Page 70 Wednesday, March 2, 2016 3:35 PM

70 | Norsk

Arbeidshenvisninger

OBJ_BUCH-2057-004.book Page 71 Wednesday, March 2, 2016 3:35 PM

Suomi|71

Norsk

Robert Bosch AS

Postboks 350

1402 Ski

Tel.: [phone]

Faks: 64 87 89 55

Deponering

OBJ_BUCH-2057-004.book Page 72 Wednesday, March 2, 2016 3:35 PM

72|Suomi

OBJ_BUCH-2057-004.book Page 73 Wednesday, March 2, 2016 3:35 PM

Suomi|73

Kuvassa olevat osat

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Jwir Seo i.V. H:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 74 Wednesday, March 2, 2016 3:35 PM

74|Suomi

Asennus

OBJ_BUCH-2057-004.book Page 75 Wednesday, March 2, 2016 3:35 PM

Suomi|75

Käyttö

Käyttöönotto

OBJ_BUCH-2057-004.book Page 76 Wednesday, March 2, 2016 3:35 PM

76|Suomi

Hoito ja huolto

Huolto ja puhdistus

OBJ_BUCH-2057-004.book Page 77 Wednesday, March 2, 2016 3:35 PM

Ελληνικά | 77

Ελληνικά

OBJ_BUCH-2057-004.book Page 78 Wednesday, March 2, 2016 3:35 PM

78 | Ελληνικά

OBJ_BUCH-2057-004.book Page 79 Wednesday, March 2, 2016 3:35 PM

Ελληνικά | 79

8 Μαχαίρι κοπής

9 Λαστιχένιο πώμα

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Συναρμολόγηση

OBJ_BUCH-2057-004.book Page 80 Wednesday, March 2, 2016 3:35 PM

80 | Ελληνικά

OBJ_BUCH-2057-004.book Page 81 Wednesday, March 2, 2016 3:35 PM

Ελληνικά | 81

OBJ_BUCH-2057-004.book Page 82 Wednesday, March 2, 2016 3:35 PM

82 | Ελληνικά

OBJ_BUCH-2057-004.book Page 83 Wednesday, March 2, 2016 3:35 PM

Türkçe | 83

Türkçe

Güvenlik Talimatı

OBJ_BUCH-2057-004.book Page 84 Wednesday, March 2, 2016 3:35 PM

84 | Türkçe

OBJ_BUCH-2057-004.book Page 85 Wednesday, March 2, 2016 3:35 PM

Türkçe | 85

Teknik veriler

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaj

OBJ_BUCH-2057-004.book Page 86 Wednesday, March 2, 2016 3:35 PM

86 | Türkçe

OBJ_BUCH-2057-004.book Page 87 Wednesday, March 2, 2016 3:35 PM

Türkçe | 87

OBJ_BUCH-2057-004.book Page 88 Wednesday, March 2, 2016 3:35 PM

88 | Türkçe

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

OBJ_BUCH-2057-004.book Page 89 Wednesday, March 2, 2016 3:35 PM

Türkçe | 89

Bulut Elektrik

OBJ_BUCH-2057-004.book Page 90 Wednesday, March 2, 2016 3:35 PM

90 | Polski

Ankaralı Elektrik

OBJ_BUCH-2057-004.book Page 92 Wednesday, March 2, 2016 3:35 PM

92 | Polski

OBJ_BUCH-2057-004.book Page 93 Wednesday, March 2, 2016 3:35 PM

Polski|93

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaż

OBJ_BUCH-2057-004.book Page 94 Wednesday, March 2, 2016 3:35 PM

94|Polski

OBJ_BUCH-2057-004.book Page 95 Wednesday, March 2, 2016 3:35 PM

Polski|95

OBJ_BUCH-2057-004.book Page 96 Wednesday, March 2, 2016 3:35 PM

96 | Polski

Robert Bosch Sp. z o.o.

OBJ_BUCH-2057-004.book Page 97 Wednesday, March 2, 2016 3:35 PM

Česky|97

Česky

OBJ_BUCH-2057-004.book Page 98 Wednesday, March 2, 2016 3:35 PM

98 | Česky

OBJ_BUCH-2057-004.book Page 99 Wednesday, March 2, 2016 3:35 PM

Česky|99

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

jawr Sea i.v. h.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž

OBJ_BUCH-2057-004.book Page 100 Wednesday, March 2, 2016 3:35 PM

100 | Česky

OBJ_BUCH-2057-004.book Page 101 Wednesday, March 2, 2016 3:35 PM

Česky|101

IXO (3 603 J81 0.., 3 603 J59 3..) (viz obr. D2)

OBJ_BUCH-2057-004.book Page 102 Wednesday, March 2, 2016 3:35 PM

102 | Česky

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

OBJ_BUCH-2057-004.book Page 103 Wednesday, March 2, 2016

Slovensky | 103

Slovensky

Bezpečnostné pokyny

OBJ_BUCH-2057-004.book Page 104 Wednesday, March 2, 2016 3:35 PM

104 | Slovensky

OBJ_BUCH-2057-004.book Page 105 Wednesday, March 2, 2016 3:35 PN

Slovensky | 105

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

jwr Sea i.v. h.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž

OBJ_BUCH-2057-004.book Page 106 Wednesday, March 2, 2016 3:35 PM

106 | Slovensky

OBJ_BUCH-2057-004.book Page 107 Wednesday, March 2, 2016

Slovensky | 107

OBJ_BUCH-2057-004.book Page 108 Wednesday, March 2, 2016 3:35 PM

108 | Slovensky

OBJ_BUCH-2057-004.book Page 109 Wednesday, March 2, 2016 3:35 PN

Magyar | 109

Magyar

OBJ_BUCH-2057-004.book Page 110 Wednesday, March 2, 2016 3:35 PM

110 | Magyar

OBJ_BUCH-2057-004.book Page 111 Wednesday, March 2, 2016 3:35 PM

Magyar | 111

8 Vágókés

9 Gumisapka

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

jawr Sea i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Összeszerelés

OBJ_BUCH-2057-004.book Page 112 Wednesday, March 2, 2016 3:35 PM

112 | Magyar

OBJ_BUCH-2057-004.book Page 113 Wednesday, March 2, 2016 3:35 PM

Magyar | 113

IXO (3 603 J81 0.., 3 603 J59 3..) (lásd a „D2” ábrát)

OBJ_BUCH-2057-004.book Page 114 Wednesday, March 2, 2016 3:35 PM

114 | Magyar

OBJ_BUCH-2057-004.book Page 115 Wednesday, March 2, 2016

Русский | 115

Русский

OBJ_BUCH-2057-004.book Page 116 Wednesday, March 2, 2016 3:35 PM

116 | Русский

OBJ_BUCH-2057-004.book Page 117 Wednesday, March 2, 2016 3:35 PM

Русский|117

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

if we see i.v. h.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 118 Wednesday, March 2, 2016 3:35 PM

118 | Русский

Сборка

OBJ_BUCH-2057-004.book Page 119 Wednesday, March 2, 2016 3:35 PM

Русский|119

OBJ_BUCH-2057-004.book Page 120 Wednesday, March 2, 2016 3:35 PM

120 | Русский

OBJ_BUCH-2057-004.book Page 121 Wednesday, March 2, 2016 3:35

Русский | 121

Россия

OBJ_BUCH-2057-004.book Page 122 Wednesday, March 2, 2016 3:35 PM

122 | Русский

Утилизация

OBJ_BUCH-2057-004.book Page 123 Wednesday, March 2, 2016 3:35 PN

Українська | 123

Українська

OBJ_BUCH-2057-004.book Page 124 Wednesday, March 2, 2016 3:35 PM

124 | Українська

OBJ_BUCH-2057-004.book Page 125 Wednesday, March 2, 2016 3:35

Українська | 125

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Aur Seo i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Монтаж

OBJ_BUCH-2057-004.book Page 126 Wednesday, March 2, 2016 3:35 PM

126 | Українська

OBJ_BUCH-2057-004.book Page 127 Wednesday, March 2, 2016

Українська | 127

OBJ_BUCH-2057-004.book Page 128 Wednesday, March 2, 2016 3:35 PM

128 | Українська

OBJ_BUCH-2057-004.book Page 129 Wednesday, March 2, 2016

Українська | 129

OBJ_BUCH-2057-004.book Page 130 Wednesday, March 2, 2016 3:35 PM

130 | Казакша

Қазақша

OBJ_BUCH-2057-004.book Page 131 Wednesday, March 2, 2016 3:35 PM

Казакша | 131

OBJ_BUCH-2057-004.book Page 132 Wednesday, March 2, 2016 3:35 PM

132 | Казакша

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Жинау

OBJ_BUCH-2057-004.book Page 133 Wednesday, March 2, 2016 3:35

Казакша | 133

OBJ_BUCH-2057-004.book Page 134 Wednesday, March 2, 2016 3:35 PM

134 | Казакша

Косу/өшіру

OBJ_BUCH-2057-004.book Page 135 Wednesday, March 2, 2016 3:35 PM

Казакша | 135

OBJ_BUCH-2057-004.book Page 136 Wednesday, March 2, 2016 3:35 PM

136 | Română

Română

OBJ_BUCH-2057-004.book Page 137 Wednesday, March 2, 2016

Română | 137

OBJ_BUCH-2057-004.book Page 138 Wednesday, March 2, 2016 3:35 PM

138 | Română

8 Cuțit de tăiere

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

i.v. h·w—

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montare

OBJ_BUCH-2057-004.book Page 139 Wednesday, March 2, 2016

Română | 139

OBJ_BUCH-2057-004.book Page 140 Wednesday, March 2, 2016 3:35 PM

140 | Română

OBJ_BUCH-2057-004.book Page 141 Wednesday, March 2, 2016

Română | 141

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

OBJ_BUCH-2057-004.book Page 142 Wednesday, March 2, 2016 3:35 PM

142 | Български

Български

OBJ_BUCH-2057-004.book Page 143 Wednesday, March 2, 2016

Български|143

OBJ_BUCH-2057-004.book Page 144 Wednesday, March 2, 2016 3:35 PM

144 | Български

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Монтиране

OBJ_BUCH-2057-004.book Page 145 Wednesday, March 2, 2016 3:35 PN

Български | 145

OBJ_BUCH-2057-004.book Page 146 Wednesday, March 2, 2016 3:35 PM

146 | Български

OBJ_BUCH-2057-004.book Page 147 Wednesday, March 2, 2016 3:35 PM

Български | 147

Поддържане и сервис

OBJ_BUCH-2057-004.book Page 148 Wednesday, March 2, 2016 3:35 PM

148 | Македонски

Бракуване

OBJ_BUCH-2057-004.book Page 149 Wednesday, March 2, 2016

Македонски|149

OBJ_BUCH-2057-004.book Page 150 Wednesday, March 2, 2016 3:35 PM

150 | Македонски

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

1 609 92A 1NB | (2.3.16) Bosch Power Tools

OBJ_BUCH-2057-004.book Page 151 Wednesday, March 2, 2016 3:35

Македонски|151

Монтажа

OBJ_BUCH-2057-004.book Page 152 Wednesday, March 2, 2016 3:35 PM

152 | Македонски

Употреба

Ставање во употреба

OBJ_BUCH-2057-004.book Page 153 Wednesday, March 2, 2016 3:35 PM

Македонски|153

Одржување и сервис

Одржување и чистење

OBJ_BUCH-2057-004.book Page 154 Wednesday, March 2, 2016 3:35 PM

154 | Srpski

Srpski

Uputstva o sigurnosti

OBJ_BUCH-2057-004.book Page 155 Wednesday, March 2, 2016

Srpski | 155

Ovaj zavrtač sa nastavkom za sečenje nije predviđen za to da ga koriste deca i lica sa ograničenim psihičkim, senzoričkim ili duševnim sposobnostima ili nedostatkom iskustva i znanja. Ovaj zavrtač mogu da koriste deca od 8 godina i lica sa ograničenim psihičkim, senzoričkim ili duševnim sposobnostima ili lica sa nedostatkom iskustva i znanja, ukoliko ih nadzire lice koje je odgovorno za njihovu sigurnost ili ako ih ono uputi u siguran rad sa zavrtačem sa nastavkom za sečenje i ako razumeju s time povezane opasnosti. U suprotnom postoji opasnost od pogrešnog rukovanja i povreda.

OBJ_BUCH-2057-004.book Page 156 Wednesday, March 2, 2016 3:35 PM

156 | Srpski

Tehnički podaci

Nastavak za sečenje Cutter
Broj predmeta	1 600 A00 1YN
Težina prema EPTA-Procedure 01:2014	kg 0,15

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaža

▶ Pre svih radova na zavrtaču sa nastavkom za sečenje (npr. održavanje, zamena alata itd.), kao i prilikom transporta i čuvanja, sklopku za pravac obrtanja stavite u srednji položaj. Kod slučajnog aktiviranja prekidača za uključivanje/isključivanje postoji opasnost od povrede.

OBJ_BUCH-2057-004.book Page 157 Wednesday, March 2, 2016

Srpski | 157

OBJ_BUCH-2057-004.book Page 158 Wednesday, March 2, 2016 3:35 PM

158 | Srpski

Uputstva za rad

▶ Ne opterećujte električni alat toliko snažno, da se zaustavi.

Učinak sečenja električnog alata zavisi od materijala koji treba da se seče i stanja punjenja akumulatora.

Preterano pomeranje napred smanjuje zavisno od punjenja akumulatora u znatnoj meri učinak.

OBJ_BUCH-2057-004.book Page 159 Wednesday, March 2, 2016

Slovensko | 159

OBJ_BUCH-2057-004.book Page 160 Wednesday, March 2, 2016 3:35 PM

160 | Slovensko

Varnostna navodila za vijačnik z nastavkom za rezanje

OBJ_BUCH-2057-004.book Page 161 Wednesday, March 2, 2016

Slovensko | 161

OBJ_BUCH-2057-004.book Page 162 Wednesday, March 2, 2016 3:35 PM

162 | Slovensko

Tehnična dokumentacija (2006/42/ES) pri:

Robert Bosch Power Tools GmbH, PT/ETM9,

70538 Stuttgart, GERMANY

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h-w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaža

OBJ_BUCH-2057-004.book Page 163 Wednesday, March 2, 2016

Slovensko | 163

OBJ_BUCH-2057-004.book Page 164 Wednesday, March 2, 2016 3:35 PM

164 | Slovensko

OBJ_BUCH-2057-004.book Page 165 Wednesday, March 2, 2016

Hrvatski|165

Slovensko

Top Service d.o.o.

Celovška 172

1000 Ljubljana

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Odlaganje

OBJ_BUCH-2057-004.book Page 166 Wednesday, March 2, 2016 3:35 PM

166 | Hrvatski

▶ Štitnik koji pripada reznom nastavku ne smije biti neispravan. Štitnik mora osobu koja rukuje alatom zaštititi od slučajnog kontakta s nožem za rezanje.
▶ Ne obradujte materijal koji sadrži azbest. Azbest se smatra kancero-genim.
- Kod rezanja pazite na vodove pod naponom. Postoji opasnost od električnog udara.
Kod rezanja nikada ruke ne stavljajte ispred noža. Postoji opasnost od ozljeda.
- Izbjegavajte nehotično uključivanje. Nošenje električnog alata sa prstom na prekidaču za uključivanje/isključivanje može dovesti do nezgoda.
Djecac moraju biti pod nadzorom. Na taj način ćete osigurati da se djecac ne igraju s reznim nastavkom ili odvijačem s montiranim reznim nastavkom.
Ovaj odvijač s reznim nastavkom ne smiju koristiti djeca i osobe s ograničenim fizičkim, osjetilnim i mentalnim sposobnostima ili nedostatnim iskustvom i znanjem.
Ovaj odvijač s reznim nastavkom smiju koristiti djeca starija od 8 godina i osobe s ograničenim fizičkim, osjetilnim ili mentalnim sposobnostima ili osobe s nedostatnim iskustvom i znanjem ako ih nadzire osoba odgovorna za njihovu sigurnost i ako ih uputi u sigurno rukovanje odvijačem s reznim nastavkom te razumiju uz to vezane opasnosti. U suprotnom postoji opasnost od pogrešnog rukovanja i ozljeda.

Opis proizvoda i radova

OBJ_BUCH-2057-004.book Page 167 Wednesday, March 2, 2016 3:35 PM

Hrvatski | 167

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

first Sea i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 1NB | (2.3.16)

OBJ_BUCH-2057-004.book Page 168 Wednesday, March 2, 2016 3:35 PM

168 | Hrvatski

Montaža

OBJ_BUCH-2057-004.book Page 169 Wednesday, March 2, 2016

Hrvatski|169

Rad

Puštanje u rad

Za štednju električne energije, električni alat uključite samo ako ćete ga koristiti.

OBJ_BUCH-2057-004.book Page 170 Wednesday, March 2, 2016 3:35 PM

170 | Hrvatski

OBJ_BUCH-2057-004.book Page 171 Wednesday, March 2, 2016

Eesti|171

Eesti

Ohutusnõuded

Üldised ohutusjuhised

OBJ_BUCH-2057-004.book Page 172 Wednesday, March 2, 2016 3:35 PM

172 | Eesti

OBJ_BUCH-2057-004.book Page 173 Wednesday, March 2, 2016 3:35 PN

Eesti|173

Tehnilised andmed

Lõikepea Cutter

Tootenumber	1 600 A00 1YN
Kaal EPTA-Procedure 01:2014järgi kg 0,15

Vastavus normidele

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaaž

OBJ_BUCH-2057-004.book Page 174 Wednesday, March 2, 2016 3:35 PM

174 | Eesti

OBJ_BUCH-2057-004.book Page 175 Wednesday, March 2, 2016

Eesti|175

Tööjuhised

OBJ_BUCH-2057-004.book Page 176 Wednesday, March 2, 2016 3:35 PM

176 | Latviešu

Eesti Vabariik

Mercantile Group AS

OBJ_BUCH-2057-004.book Page 177 Wednesday, March 2, 2016 3:35 PN

Latviešu | 177

OBJ_BUCH-2057-004.book Page 178 Wednesday, March 2, 2016 3:35 PM

178 | Latviešu

OBJ_BUCH-2057-004.book Page 179 Wednesday, March 2, 2016

Latviešu | 179

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montāža

OBJ_BUCH-2057-004.book Page 180 Wednesday, March 2, 2016 3:35 PM

180 | Latviešu

OBJ_BUCH-2057-004.book Page 181 Wednesday, March 2, 2016

Latviešu | 181

OBJ_BUCH-2057-004.book Page 182 Wednesday, March 2, 2016 3:35 PM

182 | Lietuviškai

OBJ_BUCH-2057-004.book Page 183 Wednesday, March 2, 2016

Lietuviškai | 183

OBJ_BUCH-2057-004.book Page 184 Wednesday, March 2, 2016 3:35 PM

184 | Lietuviškai

OBJ_BUCH-2057-004.book Page 185 Wednesday, March 2, 2016

Lietuviškai | 185

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

i.v. h=w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montavimas

OBJ_BUCH-2057-004.book Page 186 Wednesday, March 2, 2016 3:35 PM

186 | Lietuviškai

OBJ_BUCH-2057-004.book Page 187 Wednesday, March 2, 2016 3:35

Lietuviškai | 187

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

JwR Beo i.v. h-wl

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

التركيب

ط عند إجراء
