AStx 6491 - Saw Fein - Free user manual and instructions

Technical Specifications	Fein AStx 6491 metal saw, 720 W power, no-load speed 0-3000 rpm, stroke length 20 mm.
Usage	Ideal for cutting metals, plastics, and composite materials, suitable for professional and intensive use.
Maintenance and Repair	Regularly check blades and wear parts, lubricate mechanisms according to manufacturer recommendations.
Safety	Use safety glasses and gloves, follow the safety instructions provided in the user manual.
General Information	Weight 3.5 kg, compact dimensions for easy transport, 2-year warranty.

Frequently Asked Questions - AStx 6491 Fein

How do I change the blade on the Fein AStx 6491 saw?

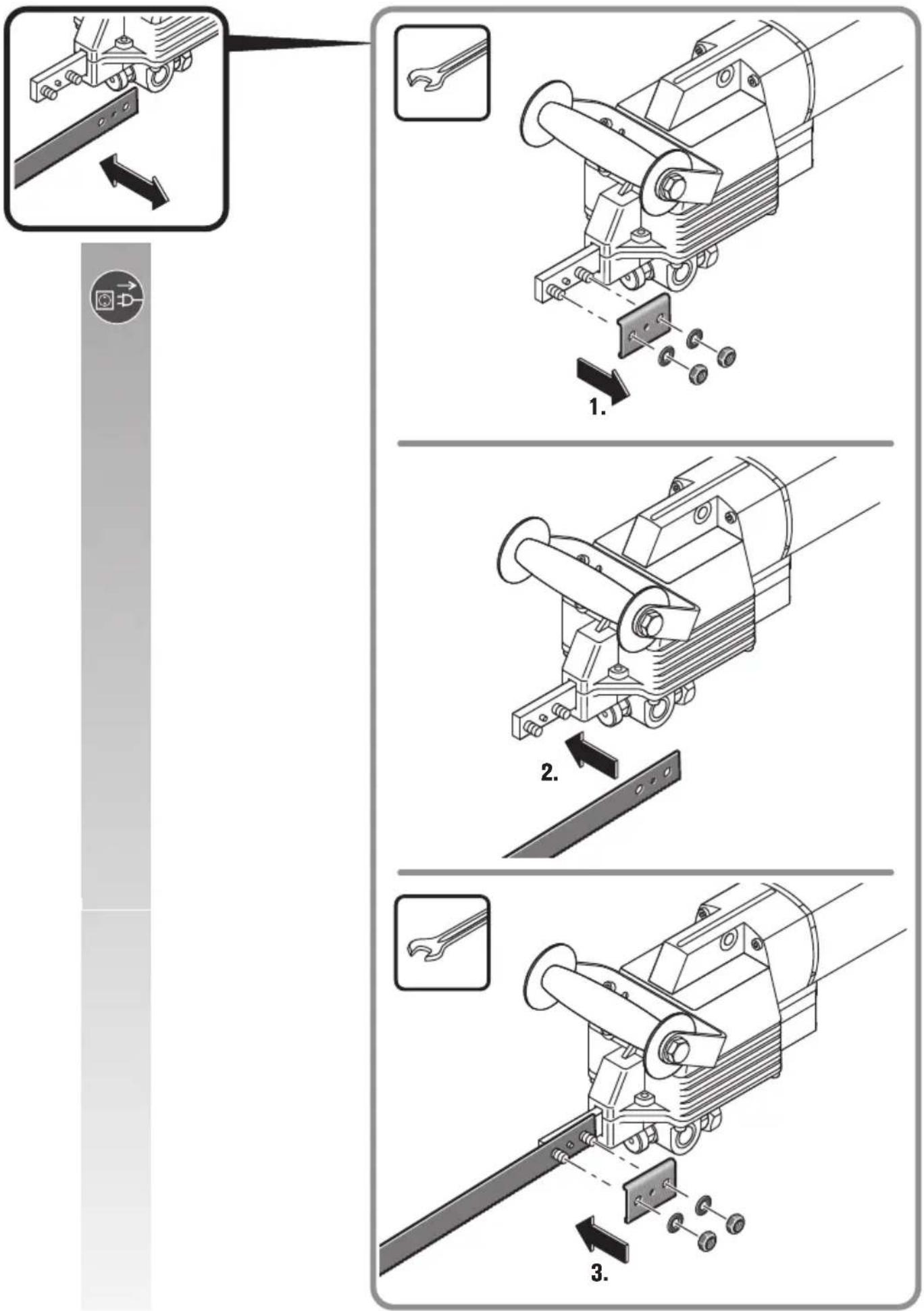

To change the blade, unplug the saw, then use the provided wrench to unscrew the blade fixing screw. Remove the old blade and insert the new one, making sure to align it properly. Tighten the fixing screw and plug the saw back in.

The saw won't start, what should I do?

Check that the saw is properly plugged in and that the outlet is working. Also ensure the safety button is in the on position. If the problem persists, there may be an internal malfunction.

How do I clean the Fein AStx 6491 saw after use?

Unplug the saw, then use a soft cloth to wipe the surface and remove debris. Do not use water or corrosive products. For moving parts, a little oil can be applied to maintain proper function.

What types of materials can I cut with the Fein AStx 6491 saw?

The Fein AStx 6491 saw is designed to cut various materials such as wood, plastic, and certain non-ferrous metals. Make sure to use the correct blade for the specific material you want to cut.

How do I adjust the cutting depth?

The cutting depth can be adjusted using the adjustment lever located on the side of the saw. Unlock the lever, set the desired depth, then tighten the lever to hold the position.

What should I do if the blade jams during cutting?

If the blade jams, immediately stop the saw and unplug it. Check if the material was mispositioned or if the blade is damaged. Remove the material and inspect the blade before restarting.

What is the warranty for the Fein AStx 6491 saw?

The Fein AStx 6491 saw is generally covered by a 2-year warranty. Please consult the user manual for specific information on warranty conditions.

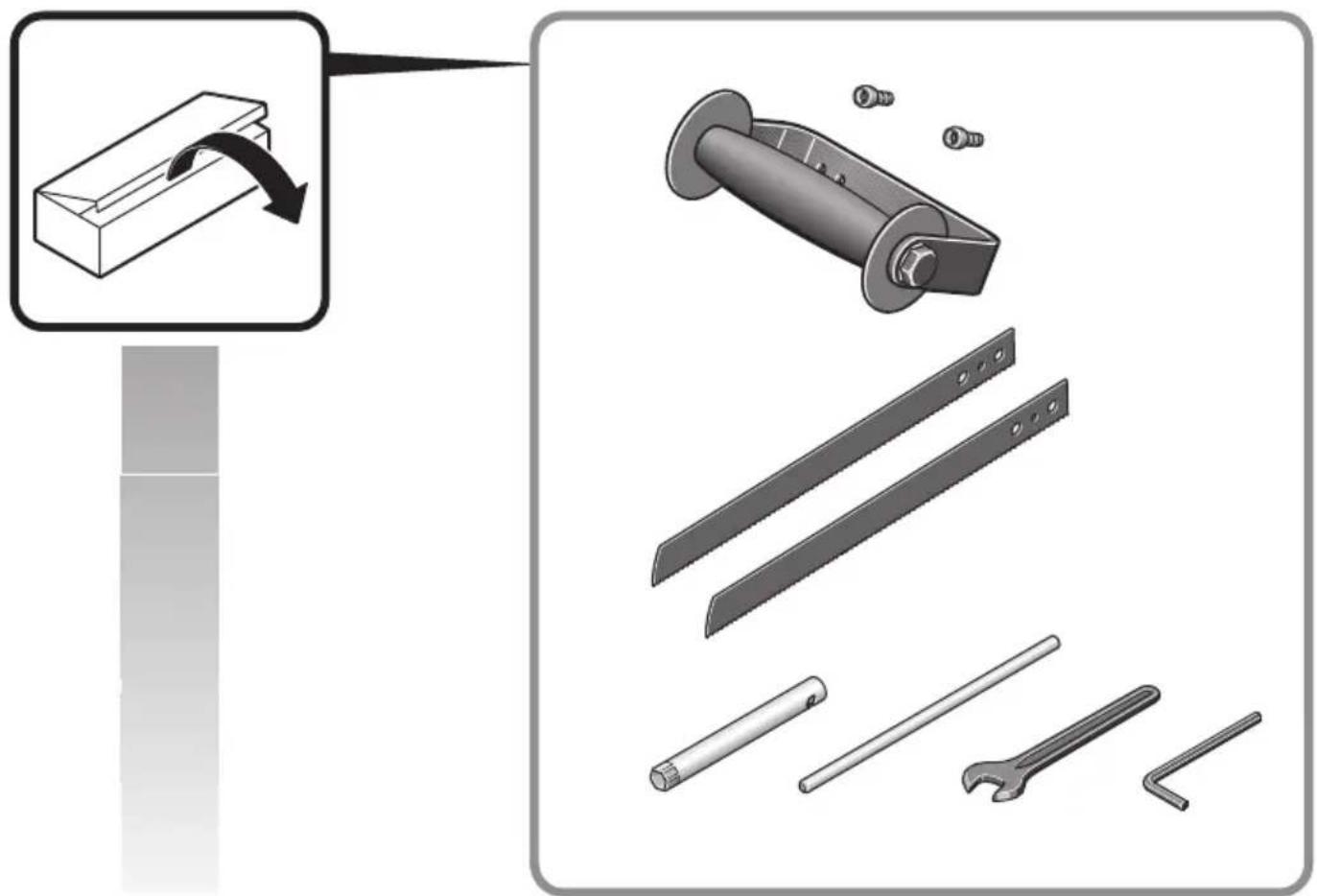

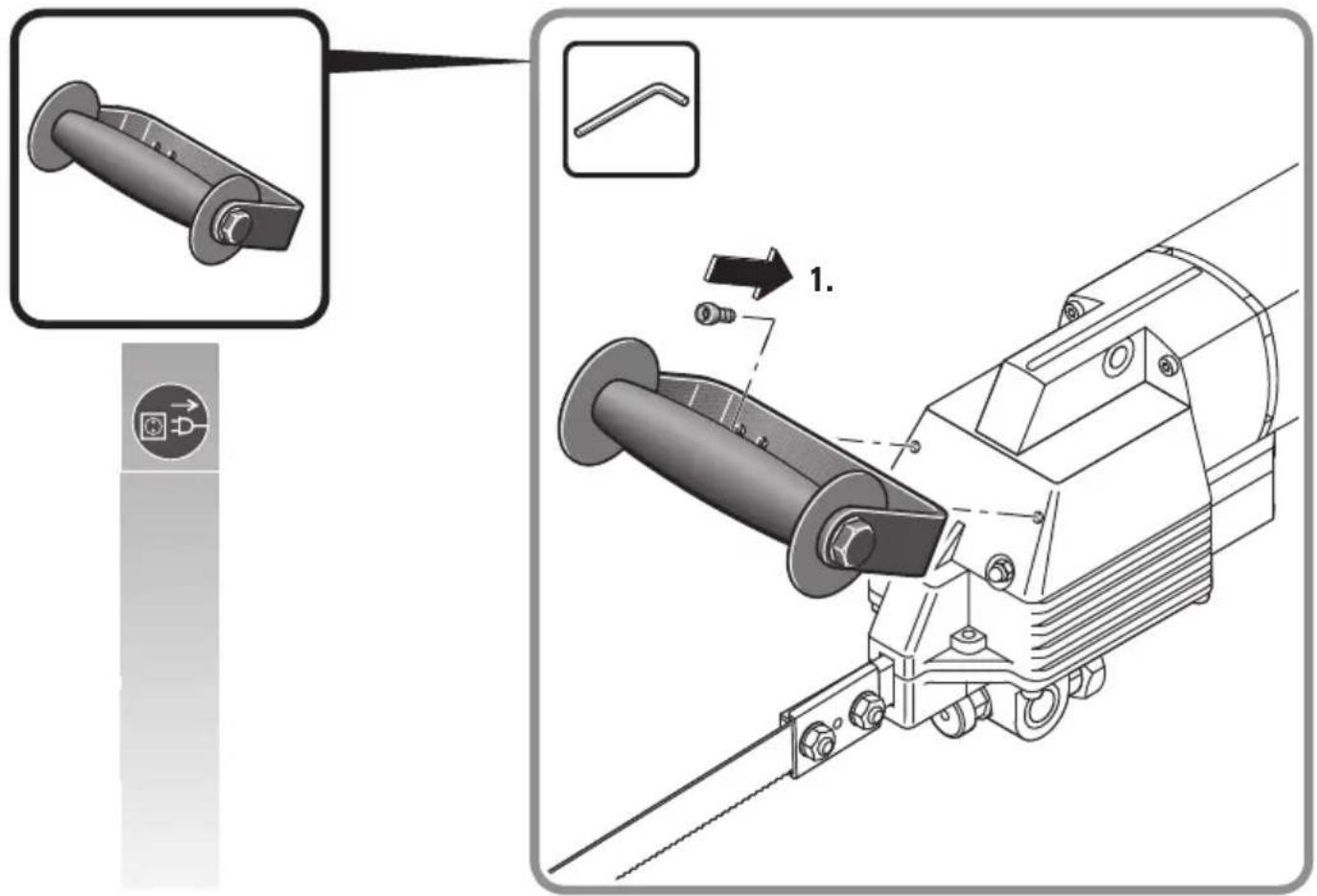

USER MANUAL AStx 6491 Fein

OBJ_BUCH-0000000078-004.book Page 4 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 4 Wednesday, February 26, 2020 1:28 PM5

OBJ_BUCH-0000000078-004.book Page 5 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 5 Wednesday, February 26, 2020 1:28 PM6

OBJ_BUCH-0000000078-004.book Page 6 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 6 Wednesday, February 26, 2020 1:28 PM7

OBJ_BUCH-0000000078-004.book Page 7 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 7 Wednesday, February 26, 2020 1:28 PM8

OBJ_BUCH-0000000078-004.book Page 8 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 8 Wednesday, February 26, 2020 1:28 PM9 OBJ_BUCH-0000000078-004.book Page 9 Wednesday, February 26, 2020 1:28 PM

OBJ_BUCH-0000000078-004.book Page 9 Wednesday, February 26, 2020 1:28 PM10

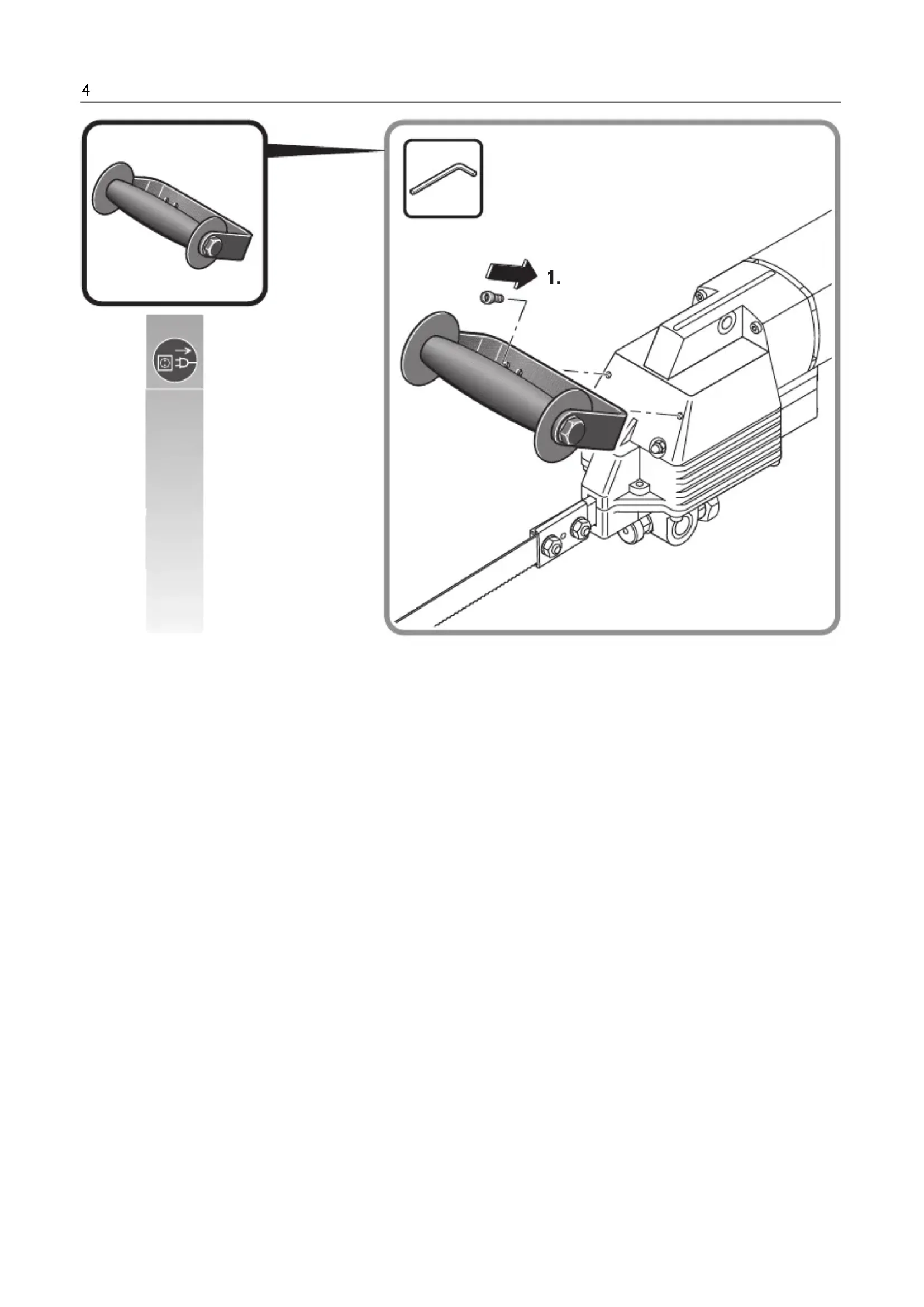

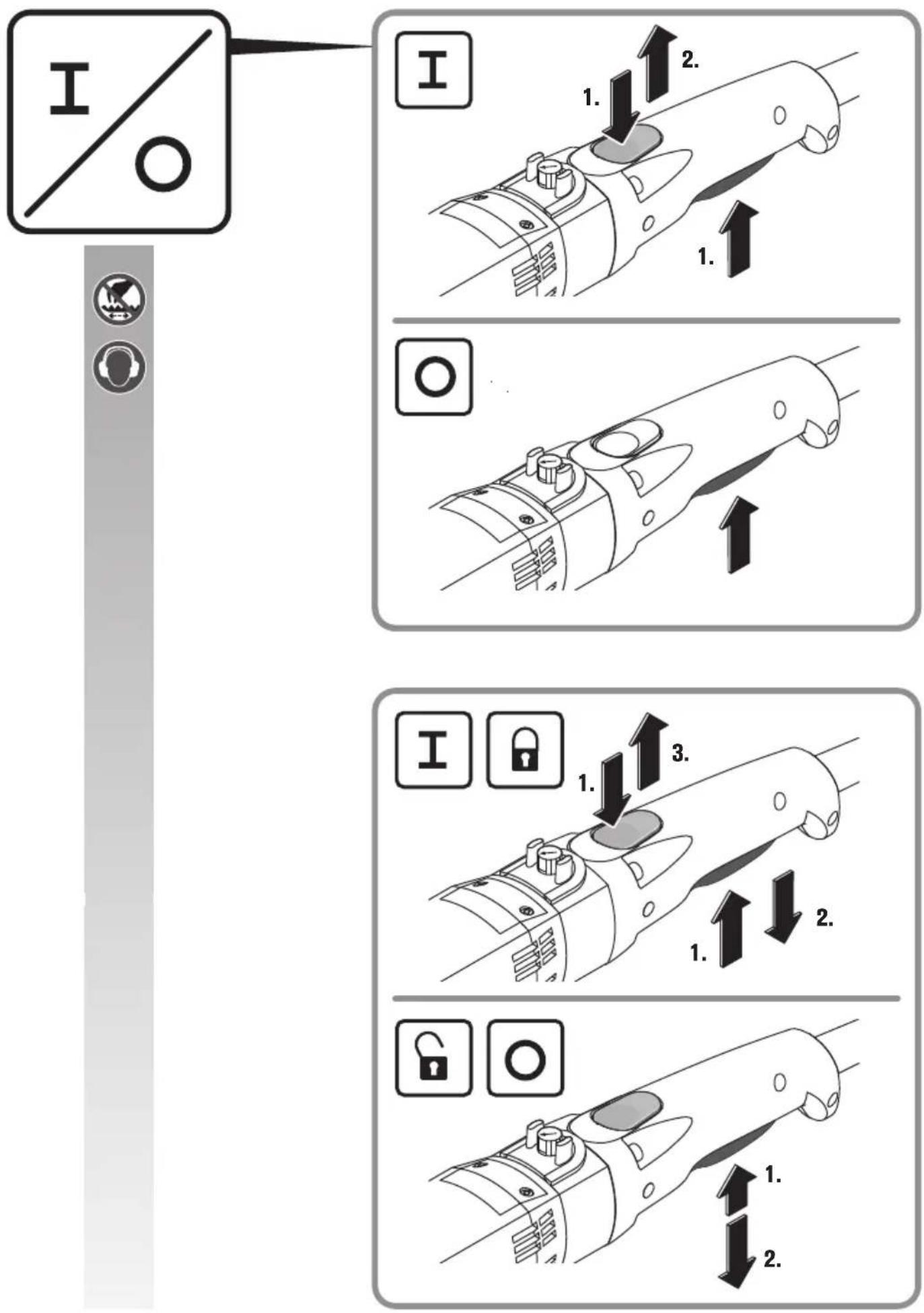

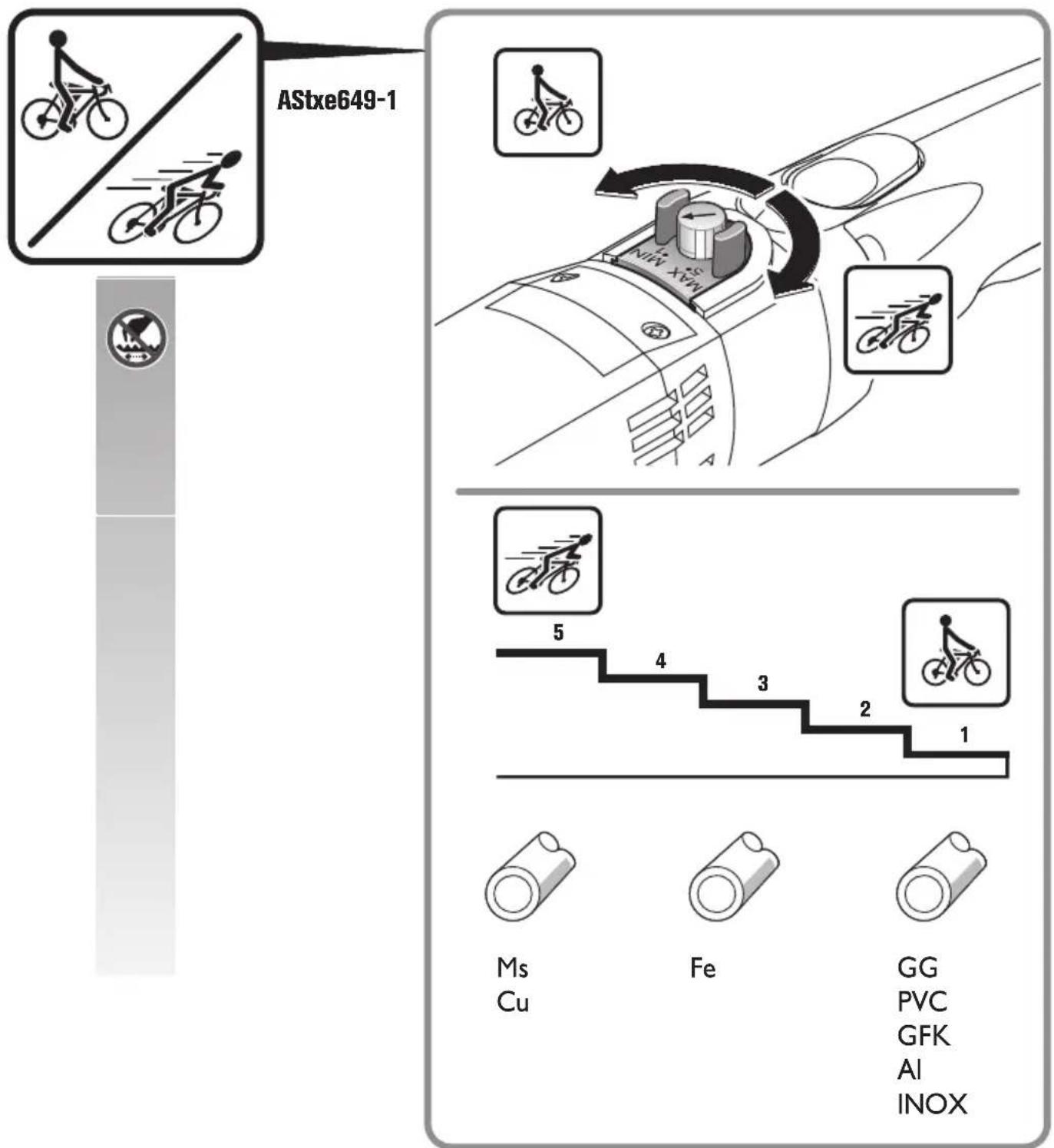

Original Instructions. Symbols, abbreviations and terms used. Symbol, character Explanation General prohibition sign. This action is prohibited. Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Observe the instructions in the text or graphic opposite! Observe the instructions in the text or graphic opposite! Do not touch the saw blade. Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally. Use eye protection during operation. Use ear protection during operation. Use protective gloves during operation. Additional information. Gripping surface Confirms the conformity of the power tool with the directives of the European Commu- nity. This sign indicates a possible dangerous situation that could cause severe or fatal injury. Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. Switching on Switching off Locked Not locked Product with double or reinforced insulation Steel Aluminium Plastic Low stroke rate High stroke rate (**) may contain numbers and letters (Ax – Zx) Marking for internal purposes WARNING OBJ_BUCH-0000000078-004.book Page 14 Wednesday, February 26, 2020 1:28 PM15

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: Hand-guided, reciprocating hacksaw for commercial use for cutting round and other shaped work pieces of metal, plastic and cement in weather-protected envi- ronments using the application tools and accessories recommended by FEIN. This power tool is also suitable for use with AC gener- ators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called dis- tortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide. Special safety instructions. Hold the power tool by the insulated gripping surfaces when performing operations where the application tool could contact hidden wiring or its own power supply cable. Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator. Fasten and secure the workpiece with screw clamps or other suitable clamps to a stable surface. When hold- ing the workpiece only by hand or against your body, it remains unstable, which can lead to loss of control. Keep your hands well away from the saw blade. Do not place your hands in front of or underneath the saw blade. Any contact with the saw blade can cause per- sonal injuries. The saw blade can become very hot dur- ing the sawing process. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stop- ping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or res- pirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high inten- sity noise may cause hearing loss. Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand. Character Unit of measurement, international Unit of measure- ment, national Explanation

, rpm, r/min rpm Stroke rate at no-load U V V Rated voltage f Hz Hz Frequency M... mm mm Size of metric thread Ø mm mm Diameter of a round part mm mm Maximum outside diameter for pipes/with chain extension mm mm Maximum work piece dimensions kg kg Weight according to EPTA-Procedure 01

dB dB Sound pressure level

pCpeak dB dB Peak sound pressure level K... Uncertainty m/s

Vibrational emission value according to EN 62841 (vector sum of three directions) h,D m/s

Basic and derived units of measurement from the international system of units SI. WARNING OBJ_BUCH-0000000078-004.book Page 15 Wednesday, February 26, 2020 1:28 PM16

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended. Do not use accessories which are not specifically designed and recommended by the power tool manu- facturer. Safe operation is not ensured merely because an accessory fits your power tool. Clean the ventilation openings on the power tool at reg- ular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accu- mulation of metallic dust can cause an electrical hazard. Before putting into operation, check the mains connec- tion and the mains plug for damage. Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less. Hand/arm vibrations The vibration emission level given in this information sheet has been measured in accordance with a stand- ardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accesso- ries or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the expo- sure level over the total working period. Identify additional safety measures to protect the oper- ator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organi- sation of work patterns. Handling hazardous dusts For work procedures with this power tool where material is removed, dusts develop that can be hazard- ous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate parti- cles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and pro- vide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to special- ists. Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfa- vourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer’s working instruc- tions, as well as the relevant regulations in your country for the materials being worked. Operating Instructions. Guide the power tool toward the work piece only when switched on. Guide the power tool uniformly and with light feed in the cutting direction. Excessive feed reduces the tool life of the application tools. Stroke adjustment: – low stroke rate for working aluminium and plastics, – high stroke rate for working steel. To increase the tool life of the saw blade when sawing metal, it is recommended to use a lubricating agent: – for cuts in steel sheet: Cutting oil, – for cuts in aluminium: Petroleum. As an alternative, cutting paste can also be applied to the cutting line. Using the recommended clamping devices. Clamping fixture 9 07 02 001 00 1 For pipes with diameters to 159 mm, use the clamping fixture 9 07 02 001 00 1. – Place the clamping chain around the work piece and insert the hooks of the grabber in the clamping chain. – Tension the chain with the clamping-fixture handle. – Mount the hacksaw to the retaining bolt (see “Mounting the clamping fixture”). The clamping head is readjustable for saw cuts and can be used for angle cuts. Clamping fixture 9 07 02 004 00 6 For large pipes with diameters from 100 mm to 325 mm, use the clamping fixture 9 07 02 004 00 6 as well as saw blades with lengths of 500 mm or 600 mm, and a thickness of 2 mm. With the extension chain 3 02 31 003 00 3 (bolts 3 02 16 130 00 4), pipes with diameters to 440 mm can also be cut. Clamping fixture 9 06 06 002 00 9 When cutting pipes with diameters to 325 mm with the

1.6 mm thick and 530 mm long saw blade, use the saw

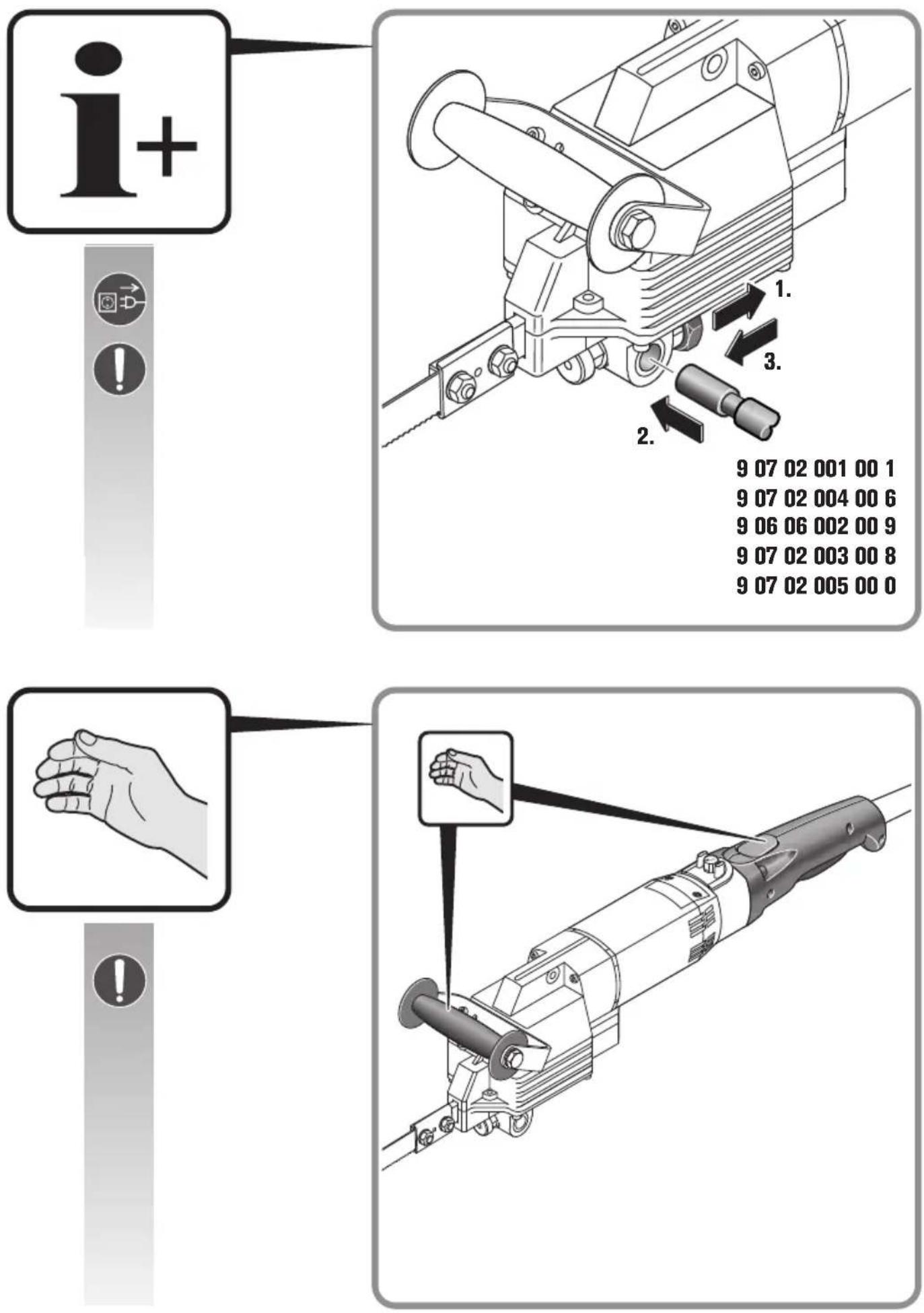

blade guide 9 06 06 002 00 9. – With the auxiliary handle removed, mount the saw blade guide to the mounting hole of the gear head. Clamping fixture 9 07 02 003 00 8 To cut profiled sections to a width of 310 mm and a height of 550 mm, use the clamping fixture 9 07 02 003 00 8. Its design corresponds to that of a parallel vice. The clamping jaws and the clamping head are adjustable. OBJ_BUCH-0000000078-004.book Page 16 Wednesday, February 26, 2020 1:28 PM17

Clamping fixture 9 07 02 005 00 0 When cutting pipes and round stock with outside diam- eters from 80 to 400 mm, use the clamp and feed device 9 07 02 005 00 0 to guide the hacksaw. A safety clutch limits the duration that the saw blade is engaged and thus increases tool life. For proper handling, please refer to Instruction Manual 3 41 00 898 06 6. Repair and customer service. When working metal under extreme oper- ating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air. Products that have come into contact with asbestos may not be sent in for repair. Dispose of products con- taminated with asbestos according to the applicable country-specific regulations for such disposal. When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their repre- sentative. The current spares parts list for this power tool can be found on our website at www.fein.com. If required, you can change the following parts your- self: Auxiliary handle, application tools Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is mar- keted. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty dec- laration. The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual. Declaration of conformity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. Fein GmbH, D-73529 Schwäbisch Gmünd Environmental protection, disposal. Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. OBJ_BUCH-0000000078-004.book Page 17 Wednesday, February 26, 2020 1:28 PM18
