		ASTS18-26 AS (**)
		7 136 05 ...
UV 18
n_0	min ^-1	700 ... 3000
s	mm 26
Fe 400	mm 12
Fe 800	mm	3
Al 250	mm 24
Cu, Ms	mm 150
GFI	mm 24
	mm 30
	° -45 ... +45
t=	mm 0,7 ... 1,8
	mm 200
	kg 2,1
L_pA	dB(A) 88,4
K_pA	dB	5
L_wA	dB(A) 96,4
K_wA	dB	5
L_pCpeak	dB 106,2
K_pCpeak	dB	5
a_h,D	m/s ^2	7,1
a_h,D	m/s ^2	7,4
K_a	m/s ^2	1,5

		GBA 18V2 Ah	GBA 18V4 Ah	GBA 18V5 Ah	ProCORE 18V4 Ah	ProCORE 18V8 Ah	ProCORE 18V12 Ah
AMP Share I
Powered by BOSCH
	kg	0,35	0,60	0,60	0,52	0,96	1,35
							Lithium Ion
UV 18	---
T_CHARGE	°C						0 ... +35
							GAL 1880 CV, GAL 18V-160

de 16 pt 60 hu 103 ro 147 et 192 th 233 en 24 el 67 cs 111 sr 154 lt 199 ja 241 fr 31 da 75 sk 118 hr 161 lv 206 hi 248 it 38 no 82 pl 125 ru 168 zh(CM) 213 ar 261 nl 46 sv 89 sl 133 uk 176 zh(CK) 220 es 53 fi 96 tr 140 bg 184 ko 226

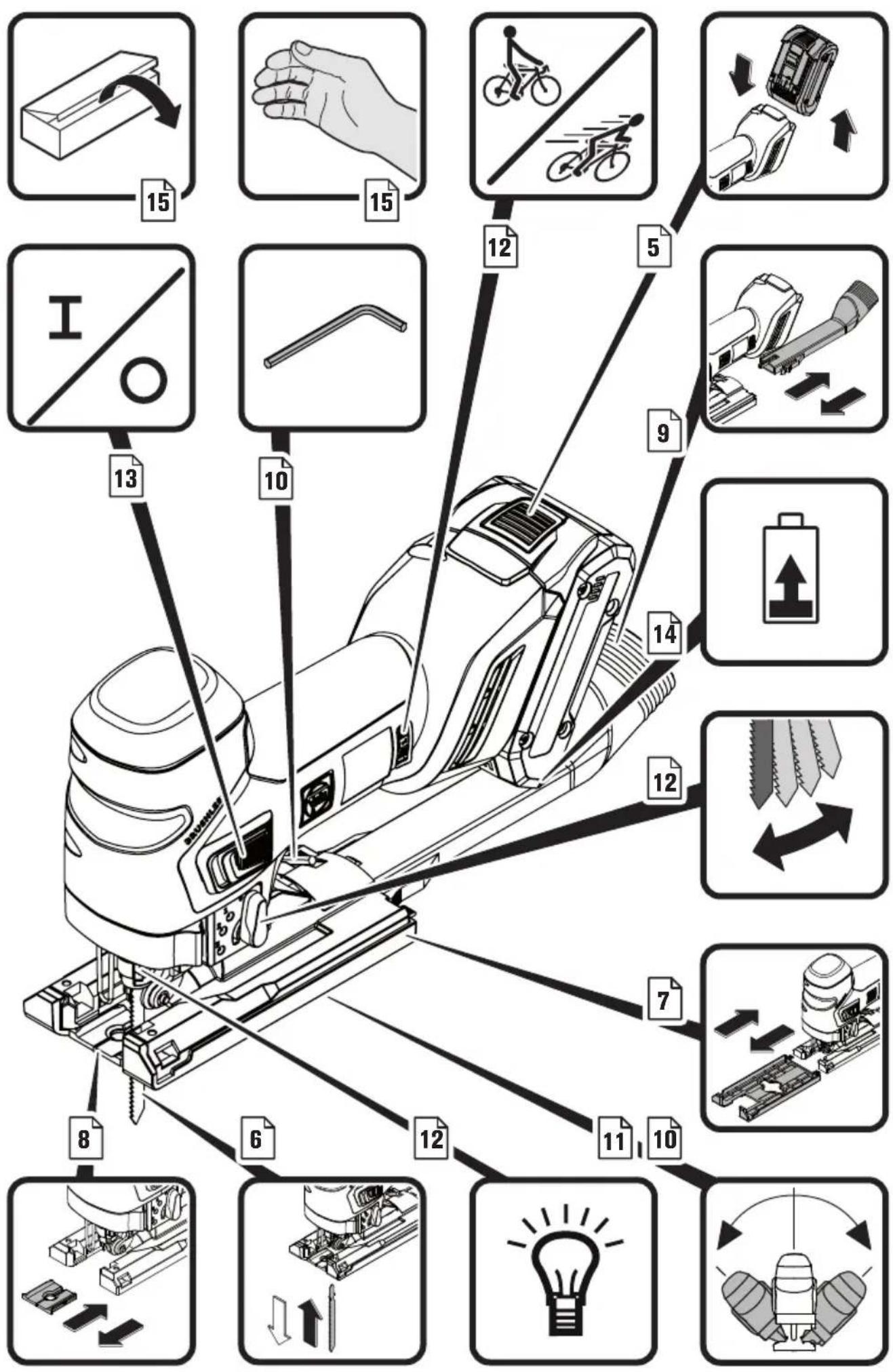

Diagram illustrating the step-by-step instructions for installing a device, with numbered annotations for each step.

Technical diagram showing assembly steps of a mechanical component with labeled parts and a 5 mm dimension annotation.

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Observe the instructions in the text or graphic opposite!
	Observe the information in the adjacent text!
	General prohibition sign. This action is prohibited.
Powered by BOSCH	AMPShare is the shared battery system that lets you run many tools from many pro brands on just one battery.
	Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
	Use eye protection during operation.
[77TS]	Use ear protection during operation.
	Use protective gloves during operation.
	Do not charge damaged batteries.
	Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture.
	Additional information.
[57ST]	Gripping surface

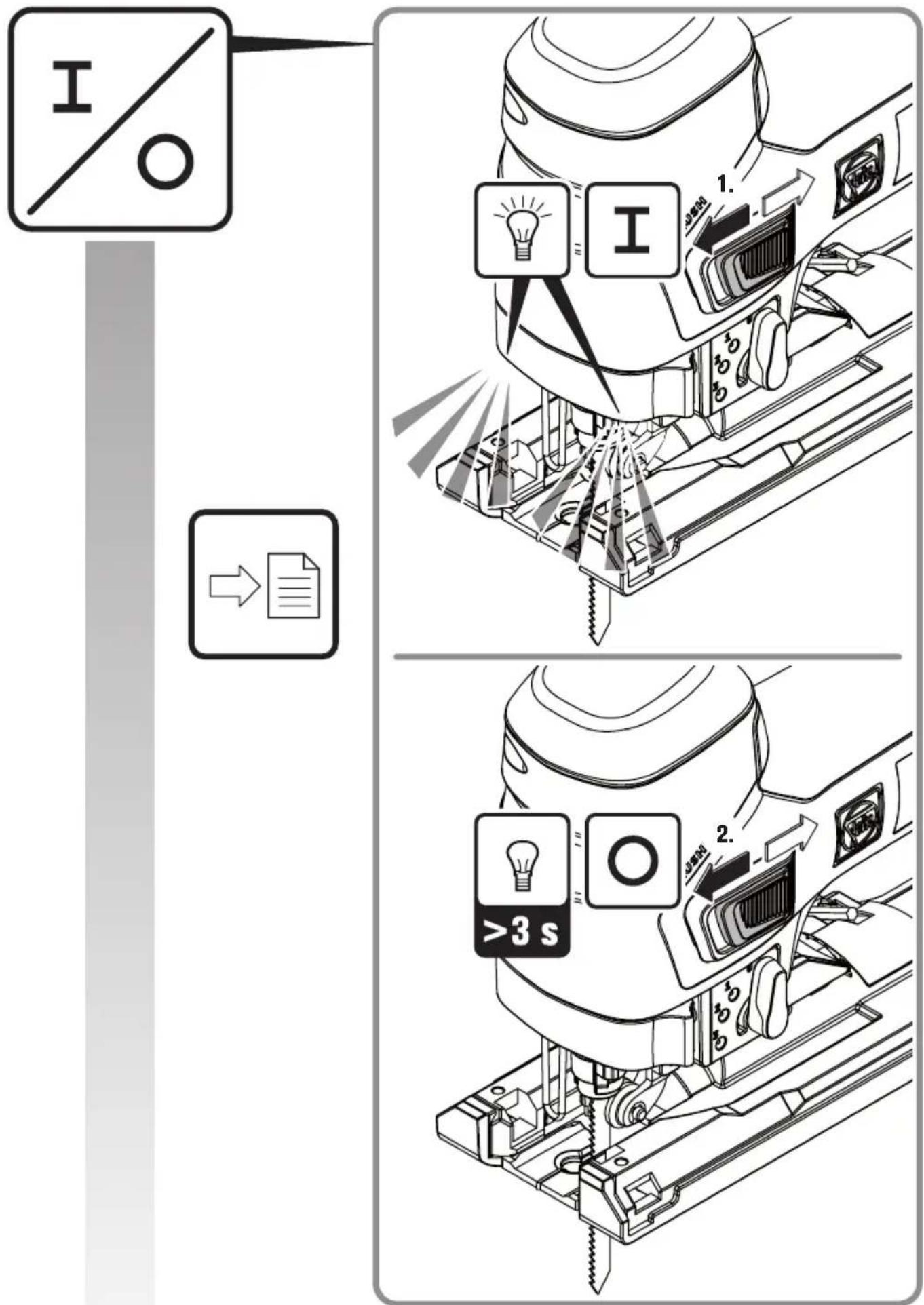

	Switching on
	Switching off
	See section “Operating Instructions”
	Caution: Do not view into the switched-on lamp!
	Keep your hands out of the sawing area while the machine is running. Danger of injury in case of contact with the saw blade.
	Keep your hands out of the sawing area while the machine is running. Danger of injury in case of contact with the saw blade.
	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
EAC	Confirms the conformity of the power tool with the national technical regulations of the Customs Union (Belarus, Russia, Kyrgyzstan, Kazakhstan and Armenia).
US	This symbol confirms the certification of this product for the USA and Canada.
	Applies only for China:The duration of environmental protection under normal use of the product is 10 years.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
[YCTH] DANGER	This sign warns of a directly imminent, dangerous situation. A false reaction can cause a severe or fatal injury.
[8BXH]	Recycling symbol: designates recyclable materials
[YWBA]	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Identifies recyclable packaging and products that must be collected and disposed of separately.
	Battery type
	Charger type
	Low stroke rate
[7BG7]	High stroke rate
[6XTT] Fe 400	Max. work-piece thickness for steel with up to 400 N/mm^2
[6XTA] Fe 800	Max. work-piece thickness for steel with up to 800 N/mm^2
[6HBW7] Al 250	Max. work-piece thickness for aluminium with up 250 N/mm^2
[H2D00]	Max. work-piece thickness in softwood
Cu, Ms	Max. work-piece thickness in copper/brass
GFK	Max. work-piece thickness in fibreglass/hard particle materials
	Max. cutting angle (left/right)
[AHW6] t =	Saw blade thickness
	Max. saw blade length
(**) May contain numbers and letters
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Explanation
UV	--D	C v o
fHz Frequency
n_0	min-1	Stroke rate at no-load (with fully charged battery)
s	mm Stroke length
Character Unit of measurement	international	Explanation
T_CHARGE	°C Allowable ambient temperature when charging
∅ mm Diameter of a round part
	kg Weight according to EPTA-Procedure 01
L_pA	dB(A) Sound pressure level
L_wA	dB(A) Sound power level
L_pCpeak	dB Peak sound pressure level
K...		Uncertainty
a	m/s2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h,D	m/s2	Mean vibrational value for sawing
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool.

The hand-held, cordless jigsaw ASTS18-26 AS ( ^** ) is intended for making separating cuts and cut-outs in metal materials, plastic, gypsum board and wood for commercial use in weather-protected environments without water supply using the application tools and accessories (see www.fein.com) recommended by FEIN.

All other types of use are considered as not intended for.

Foreseeable improper use.

For safe operation of the product and to exclude misuse, the following is prohibited:

• Unauthorized modifications
• Use not as intended for
• Non-observance of the operating instructions
• Automated industrial continuous use
• Exceeding the use in accordance with local occupational safety regulations

Safety instructions.

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the tool "live" and could give the operator an electric shock.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

Further safety warnings.

Do not use a damaged power tool. Before each use of the power tool, check the housing and other components for damage such as cracks or breakage.

Only use approved batteries. When using non-compatible batteries, the power tool will not start.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

When working at height, block off the area below the work area and always secure the power tool and the workpiece against falling.

Only use the power tool on a stable work surface and ensure a secure footing.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

While working, the workpiece must be firmly supported and secured against moving.

Do not attempt to cut extremely small workpieces.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not work with materials containing magnesium. Danger of fire.

Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Never look or stare into the light of the power tool's lamp from a short distance. Never point the light of the lamp into the eyes of other persons in close vicinity.

The radiation produced by the lamp can be harmful for the eye.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Remove the battery before carrying out any adjustments or maintenance on the power tool.

Use only saw blades that are suitable for the material to be sawn.

Avoid overheating the saw tooth tips.

When sawing plastic, avoid melting the material.

Do not touch moving application tools. Only remove chips when the application tool is at a complete stop.

Do not stop the saw blade by applying lateral pressure to it.

Check the workpiece for foreign objects. When working, always pay attention not to saw into nails etc.

Keep your hands well away from the saw blade. Do not place your hands in front of or underneath the saw

blade. Any contact with the saw blade can cause personal injuries. The saw blade can become very hot during the sawing process.

Guide the power tool toward the work piece only when switched on. Otherwise, there is danger of kickback when the application tool becomes wedged in the work piece.

Always use the power tool with the base plate. Working without a base plate can lead to loss of control over the power tool.

Pay attention that the base plate rests securely on the work piece when sawing. A jammed saw blade can break or cause kickback.

Switch off the power tool after sawing and do not pull the saw blade out of the cut until the power tool has come to a complete stop. This prevents kickback and loss of control over the power tool.

Wait until the power tool has come to a complete stop before placing it down. The application tool can jam and lead to loss of control over the power tool.

Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break or lead to kickback.

Use and handling of the battery (battery pack).

These safety warnings apply only for 18V FEIN AMP-Share Li-ion batteries.

Use the battery only in AMPShare partner products. 18V batteries marked with AMPShare are fully compatible with the following products:

- All products of the FEIN-18V-AMPShare system

- All 18V products from AMPShare partners.

When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Observe the battery recommendations in the operating instructions for your product. Only in this way can the battery and the product be operated safely, and the batteries are protected from dangerous overload.

Only charge the batteries with chargers recommended by FEIN or one of the AMPShare partners. A charger that is suitable one type of battery pack may create a risk of fire when used with another battery pack.

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

Store batteries out of the reach of children.

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

In case of skin contact with battery fluid, rinse immediately with plenty of water. In case of eye contact with battery fluid, wash out the eye with clean water and immediately seek a doctor for treatment!

When the battery fluid has come into contact with objects close by, check the respective components.

Avoid skin contact by wearing protective gloves. Clean the parts with dry household paper or replace the parts if necessary. Escaping vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

Do not short-circuit the battery. Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short-circuit may occur and the battery can burn, smoke, explode or overheat.

Never maintain damaged batteries. Any maintenance of batteries should be performed only by the manufacturer or by authorised after-sales service centers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Danger of explosion and short-circuiting.

Operate and store the battery only at ambient temperatures between -20 °C and +50 °C. As an example, do not leave the battery in a vehicle in summer. At temperatures < 0 °C, machine-specific performance restrictions are possible.

Charge the battery only at ambient temperatures between 0 °C and +35 °C. Charge the battery via USB connection only at ambient temperatures between +10 °C and +35 °C. Charging the battery outside the temperature range may damage the battery or increase the risk of fire.

Handle discharged batteries with care. Batteries are a source of danger, as they can cause a very high short-circuit current. Even when Li-ion batteries appear to be in a discharged state, they never fully discharge.

Do not immerse the battery in liquids, such as (salt) water or beverages. Contact with liquids can damage the battery. This may result in heat build-up, smoke generation, ignition or explosion of the battery. Do not continue to use the battery and contact an after-sales service authorized by FEIN.

Do not use a damaged battery. The use of a battery must be stopped immediately as soon as abnormal properties, such as odour development, heat, discolouration or deformation occur. Continued operation can cause the battery to generate heat and smoke, ignite or explode.

Do not open, crush, overheat or set fire to the battery. Non-observance of this warning may result in burns and fire. Follow the manufacturer's instructions.

Extinguish burning Li-ion batteries with water, sand or a fire blanket.

Avoid physical blows/impact. Impact and penetration of objects can damage batteries. This may result in leakage, heat build-up, smoke generation, ignition or explosion of the battery.

Never charge the battery unattended overnight. Fire and explosion hazards can result in case of non-observance.

Do not remove the battery from its original packaging until it is going to be used.

Remove the battery only when the power tool is switched off.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Protect the battery against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Remove the battery when transporting and storing the power tool.

Observe the safety instructions in the manuals of the chargers from FEIN or the AMPShare partners.

Vibration and noise emission values

The vibration and noise emission values given in these instructions have been measured according to a measurement method standardised in EN 62841 and can be used to compare power tools with each other. They are also suitable for a preliminary assessment of vibration and noise exposure.

The given vibration and noise emission values represent the main applications of the power tool. However, if the power tool is used for other applications, with deviating application tools or insufficient maintenance, the overall vibration values and the noise emission values may differ. This can significantly increase the vibration and noise exposure over the total working period.

For an accurate estimation of vibration and noise exposure, the durations when the equipment is switched off or running but not actually in use should also be taken into account. This may significantly reduce the vibration and noise exposure over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise such as: Maintain the power tool and the accessories, keep the hands warm, organization of work patterns.

Handling hazardous dusts

For work procedures with this product where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e.g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, anti-fouling paints for vessels, can trigger allergic reactions to the operator or bystanders or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment. Provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of sanding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the product and the materials being sanded. Empty the dust collector in good time. Observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Starting Operation.

Carry out the following steps each time before using the product.

• Check the proper condition and operation of the product.
• Check the tight seating of the application tool.

Operating Instructions.

Overloading of the power tool is indicated by continuous lighting of the work area lamp. In case of overload, the power tool switches off and cannot be switched on again until after cooling down.

In some cases, restarting is not possible. Remove the battery and try restarting after a few minutes. If restarting is not possible, contact the FEIN Service.

Inserting the saw blade (see page 6)

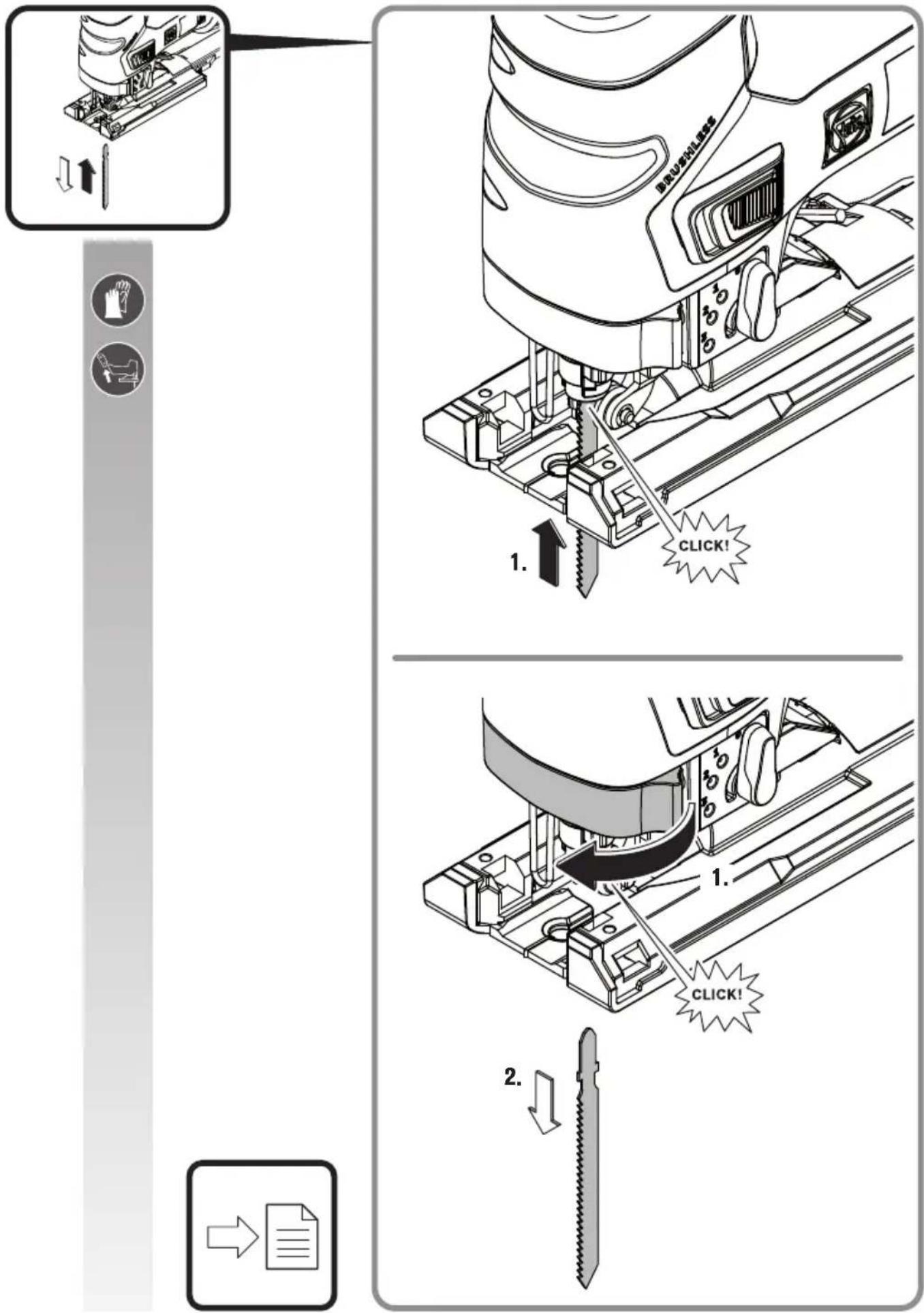

Insert the saw blade into the holder until it can be heard to engage. Pay attention that the saw blade is in the groove of the guide roller.

Ejecting the saw blade (see page 6)

Press the lever to the stop. The saw blade is released and ejected.

Dust extraction (see page 9)

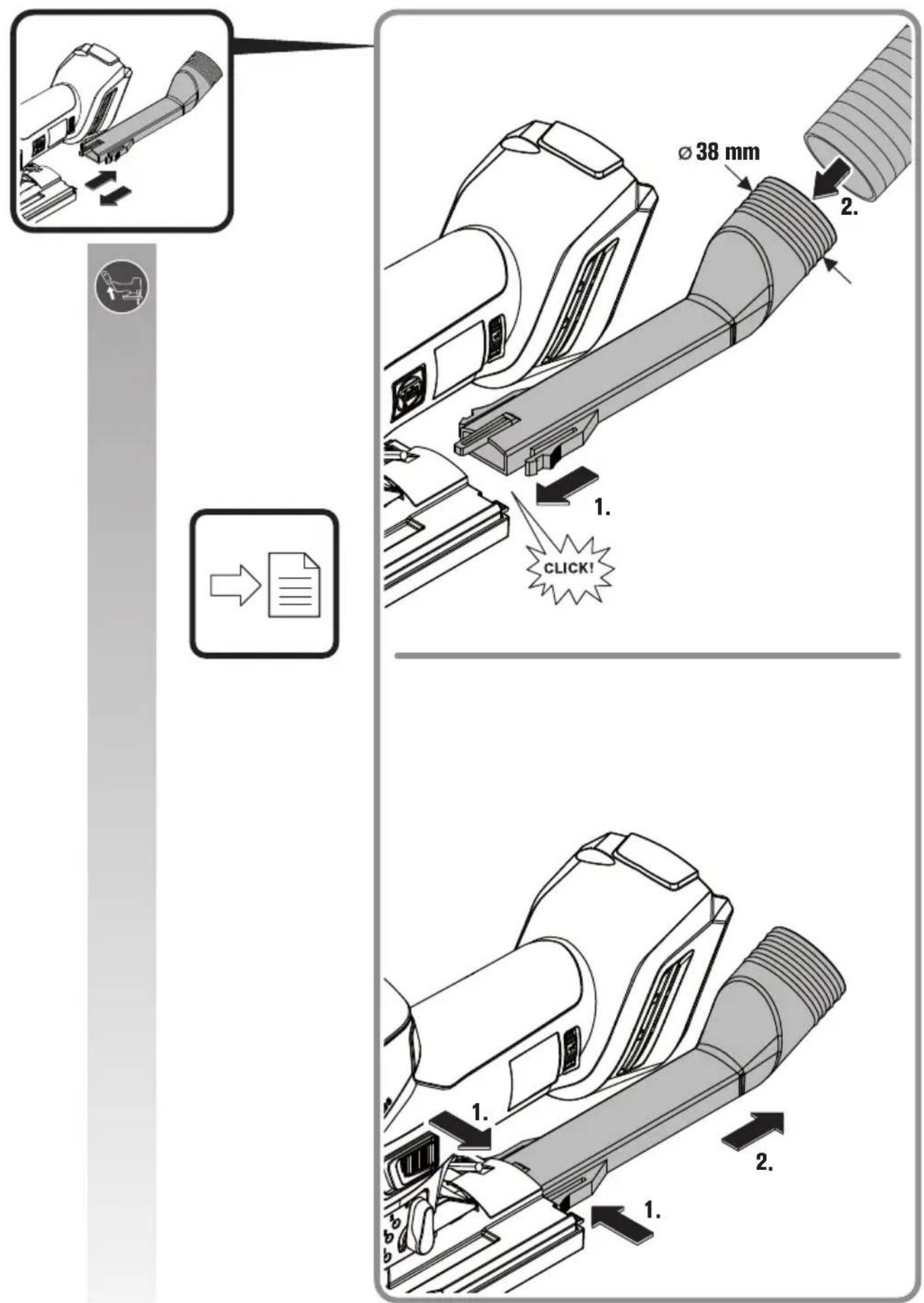

A dust extraction system can be connected for clean working. Activate the dust extraction system before switching on the jigsaw.

The dust extraction system must not be used when sawing metal, as there is a risk of fire or explosion due to sparking.

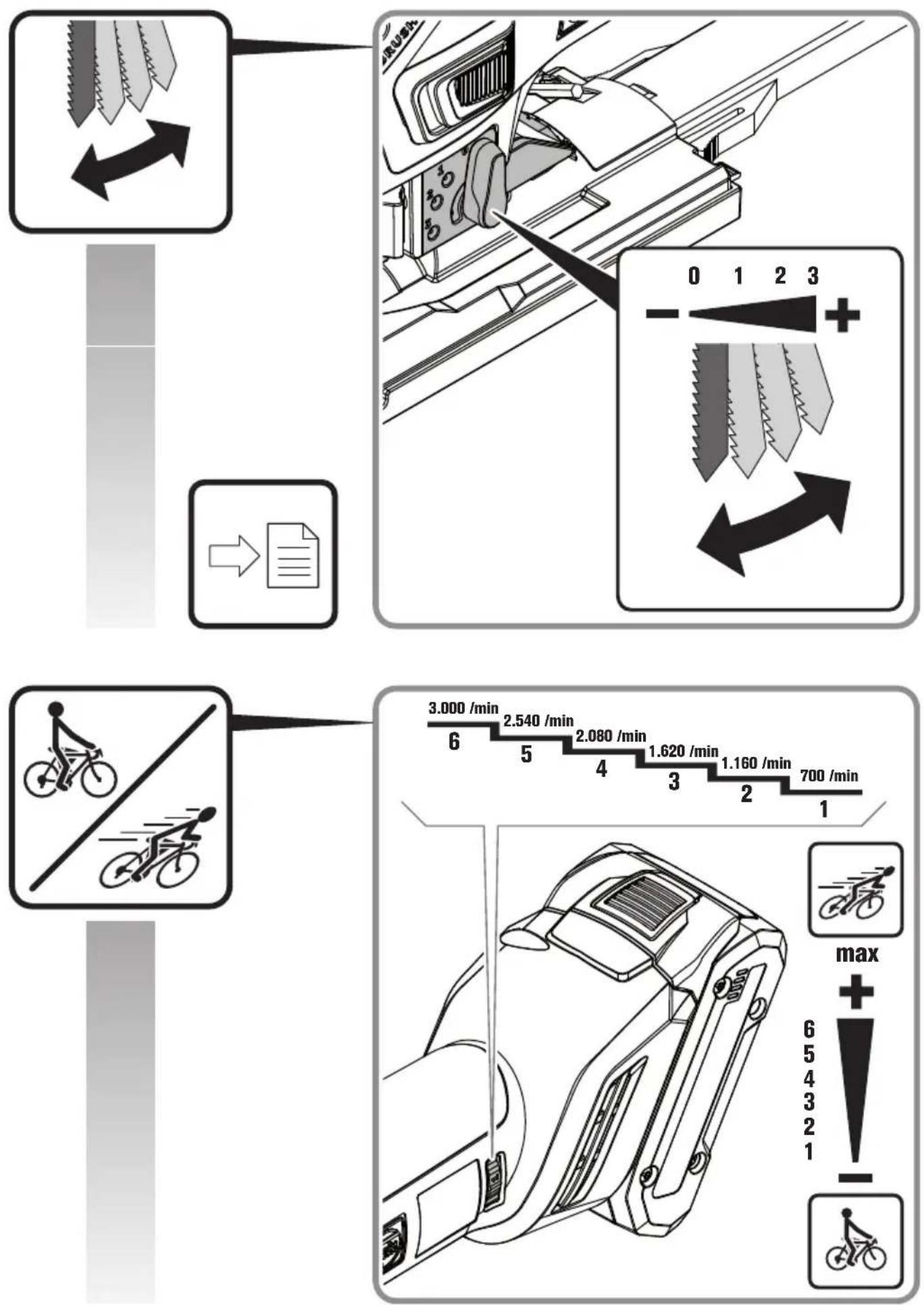

Pendulum stroke setting (see page 12).

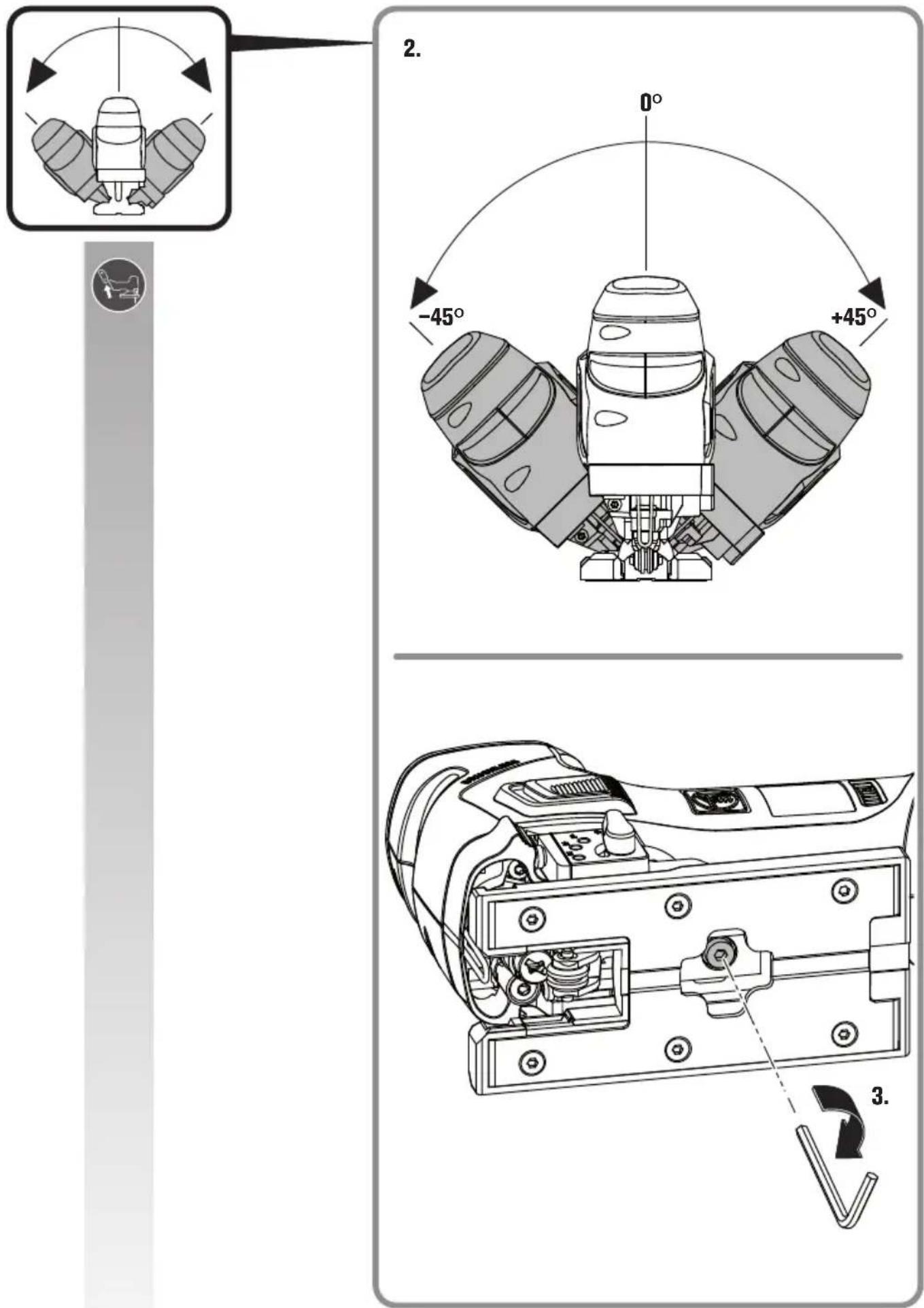

The pendulum stroke setting is used for optimal adaptation of cutting speed, cutting capacity and cutting pattern to the material being worked. The lower the pendulum stroke, the finer and cleaner the cutting edge. The pendulum stroke can be adjusted in 4 stages.

Setting Pendulum stroke		Material recommendation
0 off thin	(e.g. sheet metal)
1 low hard	(e.g. steel)
2	m e	d i soft (e.g. wood) g h
3	h i

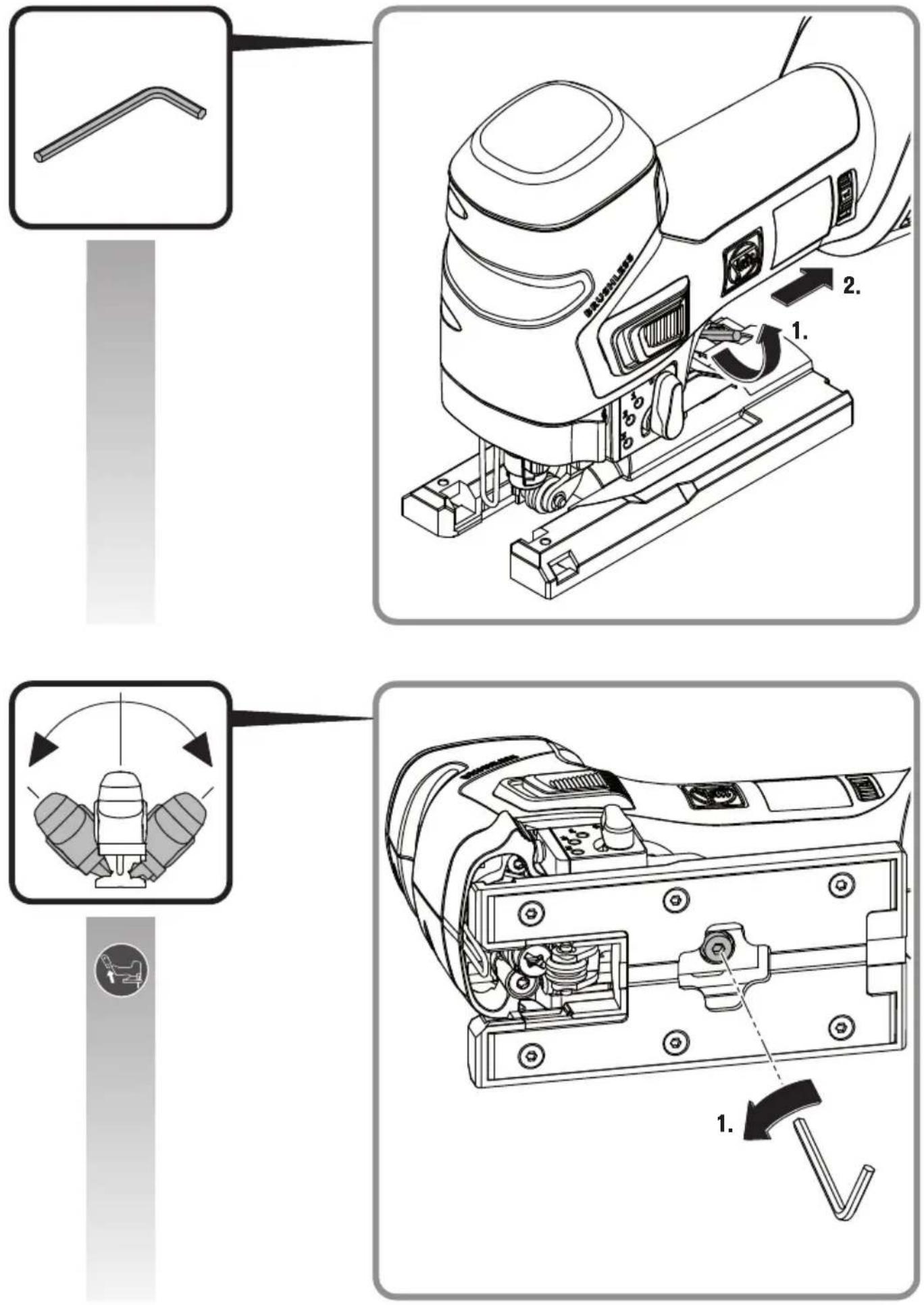

Sliding shoe (see page 7).

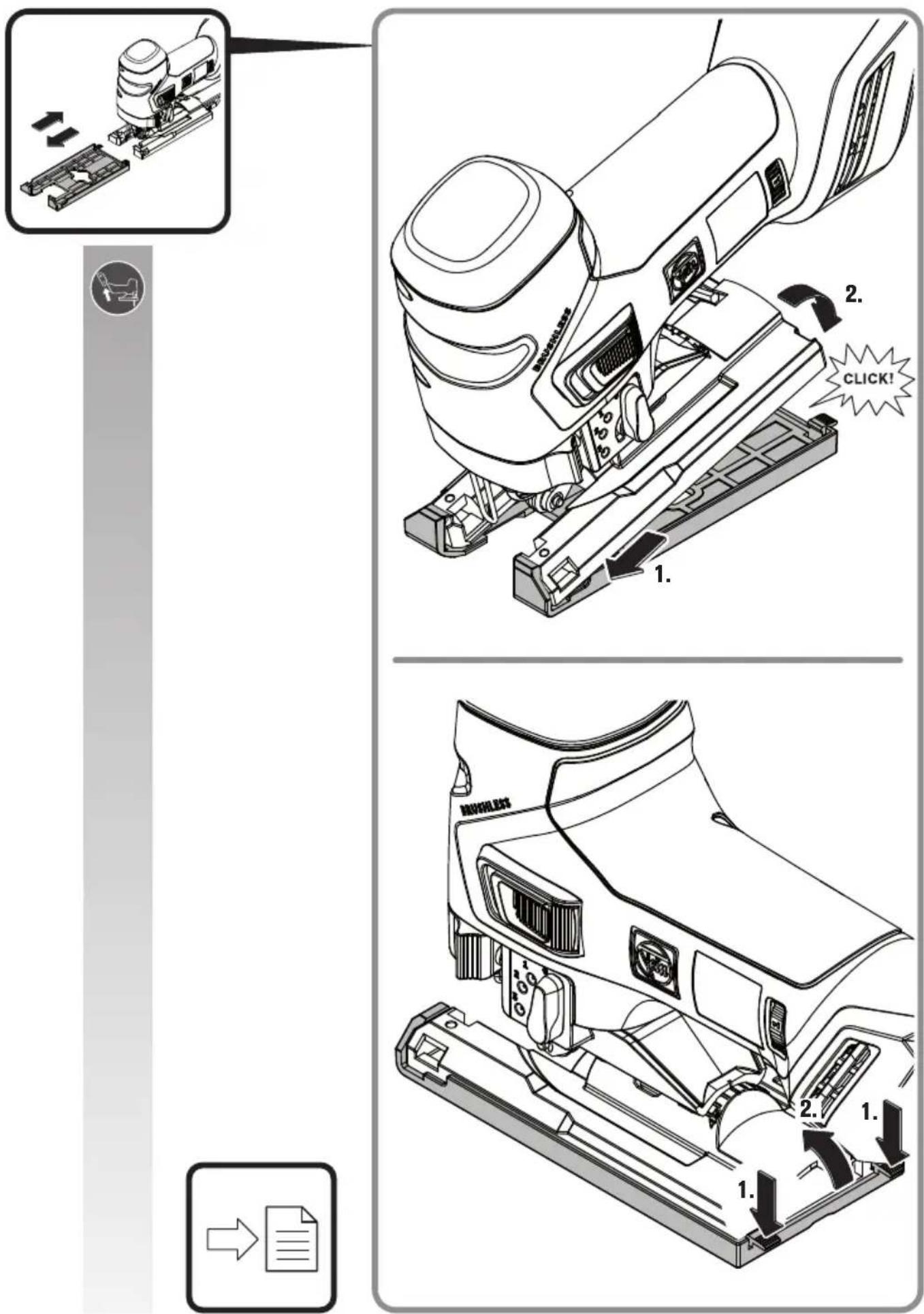

The sliding shoe can prevent sensitive surfaces from being scratched when sawing.

Splinter guard (see page 8)

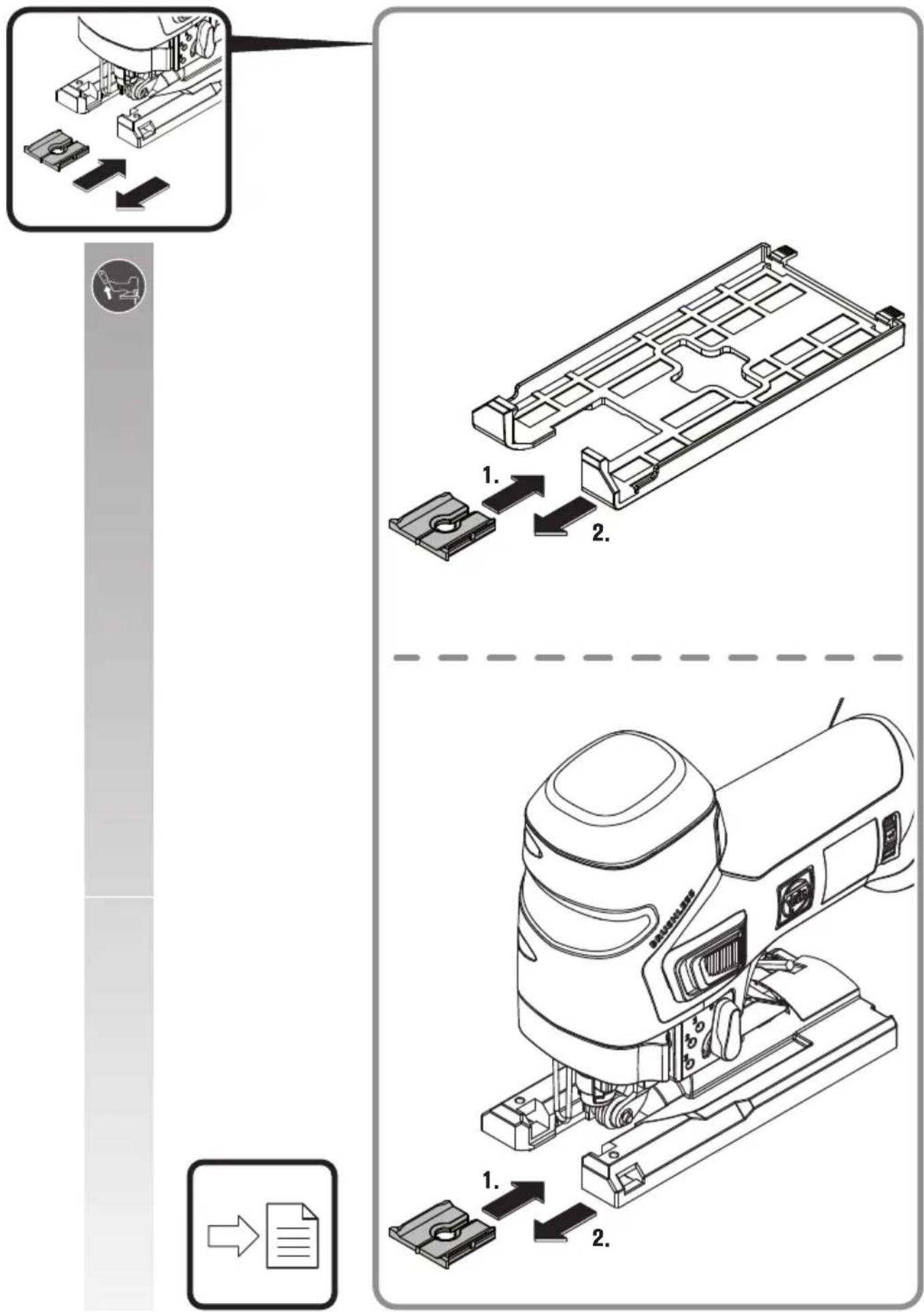

The splinter guard can prevent fraying of the surface while sawing.

The splinter guard can only be used with a cutting angle of 0^ .

Sawdust blower function

The sawdust blower function is active when the power tool is switched on and keeps the cutting line free of sawdust.

Work area lamp

The work area lamp lights up when the power tool is switched on and goes out 3 seconds after the power tool is switched off.

When working with the saw blade pointing upwards, the work area lamp goes out to prevent the user from being blinded.

Procedure for jammed application tools

The overload protection switches the power tool off in case of jammed application tools.

1. Remove the battery from the power tool.

2. Allow the saw blade to cool down.

3. Eject the saw blade off.

4. Loosen and remove the jammed application tool using e.g. suitable pliers.

Only undamaged application tools may be used for further operation.

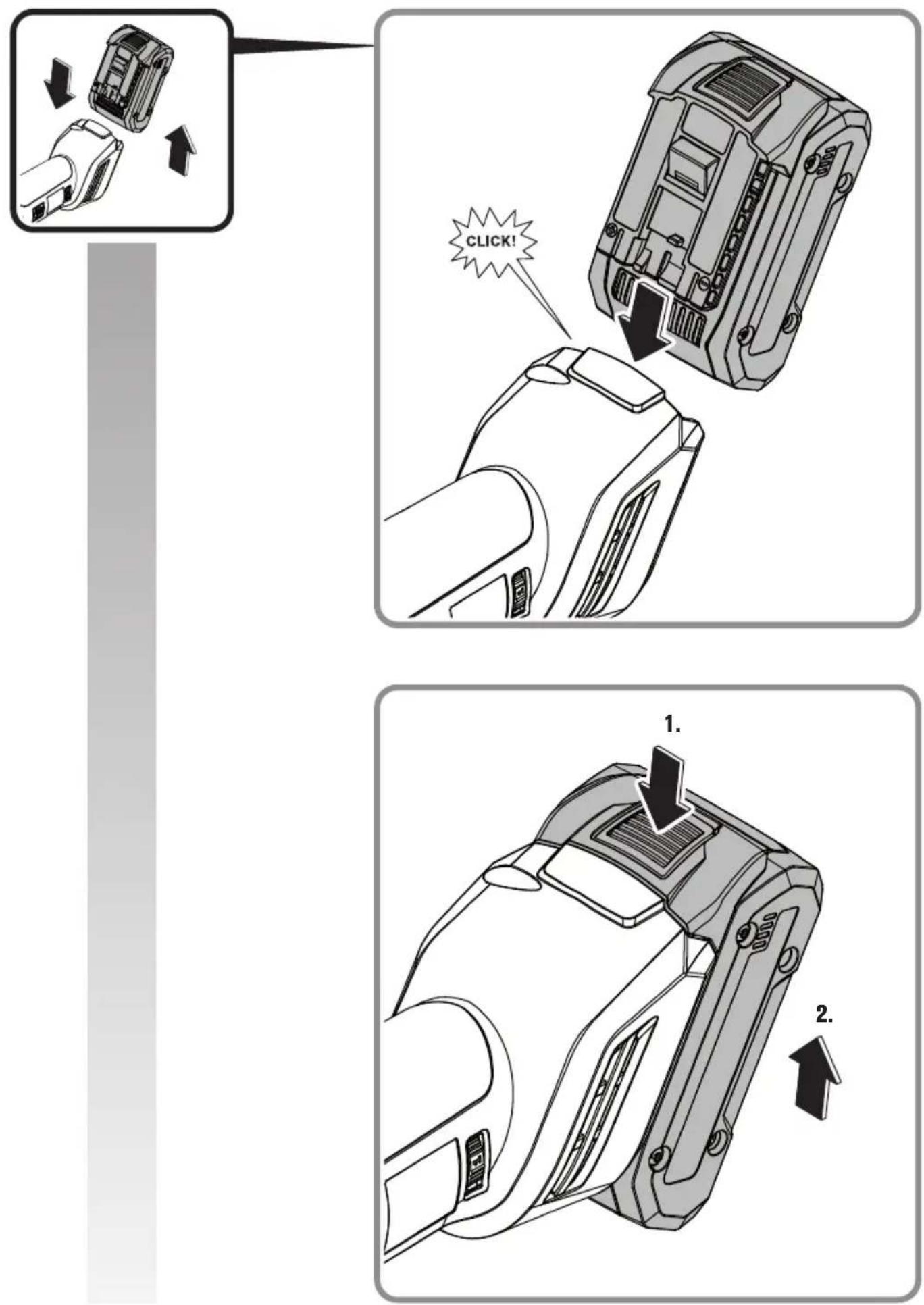

Handling the battery.

Charge the battery only at a temperature range from 0 °C ... 35 °C (32 °F ... 95 °F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

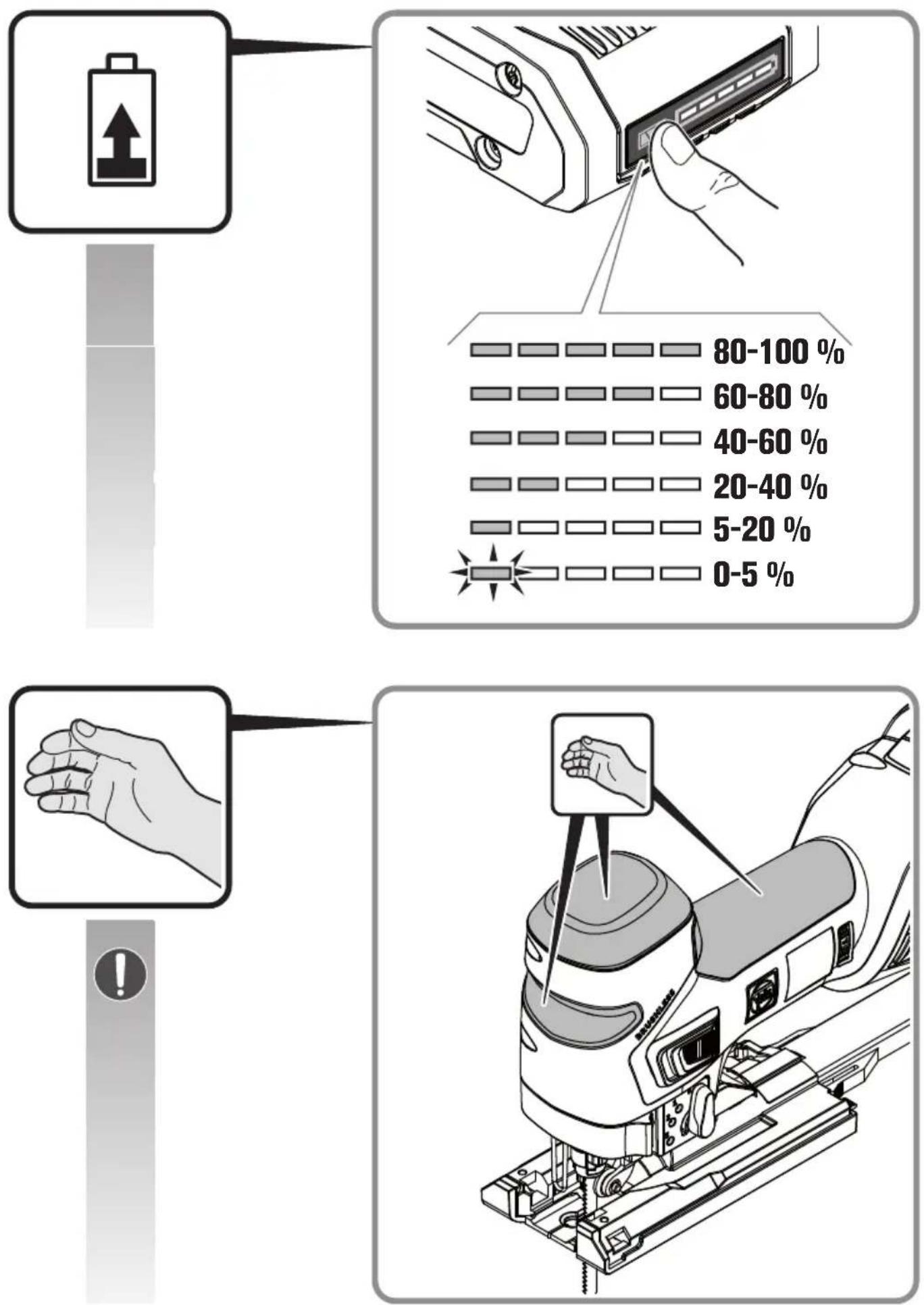

Charge-control Indicator on the Battery (see page 14).

The charge condition can be indicated by the green LEDs of the charge-control indicator on the battery.

Press the charge-control indicator button to indicate the charge condition.

When no LED lights up after pressing the charge-control indicator button, the battery is defective and must be replaced.

Transport.

The Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Maintenance and Service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the product.

Blow out the interior of the product via the ventilation openings frequently with dry and oil-free compressed air.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

For products and accessories from FEIN that require repair, contact the FEIN Service at www.fein.com.

Renew stickers and warning indications on the product when aged and worn.

Use only original spare parts from FEIN. The current spare parts list for the product can be found at www.fein.com.

If required, you can change the following parts yourself:

application tools, battery

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of the product may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

Putting out of operation.

1. Disconnect the product from the power supply or remove the battery.
2. Remove any application tools and accessories mounted on the product.

Environmental protection, disposal.

Do not dispose of the batteries into household-waste!

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Only for EC countries:

According to the European Guideline 2002/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally-correct manner.

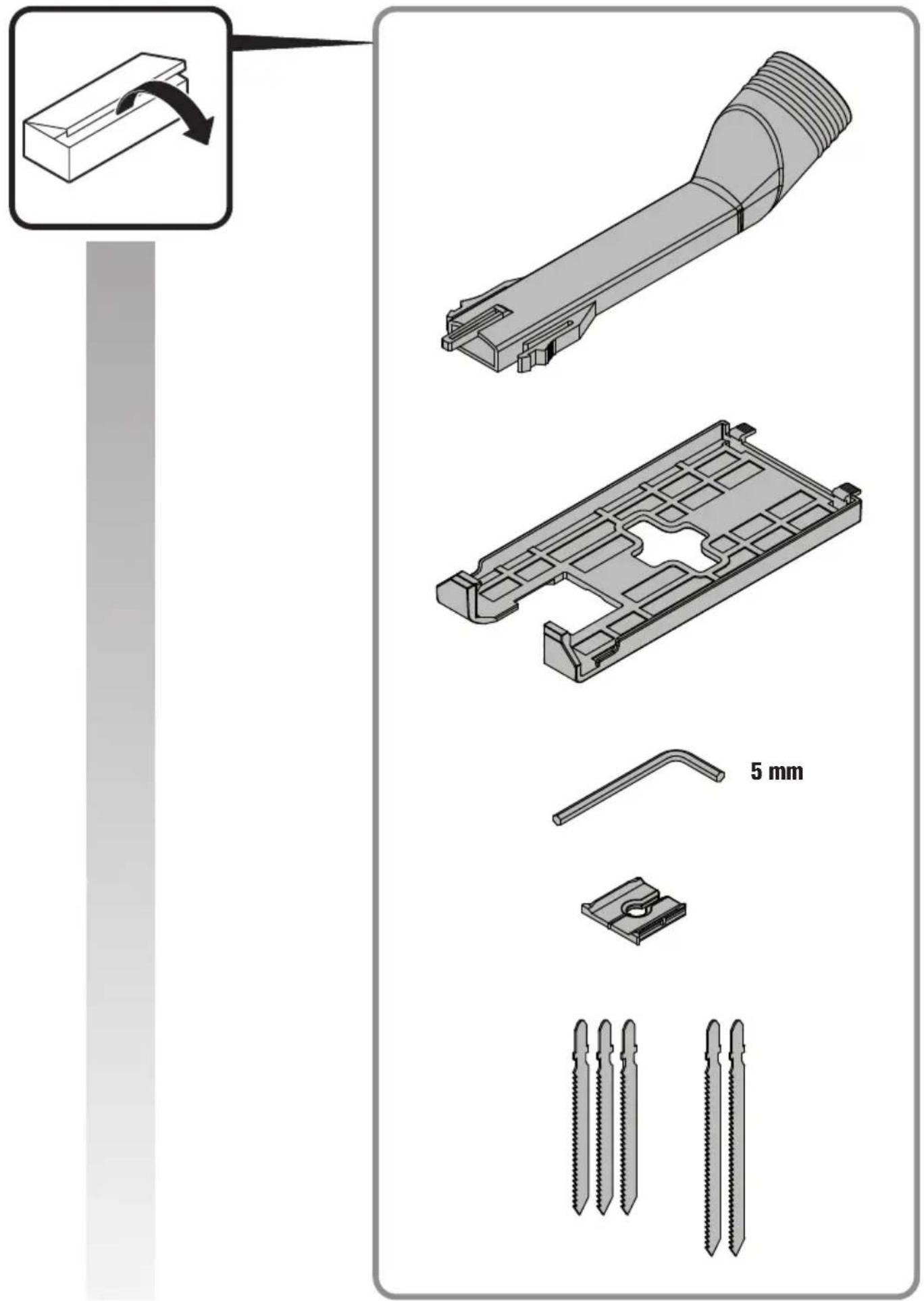

Accessories.

Only use original accessories from FEIN intended for the product. Approved accessories for the product can be found at www.fein.com.

Sett inn sagblad (Se side 6)

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表
