USER MANUAL DT0551 AB SKIL

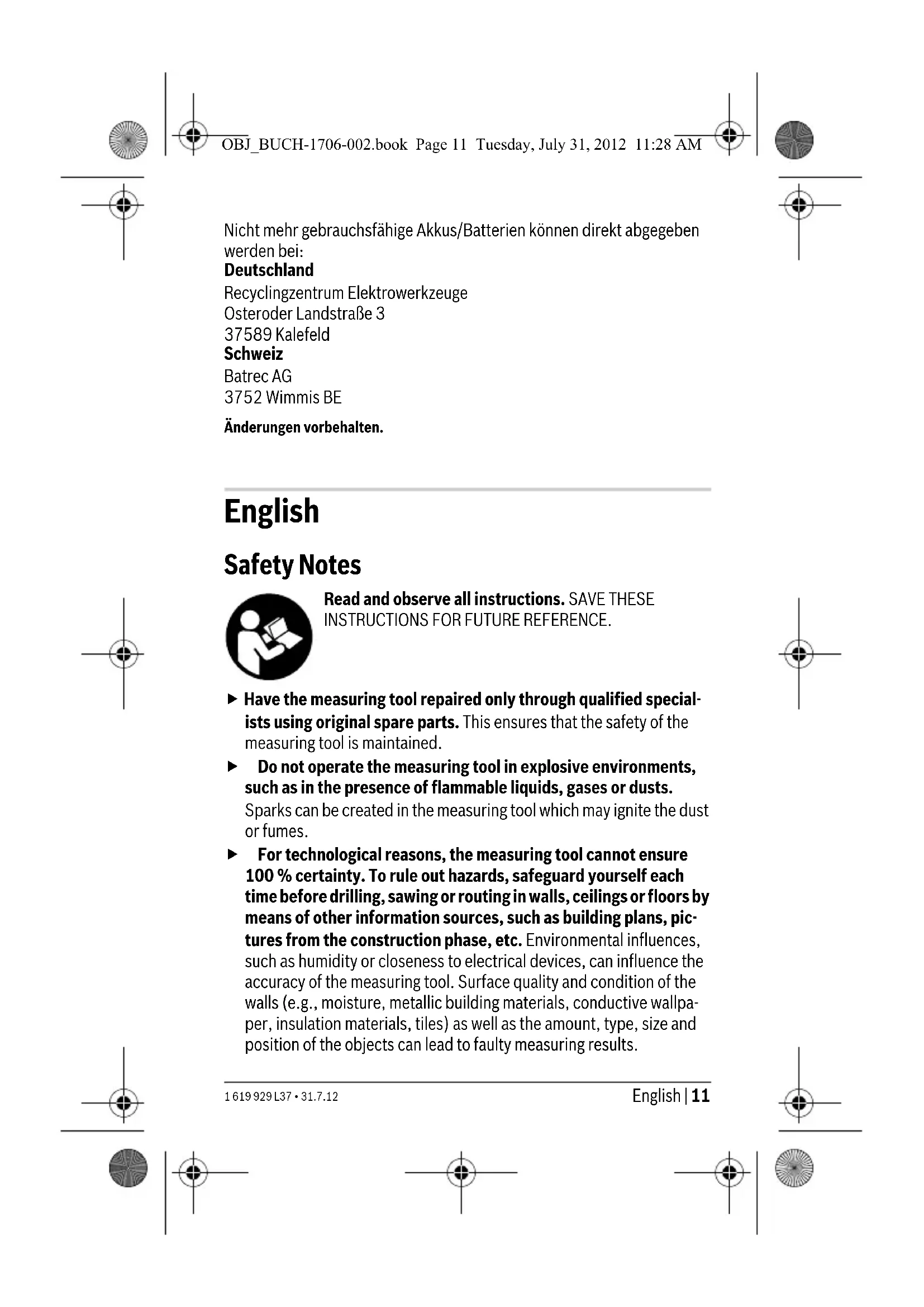

Read and observe all instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
- Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Spark can be created in the measuring tool which may ignite the dust or fumes.
For technological reasons, the measuring tool cannot ensure 100% certainty. To rule out hazards, safeguard yourself each time before drilling, sawing or routing in walls, ceilings or floors by means of other information sources, such as building plans, pictures from the construction phase, etc. Environmental influences, such as humidity or closeness to electrical devices, can influence the accuracy of the measuring tool. Surface quality and condition of the walls (e.g., moisture, metallic building materials, conductive wallpaper, insulation materials, tiles) as well as the amount, type, size and position of the objects can lead to faulty measuring results.

Product Description and Specifications

Intended Use

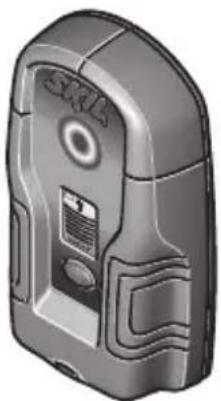

The measuring tool is intended for the detection of metals (ferrous and non-ferrous metals, e.g., rebar) and "live" wires/conductors in walls, ceilings and floors.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Marking aid
2 Signal LED
3 Display
4 On/Off button
5 Battery lid
6 Latch of battery lid
7 Sensor area

The accessories illustrated or described are not included as standard delivery.

Display Elements

a Battery low indicator
b "Live" wire indicator
c Measuring indicator

d “ A u t o C a l ” calibration indicator

Technical Data

Digital Detector DT0551

Article number F 015 055 101

Maximum scanning depth:

• Ferrous metals 50 mm
• Non-ferrous metals (copper pipe) 50 mm
  Copper conductors (live)* 30 mm

Automatic switch-off after approx. 10 min

Operating temperature 0^ ... + 40°C

• less scanning depth for wires/conductors that are not "live"

• Depending on the material and size of the objects as well as the condition and type of the base material, the measuring result can be inferior in terms of detection depth and accuracy.

12 | English

1619929L37·31.7.12

Digital Detector DT0551

Storage temperature -20^ + 70^

Relative air humidity, max. 80%

Battery 1x9V6LR61

Operating life time, approx. 4,5 h

Weight according to EPTA-Procedure 01/2003 0.2kg

• less scanning depth for wires/conductors that are not "live"

• Depending on the material and size of the objects as well as the condition and type of the base material, the measuring result can be inferior in terms of detection depth and accuracy.

Assembly

Inserting/Replacing the Battery

Alkali-manganese batteries are recommended for the measuring tool.

To open the battery lid 5, press the latch 6 in the direction of the arrow and fold the battery lid downward. Insert the battery provided. Pay attention that the polarity is correct.

When the battery low indicator a lights up on the display, measurements can still be taken for approx. 1 h. When the battery low indicator a flashes, measuring is possible for approx. 10 minutes. When the signal LED 2 flashes red in addition to the battery low indicator, measuring is no longer possible and the battery must be replaced.

If the measuring tool is not used for a long period of time, the battery must be removed. The battery can corrode or discharge itself over long periods.

Operation

Initial Operation

Protect the measuring tool against moisture and direct sun light.
- Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for long time. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.
Avoid heavy impact to or falling down of the measuring tool.

Switching On and Off

Before switching the measuring tool on, make sure that the sensor area 7 is not moist. If required, dry the measuring tool using a soft cloth.

To switch on the measuring tool, press the On/Off button 4.

After a brief self-check, the measuring tool is ready for operation. The operational readiness is indicated by a check mark behind the "AutoCal" calibration indicator d.

To switch the measuring tool off, press the On/Off button 4.

When no measurement is taken for approx. 10 minutes, the measuring tool automatically switches off to save the battery.

Before drilling, sawing or routing into a wall, protect yourself against hazards by using other information sources. As the measuring results can be influenced through ambient conditions or the wall material, there may be a hazard even though the indicator does not indicate an object in the sensor range (signal LED 2 lit green).

Operating Modes

The measuring tool detects objects below the sensor area 7.

Detecting Metal Objects

After switching on, the signal LED 2 lights up green.

Position the measuring tool against the surface being detected and move it in lateral direction.

• When no metal object can be detected in the base material, the signal LED 2 continues to light up green, no bar is indicated in measuring indicator c and no audio signal sounds.
• When the measuring tool approaches a metal object, a bar is indicated in measuring indicator c and the signal LED 2 lights up orange (the orange shade can vary, depending on the viewing angle and light incidence).
• When above a metal object, the signal LED 2 lights up red, several bars are indicated in measuring indicator c and a continuous audio signal sounds.
• Even when the signal LED 2 is lit orange, a metal object can be below the sensor range.

When moving over a metal object the first time, its position is only indicated coarsely. When moving the measuring tool over the metal object several times, the object is detected more and more precise. After moving over the metal object several times (without lifting the measuring tool from the surface), the position of the metal object can be indicated accurately: When the signal LED 2 lights up red and the audio signal sounds, the metal object is below the centre of the sensor.

Scanning for "Live" Wires

The measuring tool indicates "live" wires/conductors that carry voltages between 110V and 400V , and a frequency corresponding with the common standard (AC with 50 to 60Hz ). Other wires/conductors (carrying DC, higher/ lower frequency or voltage) as well as "dead" wires/conductors cannot be found reliably, but are possibly indicated as metal objects.

The scan for "live" conductors takes place automatically with each measurement. When a "live" conductor is detected, indicator b appears on the display. Move the measuring tool repeatedly over the area to localise the "live" conductor more precisely. After moving over the "live" conductor several times, its position can be indicated very accurately. When the measuring tool is very close to the conductor, the signal LED 2 flashes red and the audio signal beeps swiftly.

"Live" wires/conductors can be detected easier when power consumers (e.g., lamps, appliances) are connected to the wire/conductor being sought and switched on. Wires/conductors with 110V , 230V and 400V (three-phase current) are detected with about the same scan capacity.

Under certain conditions (such as when behind metal surfaces or behind surfaces with high water content), "live" wires/conductors cannot be detected with certainty. When measuring indicator c is indicated over a larger range, then the material is screening-off electrically and the scan for "live" wires/conductors is not reliable.

Working Advice

• Measuring values can be impaired through certain ambient conditions. These include, e.g., the proximity of other equipment that produce strong magnetic or electromagnetic fields, moisture, metallic building materials, foil-laminated insulation materials or conductive wallpaper or tiles. Therefore, please also observe other information sources (e.g. construction plans) before drilling, sawing or routing into walls, ceilings or floors.

Marking Objects

If required, detected objects can be marked. At the maximum amplitude of measuring indicator c, the centre of the object is directly under the signal LED 2 in the centre of the sensor area 7. The boundaries of an object can be found where the signal LED 2 changes from orange to red. Mark the desired location to the surface with help of the three marking aides 1.

"AutoCal" Calibration Indicator

When the check mark behind the "AutoCal" calibration indicator d flashes for longer periods or if it is not displayed anymore, reliable scanning is no longer possible. In this case, send in the measuring tool to an authorised Bosch after-sales service agent.

Maintenance and Service

Maintenance and Cleaning

When measuring indicator c indicates a continuously high amplitude, even though there is no metal object near the measuring tool, the measuring tool can be manually calibrated. For this, remove all objects near the measuring tool (including your wrist watch or rings made of metal) and hold the measuring tool up. With the measuring tool switched off, press and hold the On/Off button 4 until signal LED 2 lights up orange. Then release the button. When the calibration was successful, the measuring tool will automatically restart after a few seconds, and will be ready for operation again.

When the signal LED 2 alternately lights up green and orange during the calibration, a metal object is too close to the measuring tool and calibration is not possible. Remove the metal object and repeat the calibration process.

Wipe away debris or contamination with a dry, soft cloth. Do not use cleaning agents or solvents.

In order not to affect the measuring function, decals/stickers or name plates, especially metal ones, may not be attached in the sensor area 7 on the front or back side of the measuring tool.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service centre for Bosch power tools. Do not open the measuring tool yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.

After-sales Service and Customer Assistance

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

People's Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

Indonesia

PT. Multi Mayaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone]/6823

E-Mail: [e-mail]

www.bosch-pt.co.id

Philippines

Robert Bosch, Inc.

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

Malaysia

Robert Bosch (S.E.A.) Sdn. Bhd.

No.8A,Jalan 13/6

G.P.O.Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 880 188

www.bosch-pt.com.my

Thailand

Robert Bosch Ltd.

Liberty Square Building

No.287,11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone] - 1888 (10 lines)

Fax: [phone]

Robert Bosch Ltd., P.O. Box 2054

Bangkok 10501, Thailand

Bosch Service - Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: [phone]

Fax: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA) Pte. Ltd.

11 Bishan Street 21

Singapore 573943

Tel.: [phone]

Fax: [phone]

[e-mail]

Toll-Free: 1800 333 8333

www.bosch-pt.com.sg

20 | English

1619929L37·31.7.12

Vietnam

Robert Bosch Vietnam Co. Ltd

10/F, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District

84 Ho Chi Minh City

Vietnam

Tel.: [phone] ext. 413

Fax: [phone]

[e-mail]

www.bosch-pt.com

Disposal

Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of measuring tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2002/96/EC, measuring tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Subject to change without notice.
