Product type	Docking station / Portable Bluetooth speaker
Brand	Leitz
Model	63581036
Dimensions (H x diameter)	54 mm x 60 mm
Weight	235 g
Power supply	Built-in lithium-polymer battery 400 mAh, charging via Micro-USB port (cable included)
Battery life	Approximately 6 hours
Charging time	Approximately 2 hours
Wireless connectivity	Bluetooth v4.1 (range up to 10 m), profiles A2DP, AVRCP, HFP, HSP
Connectivity	Mini-USB (charging and AUX IN), microSD slot, 3.5 mm jack (via included cable)
Audio formats supported	MP3, WAV
Maximum microSD card capacity	32 GB
Output power	2.5 W (nominal), 3 W (max)
Frequency response	100 Hz – 20 kHz
Sound pressure level	86 dB ±3 dB (at 1 kHz)
Operating temperature	0 °C to 40 °C
Maintenance and cleaning	Use a damp cloth; do not use solvents, alcohol, gasoline or household cleaners
Safety	Do not open, do not expose to moisture, keep away from ears (risk of hearing loss)
Spare parts and repairability	Built-in battery not user-replaceable; contact a qualified technician for any repairs
Included accessories	Mini-USB cable (charging and AUX IN)
Protection rating	None (indoor use)

Frequently Asked Questions - 63581036 LEITZ

How to pair the speaker with my phone?

Set the main switch to Bluetooth. The indicator flashes blue/red. Activate Bluetooth on your phone and select Leitz 6358. If prompted, enter the code 0000. Once connected, the light turns solid blue.

How to play music from a microSD card?

Insert a microSD card (max 32 GB) into the slot, contacts facing the speaker. Set the switch to MP3. Use the Play/Pause, Next track (>), and Previous track (<) buttons to control playback.

What to do if Bluetooth connection is lost?

Bring the devices closer (range up to 10 m). Turn the speaker off and on again. Move away from other Bluetooth or wireless devices that may interfere. The connection should restore automatically.

How to use the speaker with a wired audio source?

Connect the included Mini-USB cable to the speaker and the 3.5 mm jack to your audio source. Set the switch to MP3. Playback control is from the source, volume using the speaker buttons.

Why is the indicator not lighting up?

Check that the main switch is set to MP3 or Bluetooth. If the battery is discharged, recharge it (solid red light during charging, off when complete).

How to answer a call with the speaker?

During an incoming call, press the Play/Pause/Phone button to answer. To reject, hold it for 2 seconds. To hang up, press once. To redial the last number, press twice quickly.

Audio playback does not resume after a call, what to do?

Press the Play/Pause/Phone button to resume playback. Normally it resumes automatically after the call, but a manual press is sometimes necessary.

Which Bluetooth profiles are supported?

The speaker supports A2DP (stereo audio), AVRCP (remote control), HFP (hands-free), and HSP (headset). Depending on your device, some functions may be limited.

How to clean the speaker?

Disconnect all cables. Use a damp cloth (no cleaner, alcohol, gasoline or thinner). Avoid moisture entering the device.

What is the battery life and charging time?

The battery provides approximately 6 hours of battery life. Full charging takes about 2 hours (solid red light, off when finished). Use the included USB cable.

USER MANUAL 63581036 LEITZ

Illustration of a modern cylindrical electronic device with a speaker grille and control buttons (no text or symbols)

User Guide

EN	DE	FR	IT	ES	PT	NL	DK
NO	SV	FI	ET	LV	LT	PL	UK
RU	KK	CS	SK	HU	RO	GR	TR

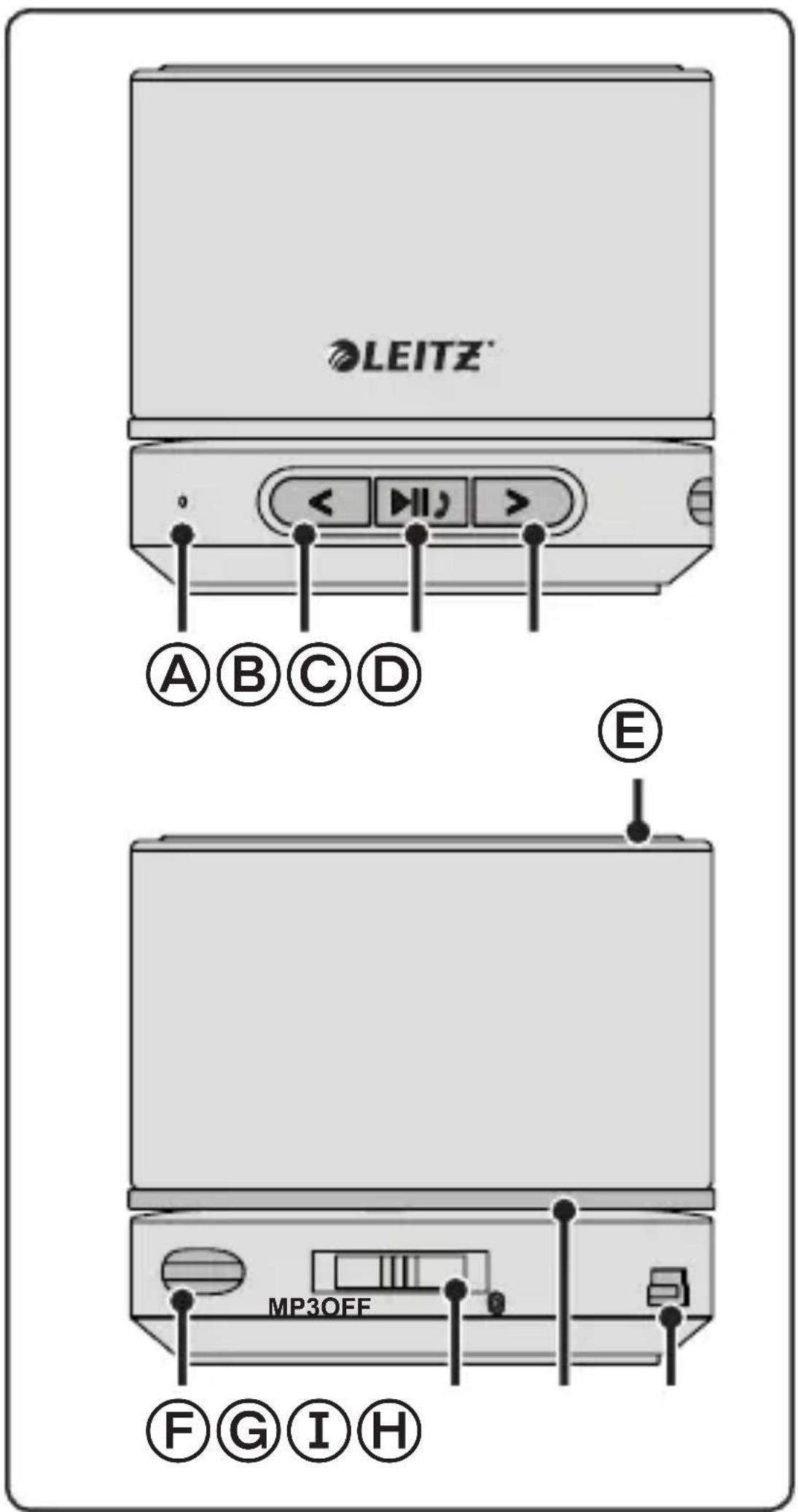

LEITZ A B C D E MP3OFF F G I H

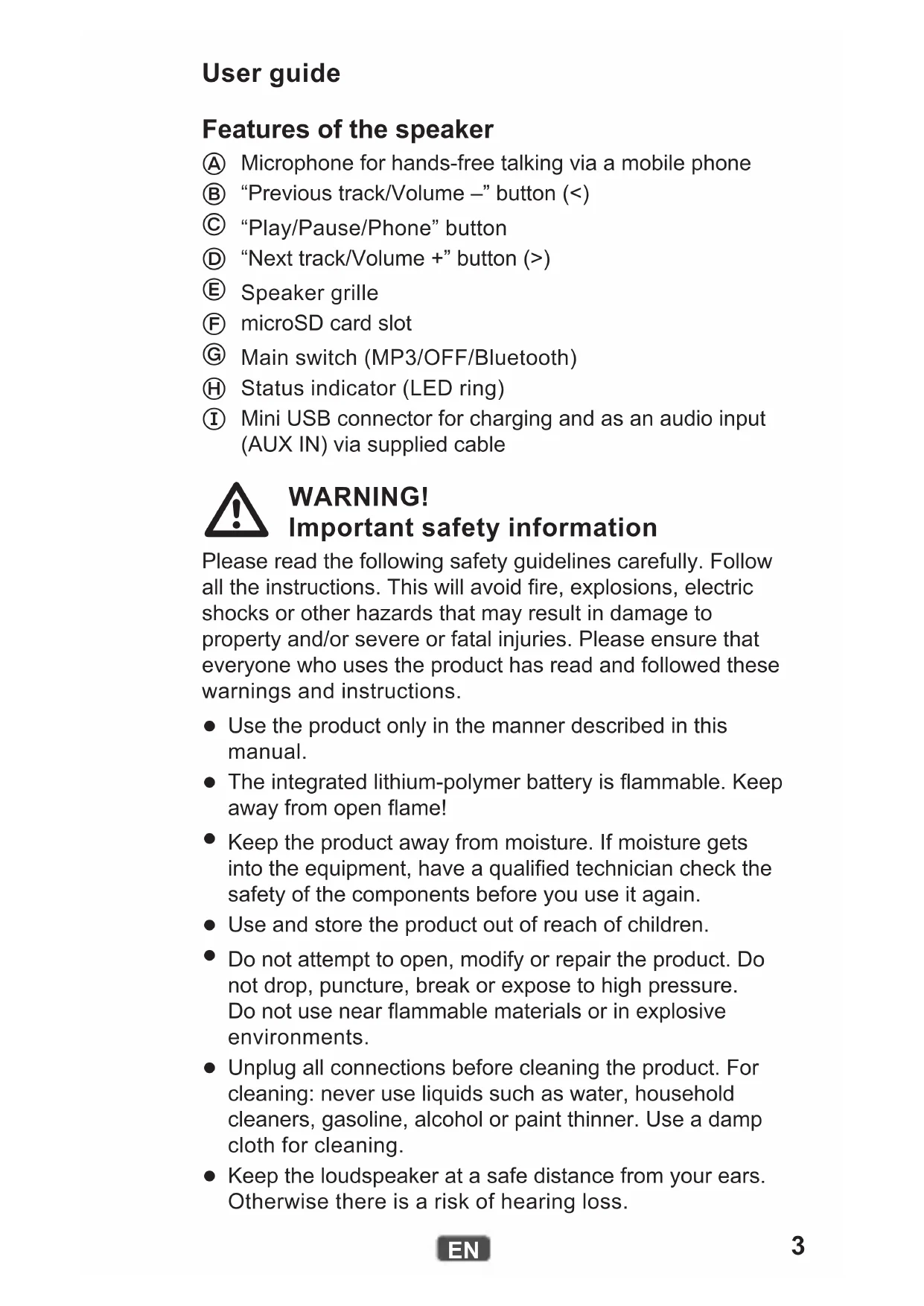

User guide

Features of the speaker

Ⓐ Microphone for hands-free talking via a mobile phone
⑧ “Previous track/Volume –” button (<)
© “Play/Pause/Phone” button
(D) "Next track/Volume +" button (>)
E Speaker grille
⑤ microSD card slot
G Main switch (MP3/OFF/Bluetooth)
⑧ Status indicator (LED ring)
① Mini USB connector for charging and as an audio input (AUX IN) via supplied cable

WARNING! Important safety information

Please read the following safety guidelines carefully. Follow all the instructions. This will avoid fire, explosions, electric shocks or other hazards that may result in damage to property and/or severe or fatal injuries. Please ensure that everyone who uses the product has read and followed these warnings and instructions.

• Use the product only in the manner described in this manual.
• The integrated lithium-polymer battery is flammable. Keep away from open flame!
• Keep the product away from moisture. If moisture gets into the equipment, have a qualified technician check the safety of the components before you use it again.
• Use and store the product out of reach of children.
• Do not attempt to open, modify or repair the product. Do not drop, puncture, break or expose to high pressure. Do not use near flammable materials or in explosive environments.
• Unplug all connections before cleaning the product. For cleaning: never use liquids such as water, household cleaners, gasoline, alcohol or paint thinner. Use a damp cloth for cleaning.
• Keep the loudspeaker at a safe distance from your ears. Otherwise there is a risk of hearing loss.

Charging the internal battery

Before first use, the battery must be fully charged (approx. 2 hours).

1. Make sure the product is switched off (the status indicator does not light).
2. Use the cable supplied to connect the mini USB connector to the USB port of a computer or to an optional USB power adapter. The status indicator lights red while charging. It will go out when the charging process is complete.

Meaning of the status indicator

Colour State Meaning
Green	Blinking microSD card selected for MP3 playback
	Steadily lit	microSD card playback paused or AUX IN active
Blue Blinking Bluetooth connection established
Blue/red Blinking Bluetooth pairing mode active
Red	Blinking Battery is discharged
	Steadily lit Battery is charging
	Off Battery is fully charged

Pairing the speaker with a device

If you have already paired the speaker with the device, it is normally sufficient to turn both devices on. Otherwise perform the following actions.

1. Slide the main switch to the Bluetooth position. While the speaker is searching for an already paired device, the status indicator blinks 6 times blue. If no device is found, the status indicator blinks alternately red and blue.

2. Activate the searching mode on the other device. (Refer to the other device's manual for details if necessary.)

3. Once the speaker appears as a found device ("Leitz 6358"), select it.

4. If prompted, enter "0000" as a code or password.

Once the connection is established, the status indicator lights steadily blue. Audio reproduction and control are now carried out through the speaker.

Note: The device pair coupled via Bluetooth operates according to the supported protocols. Smartphones, for example, usually use HFP (Hands-free profile) and A2DP (Advanced Audio Distribution Profile). Therefore, in this case, the speaker can both manage calls and control audio reproduction. With an MP3 player with A2DP only audio reproduction will work, and with a simple mobile phone only calls can be handled.

Playing back audio files from a microSD card

You can use this product to play back MP3 and WAV format audio files saved on a microSD card.

1. Insert the microSD card into the card slot until it snaps into place. Make sure the contacts are facing upwards when inserting the card.

2. Slide the main switch to the MP3 position.

Use the buttons on the speaker to control audio reproduction.

Controlling audio reproduction

Audio reproduction via Bluetooth or microSD card can be controlled in the following manner:

Objective Action
Start/stop playback Press the “Play/Pause/Phone” button.
Skip to the next track Press the right arrow button (>).
Skip to the previous track Press the left arrow button (<).
Adjust the volume	Press and hold the appropriate arrow button (< or >).
Switch between microSD card and AUX IN	Press and hold the “Play/Pause/Phone” button for two seconds.

Audio reproduction over wire connection

You can also use the speaker if your audio source does not have Bluetooth or there is no Bluetooth connection. Use the supplied cable for this purpose.

1. Connect the 3.5-mm mini jack of the cable to the headphones or line output of your audio source.
2. Connect the mini USB plug of the cable to the mini USB connector on the speaker.
3. Slide the main switch to the MP3 position.
4. Operate your audio source as usual to control playback. To adjust the volume, use the arrow buttons as explained below.

Note: The speaker cannot control the audio source via the cable connection. It only reproduces the audio signal received via the cable.

Controlling mobile phone calls

When there is an incoming call on your paired mobile phone, the speaker sounds an incoming call tone. Your mobile phone may also sound an incoming call depending on its settings. The following table shows what you can do with the speaker in this situation.

Objective Action
Answer an incoming call Press the “Play/Pause/Phone” button.
Reject an incoming call	Press and hold the “Play/Pause/Phone” button for two seconds.
End a call Press the “Play/Pause/Phone” button.
Redial	Press the “Play/Pause/Phone” button twice in quick succession.

When a call comes in while audio is played back over the loud-speaker, the playback signal is faded out. Audio playback stops, and only the call will be audible. Once you end the call, playback will resume and the playback signal will be faded in again.

Troubleshooting

Note: The speaker attempts to restore the connection with the last paired device. To connect to a different device paired earlier, pair that device again (see “Pairing the speaker with a device” on page5).

Issue Solution
The Bluetooth connection is lost.	The range may be exceeded. Move both devices closer together again. Turn the speaker off and back on. The connection should be re-established.
	Make sure that no other Bluetooth devices, wireless devices or other devices which may interfere with the connection are on in the area. Switch off such devices as necessary.
Sound is not clear or there is no sound at all.	Turn the speaker off and back on.
	Turn off your devices's equalizer.
	Make sure the speaker's volume level is not too high.
No audio output from the speaker.	Make sure your Bluetooth device supports A2DP.
	Make sure both devices are paired.
	Turn the speaker off and back on. The connection should be re-established.
The volume cannot be adjusted.	Change the volume on the other device.
	Charge the internal battery.
No LEDs light up.	Make sure that the main switch is in the MP3 or Bluetooth position.
	Charge the internal battery.
A call is not indicated on the speaker.	Make sure your mobile phone is equipped with HFP.
	Make sure both devices are paired.
	Turn the speaker off and back on. The connection should be re-established.
Audio playback does not resume after ending a call.	Press the “Play/Pause/Phone” button to resume playback.
Playback control is not possible with the speaker.	Make sure your mobile phone is equipped with AVRCP.

Technical Data

Rated output power 2.5 W
Maximum output power 3 W
Sound pressure level (1 kHz) 86 dB, ±3 dB
Frequency range 100 Hz – 20 kHz
Bluetooth compatibility Bluetooth v4.1	A2DP v1.2, AVRCP v1.0, HFP v1.6, HSP v1.2
Bluetooth operating range max. 10 m (Class 2)
microSD card maximum capacity 32 GB
Supported audio file formats MP3, WAV
Battery capacity 400 mAh
Usage time, battery fully charged approx. 6 hours
Charging time approx. 2 hours
Permissible ambient temperature (operation)	0–40 °C
Permissible ambient temperature (storage)	0–40 °C
Dimensions (H × ∅) 54 mm × 60 mm
Weight 235 g

Guidelines for Electromagnetic Compatibility

This device has been tested for compliance with the limit values specified in EMC Directive 2004/108/EC of the European Community. These limit values are designed to provide reasonable protection against harmful interference in residential areas. If this equipment is not installed and used in accordance with this manual, it may cause harmful interference to radio or television reception or affect other electronic devices. Use only shielded cable to connect the components in order to avoid such interference. Non-compliance invalidates the permission to operate this equipment.

Disposal

The crossed-out wheelie bin indicates that this product must not be disposed of with household waste (residual waste). You must dispose of electric and electronic appliances and empty batteries at specially provided public locations. There is no charge for disposal. For more information, contact your local city or district council or the shop where you purchased the product.
