USER MANUAL RSH2545B RYOBI

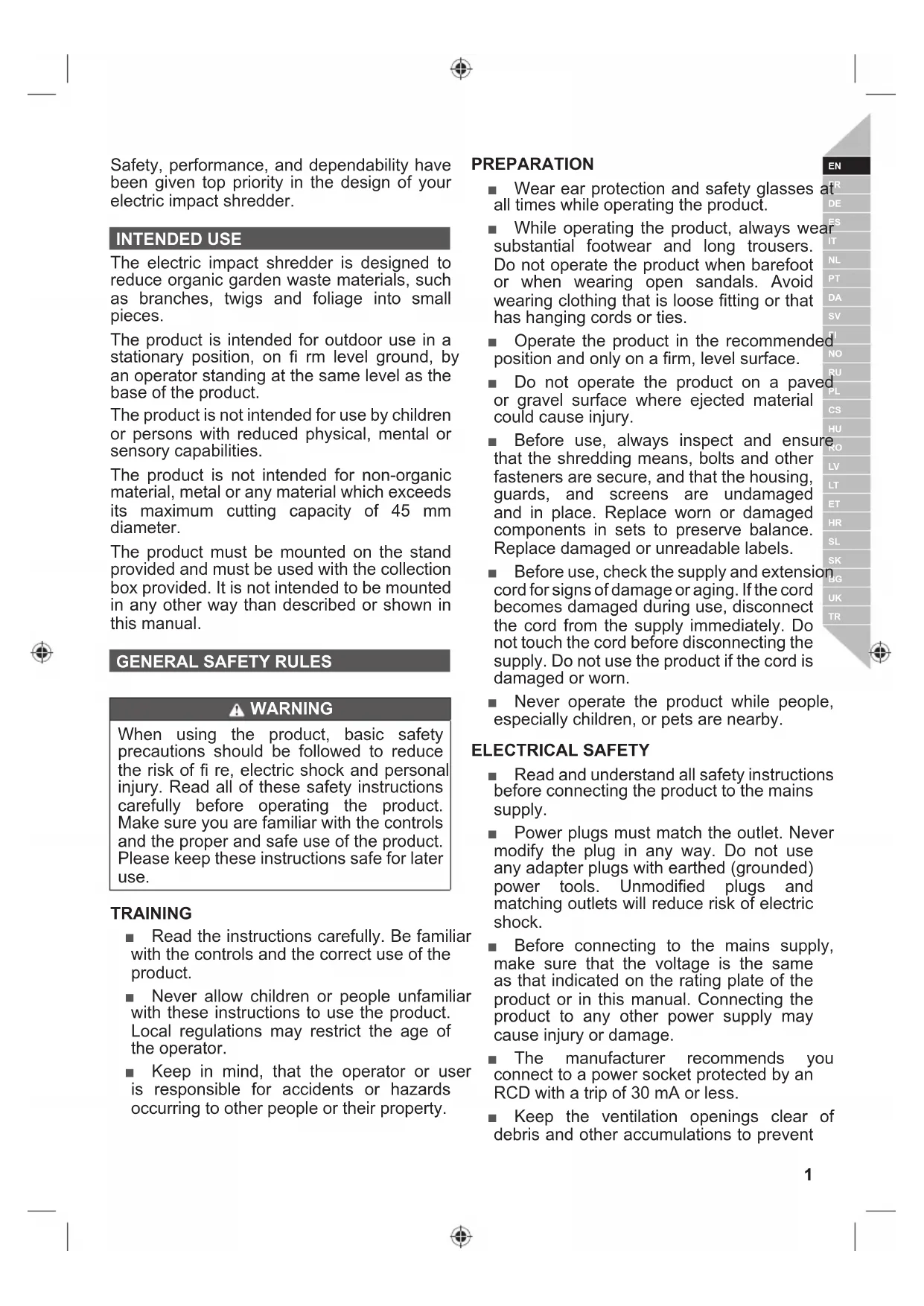

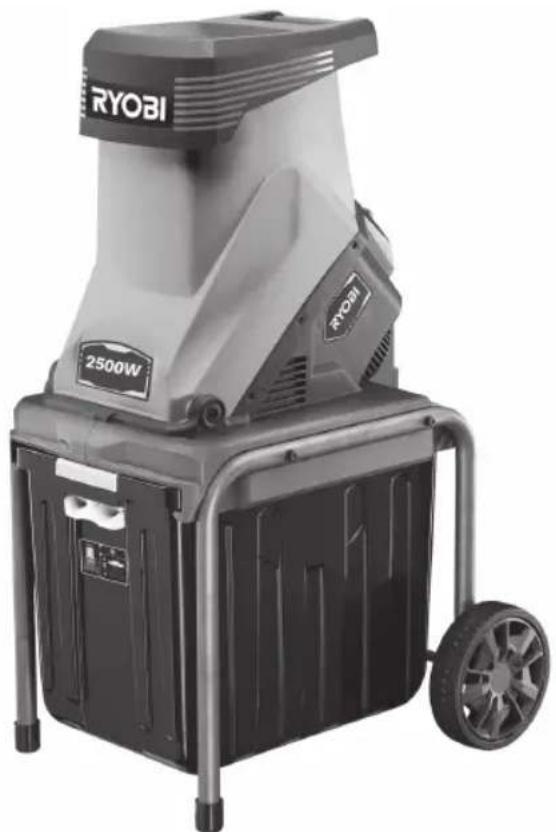

Safety, performance, and dependability have been given top priority in the design of your electric impact shredder. INTENDED USE The electric impact shredder is designed to reduce organic garden waste materials, such as branches, twigs and foliage into small pieces. The product is intended for outdoor use in a stationary position, on fi rm level ground, by an operator standing at the same level as the base of the product. The product is not intended for use by children or persons with reduced physical, mental or sensory capabilities. The product is not intended for non-organic material, metal or any material which exceeds its maximum cutting capacity of 45 mm diameter. The product must be mounted on the stand provided and must be used with the collection box provided. It is not intended to be mounted in any other way than described or shown in this manual.

GENERAL SAFETY RULES

WARNING When using the product, basic safety precautions should be followed to reduce the risk of fi re, electric shock and personal injury. Read all of these safety instructions carefully before operating the product. Make sure you are familiar with the controls and the proper and safe use of the product. Please keep these instructions safe for later use. TRAINING ■ Read the instructions carefully. Be familiar with the controls and the correct use of the product. ■ Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. ■ Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property. PREPARATION ■ Wear ear protection and safety glasses at all times while operating the product. ■ While operating the product, always wear substantial footwear and long trousers. Do not operate the product when barefoot or when wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. ■ Operate the product in the recommended position and only on a firm, level surface. ■ Do not operate the product on a paved or gravel surface where ejected material could cause injury. ■ Before use, always inspect and ensure that the shredding means, bolts and other fasteners are secure, and that the housing, guards, and screens are undamaged and in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels. ■ Before use, check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. Do not touch the cord before disconnecting the supply. Do not use the product if the cord is damaged or worn. ■ Never operate the product while people, especially children, or pets are nearby. ELECTRICAL SAFETY ■ Read and understand all safety instructions before connecting the product to the mains supply. ■ Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ■ Before connecting to the mains supply, make sure that the voltage is the same as that indicated on the rating plate of the product or in this manual. Connecting the product to any other power supply may cause injury or damage. ■ The manufacturer recommends you connect to a power socket protected by an RCD with a trip of 30 mA or less. ■ Keep the ventilation openings clear of debris and other accumulations to prevent2 | English damage to the motor or possible fire. ■ Keep the power cord away from heat, oil and sharp edges. ■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ■ If you need to use an extension cord ensure it is suitable for outdoor use and has a current capacity rating sufficient to supply your product. The extension cord cable should be marked with either “H05 RN-F” or “H05 VVF”. Check it before every use for damage; always uncoil it during use because coiled cords can overheat. Damaged extension cords should not be repaired; they should be replaced with an equivalent type. ■ Make sure the power cord is positioned so that it cannot be damaged by the cutting means and will not be stepped on, tripped over or otherwise subjected to damage or stress. ■ A power spike during motor start-up causes voltage fluctuations which may affect other electrical products in the same power circuit. Connect the product to a power supply with an impedance equal to or less than 0.404 Ω to minimise voltage fluctuations. Contact your electric power supplier for further clarification.

ELECTRIC IMPACT SHREDDER SAFETY

RULES OPERATION ■ Do not use the product in bad weather conditions especially when there is a risk of lightning. ■ Before starting the product, make certain that the feeding chamber is empty. ■ The product will not operate if the collection box is not properly fitted or the shredder housing is not properly closed and the shredder housing knob is not fully screwed in. The collection box and shredder housing are protected by safety interlocks that help to prevent accidental contact with moving parts that will result in serious injury. ■ Keep your face and body away from the feed intake opening. ■ Do not allow hands, any other part of the body, or clothing inside the feeding chamber, discharge chute, or near any moving part. ■ Do not overreach. Keep proper balance and footing at all times. Never stand at a higher level than the base of the product when feeding material into it. ■ Always stand clear of the discharge zone when operating the product. ■ When feeding material into the product be extremely careful that pieces of metal, rocks, bottles, cans, or other foreign objects are not included. ■ If the cutting mechanism strikes any foreign object or if the product starts making any unusual noise or vibration, immediately shut off the motor by pressing the off switch. Allow the product to stop and disconnect the product from the supply. Take the following steps before restarting and operating the product: ● inspect for damage ● replace or repair any damaged parts ● check for and tighten any loose parts ■ Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening. ■ If the product becomes clogged, stop the motor by pressing the OFF switch and disconnect the product from the mains supply. Ensure that all moving parts have stopped before opening the shredder housing or attempting to clear the blockage. ■ Never operate the product with defective guards or shields or without safety devices, such as debris collector, in place. ■ Keep the ventilation openings clear of debris and other accumulations to prevent damage to the motor or possible fire. ■ Do not transport the product while the motor is running. ■ Stop the product, disconnect from the power supply and ensure that all moving parts have come to a complete stop: ● before emptying the collection box ● before leaving the product unattended ● before clearing blockages or unclogging chute ● before checking, cleaning or working on the product ■ Do not tilt the product while the motor is3 English |

running. ■ Keep clear of the feed intake after inserting material. The action of drawing the material into the product may cause sudden movement or twisting of the exposed material. Always wear eye protection when operating the product. ■ If dust is created by the shredding process, wear a suitable dust mask to help prevent respiratory injury. ■ Switch off the product and allow all moving parts to stop before removing the collection box. ■ Do not modify product in any way or use parts and accessories which are not recommended by the manufacturer. ■ Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible fire.

OVERLOAD PROTECTION DEVICE

The product has an overload protection device. When overloading is detected, the machine will automatically switch off. The overload protection button is located next to the ON/ OFF switch. The button will pop up when overload protection is activated. Disconnect the product from the power supply and follow the instructions for clearing a blockage. Let the motor cool down for 3 to 5 minutes. After checking if there is no blockage, connect the power cord to the power supply and depress the overload protection reset button. Press the on switch to turn on the motor. If the overload protection is activated and there is no blockage, the overload may have occurred when materials are fed into the product too quickly for too long, causing the motor to overheat. Allow the motor to cool down. Empty the collection box before restarting the product.

WARNING The blades are sharp and are likely to be hot. Always wear heavy-duty protective gloves when checking and clearing a blockage. ■ If the product becomes clogged or blocked, or if the overload protection device is activated, follow these instructions: ● Turn off the product and disconnect it from the power supply. ● Make sure that all moving parts have stopped. ● Remove and empty the collection box. ● Remove any exposed material in the feeding chute. ● Unscrew the shredder housing knob and open the upper housing on its hinge to expose the cutting mechanism. ● Remove any debris blocking the feeding chamber by pulling it out from the inside. WARNING The blades may still move even though the power is turned off. Exercise extreme caution around the area of the blades. ● Carefully remove debris around the blades with a suitable hand tool. Using the hand tool, move the metal plates holding the blades to check if blockage has been removed. Do not insert the hand tool into the sharp edges of the blades; doing so will damage the blades. ● If you cannot see the collection box when the cutting means rotate, you need to clear debris in that area. Use a tool to carefully clear the area. ● Once the blockage is cleared, close the upper housing and screw in the shredder housing knob to engage the safety interlock. ■ If you are unable to successfully clear a blockage or if you find damage, bring the product to an authorised service centre for repair.

Make sure that the product has been thoroughly cleaned before storing it in a clean, dry place, which is secure and out of the reach of children. ■ Allow the product to adequately cool down before storing or transporting. ■ When transporting the product, make sure it is secured against falling or movement within the vehicle. MAINTENANCE

Before cleaning, inspecting or servicing the product, switch it off and allow the cutters to completely stop. Disconnect the product4 | English from the power supply. ■ After some time of shredding, the cutting mechanism will become hot. Allow the cutting mechanism to adequately cool down before cleaning, inspecting, or turning the blades. WARNING The cutter blades are extremely sharp. To avoid injury, exercise extreme caution and care when cleaning or working near the blades, inside the opened enclosure or when the collection box is removed. Always wear heavy-duty protective gloves. WARNING The blades may still move even though the power is turned off. Exercise extreme caution around the area of the blades. ■ To ensure the best performance, the product must be kept clean at all times. ■ Always clean the product immediately after use. Wherever possible, use a stiff brush inside the feed and discharge chutes and a dry cloth on the outside of the product. ■ For optimal shredding performance, do not allow any material to dry and harden on any of the product’s surfaces, particularly on the blades. ■ Make sure that the feeding chute and the ejection chute are kept clean and clear of all waste materials. ■ The cutting blades fitted in the product have two cutting edges. The blades may be turned around by 180° if one edge is blunt. See page 14-15. Replace with original RYOBI parts if your blades are blunt, chipped, or cracked. ■ Make sure that all nuts, bolts, and screws are tightened and secure, especially the blade screws. ■ Always have any damaged or worn parts repaired or replaced by qualified personnel at an authorised service centre. ■ Never attempt to bypass the safety interlock switches on the upper shredder housing; this could lead to serious personal injury, including amputation. WARNING Do not at any time let brake fl uids, gasoline, petroleum-based products and penetrating oils come in contact with plastic parts. Never use brake fl uids, gasoline, petroleum-based products, or any solvents to clean tool. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. ■ You may perform maintenance tasks described in this manual. For other repairs or advice, seek the assistance of an authorised service centre. RESIDUAL RISK Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise when using the product and the operator should pay special attention to avoid the following: ■ Injury caused by noise ● Wear ear protection and limit exposure. ■ Injury caused by inhalation of dust and particles ● Wear appropriate dust mask. ■ Injury caused by contact with cutting means ● Keep unprotected body parts away from the cutting means at all times. ■ Injury caused by thrown debris ● Wear eye protection at all times and keep body parts away from the area around the feeding chute.

SHREDDING GUIDE For best results when shredding, follow the guidelines shown in the table below.

MATERIAL SHREDDING METHOD

Twigs and up to 6 mm diameter. Feed into the feeding chute at a rate which the product will accept without overloading. Use the plunger provided to push the material into the chute if required. Branches and up to 45 mm in diameter. Clip off all side growth with secateurs before feeding into the feeding chute. Use the plunger provided to push the material into the chute if required. Bedding plants, weeds and shrubby growth. Knock soil and stones off the roots to avoid damage to the blades. Freshly cut foliage, hedge, and kitchen waste.(I.e. cabbage leaves, vegetable peelings etc.) With any material having a high moisture content it is advised to feed in some drier sticks at regular intervals to help push the material through the cutting assembly and prevent it from clogging. Dry sticks and twigs By inserting these at the end of your shredding task, this will help to clean the moisture and plant sap from the inside of the product and the cutting assembly. ■ Do not allow garden waste to accumulate before shredding as it will begin to compost, become too damp and clog the cutting assembly. Dry material will help most material to clear the ejection chute. Save some dry sticks until last to help clean the blade area. ■ Frequently monitor the build up/collection of shredded material. ■ The exit of the discharge chute must be clear at all times to prevent blockages. ■ When the collection box is full, turn the product Off before emptying. WARNING Do not put your hands up inside the shredder’s discharge chute to clear away shredded material while the product is switched on or connected to the mains supply. The blades are sharp. Wear heavy- duty gloves and exercise extreme caution when cleaning and clearing blockages. WARNING When feeding long woody branches/stems into the product be careful of whip and vibrations as the materials get caught by the cutter. The operator must wear eye protection whenever using the product. WARNING The cutting device has a tendency to pull branches/stems into the product. Do not try to impede entry of the material being cut once feeding has started. Always wear gloves to prevent skin lacerations when feeding material into the product. NOTE: In normal use, do not switch off the product until all of the shredded material has cleared the cutter assembly. If the product is switched off too quickly, remaining pieces of material may clog the blade assembly and stall the motor when the product is switched back on.

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product, follow all warnings and safety instructions. Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area Danger - Rotating blades. Keep hands and feet out of openings while the product is running.6 | English Switch off and remove plug from mains before maintenance or if cord is damaged. Wear eye and ear protection. Do not use as a step. Wait until all machine components have completely stopped before touching them. Wear non-slip, heavy duty gloves. Keep hands away from blades Conforms to all regulatory standards in the country in the EU where the product is purchased. Ukrainian mark of conformity. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Class II tool, double insulation

The guaranteed sound power level is 107 dB Press to reset EurAsian Conformity Mark

SYMBOLS IN THIS MANUAL

Connect to power outlet. Disconnect from power outlet. Parts or accessories sold separately Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Note Warning Lock Unlock The following signal words and meanings are intended to explain the levels of risk associated with this product. DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION Without safety alert symbol Indicates a situation that may result in property damage.7 Français |
