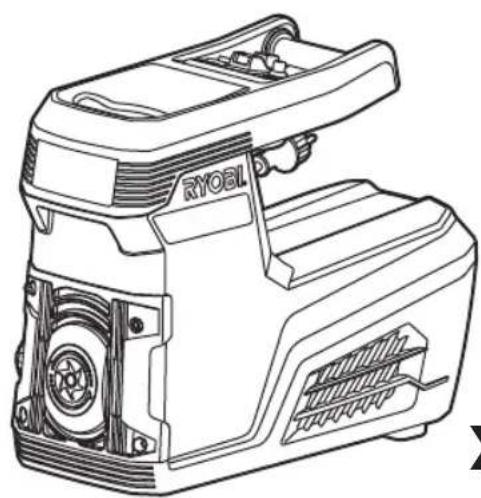

USER MANUAL RSH2845T RYOBI

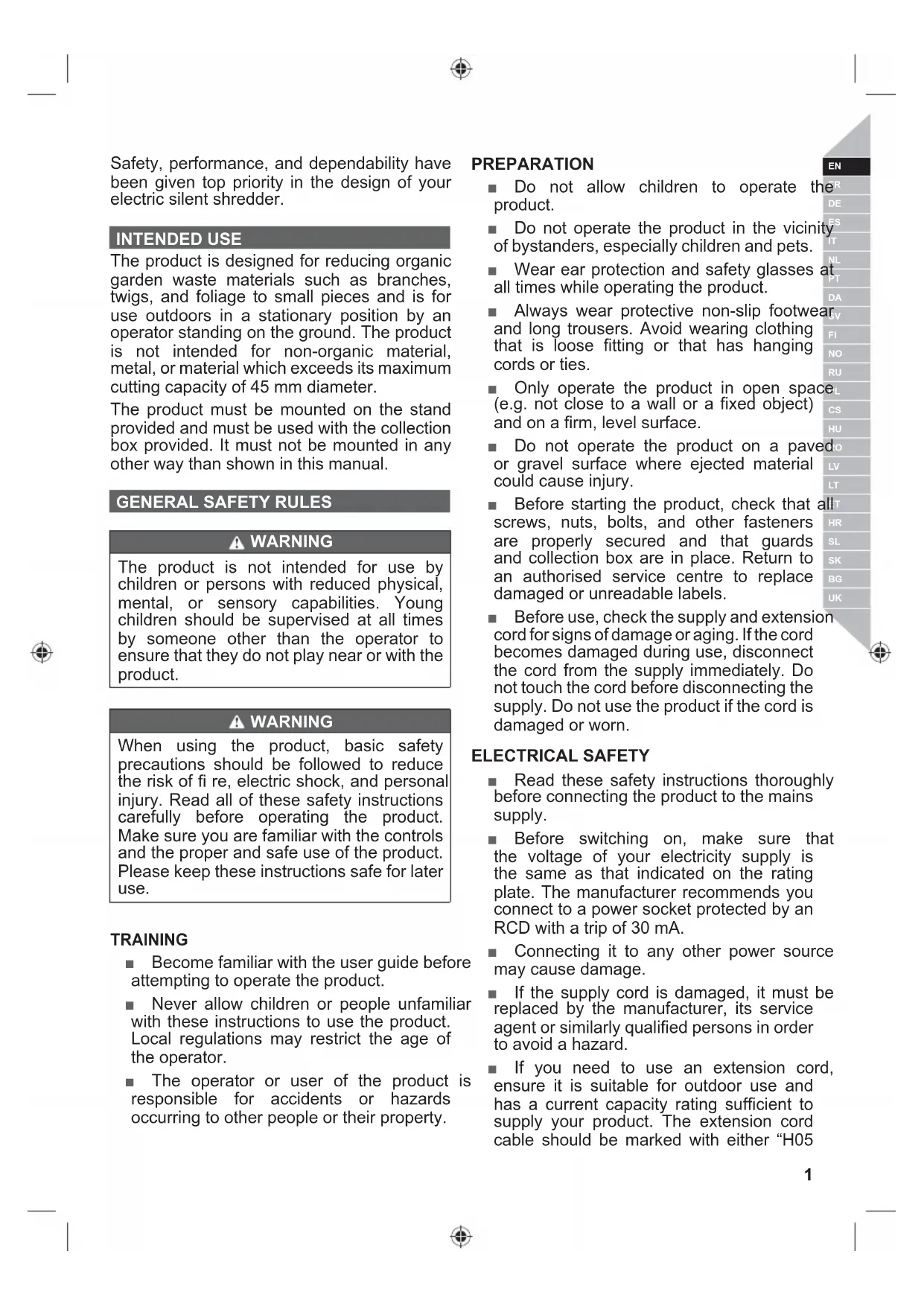

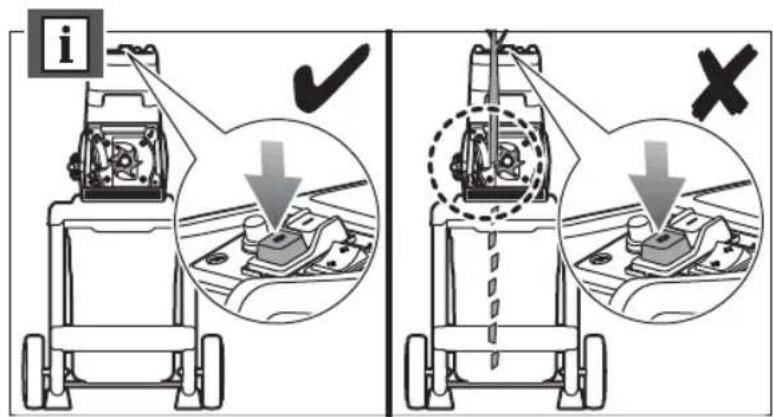

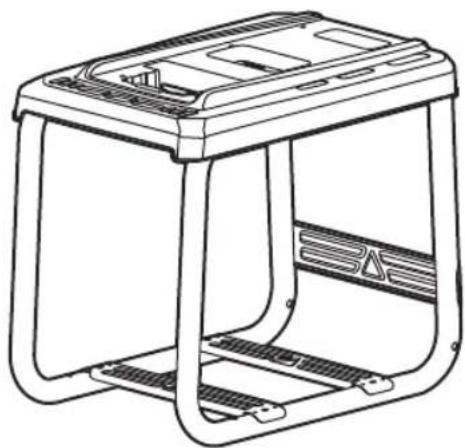

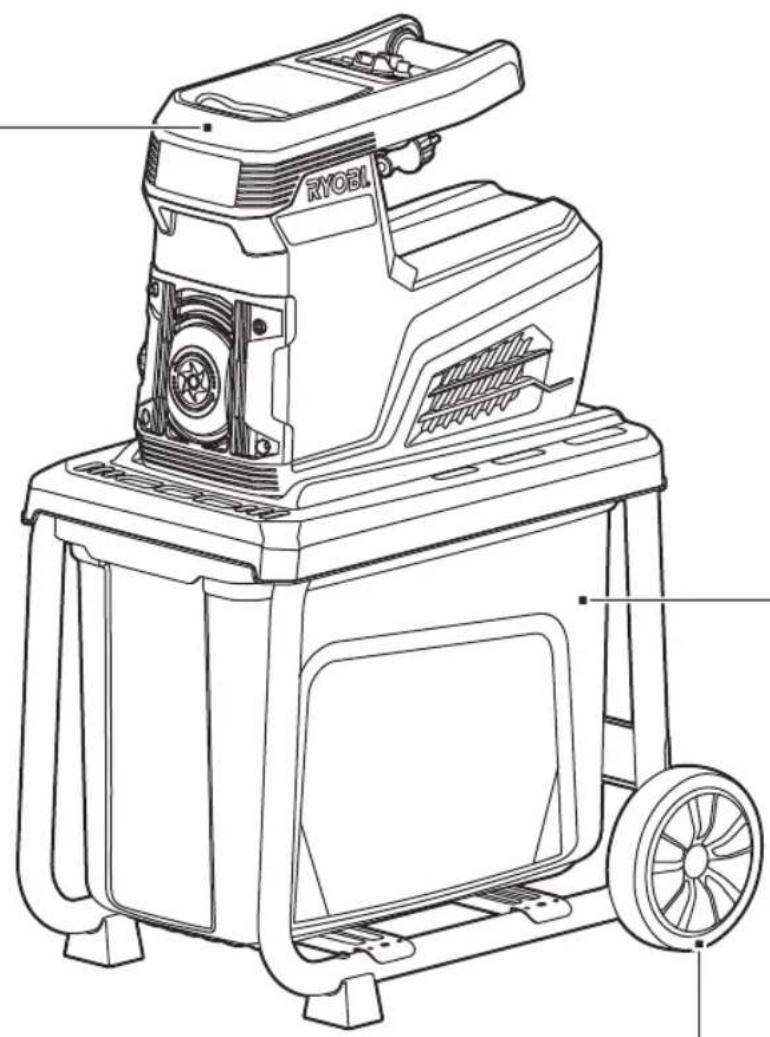

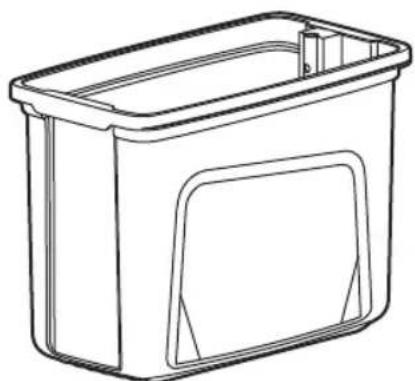

Safety, performance, and dependability have been given top priority in the design of your electric silent shredder. INTENDED USE The product is designed for reducing organic garden waste materials such as branches, twigs, and foliage to small pieces and is for use outdoors in a stationary position by an operator standing on the ground. The product is not intended for non-organic material, metal, or material which exceeds its maximum cutting capacity of 45 mm diameter. The product must be mounted on the stand provided and must be used with the collection box provided. It must not be mounted in any other way than shown in this manual.

GENERAL SAFETY RULES

WARNING The product is not intended for use by children or persons with reduced physical, mental, or sensory capabilities. Young children should be supervised at all times by someone other than the operator to ensure that they do not play near or with the product. WARNING When using the product, basic safety precautions should be followed to reduce the risk of fi re, electric shock, and personal injury. Read all of these safety instructions carefully before operating the product. Make sure you are familiar with the controls and the proper and safe use of the product. Please keep these instructions safe for later use. TRAINING ■ Become familiar with the user guide before attempting to operate the product. ■ Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. ■ The operator or user of the product is responsible for accidents or hazards occurring to other people or their property. PREPARATION ■ Do not allow children to operate the product. ■ Do not operate the product in the vicinity of bystanders, especially children and pets. ■ Wear ear protection and safety glasses at all times while operating the product. ■ Always wear protective non-slip footwear and long trousers. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. ■ Only operate the product in open space (e.g. not close to a wall or a fixed object) and on a firm, level surface. ■ Do not operate the product on a paved or gravel surface where ejected material could cause injury. ■ Before starting the product, check that all screws, nuts, bolts, and other fasteners are properly secured and that guards and collection box are in place. Return to an authorised service centre to replace damaged or unreadable labels. ■ Before use, check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. Do not touch the cord before disconnecting the supply. Do not use the product if the cord is damaged or worn. ELECTRICAL SAFETY ■ Read these safety instructions thoroughly before connecting the product to the mains supply. ■ Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. The manufacturer recommends you connect to a power socket protected by an RCD with a trip of 30 mA. ■ Connecting it to any other power source may cause damage. ■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ■ If you need to use an extension cord, ensure it is suitable for outdoor use and has a current capacity rating sufficient to supply your product. The extension cord cable should be marked with either “H052 | English RN-F” or “H05VV-F”. Check it before every use for damage, always uncoil it during use because coiled cords can overheat. Damaged extension cords should not be repaired, they should be replaced with an equivalent type. ■ A power spike causes voltage fluctuations and may affect other electrical products in the same power line. Connect the product to a power supply with an impedance equal or less than 0.389 Ω to minimize voltage fluctuations. Contact your electric power supplier for further clarification.

SHREDDER SAFETY RULES

OPERATION ■ Before starting the product, look into the feeding chamber to make certain that it is empty. ■ Keep your face and body away from the feed intake opening. ■ Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. ■ Always be sure of your footing. Keep firm footing and balance. Do not overreach. Never stand at a higher level than the base of the product when feeding material into it. ■ Always stand clear of the discharge zone when operating the product. ■ When feeding material into the product be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included. ■ If the cutting mechanism strikes any foreign objects or if the product should start making any unusual noise or vibration, switch the product off and allow the cutters to completely stop. Disconnect the product from its power supply, and take the following steps: ● inspect for damage; ● check for and tighten any loose parts; ● have any damaged parts replaced or repaired with genuine Ryobi spare parts. ■ Do not allow processed material to build up in the discharge chute as this may prevent proper discharge or blockage and can result in kickback of material through the feed intake opening. ■ If the product becomes clogged, switch the product off and allow the cutters to completely stop. Disconnect the product from its power supply before clearing debris. ■ Never operate the product if the guards, covers, collection box, or other safety devices are defective, not in place, and not in good working order. ■ If dust is created by the shredding process, wear a suitable dust mask to prevent respiratory injury. ■ Do not move or transport the product while the motor is running. ■ Switch off the product and disconnect from the power supply whenever you leave the work area. ■ Do not tilt the product while the motor is running. ■ You must never modify parts from the product or use parts not recommended by Ryobi, this may increase the risk of serious injury to yourself or others. ■ Always ensure that ventilation openings are kept clear of debris; otherwise, the motor may overheat resulting in possible damage to the product or increase the risk of fire. ■ Switch off the product before attaching or removing the collection box. ■ Do not use the product in bad weather conditions especially when there is a risk of lightning. WARNING Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

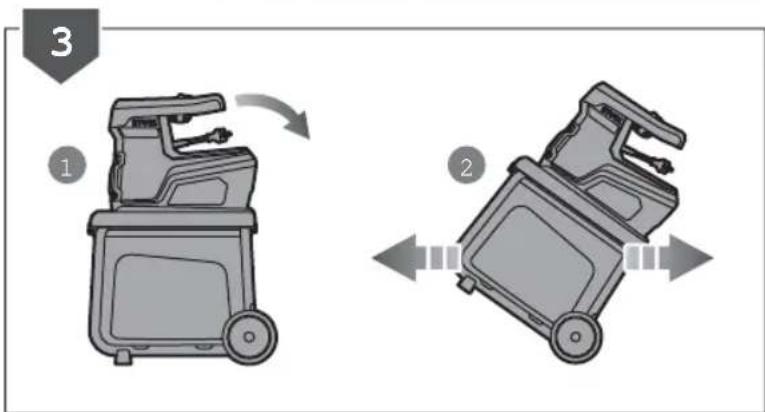

TRANSPORTATION AND STORAGE

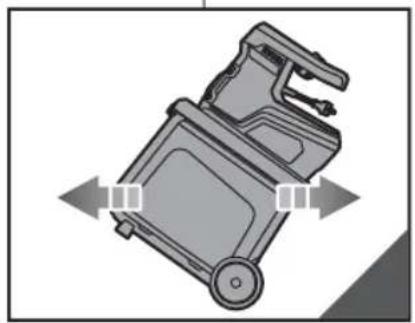

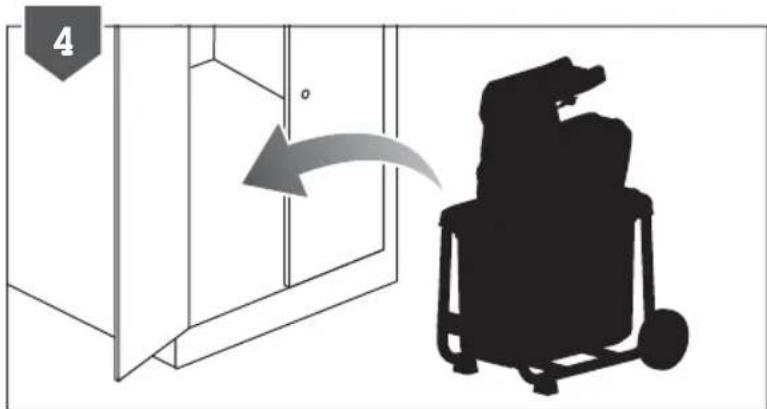

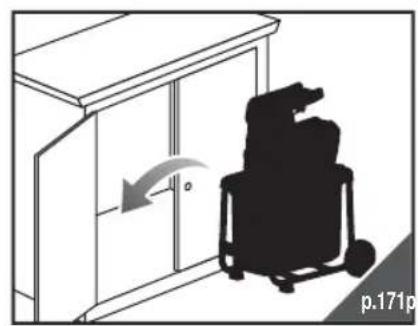

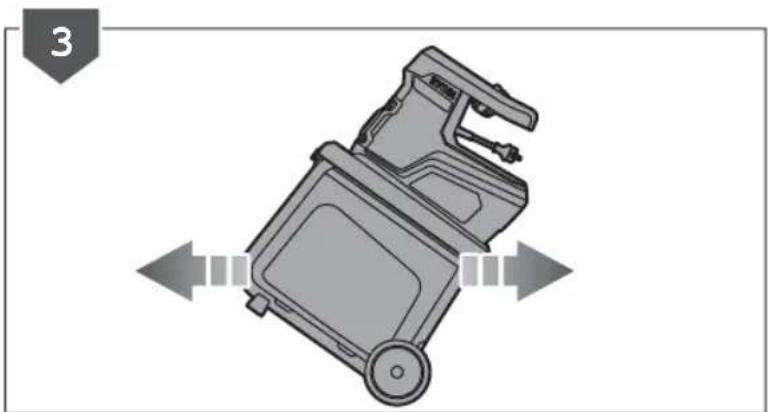

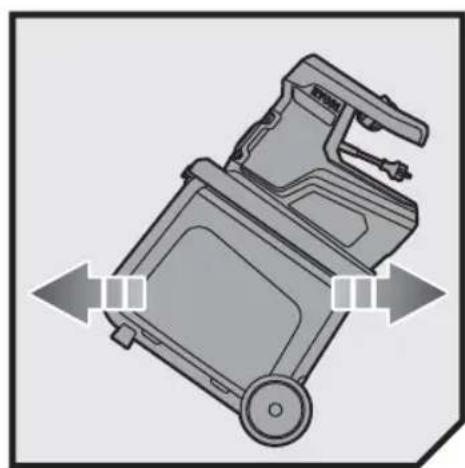

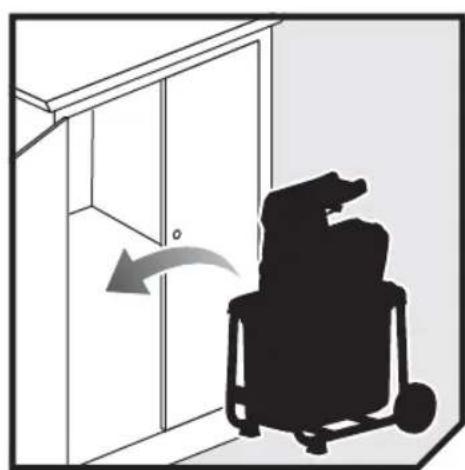

■ Make sure that the product has been thoroughly cleaned before storing it in a clean, dry place, and secured out of the reach of children. ■ Allow the product to adequately cool down before storing or transporting. ■ When transporting the product, make sure it is secured against falling or movement within the vehicle.3 English |

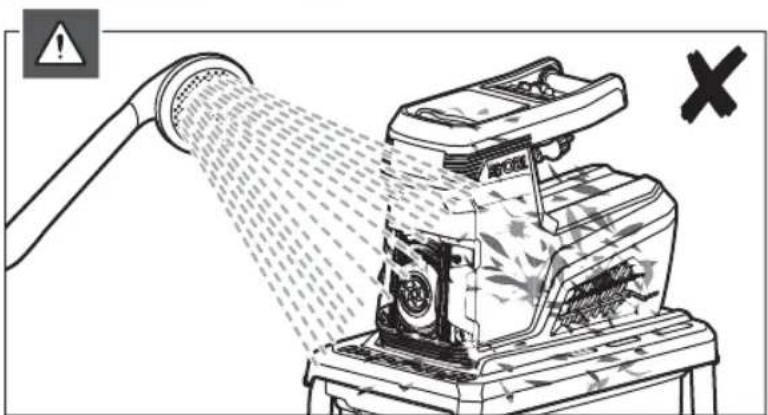

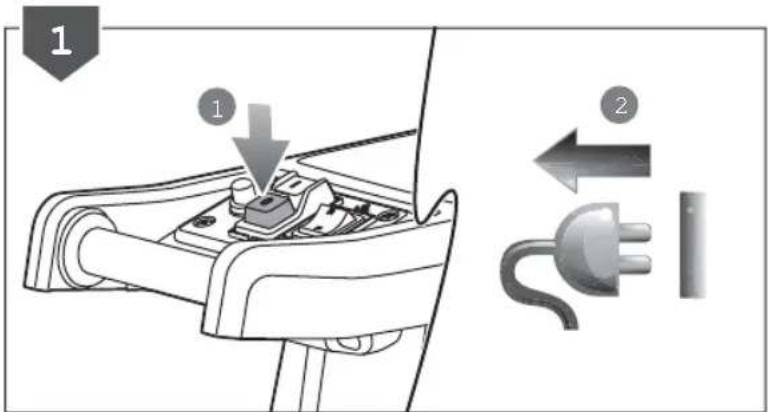

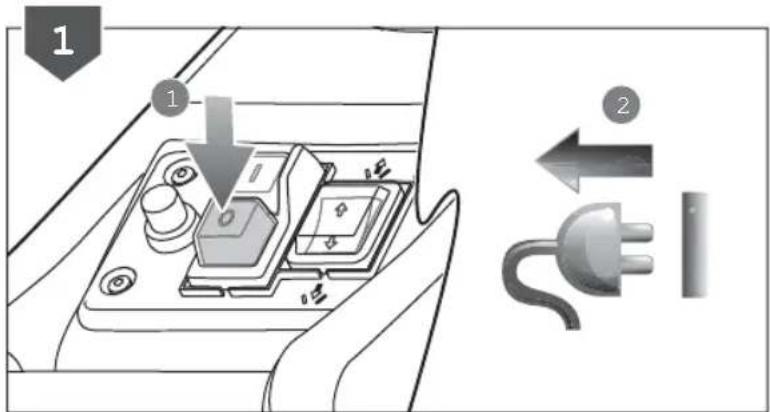

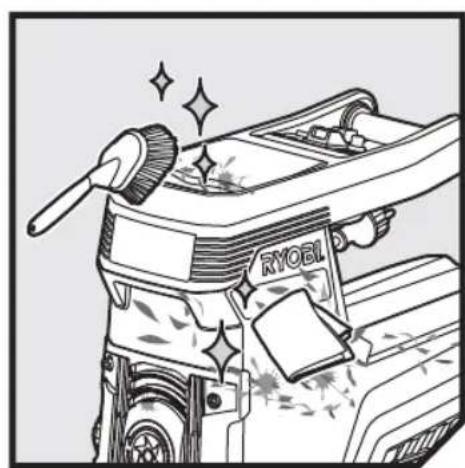

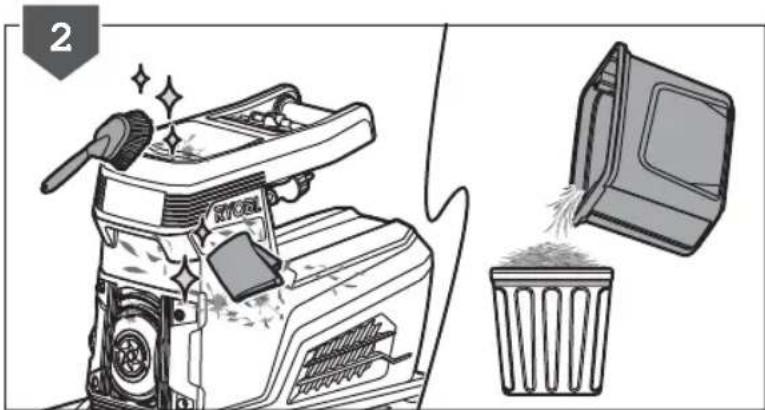

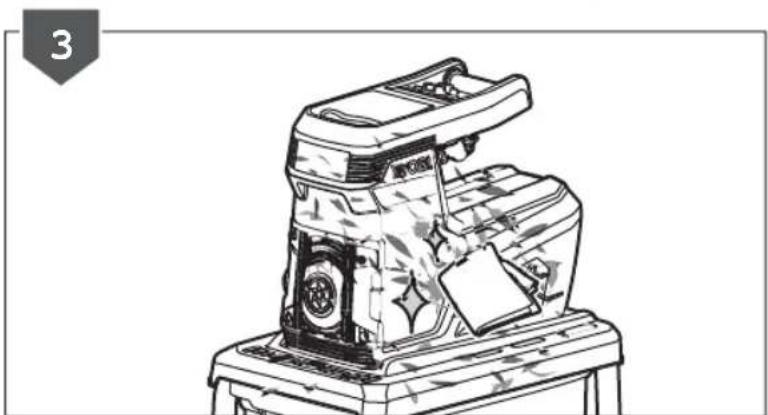

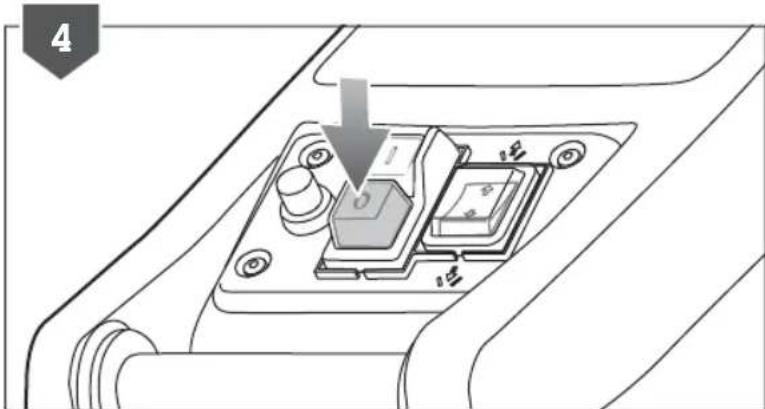

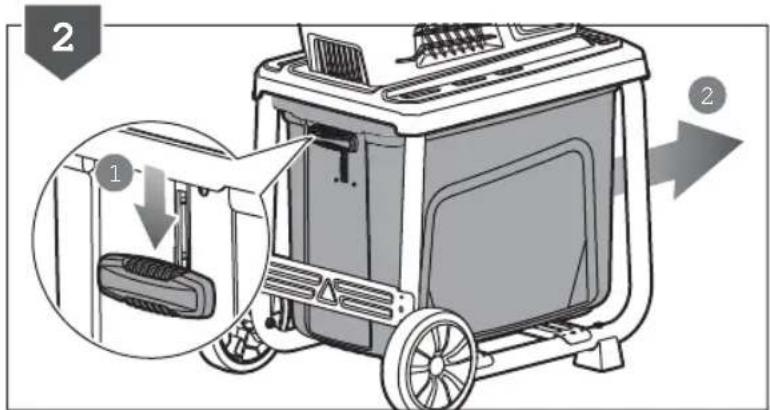

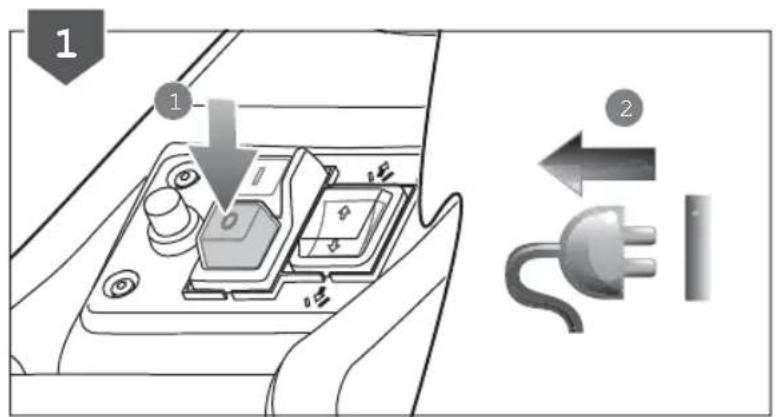

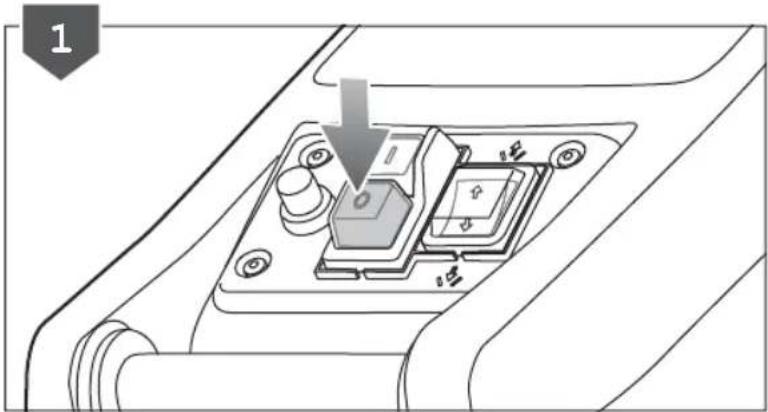

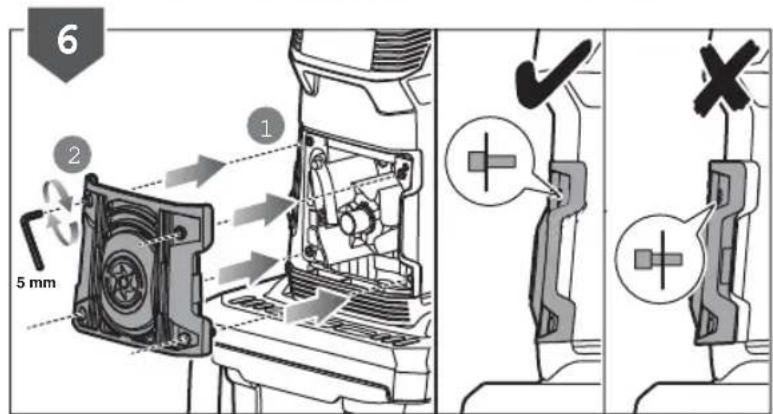

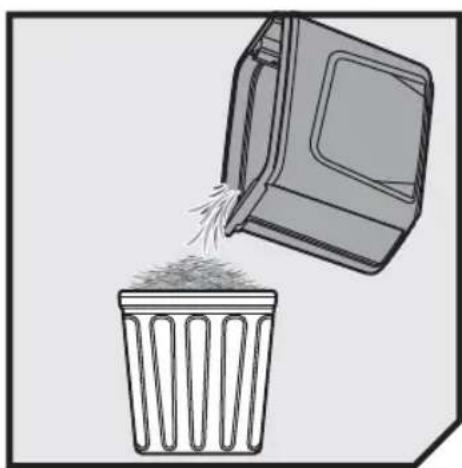

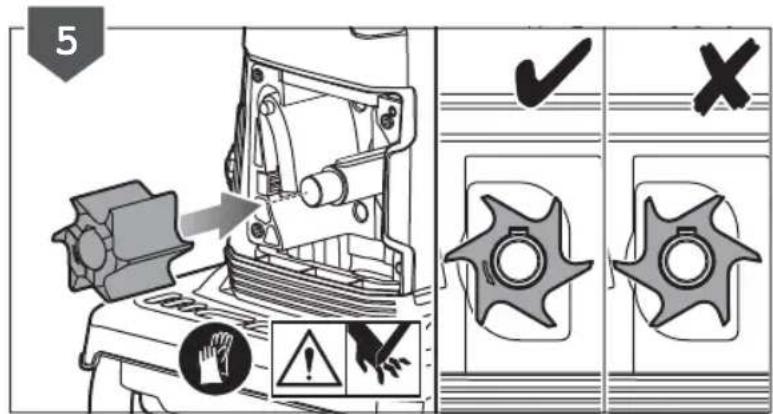

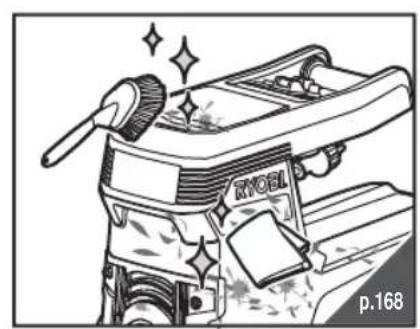

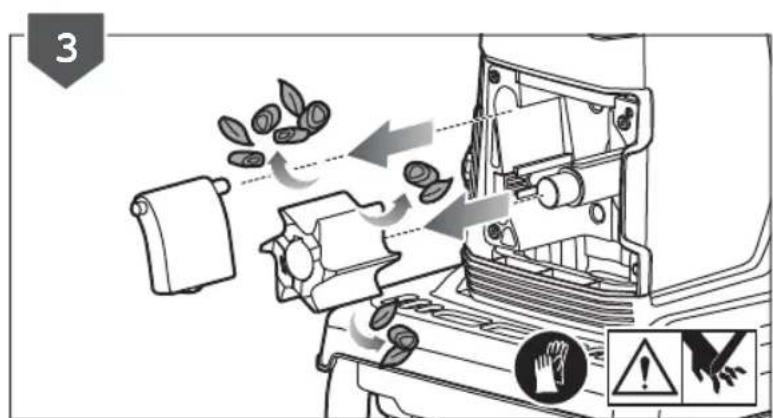

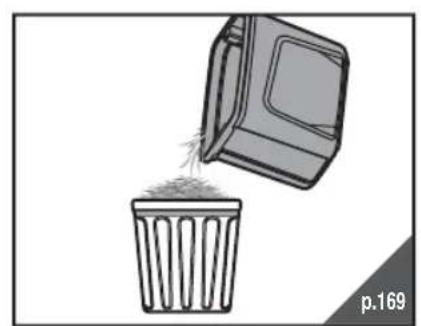

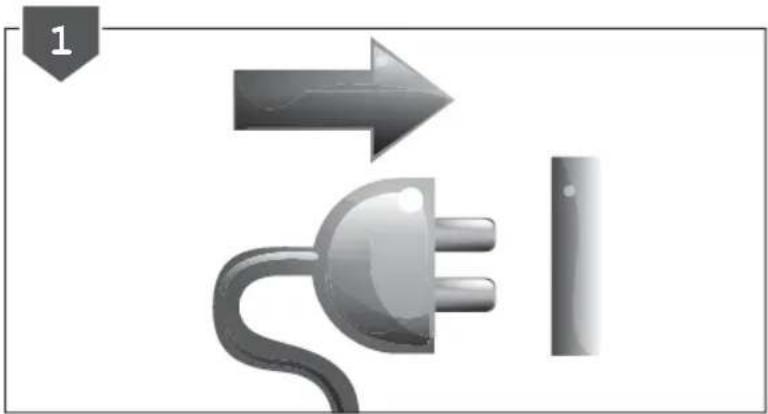

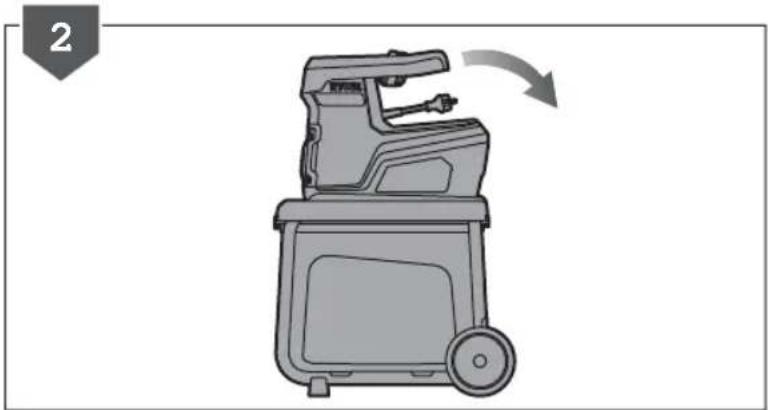

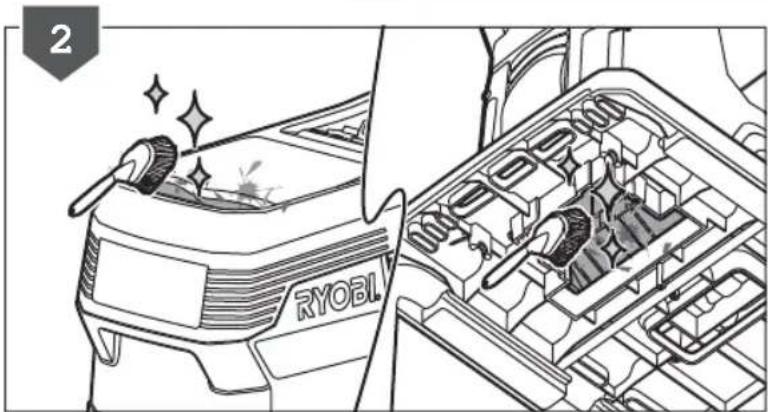

MAINTENANCE Before cleaning, inspecting or servicing the product, switch it off and allow the cutters to completely stop, disconnect the electric supply. After some time of shredding the cutting mechanism will become hot. Allow it to adequately cool down before cleaning, inspecting or adjusting. WARNING The cutter blades are extremely sharp. To avoid injury, exercise extreme caution and care when cleaning or working near the blades or inside the opened enclosure when the collection box is removed. Always wear heavy-duty protective gloves. ■ Be aware that the cutting means can still be moved even when the power is off or if the interlock switch is engaged. ■ To ensure the best performance from the product, it must be kept clean. ■ Always clean the product immediately after use. Wherever possible use a stiff brush inside the feed and discharge chutes and a dry cloth on the outside of the product. ■ Do not allow material to become dry and hard on any of the product surfaces, but particularly on the blades. This will directly affect the shredding performance. ■ Make sure that the feed hopper and the ejection chute are kept clean and clear of all waste material ■ Make sure that all nuts, bolts and screws (except the adjusting screw) are tight and secure. ■ Always have any damaged or worn parts repaired, or replaced by qualified personnel at an approved Ryobi service centre. ■ Never attempt to bypass the interlock switches on the collection box or the front cover of the cutter assembly. WARNING Do not at any time let brake fl uids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Never use brake fl uids, gasoline, petroleum- based products, or any solvents to clean the tool. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. ■ You may perform maintenance tasks described in the manual, for other repairs or advice seek the assistance of an approved Ryobi service centre.

SHAVING PLATE ADJUSTMENT

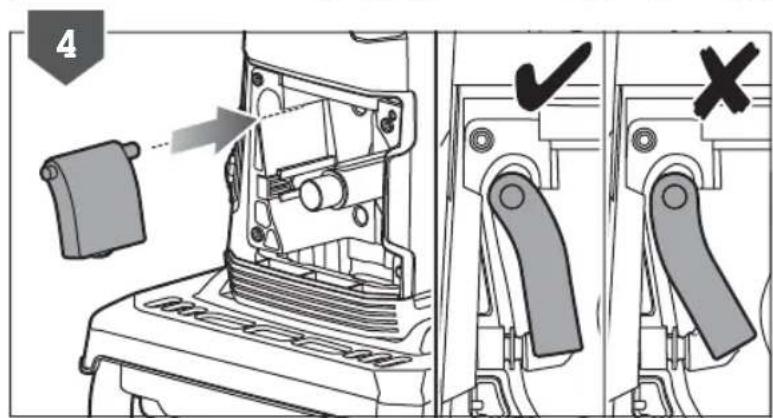

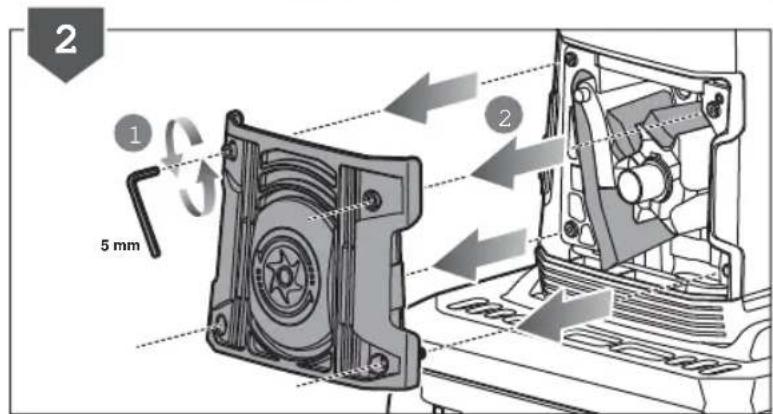

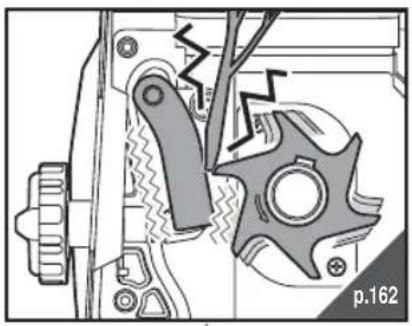

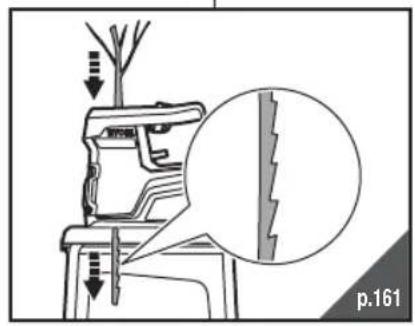

■ The product performs at its best by following these steps. Before use, always check that the blades are not in contact with the shaving plate. For optimal performance, keep a 1 mm gap between the blades and the shaving plate. ■ If the product fails to shred material, the shaving plate may need adjustment or the blades may need to be sharpened. ■ Over time the blades on the product need to be adjusted. This can be completed by adjusting the shaving plate so it will come into light contact with the blades. Ensure the product is turned on and working in normal forward direction. Adjusting the shaving plate while the motor is turned off could lead to serious damage to the product. NOTE: Adjusting the shaving plate should only be attempted when deemed totally necessary. Adjusting the shaving plate too often or too far could cause the product to stop working. ■ While the product is running, turn the outer locking knob counterclockwise to unlock. ■ Adjust the shaving plate by turning the shaving plate adjustment screw using an Allen key. When you hear metal on metal contact or you see fine aluminium shavings in the bottom of the collection container, stop the adjustment and allow the product to run for 30 seconds to sharpen the blades. Once sharpening is complete, turn the adjustment knob counterclockwise until it is no longer in contact with the shaving plate leaving a 1 mm gap.4 | English ■ Turn the outer locking knob clockwise to lock in place. NOTE: Sharpening the blades requires very light contact with the shaving plate. Complete any adjustment slowly to avoid damaging the product. Over adjusting the plate can cause serious damage to the product. RESIDUAL RISK Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: ■ Exposure to noise can cause hearing injury. Wear ear protection and limit exposure. ■ Inhalation of dust and particles. Wear dust mask / filter when necessary. ■ Contact with the cutting mechanism. Keep unprotected body parts away from the cutting mechanism at all times.

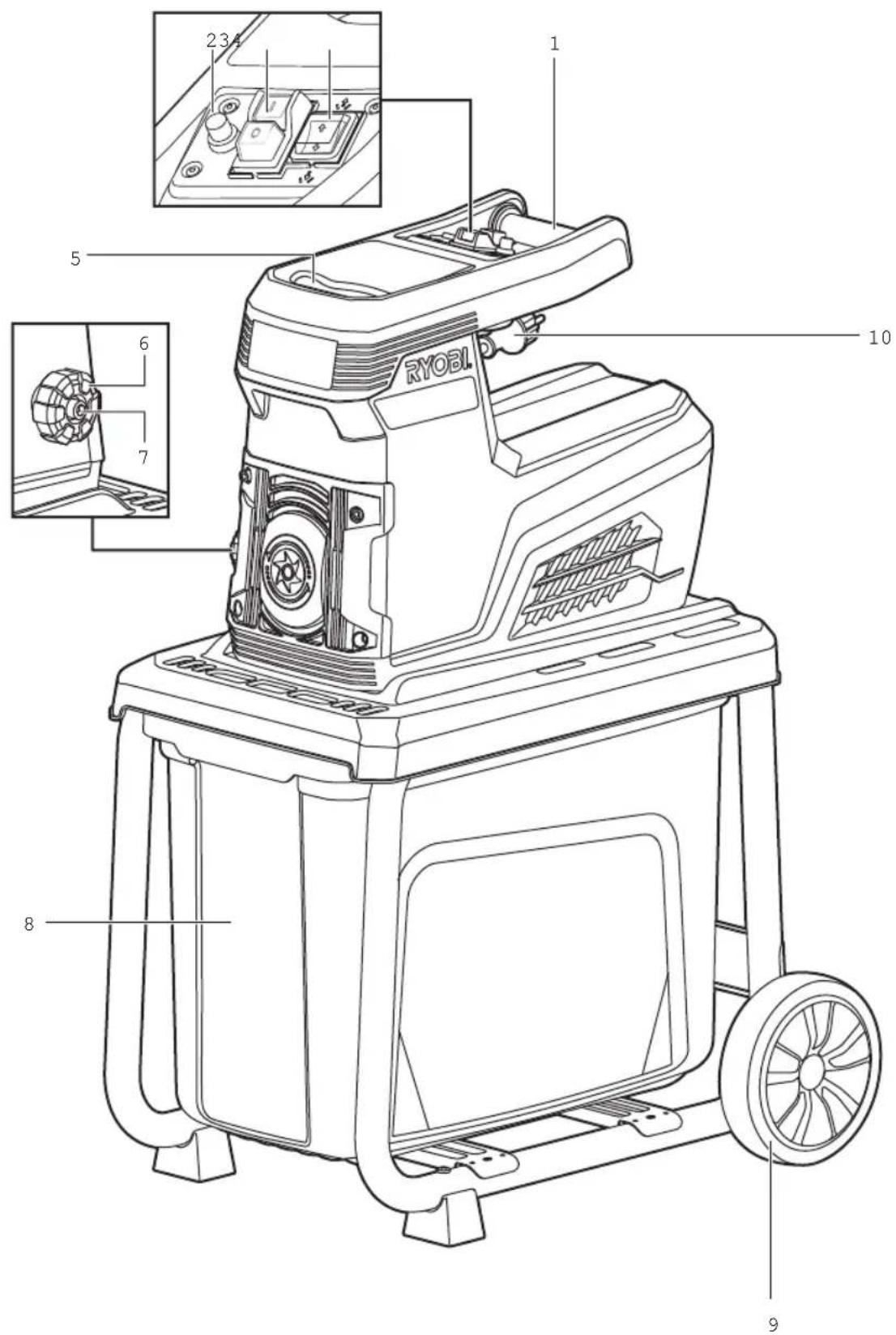

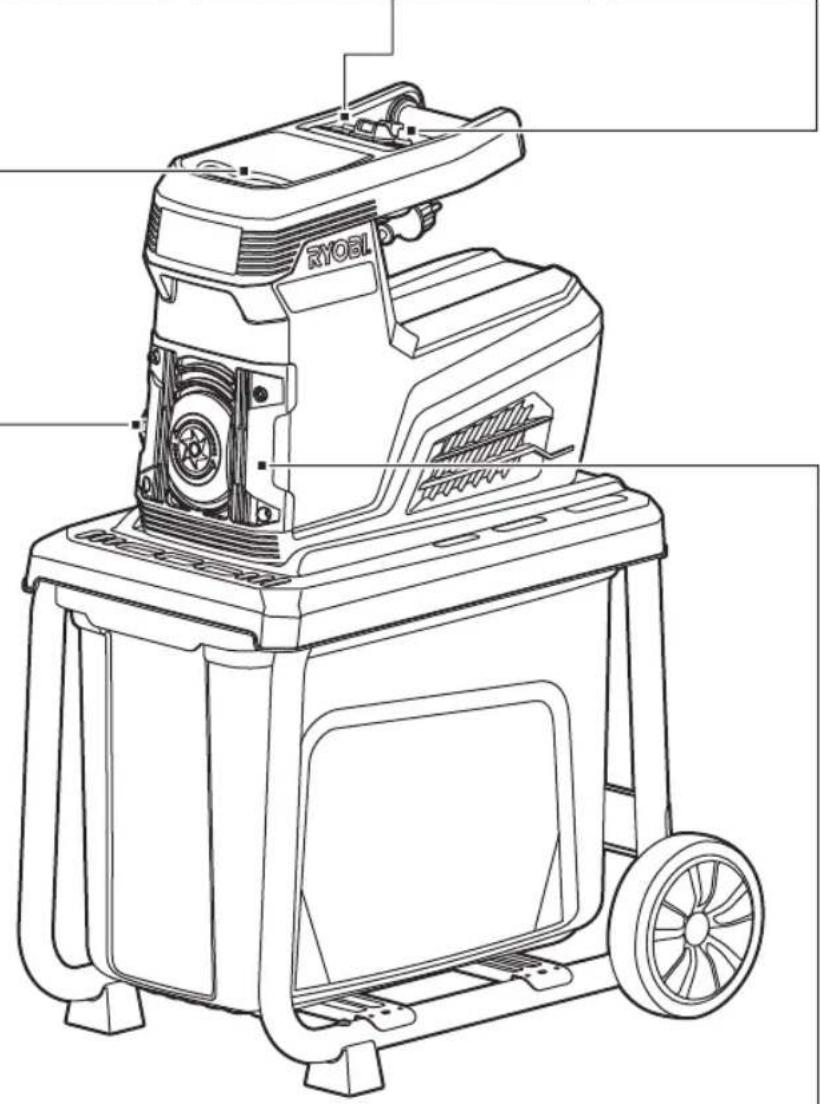

7. Shaving plate adjustment screw

SHREDDING GUIDE For best results when shredding, follow the guidelines shown in the table below.

MATERIAL SHREDDING METHOD

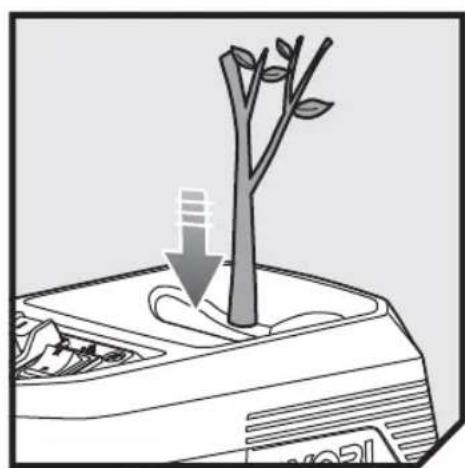

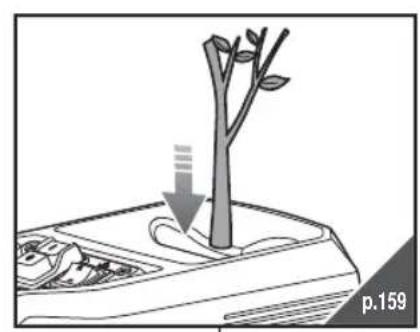

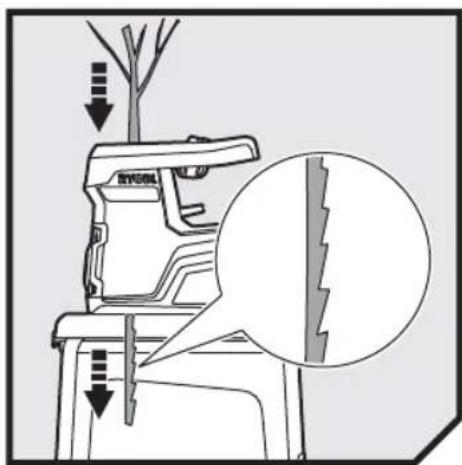

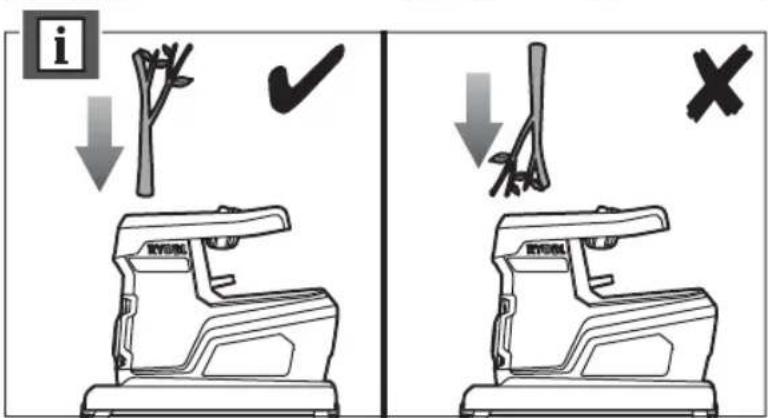

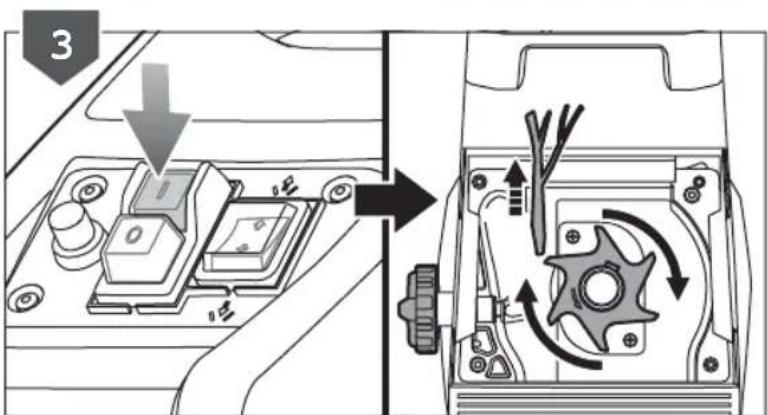

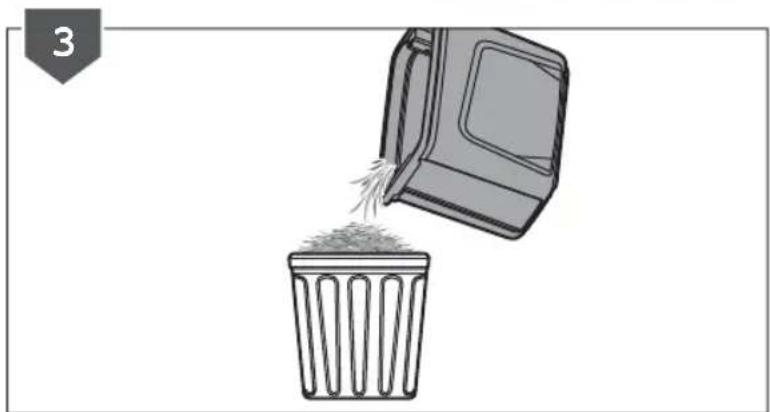

Twigs up to 6 mm diameter. Feed into the feeding hopper at a rate which the product will accept without overloading. Branches up to 45 mm in diameter. Clip off all side growth with secateurs before feeding into the feeding hopper. Bedding plants, weeds and shrubby growth. Knock soil and stones off the roots to avoid damage to the blades. Freshly cut foliage, hedge, and kitchen waste.(I.e. cabbage leaves, vegetable peelings etc.) With any material having a high moisture content, it is advised to feed in some drier sticks at regular intervals to help push the material trough the cutting assembly and prevent it from clogging. Dry sticks and twigs By inserting these at the end of your shredding task, this will help to clean the moisture and plant sap from the inside of the product and the cutting assembly. ■ Do not allow garden waste to accumulate before shredding as it will begin to compost, become too damp and clog the cutting assembly. Dry material will help most material to clear the ejection chute. Save some dry sticks until last to help clean the blade area. ■ Frequently monitor the build up/collection of shredded material. ■ The exit of the discharge chute must be clear at all times to prevent blockages. ■ When the collection box is full, turn the product Off before emptying. WARNING Do not put your hands up inside the shredder’s discharge chute to clear away shredded material while the product is switched on or connected to the mains supply. The blades are sharp. Wear heavy- duty gloves and exercise extreme caution when cleaning and clearing blockages. WARNING When feeding long woody branches/stems into the product be careful of whip and vibrations as they get caught by the cutter. The operator must wear eye protection whenever using the product.5 English |

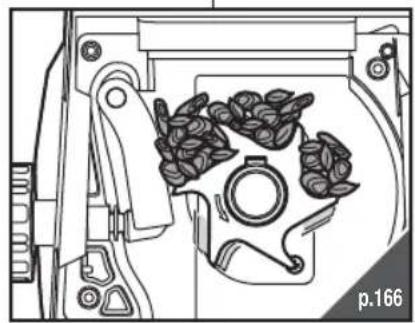

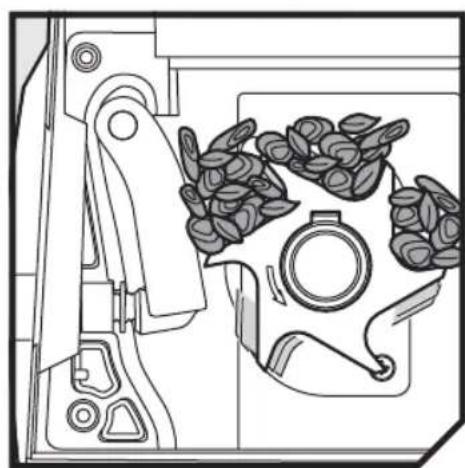

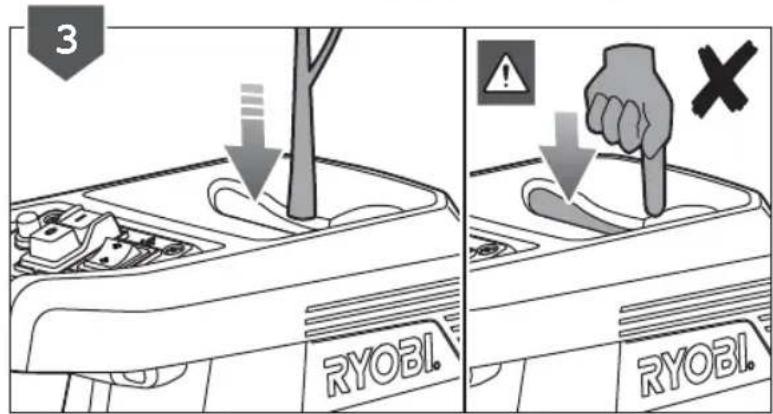

WARNING The cutting device has a tendency to pull branches/stems into the product. Do not try to impede entry of the material being cut once feeding has started. Always wear gloves to prevent skin lacerations when feeding material into the product. NOTE: In normal use, do not switch off the product until all of the shredded material has cleared the cutter assembly. If the product is switched off too quickly, remaining pieces of material may clog the blade assembly and stall the motor when the product is switched back on.

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product, follow all warnings and safety instructions. Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area Danger - Rotating blades. Keep hands and feet out of openings while the product is running. Switch off and remove plug from mains before maintenance or if cord is damaged. Wear eye and ear protection. Do not use as a step. Wait until all machine components have completely stopped before touching them. Wear non-slip, heavy duty gloves. Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian Conformity Mark Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

The guaranteed sound power level is 102 dB

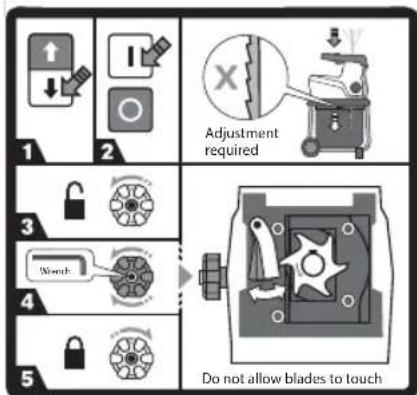

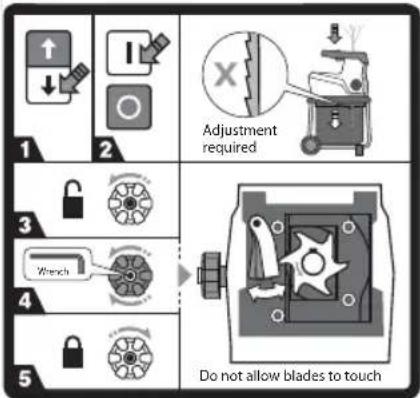

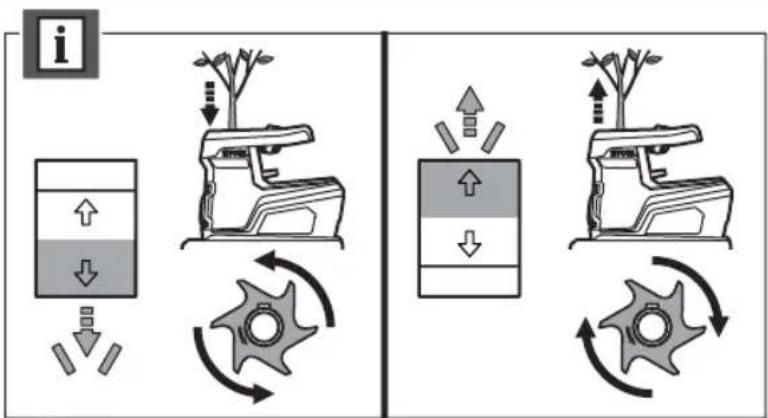

Off Forward Reverse Press to reset Adjustment required Do not allow blades to touch Wrench If the product fails to shred material, the shaving plate may need adjusting.

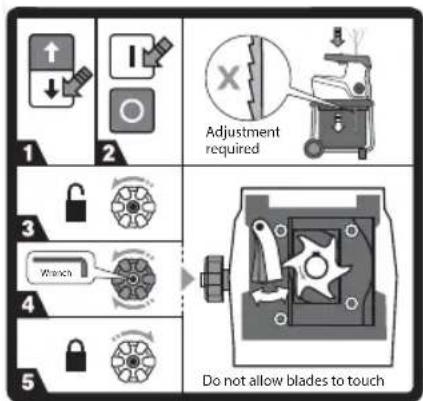

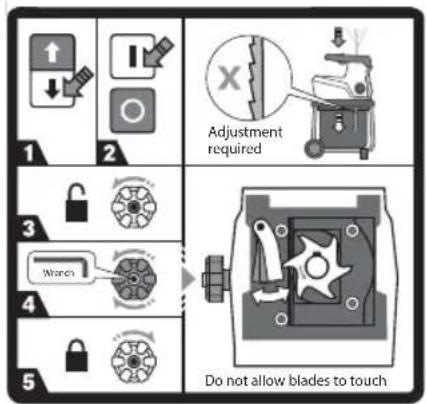

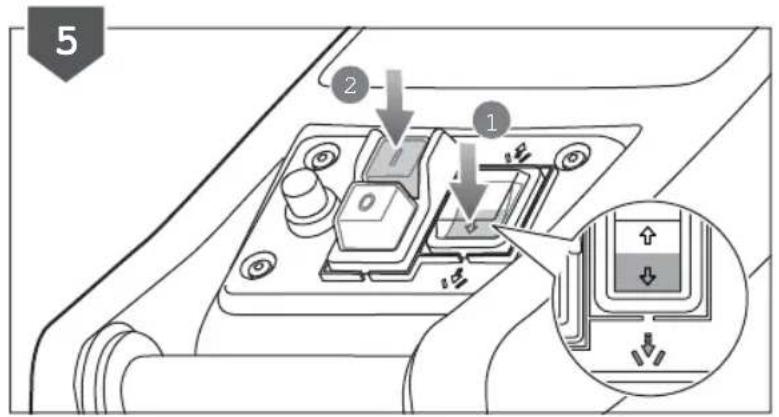

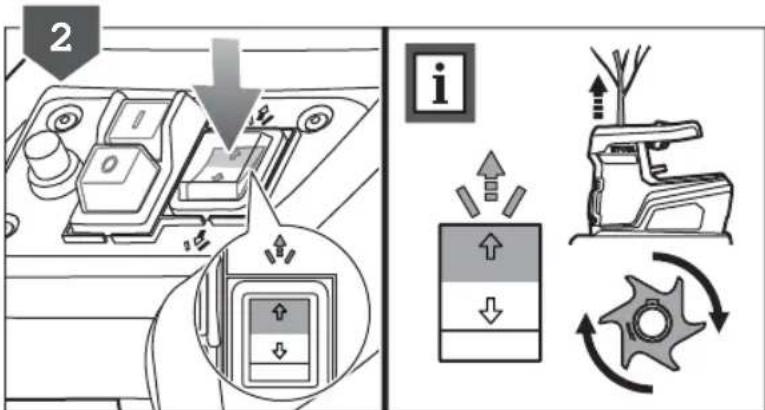

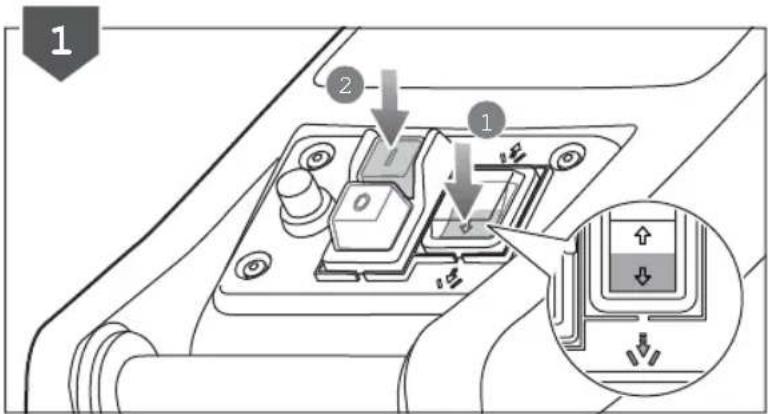

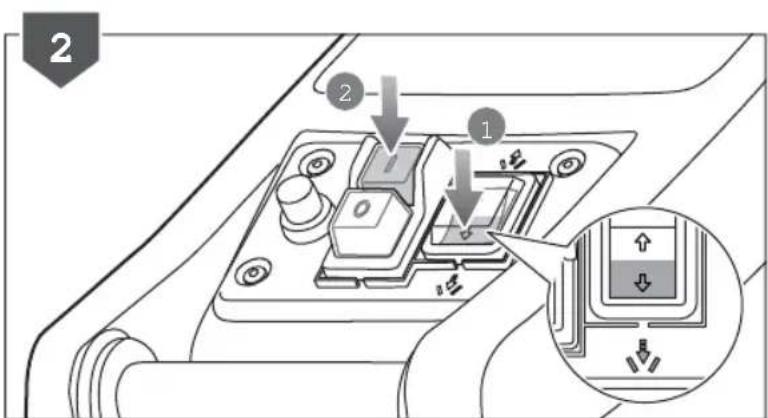

1. Ensure the switch is in the forward

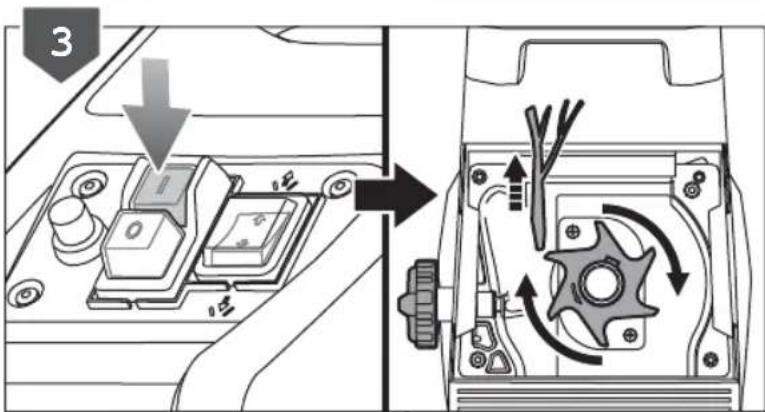

2. Turn on the product.

3. Turn counterclockwise to unlock.

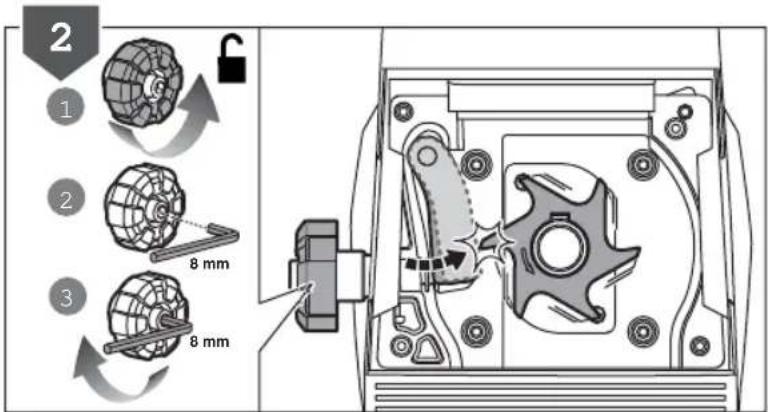

4. Adjust the position of the shaving plate

by turning the shaving plate adjustment screw using an 8 mm Allen key.

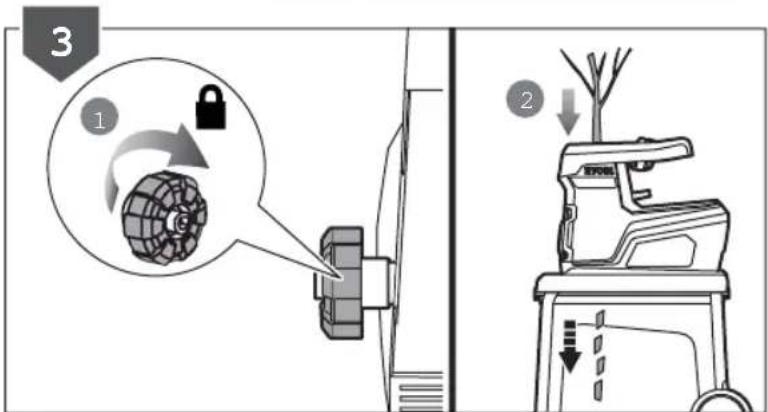

5. Turn clockwise to lock.6 | English

SYMBOLS IN THIS MANUAL

Connect to power outlet. Disconnect from power outlet. Parts or accessories sold separately Note Warning Lock Unlock Keep hands away from blades The following signal words and meanings are intended to explain the levels of risk associated with this product. DANGER Indicates an immine ntly hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION Without safety alert symbol Indicates a situation that may result in property damage.7 Français |

MACHEN SIE SICH MIT IHREM PRODUKT

SYMBOLE AUF DEM PRODUKT

KJENN PRODUKTET DITT

2. Turn on the product.

2. Turn on the product.

PROBLEM CAUSE ACTION

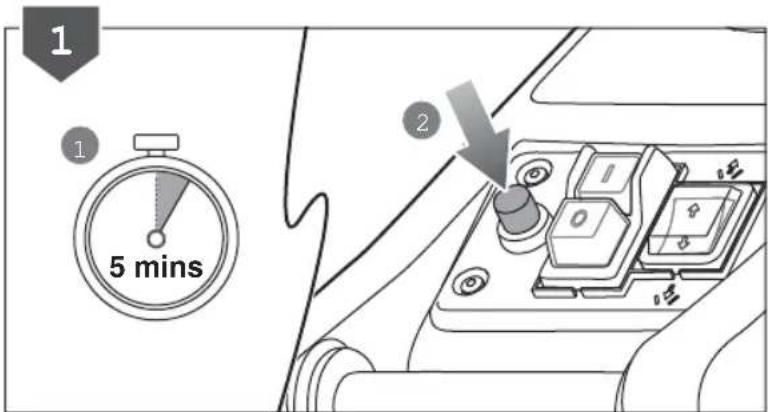

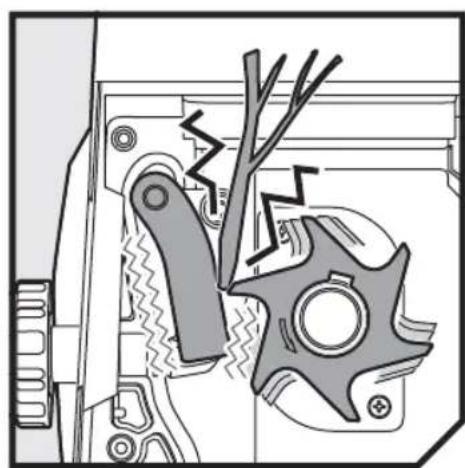

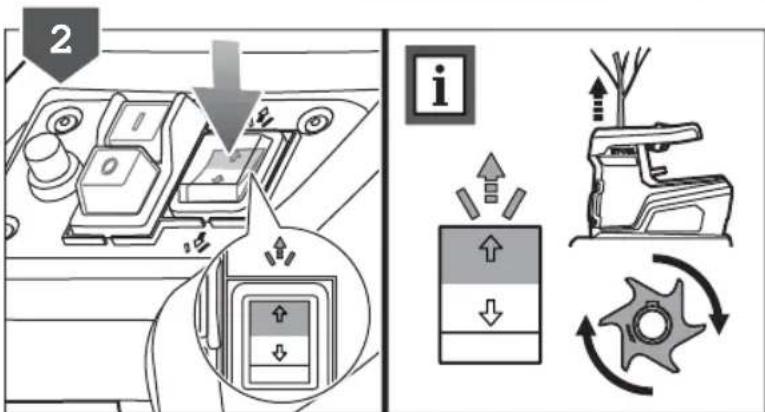

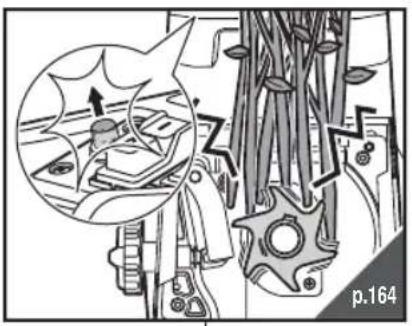

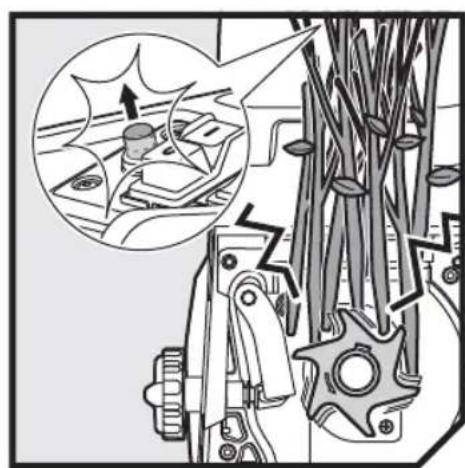

Motor does not run. The overload protection has operated Wait for the motor to cool, press the reset button. Switch on the product again. Power failure Check the power supply cable, the plug and the house fuse. Material to be shredded is not drawn in The material is jammed in the feeding funnel. Follow instruction in the manual for clearing obstructions. Shaving plate is too far from the cutting means. Follow instruction in the manual for shaving plate adjustment. Français

PROBLÈME CAUSE POSSIBLE ACTION

PROBLEMA POSSÍVEL CAUSA ACÇÃO

indicates a load profi le of 4 minutes load and 6 minutes idle time. For practical application, (i.e. collecting waste and shredding) continuous operation is permitted.

cutting diameter depends on the hardness of the wood. REMARQUE:

CONDITIONS D'APPLICATION DE LA GARANTIE

WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a guarantee as stated below.

1. The warranty period is 24 months for consumers and commences on the

date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use.

2. There is a possibility to extend for a part of the range of garden tools

(AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of the tools for extension of the warranty period is clearly displayed in stores and / or on packaging / and contained within the product documentation. The end user needs to register his/her newly-acquired tools online within 30 days from the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the data that are required to be entered online, and they have to accept the terms and conditions. The registration conrmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period

due to defaults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or being incorrectly connected. This warranty does not apply to: – any damage to the product that is the result of improper maintenance – any product that has been altered or modified – any product where original identification (trade mark, serial number) markings have been defaced, altered or removed – any damage caused by non-observance of the instruction manual – any non CE product – any product that has been attempted to be repaired by a non-qualified professional or without prior authorization by Techtronic Industries – any product connected to improper power supply (amps, voltage, frequency) – any product used with inappropriate fuel mixture (fuel, oil, percentage of oil) – any damage caused by external influences (chemical, physical, shocks) or foreign substances – normal wear and tear spare parts – inappropriate use, overloading of the tool – use of non-approved accessories or parts – Any periodic adjustments to or maintenance cleaning of carburetors – Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

4. For servicing, the product must be sent or presented to a RYOBI authorized

service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short description of the fault.

5. A repair / replacement under this warranty is free of charge. It does not

constitute an extension or a new start of the warranty period. Exchanged parts or tools become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the tool remain unaffected

6. This warranty is valid in the European Community, Switzerland, Iceland,

Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

EC DECLARATION OF CONFORMITY
